Description
Right Hand Heavy-Duty Indexable Grooving & Cut-Off Holder
- For shallow precision grooving and profile/copy turning
- O-ring, snap-ring, relief grooving, and high production
- Opening of wide grooves by plunging and side turning
- Precision clamping and insert indexing accuracy
- Stable under side cutting forces when profile turning
- Maximum stability due to short overhang
| Item SKU # | Toolholder SKU# | Dimensions | Inserts | Screw | |||||
| A | H | L | B | T |
Compatible but not included Insert (SKU#) |
Compatible but not included Insert (SKU#) |
|||
| 2415-5022INS |

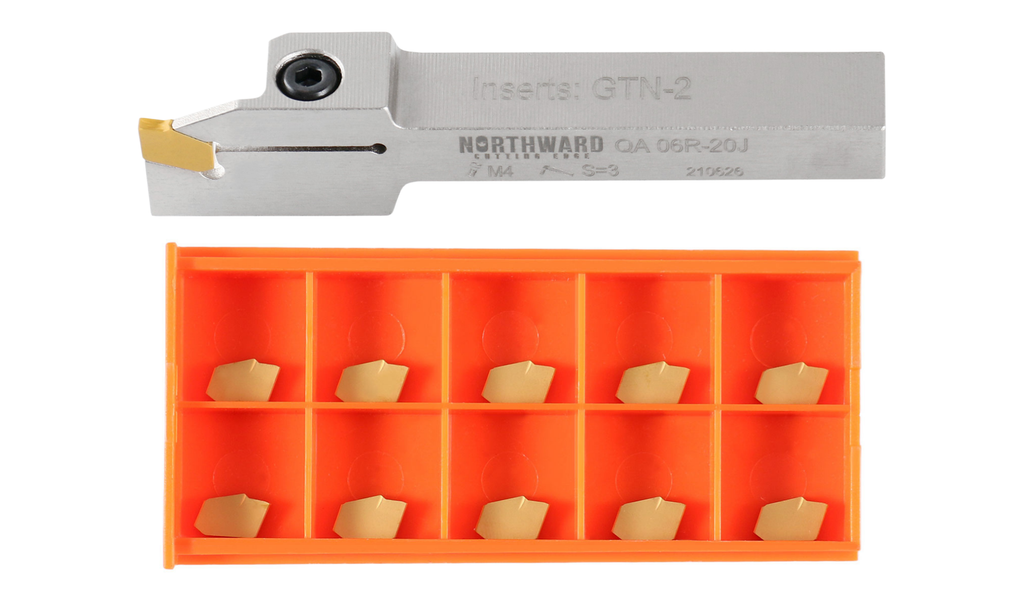

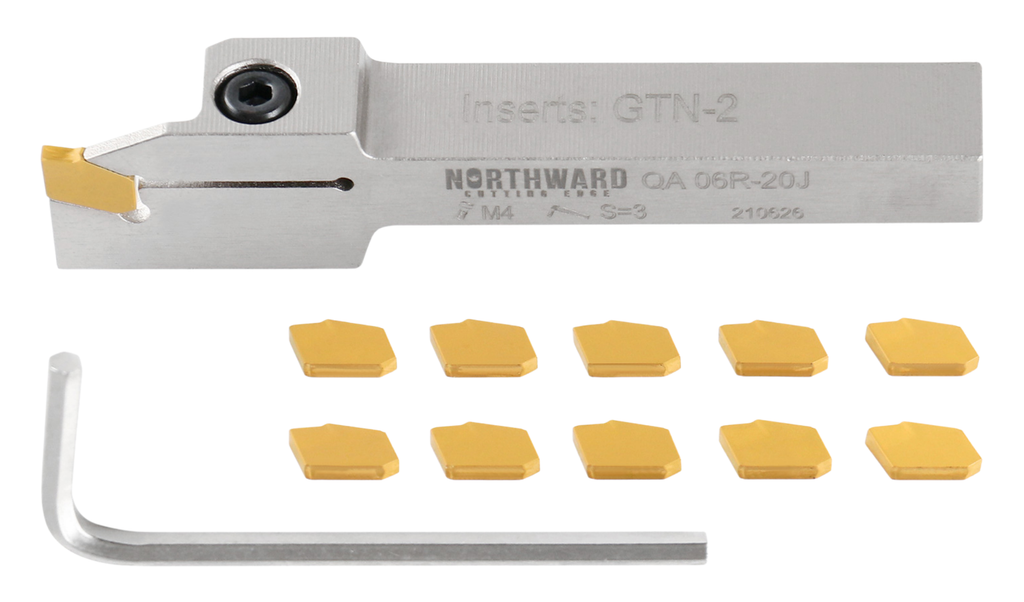

QA06R-20J (2415-5022) |
1/2" | 3/8" | 3-1/2" | 0.079" | 0.63" |
Cutting Steel: TiN Coated, GTN-2 (2403-2003) |
Cutting Aluminum: GTN-2 (2403-8003) |
GB70-85/M4 X 10 (0047-4010) |
| 2415-5024INS |

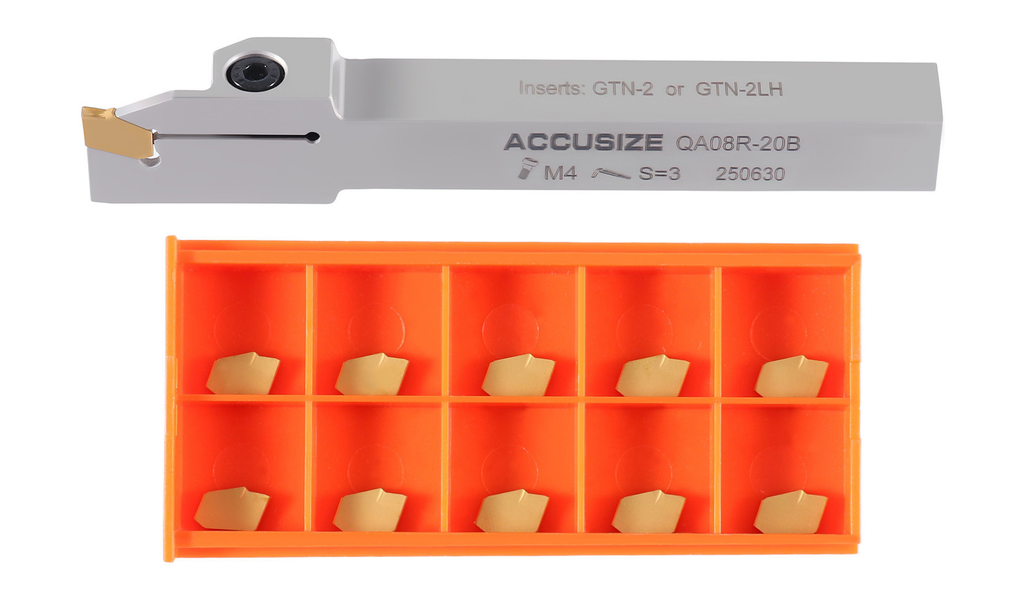

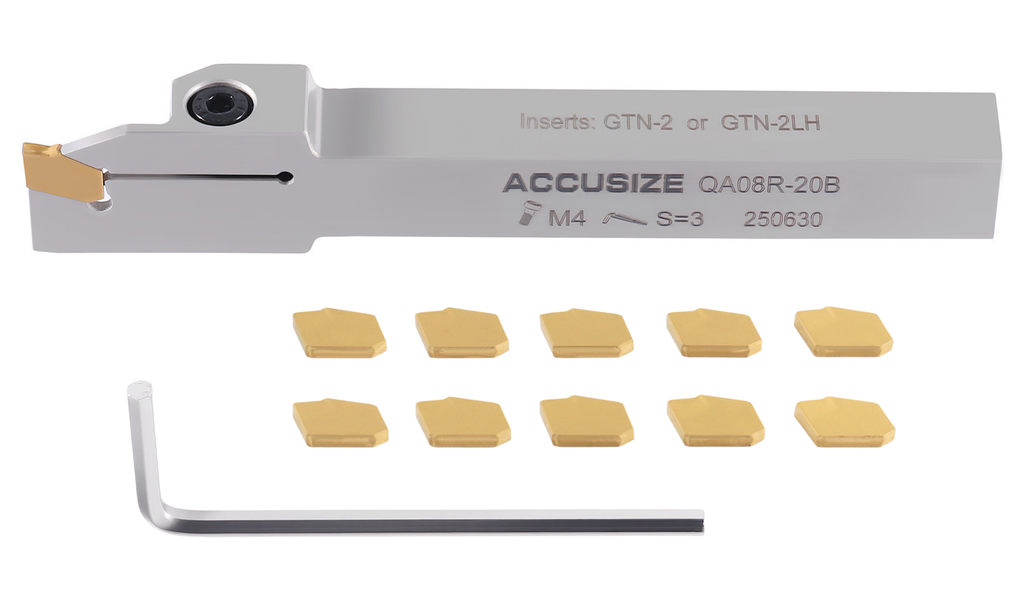

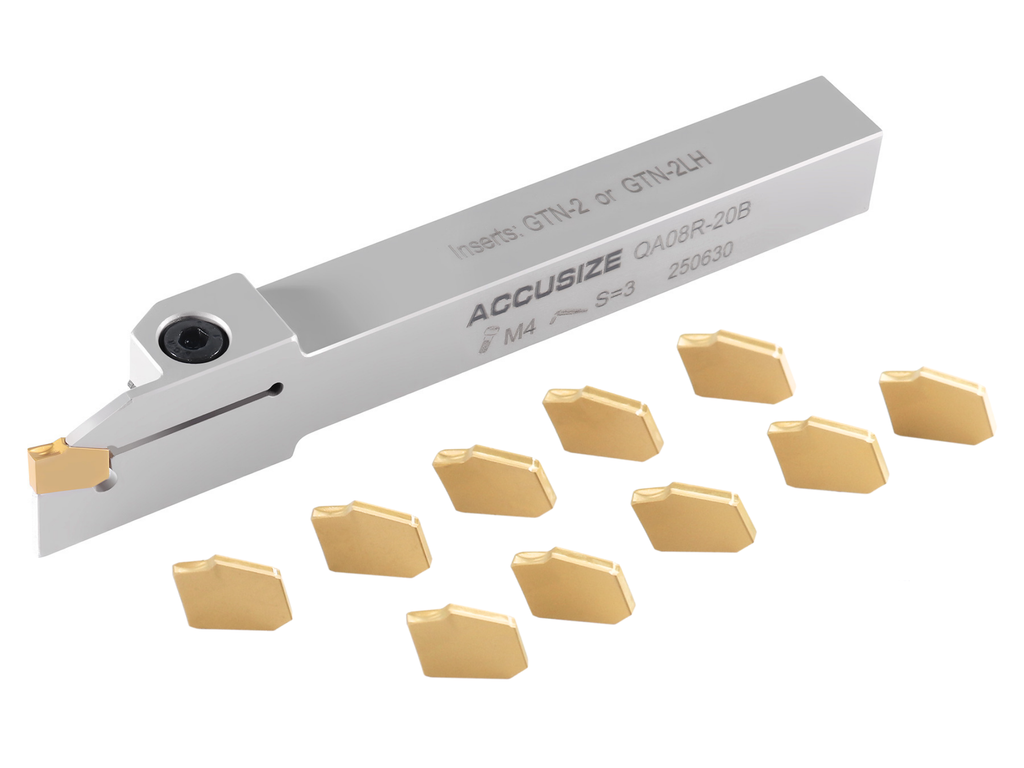

QA08R-20B (2415-5024) |
1/2" | 1/2" | 4.5" | 0.079" | 0.63" | |||
| 2415-5030INS |

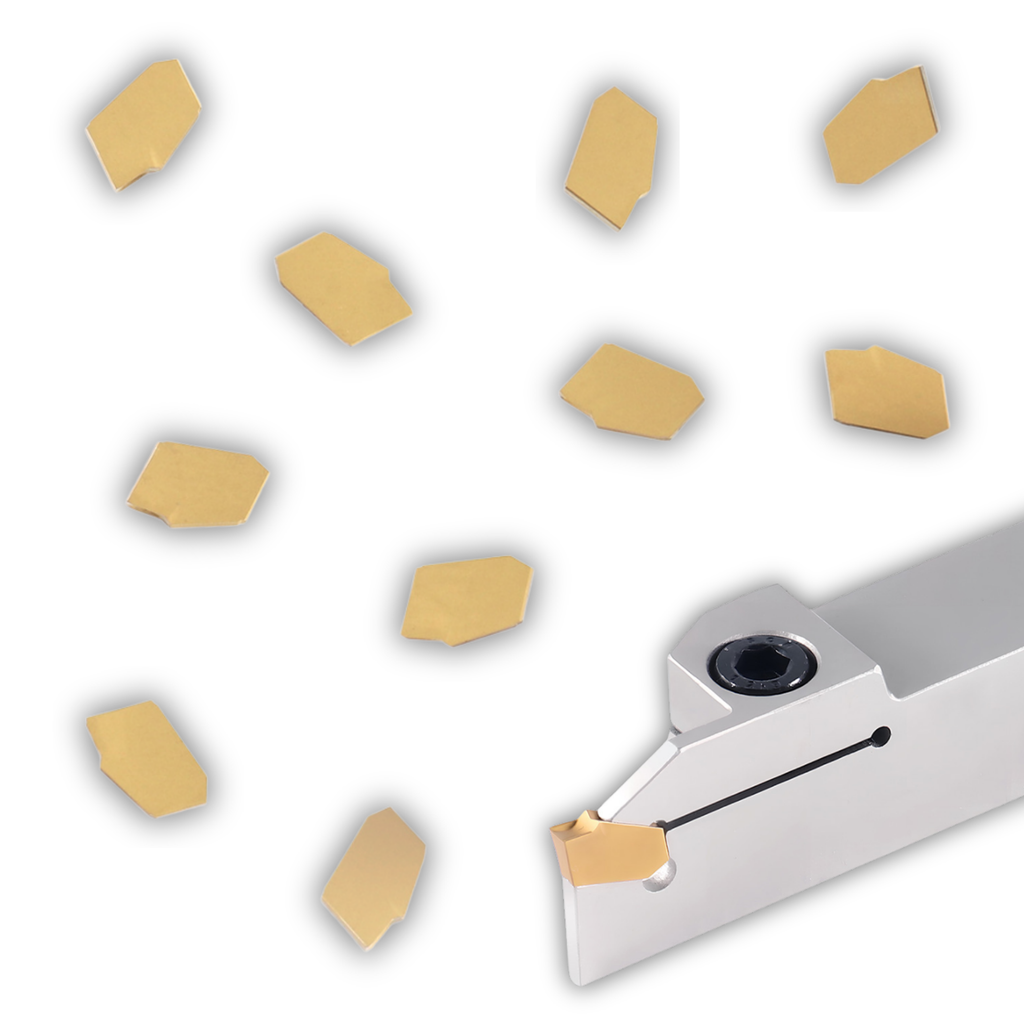

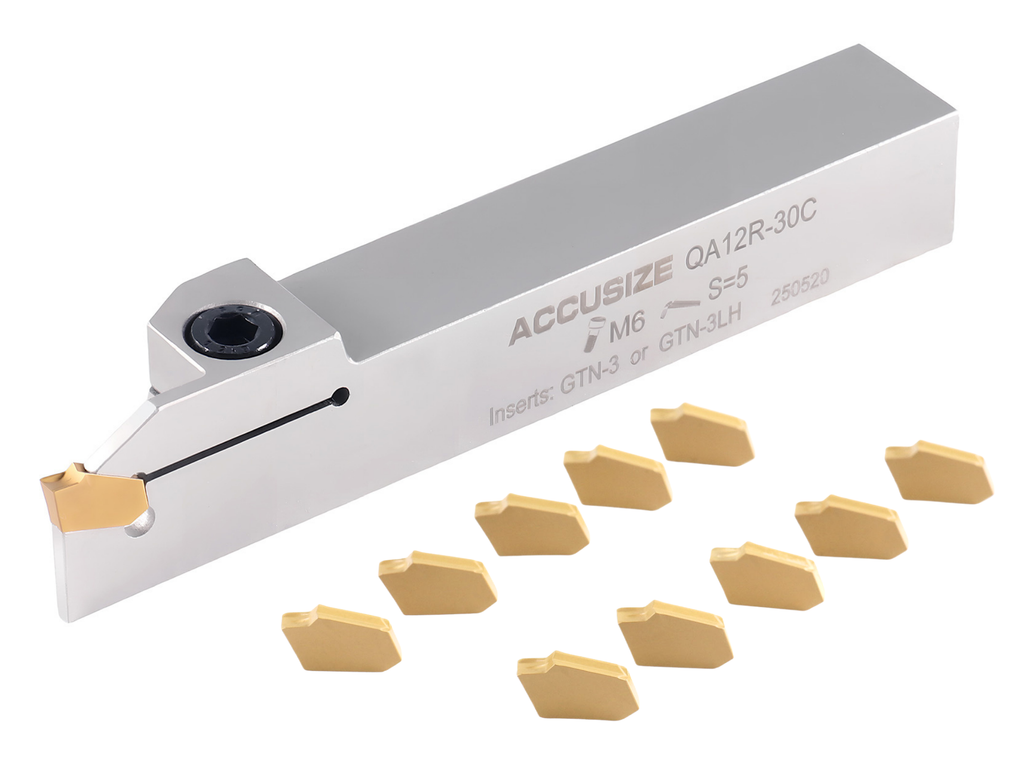

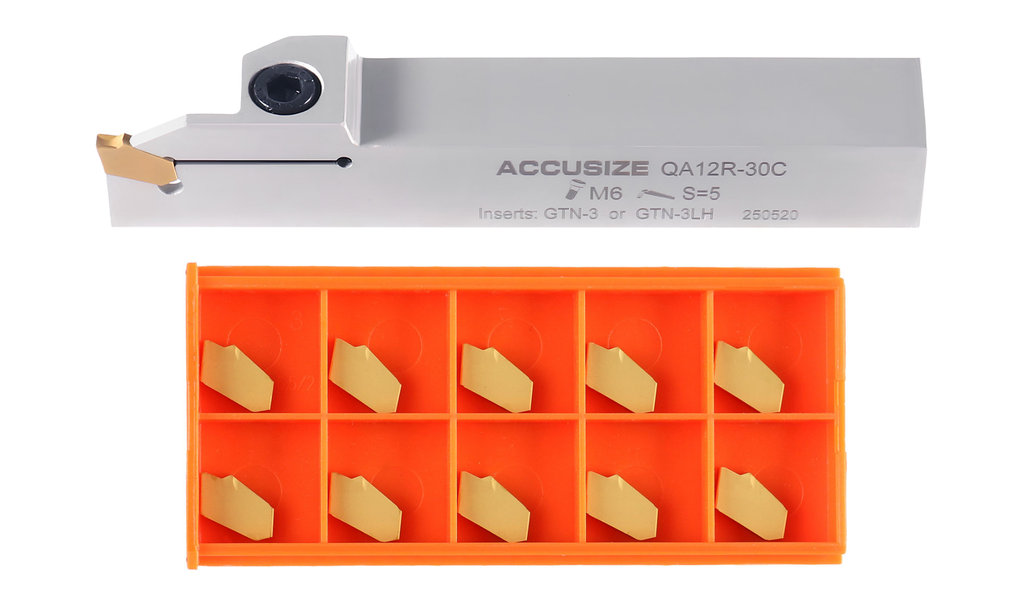

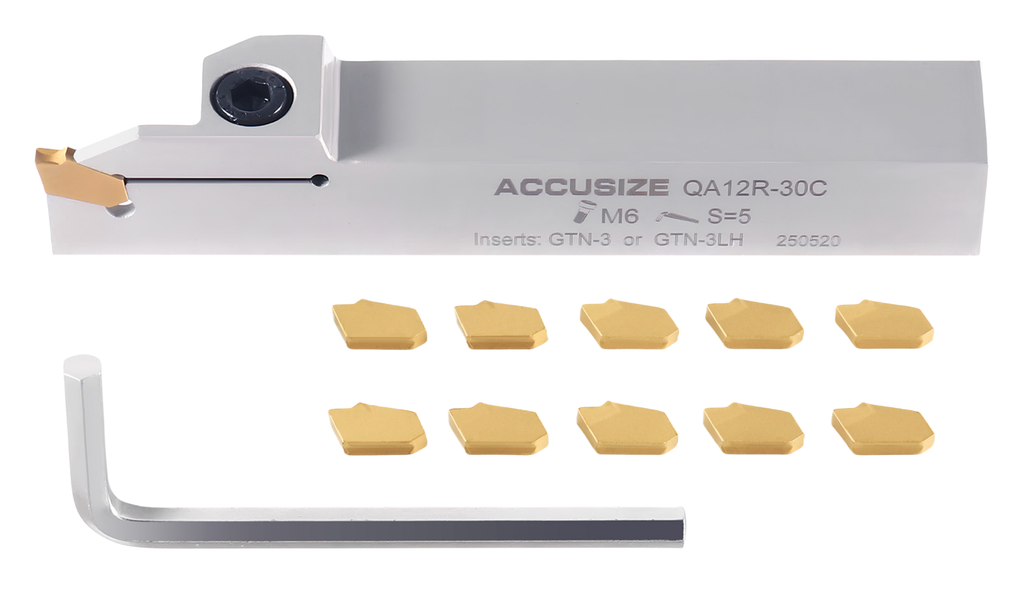

QA12R-30C (2415-5030) |
3/4" | 3/4" | 5" | 0.118" | 0.79" |
Cutting Steel: TiN Coated, GTN-3 (2403-2004) |
Cutting Aluminum: GTN-3 (2403-8004) |
GB70-85/M5 X 12 (0047-5012) |
| 2415-5036INS |

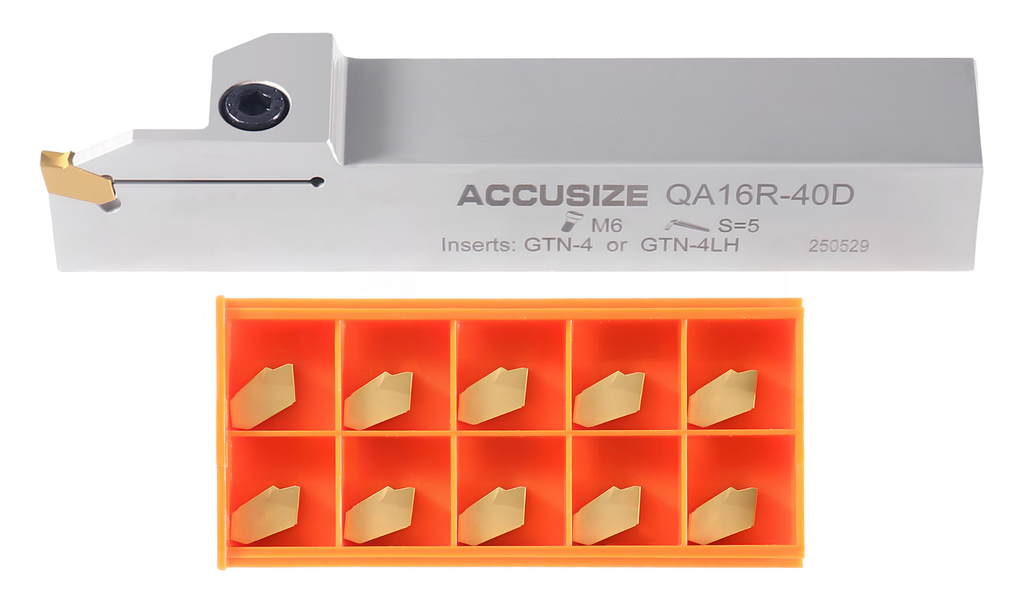

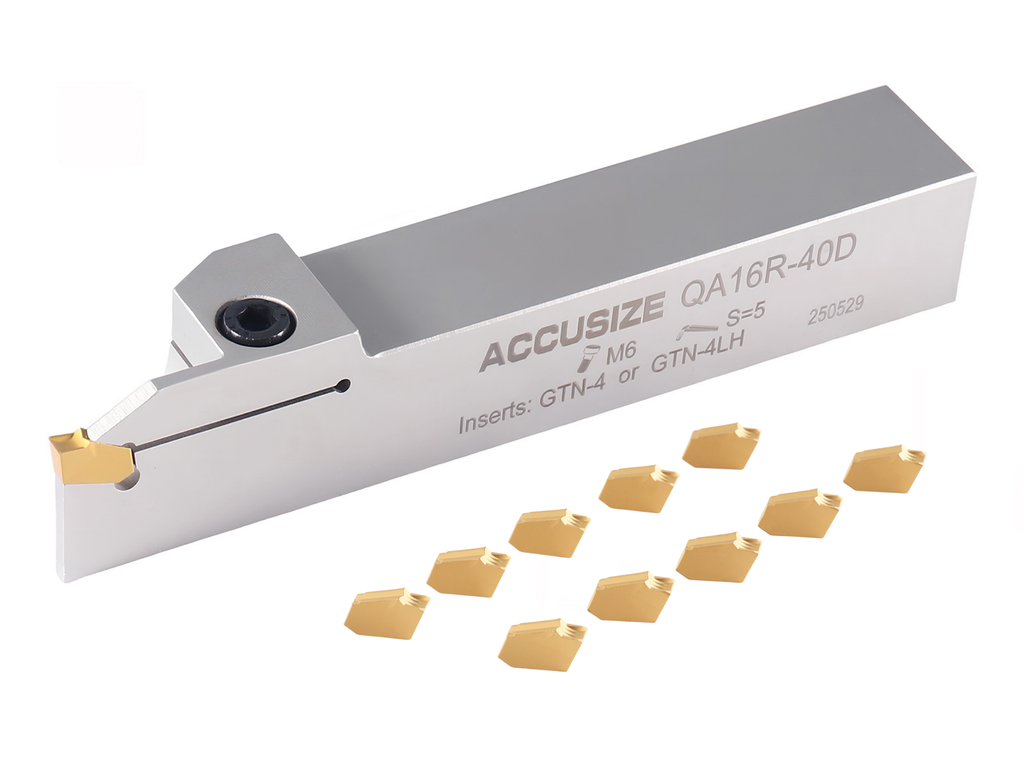

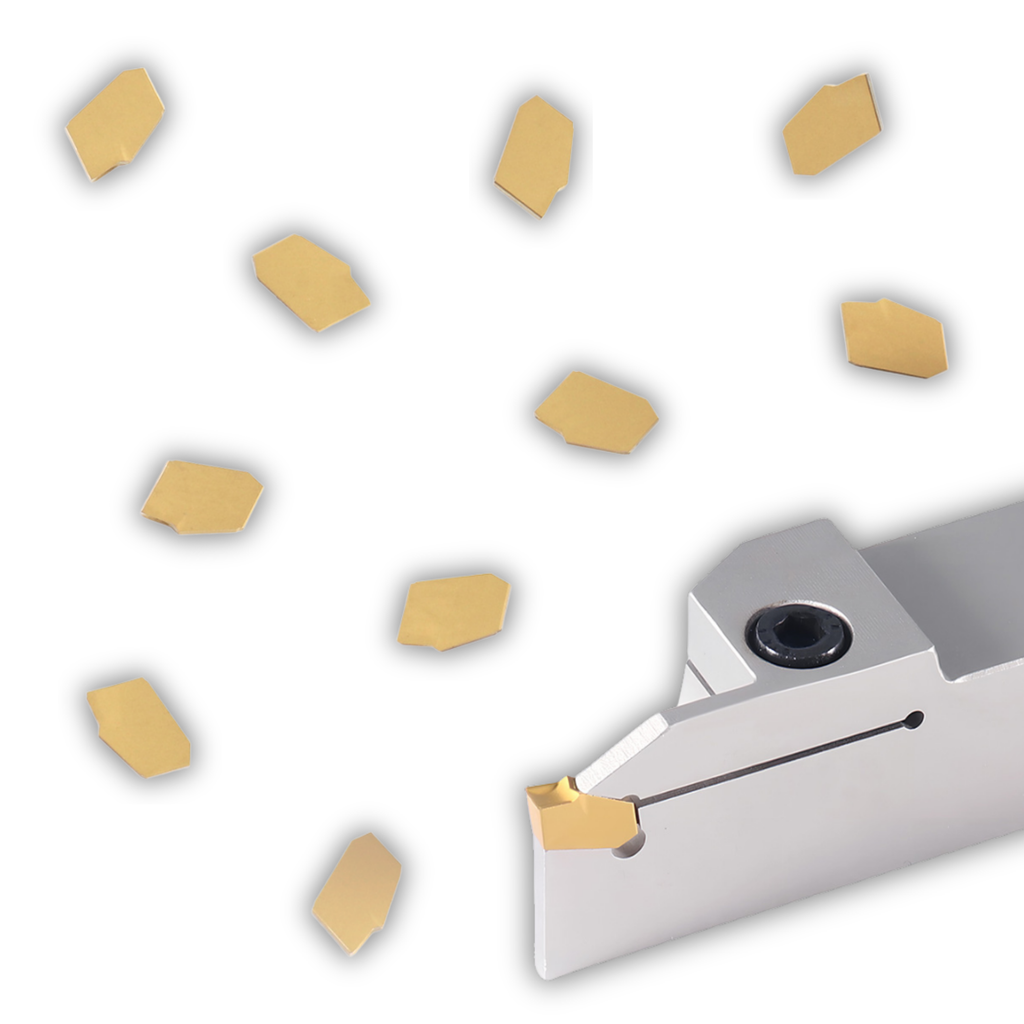

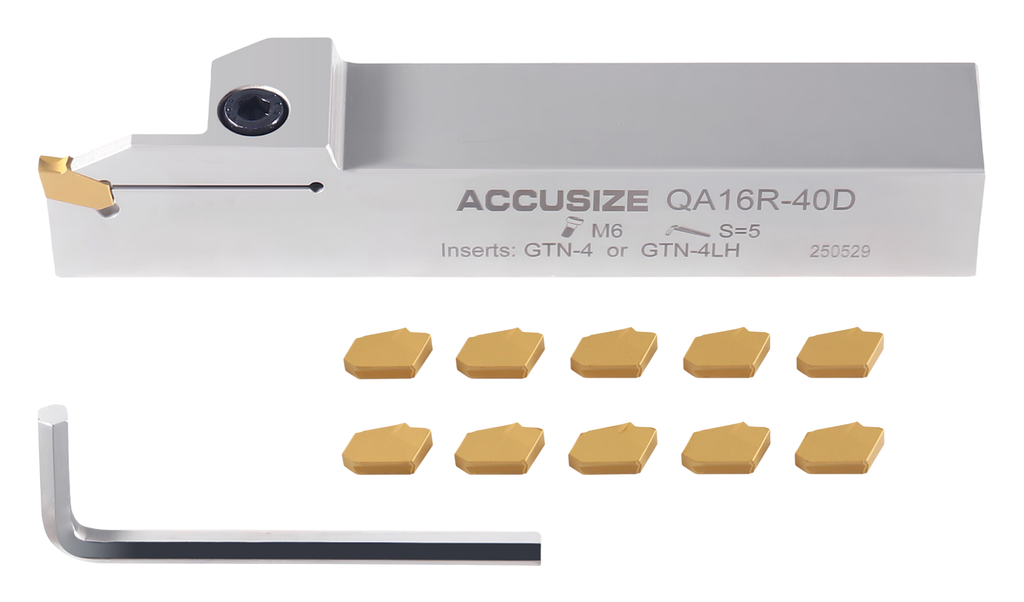

QA16R-40D (2415-5036) |
1" | 1" | 6" | 0.157" | 0.98" |
Cutting Steel: TiN Coated, GTN-4 (2403-2005) |
Cutting Aluminum: GTN-4 (2403-8005) |
GB70-85/M6 X 16 (0047-6016) |

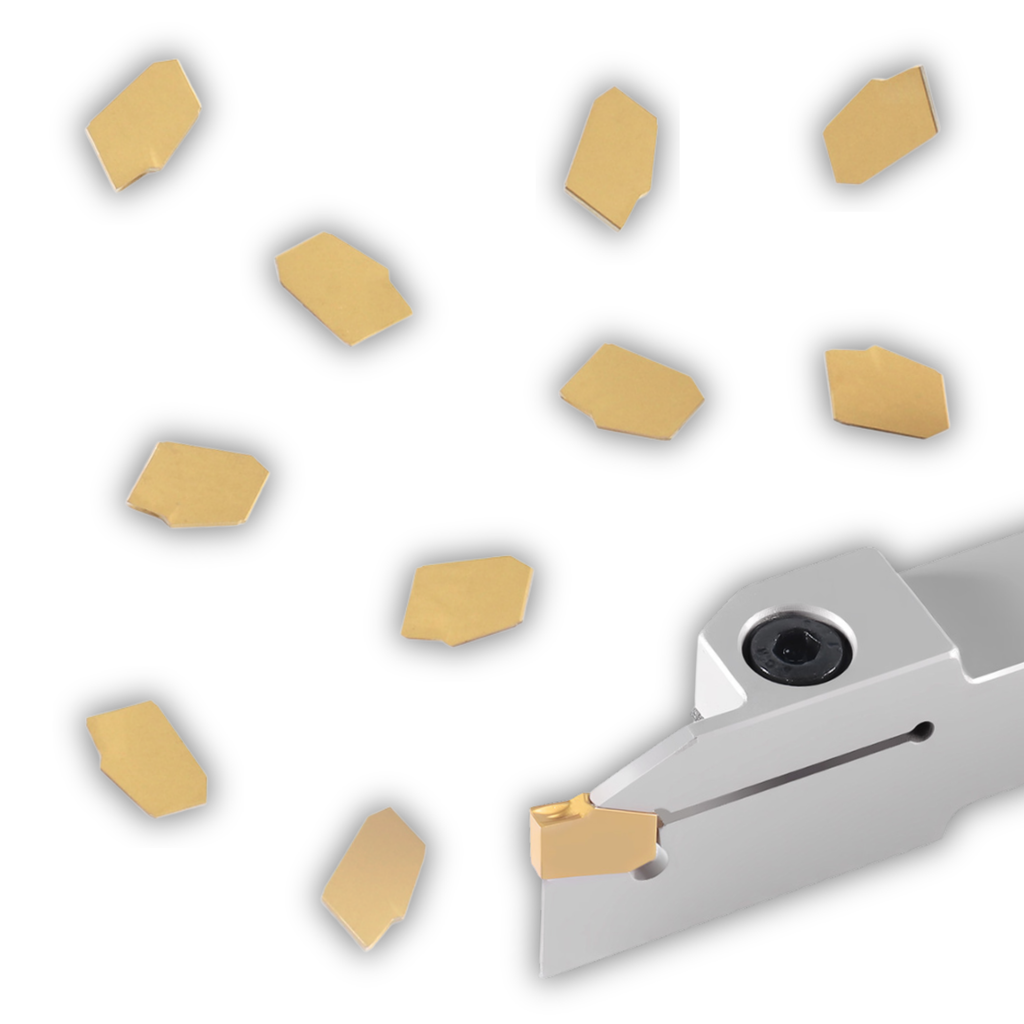

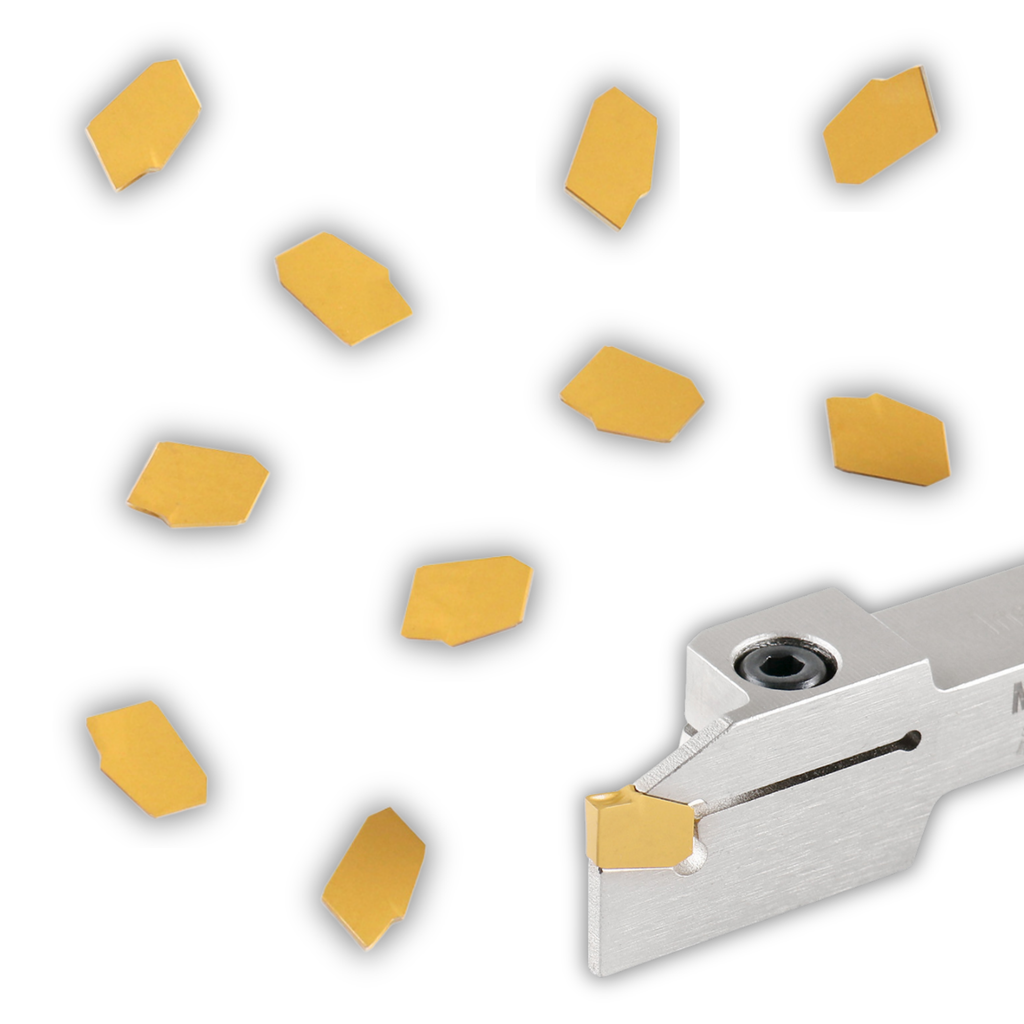

GTN Carbide Inserts, TiN Coated 10 Pcs/Box
- Carbide Inserts
- C5 Grade Coated
- Insert Style: GTN
- 10 pcs/box
- 0° lead angle
| Item # | Insert Style | Insert No. | Thickness |
|---|---|---|---|
| 2403-2003 | GTN | GTN-2 | 0.087" |
| 2403-2004 | GTN | GTN-3 | 0.120" |
| 2403-2005 | GTN | GTN-4 | 0.160" |
