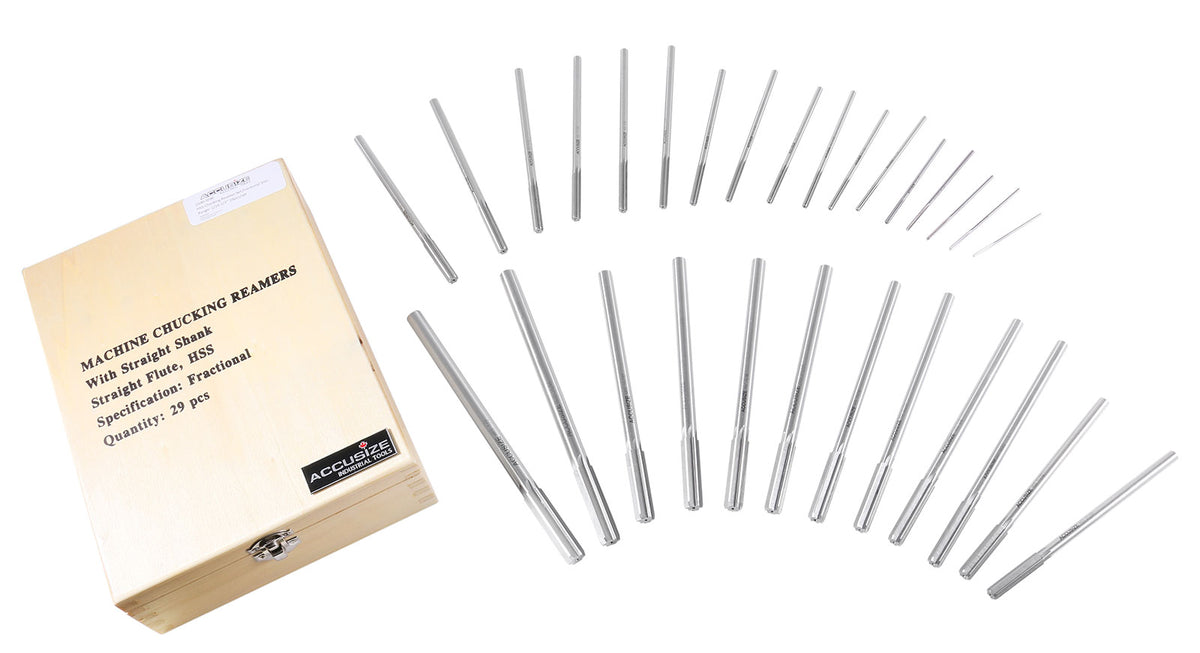

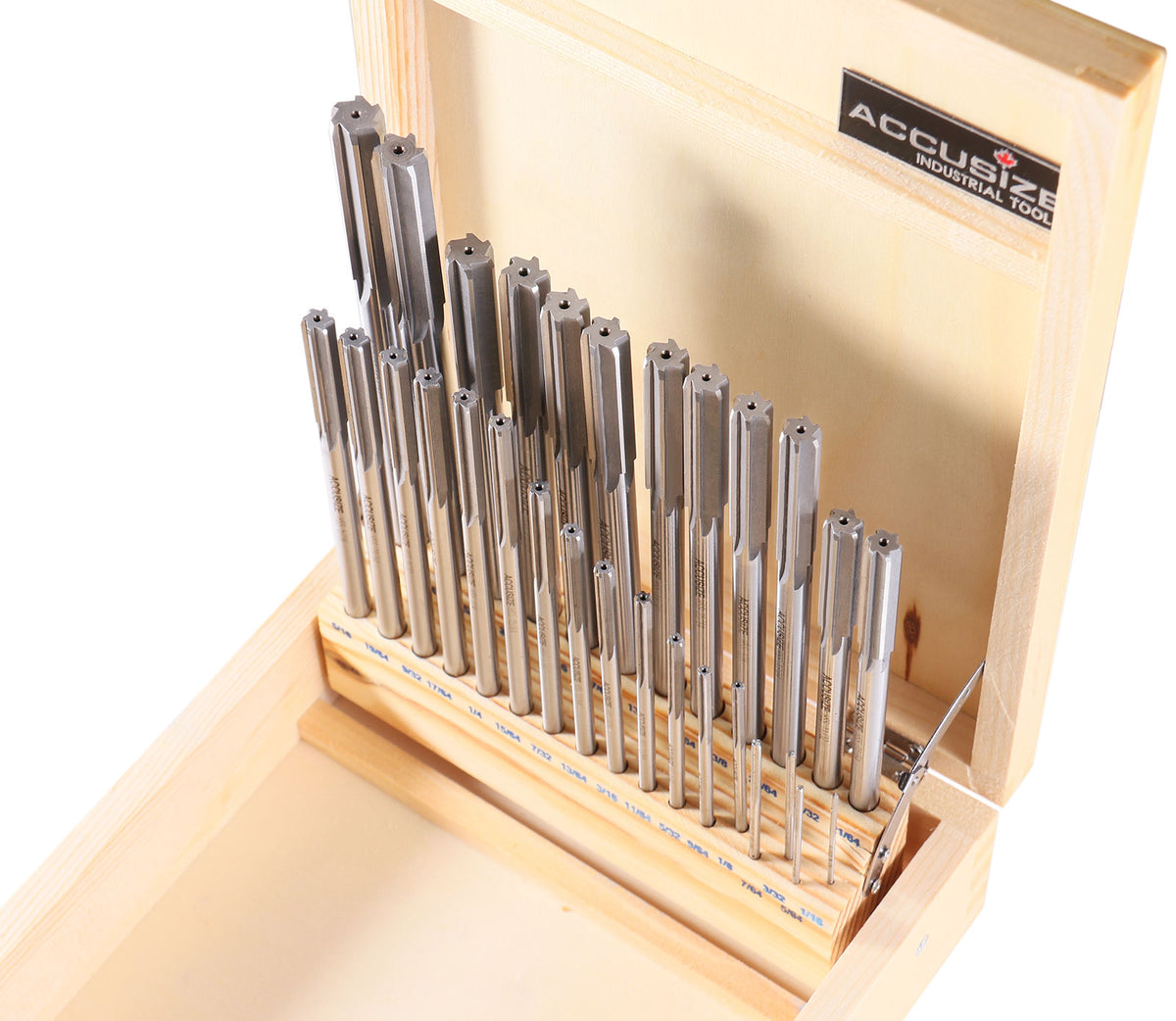

29 Pc 1/16'' to 1/2'' by 1/64'' H.S.S. Chucking Reamer Set, Straight Flute, Right Hand Cut, 5500-SF00

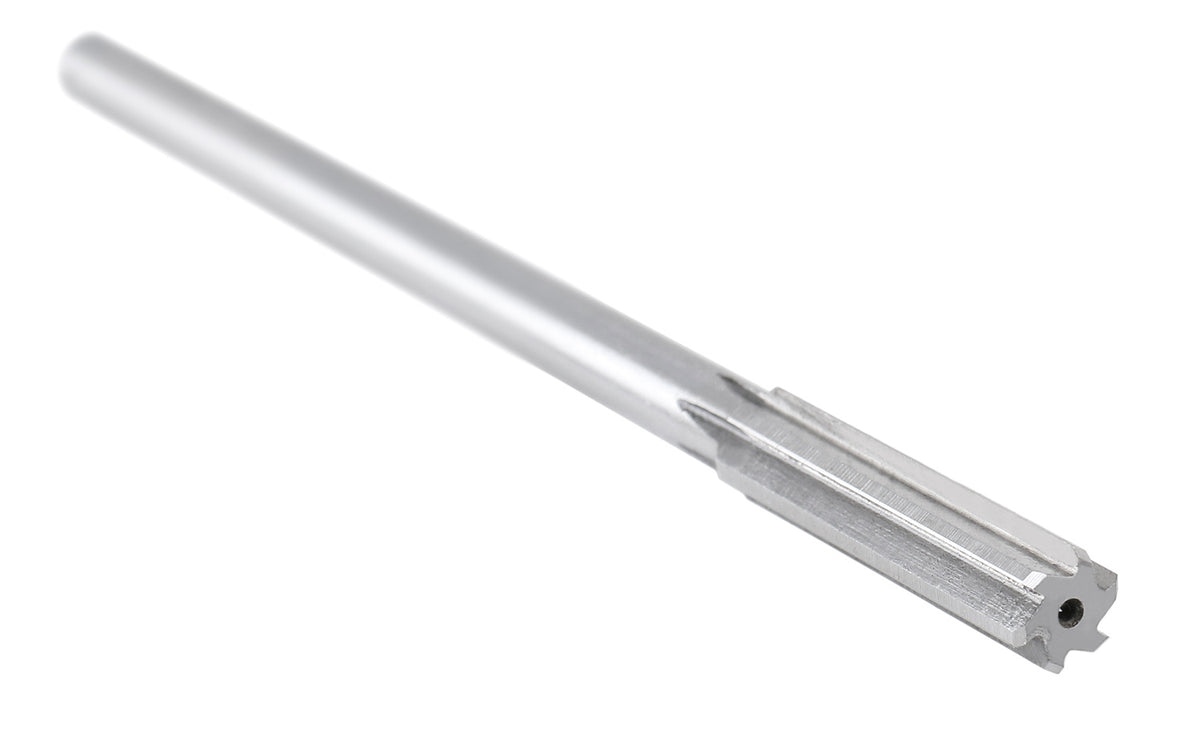

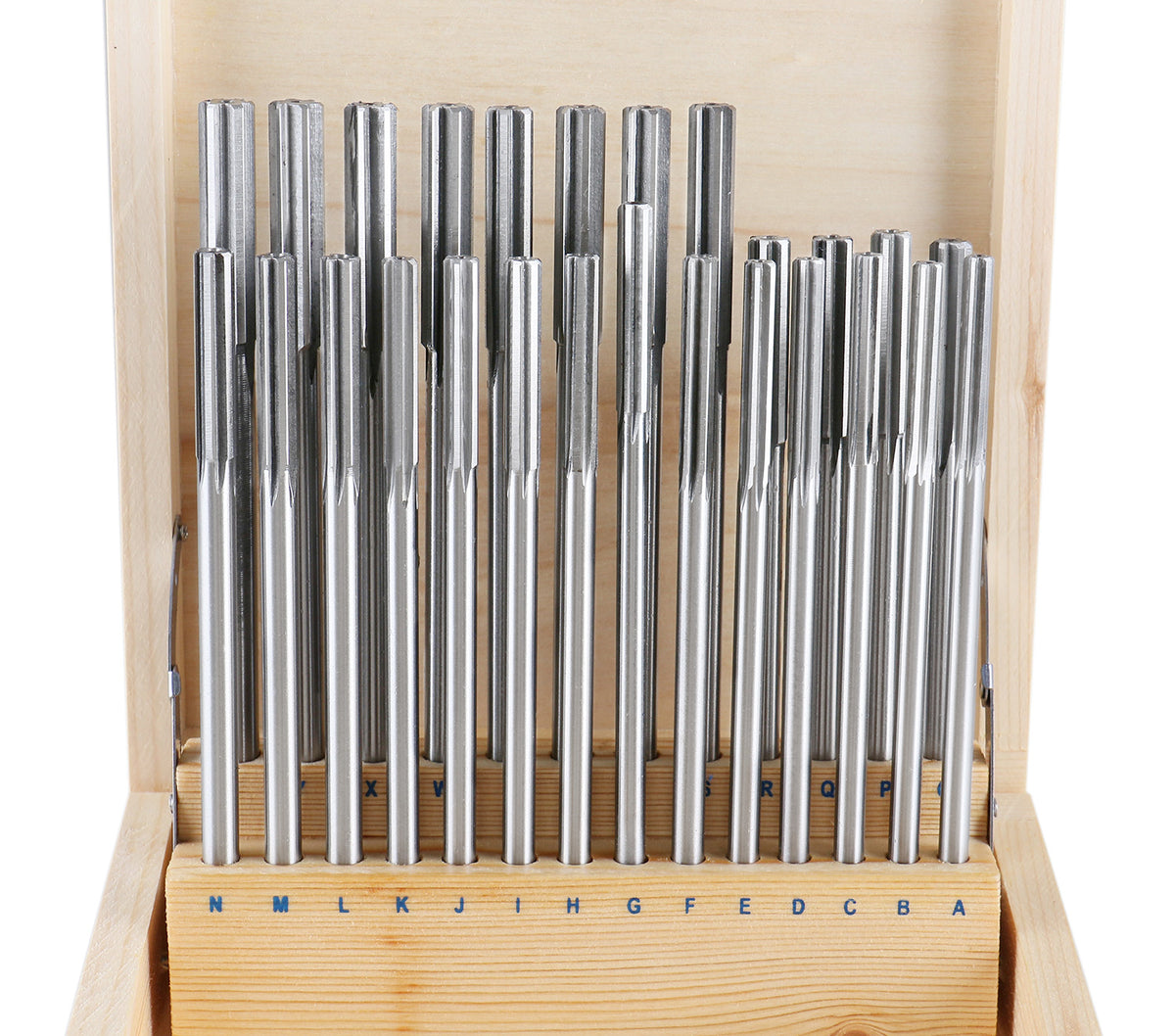

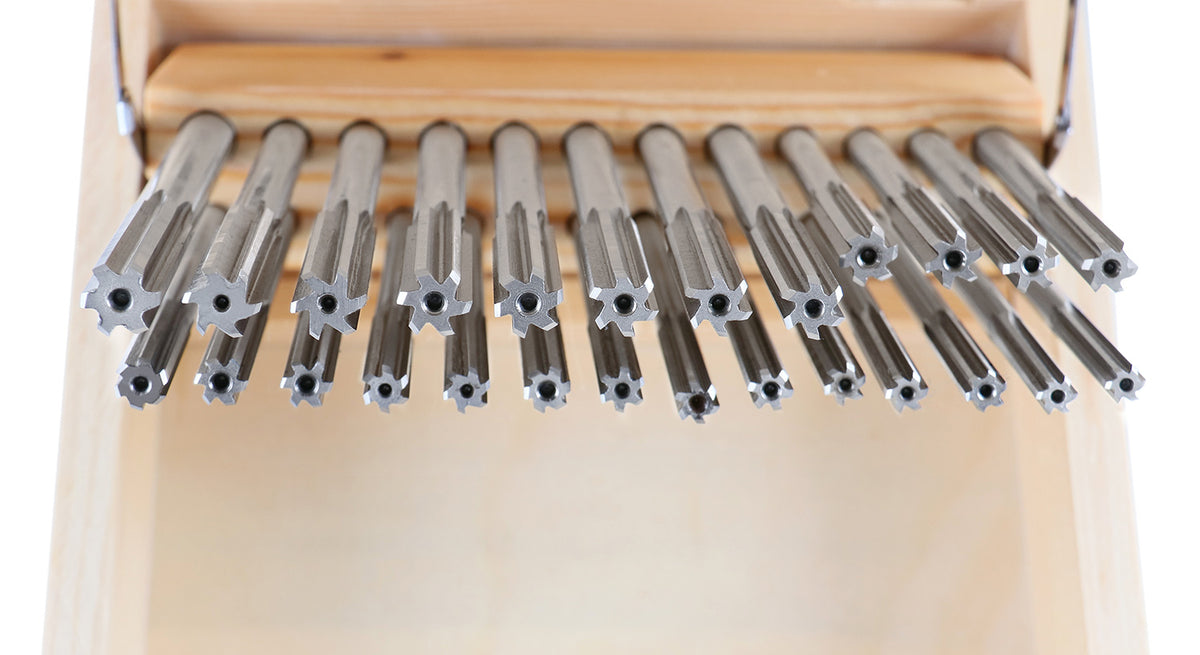

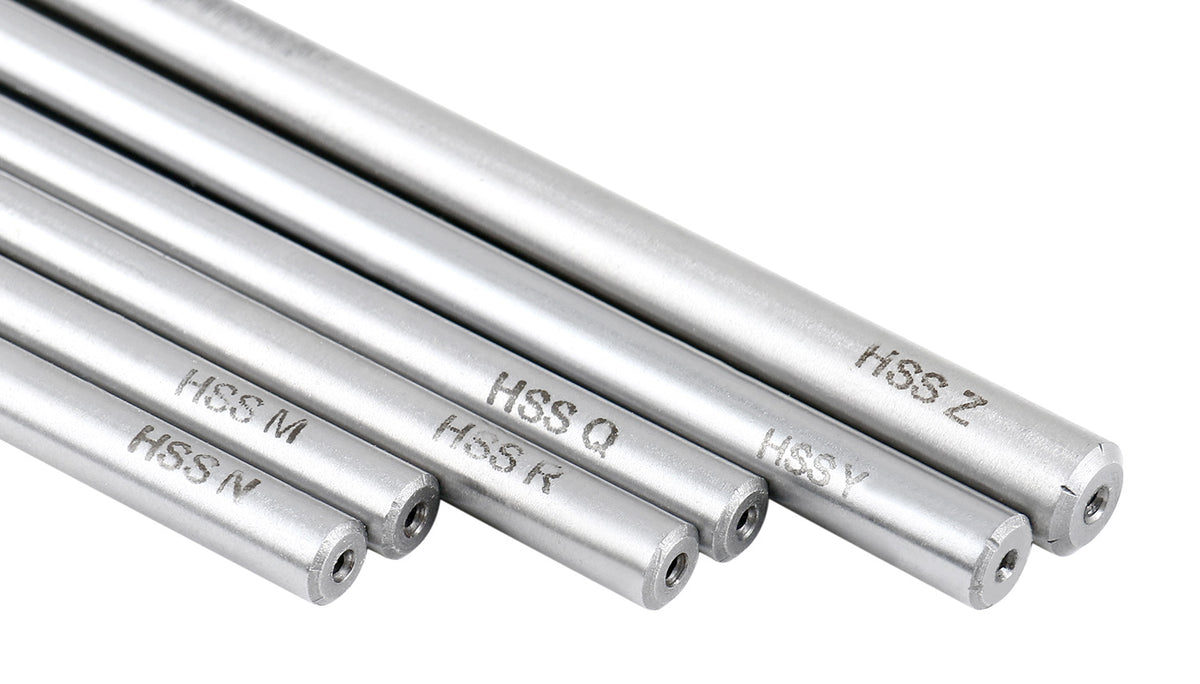

26 Pc Letter Size A to Z H.S.S. Chucking Reamer Set, 5500-SL00

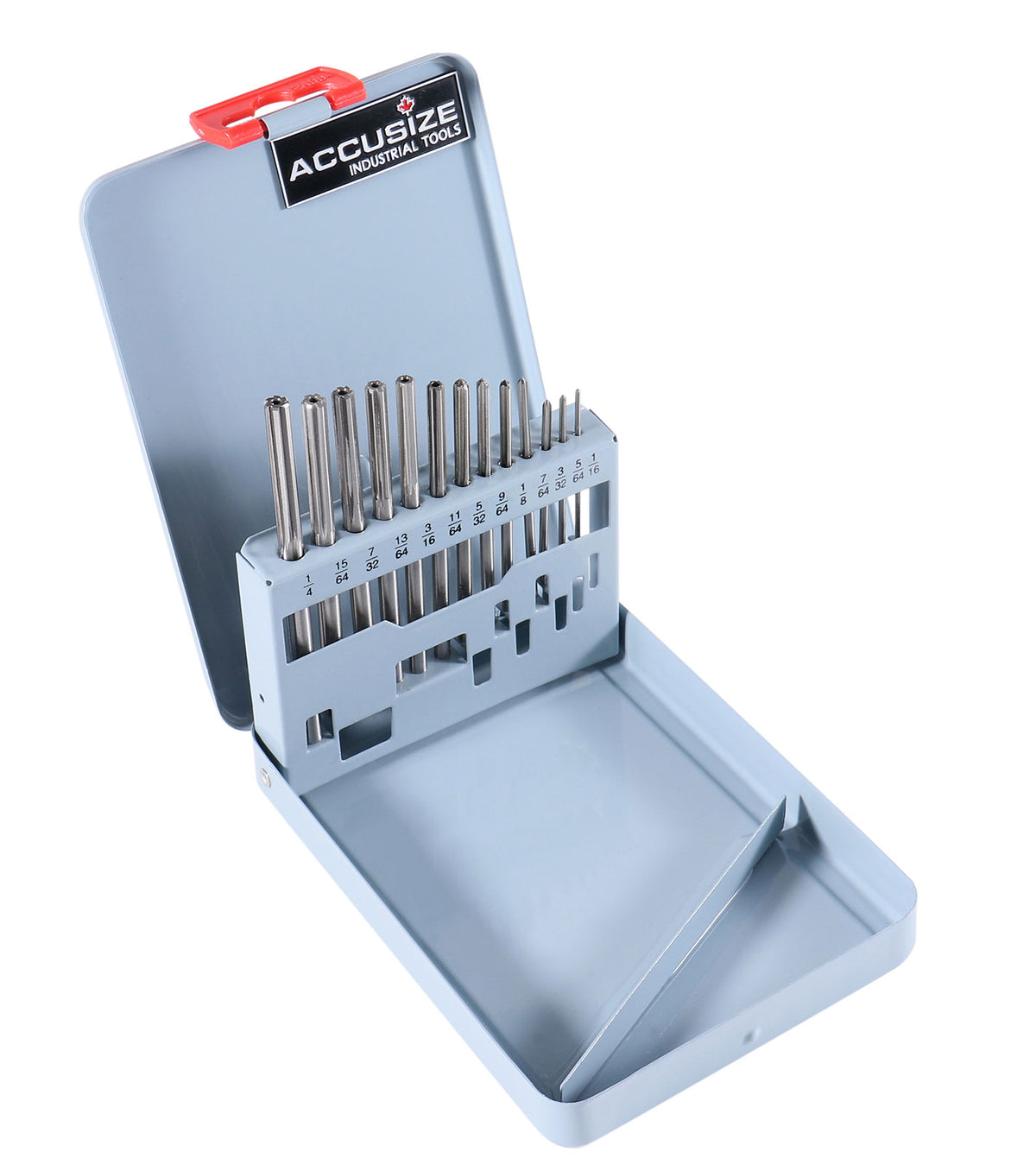

1/16-1/4'' 13 Pcs Hss 6542 Straight Flute, Chucking Reamer Set, 5500-Se00

Passez votre souris pour zoomer Cliquez sur l'image pour zoomer

Ensembles d'alésoirs à mandrins HSS

Accusize Industrial ToolsSKU: 5500-SK00 CUP / code-barres : 663566012926

Range: #1 to 60# (5500-SK00)

Prix:

$574.40

Quantité:

WARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.

For more information, visit www.P65Warnings.ca.gov

Méthodes de paiement

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.

Sécurité

Pays

Région

Code postal

Informations produit supplémentaires

Aperçu

ANSI HSS Chucking Reamer Sets

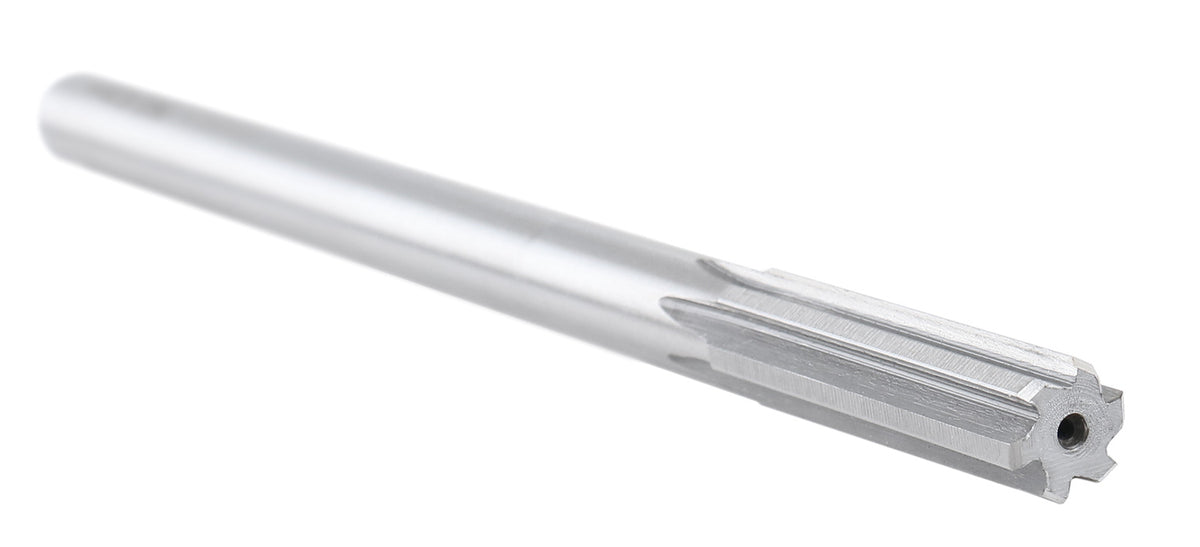

Chucking reamers are also known as machine reamers. They are the most common reamers used in lathes, drill presses and screw machines that provide a smooth finish to the hole. Regarding the counts of flutes, the more flutes a chucking reamer is with, the better performance it has. Accusize chucking reamers come with straight flutes and straight shanks.

ANSI Standard
High-Speed Steel
Straight Shank
Straight Flute, right-hand cut
Diameter tolerance: +0.0001" to +0.0005"
-0.0000"
29ps/set: 1/16" thru 1/2" by 64ths, fractional size
26ps/set: Letter size from A to Z
14ps/set: Over & under size 0.1240" thru. 0.5010", decimal size

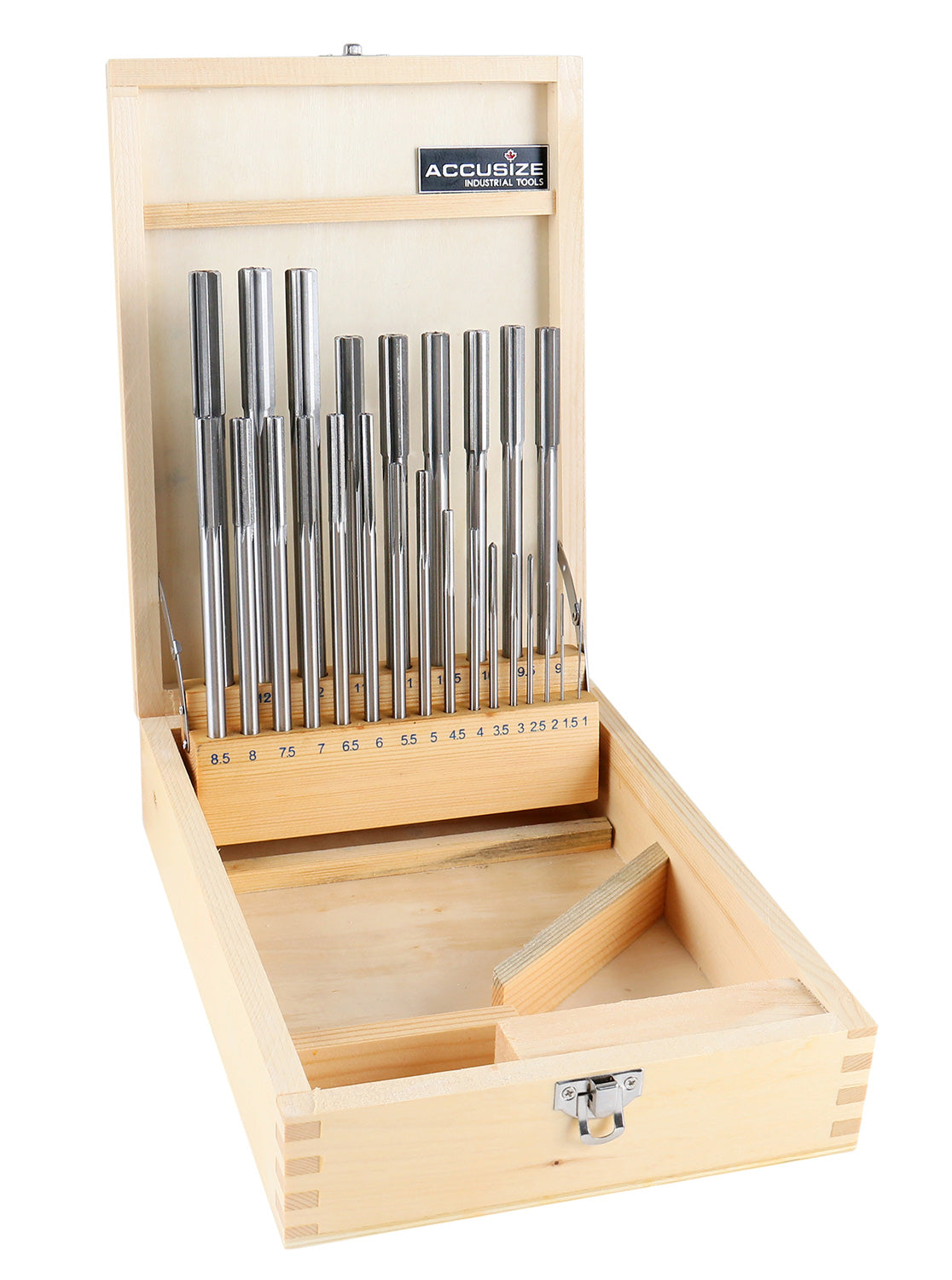

25ps/set: 1.0 mm to 13.0 mm by 0.5 mm
60ps/set: #1 thru #60, wire gauge size
13ps/set: 1/16" thru 1/4" by 64ths, fractional size

Item #	Pieces per set	Range

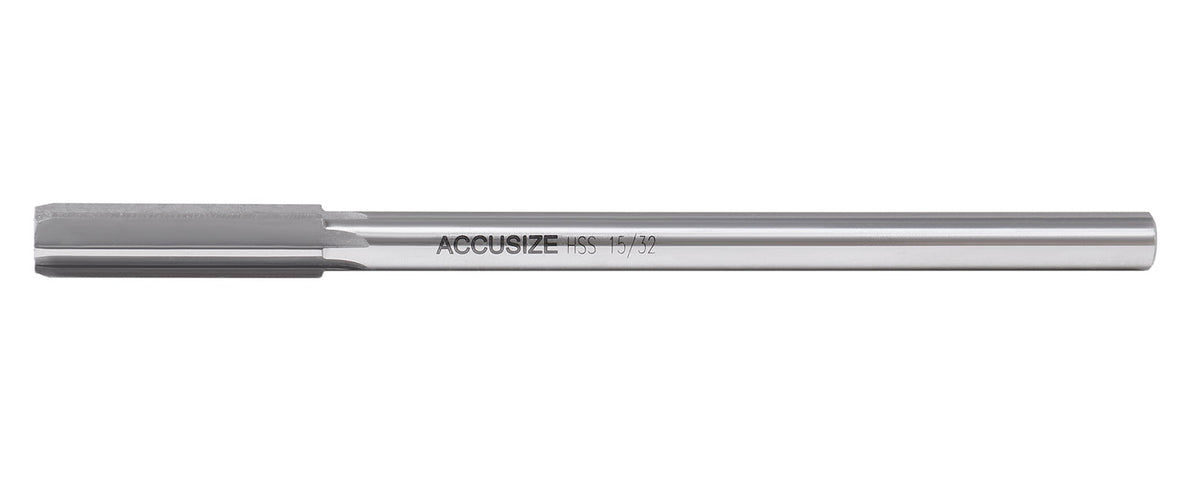

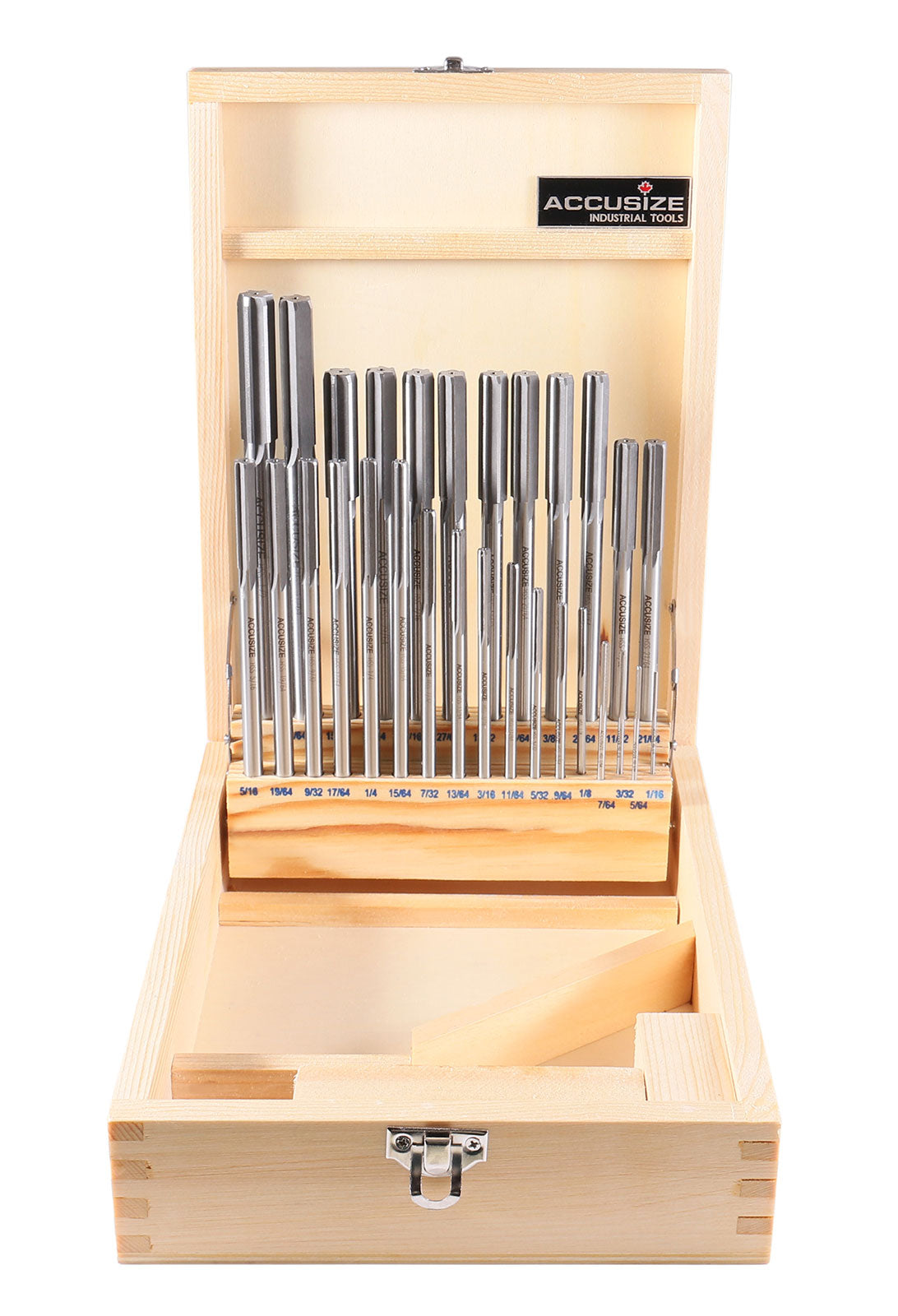

5500-SF00	29	1/16" thru. 1/2" by 1/64"

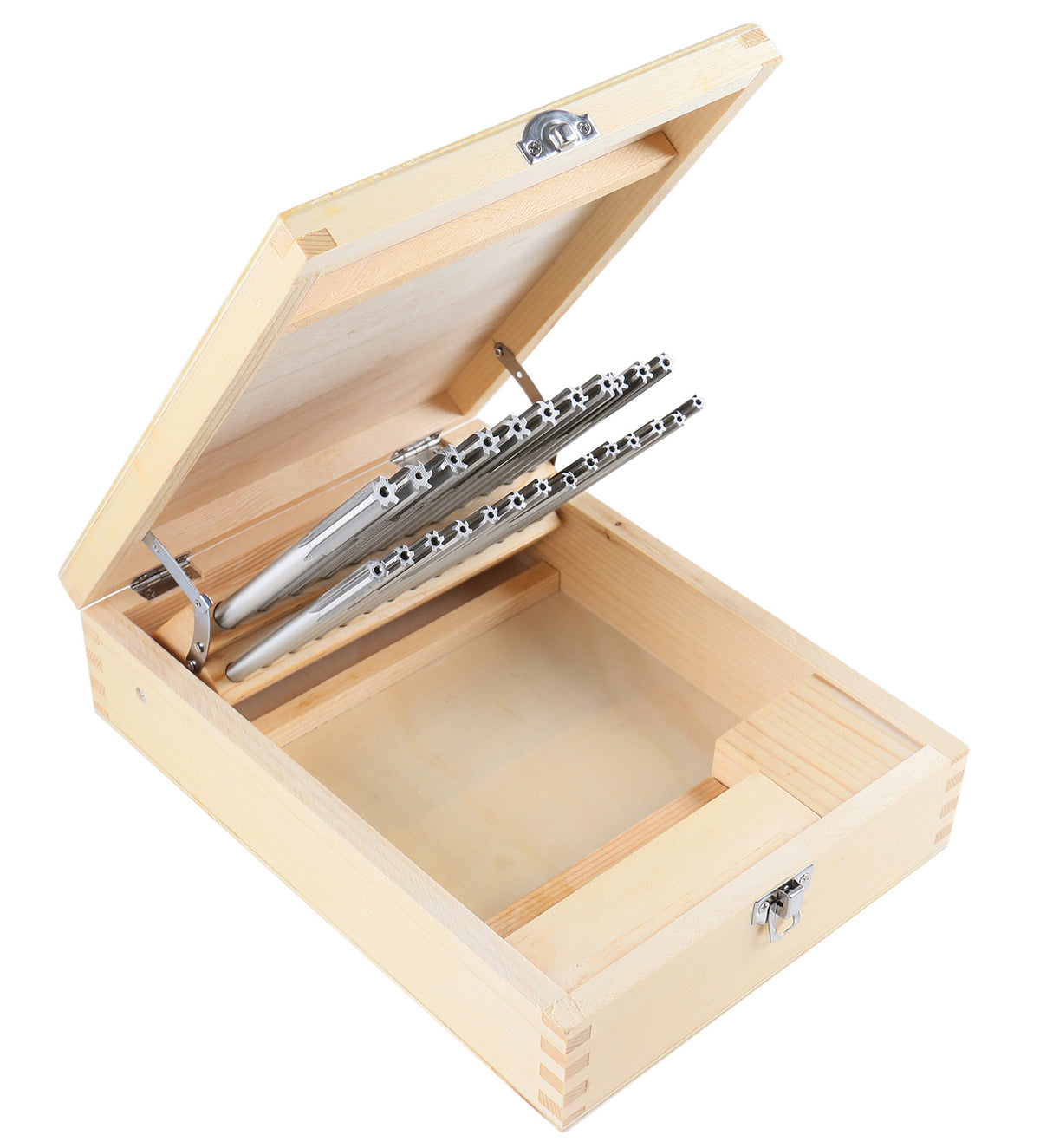

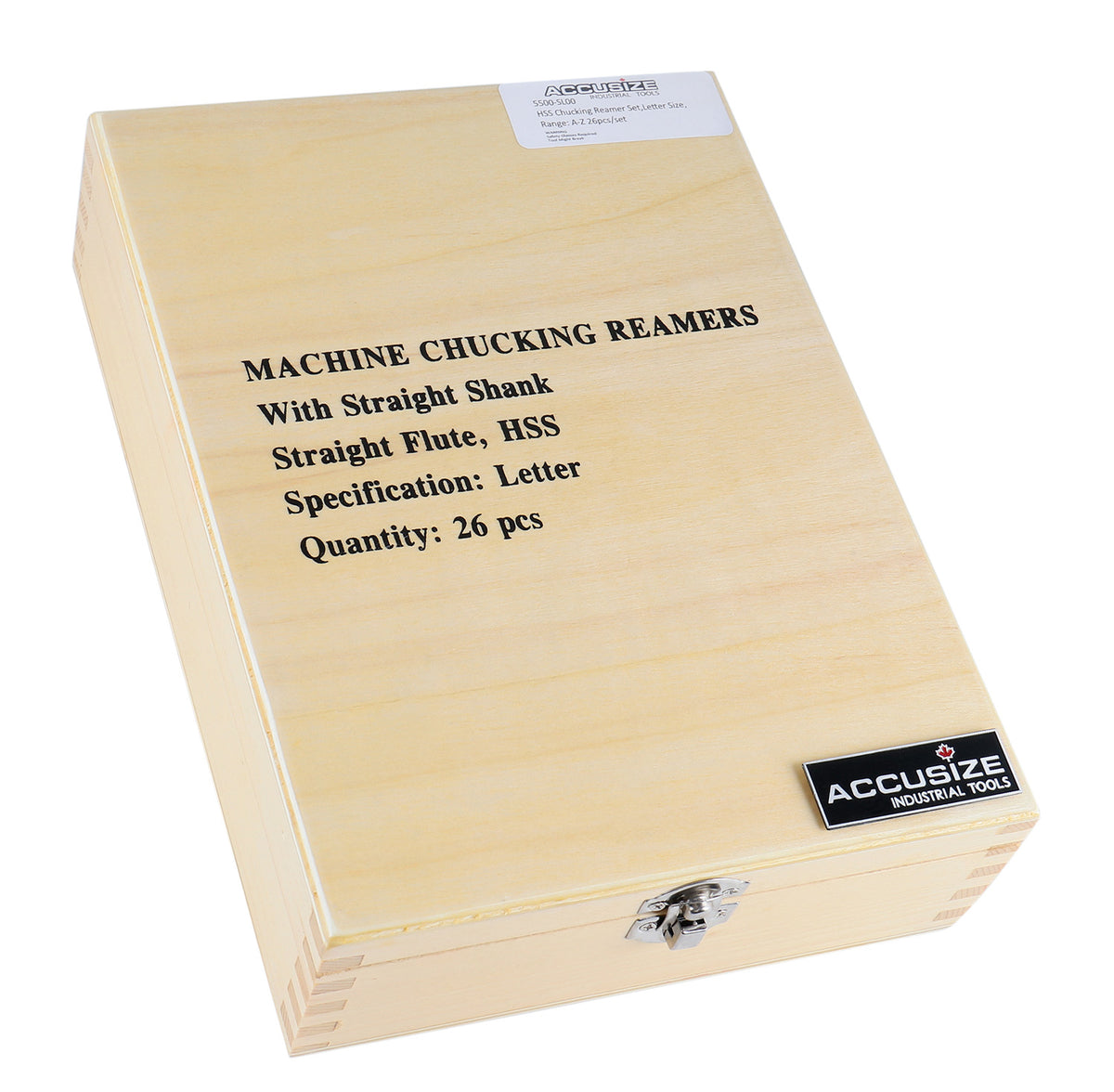

5500-SL00	26	Letter Size A to Z
5500-SX00	14	Over & Under Size 0.1240"-0.5010"
5500-SB00	25	1.0 mm - 13.0 mm by 0.5mm
5500-SK00	60	#1 to 60#
5500-SE00	13	1/16" thru 1/4" by 64ths

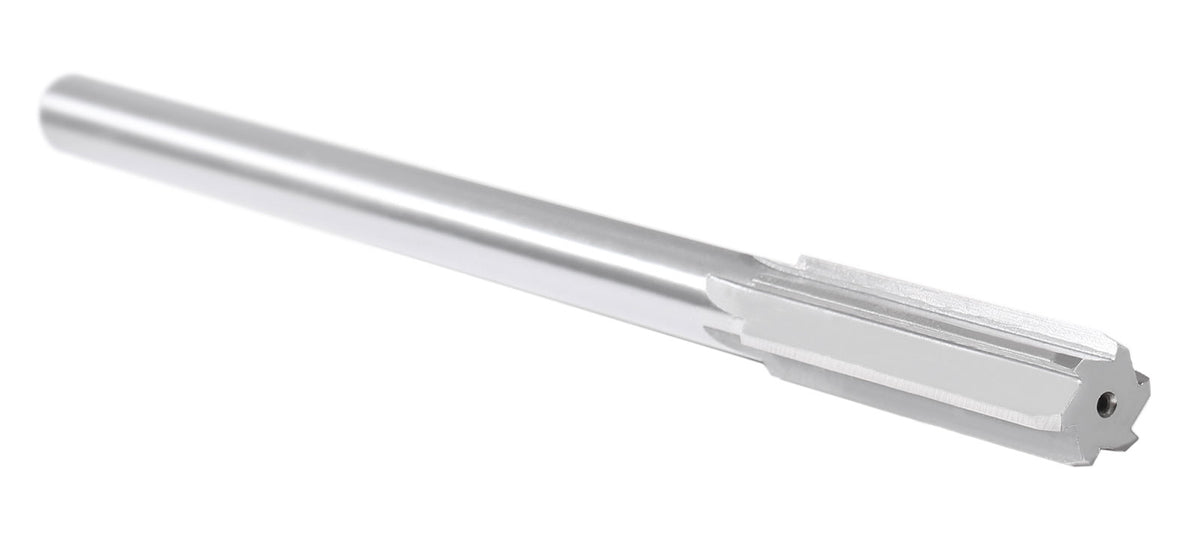

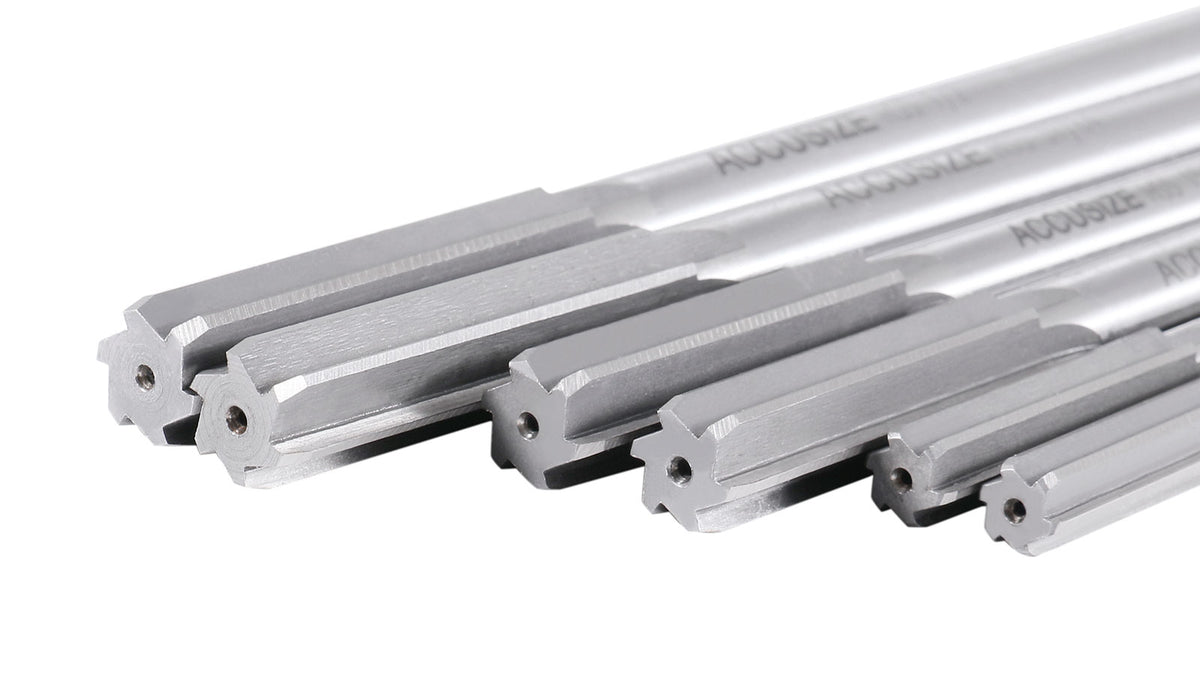

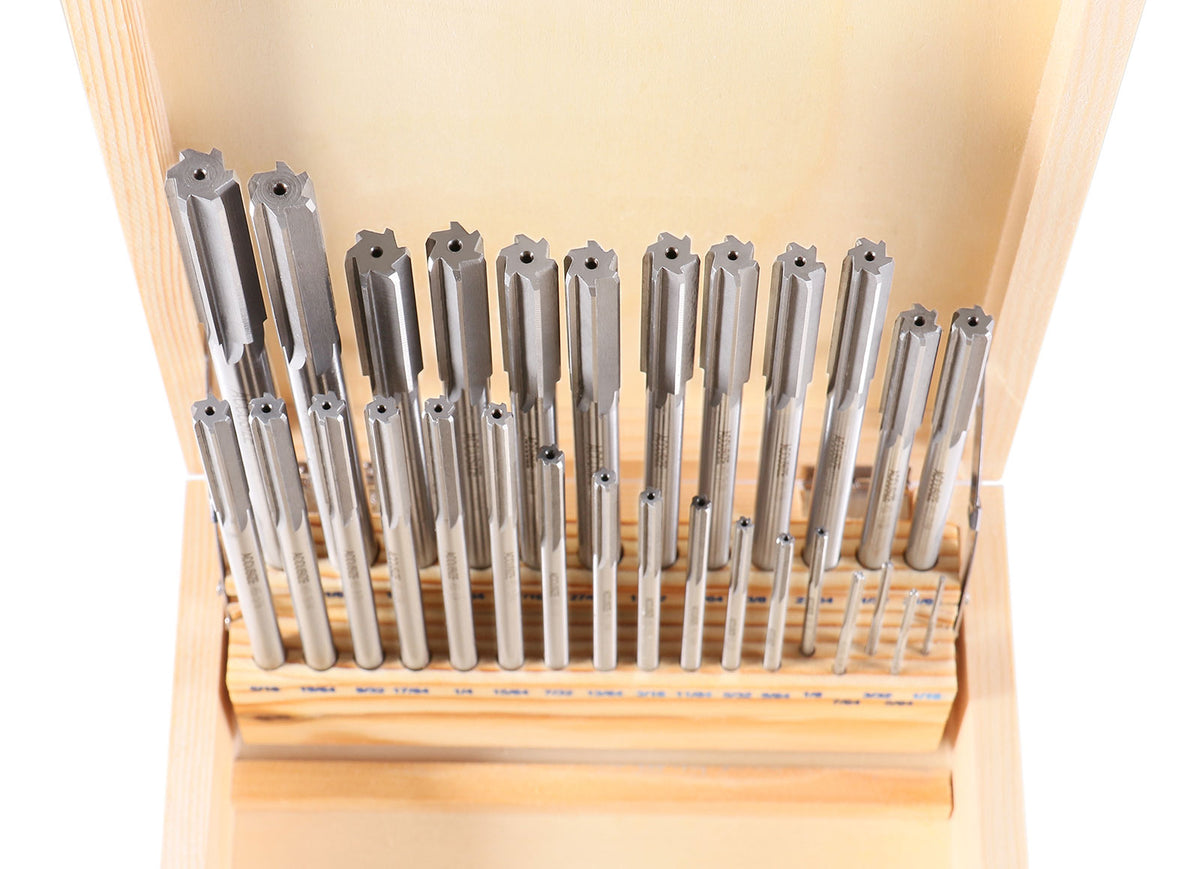

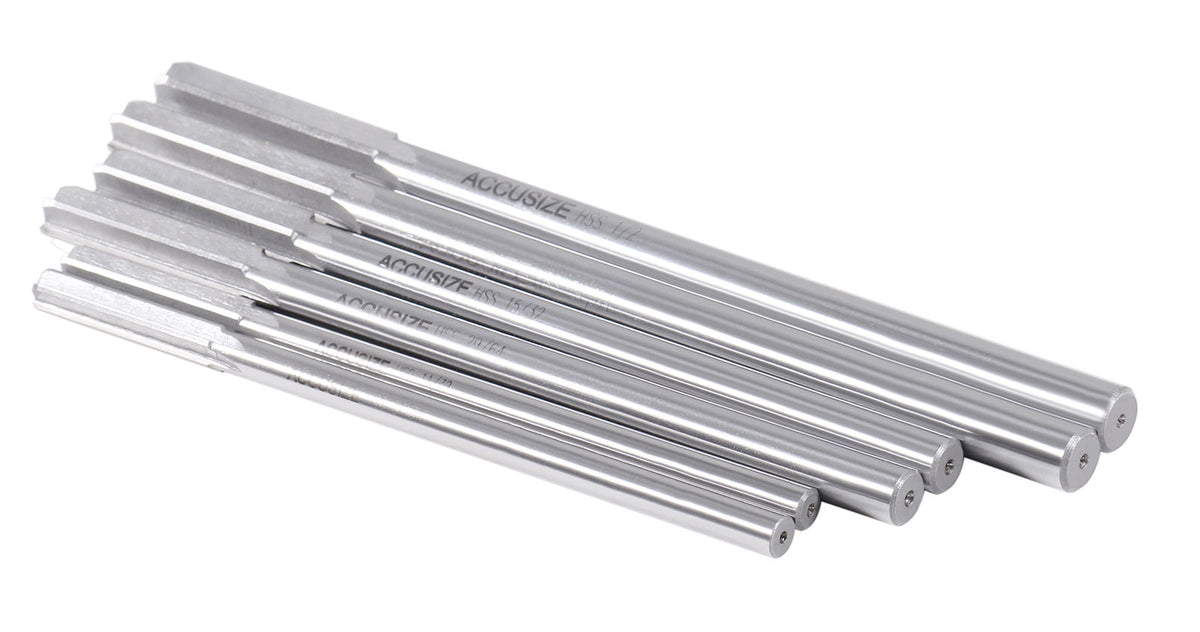

5500-SF00 Specification

Diameter (in.)	Shank Diameter (in.)	Flute Length (in.)	Overall Length (in.)	No. of Flutes
1/16	0.0625	1/2	2-1/2	4
5/64	0.0781	3/4	3	4
3/32	0.0938	3/4	3	4
7/64	0.1094	7/8	3-1/2	4
1/8	0.1250	7/8	3-1/2	6
9/64	0.1406	1	4	6
5/32	0.1562	1	4	6
11/64	0.1719	1-1/8	4-1/2	6
3/16	0.1875	1-1/8	4-1/2	6
13/64	0.2031	1-1/4	5	6
7/32	0.2188	1-1/4	5	6
15/64	0.2344	1-1/2	6	6
1/4	0.2500	1-1/2	6	6
17/64	0.2656	1-1/2	6	6
9/32	0.2812	1-1/2	6	6
19/64	0.2969	1-1/2	6	6
5/16	0.3125	1-1/2	6	6
21/64	0.3281	1-1/2	6	6
11/32	0.3438	1-1/2	6	6
23/64	0.3594	1-3/4	7	6
3/8	0.3750	1-3/4	7	6
25/64	0.3906	1-3/4	7	6
13/32	0.4062	1-3/4	7	6
27/64	0.4219	1-3/4	7	6
7/16	0.4375	1-3/4	7	6
29/64	0.4531	1-3/4	7	6
15/32	0.4688	1-3/4	7	6
31/64	0.4844	2	8	6
1/2	0.5000	2	8	6

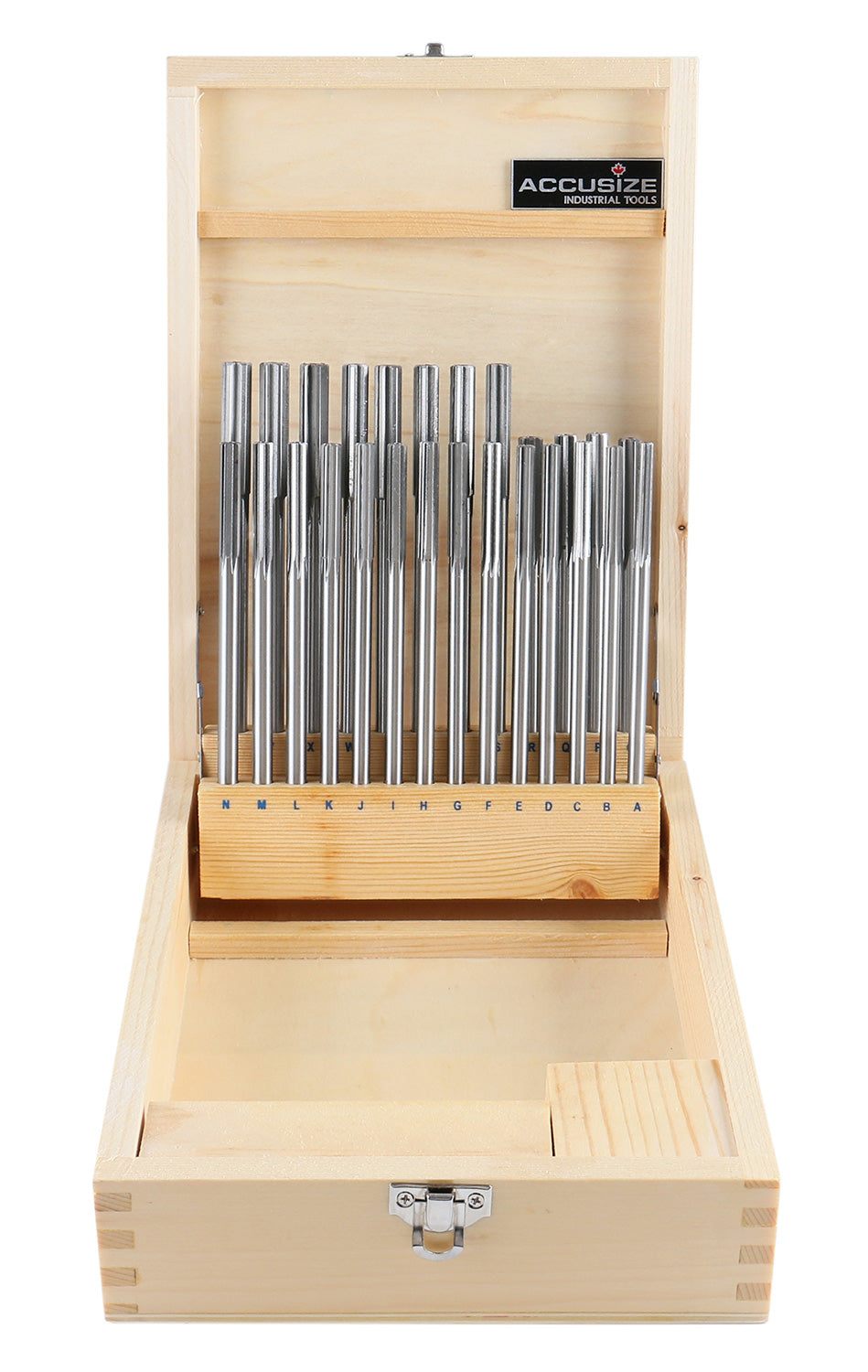

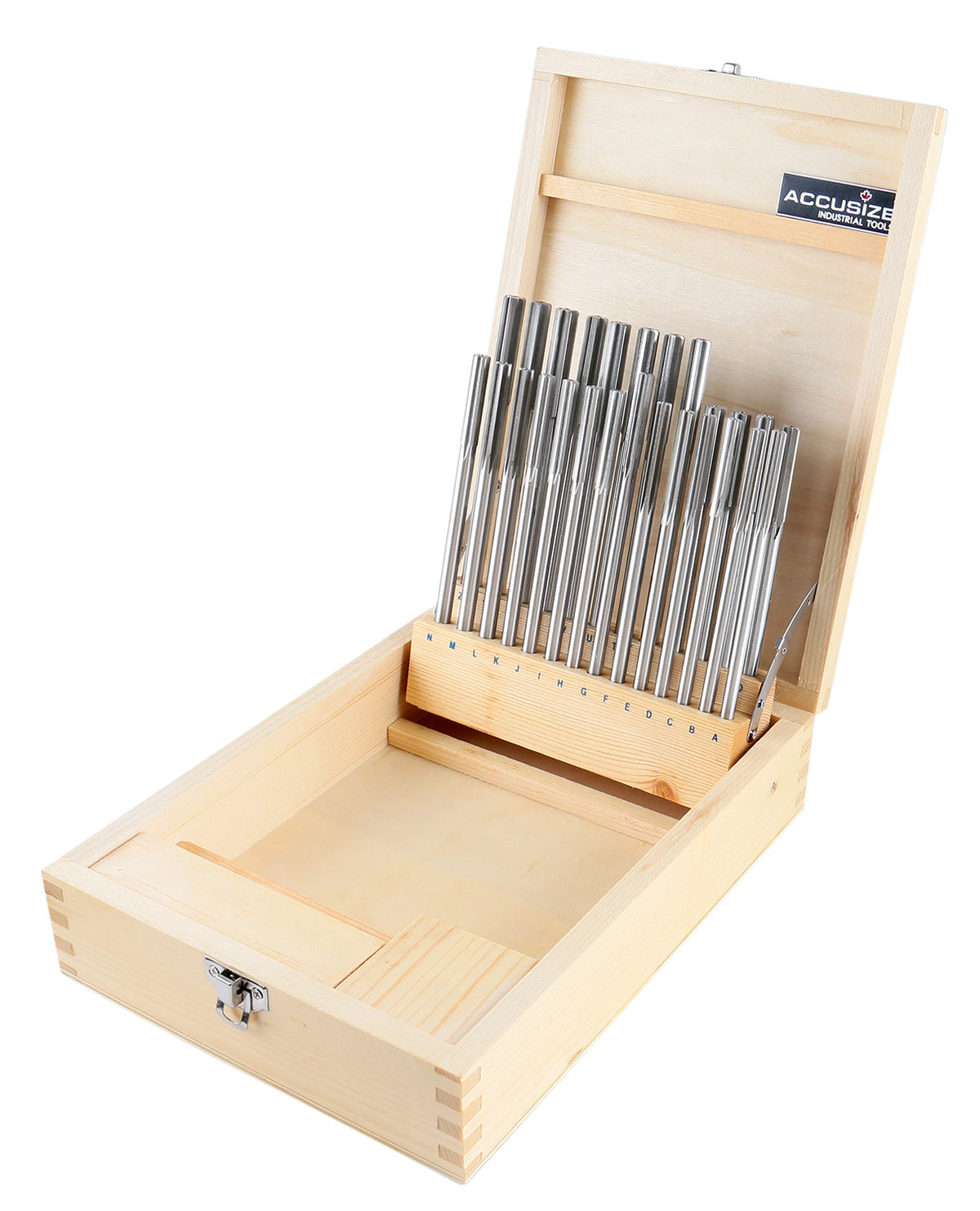

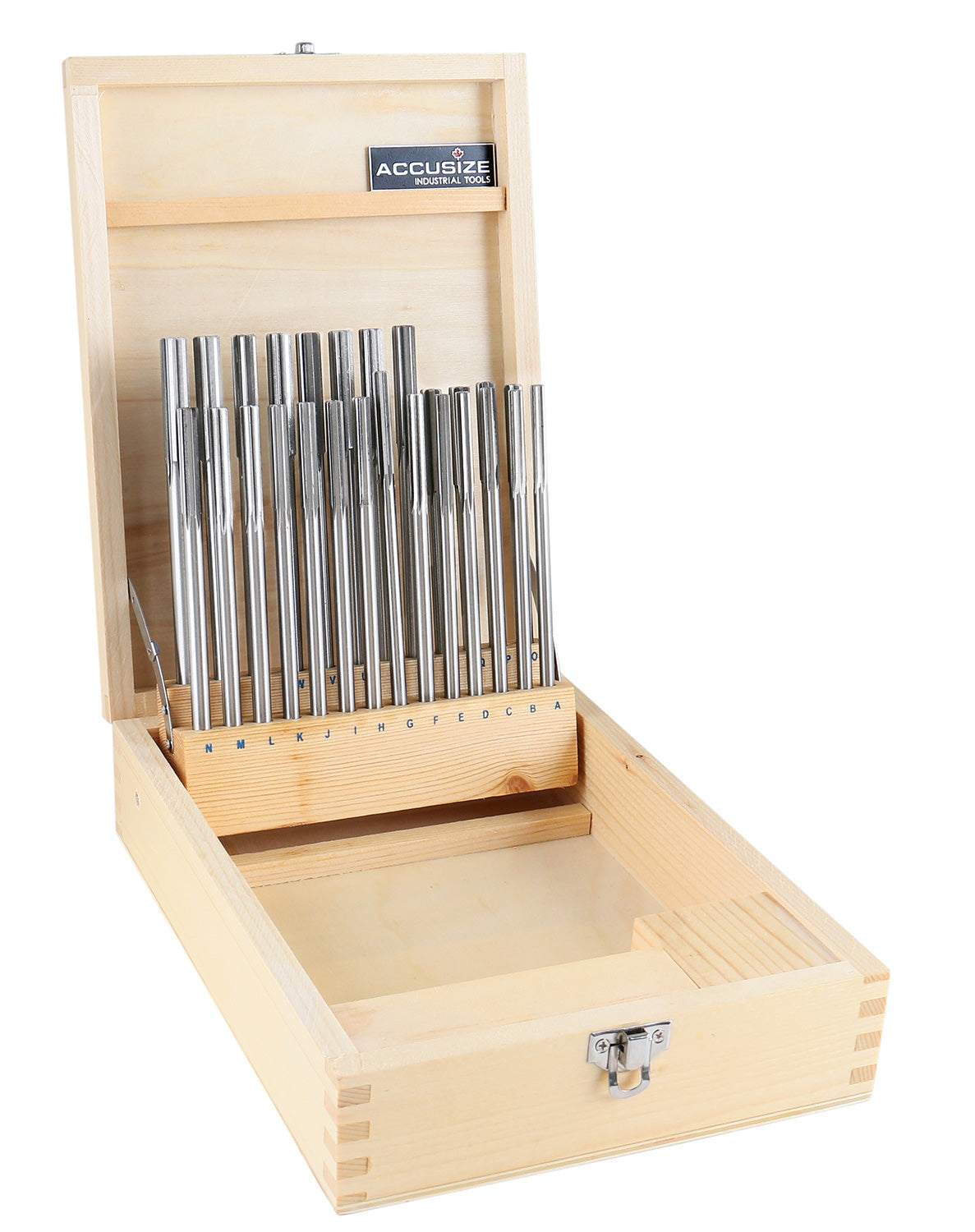

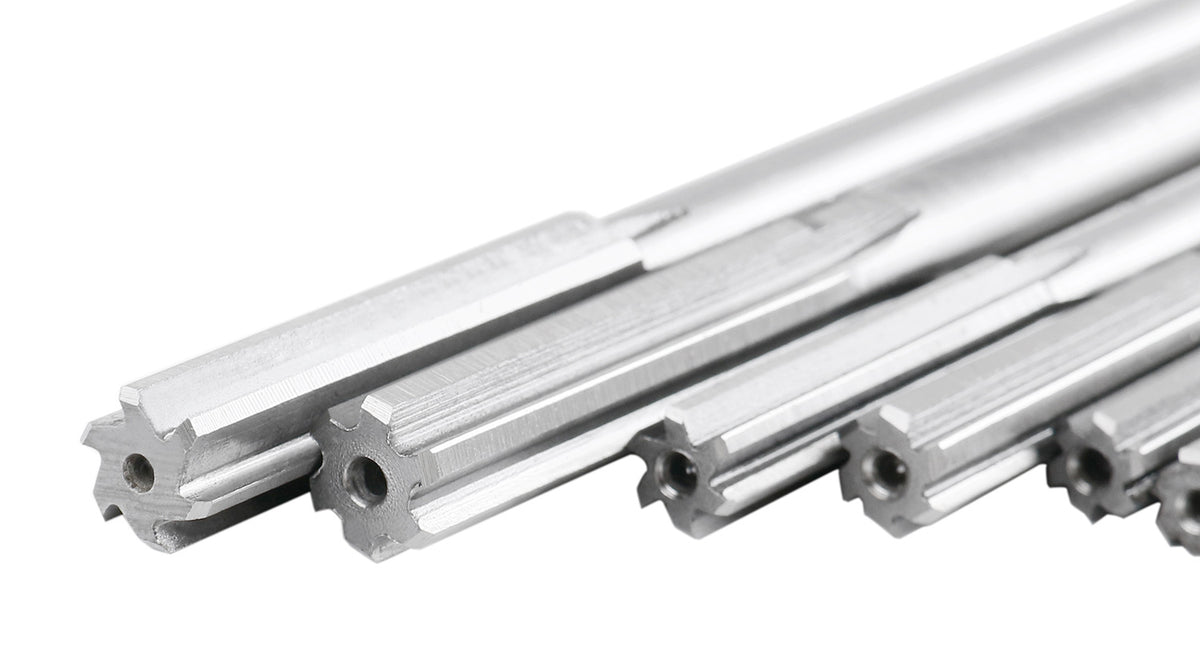

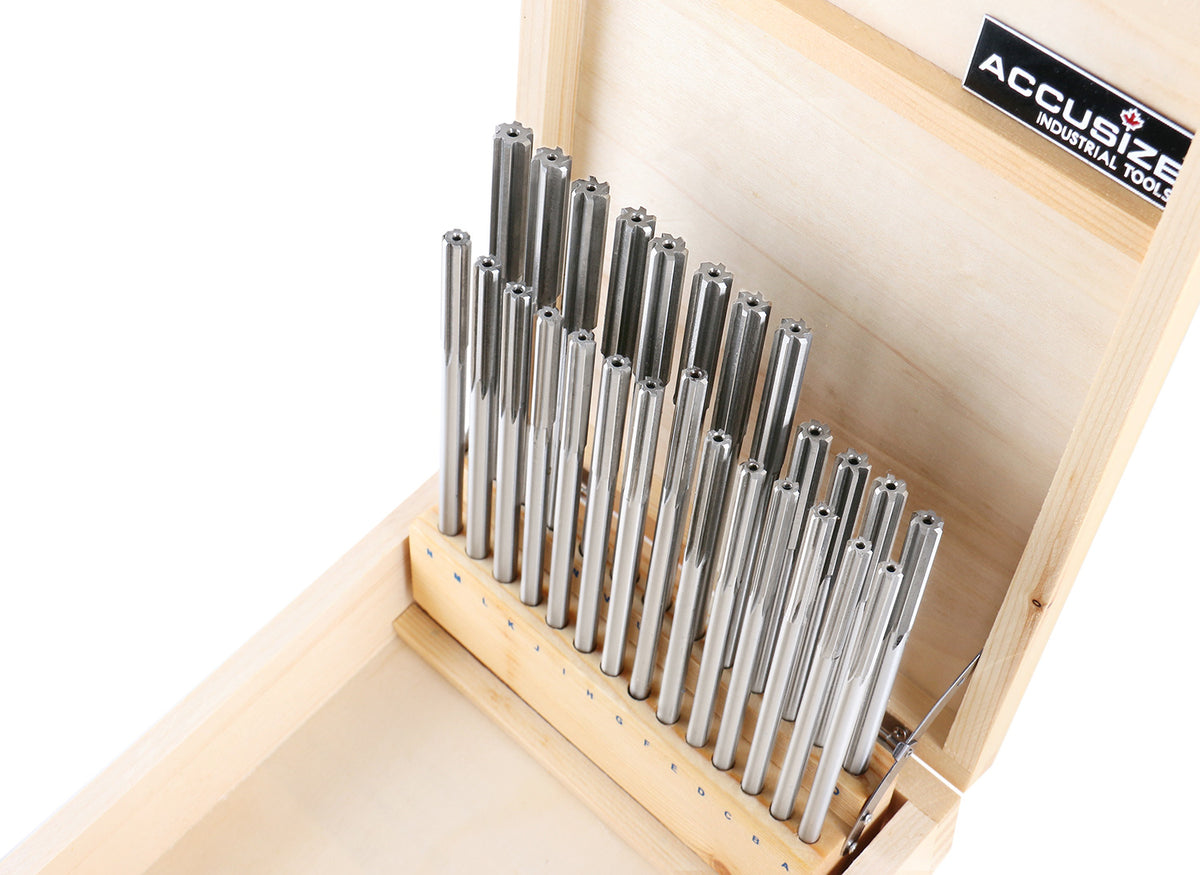

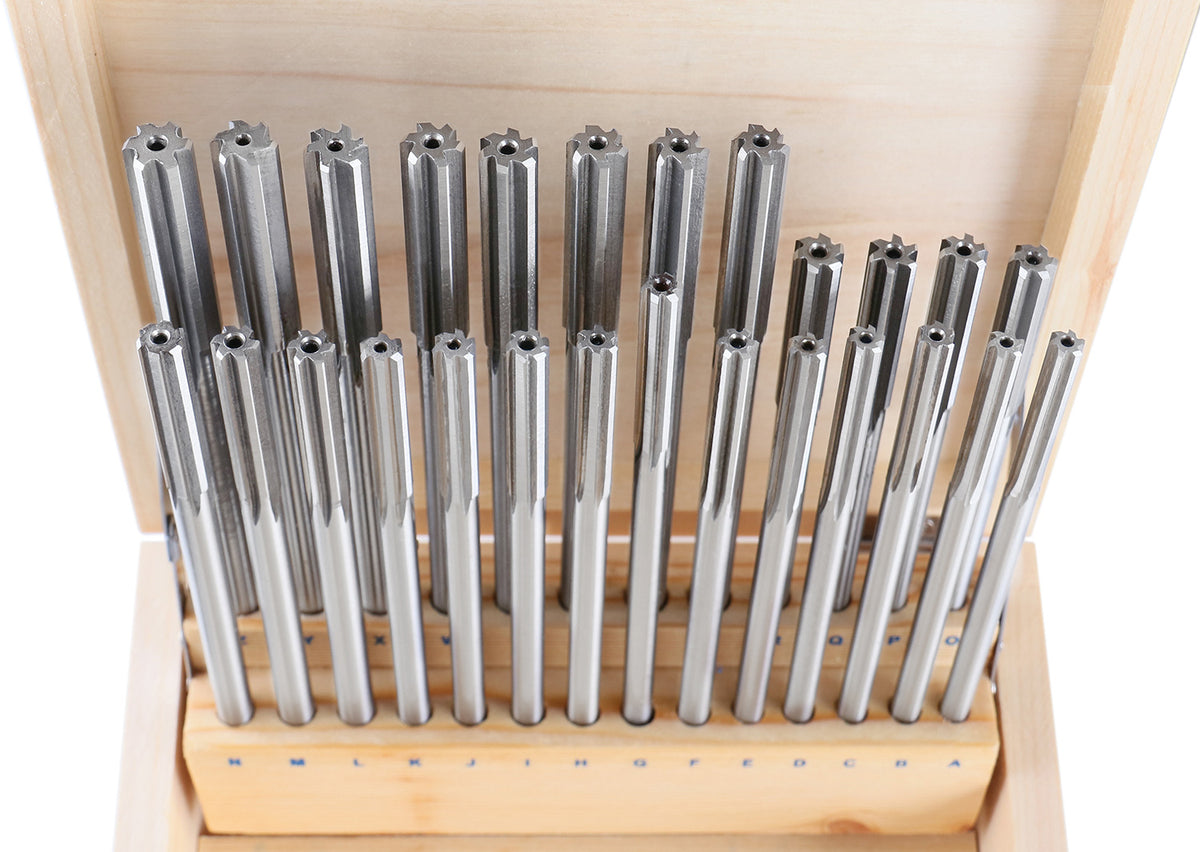

5500-SL00 specification

Size	Decimal Diameter (in.)	Shank Diameter (in.)	Flute Length (in.)	Overall Length (in.)	No. of Flutes
A	0.2340	0.2265	1-1/2	6	6
B	0.2380	0.2329	1-1/2	6	6
C	0.2420	0.2329	1-1/2	6	6
D	0.2460	0.2329	1-1/2	6	6
E	0.2500	0.2405	1-1/2	6	6
F	0.2570	0.2485	1-1/2	6	6
G	0.2610	0.2485	1-1/2	6	6
H	0.2660	0.2485	1-1/2	6	6
I	0.2720	0.2485	1-1/2	6	6
J	0.2770	0.2485	1-1/2	6	6
K	0.2810	0.2485	1-1/2	6	6
L	0.2900	0.2807	1-1/2	6	6
M	0.2950	0.2807	1-1/2	6	6
N	0.3020	0.2807	1-1/2	6	6
O	0.3160	0.2807	1-1/2	6	6
P	0.3230	0.2807	1-1/2	6	6
Q	0.3320	0.2807	1-1/2	6	6
R	0.3390	0.2807	1-1/2	6	6
S	0.3480	0.3120	1-3/4	7	6
T	0.3580	0.3120	1-3/4	7	6
U	0.3680	0.3120	1-3/4	7	6
V	0.3770	0.3120	1-3/4	7	6
W	0.3860	0.3120	1-3/4	7	6
X	0.3970	0.3120	1-3/4	7	6
Y	0.4040	0.3120	1-3/4	7	6
Z	0.4130	0.3745	1-3/4	7	6

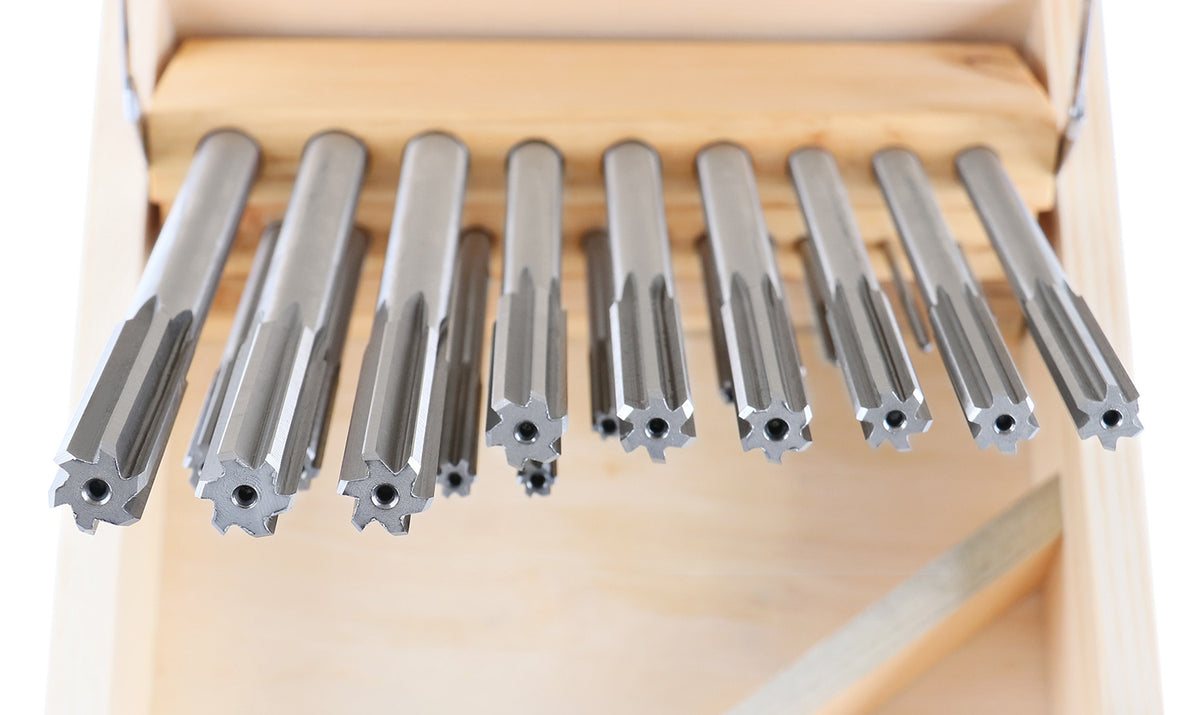

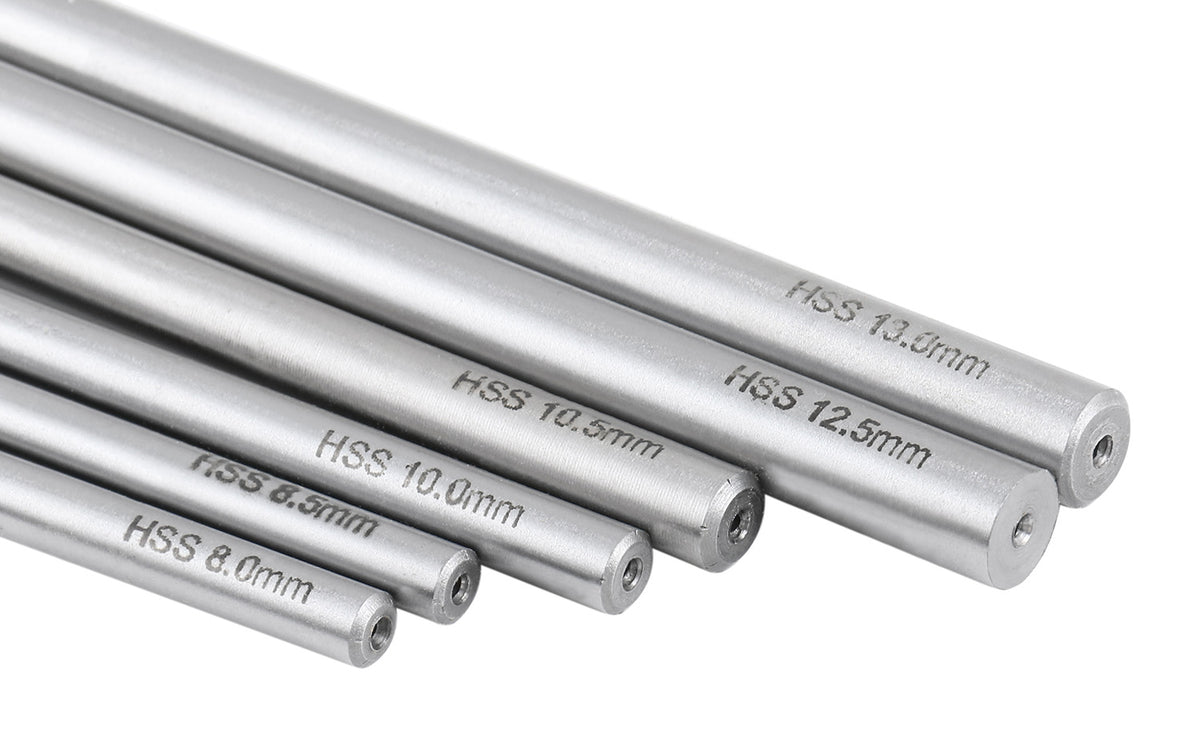

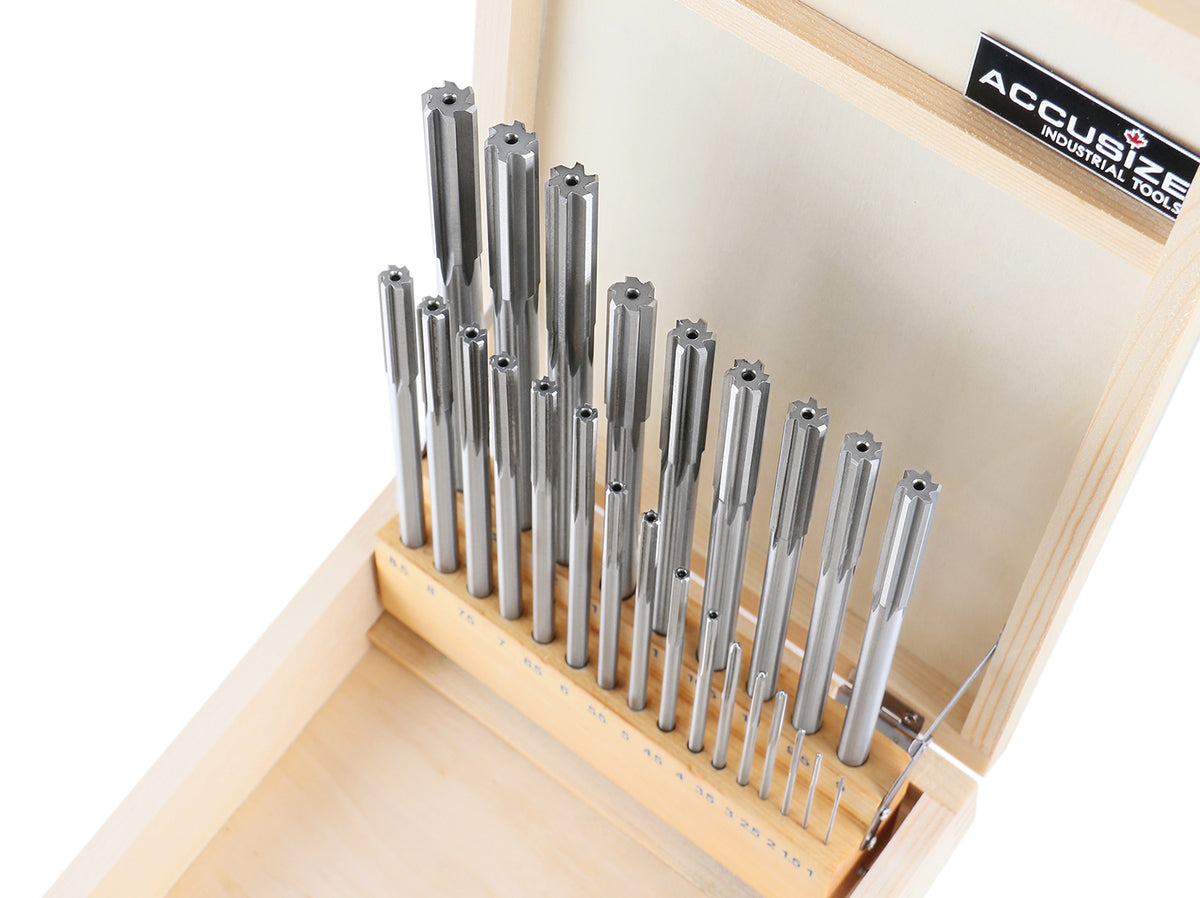

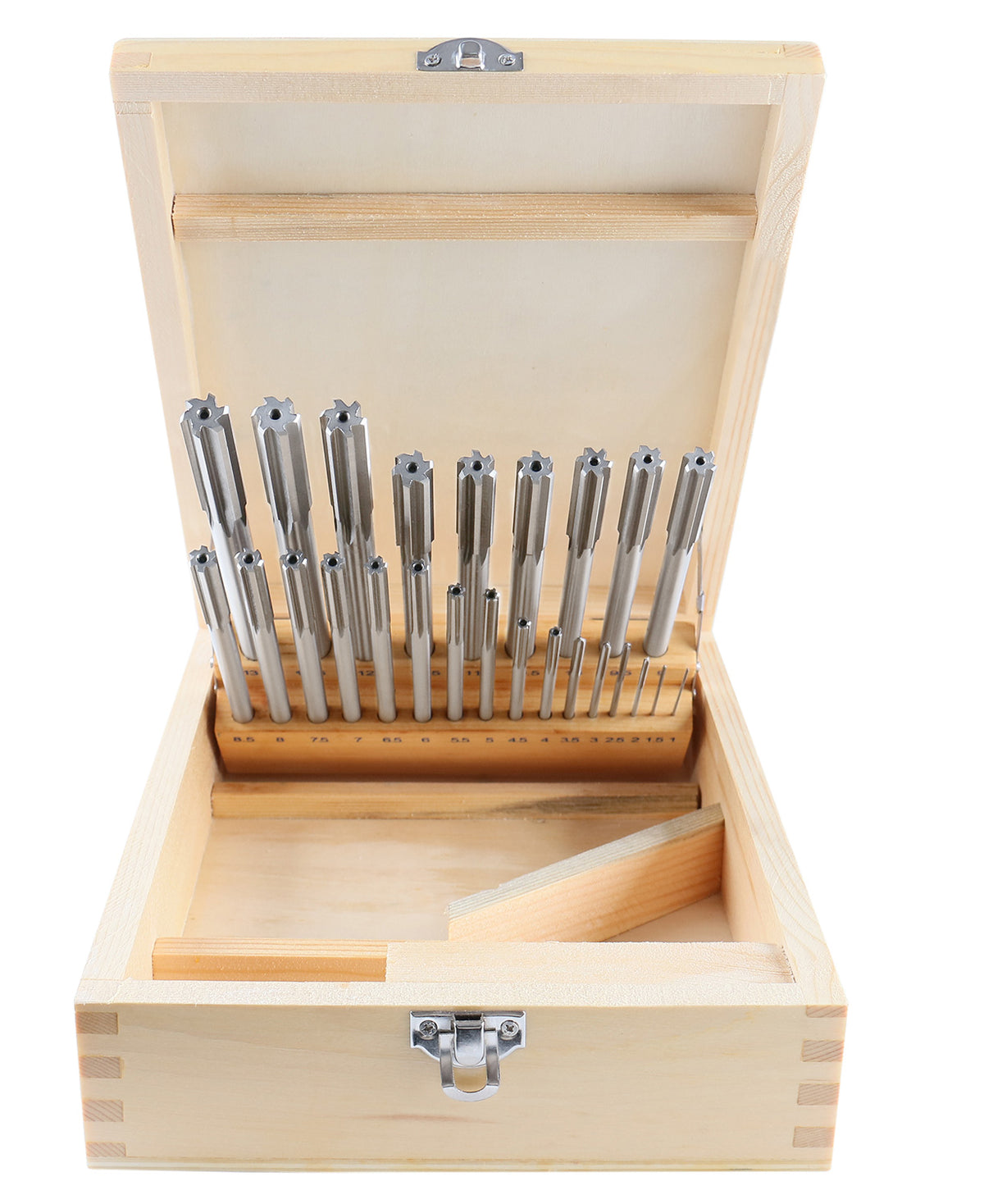

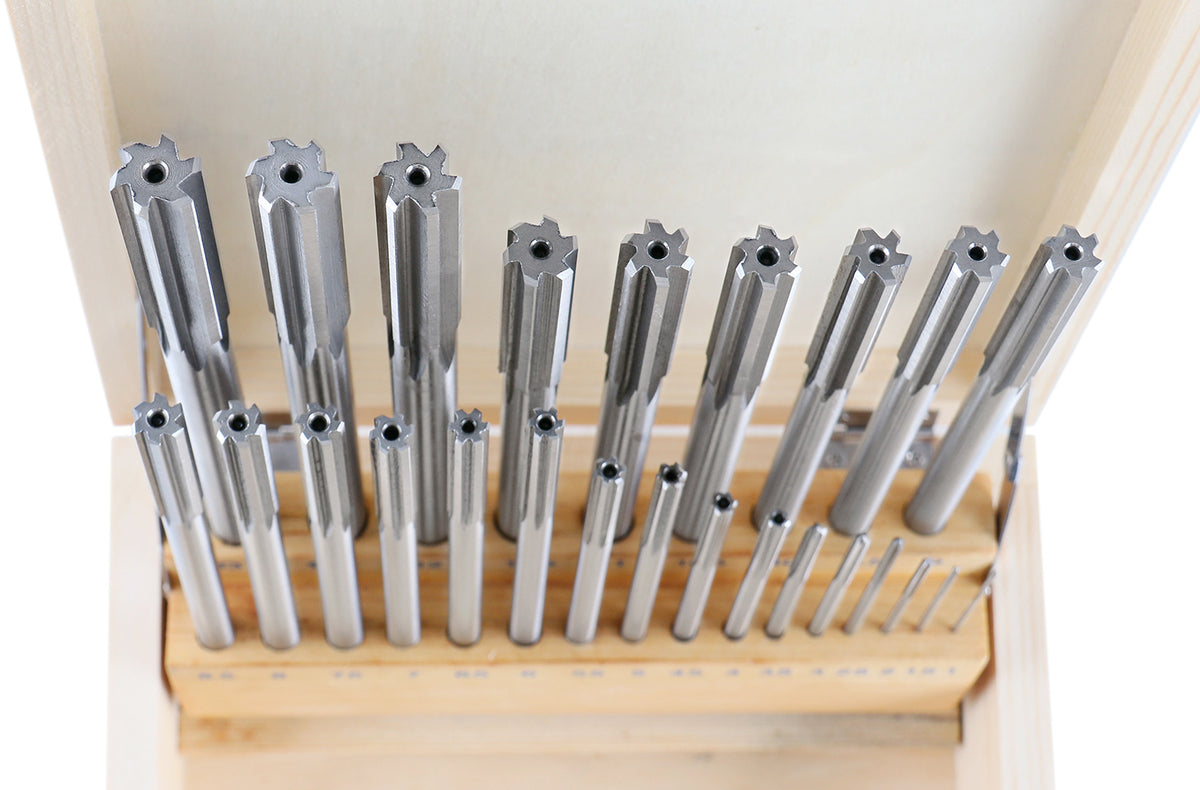

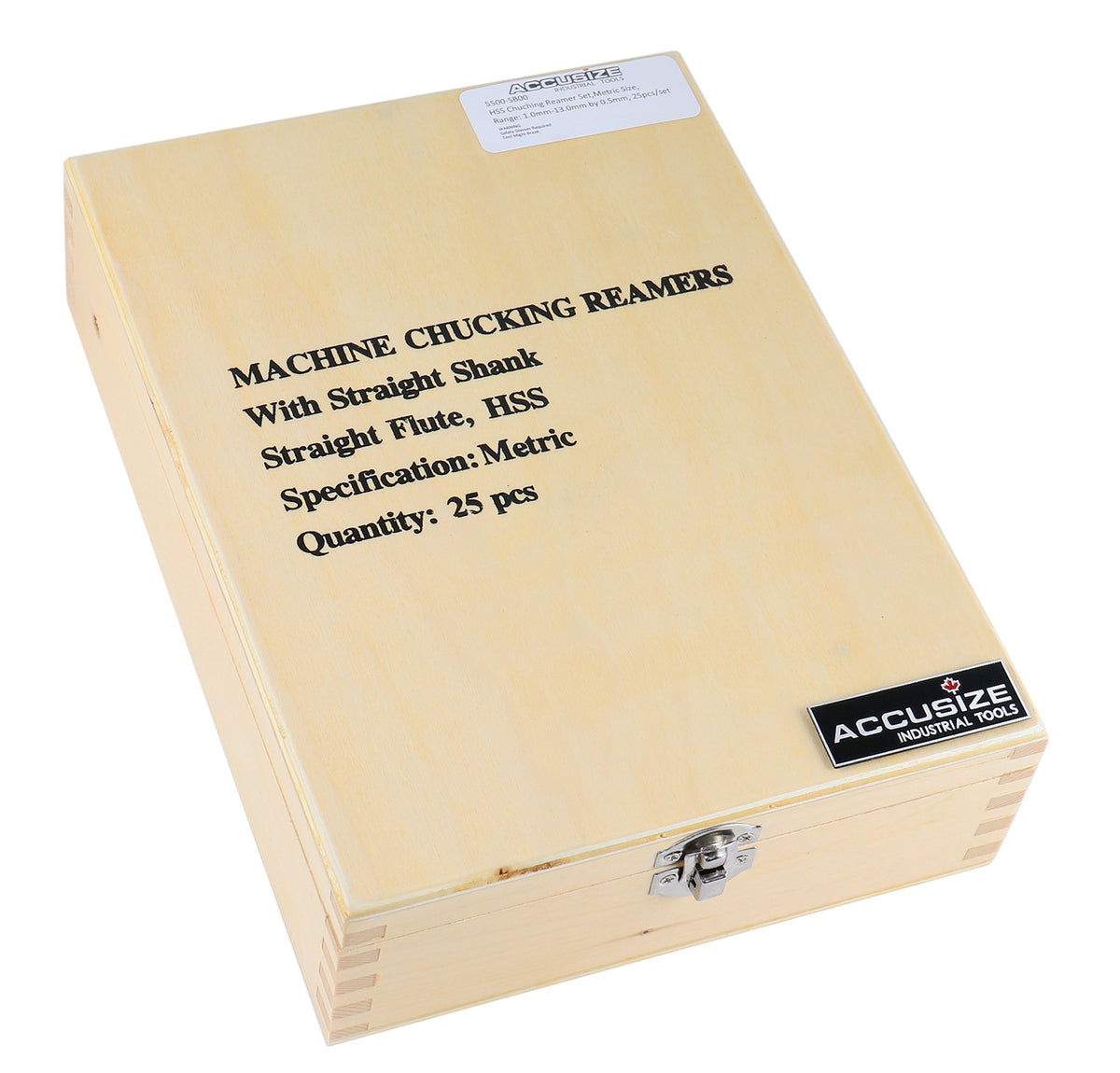

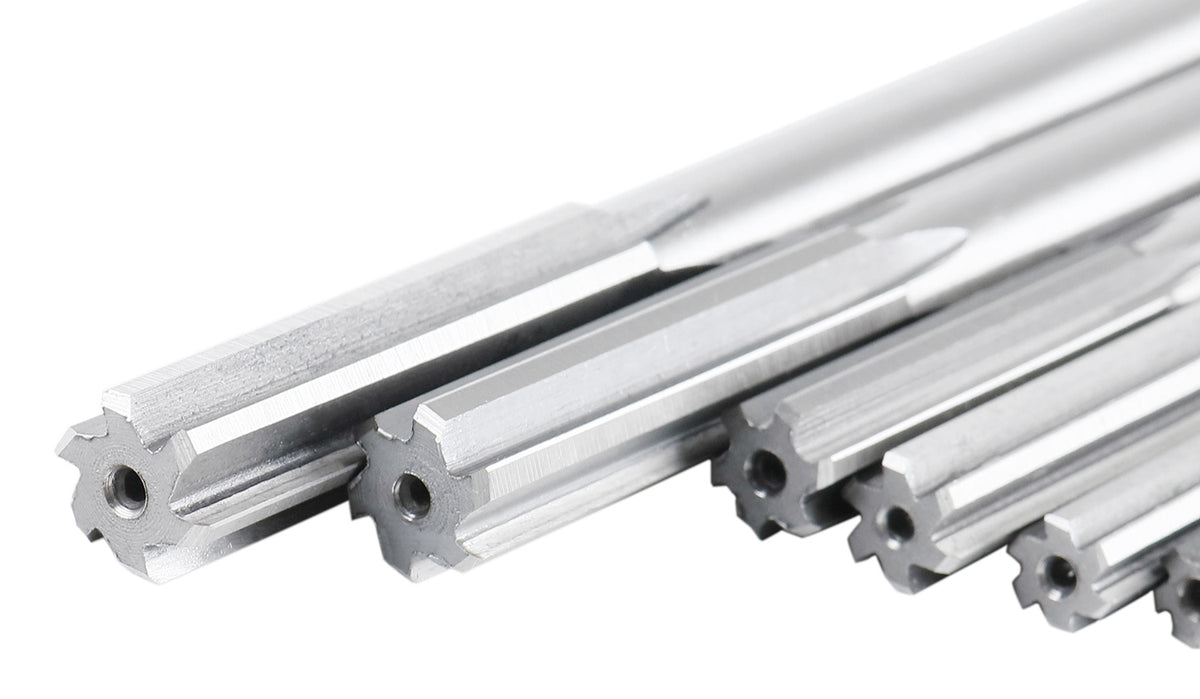

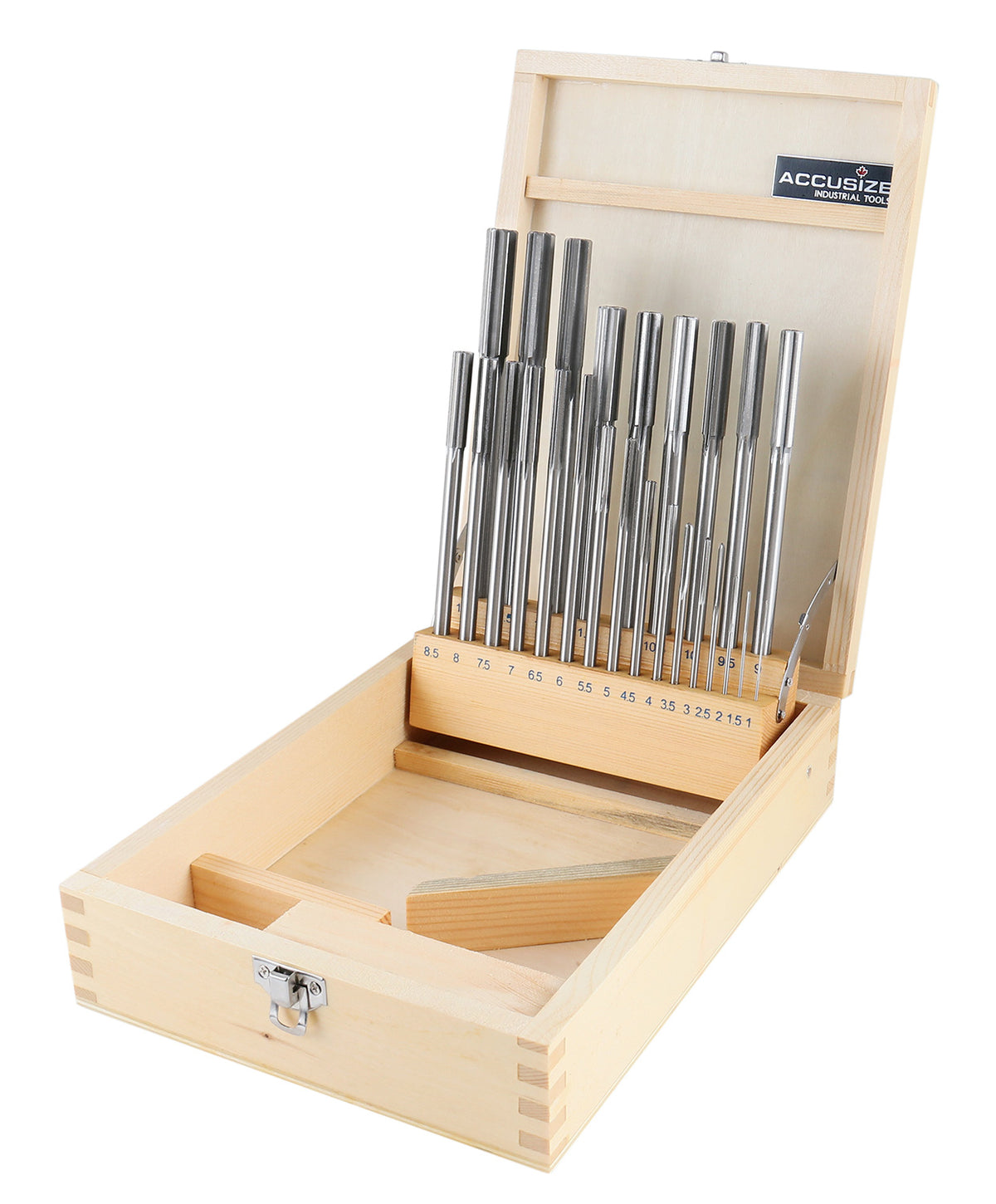

5500-SB00 specifications

Size (mm)	Decimal Diameter (in.)	Flute Length (in.)	Overall Length (in.)	No. of Flutes
1.0	0.0394	1/2	1-5/8	4
1.5	0.0591	1/2	2-1/2	4
2.0	0.0787	3/4	3	4
2.5	0.0984	7/8	3-1/2	4
3.0	0.1181	7/8	3-1/2	4
3.5	0.1378	1	4	6
4.0	0.1575	1-1/8	4-1/2	6
4.5	0.1772	1-1/8	4-1/2	6
5.0	0.1969	1-1/4	5	6
5.5	0.2165	1-1/4	5	6
6.0	0.2362	1-1/2	6	6
6.5	0.2559	1-1/2	6	6
7.0	0.2756	1-1/2	6	6
7.5	0.2953	1-1/2	6	6
8.0	0.3150	1-1/2	6	6
8.5	0.3346	1-1/2	6	6
9.0	0.3543	1-3/4	7	6
9.5	0.3740	1-3/4	7	6
10.0	0.3937	1-3/4	7	6
10.5	0.4134	1-3/4	7	6
11.0	0.4331	1-3/4	7	6
11.5	0.4528	1-3/4	7	6
12.0	0.4724	1-3/4	7	6
12.5	0.4921	2	8	6
13.0	0.5118	2	8	6

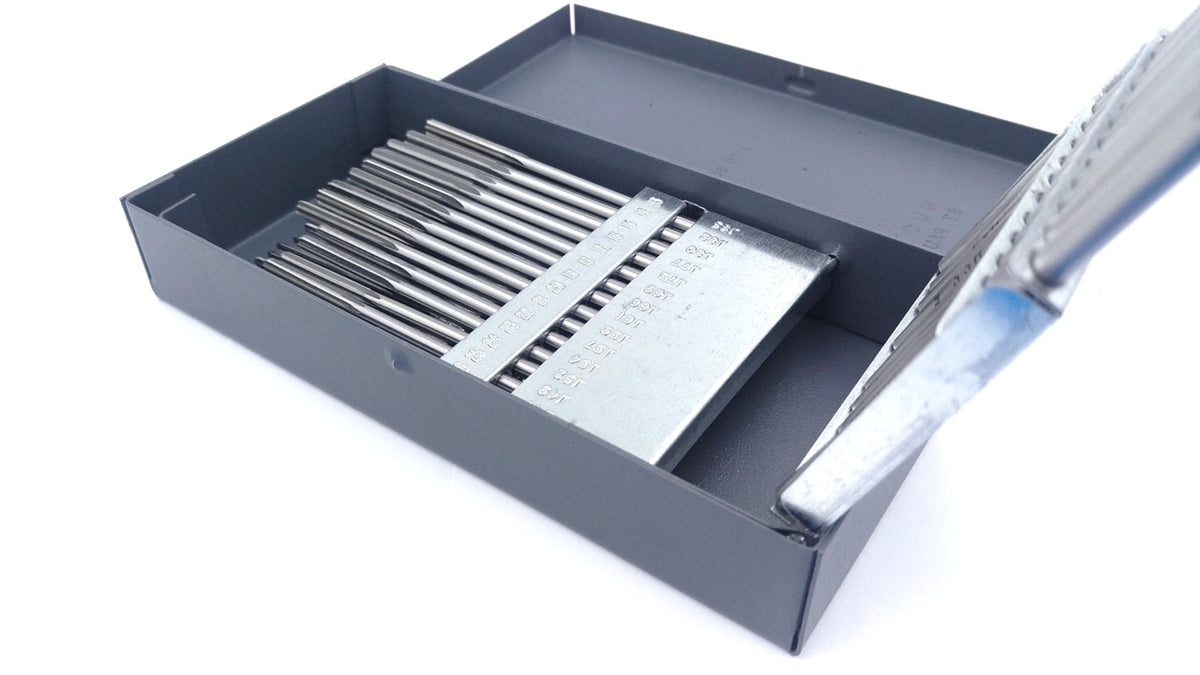

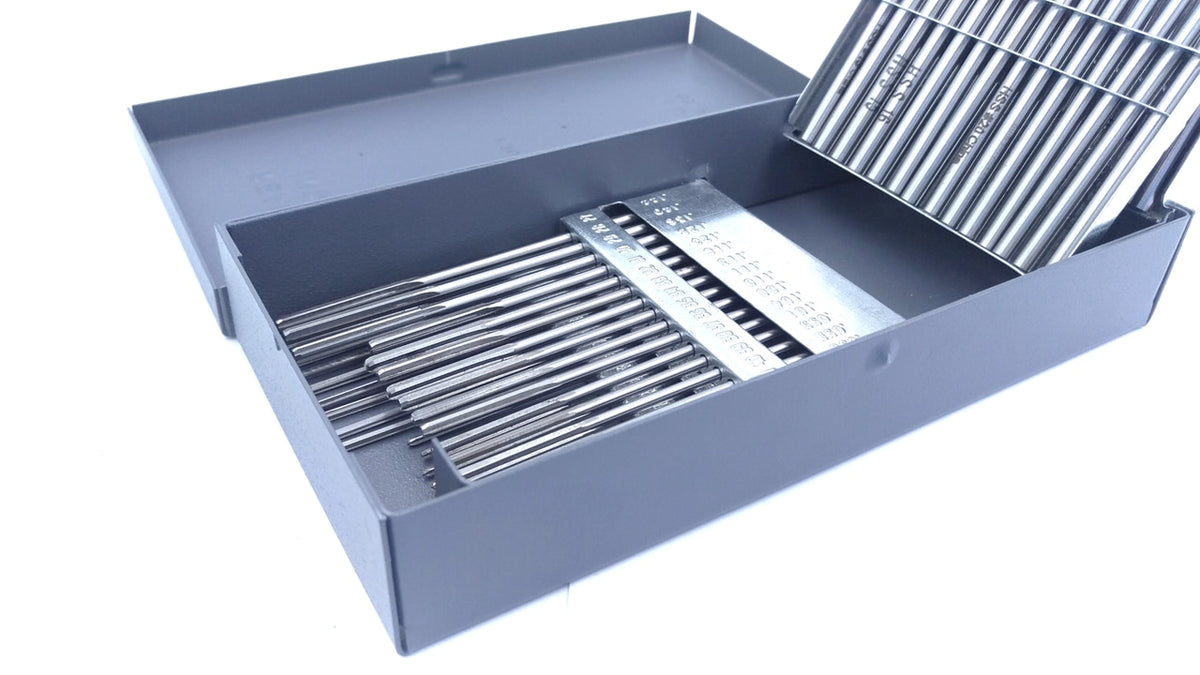

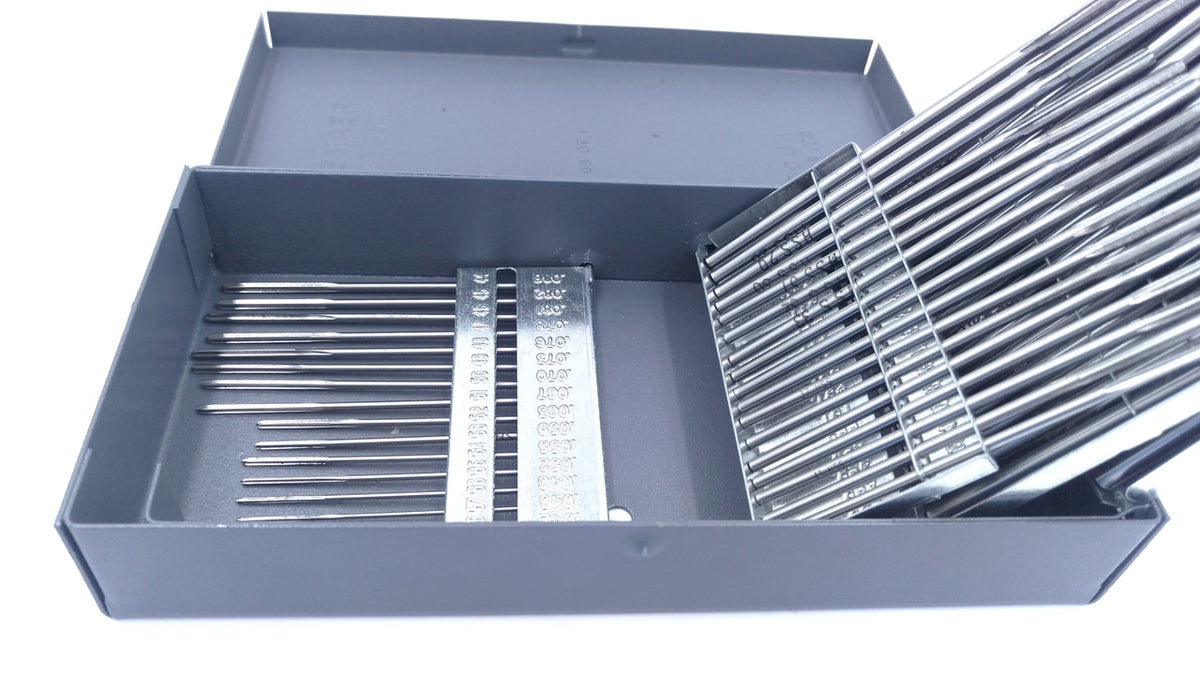

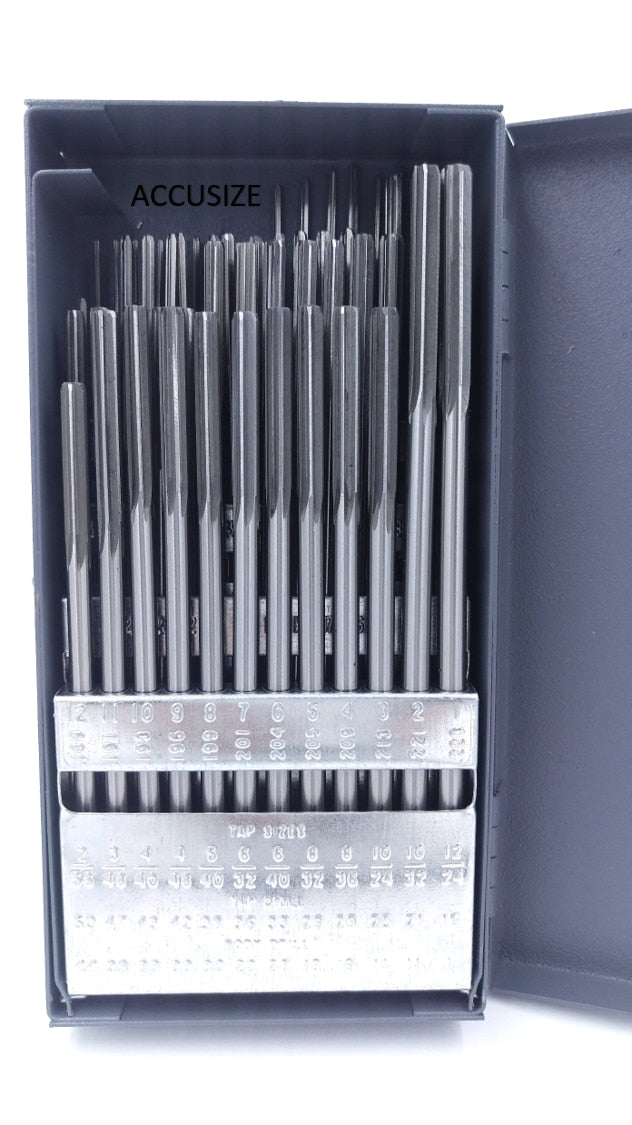

5500-SK00 Specification:

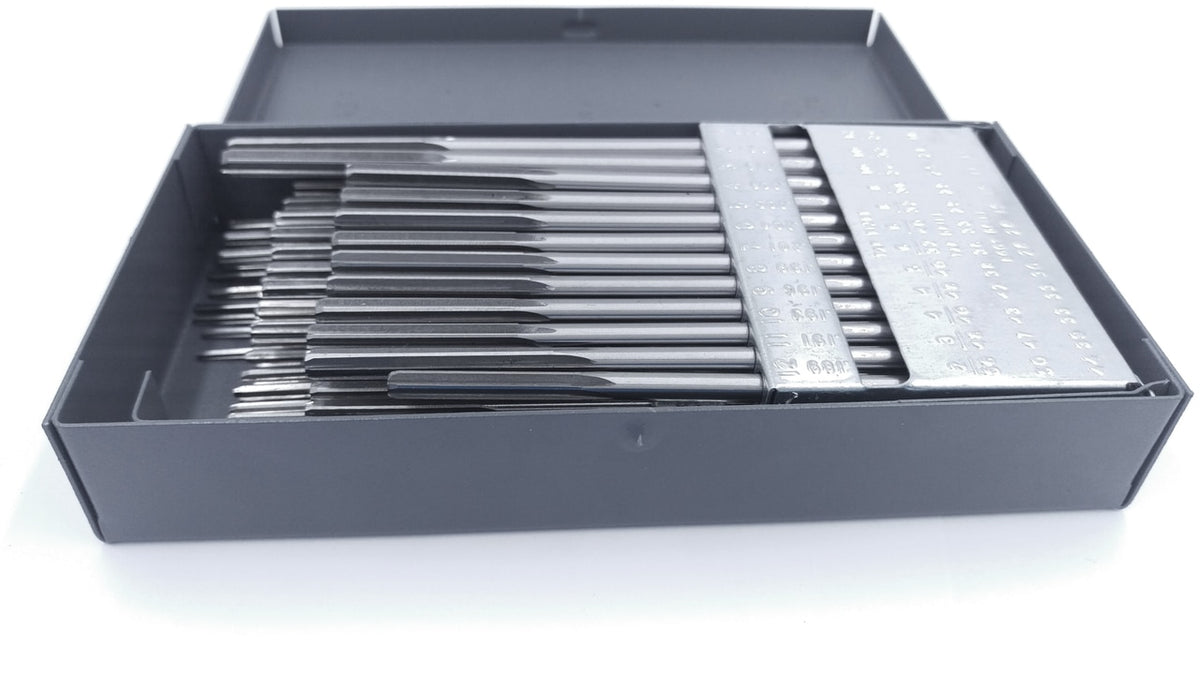

in HUOT USA Index Metal Box

Size	Dec. Equiv. (in.)	Flute Length (in.)	Overall Length (in.)	No. of Flutes
#1	0.228	1 1/2	6	6
#2	0.221	1 1/2	6	6
#3	0.213	1 1/4	5	6
#4	0.209	1 1/4	5	6
#5	0.2055	1 1/4	5	6
#6	0.204	1 1/4	5	6
#7	0.201	1 1/4	5	6
#8	0.199	1 1/4	5	6
#9	0.196	1 1/4	5	6
#10	0.1935	1 1/4	5	6
#11	0.191	1 1/4	5	6
#12	0.189	1 1/8	4 1/4	6
#13	0.185	1 1/8	4 1/4	6
#14	0.182	1 1/8	4 1/4	6
#15	0.18	1 1/8	4 1/4	6
#16	0.177	1 1/8	4 1/4	6
#17	0.173	1 1/8	4 1/4	6
#18	0.1695	1 1/8	4 1/4	6
#19	0.166	1 1/8	4 1/4	6
#20	0.161	1 1/8	4 1/4	6
#21	0.159	1 1/8	4 1/4	6
#22	0.157	1	4	6
#23	0.154	1	4	6
#24	0.152	1	4	6
#25	0.1495	1	4	6
#26	0.147	1	4	6
#27	0.144	1	4	6
#28	0.1405	1	4	6
#29	0.136	1	4	6
#30	0.1285	7/8	3 1/2	6
#31	0.12	7/8	3 1/2	4
#32	0.116	7/8	3 1/2	4
#33	0.113	7/8	3 1/2	4
#34	0.111	7/8	3 1/2	4
#35	0.11	7/8	3 1/2	4
#36	0.1065	7/8	3 1/2	4
#37	0.104	7/8	3 1/2	4
#38	0.1015	7/8	3 1/2	4
#39	0.0995	7/8	3 1/2	4
#40	0.098	7/8	3 1/2	4
#41	0.096	7/8	3 1/2	4
#42	0.0935	3/4	3	4
#43	0.089	3/4	3	4
#44	0.086	3/4	3	4
#45	0.082	3/4	3	4
#46	0.081	3/4	3	4
#47	0.0785	3/4	3	4
#48	0.076	3/4	3	4
#49	0.073	3/4	3	4
#50	0.07	3/4	3	4
#51	0.067	3/4	3	4
#52	0.0635	2 1/2	2 1/2	4
#53	0.0595	2 1/2	2 1/2	4
#54	0.055	2 1/2	2 1/2	4
#55	0.052	2 1/2	2 1/2	4
#56	0.0465	2 1/2	2 1/2	4
#57	0.043	2 1/2	2 1/2	4
#58	0.042	2 1/2	2 1/2	4
#59	0.041	2 1/2	2 1/2	4
#60	0.04	2 1/2	2 1/2	4

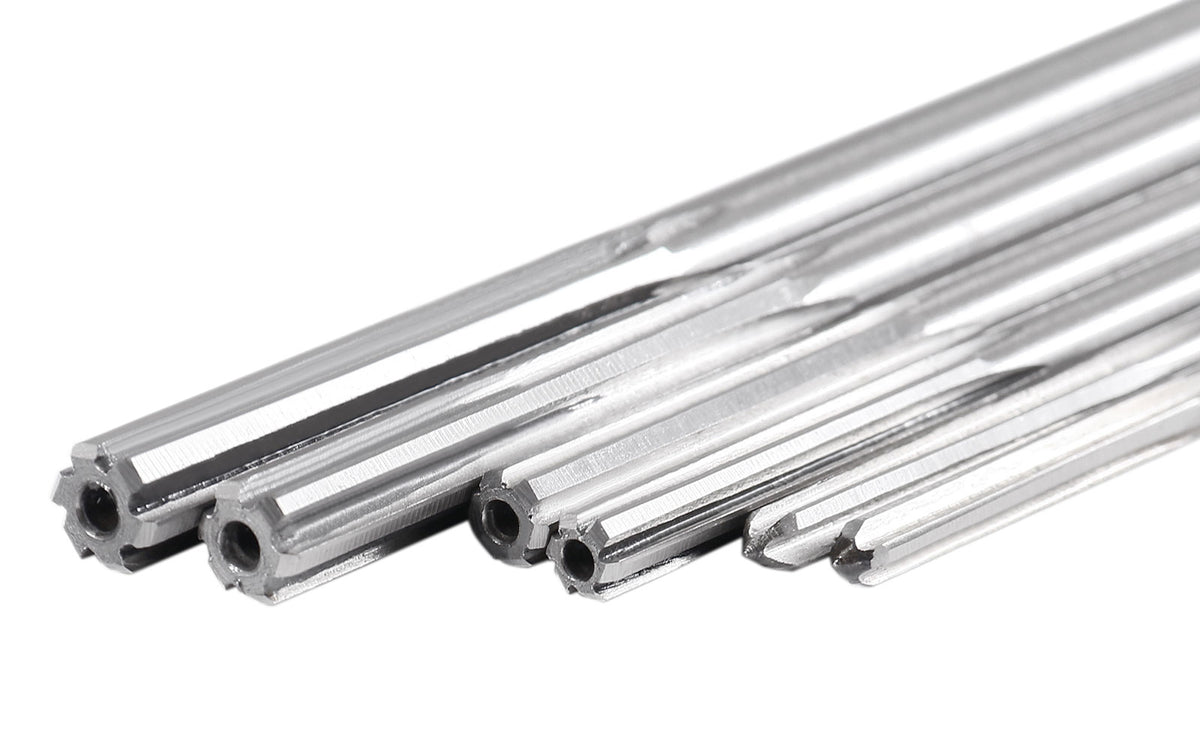

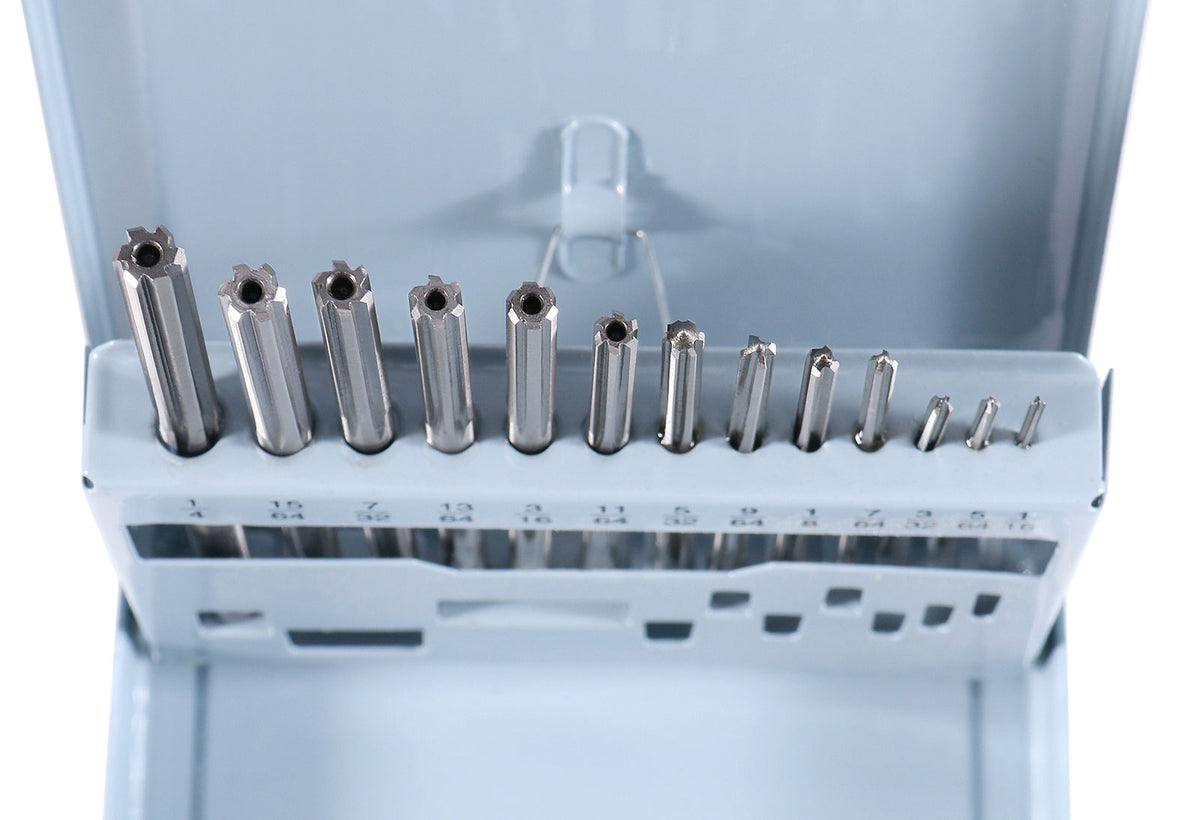

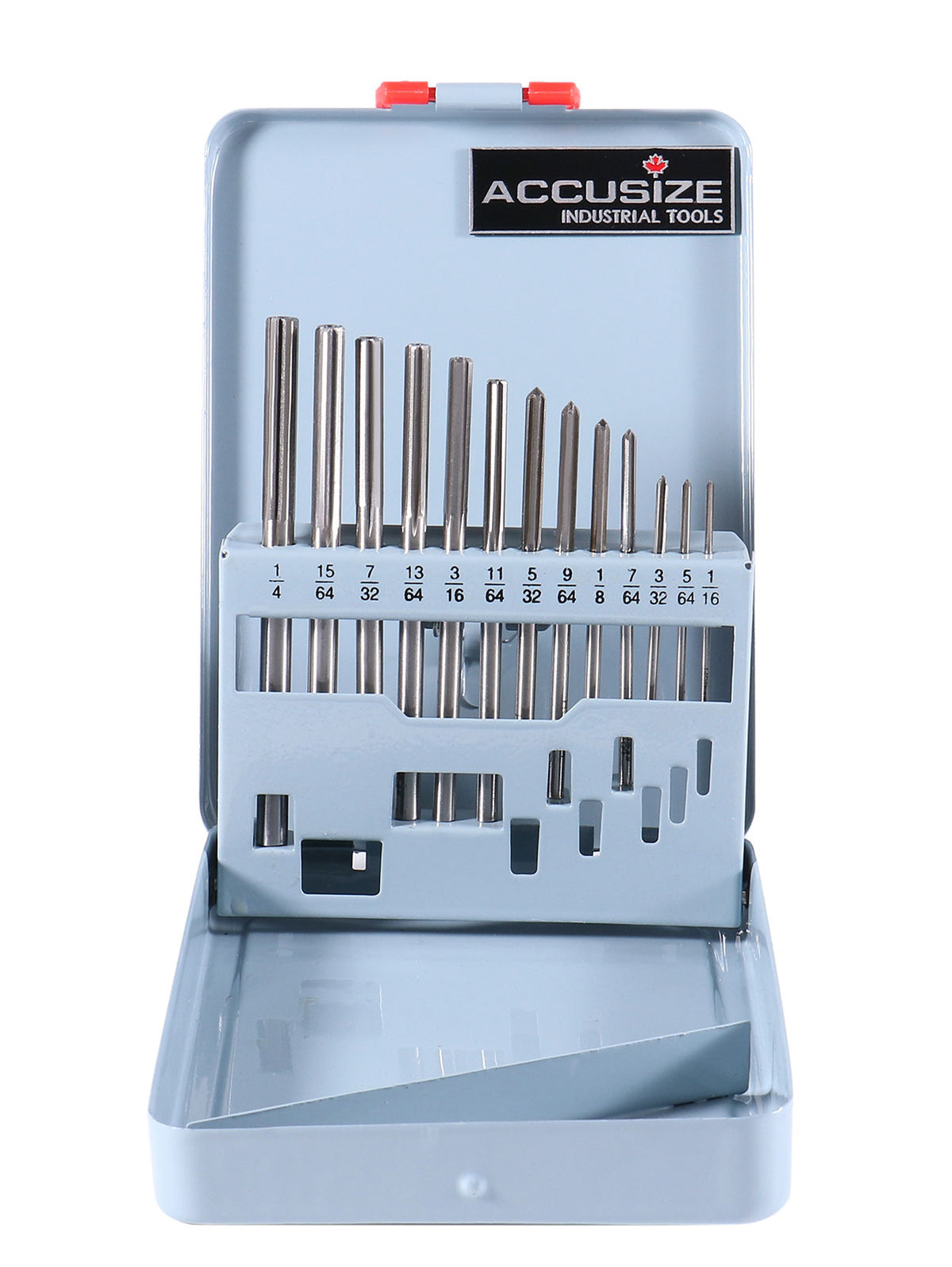

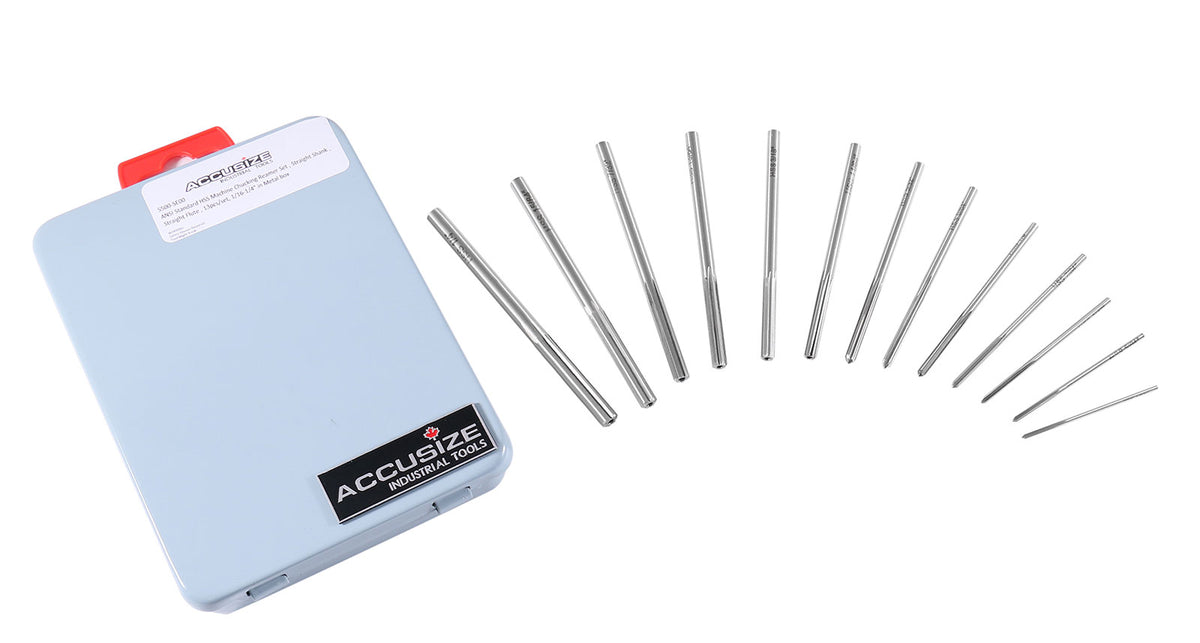

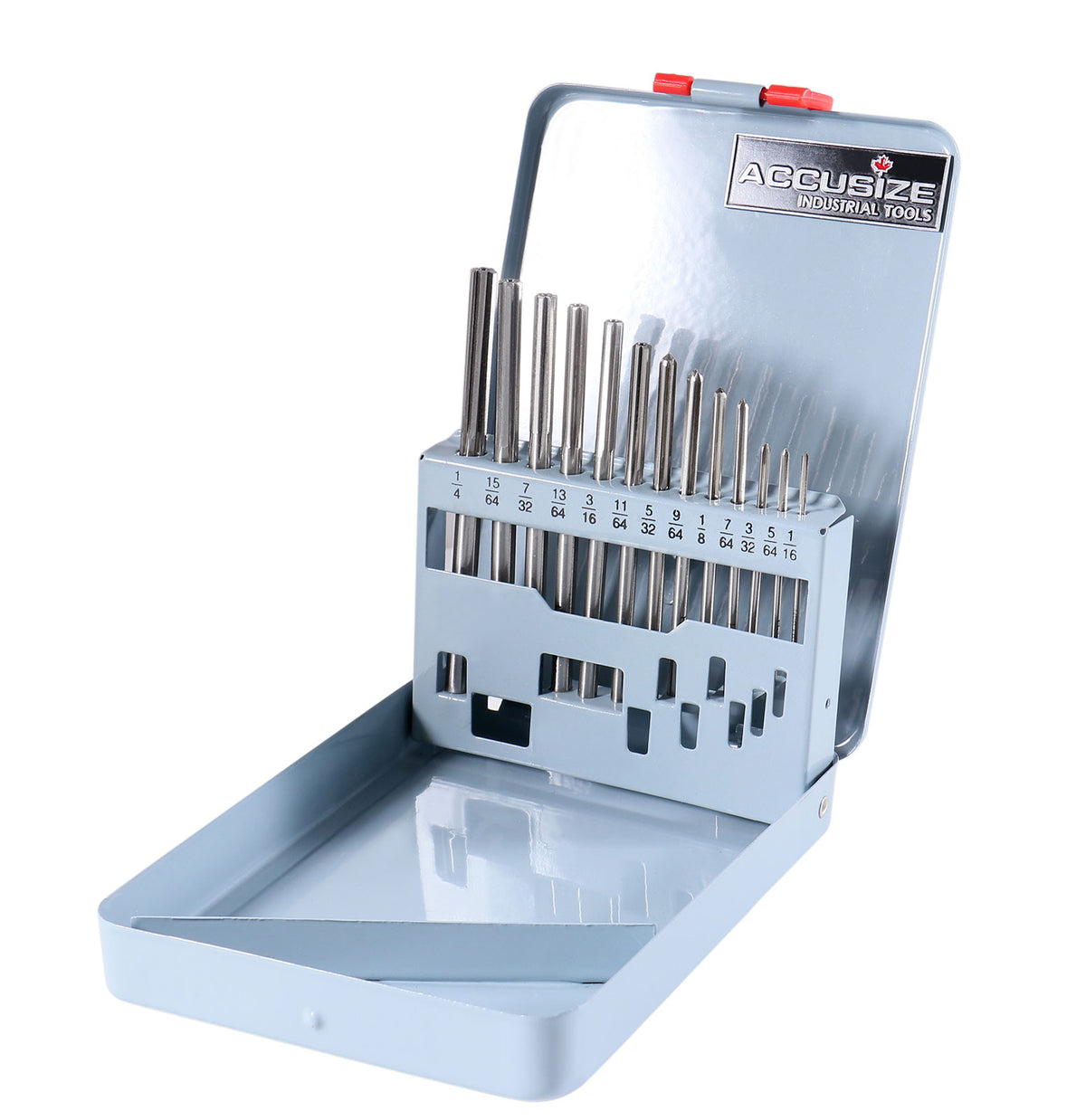

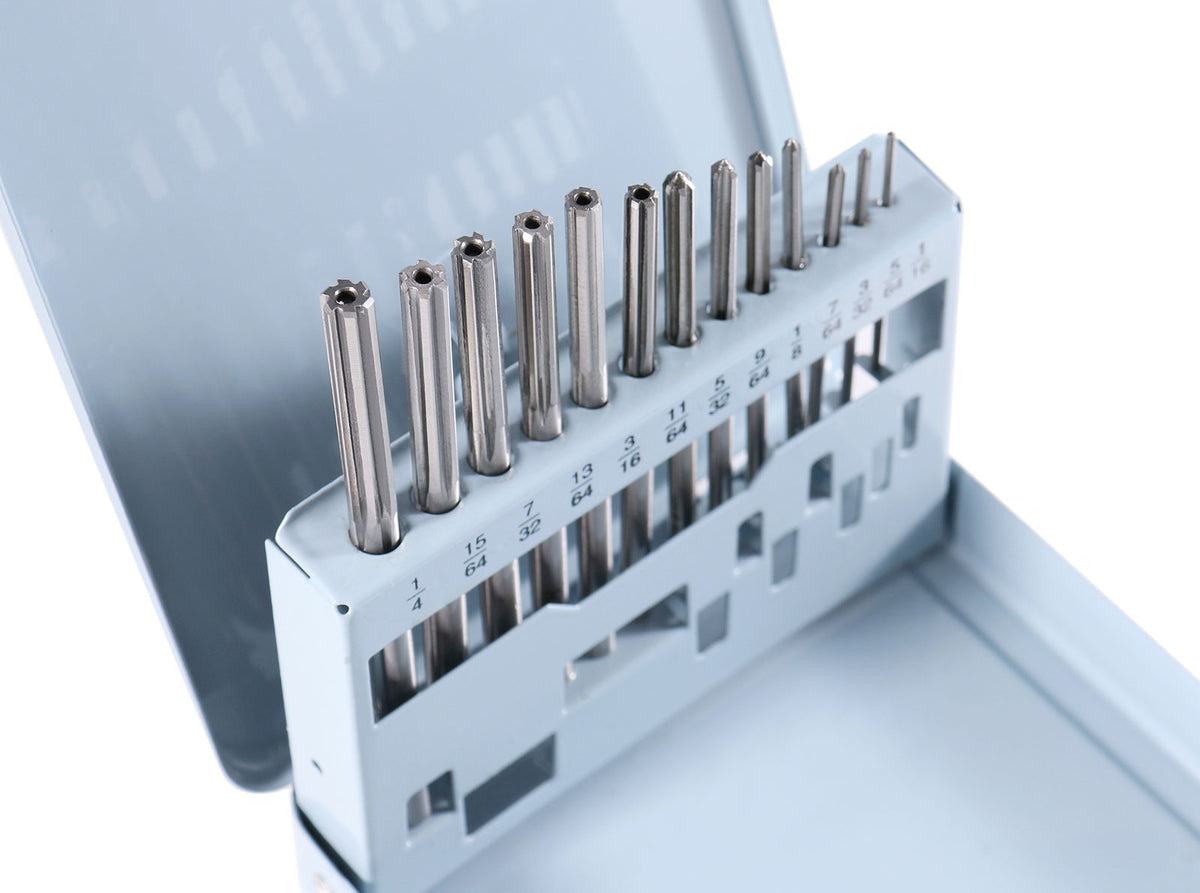

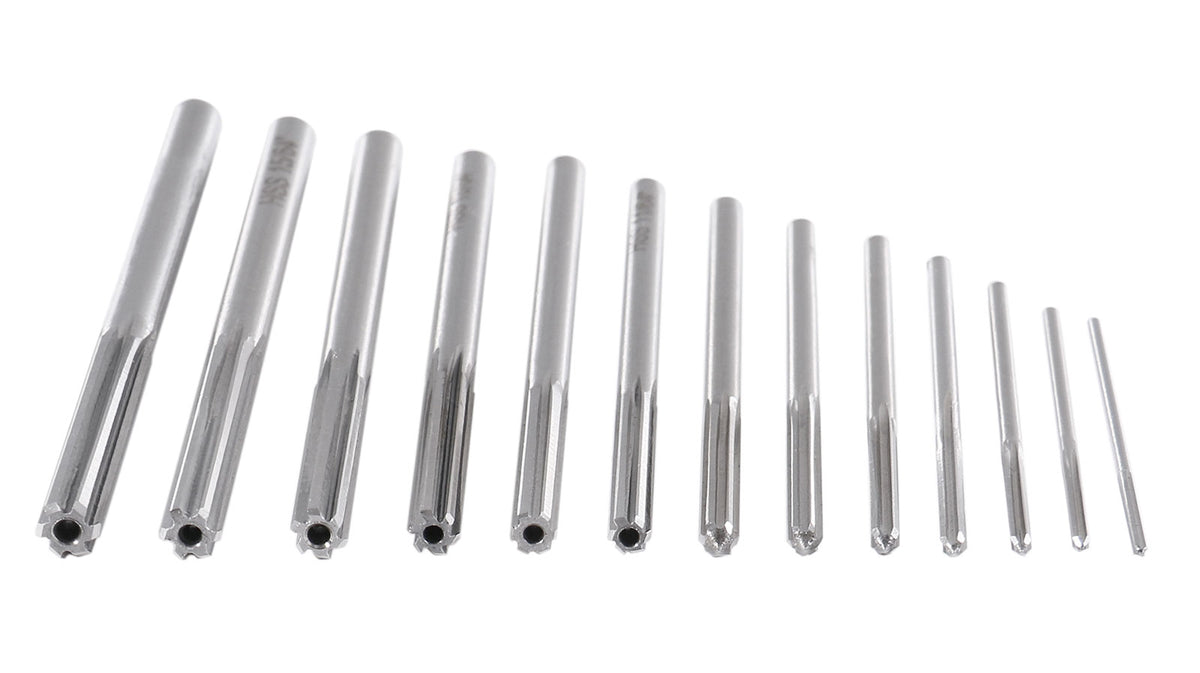

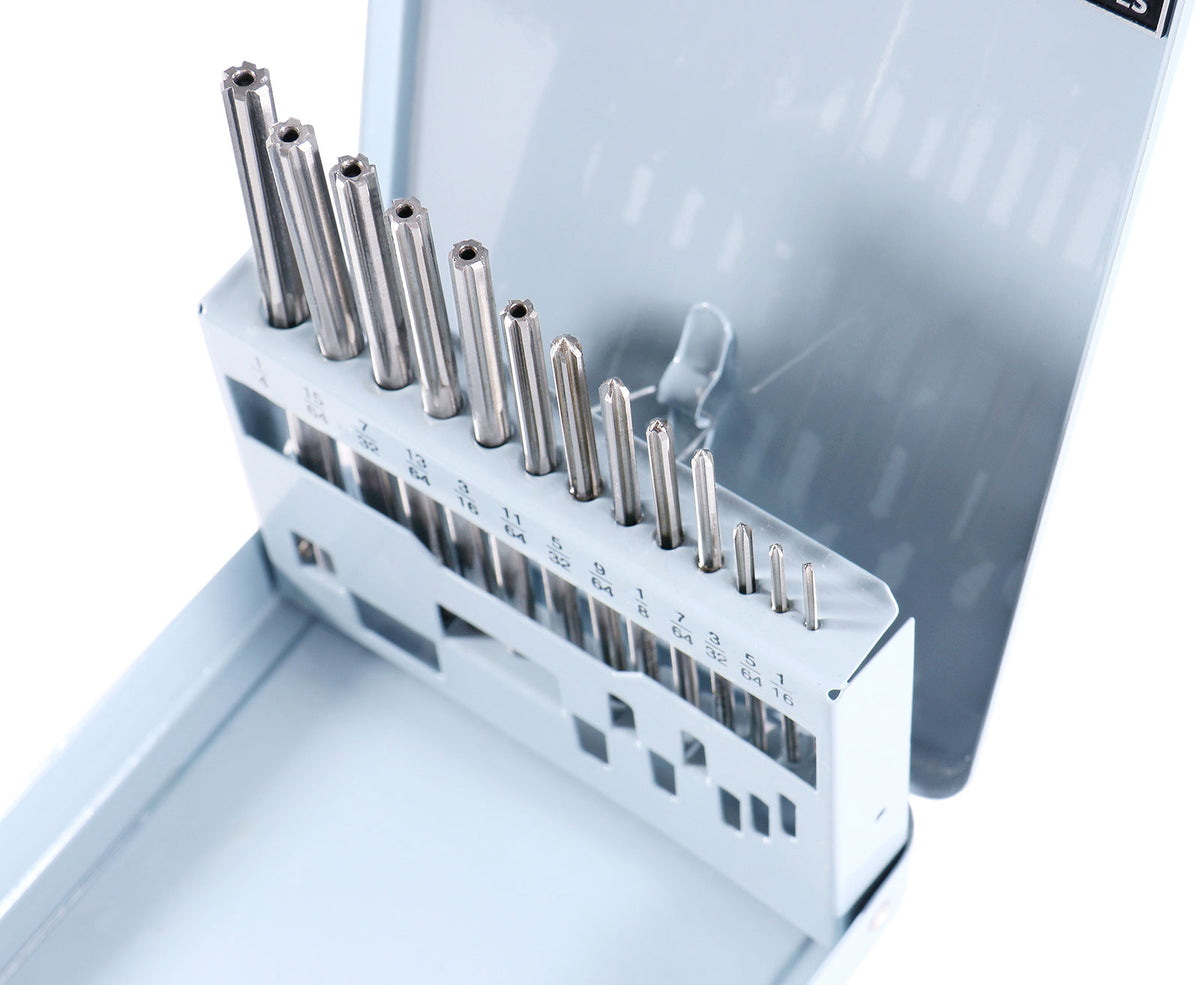

5500-SE00 Specifications

Diameter (in.)	Shank Diameter (in.)	Flute Length (in.)	Overall Length (in.)	No. of Flutes
1/16	0.0625	0.5	1-7/8	4
5/64	0.0781	3/4	2	4
3/32	0.0938	3/4	2-1/4	4
7/64	0.1094	7/8	2-5/8	4
1/8	0.1190	7/8	2-3/4	4
9/64	0.1350	1	2-7/8	4
5/32	0.1510	1	3-1/8	6
11/64	0.1645	1-1/8	3-1/4	6
3/16	0.1805	1-1/8	3-1/2	6
13/64	0.1945	1-1/4	3-5/8	6
7/32	0.2075	1-1/4	3-3/4	6
15/64	0.2265	1-1/2	3-7/8	6
1/4	0.2405	1-1/2	4	6

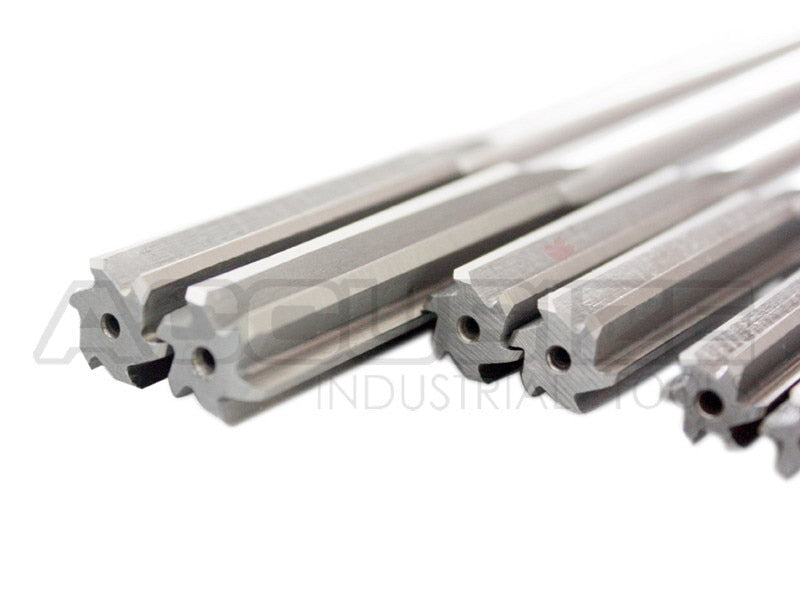

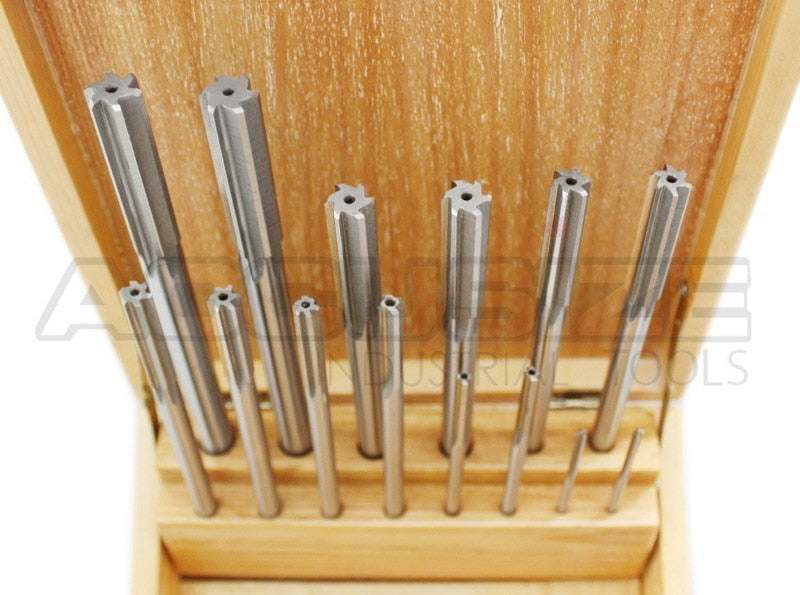

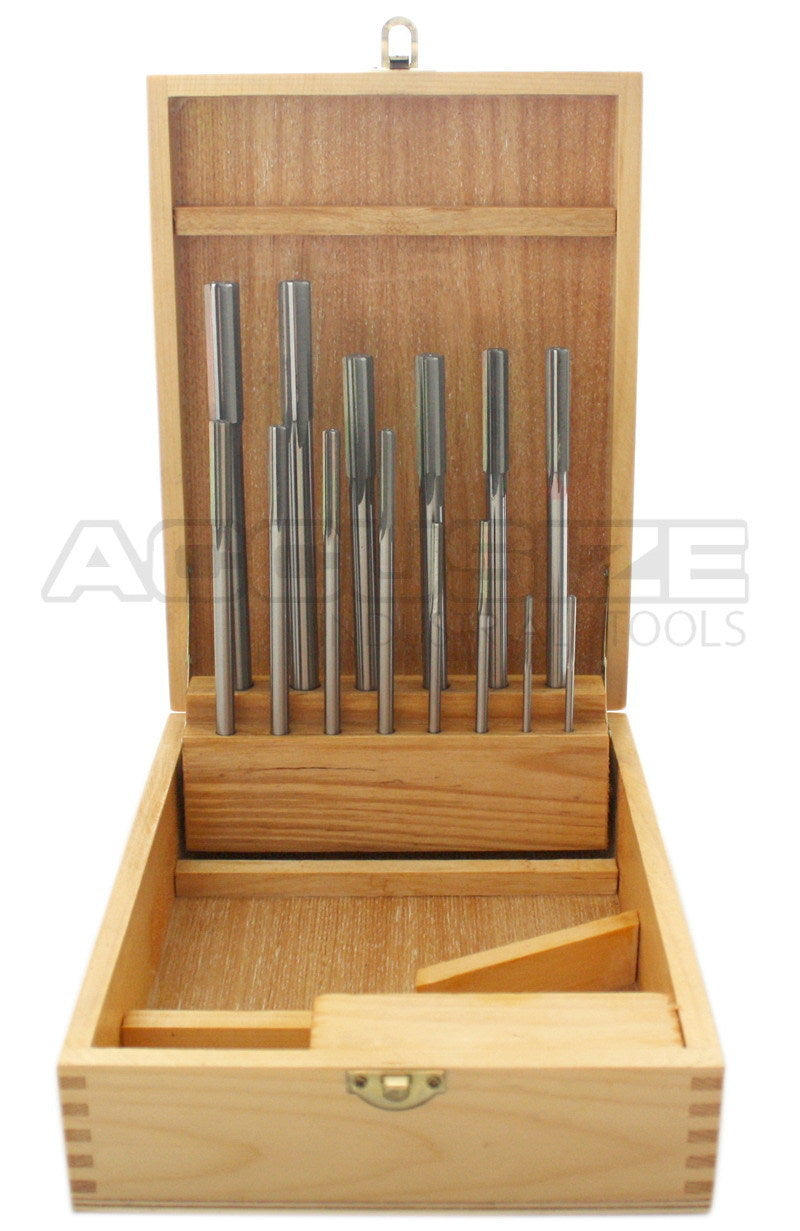

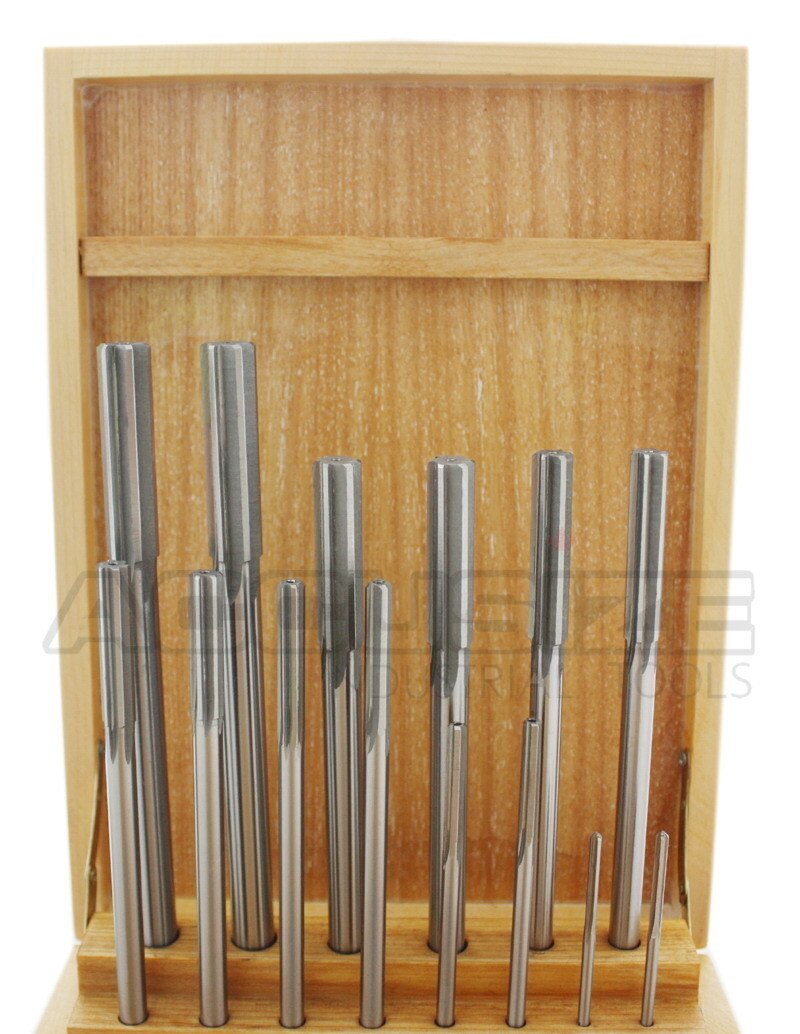

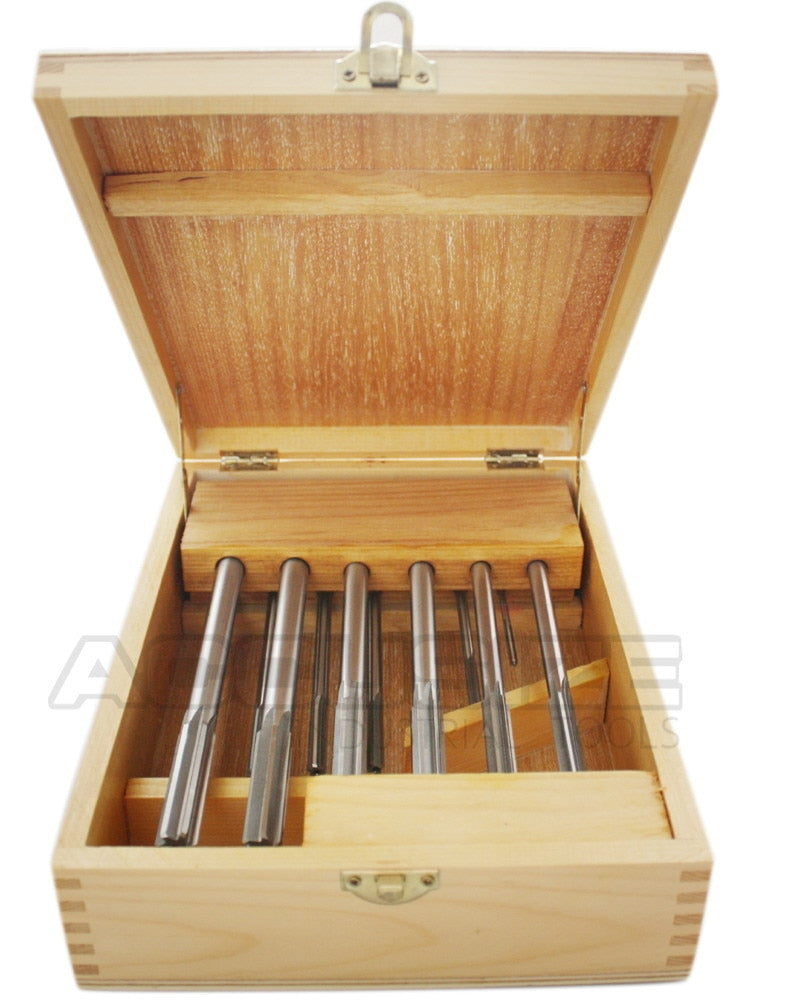

5500-SX00 Specifications

5500-SX00: 14pcs/set: 0.1240" thru 0.5010"
Size	Dec.Equiv.	Flute Length	Overall Length	No. of Flutes
0.1240"	0.1240"	7/8"	3-1/2"	4
0.1260"	0.1260"	7/8"	3-1/2"	6
0.1865"	0.1865"	1-1/8"	4-1/2"	6
0.1885"	0.1885"	1-1/8"	4-1/2"	6
0.2490"	0.2490"	1-1/2"	6"	6
0.2510"	0.2510"	1-1/2"	6"	6
0.3115"	0.3115"	1-1/2"	6"	6
0.3135"	0.3135"	1-1/2"	6"	6
0.3740"	0.3740"	1-3/4"	7"	6
0.3760"	0.3760"	1-3/4"	7"	6
