0225-0205, 5C Horizontal/Vertical Collet Index


Price:
$338.00

Shipping calculated at checkout

Stock:
Sold out

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

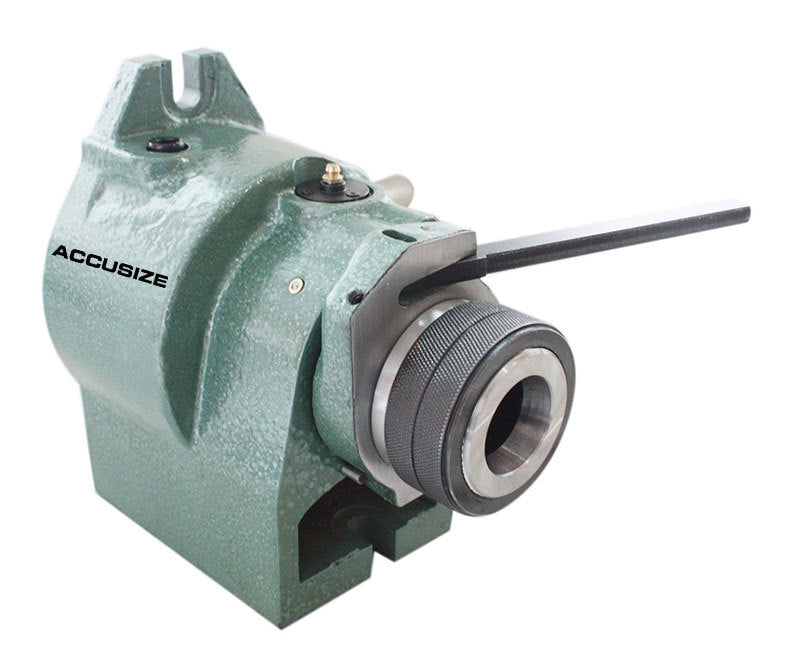

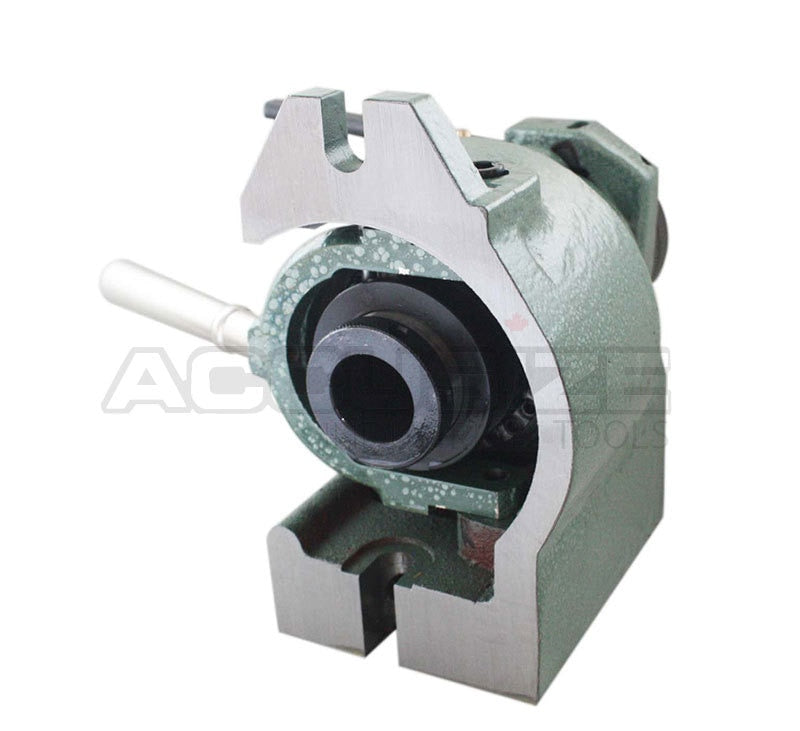

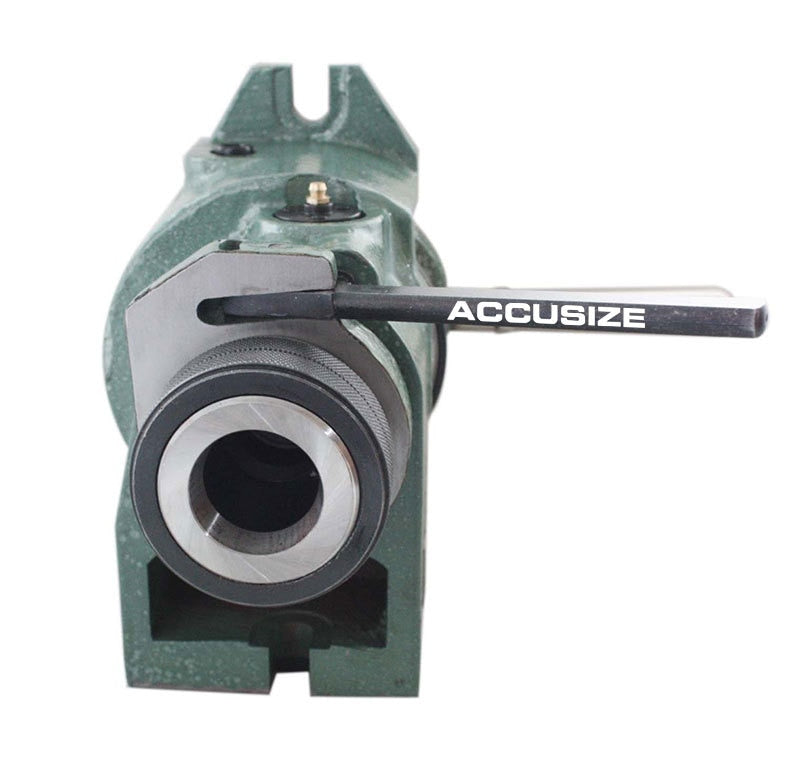

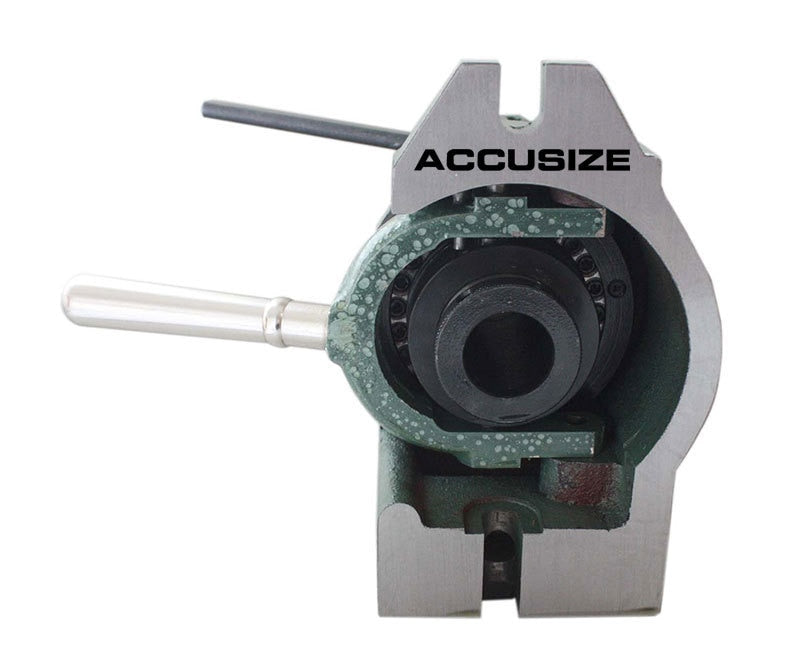

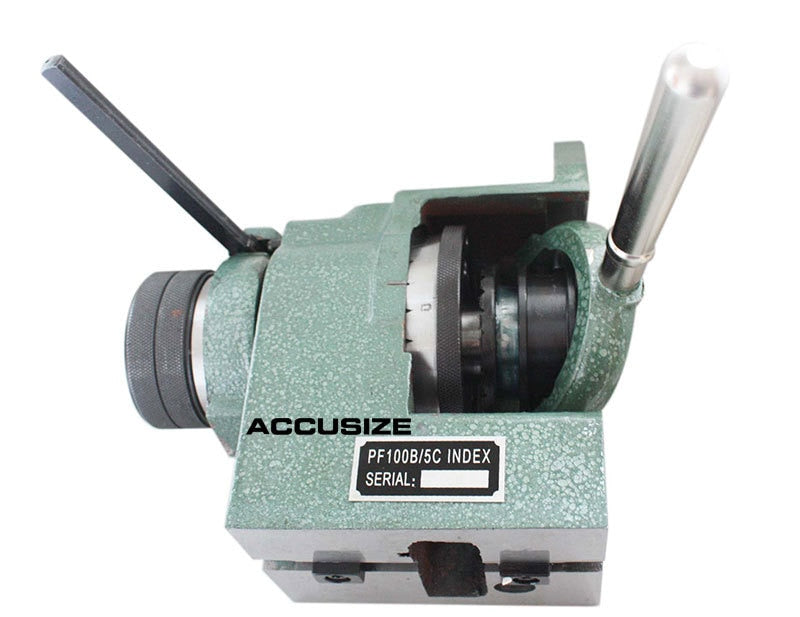

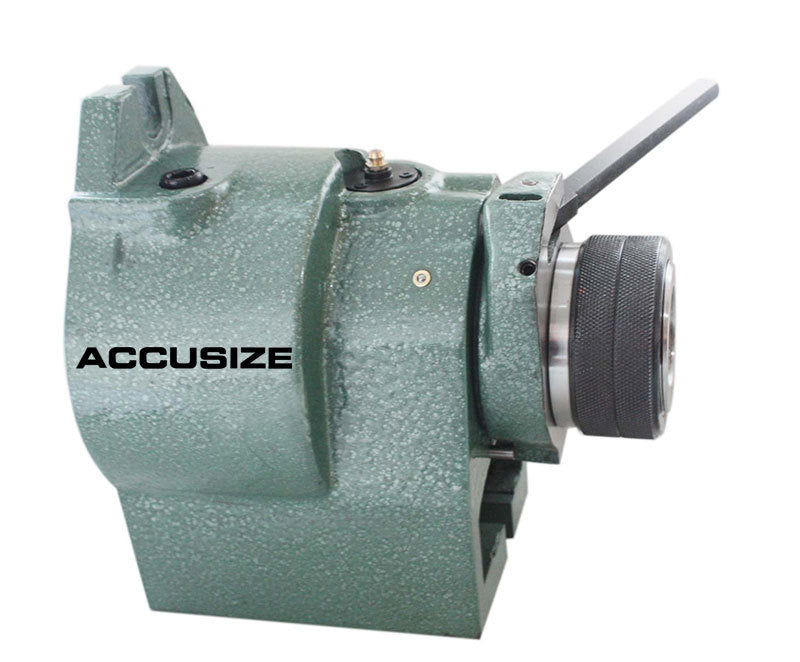

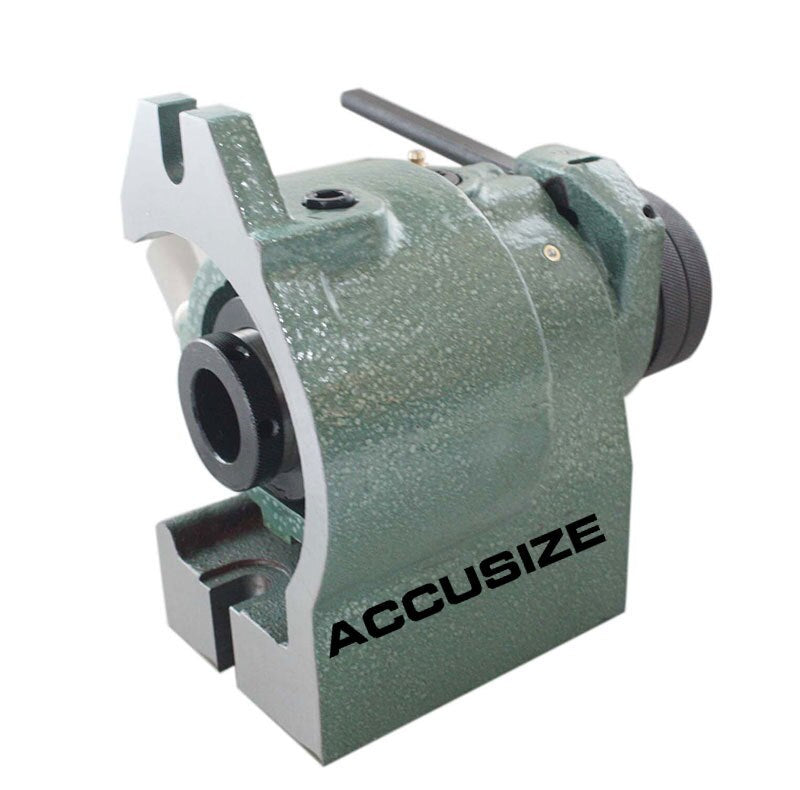

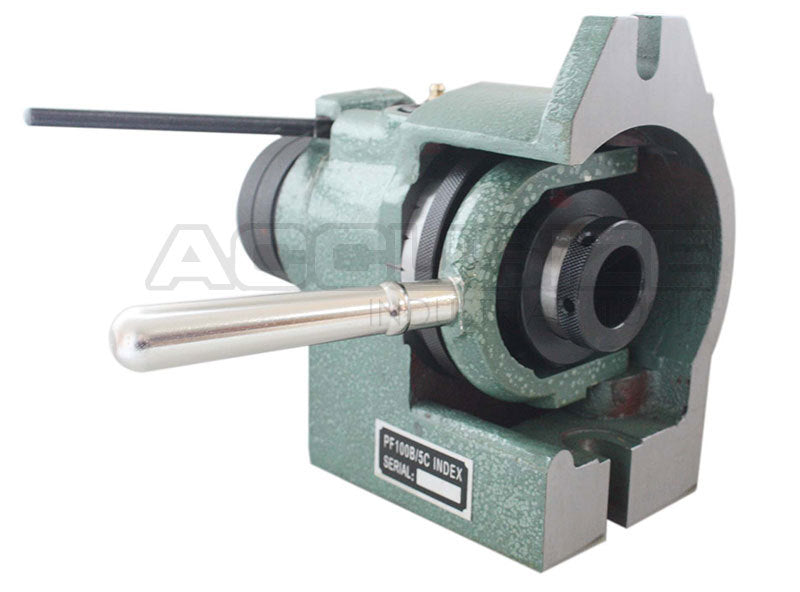

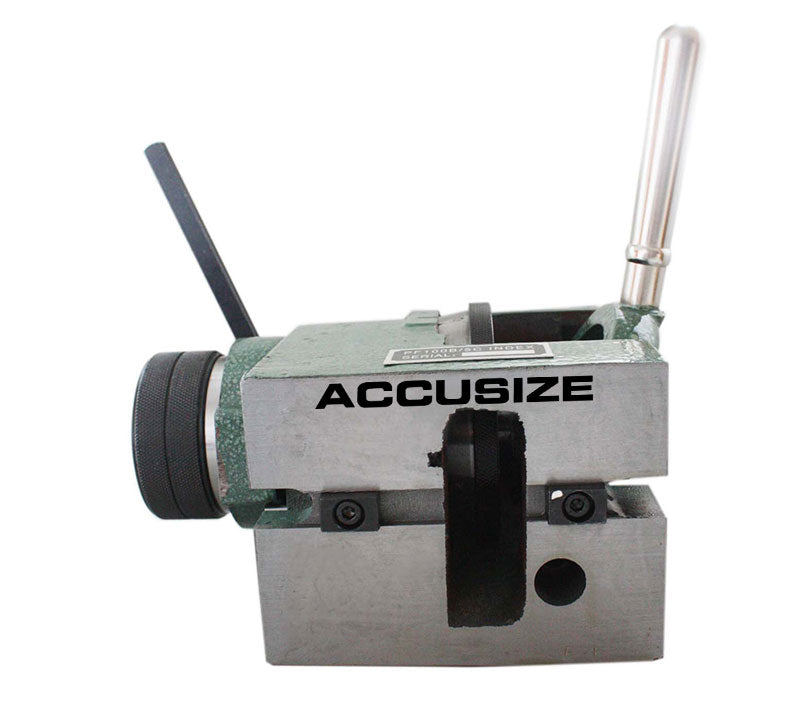

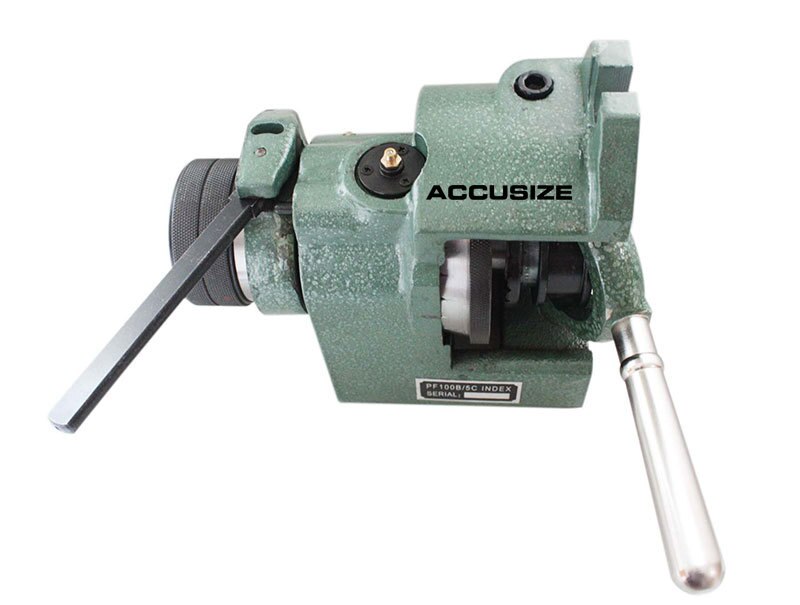

5C Horizontal/Vertical Collet Index, #0225-0205

Features

  • Rapid opening and closing is performed with a lever collet closer with a leverage ratio of 100 to 1.
  • Convenient ratchet mounted on the front of spindle provides rapid indexing
  • Utilizes 5C collets
  • Patented single lever action activates the indexing mechanism
  • Single lever action activates the indexing mechanism
  • Precision ground index plate has 24 indexing locations in greater versatility
  • Spindle manufactured with a taper seat in the body frame.
  • Index plate has 24 index locations at 15-degree increments, any of these may be masked off for greater variety in applications.
  • Dividing spindle concentricity: +-0.0004"
  • Cylindrical center bore / per 1" concentricity: +-0.0008"
  • Spindle center in parallelism: +-0.0008"
  • The spindle is 2-1/4-8 TPI
  • Base to face squareness: +-0.0008"
  • Center Slot to dividing spindle concentricity: +-0.0008"
  • Approximate weight: 35 lbs.
  • Lateral offset of center slot of divide spindle: 0.0008"
  • Threaded Spindle is hardened and ground 2-1/4"-8 TPI
  • The height from the base to the center of the spindle is 100 mm
  • Approximate weight: 35lbs.
