1/16″ – 3/4″ ADVANCED TIP AND PERFORMANCE DRILL GRINDER SDD220D

CuttermastersSKU: SDD220D

Price:
$6,825.00

Shipping calculated at checkout

Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

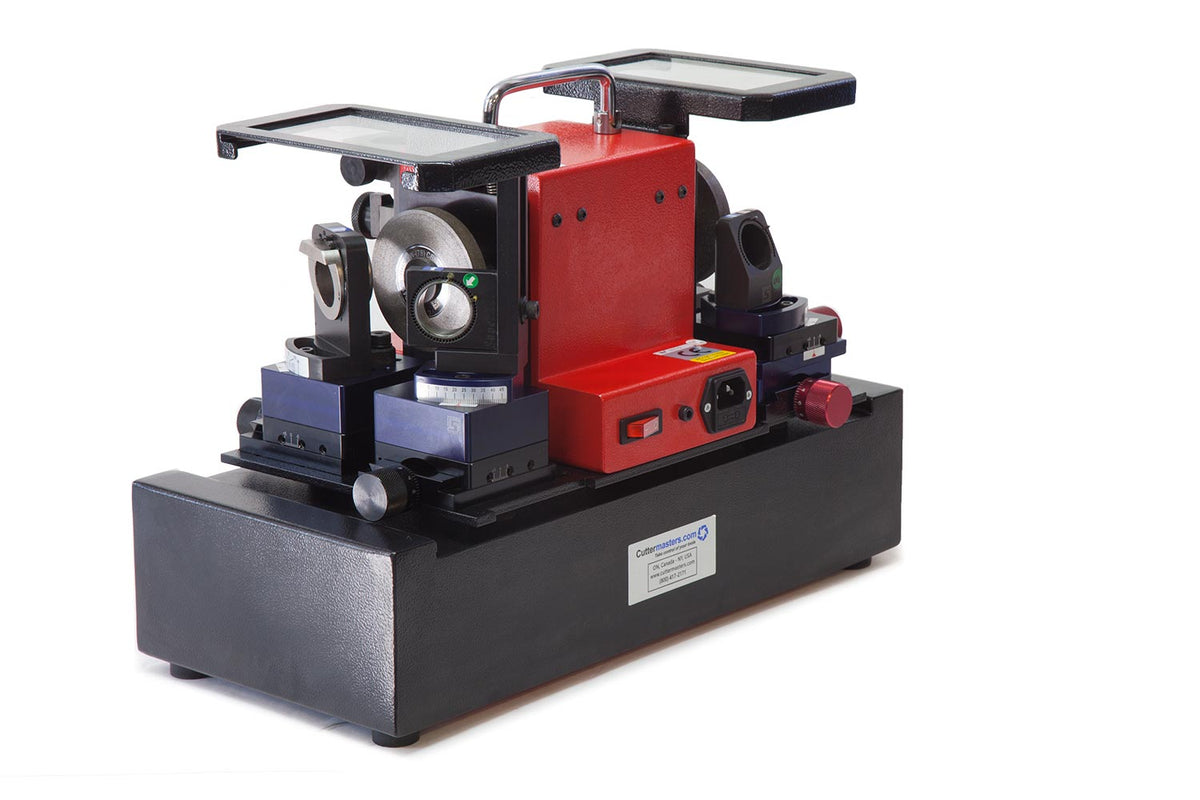

The SDD220D Drill Sharpener is designed to create the drill points in several advanced and performance drill shapes. Complete with collet set, tool kit and operators manual.

These drill grinders are not the look-alike grinders that can be found on eBay and Alibaba. Cuttermasters grinders are tested in North America, CE approved and covered by our manufacturer’s warrantee. The wheels are the bottom line, if the wheels are no good the machine is no good. Our wheels are produced using General Electric abrasive media under strict conditions to ensure long life and in some cases are designed by Cuttermasters in North America.

  • SDD220D Grinds drills 2mm to 20mm (1/8” to 3/4”) diameter advanced tip tools
  • Creates 80-140° tip angles in several geometries
  • 5th generation Drill tip with full backsplit

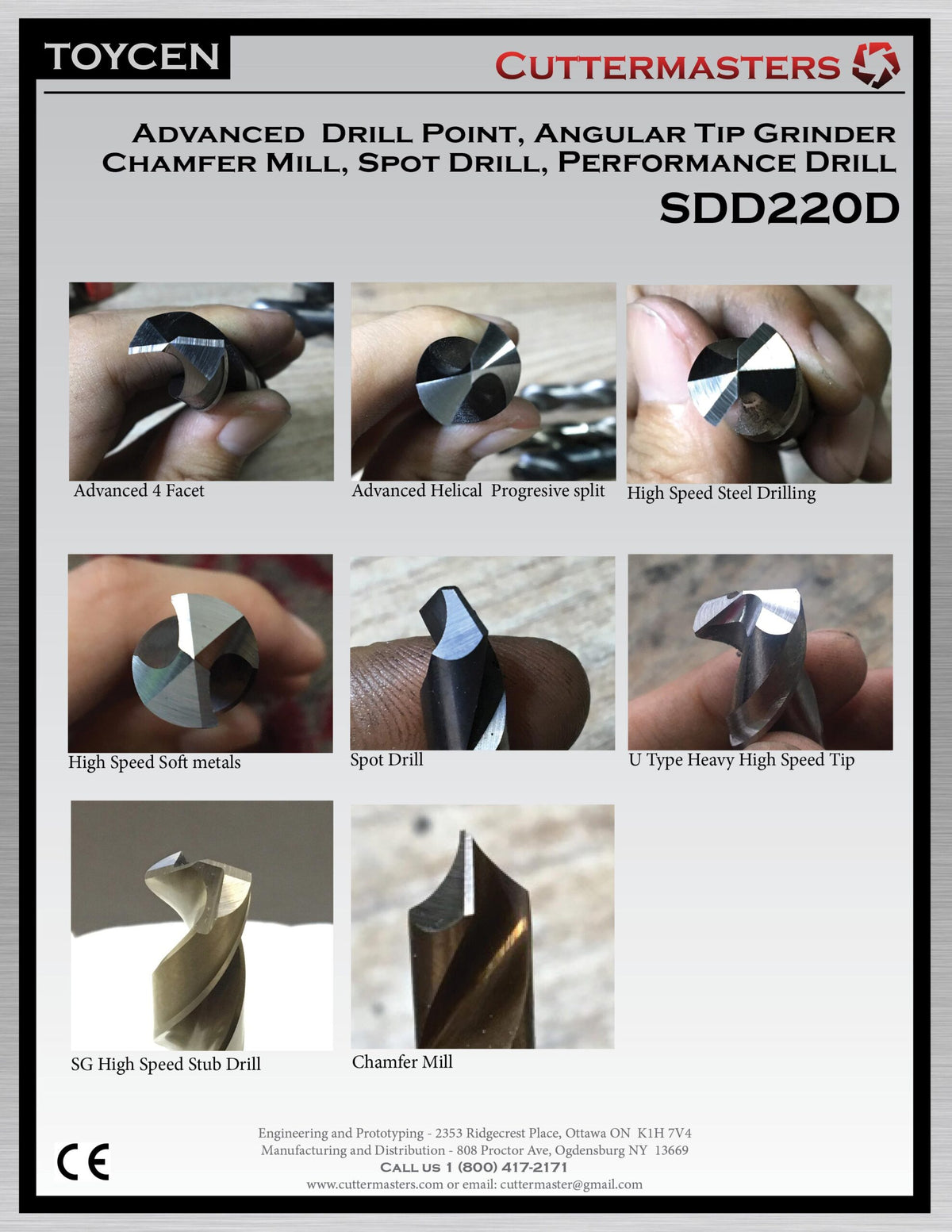

  • Creates variable split point geometry S / N / X and XR and U type for high speed drilling
  • Grinds both High Speed Steel and Carbide
  • Creates chamfer mills from used end mill stock
  • Solid Steel construction with tool storage drawer
  • Machine size: 26cm x 16cm x 19cm x 8kg
  • Advanced 1A1 Wheels common both sides allows for wider faces and reduced wheel cost



The SDD220D Drill Sharpener sharpens drills sized from 1/16″ to 3/4″ diameter

Specifications

Drill Diameter 1/16″ ~ 3/4″
Power Supply AC 110V 50/60Hz, AC 220V(Opt.)
R.P.M of Motor 5300
Grinding Wheel 140 grit
Weight N.W 10Kg G.W 16Kg
Machine Size L 300mm, W 165mm, H 245mm
Packing Size L 380mm W 245mm, H 325mm

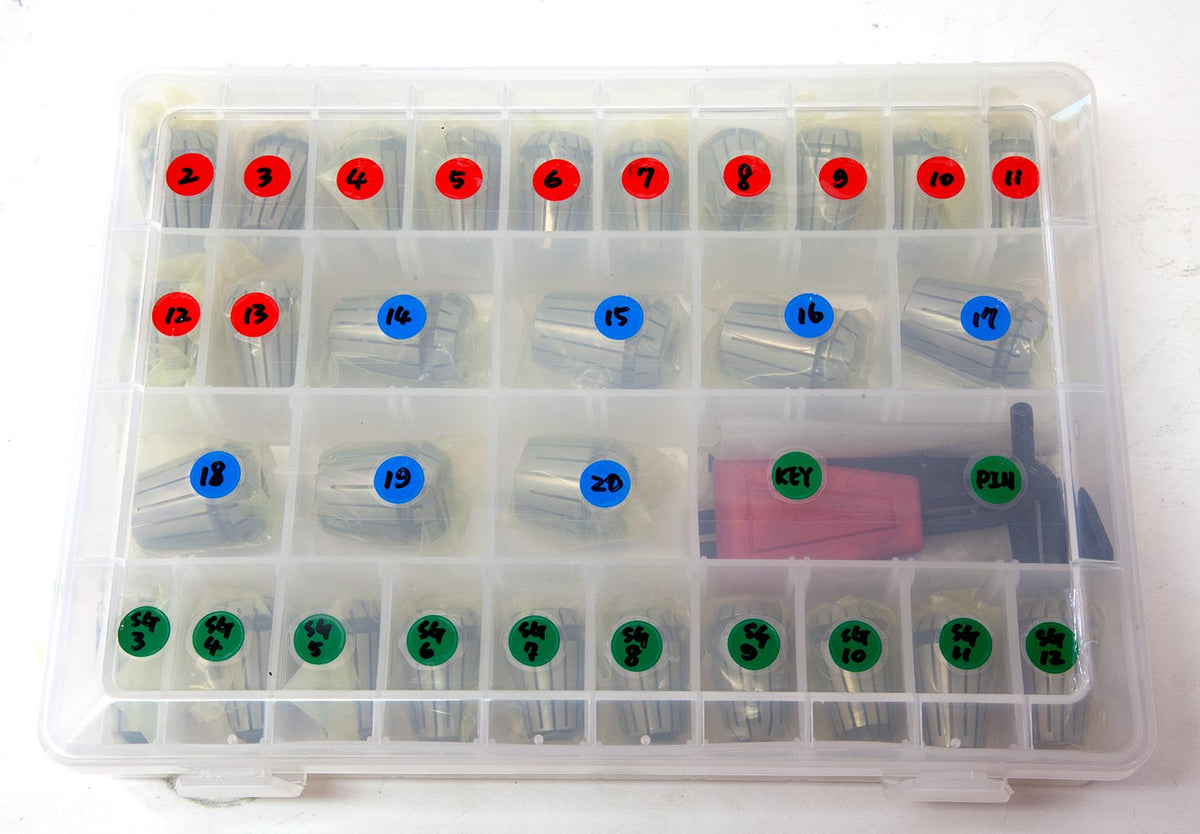

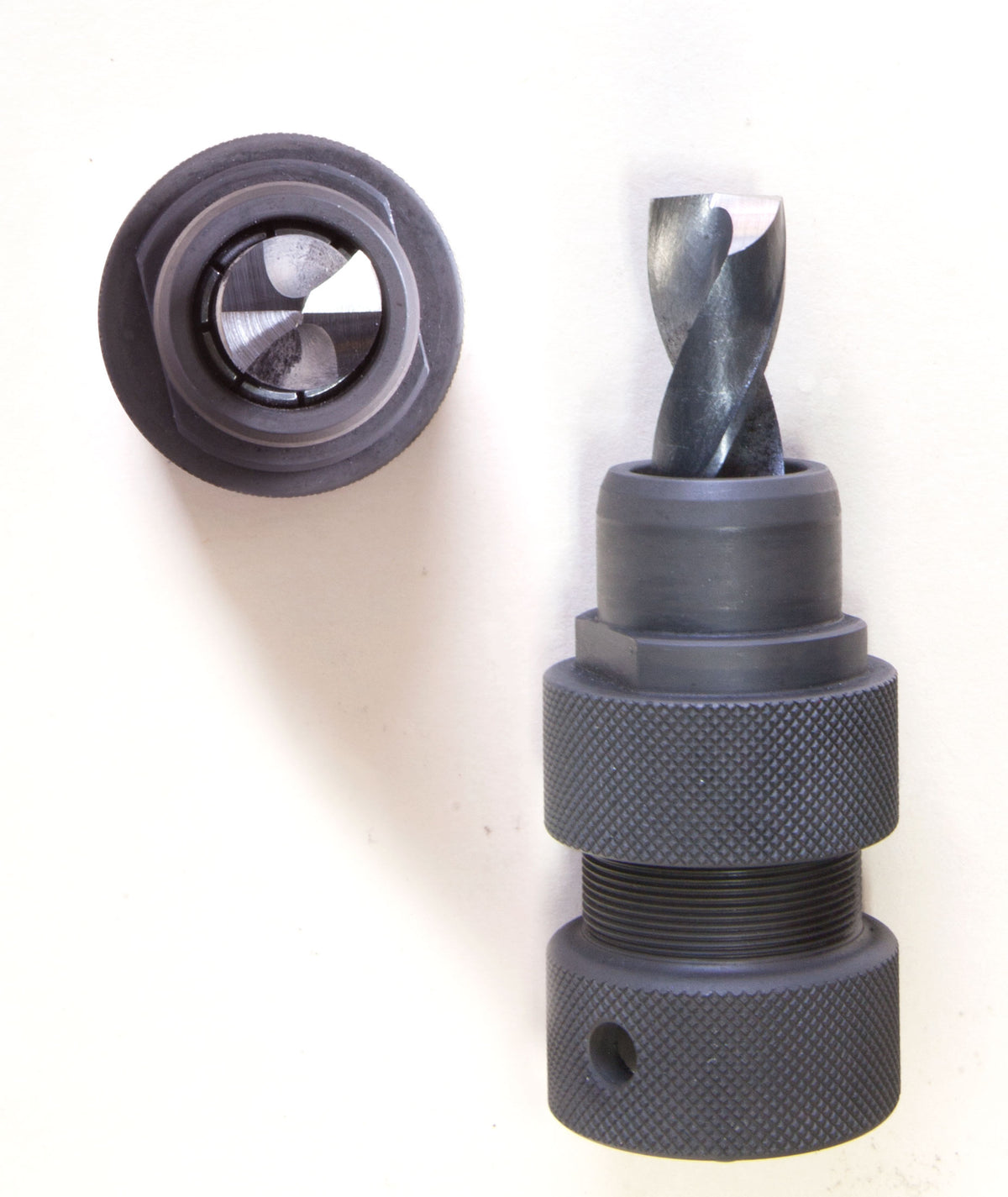

Standard Accessories Collet x 17 pcsBushings x 6 pcsChuck Set: 3 sets (6 pcs)Hexagon Wrench 3mm x 1pcs / 4mm x 1 pcs



* Optional Grinding Wheel CBN or Diamond
