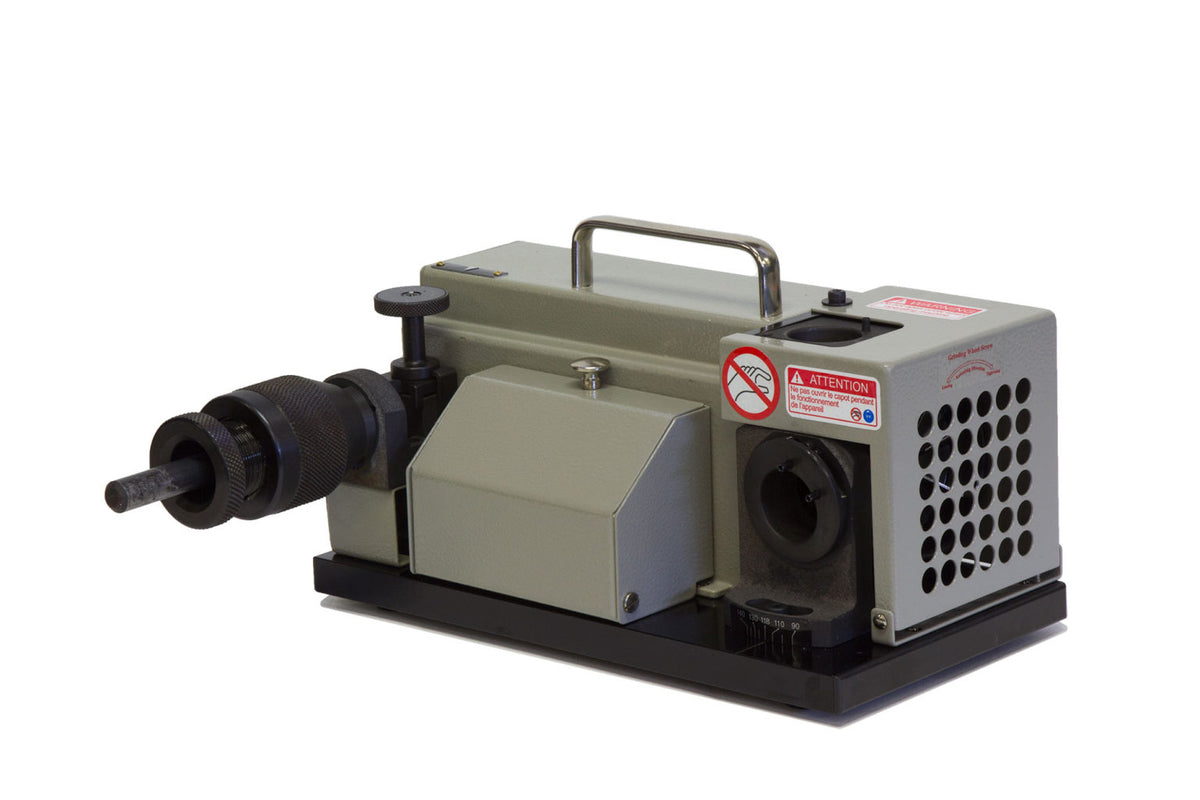

The EC313X precision Chuck type Drill Sharpener sharpens HSS or Carbide drills .1″ to .625″ diameter
This is the EC313 with the addition of an ER25 collet chuck and 14 and 15mm collets. The Drill Sharpener EC313 is easy to use, has a small footprint and all steel powder coated, heavy duty construction for industrial tool sharpening.
Fast and accurate .0005″ repeat-ability. Easier to use than the collet type. No messing around with imperial / metric issues.
Cuttermasters drill point grinders are stocked, tested and warrantied in North America.
The wheels are the bottom line. If the wheels are no good the machine is no good. Our wheels are produced using General Electric abrasive media under strict conditions to ensure long life and in some cases are designed by Cuttermasters in North America.
- Conventional helical tip or Back split (center cutting)
- Easy to operate, Very accurate
- Patented 4 Jaw Precision Chuck
- Quiet Powerful DC motor
- Industrial quality GE grinding wheel
|Drill Diameter||1/8″ ~ 5/8″|
|Power Supply||AC 110V 50/60Hz, AC 220V(Opt.)|
|R.P.M of Motor||5300|
|Grinding Wheel||200 grit|
|Weight||N.W 7.Kg G.W 7.7Kg|
|Machine Size||L 300mm, W 165mm, H 230mm|
|Packing Size||L 340mm W 245mm, H 325mm|
|Standard Accessories||Precision 4 Jaw Chuck, Set: 3 sets (6 pcs)Hexagon Wrench 3mm x 1pcs / 4mm x 1 pcs* Optional Grinding Wheel CBN or Diamond|
