2-Axis DRO Milling Machine Packages (X, Y)

DITRONSKU: SINS-1001

Mill Sizes: Mill Size: 8" X 36" (SINS-1001)
Price:
$780.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

2-Axis DRO Milling Machine Packages, 0.0002" Resolution, Glass Scales

Features

  • Voltage 90V-240V
  • Power DC 5v (15%) 80 MA
  • Two mounting brackets are each located at either end of the scale
  • Resolution selection: 0.0002"/0.005mm
  • Zero setting
  • Half calculating, locating workpiece center
  • Inch/Metric conversion and INC/ABS conversion
  • Diameter/radius selection
  • Simple & Smooth "R" function
  • Divide the perimeter of circle # (Bolt Circle Drilling)
  • Hole Drilling Along An Oblique Line
  • Save 200 work piece zero points
  • Angular Surface Processing
  • Progressive Processing of Rectangular Inner Chamber
  • To reach objective values stop
  • Cone measure
  • Number percolate
  • Takes 16 bits & 32 bits CPU technology
  • 200 cutlery memory
  • Power failure memory
  • KA-300 series small size encoder
  • All mounting hardware
  • 1 standard DRO Counter
  • 2 Linear glass scales, cross slide scale is slim style model
  • Operating manual
  • Resolution 0.0002"/0.005mm


  • Max. response speeds:47 in./sec.
  • Aluminum outside case with double


  • rubber seals
  • Over 10" connecting cable

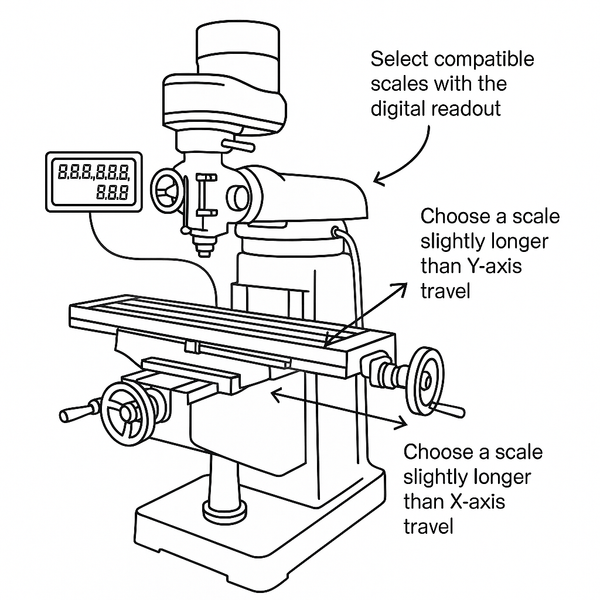

Item No. Mill Size Travel Overall Length of Scale
SINS-1001 8'' x 36'' 12'' x 30'' 17'' x 35''
SINS-1002 9'' x 42'' 14'' x 30 '' 19'' x 35''
SINS-1003 9'' x 49'' 14'' x 36'' 19'' x 40''
SINS-1004 10'' x 54'' 16'' x 40'' 21'' x 45''
