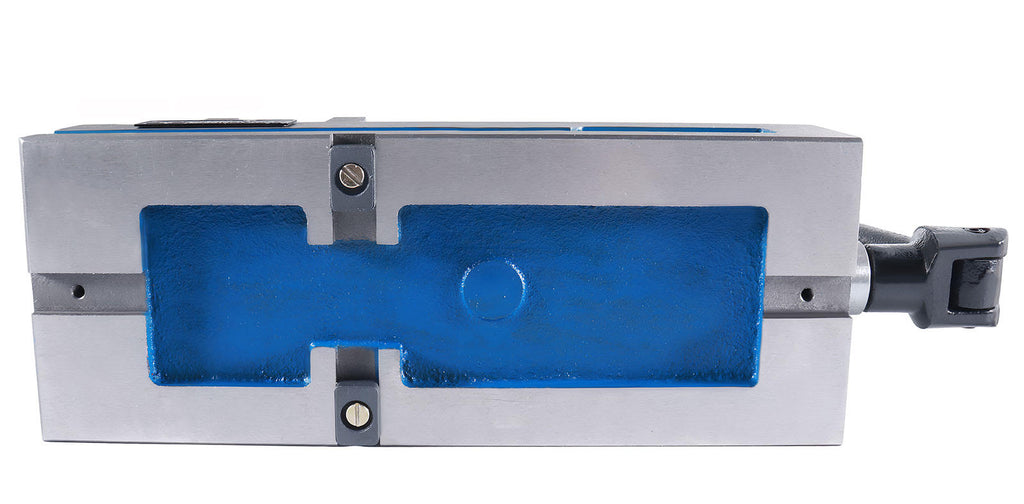

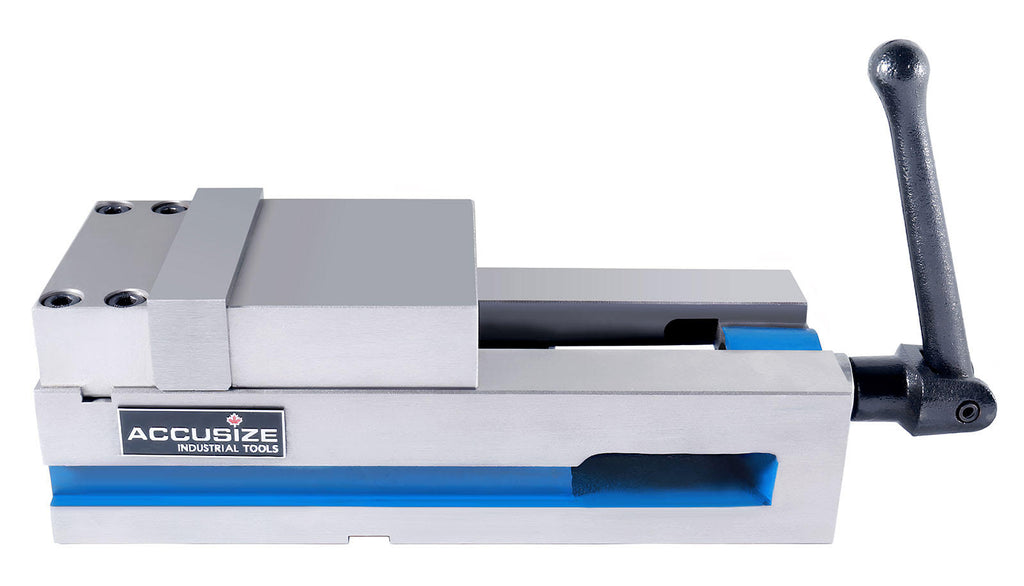

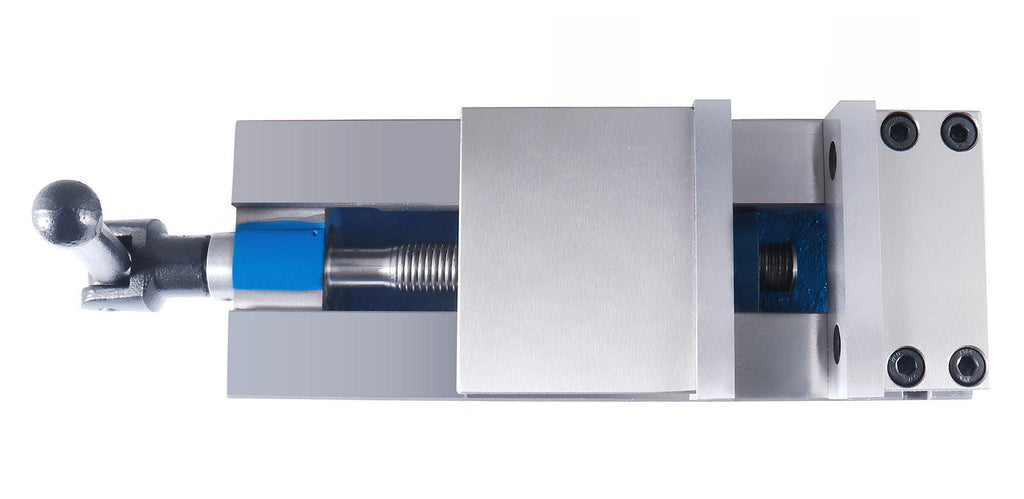

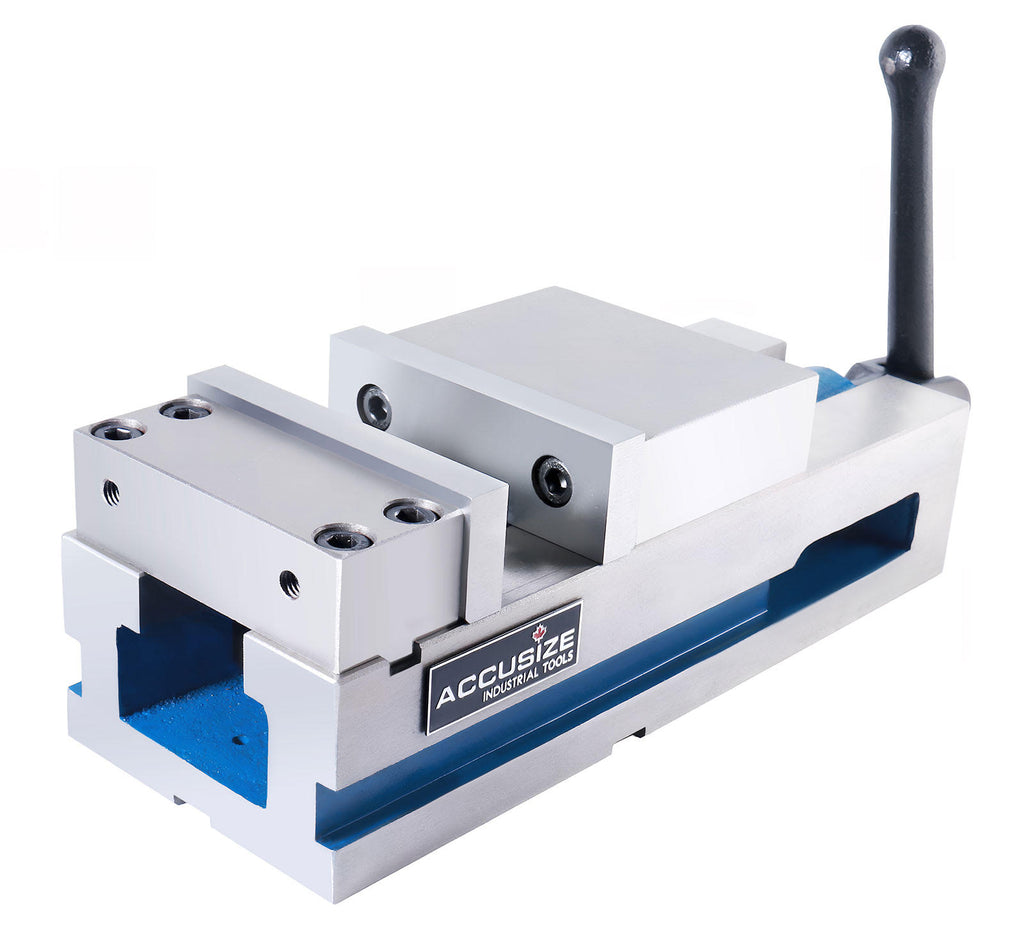

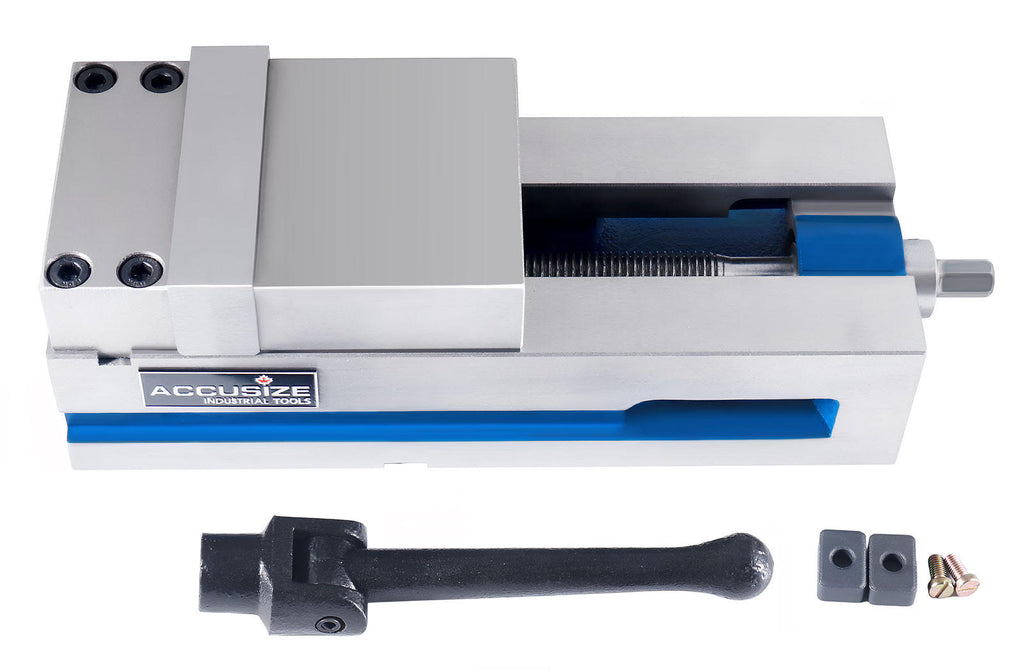

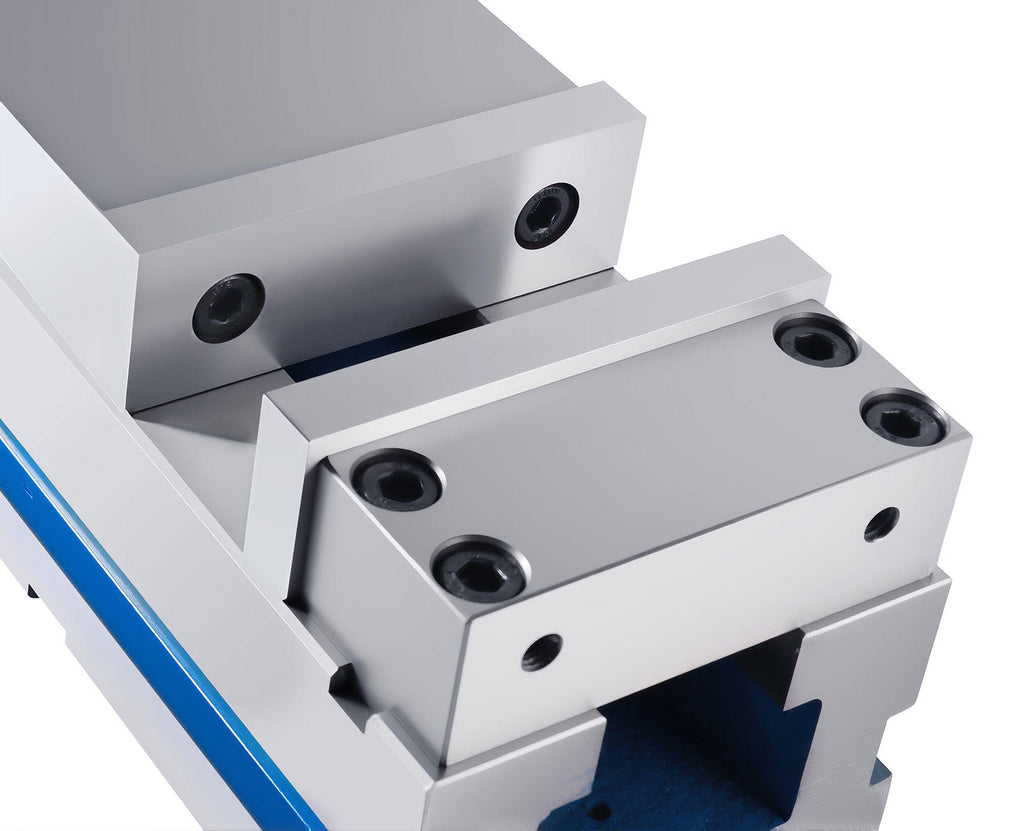

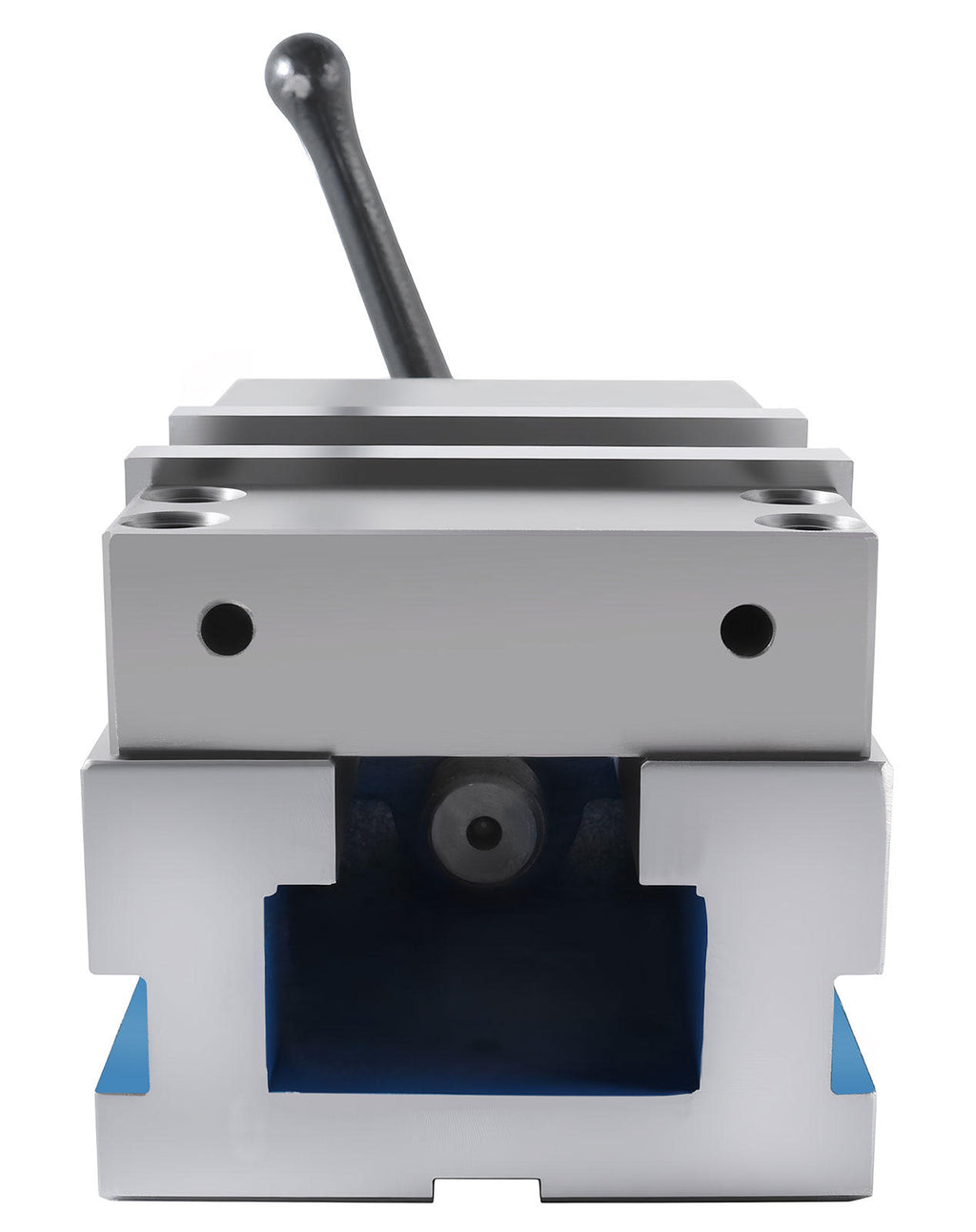

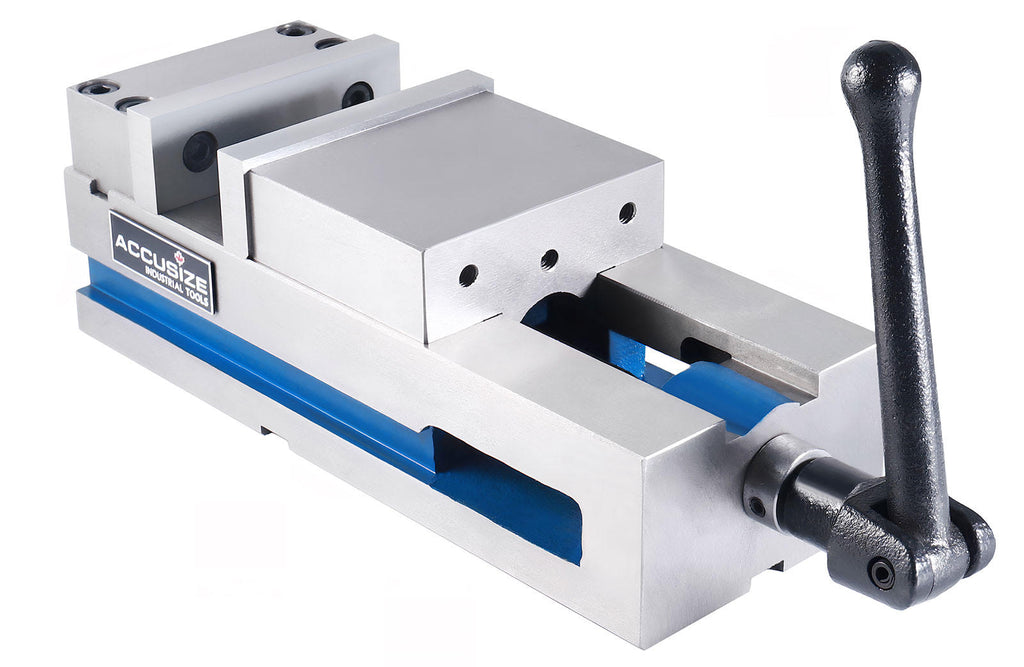

3'', 4'', 6'' Super-Lock Precision C.N.C. Machine Vise 0.0002 Inch
*Note: Available with up to 4 vises matched to the same height.
- Features a thrust bearing that increases clamping power by 80%
- Can be mounted upright or sideways. Excellent to use when you have multiple vise setups
- Can not guarantee the exact location of the Keyway Slot. Need Machining the Keyway if they used in pairs.
- Internal refine grinding treatment, smooth use. No jamming, rust and corrosion resistance.
- The surface is quenched, turned, and ground, enabling strong toughness, high tensile strength, and wear resistance.
- Guide rail surface is a refined ground seamless contact surface. Can be used upright without affecting the accuracy of clamping capacity.
- For CNC milling machines, drilling machines, and precision parts.
- Accurately ground flat vise connects precisely with the machine tool, thus reaching an accuracy requirement of 0.0008" (0.02 /100mm)
- Jaw material: 45# steel
- Body material: ductile cast iron.
- Wrench material: ductile iron.
-
Workpiece Surface Flatness: 0.02/100mm
| Item |
A (Jaw width) |
B (Jaw opening) |
C (Jaw depth) |
E | F | H | J | K | L1 | OAL (L) |
Width (W) |
Weight |
| FA23-5203 | 3.150'' | 2.953'' | 0.945'' | 1.969'' | 0.866'' | 2.913'' | 1.181'' | 0.472'' | 8.228'' | 9.409" |
3.189'' | 15.432 lbs |
| FA23-5204 | 3.937'' | 3.937'' | 1.260'' | 2.362'' | 1.142'' | 3.386'' | 1.378'' | 0.472'' | 10.433'' | 11.811" |
3.976'' | 26.455 lbs |
| FA23-5206 | 6.299'' | 5.512'' | 1.772'' | 3.031'' | 1.575'' | 4.803'' | 1.890'' | 0.748'' | 15.433'' | 17.323" |
6.339'' | 63.934 lbs |
