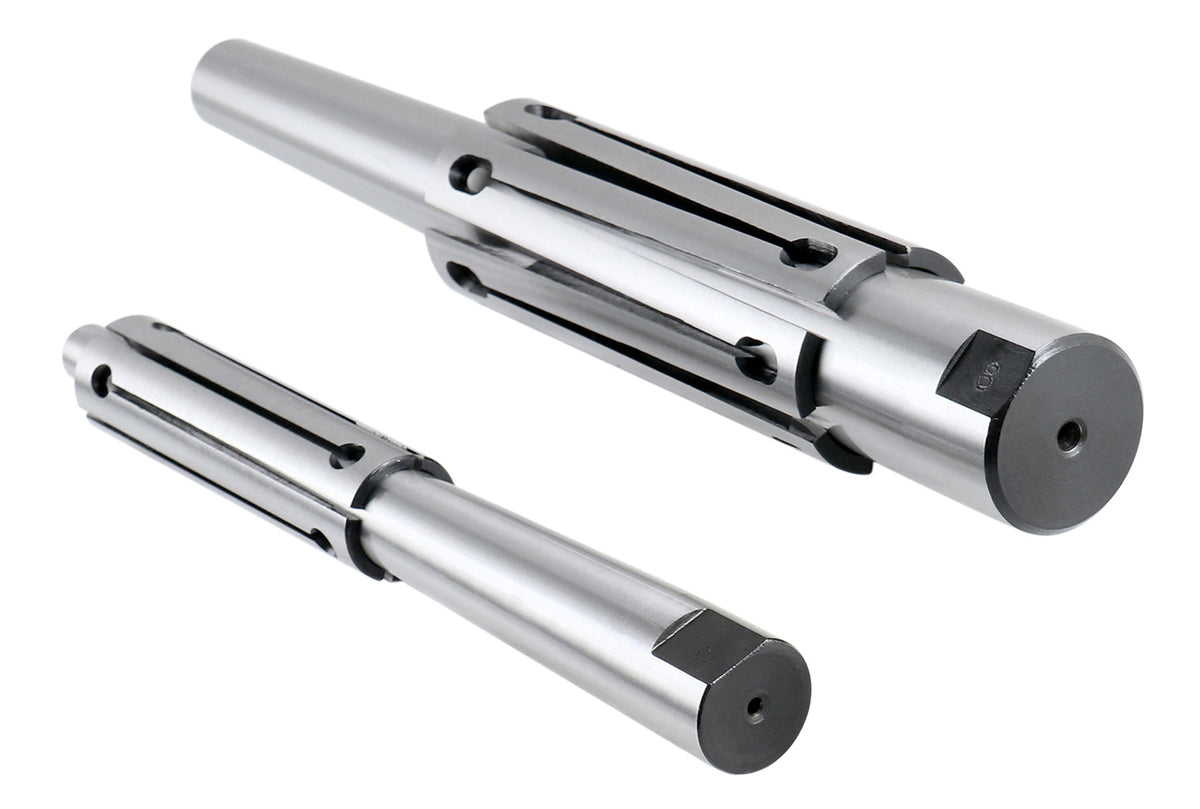

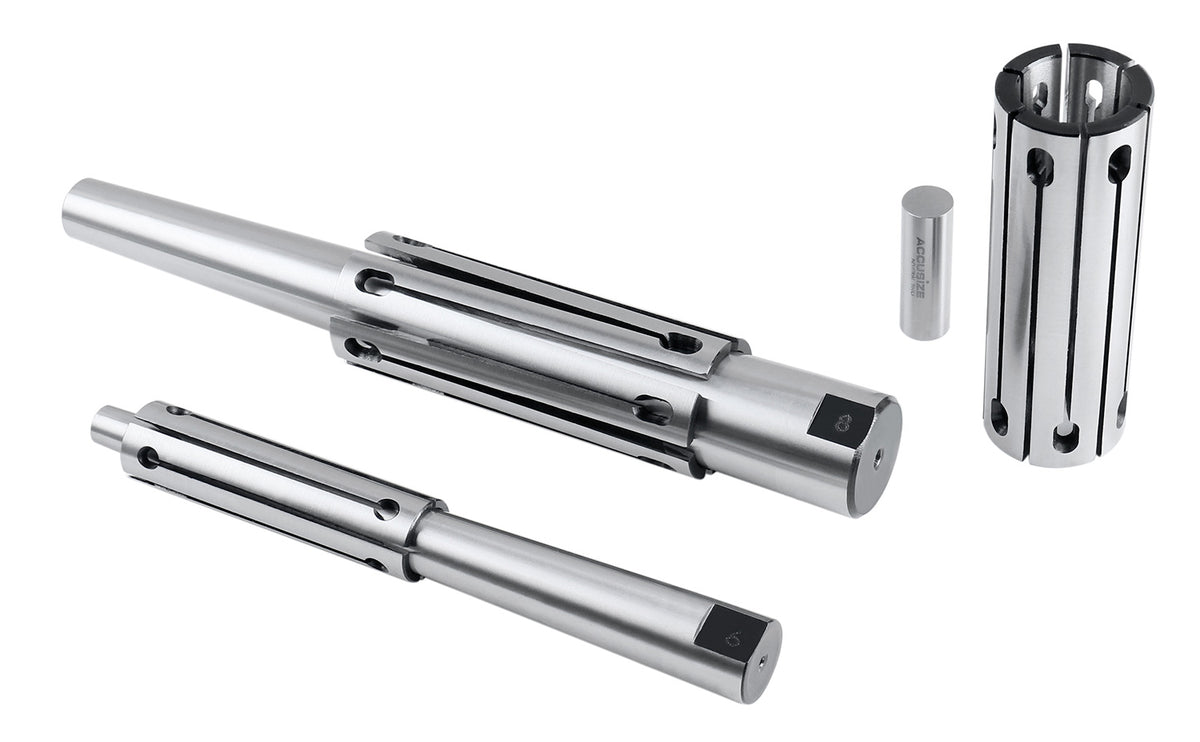

8 Ps/set Precision Expanding Mandrel Set, 6978-0918


Price:
$528.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

8 Ps/set Precision Expanding Mandrel Set, 6978-0918

Not like traditional mandrels with fixed sizes, expanding mandrels are flexible and adjustable. With the tapered shafts and the elastic sleeves, one mandrel with a sleeve can hold a range of sizes. Thus, you don't need a great many of the mandrels with fixed dimensions. This precision and adjustable expanding mandrel set can support inside diameters ranging from 1/2" to 2". Accusize 6987-0918 Precision Expanding Mandrels are made of high-grade tool steel, which gives the toolset relatively much longer tool life.
The precision expanding mandrels are much more economically than traditional arbors.

Features:

  • Made of high-grade tool steel.
  • Precision ground and heat-treated for maximum concentricity and holding power.
  • Center holes are ground and lapped.
  • The automatic expansion feature can be utilized on any bore (standard or non-standard) within the range of the mandrel.

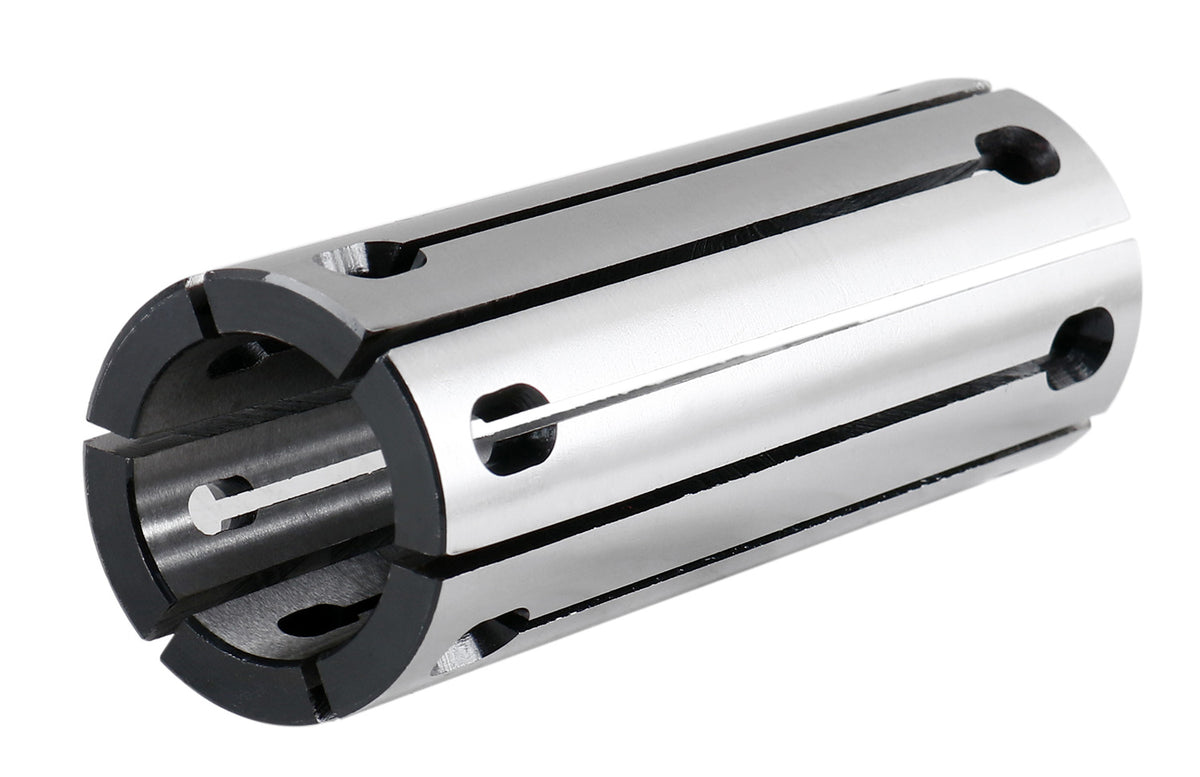

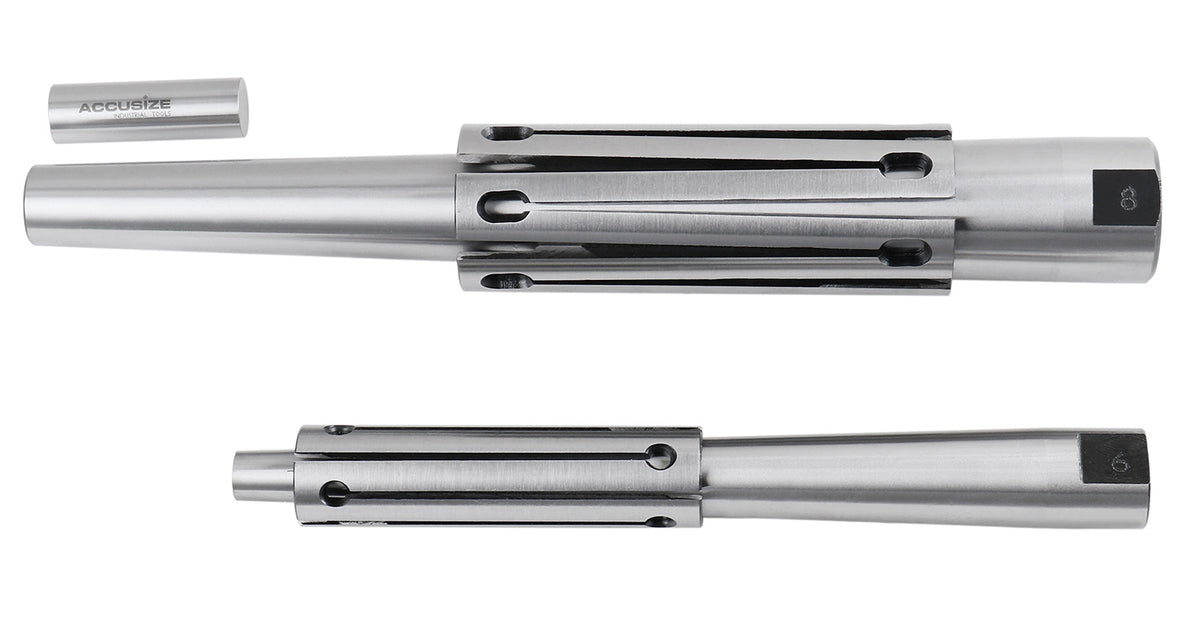

  • Sizes up to 1" capacity are furnished with 1 sleeve: larger sizes are furnished with 2 sleeves (1 large and 1 small).

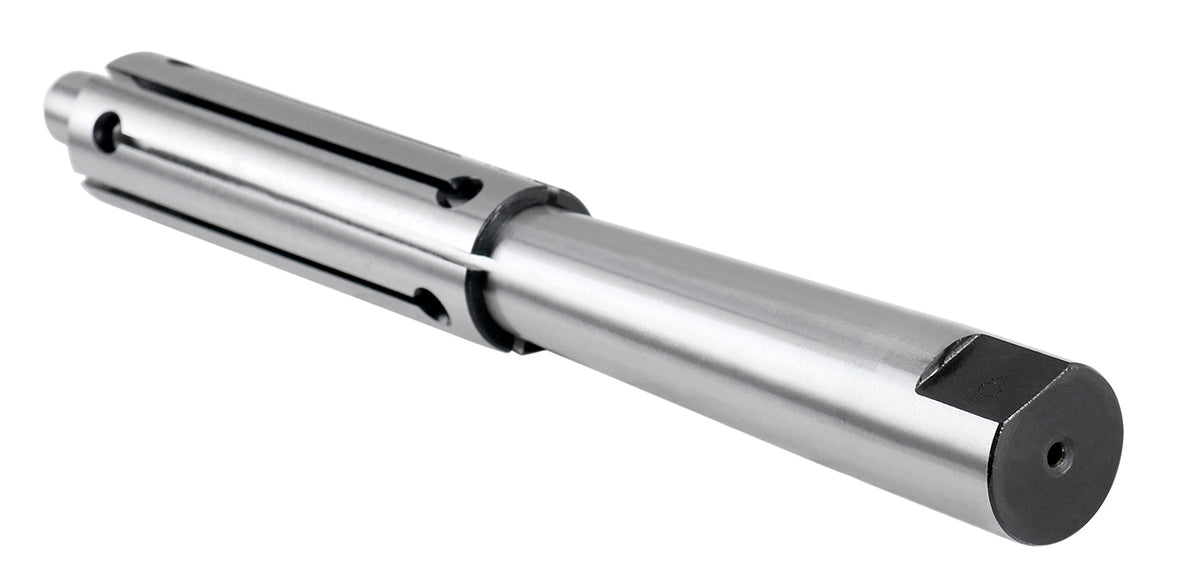

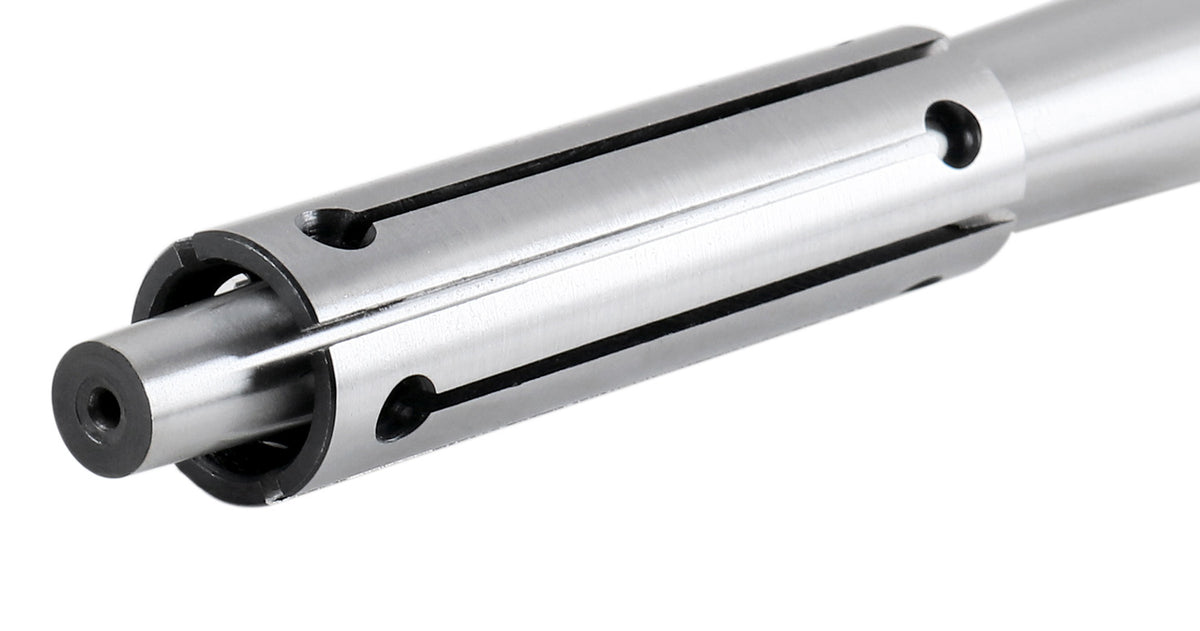

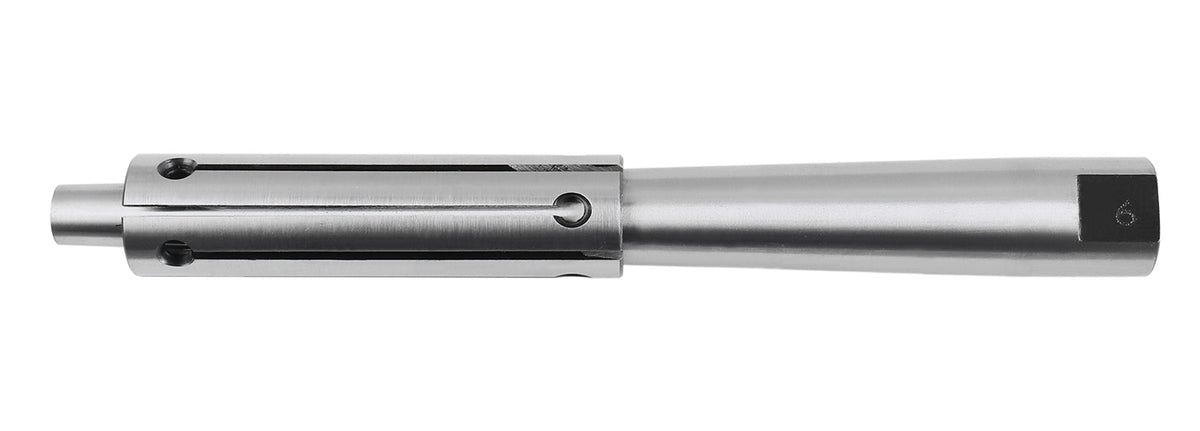

  • Arbors are tapered, sleeves are flexible and size is obtained by moving sleeves along the arbor.

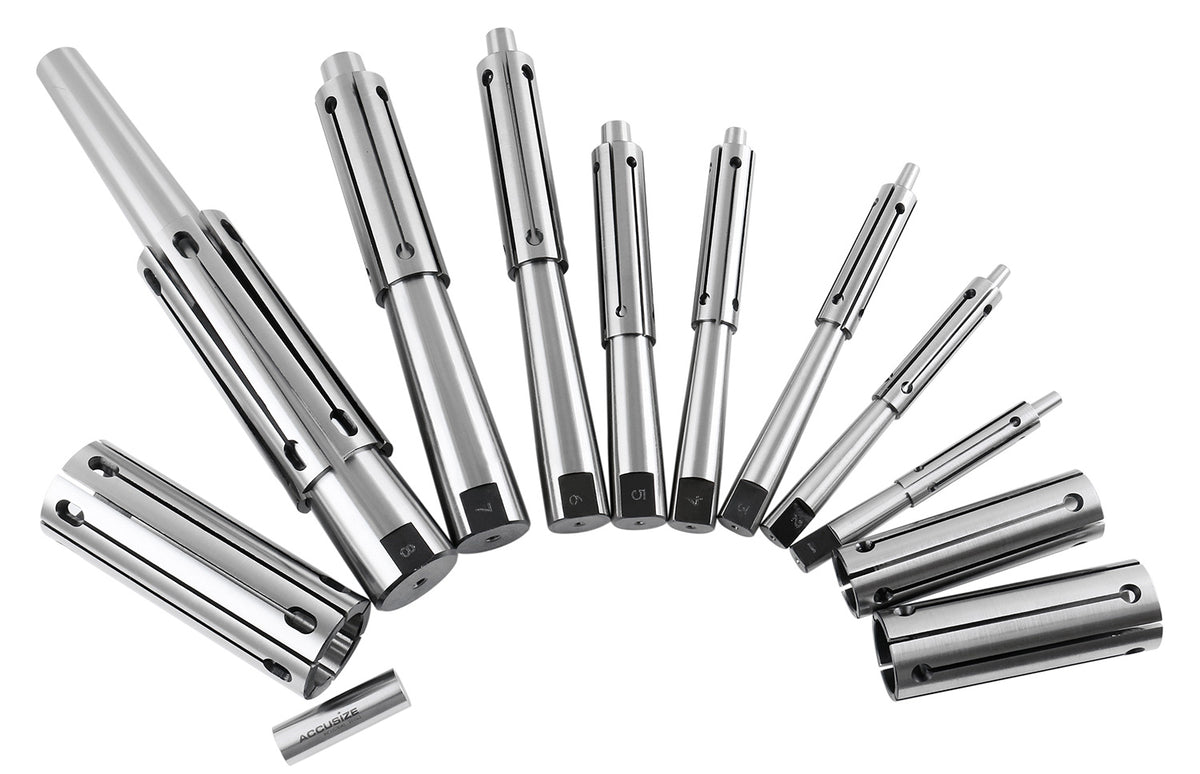

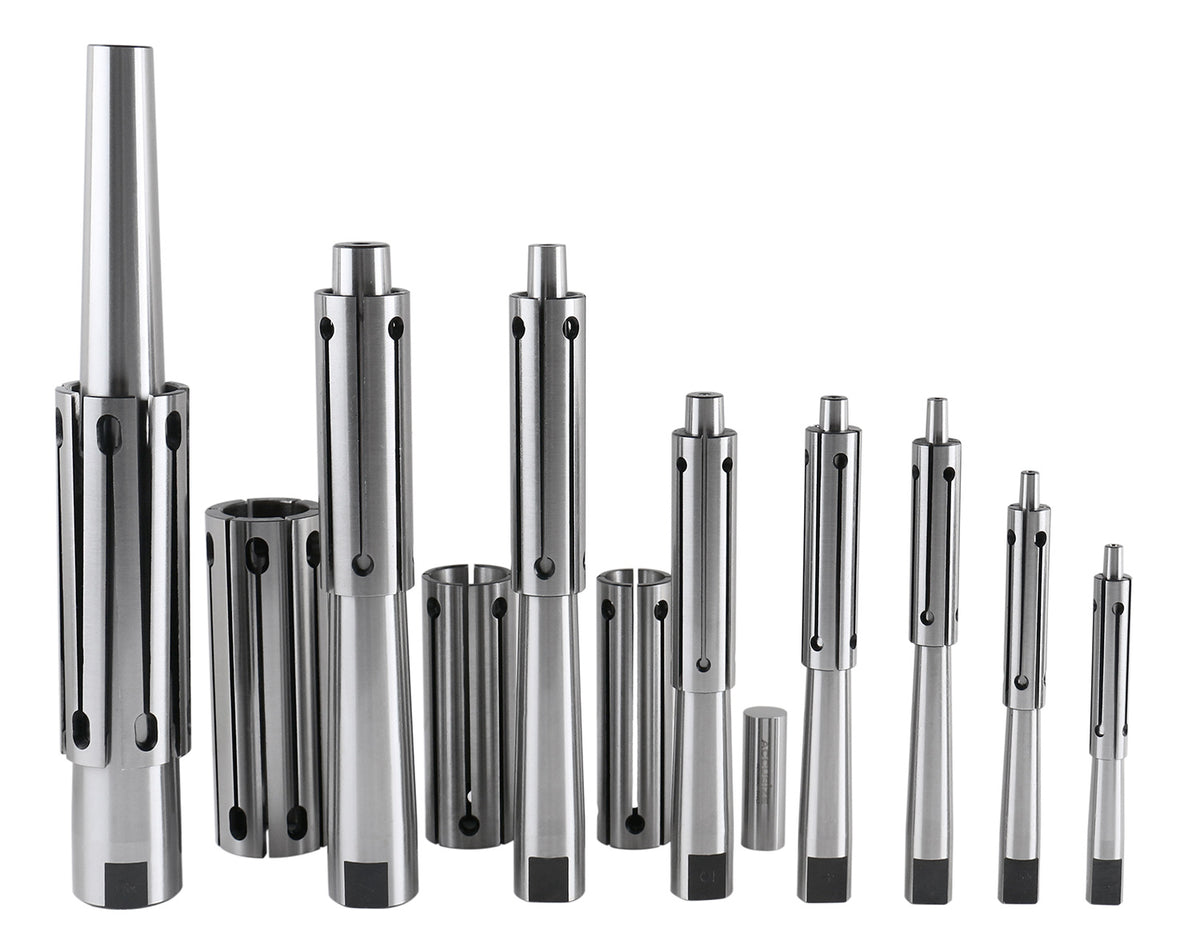

  • A range from 1/2" thru 2" by 0.0001" can be covered by a total of 8 mandrels.

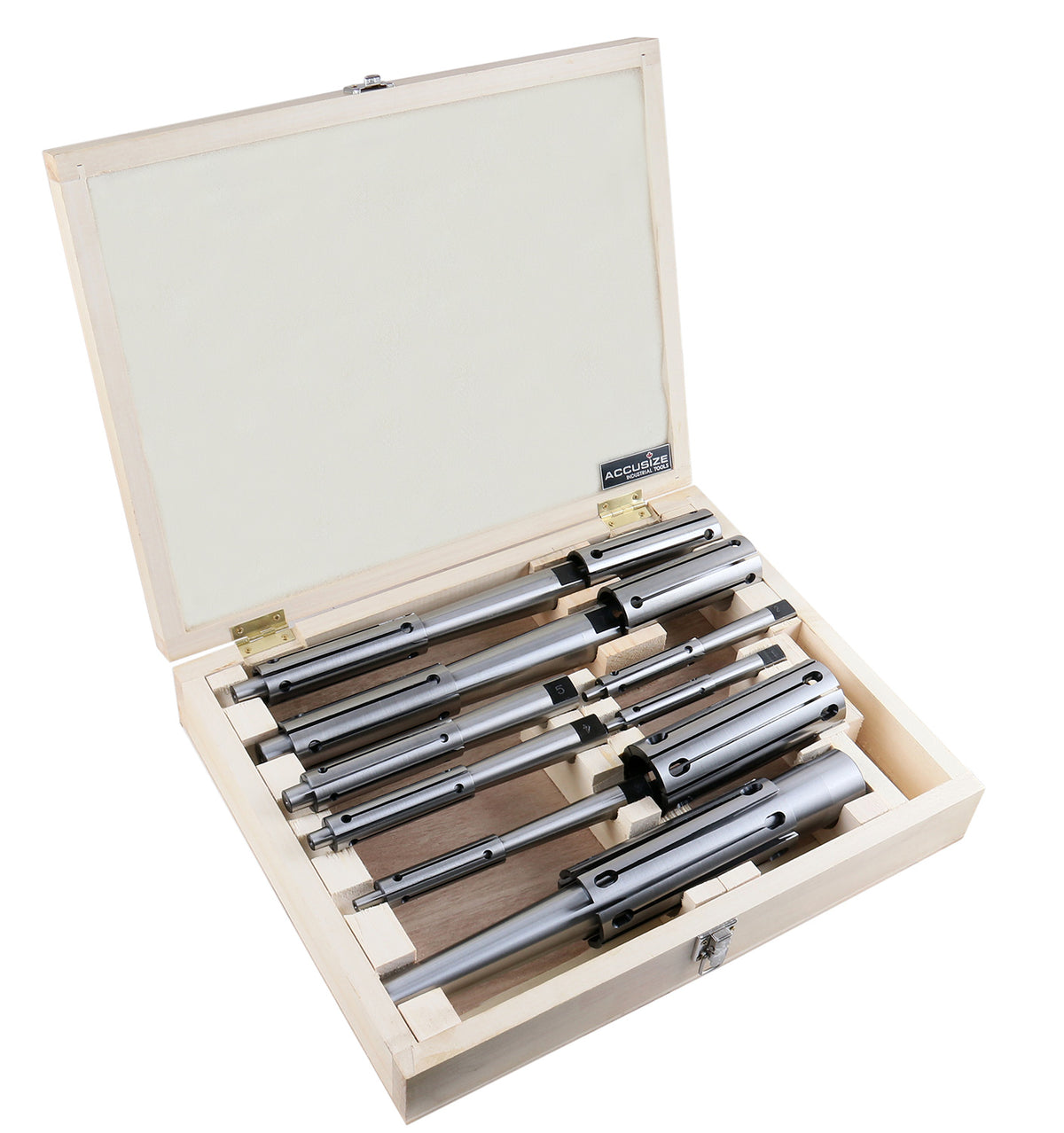

    Packed in a fitted wooden box.

Size Range Length of Arbor Length of Sleeve Sleeves Furnished
(D) (L) (H)
1/2" - 9/16" 5" 2-1/2" 1
9/16" - 21/32" 6" 2-3/4" 1
21/32" - 3/4" 7" 2-3/4" 1
3/4" - 7/8" 7" 3-1/4" 1
7/8" - 1" 7" 3-1/4" 1
1"- 1-1/4" 9" 4" 2
1-1/4" - 1-1/2" 9" 4" 2
1-1/2" - 2" 11-1/2" 5" 2
