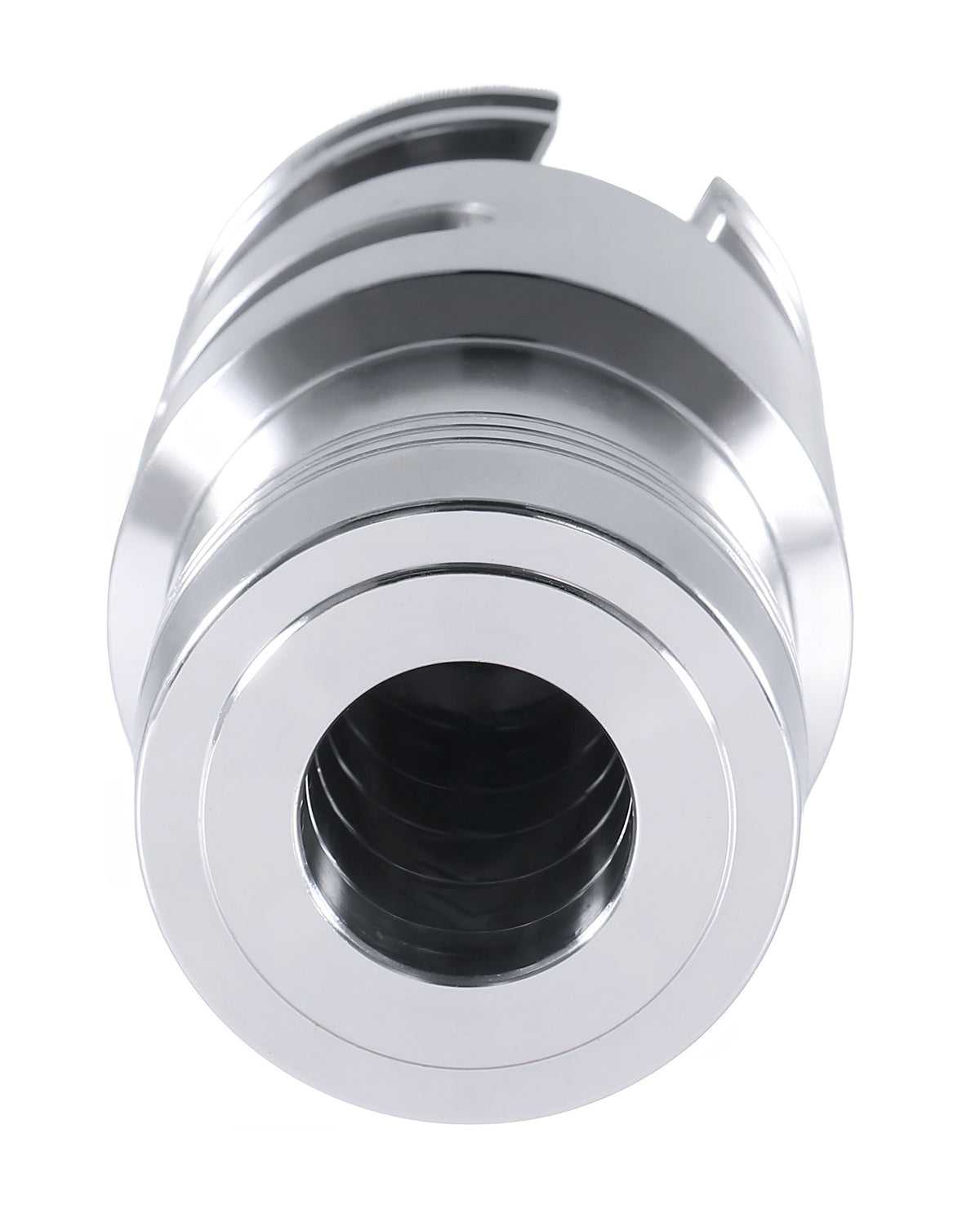

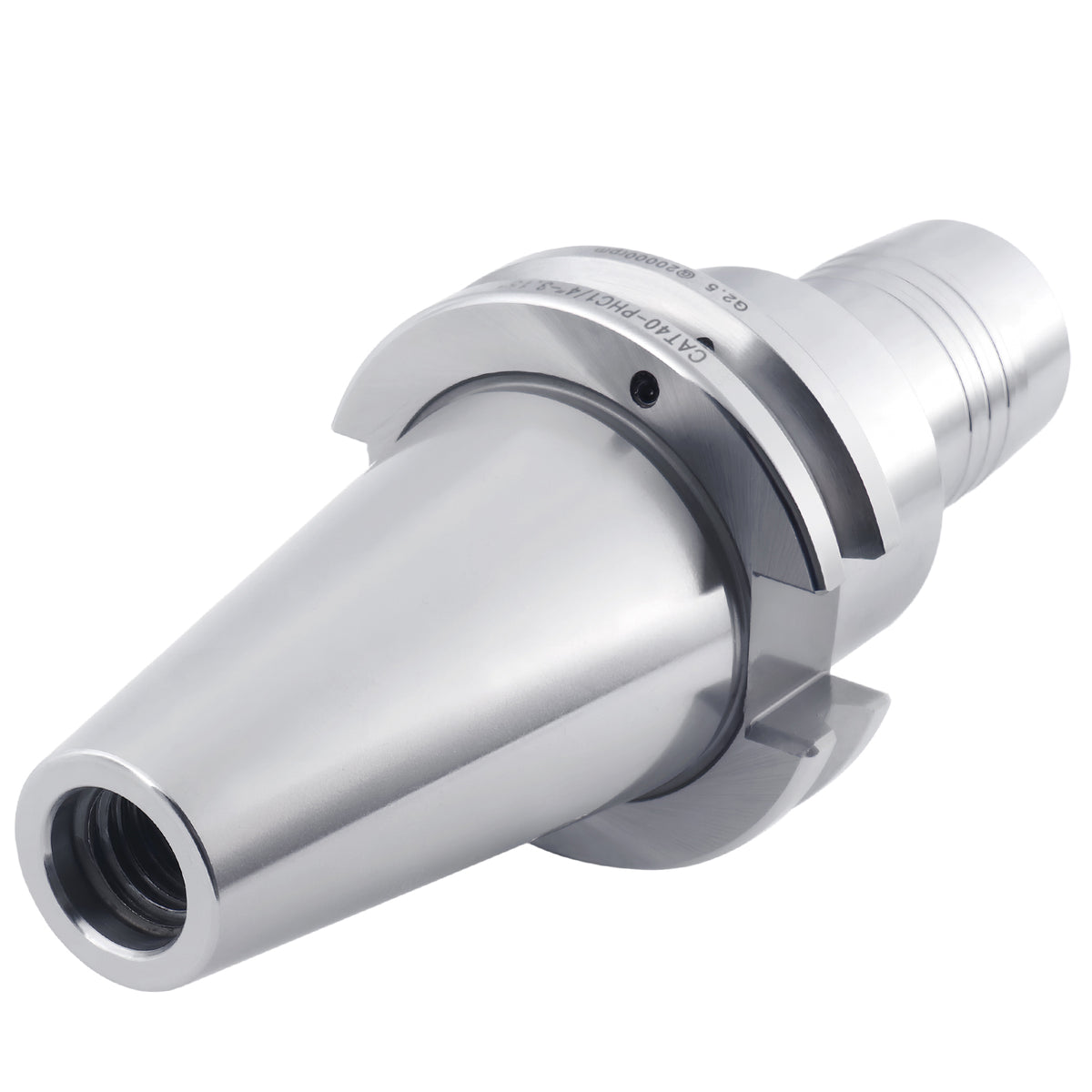

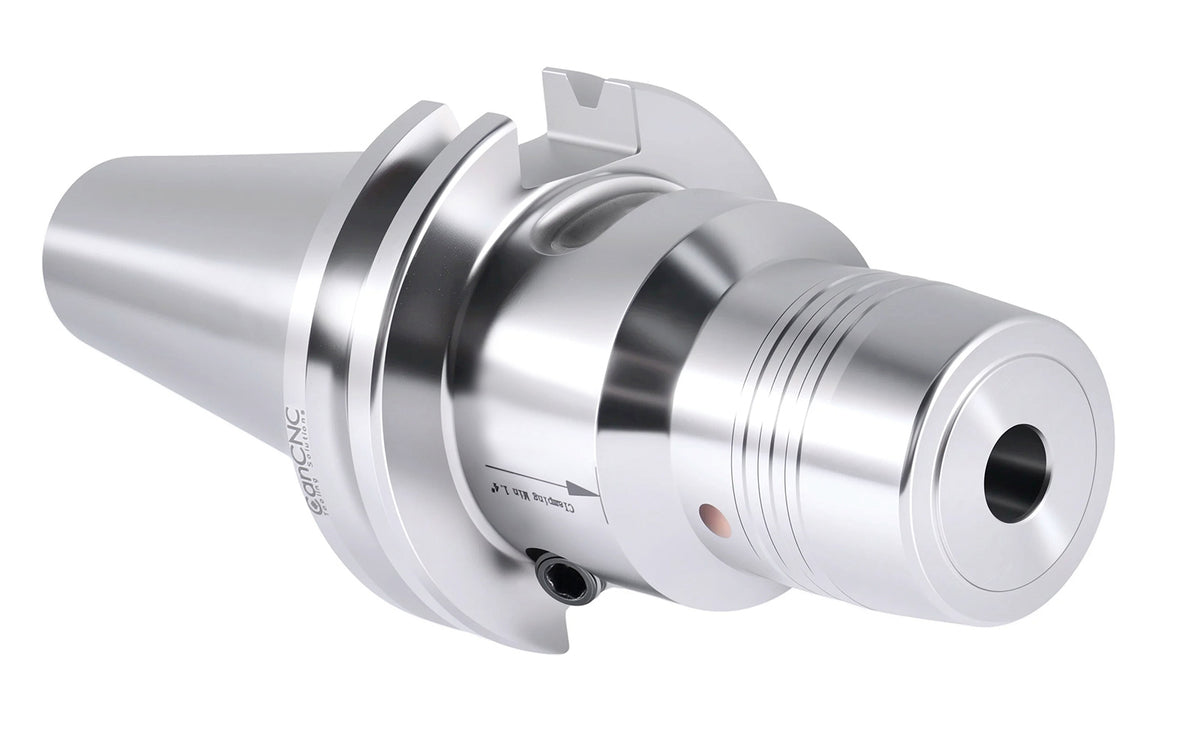

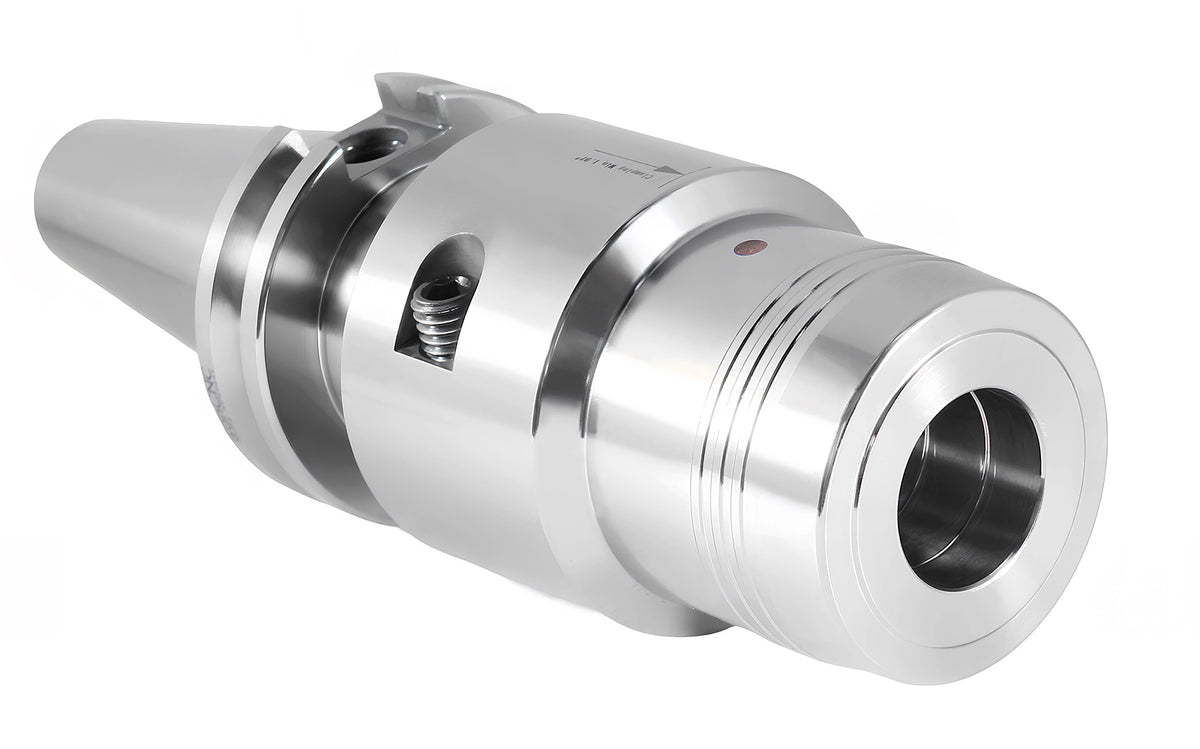

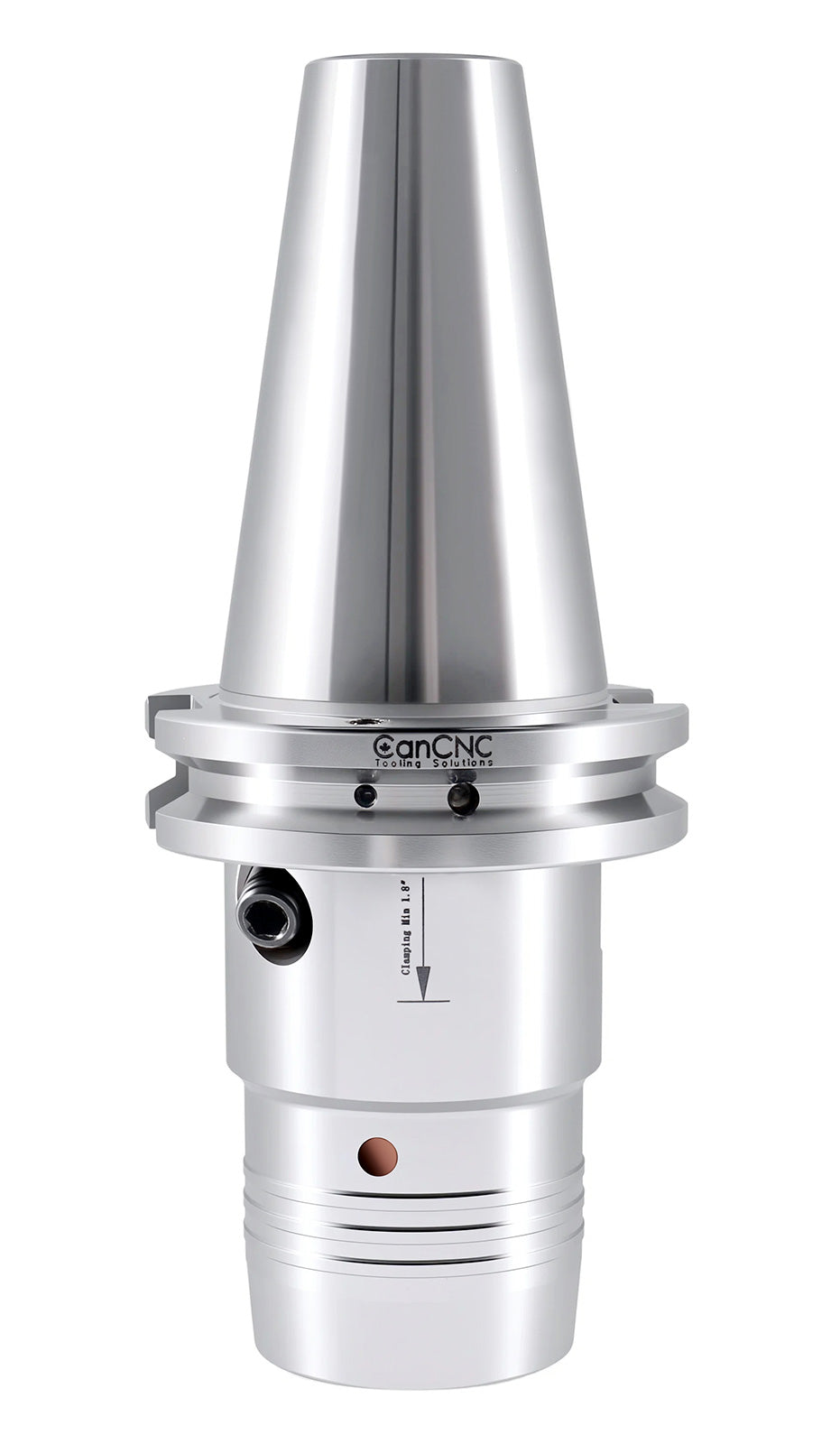

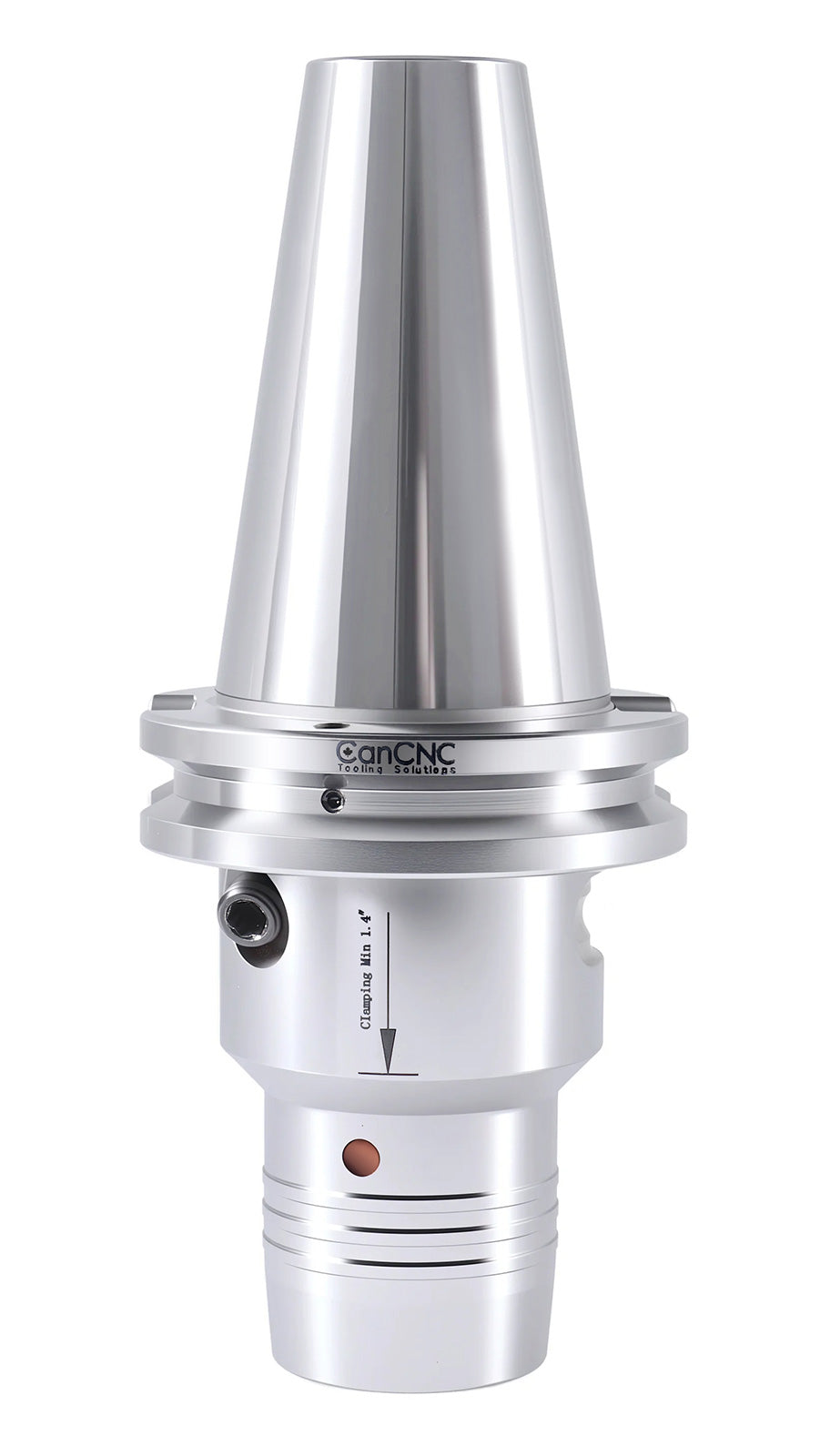

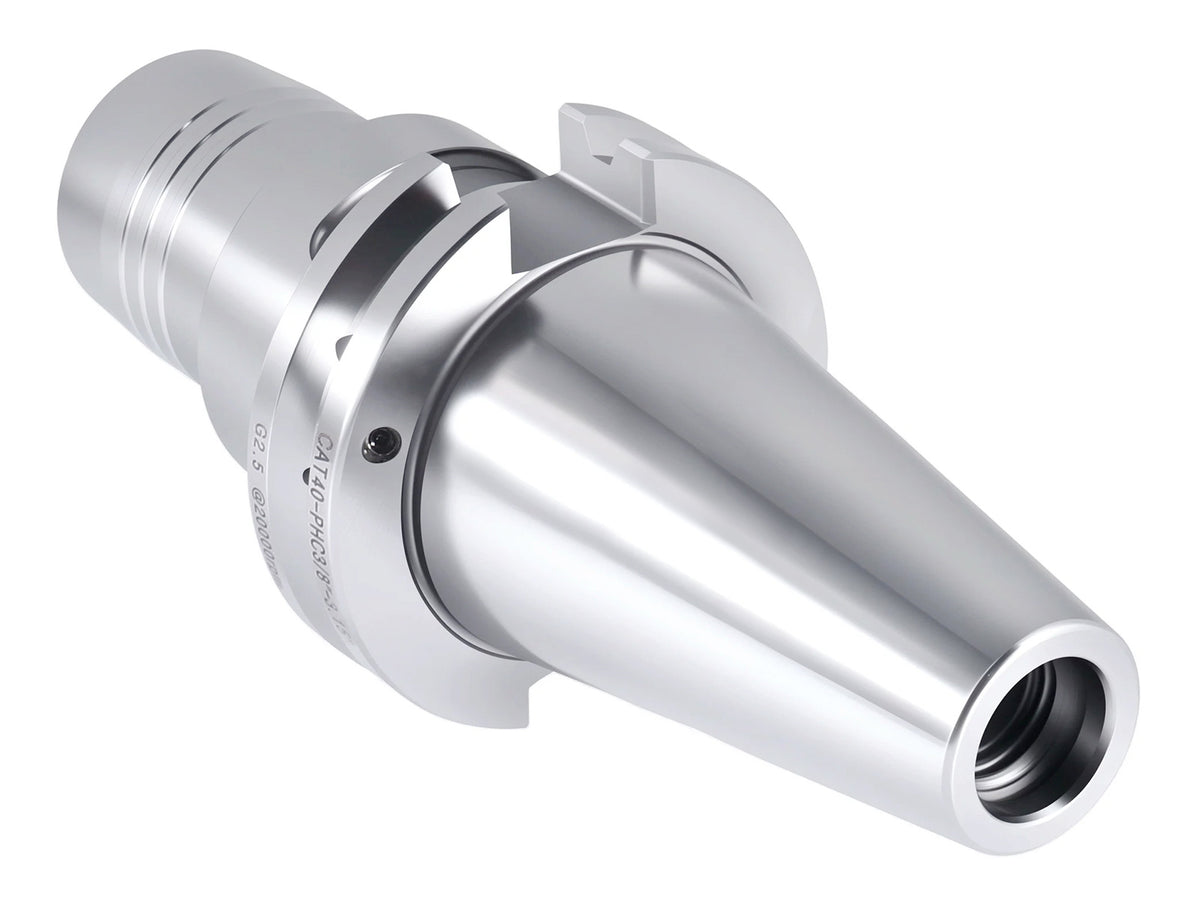

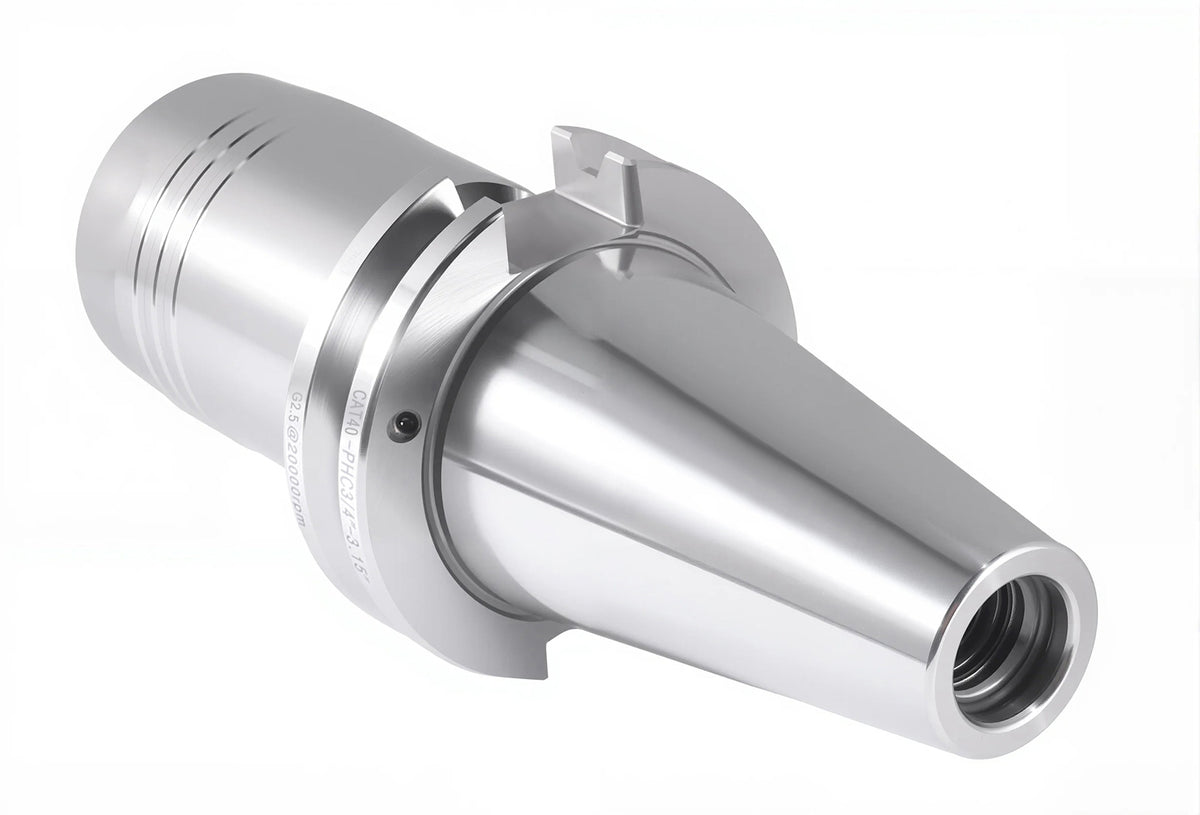

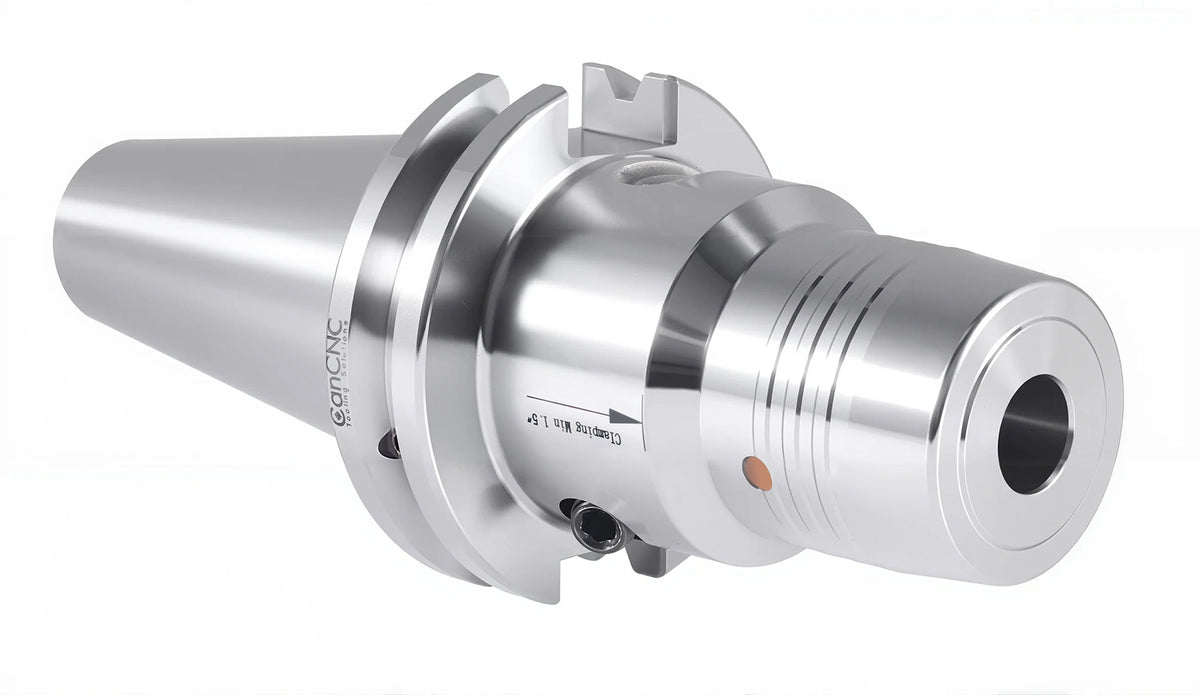

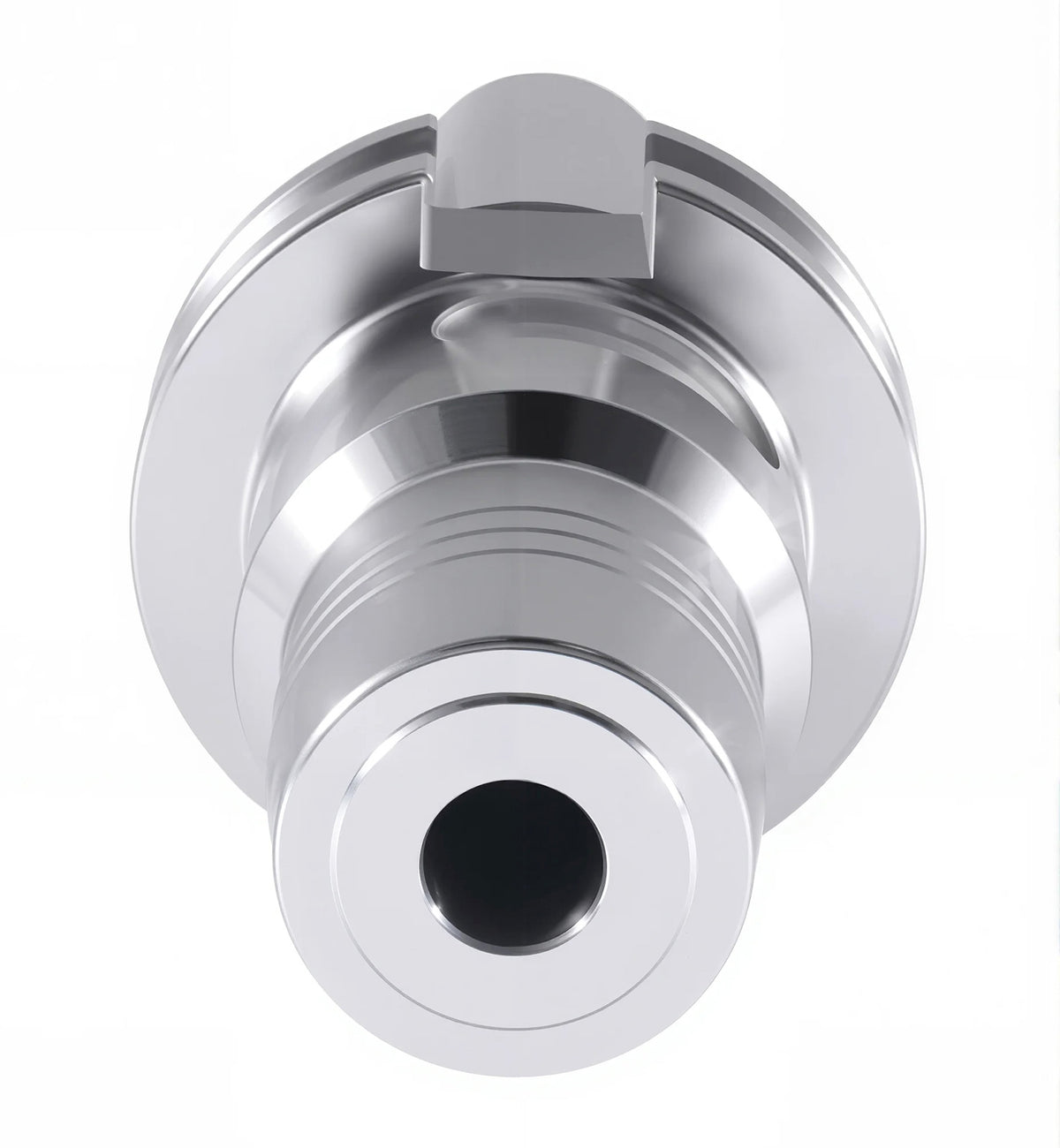

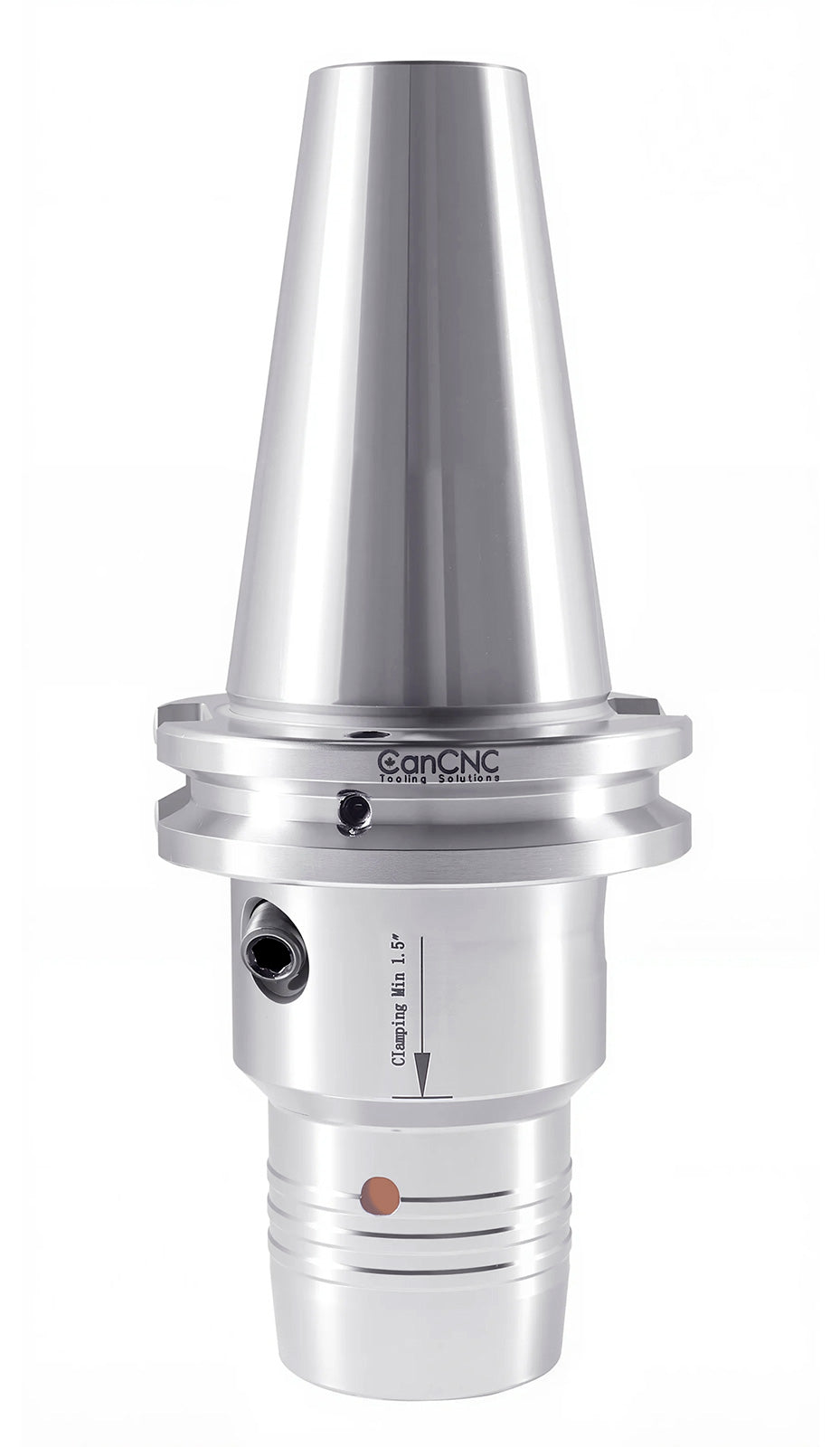

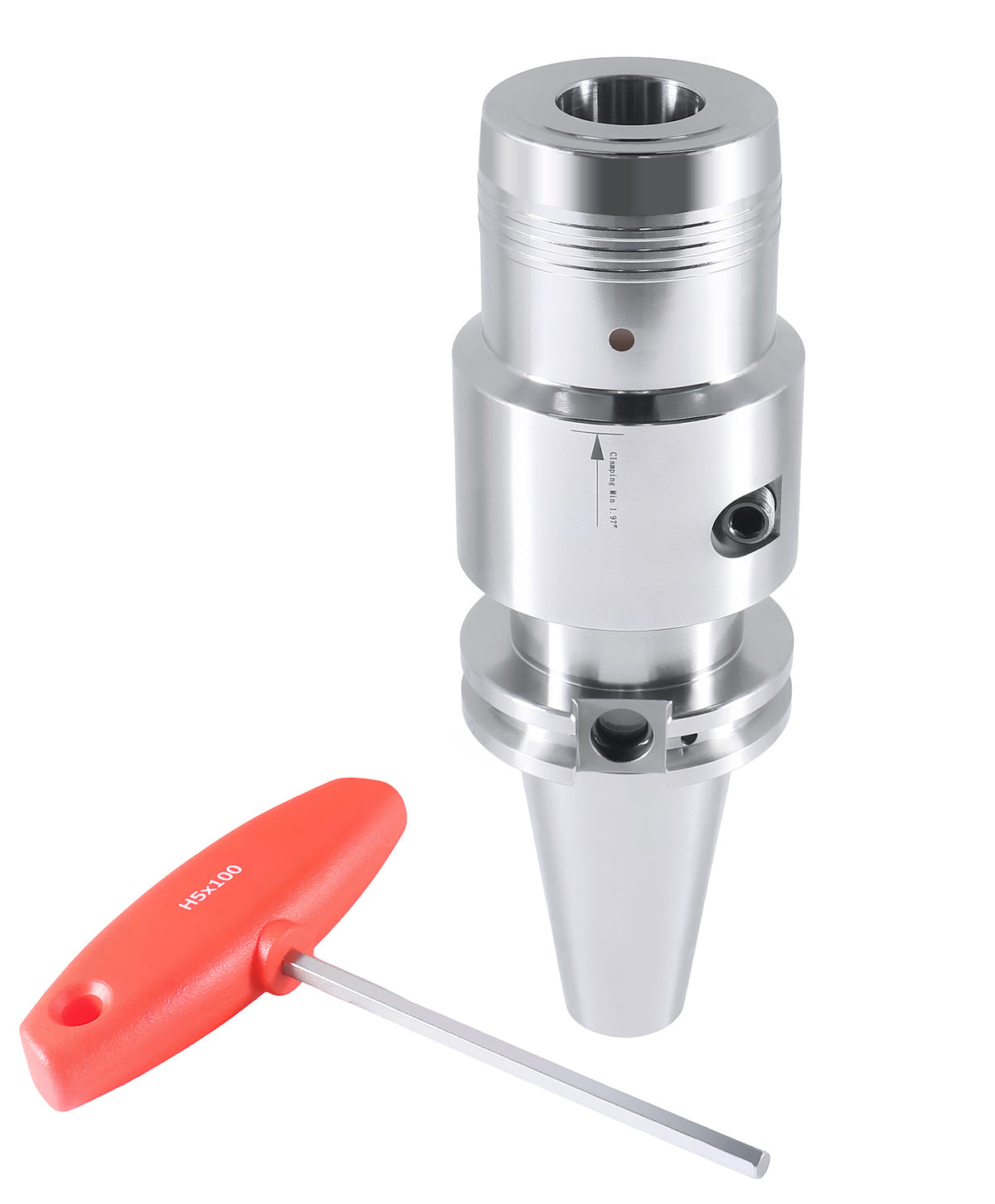

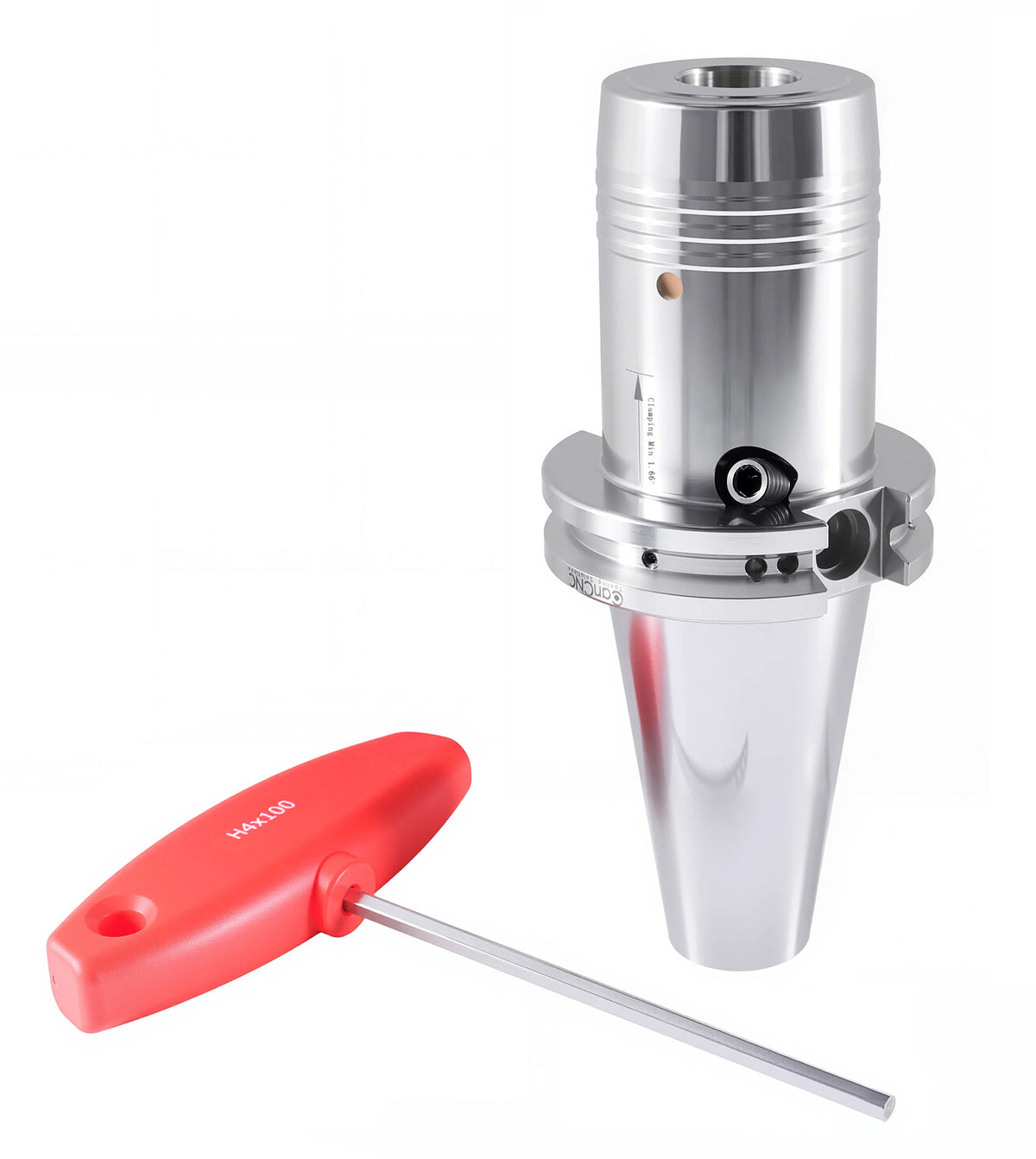

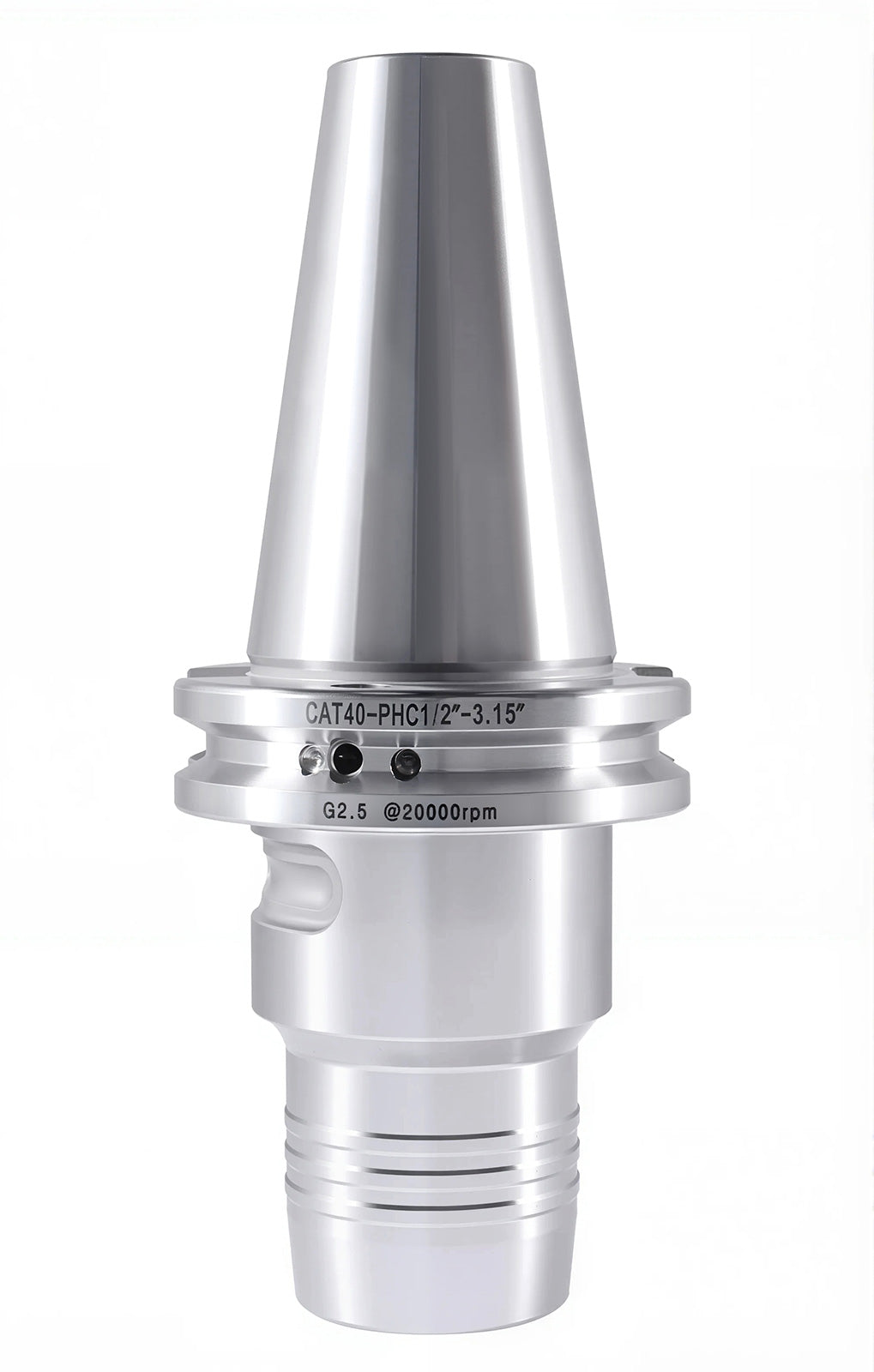

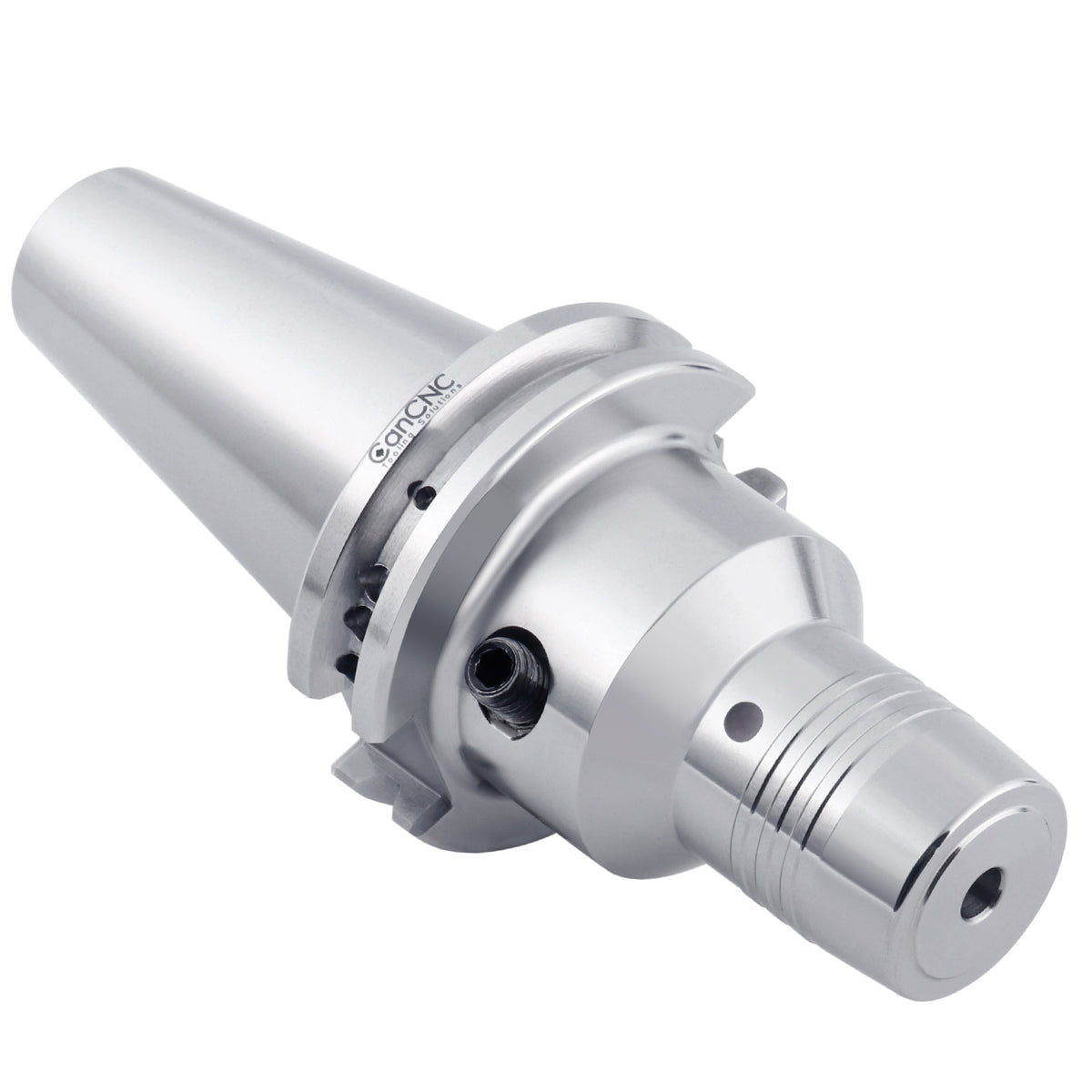

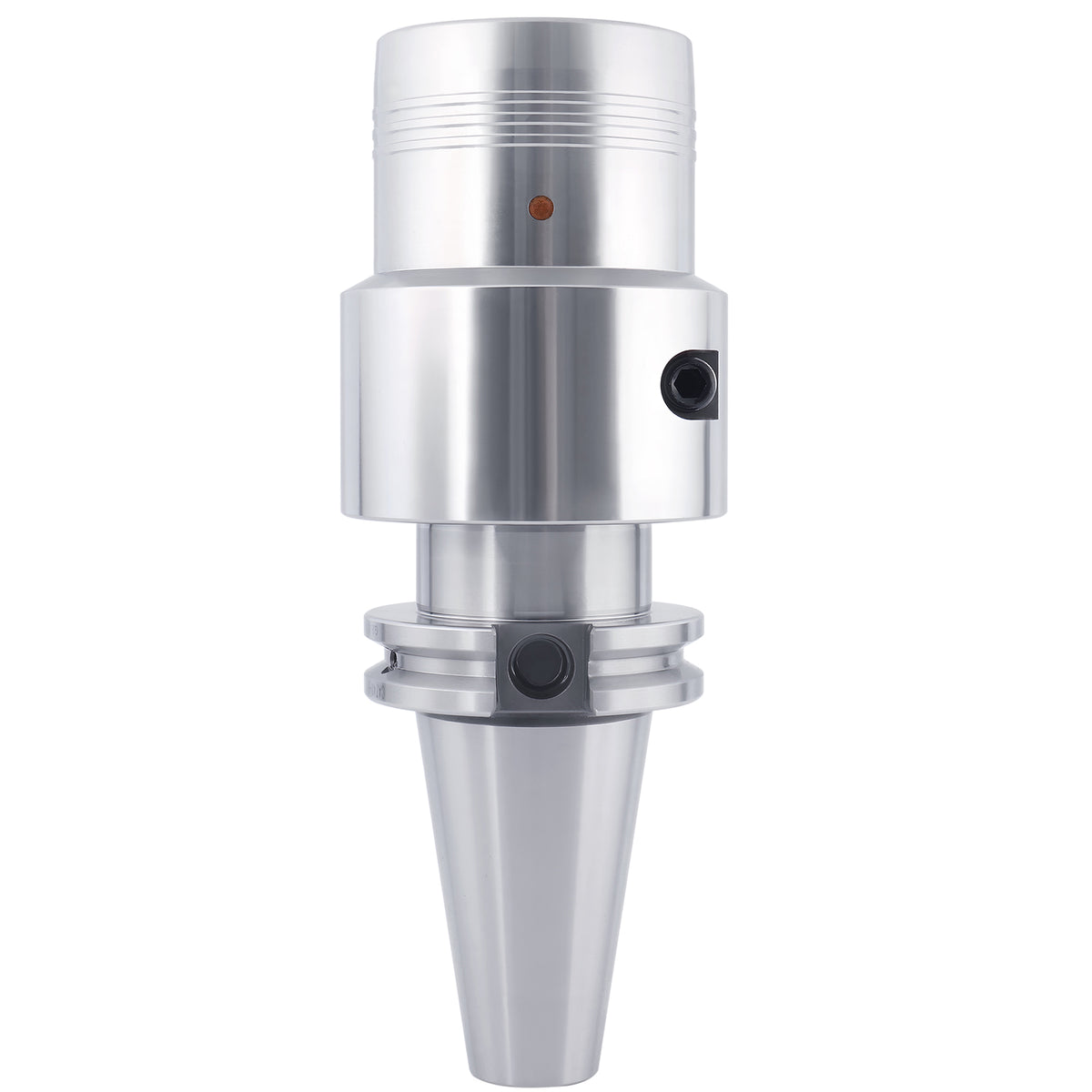

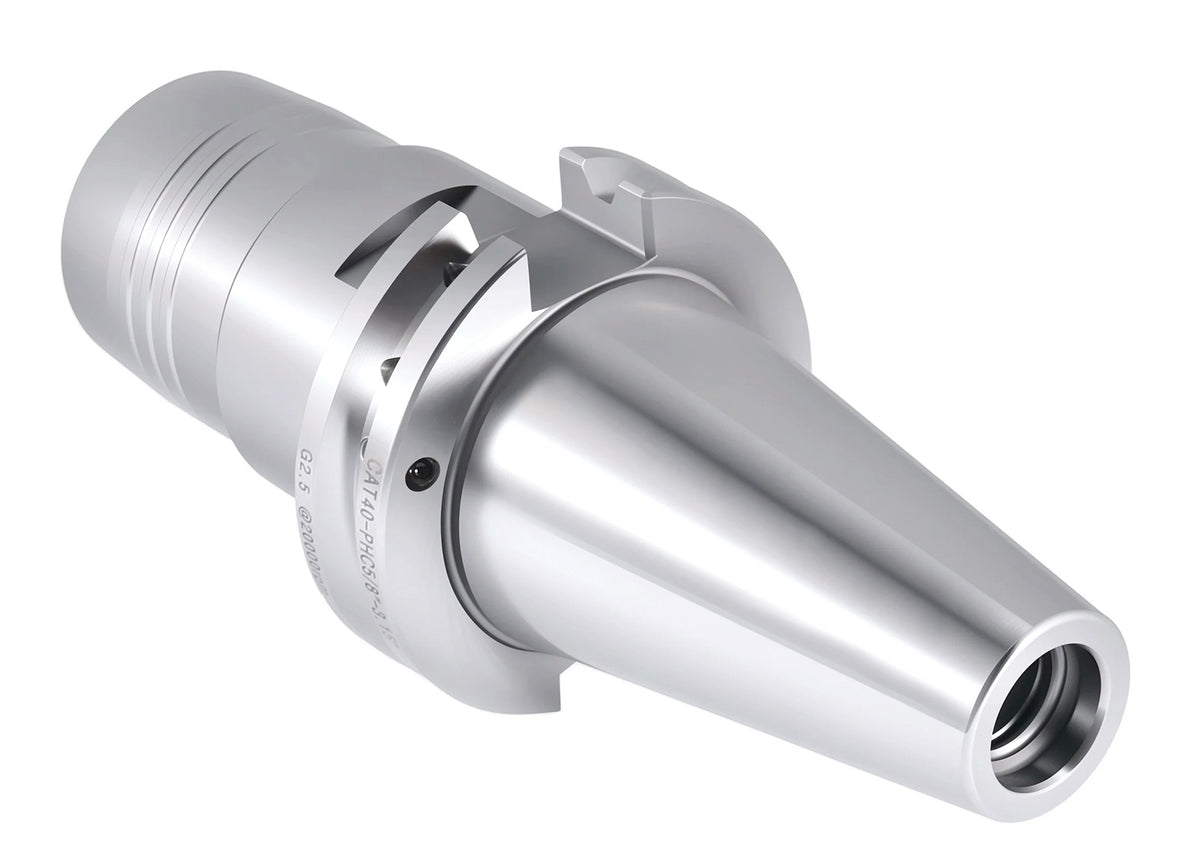

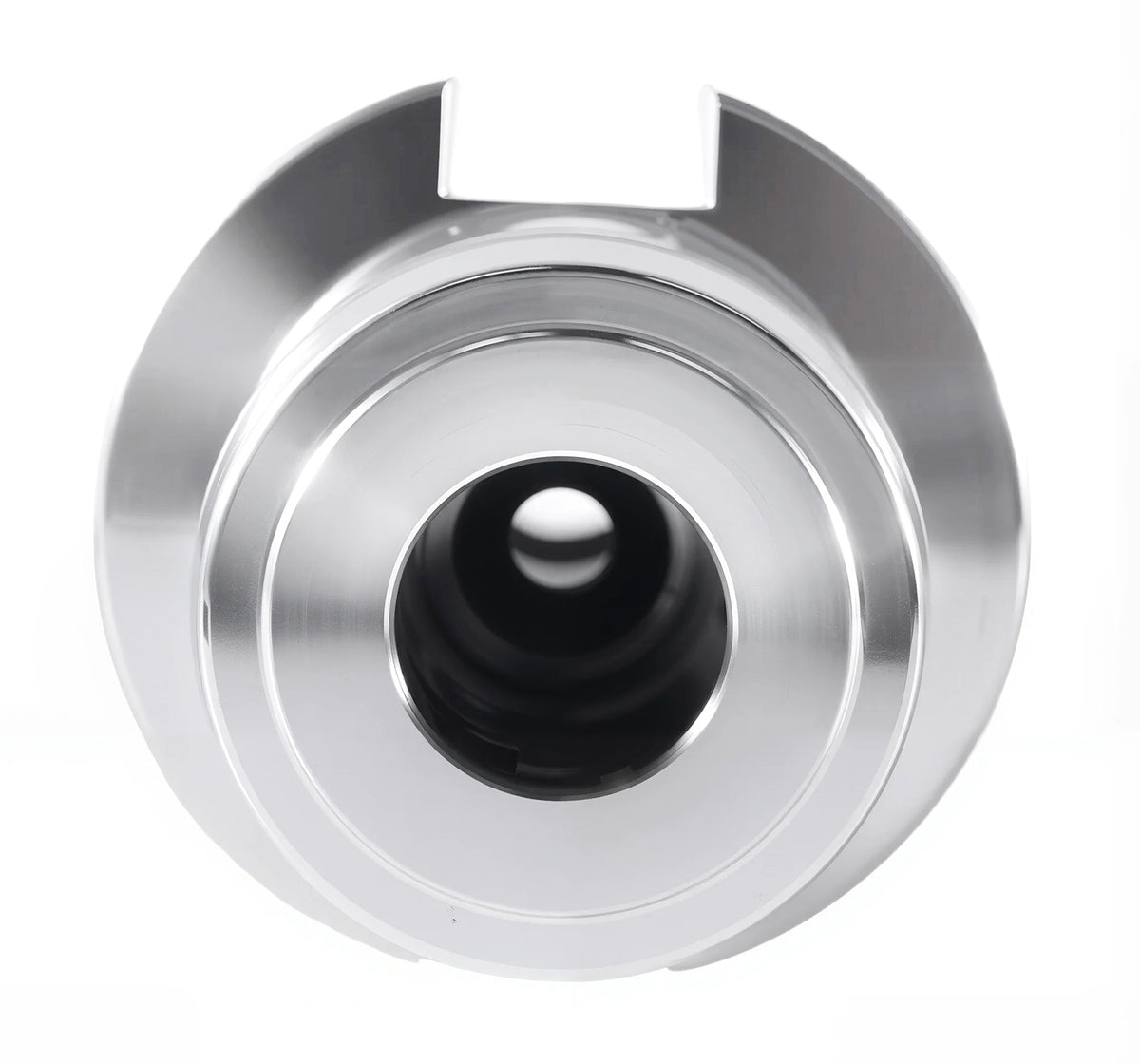

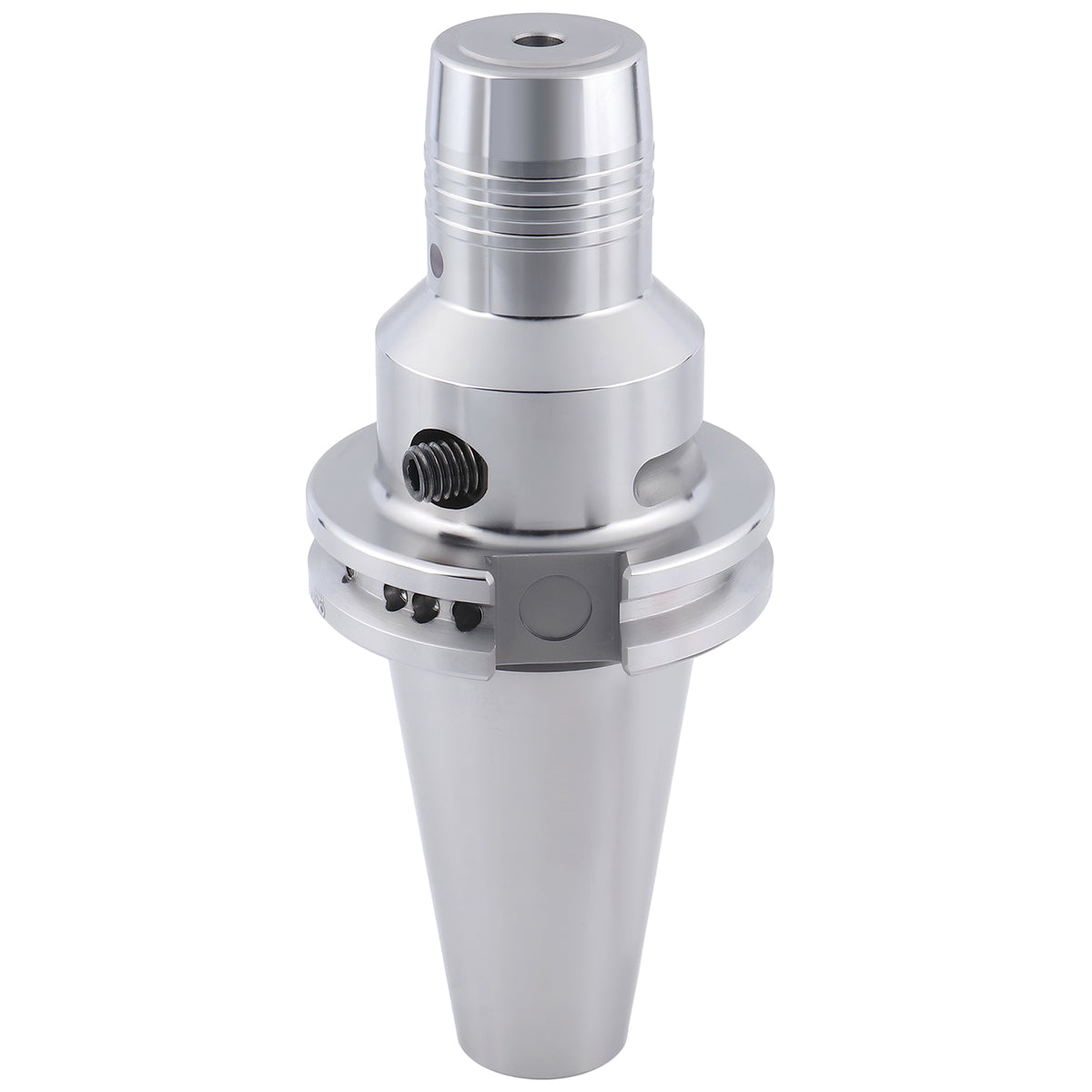

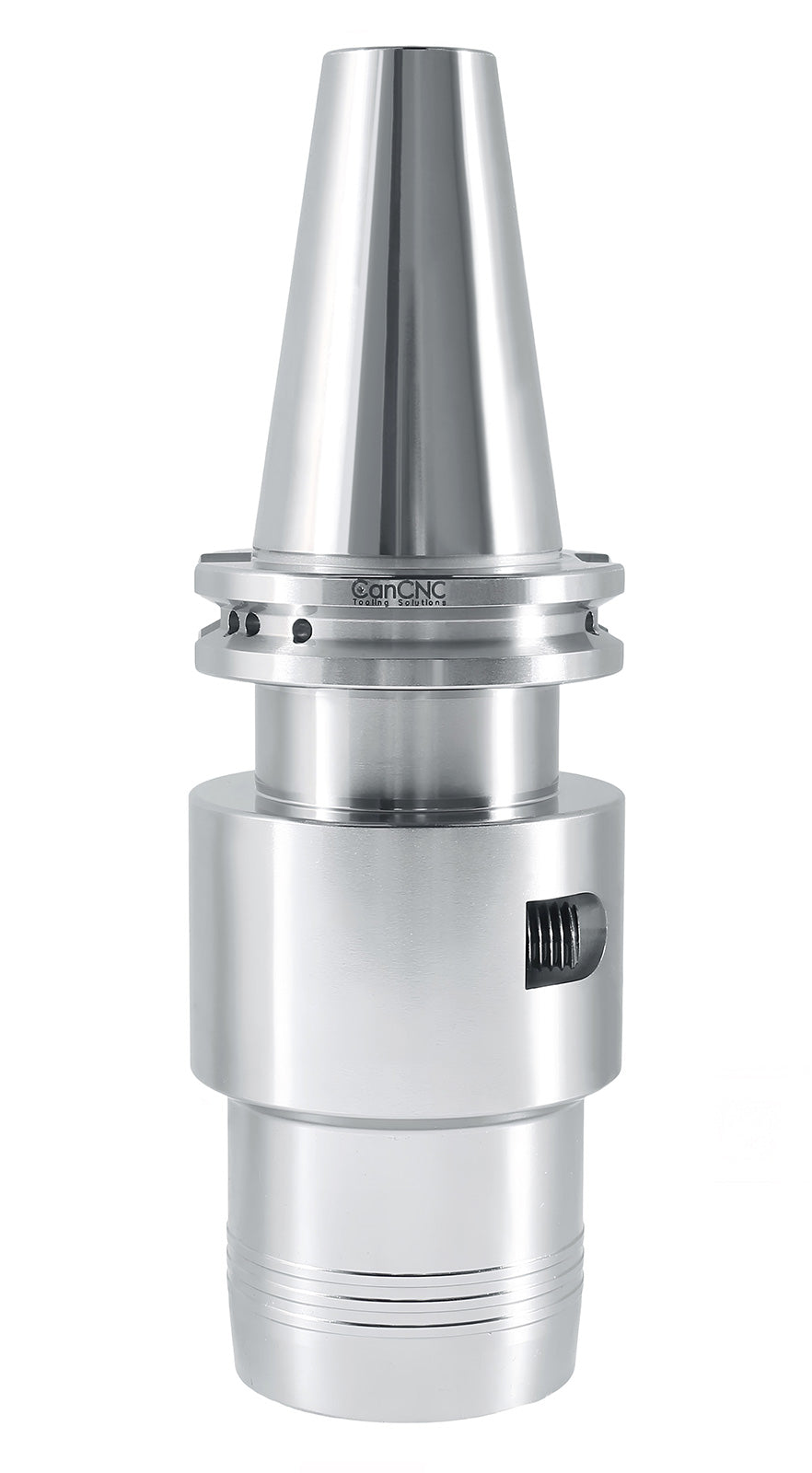

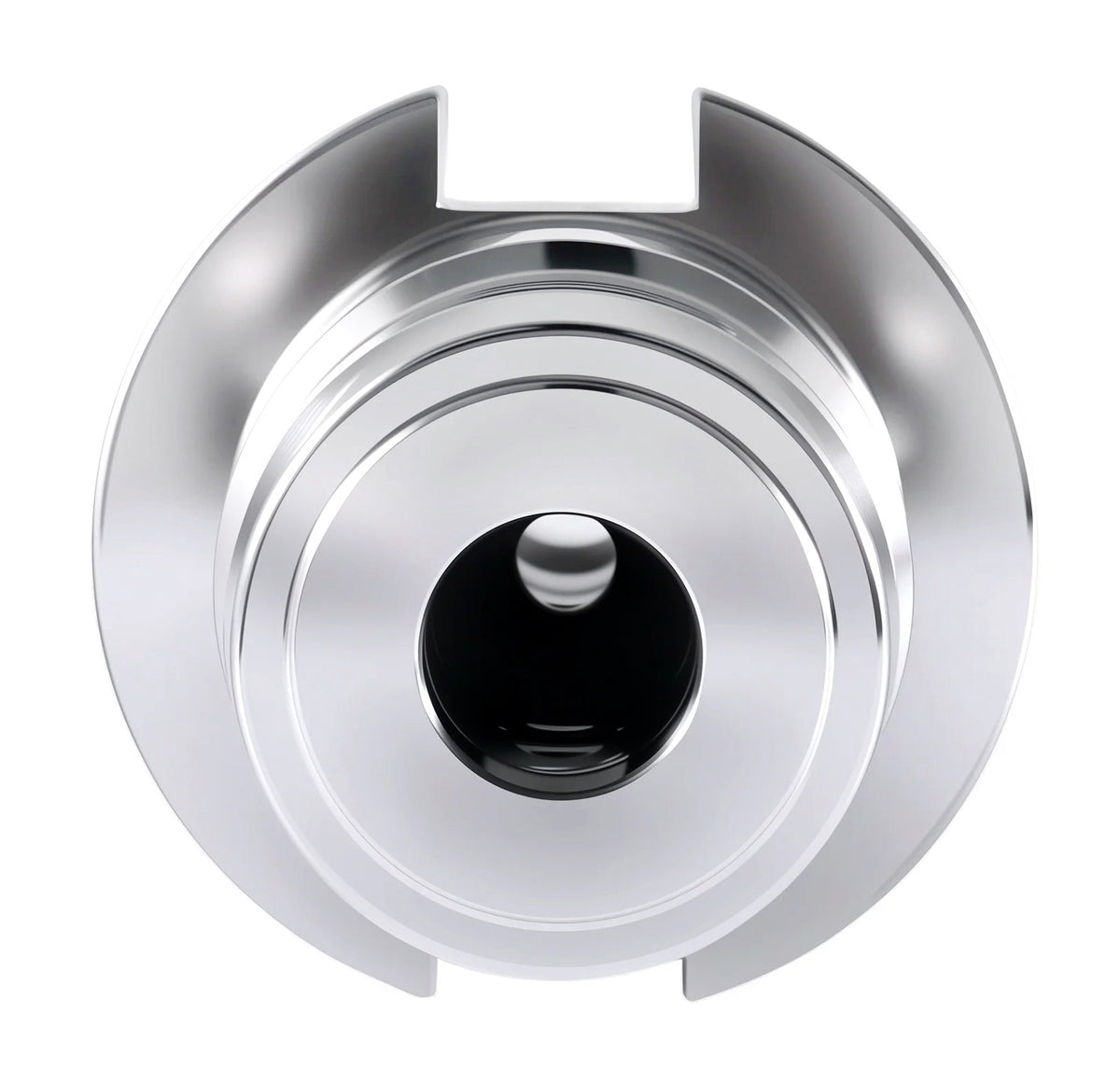

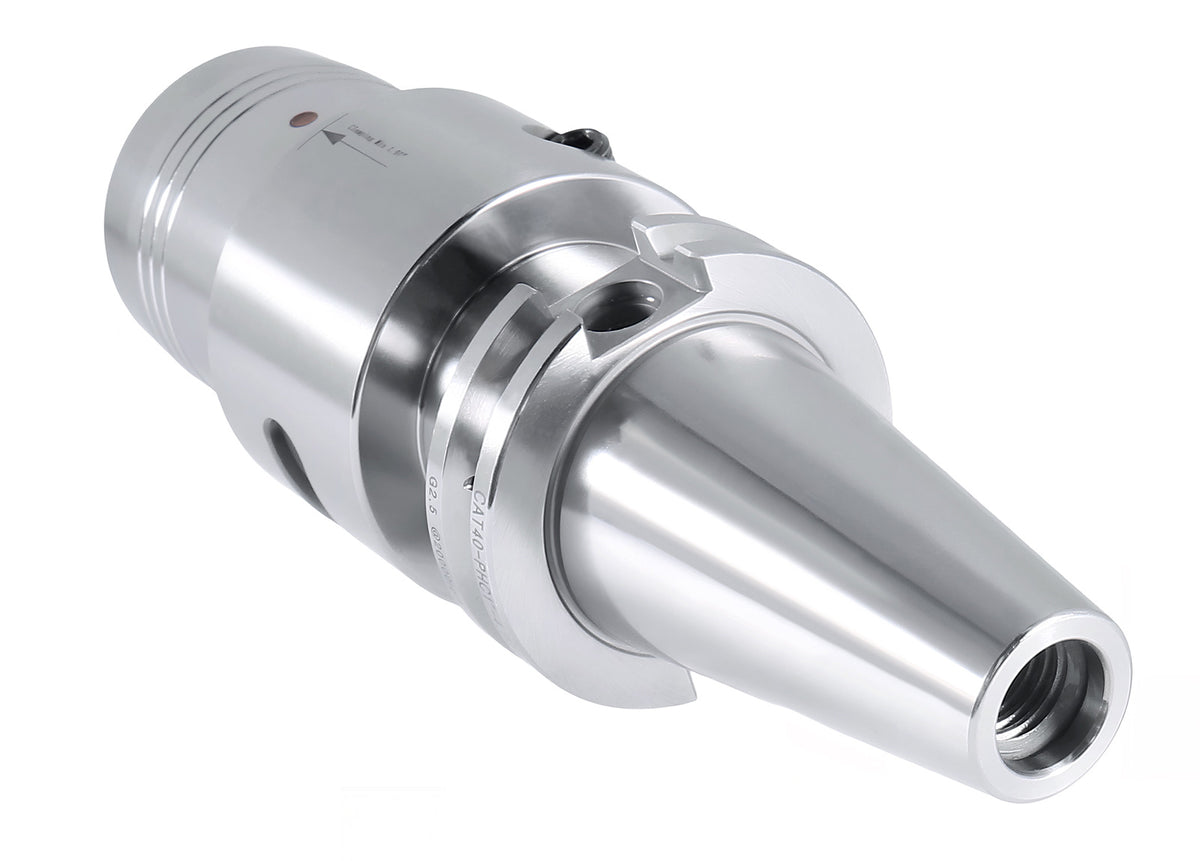

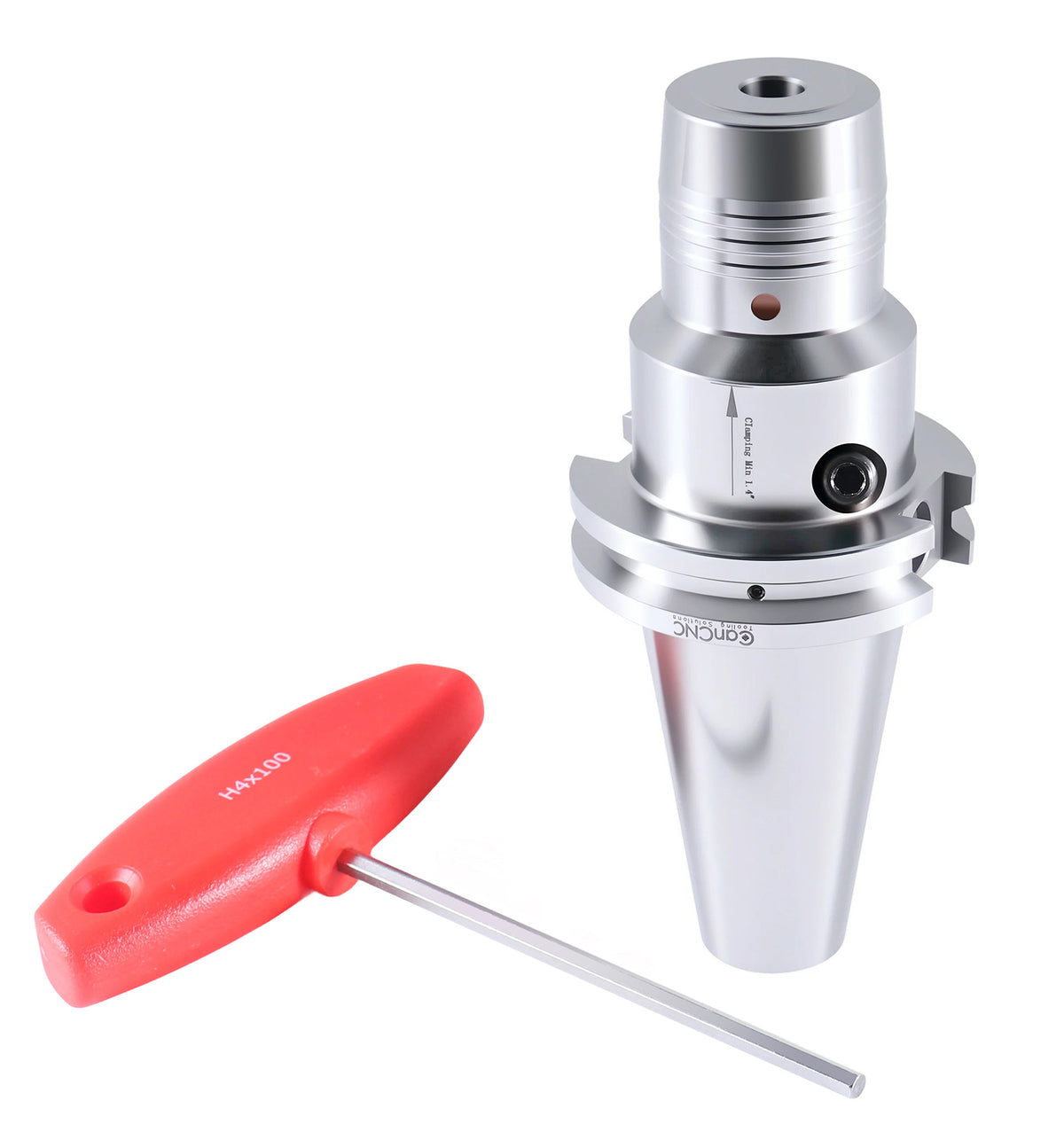

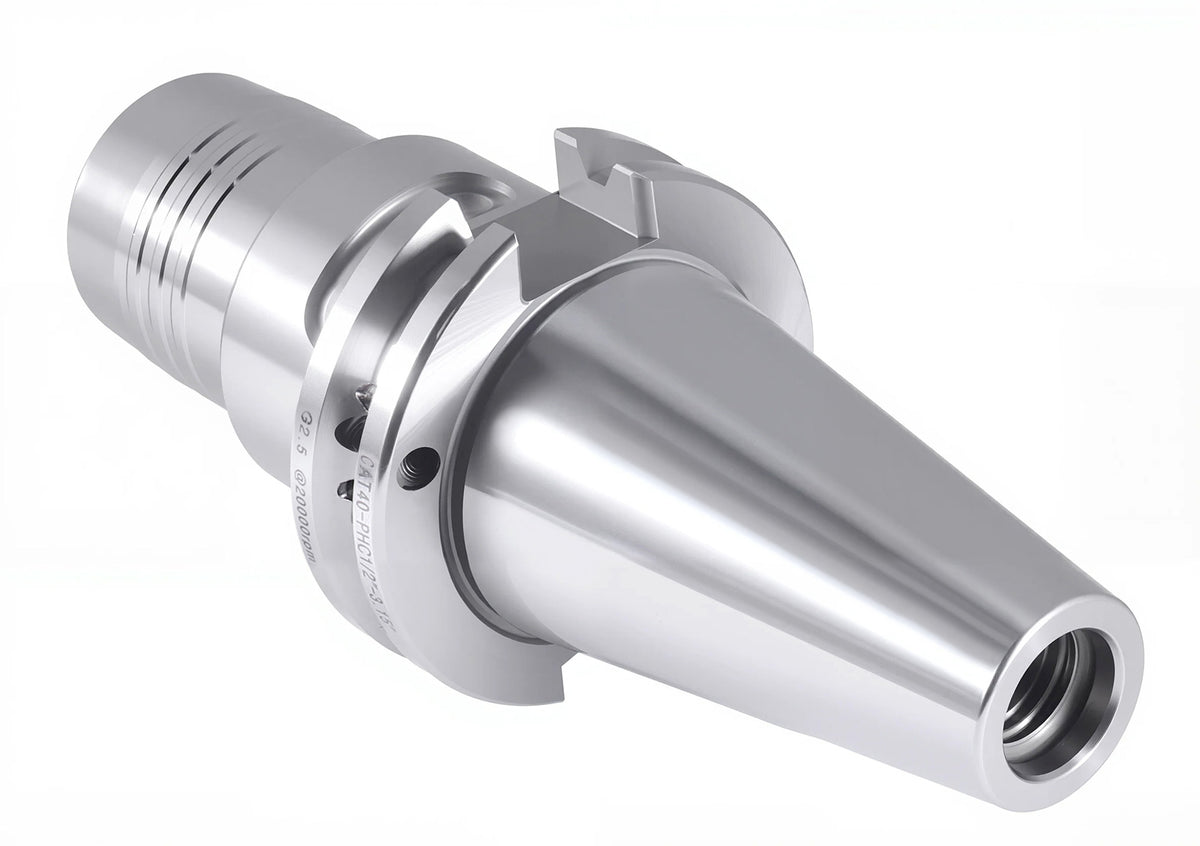

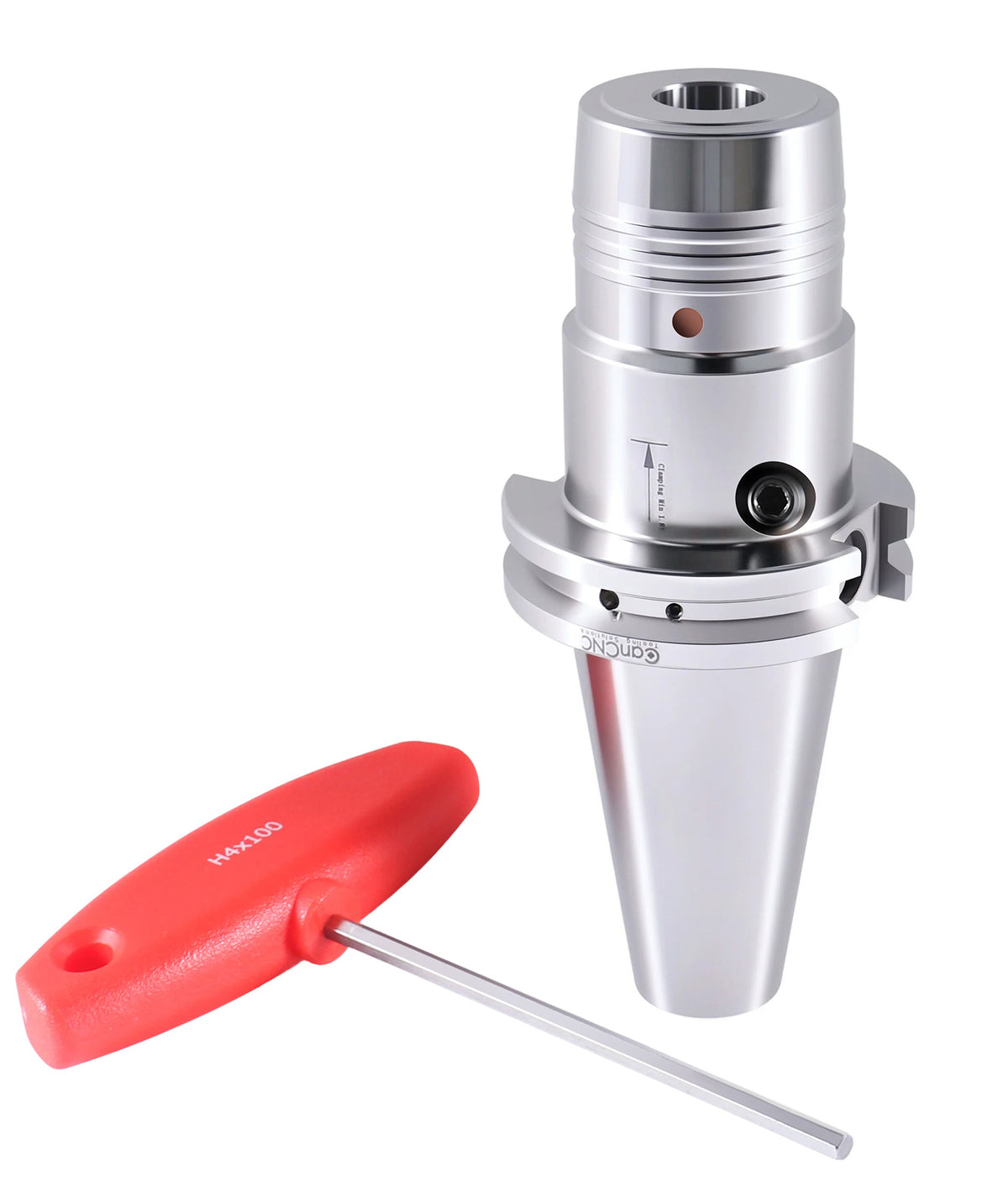

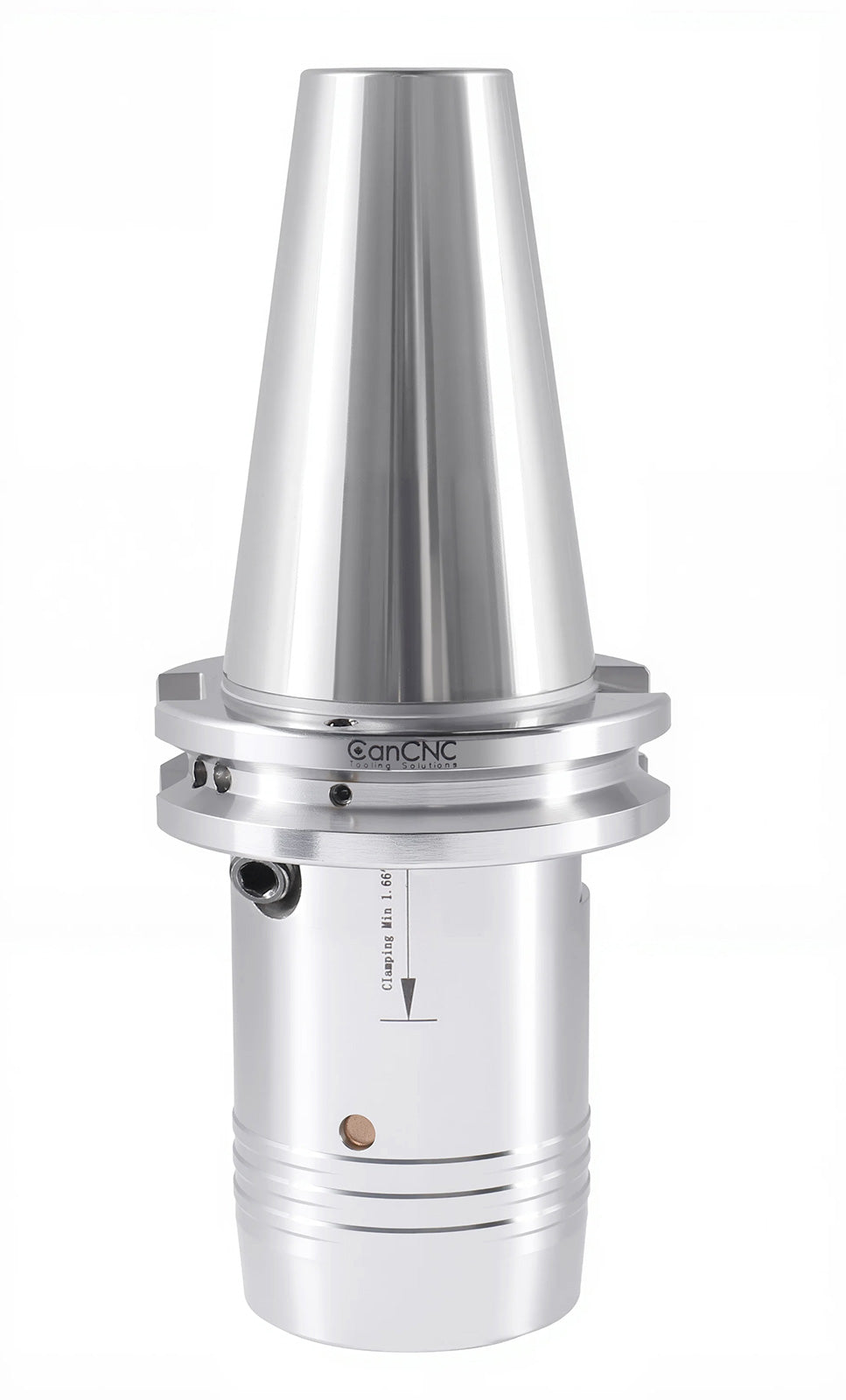

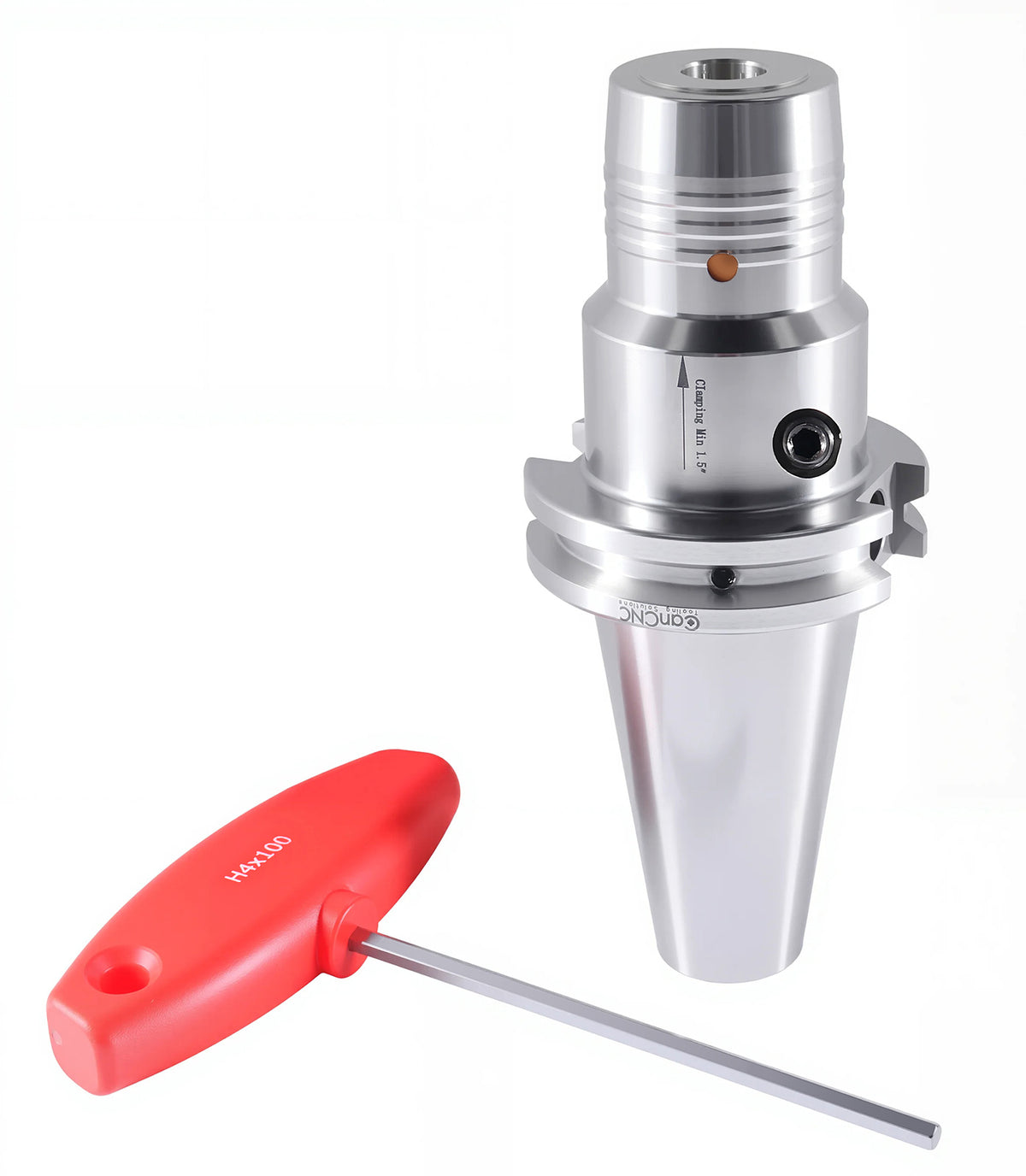

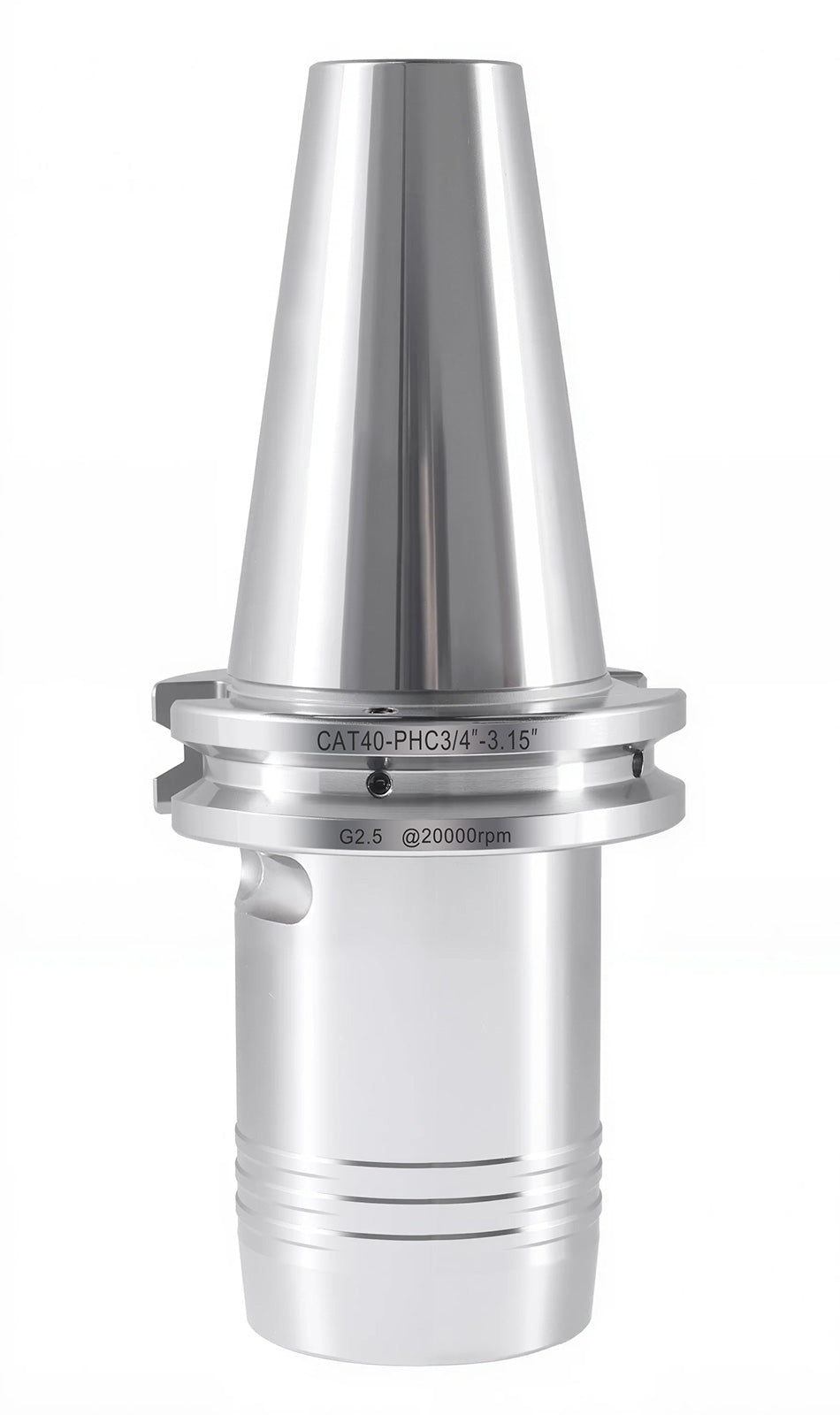

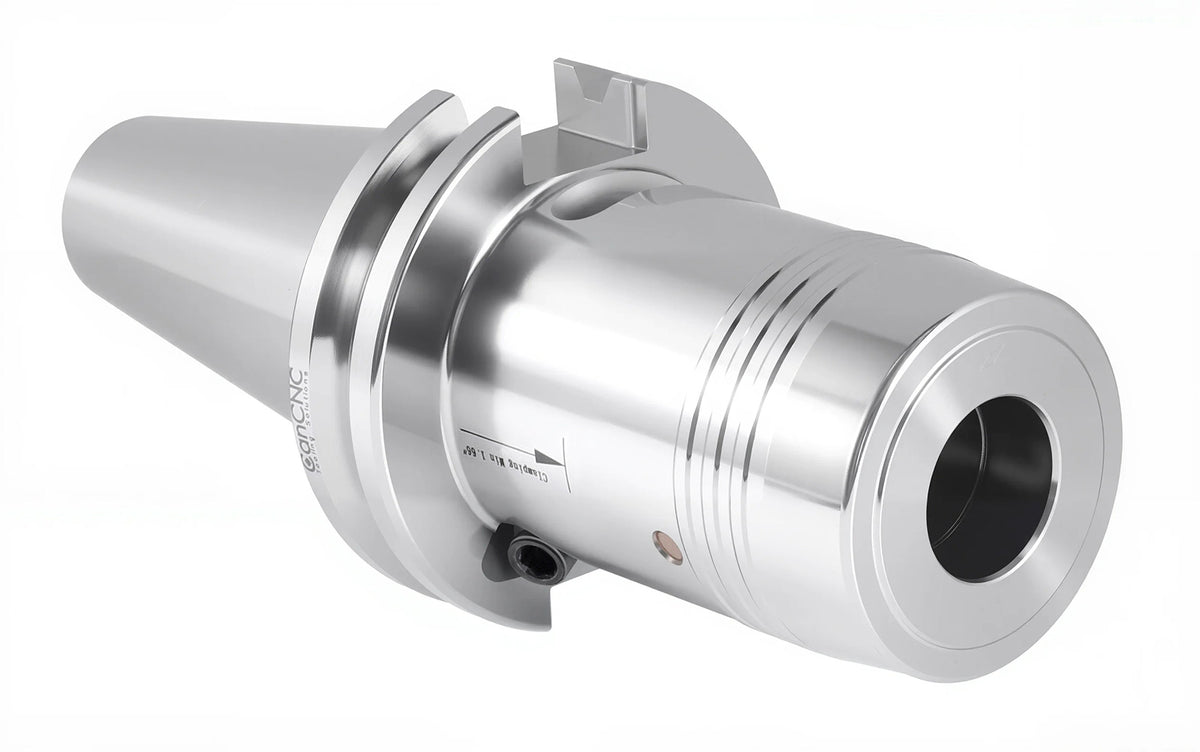

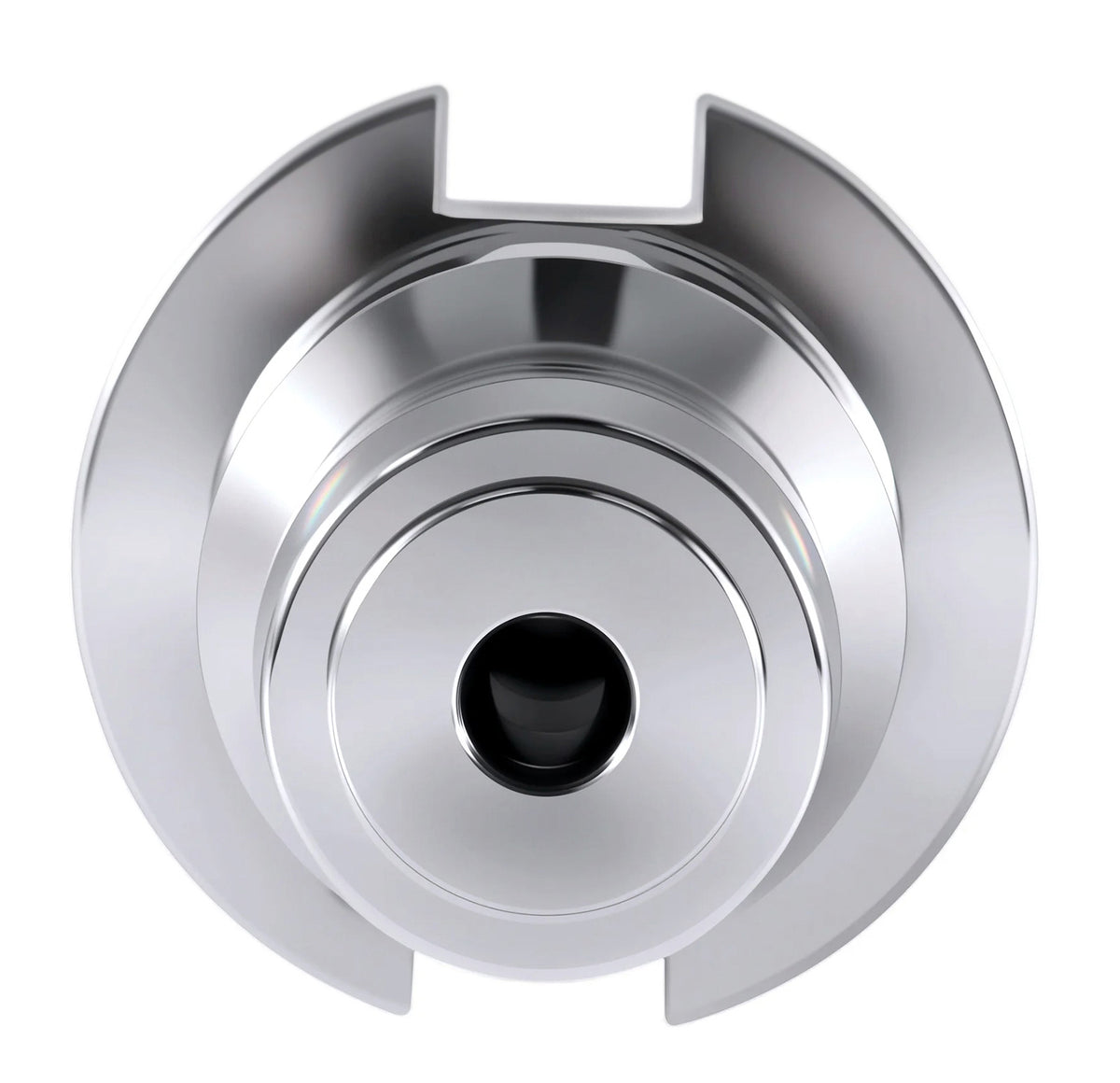

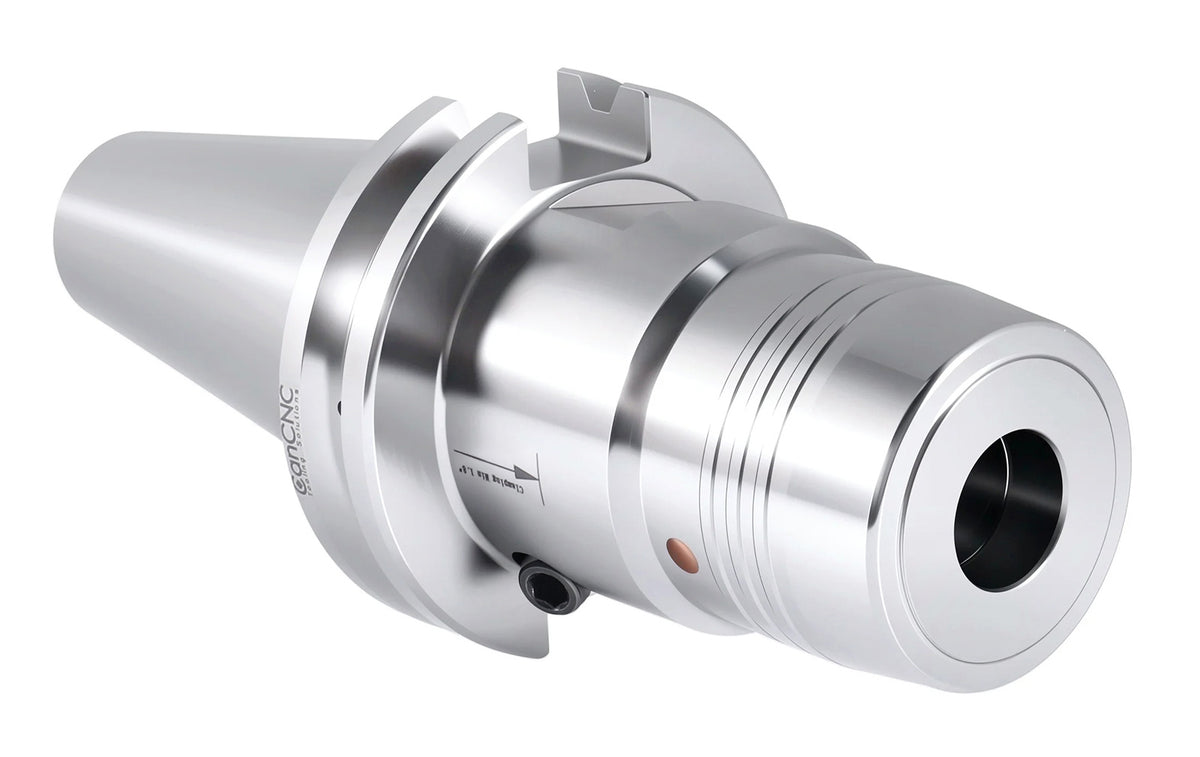

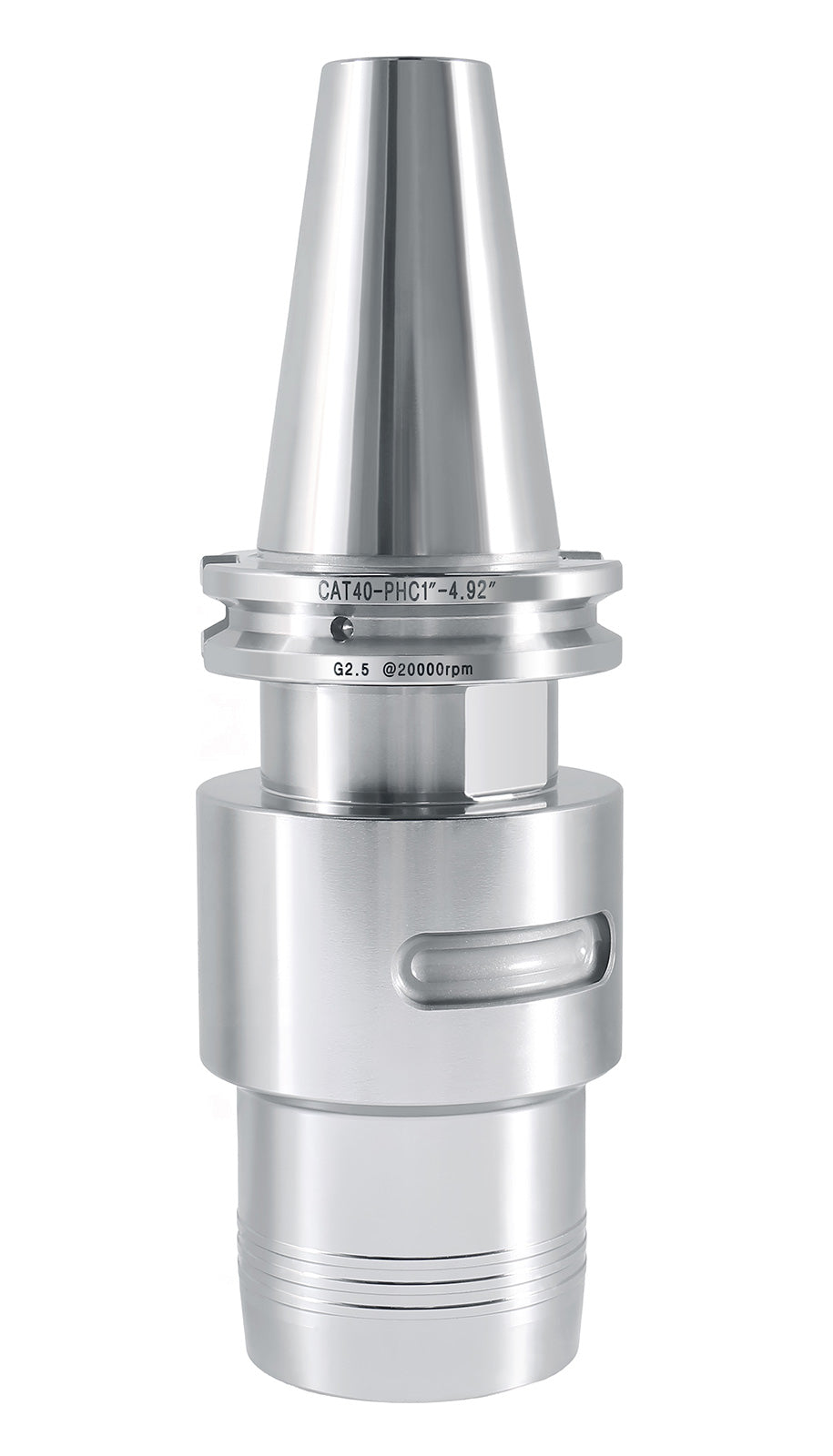

CAT40 High Precision Hydraulic Chuck
Superior Surface Finish and Vibration Dampening
- Provides excellent surface finish with minimal vibration marks during machining.
- Operates with low noise levels due to exceptional vibration-dampening properties.

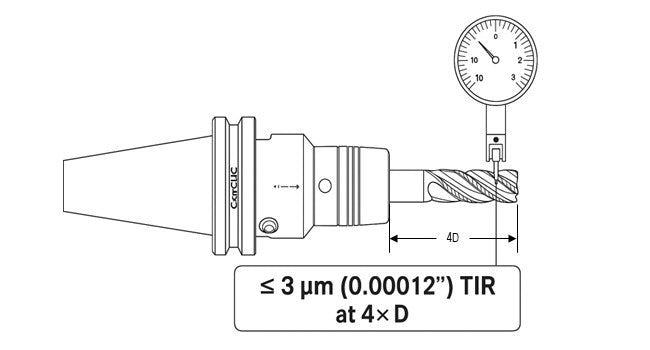

- Dynamic runout accuracy maintained within 0.003 mm (0.00012"), ensuring precision at high speeds.
- Balancing specifications:
- CAT40 G2.5@20000 RPM

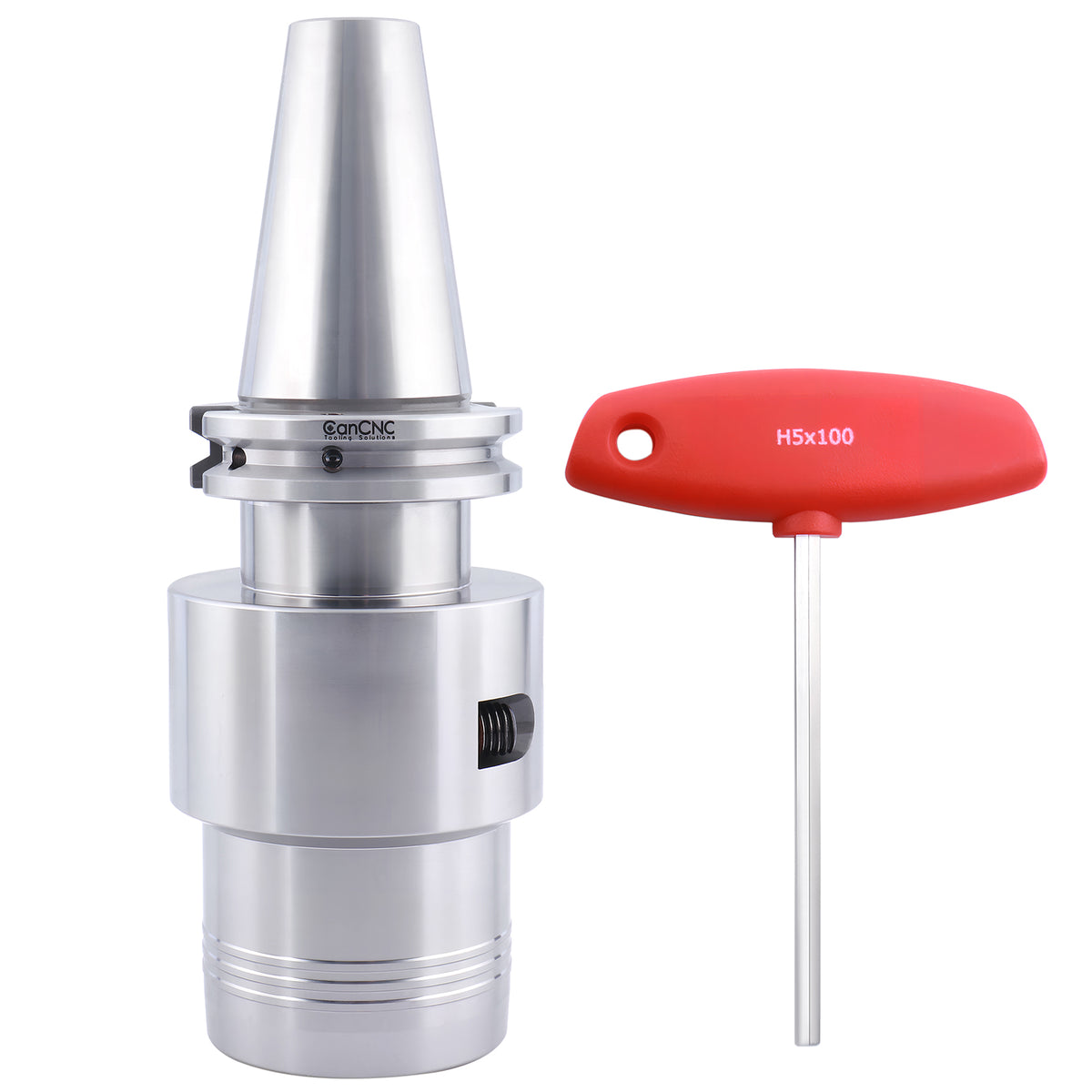

- Wrench supplied.
| Item | Type | Base Code | Φd | ΦD1 | ΦD | L | L1 |
Insertion Length C1 |
Insertion Length C |

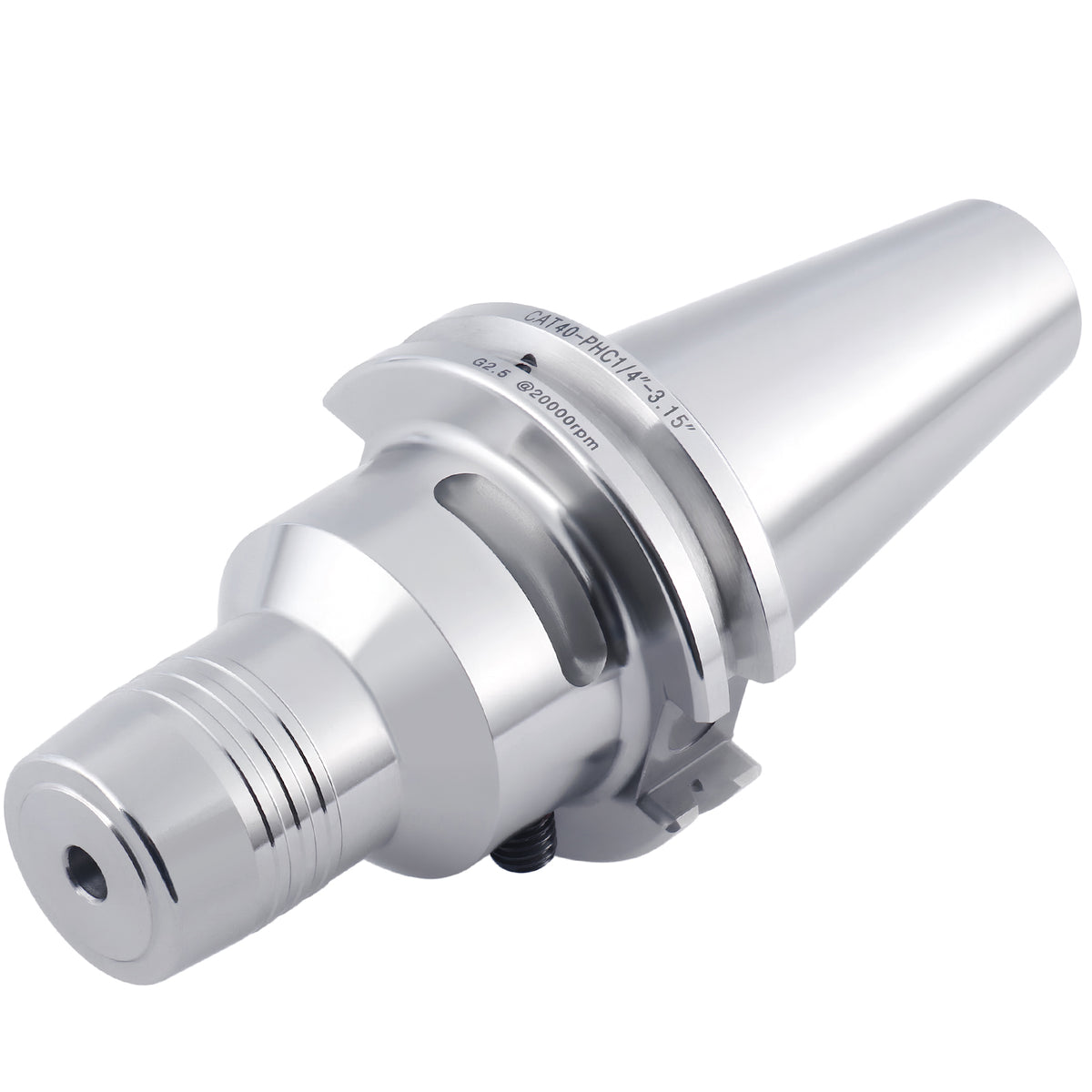

| 8040-0014 | CAT40-PHC 1/4"-3.15" | Ⅰ | 1/4" | 1.18" | 1.73" | 3.15" | 1.28" | 1.18" | 1.86" |
| 8040-0516 | CAT40-PHC 5/16"-3.15" | Ⅰ | 5/16" | 1.26" | 1.73" | 3.15" | 1.28" | 1.18" | 1.86" |

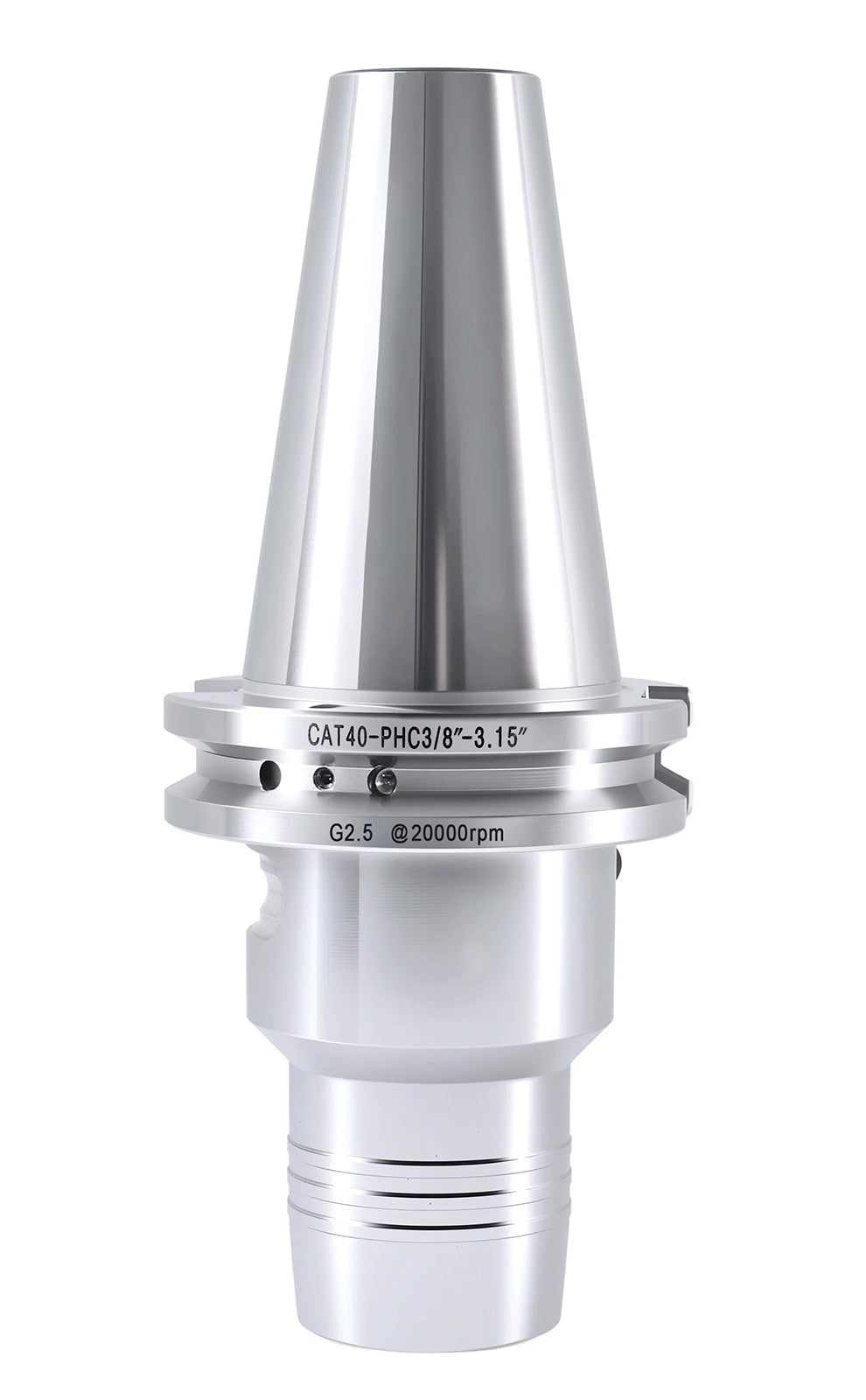

| 8040-0038 | CAT40-PHC 3/8"-3.15" | Ⅰ | 3/8" | 1.34" | 1.73" | 3.15" | 1.28" | 1.50" | 2.00" |
| 8040-0012 | CAT40-PHC 1/2"-3.15" | Ⅰ | 1/2" | 1.42" | 1.73" | 3.15" | 1.28" | 1.50" | 2.00" |

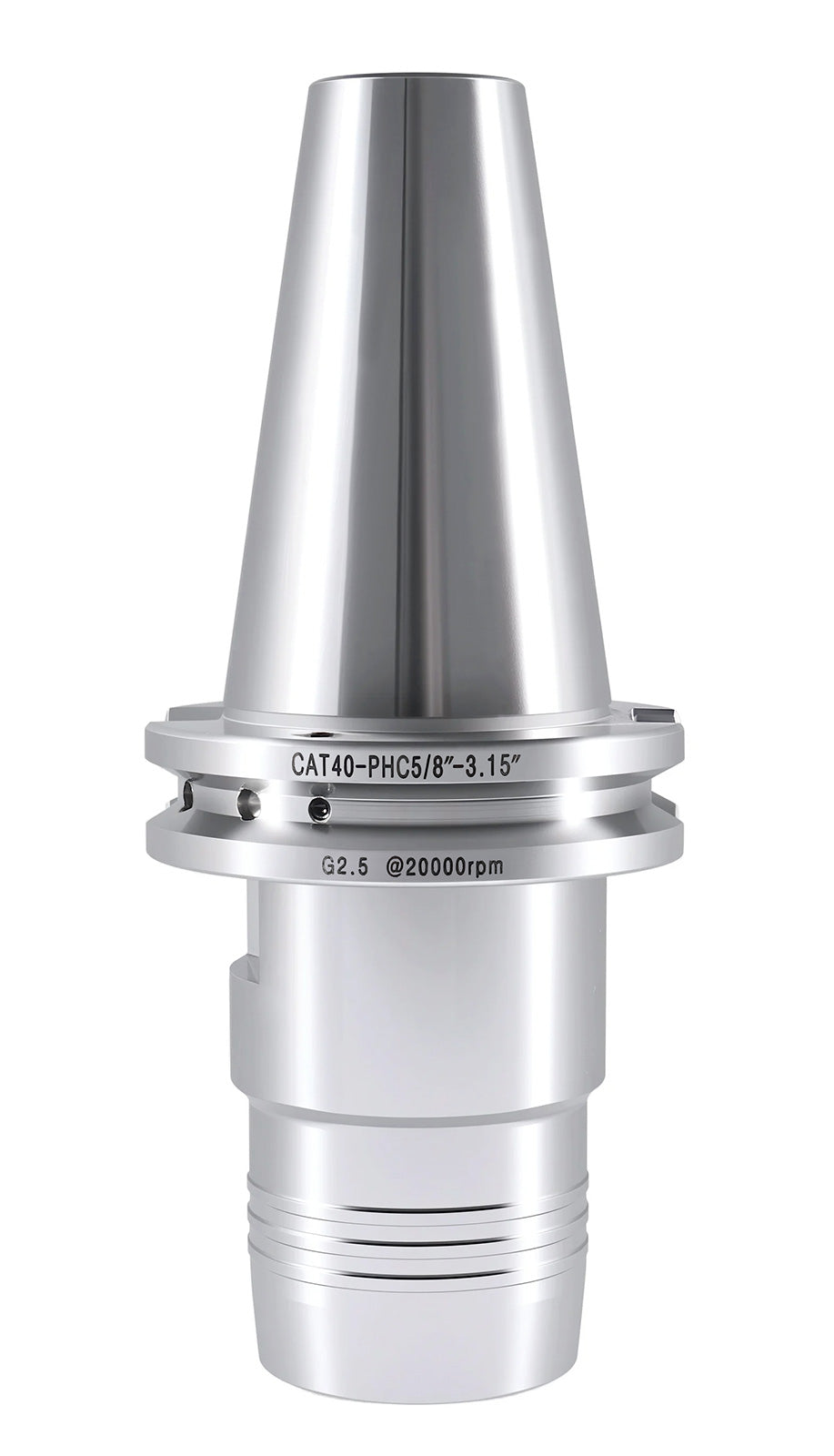

| 8040-0058 | CAT40-PHC 5/8"-3.15" | Ⅰ | 5/8" | 1.57" | 1.73" | 3.15" | 1.28" | 1.57" | 2.04" |
| 8040-0034 | CAT40-PHC 3/4"-3.16" | Ⅰ | 3/4" | 1.73" | 1.73" | 3.16" | 2.42" | 1.57" | 2.04" |
| 8040-0001 | CAT40-PHC 1"-4.92" | Ⅱ | 1" | 2.05" | 2.48" | 4.92" | 2.56" | 1.97" | 2.56" |

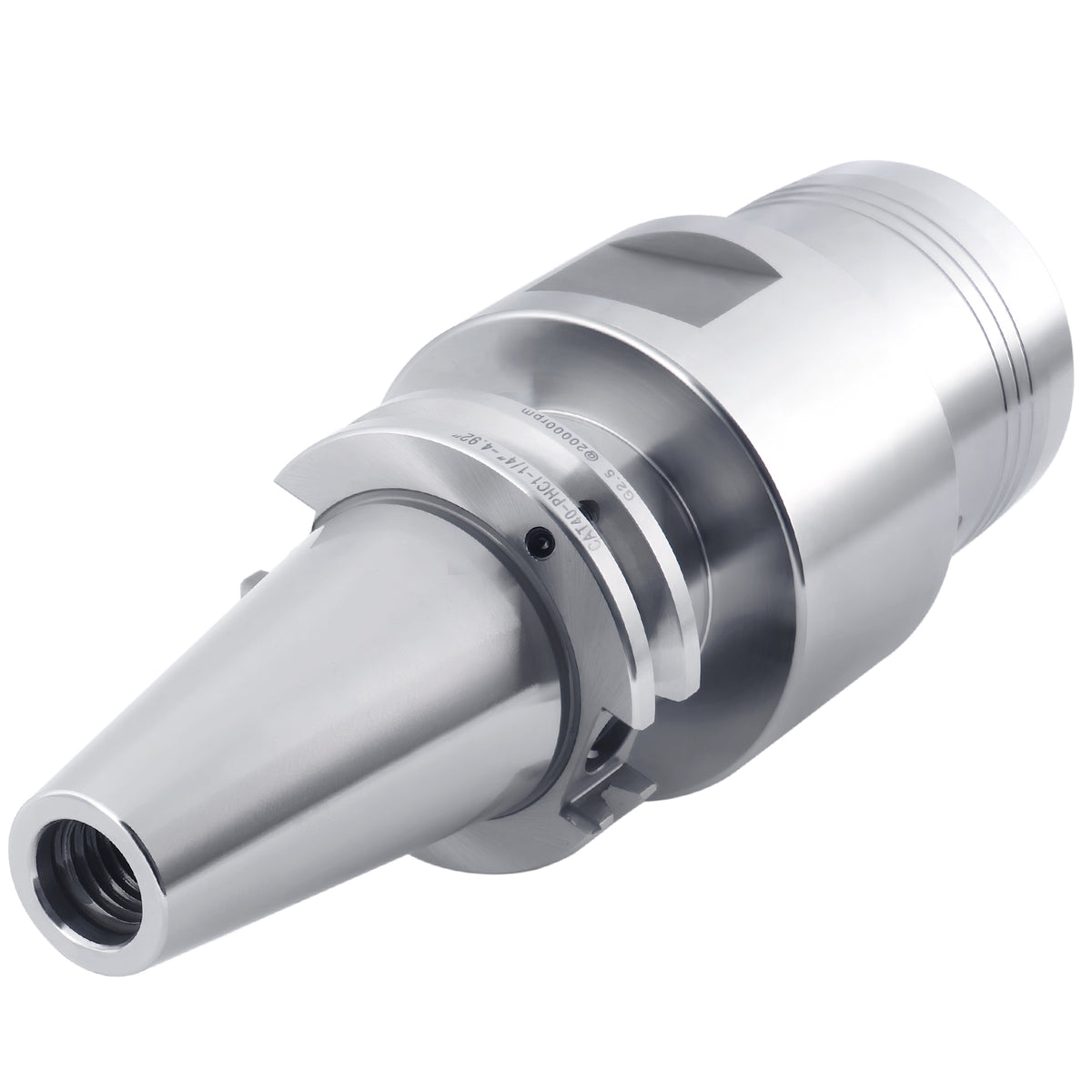

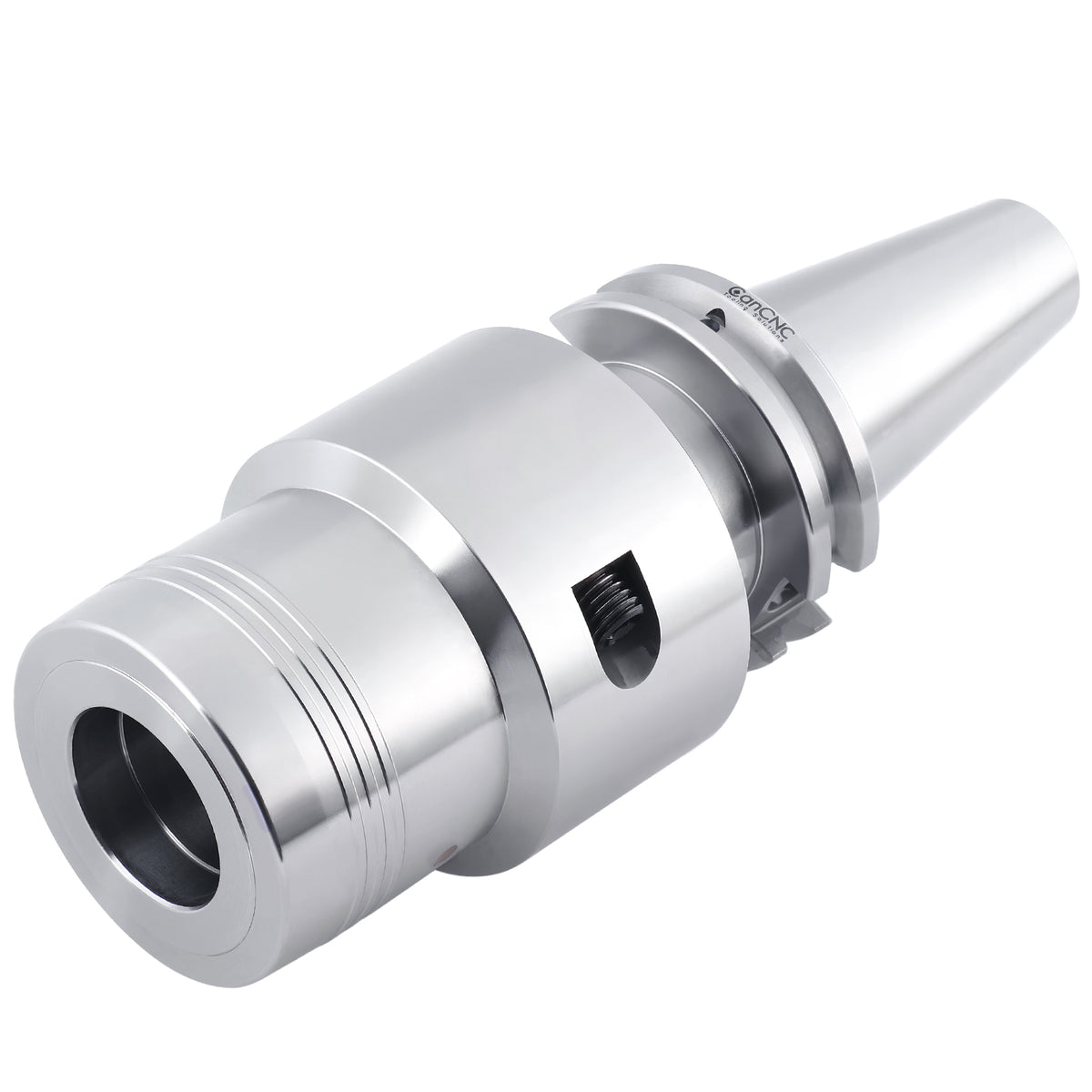

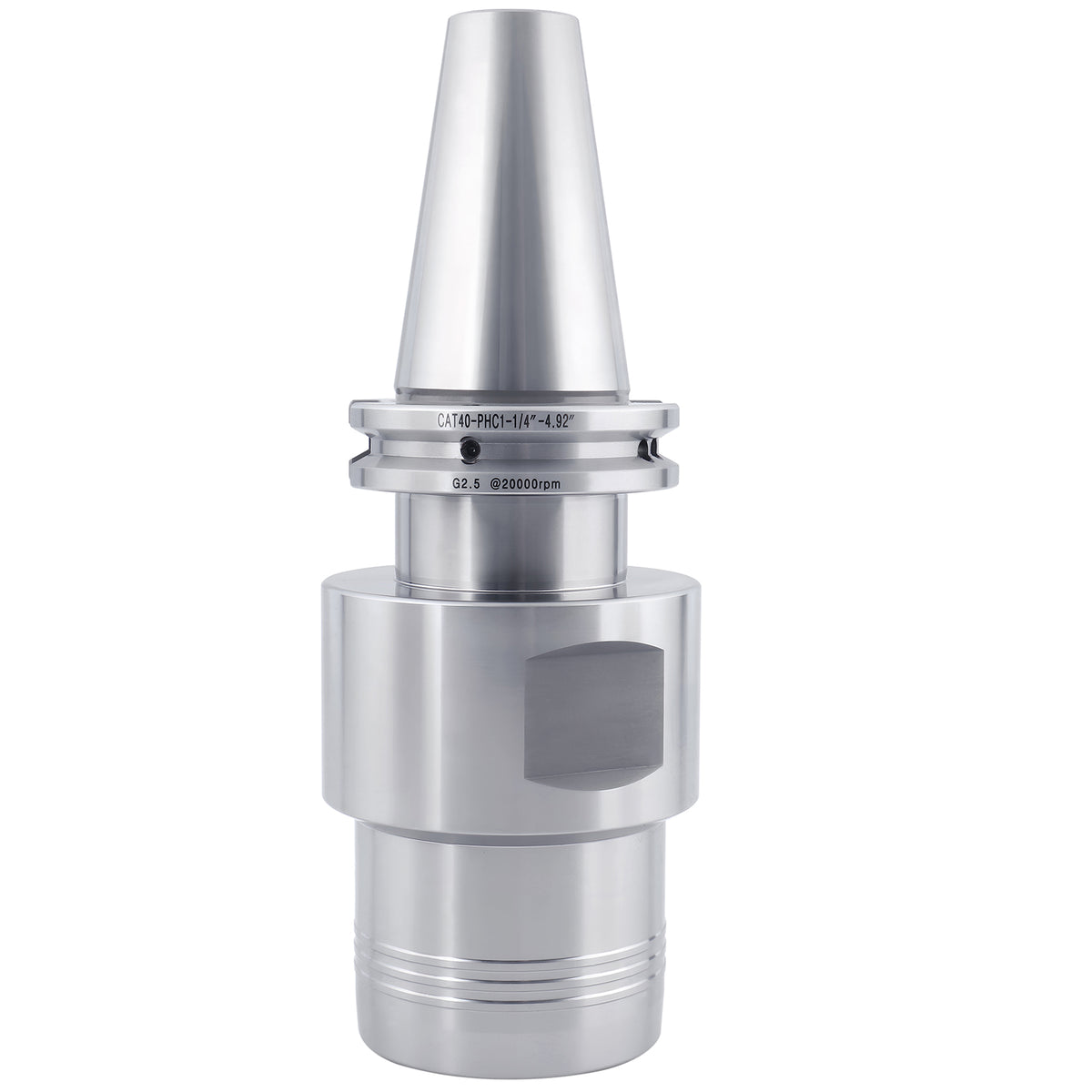

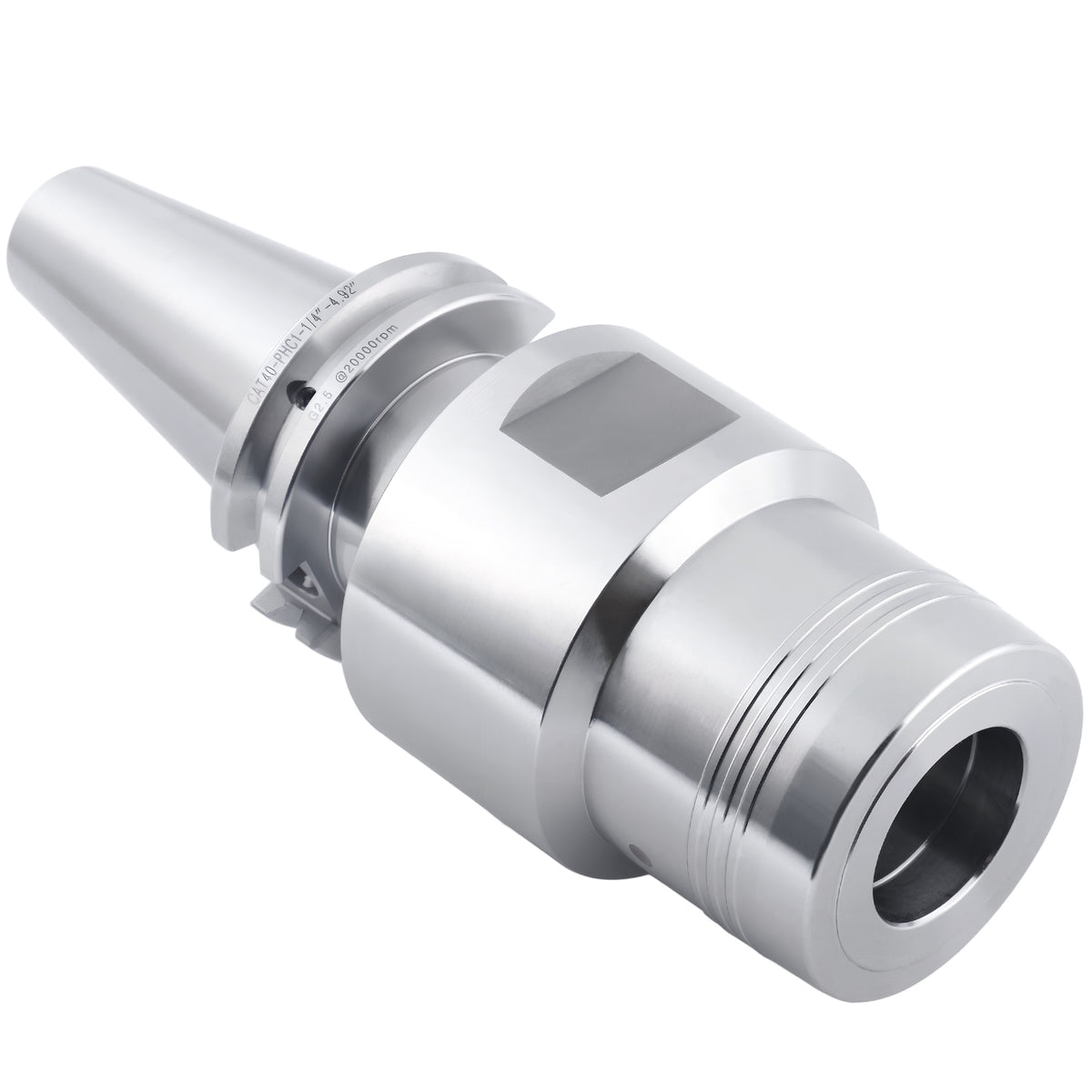

| 8040-0114 | CAT40-PHC 1-1/4"-4.92" | Ⅱ | 1-1/4" | 2.32" | 2.50" | 4.92" | 2.56" | 2.20" | 2.59" |

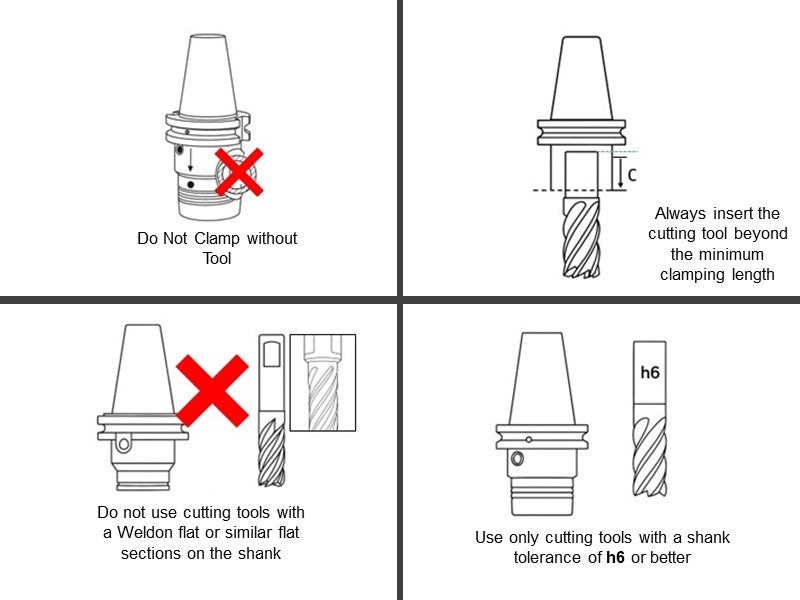

Cautions
- Use only cutting tools with shank tolerance of h6 or better.
- Do not use cutting tools with a Weldon flat or similar flat sections on the shank.
- Never clamp the holder without a tool inserted.
- Always insert the cutting tool beyond the minimum clamping length (C).

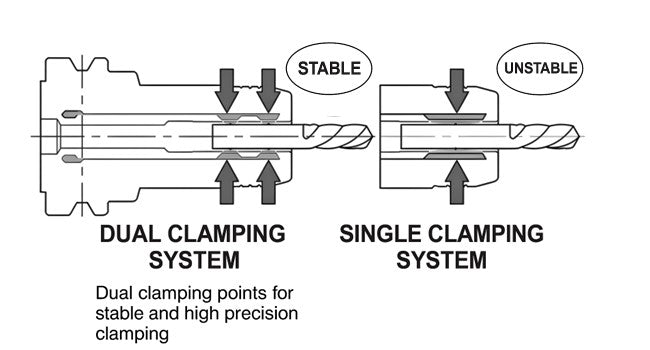

High Precision Hydraulic Chuck System
