Cuttermasters Professional 2020 Journyman JXT End Mill And Tool Grinder

CuttermastersSKU: JXT

Price:
$7,356.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

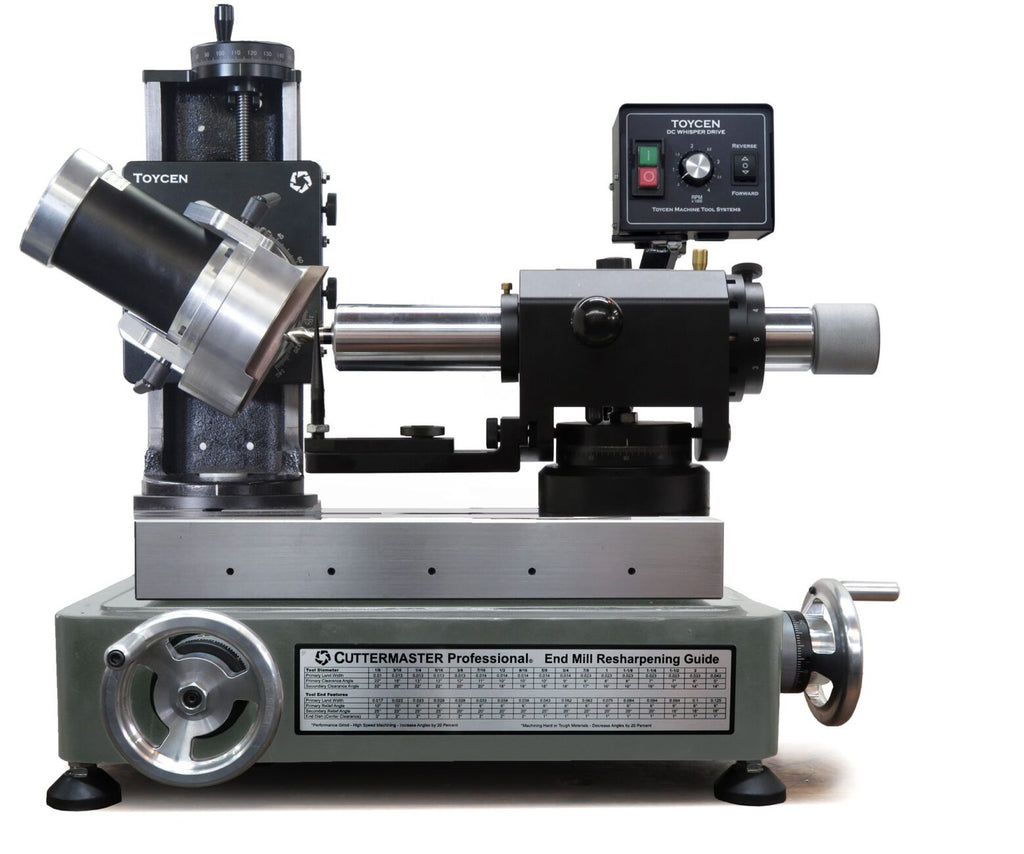

2020 CUTTERMASTER Professional Journeyman, JXT
  • Complete with
  • Infinite Single DC Motor Tower
  • 5C Collet Set (1/8" - 1")
  • Aluminum oxide grinding wheel
  • Air filter and water separator
  • Vibration dampening feet
  • 2021 DRO Option X and Y
  • Work light

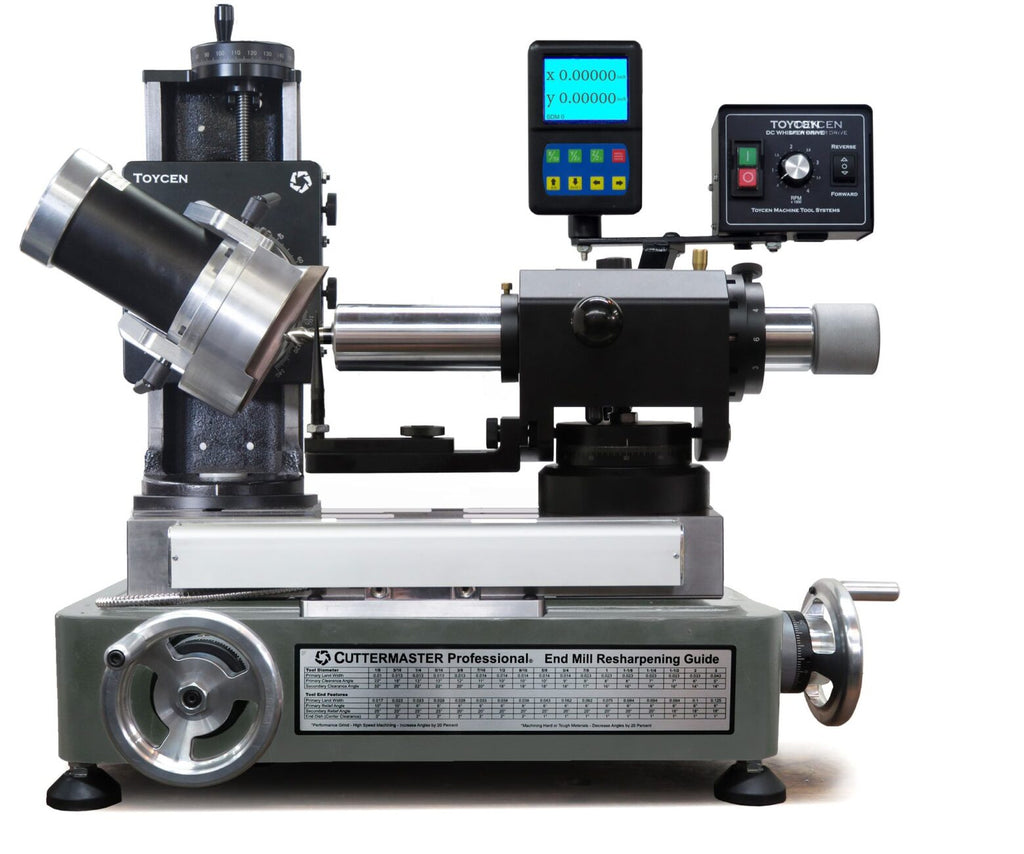

Shown with CM-DRO Digital Read Out, not included

The 2020 Journeyman End Mill Sharpener is a good blend of old and new. The state of the art silent DC drive on the reliable CUTTERMASTER frame is compatible with all legacy CUTTERMASTER accessories. Easy to set up with the best air spindle on the market.

The Cuttermaster Professional DC Motor Tower redesigned with a single wheel, with the Toycen DC whisper drive, designed to complement the Cuttermaster base layout �everything you need to grind ends, flutes. Rads, balls ends, reamers.

We recommend Resin bond CBN (for high-speed steel tools) and diamond (for carbide) cup wheels to upgrade your sharpening system.

A good wheel kit is our production support package

The Patented Multi-Axis, Torque Compensating DC Motor Head now with a vertical axis, whisper drive helps to eliminate tool burning (and you can hear what you’re doing).

JXT Operations

Specifications

Air Bearing Stroke 6.5 up to 10.5�(266.7mm)
Air Bearing Swing Over Table 9.8�(248.92)
Cutting Tool Capacity 2�shank, 9.8�O.D.
Flute Length 6.5 �up to 10.5�/td>
T-Slot Dimension 0.8�(20.32mm) x 0.5�(12.7mm) x 0.67�(17.018mm)
Table Feed Gradations 0.001�(0.02mm)
X-Axis Table Travel 6�(152.4mm)
Y-Axis Table Travel 3�(76.2mm) + sildes back & forth 6�(152.4mm)
X-Axis Table Working Space 16.5�(419.1mm) x 5.5�(139.7mm)
Y-Axis Table Working space 13�(330.2) x 5.5�(139.7)
Z- Axis Tower 5�Travel Dovetail Gib Assembly
Motor Tilt +90° -8°
Motor and Wheel Mount 130V DC 400 watts PM Brushed Commutation 1-1/4 Hub
Net Weight 180lbs (82Kg)
Gross Weight 232lb (106Kg)
Machine Dimensions excluding handles 21�x 20�x 21�/td>
Shipping Dimensions 30�x 28�x 29� 200lbs
