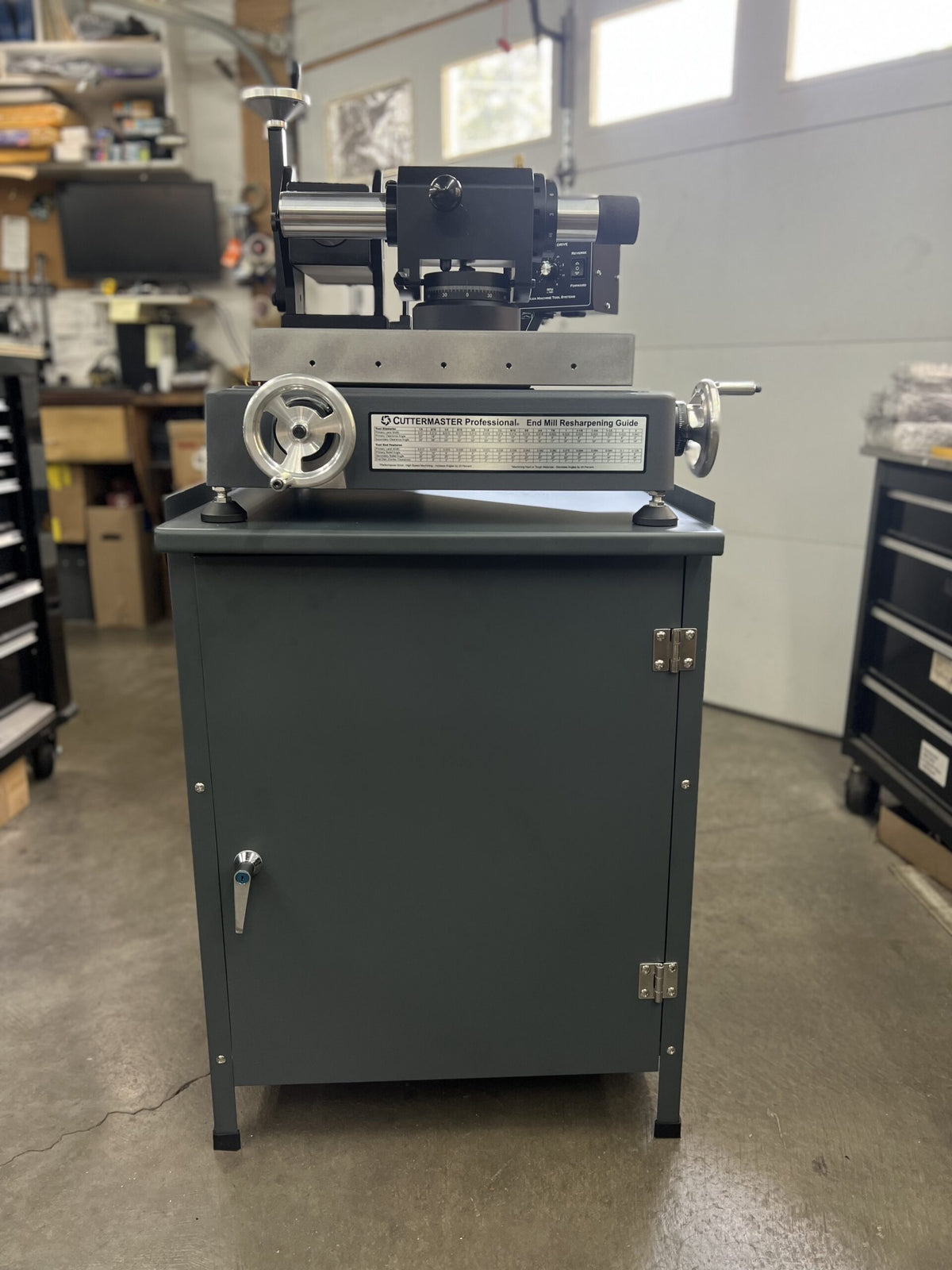

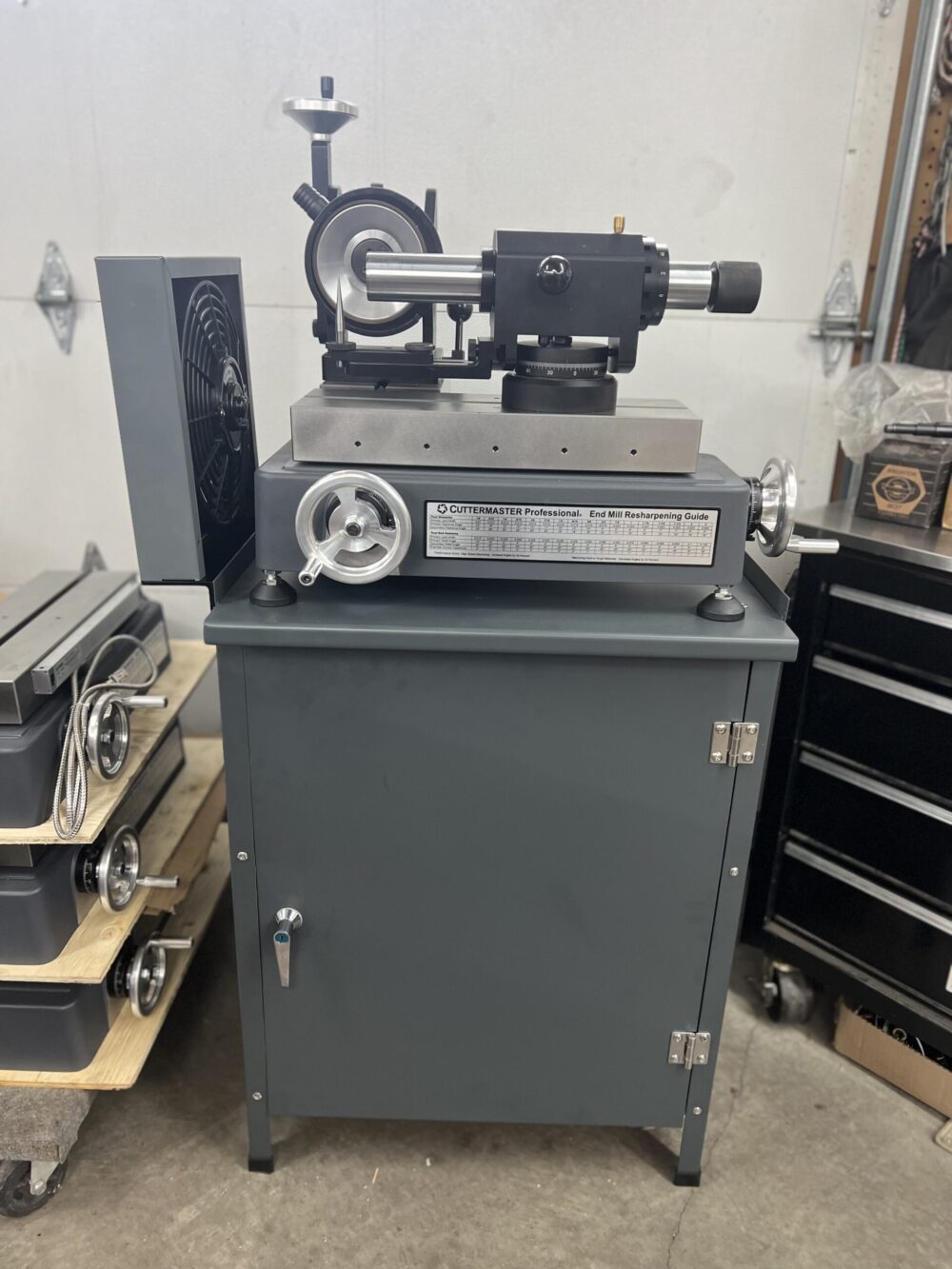

Cuttermasters Professional 2023 CM-01V End Mill Sharpener, CM-01V

Mill Master CM-01 Basic End Mill Sharpener

The Machine that started it all , New in 2026

• Easily sharpen end mill ends and flutes from 1/8" to 2" x 10"
• Neck reduction Grinds, Ball and Bullnose (corner  radius)
• Router bits, Countersinks, Reamers, Drills up to 3 inch
• Fits all available Cuttermaster accessories
• Made in North America ,
• The Machine has been completely redesigned
• New air spindle made from solid , replaceable bushing
• New Motor , and Motor Mount more stable can be locked in position
• New Bridge DC Motor 350 watt reversing
• Compatible with all Cuttermaster Accessories back to 1972

2021 Mill Master  DC  CM-01 (FG-30, MG-30, HDT-30)

The  CM-01 is easy to set up and easy to use . This is the machine if your a shop owner who wants to sharpen his own tools

Designed in 1972 there are about 35000 of these units in the field, with many accessories in the market this is a proven intuitive easy to use platform.

This variable-speed, reversing grinder is the latest version of the tried and true CUTTERMASTER Tool and Cutter Grinder.  Previous Models were the FCG-30, MG-30, HDT-30, and GD-66. The CM-01 is the current North American built model.

This package includes an aluminum oxide grinding wheel, a tool kit, an operator's manual and can sharpen ends and flutes of up to 2" x 10"End Mills.

This is a great machine for grinding the ends and flutes of end mills.  With the addition of accessories, you can grind countersinks (CM-CSJ Countersink Cam Set), corner radiuses (CM-03 Radius Attachment). Drills, Large drills up to 3 inch, Reamers, Single lip cutters, Router bits.

Tool GrinderAccessories

Mill Master

• End Mill End and Flute Grinder
• Variable Speed DC motor 350 watt PWM  control with reverse
• 400-4000 RPM
• Ready-to-run. Includes 1 aluminum oxide grinding wheel and manual
• Quick Set Tool rest

Grinding Wheels and Production Support Packages

The Machine  comes with an aluminum oxide grinding wheel, we recommend our 11V9C CBN (for high-speed steel tools) and diamond (for carbide) cup wheels. Choose one of our Production Support Packages for superabrasive wheels and Countersinks

CM-01V versus the Journeyman JX. The main difference between the CM-01V and the more advanced Journeyman JX models, is that the JX has a larger motor and the added ability to swivel the motorhead 360 degrees allowing for additional set-ups.

The above video shows the JX but the setup and operation would be the same for the CM-01V

CM-01V Specifications
