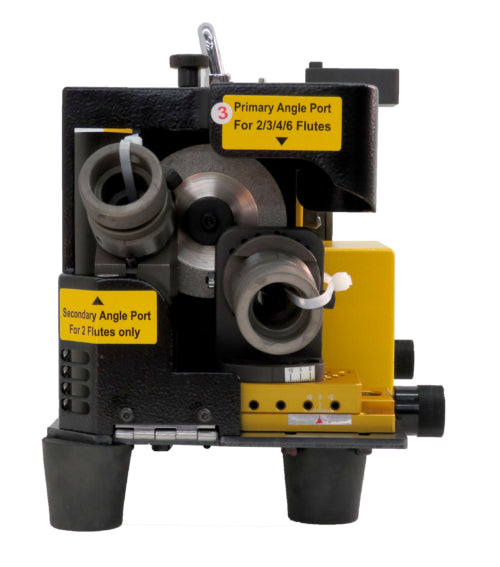

End Mill and Radius Grinder, ESR-520D
This is a two-in-one end mill grinder. Grind center cutting end mill ends and corner rads, all in one machine. Easy to operate, each station takes only seconds so that you can have sharp tools when you need them. Grind 2, 3, 4 and 6 flute ends. Comes with storage cabinet, collet set and grinding wheels.
- Grinds from (3/16 to 3/4”) 2-6 flute end mills on the left hand side of the machine (optional 1/8” capacity)
- Grinds corner radius up to 1/8” on a 3/4” end mill on the right hand side of the machine
- Cutting angle concavity: 0° to 3°
- Lip clearance: 6°
- Chucks and collet sets, wheels (set for carbide tools) all steel construction with tool and wheel storage cabinet
- Machine size: 36 x 18 x 23mm, 15kg
