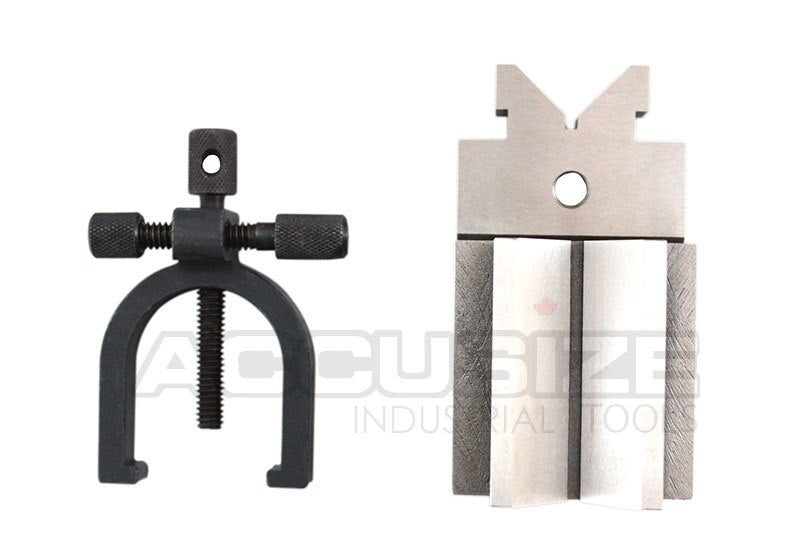

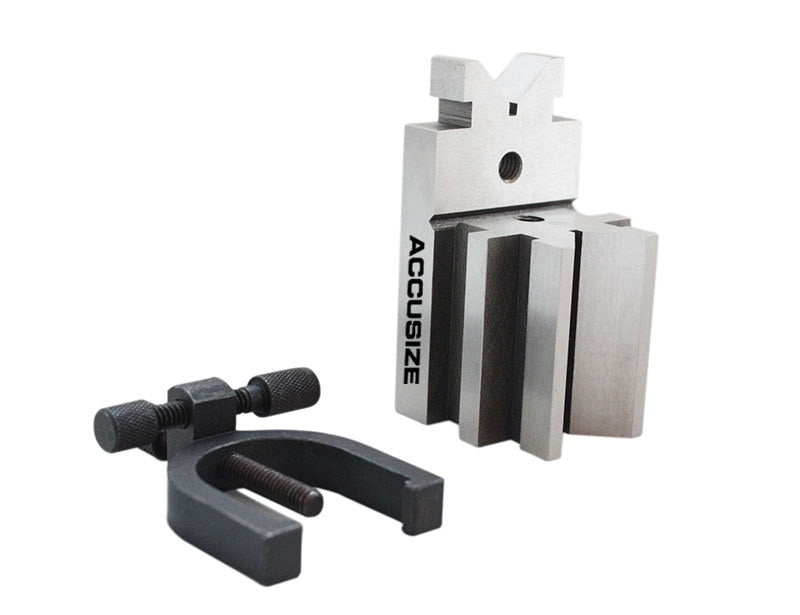

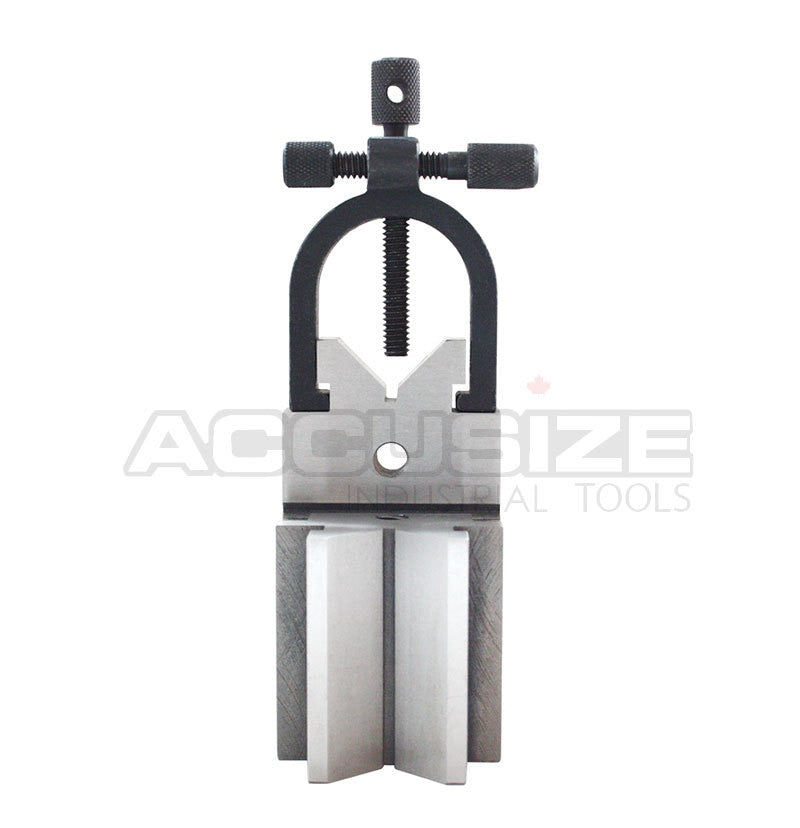

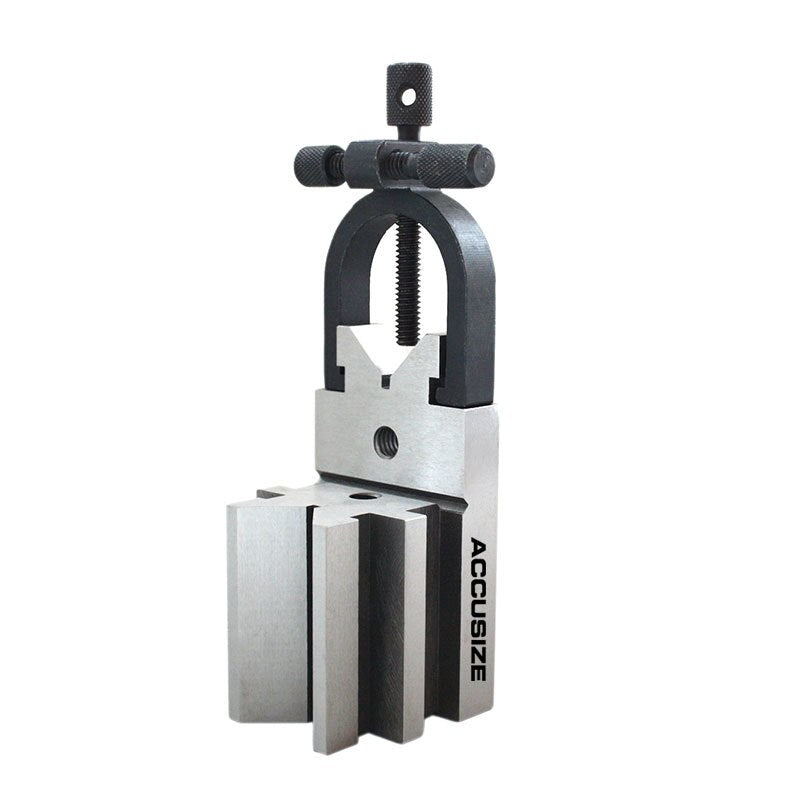

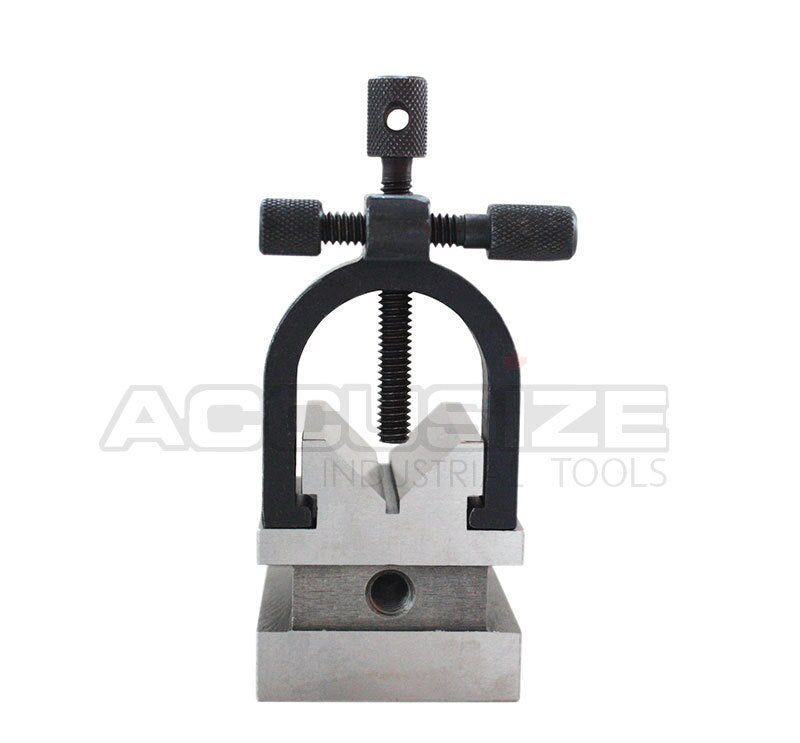

ALL-ANGLE V-BLOCK & CLAMP #3605-3050
- For grinding, milling or drilling work.
- Made of hardened and precision ground tool steel.
- Sides are parallel and the vee is central and ground.
- The central hole is provided for drilling or removing pins
- V-block has (4)3/8"16 tapped holes, (2) in the base and (1) on each side for angle iron clamping.
- Block is provided with a black oxidized clamp.
- Parallelism tolerance of Vee axis to the base: within 0.0003"/8 microns
- Dimensions: 3-5/8" L x 1-7/8" W x 1-7/8" H
- Holding capacity: 1-5/16"
