Master Precision Levels


Size: 6" X 0.0002"/10" (S908-C684)
Price:
$108.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

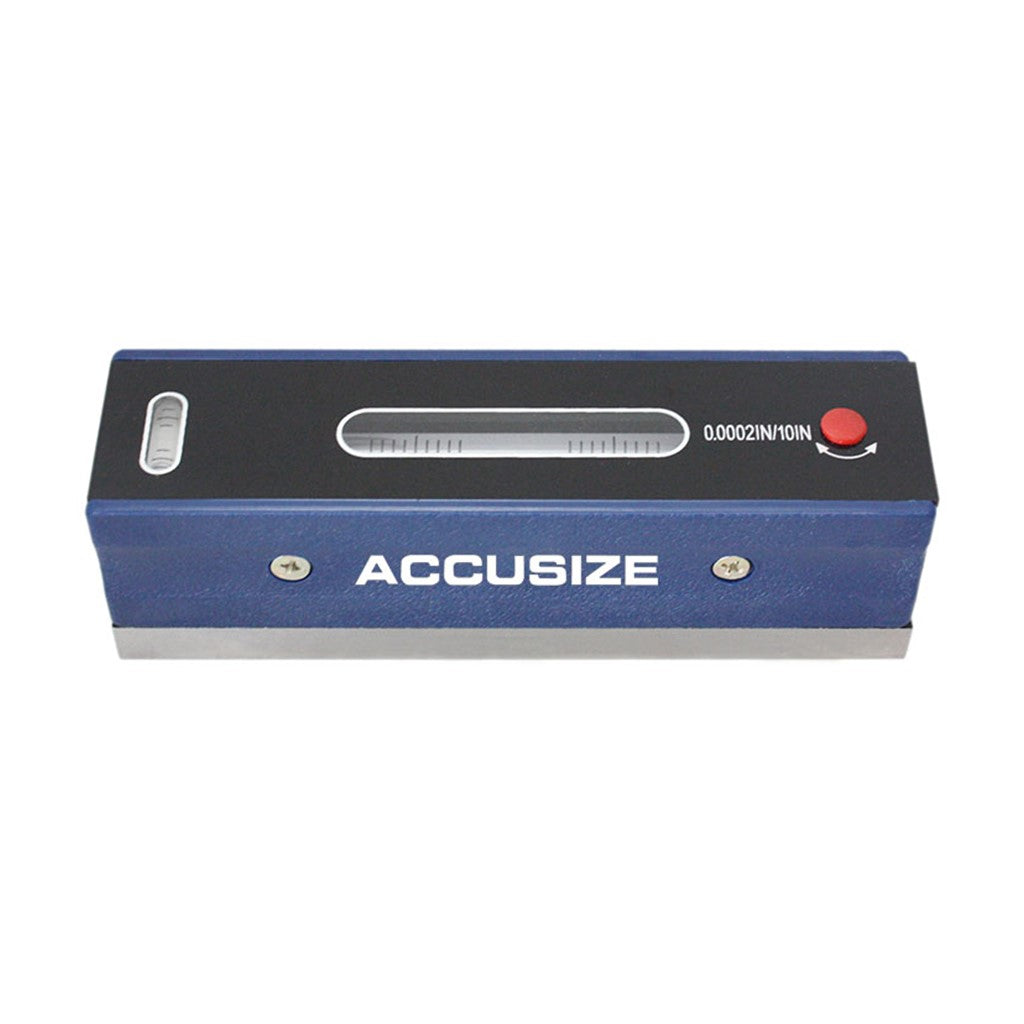

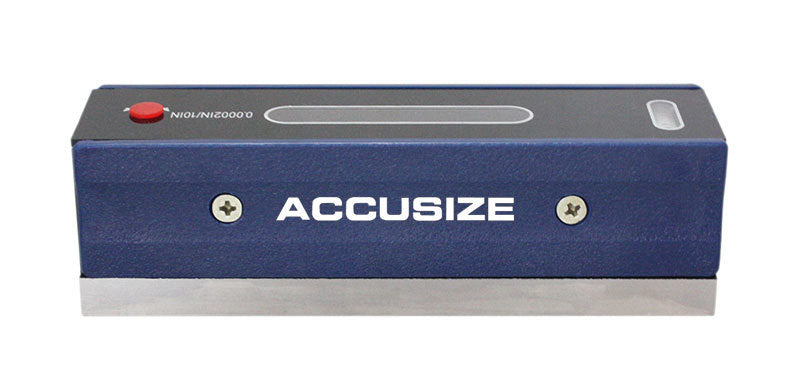

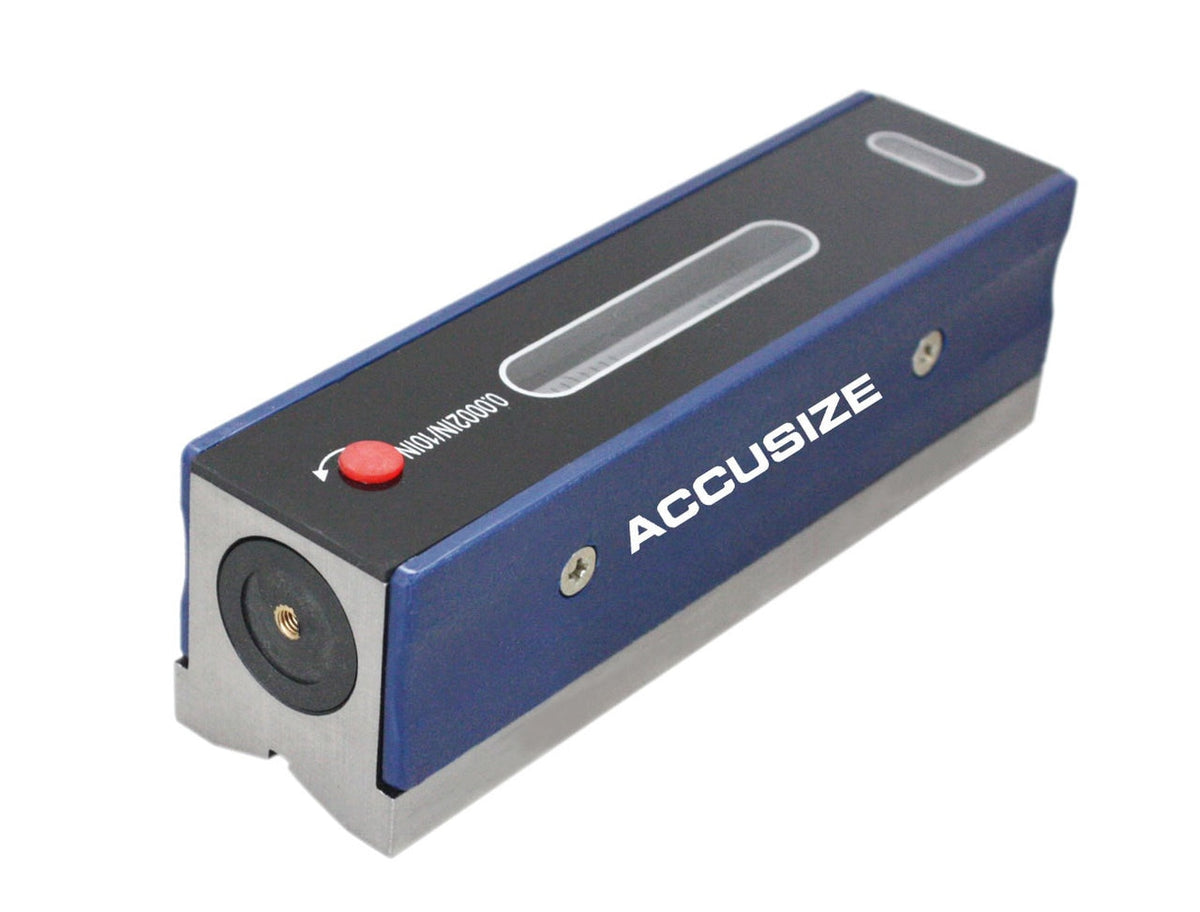

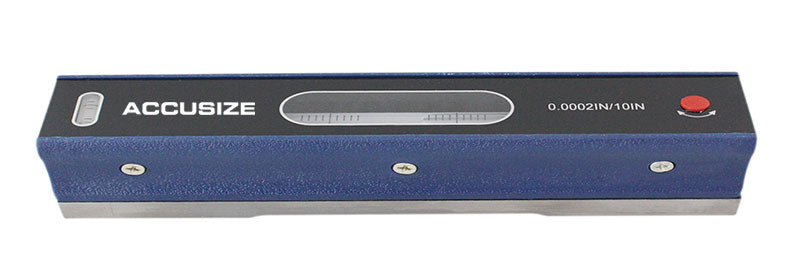

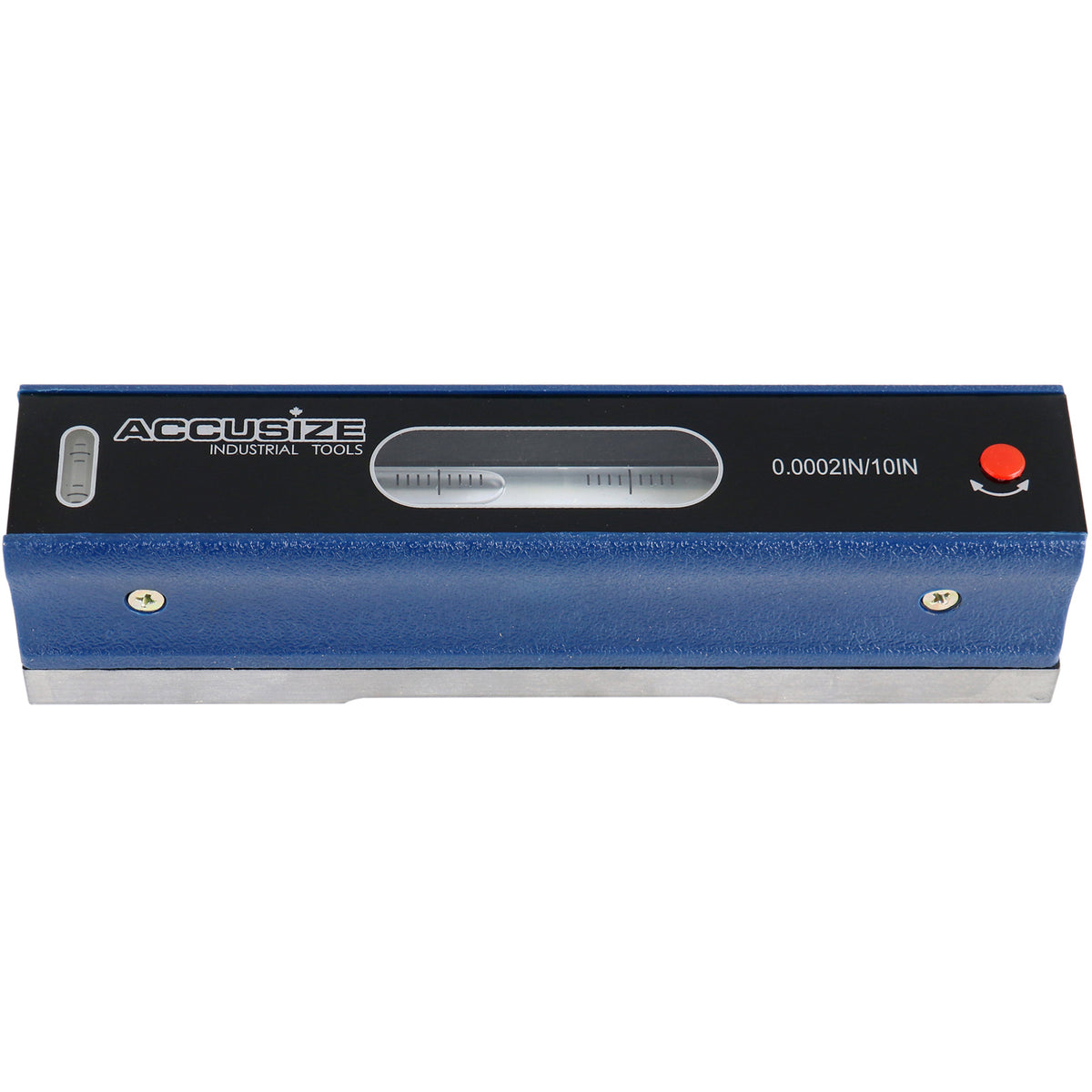

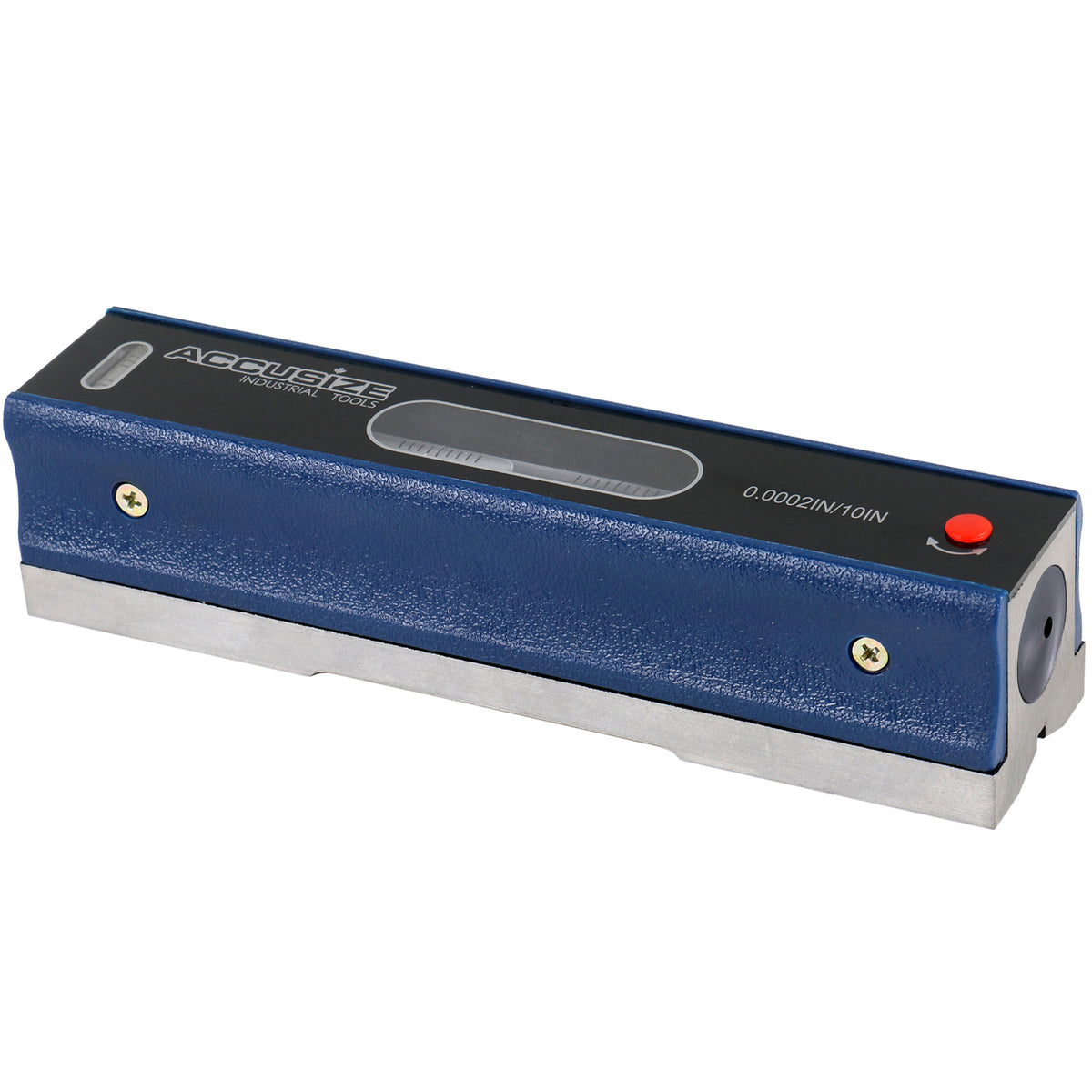

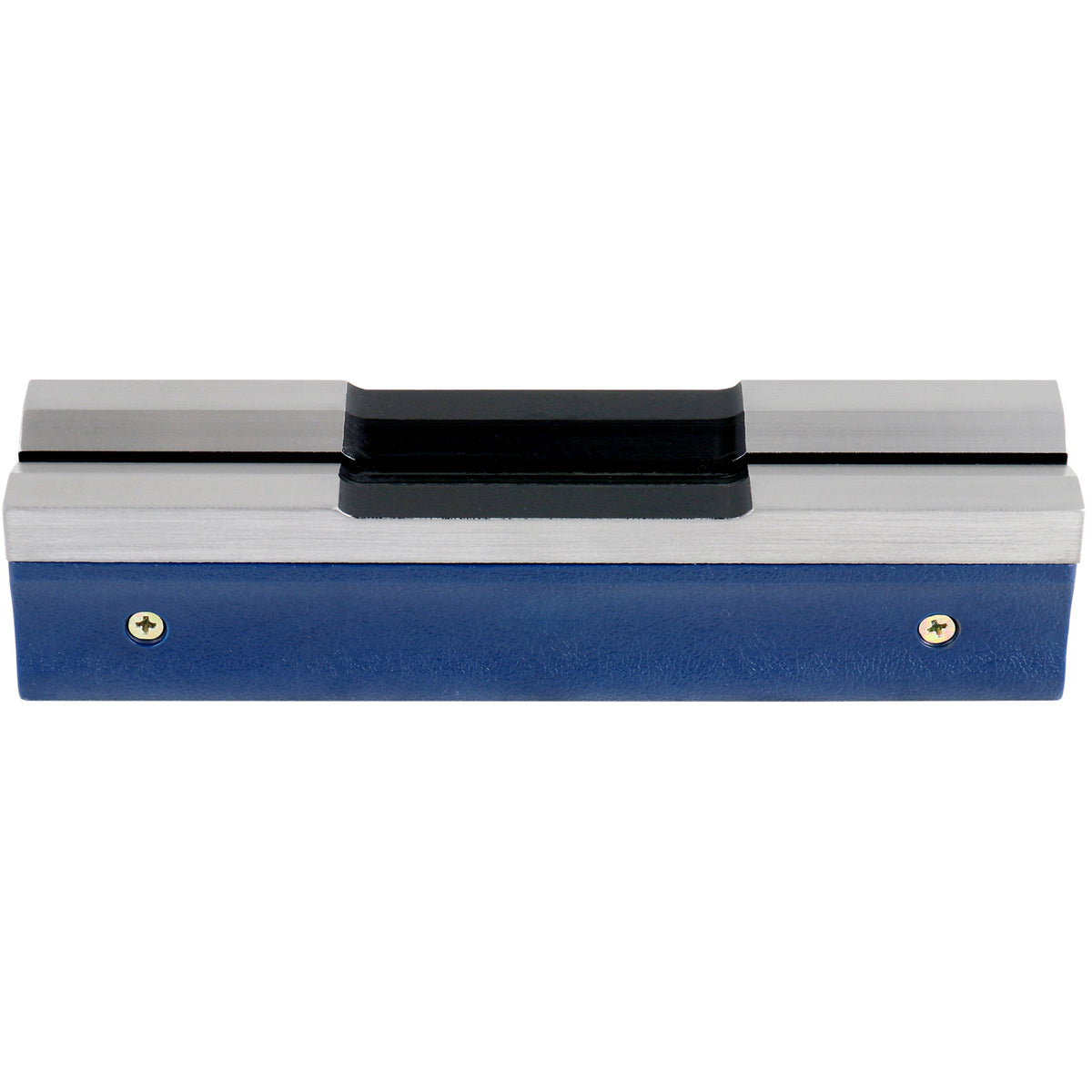

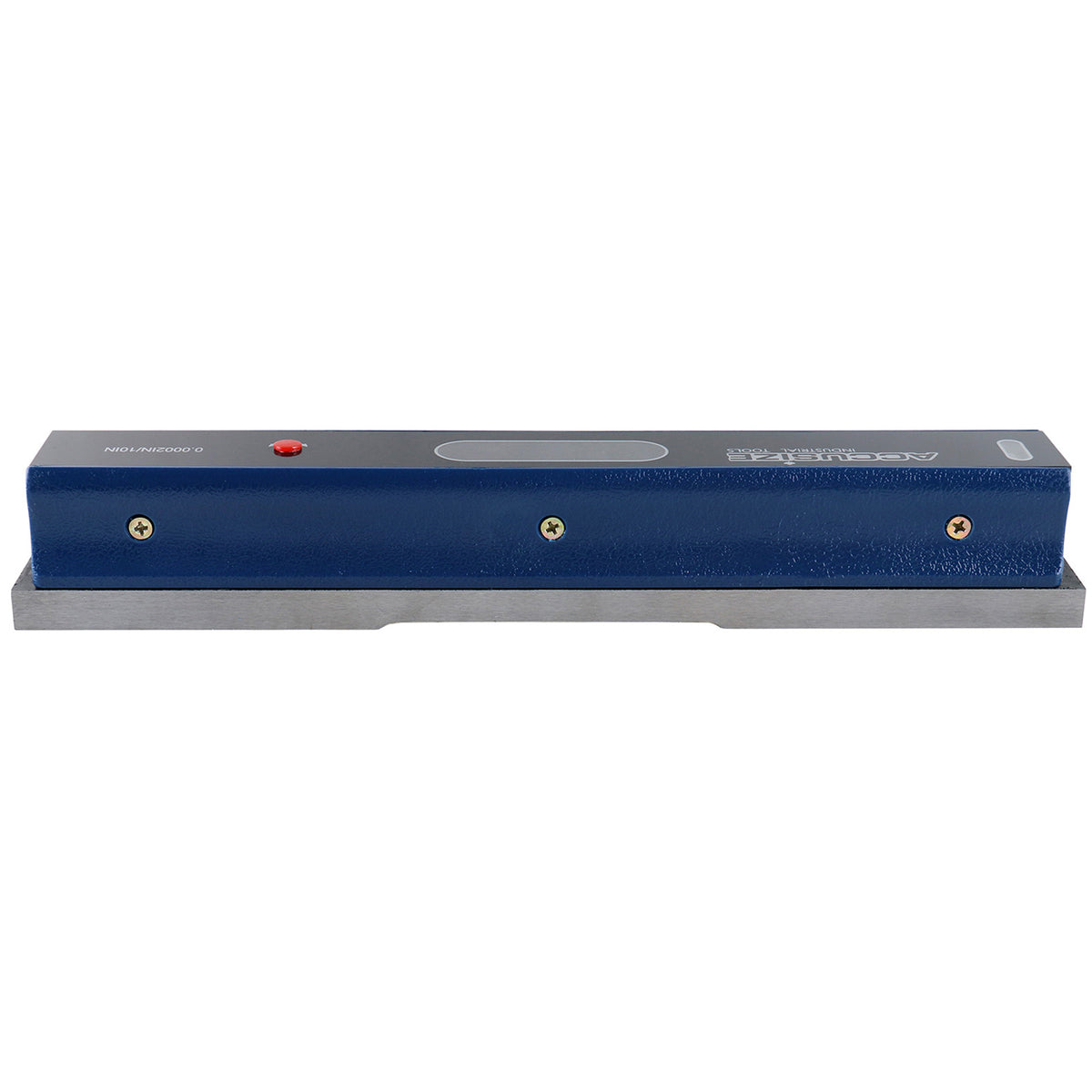

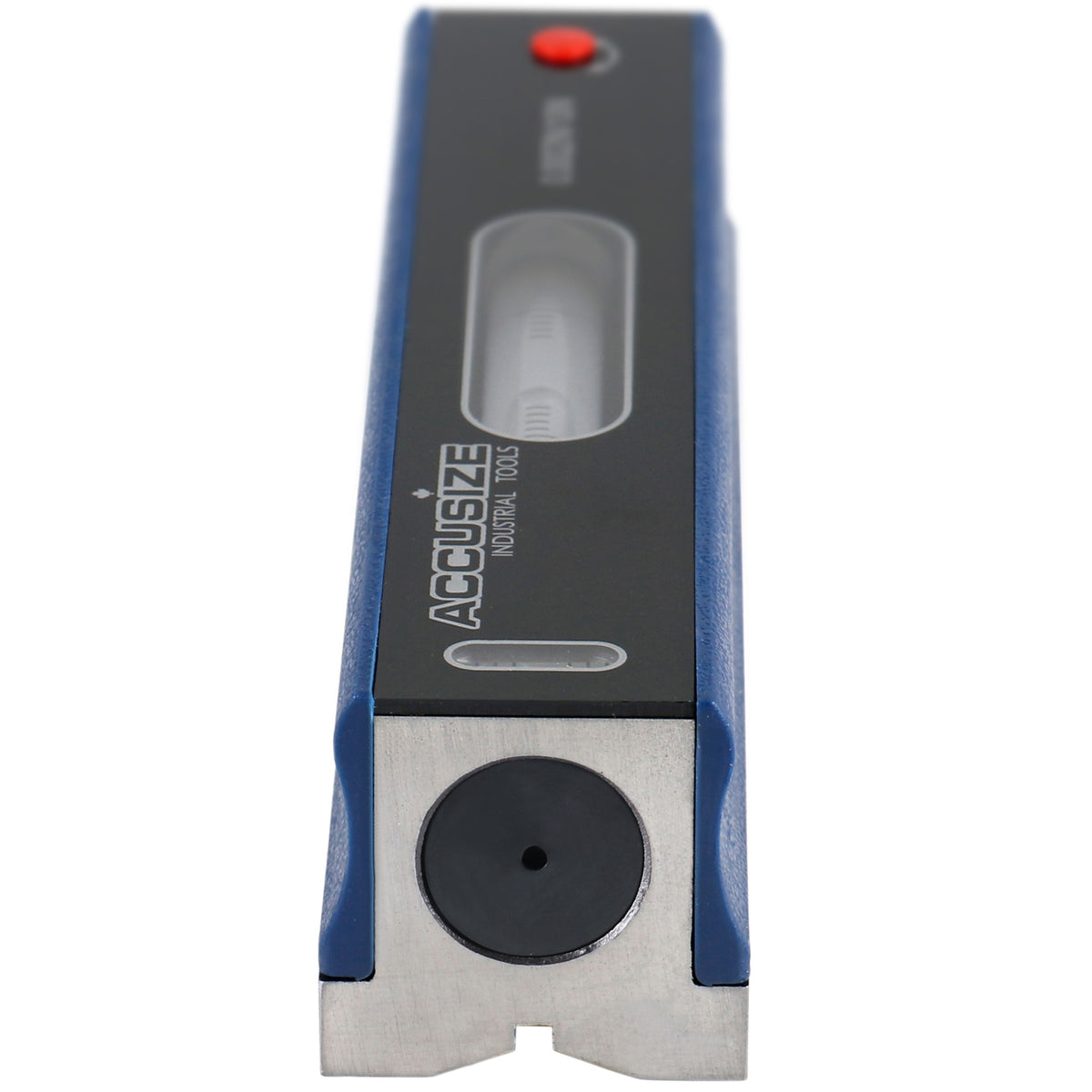

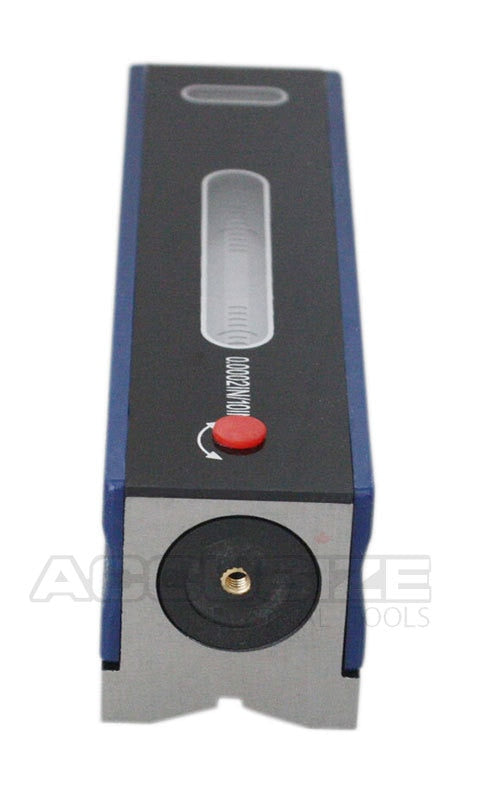

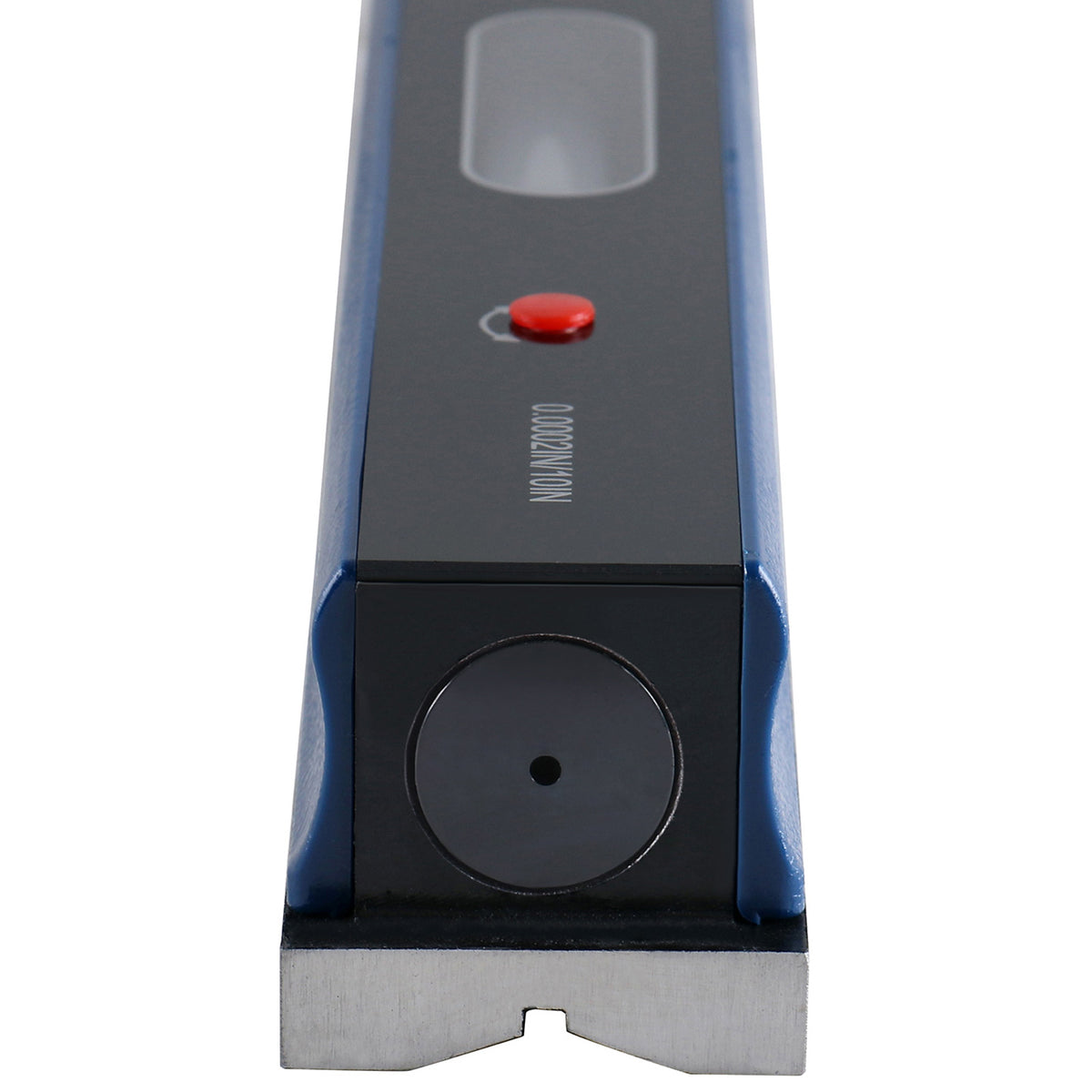

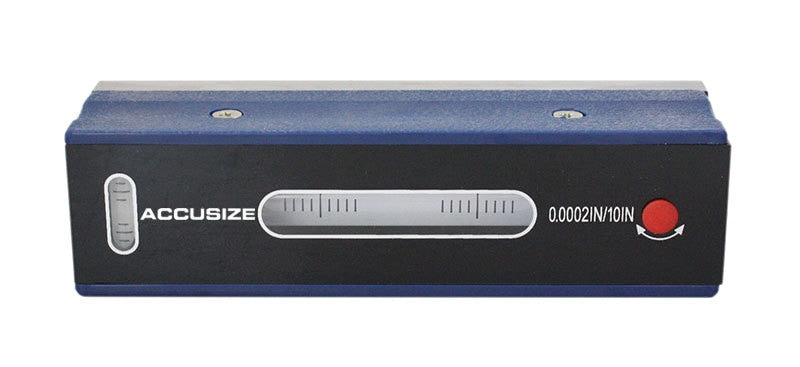

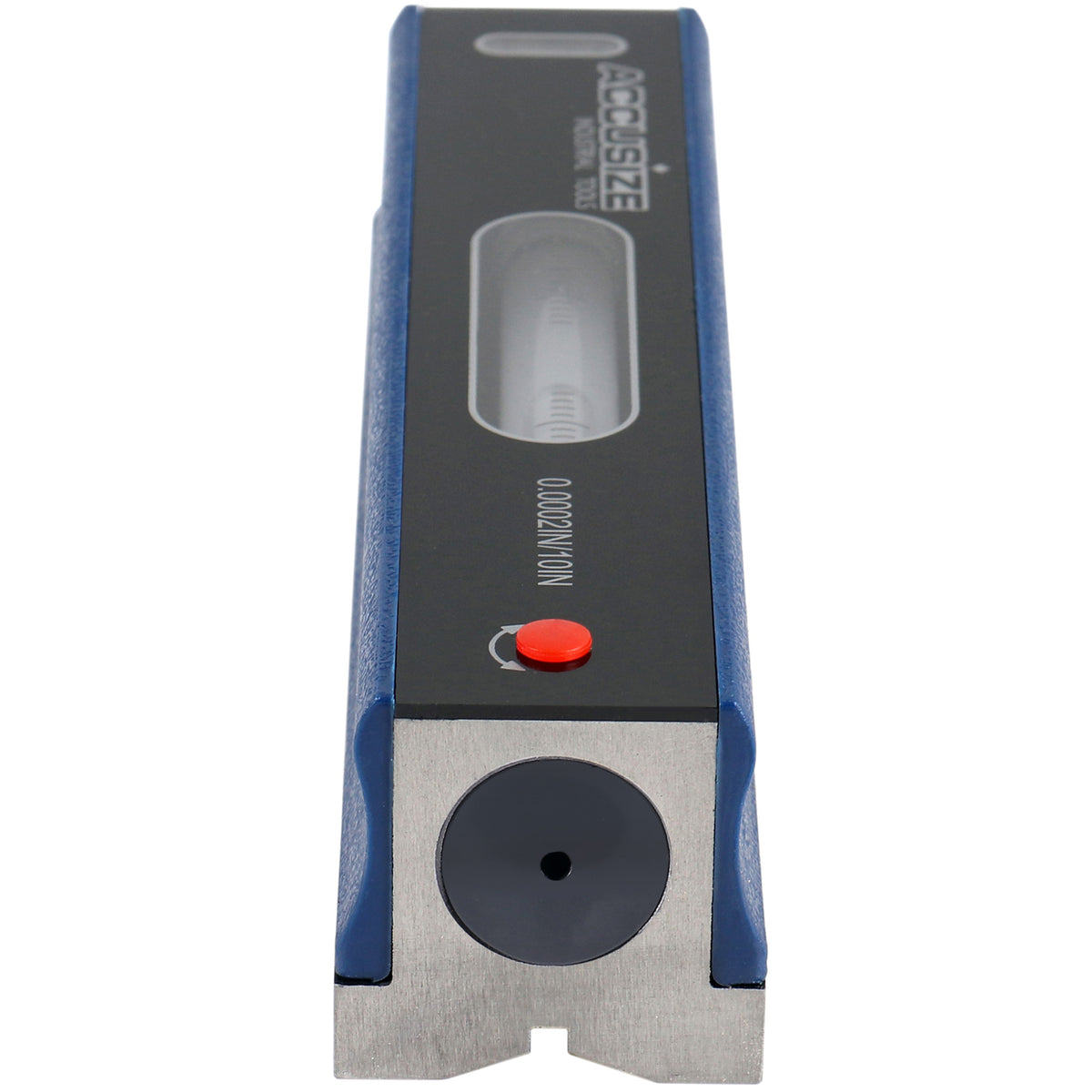

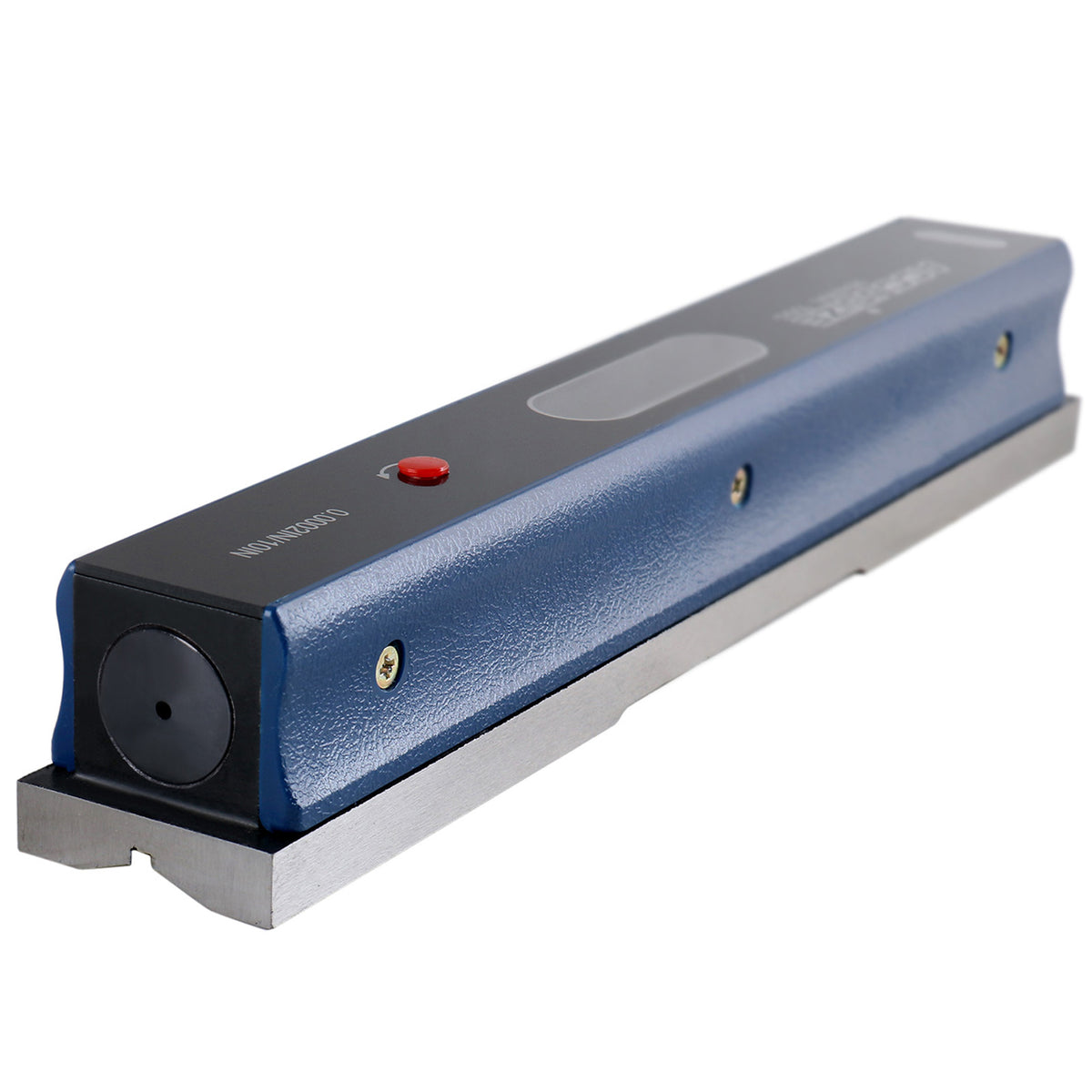

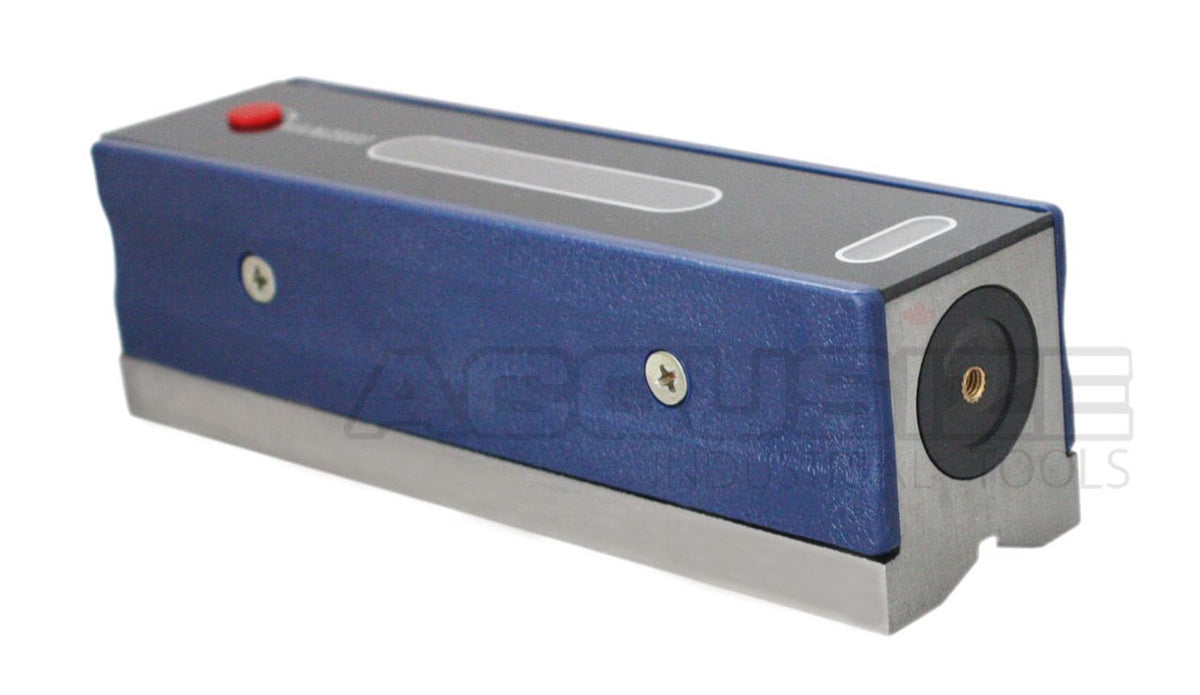

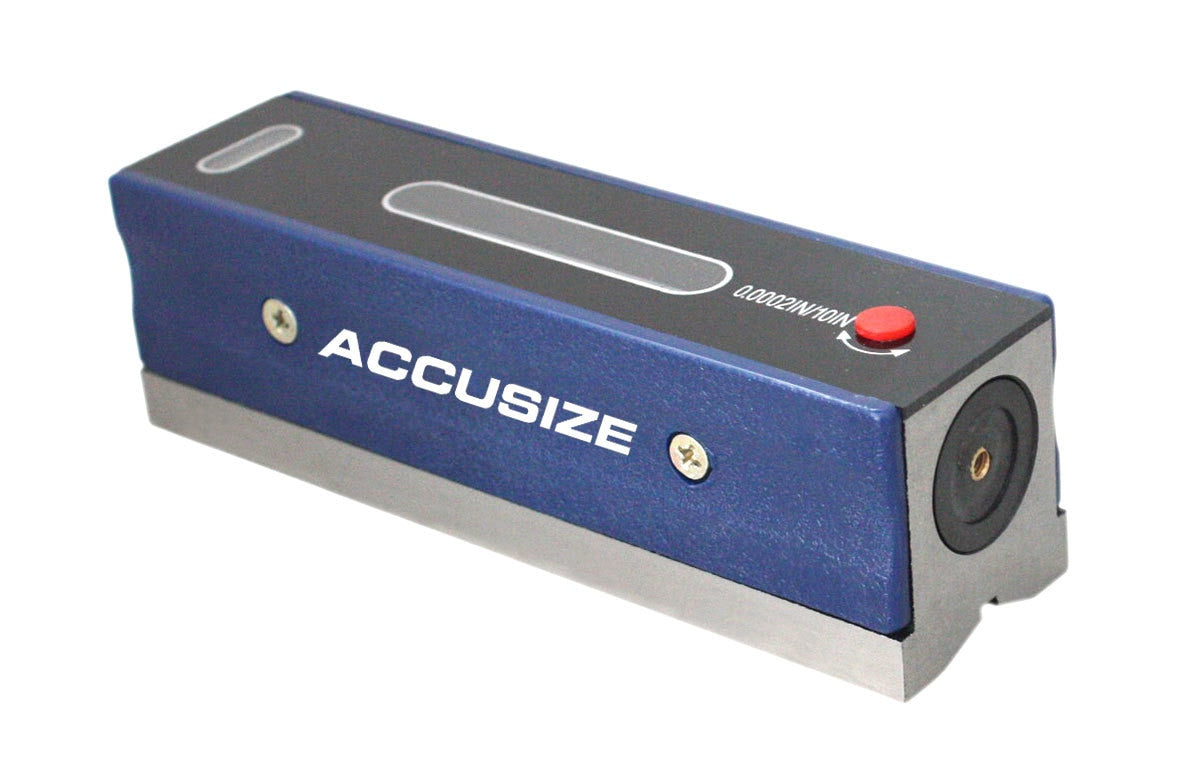

Master Precision Levels

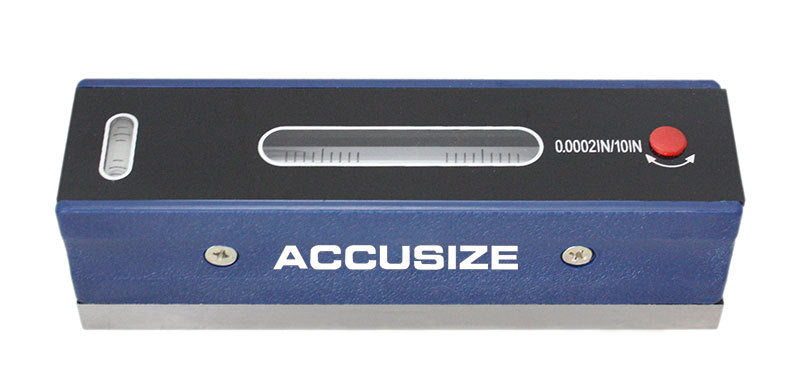

  • Adjustable main vial 0.0002"/10"

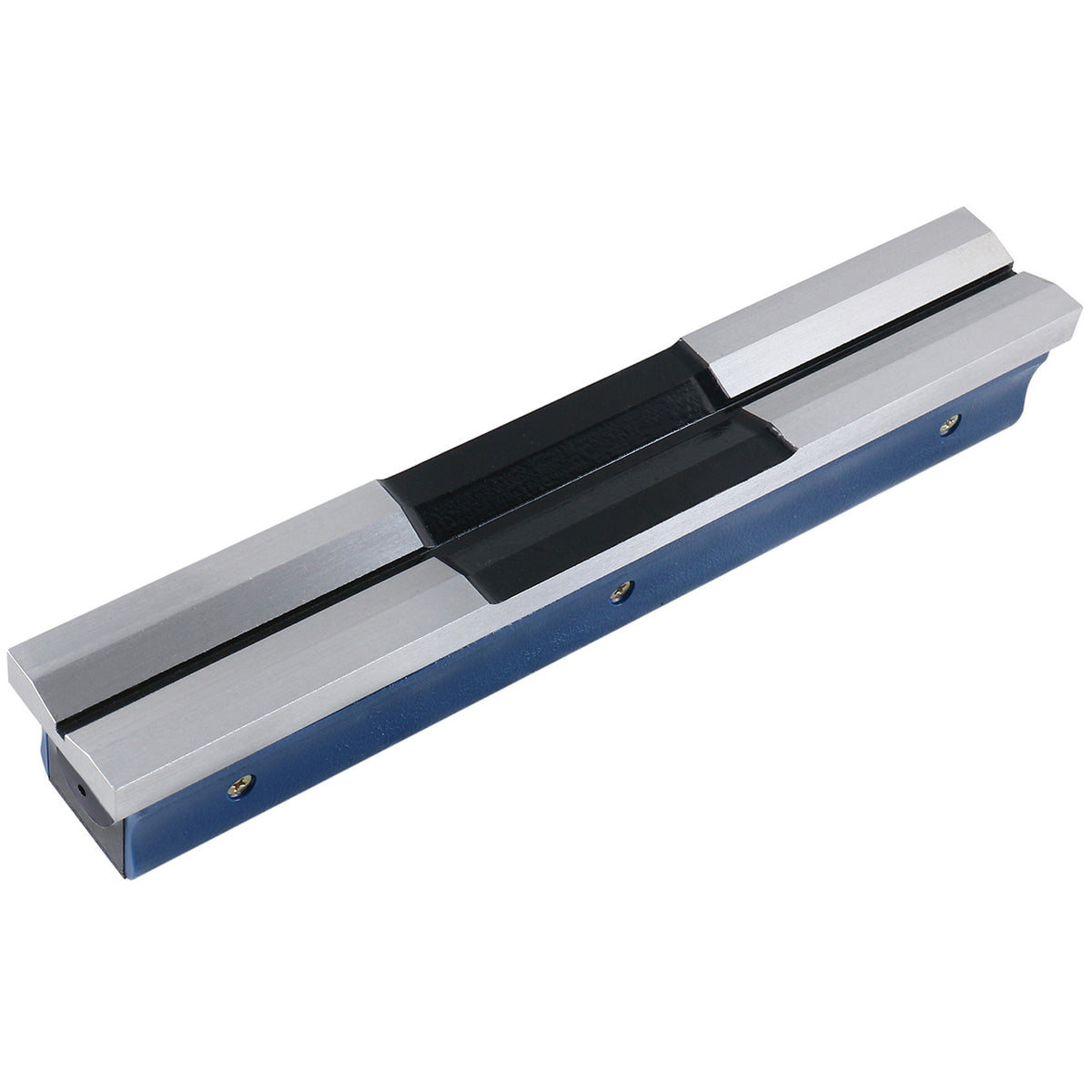

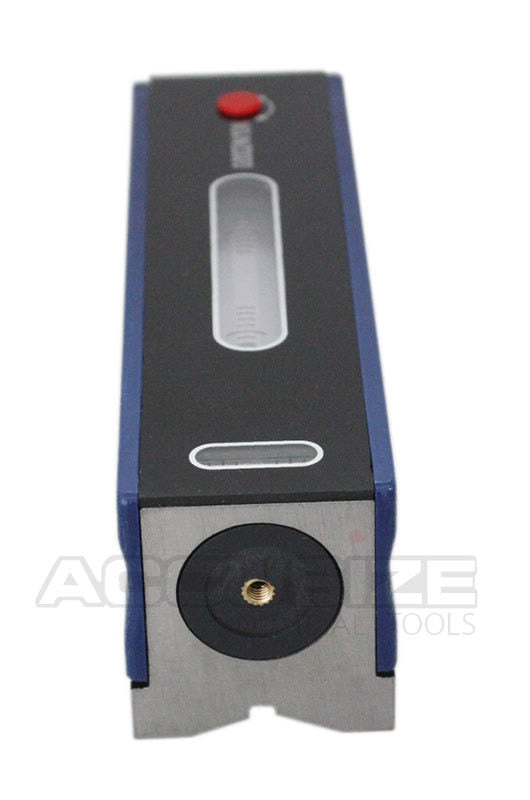

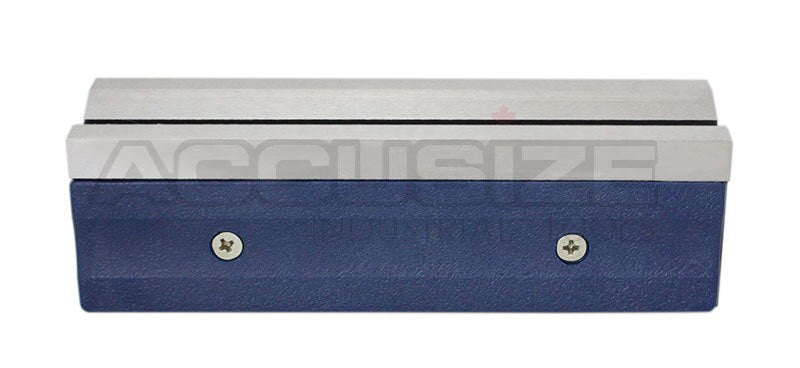

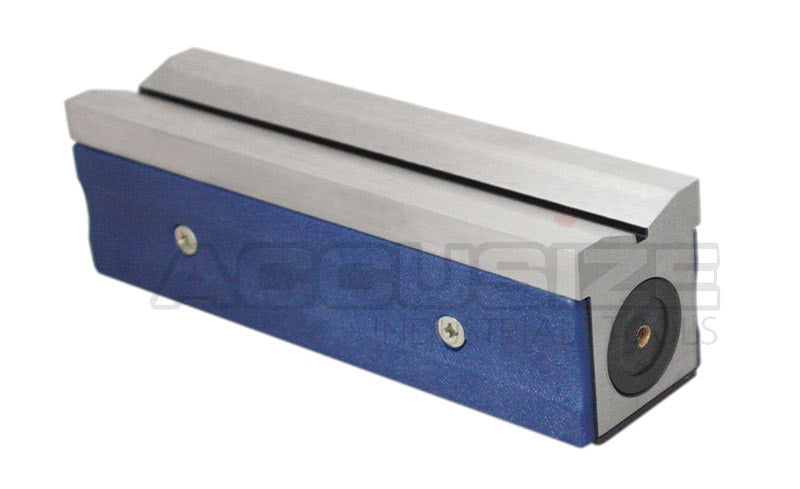

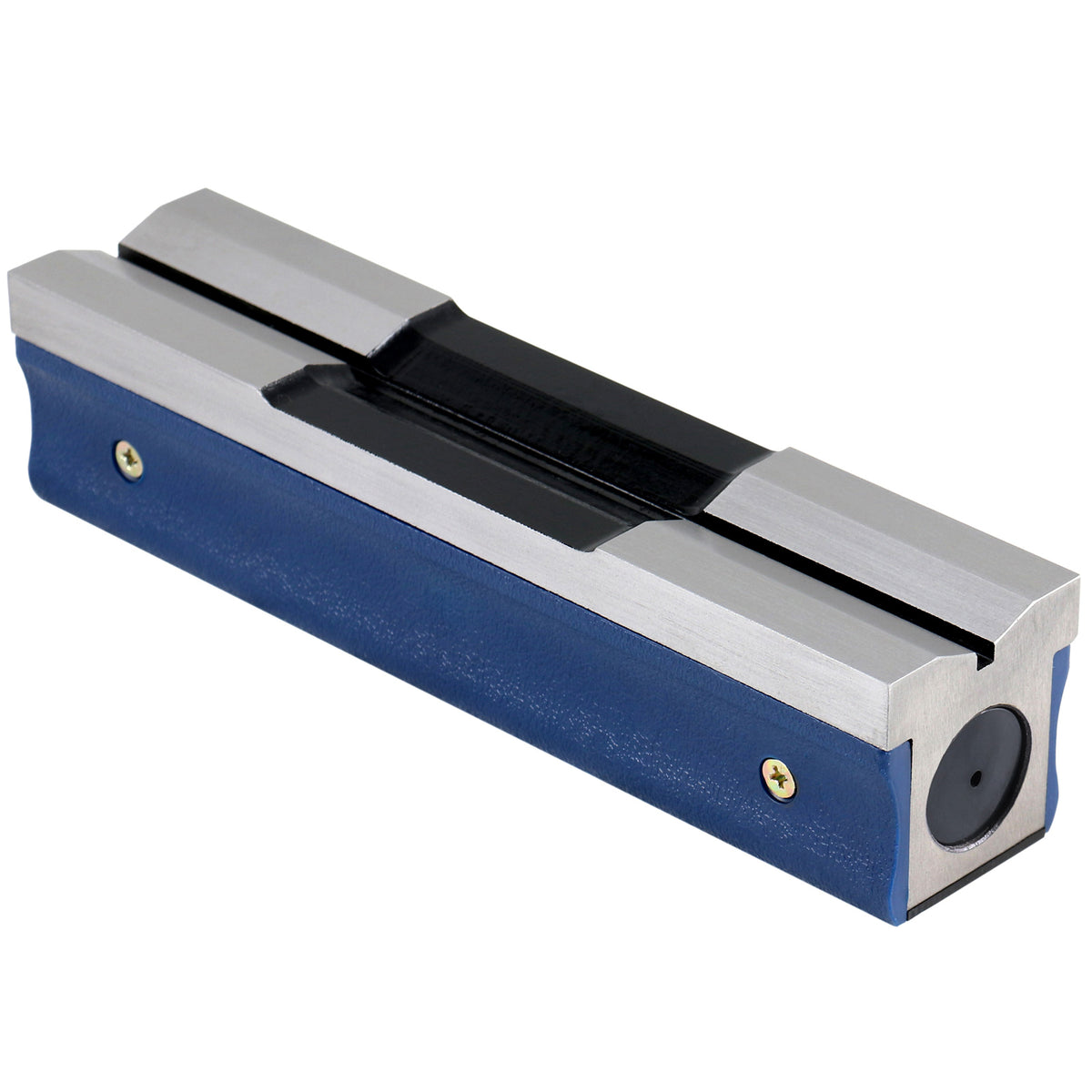

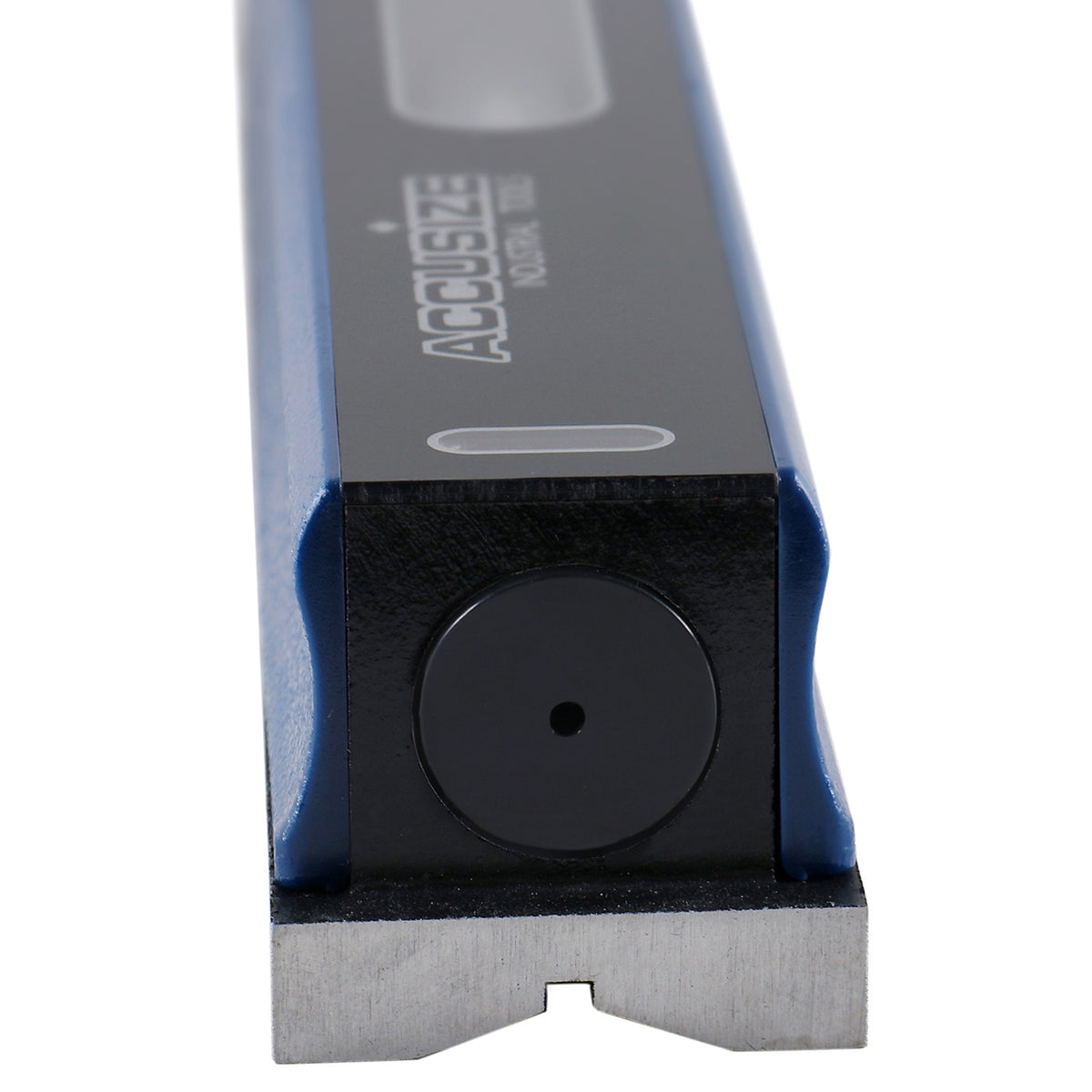

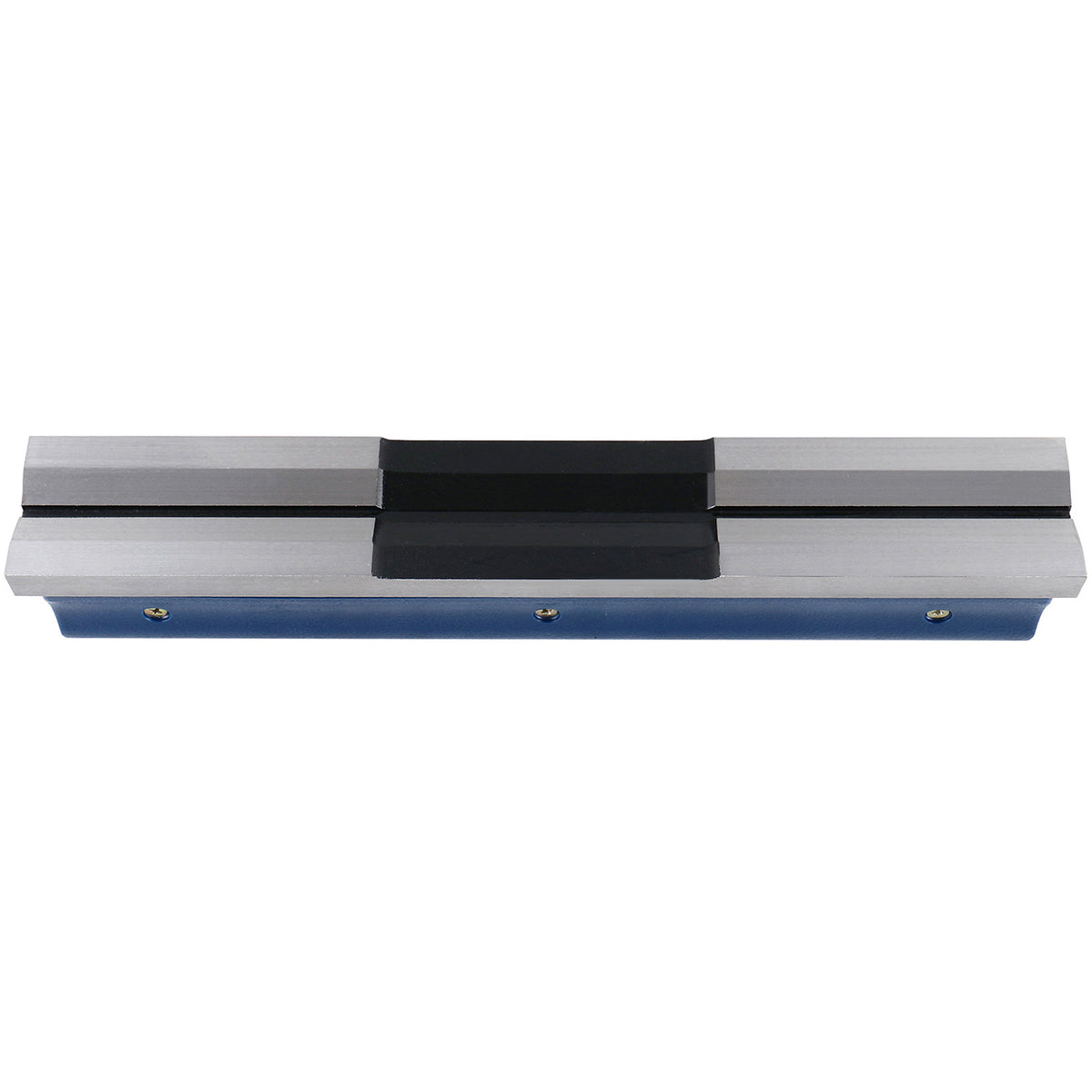

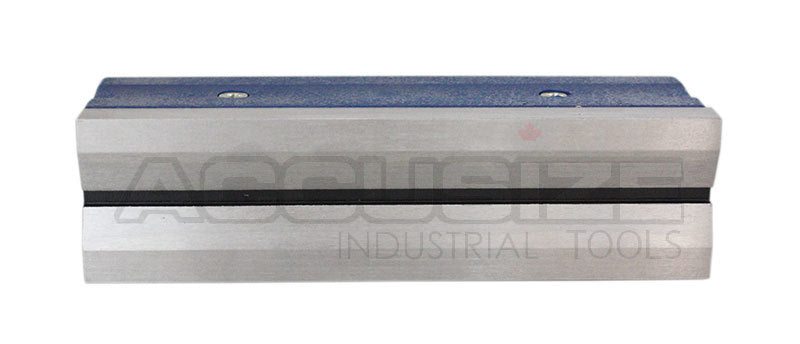

  • Base with V-groove.
  • With cross test vial.
  • With an insulating grip.
  • Base width: 46 mm.
  • ANSI standard.
  • Robust cast-iron model.
  • Cast iron body with a Ground Finished base for high accuracy.
Item
Blade
Graduation
S908-C684
6''
0.0002''/10''

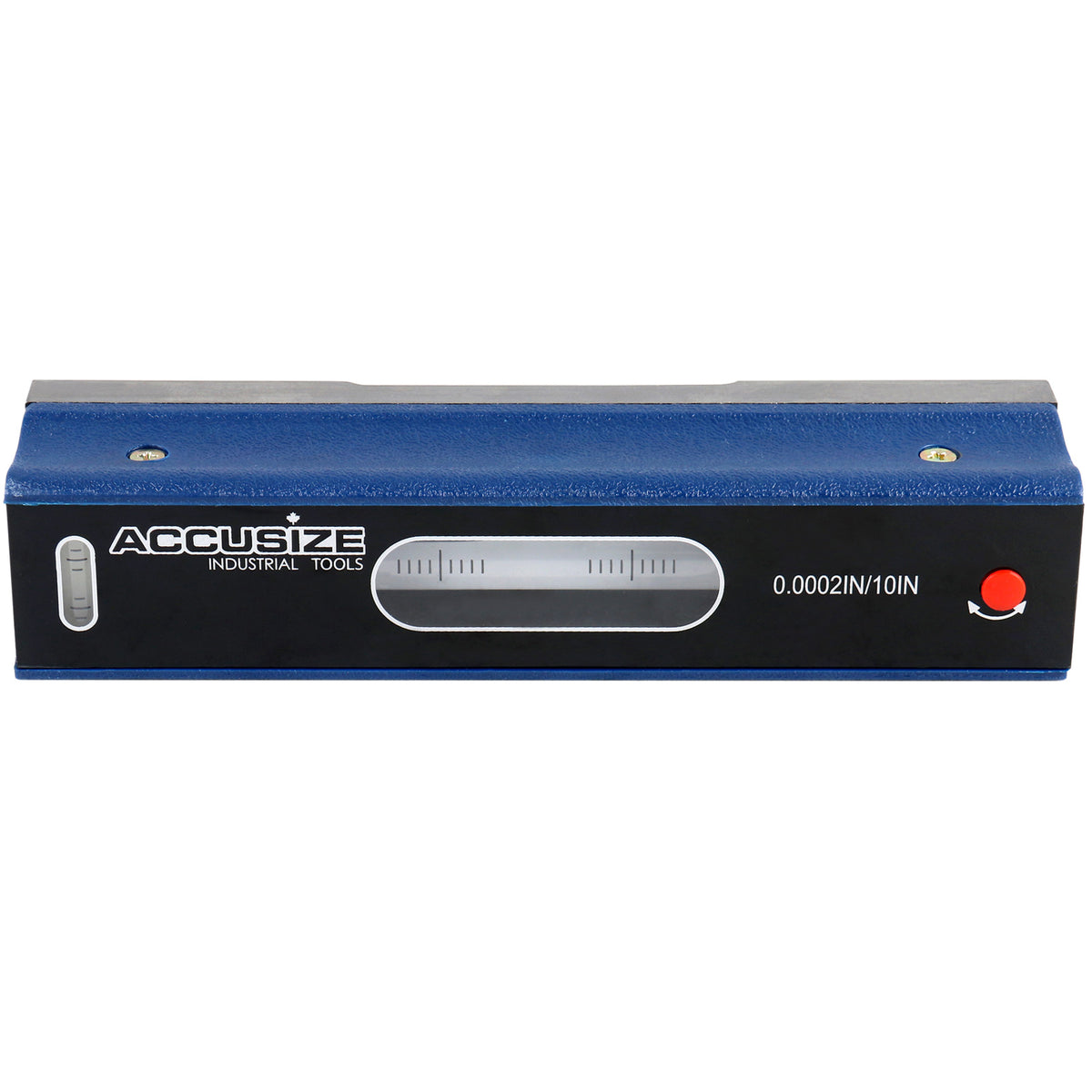

S908-C685
8''
0.0002''/10''

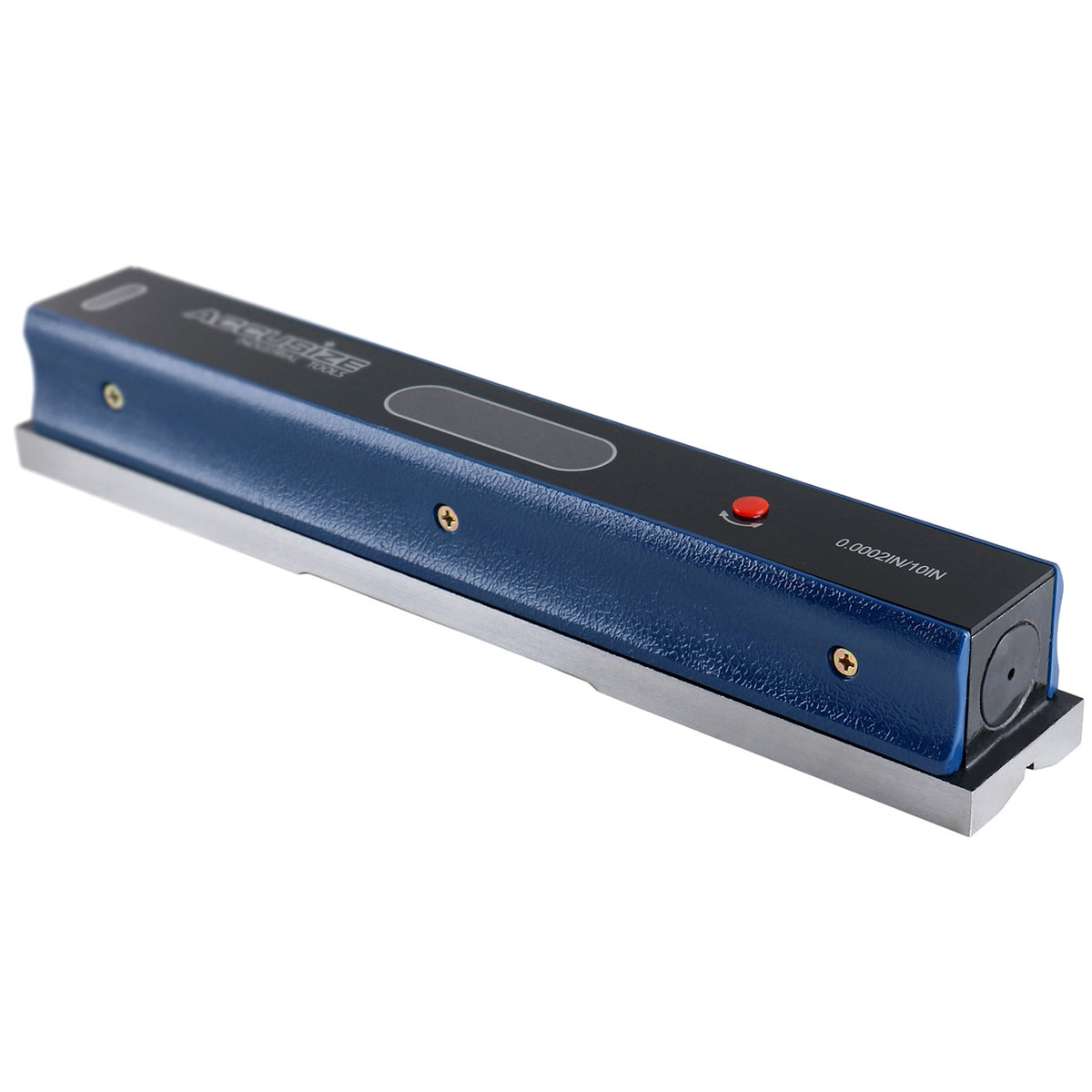

S908-C687
12''
0.0002''/10''

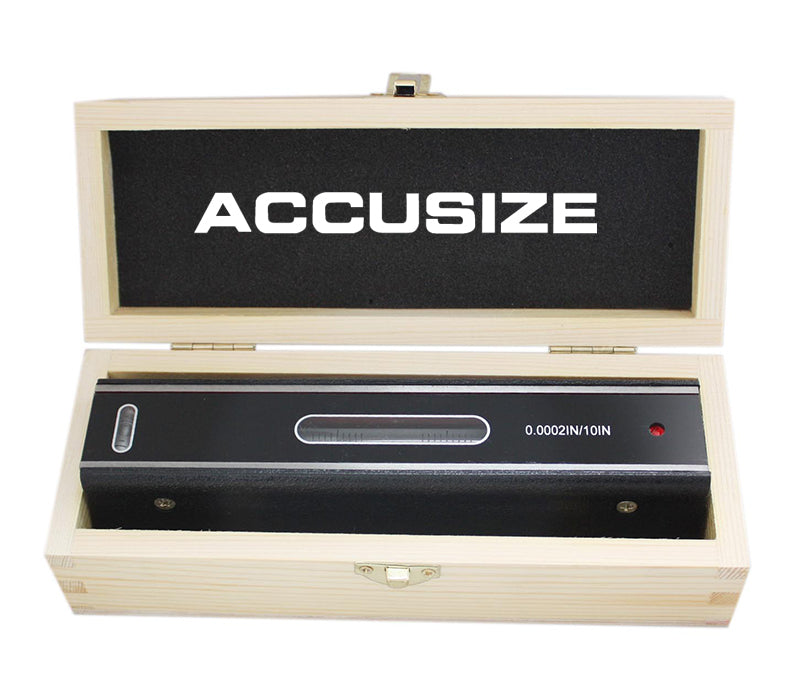

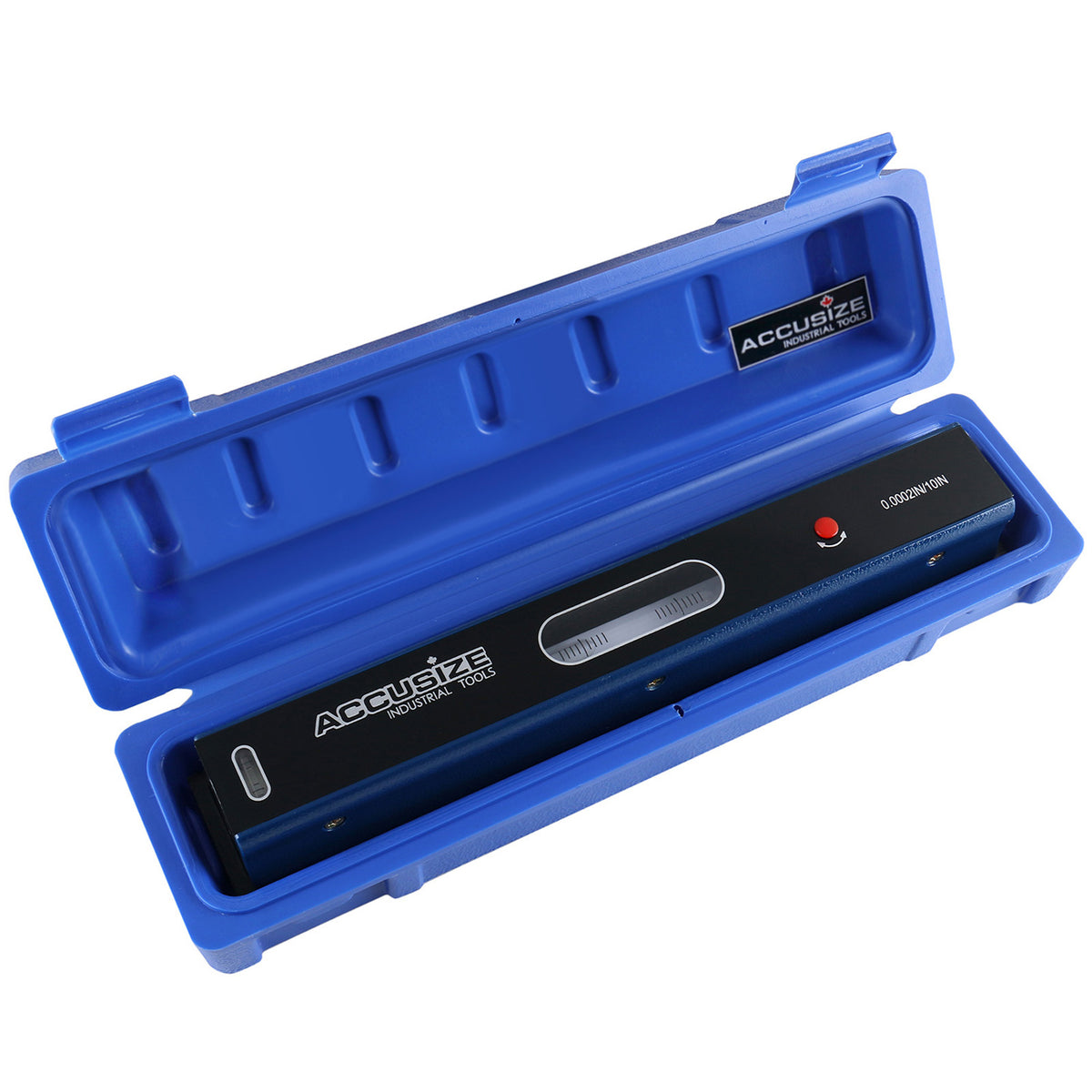

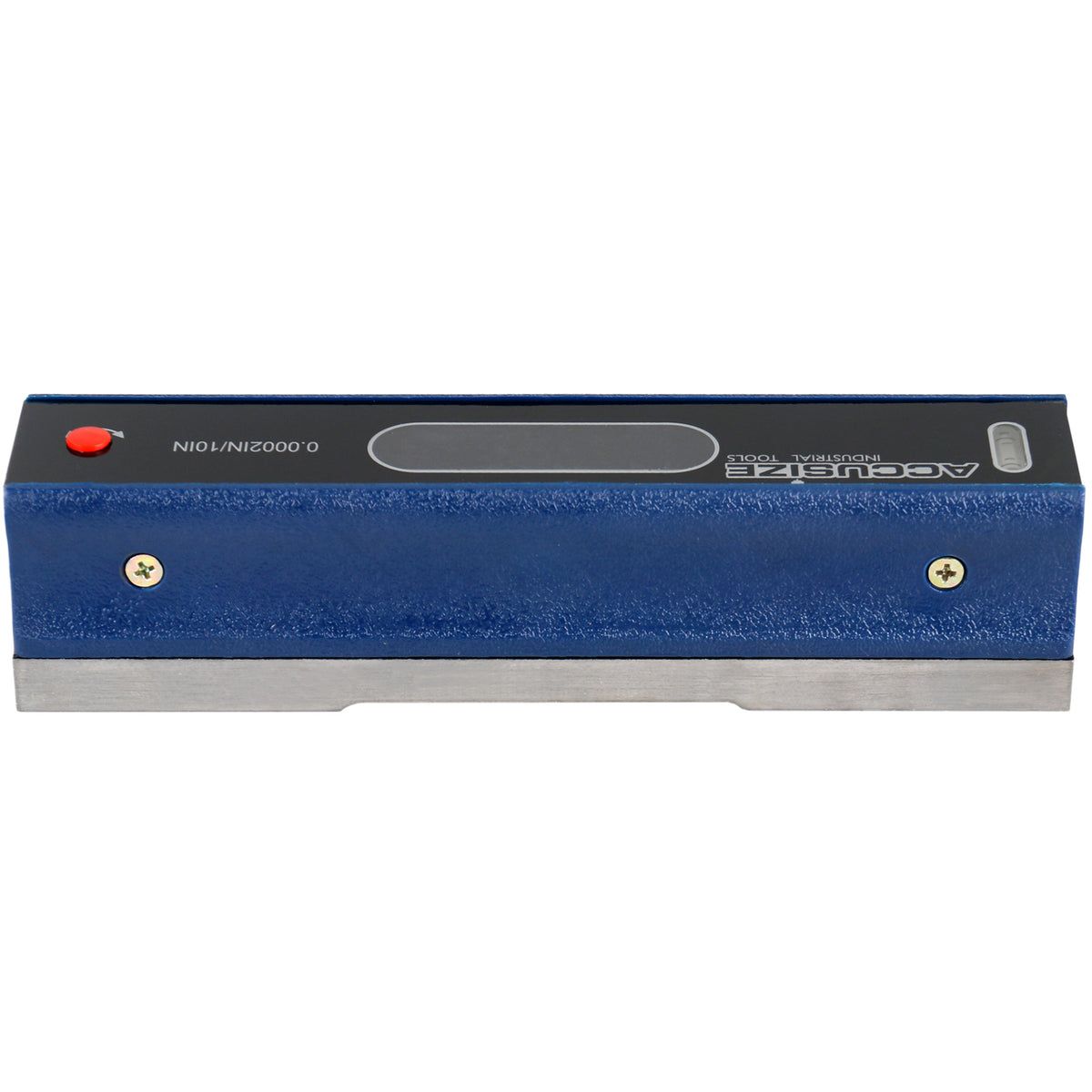

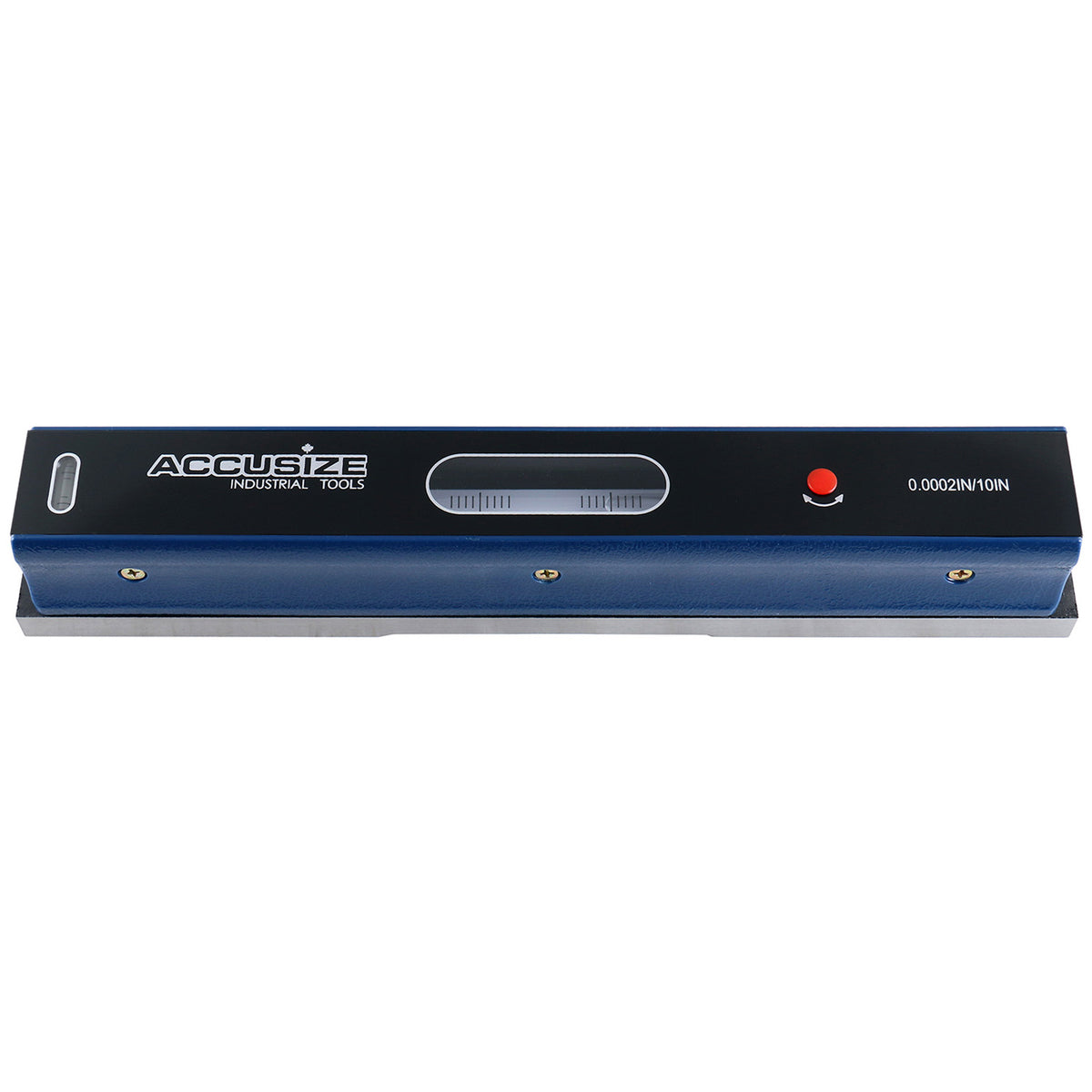

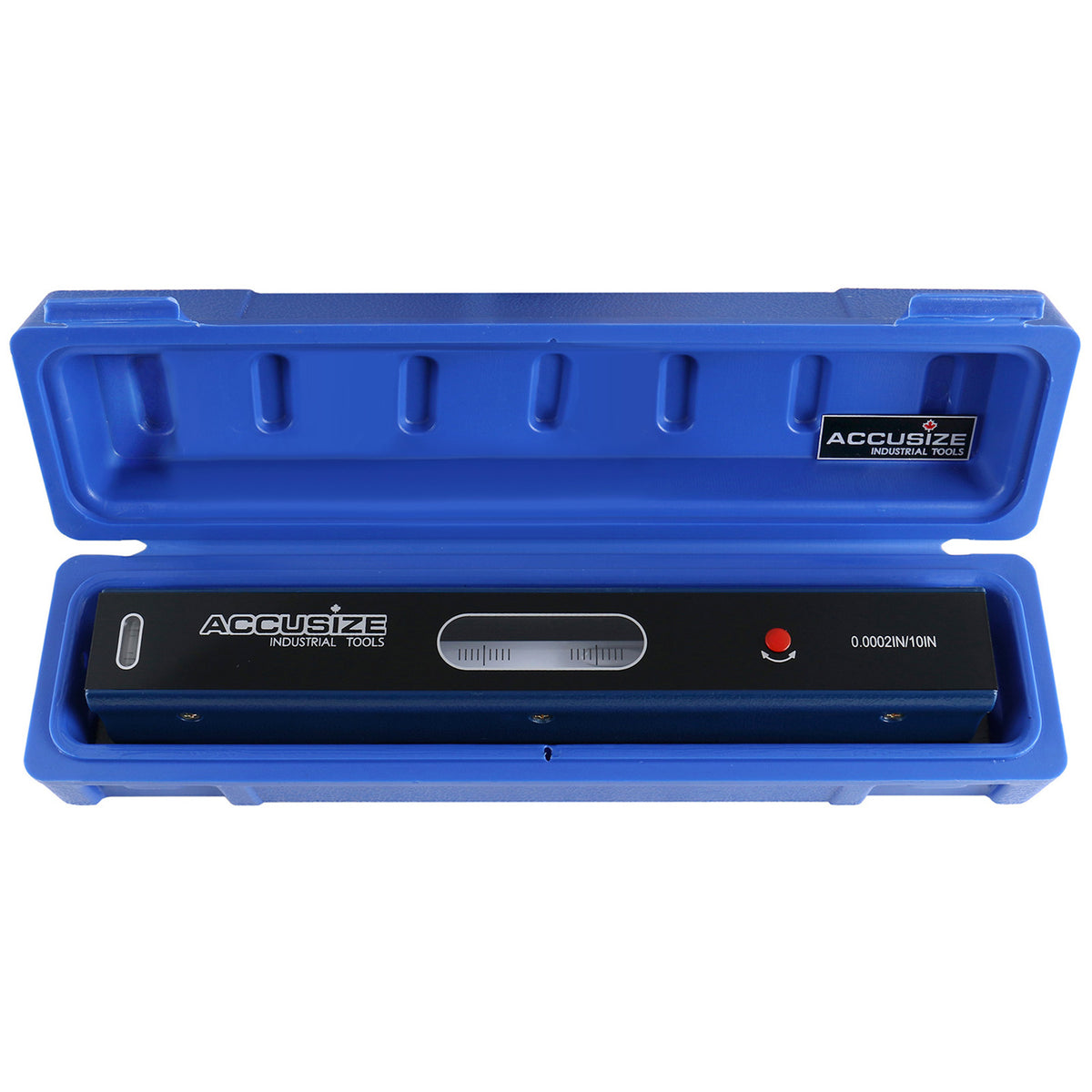

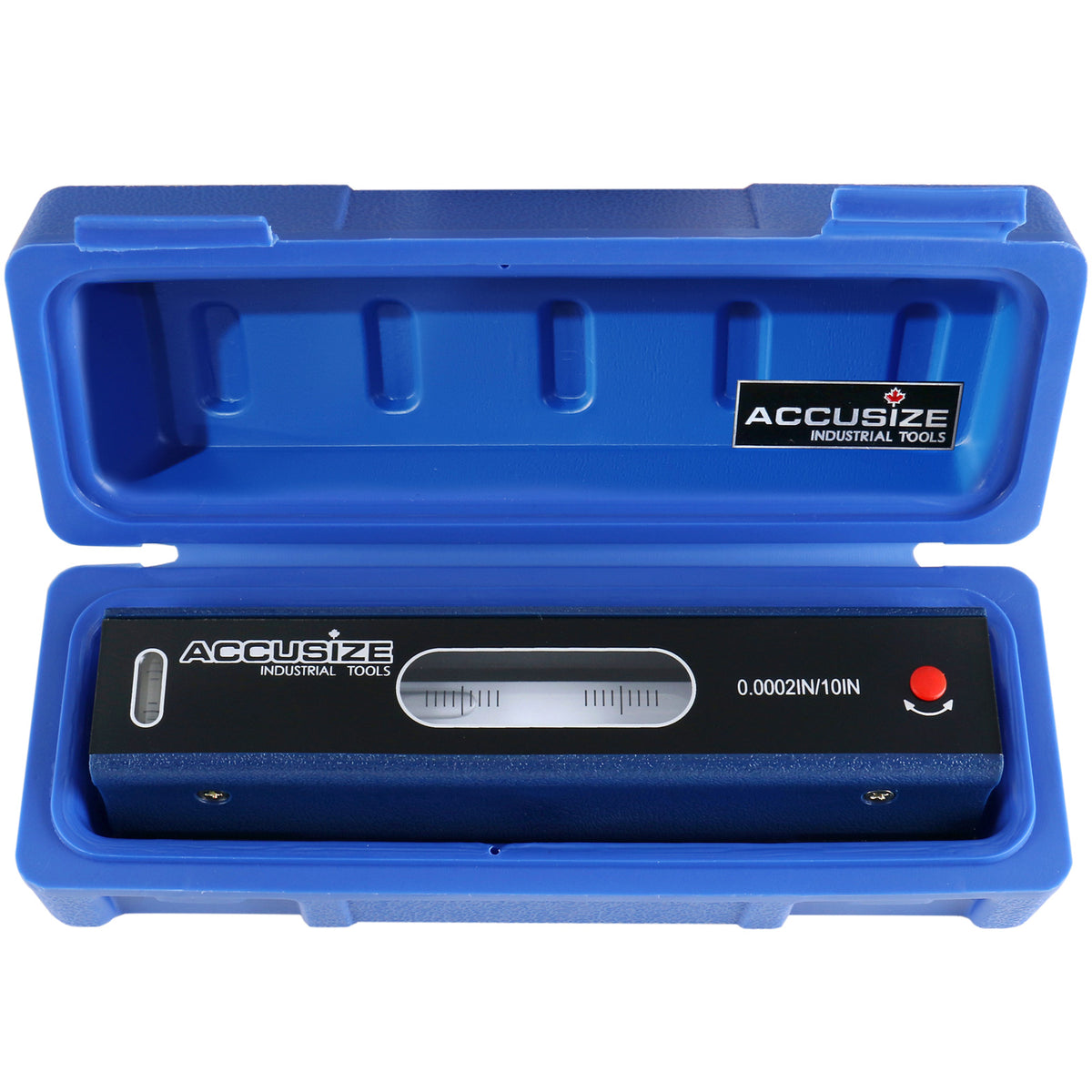

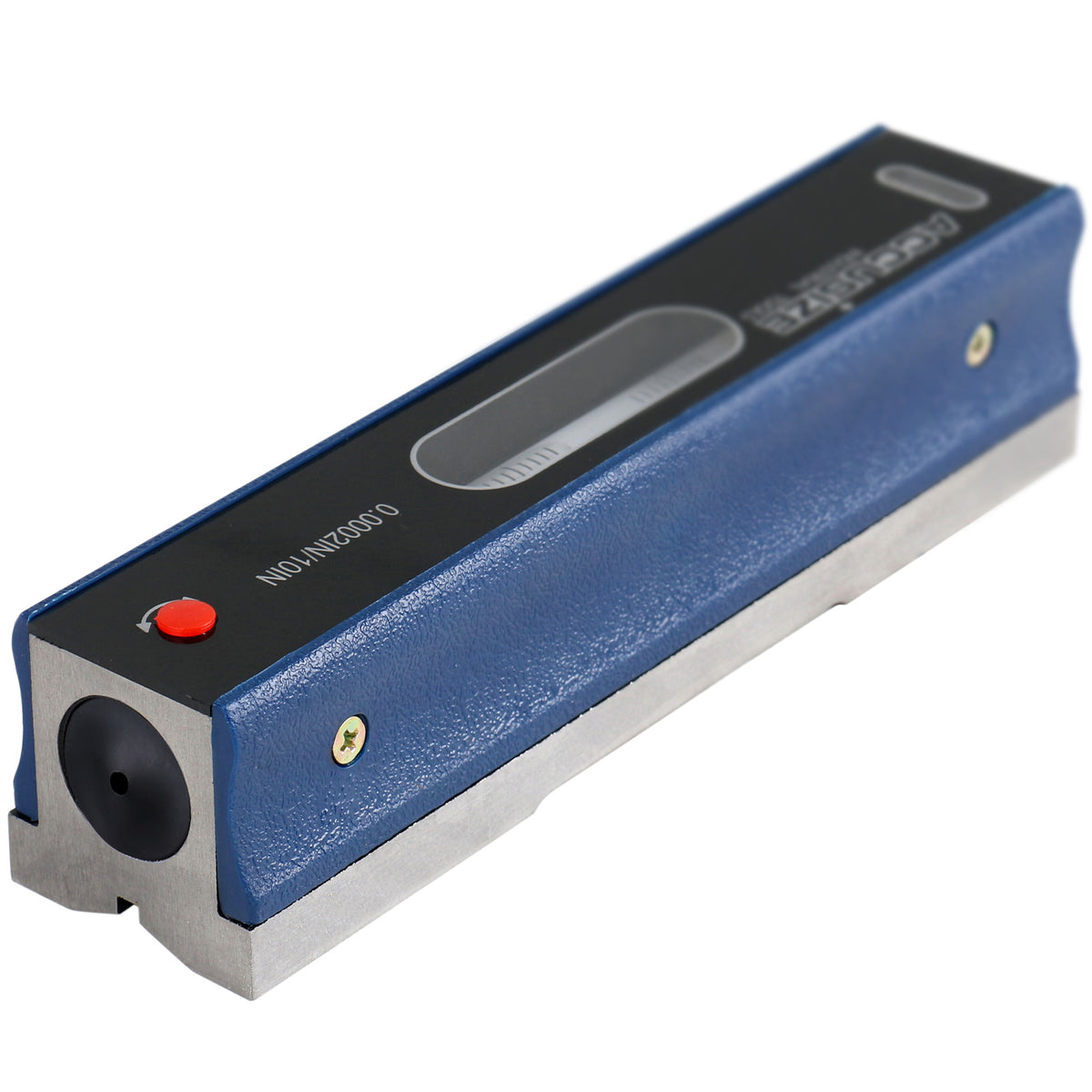

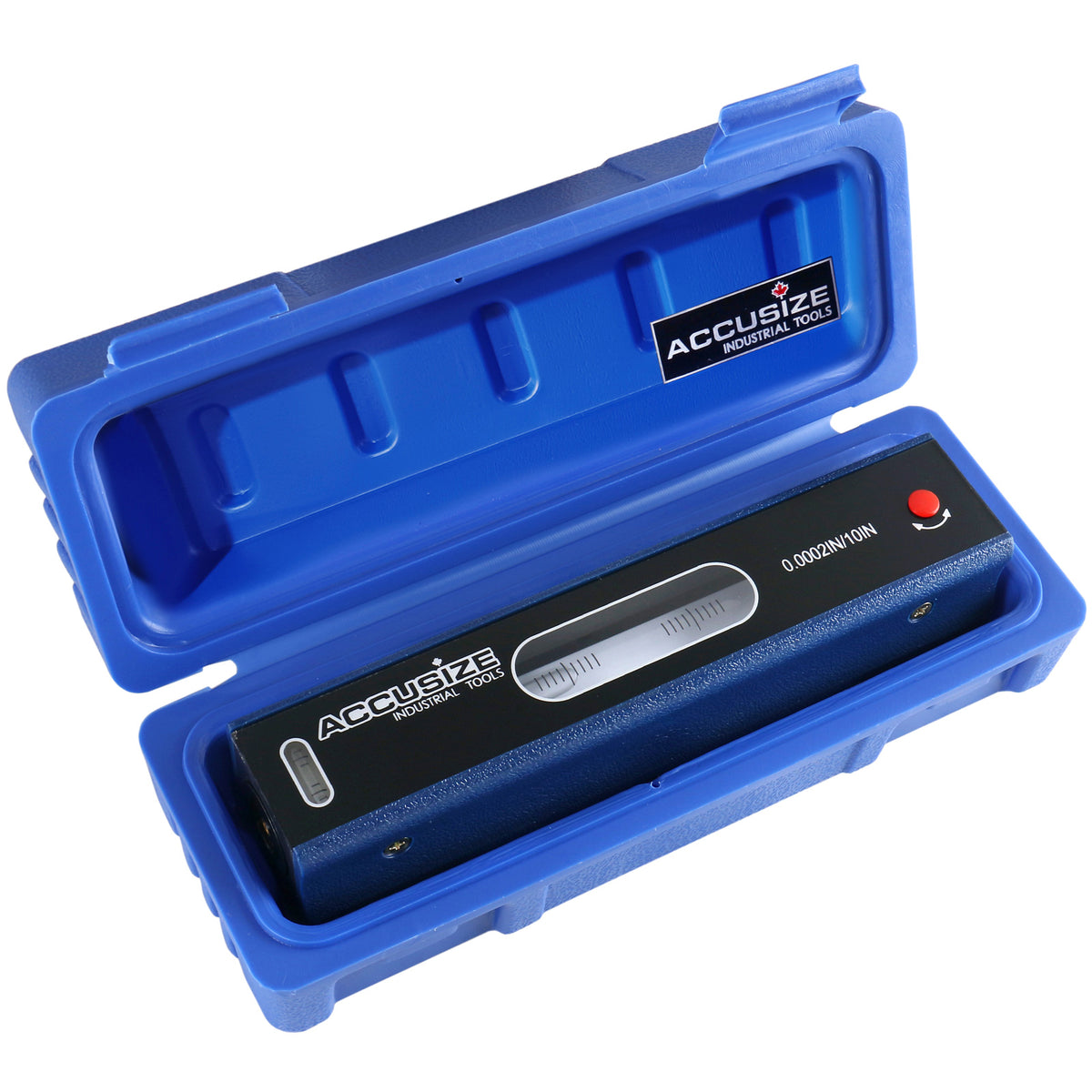

Accusize Industrial Tools S908-C684 S908-C685 S908-C687 6", 8" and 12" Master Precision Level in Fitted Box, Accuracy 0.0002''/10''

Calibrating

E. To determine whether calibration is correct, see if the bubble flows in the same position in both two measurements with the same number of deviations after the level is rotated by 180° every time, and the average measurements of these two are true horizontal levels. And if the bubble flows between the same number of deviations when the level is rotated by 180° every time, it does not have to be at the center.

If the bubble flows in different positions in two measurements, the level is not calibrated successfully. Repeat the above steps until the level is calibrated.


Accusize Industrial Tools S908-C684 S908-C685 S908-C687 6", 8" and 12" Master Precision Level in Fitted Box, Accuracy 0.0002''/10''

Measuring increment

  • Markdown the datum of the two measurements, create graphs and see if these two curves are symmetrical.
  • Then calculate the increment.
  • To measure the increment, slide the level along the surface.
  • Markdown the deviations.

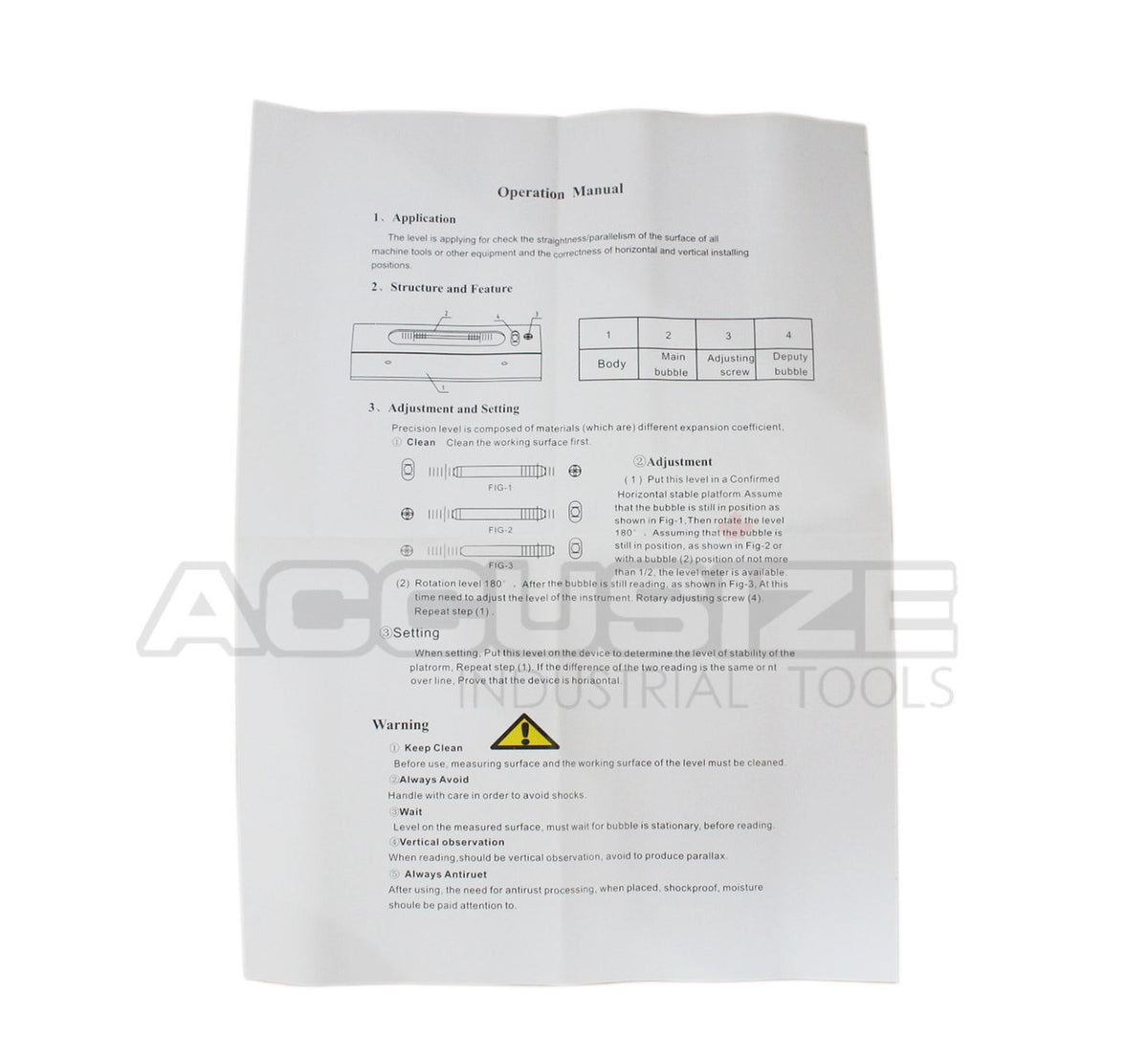

Master Precision Level Operation Manual:

User Manual
