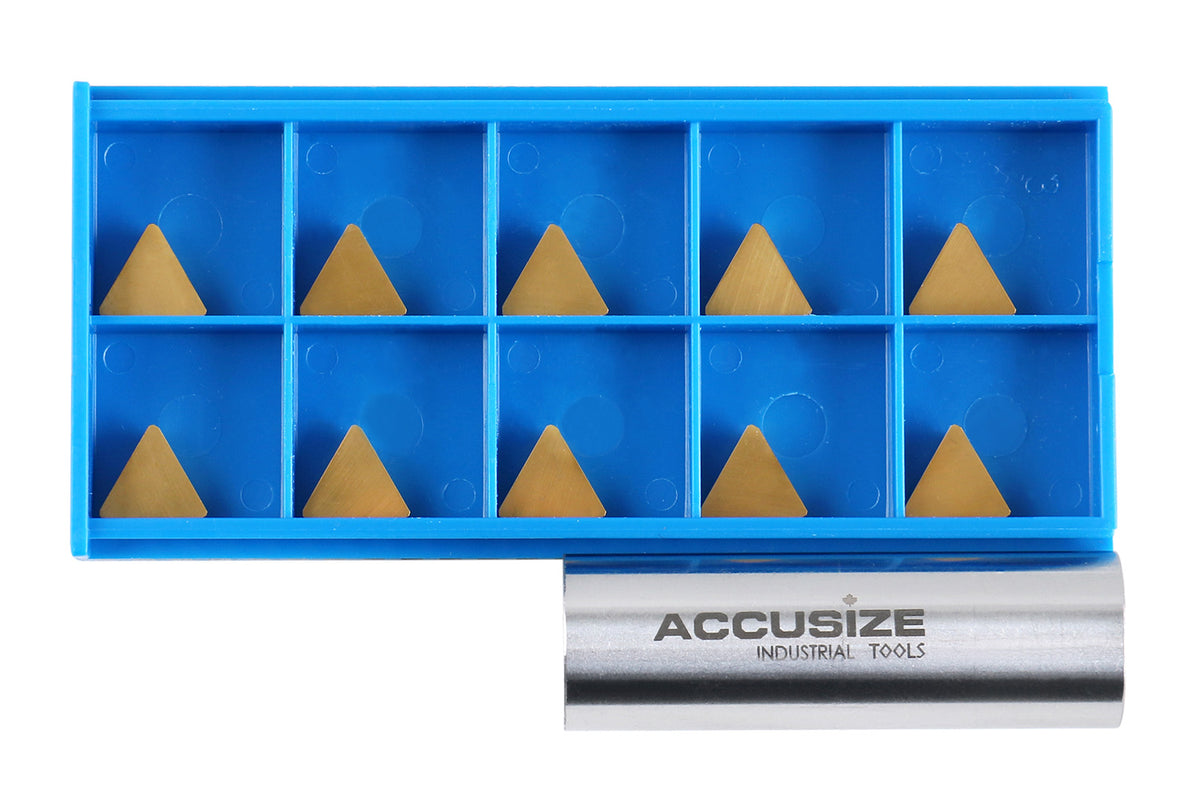

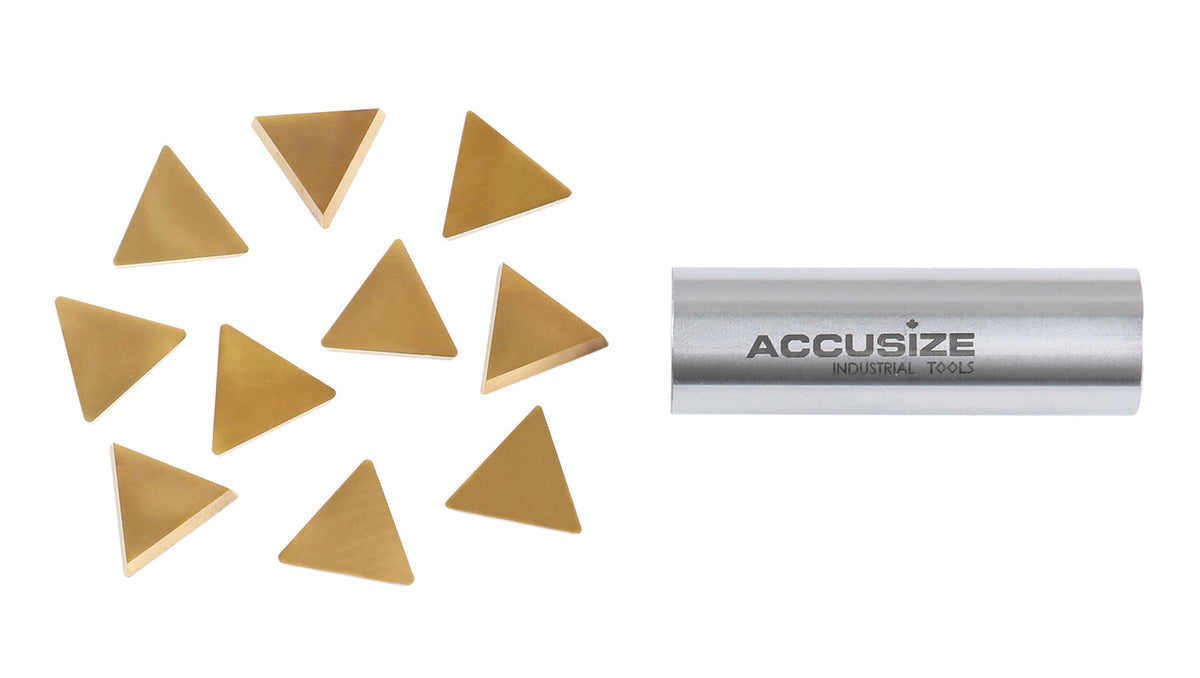

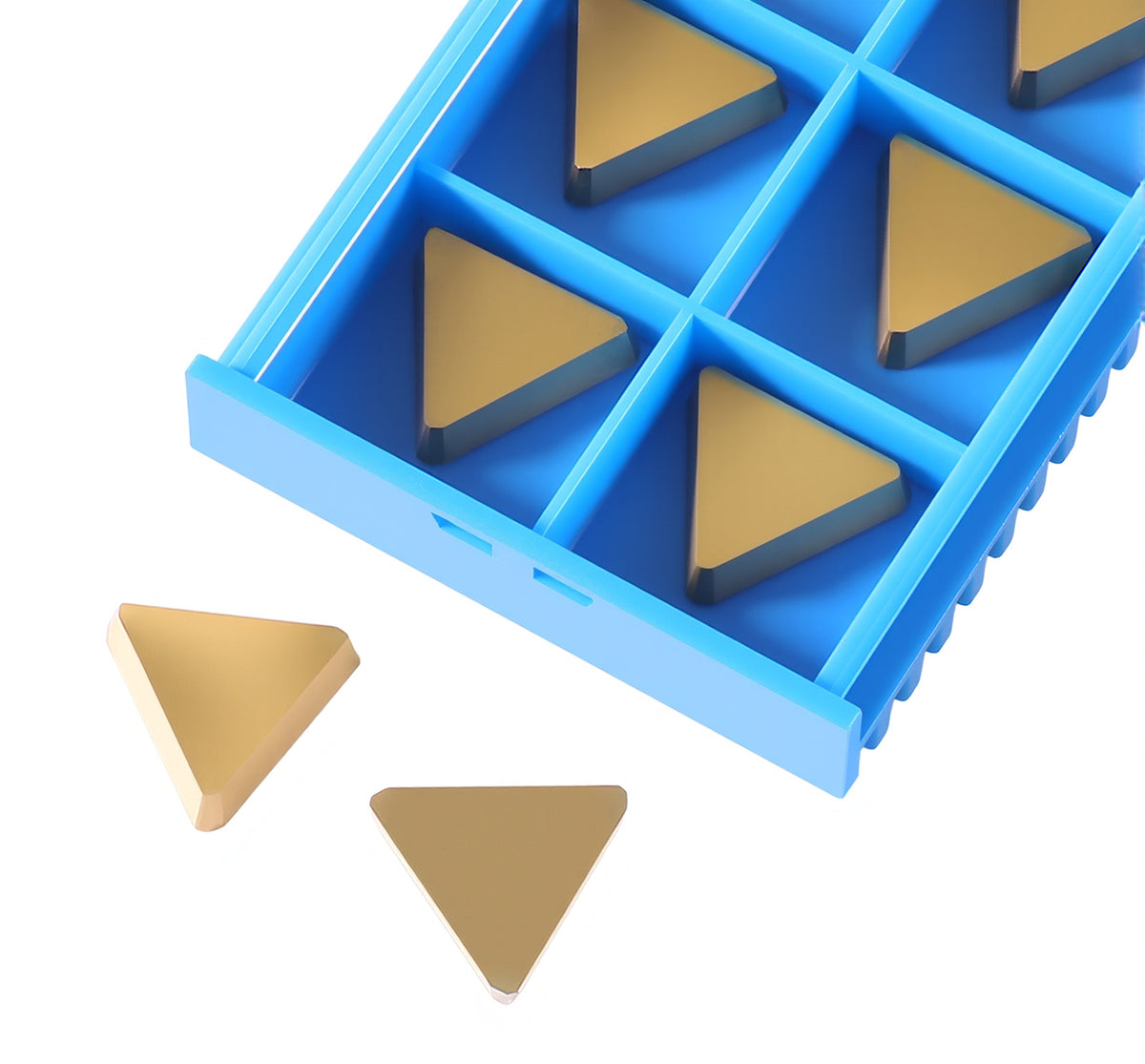

TPG, TiN Coated Carbide Inserts, 10 Pcs/Set

Accusize Industrial ToolsSKU: 2127-1024x10

Please Select the Insert No. of TPG Inserts: TPG222 (2127-1024)
Price:
$32.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

The triangle TiN coated carbide TPG inserts help you save time and money. When a cutting edge becomes dull, you just need to rotate the insert in the holder to use the sharp edge. When you buy the replacement inserts, be noted that the larger nose angles and larger tip radii enable a stronger cutting edge, but they result in increased vibration and a rougher finish.

TiN-coated inserts work longer and are able to run at faster speeds than uncoated inserts.

The positive-rake feature enables the inserts to have an edge that is less than 90° to sit flat in the insert holder for improved cutting clearance and a better finish than negative-rake ones. The inserts have cutting edges on 1 side.

  • Carbide inserts
  • C6 Grade Coated
Item Inset ISO Designation I.C Thickness Radius Note
2127-1022 TPG221 TPGN110304 1/4" 1/8" 1/64"

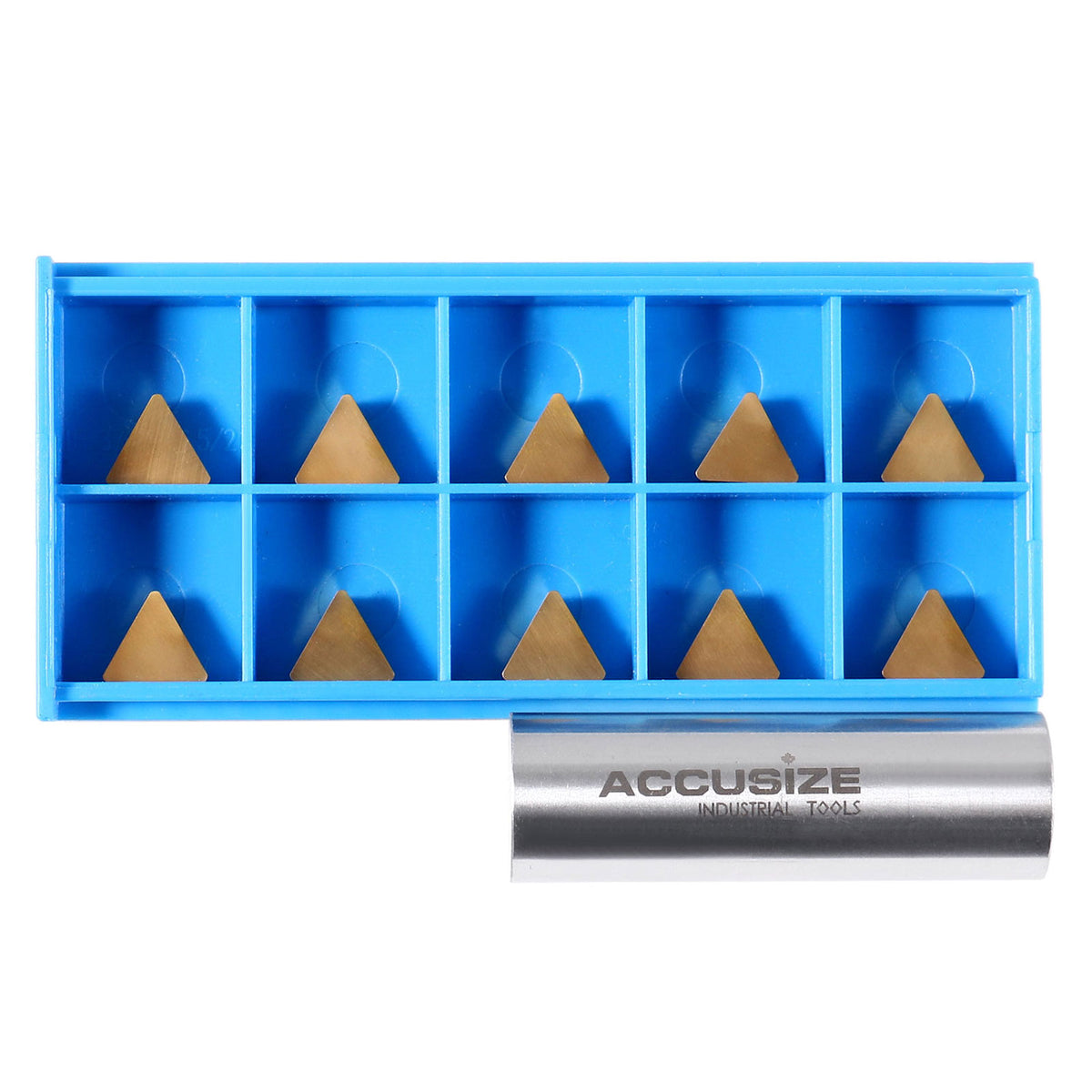

2127-1024 TPG222 TPGN110308 1/4" 1/8" 1/32"

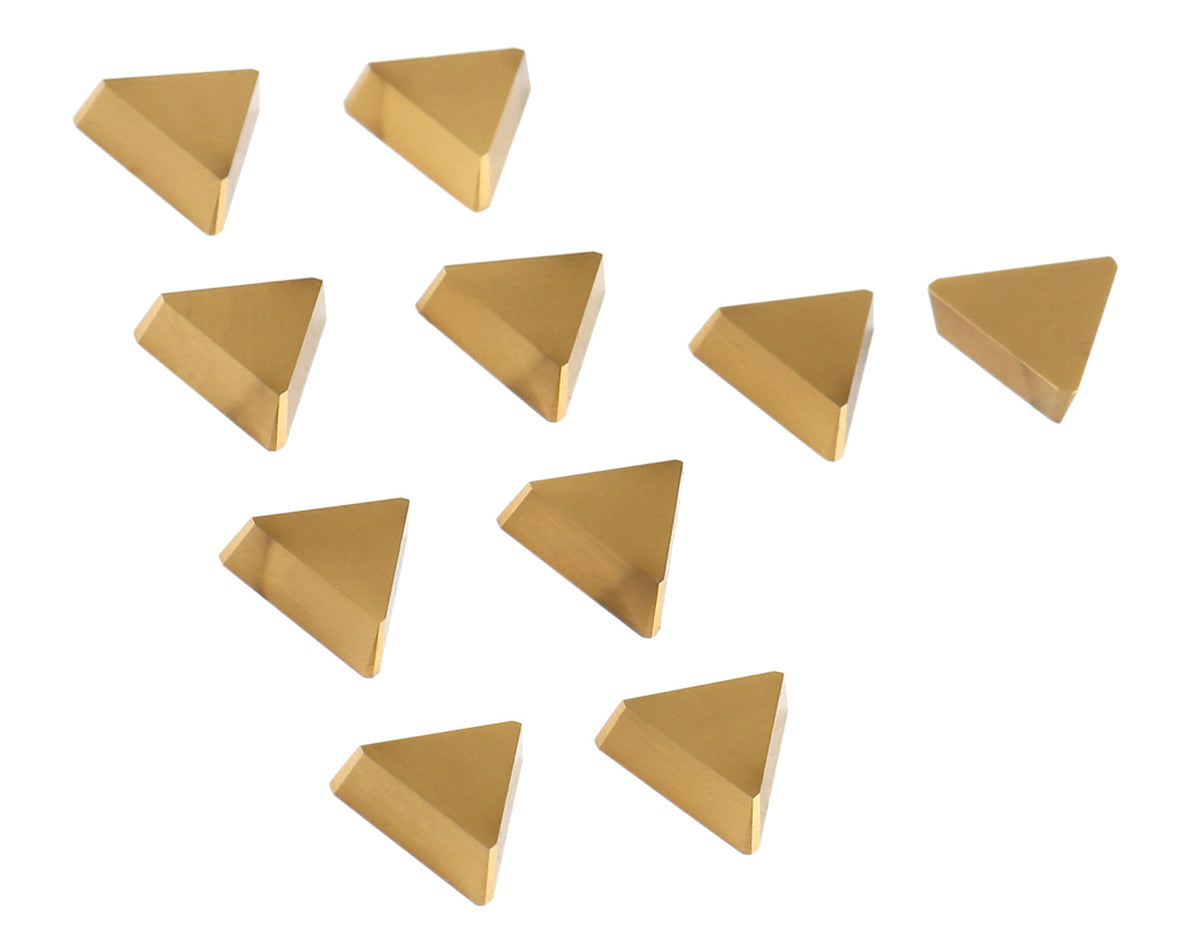

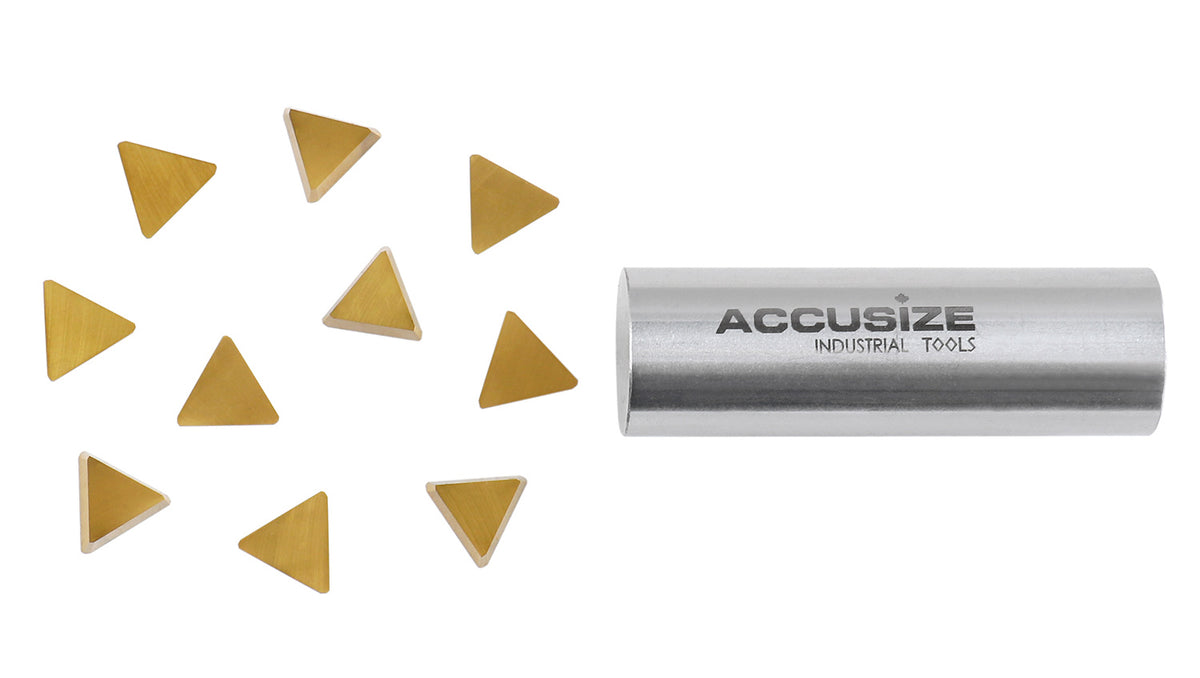

2127-1025 TPG22 TPGN1103 1/4" 1/8" - Carbide Inserts, TPG222 Wiper, TiN coated "T" Shaped inserts

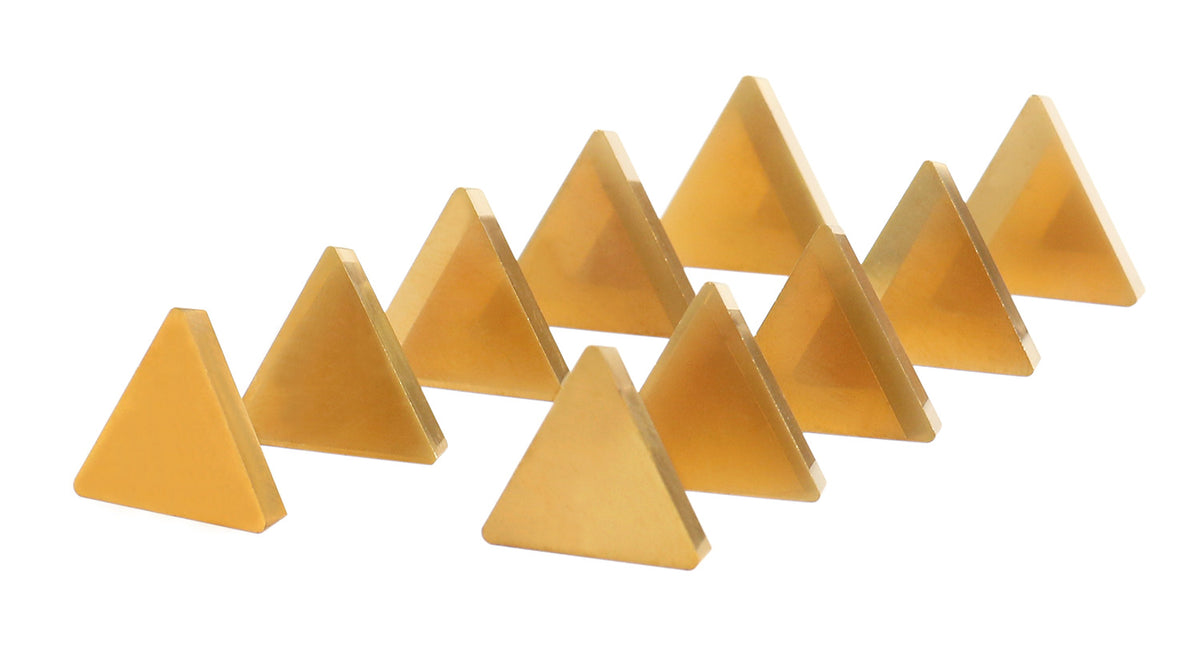

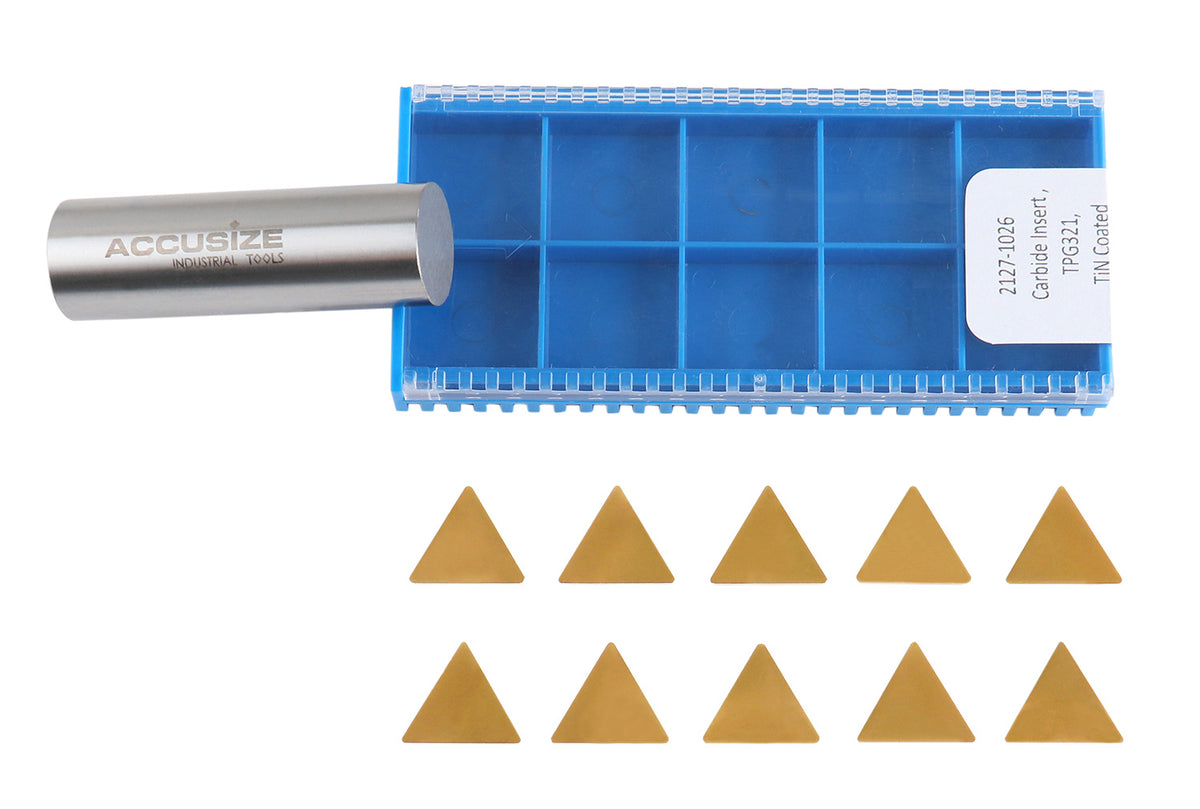

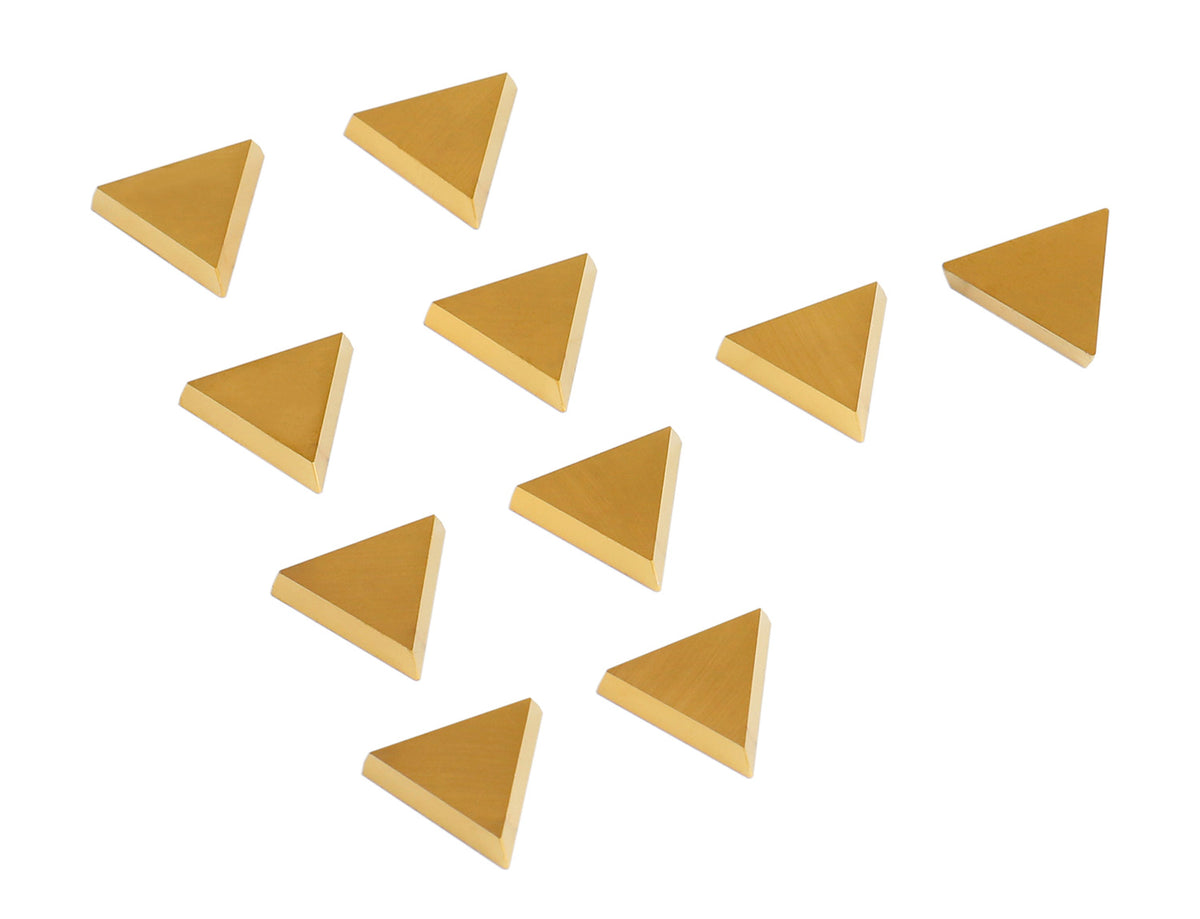

2127-1026 TPG321 TPGN160304 3/8" 1/8" 1/64"

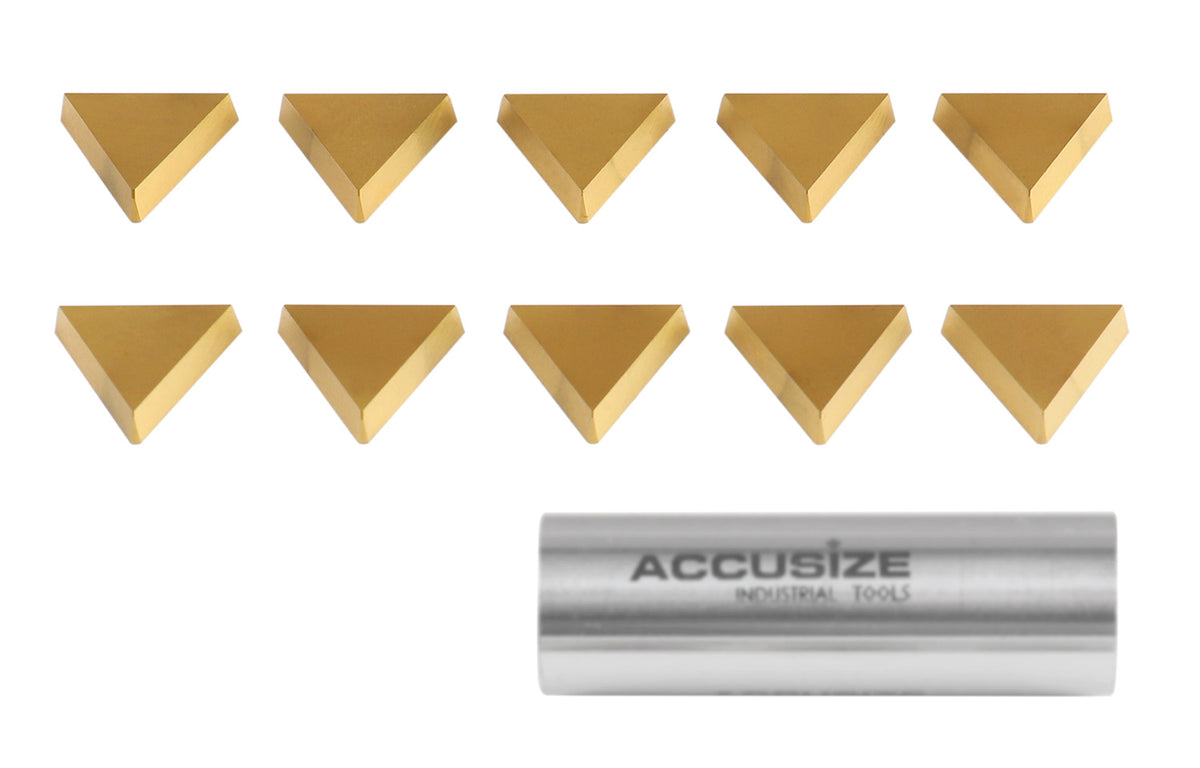

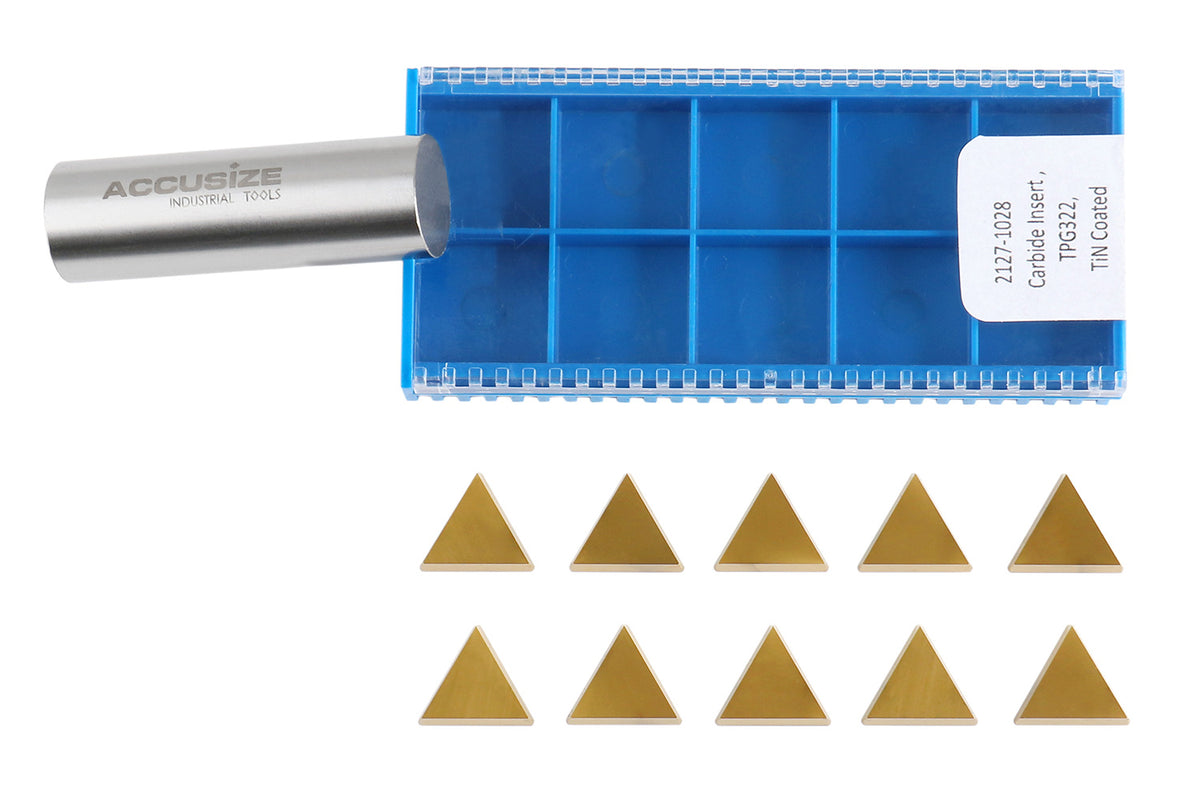

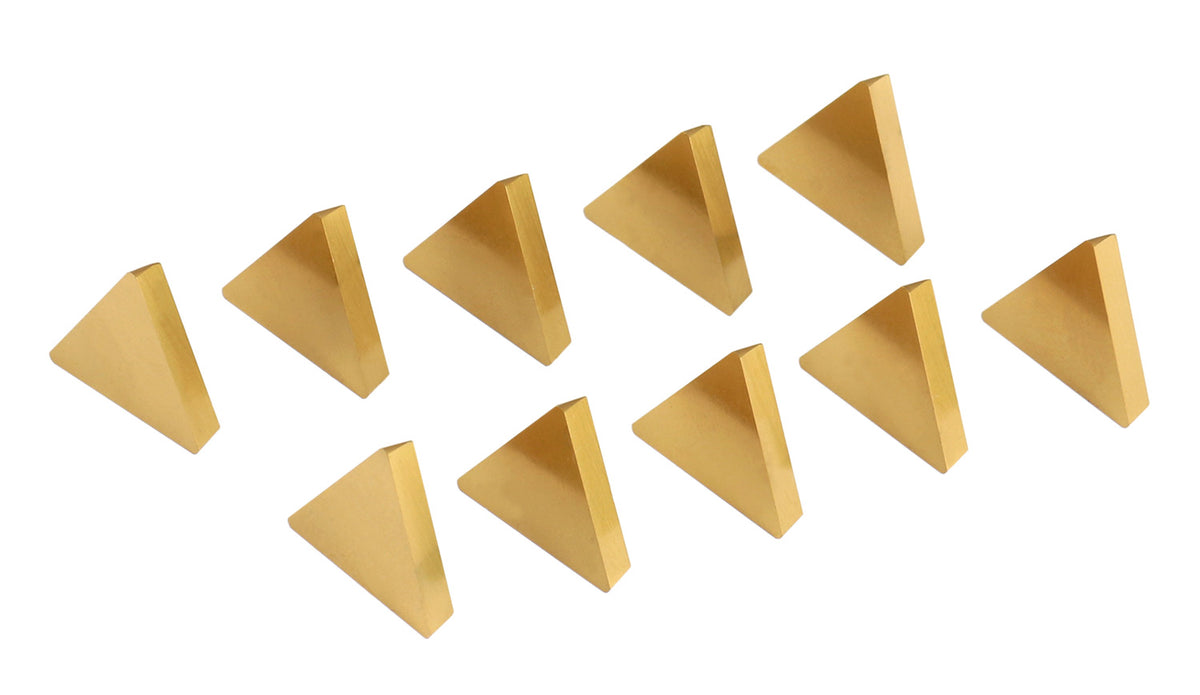

2127-1028 TPG322 TPGN160308 3/8" 1/8" 1/32"

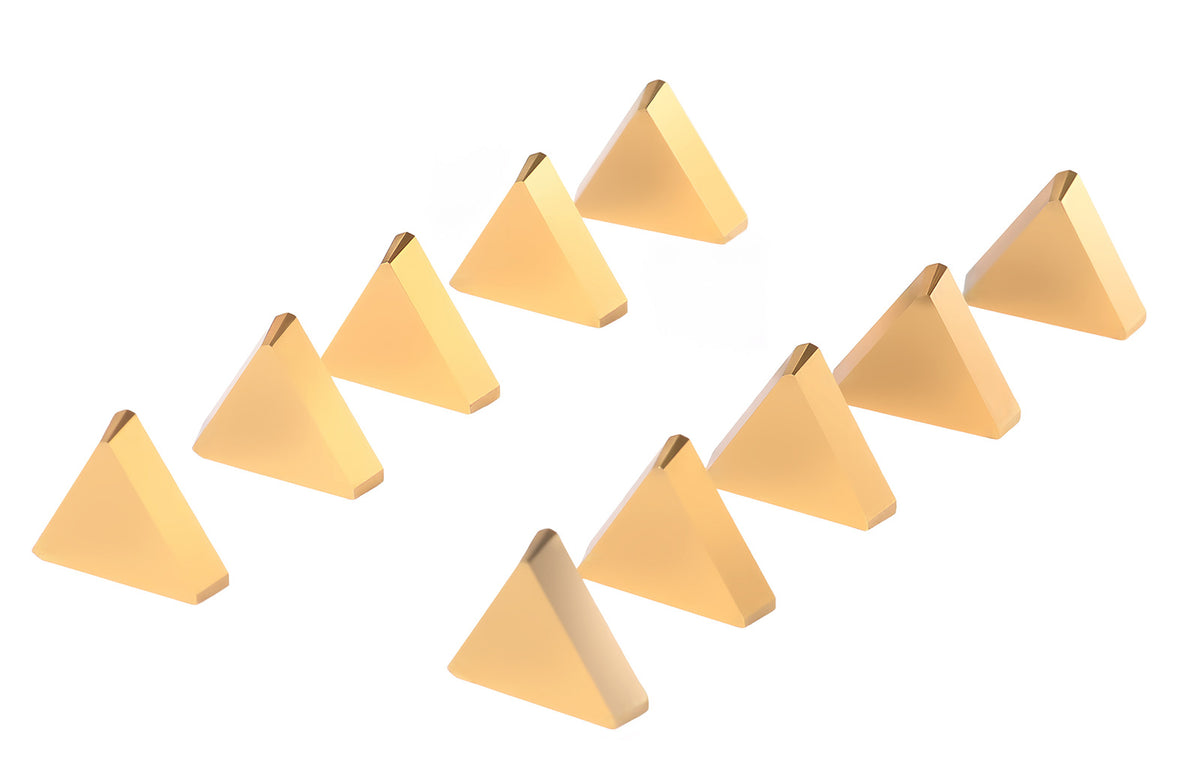

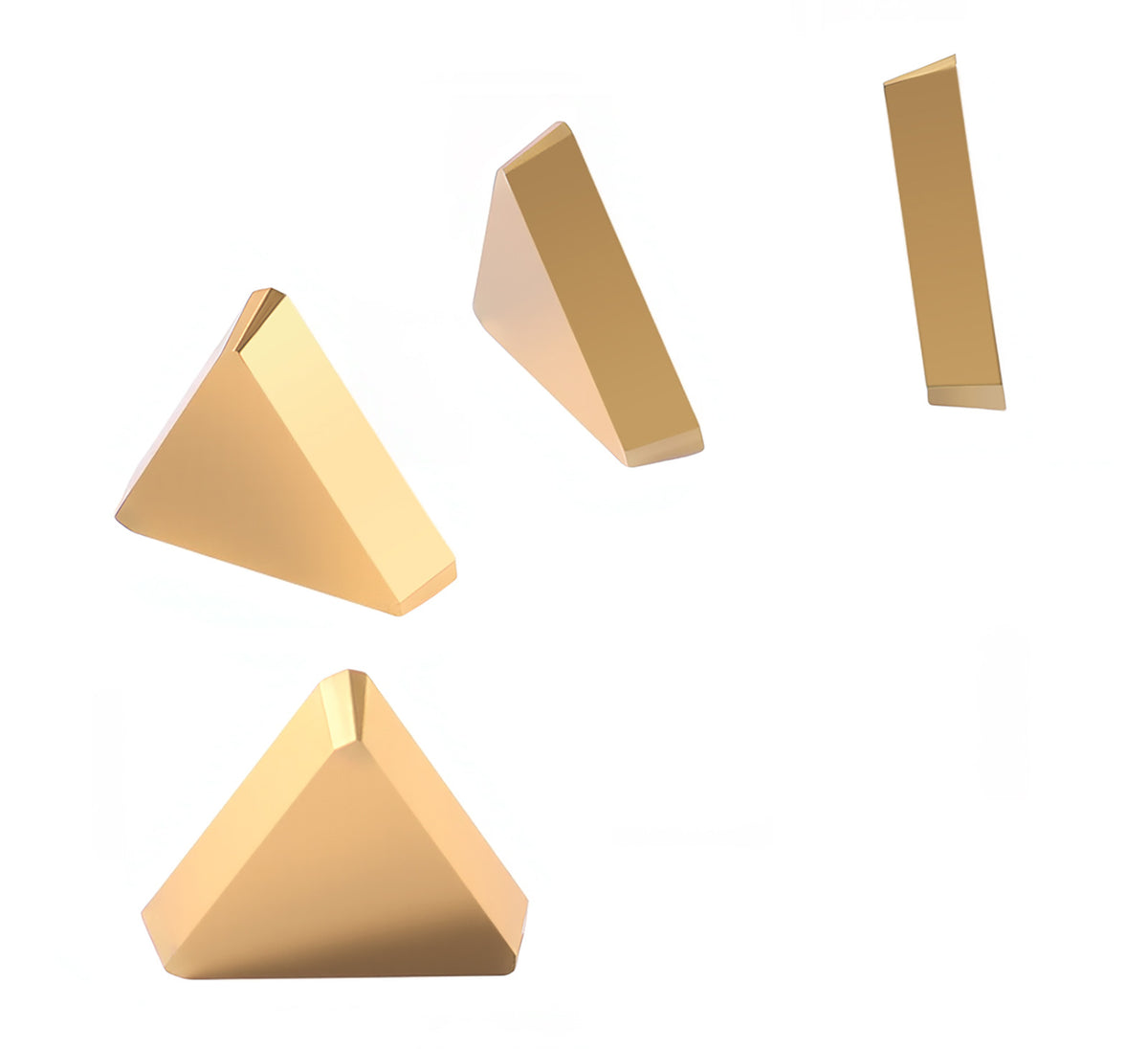

2127-1029 TPG32 TPGN1603 3/8" 1/8" - TPGN1603 with Sharp Edge

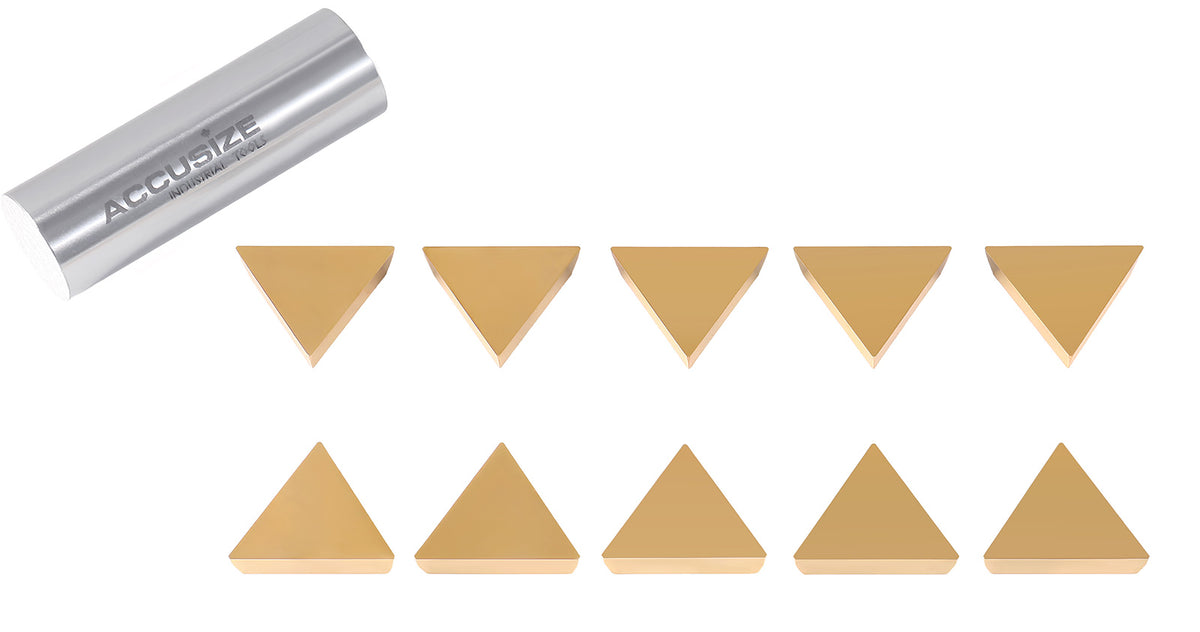

2127-1032 TPG431 TPGN220404 1/2" 3/16" 1/64"

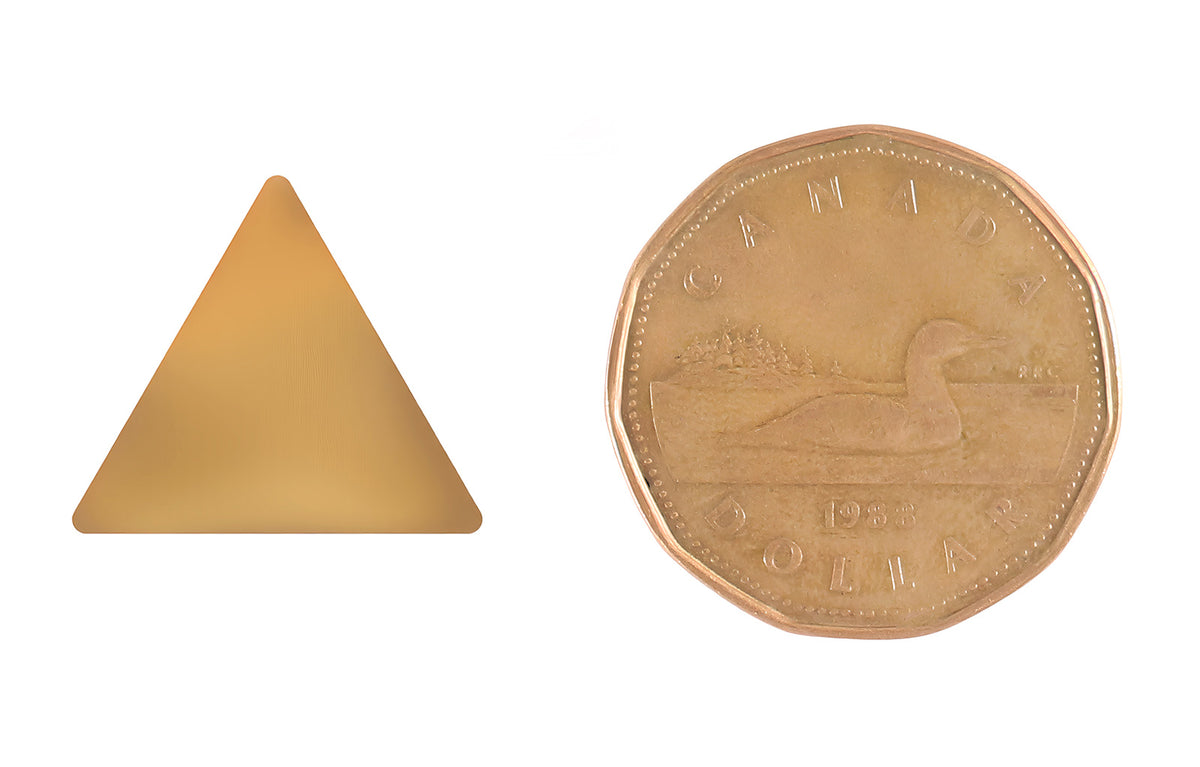

2127-1034 TPG432 TPGN220408 1/2" 3/16" 1/32"

Schematic of Accusize TiN Coated Carbide TPG Inserts

**Please note that the milling insert holder is not included. The SKU of the indexable end mill is 0046-0917.

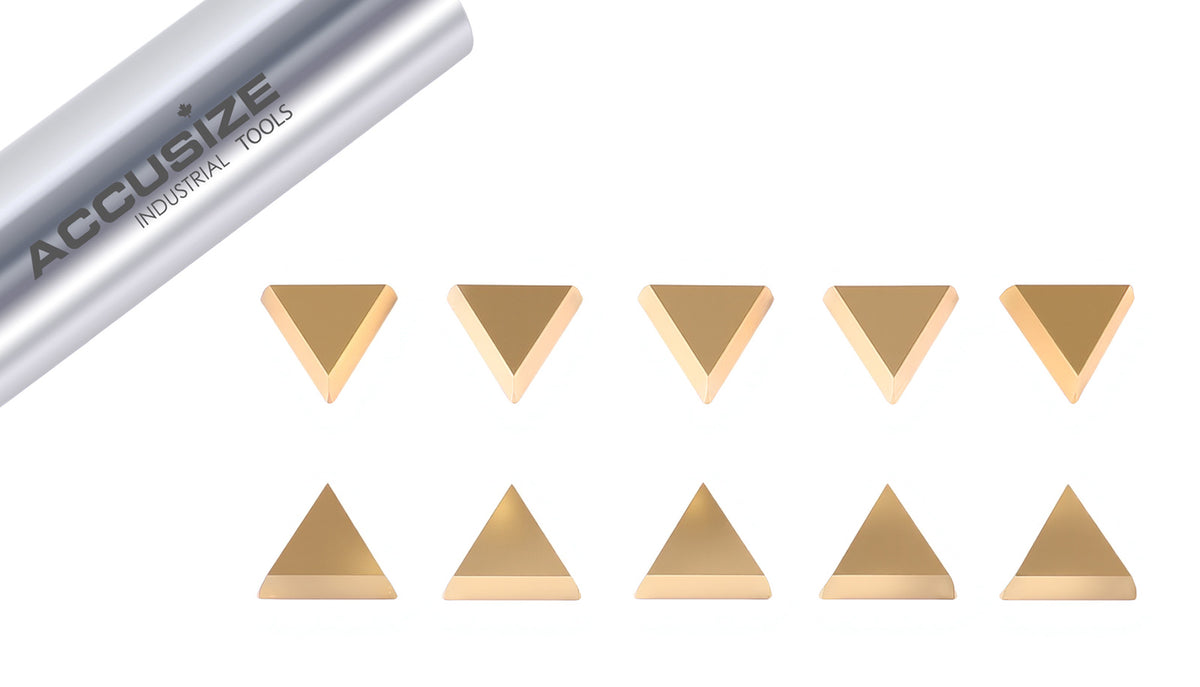

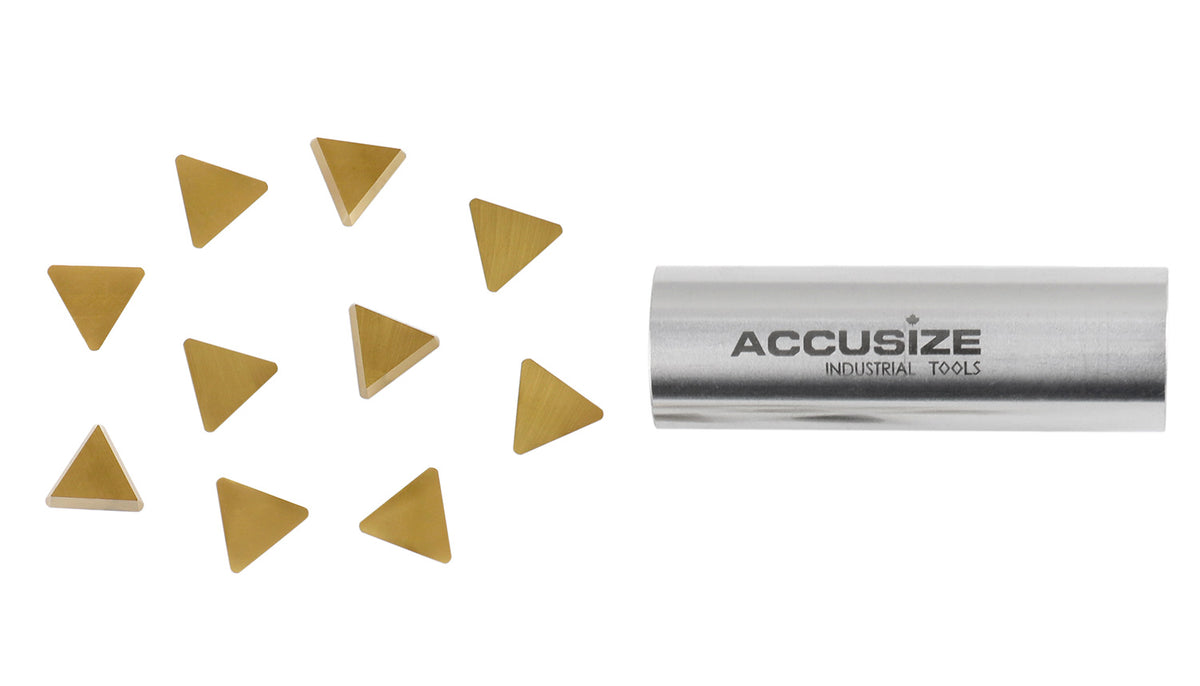

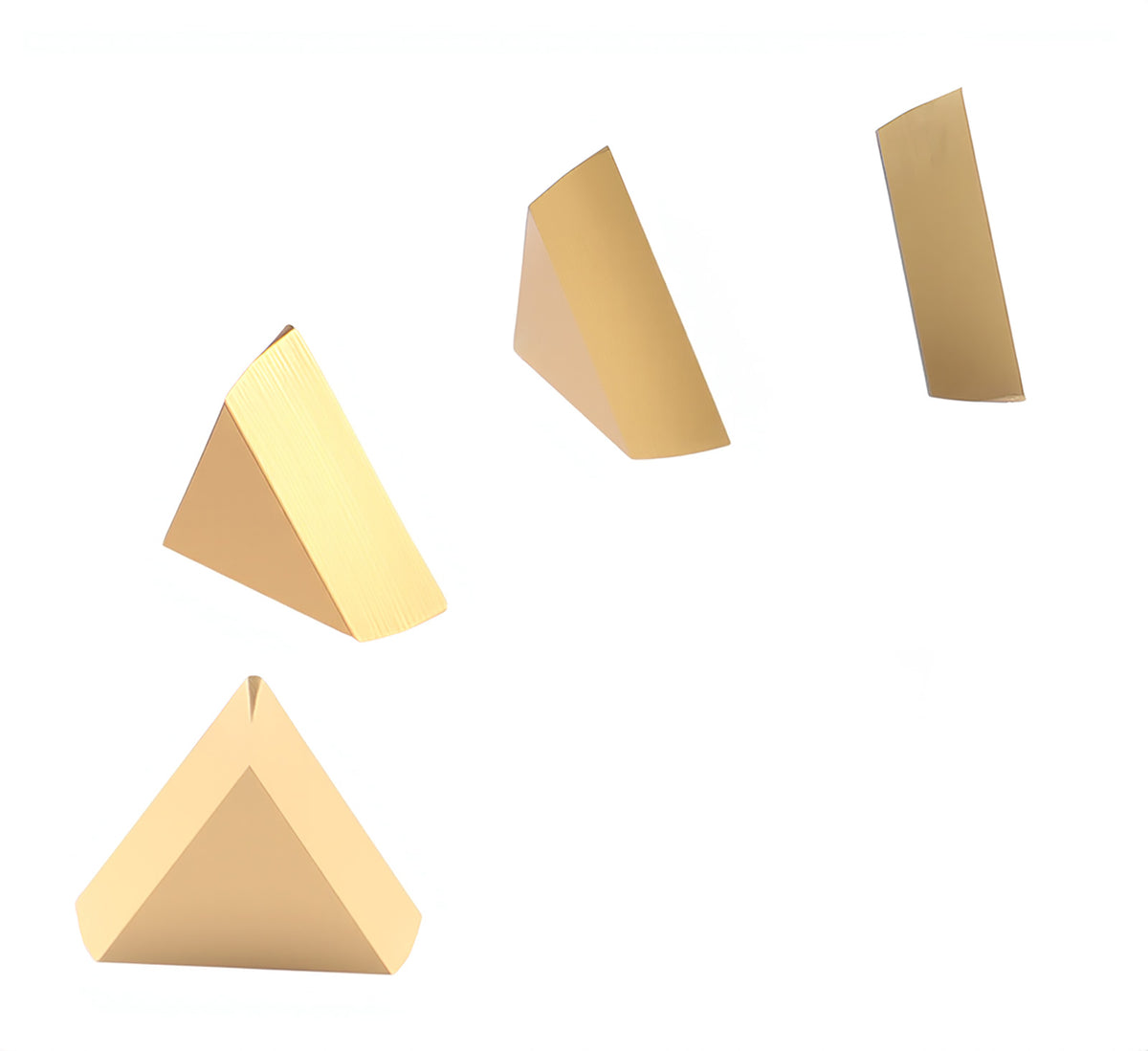

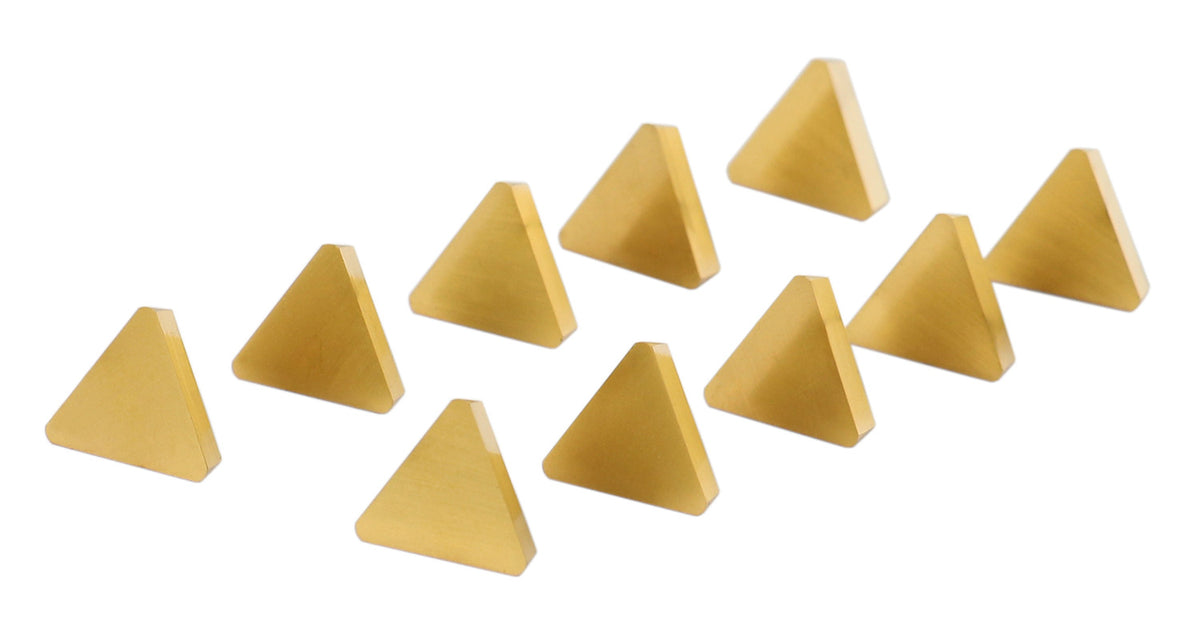

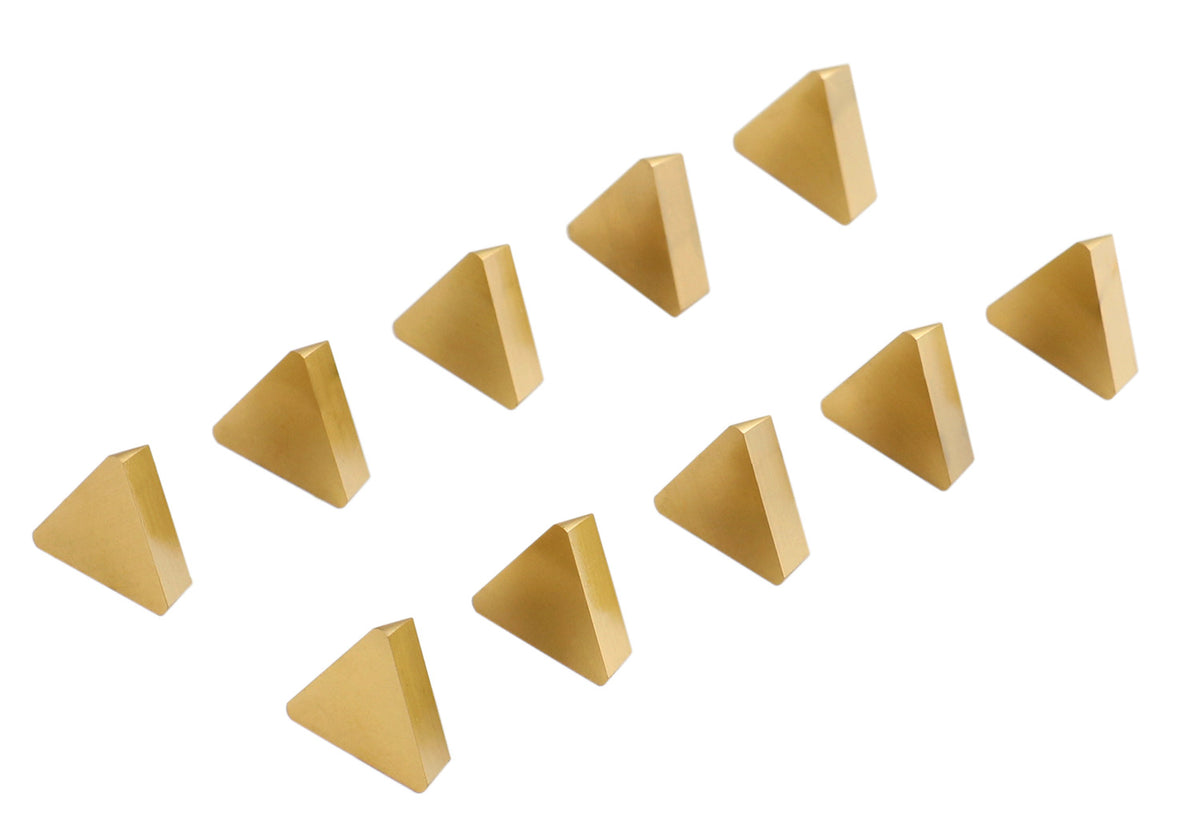

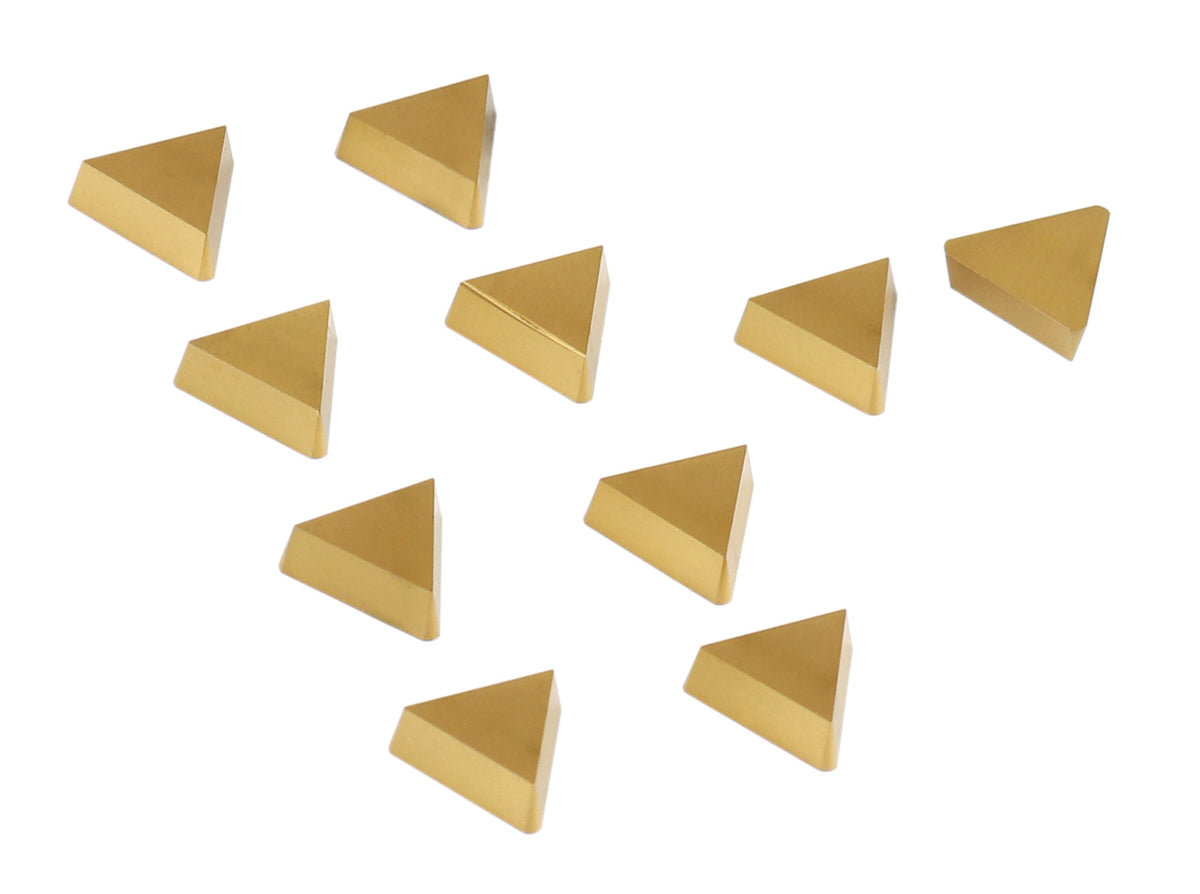

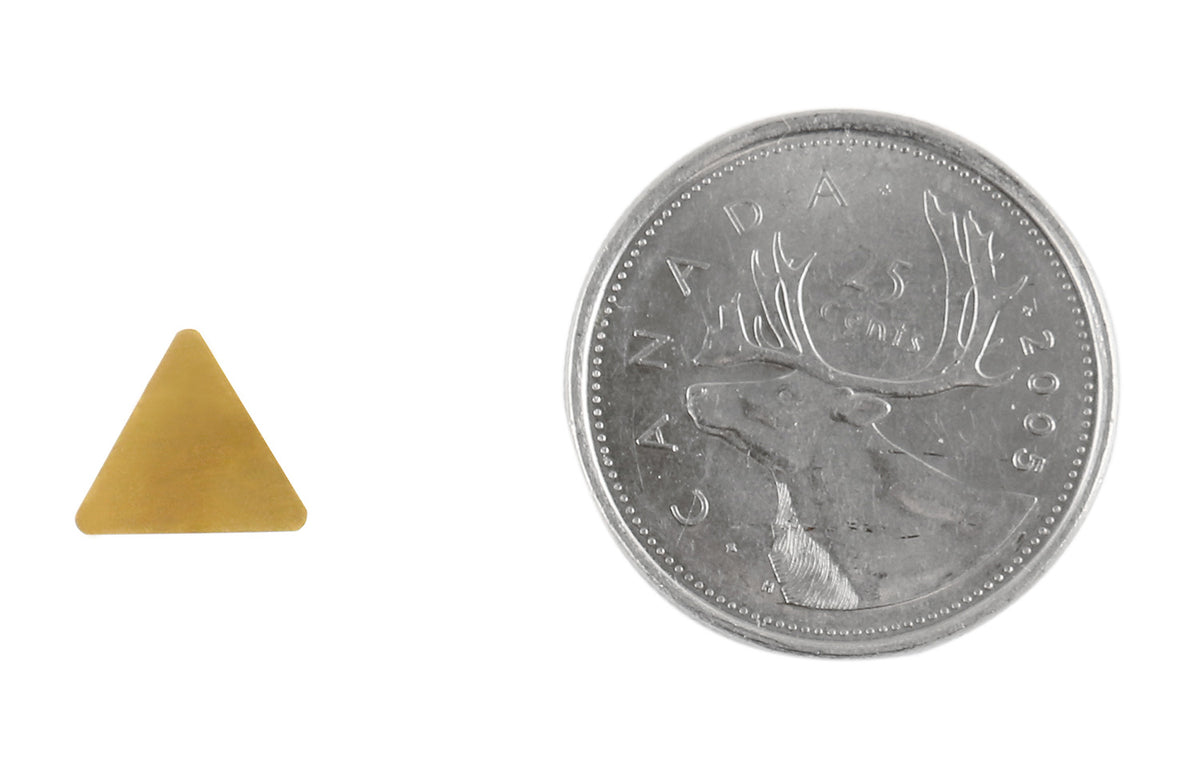

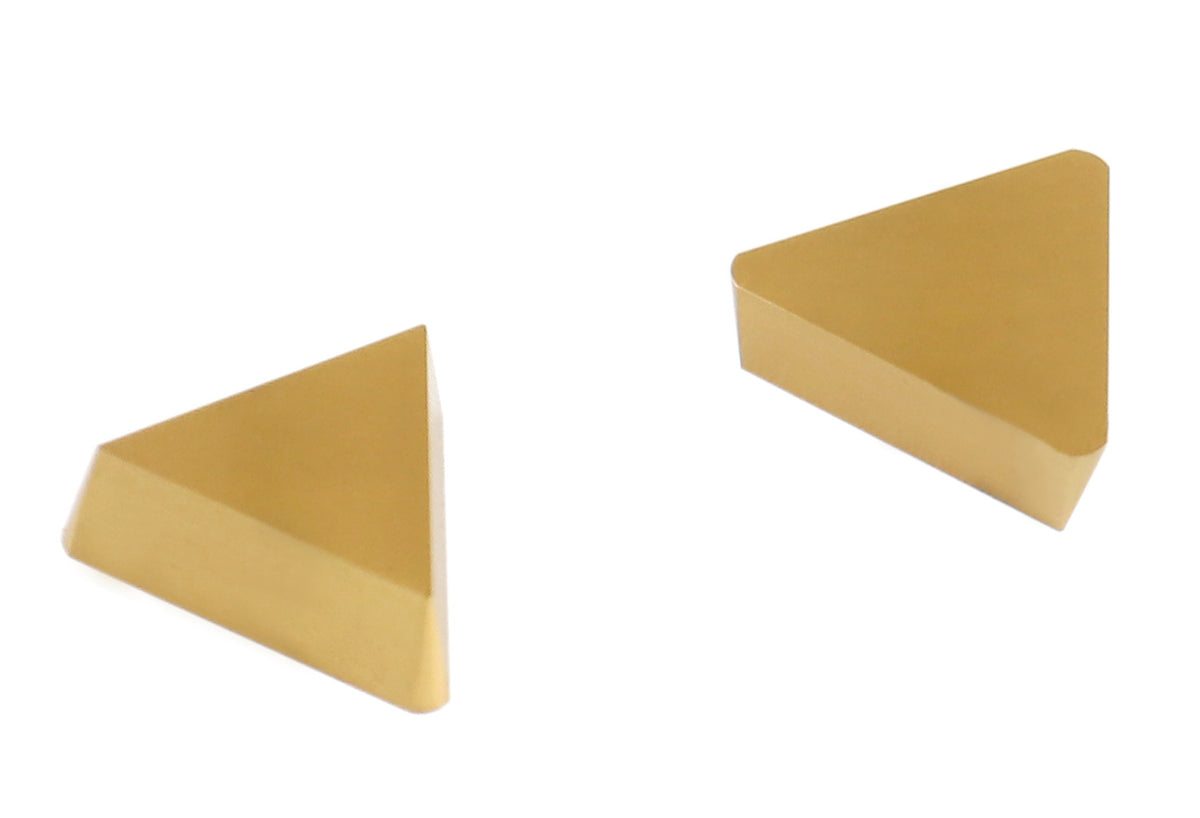

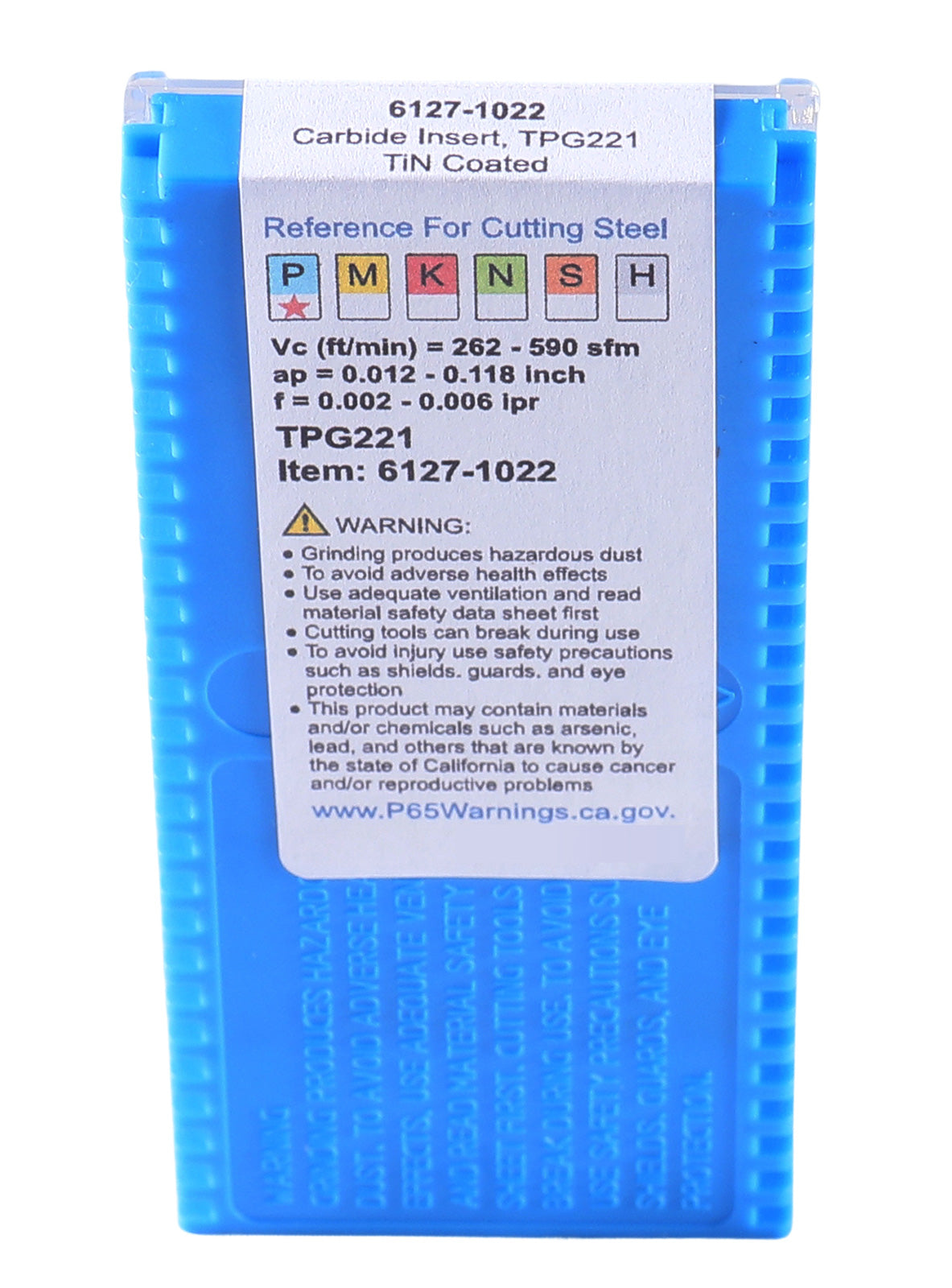

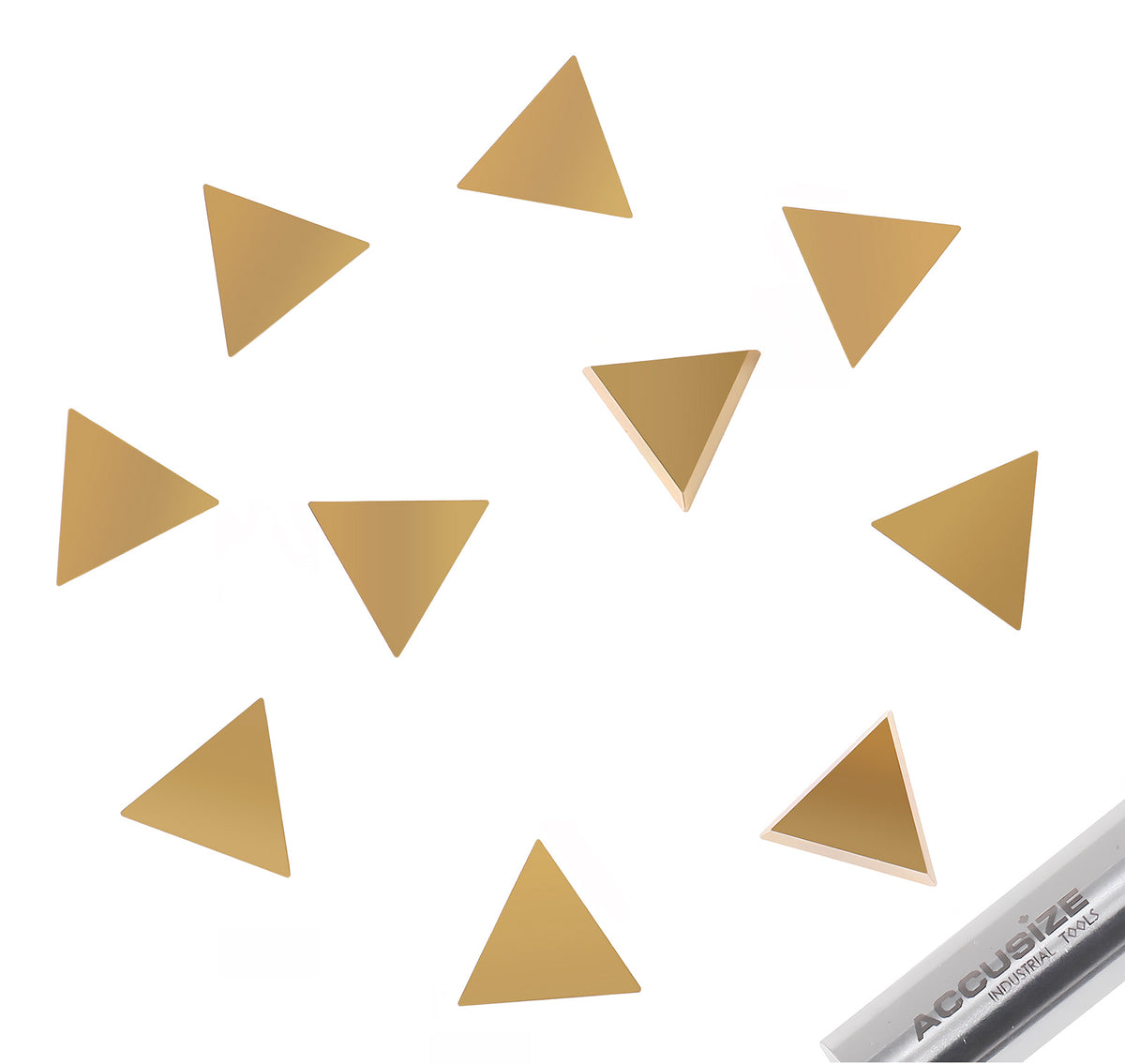

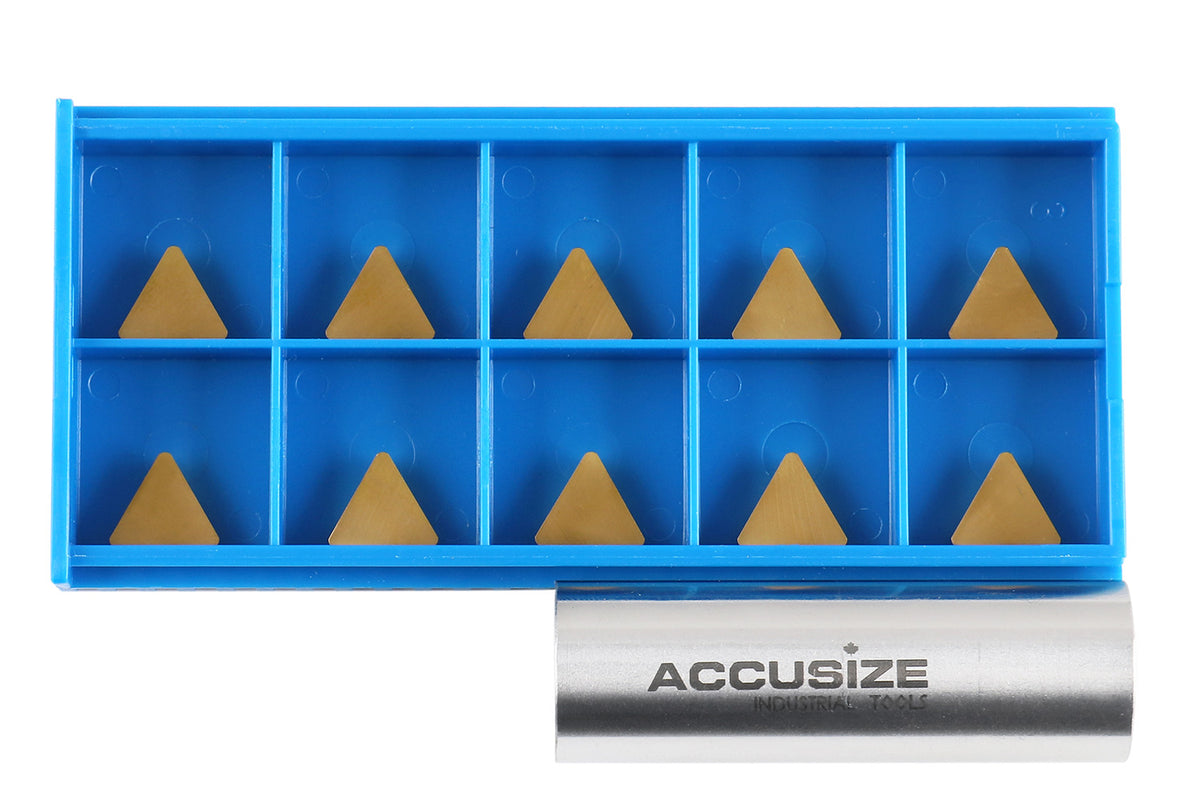

Accusize Tpg221 Tin Coated Carbide Inserts, 10 Pcs/Box, 2127-1022x10

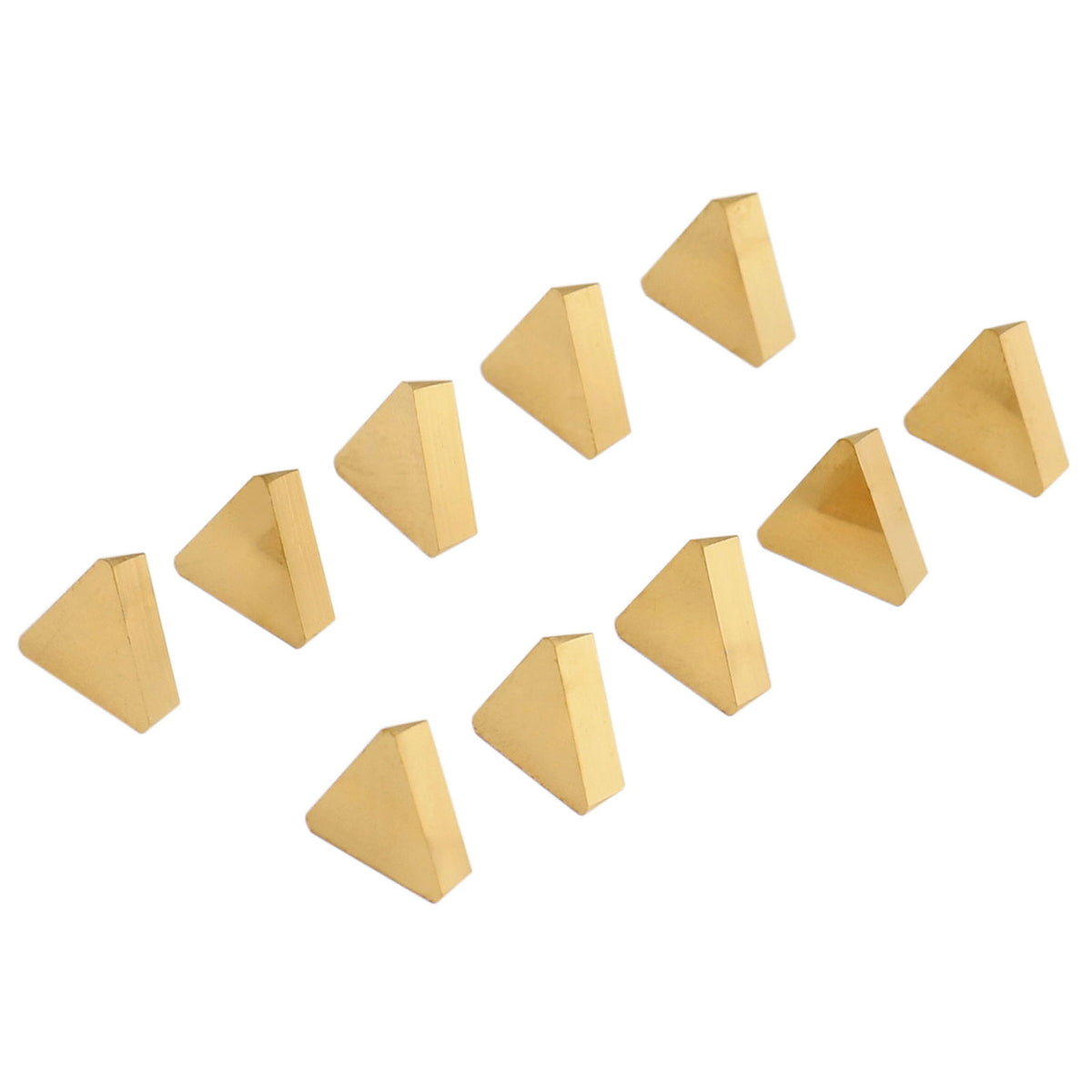

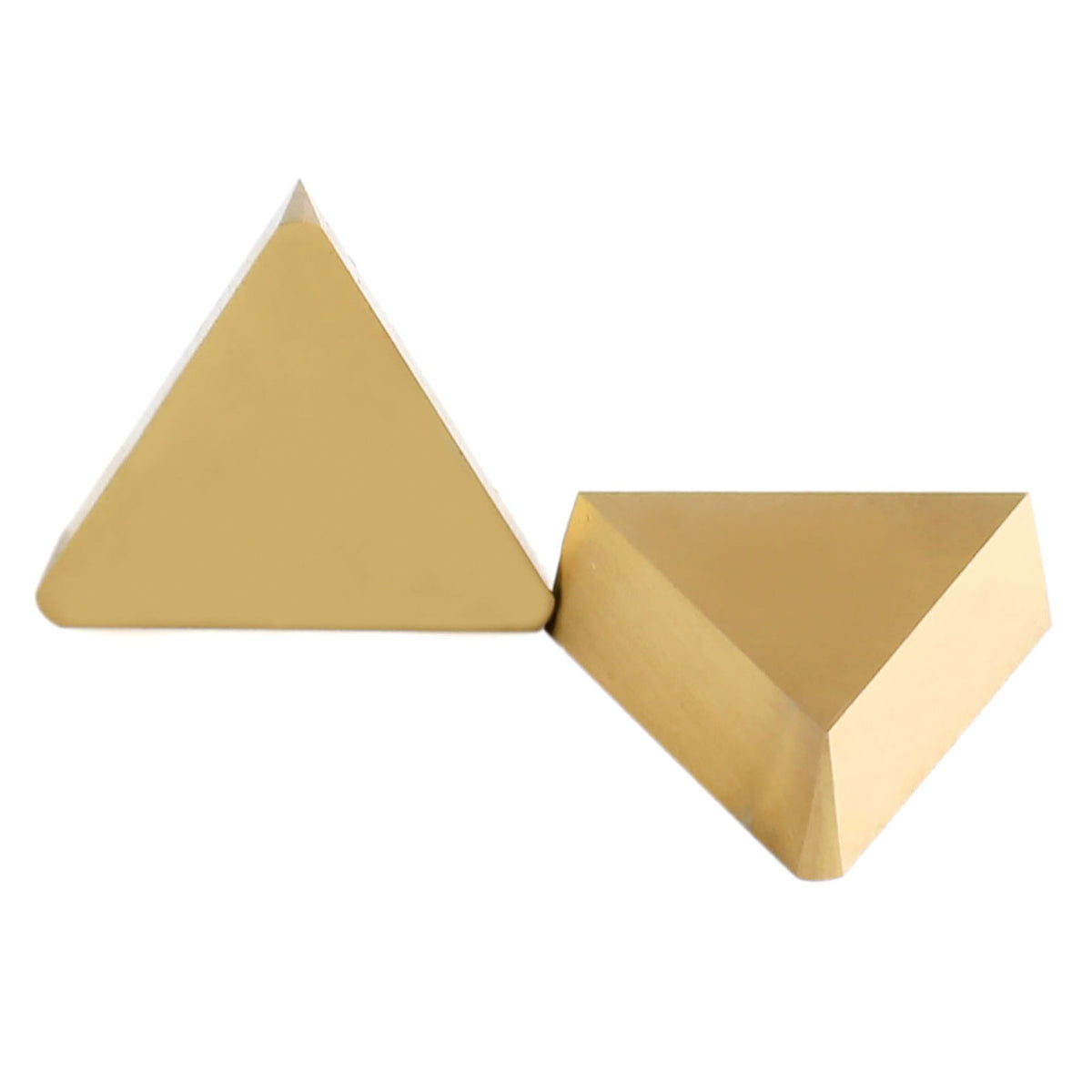

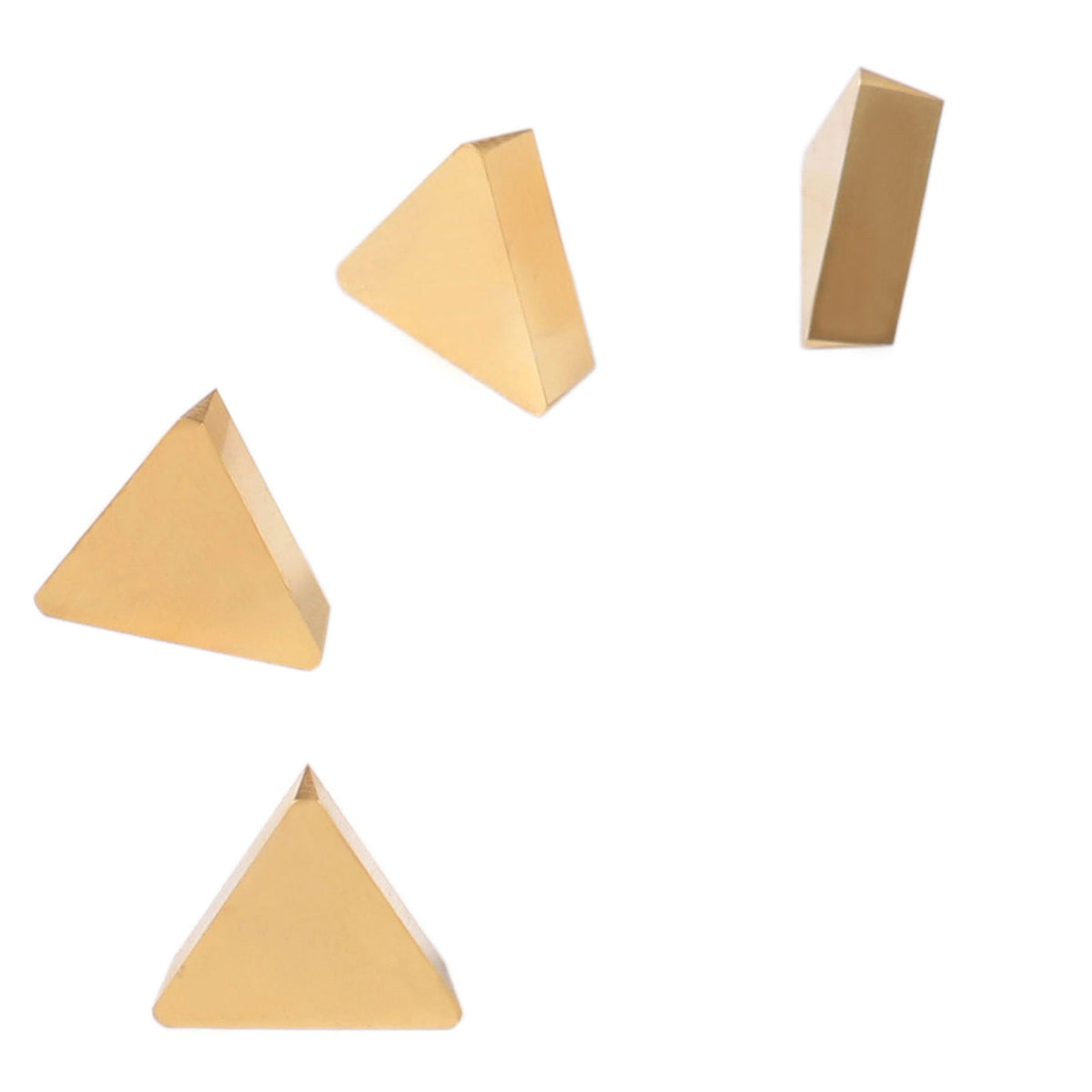

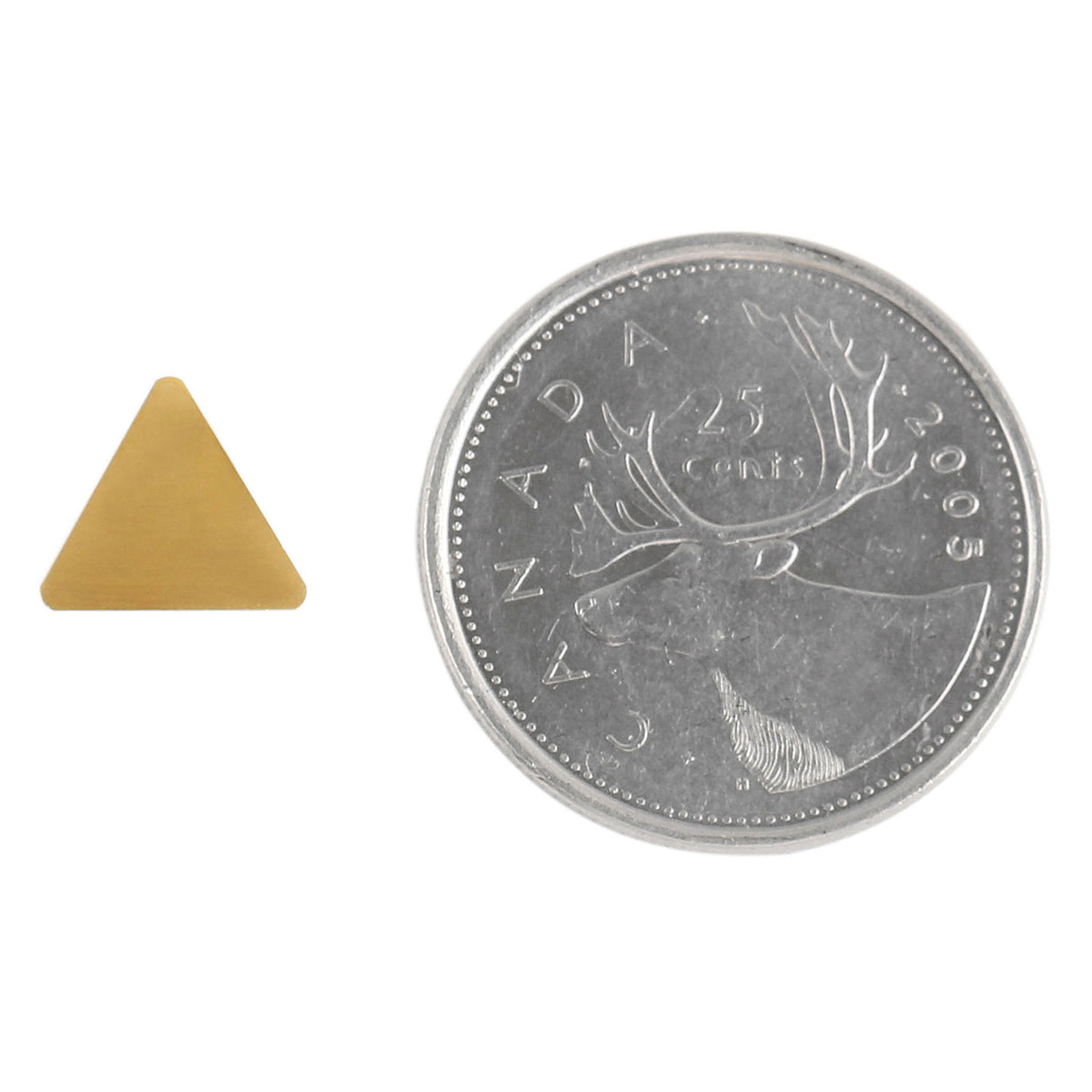

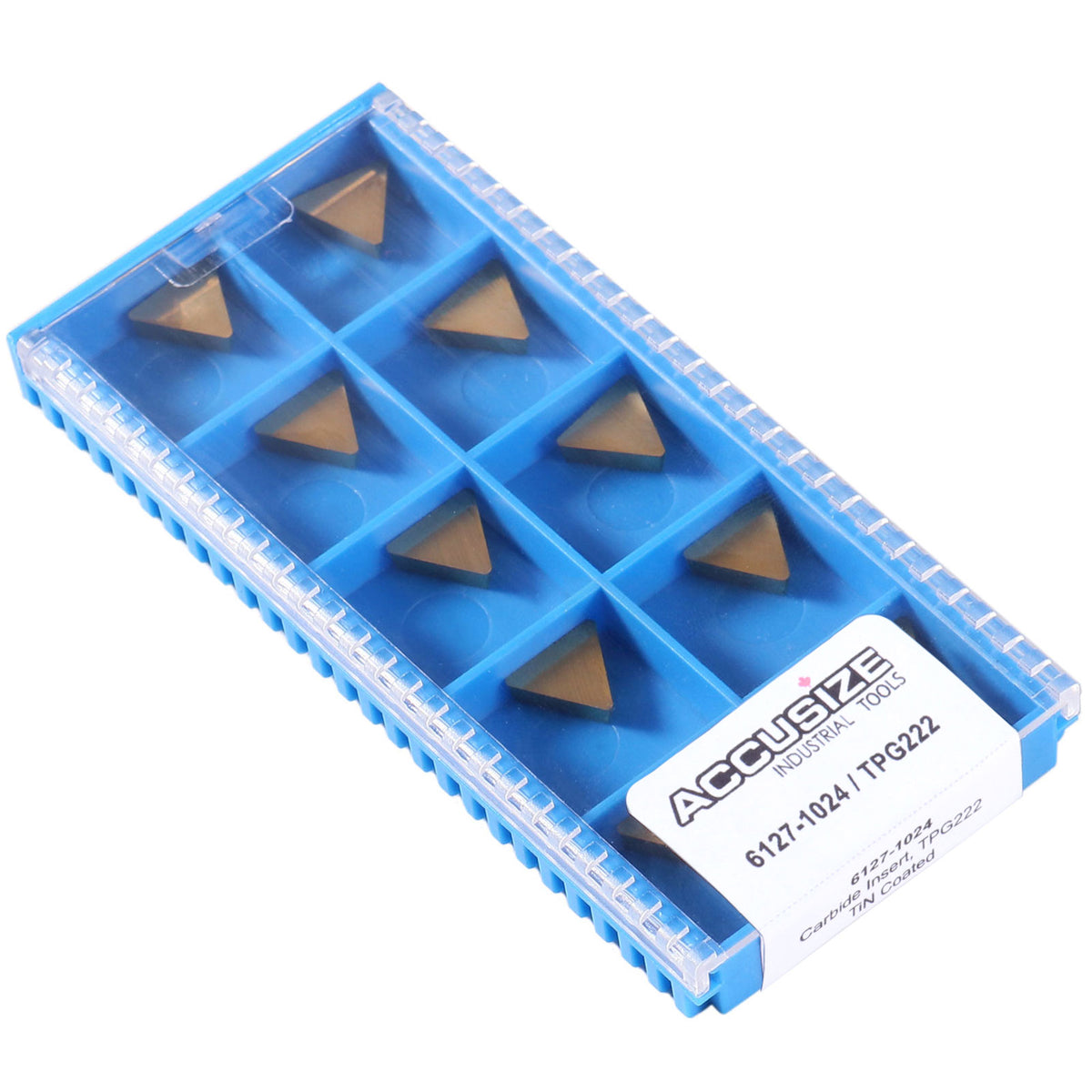

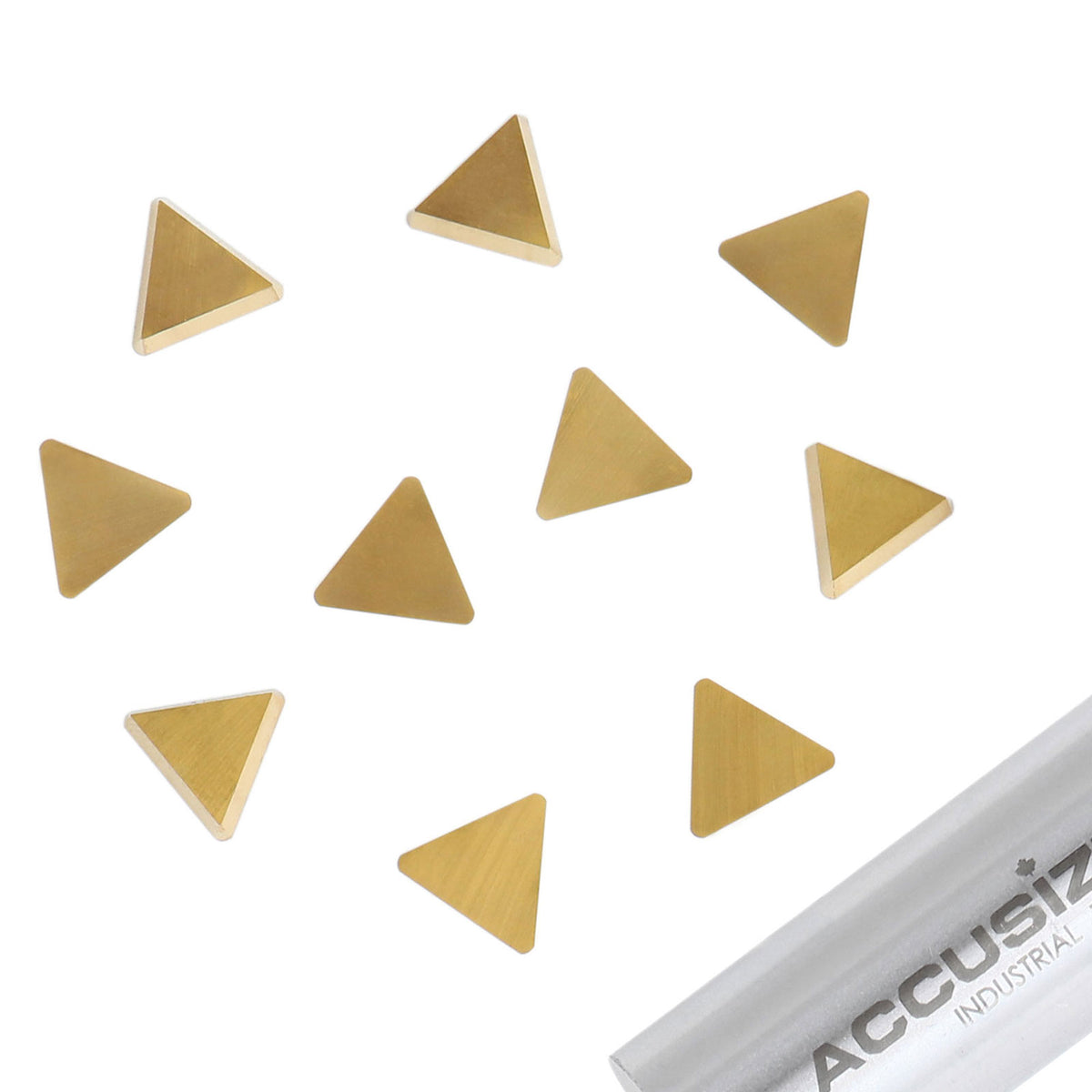

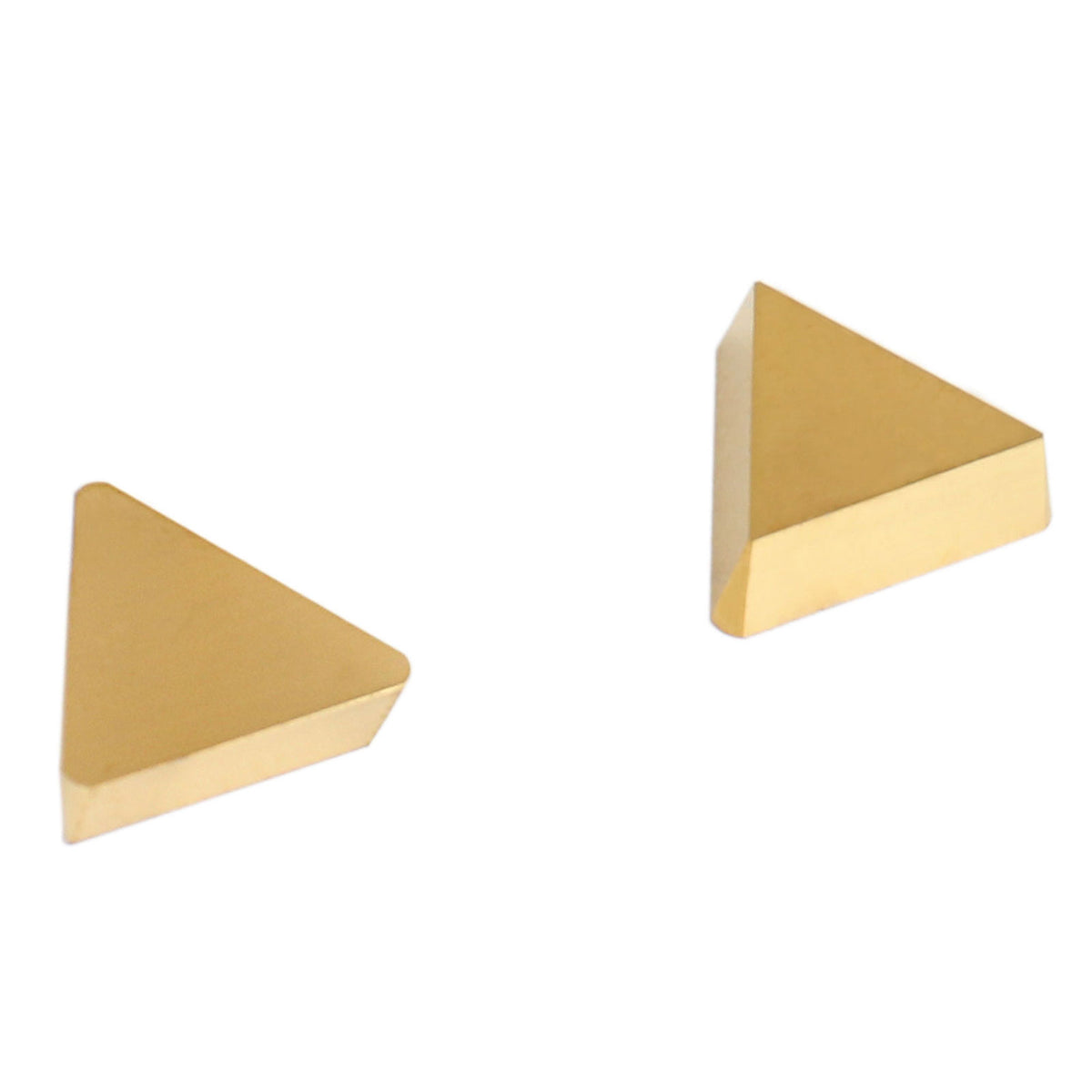

Figure of Accusize Tpg222 Tin Coated Carbide Inserts, 10 Pcs/Box, 2127-1024x10

** Diagram for inserts #2127-1025 TPG22 "T" Shaped inserts:

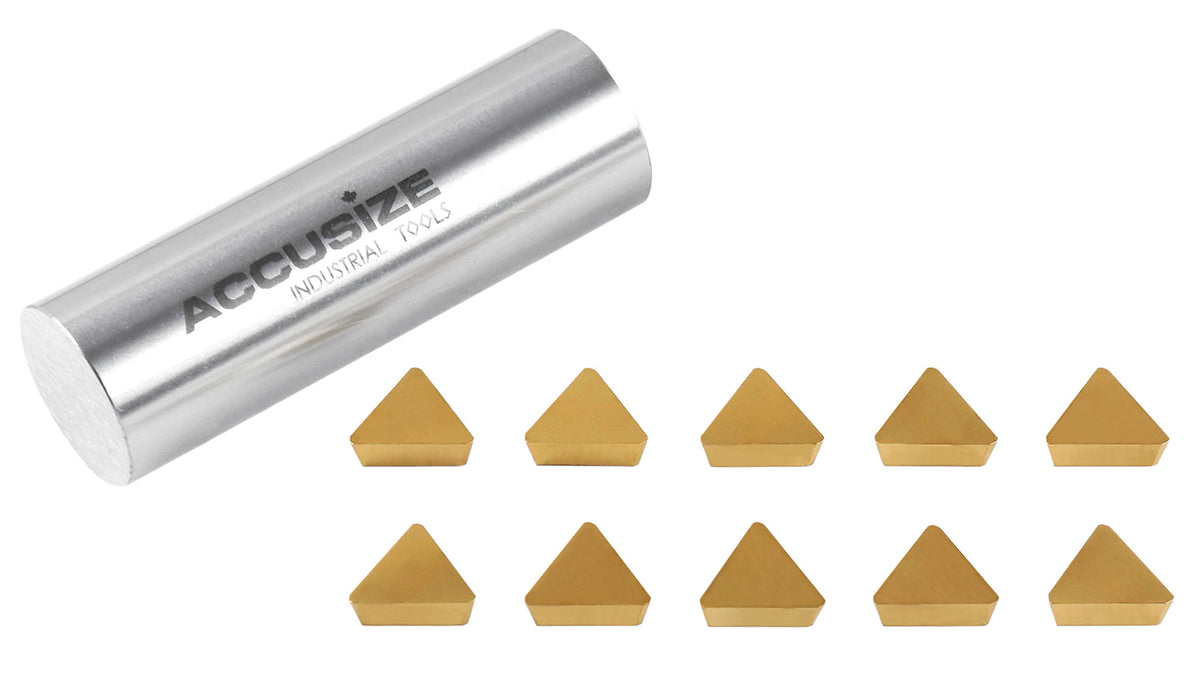

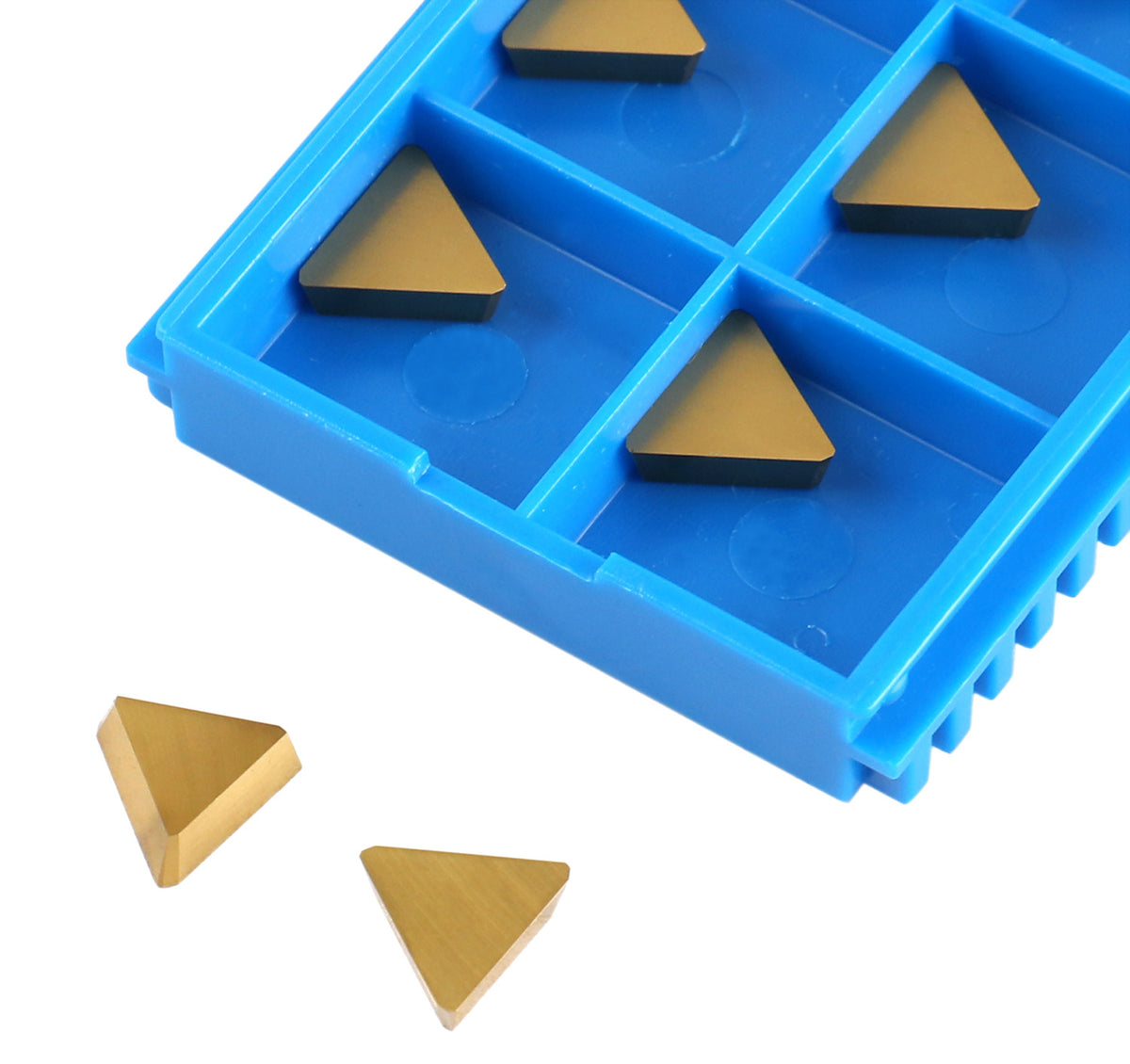

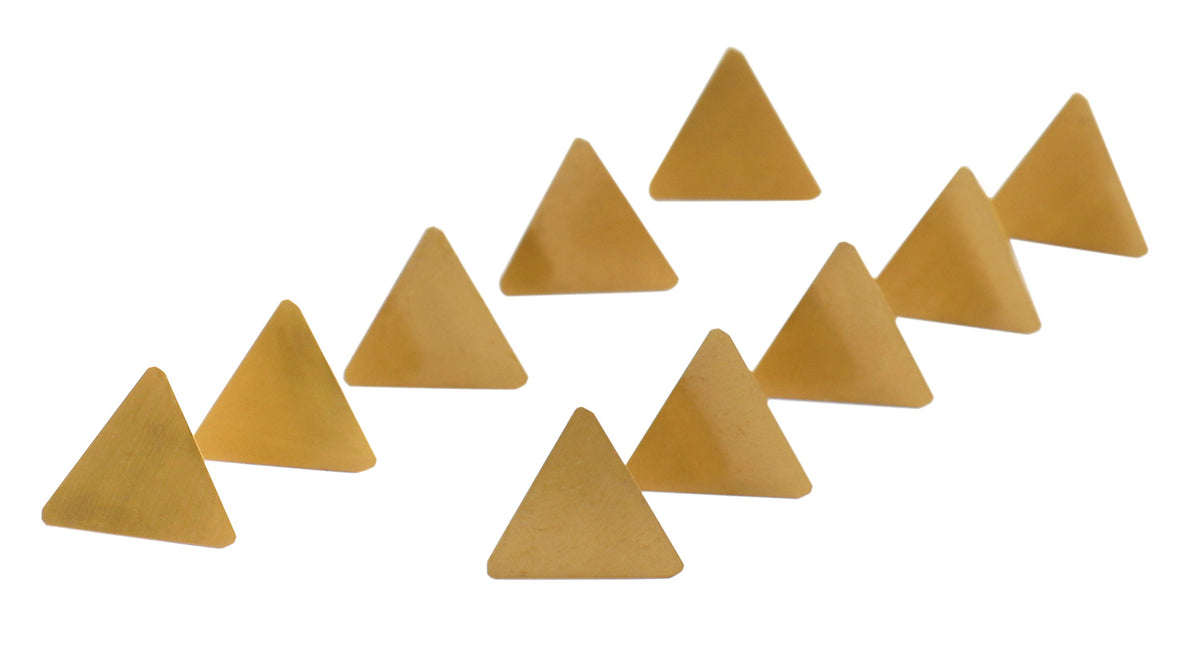

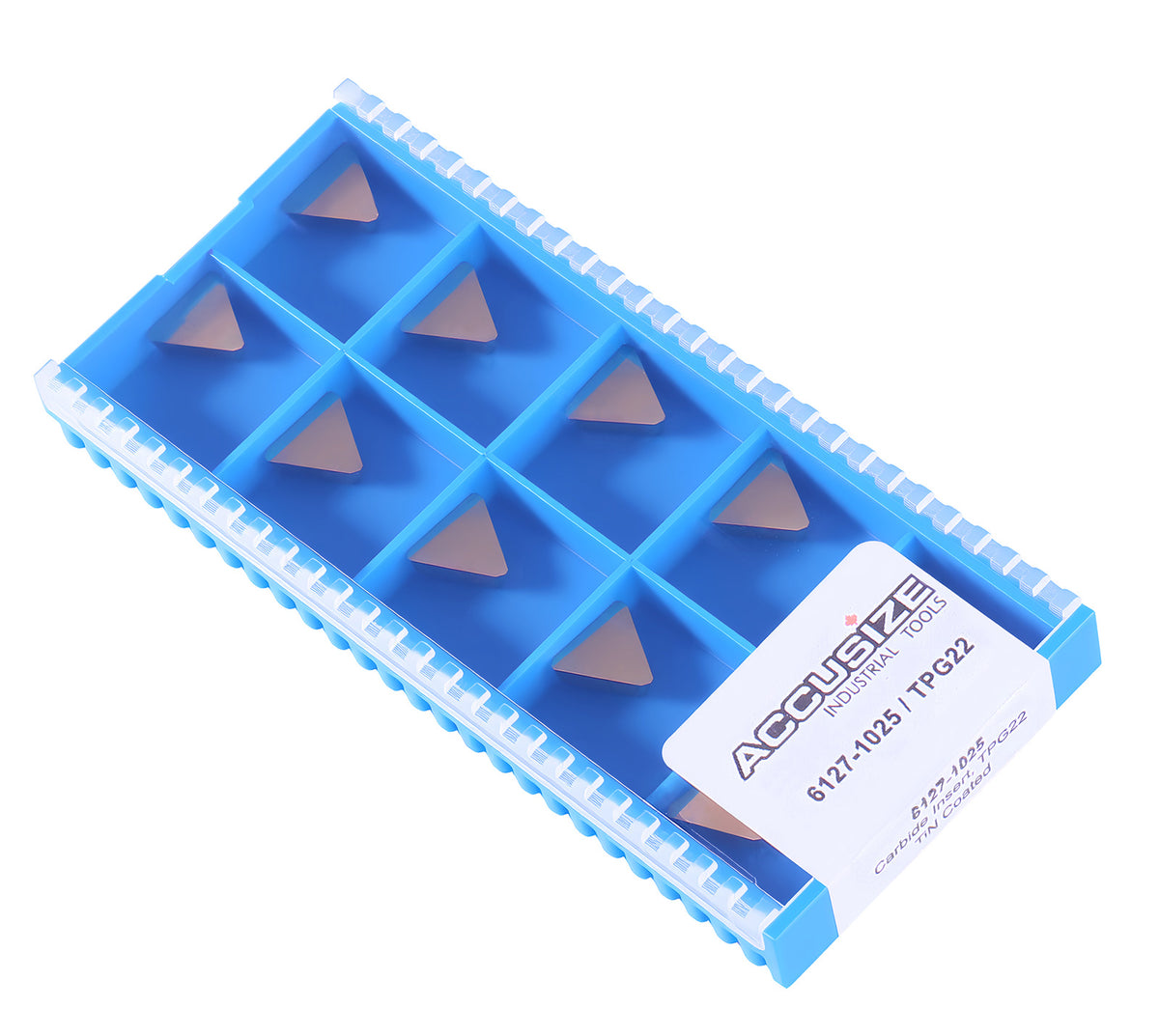

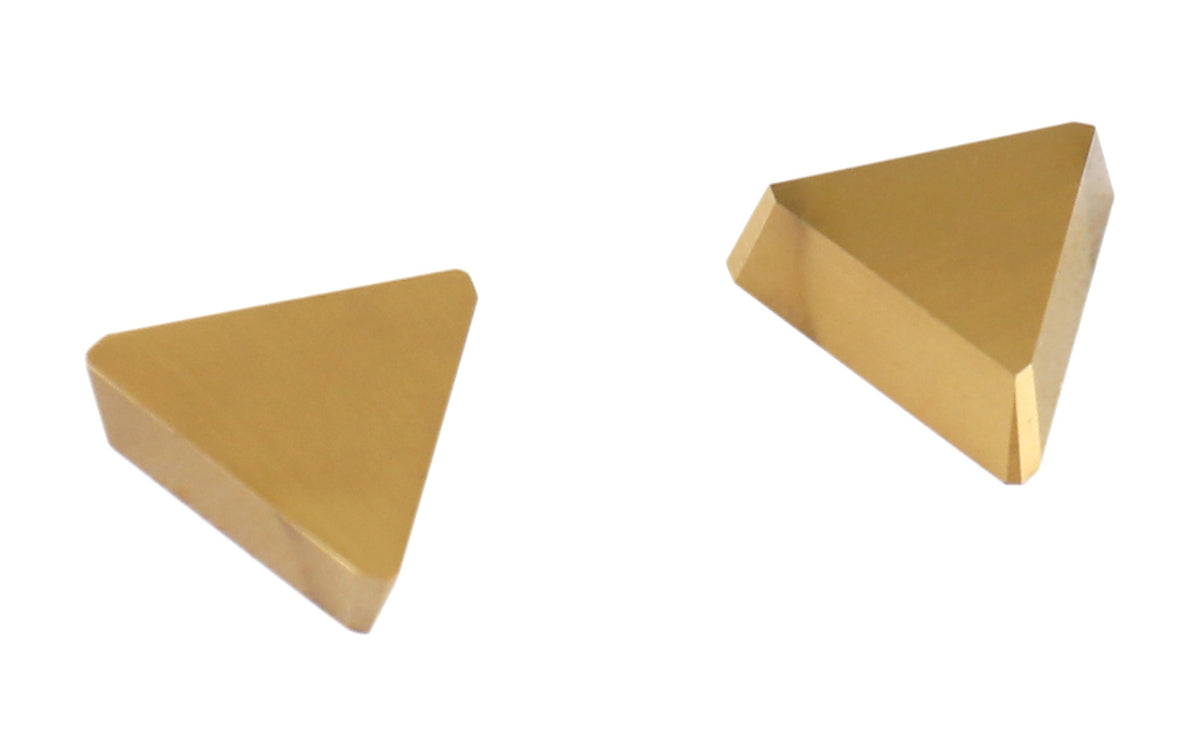

Figure of Accusize TPG222 Wiper Carbide Inserts, TiN Coated, T-Shape, 10 Pcs/Box, 2127-1025x10

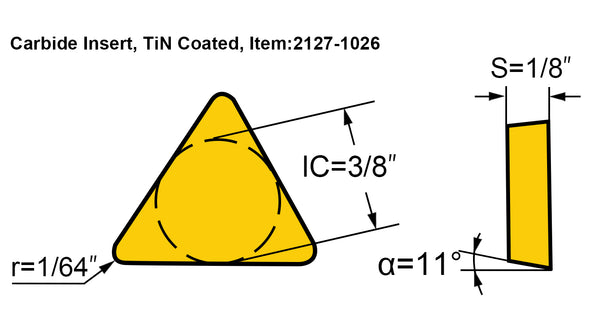

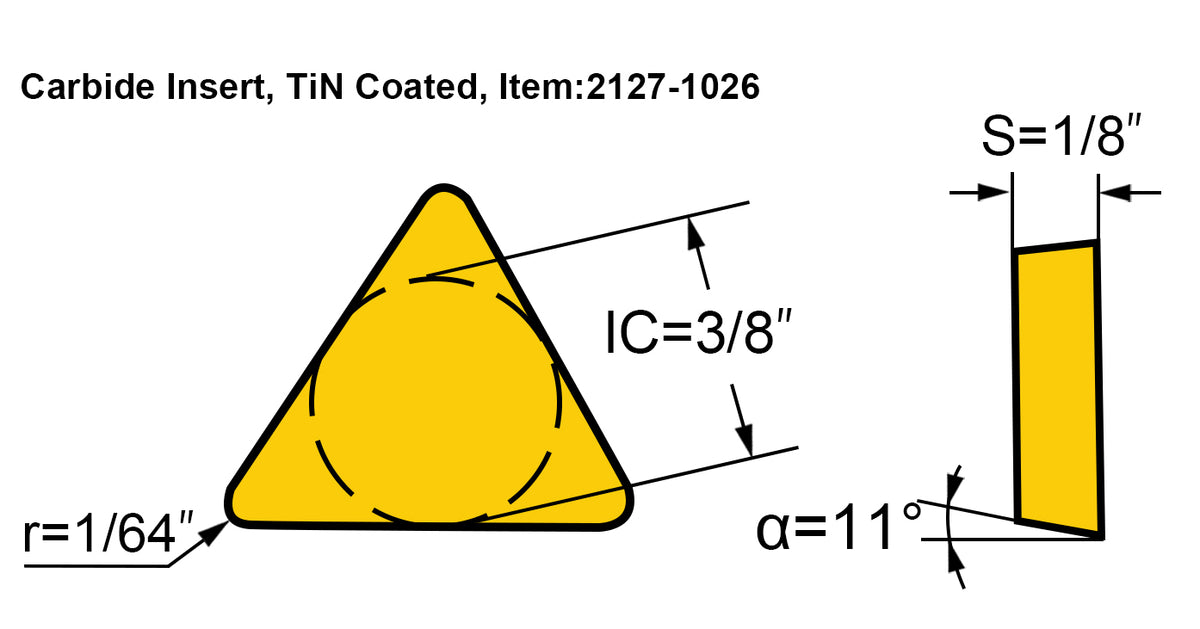

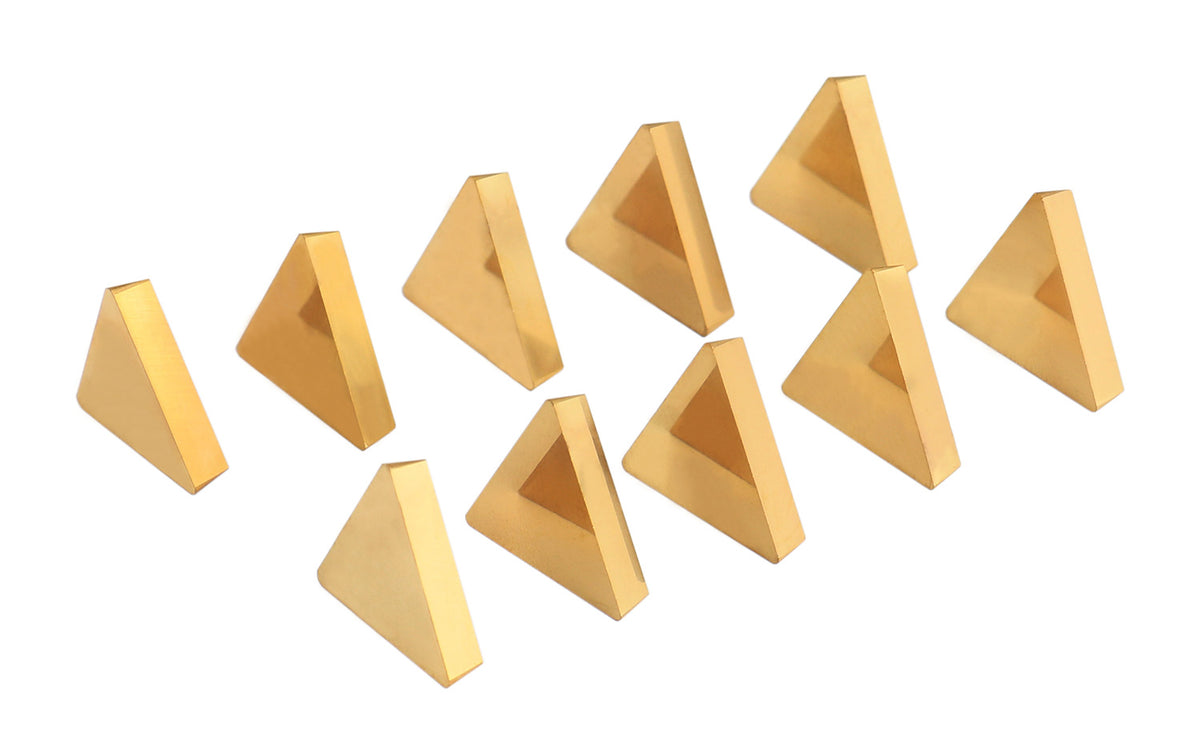

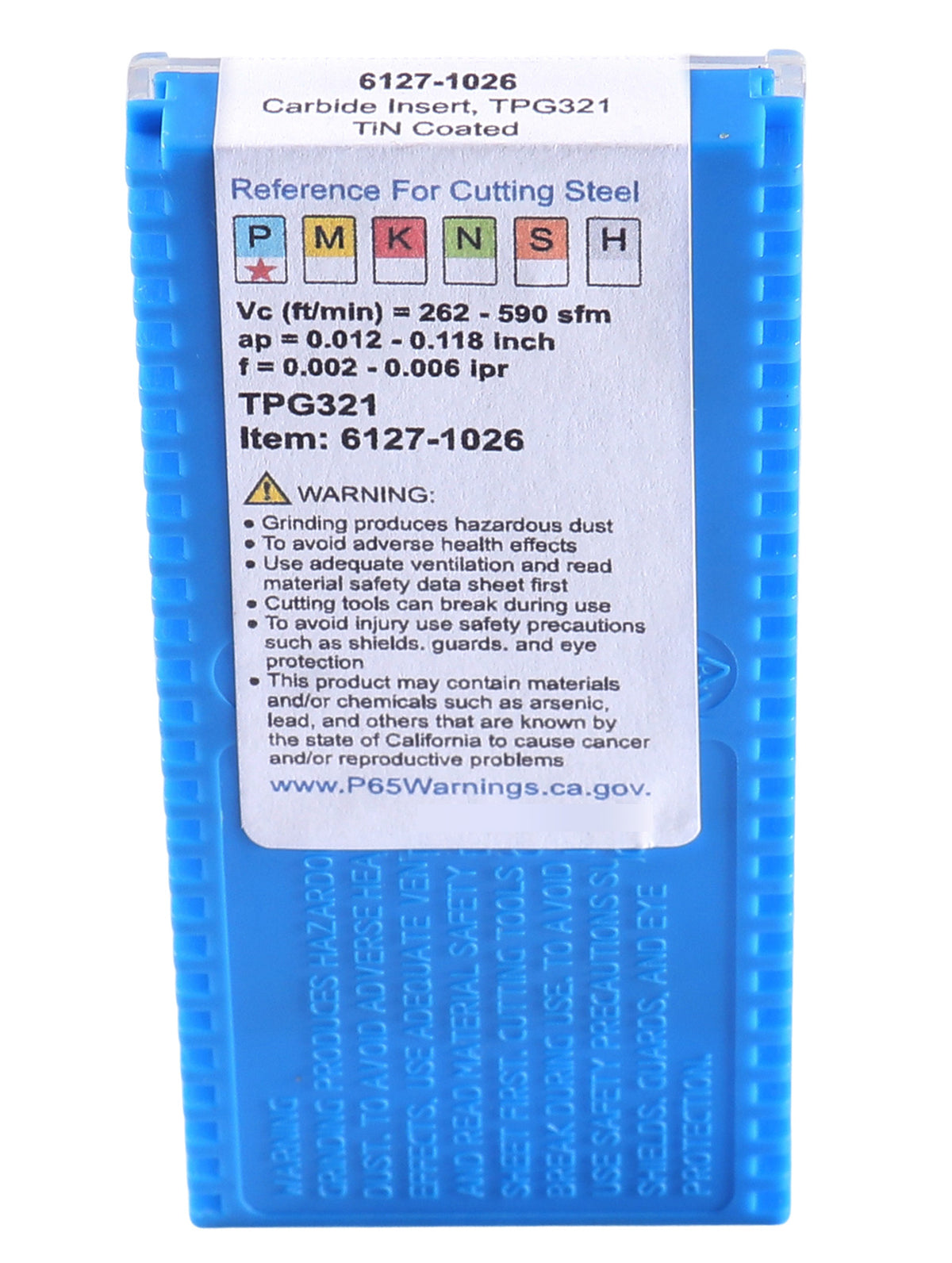

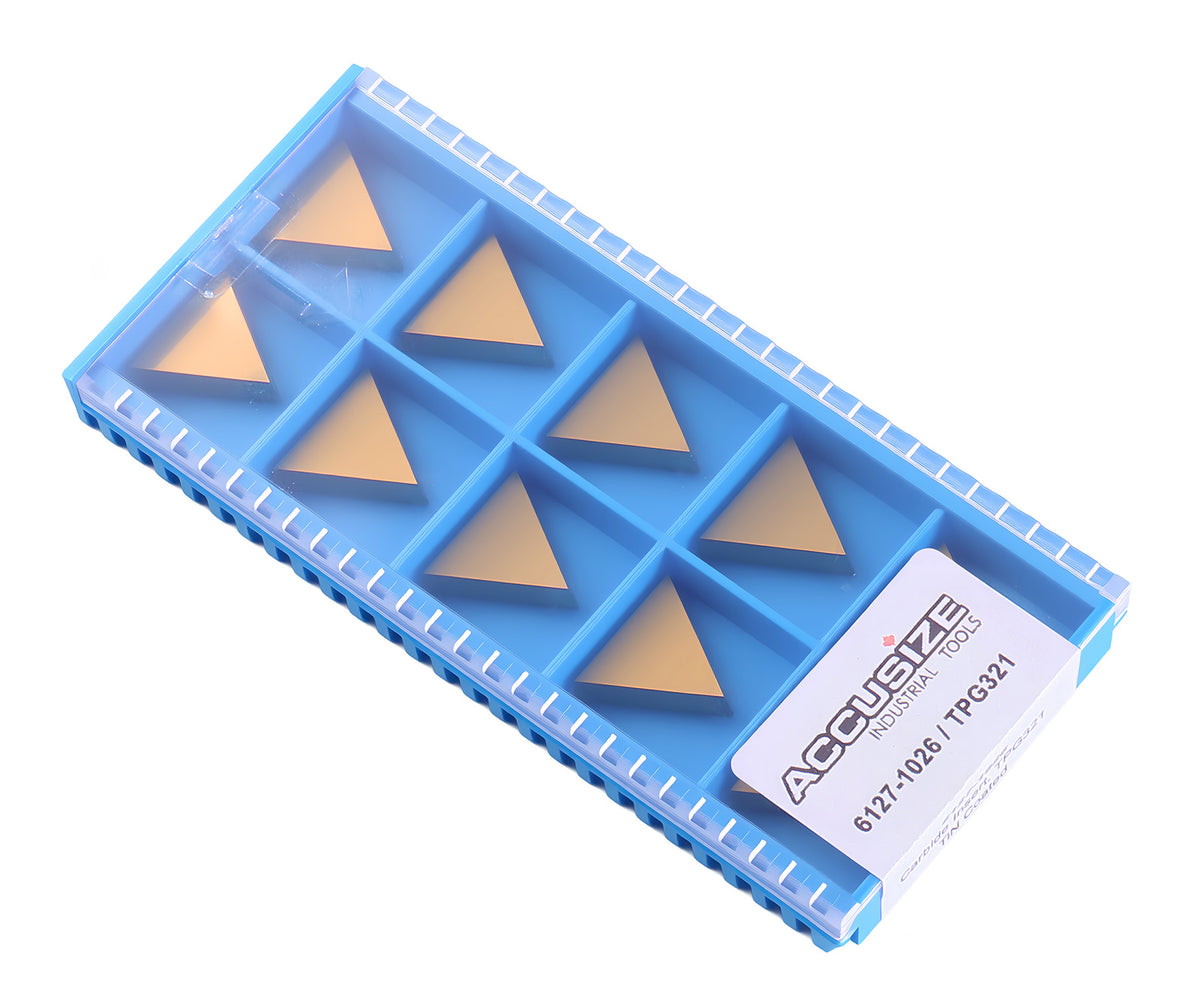

Diagram of Accusize Tpg321 Carbide Inserts Tin Coated 10 Pcs, 2127-1026x10

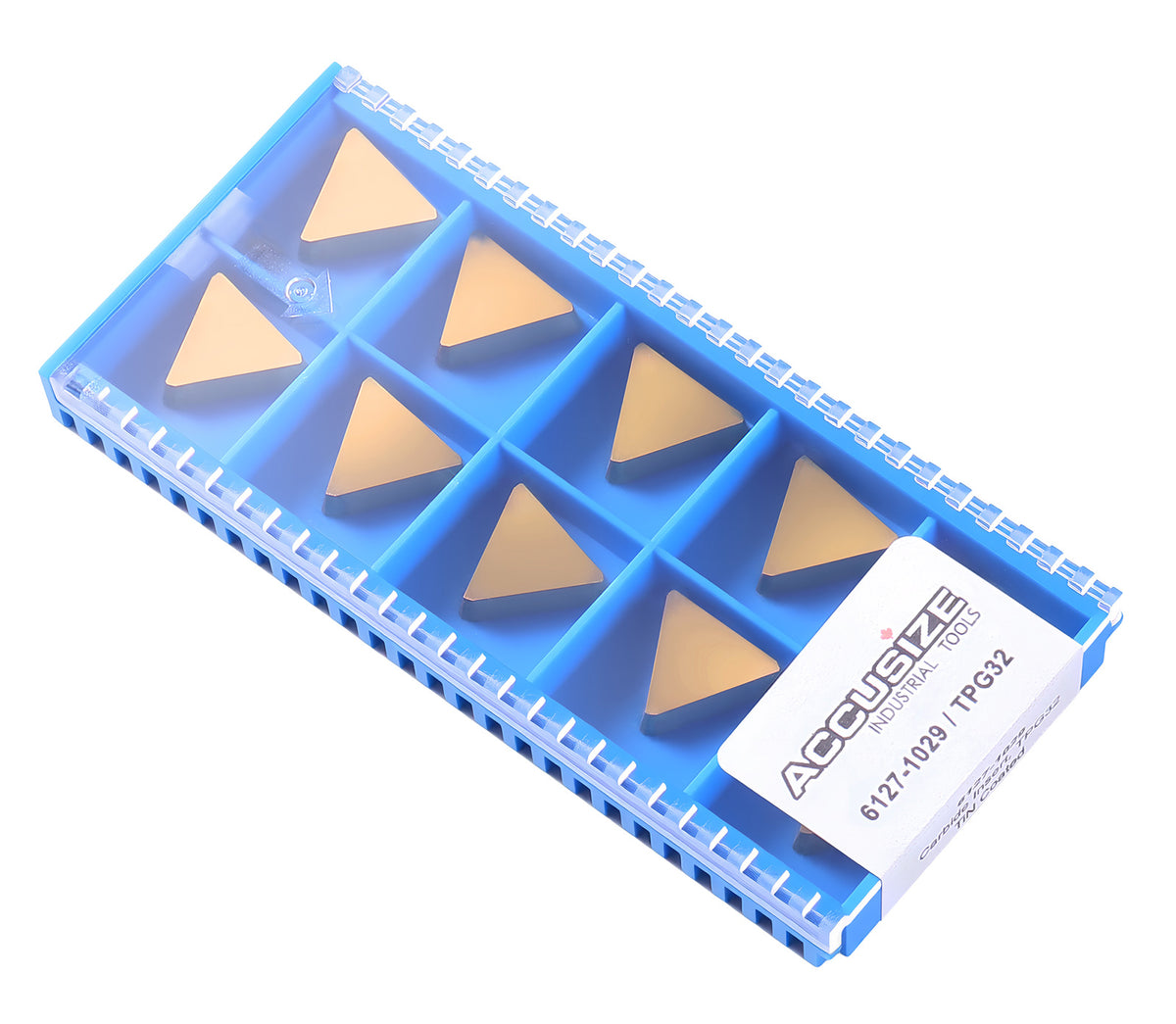

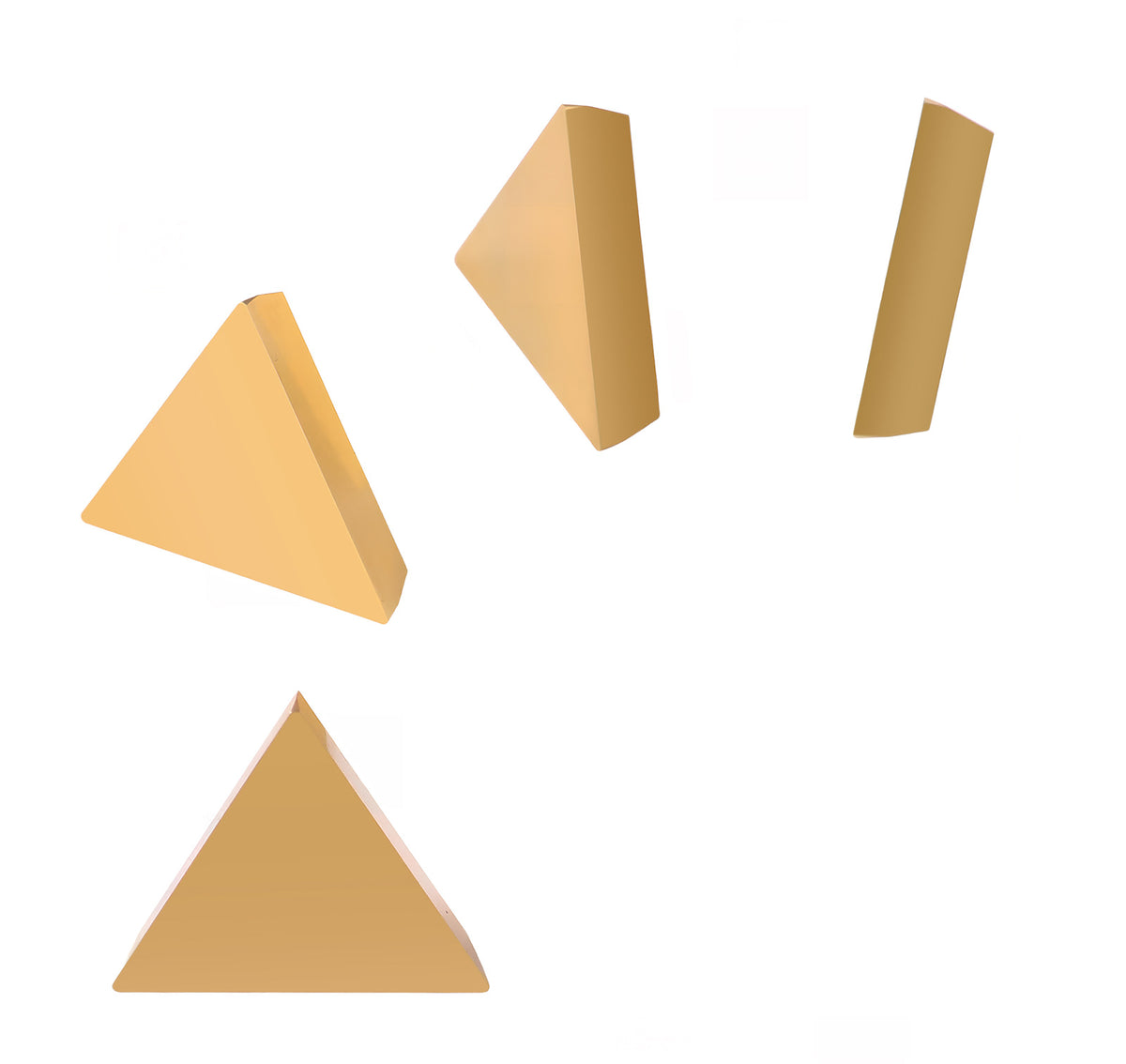

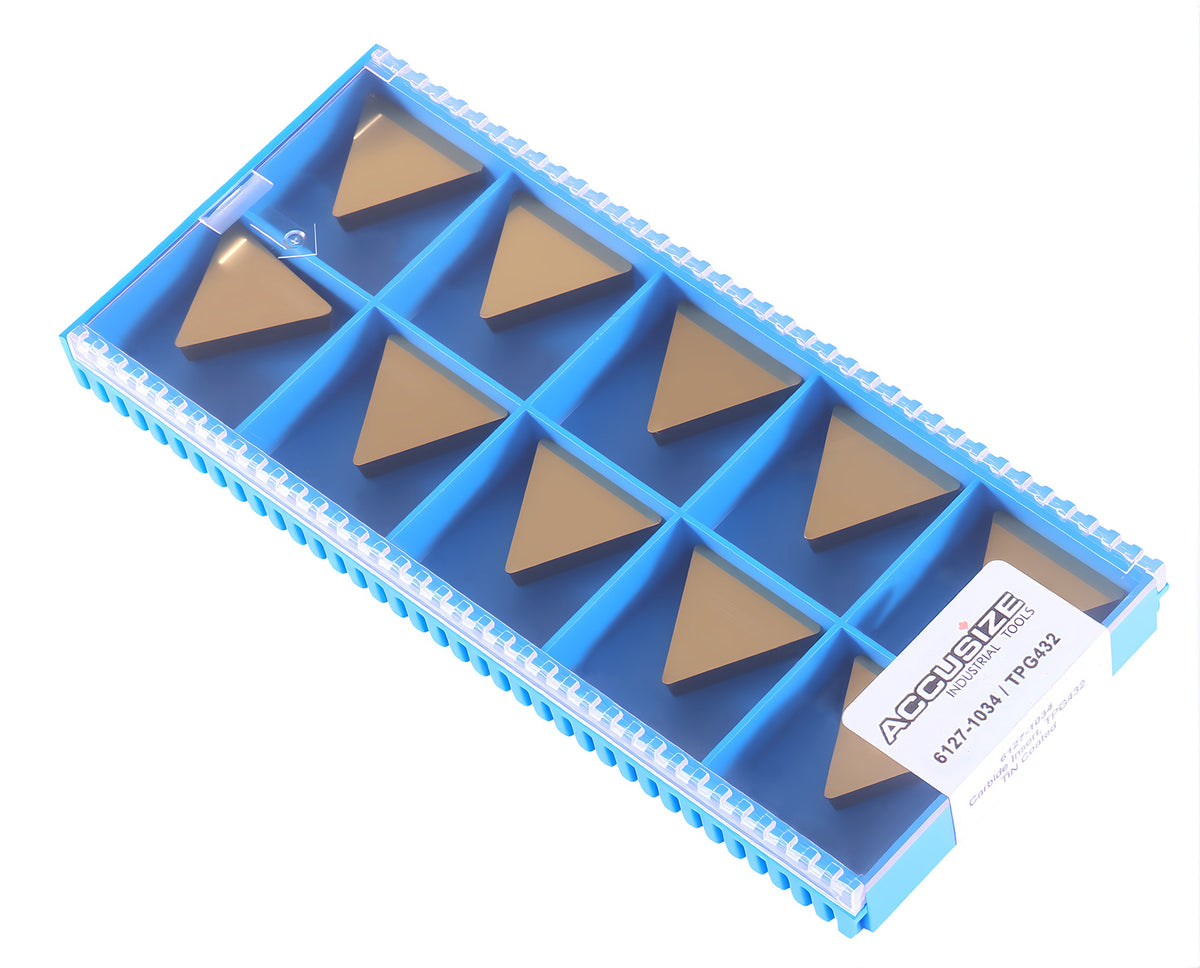

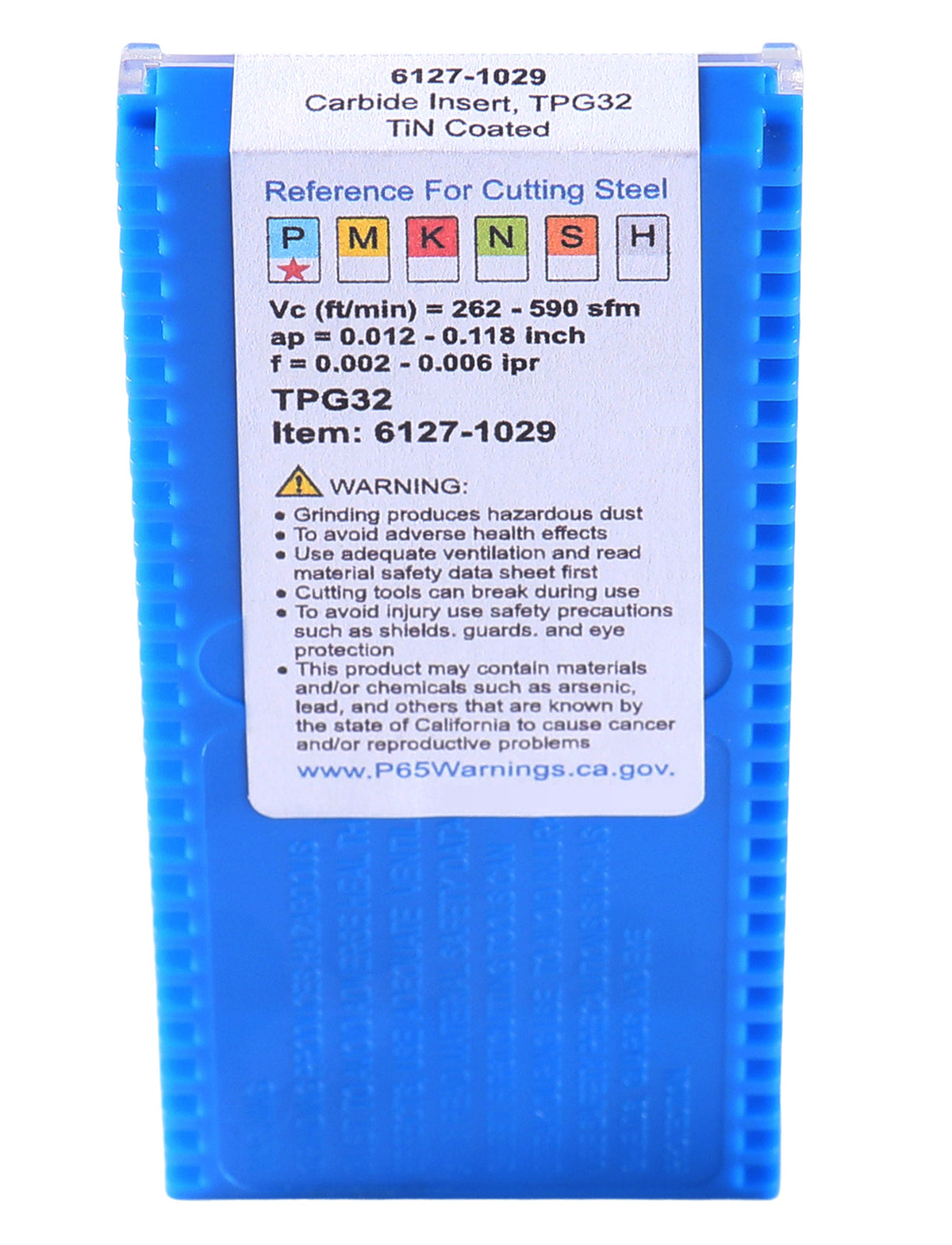

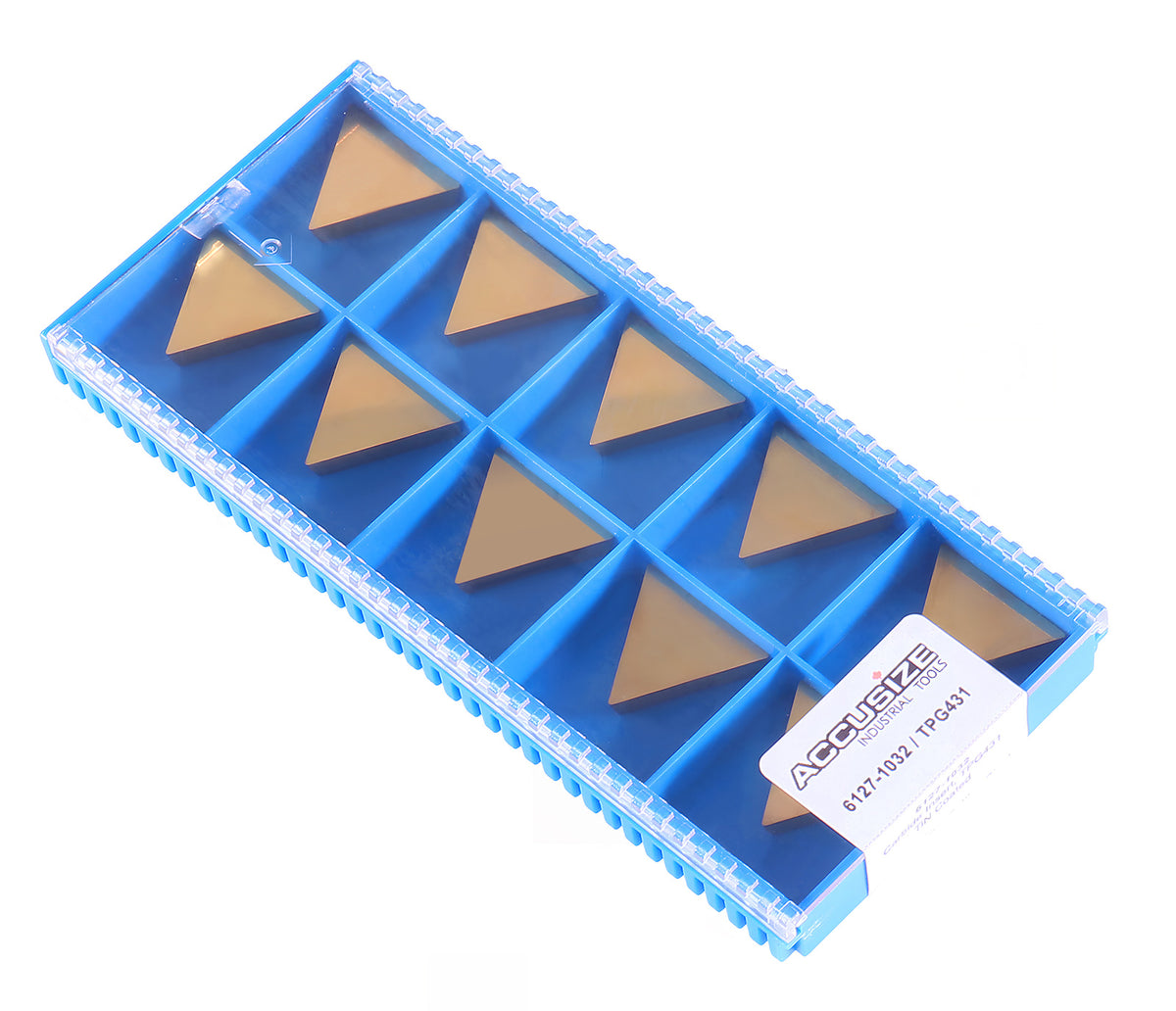

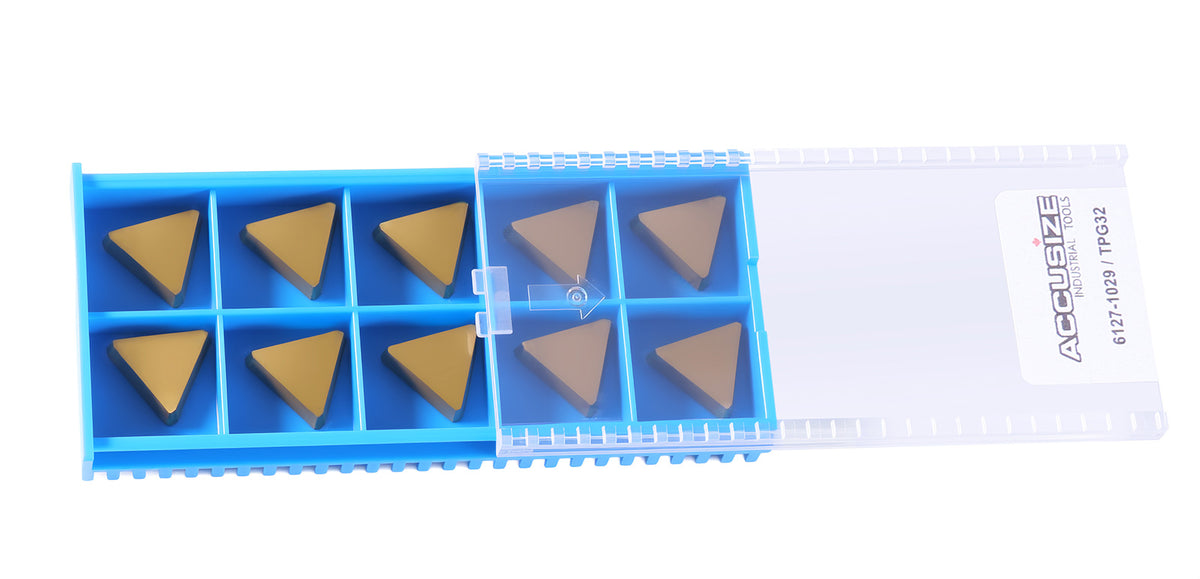

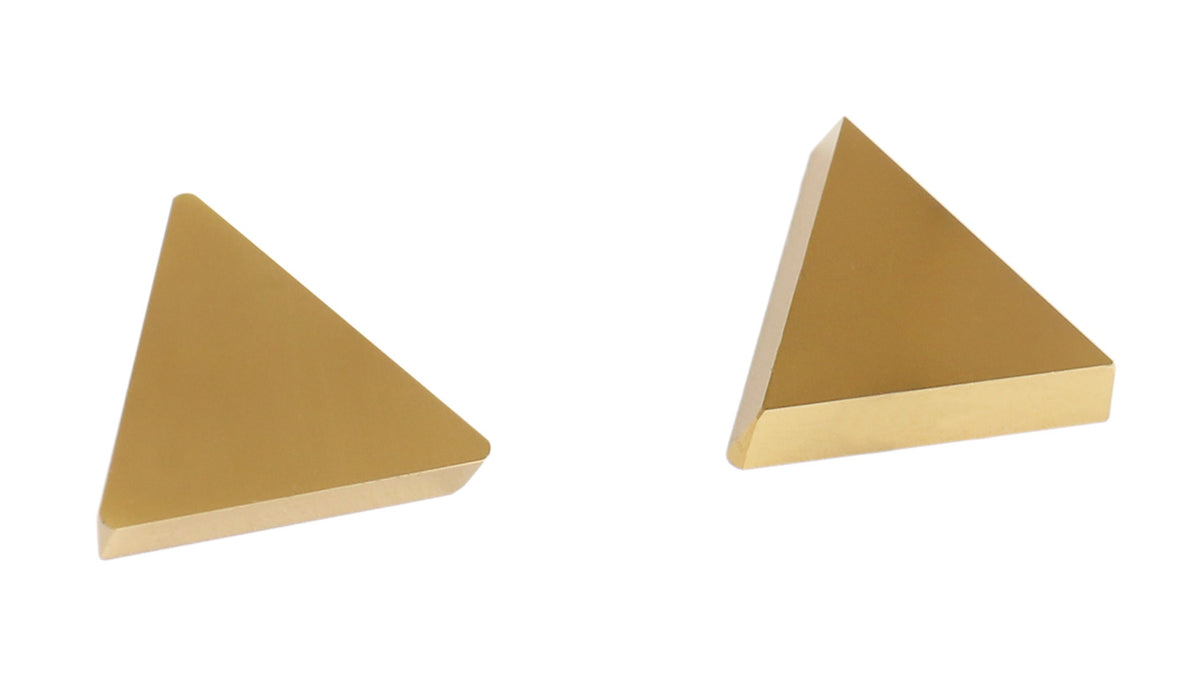

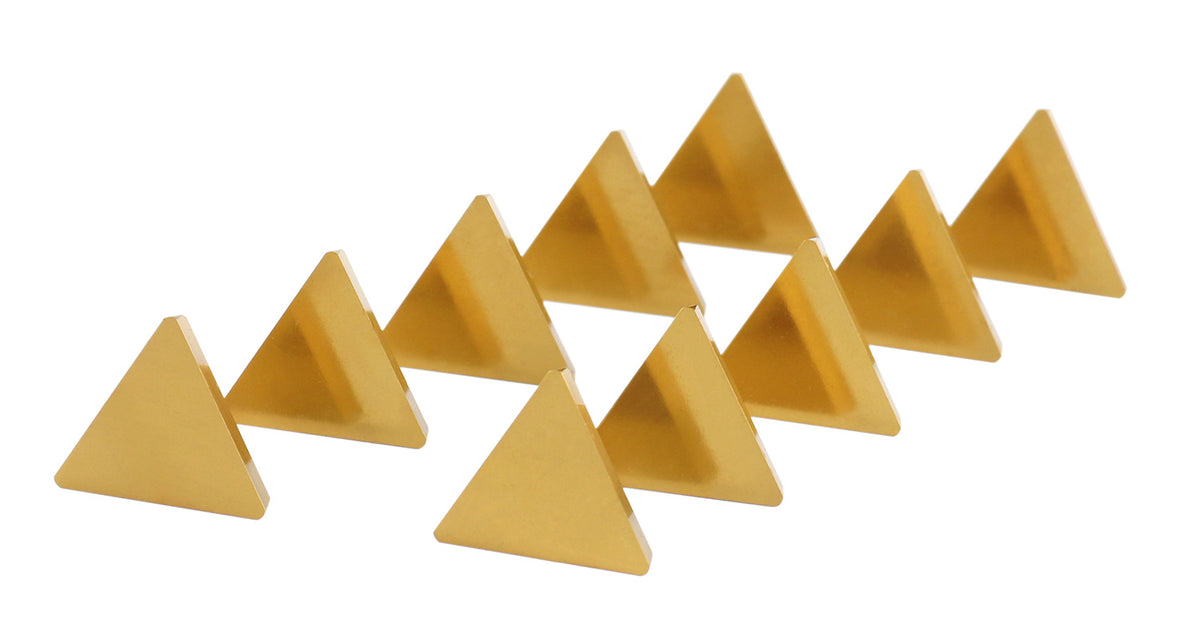

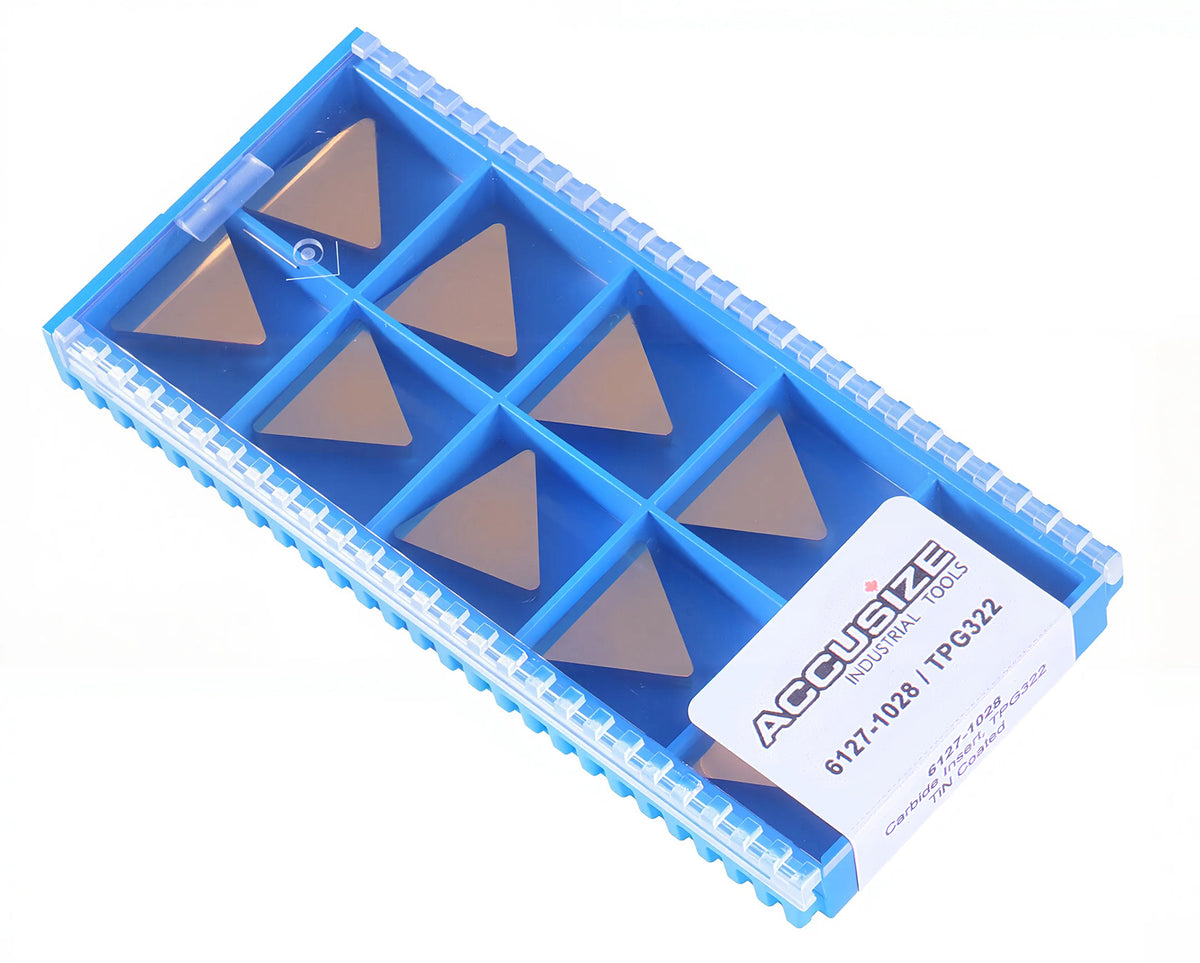

Diagram of Accusize Tpg322 Tin Coated Carbide Inserts, 10 Pcs/Box, 2127-1028x10Diagram of Accusize TPG32(TPGN1603) Tin Coated Carbide Inserts, T Shaped, 10 Pcs/Box, 2127-1029x10Diagram of Accusize Tpg431 Tin Coated Carbide Inserts, 10 Pcs/Box, 2127-1032x10Diagram of Accusize Tpg432 Tin Coated Carbide Inserts, 10 Pcs/Box, 2127-1034x10
