Straight Shank Carbide Indexable End Mills


Please Select the Dia. of Carbide Indexable End Mills: 1" (0046-0912)
Price:
$43.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

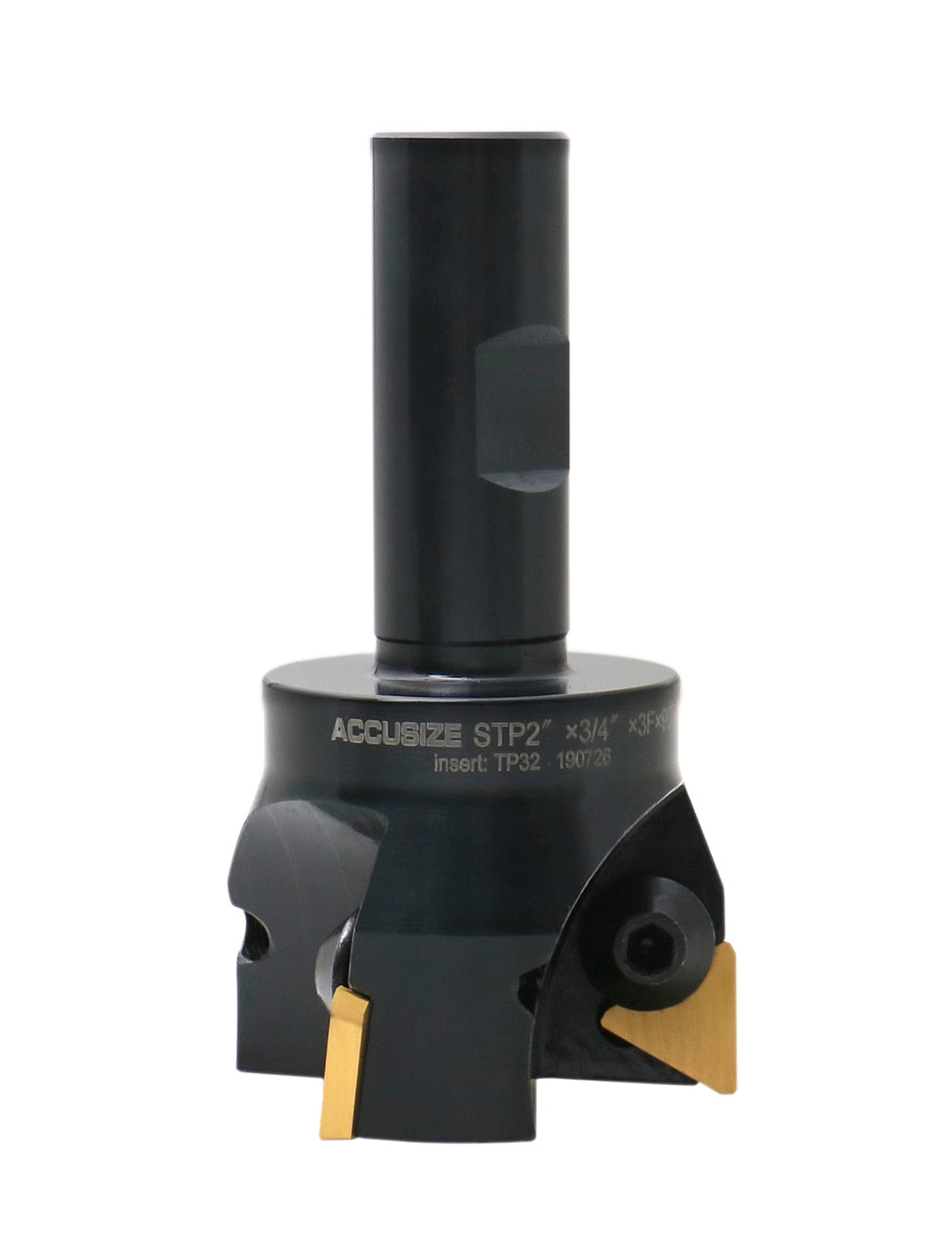

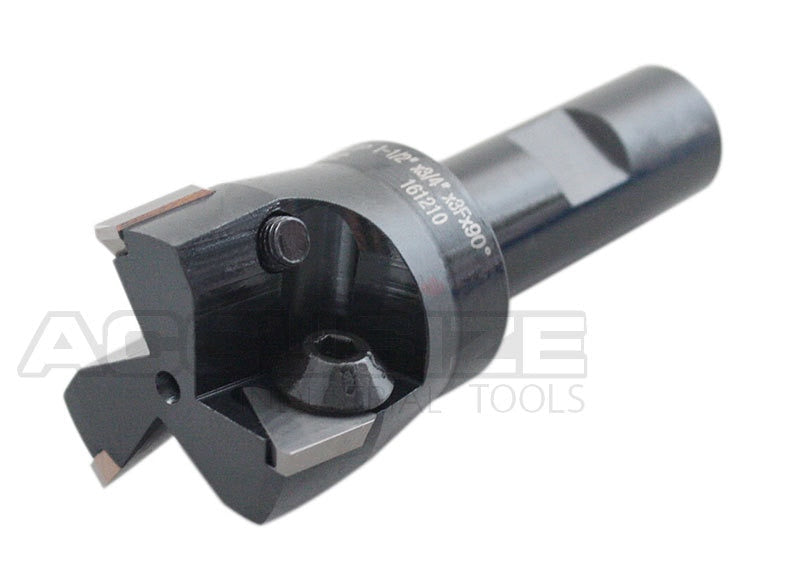

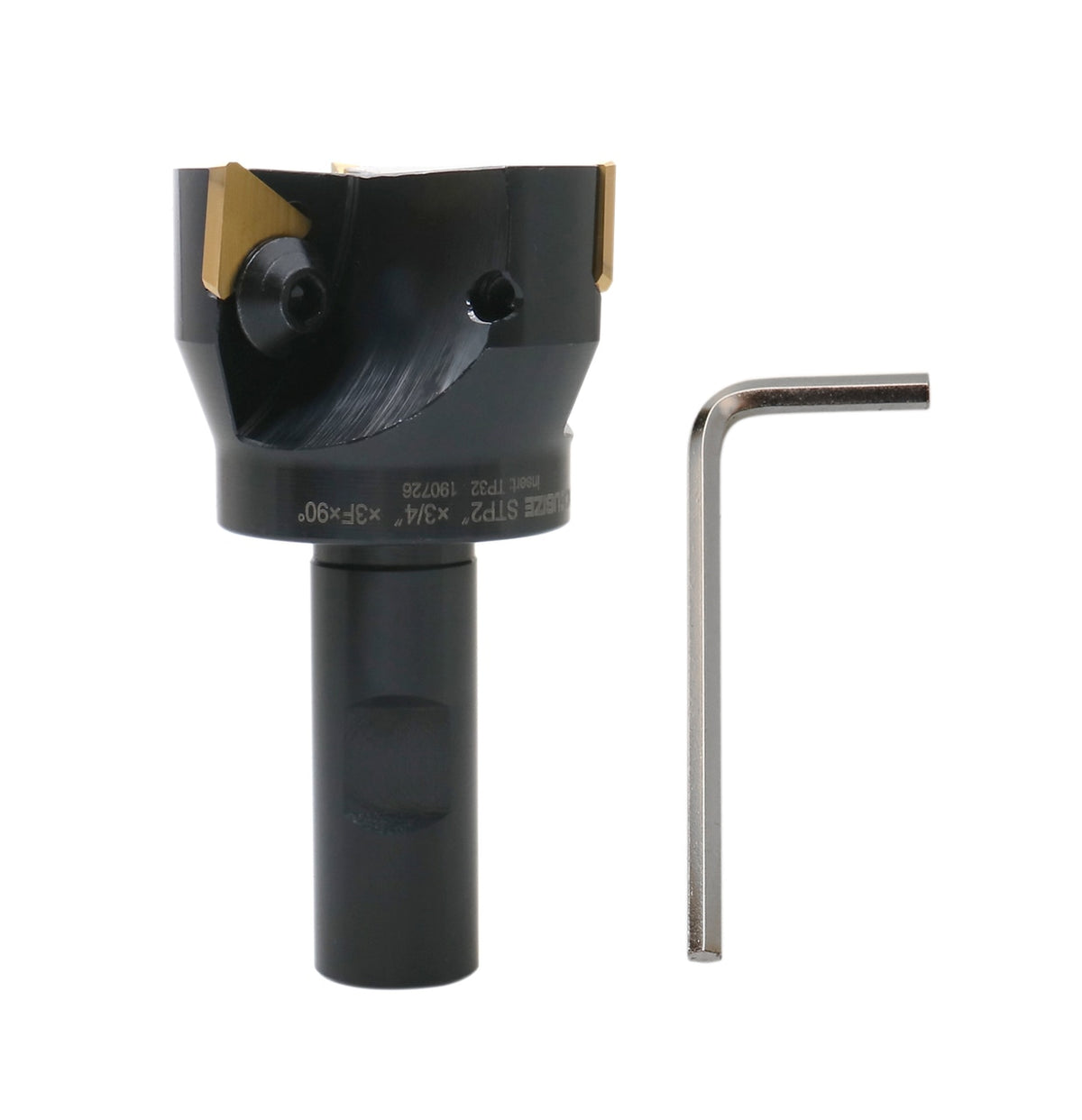

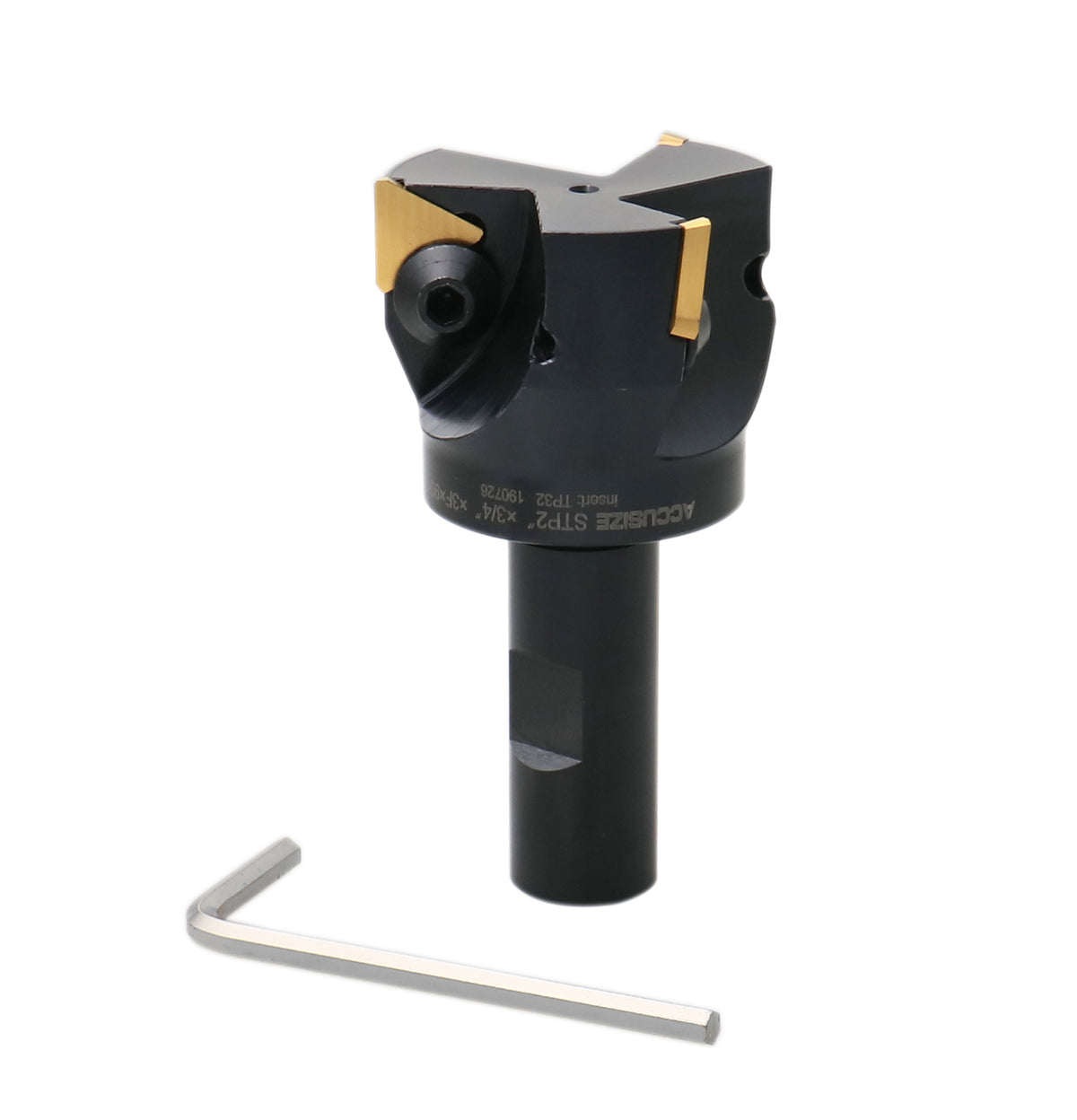

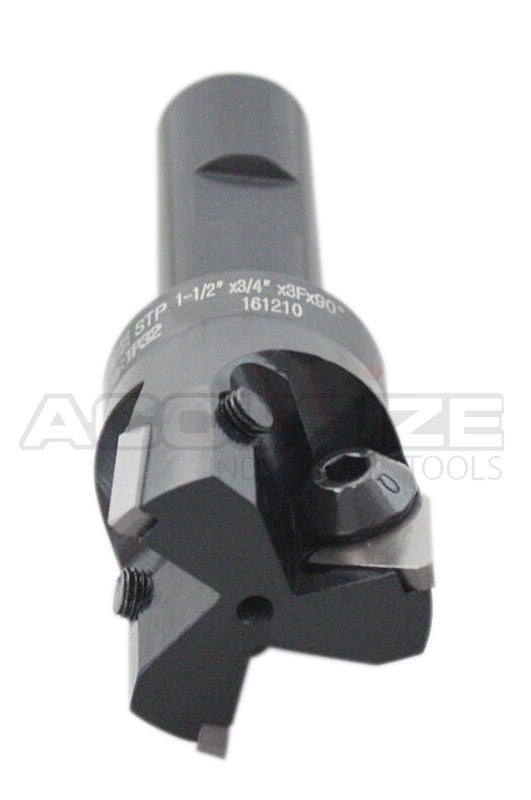

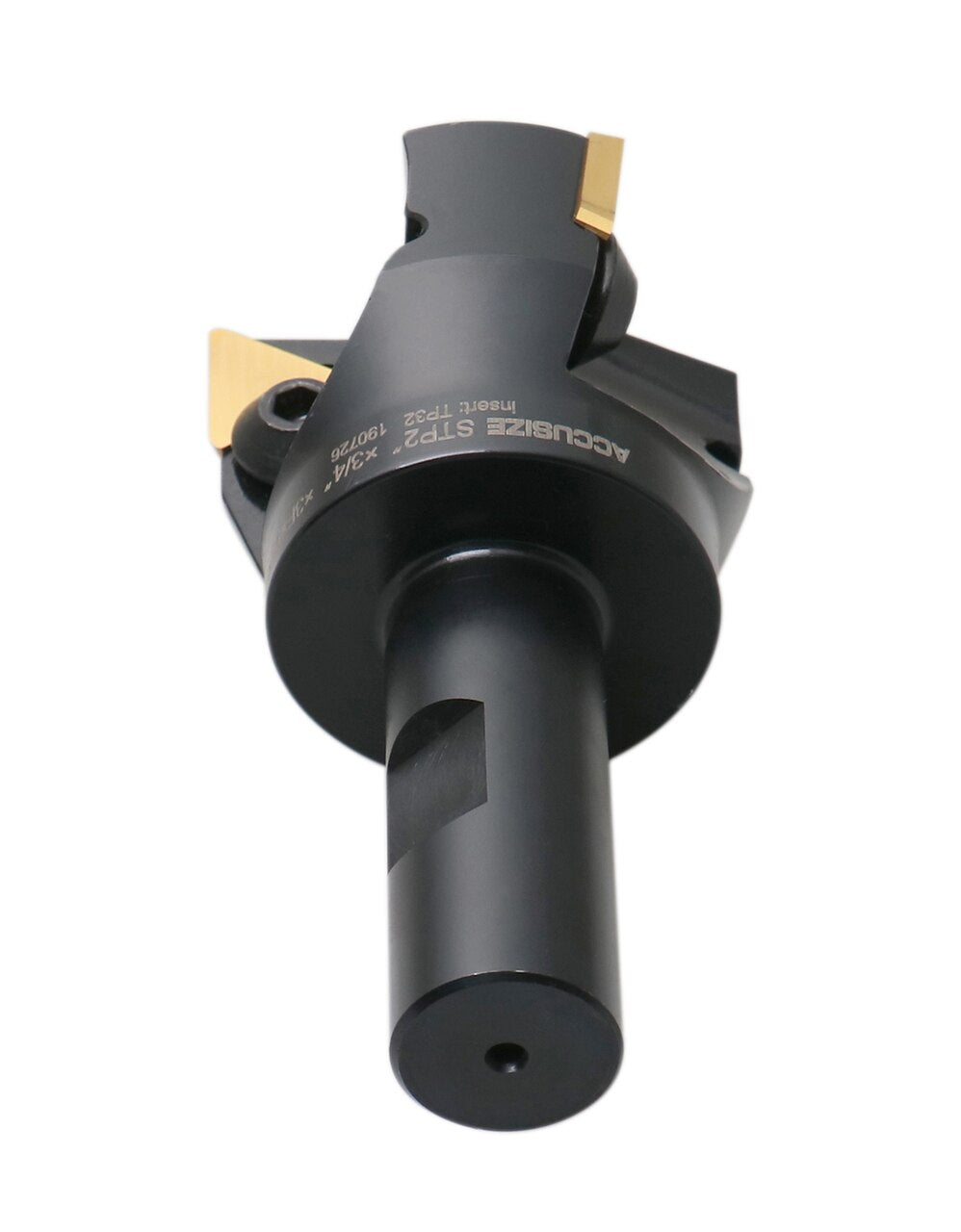

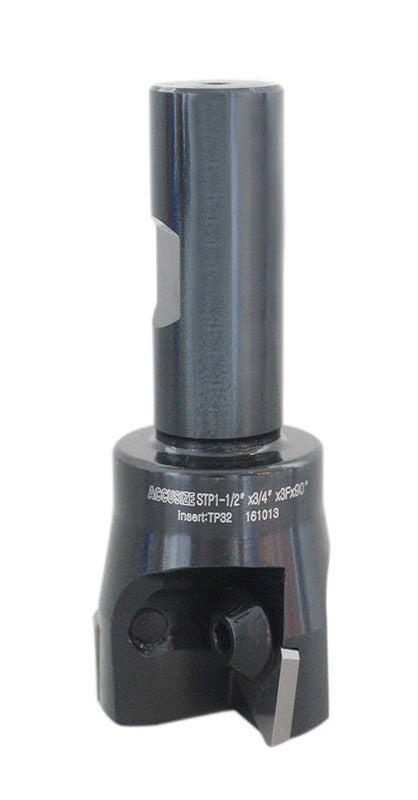

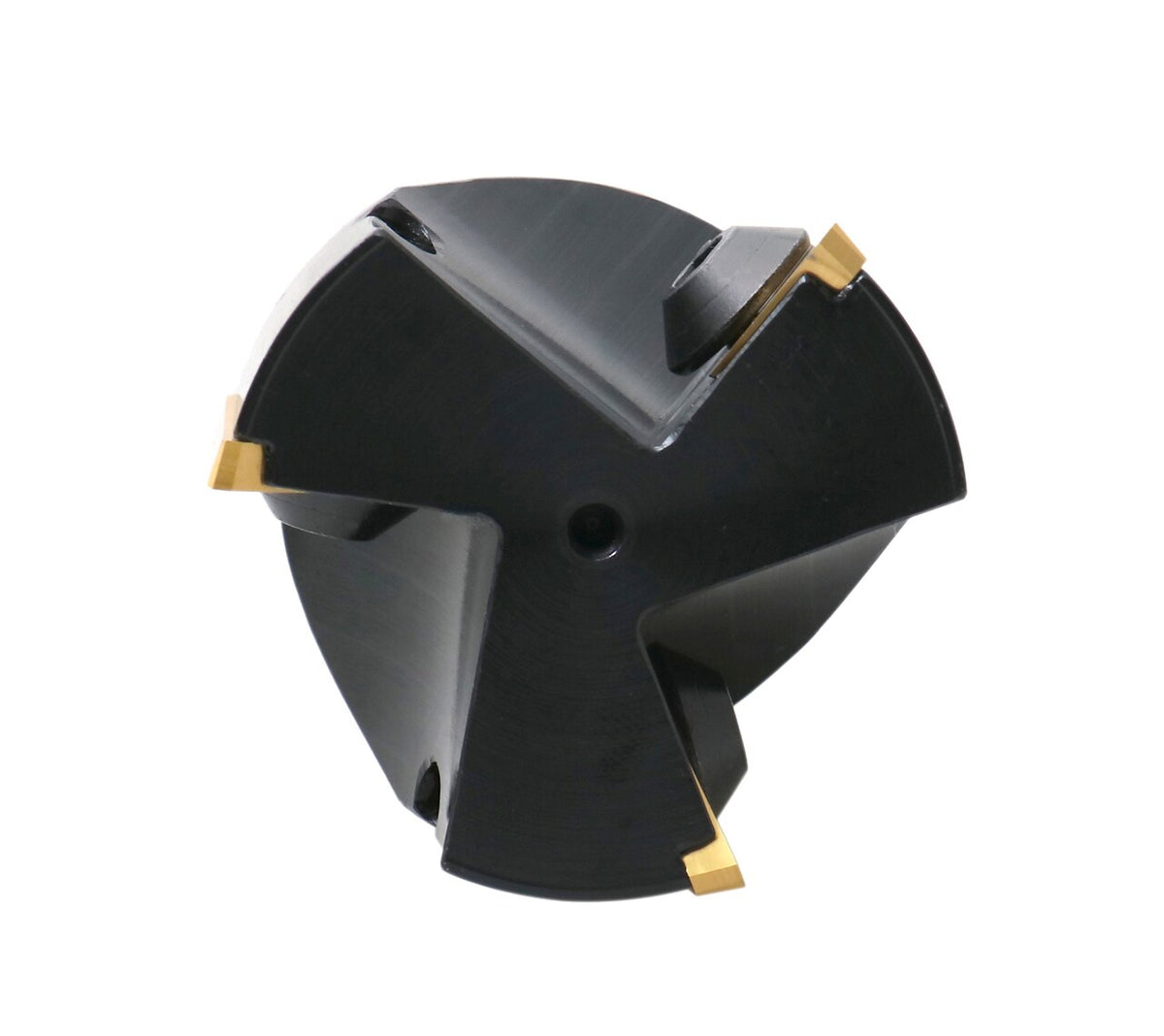

Straight Shank Carbide Indexable End Mill

The 3/4" straight shank indexable end mills are for general machining work. The triangle carbide TPG inserts help you save time and money.  When a cutting edge becomes dull, you just need to rotate the insert in the holder to use the sharp edge. When you buy the replacement inserts, be noted that the larger nose angles and larger tip radii enable a stronger cutting edge, but they result in increased vibration and a rougher finish. Beyond, be noted that the listing has our recommended cutting speed of the indexable shell milling cutters with straight shanks.

  • Comes with TPG inserts installed
  • Uses standard triangular inserts.
  • Positive rake 90°, right-hand cut.

 **Please note that we keep upgrading the products without further notification. Sometimes you will receive the products with Tin coated carbide turning milling TPG inserts at the same pricing level. The coated inserts last longer and can run at faster speeds than uncoated ones.

Item L L1 L2 L3 D D1 d h No of Inserts Inserts Code Locking Screw

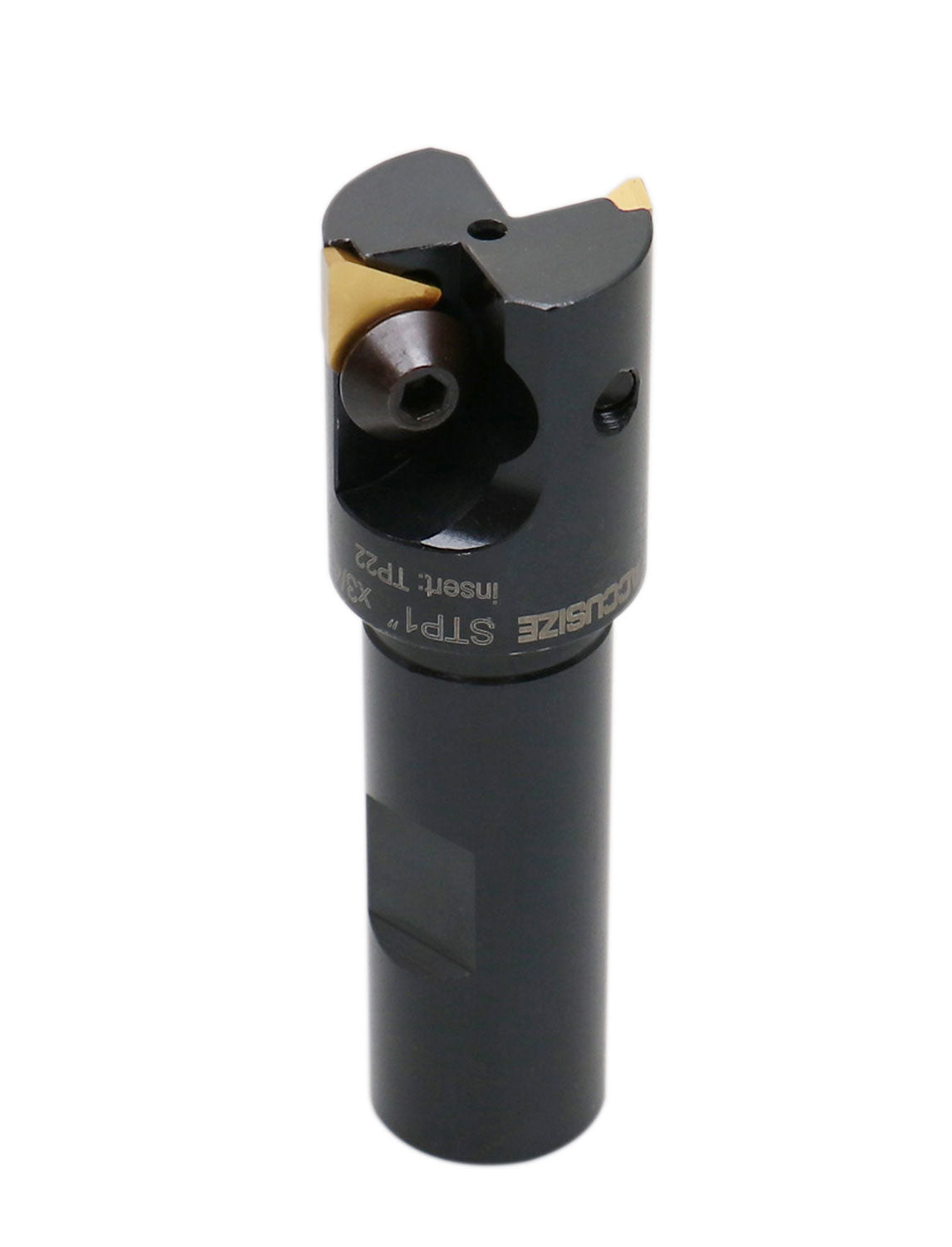

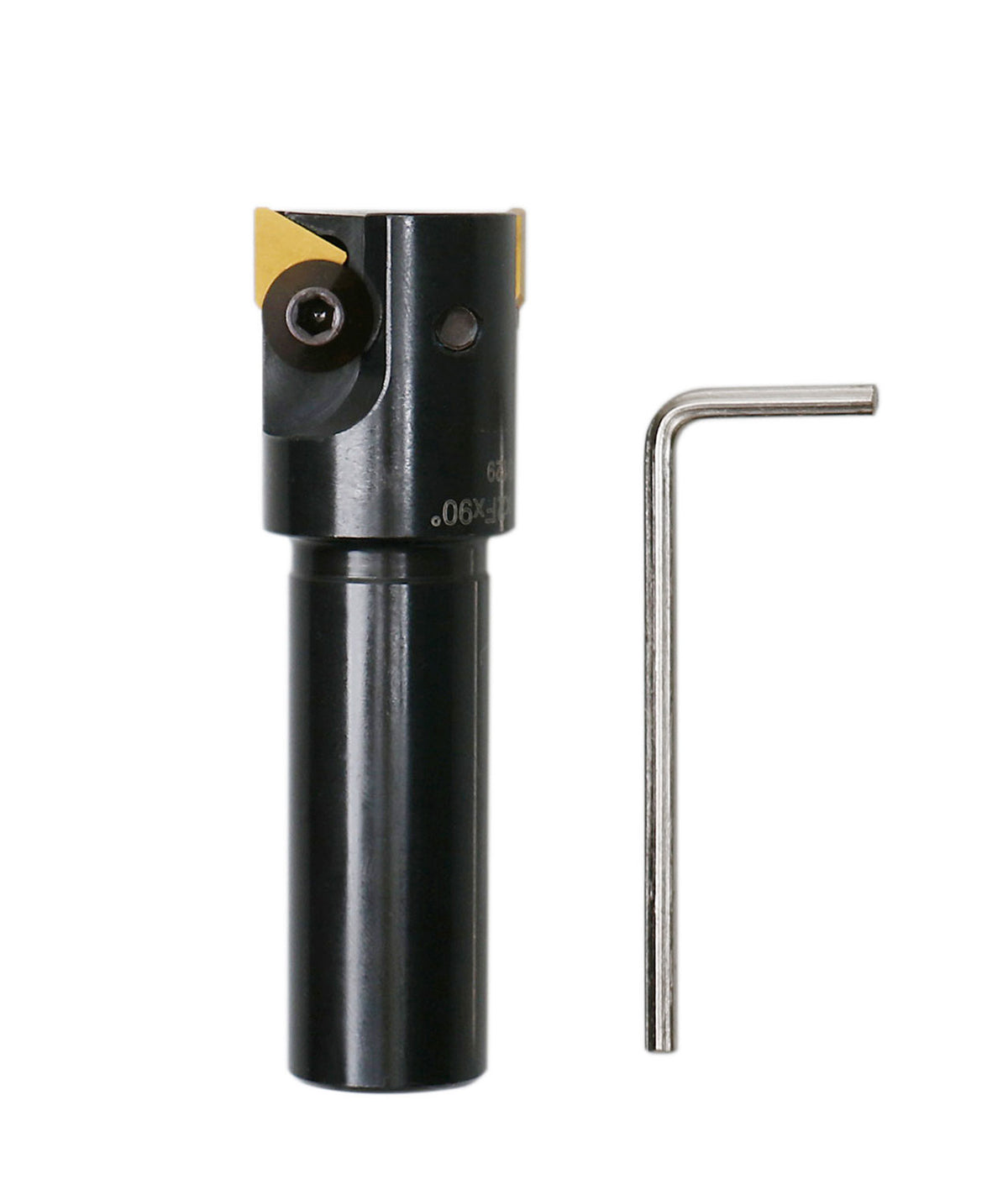

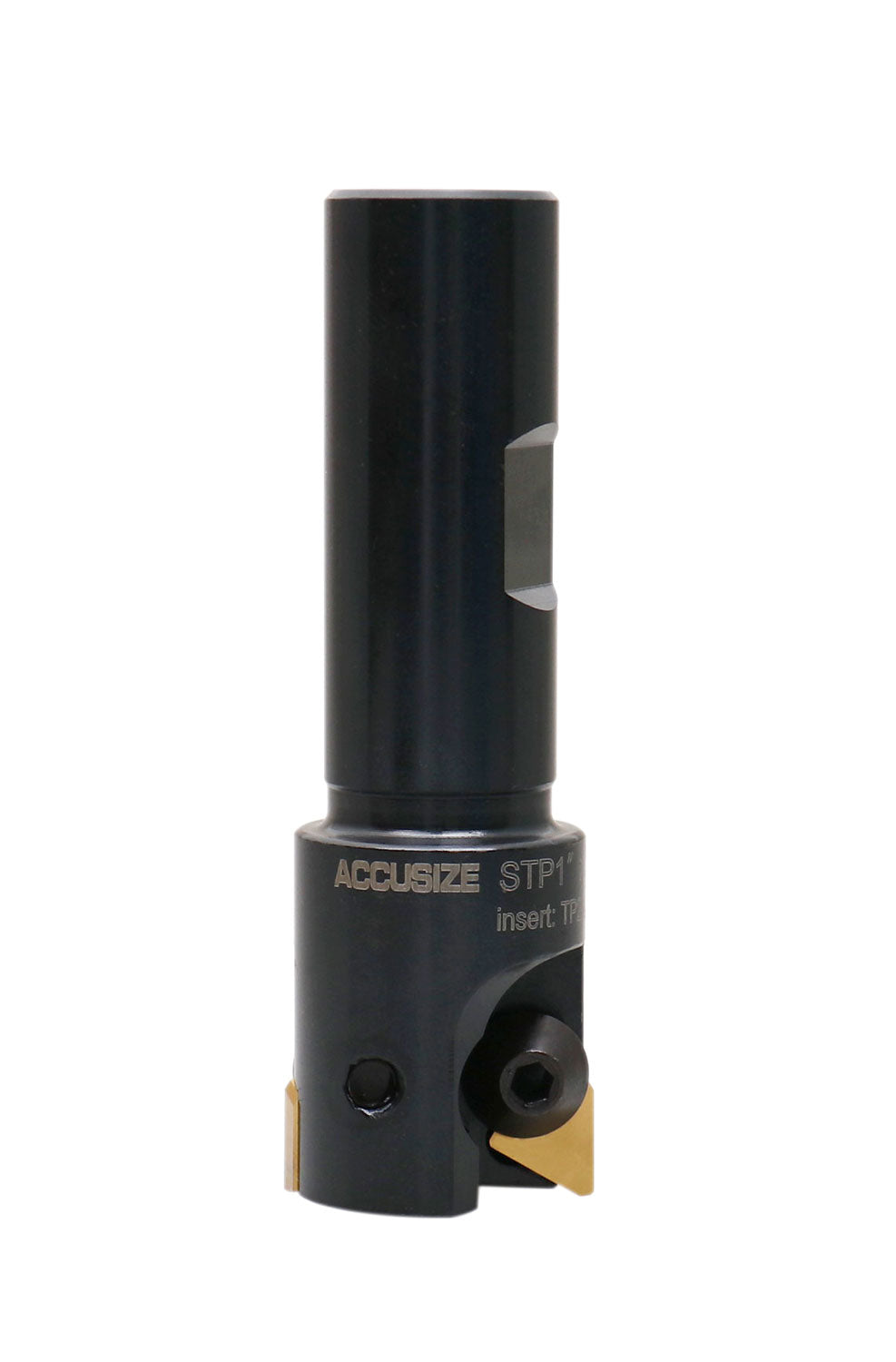

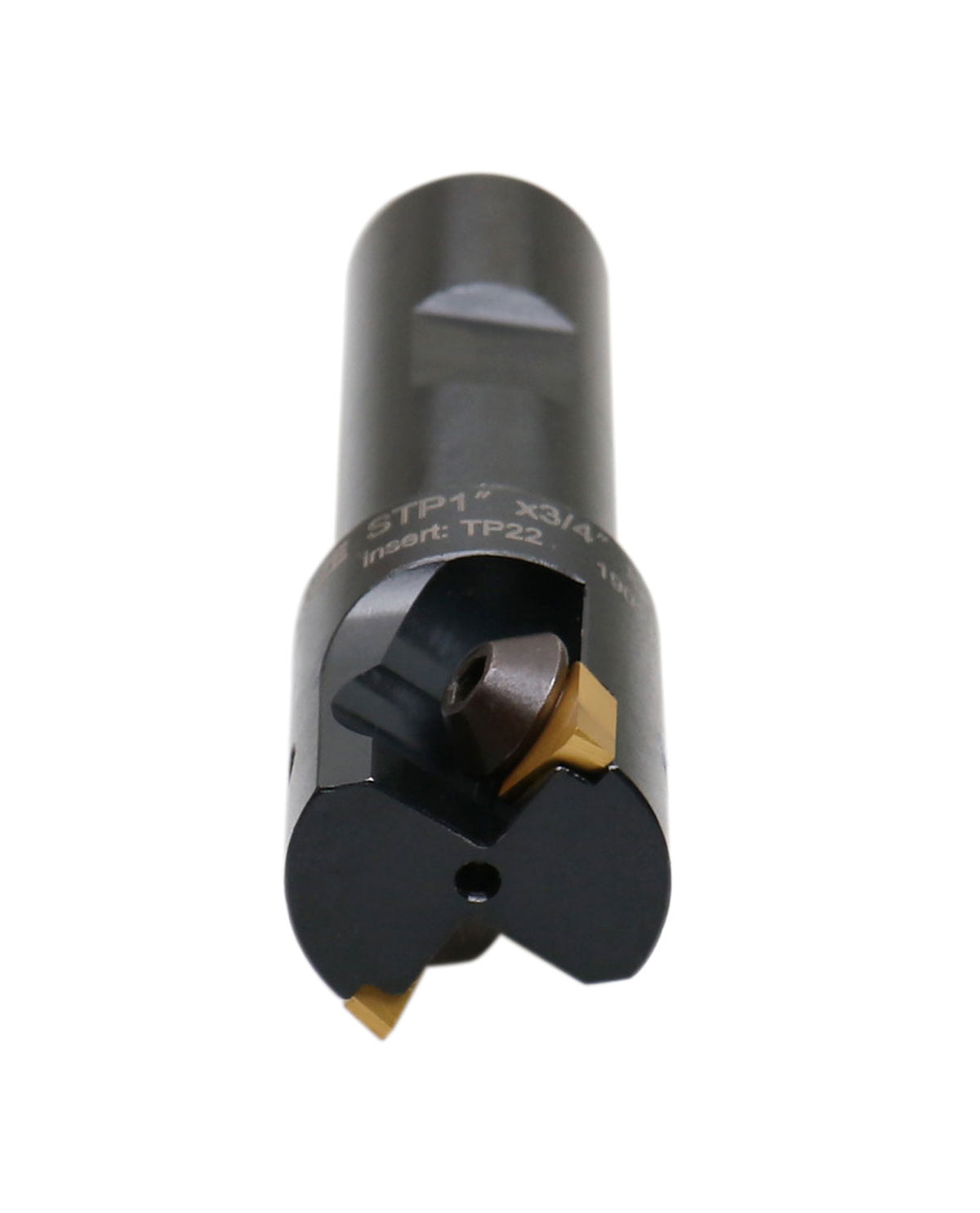

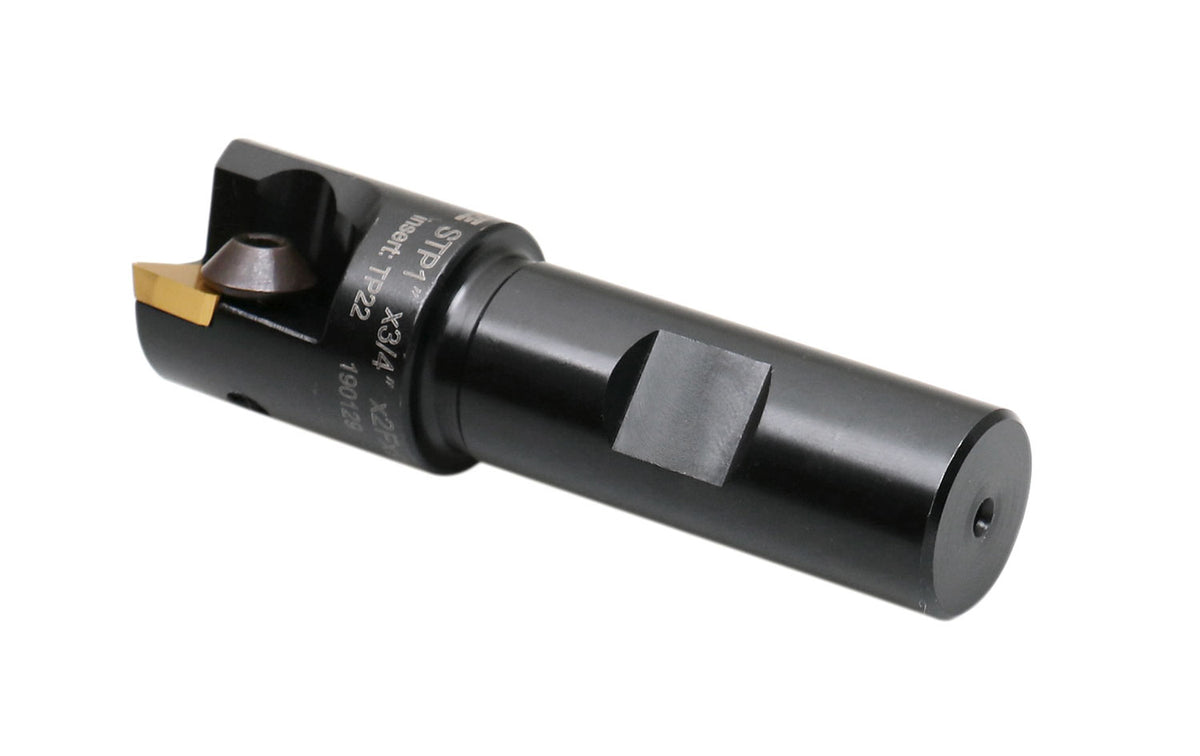

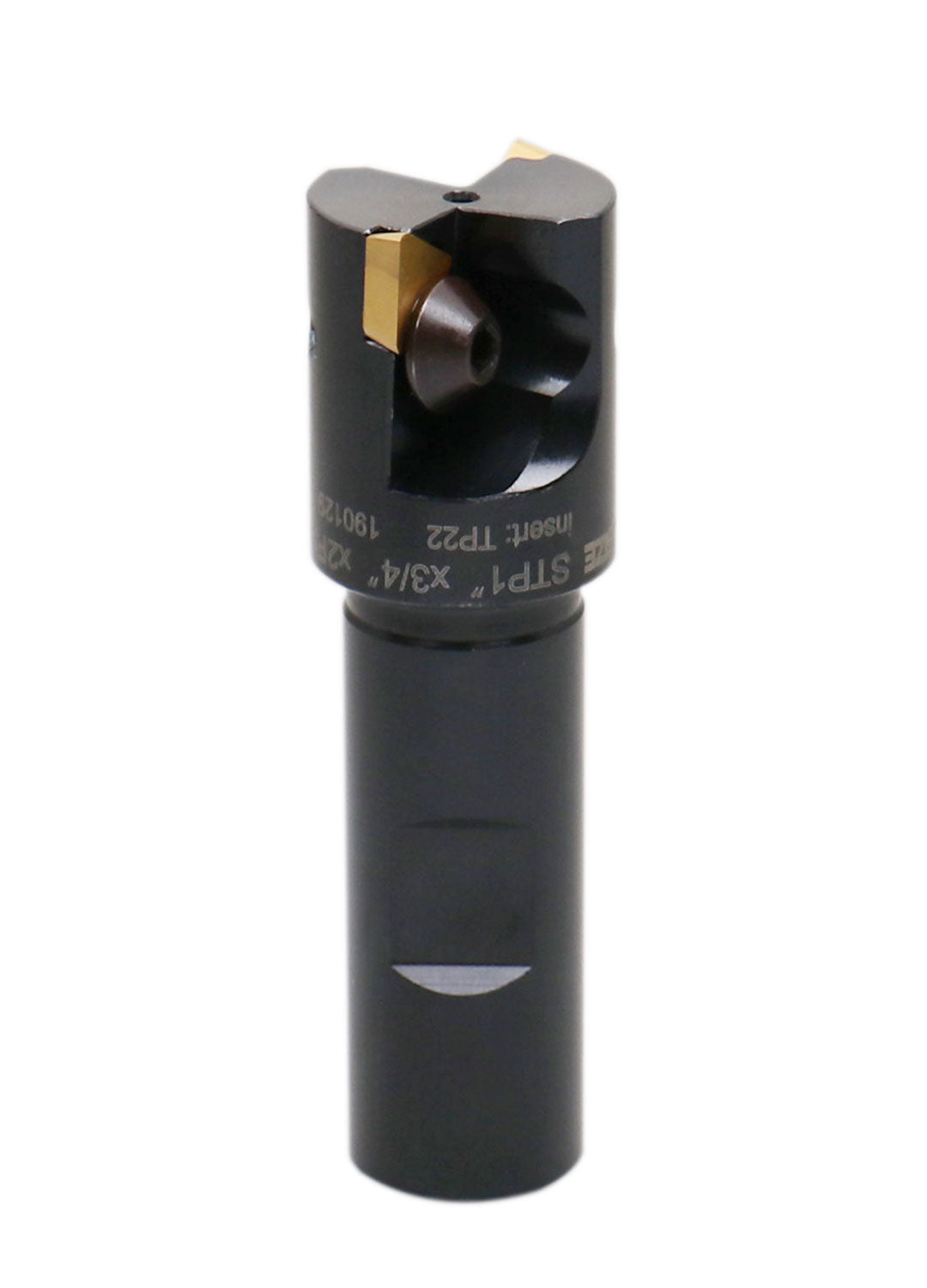

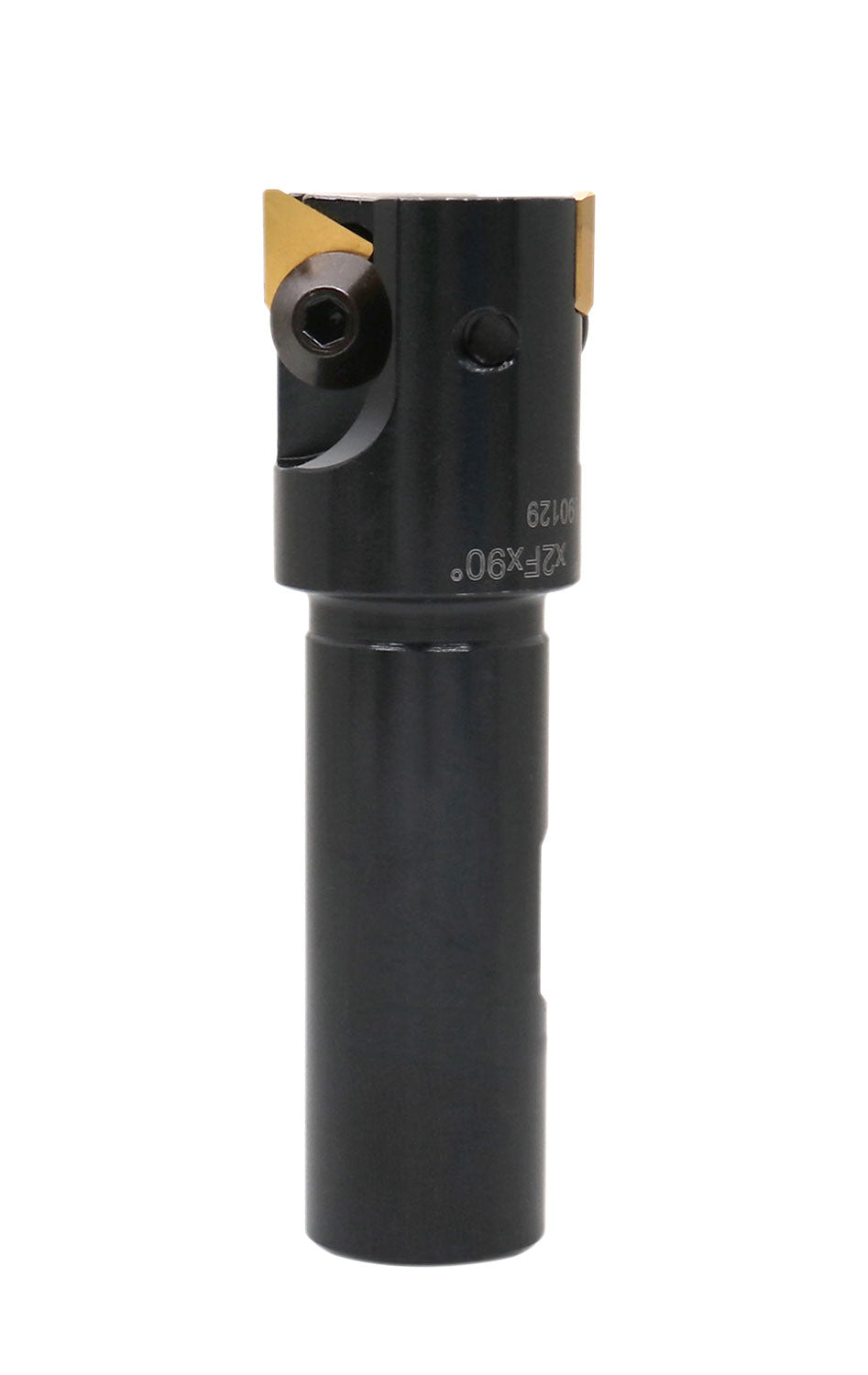

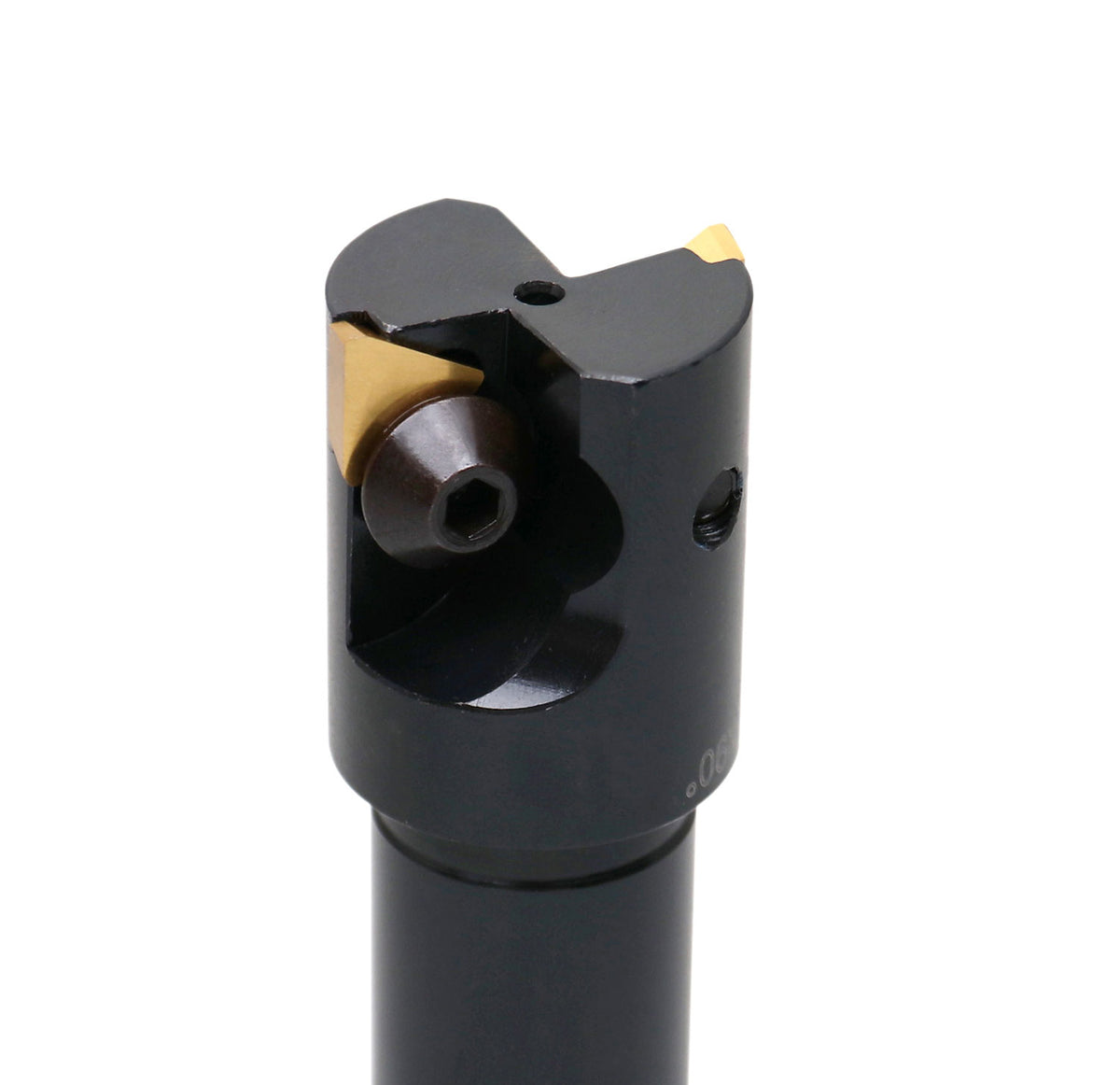

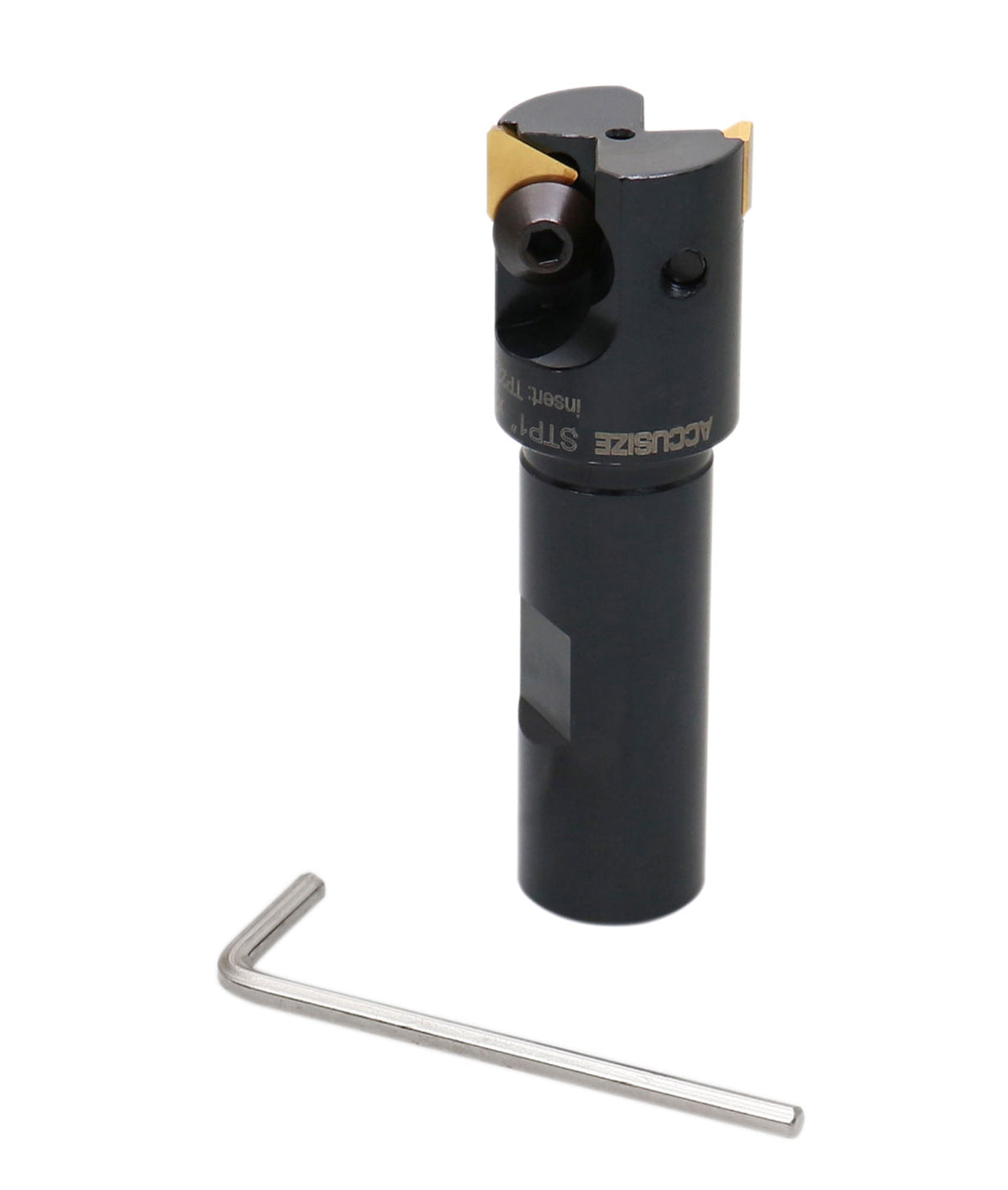

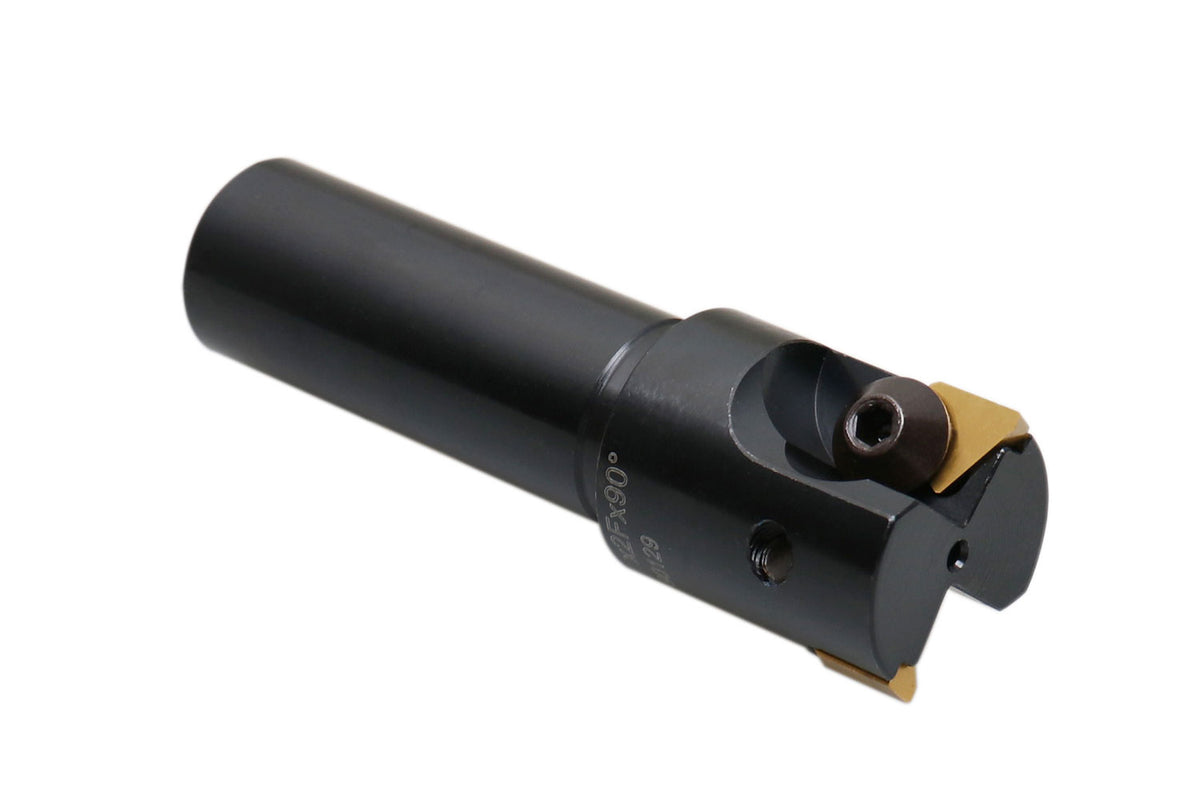

0046-0912 3-1/4" 2" 1" 0.457" 1" - 3/4" - 2 TPG22 SM5 X 10

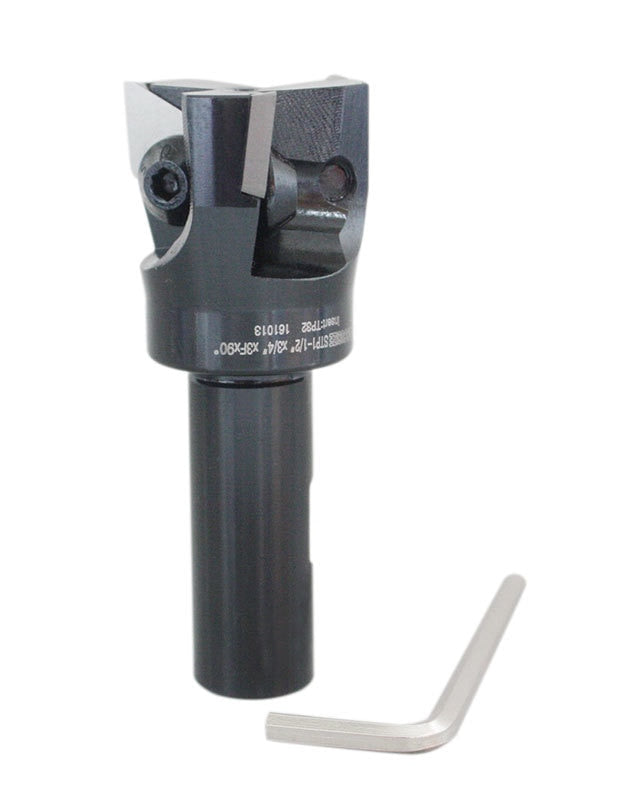

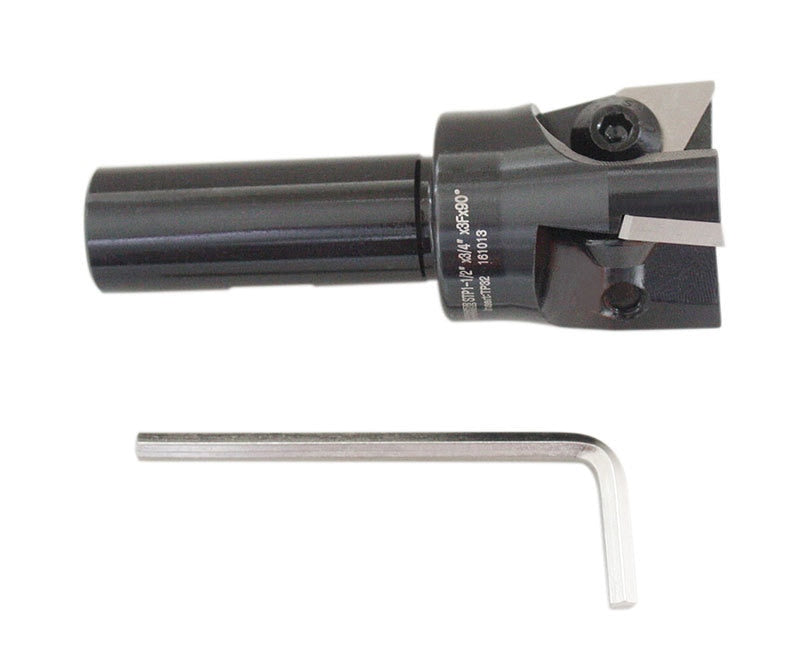

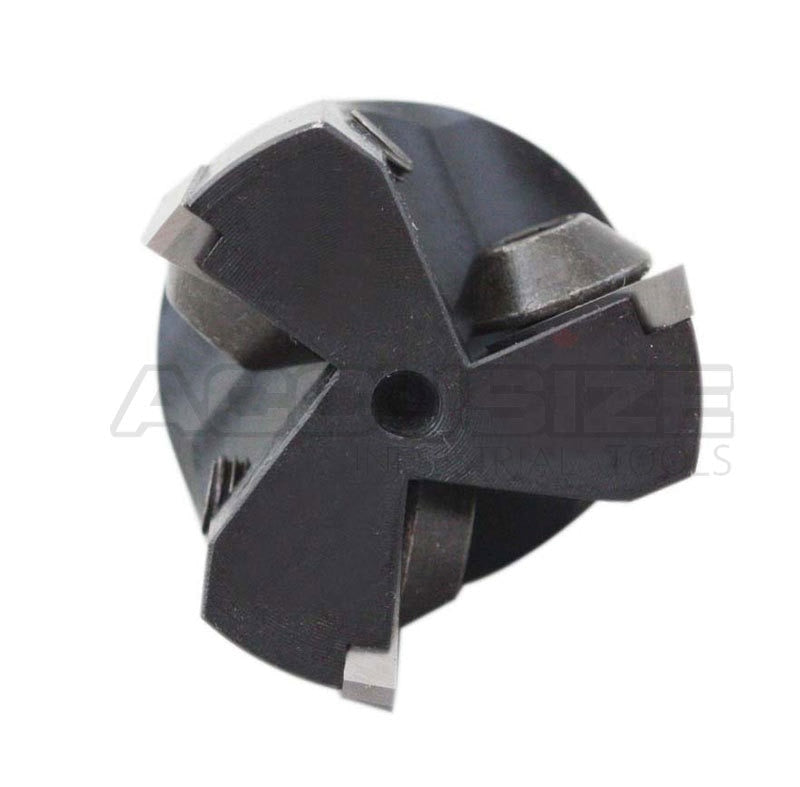

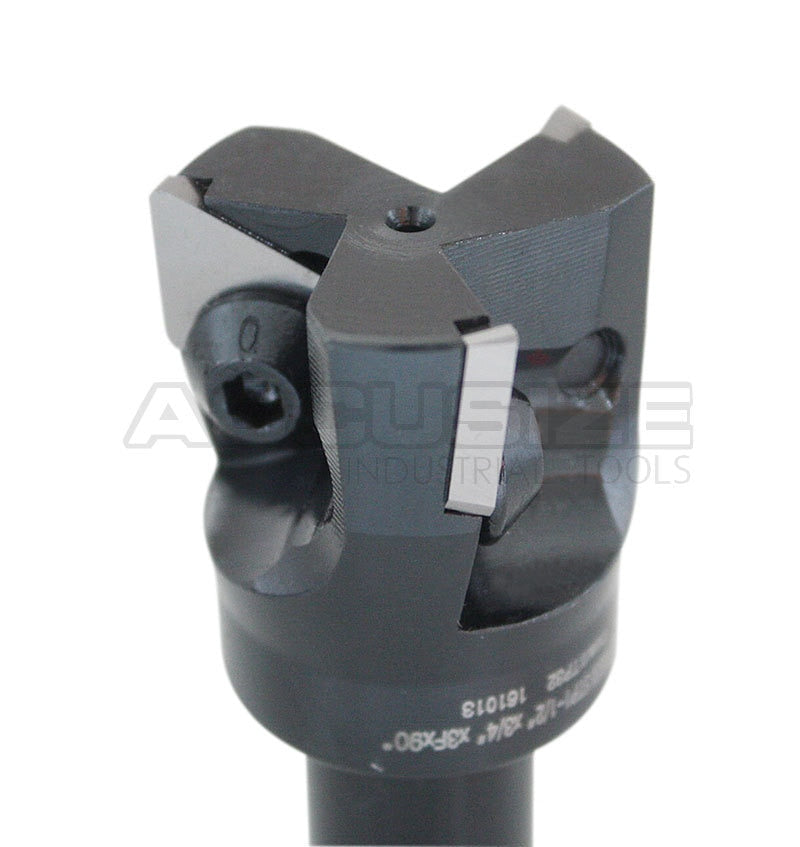

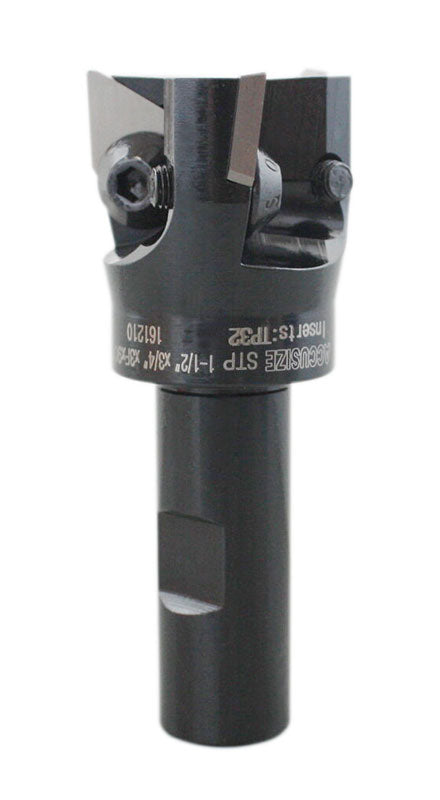

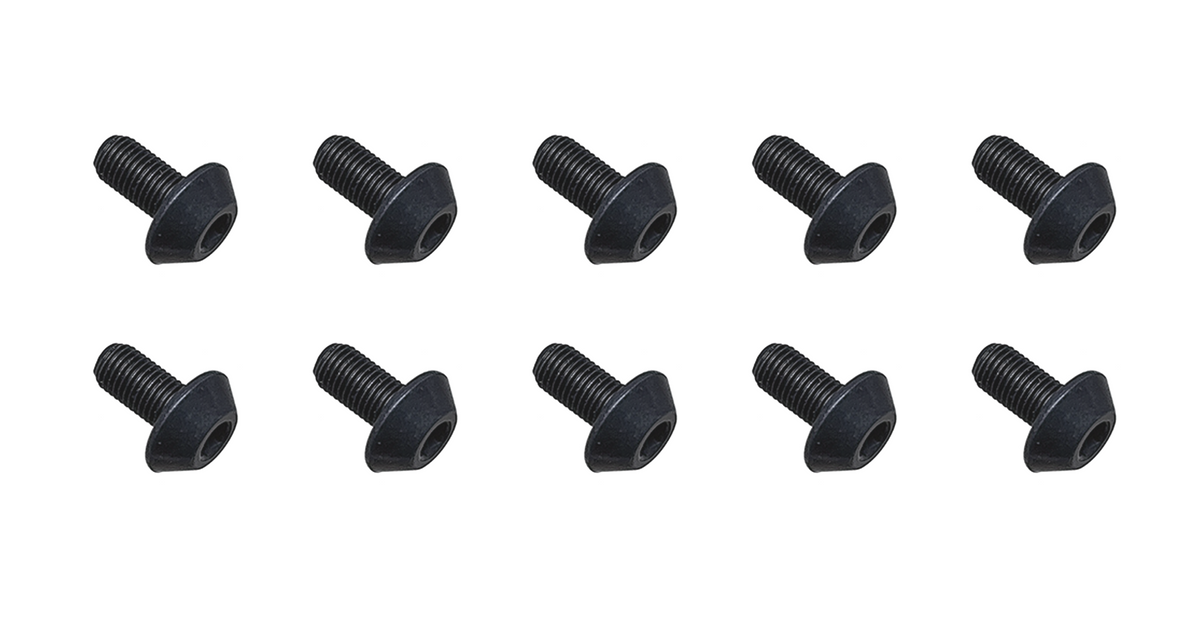

0046-0913 3-1/2" 2" 1" 0.457" 1-1/2" - 3/4" - 3 TPG32 SM6 X 12

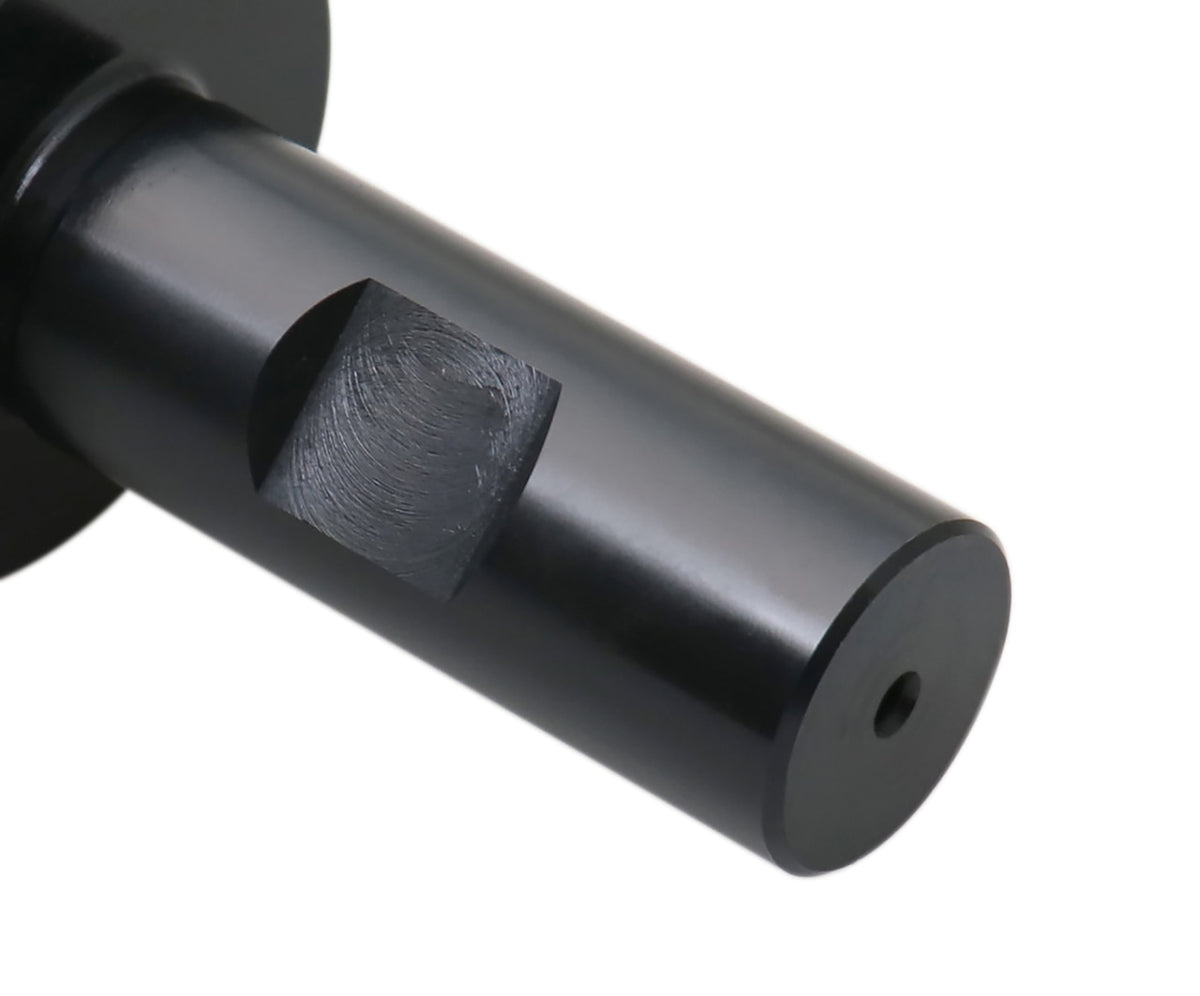

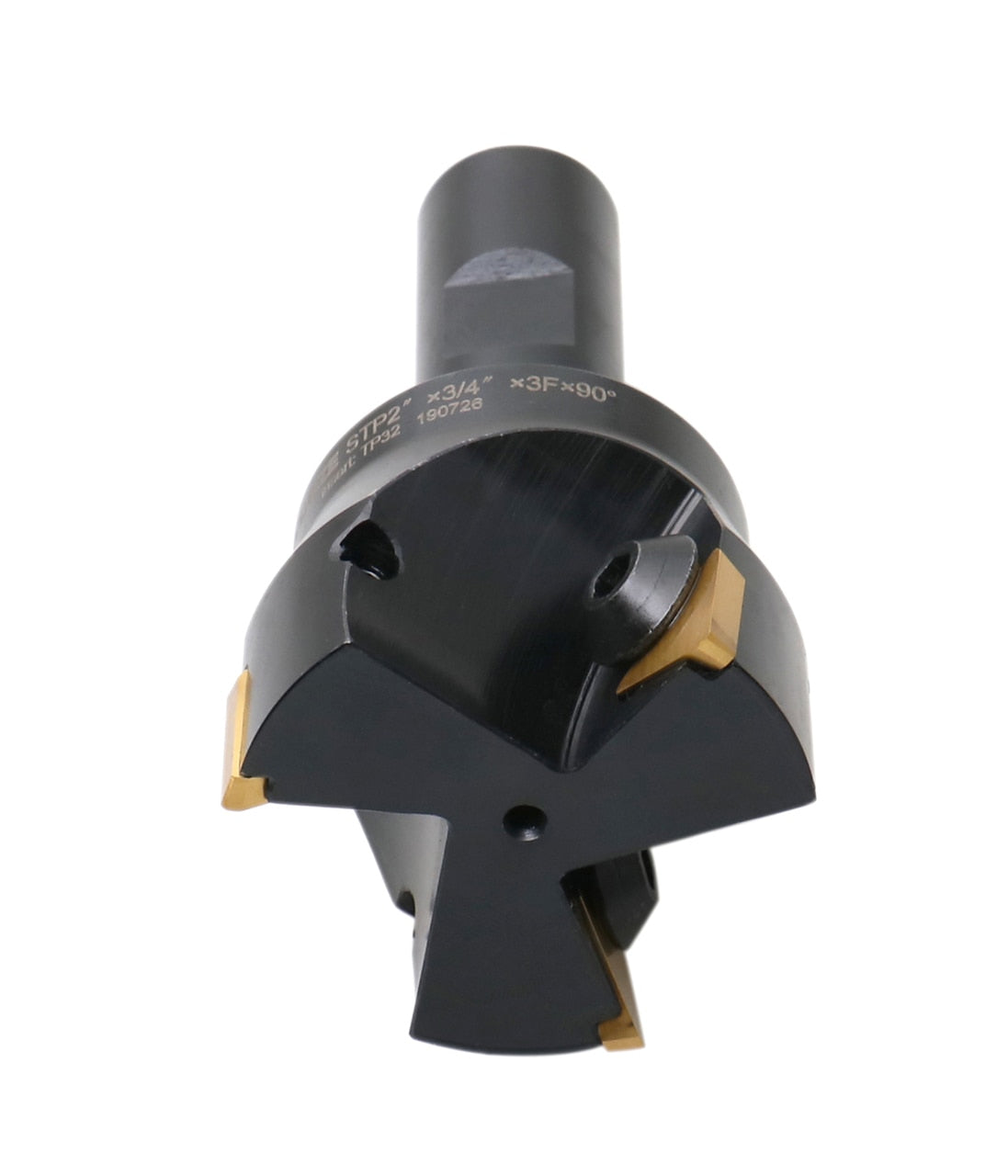

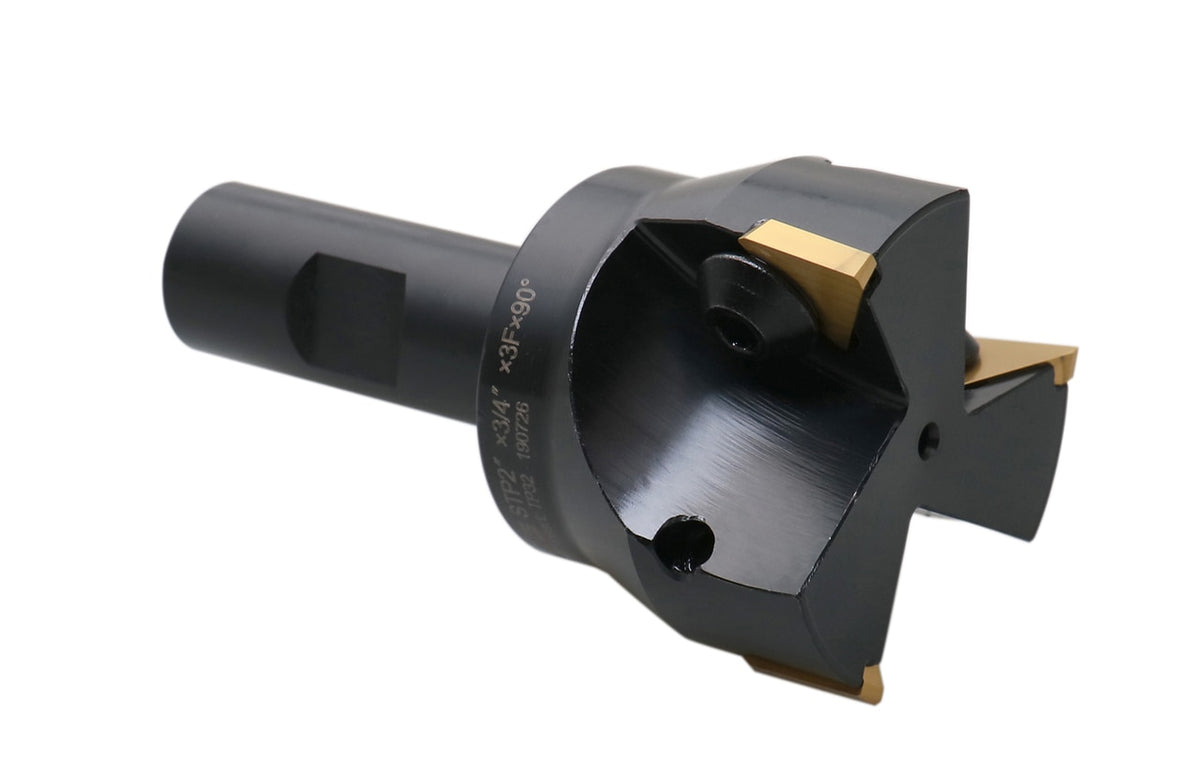

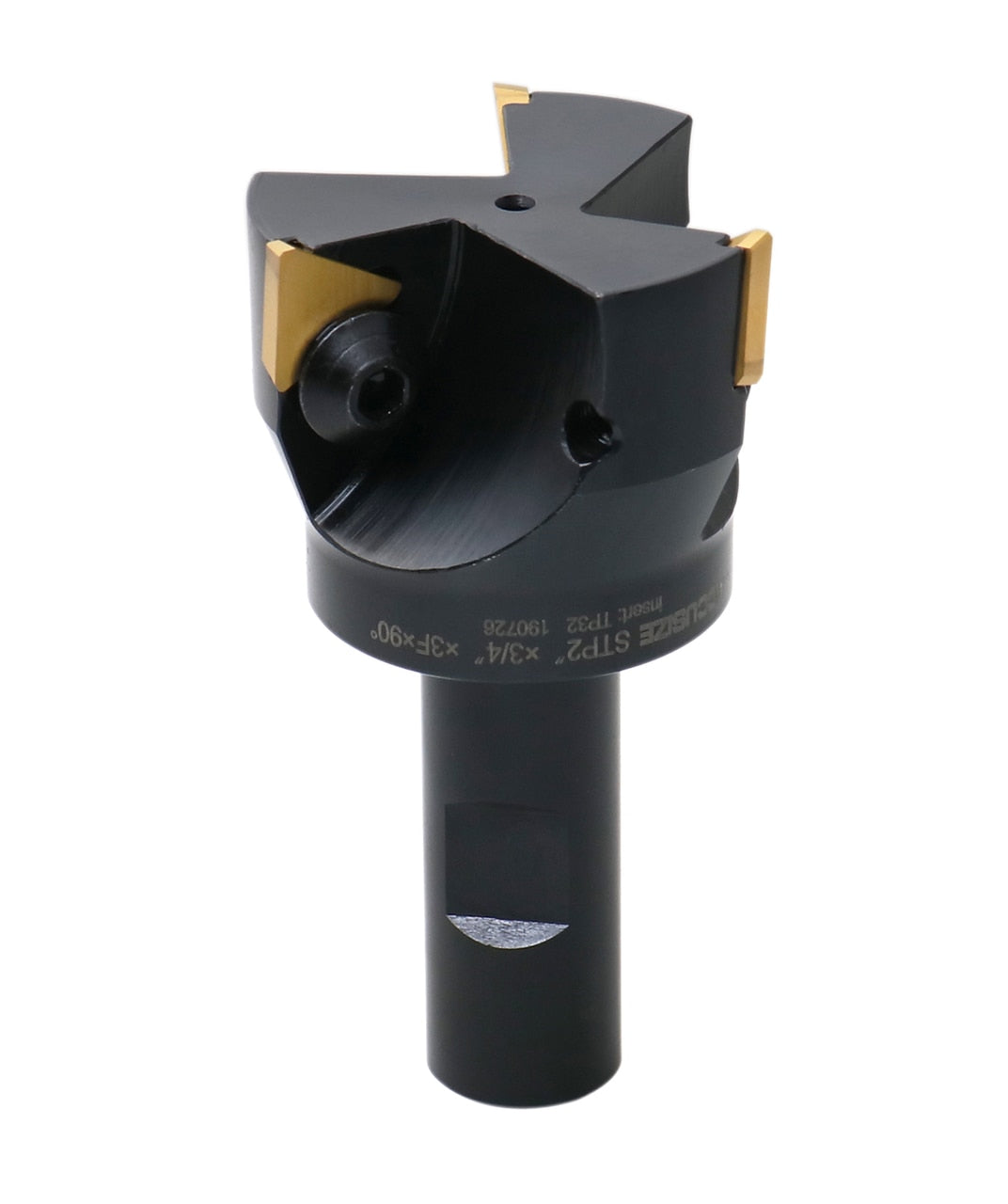

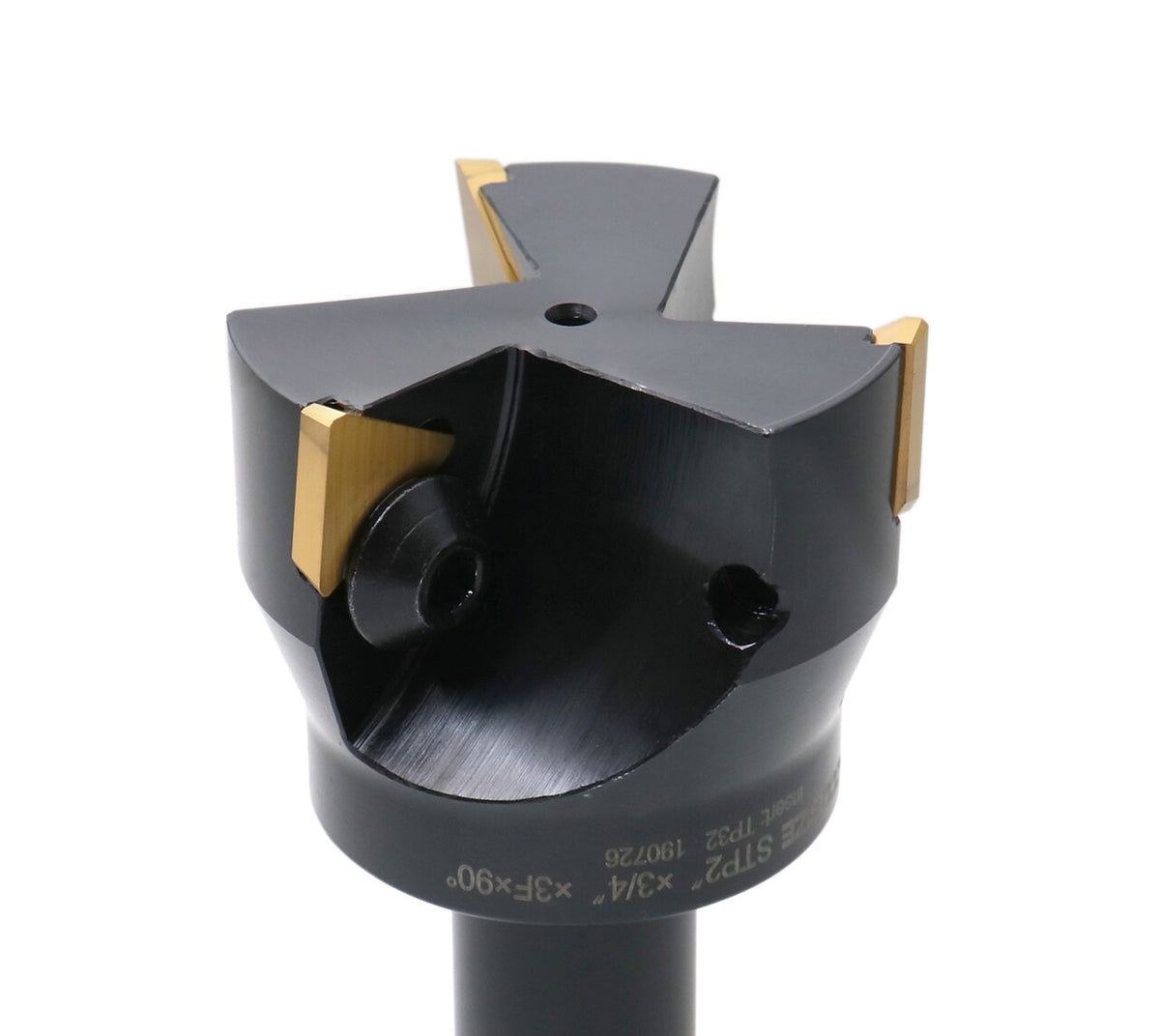

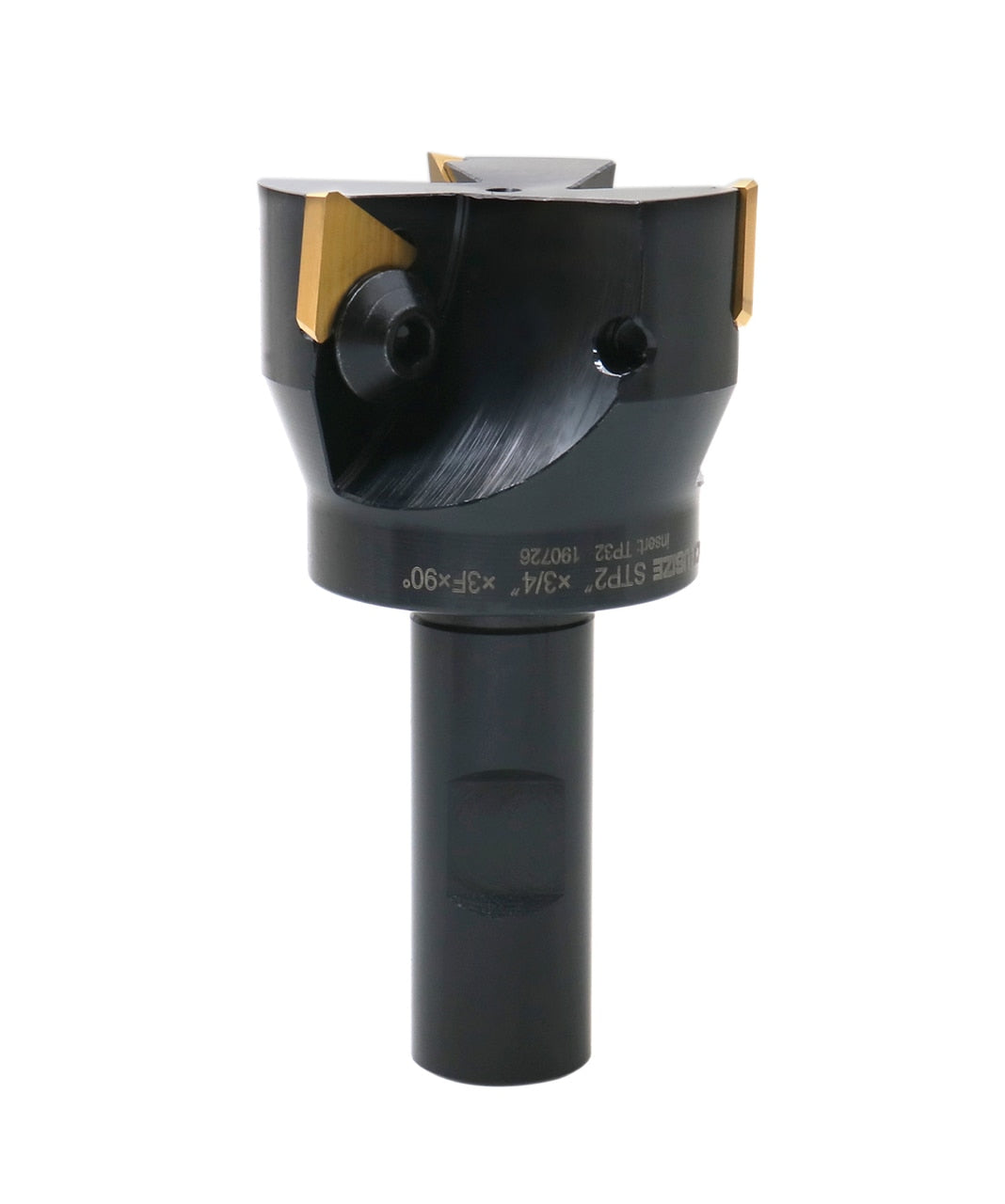

0046-0914 3.645" 2-1/32" 1.016" 0.457" 2" 1.574" 3/4" 0.675" 3 TPG32 SM6 X 12

 diagram and specification of Accusize Indexable Shell Milling Cutter End Mills with 3/4" straight shank and TPG Triangle Inserts



Recommend Cutting Speed:




  • V= Cutting Speed (m/min)
  • f= Feed per tooth (mm/Z)
  • ae=Cutting width(mm)
Item No. Description Materials Hardness(HB) Cutting parameter
V(m/min) f(mm/Z) ae
0046-0912 1" Carbide Indexable End Mills, 3/4"Straight Shank Low-carbon Steel ≤180 60-120 0.2(0.05-0.1) ≤0.5D
High-carbon Steel, Alloy Steel 180-280 60-120 0.2(0.05-0.1) ≤0.5D
Tool Steel 280-350 60-90 0.2(0.05-0.1) ≤0.5D
0046-0913 1-1/2" Carbide Indexable End Mills, 3/4"Straight Shank Low-carbon Steel ≤180 40-80 0.2(0.1-0.2) ≤0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) ≤0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) ≤0.5D
0046-0914 2" Carbide Indexable End Mills, 3/4"Straight Shank Low-carbon Steel ≤180 40-80 0.2(0.1-0.2) ≤0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) ≤0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) ≤0.5D


**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
