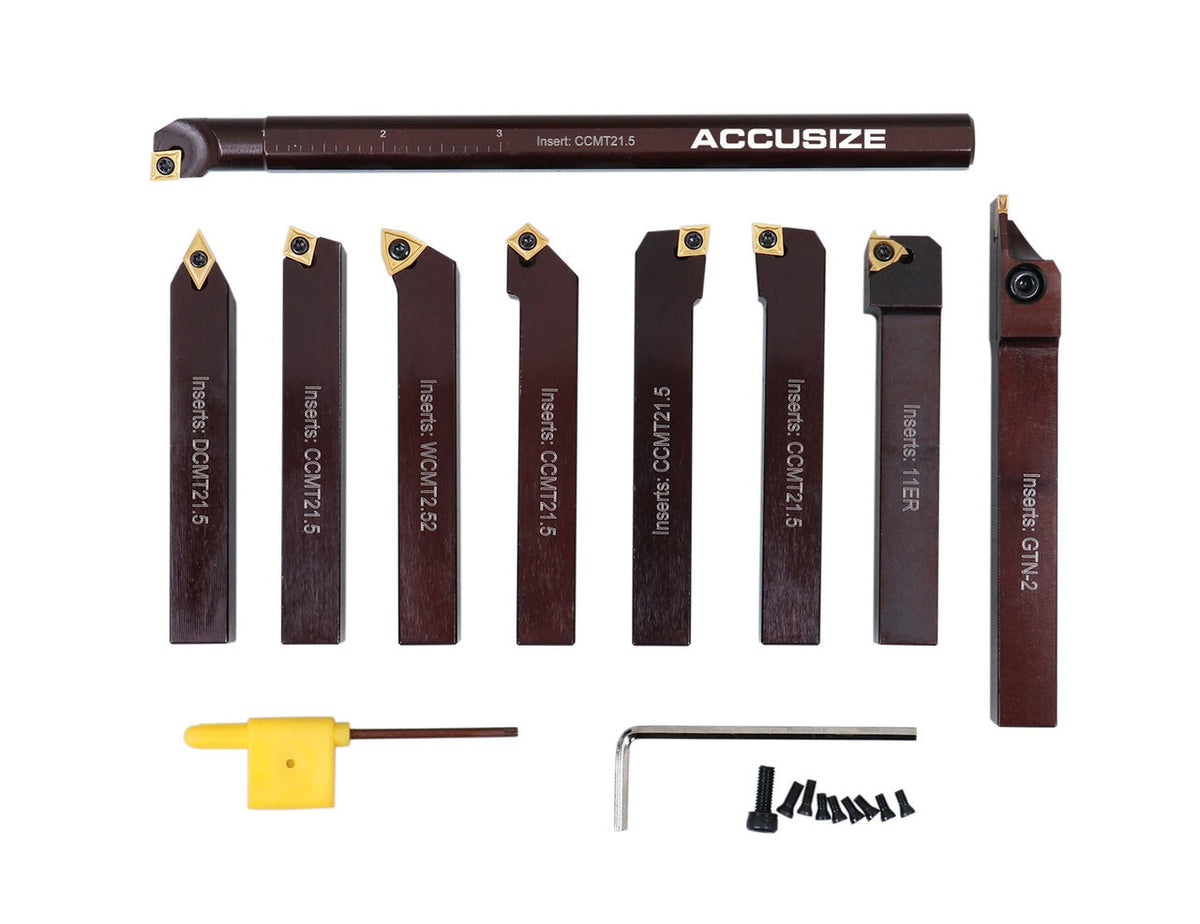

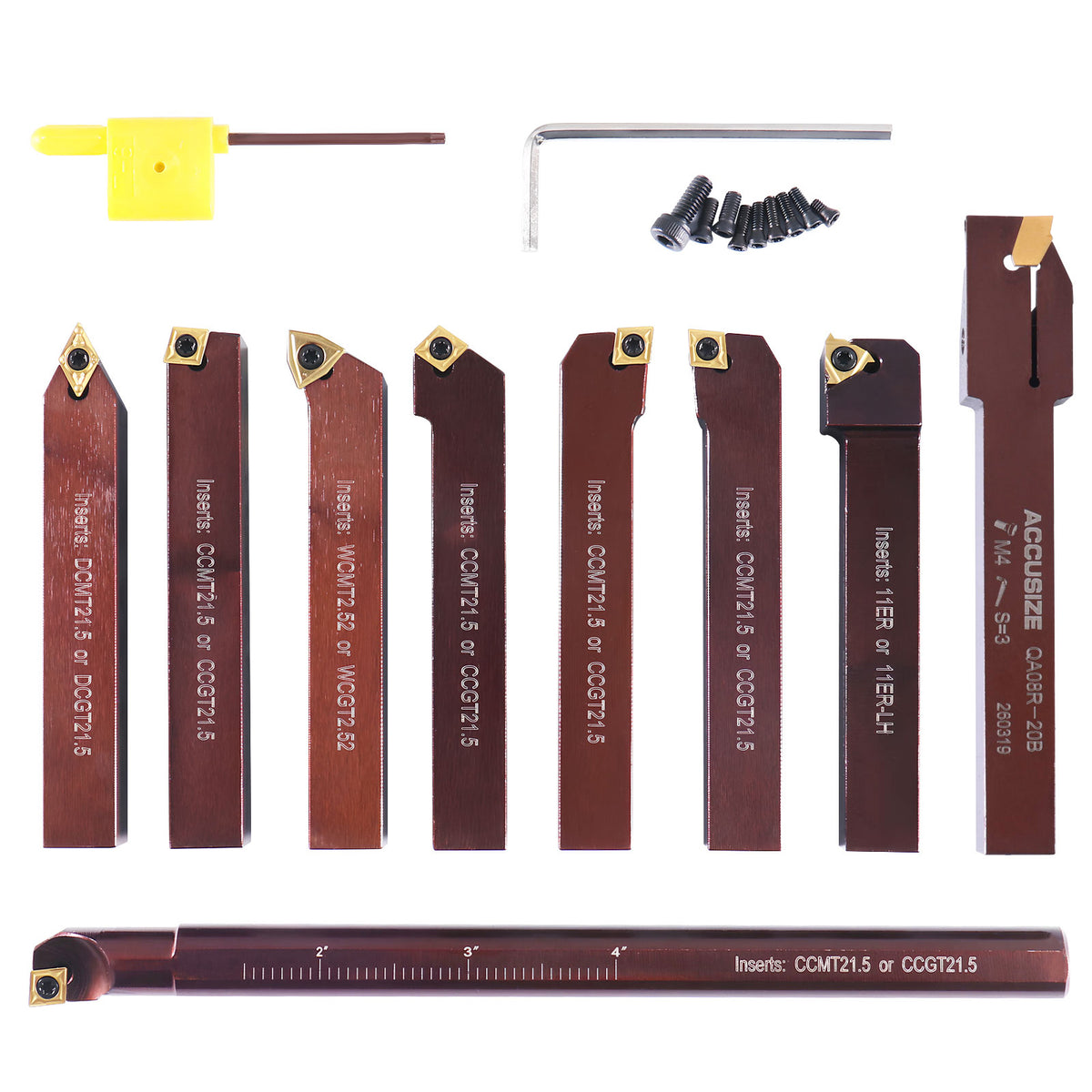

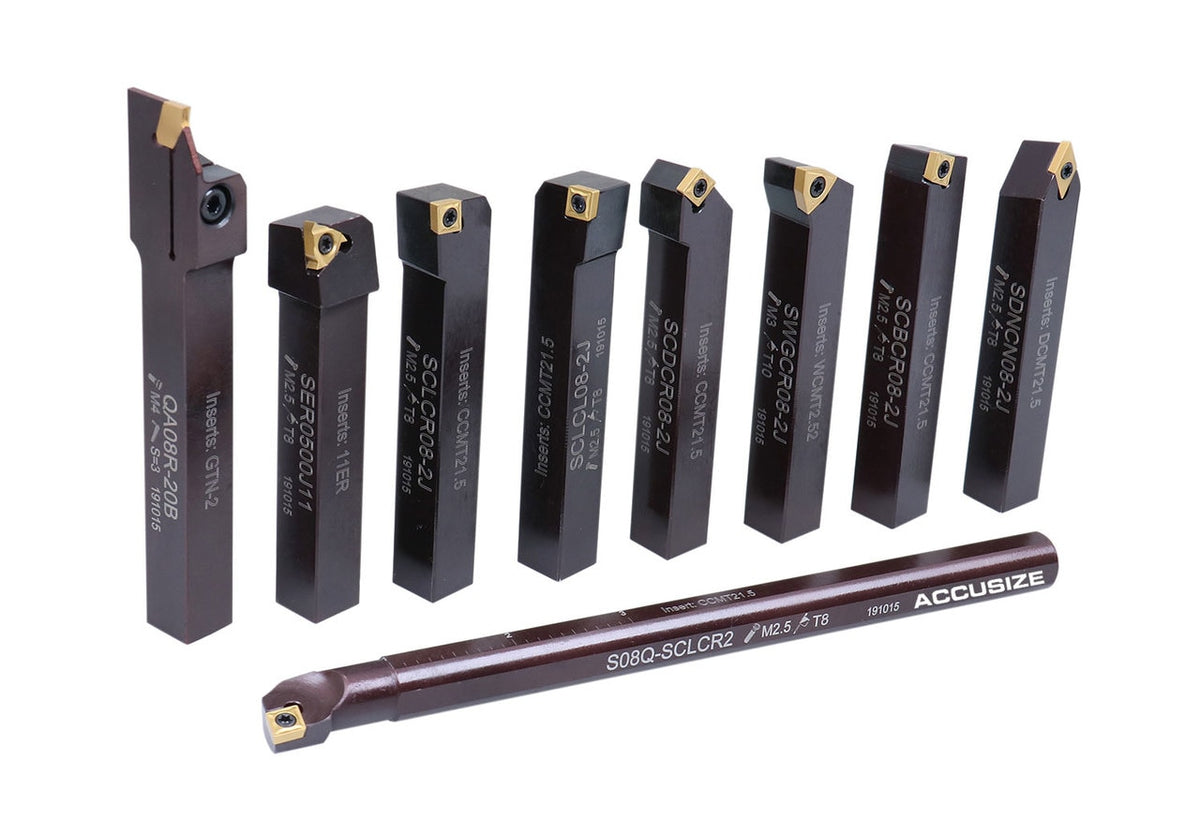

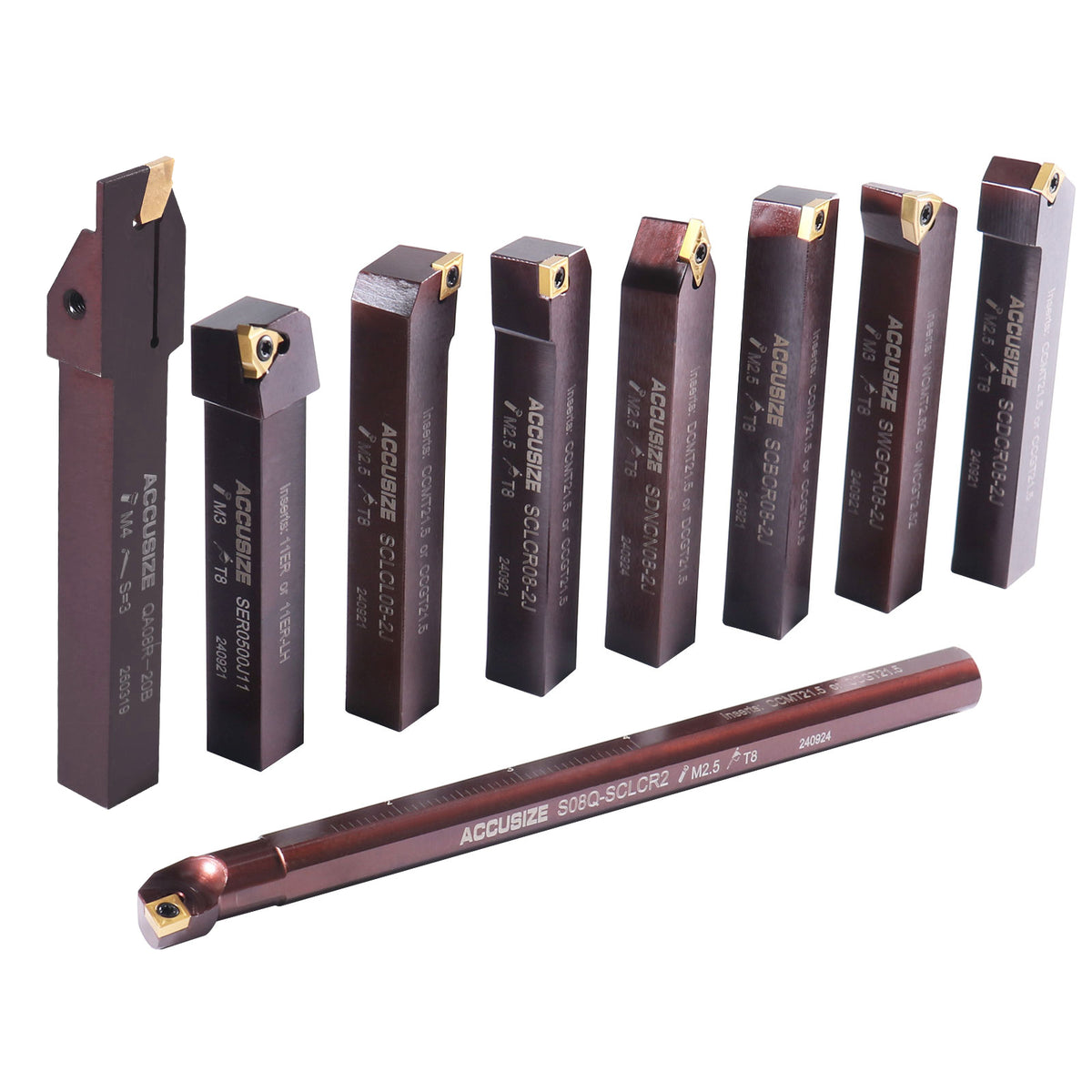

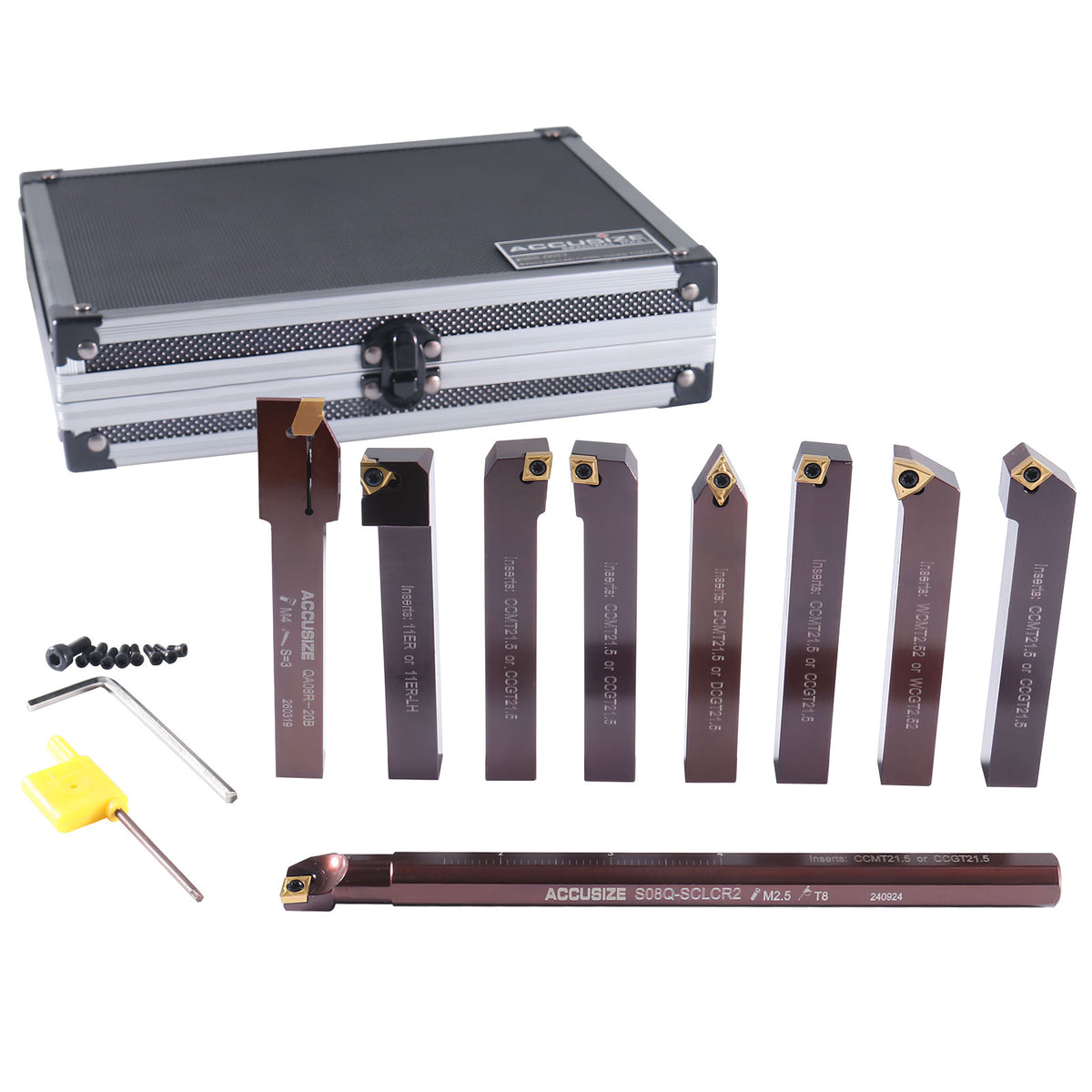

1/2" 9 Pieces Lathe Tool Set, Indexable Carbide Turning Tools and Boring Bar, 2988-0012
- Black oxide smooth finish on each turning tool holder marked with tool holder style and shank size.
- Each tool holder cwith a C6 TiN Coated carbide insert for cutting steel with a positive rake cutting angle and built-in chip breaker great for general purpose cutting action.
- Insert screw and wrench included.

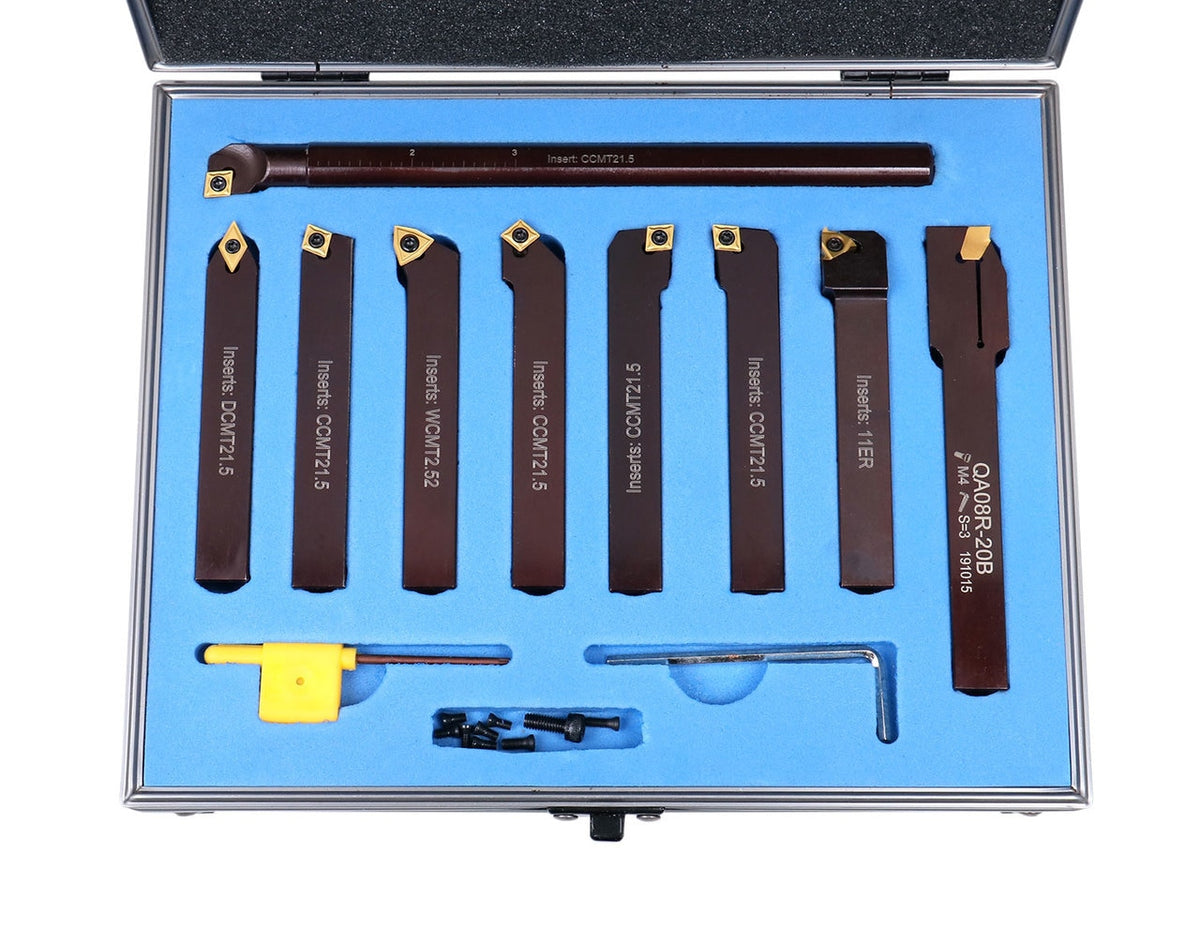

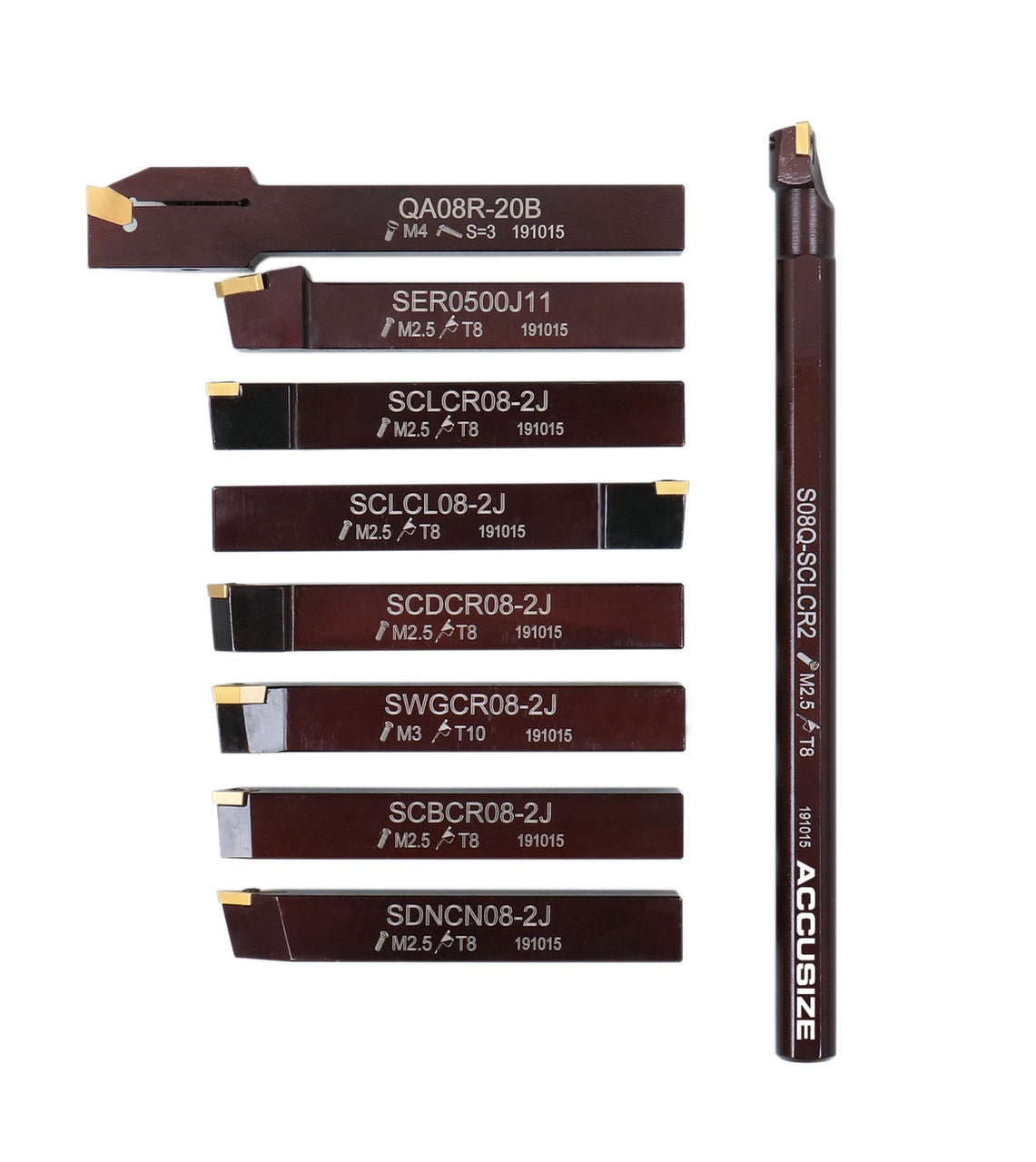

- 9pc indexable turning tool holder and indexable boring bar
- 9pc TiN Coated C6 carbide insert
- 9pc hex screw.
- 1pc hexagon key.

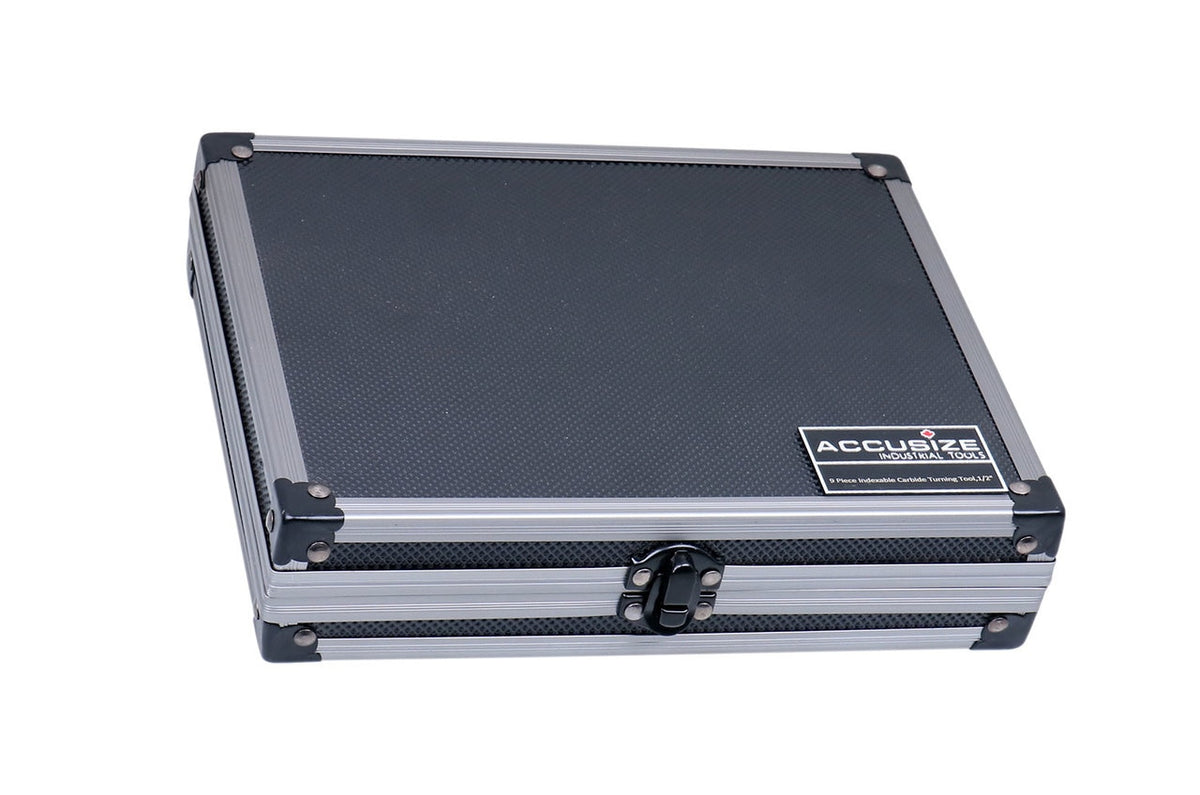

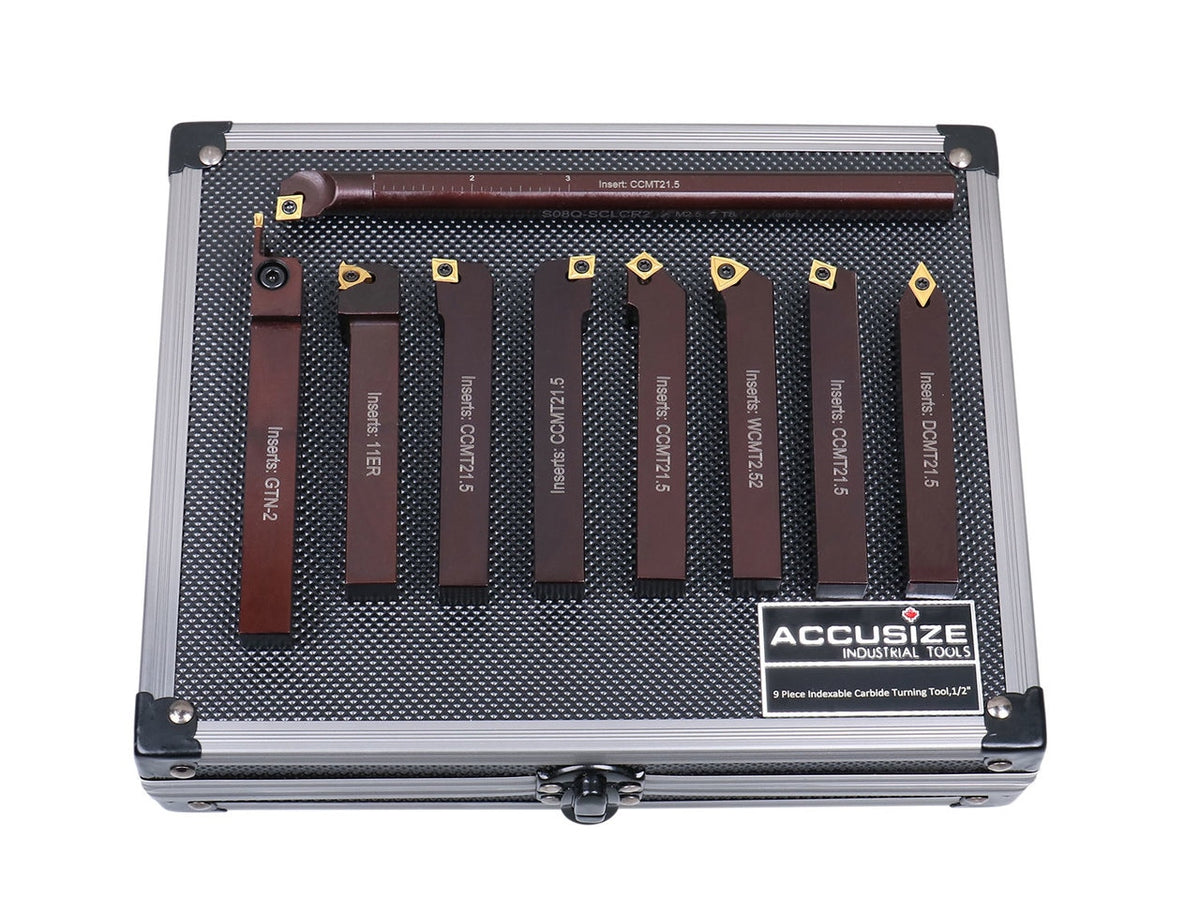

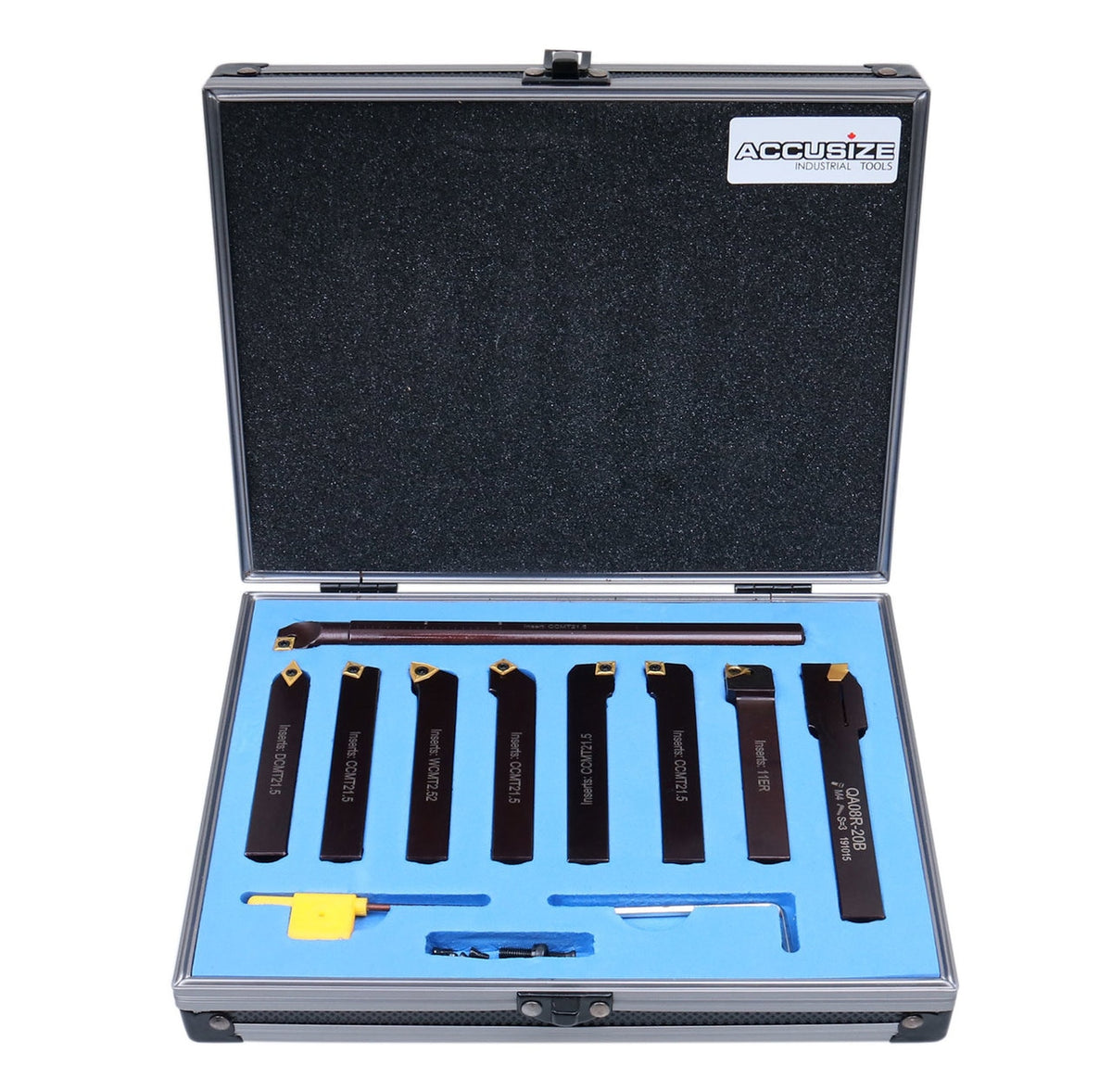

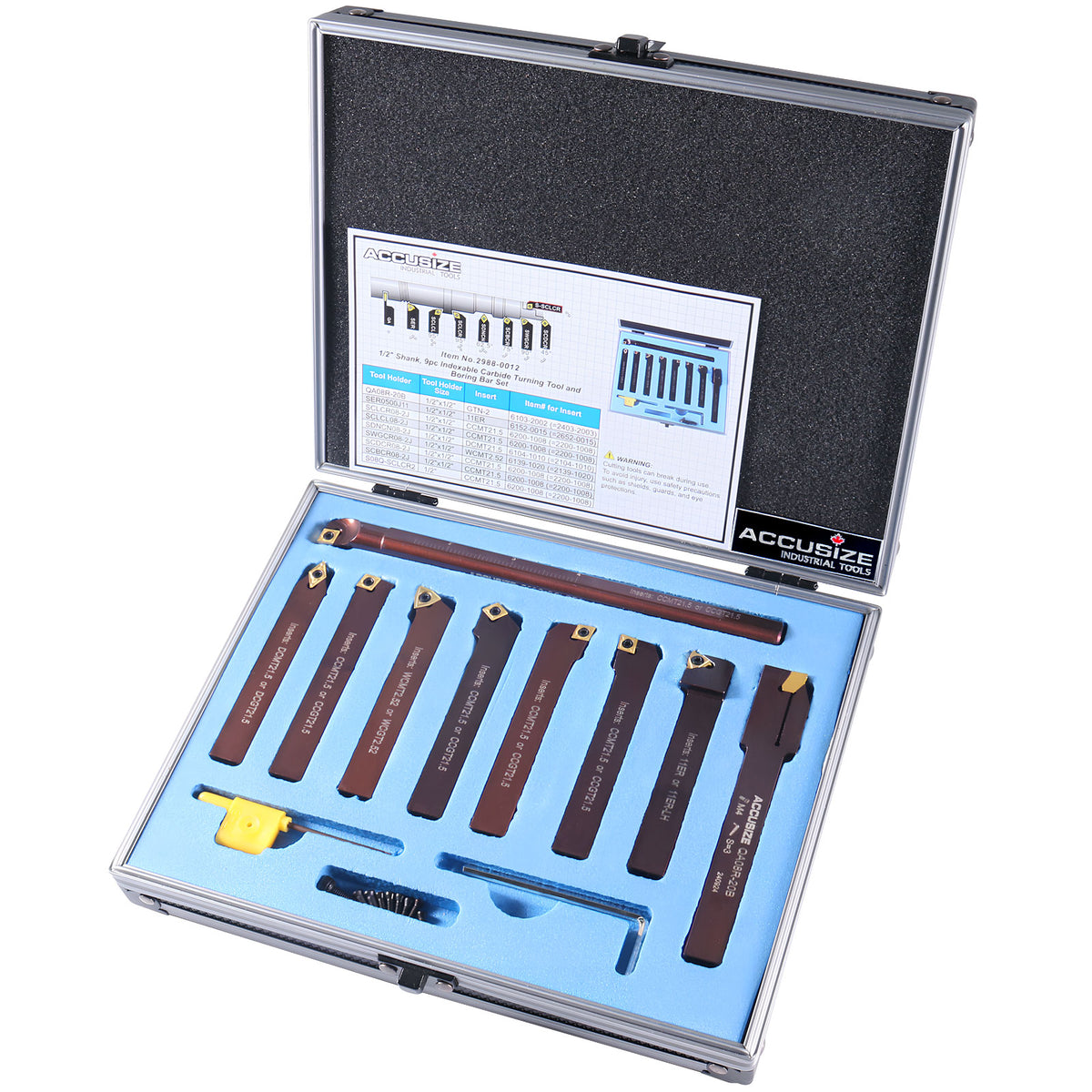

- Aluminum fitting case.
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
- Threading range of 11ER A60 = 48-16 TPI / 0.5-1.5 mm

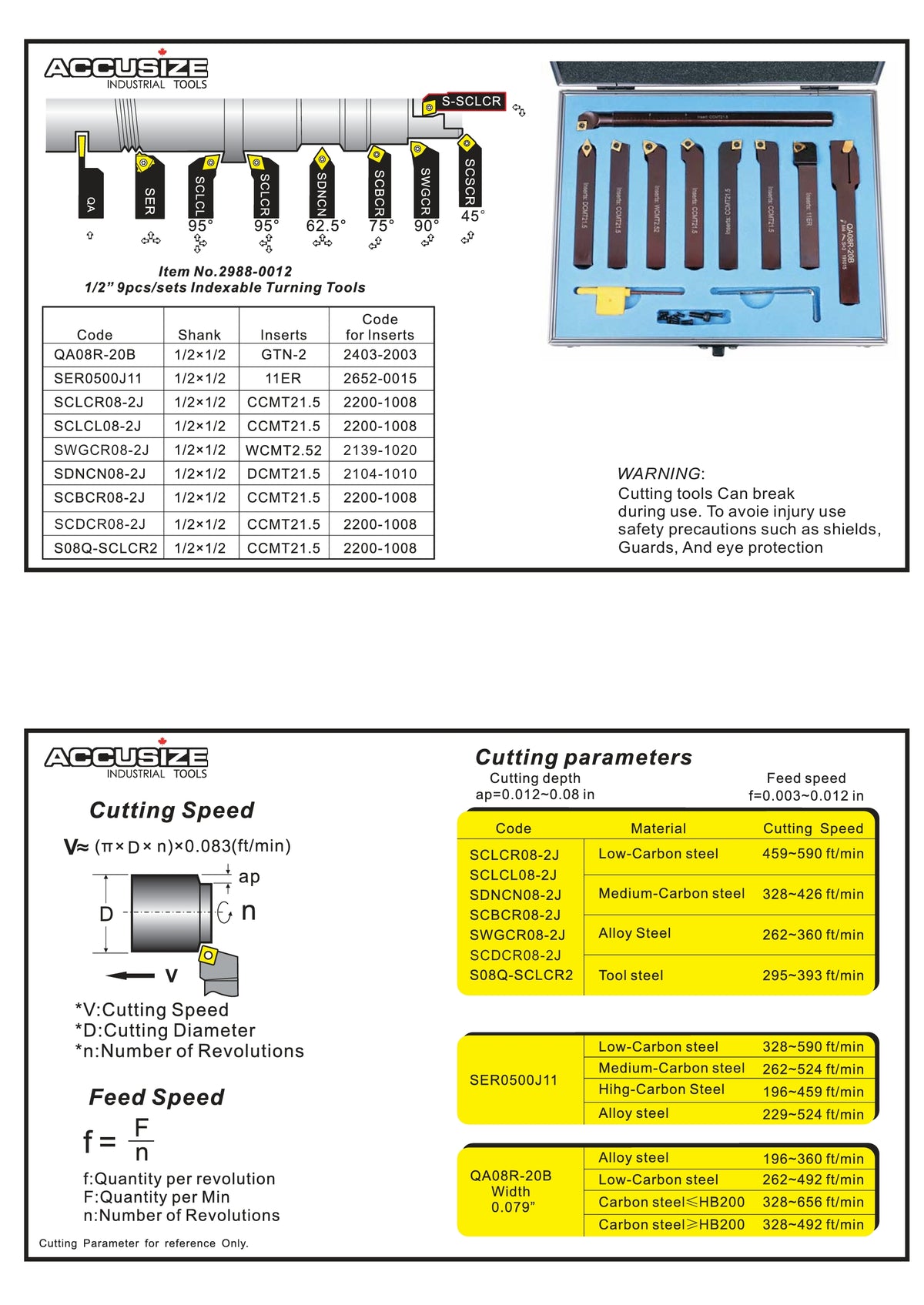

| Name | Code | Rake Angle | Insert | Insert SKU | Insert Screw | Wrench | Mini Bore | Overall Length |
| Cutoff | QA08R-20B | 0° | GTN-2 | TiN Coated, 2403-2003 |
GB70-85/M4x10 (0047-4010) |
S3 | - | 4-1/2" |

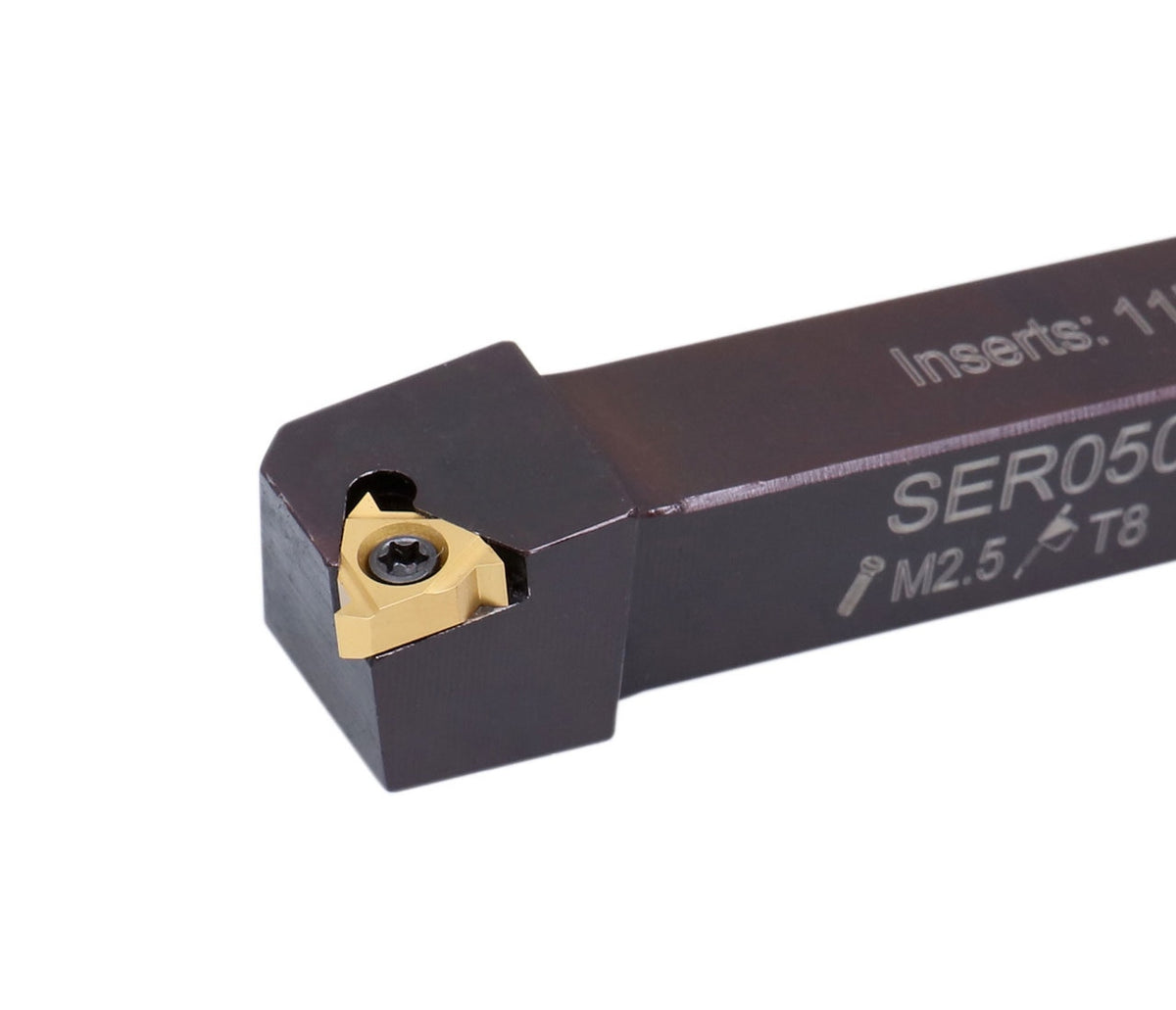

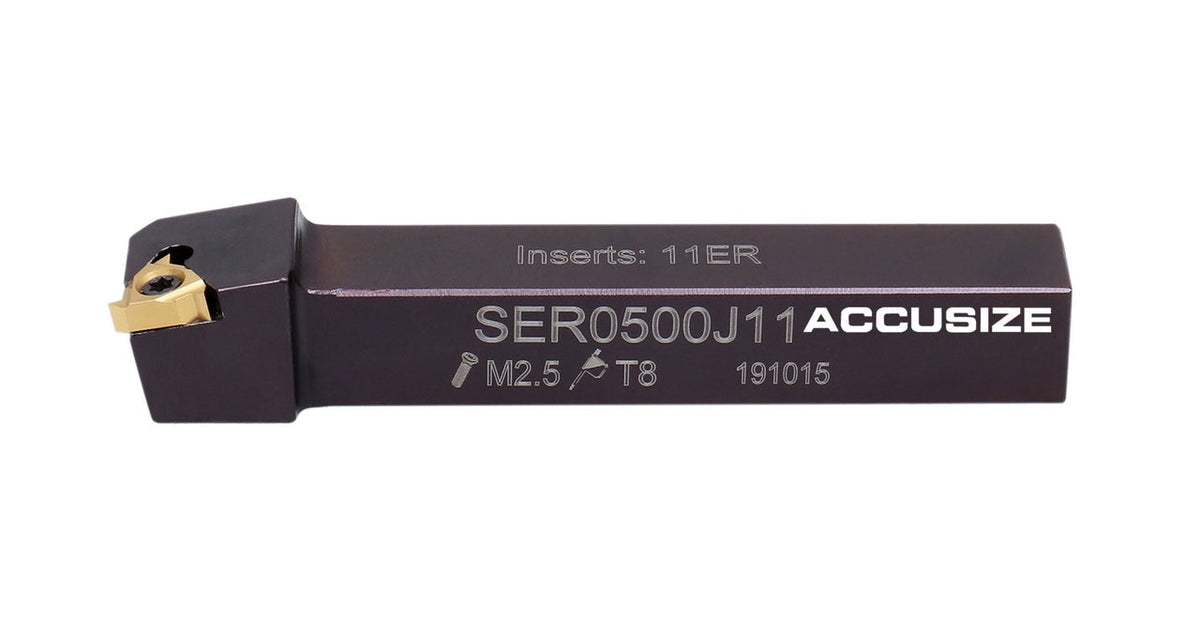

| External Threading | SER0500J11 | 0° | 11ER A60 | TiN Coated, 2652-0015 |
M2.5x8 (0046-2508) |
T8 | 3-1/2" | |

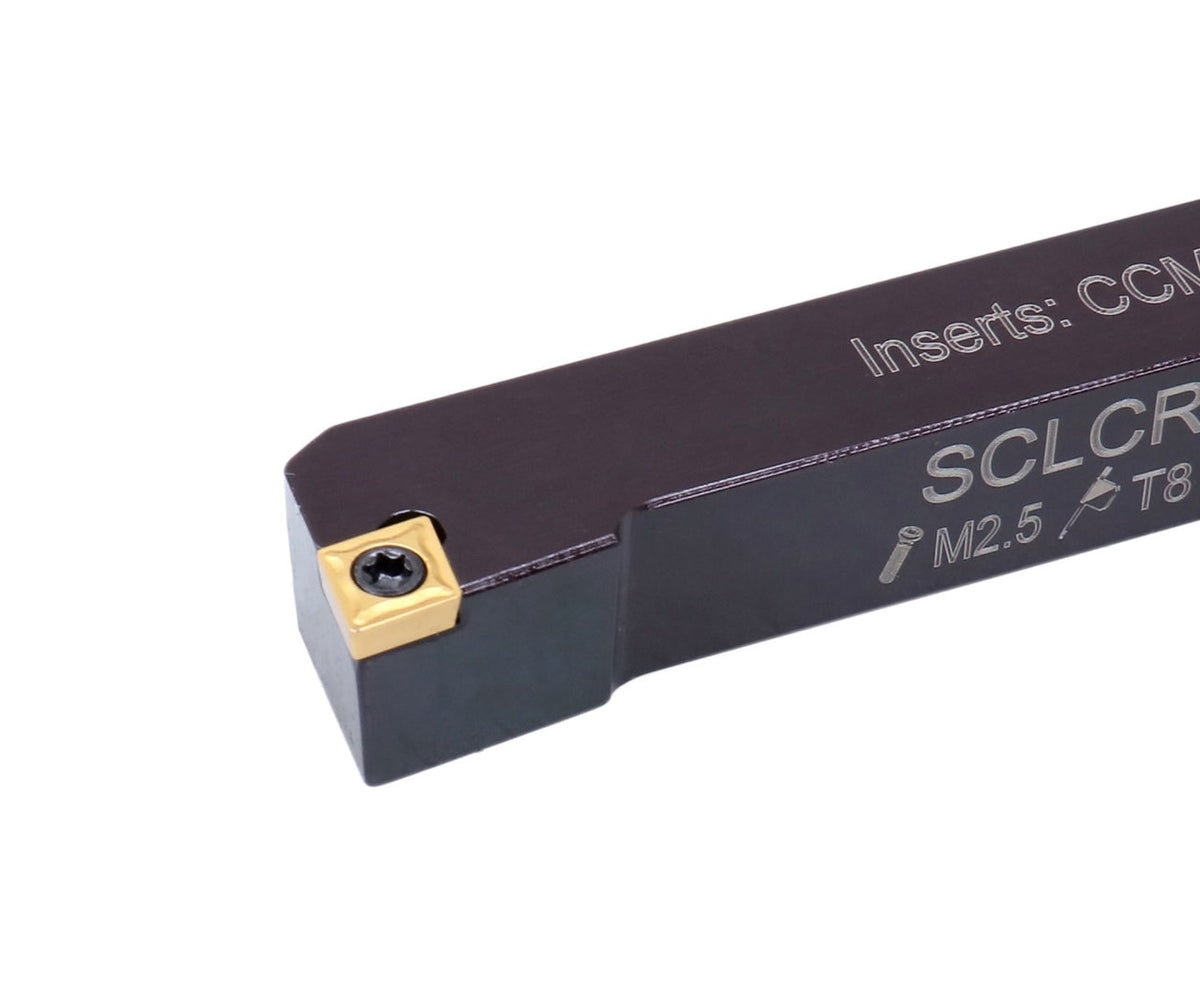

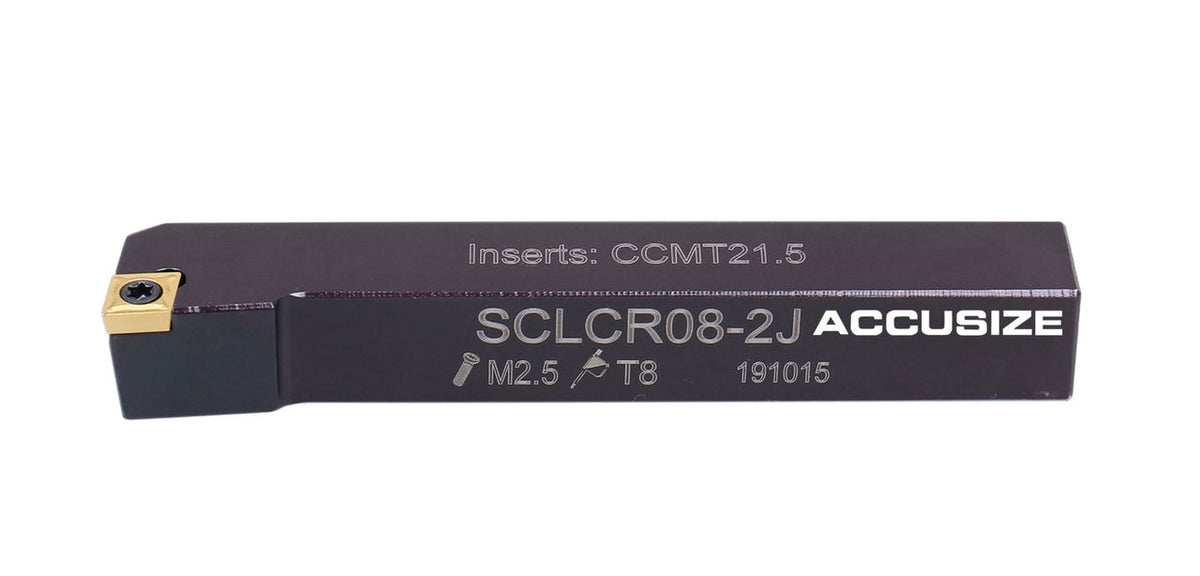

| Turning Tools | SCLCR08-2J | 95° | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5x6 (0046-2506) |
|||

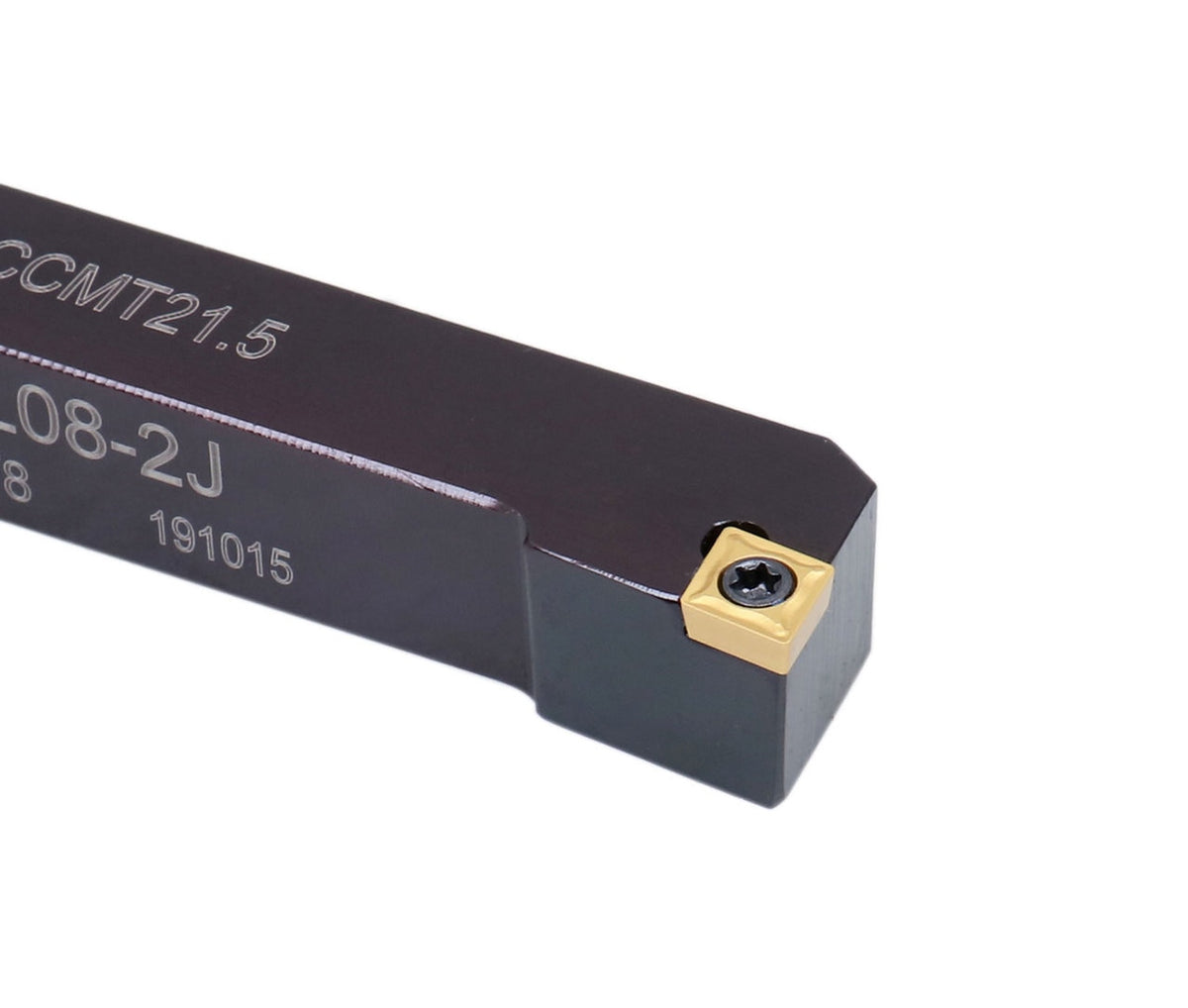

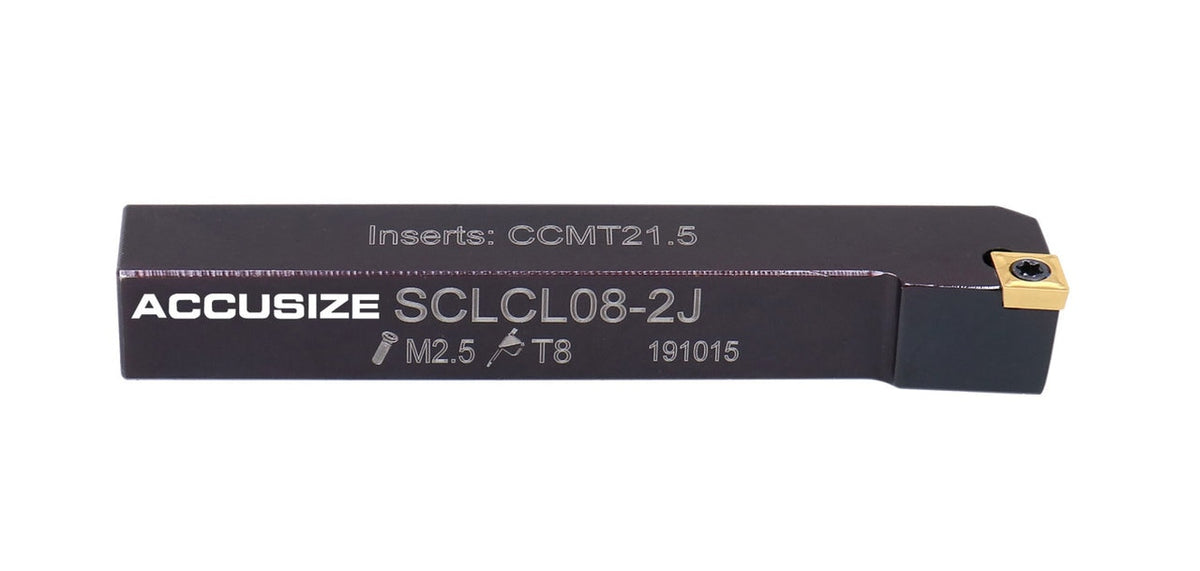

| SCLCL08-2J | 95° | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5x6 (0046-2506) |
||||

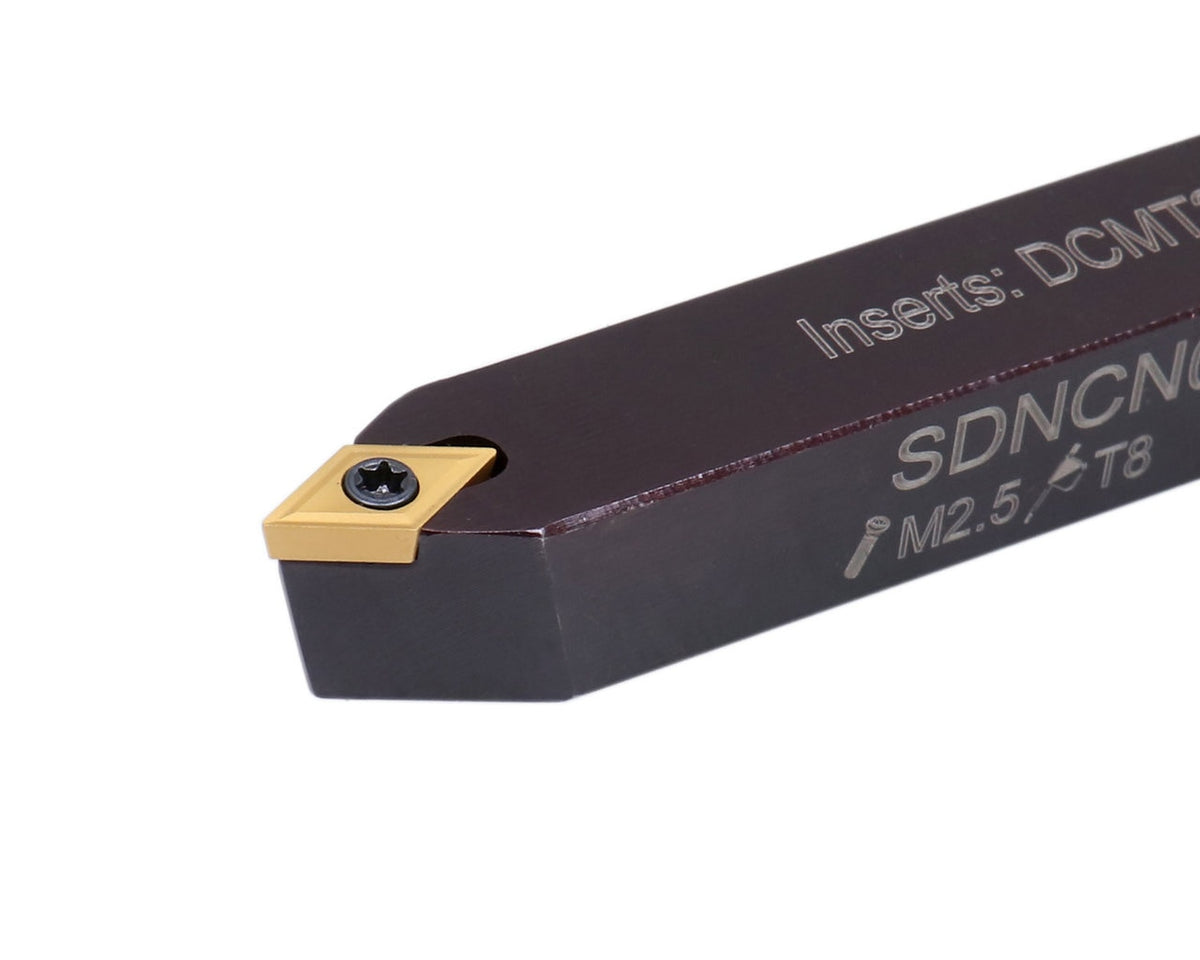

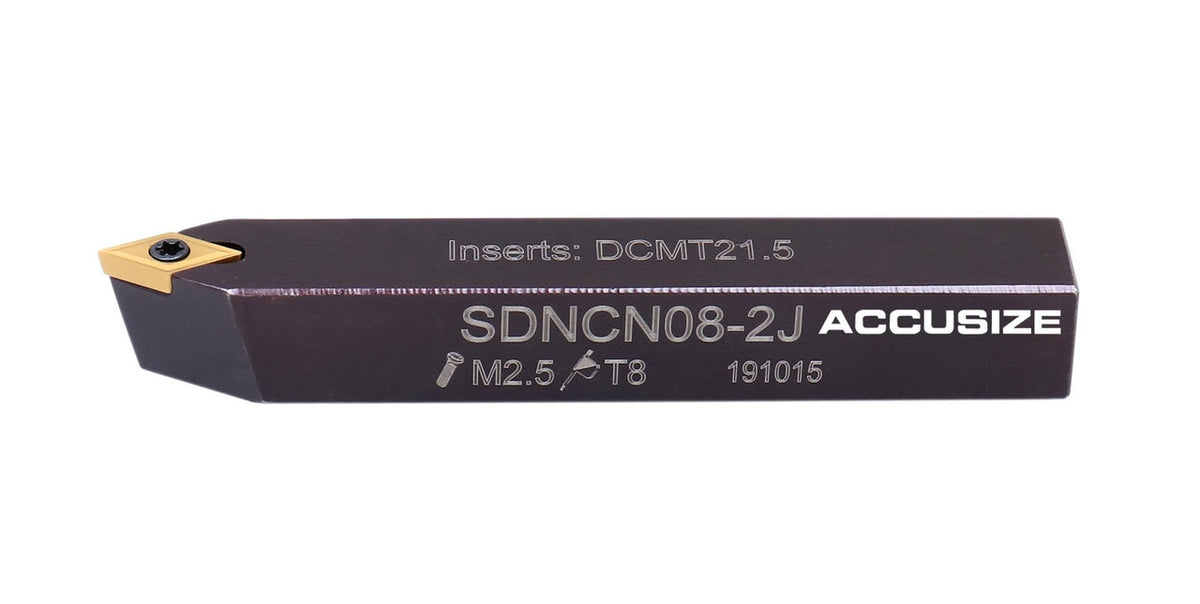

| SDNCN08-2J | 62.5° | DCMT21.5 | TiN Coated, 2104-1010 |
M2.5x6 (0046-2506) |
||||

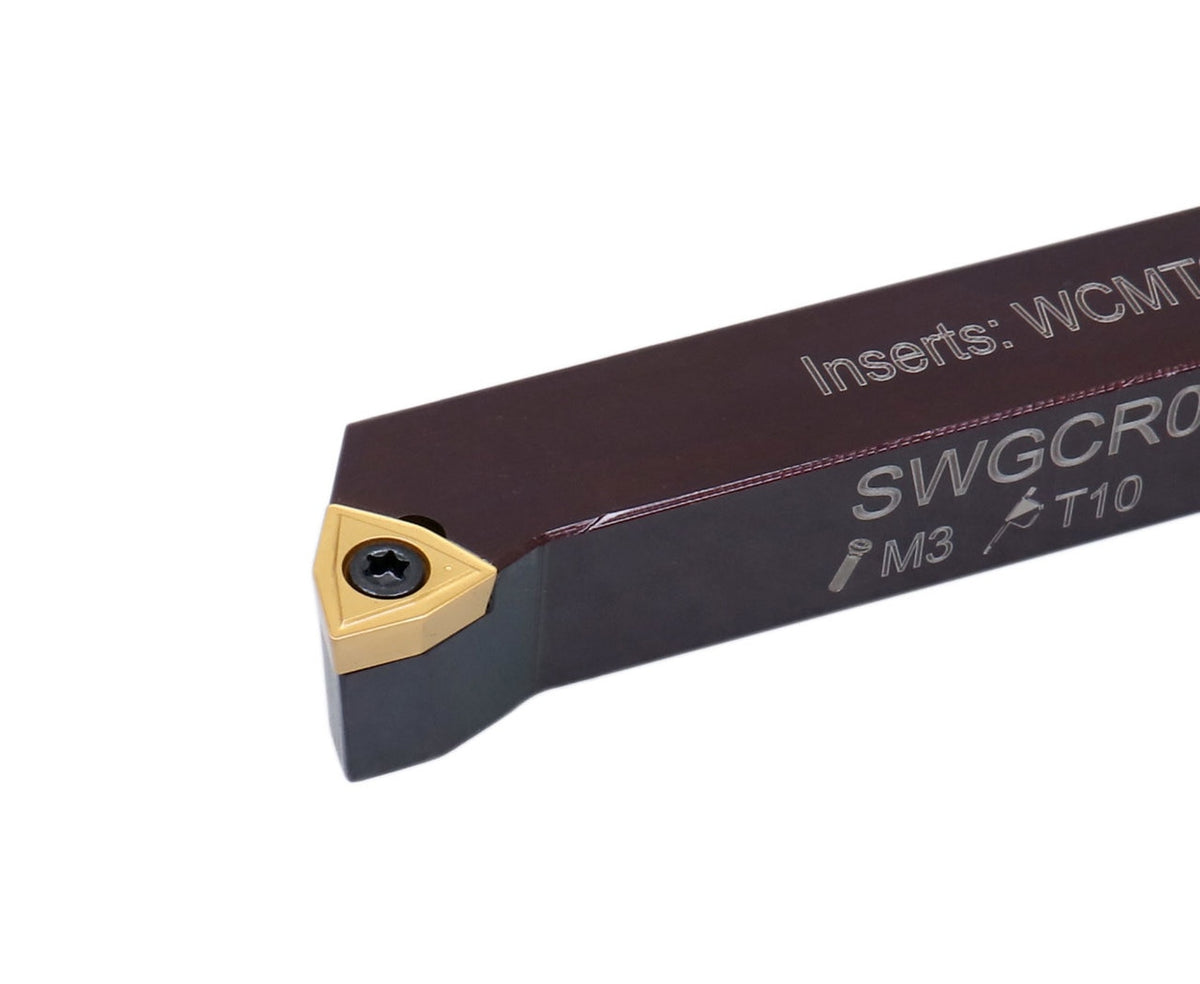

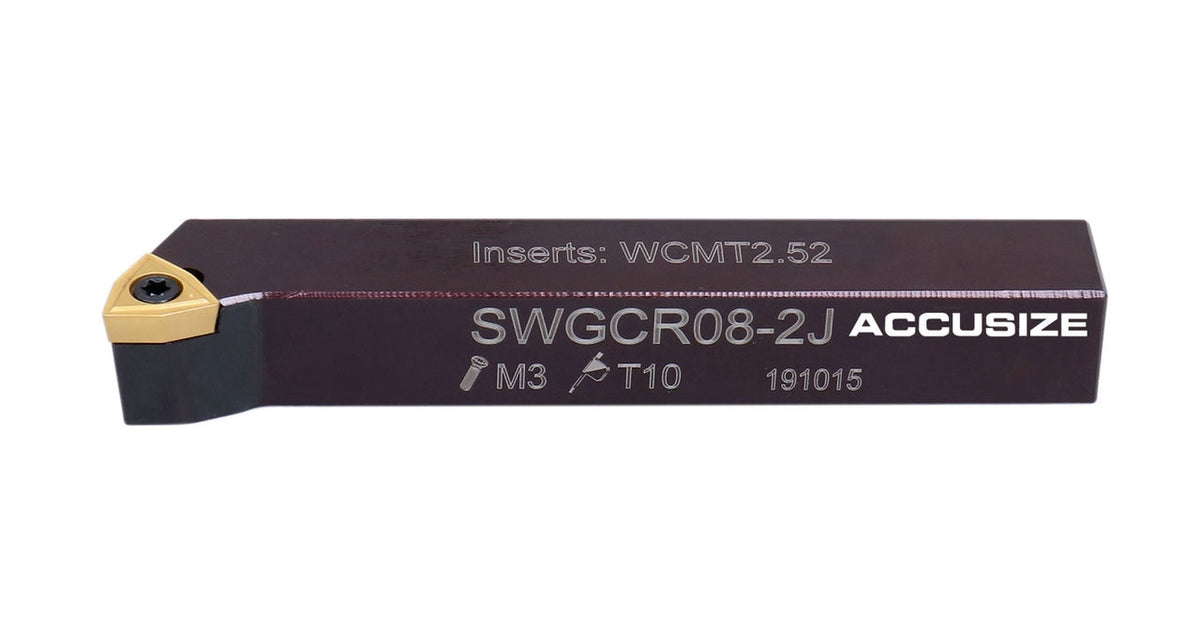

| SWGCR08-2J | 90° | WCMT2.51 | TiN Coated, 2139-1020 |
M3x6 |
||||

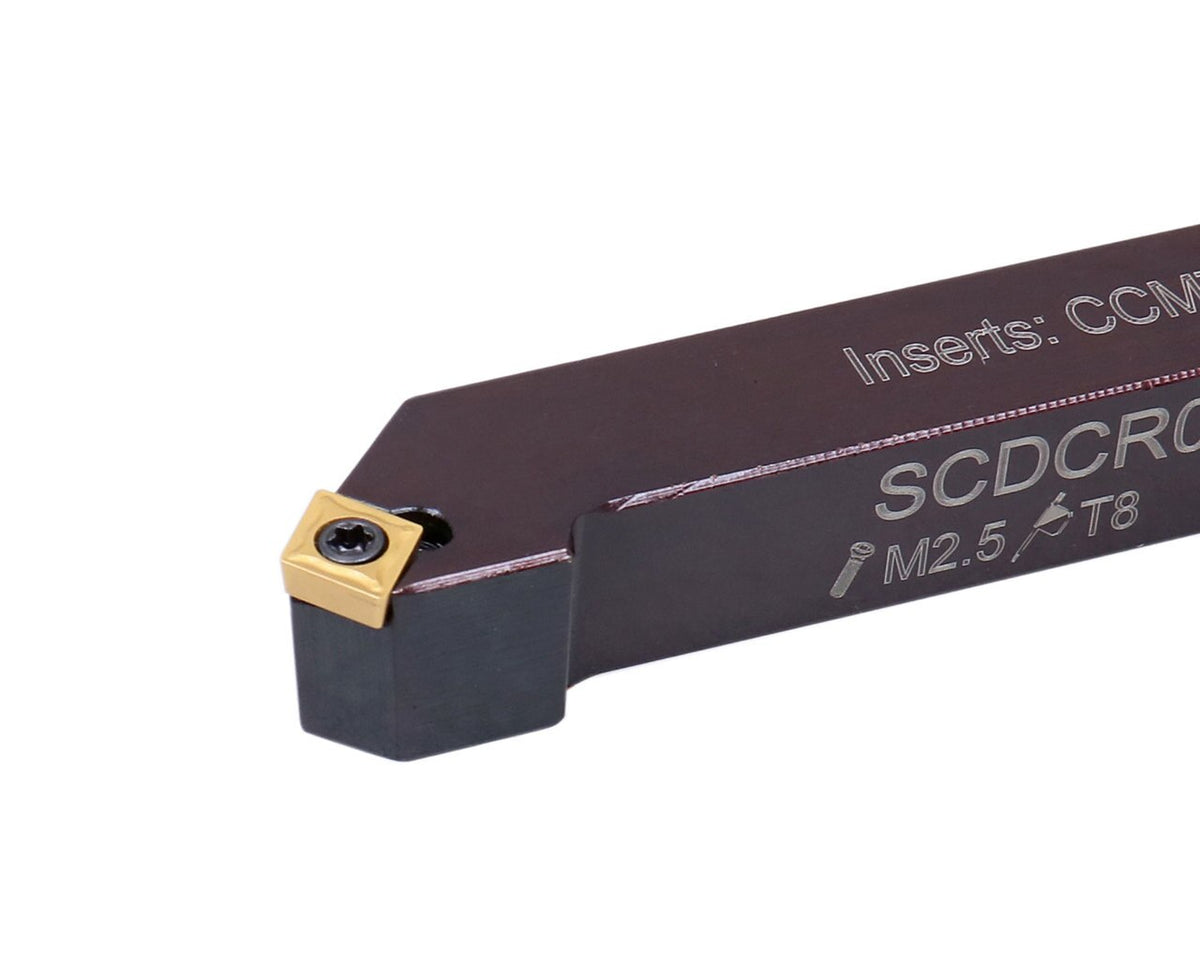

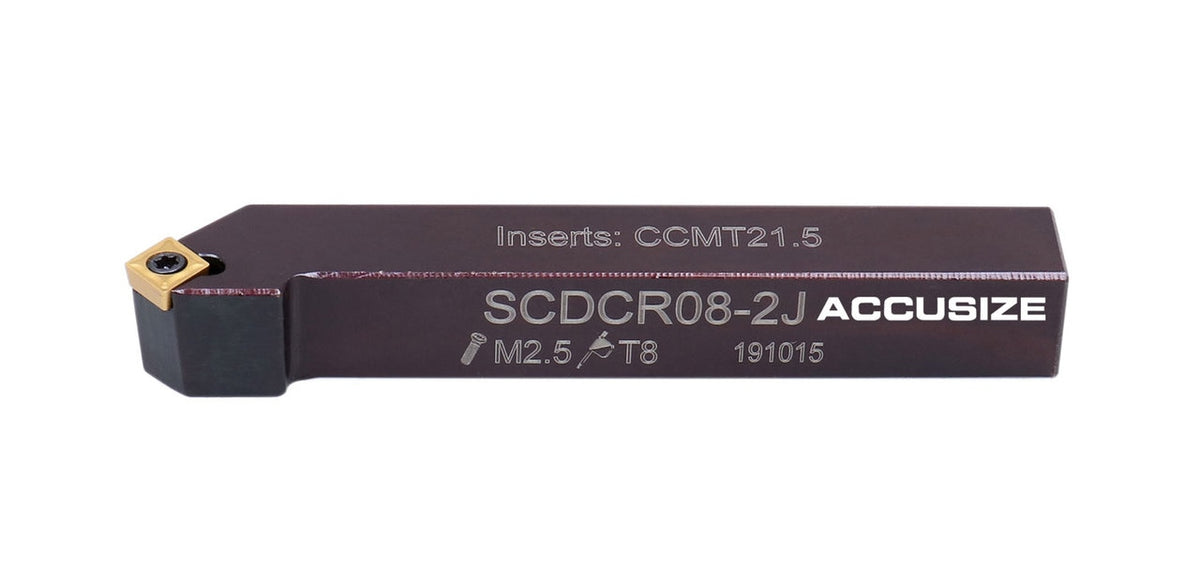

| SCDCR08-2J | 45° | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5x6 (0046-2506) |
||||

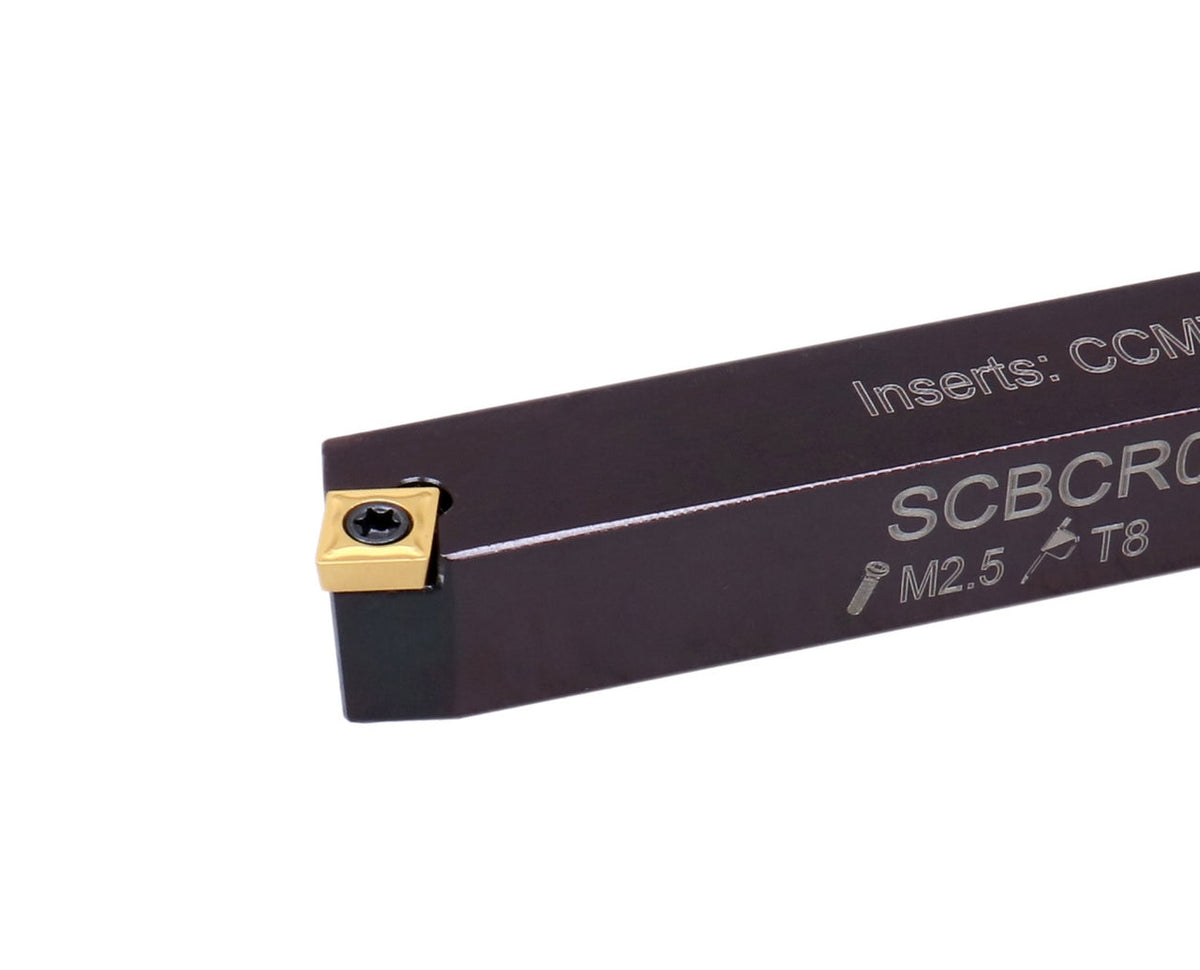

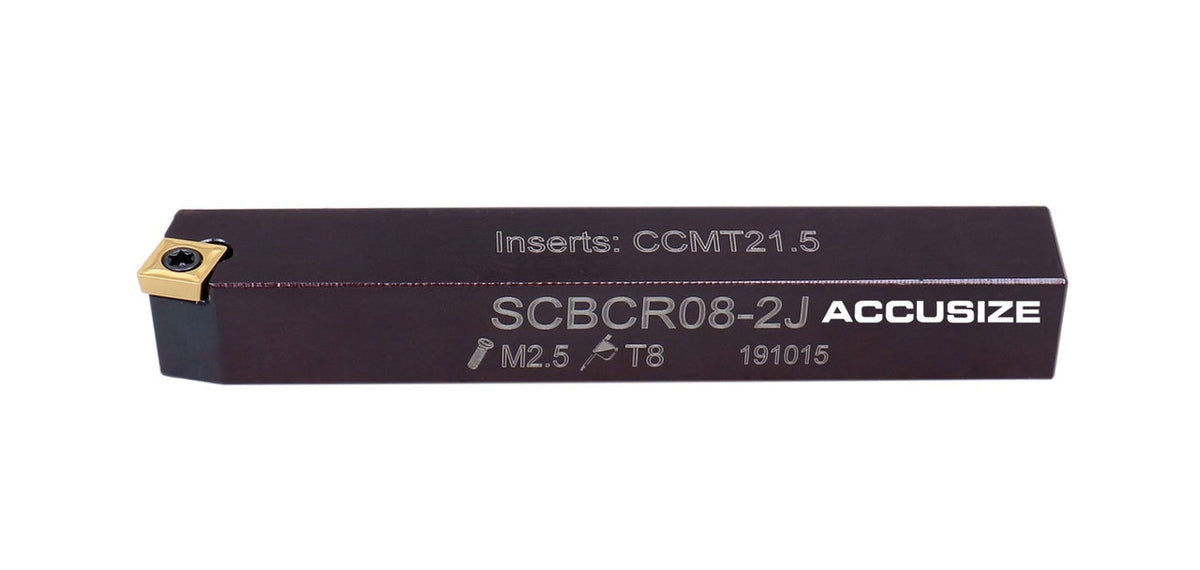

| SCBCR08-2J | 75° | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5x6 (0046-2506) |
||||

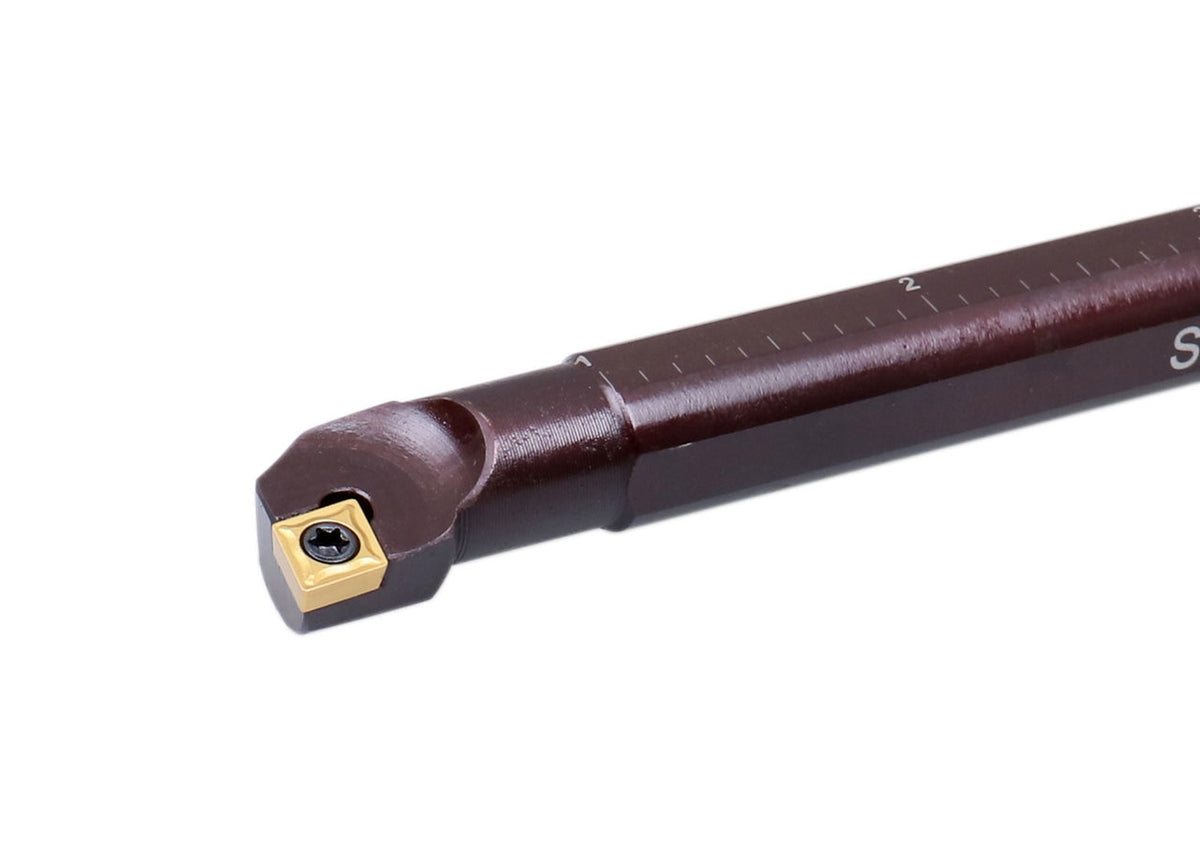

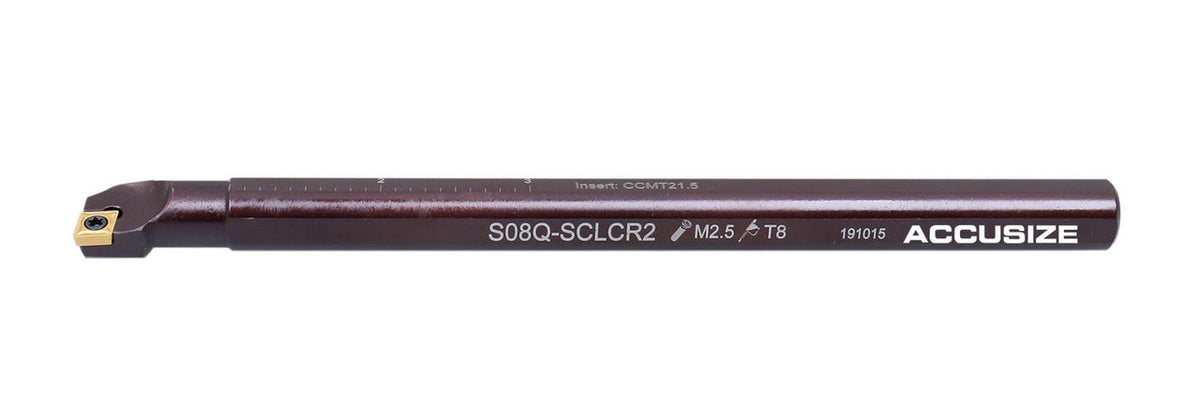

| Boring Bar | S08Q-SCLCR2 | 95° | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5x6 (0046-2506) |
5/8" | 7" |
The mini. sized hole for the boring bar is 5/8"; and the overall length of the boring bar S08Q-SCLCR2 which of the 2988-0012 is 7"

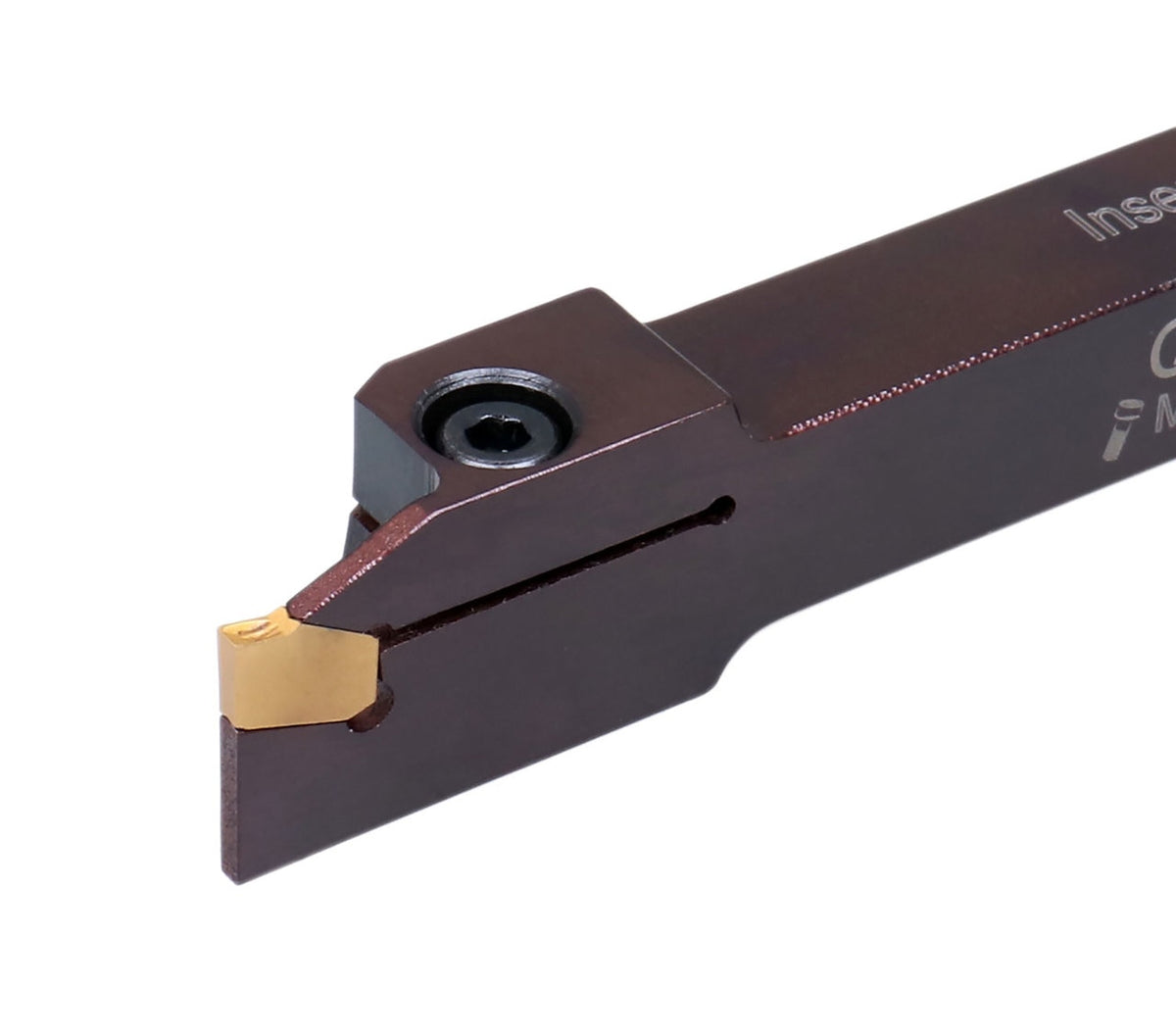

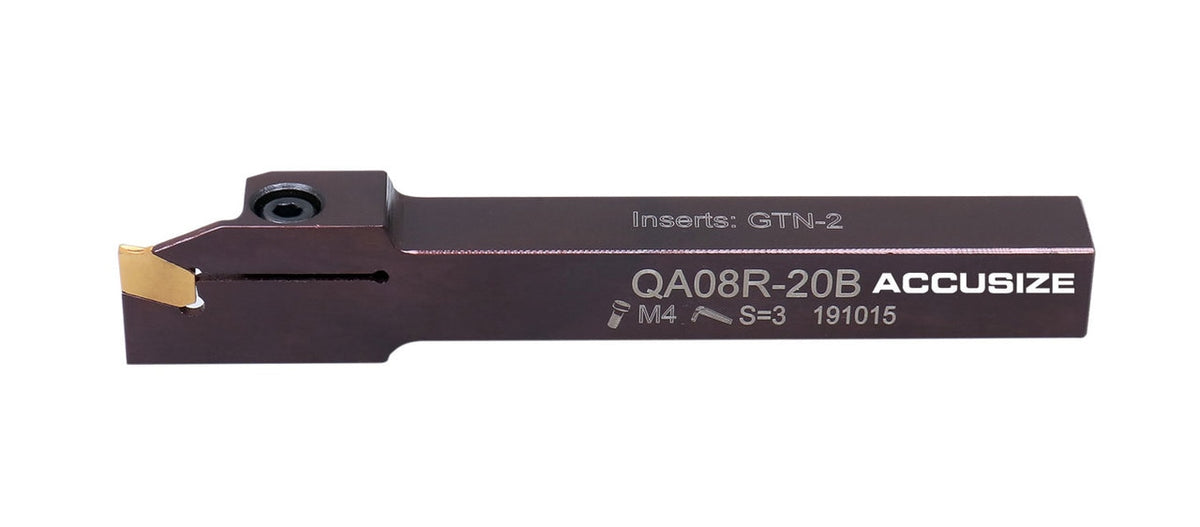

Specification of the QA08R-20B cut-off holder:
Shank Size: 1/2"
Tool Holder: QA08R-20B
Tool Holder Size (H x B): 1/2 x 1/2"
OAL (L): 4-1/2"
Insert: GTN-2
Insert Screw: M4 x 10
F: 0.508"
T: 0.669"
W: 0.079"
Maximum Depth: 0.669"
**The above cutting parameter is for reference only **
