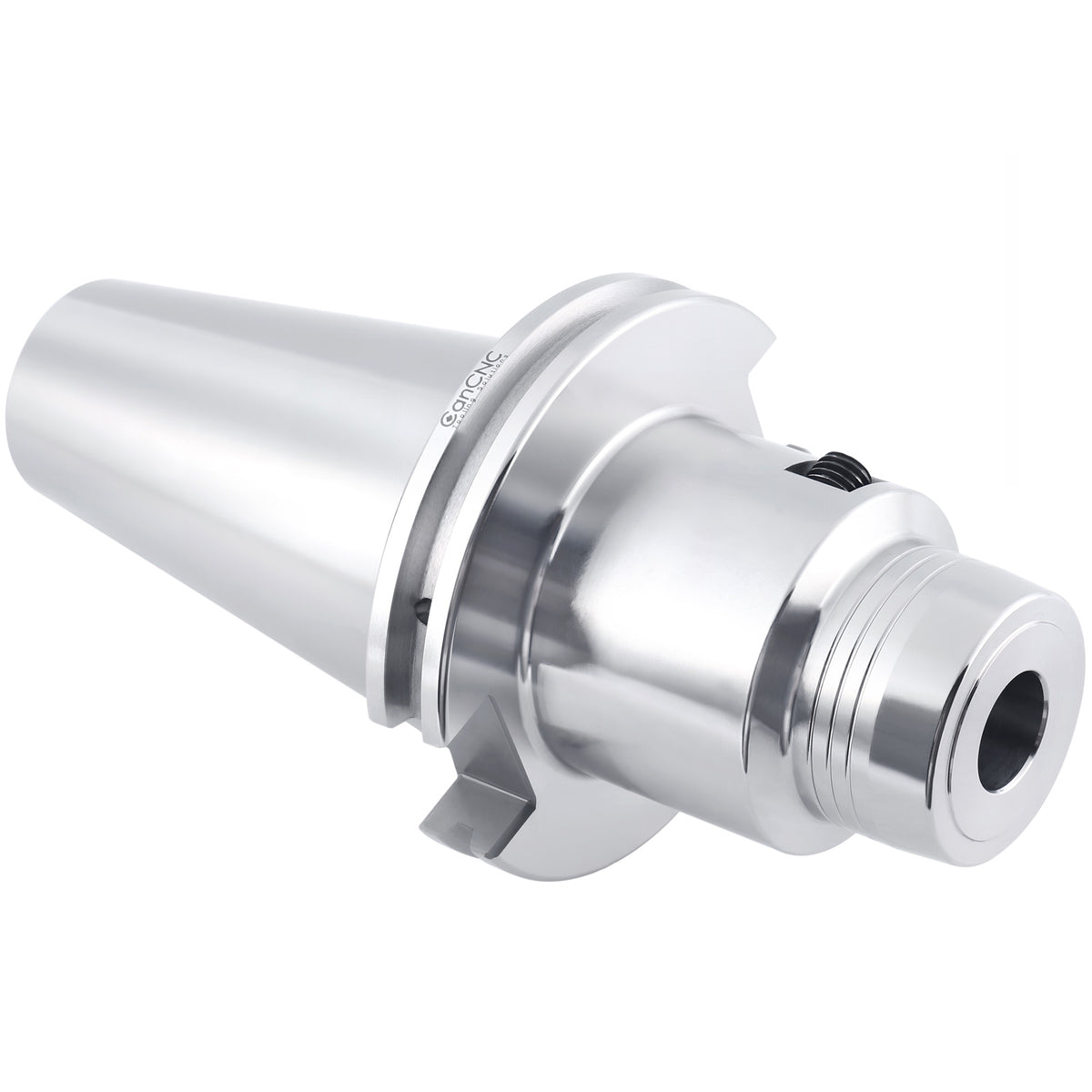

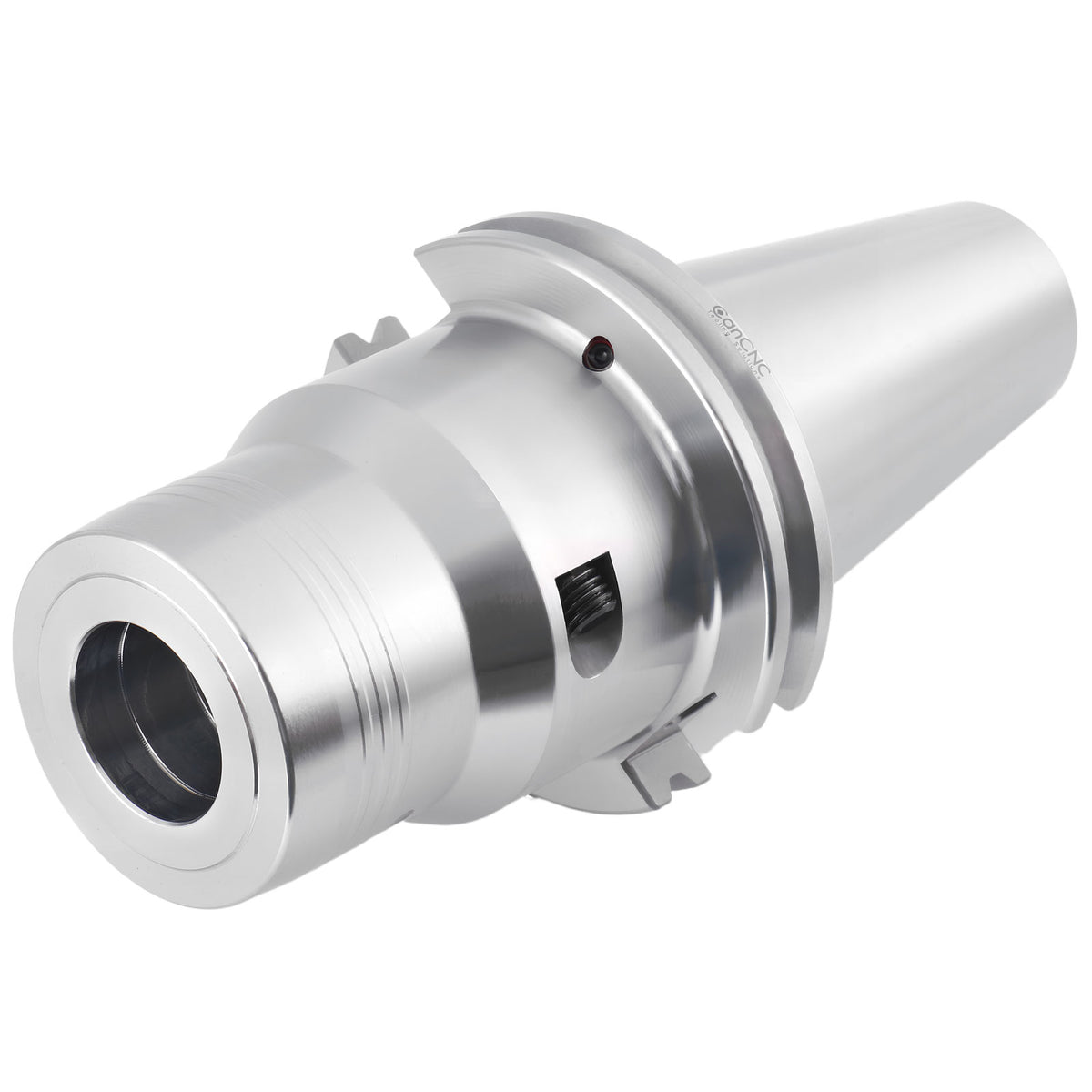

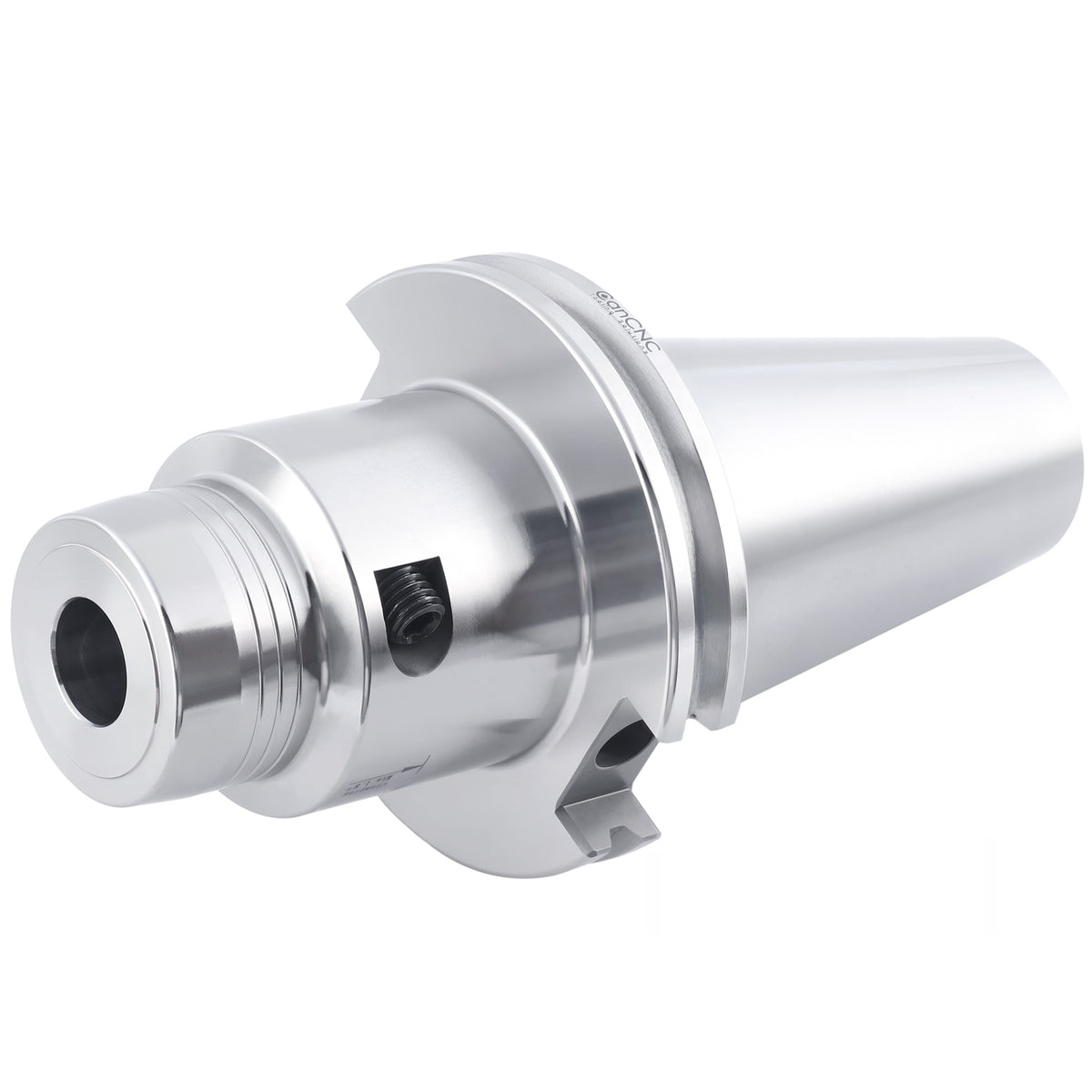

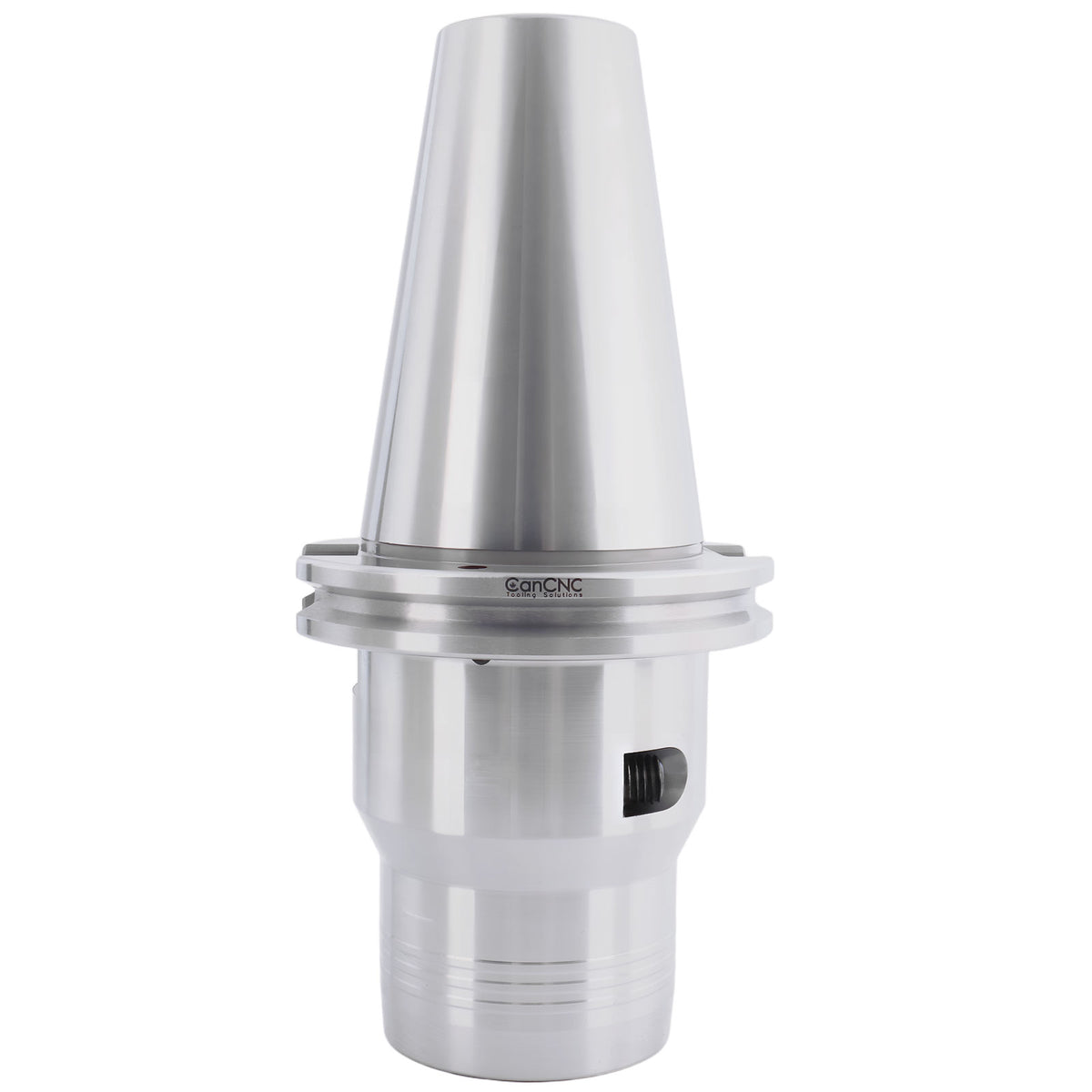

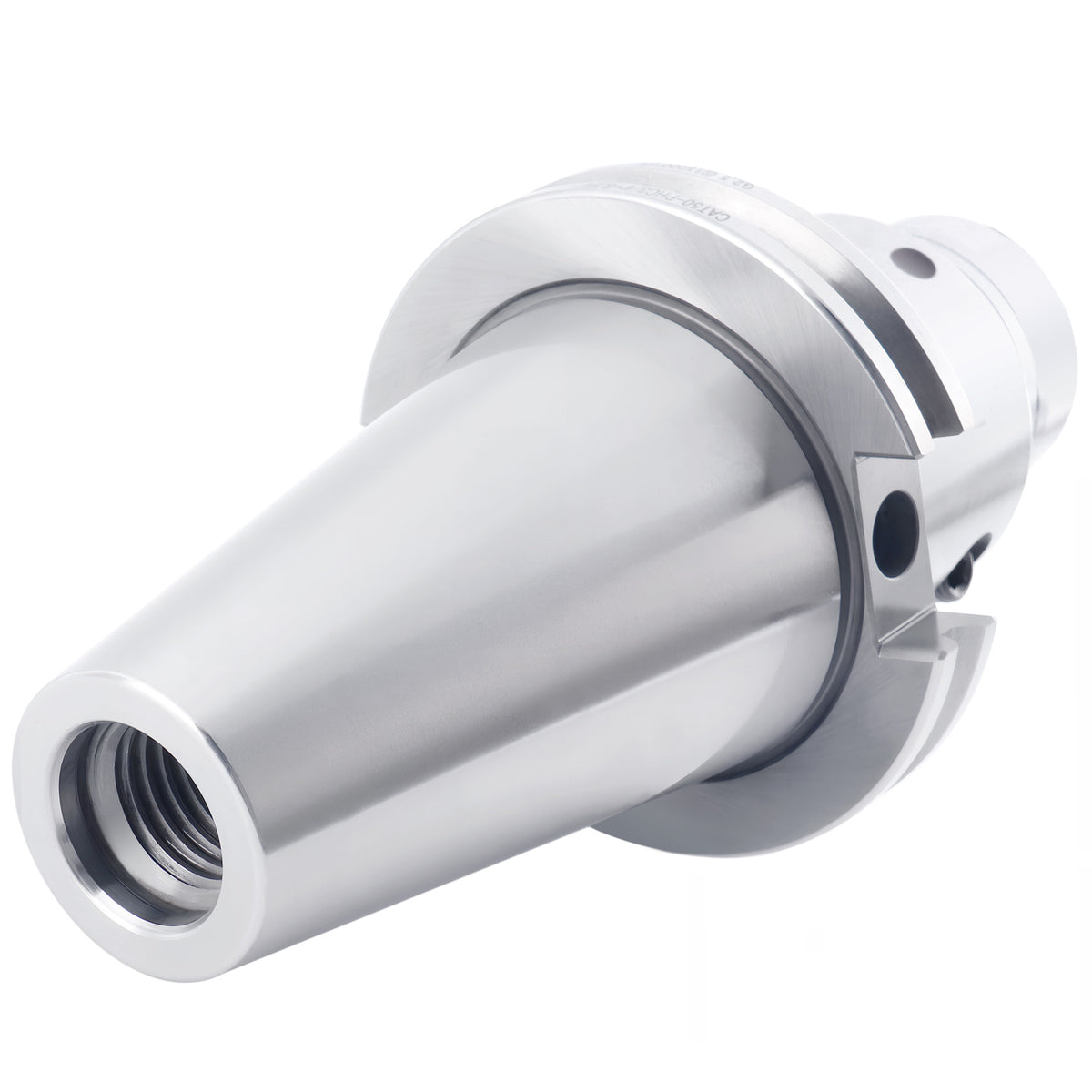

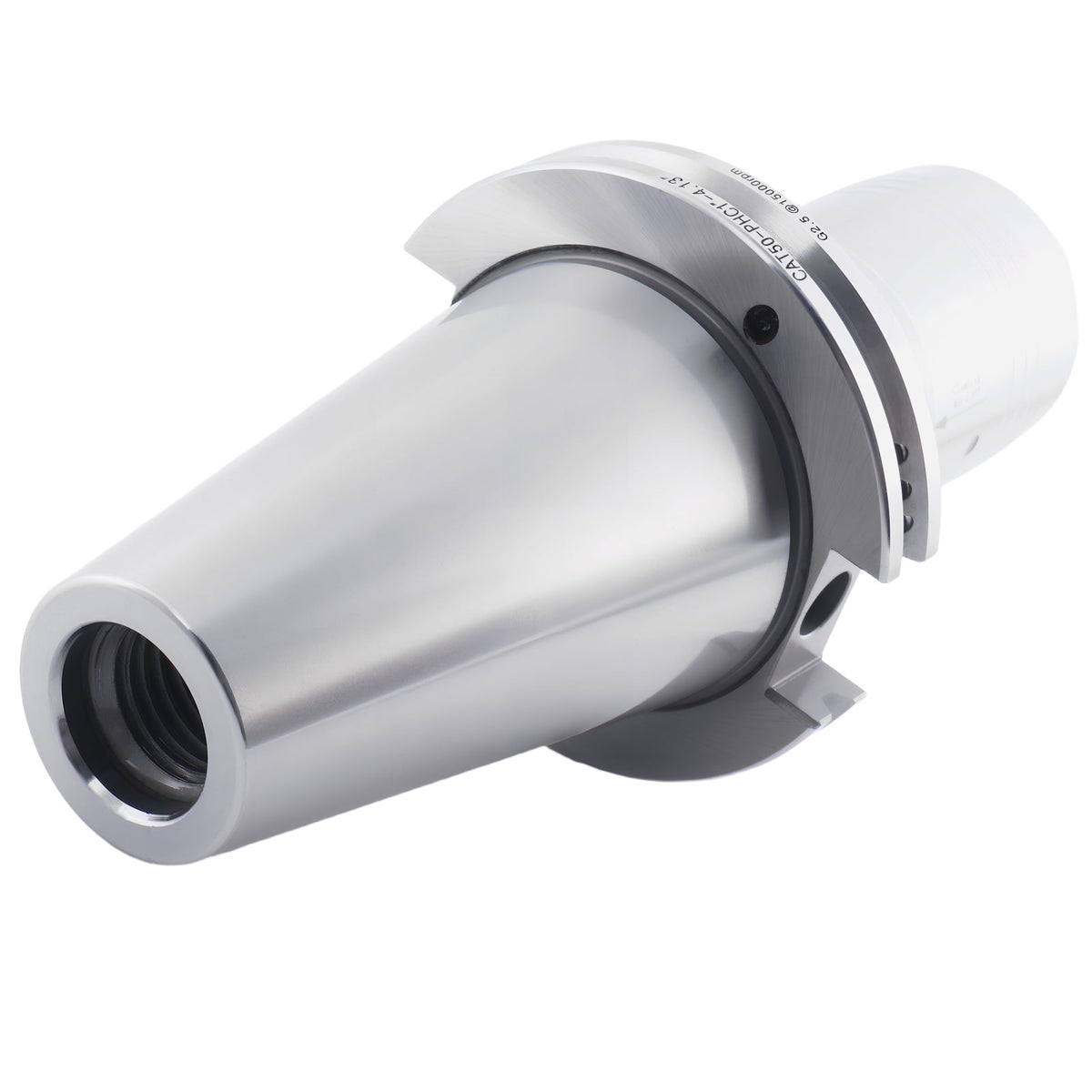

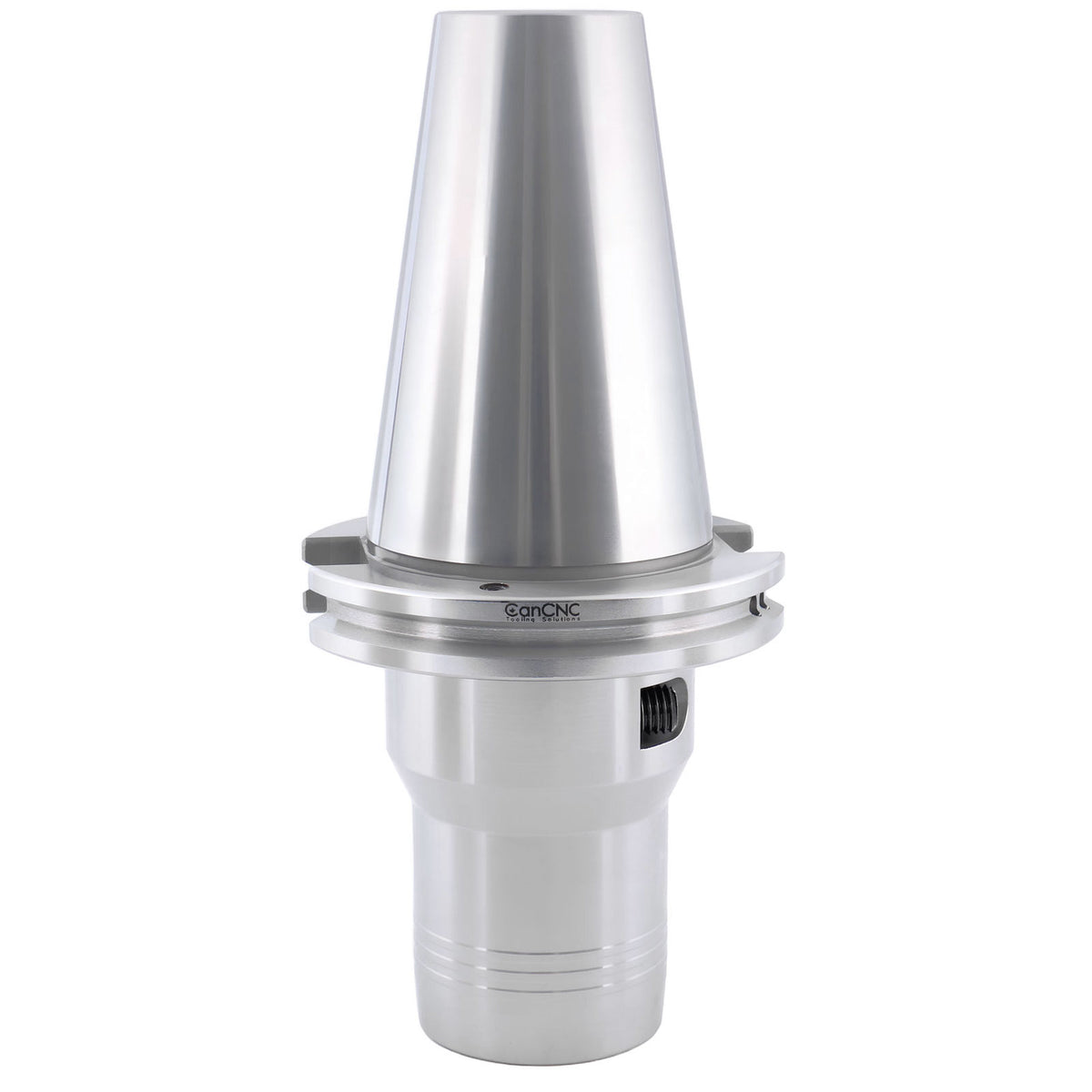

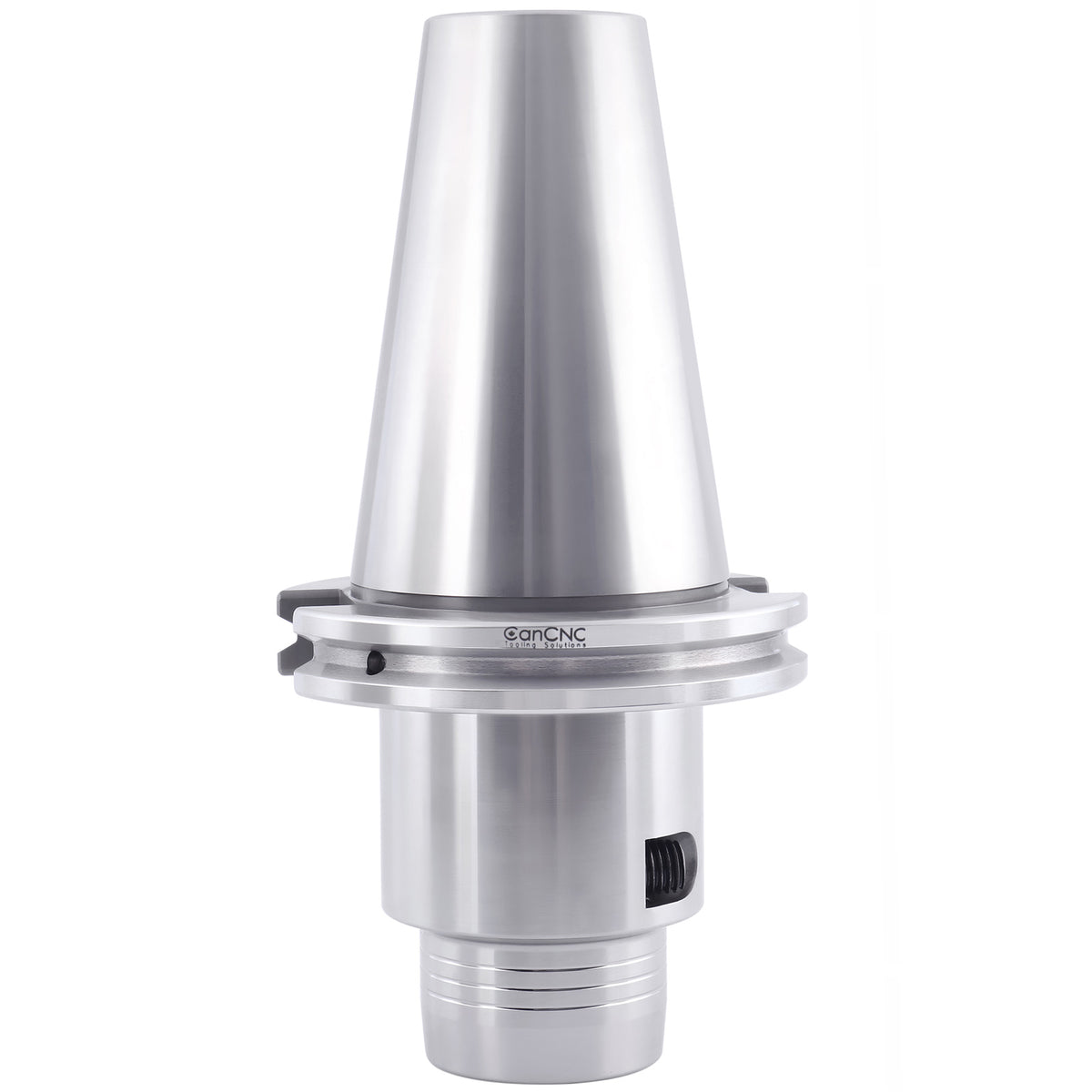

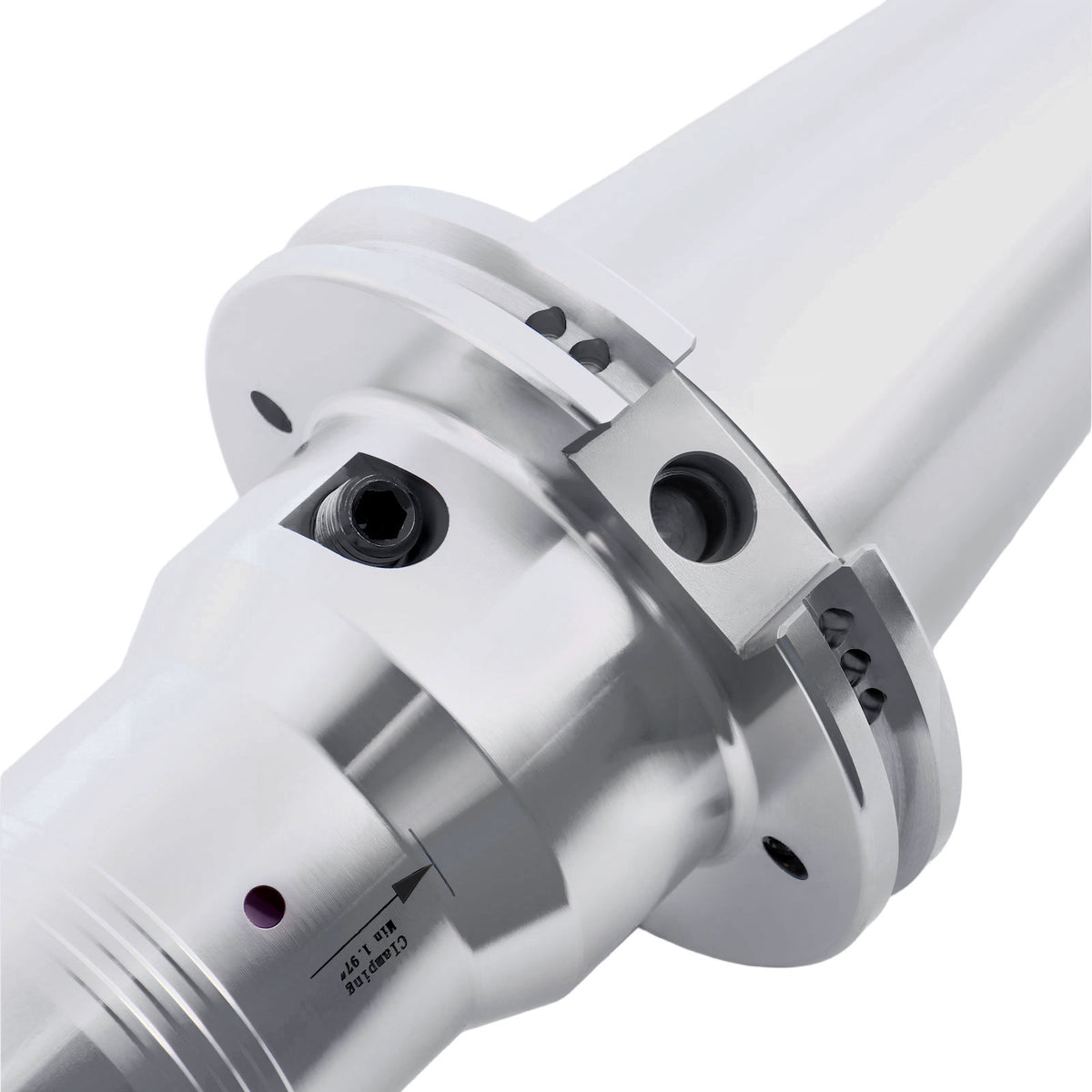

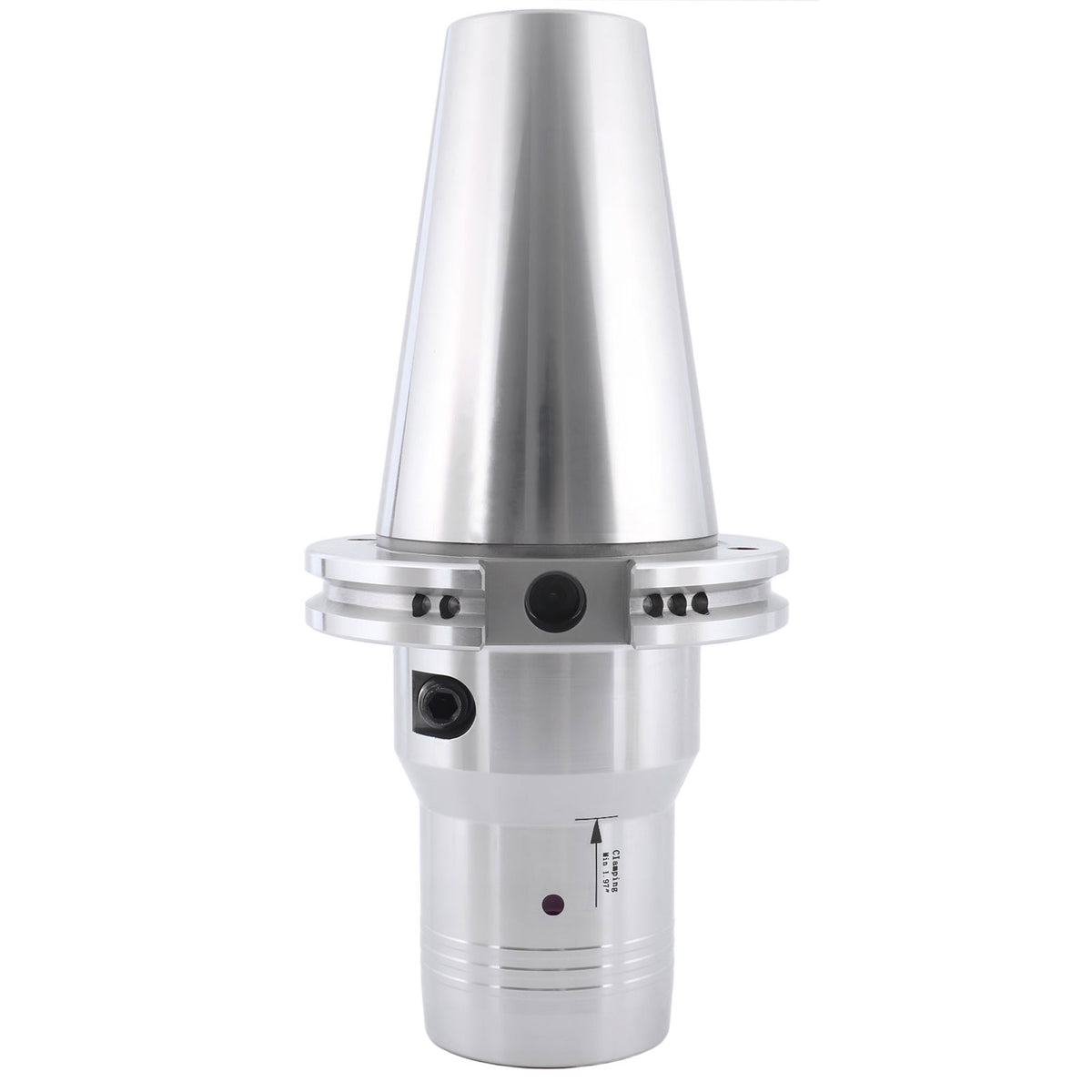

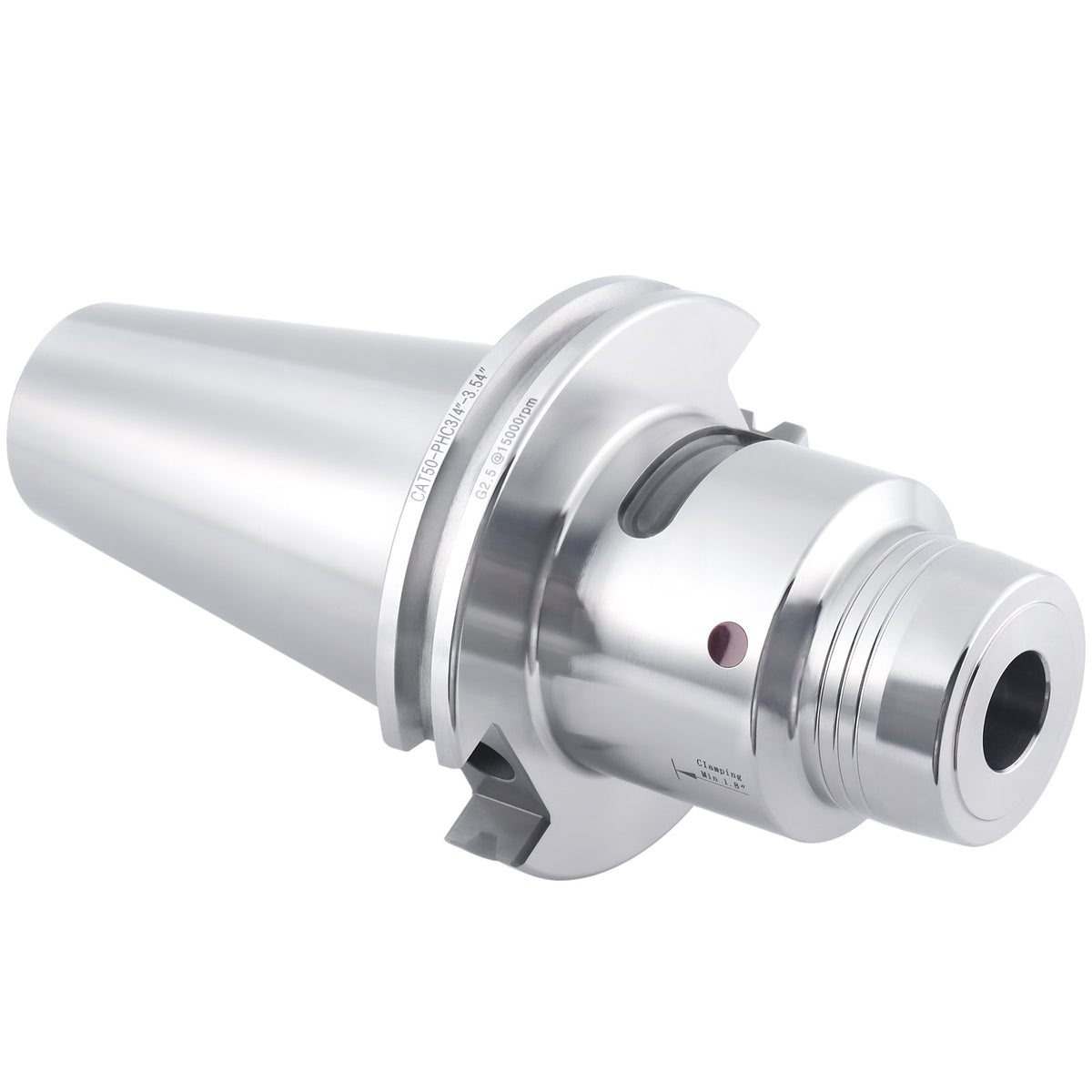

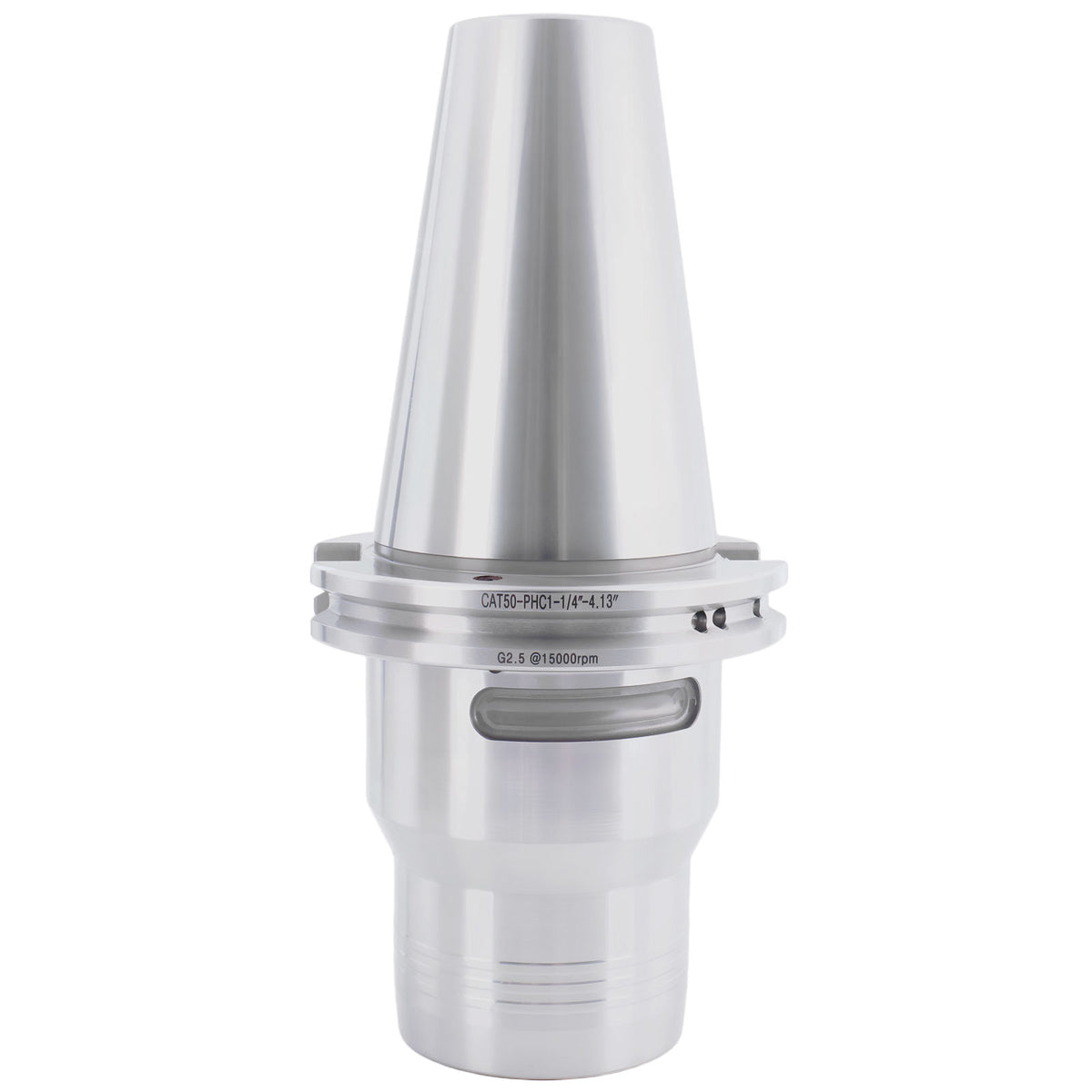

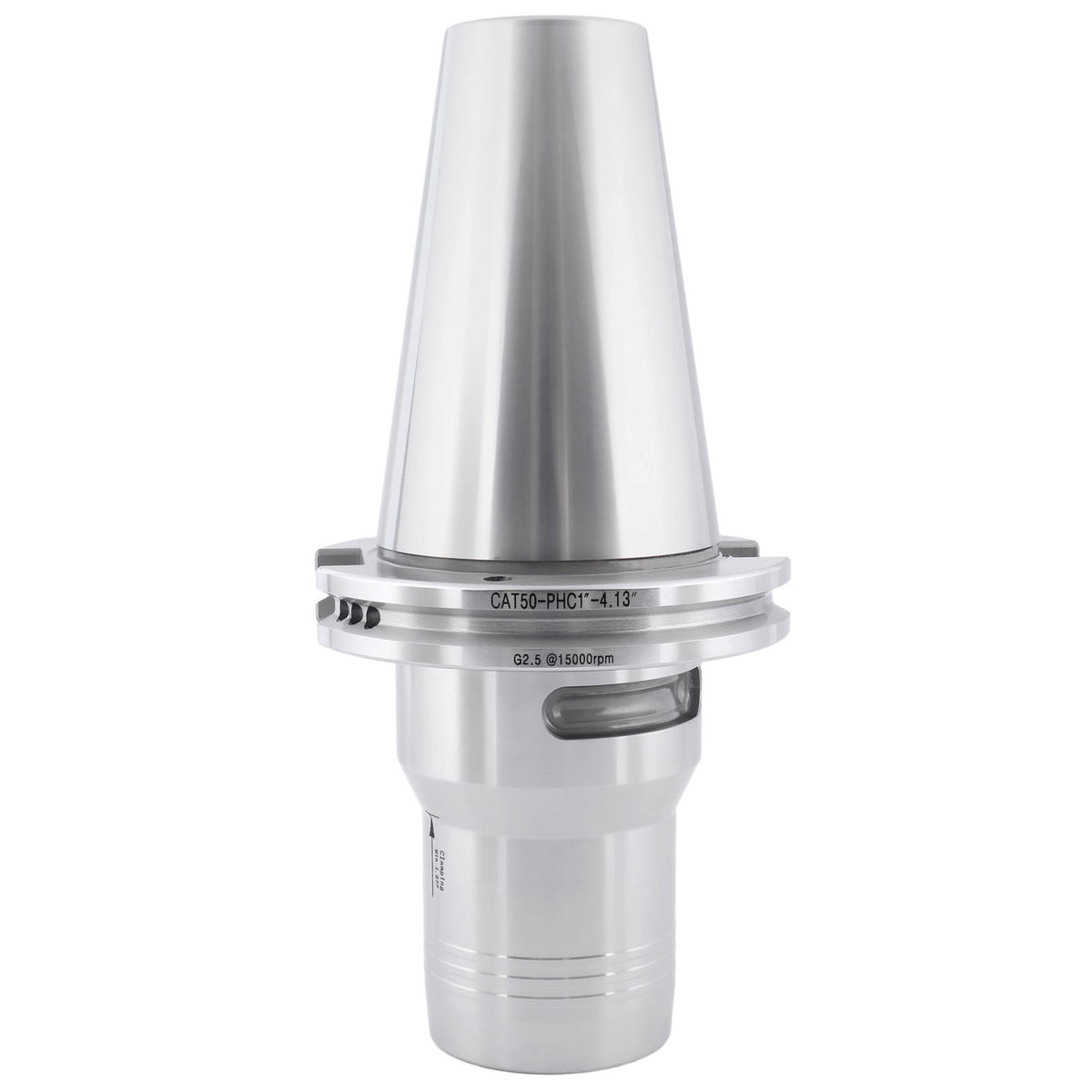

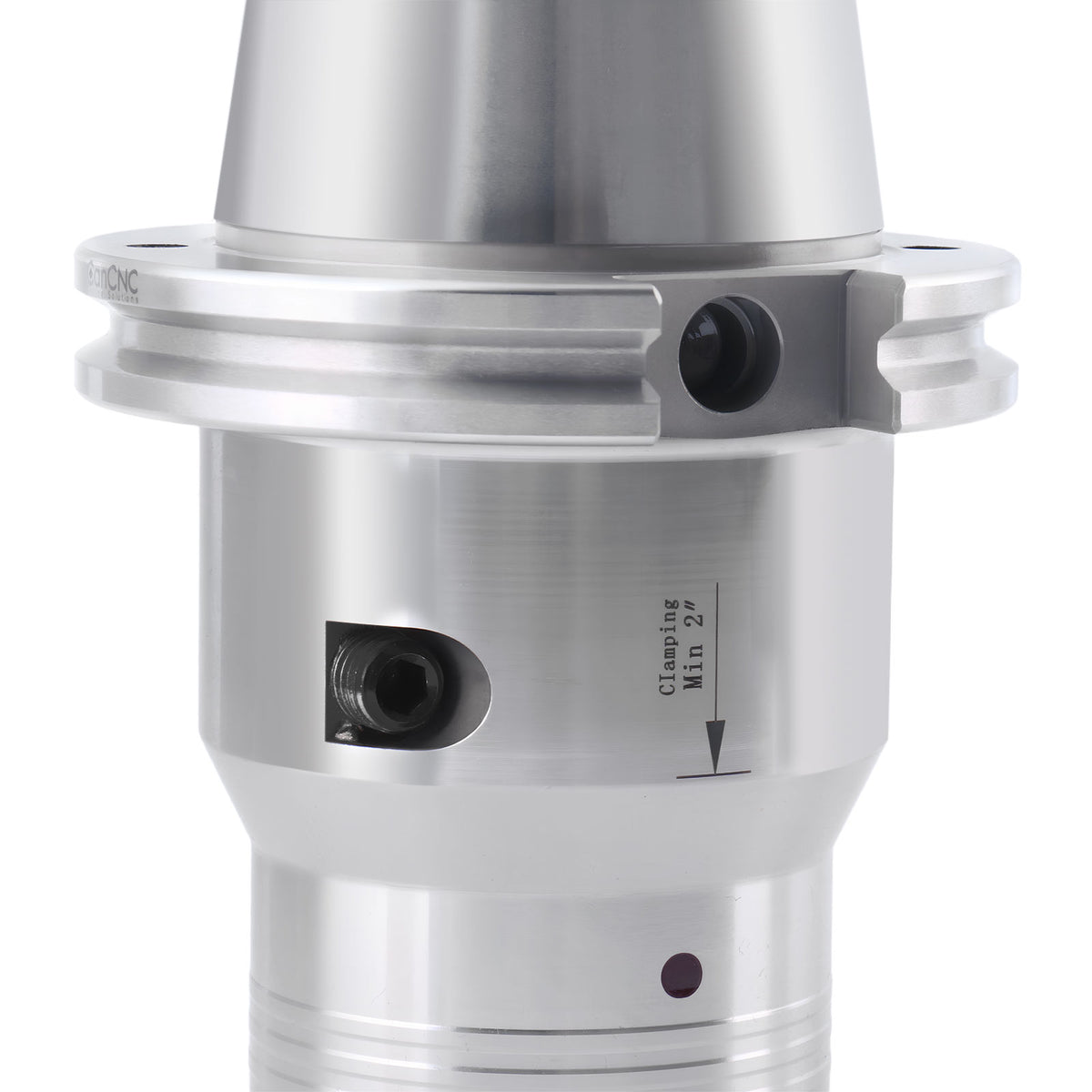

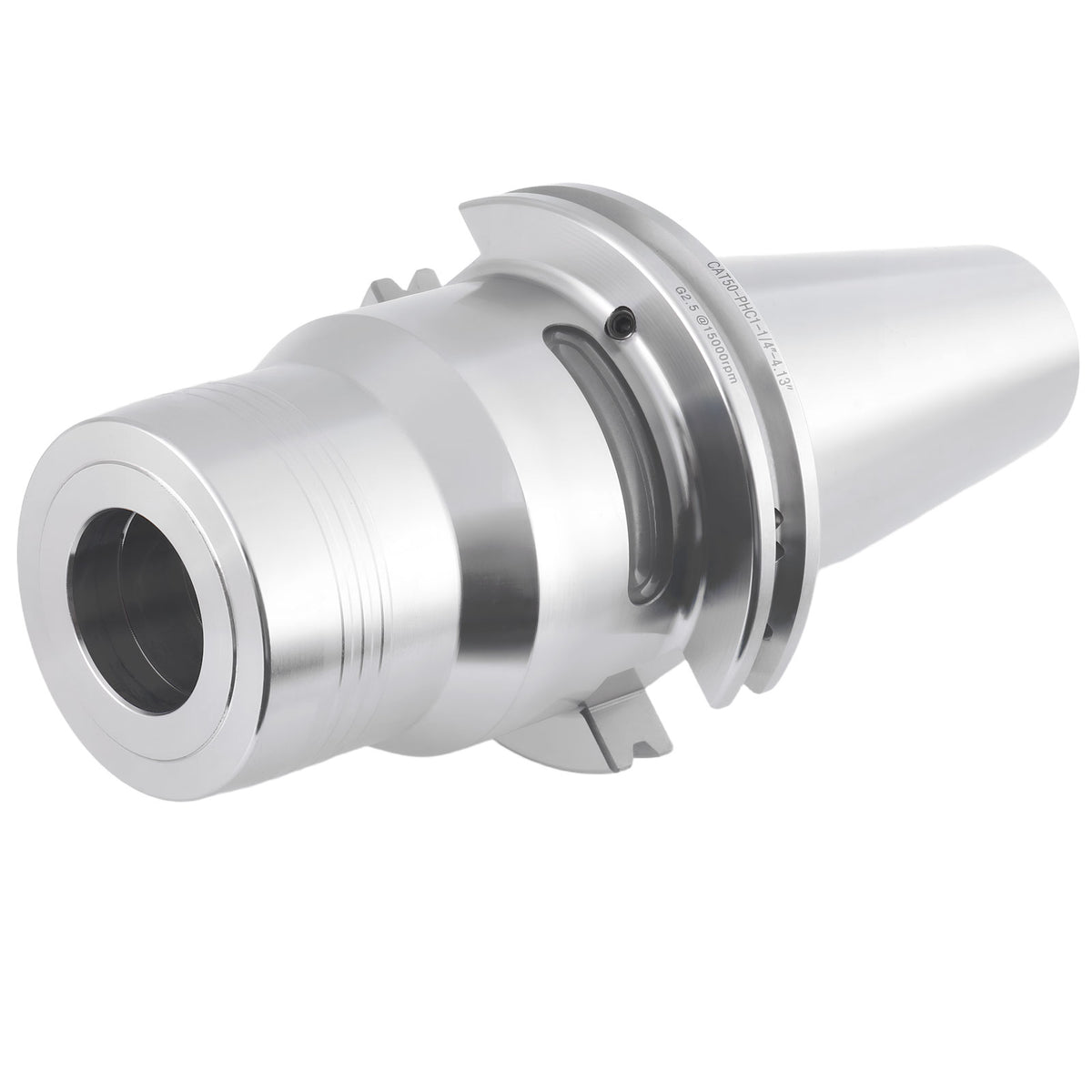

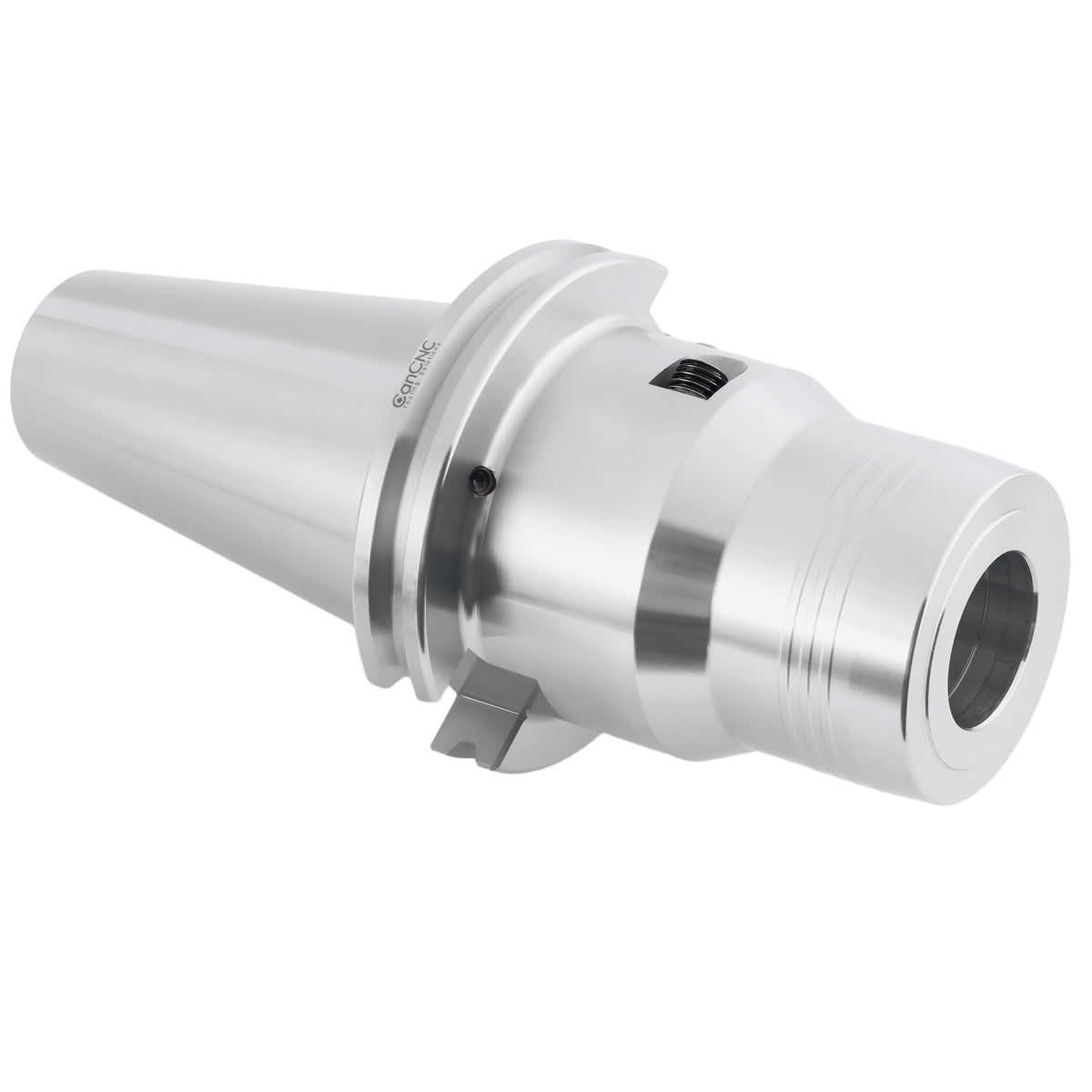

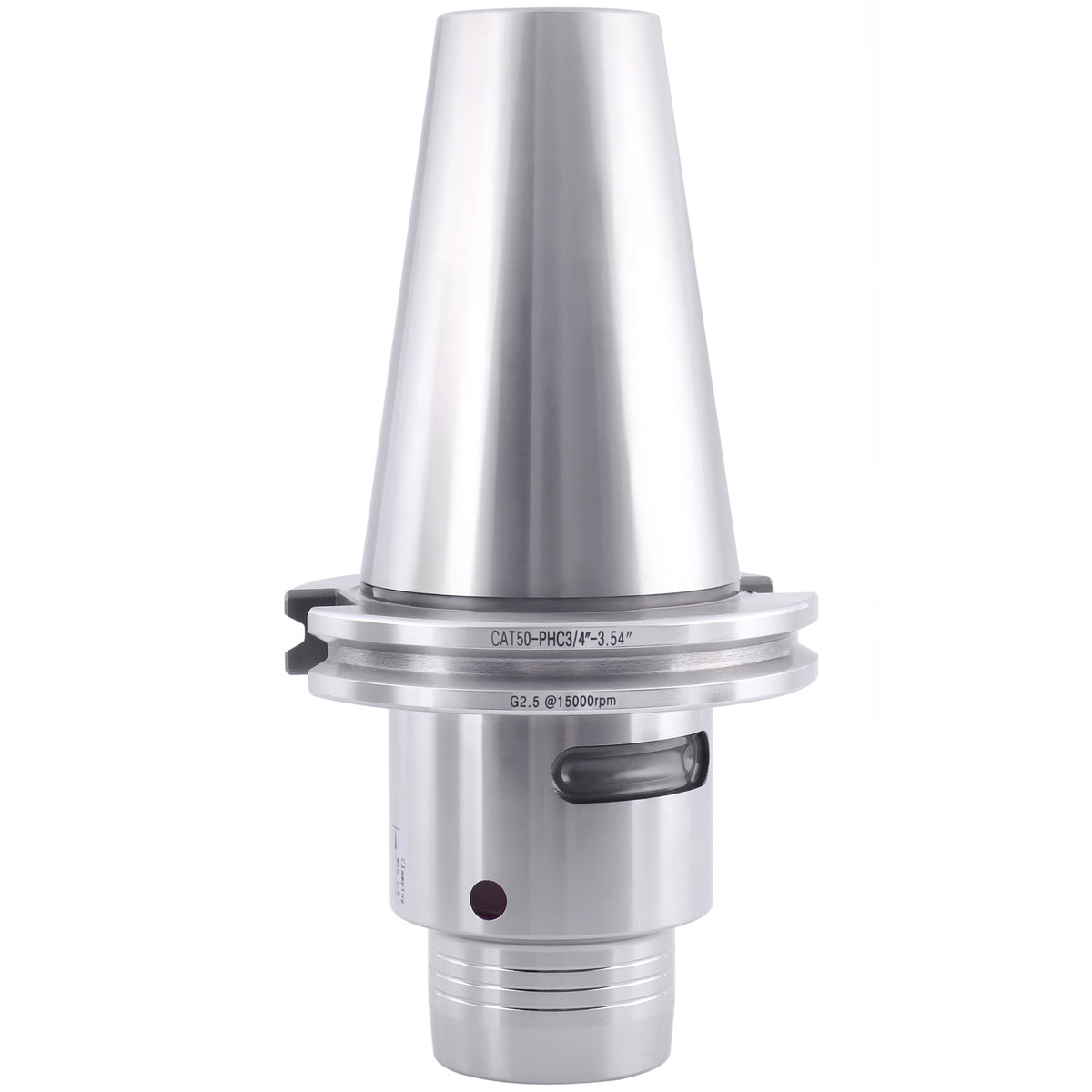

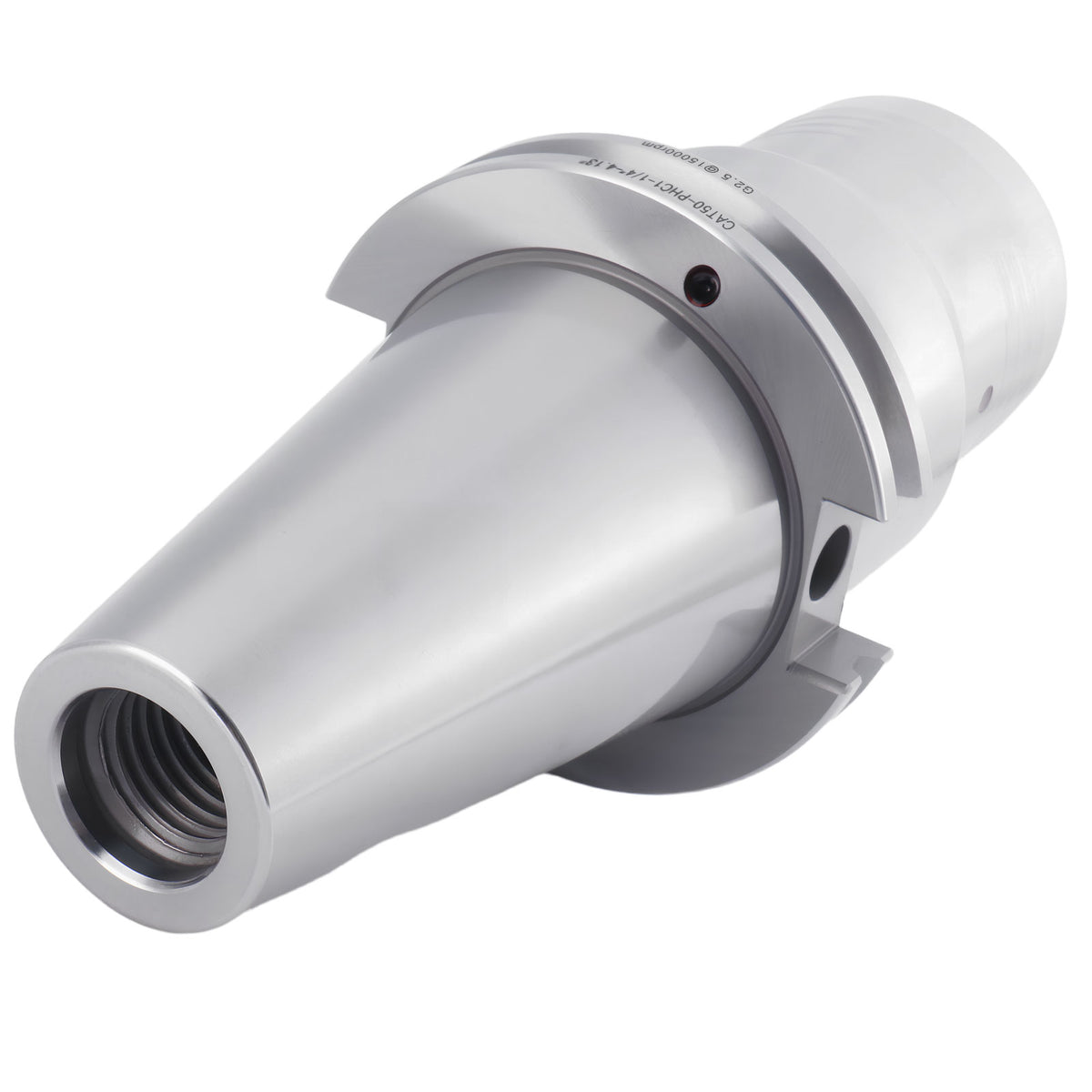

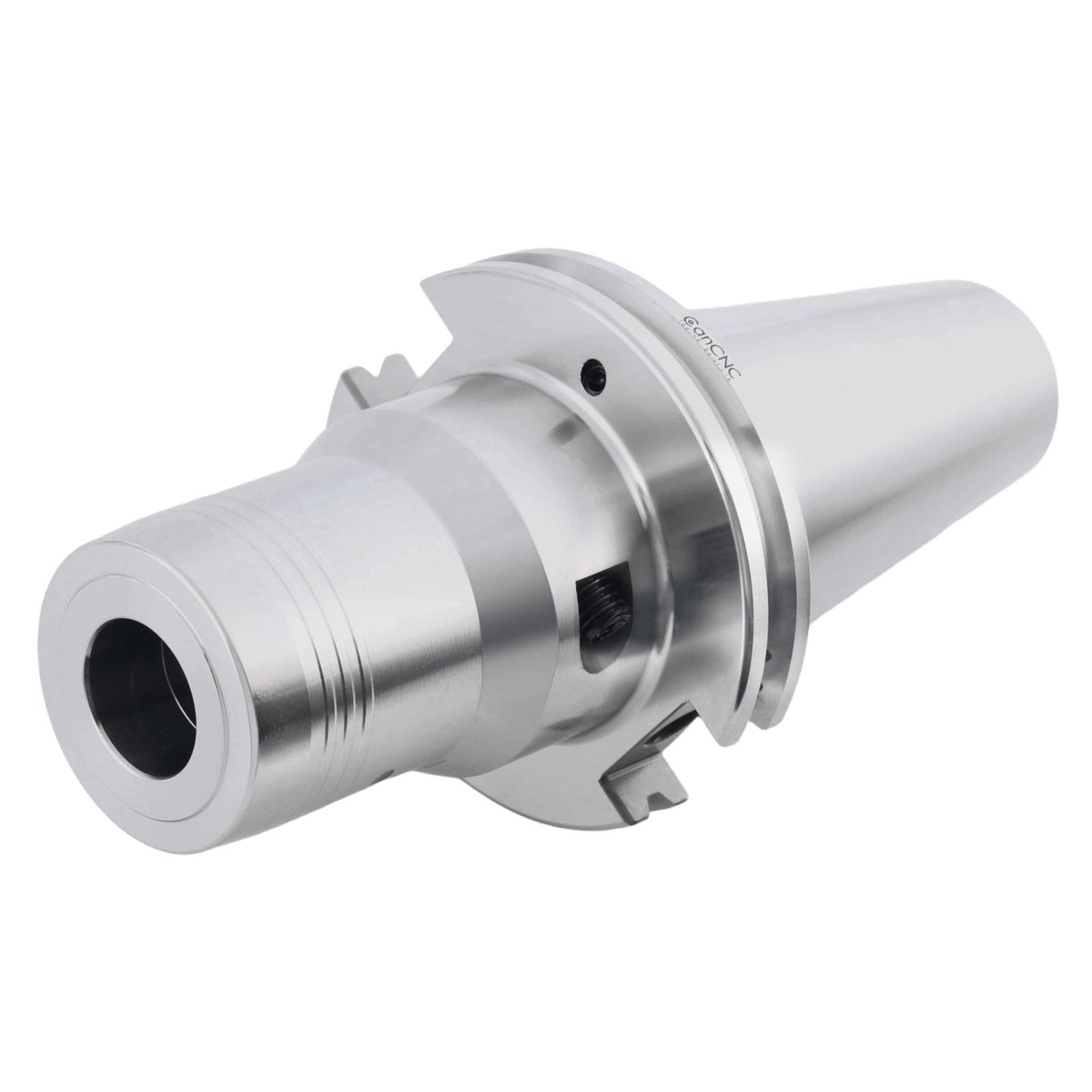

CAT50 High Precision Hydraulic Chuck
Superior Surface Finish and Vibration Dampening
- Provides excellent surface finish with minimal vibration marks during machining.
- Operates with low noise levels due to exceptional vibration-dampening properties.
- Dynamic runout accuracy maintained within 0.003 mm (0.00012"), ensuring precision at high speeds.
- Balancing specifications:

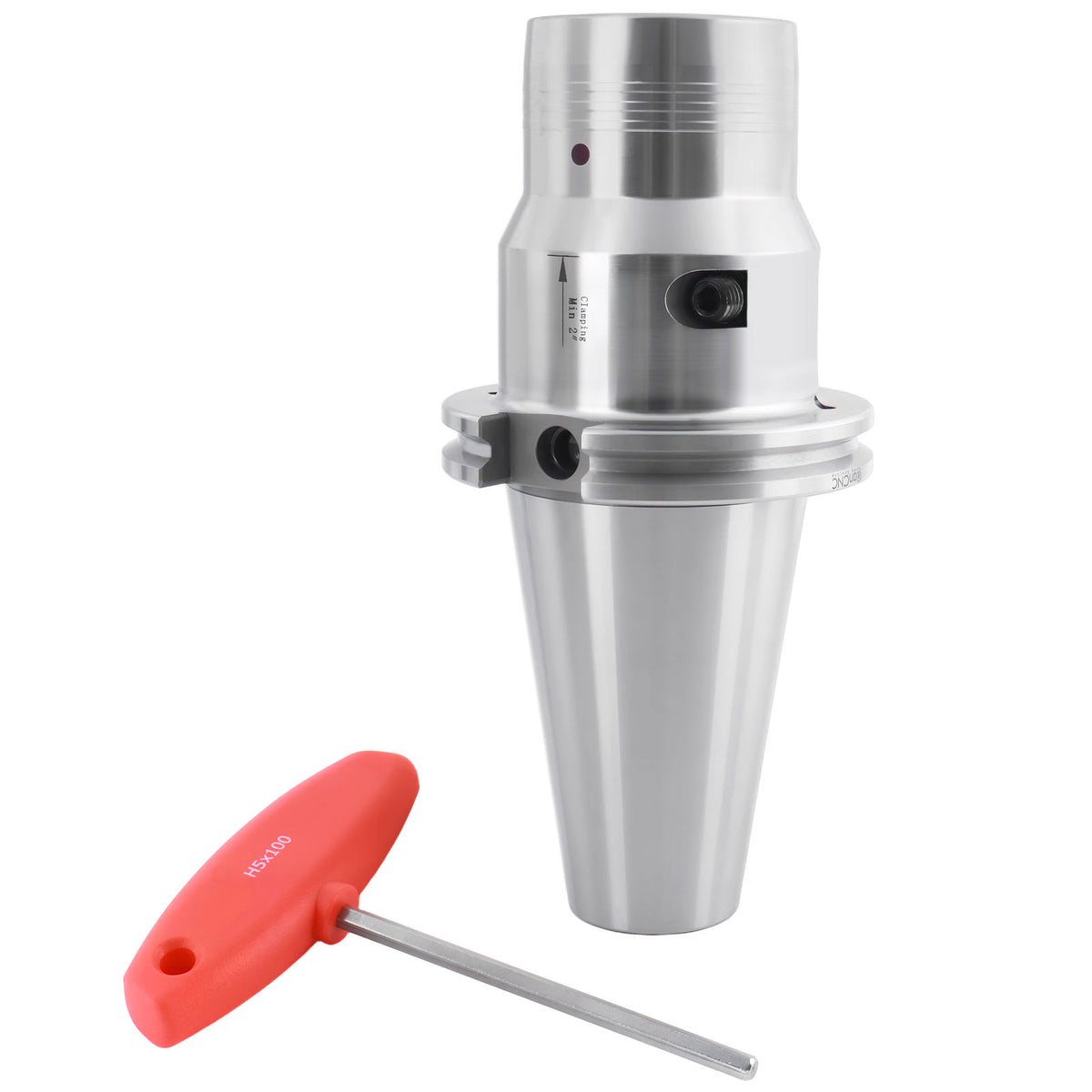

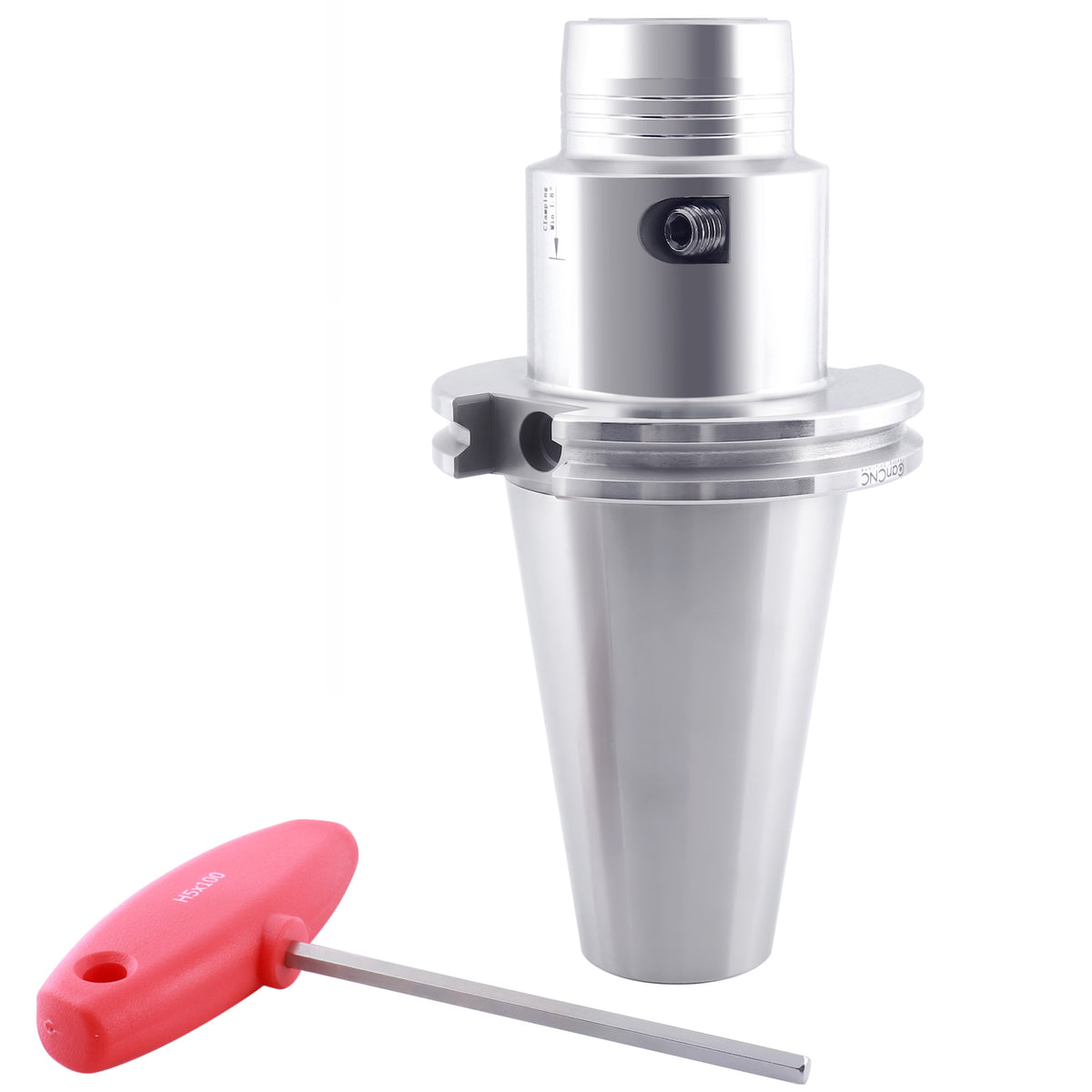

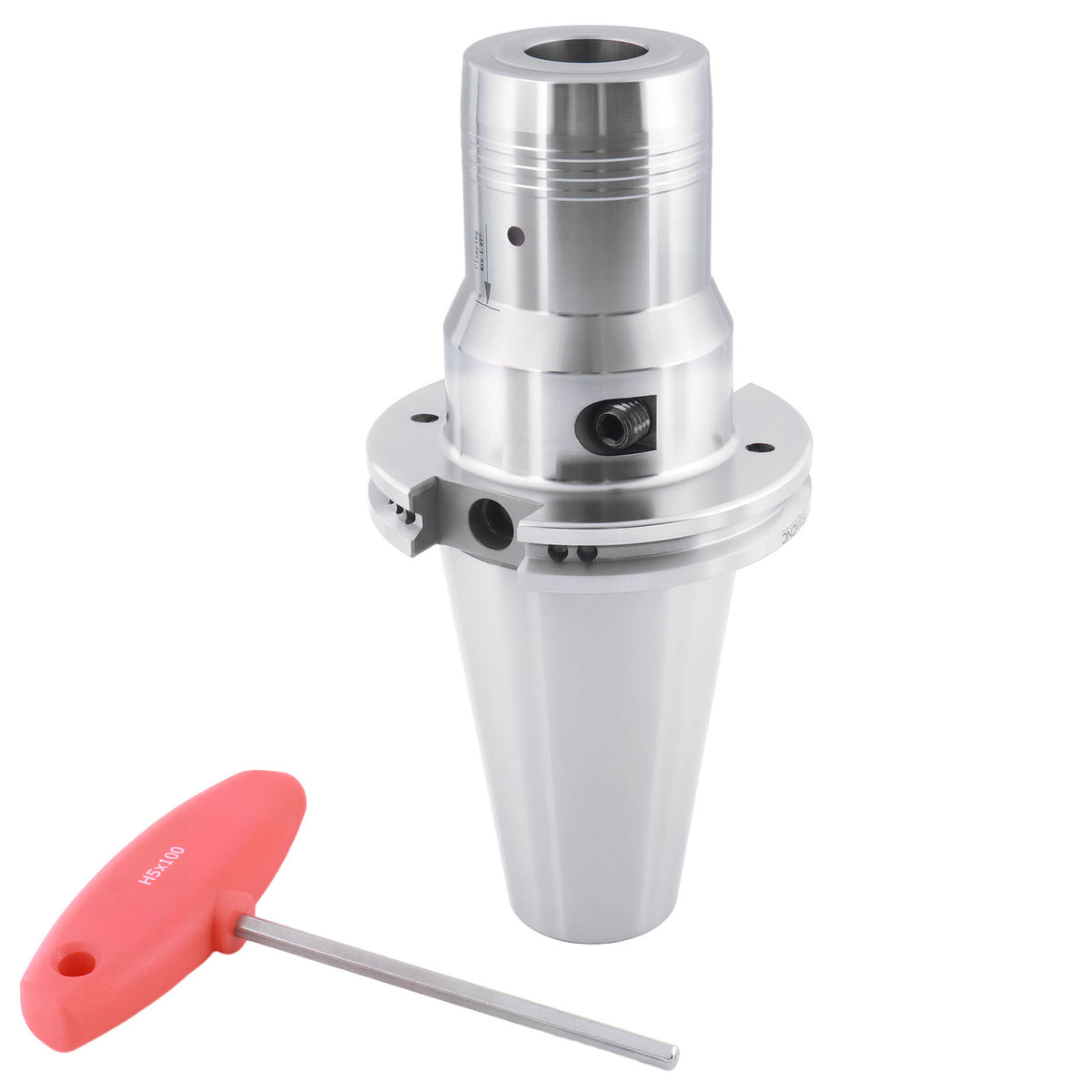

- CAT50 G2.5@15000 RPM - Wrench supplied.
Item Type Base Code Φd ΦD1 ΦD L L1 Insertion Length
C1Insertion
Length
C8150-0014 CAT50-PHC 1/4"-3.54" Ⅰ 1/4" 1.10" 1.81" 3.54" 1.02" 1.18" 1.83" 8150-0516 CAT50-PHC 5/16"-3.54" Ⅰ 5/16" 1.18" 1.89" 3.54" 1.02" 1.18" 1.83" 8150-0038 CAT50-PHC 3/8"-3.54" Ⅰ 3/8" 1.42" 2.05" 3.54" 1.02" 1.42" 2.24" 8150-0012 CAT50-PHC 1/2"-3.54" Ⅰ 1/2" 1.50" 2.13" 3.54" 1.02" 1.42" 2.24" 8150-0058 CAT50-PHC 5/8"-3.54" Ⅰ 5/8" 1.65" 2.28" 3.54" 1.10" 1.99" 2.56" 8150-0034 CAT50-PHC 3/4"-3.54" Ⅰ 3/4" 1.81" 2.36" 3.54" 1.10" 1.81" 2.56" 8150-0001 CAT50-PHC 1"-4.13" Ⅱ 1" 2.13" 2.60" 4.13" 1.50" 1.93" 2.56" 8150-0114 CAT50-PHC 1-1/4"-4.13" Ⅱ 1-1/4" 2.52" 2.83" 4.13" 1.65" 2.24" 3.15"
Cautions
- Use only cutting tools with shank tolerance of h6 or better.
- Do not use cutting tools with a Weldon flat or similar flat sections on the shank.
- Never clamp the holder without a tool inserted.

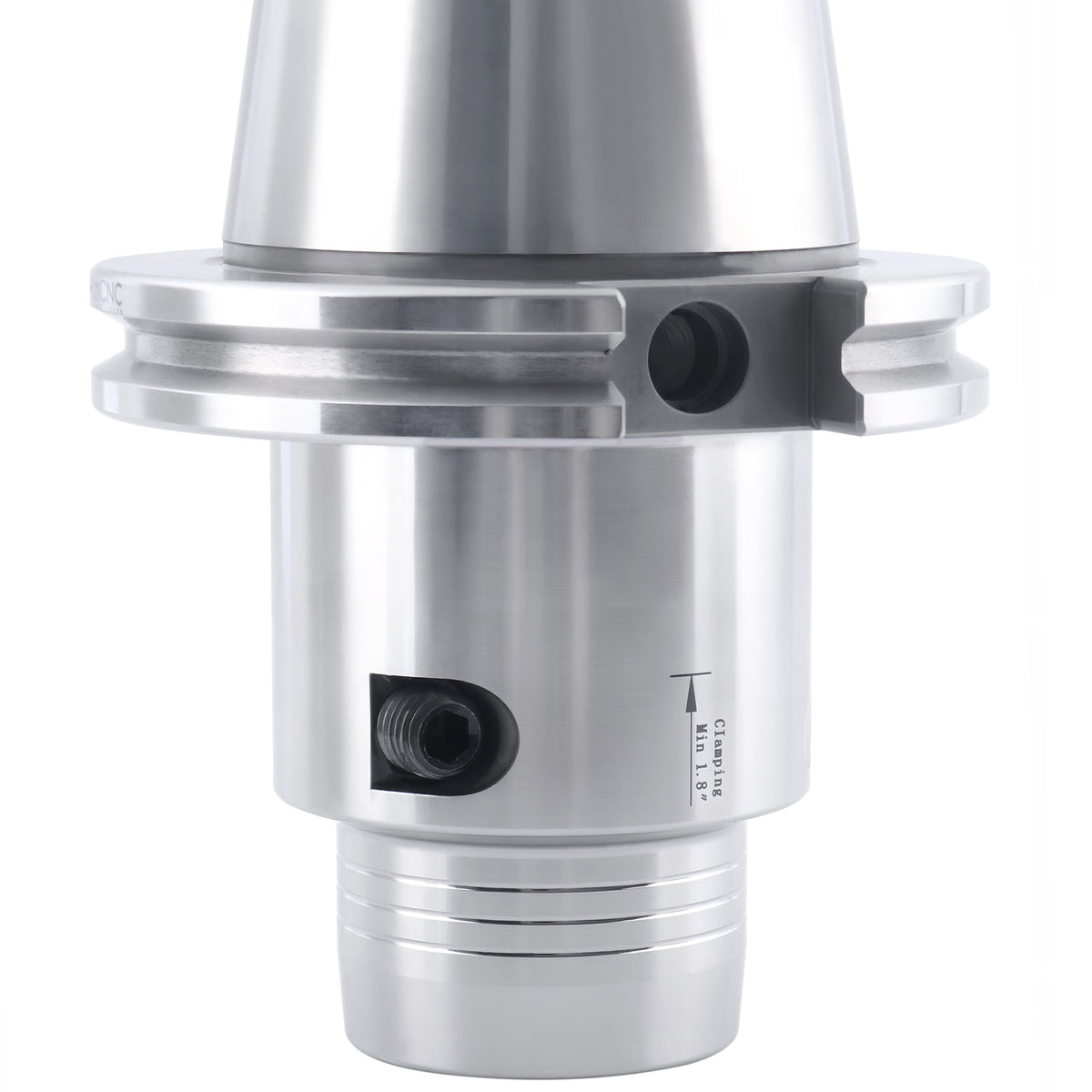

- Always insert the cutting tool beyond the minimum clamping length (C).
