ER Collet Systems with CAT40 or BT40 Shanks


Item #: BT40-ER32
Price:
$285.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

ER Collet Systems with CAT40 or BT40 Shanks Balancing Grade G6.3/12000rpm

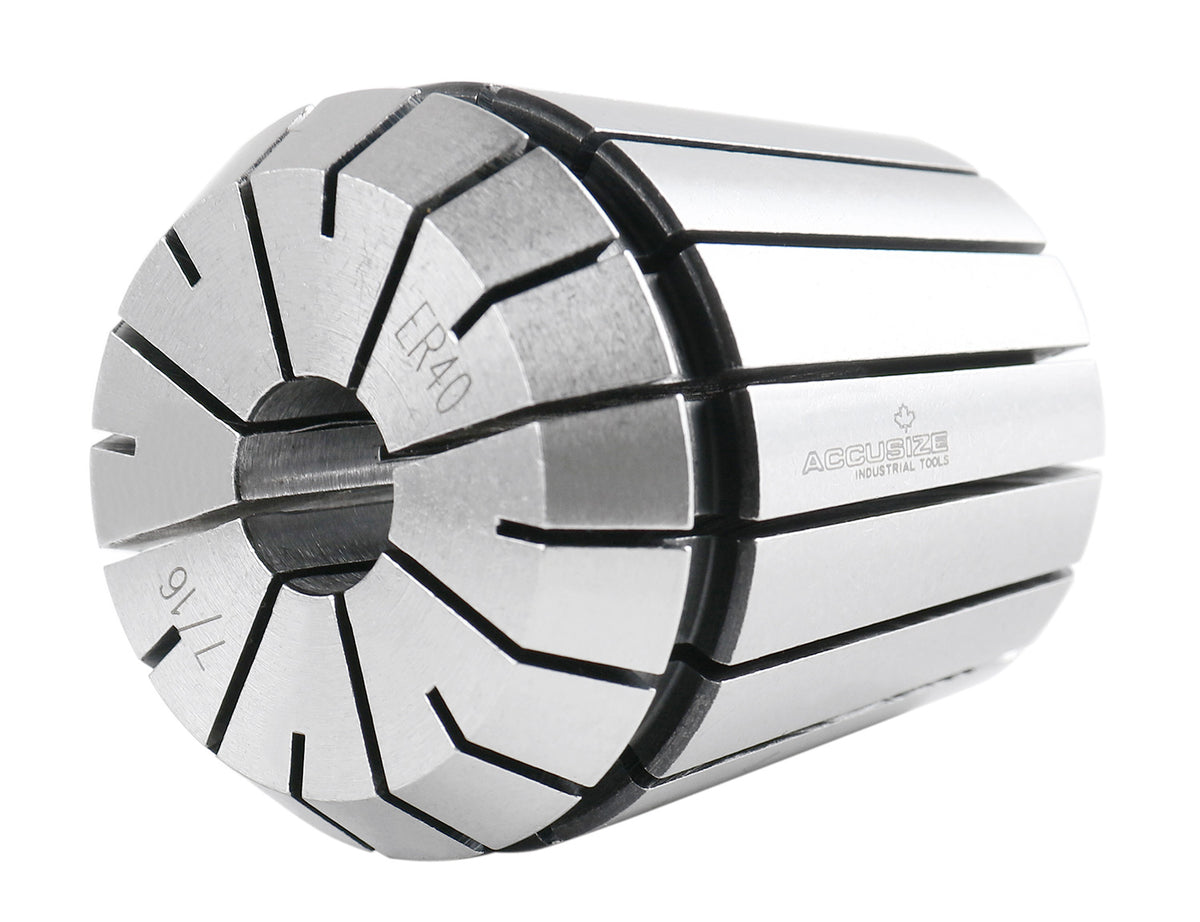

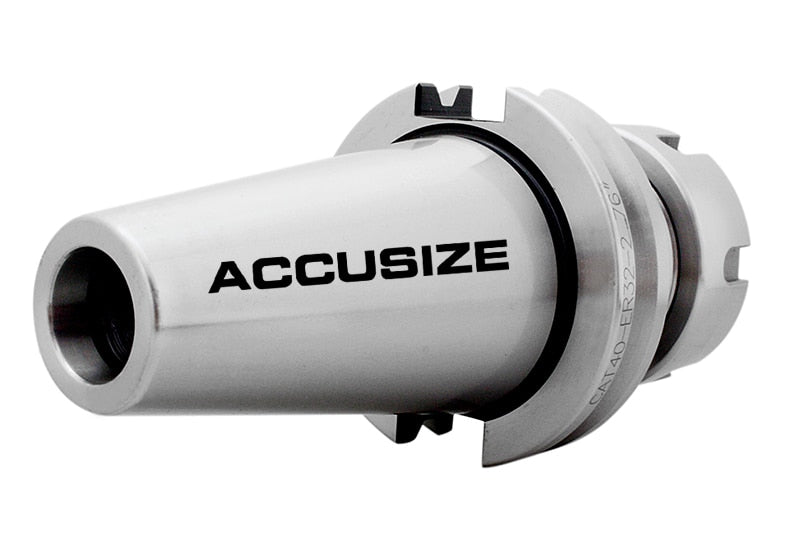

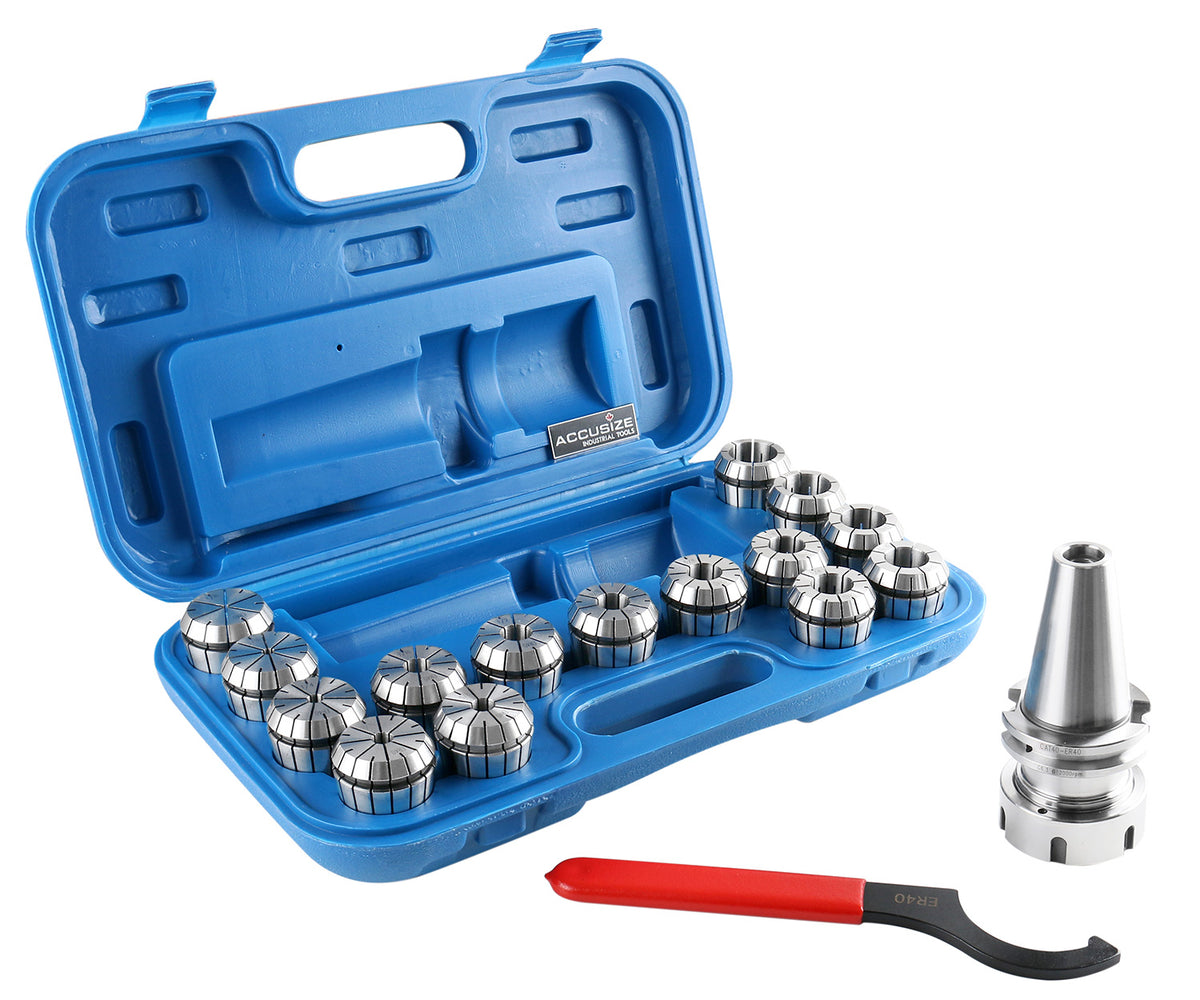

Item: CT40-ER40
  • Dynamic Balancing Grade G6.3/12000 RPM

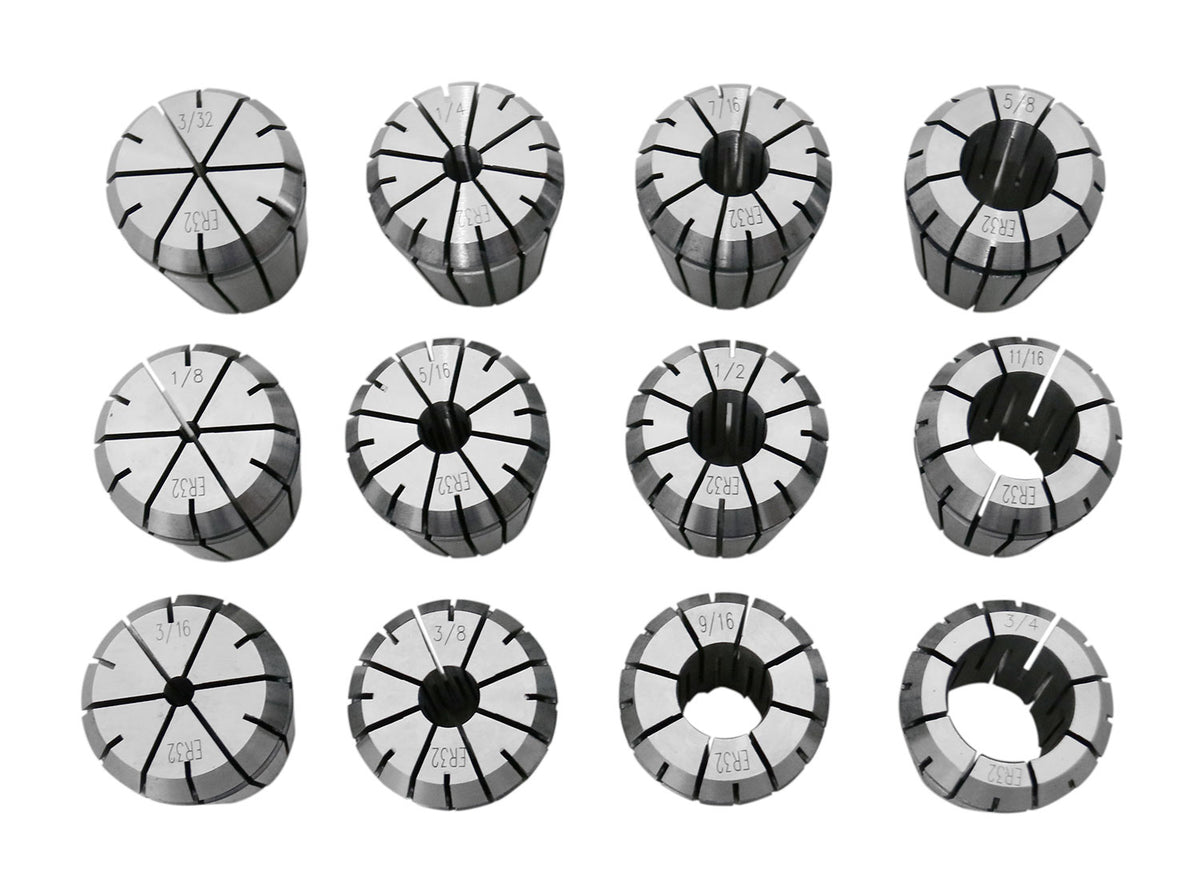

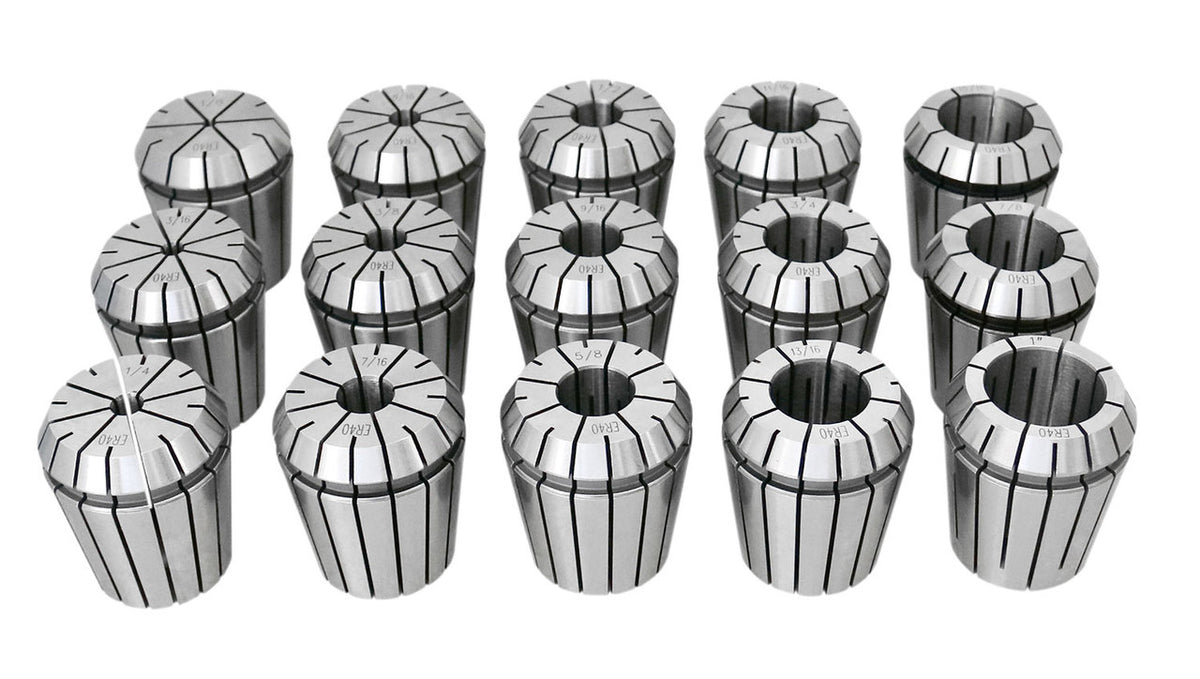

  • 15 Pcs ER40 chucks set includes the following collet sizes:1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8, 15/16, 1"
  • 1 pc spanner + 1 pc clamping nut

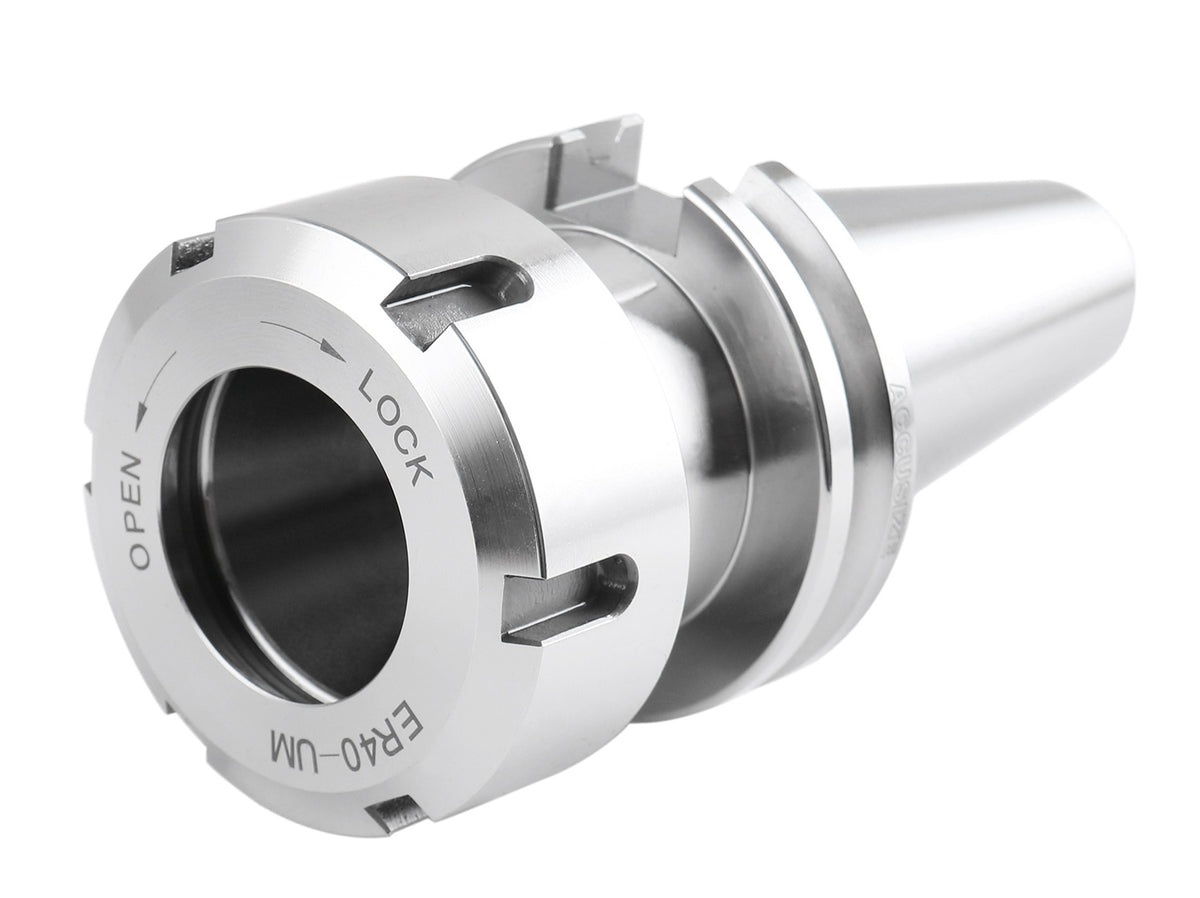

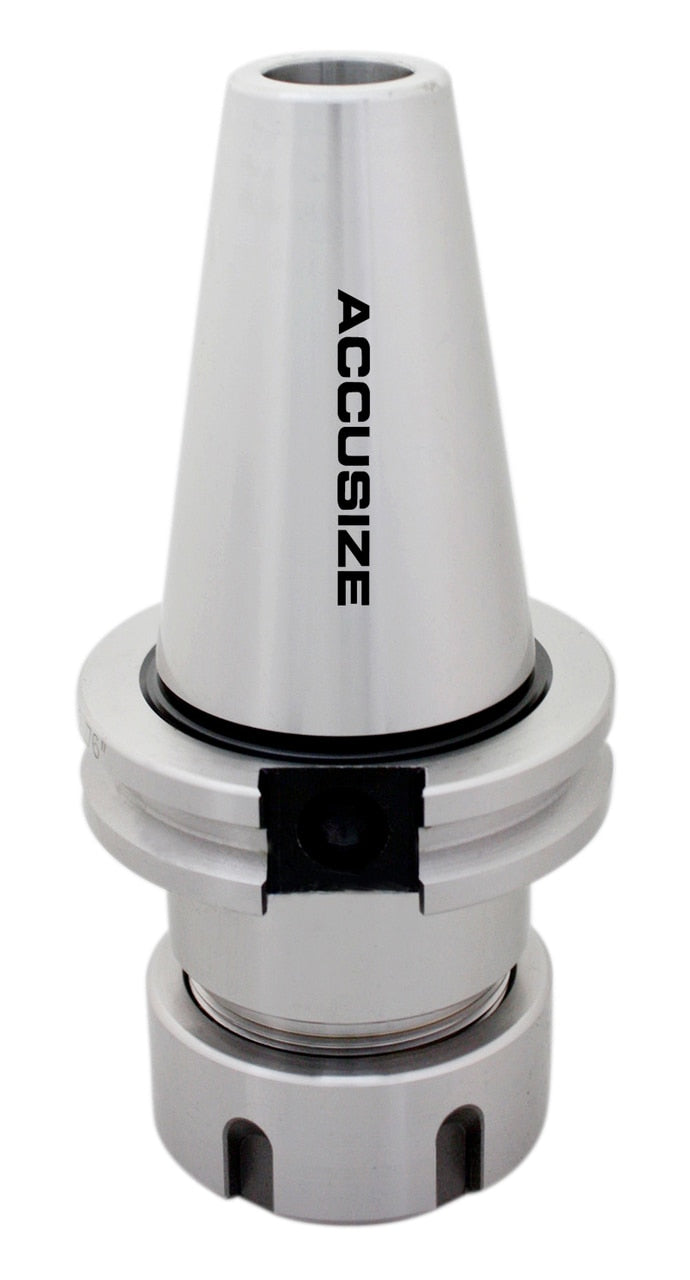

  • CAT40-ER40 - 80mm chuck holder

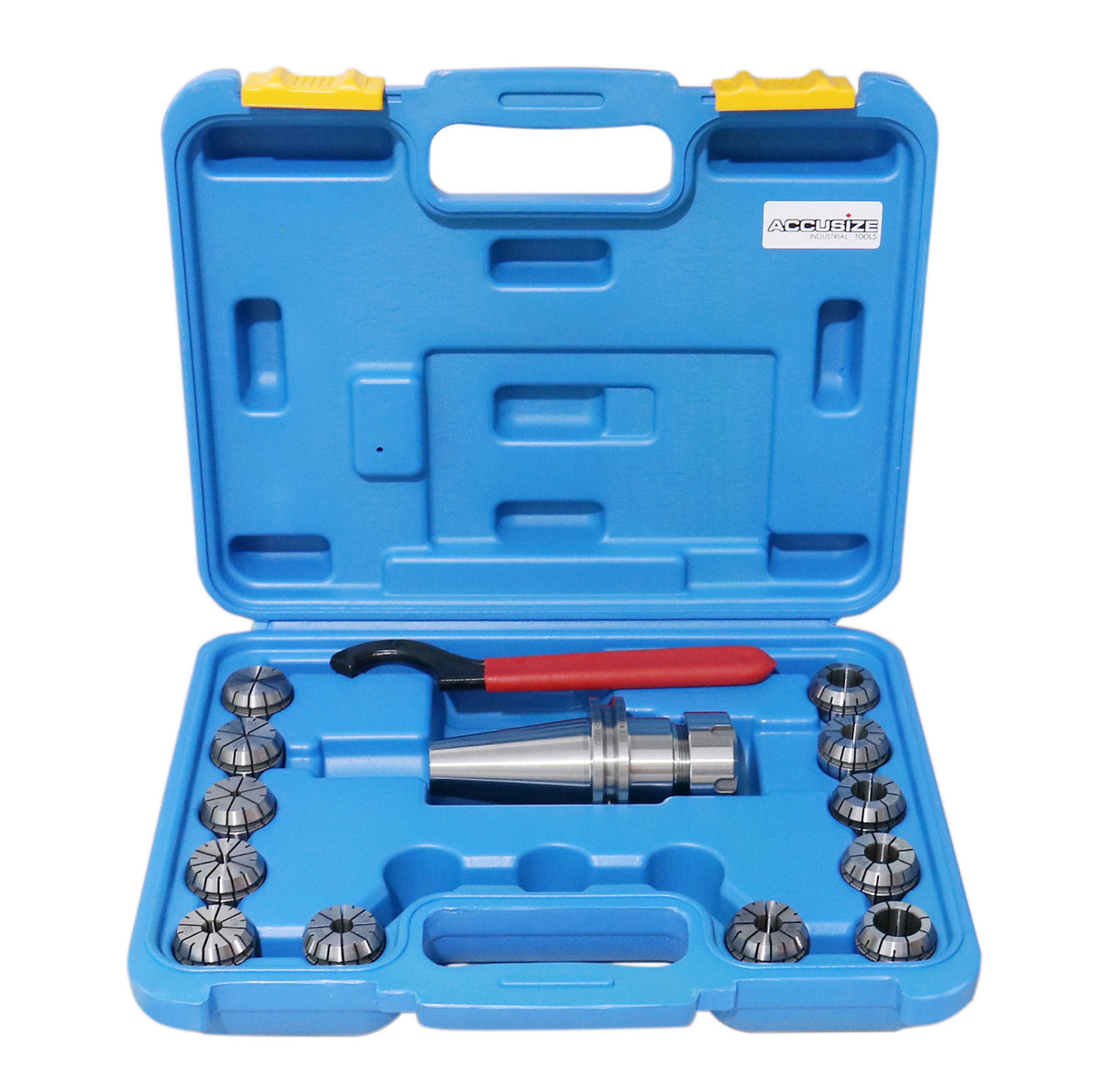

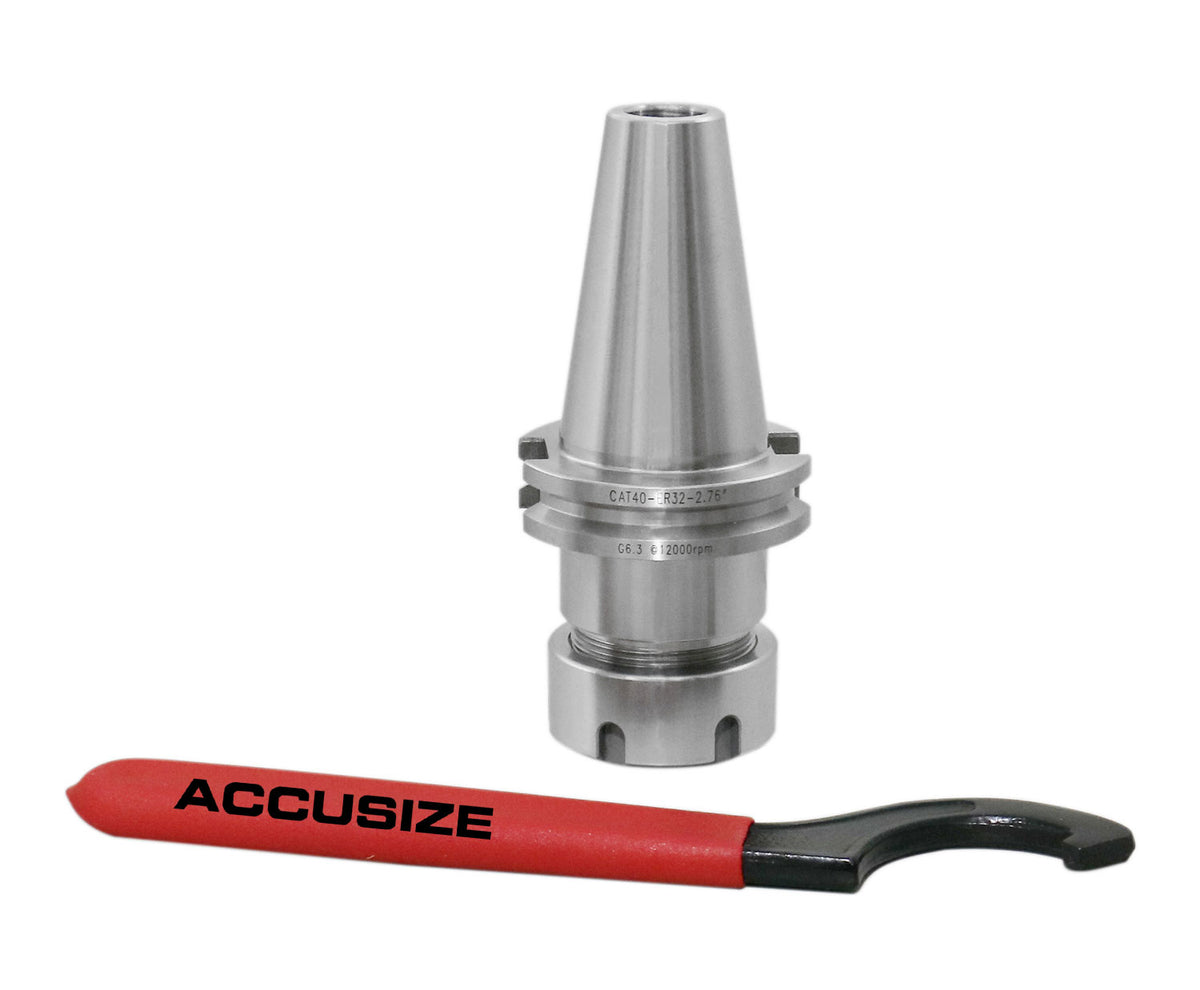

Item: CT40-ER32
  • 12 pcs ER40 chucks set include the following collet sizes:
    3/32", 1/8, 3/16. 1/4, 5/16, 3/8, 7/16, 9/16, 5/8, 21/32", 11/16, and 3/4"
  • 1 pc spanner + 1 pc clamping nut

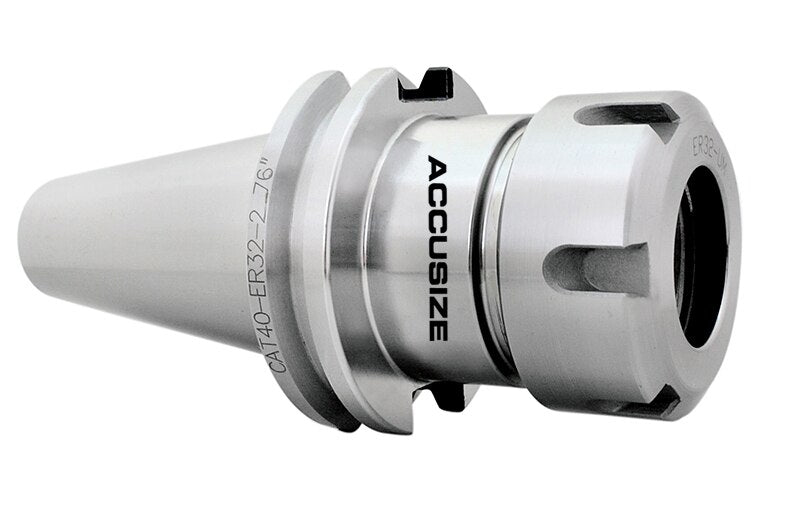

  • CAT40-ER32 - 70 mm chuck holder

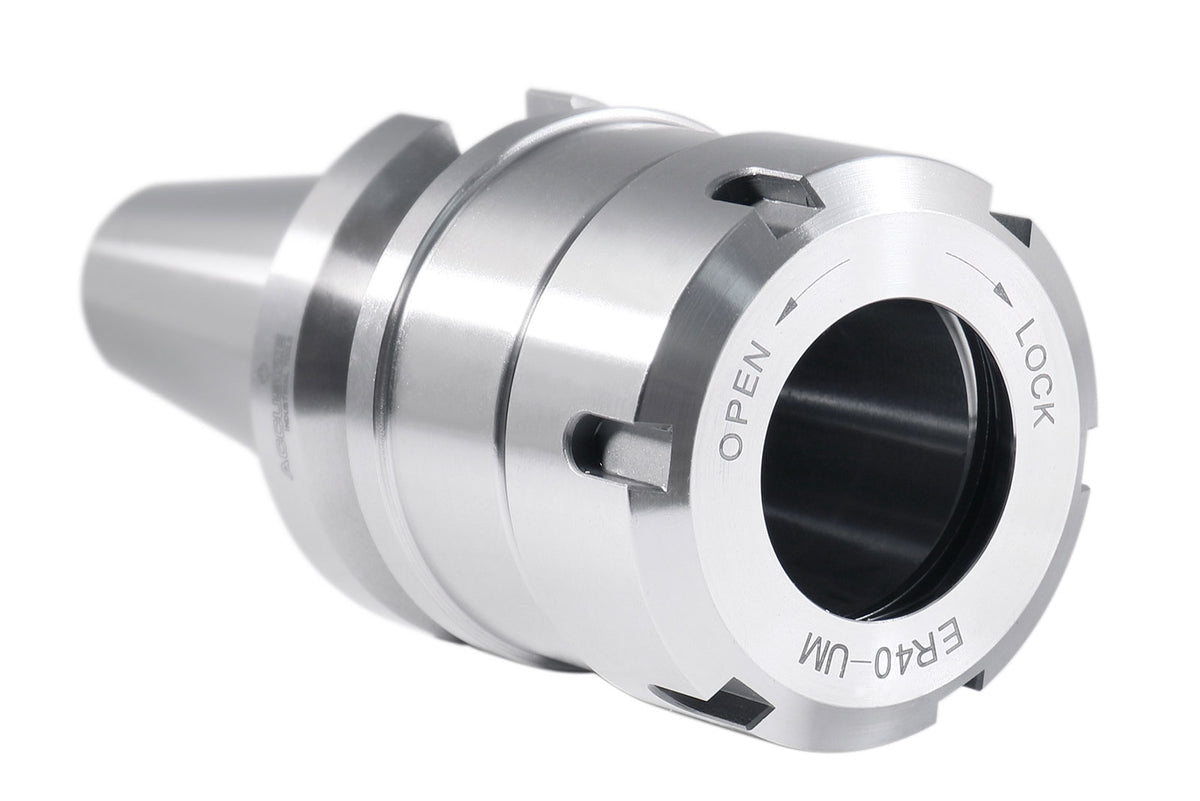

Item: BT40-ER40

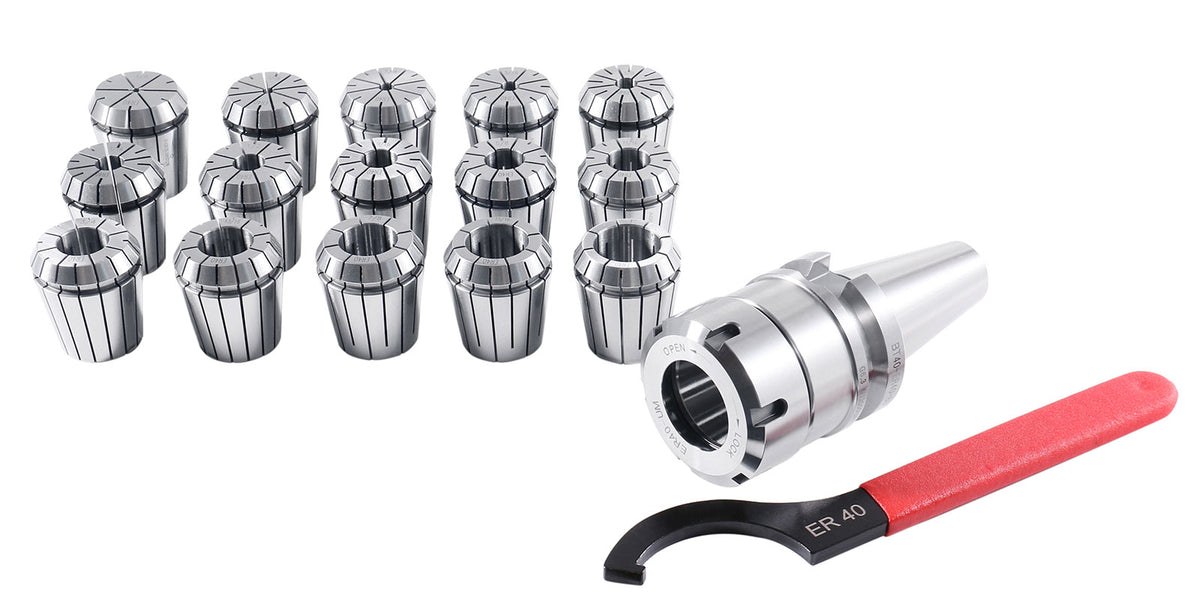

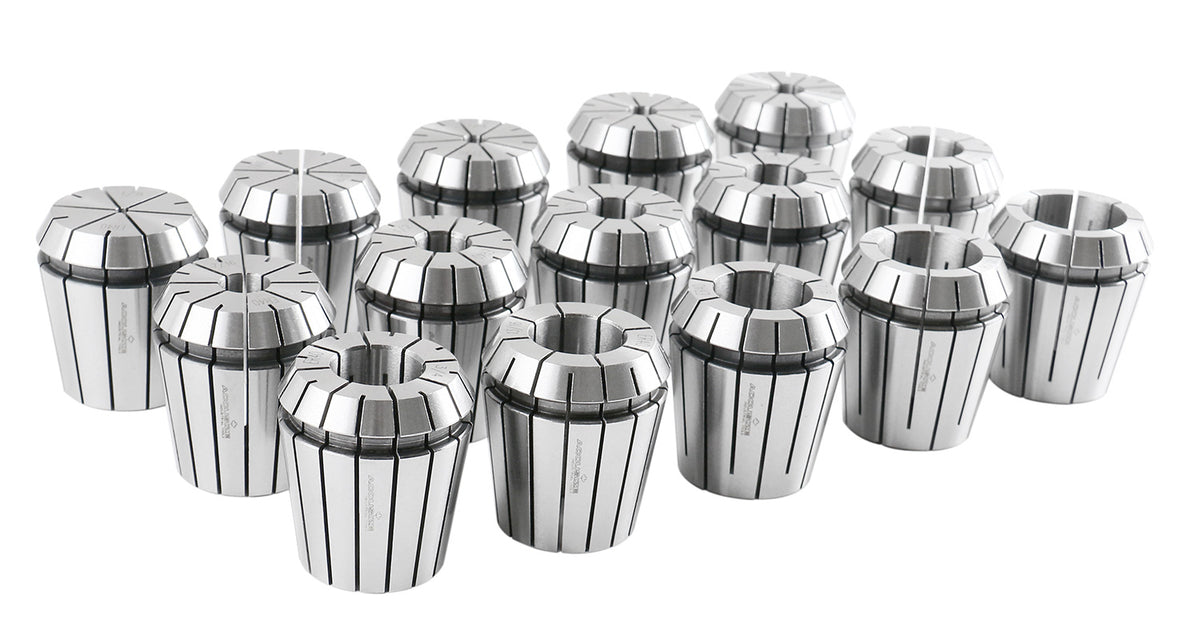

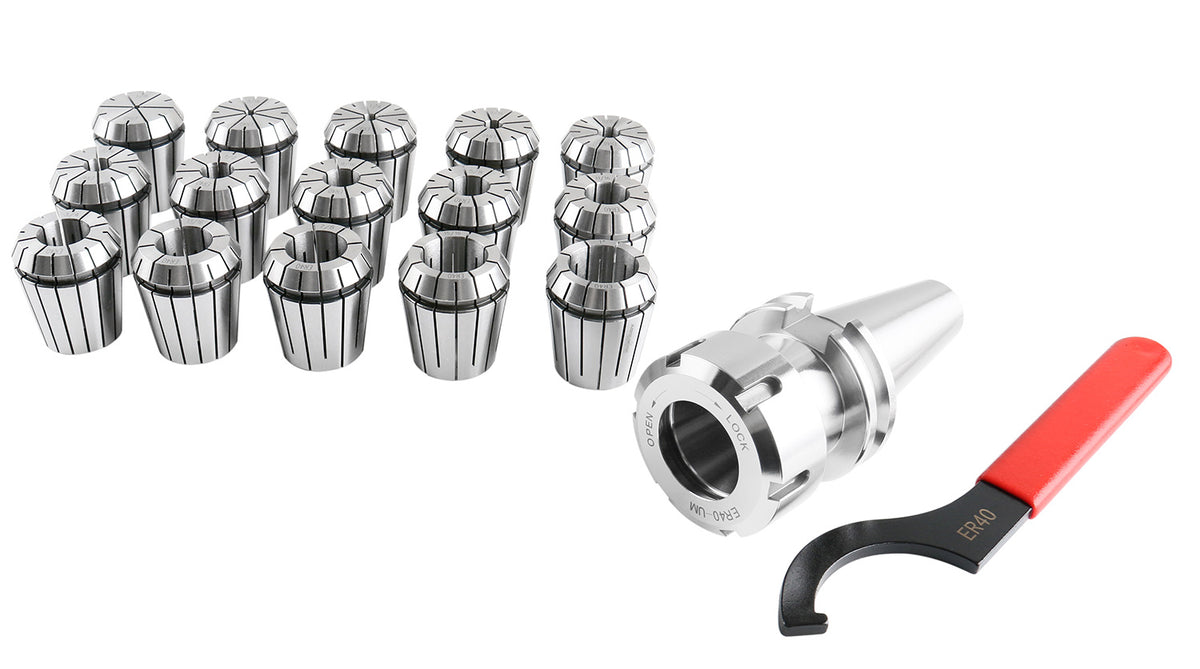

  • 15pc ER40 chucks set includes the following collet sizes:
    • 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, and 1''
  • 1 pc spanner + 1 pc clamping nut
  • BT40-ER40 - 80mm Chuck Holder

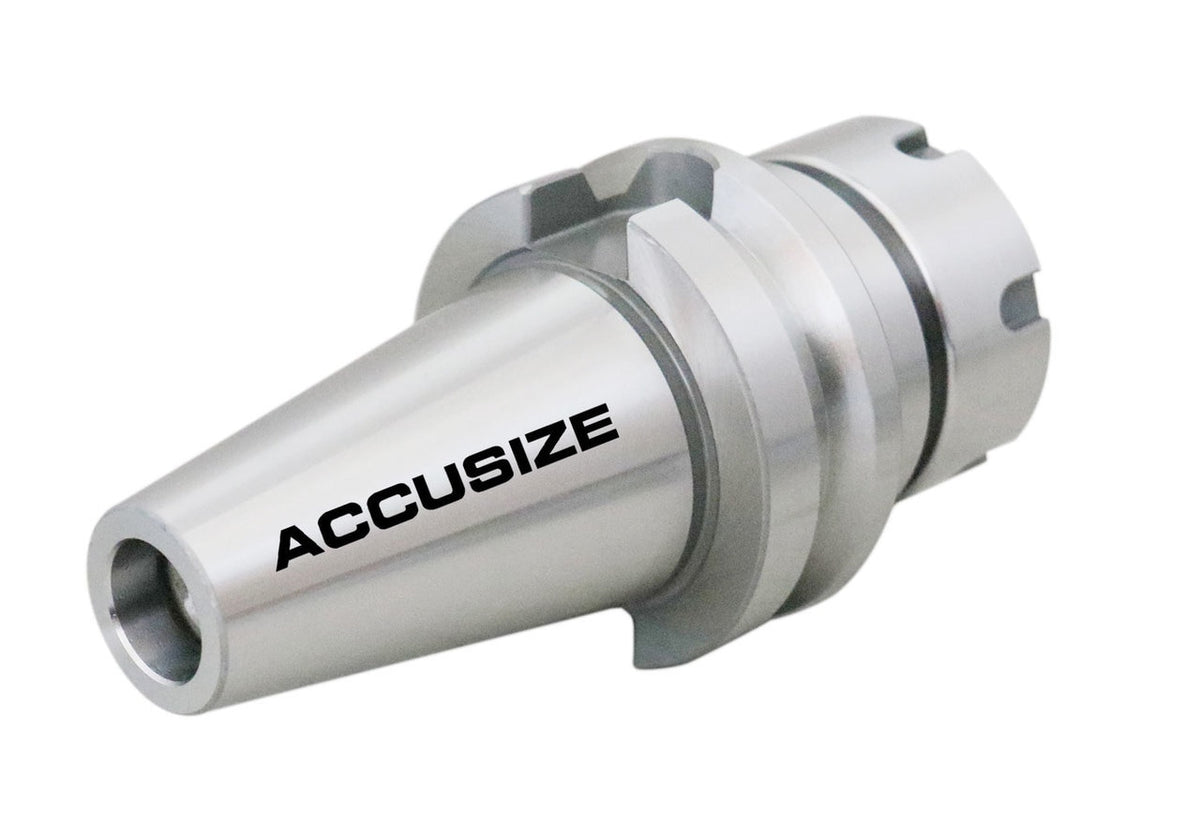

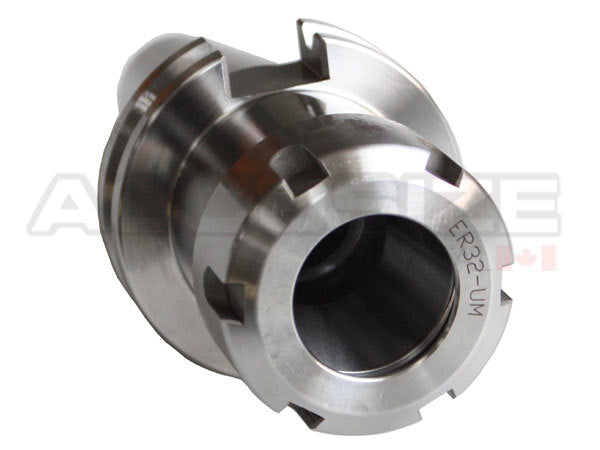

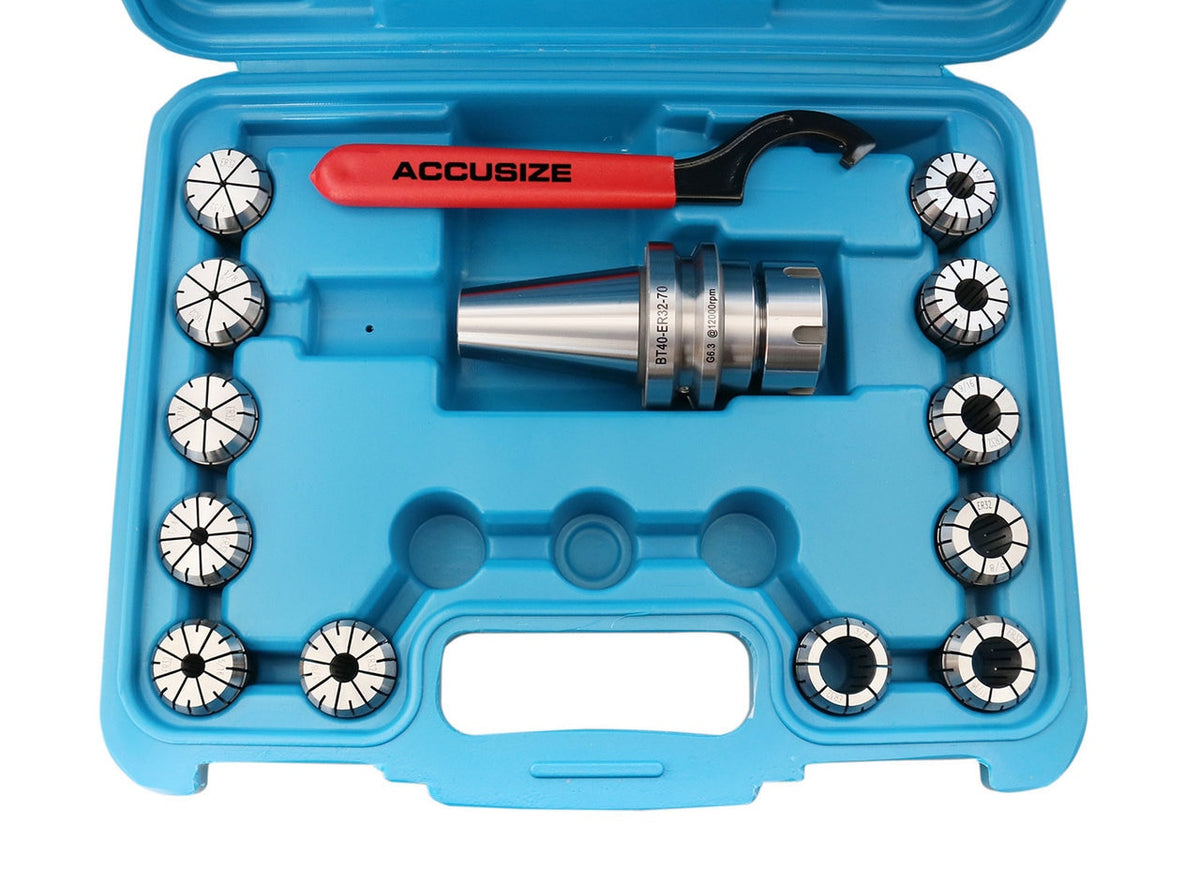

Item: BT40-ER32

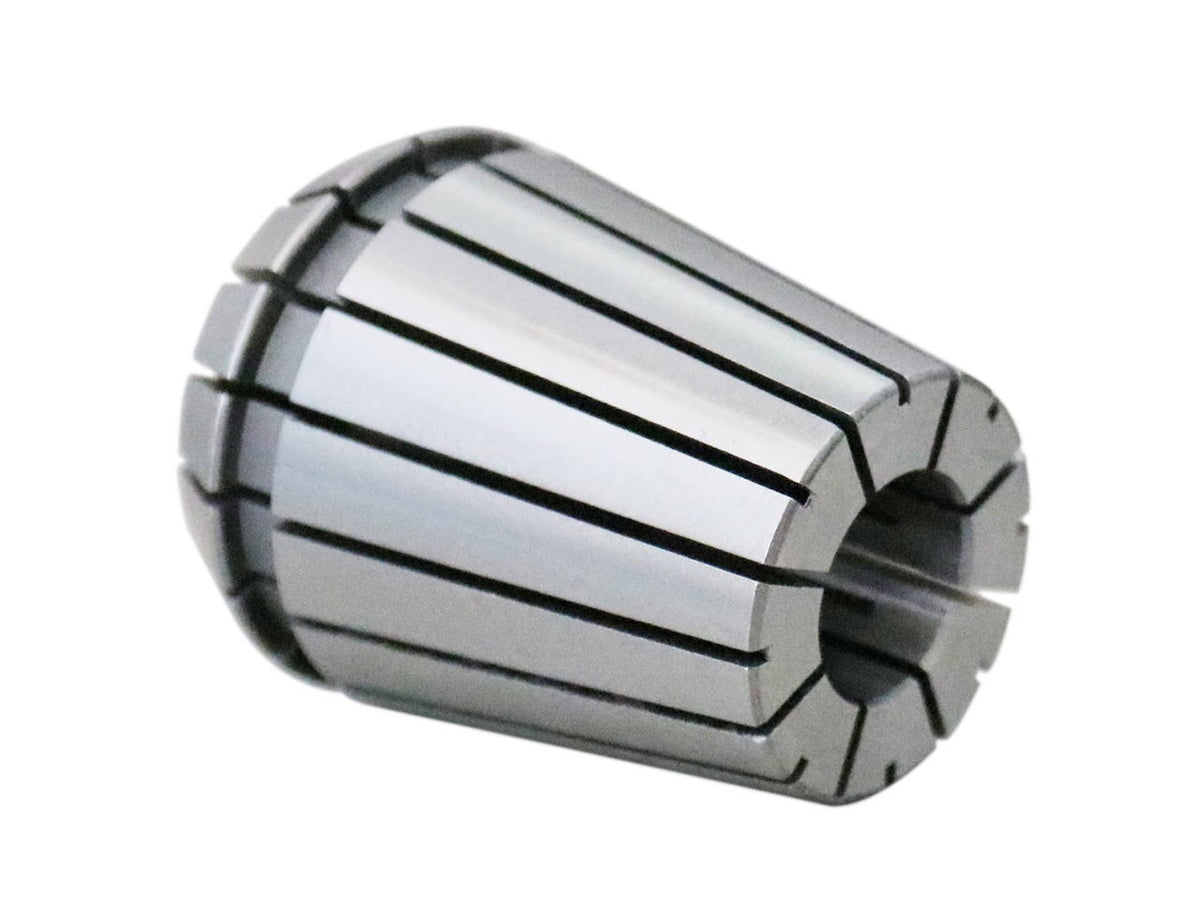

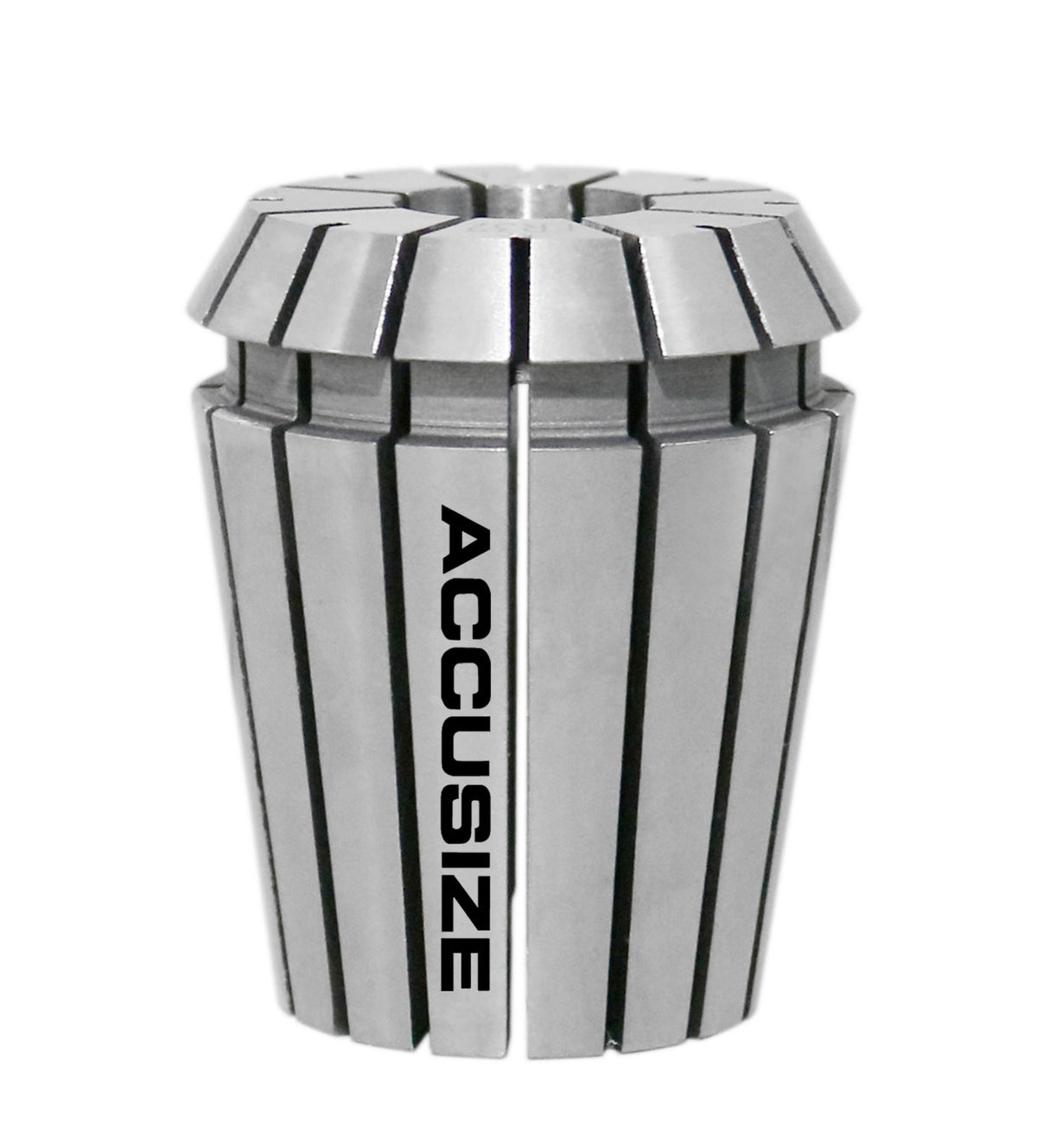

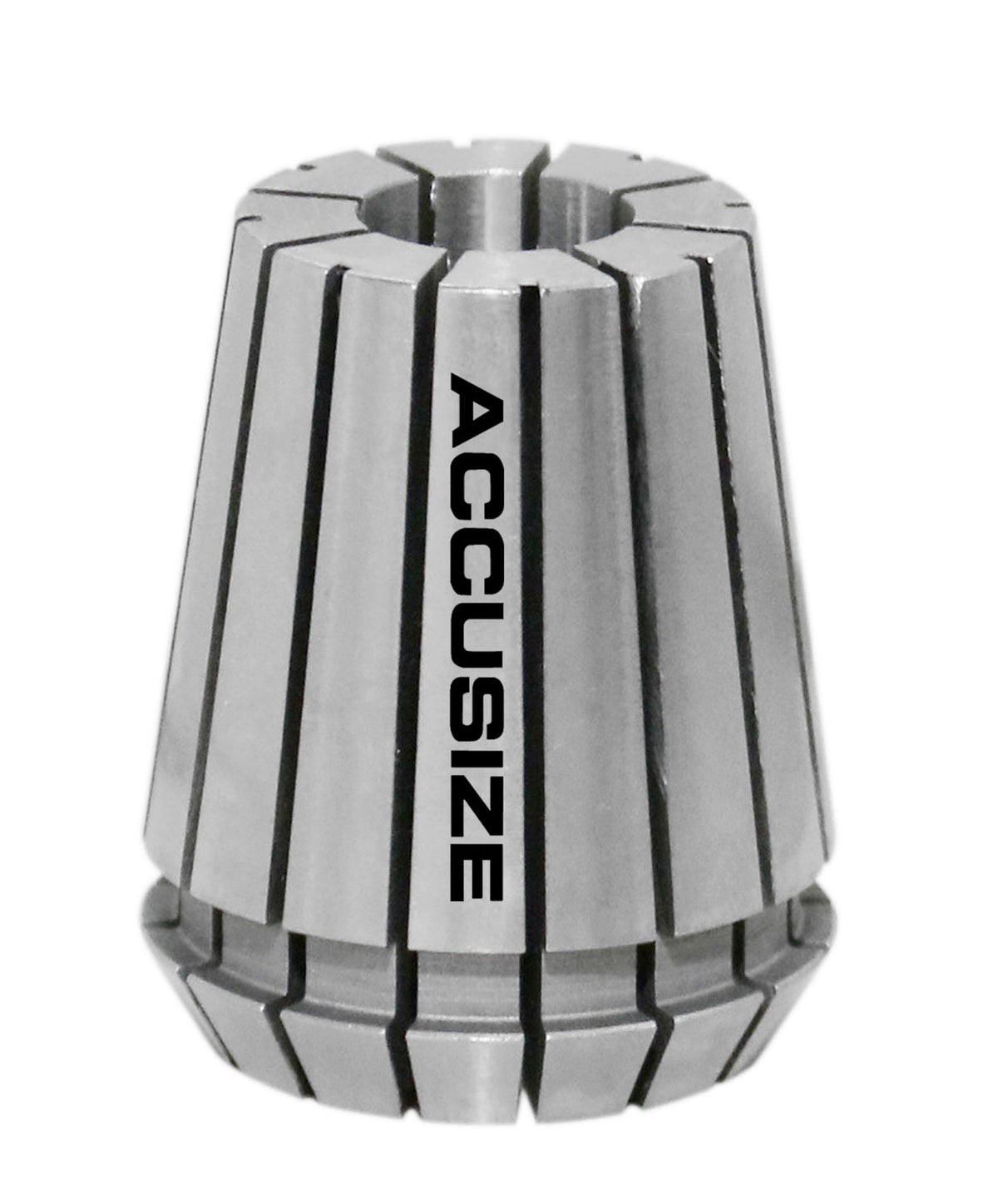

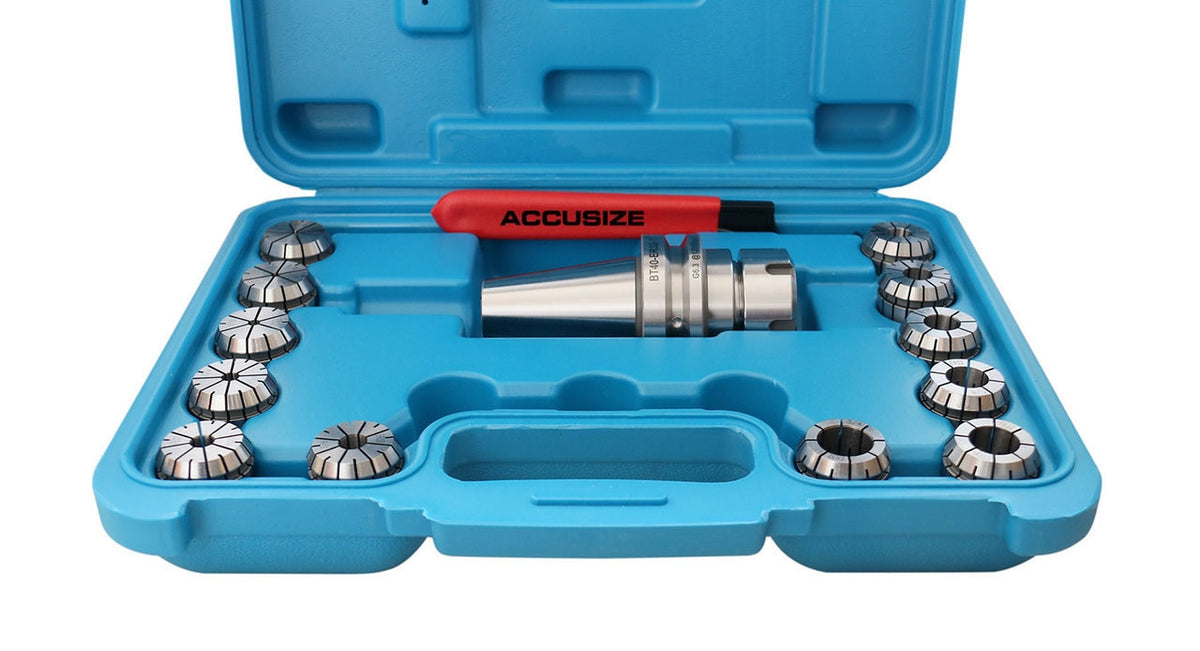

  • 12 Pcs ER32 chucks set includes the following collet sizes:
    • 3/32, 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 3/4, 9/16, 5/8, 21/32, and 11/16''
  • 1 pc spanner + 1 pc clamping nut

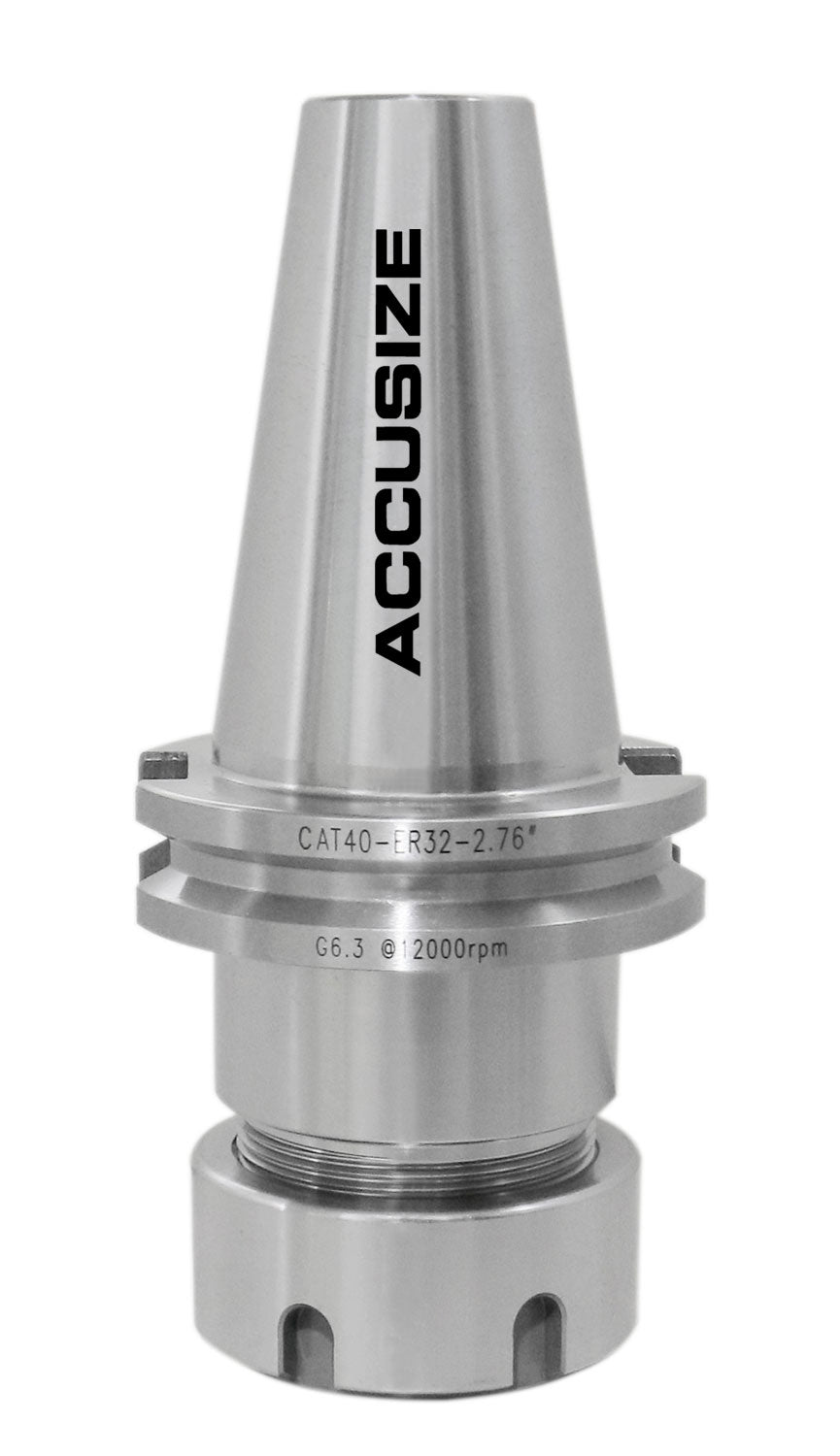

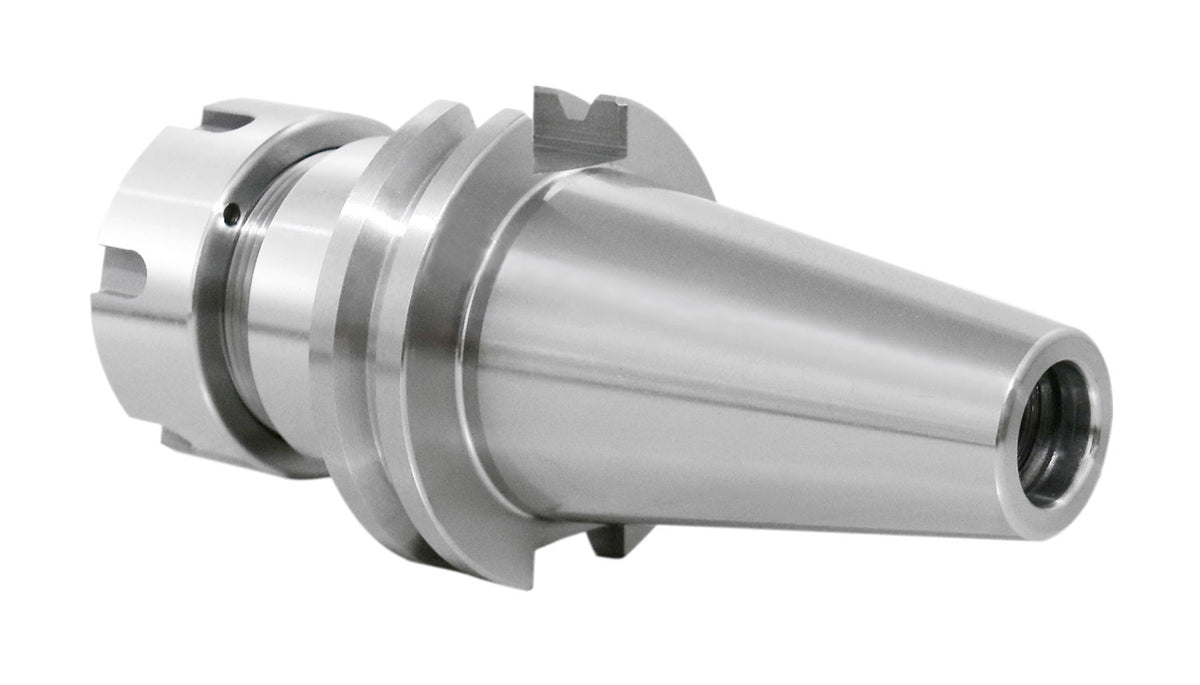

  • BT40-ER32 - 70mm Chuck Holder

Design, Assemble, and Dissemble of ER Collet Nut

Eccentric Design, ISO 15488:2003(E), Accusize ER Collet Chuck Nut
Assemble Accusize ER Collet Nut
Inspection of Accusize ER Collet Chuck and Nut
Dissemble Accusize ER Collet Nut
Eccentric Design, ISO 15488:2003(E) Assemble Inspection Dissemble

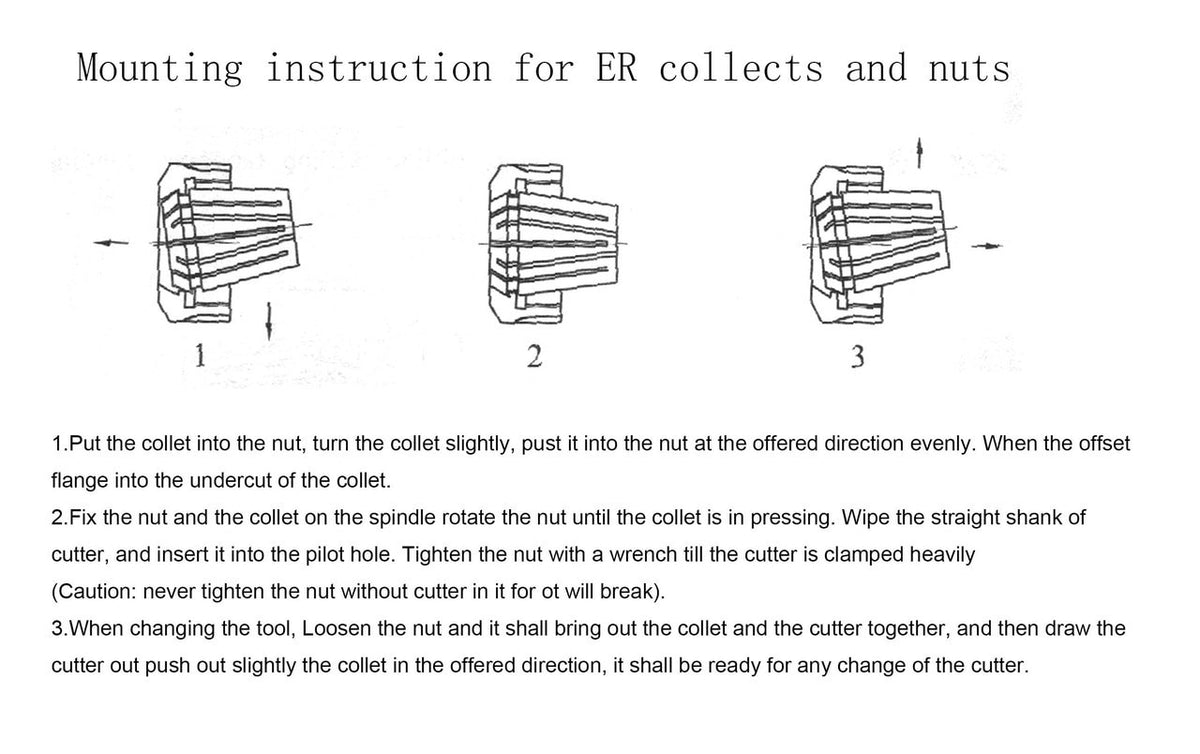

The inside of the ER collet nut is intentionally designed like off-centering to help mount the ER collet much easier. It is in accordance with the requirements listed in ISO 15488:2003(E). If it is made symmetrical, the ER collet with the diameter larger than the inside size of the collet nut cannot be installed. Insert the ER collet into the nut at an angle. Lock it onto the eccentric groove of the collet nut and push it in. (Insert the cutter right after the step, before connect it to the holder/chuck/arbor.)

Inspect the RPM of the ER collet, ER collet nut, ER collet holder/chuck/arbor, etc. Take out the tool bit, press the end of the ER collet until the collet off the position. Push it out of the nut. (after take out the nut out of the holder.)
