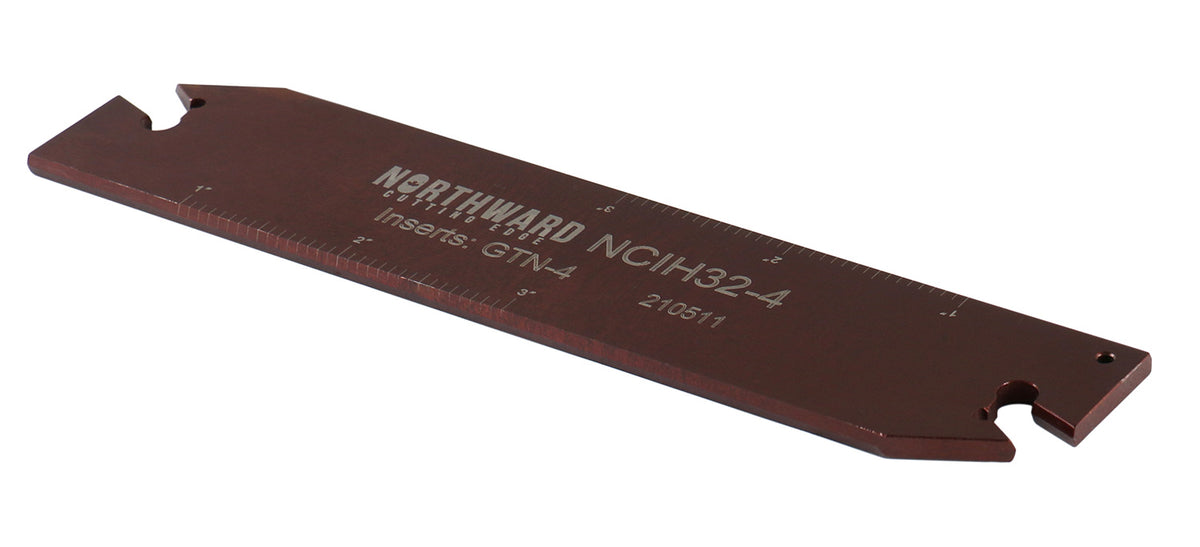

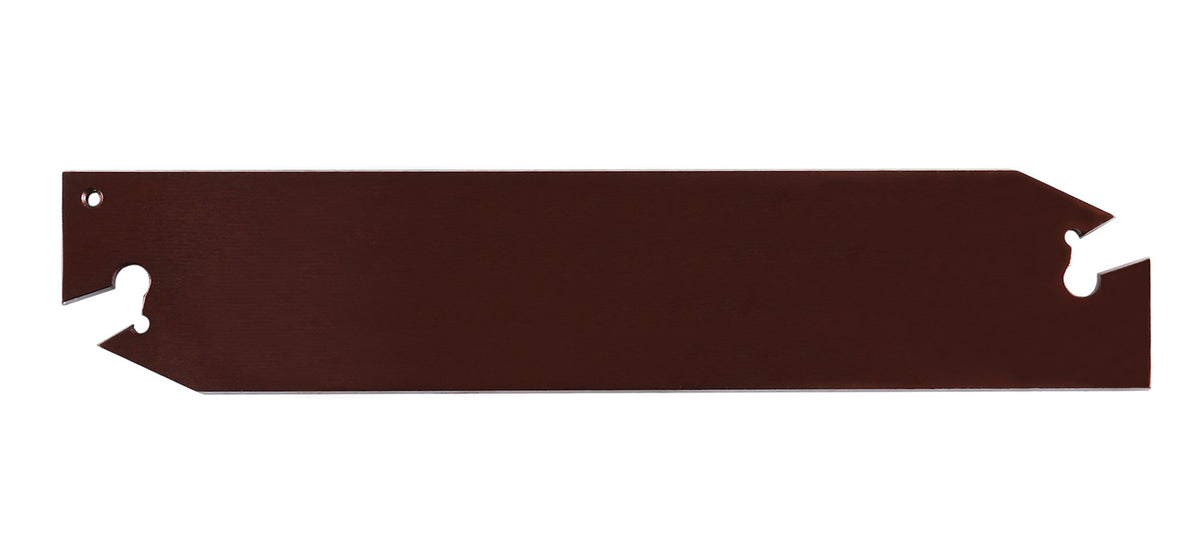

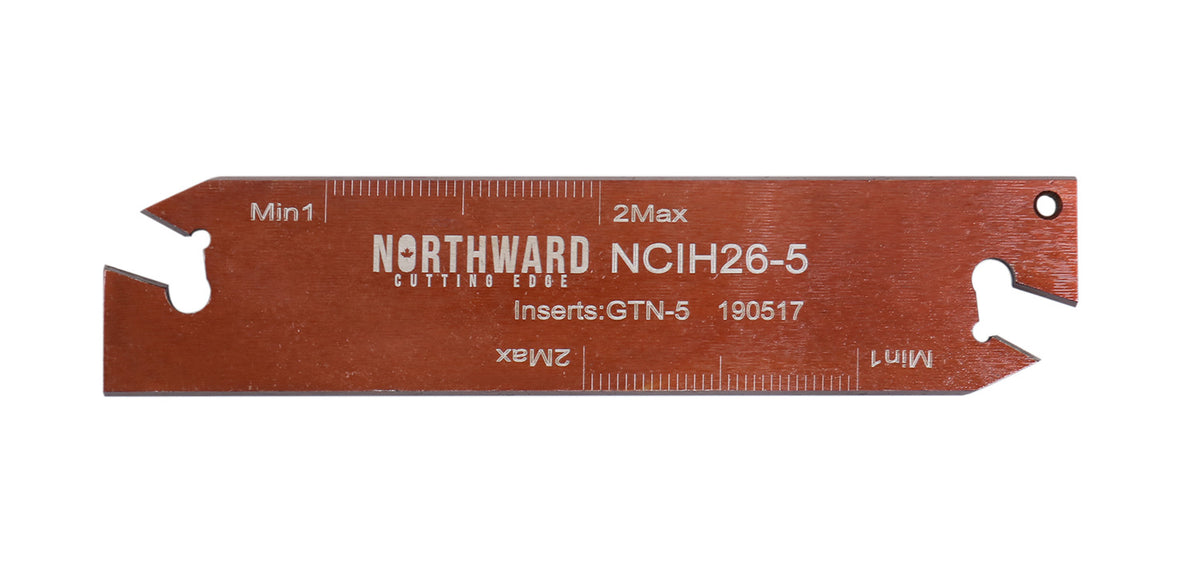

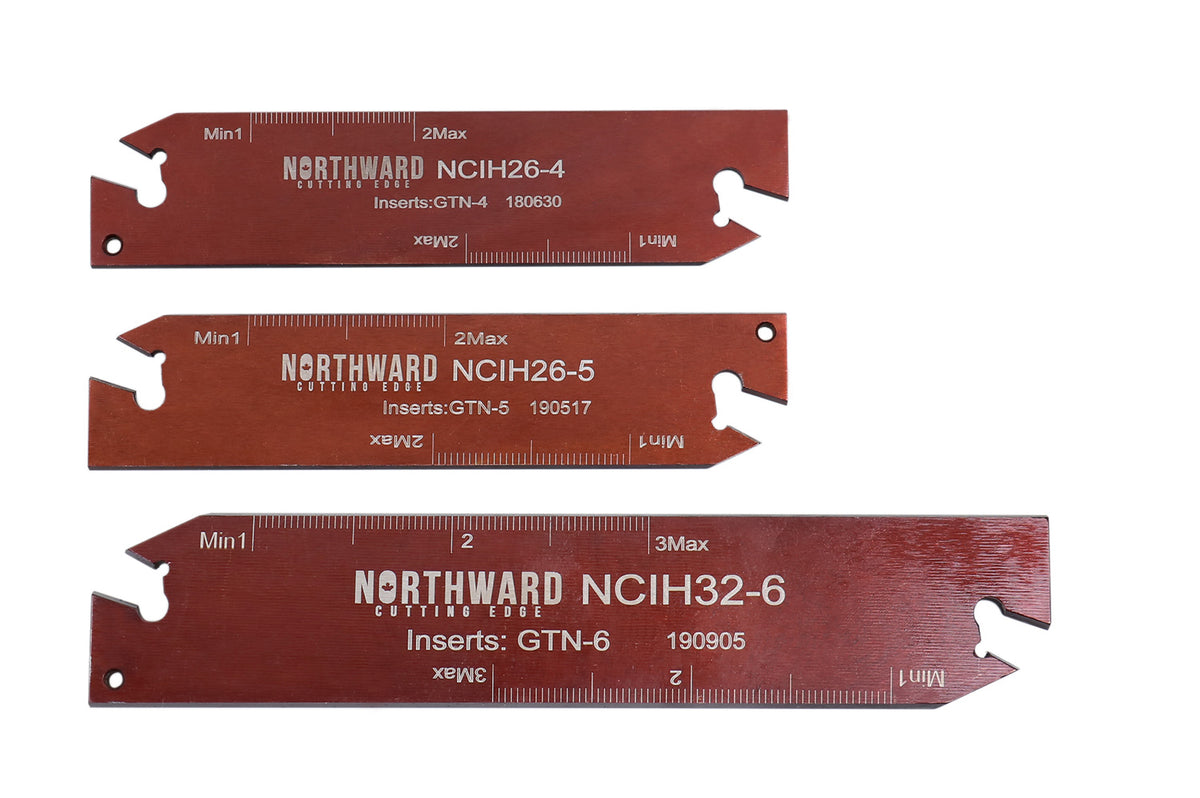

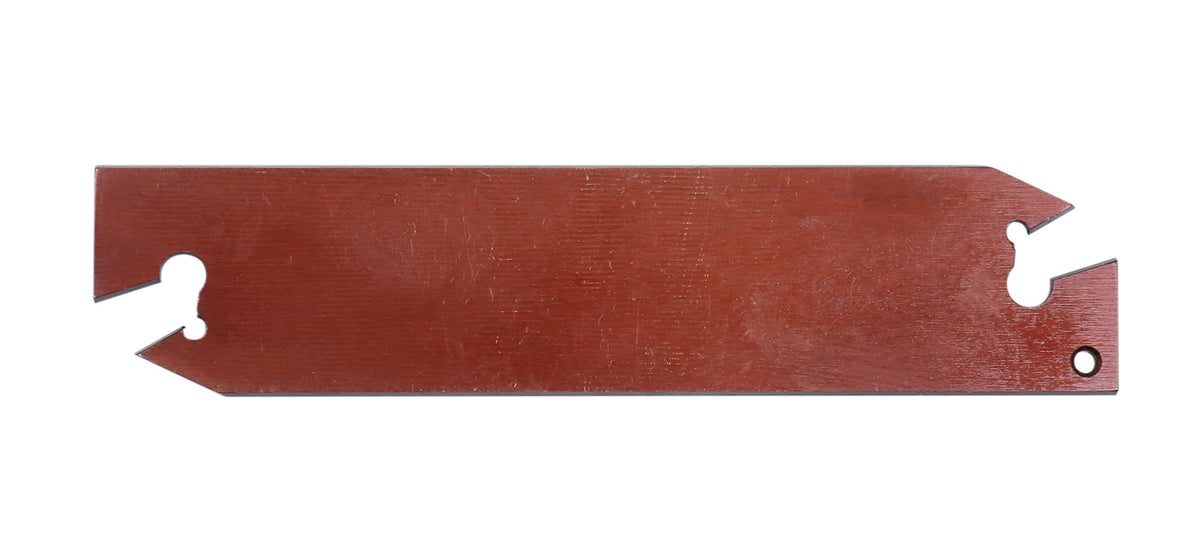

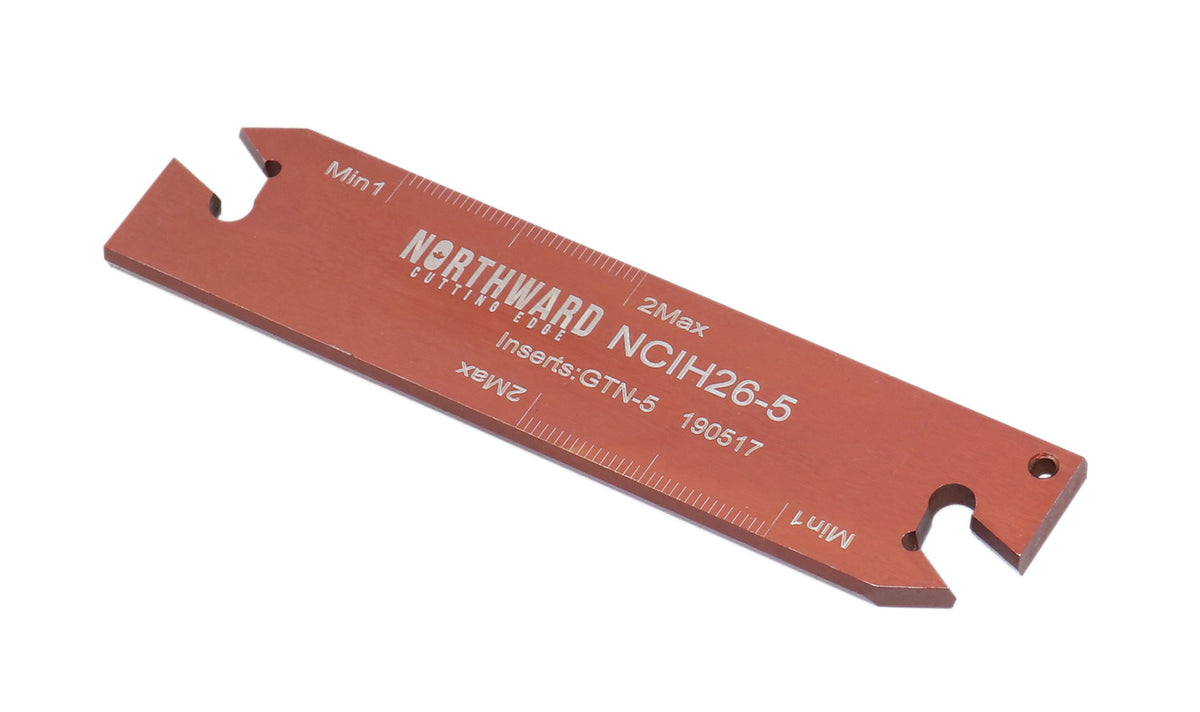

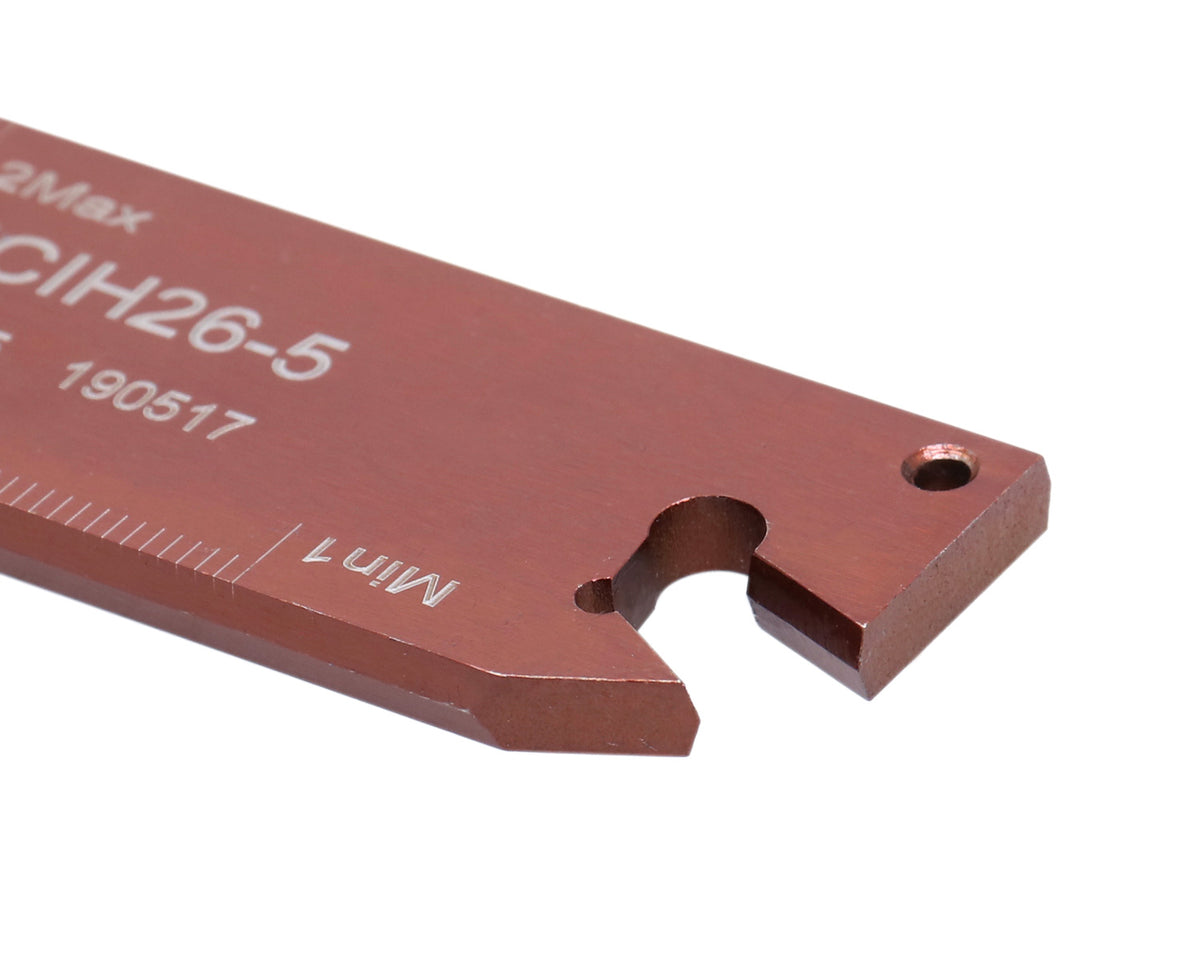

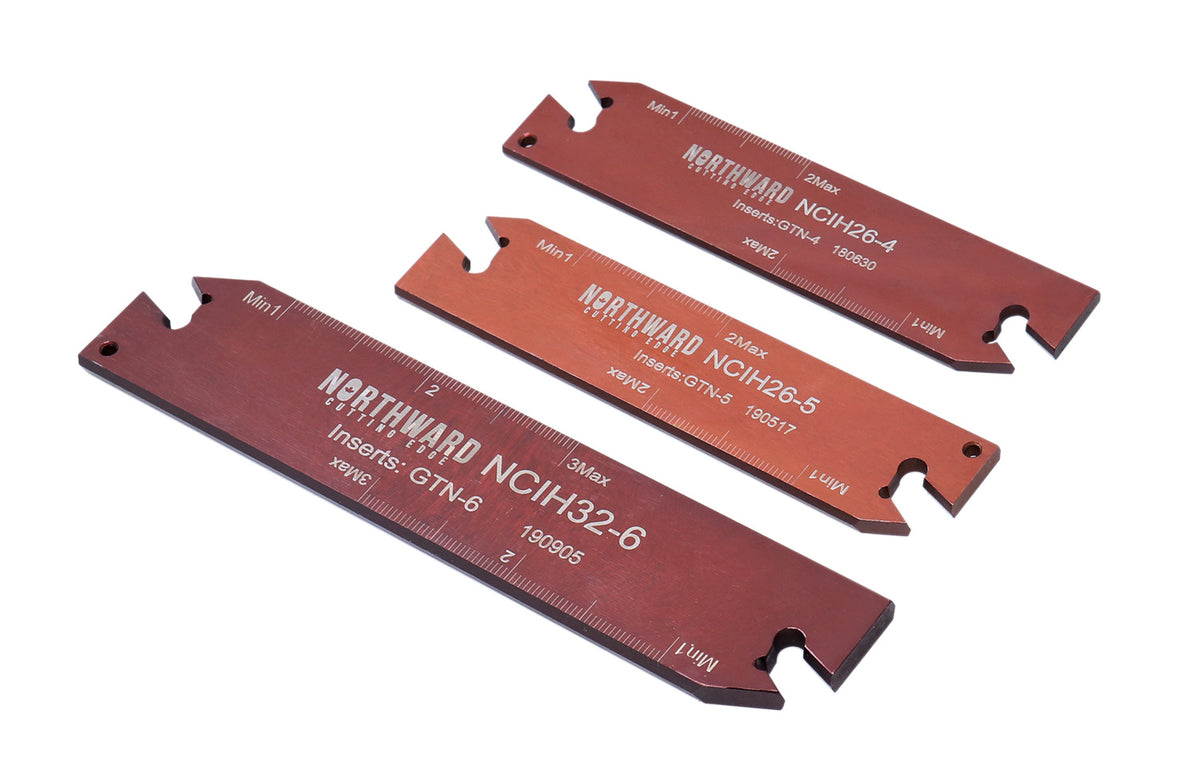

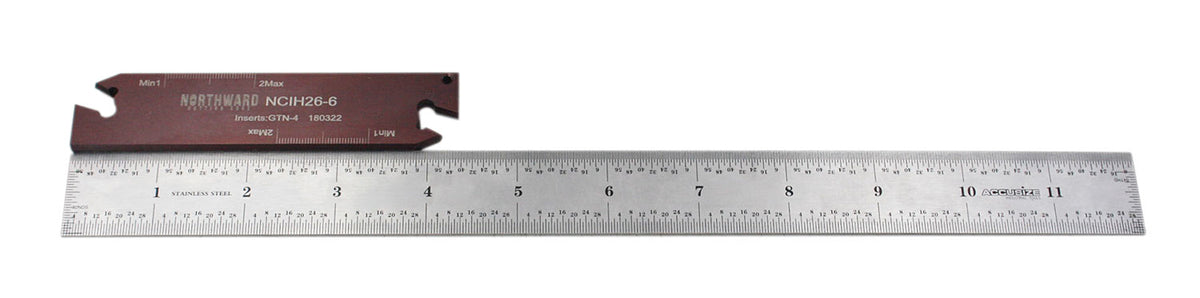

Positive Stop Adjustable Blades for Self-Lock Cut-Off Inserts

NORTHWARDSKU: 2402-0020

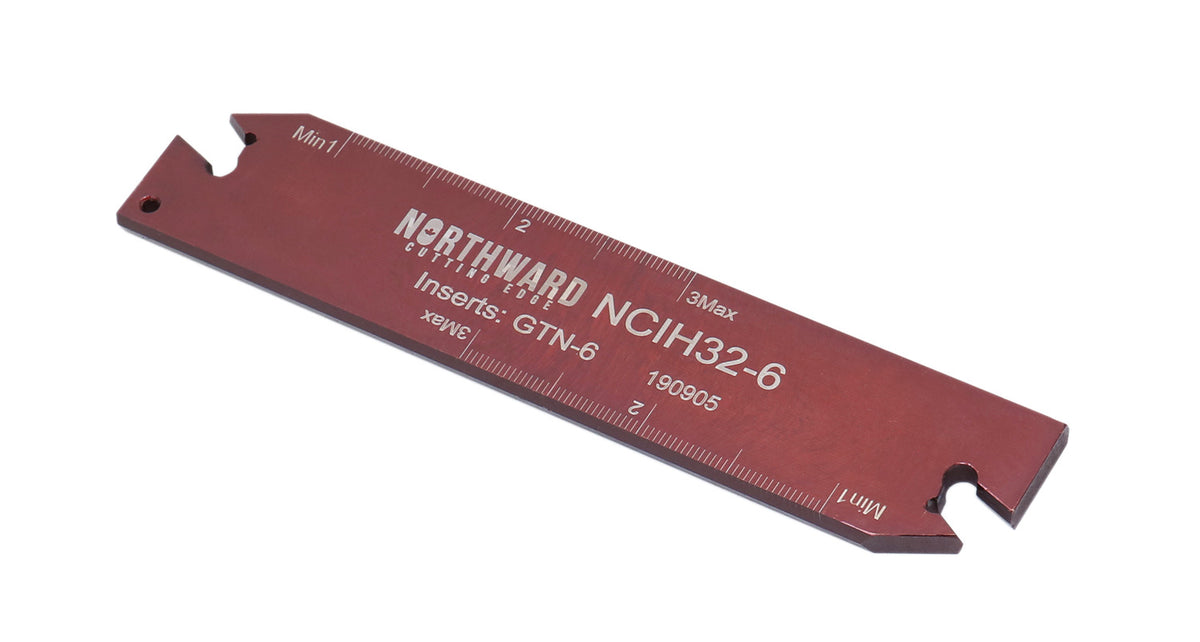

Blade: NCIH32-6, (2402-0020)
Price:
$50.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

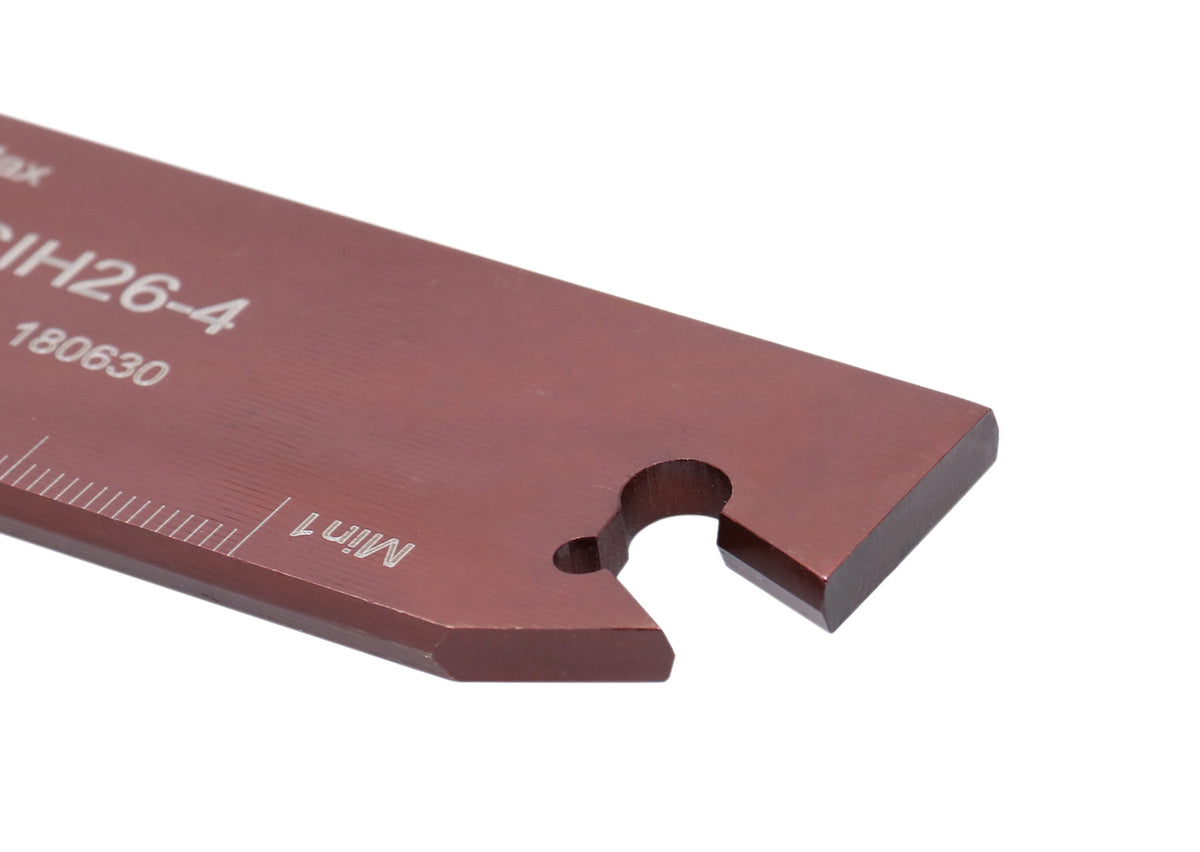

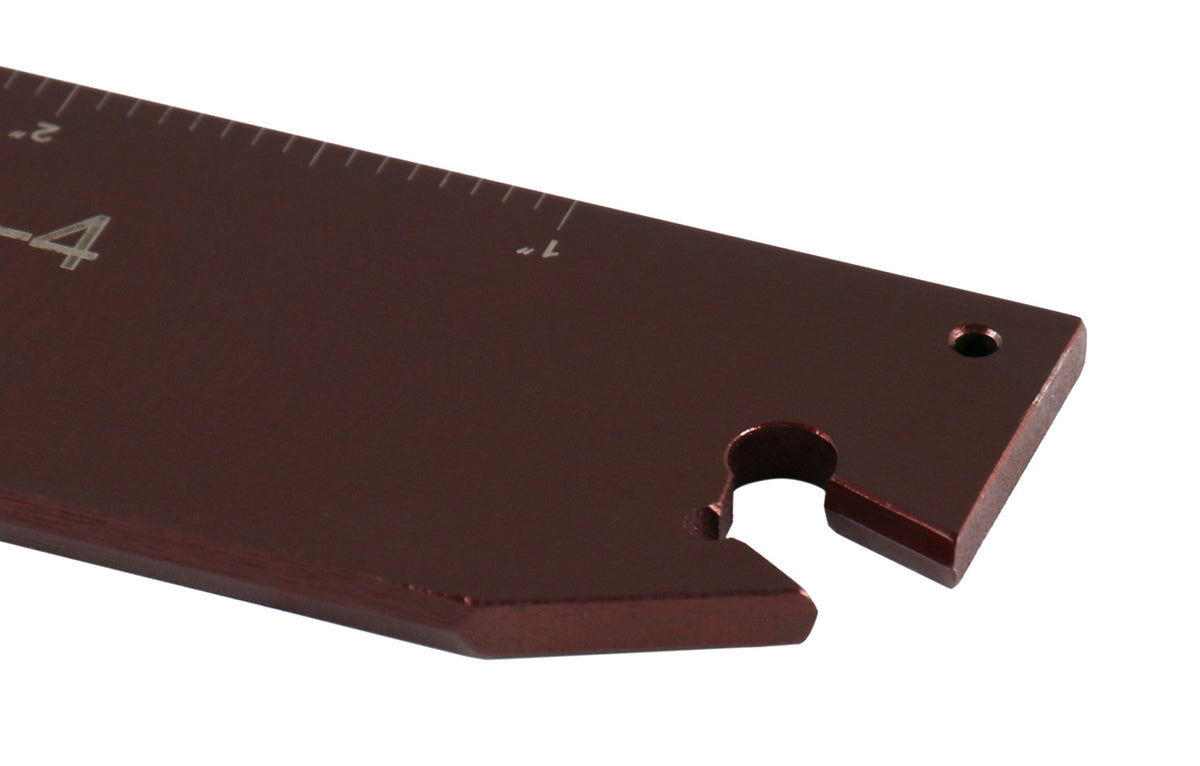

Positive Stop Adjustable Blades for Self-Lock Cut-Off Inserts

Accusize Industrial Tools 2402 Positive Stop Adjustable Blades For Self-lock Cut-off Insert

Accusize Industrial Tools 2402 Positive Stop Adjustable Blades For Self-lock Cut-off Insert

  • For all CNC lathes and manual lathes.
  • For grooves, parting off to center and chamfering
  • Easy removal of inserts with extractor.
  • Chipbreaker on inserts allows for high speeds and feed rates.
  • Multiple lead angles.

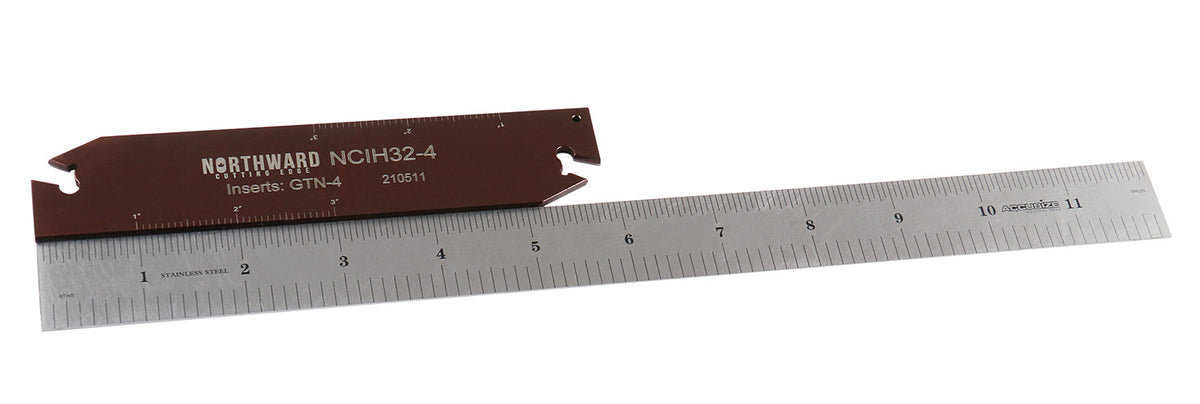

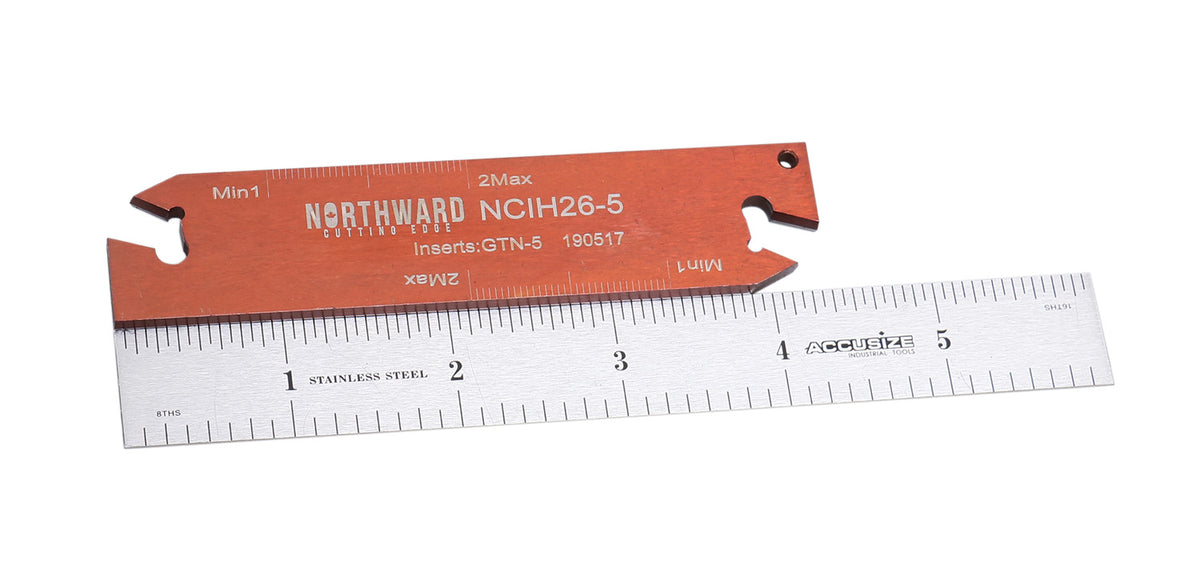

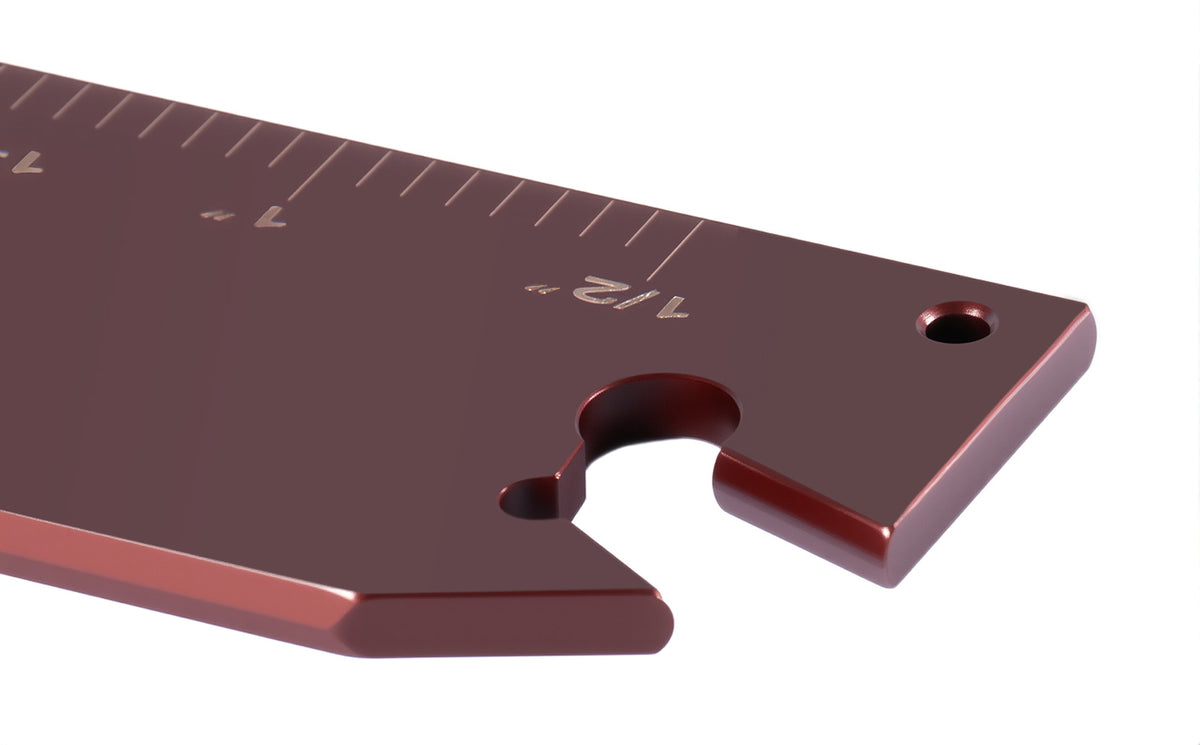

  • Blade marked with vernier line increment in 32nd
  • Using GTN Inserts
  • Extractor is not included

Accusize Industrial Tools 2402 Positive Stop Adjustable Blades For Self-lock Cut-off Insert

Chemical composition:

  • C (0.56~0.64)
  • Si (1.50-2.00)
  • Mn (0.60~0.90)
  • Cr (≤0.35)
  • Ni (≤0.35)
  • Cu (≤0.25)
  • S (≤0.035)
  • P (≤0.035)

Material type:

  • The material of the blade body is standard spring steel, which is 60Si2Mn (equivalent to the American steel ASTM9260). The Rockwell hardness after hardened is HRC40.
Item Blade Dimension Max Work Dia. Insert #
W A L H1 H

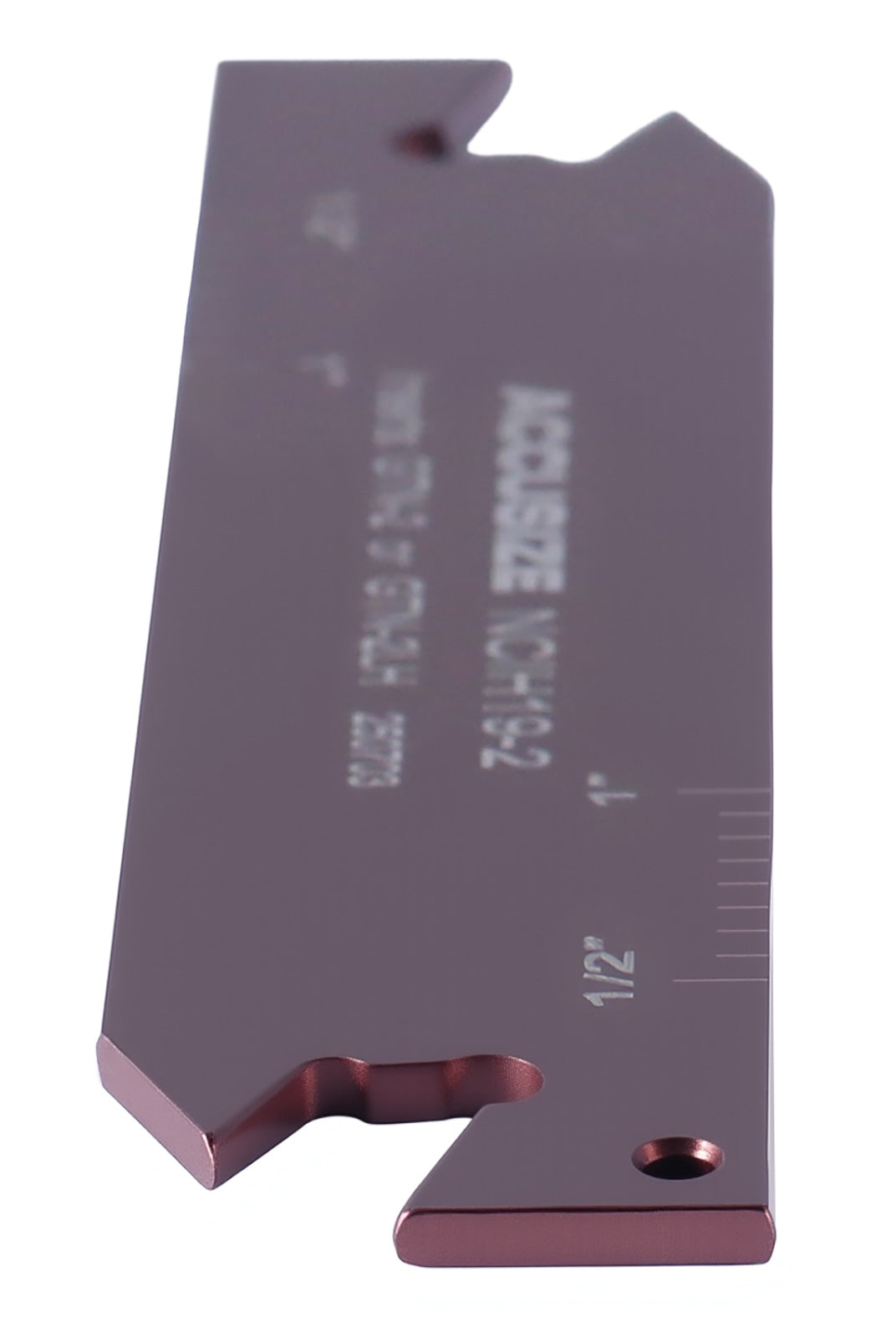

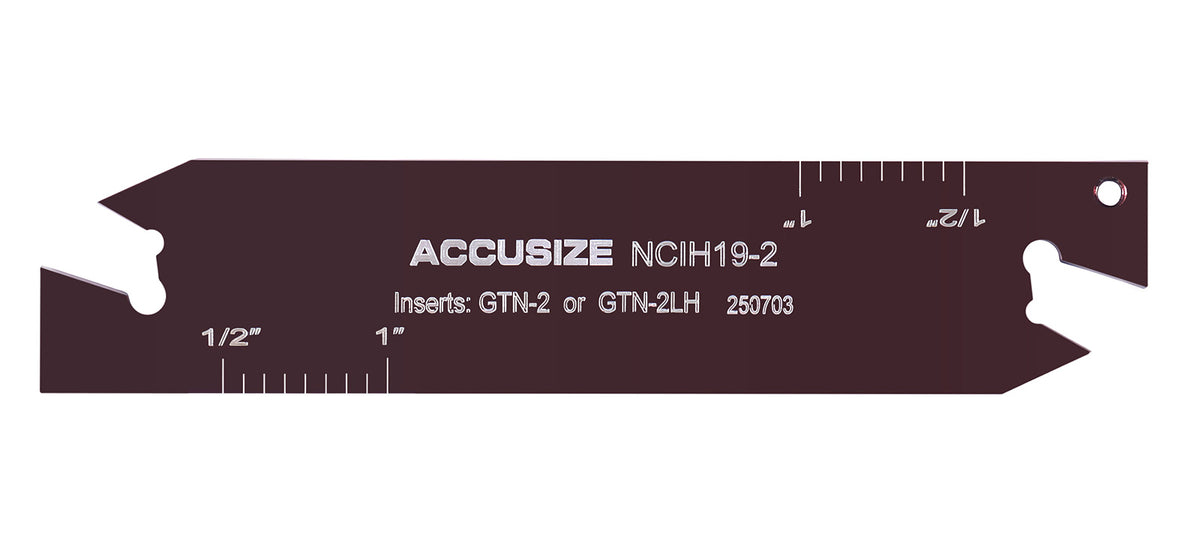

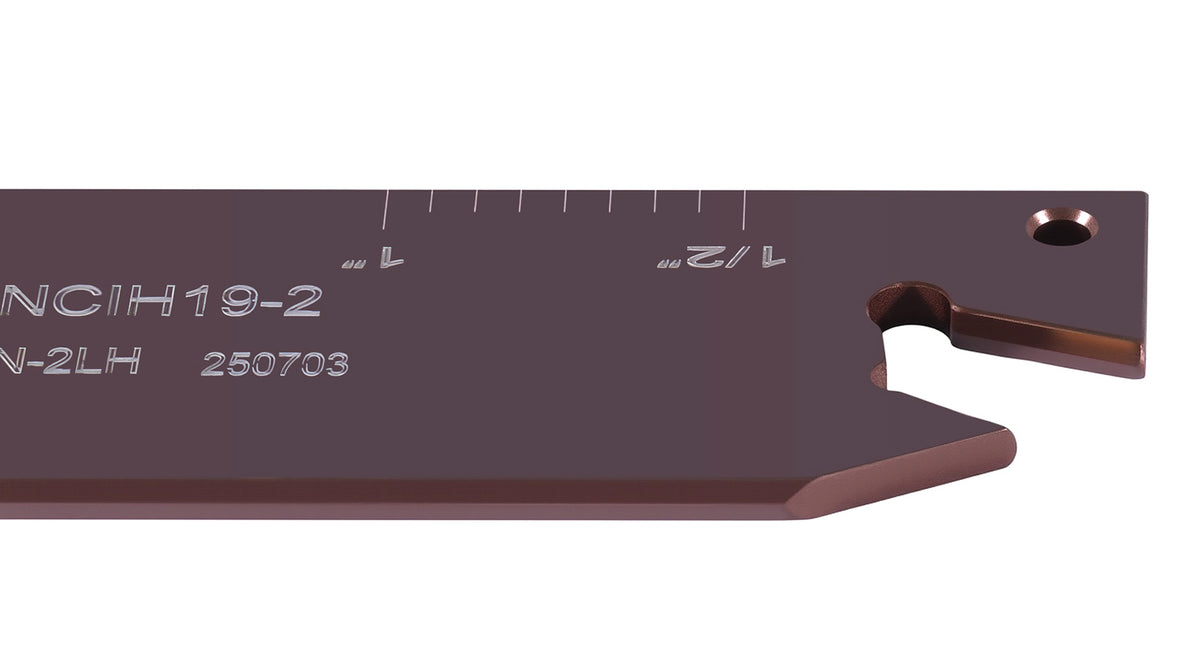

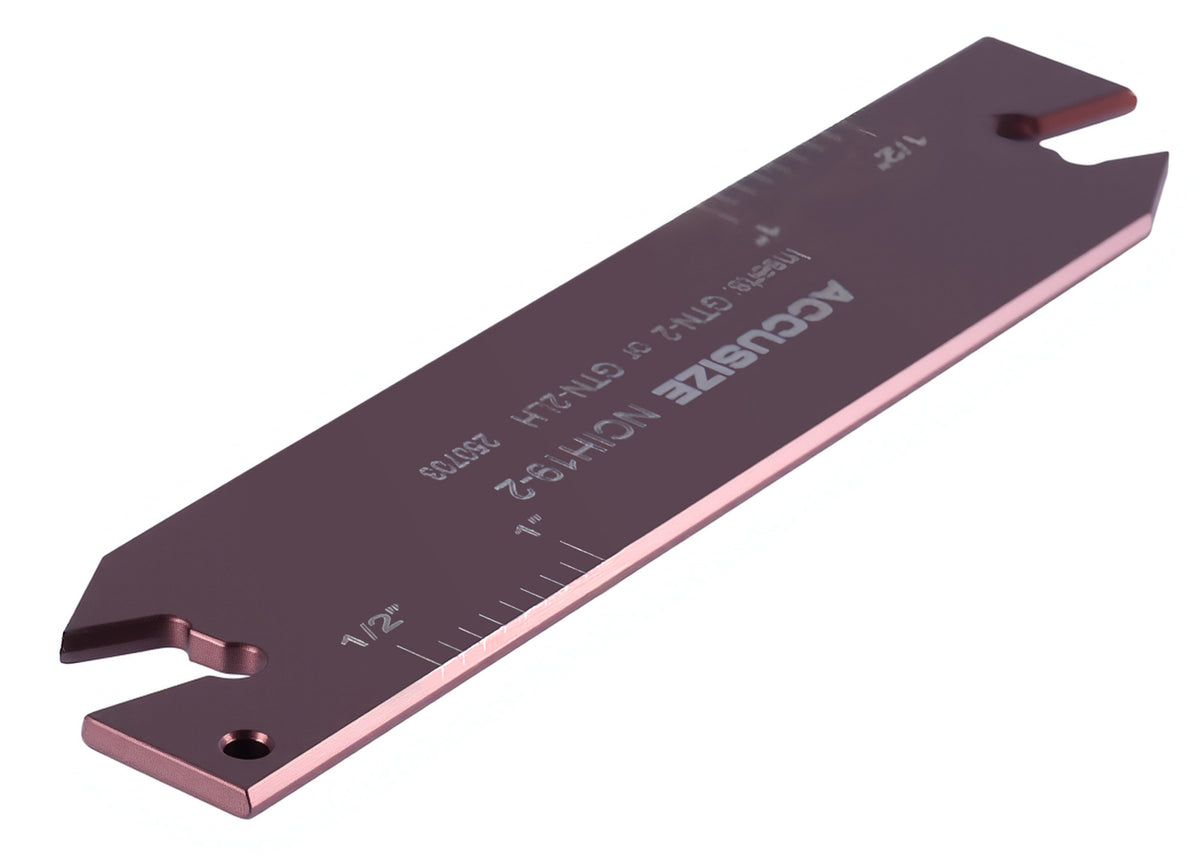

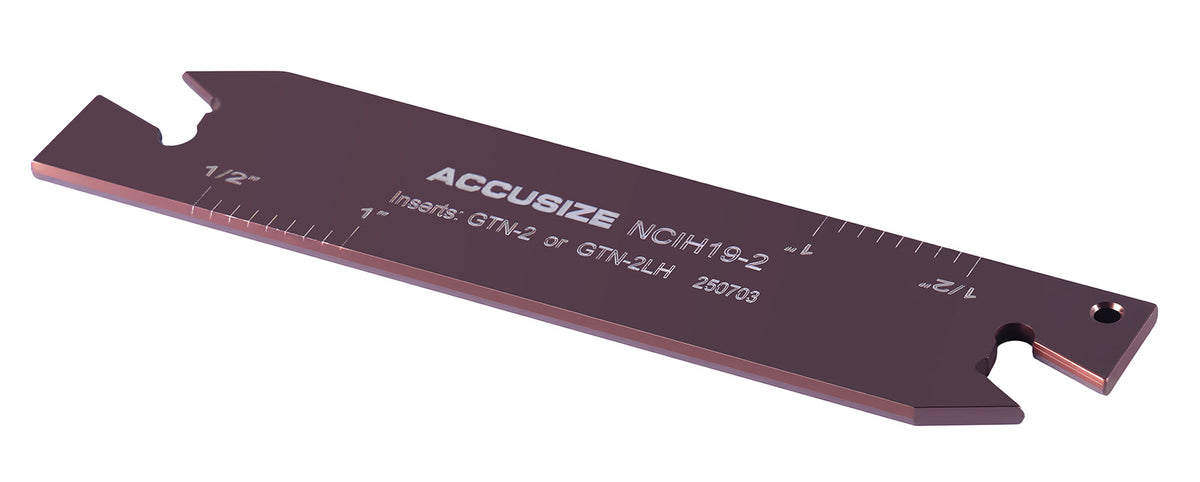

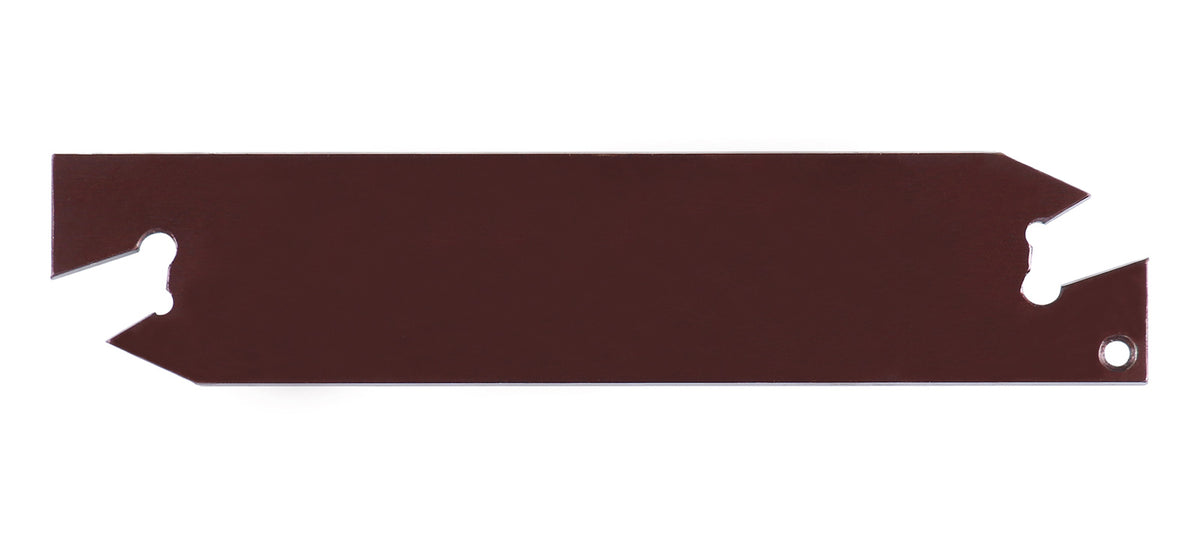

2402-0002 NCIH19-2 0.087"-0.094" 0.063" 3.38" 0.62" 0.75" 1-1/2" GTN-2

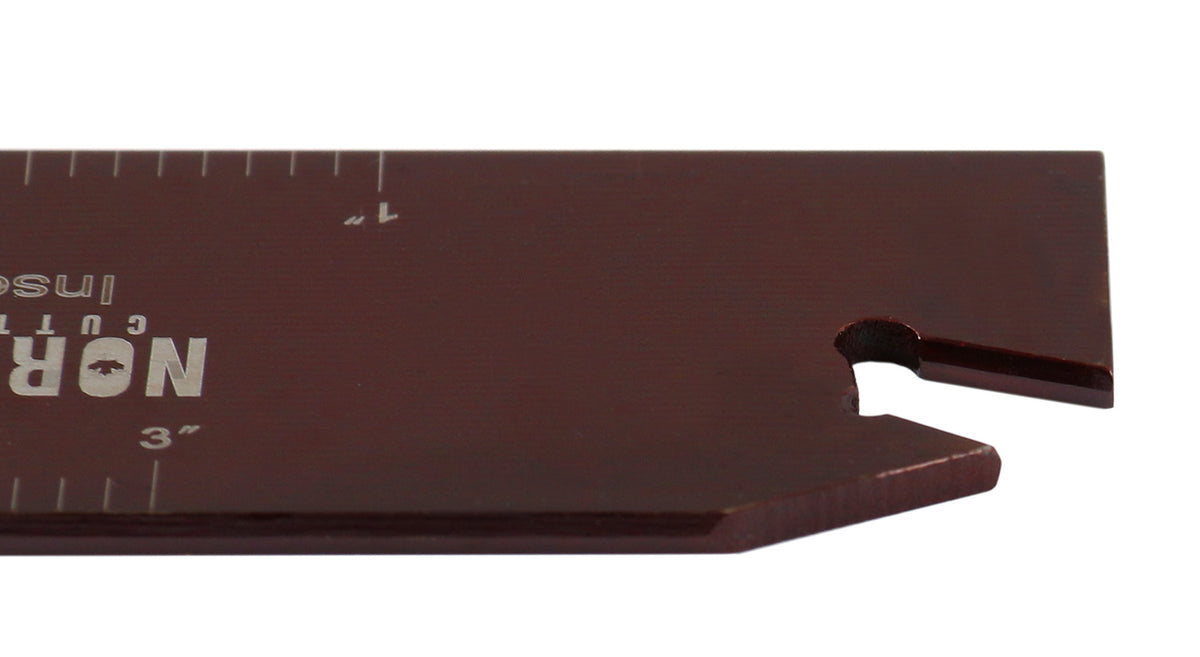

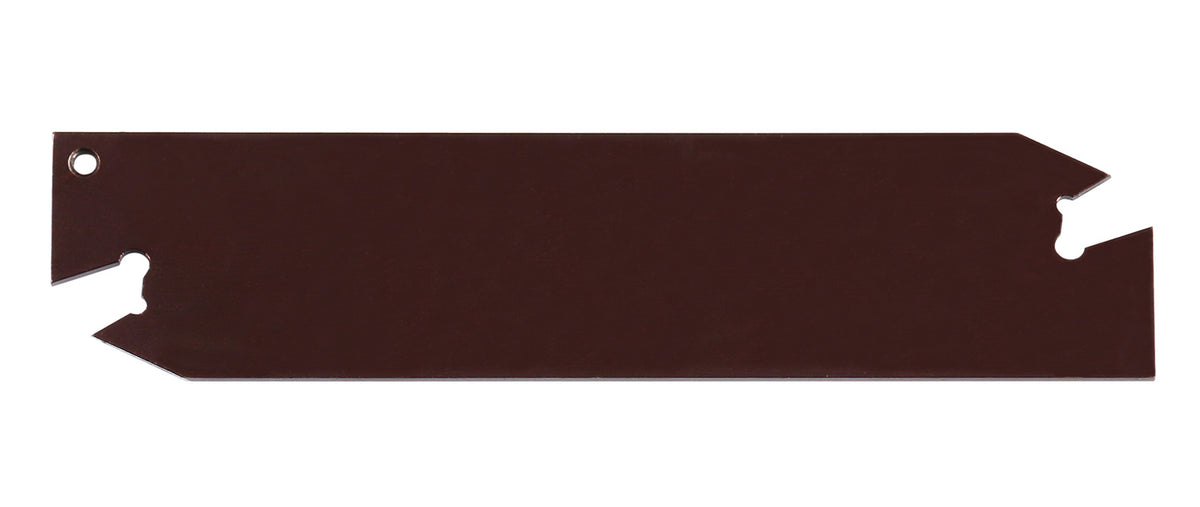

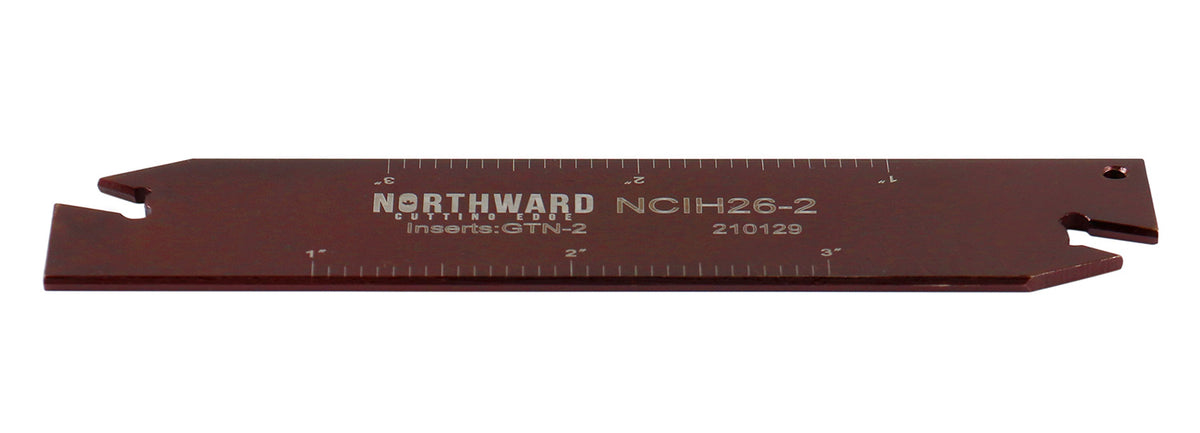

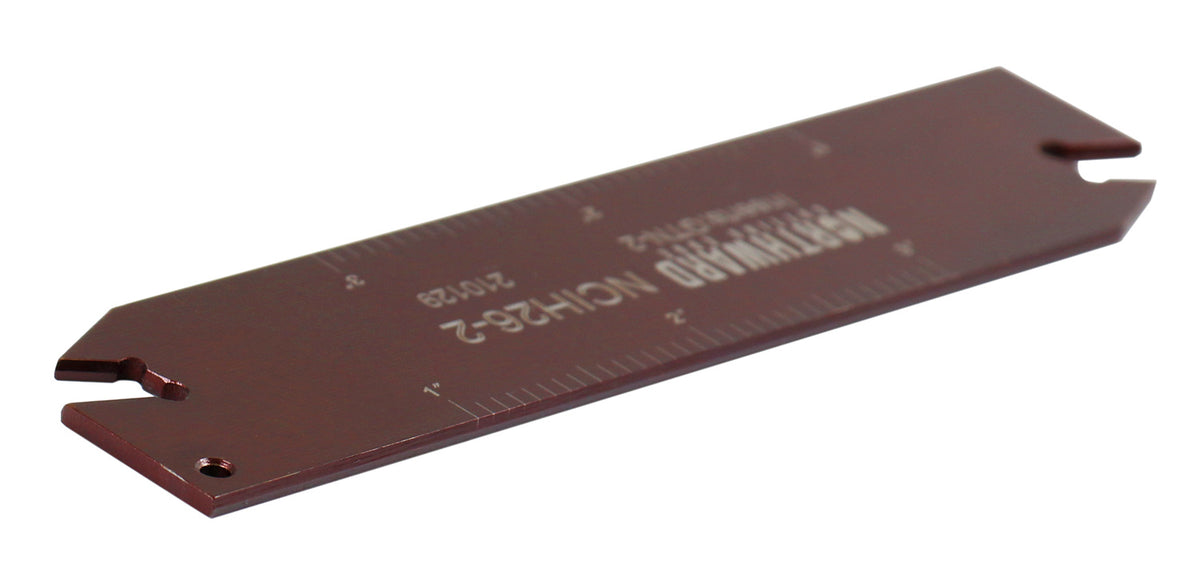

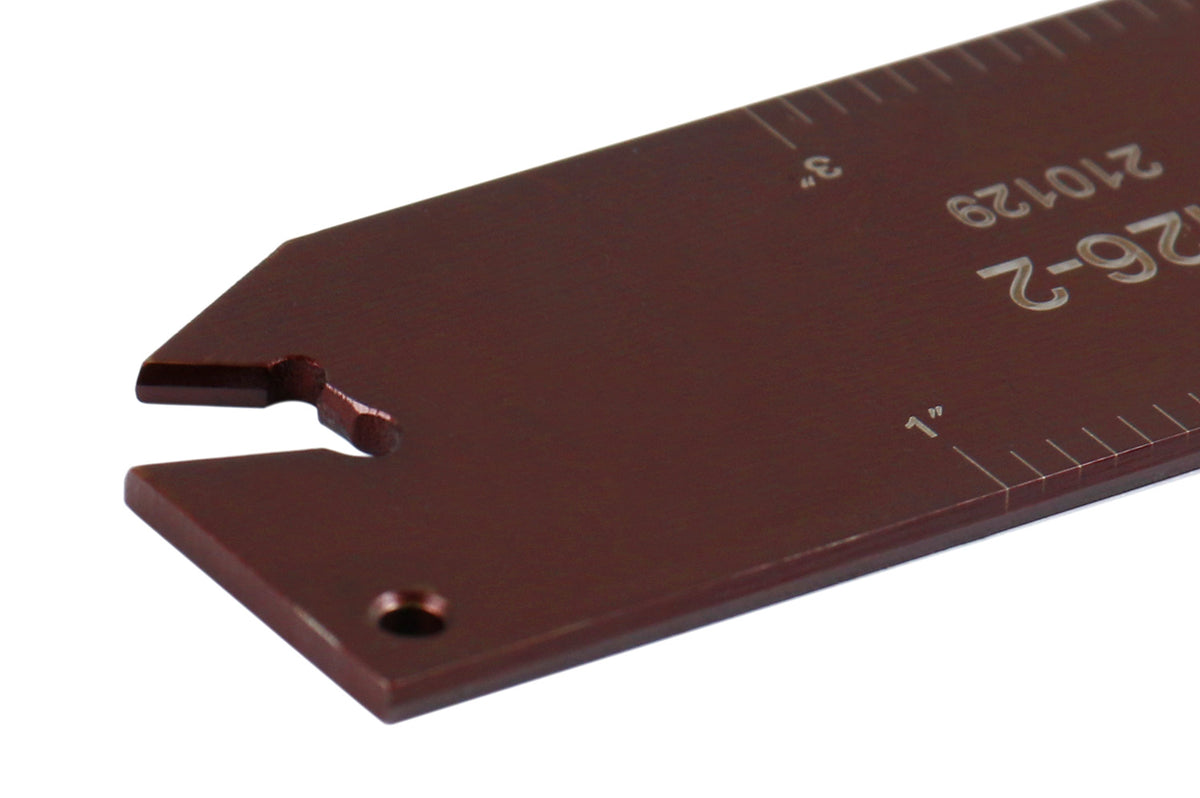

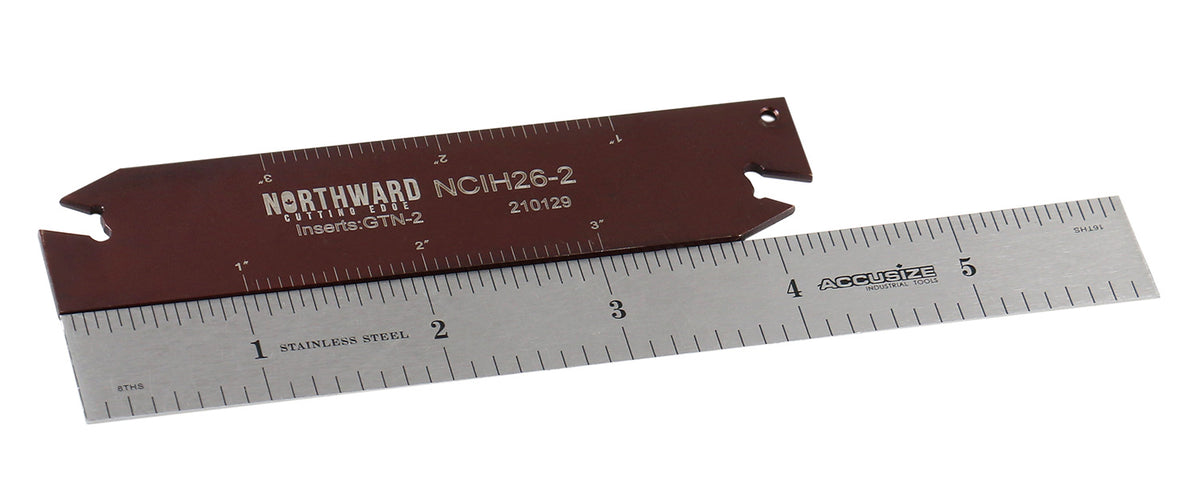

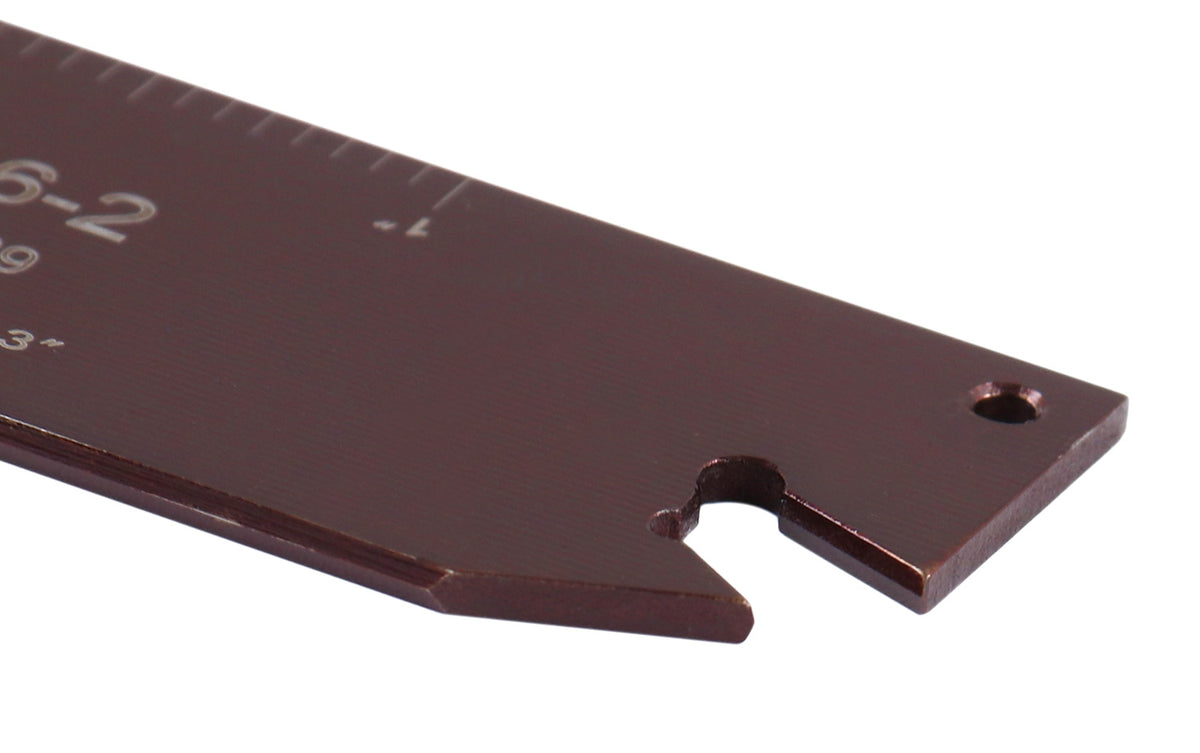

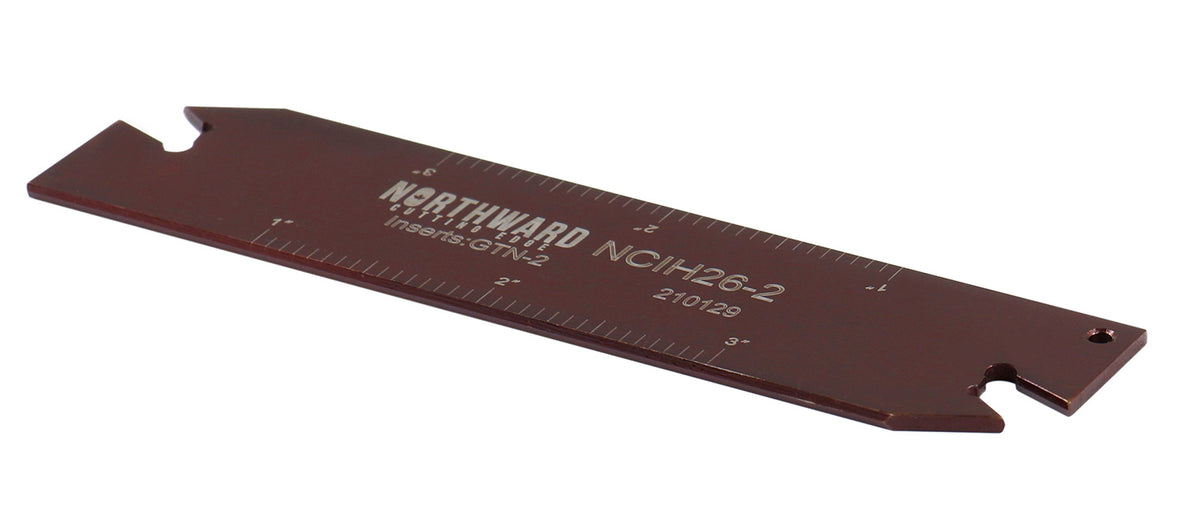

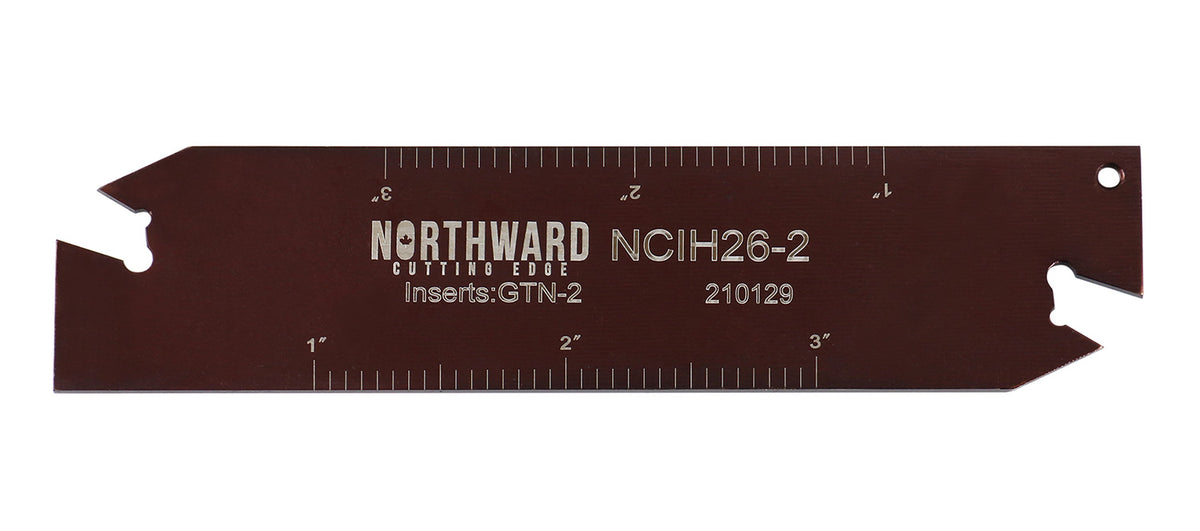

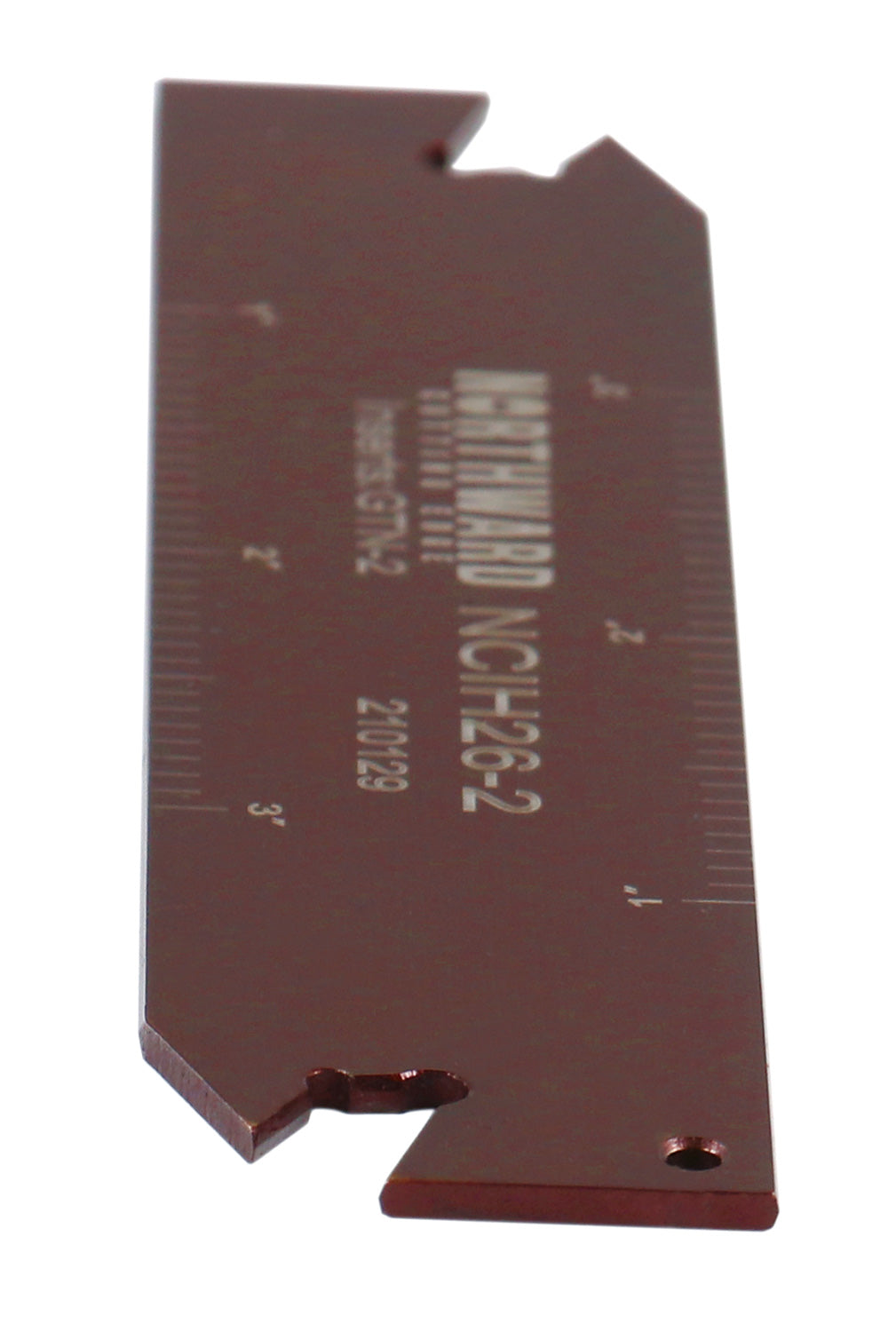

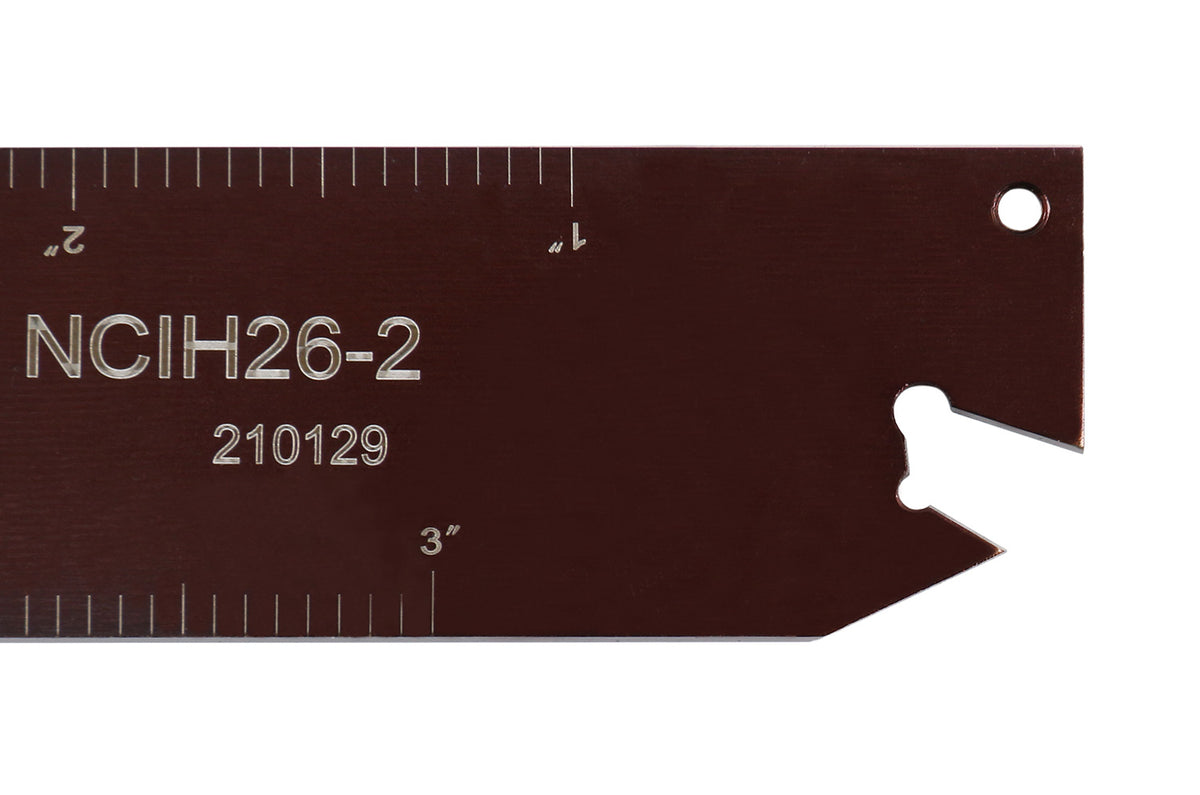

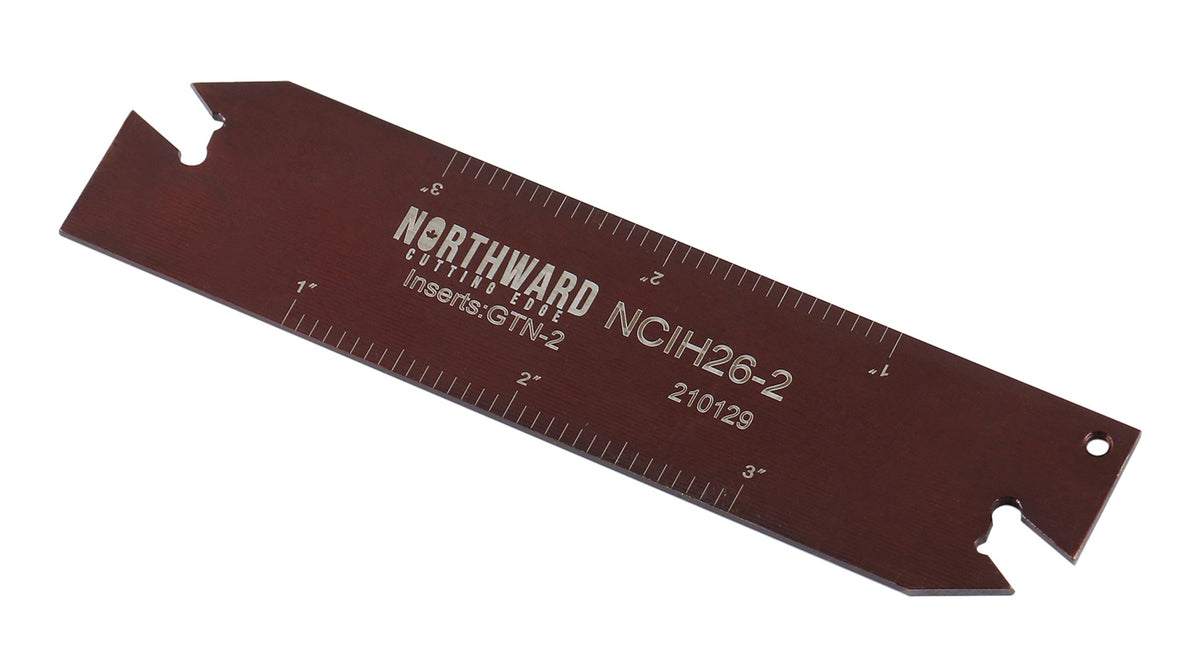

2402-0004 NCIH26-2 0.087"-0.094" 0.063" 4.33" 0.84" 1.02" 3" GTN-2

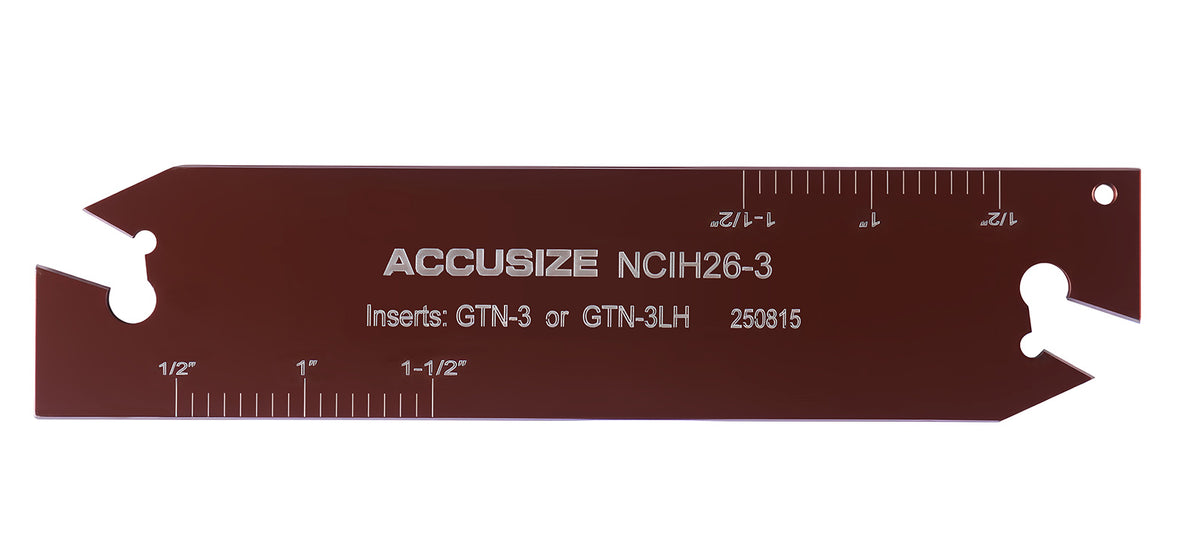

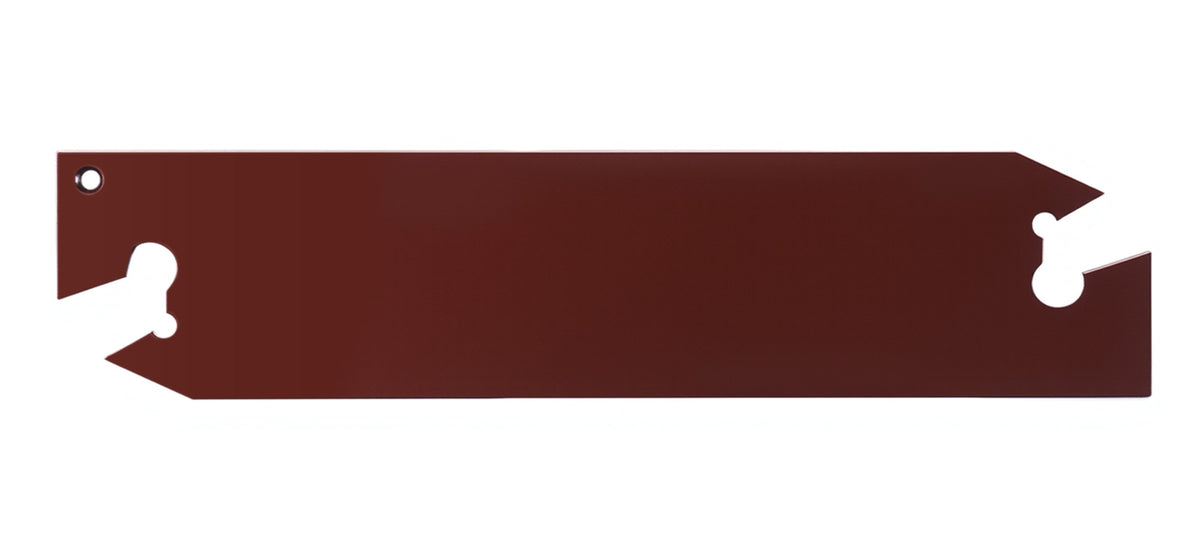

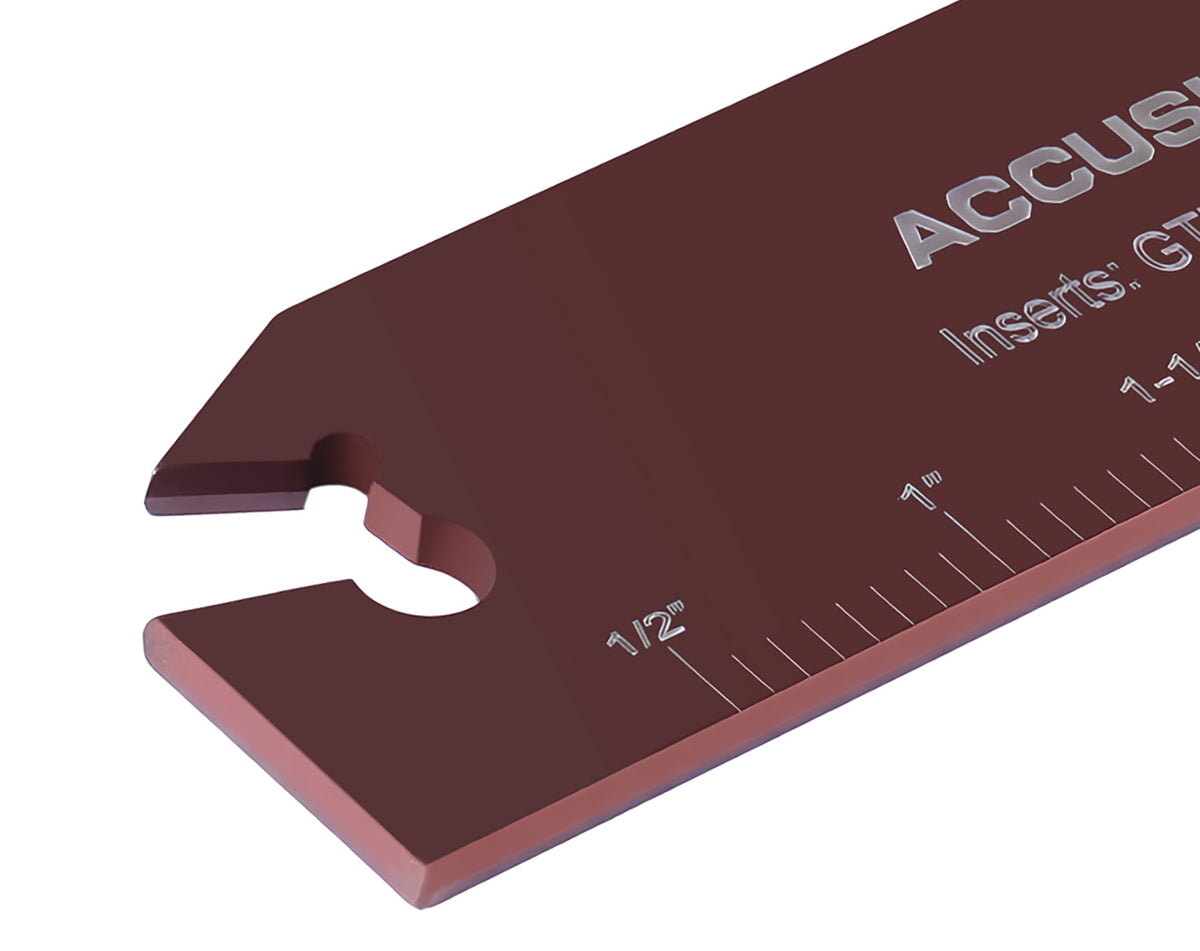

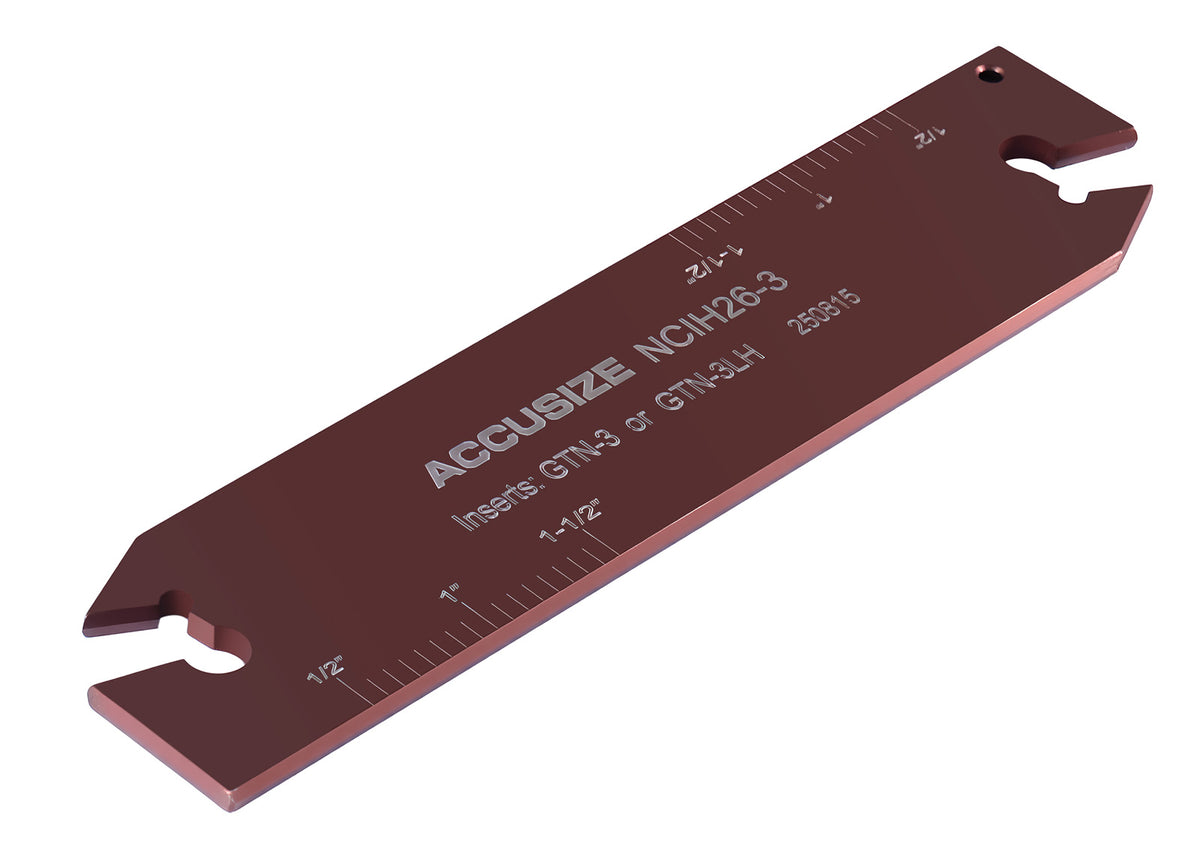

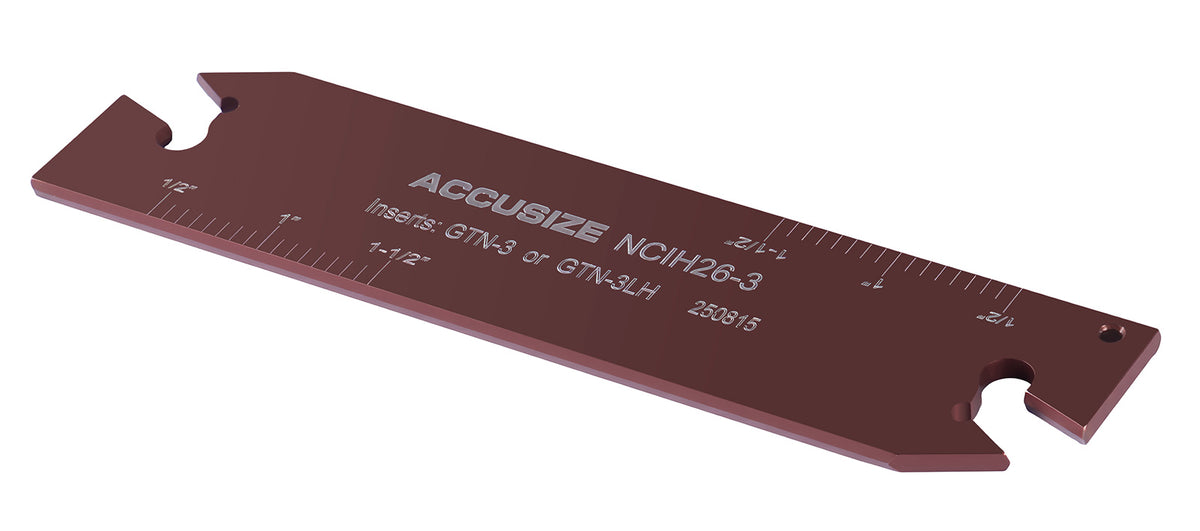

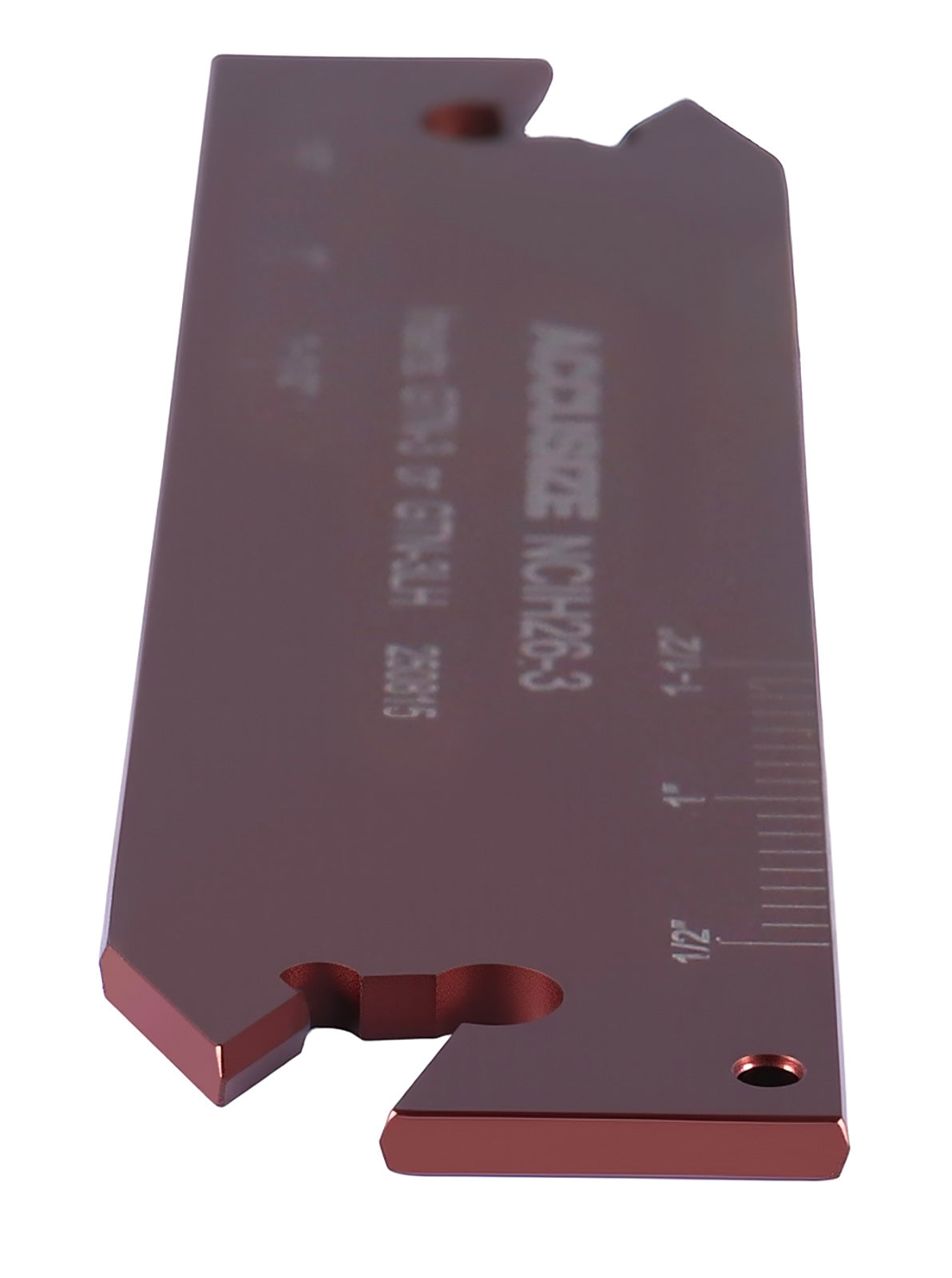

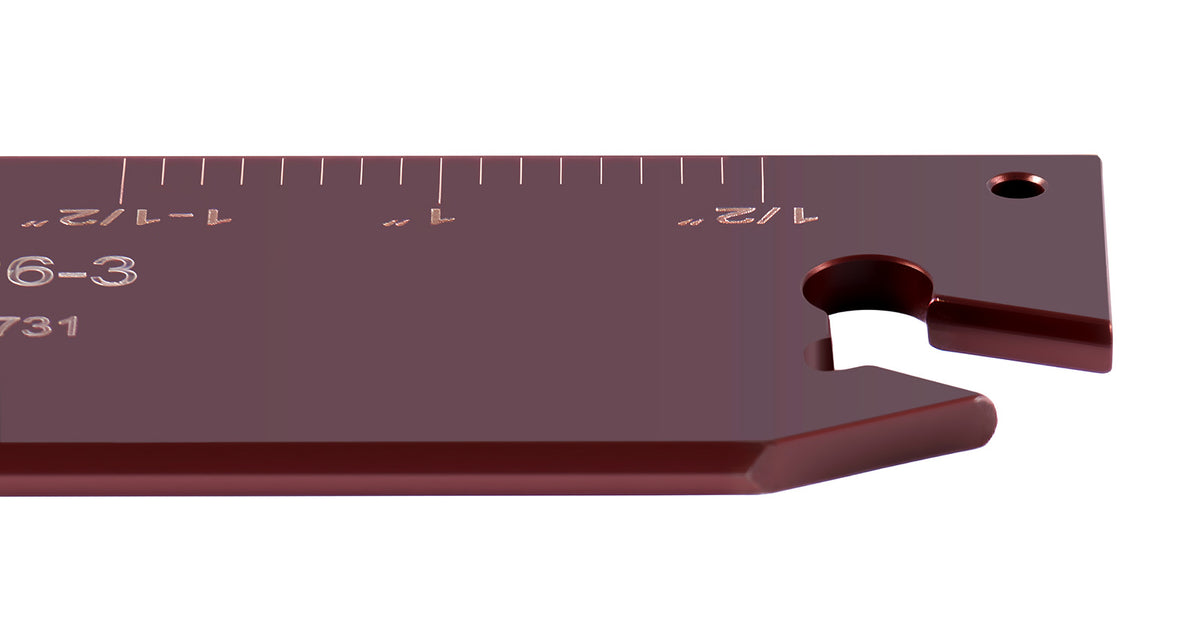

2402-0006 NCIH26-3 0.120" 0.094" 4.33" 0.84" 1.02" 3" GTN-3

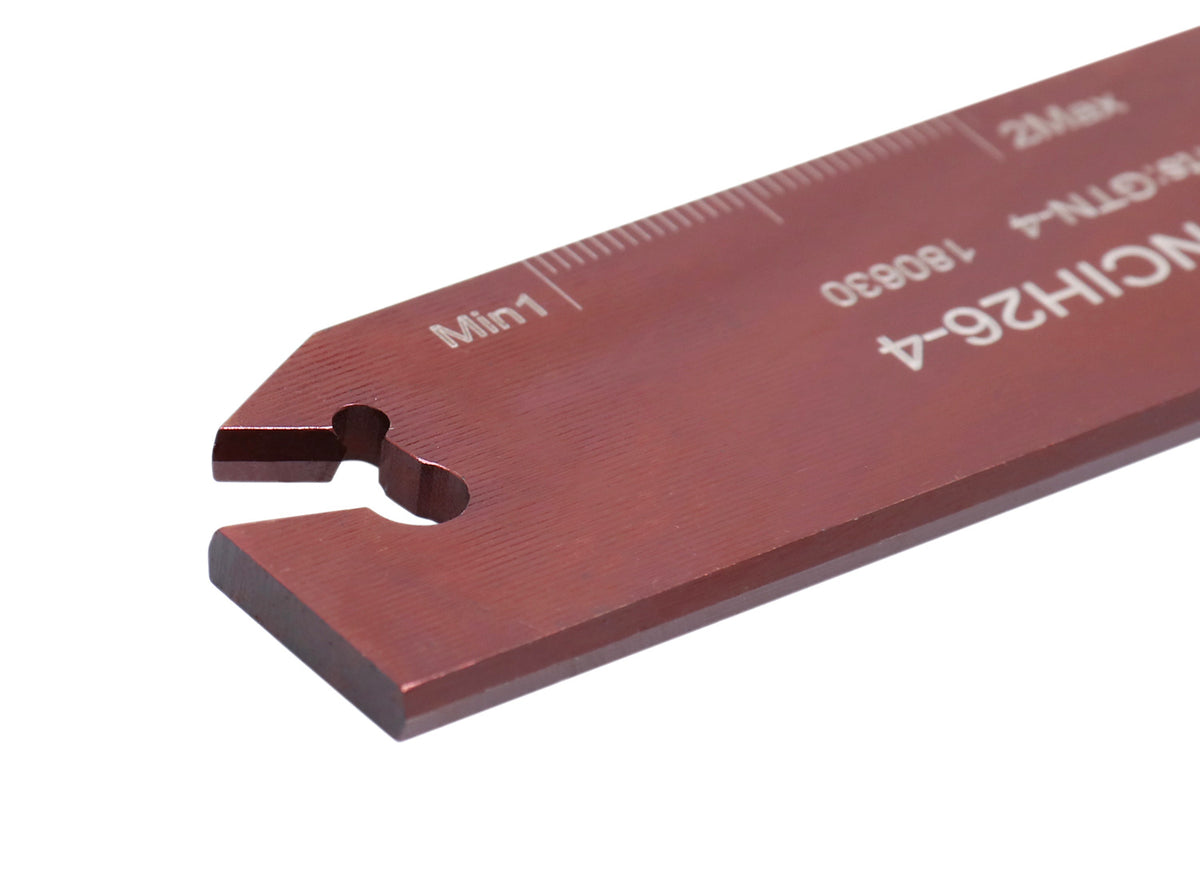

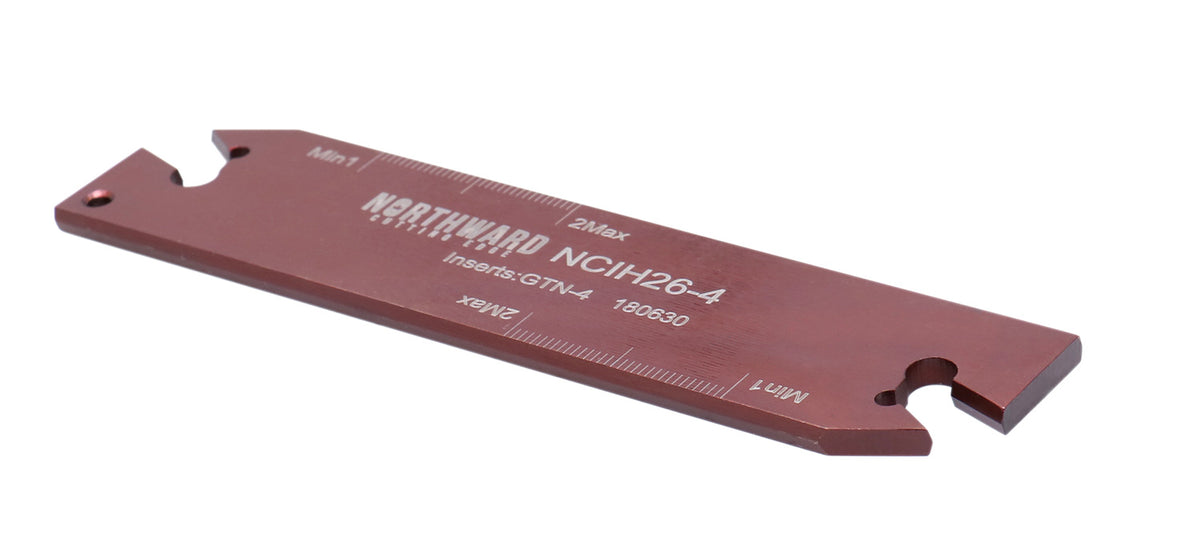

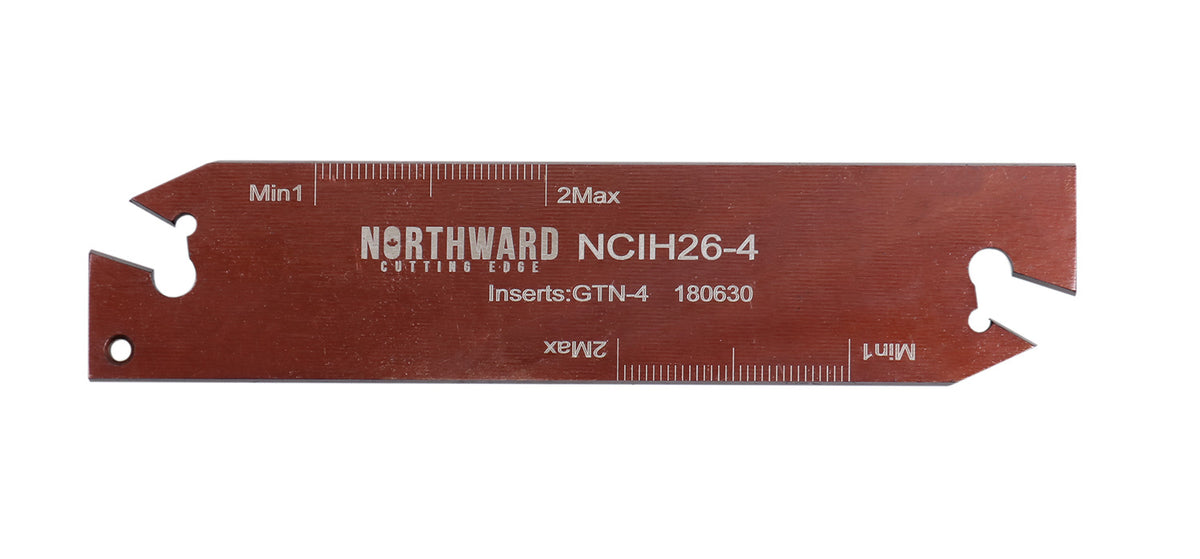

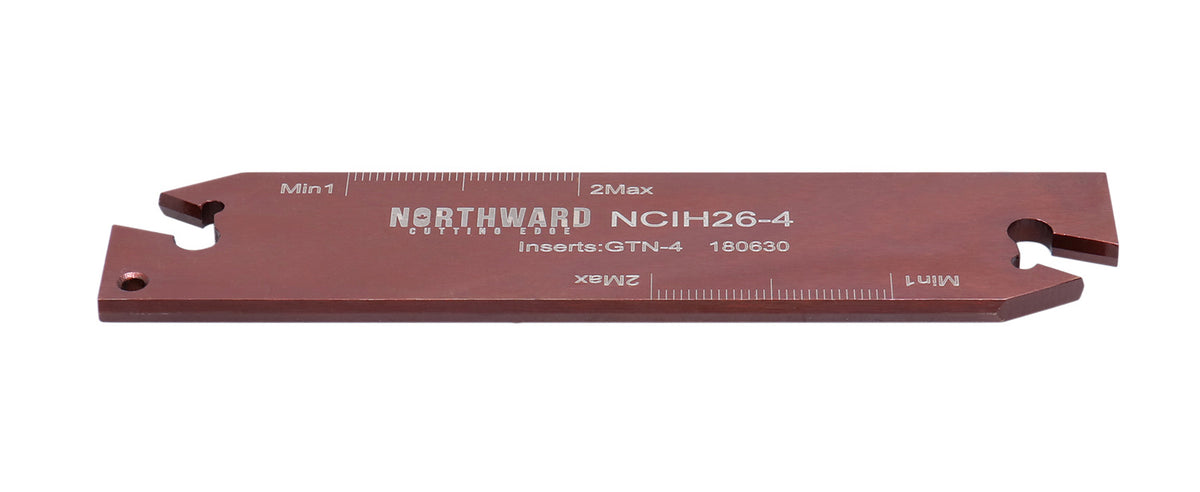

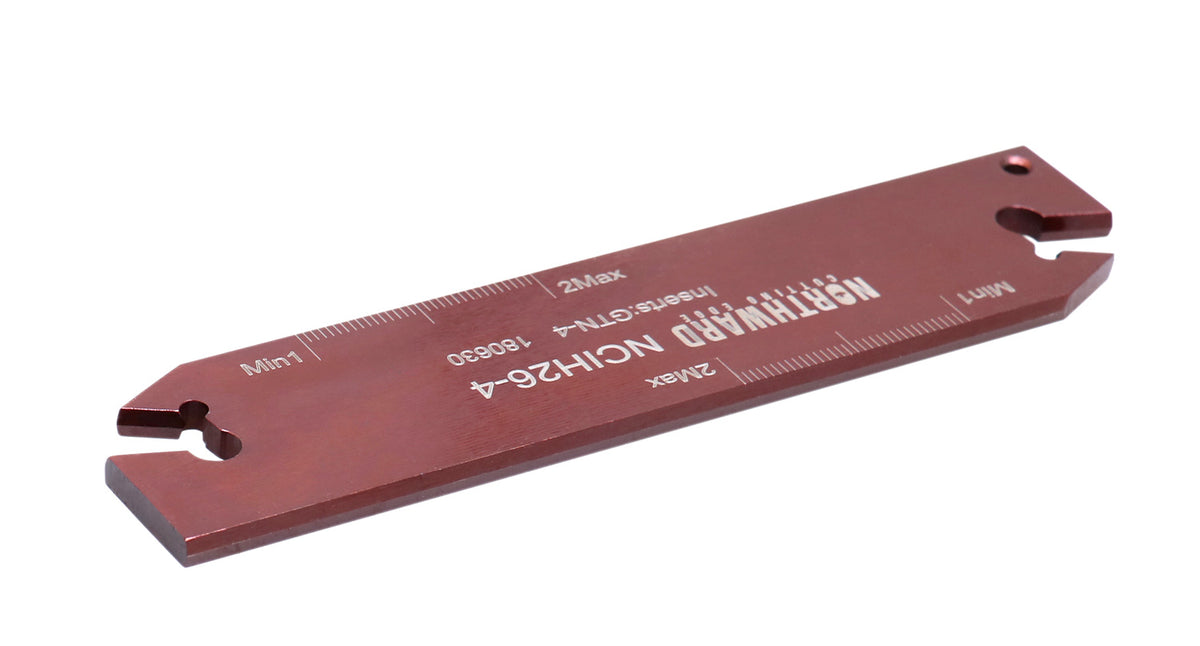

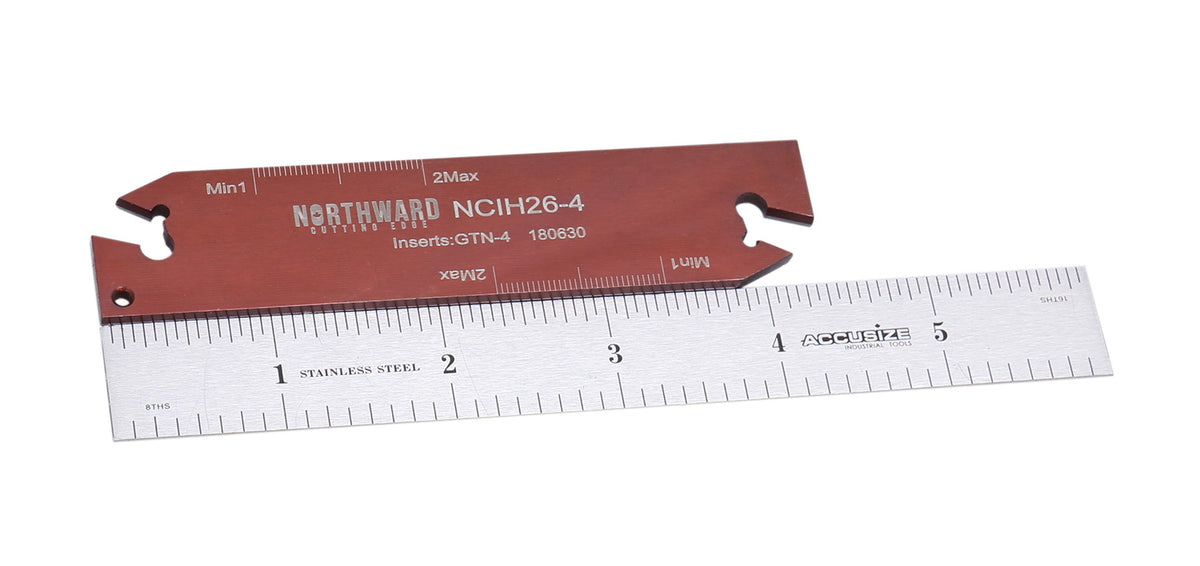

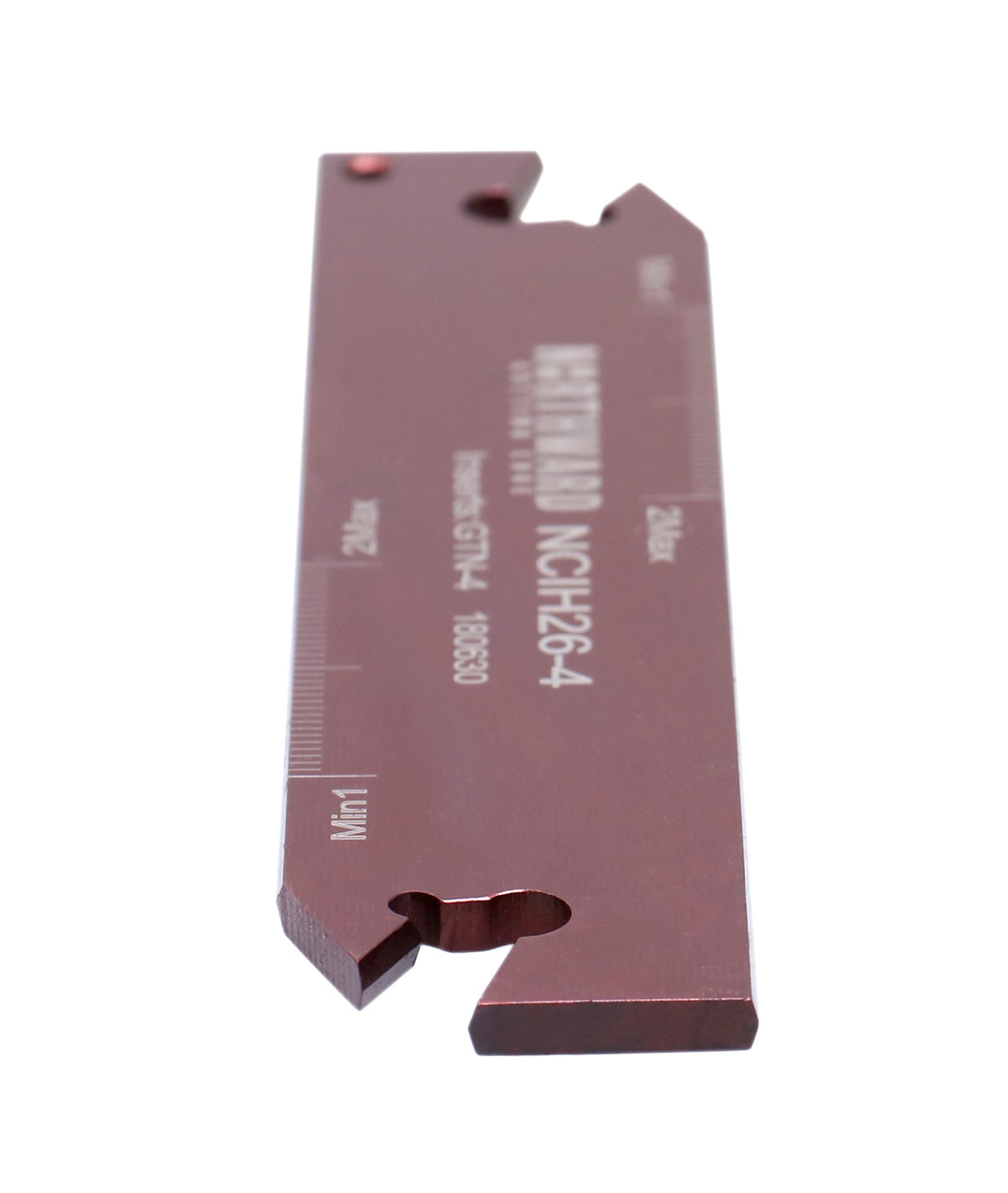

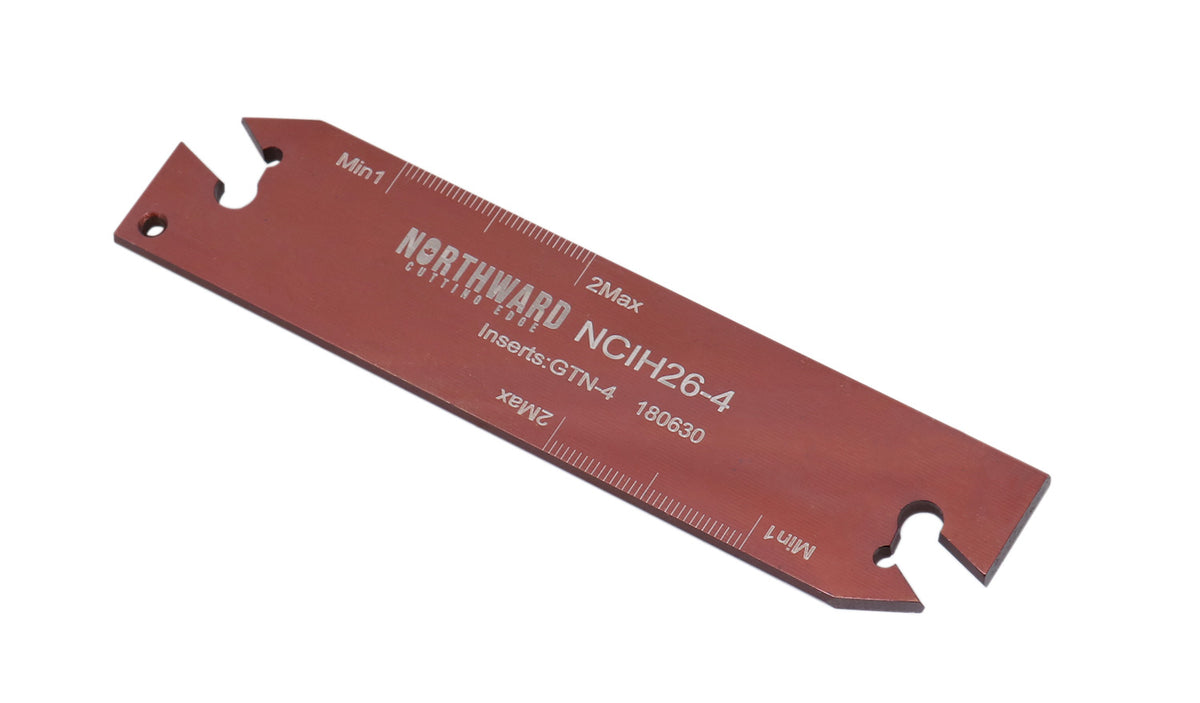

2402-0008 NCIH26-4 0.160" 0.125" 4.33" 0.84" 1.02" 3" GTN-4

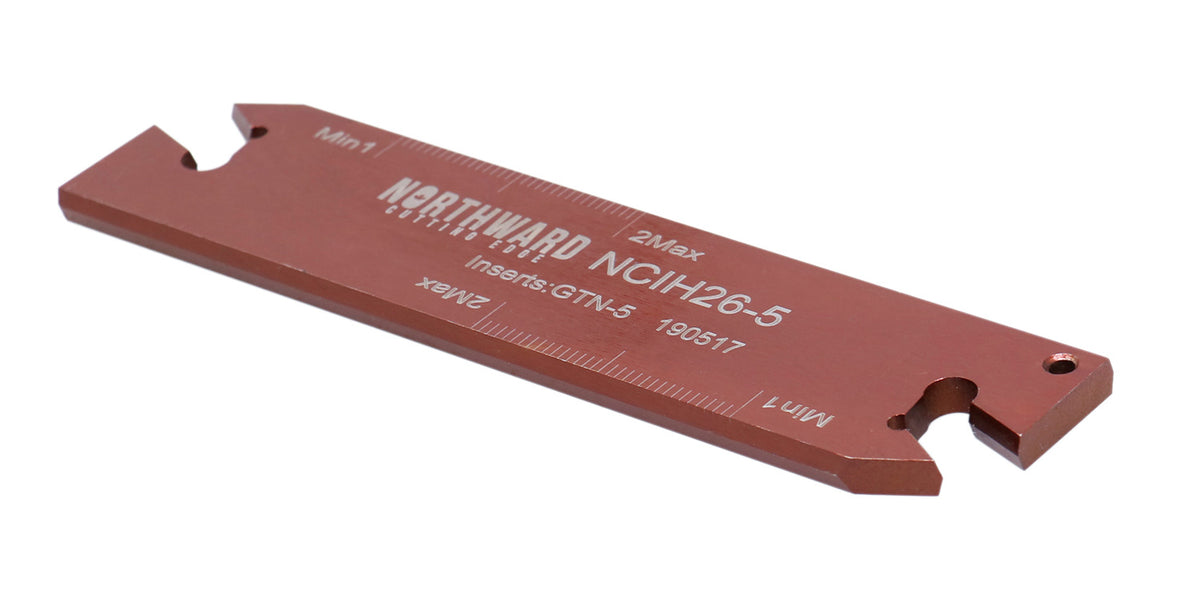

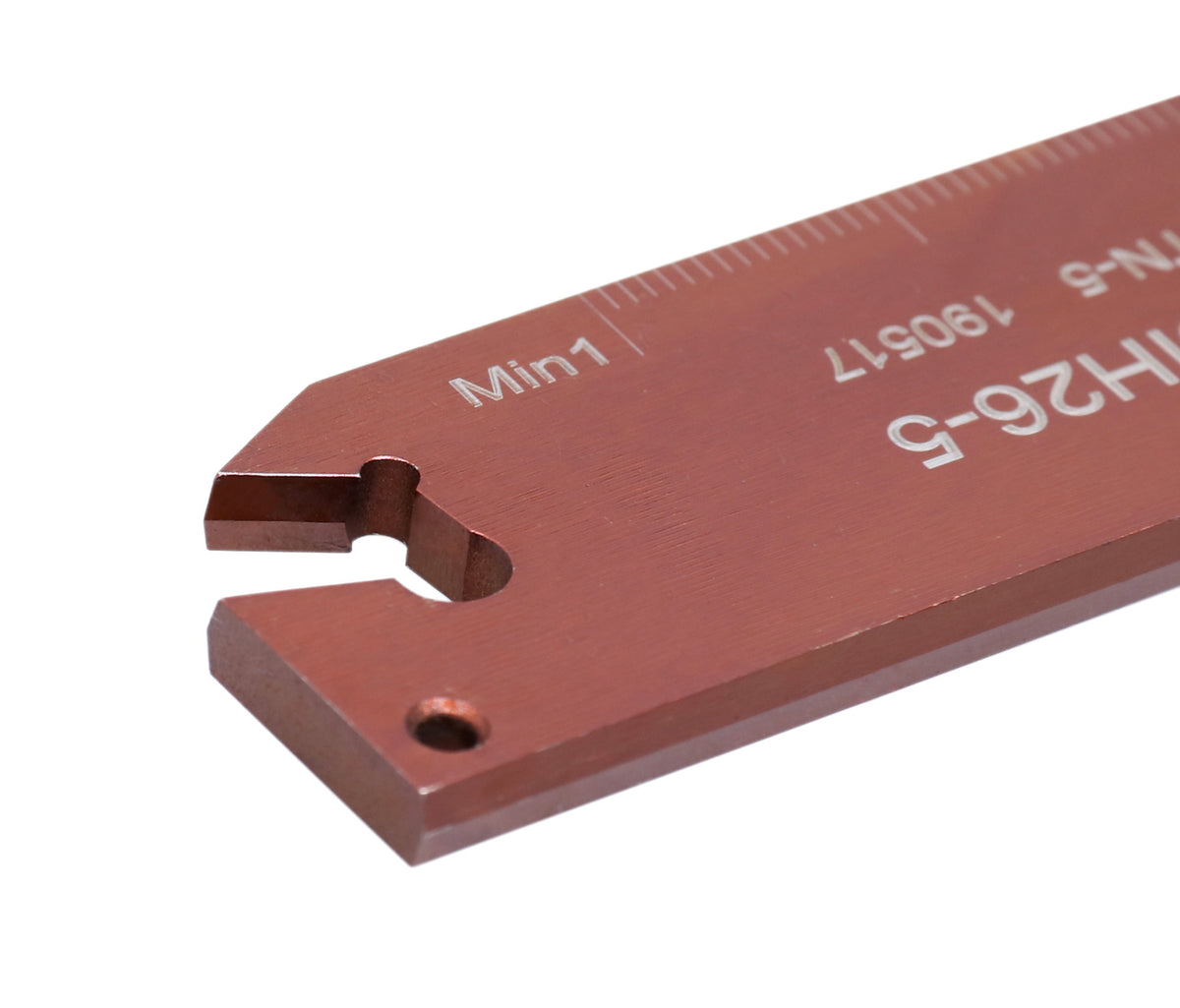

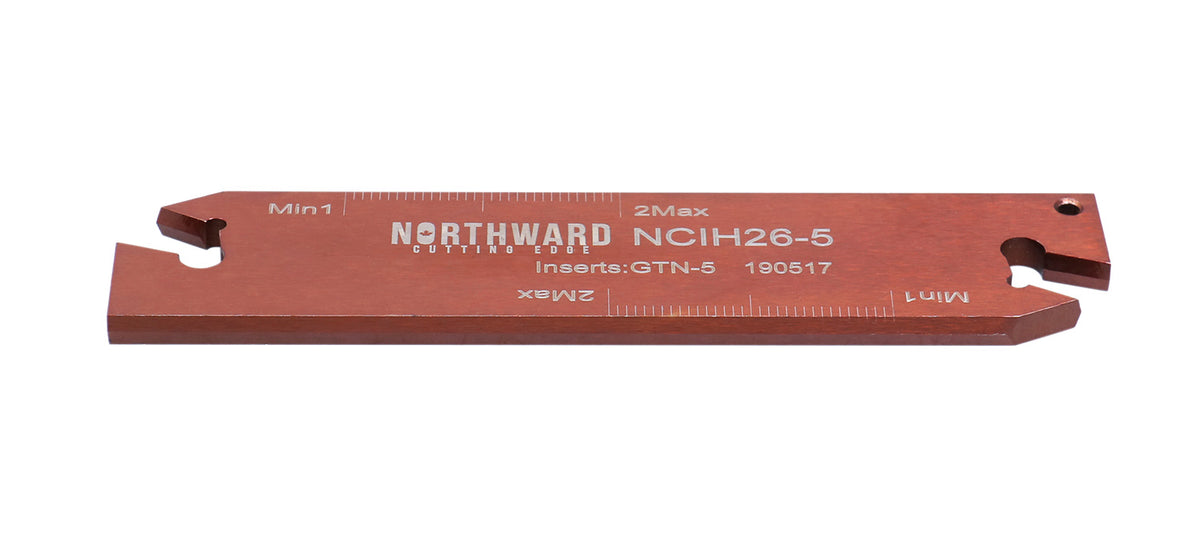

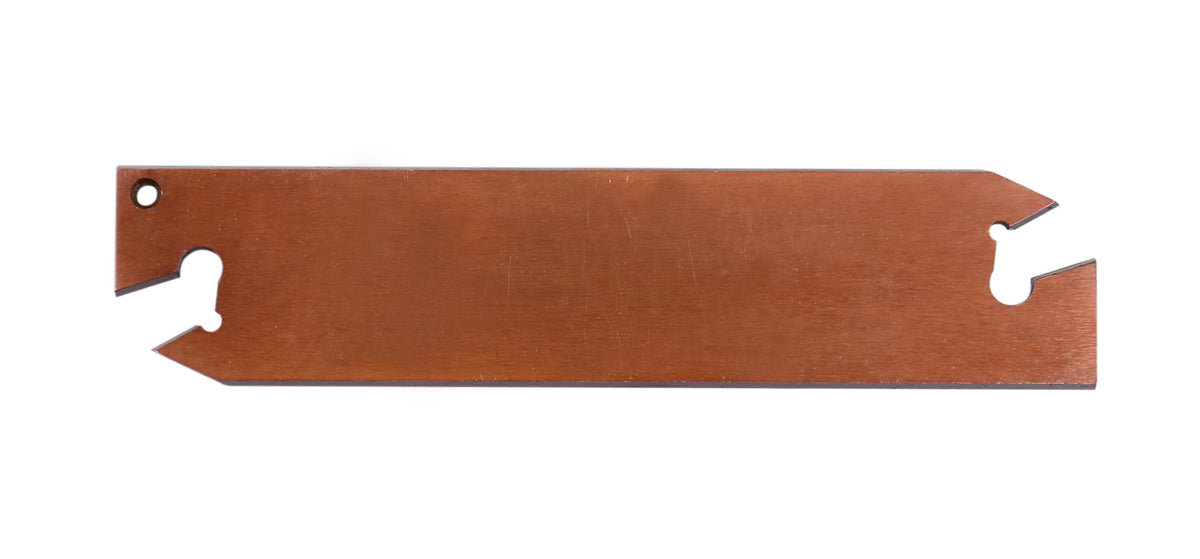

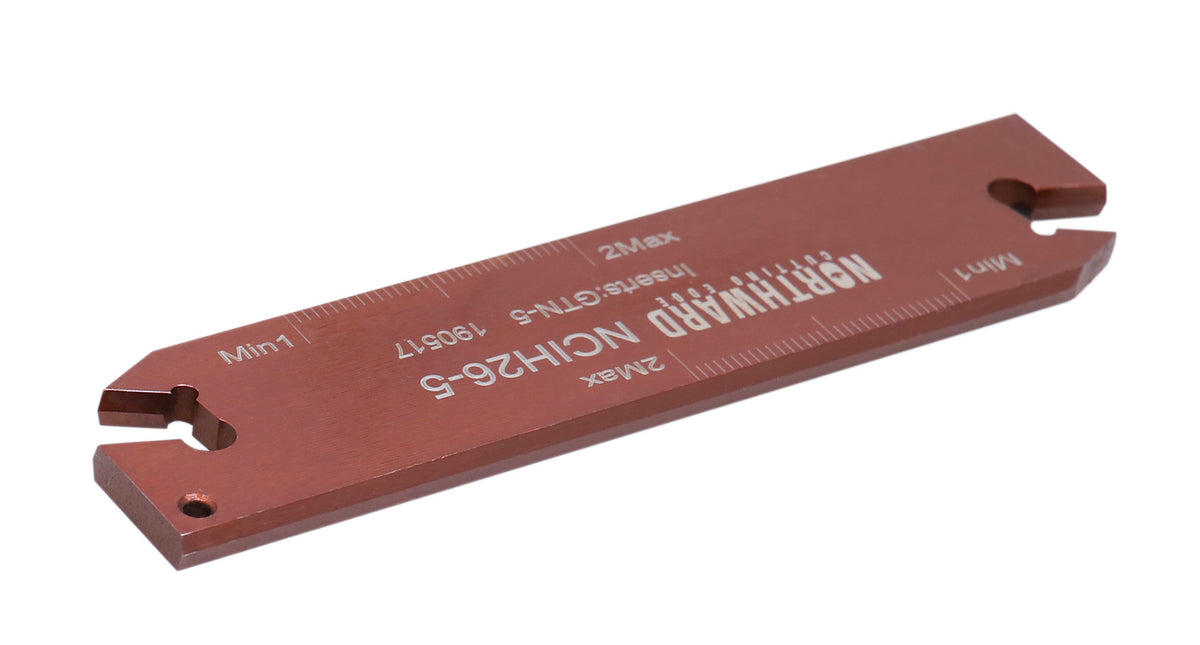

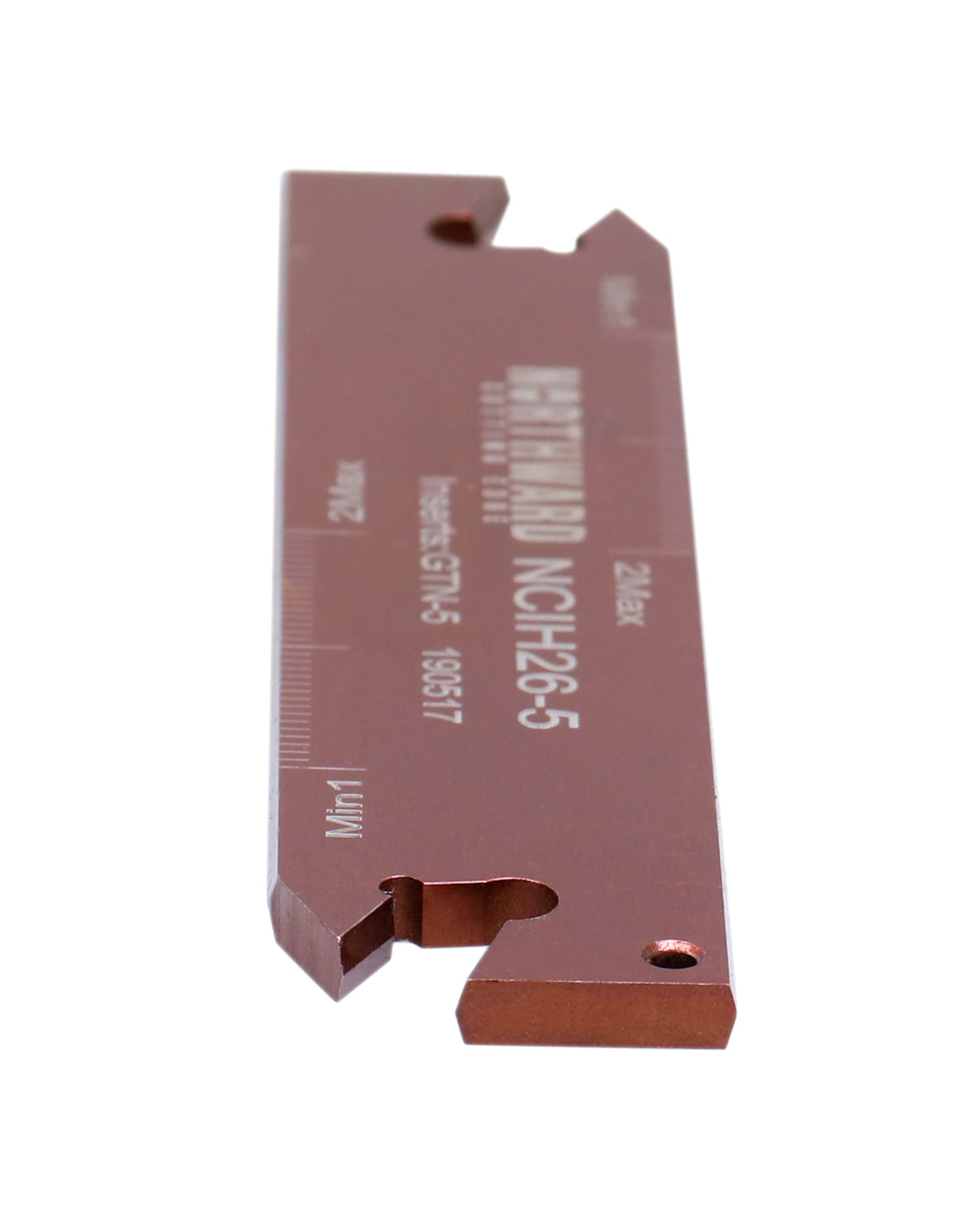

2402-0010 NCIH26-5 0.187"-0.200" 0.156" 4.33" 0.84" 1.02" 4" GTN-5

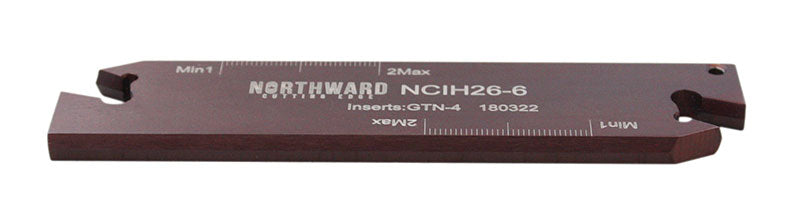

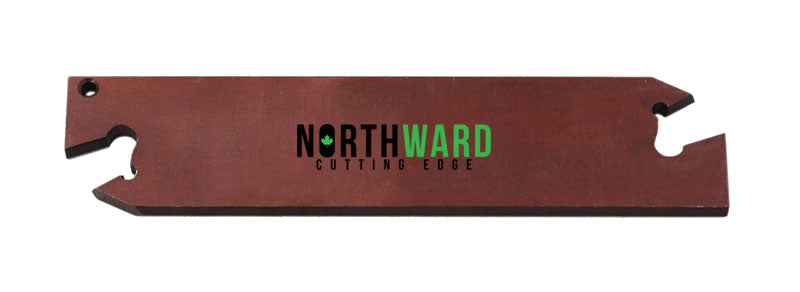

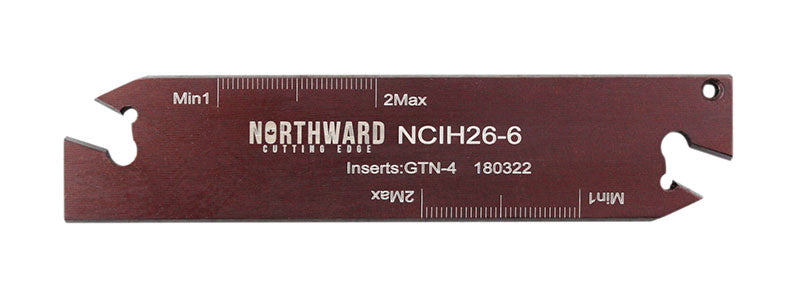

2402-0012 NCIH26-6 0.250" 0.203" 4.33" 0.84" 1.05" 4" GTN-6

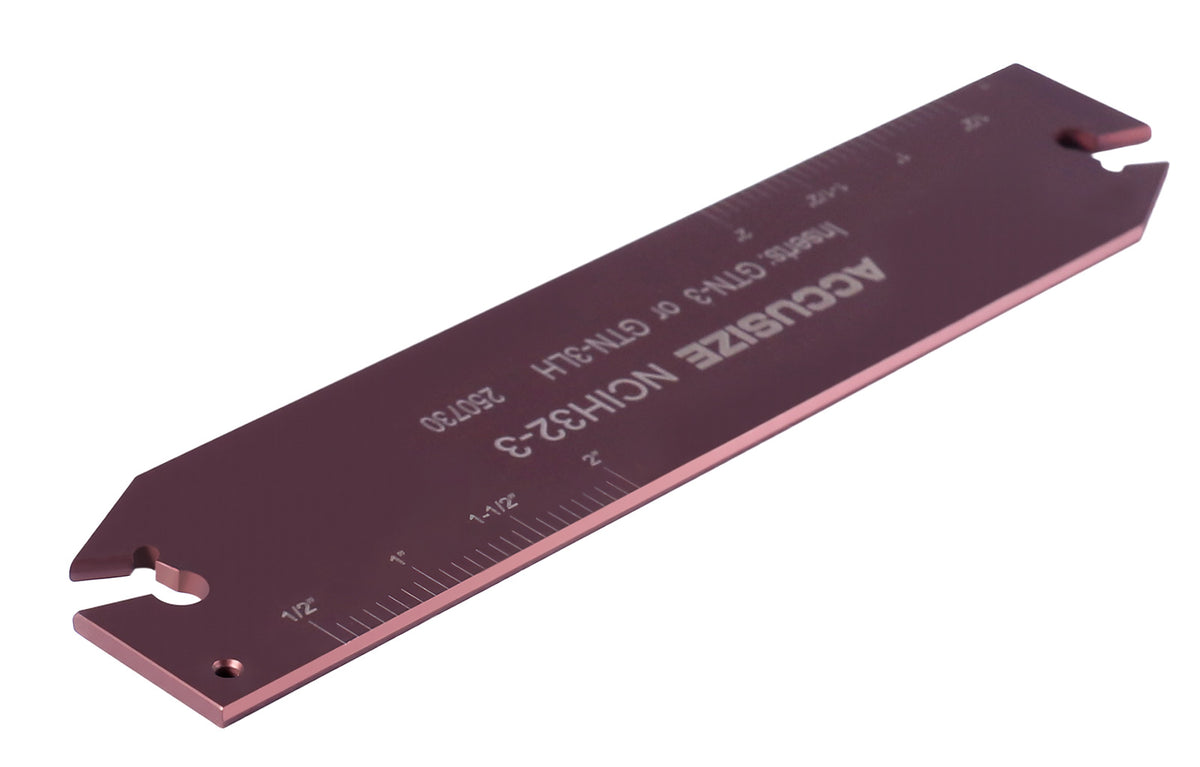

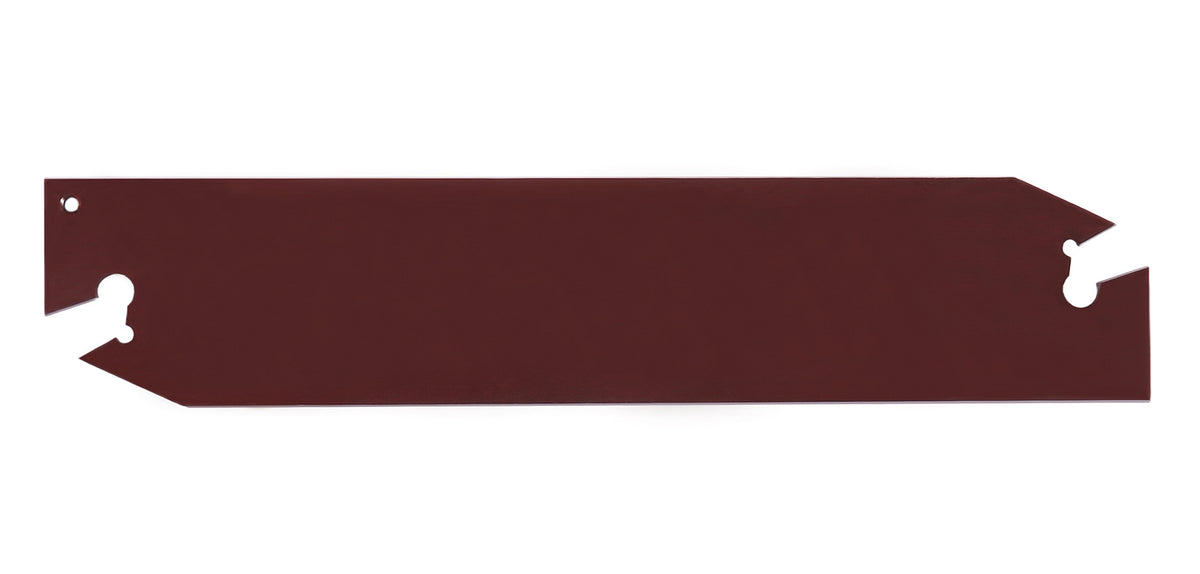

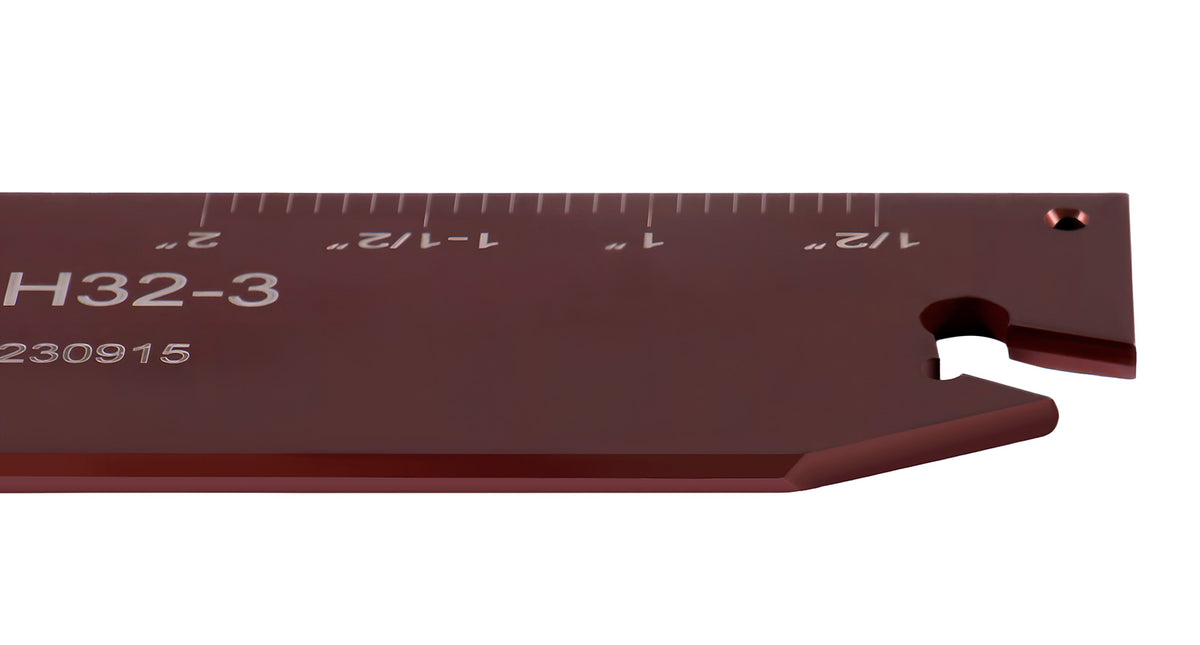

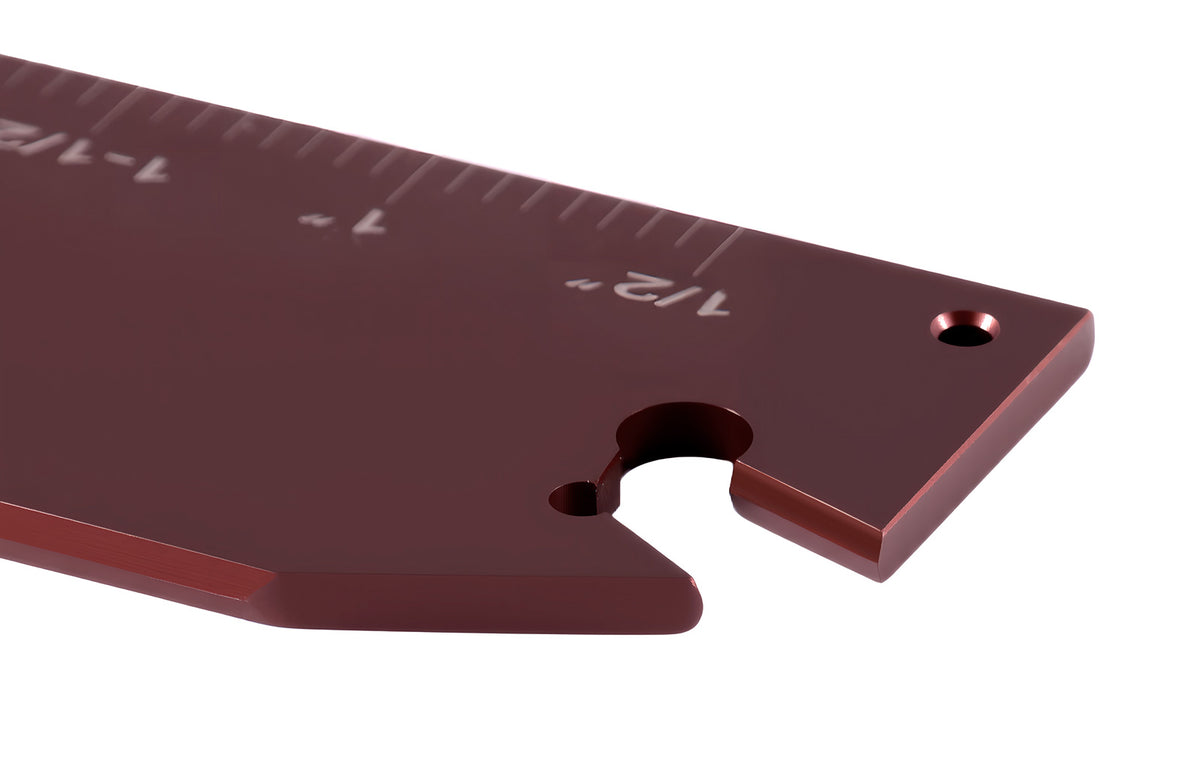

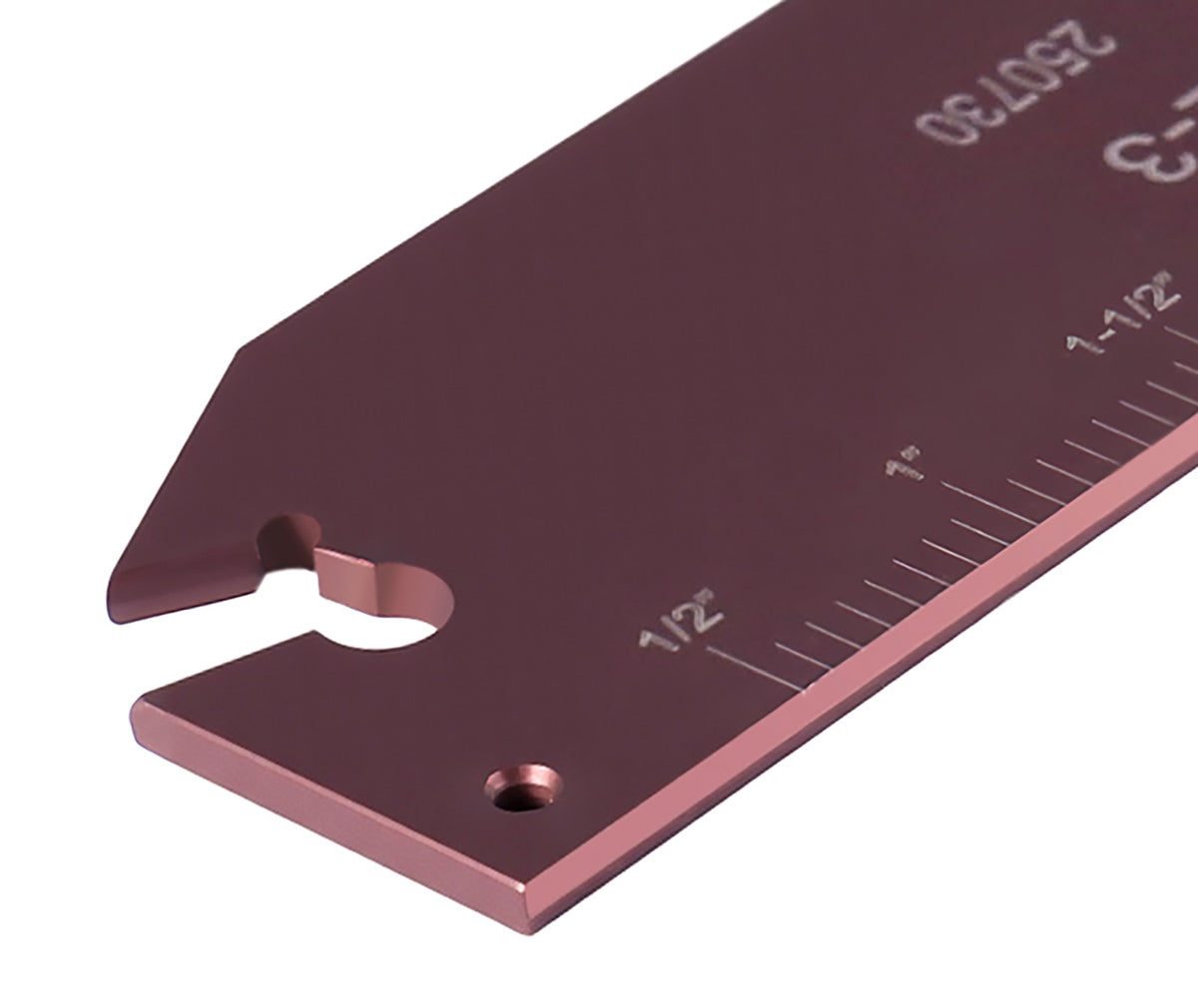

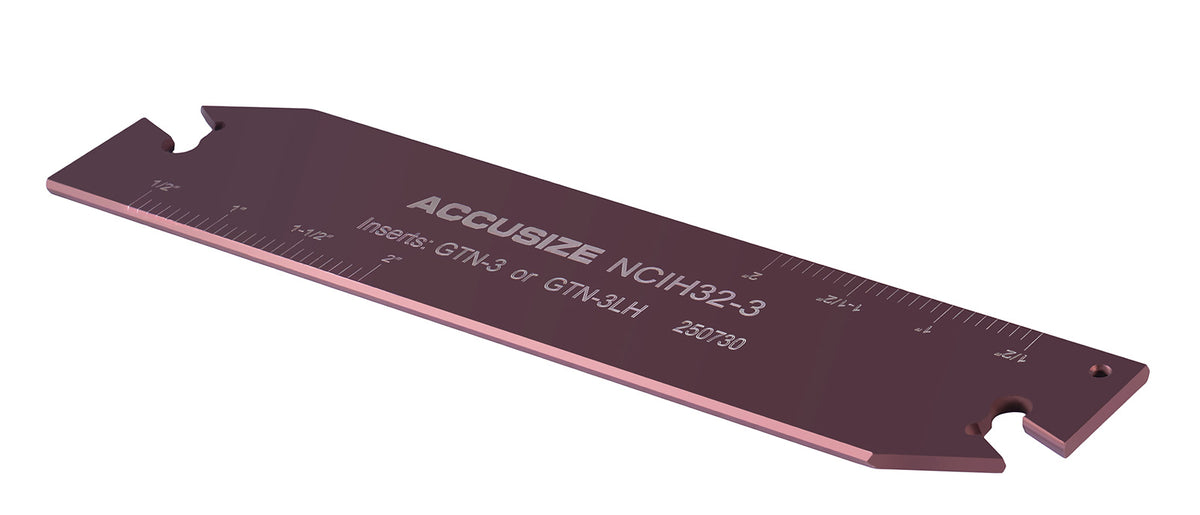

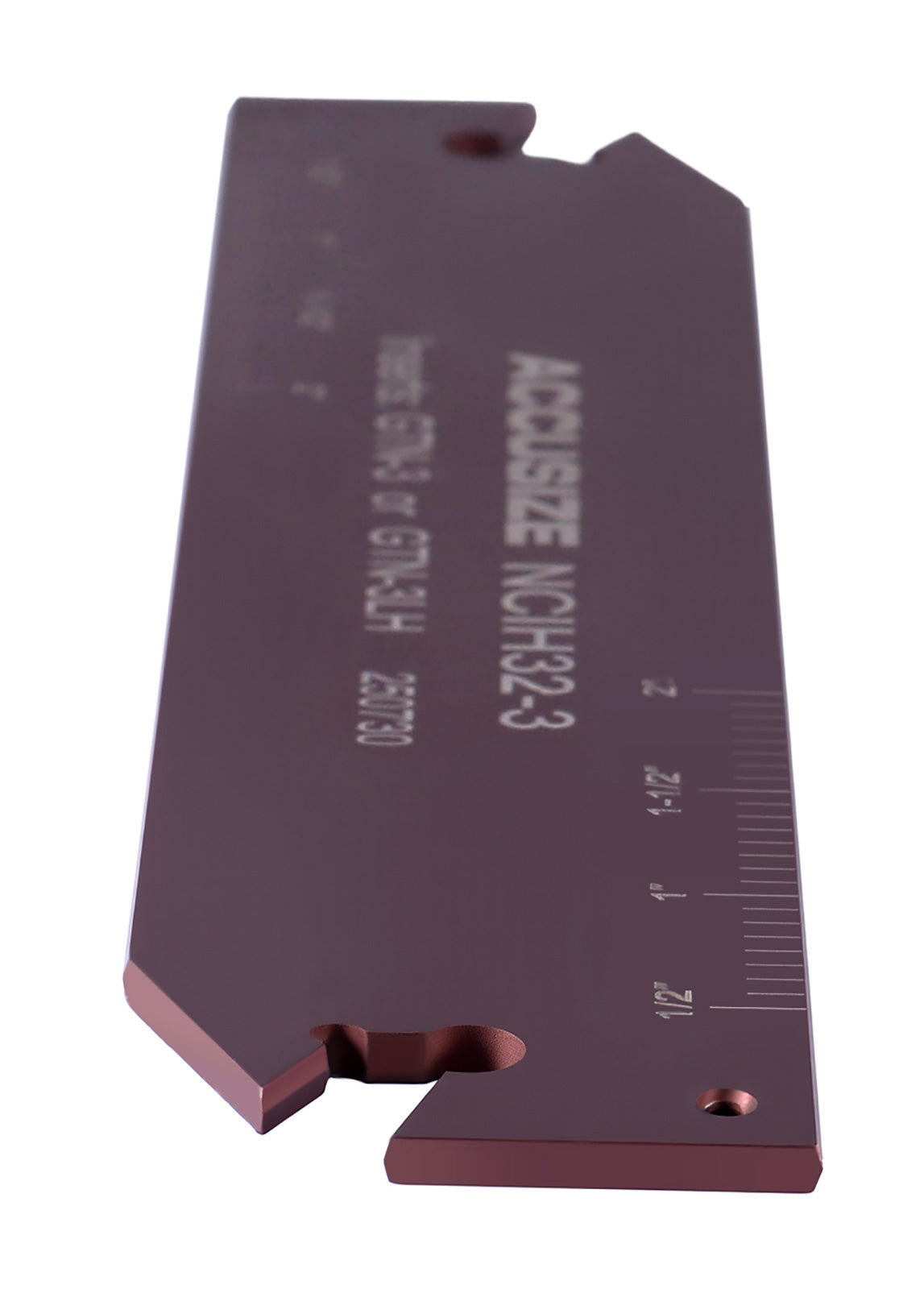

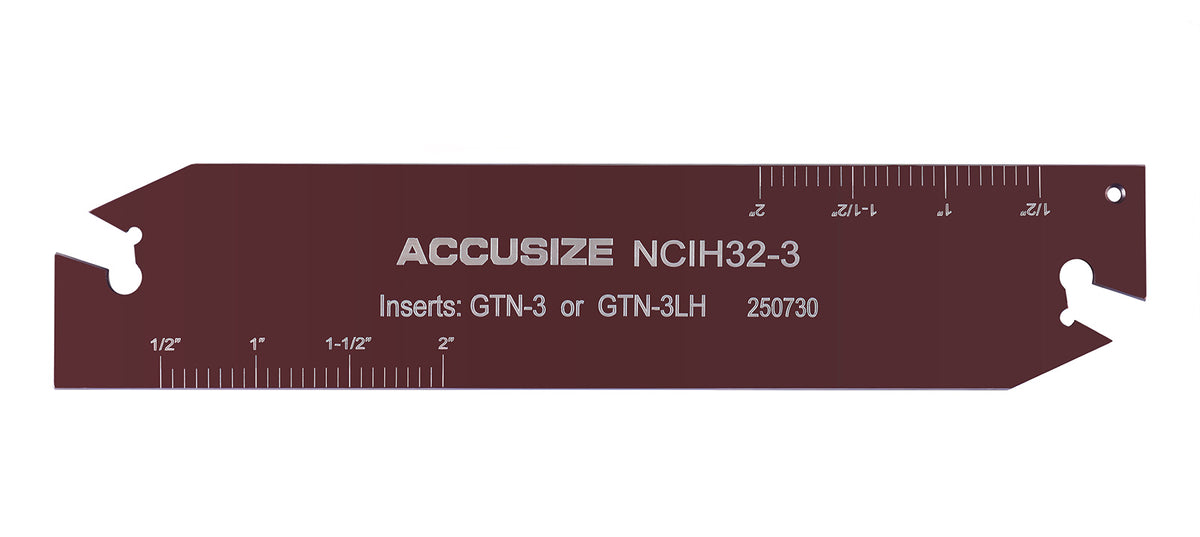

2402-0014 NCIH32-3 0.120" 0.094" 5.9" 0.98" 1.25" 4" GTN-3

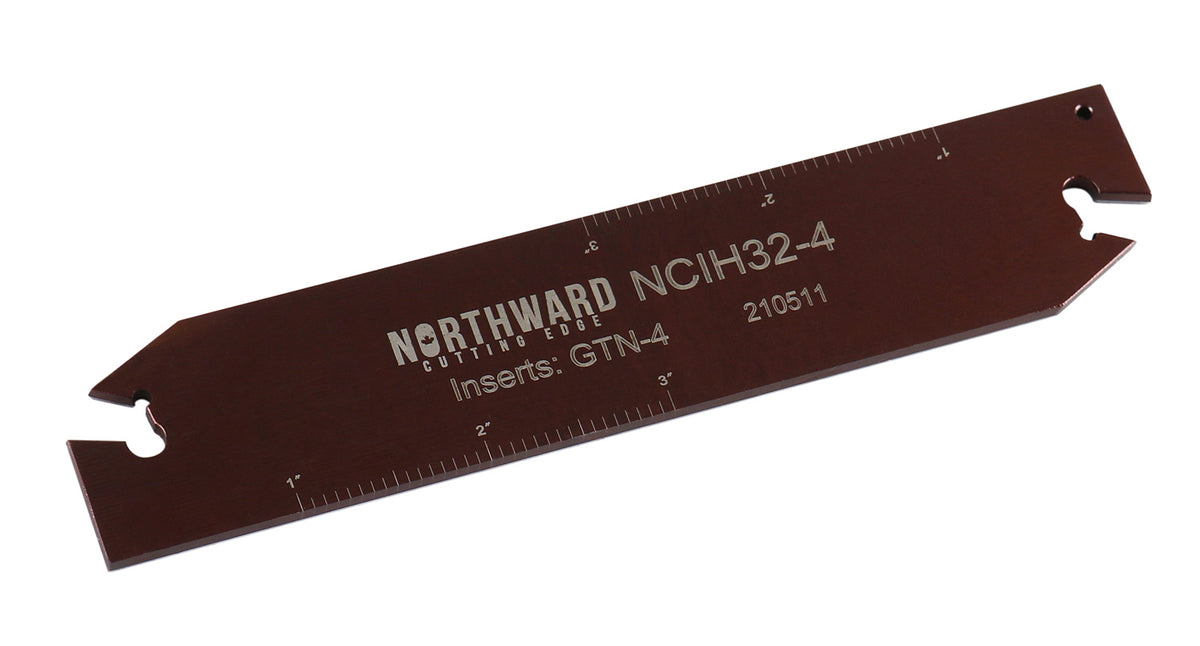

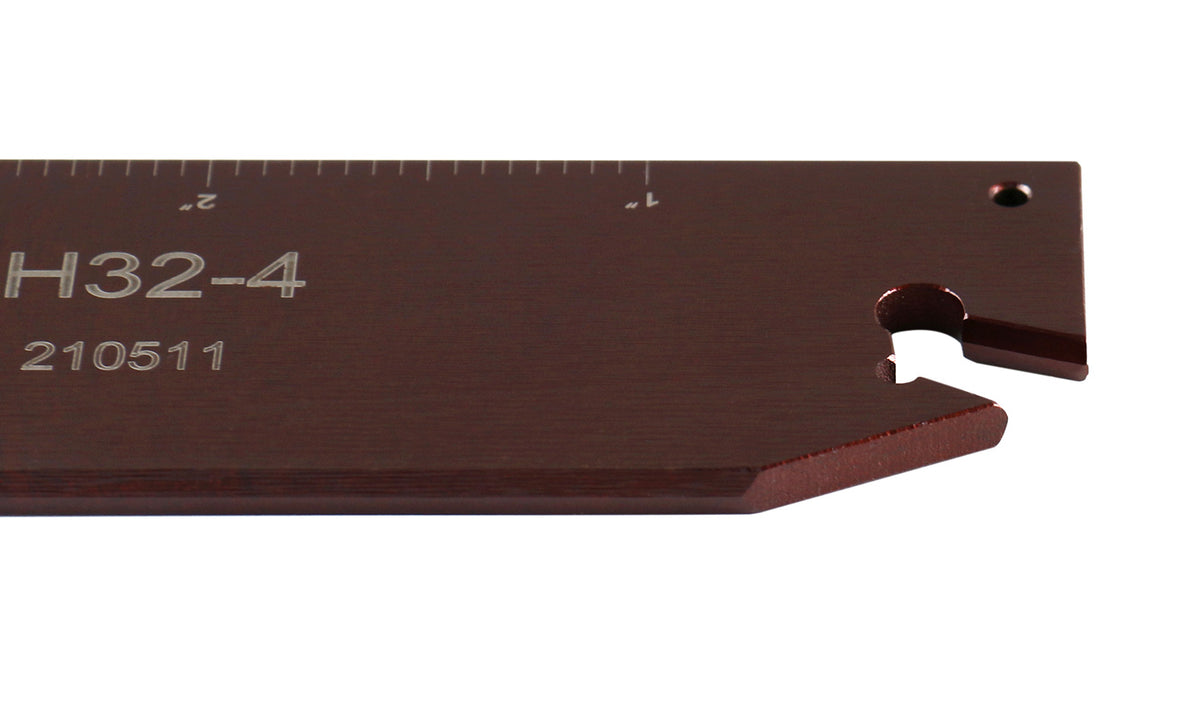

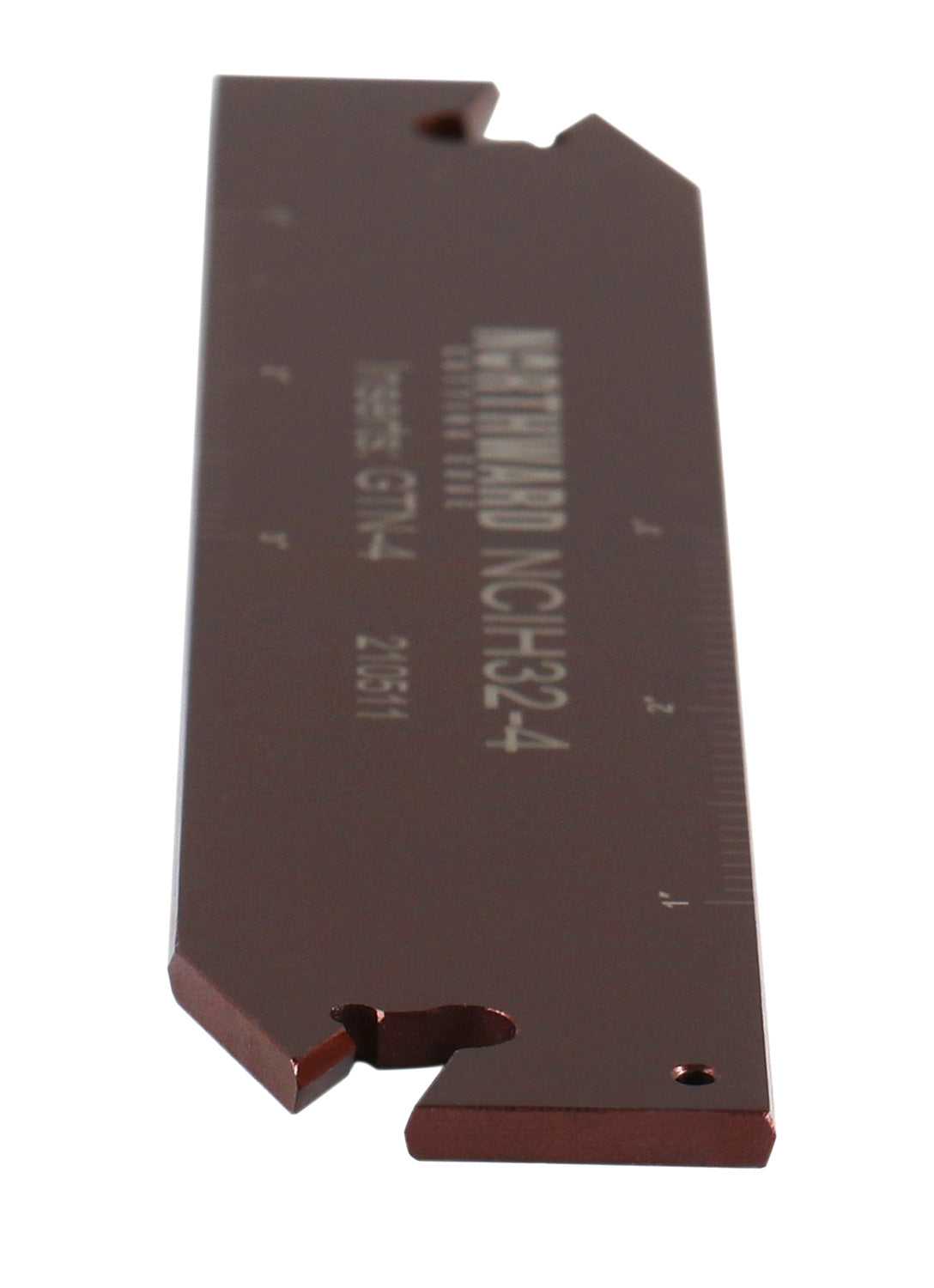

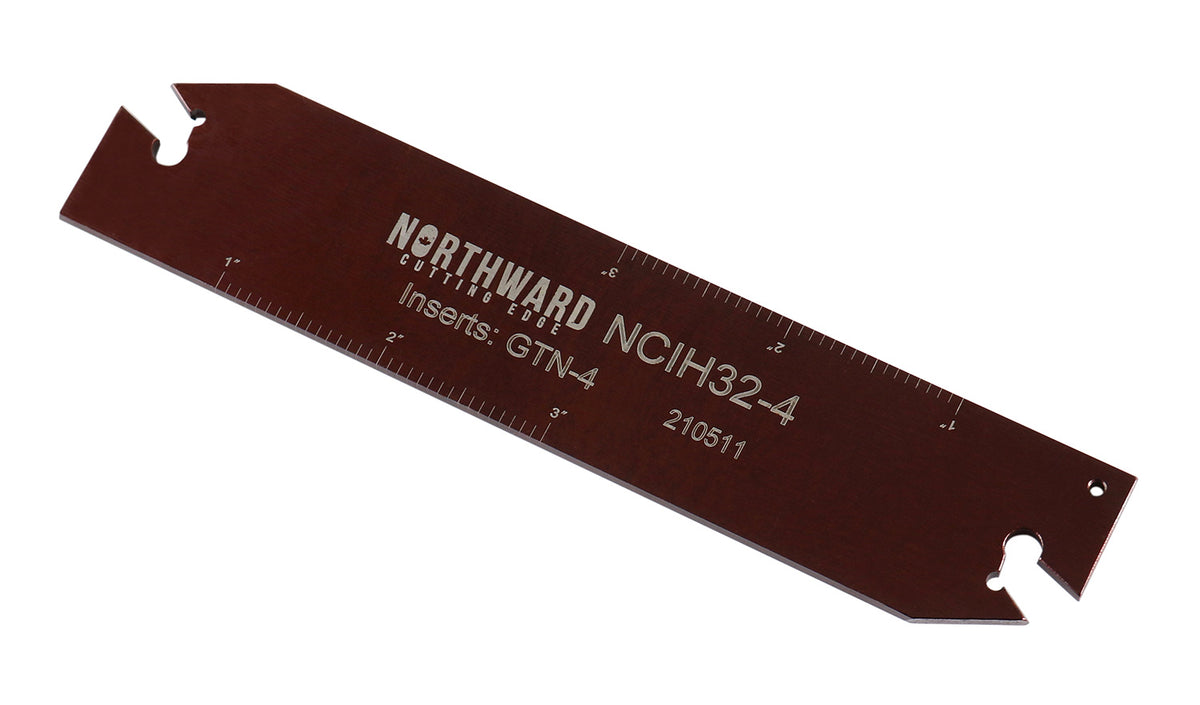

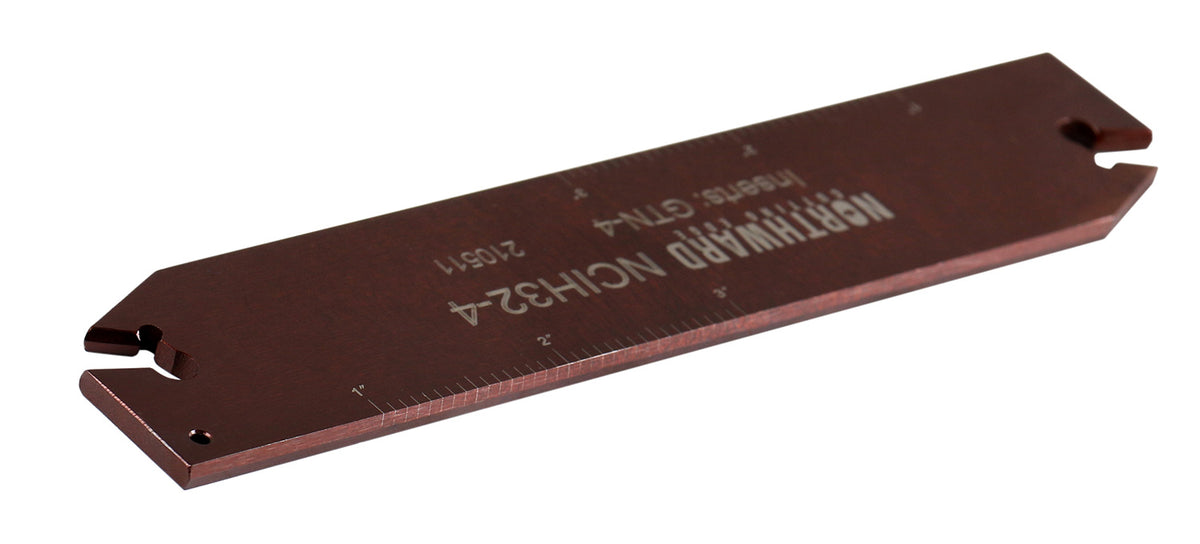

2402-0016 NCIH32-4 0.160" 0.125" 5.9" 0.98" 1.25" 4" GTN-4

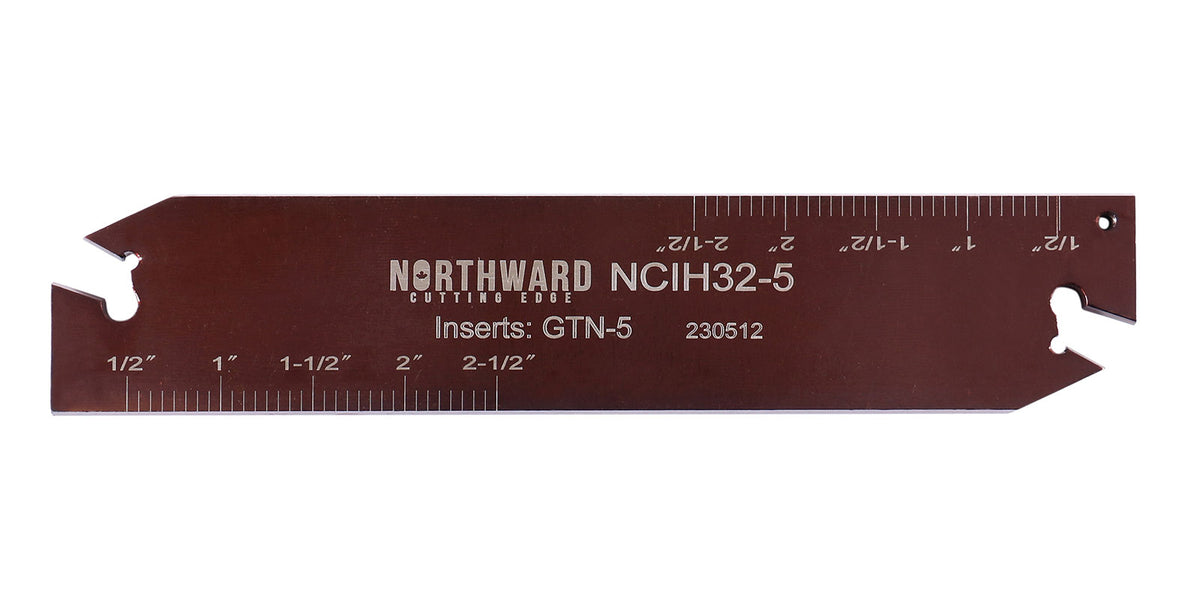

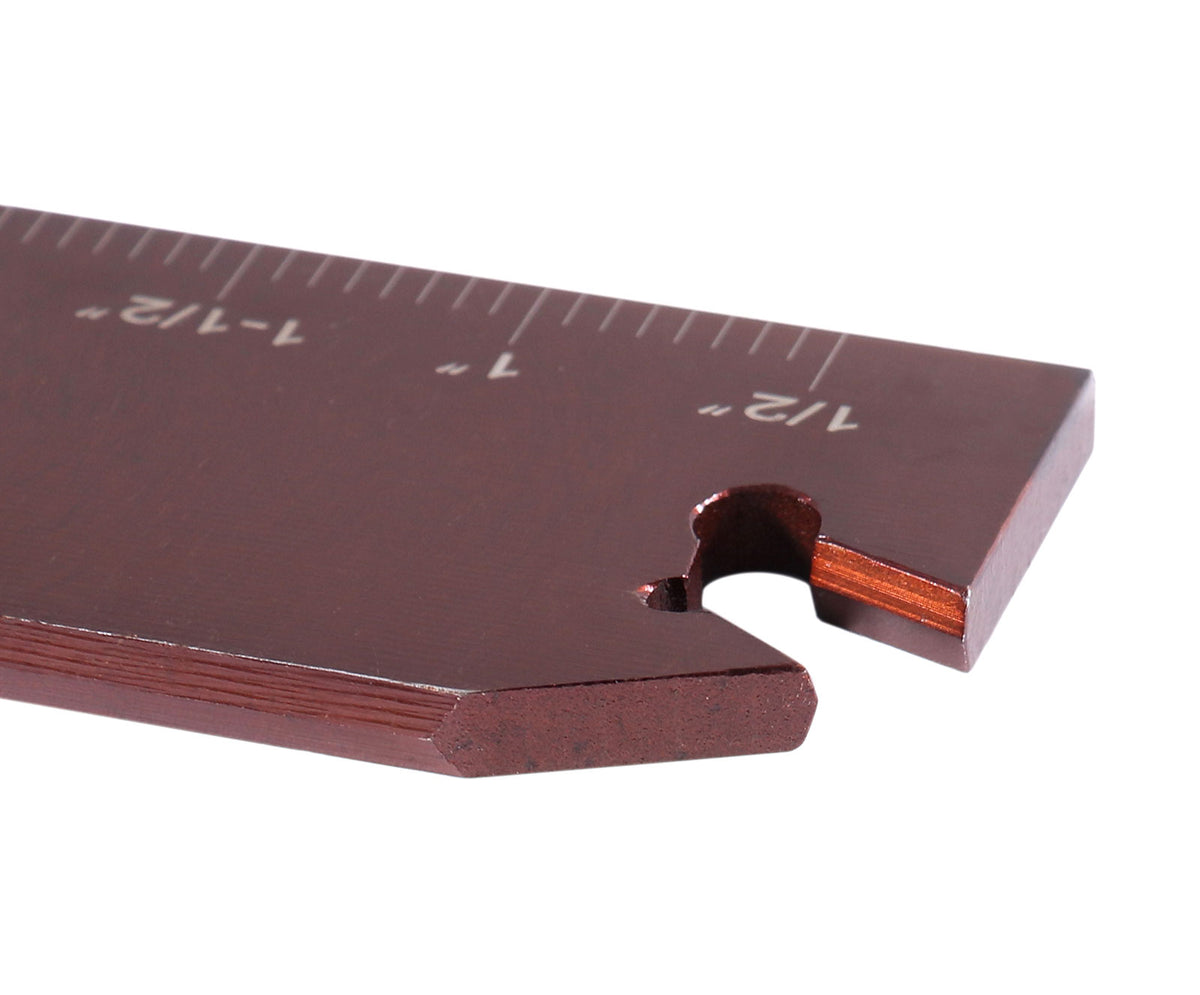

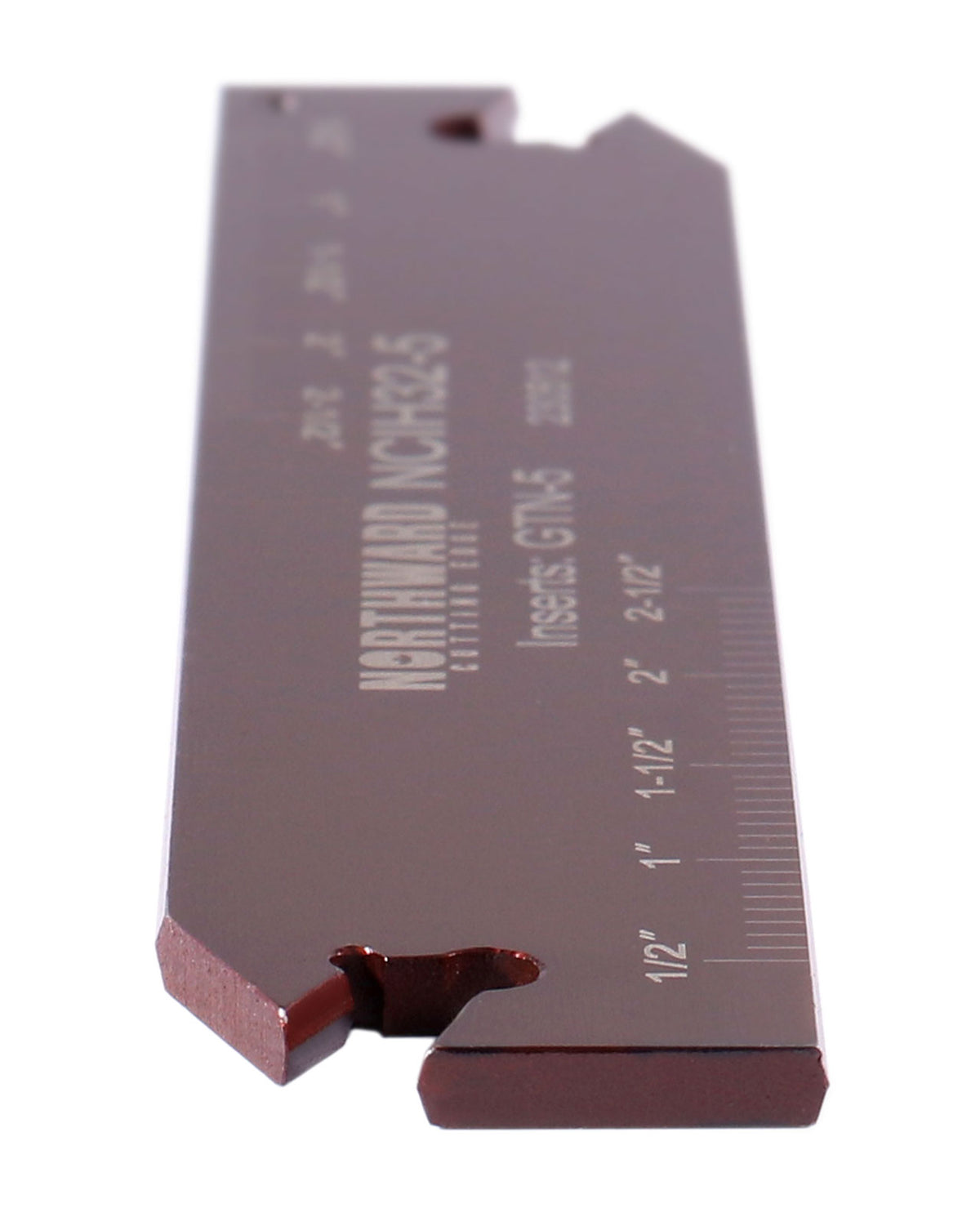

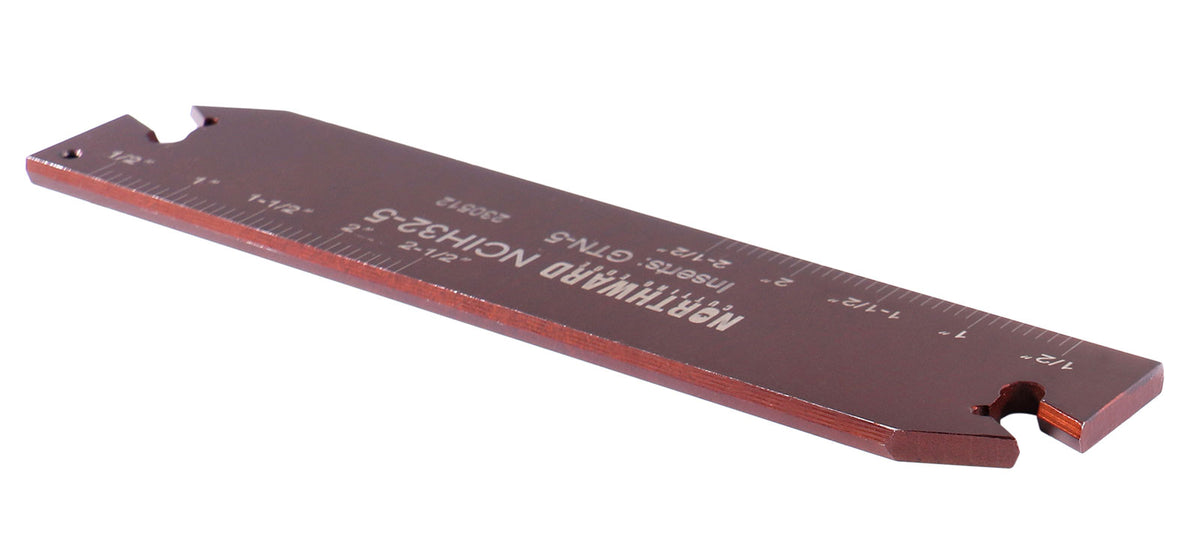

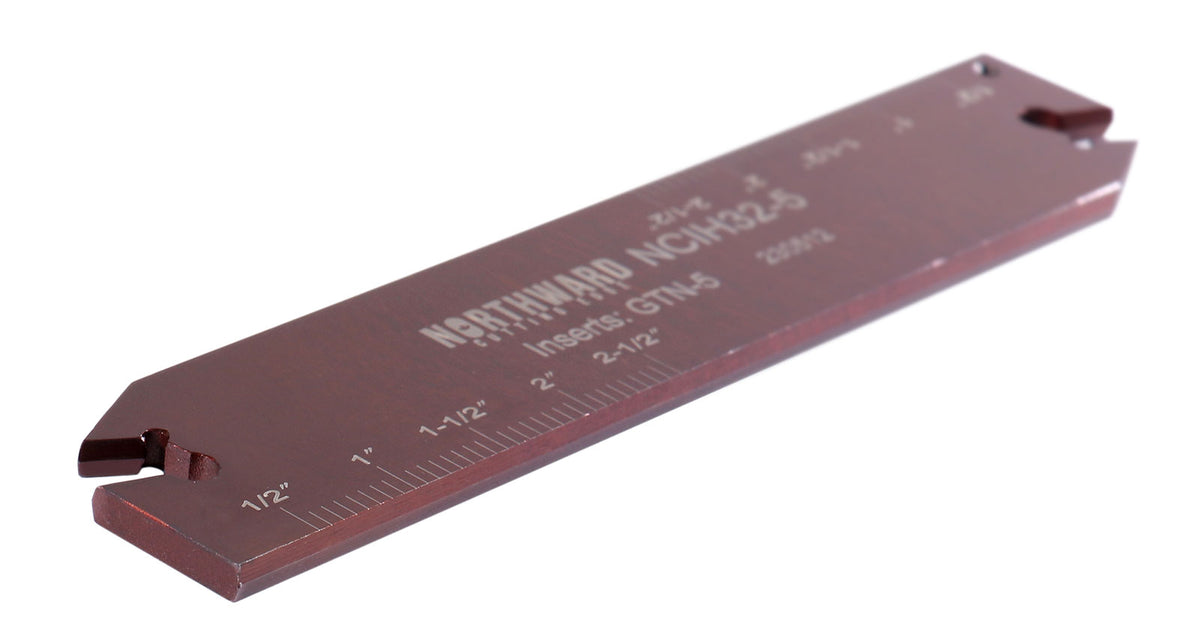

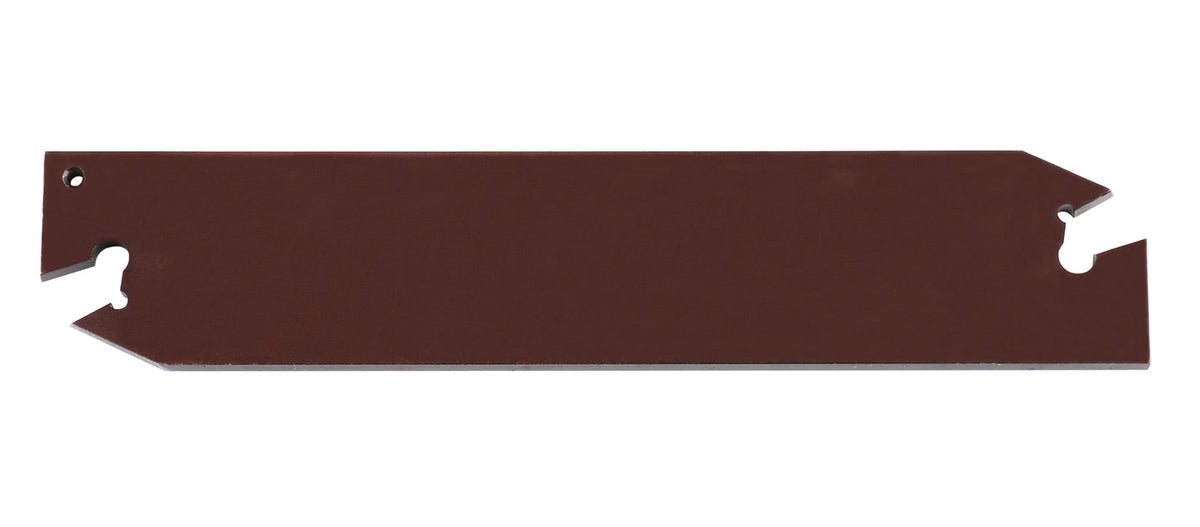

2402-0018 NCIH32-5 0.187"-0.200" 0.156" 5.9" 0.98" 1.25" 5" GTN-5

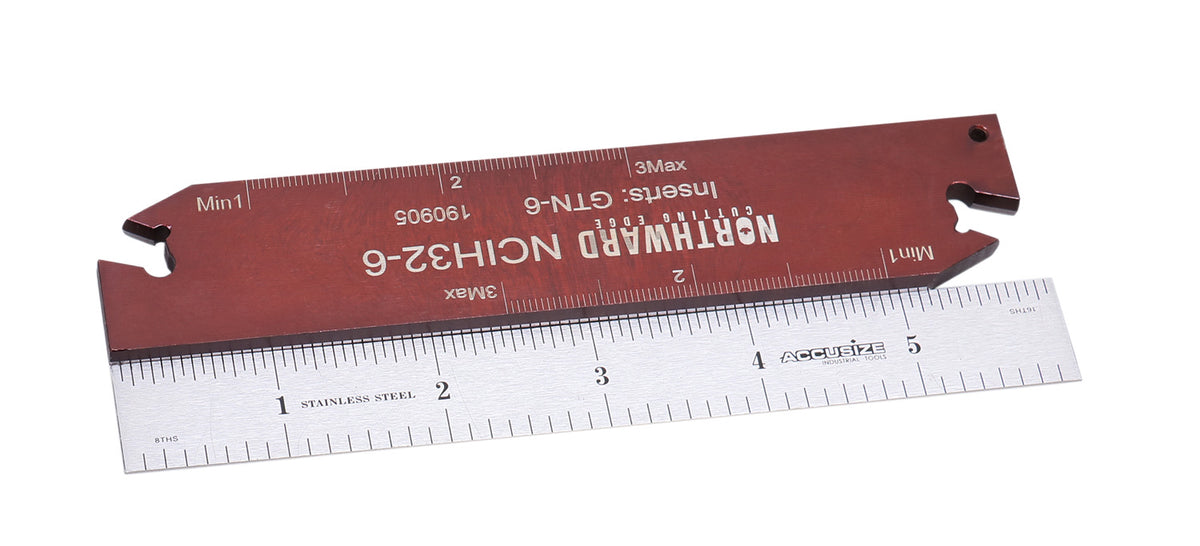

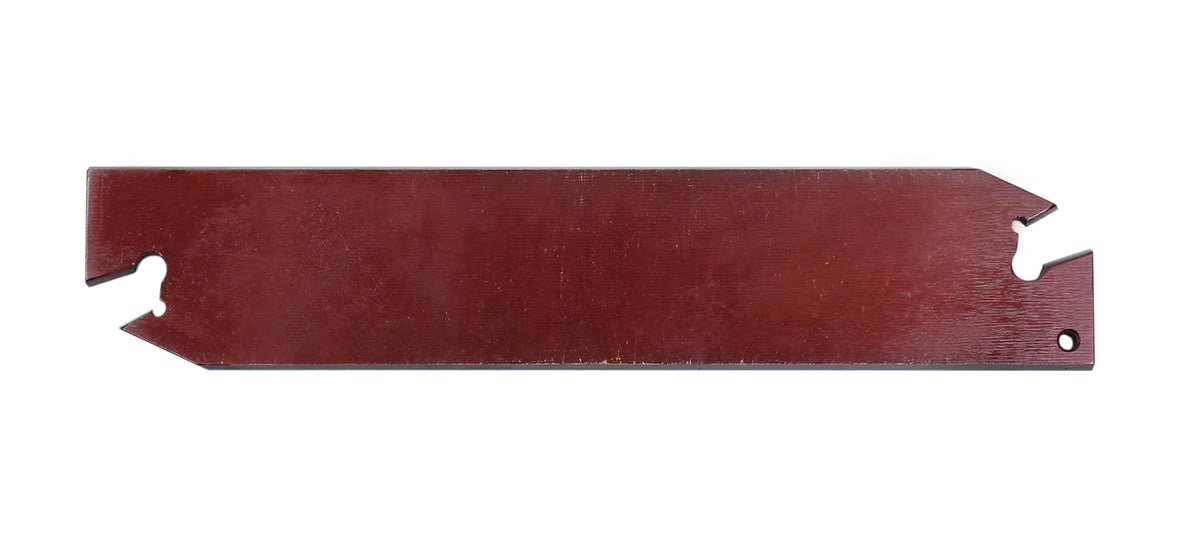

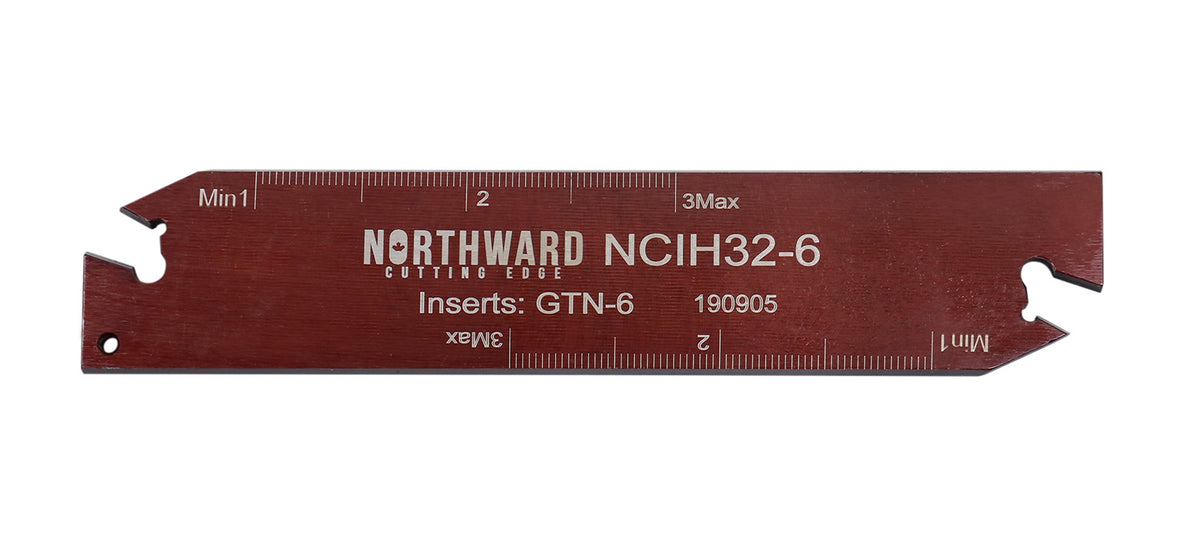

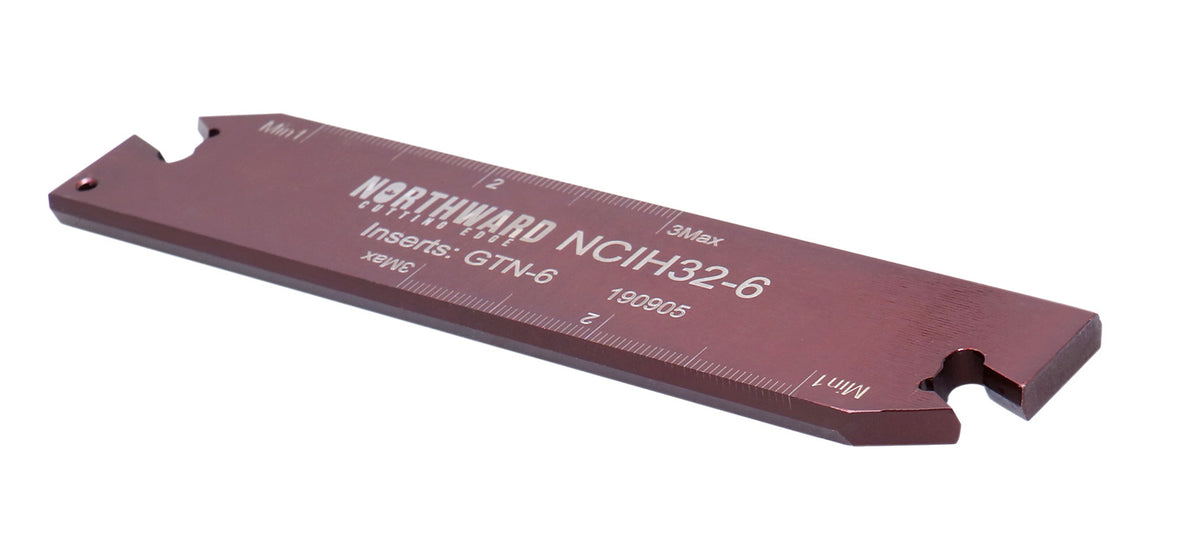

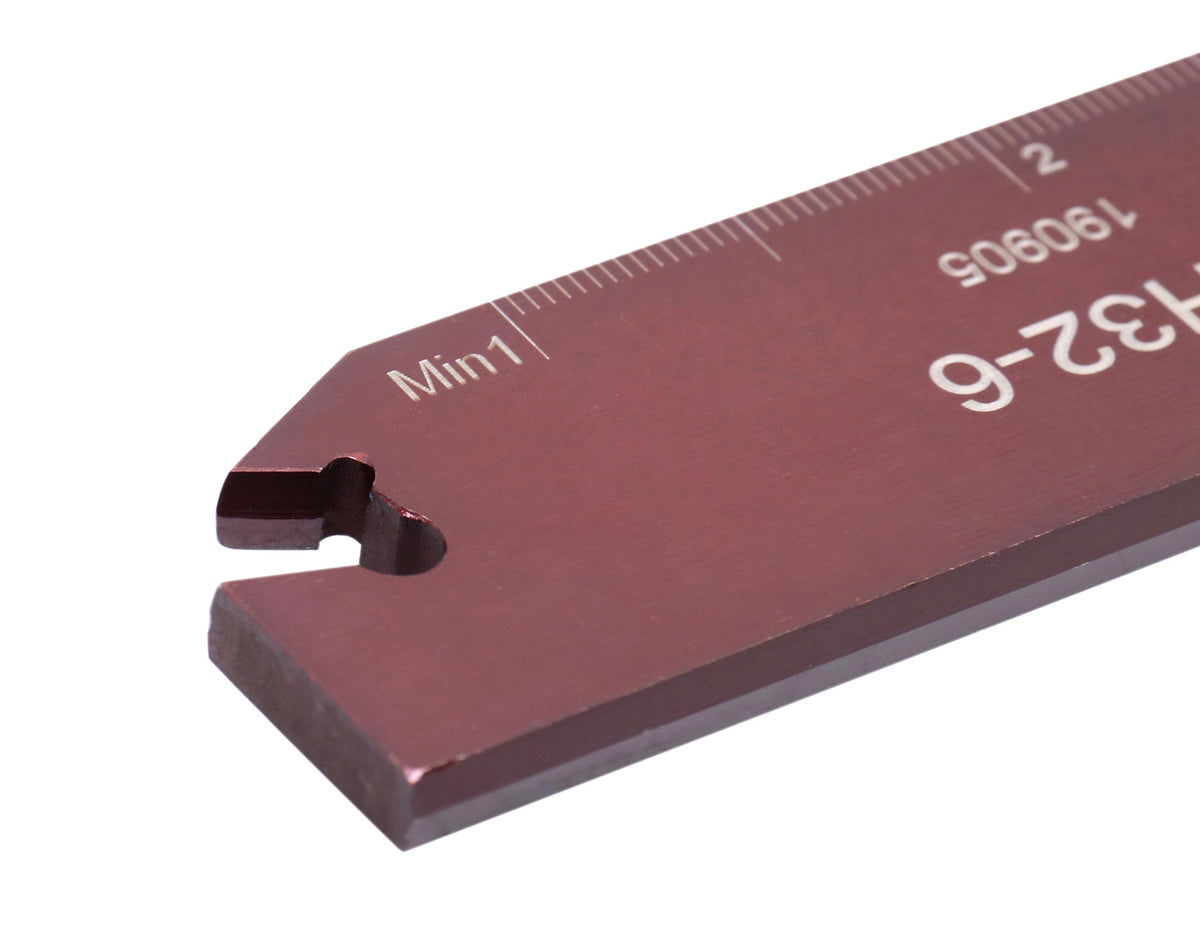

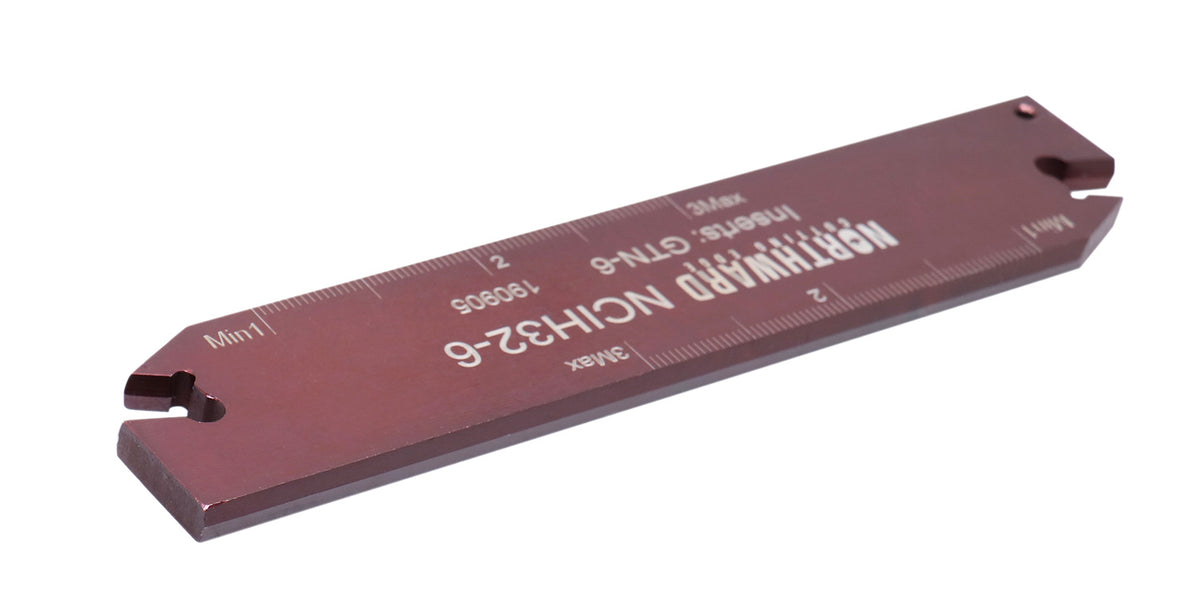

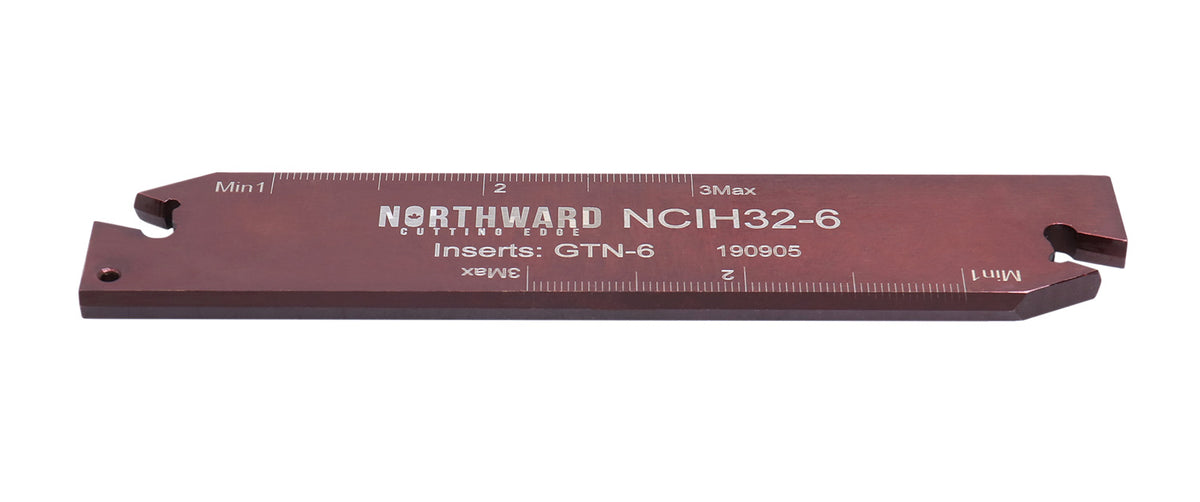

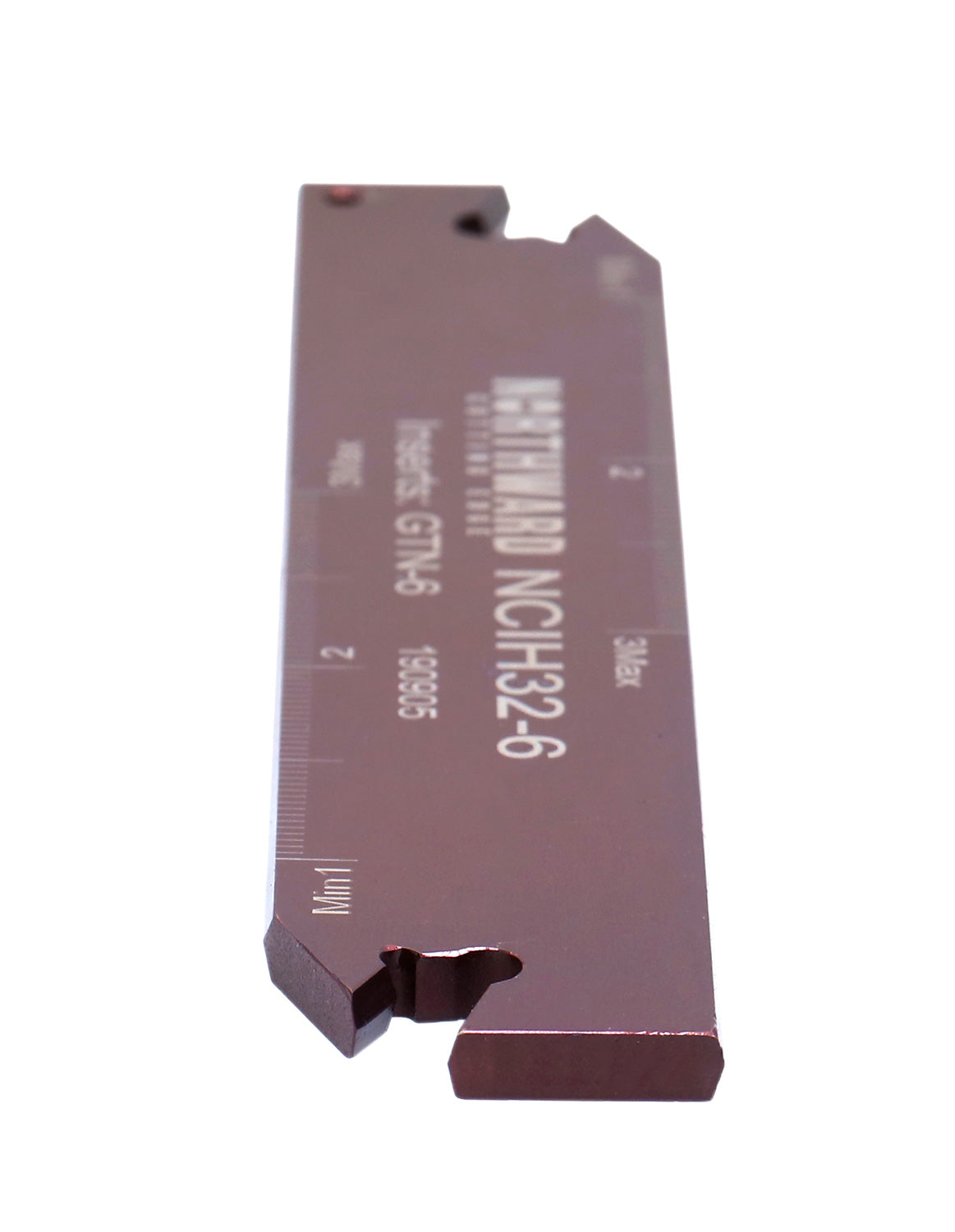

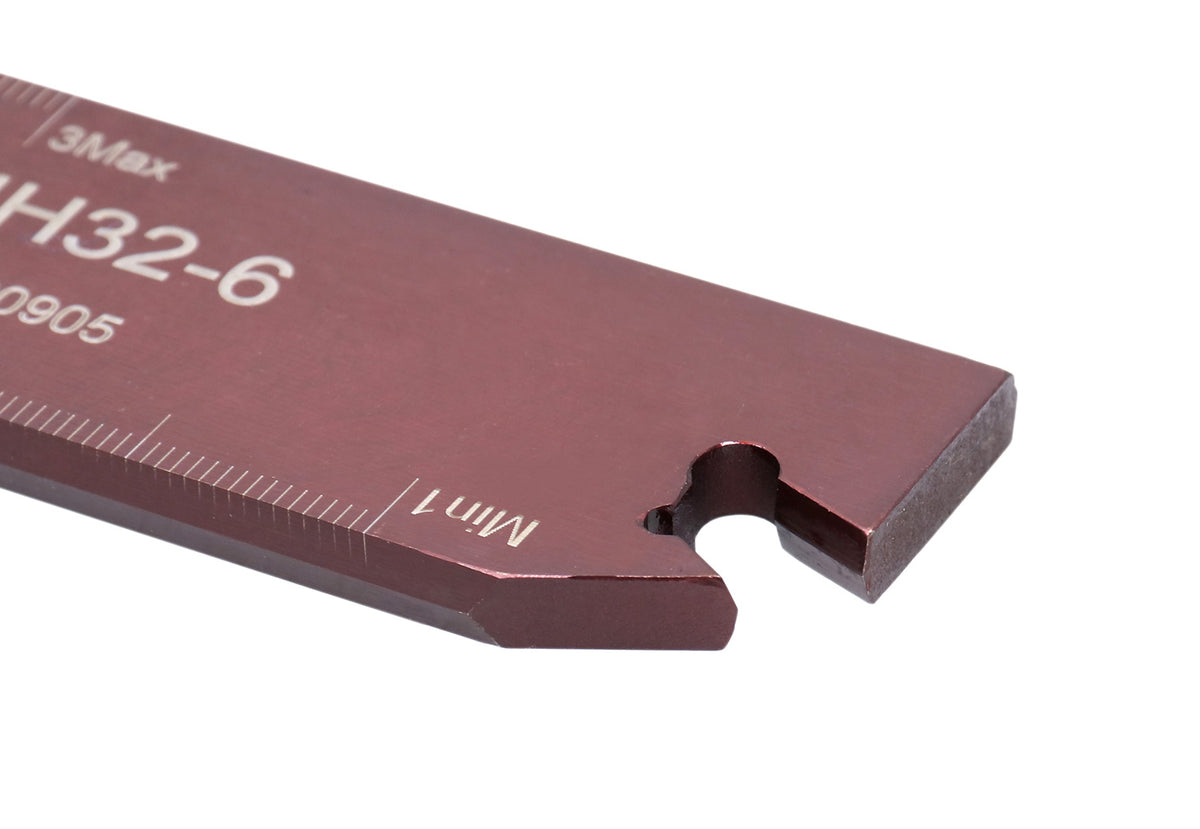

2402-0020 NCIH32-6 0.250" 0.203" 5.9" 0.98" 1.25" 5" GTN-6



Self-lock Cut-off Inserts for Cutting Steel

Accusize Industrial Tools 2402 Positive Stop Adjustable Blades For Self-lock Cut-off Insert For Cutting Steel

Inserts for cutting Steel:

Accusize Industrial Tools 2402 Positive Stop Adjustable Blades For Self-lock Cut-off Insert For Cutting Aluminum

Inserts for cutting Aluminum:

Accusize Industrial Tools 2402 Positive Stop Adjustable Blades For Self-lock Cut-off Insert For Cutting Stainless Steel

Inserts for cutting Stainless Steel:
