Precision Steel Angle Plates


Size: 4"x3"x3" (2200-0901)
Price:
$109.00

Shipping calculated at checkout

Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

Precision Angle Plates

  • Solid one-piece steel construction
  • Hardened to RC58-62
  • Ground flat, square and parallel to 0.0002"
  • the material of the precision angle plate are:
  • 20CrMnTi ( C:0.17-0.23; Si: 0.17-0.37; Mn:0.8-1.1; Cr: 1.00-1.30; Ti: 0.04-0.10)
Item Size Thick Number of Holes

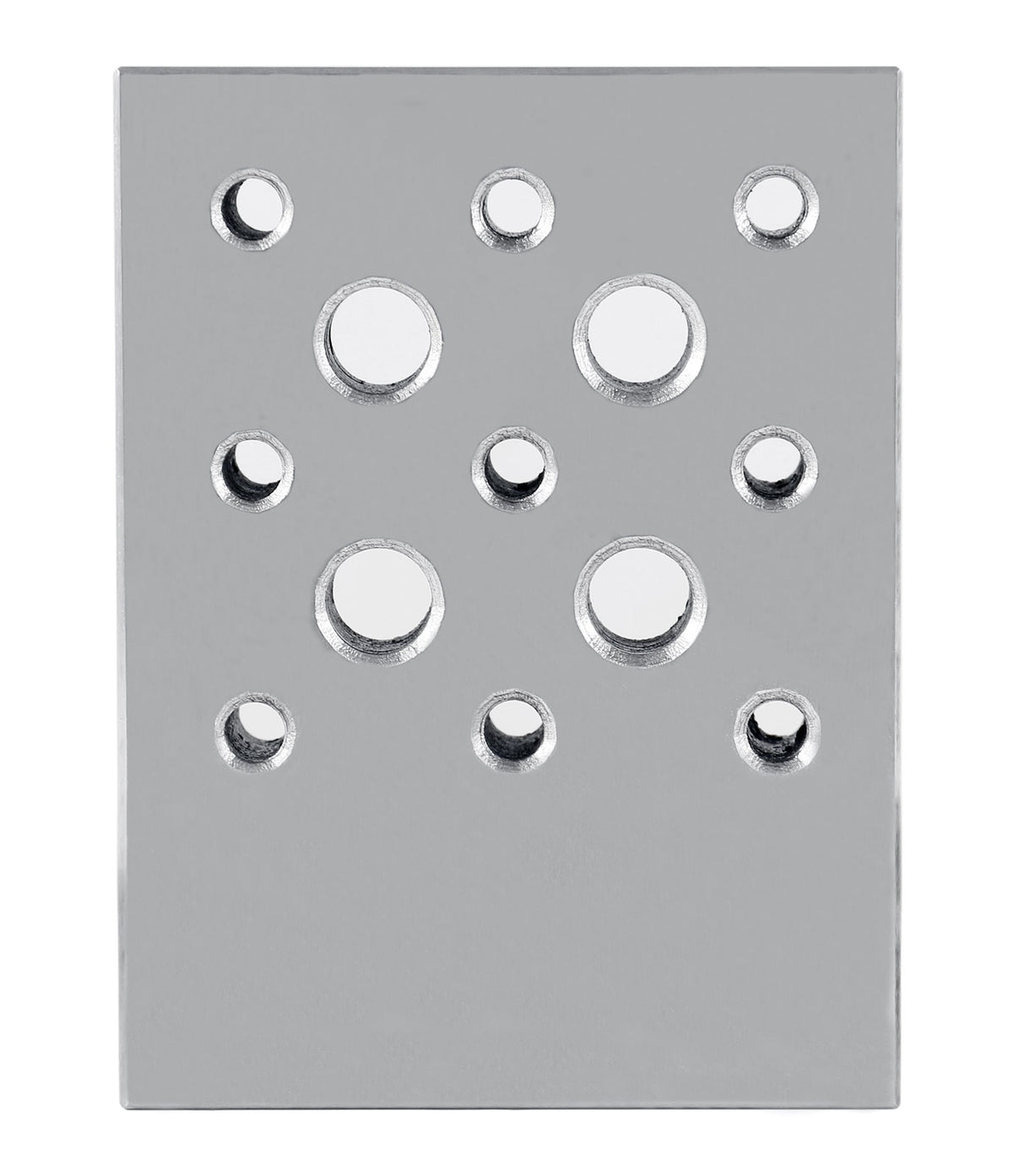

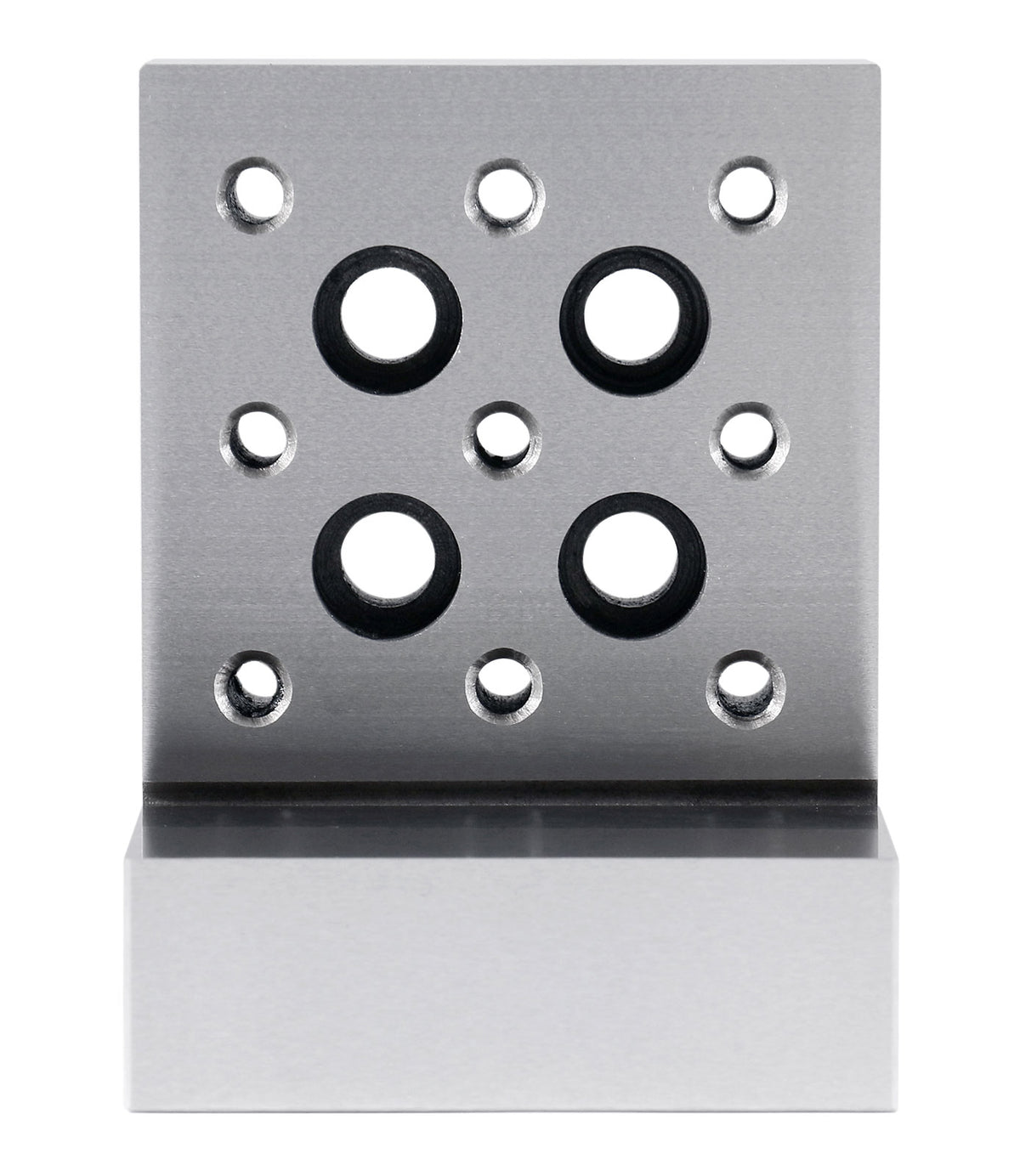

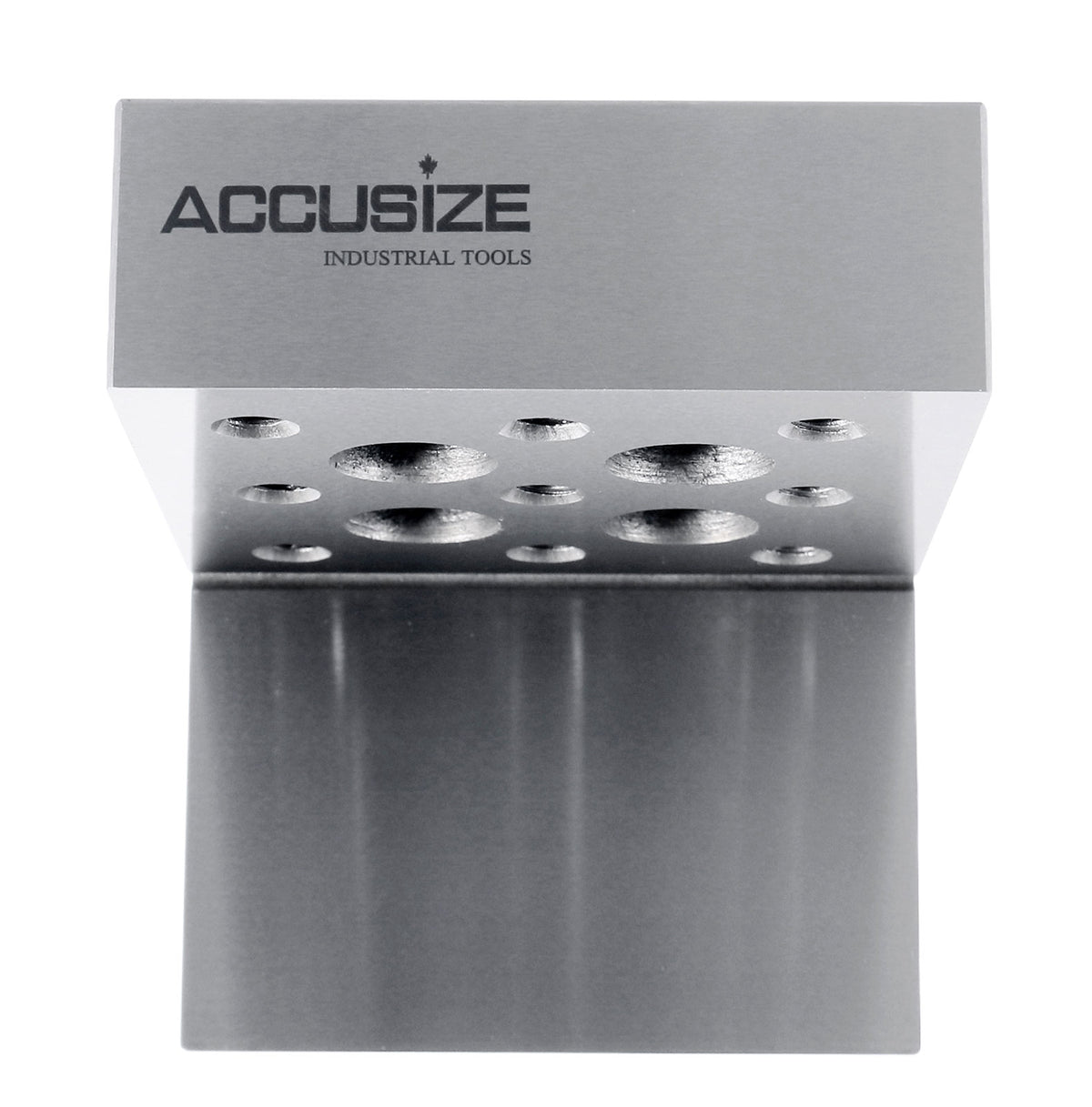

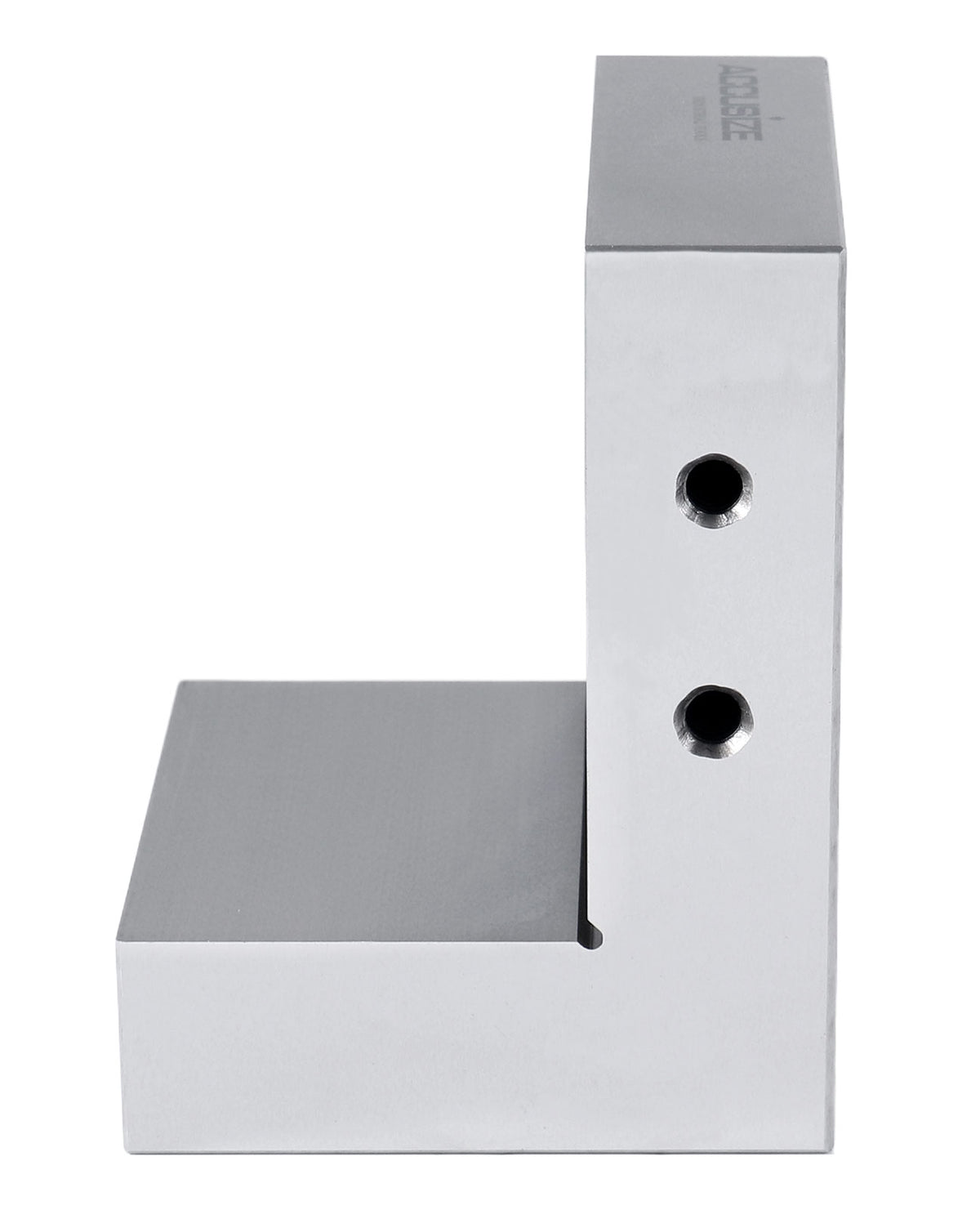

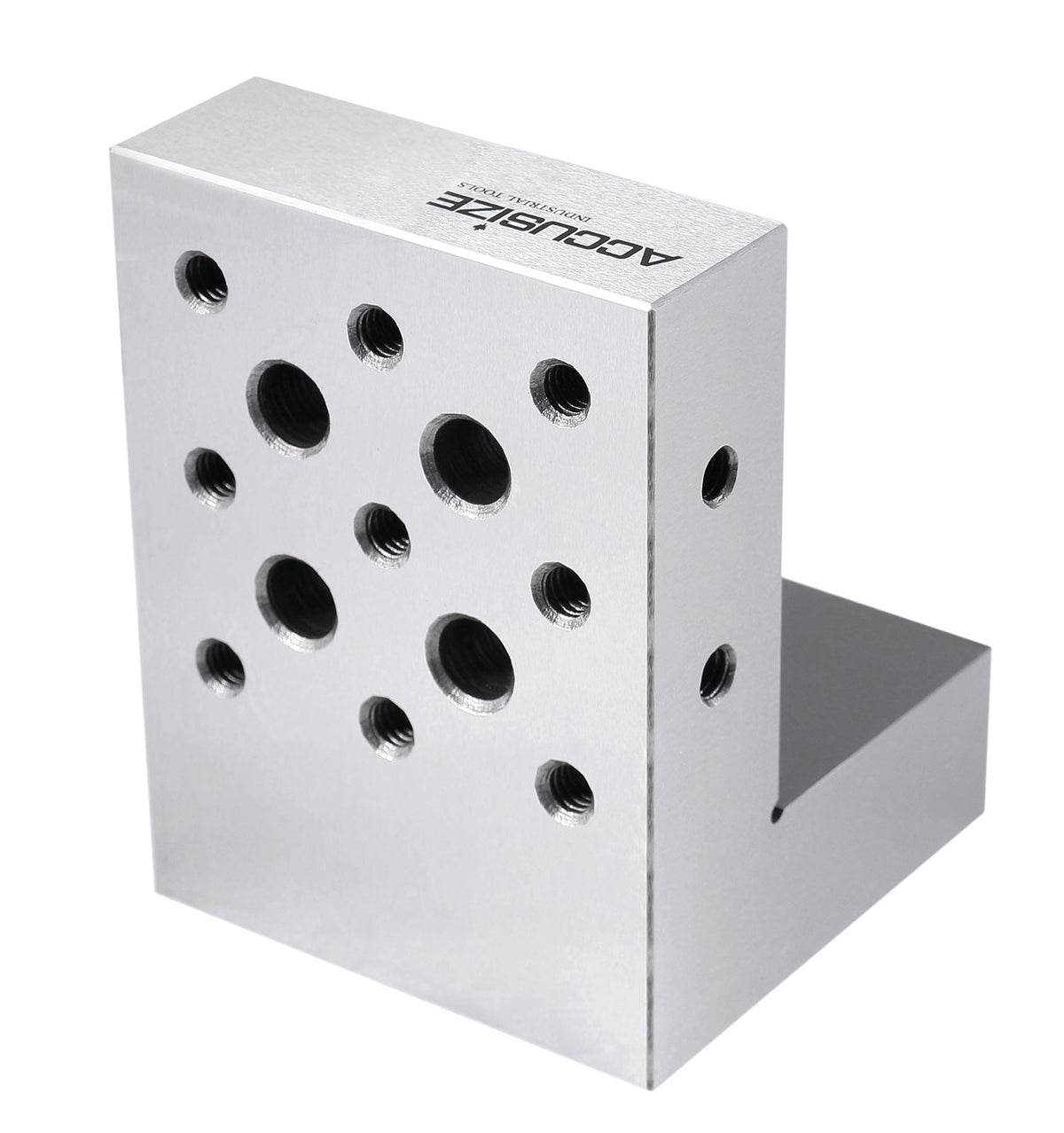

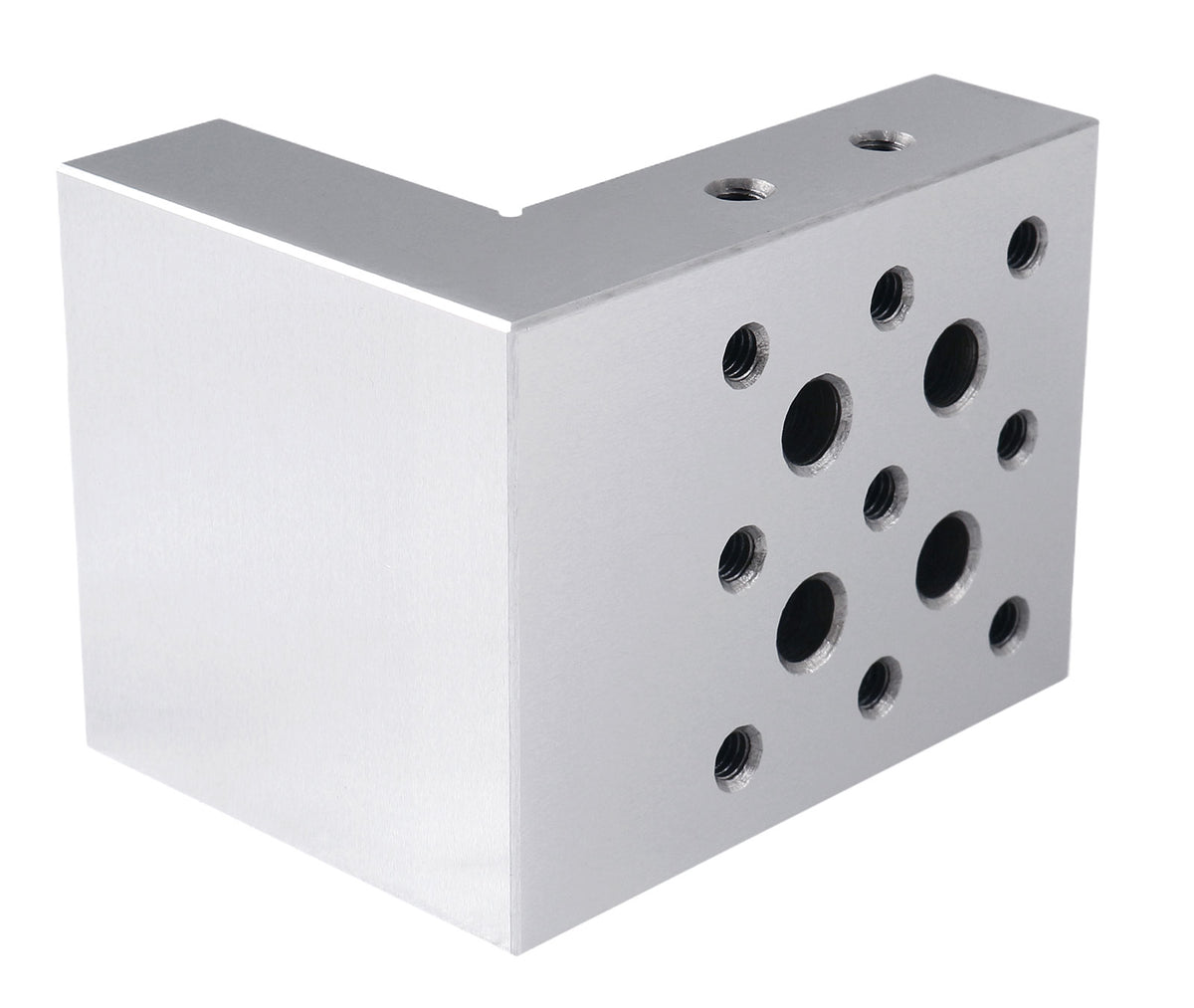

2200-0901 4" x 3" x 3" 1" 13 Tapped 1/4"-20

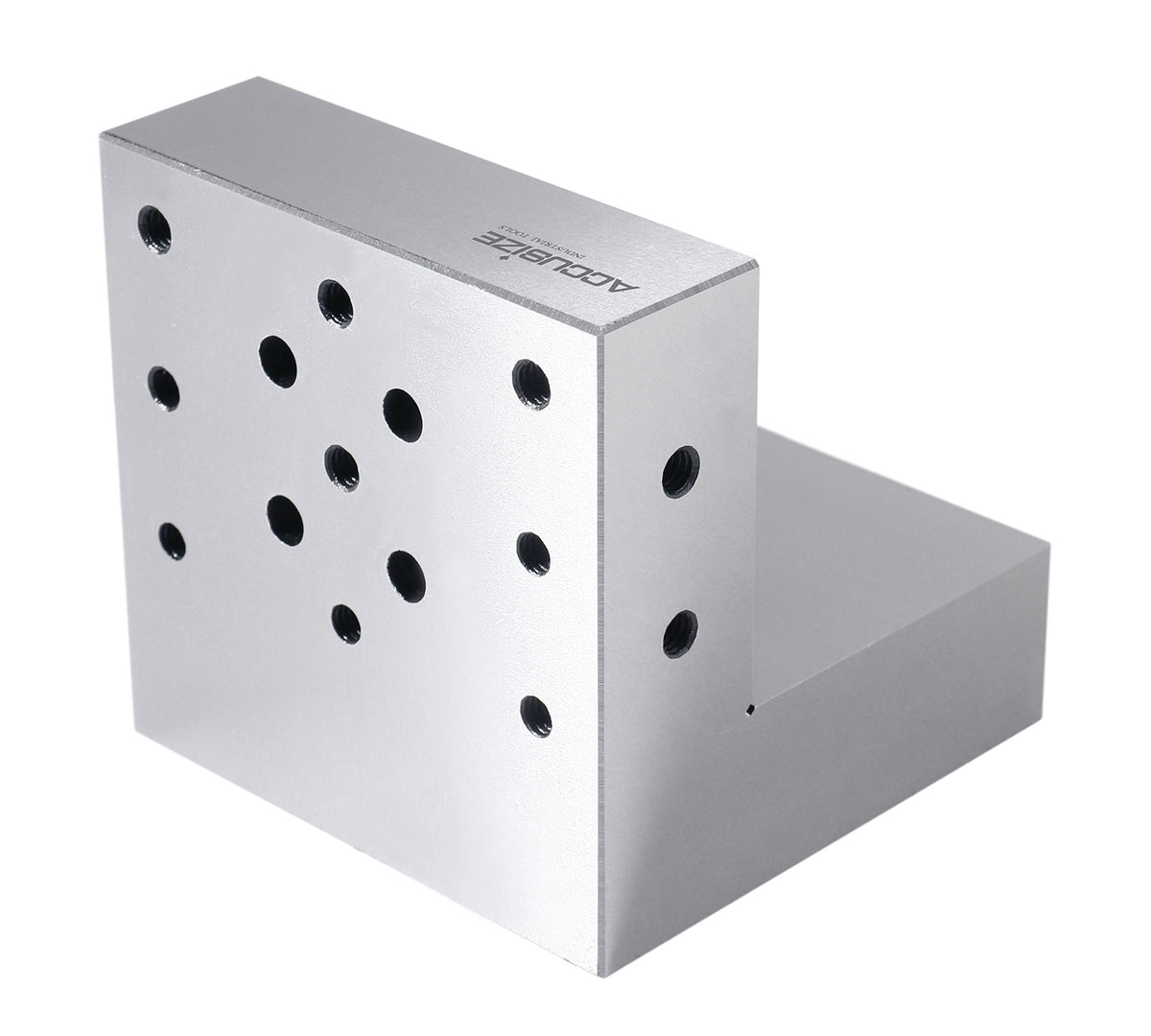

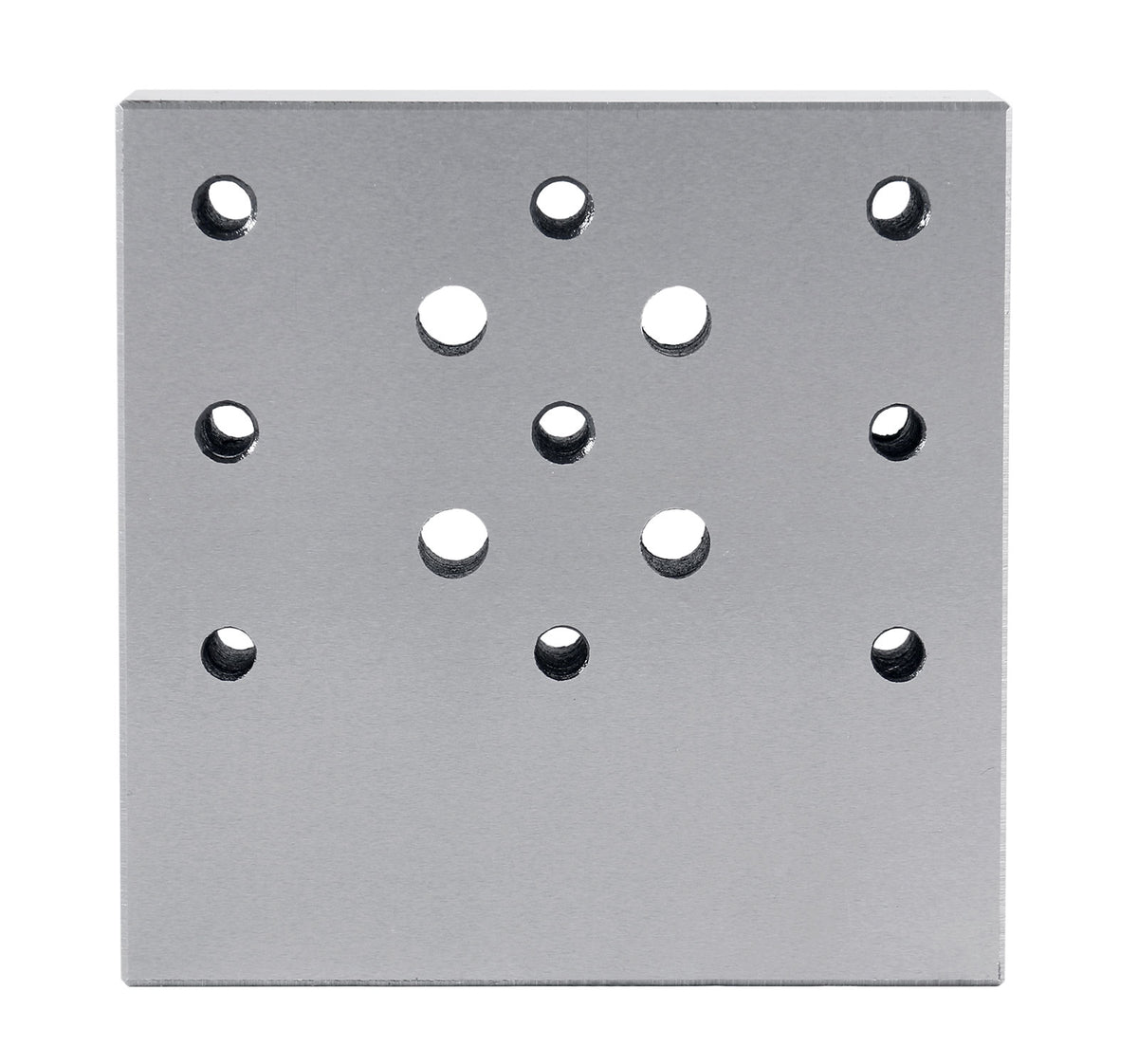

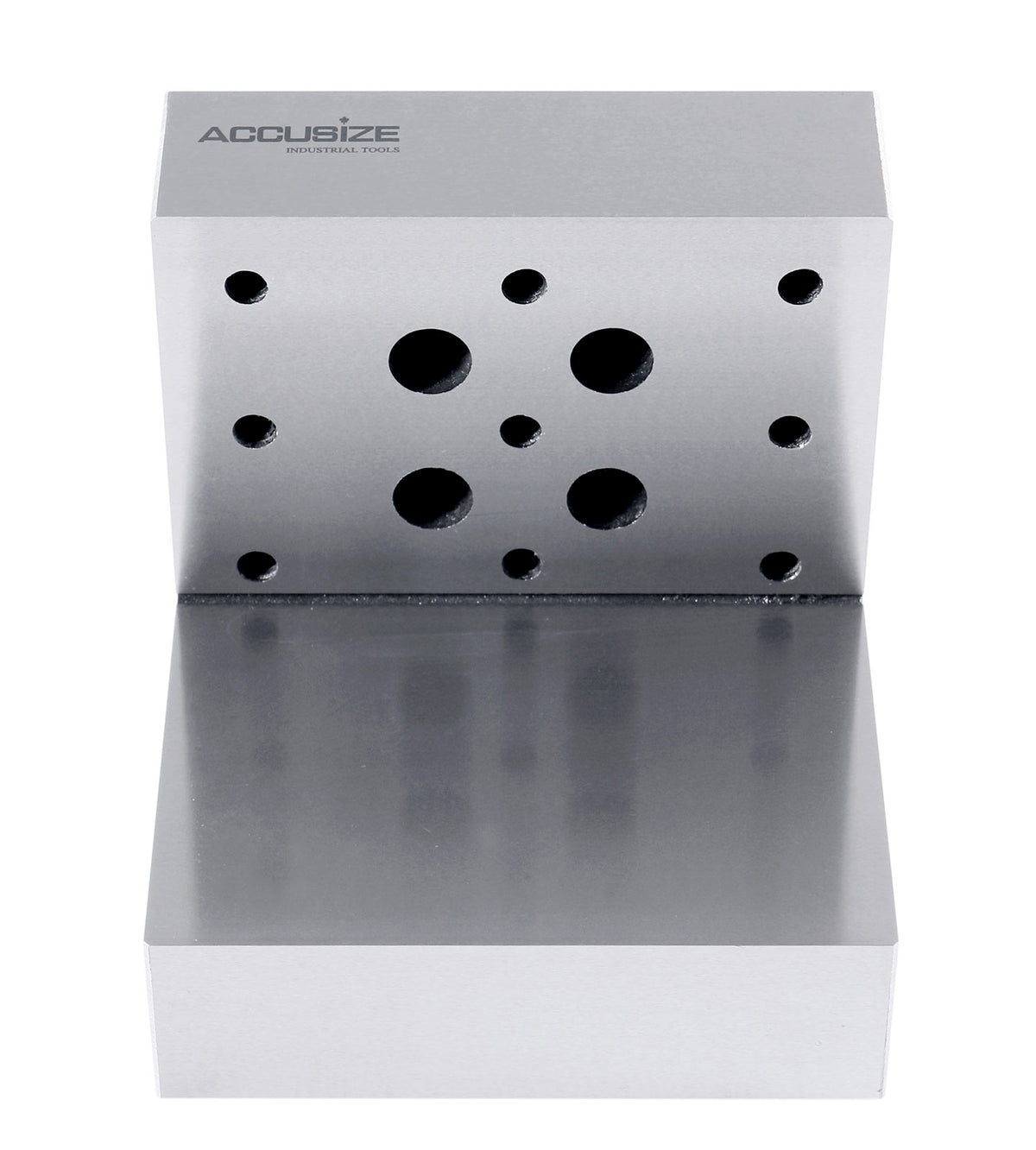

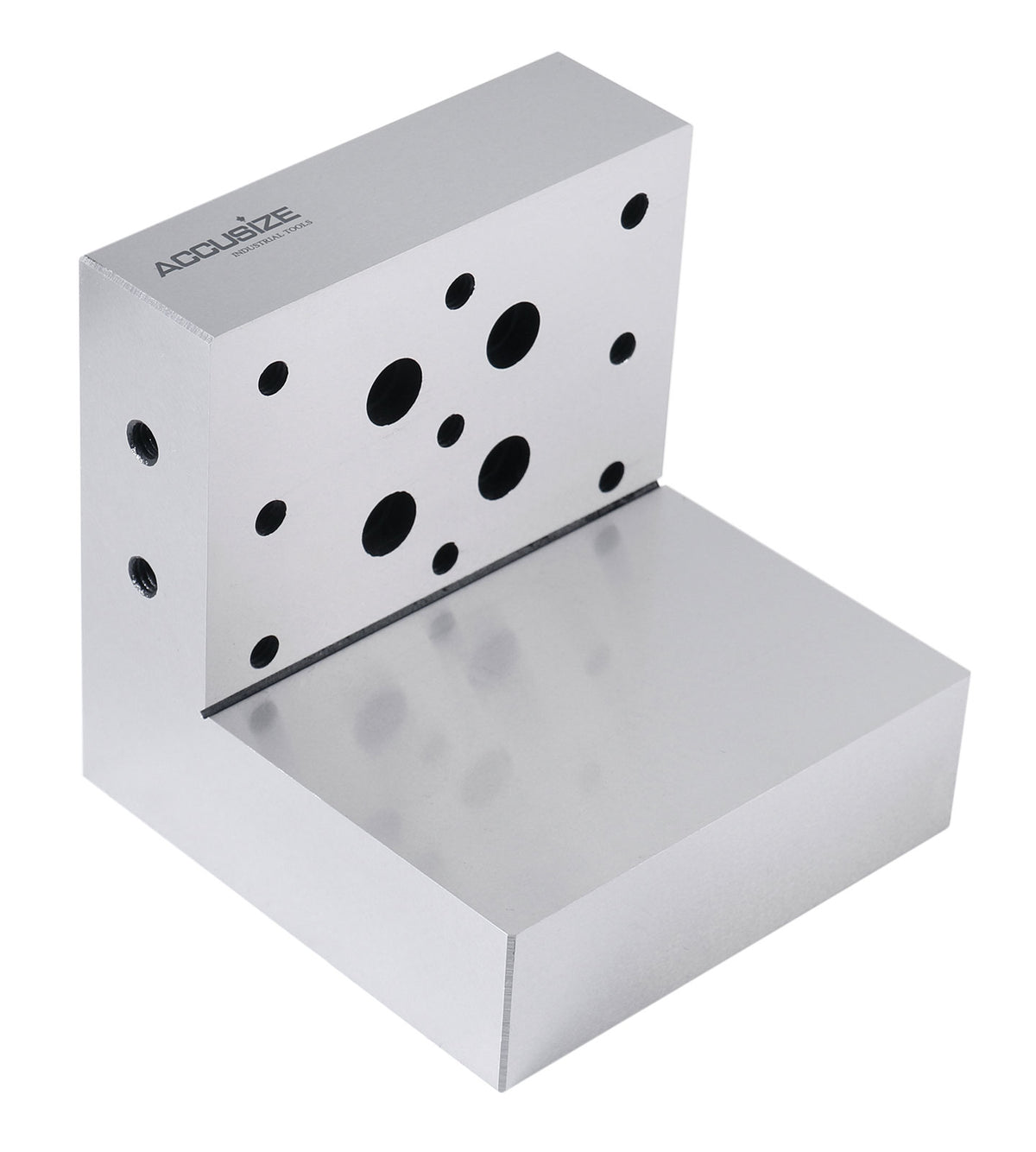

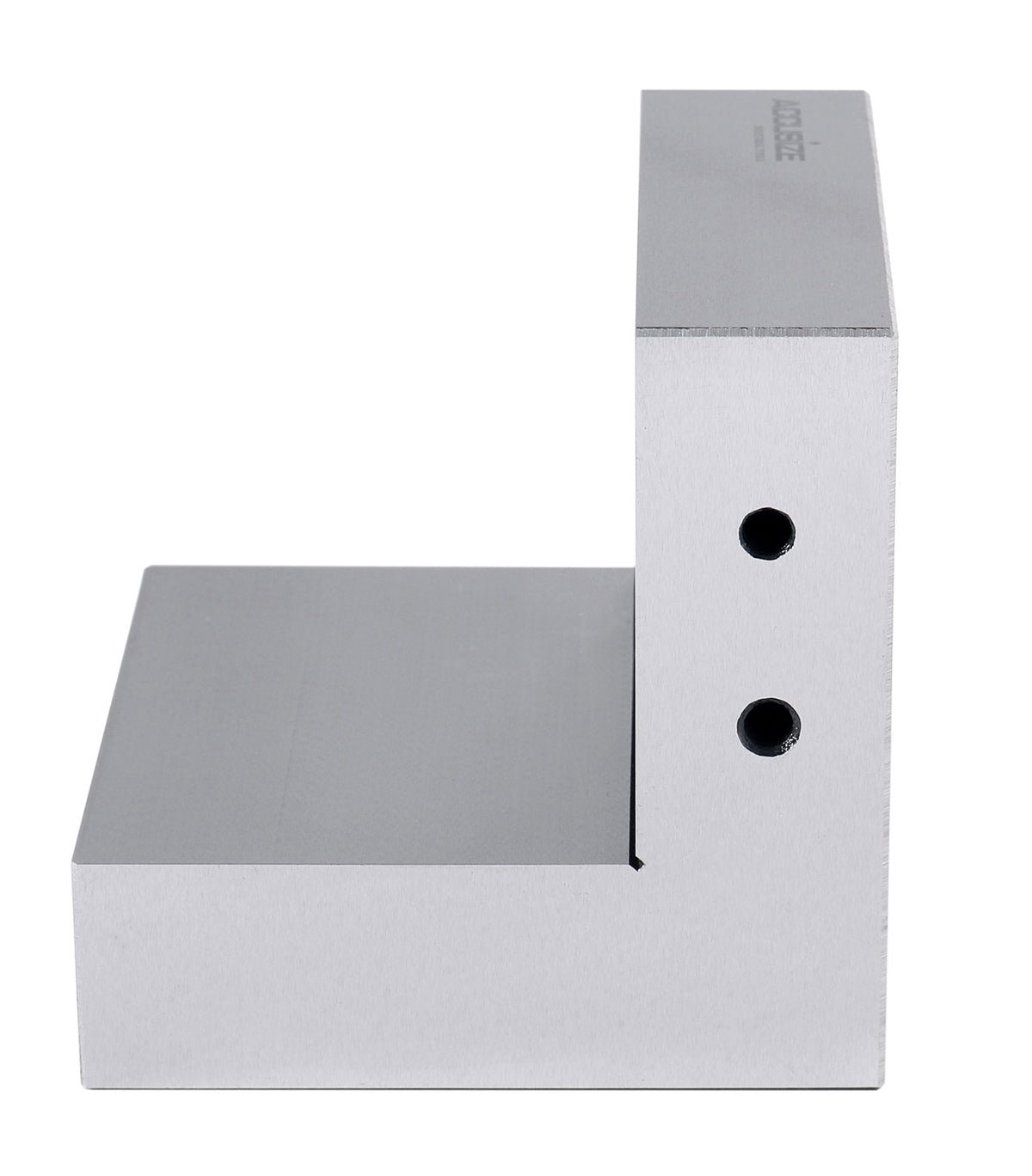

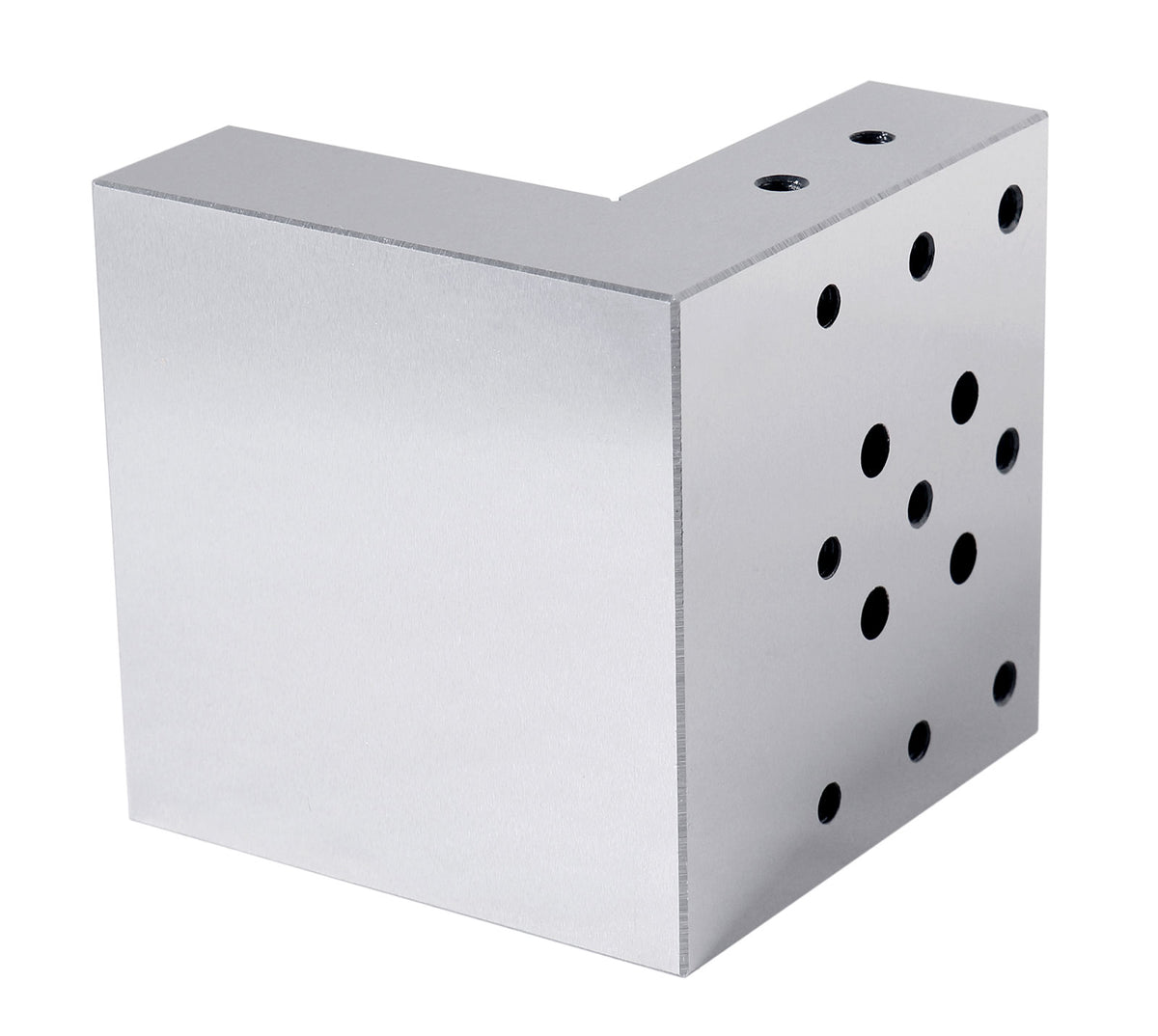

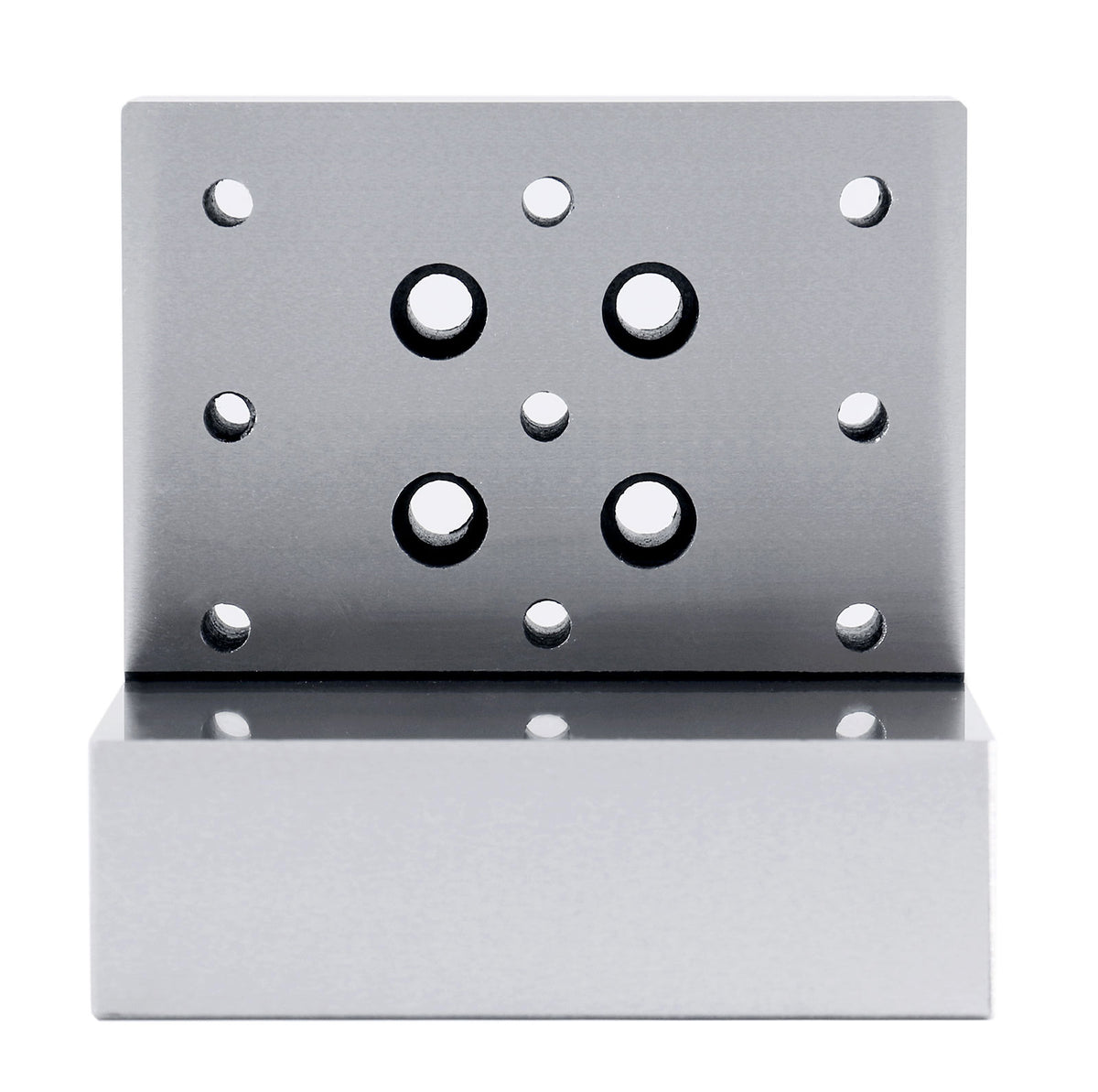

2200-0903 4" x 4" x 4" 1-1/4" 13 Tapped 1/4"-20

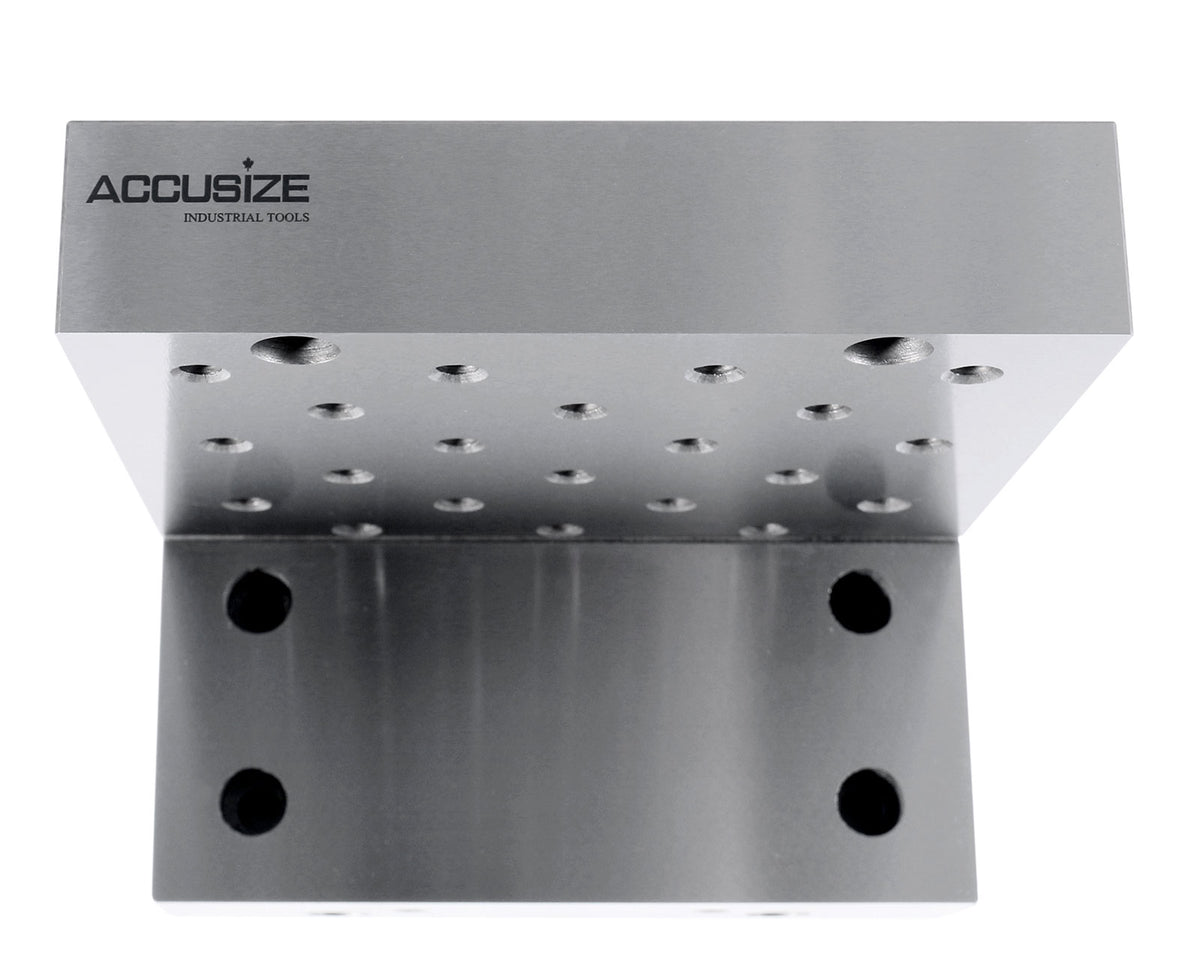

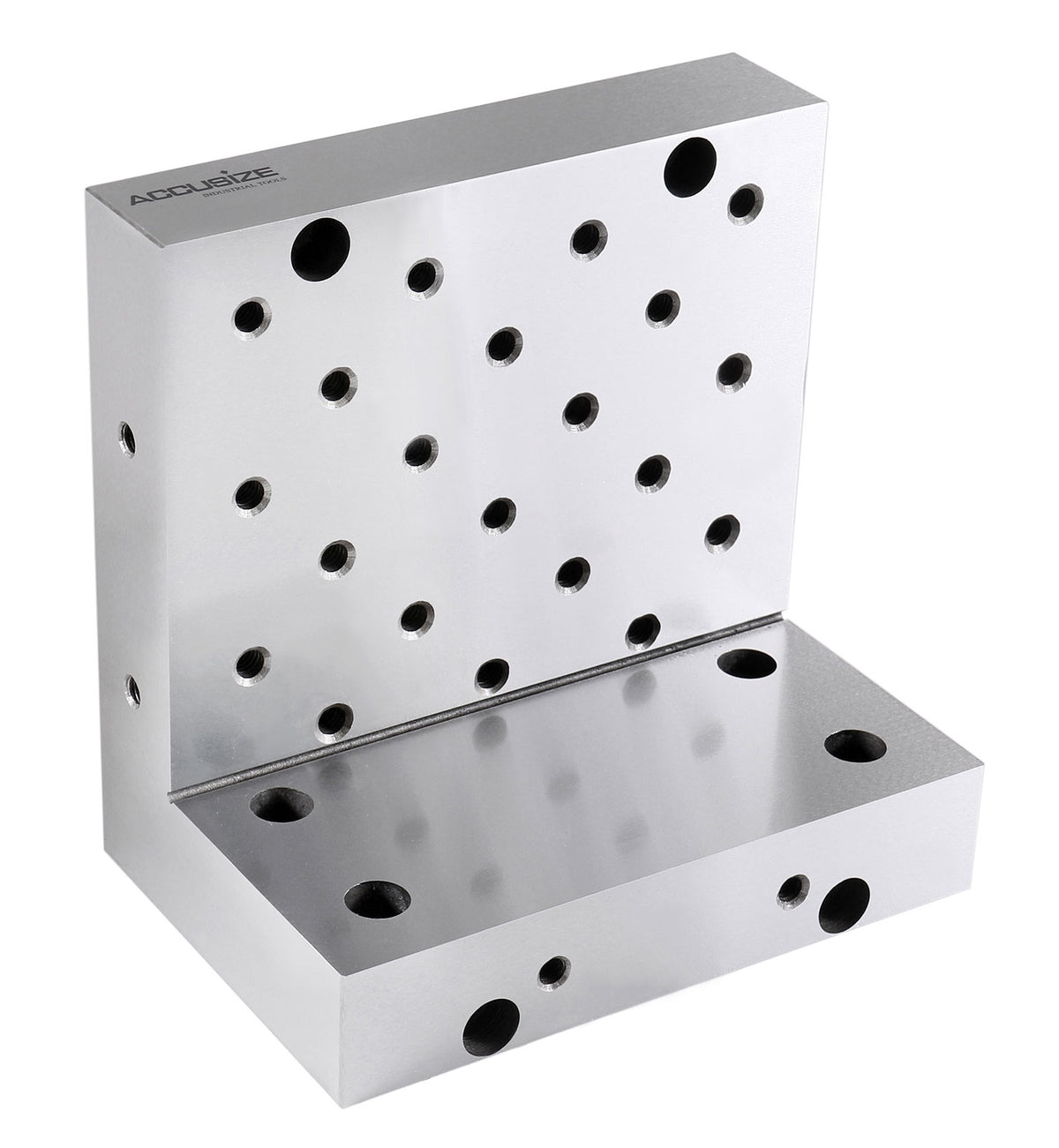

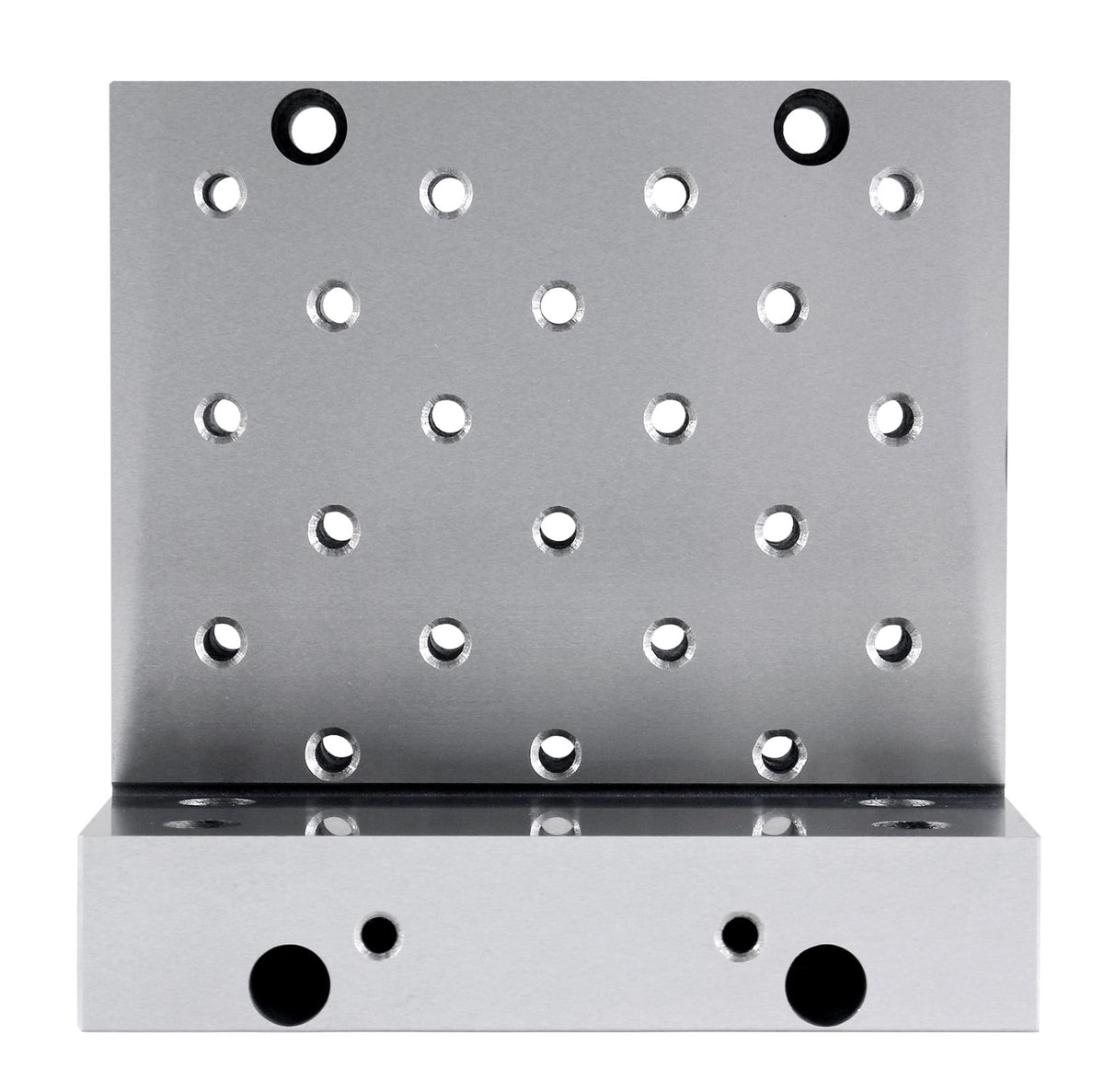

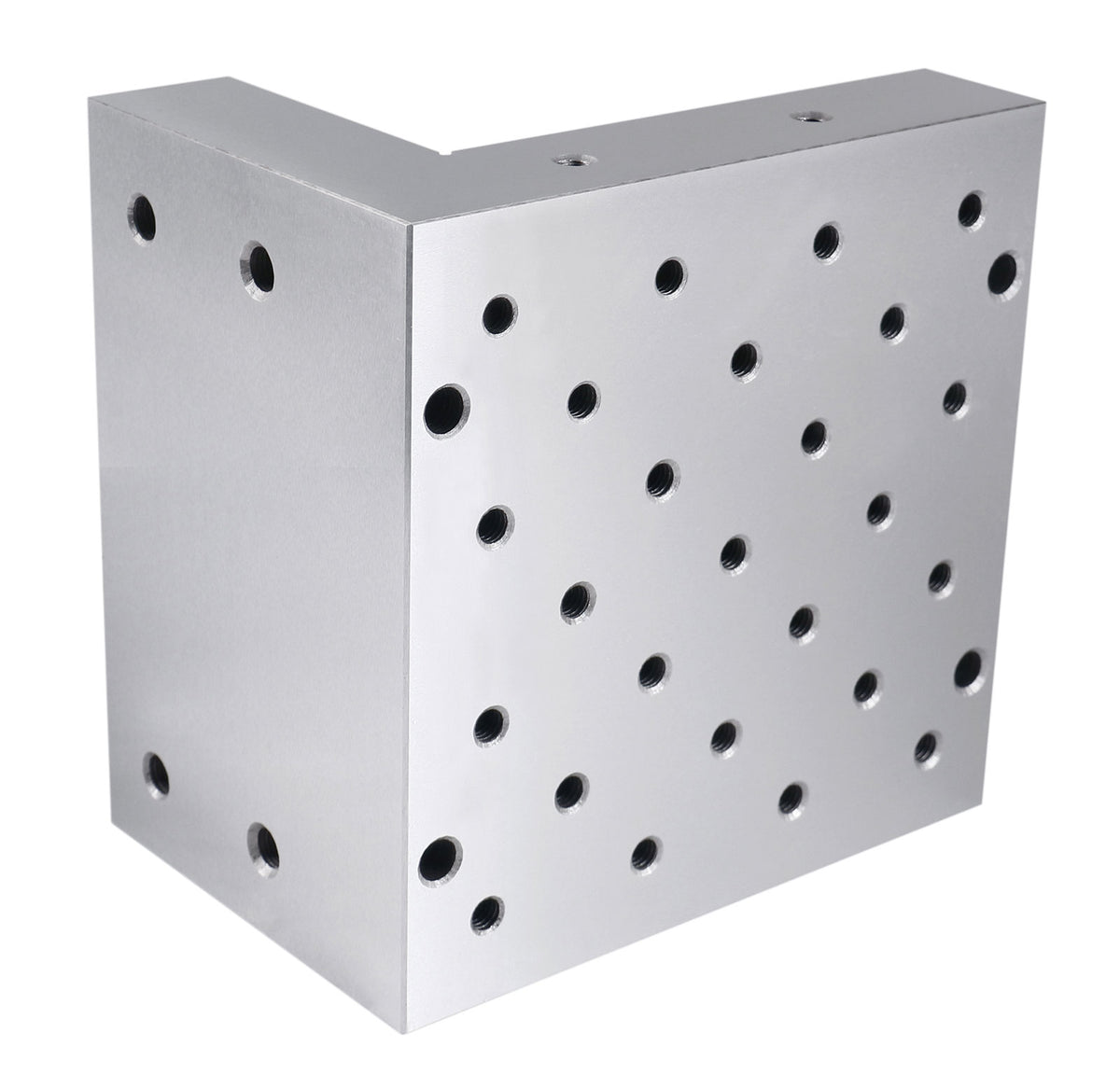

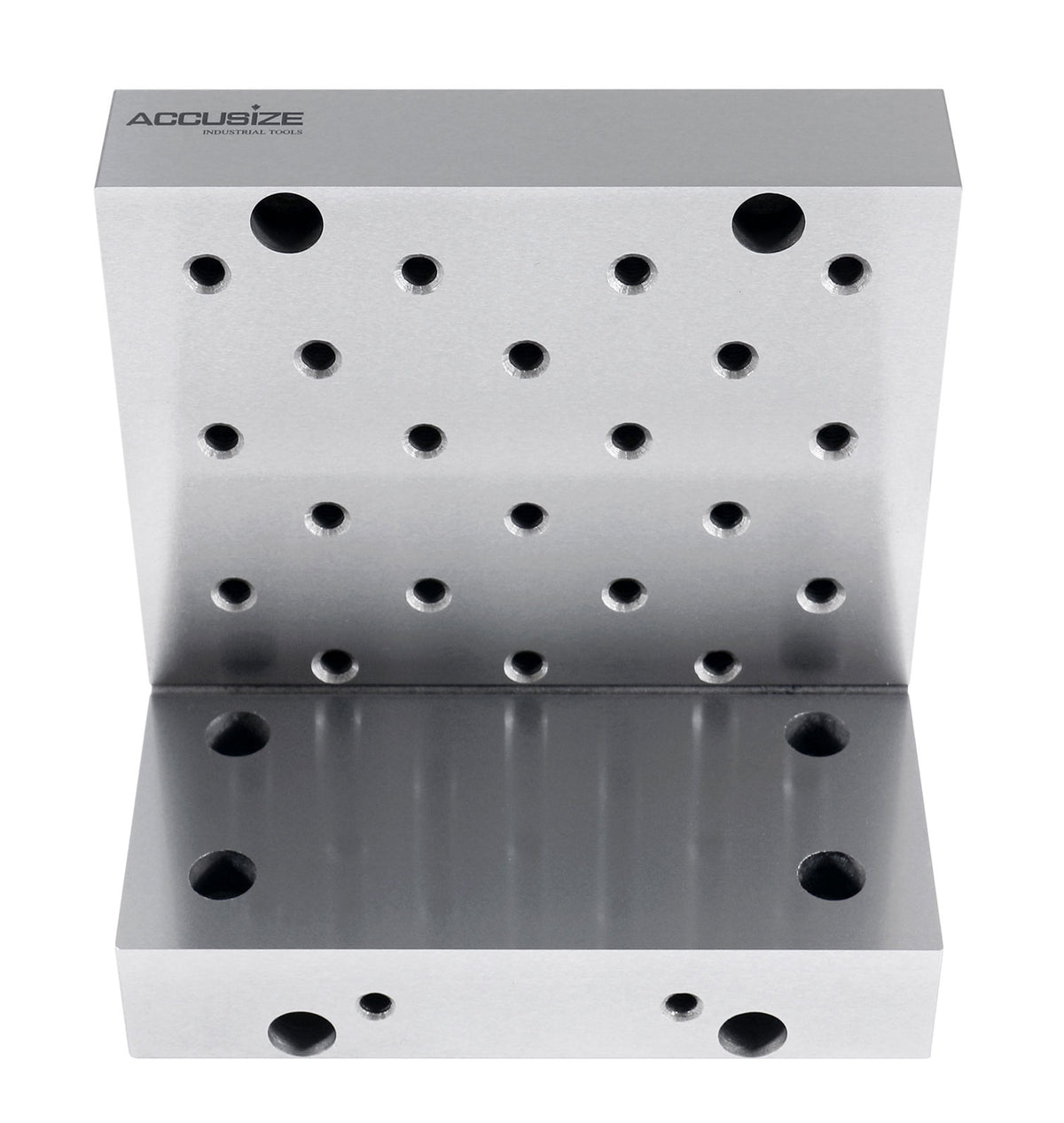

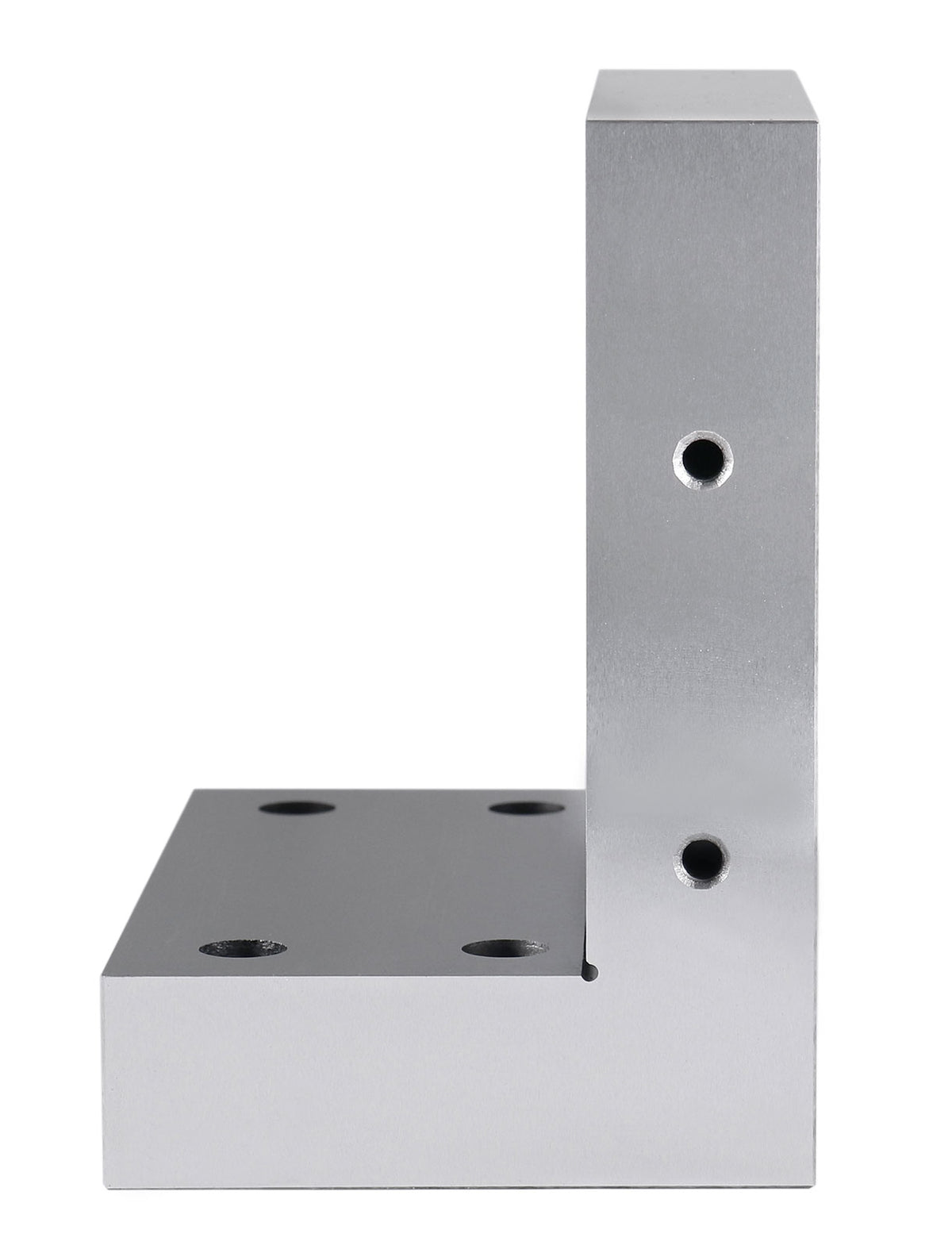

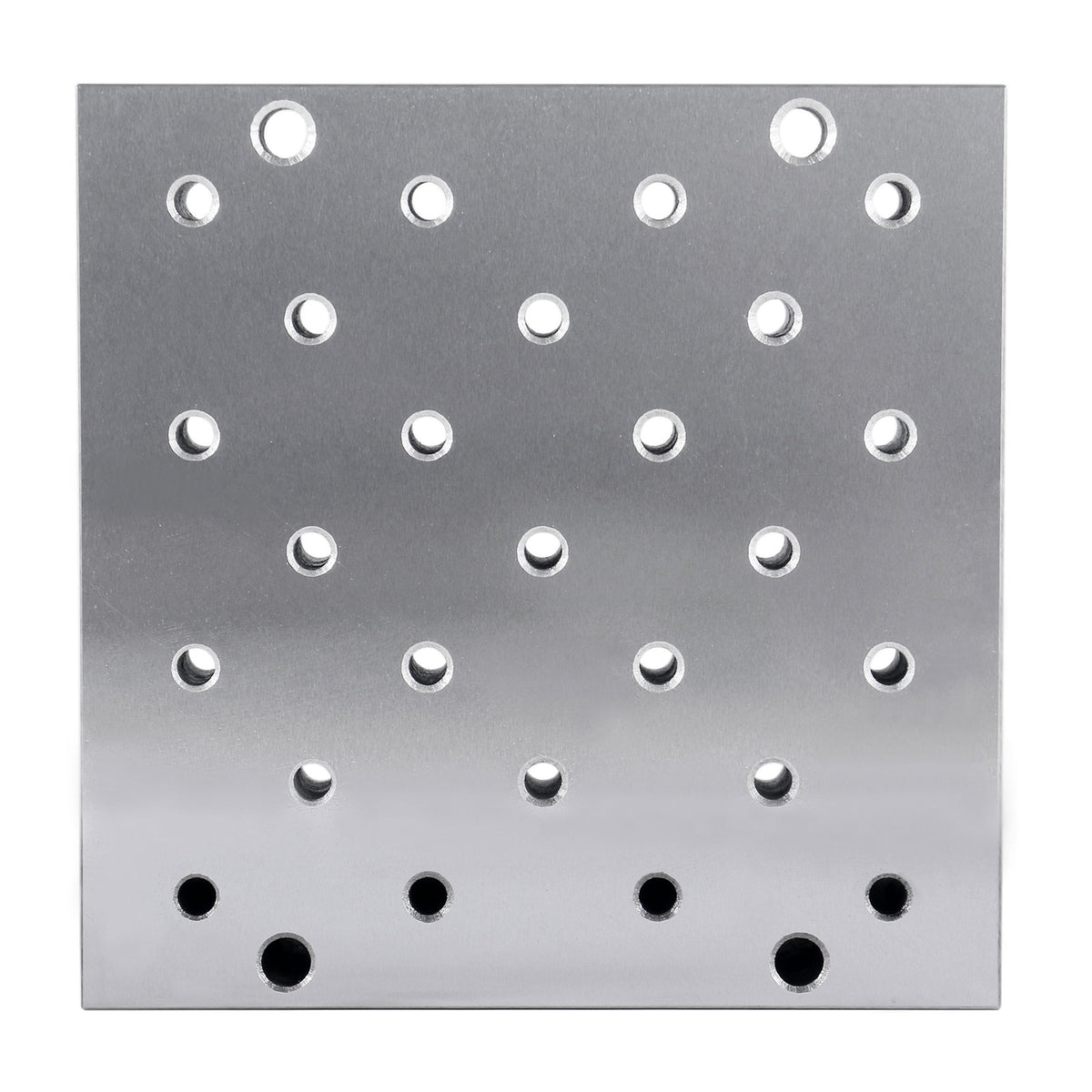

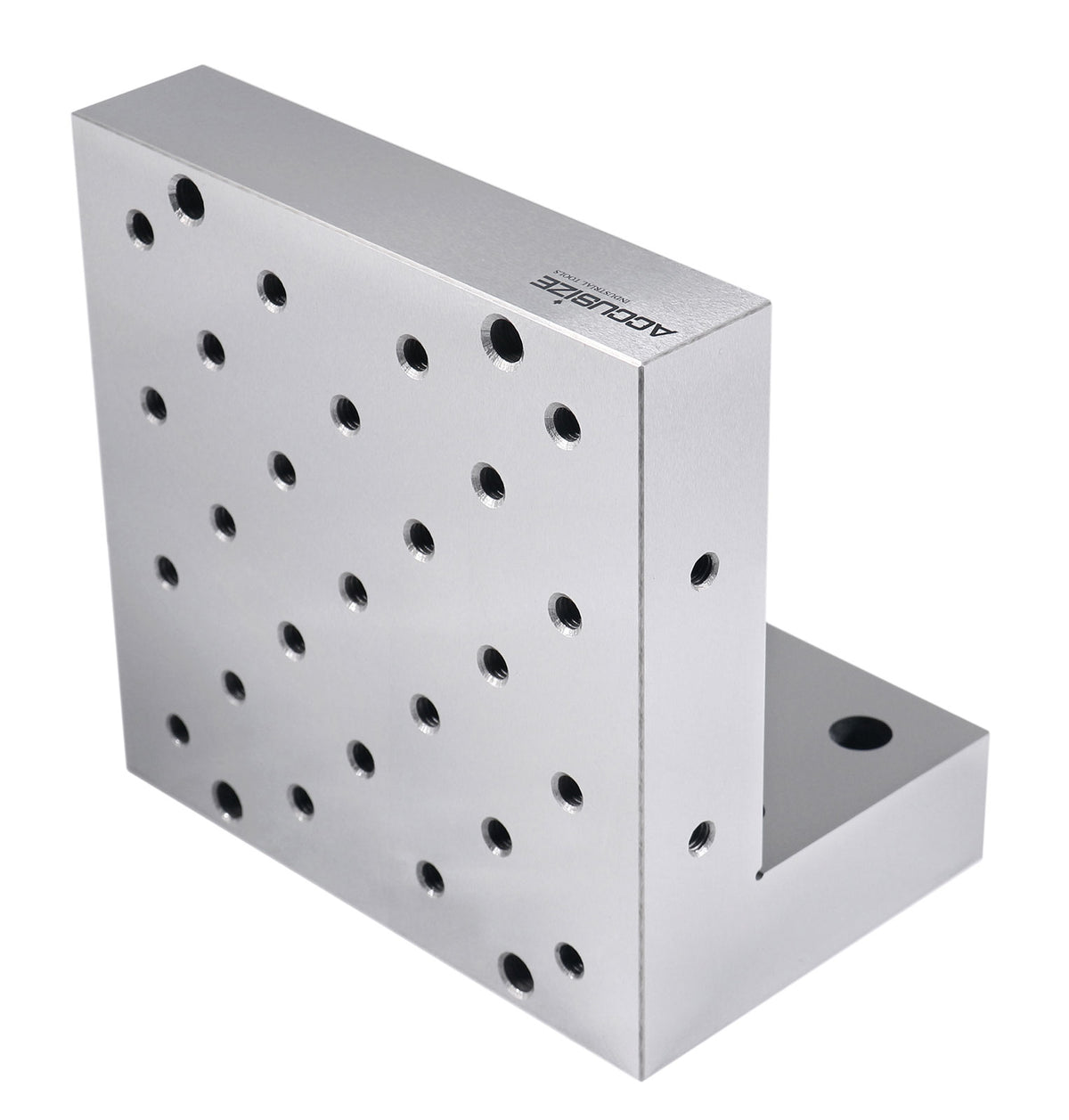

2200-0904 6" x 6" x 4" 1-1/4" 26 Tapped 1/4"-20


Drawing of 2200-0901:



Drawing of 2200-0903:











Drawing of 2200-0904:
