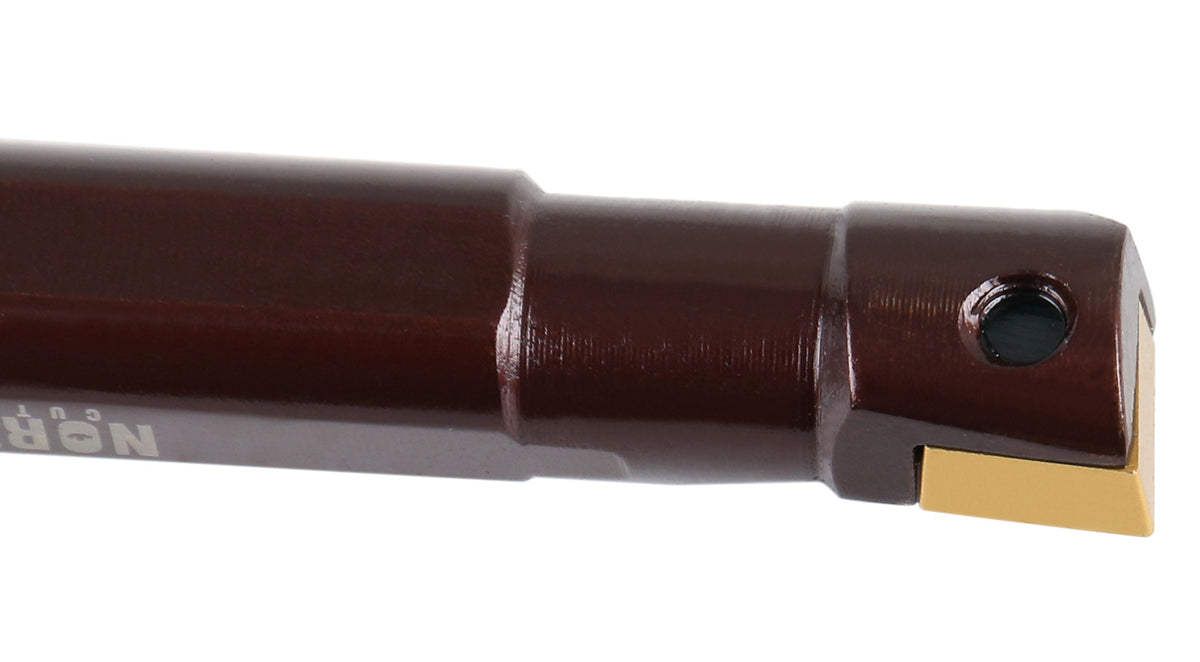

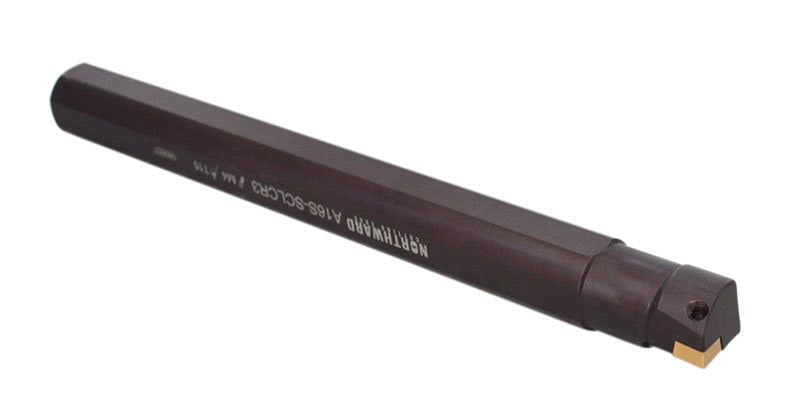

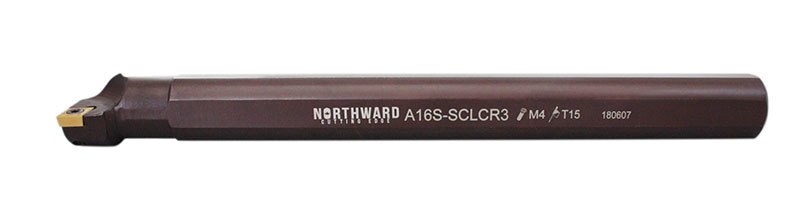

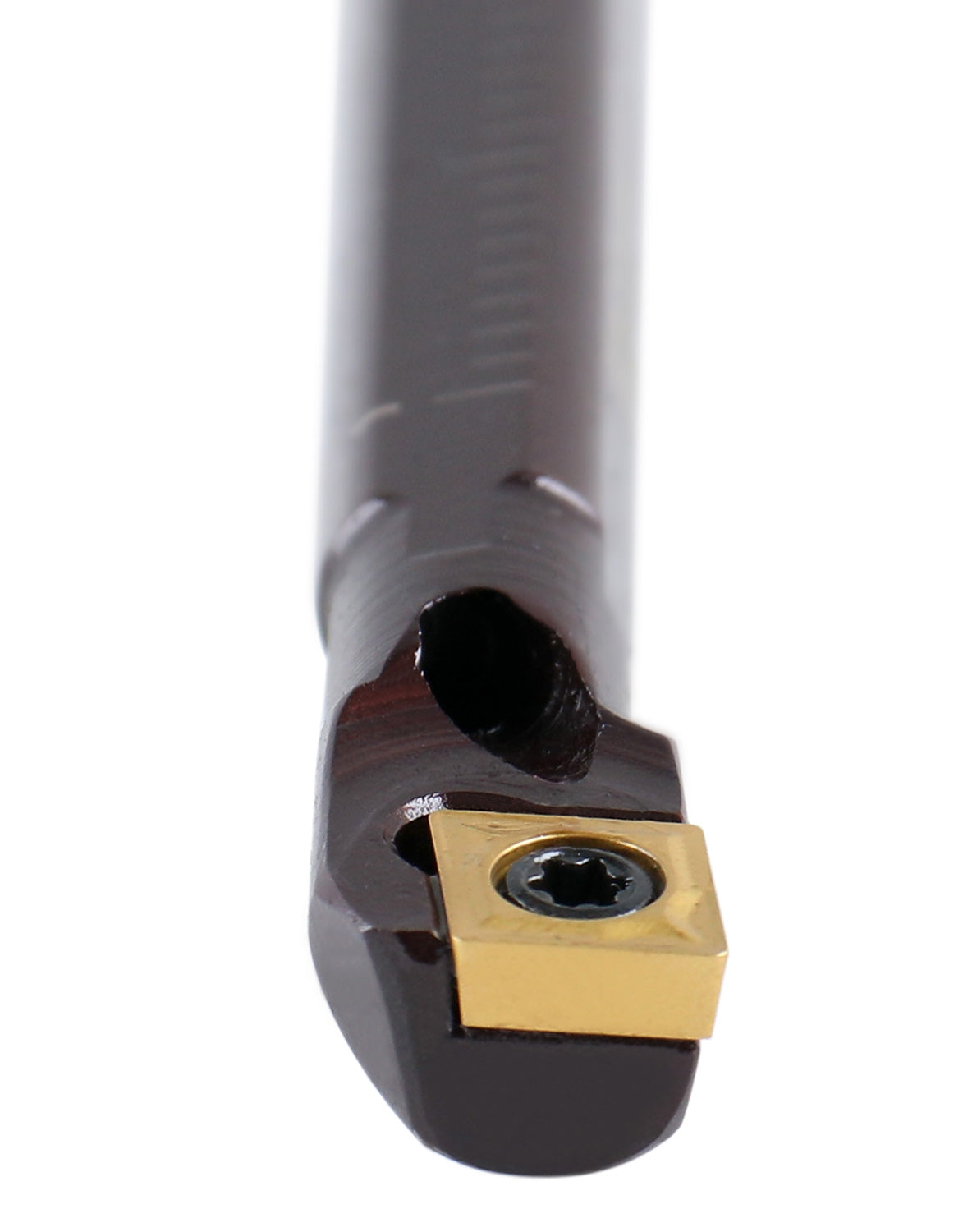

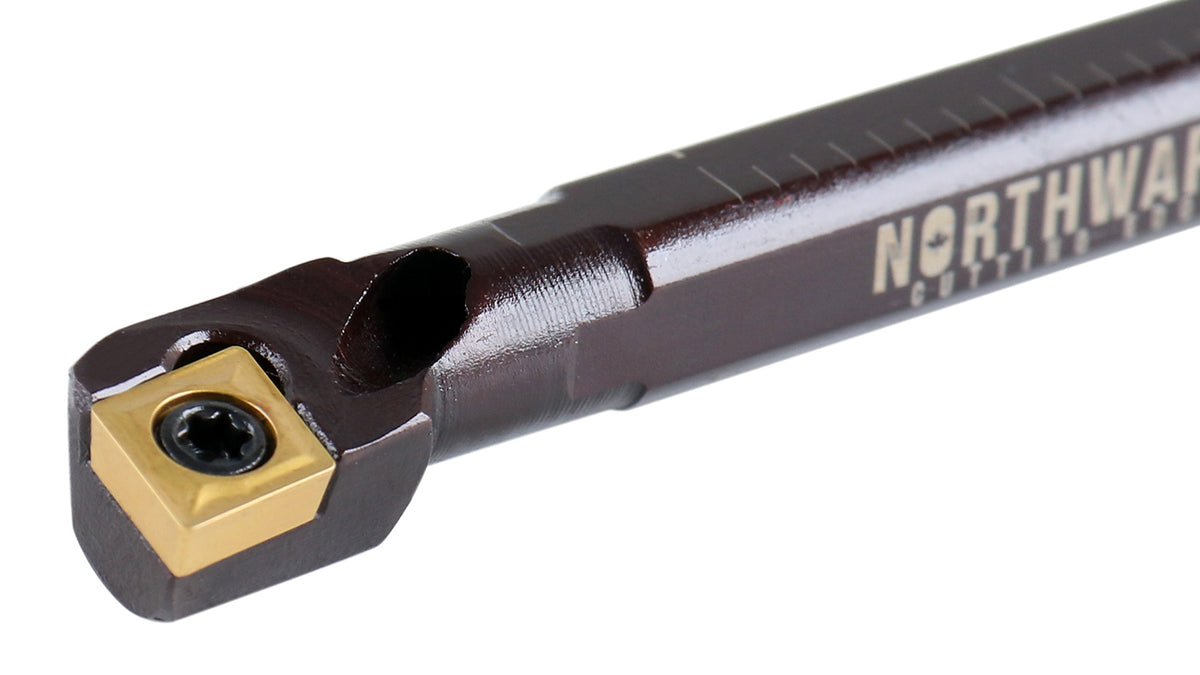

RH SCLCR Coolant Through Indexable Boring Bars with CCMT Inserts


Shank Dia. by Overall Length: 5/16" x 4" (2800-0034)
Price:
$49.00

Shipping calculated at checkout

Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

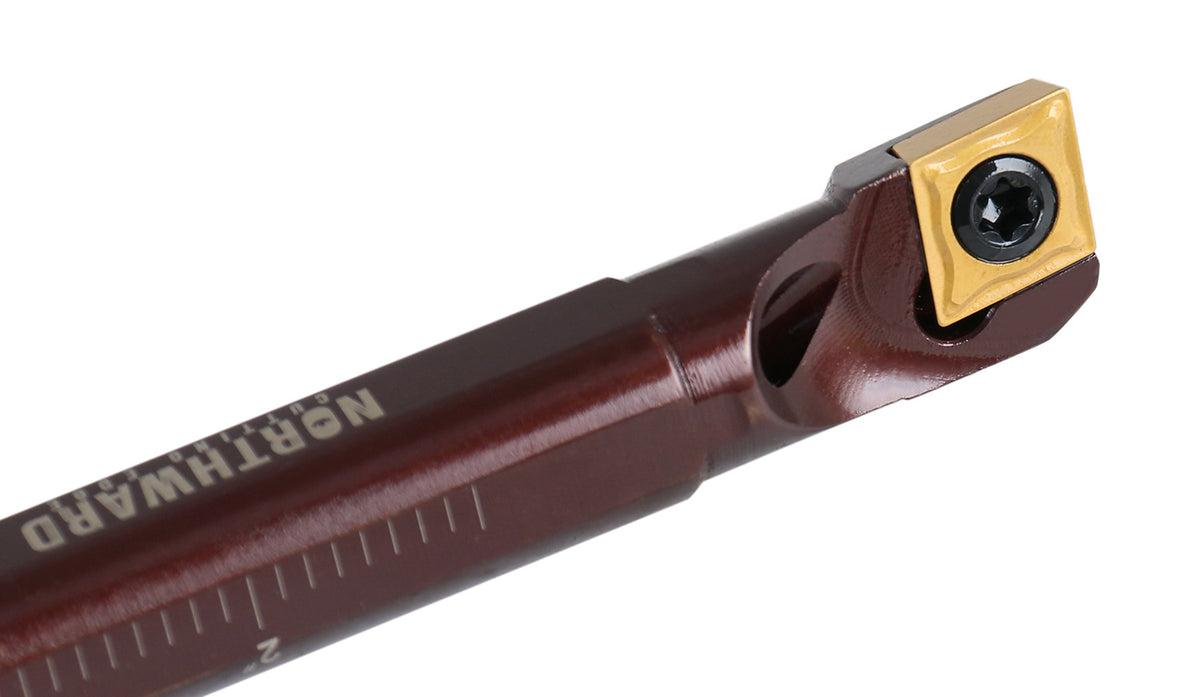

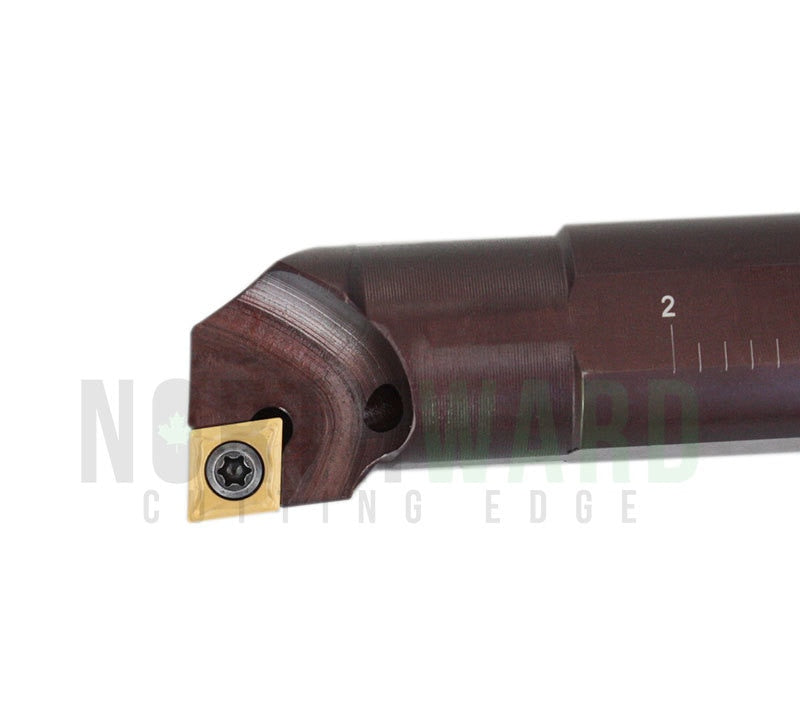

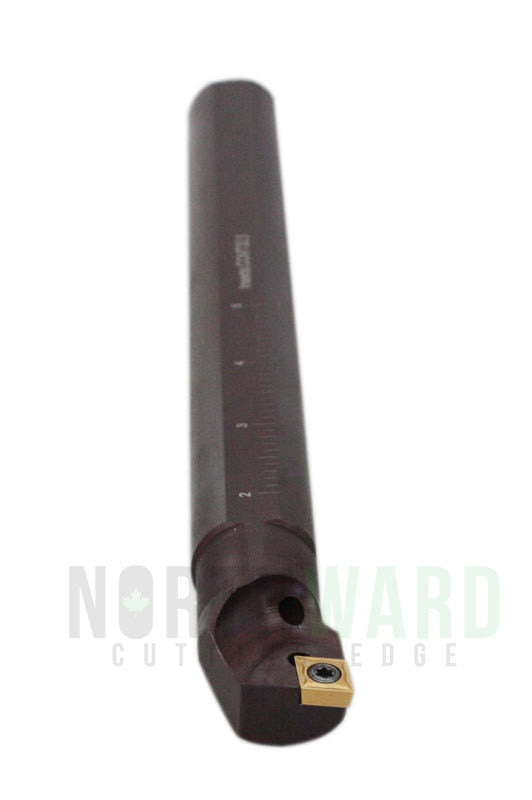

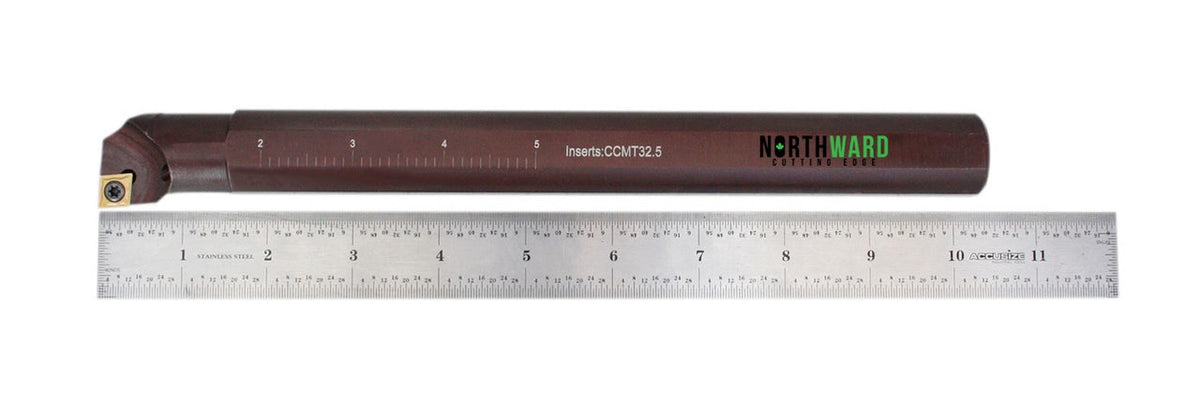

RH SCLCR Coolant Through Indexable Boring Bar

  • Right Hand, 3 Cutting Edge, and 7° Relief
  • Profiling bar for semi-finishing and finishing operations
  • Bar hardness approximately 45HRC
  • Extreme gloss finish
  • Negative 5-degree end & side cutting angle
  • Positive 80-degree diamond CCMT inserts
  • Boring from light roughing to finishing in small bores.
  • General-purpose boring bar fitted with rhomboidal positive inserts (80°angle) which are free cutting with strong cutting edges.

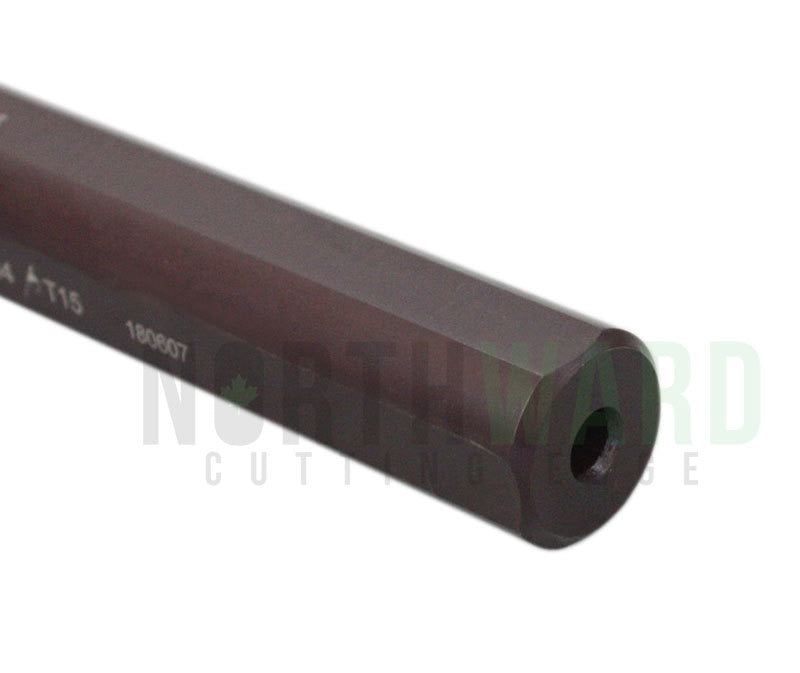

  • The coolant hole with a diameter range varying between 3/32" and 5/32" in accordance with the bar size allows to cool the cutting edge and remove chips.
  • The inserts are set with a 0° rake angle and an inclination angle shown in the table below.
  • Made of tool steel with nitrogen superficial treatment, Hardness 60 HRC, blackening by PVD coating, thickness 0.0002".
  • Insert CCMT 21.51 Included & Key Included

L: Overall Length
B: Min. Bore

Item Model Shank Dia. (D) Overall Length (L) Neck A F Min. Bore (B) Insert Insert Screw

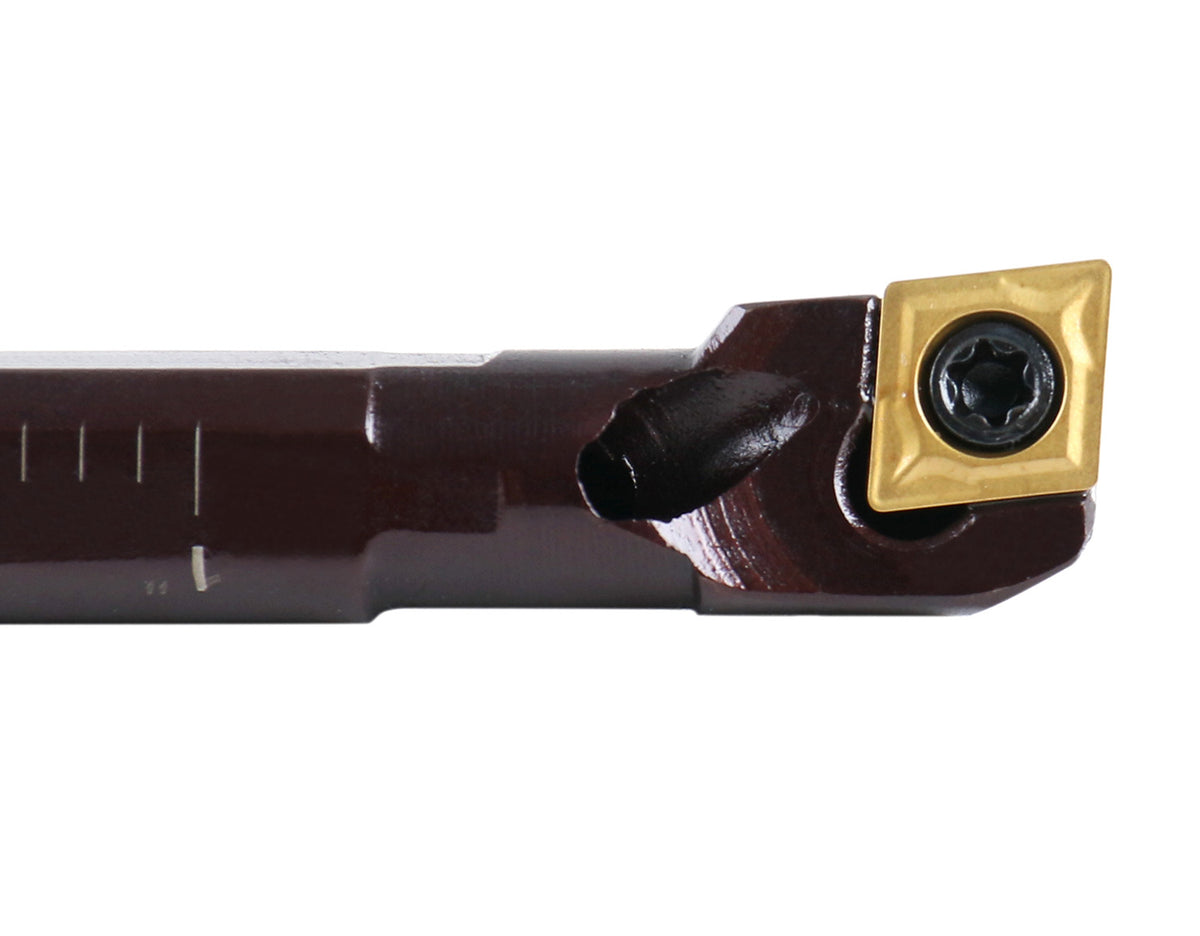

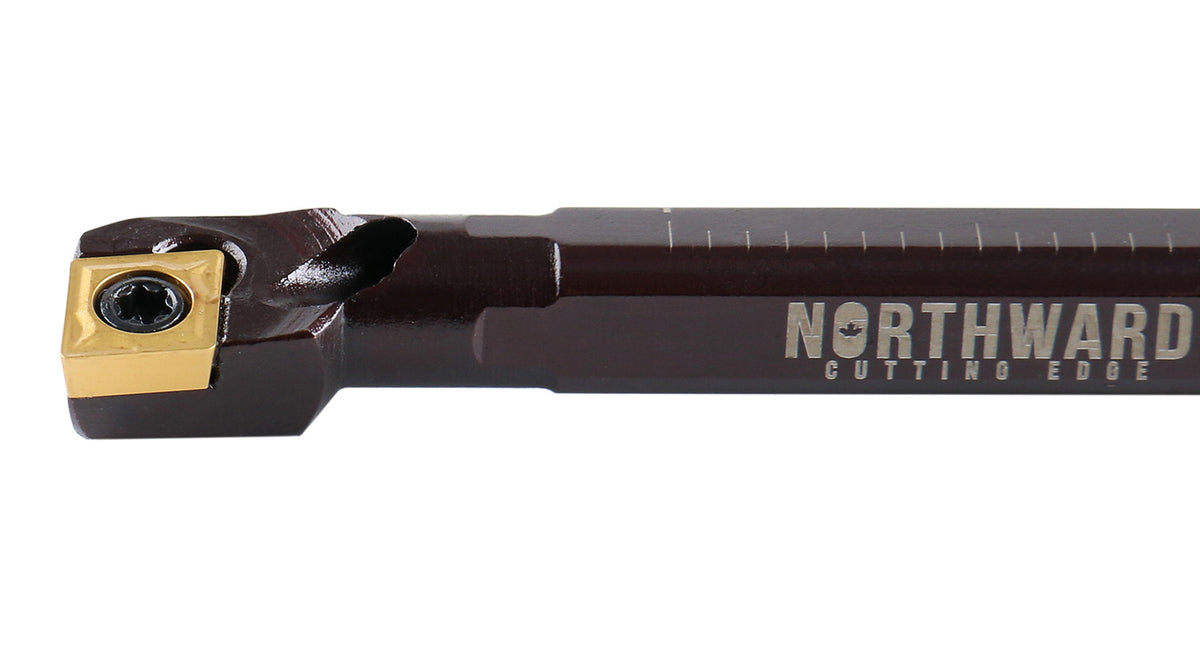

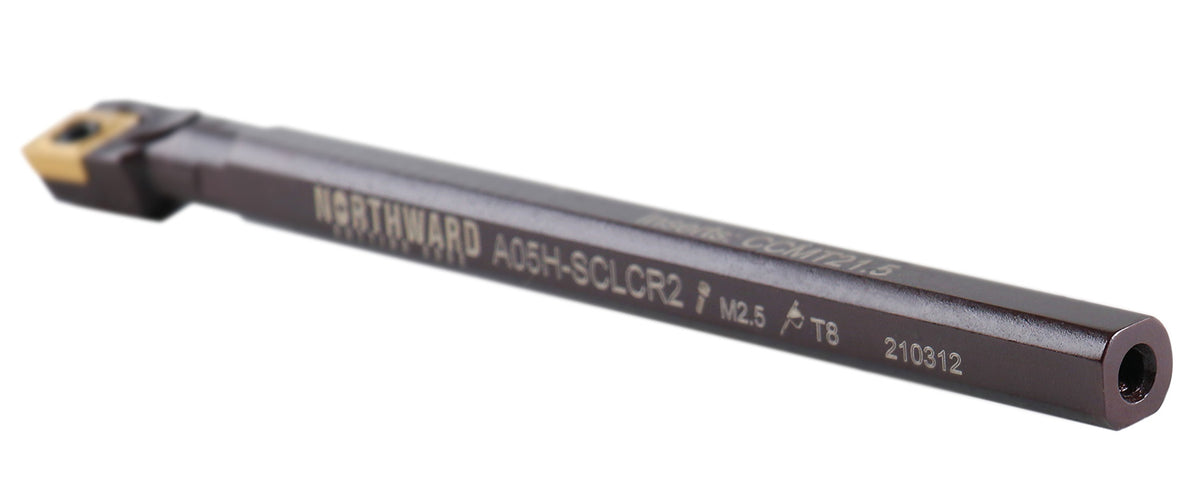

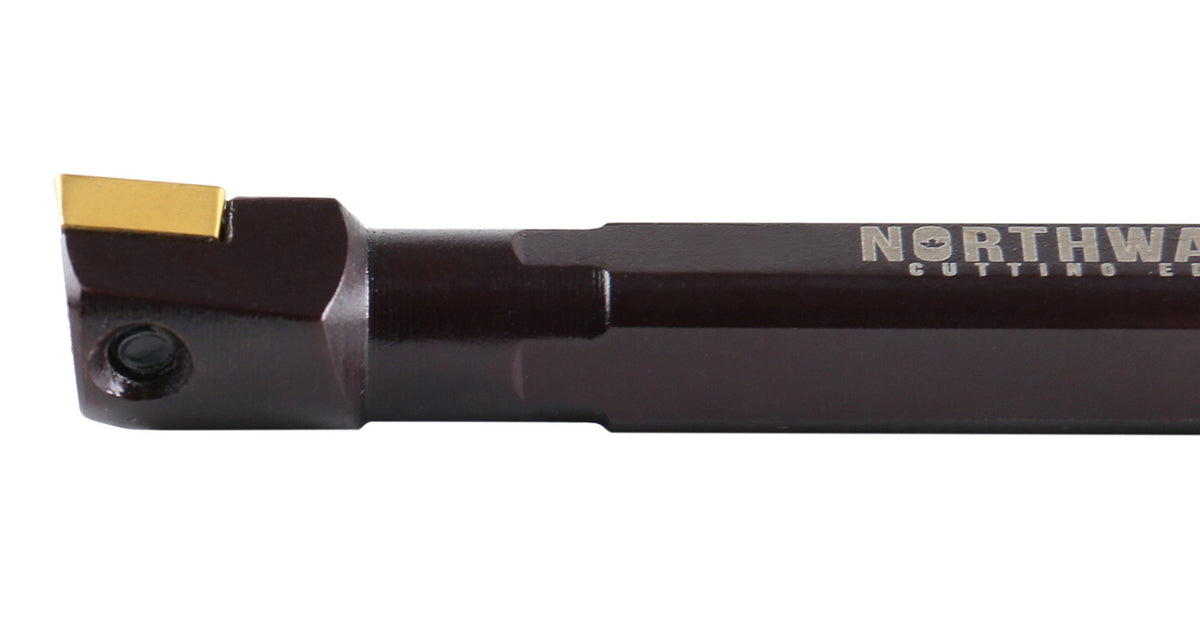

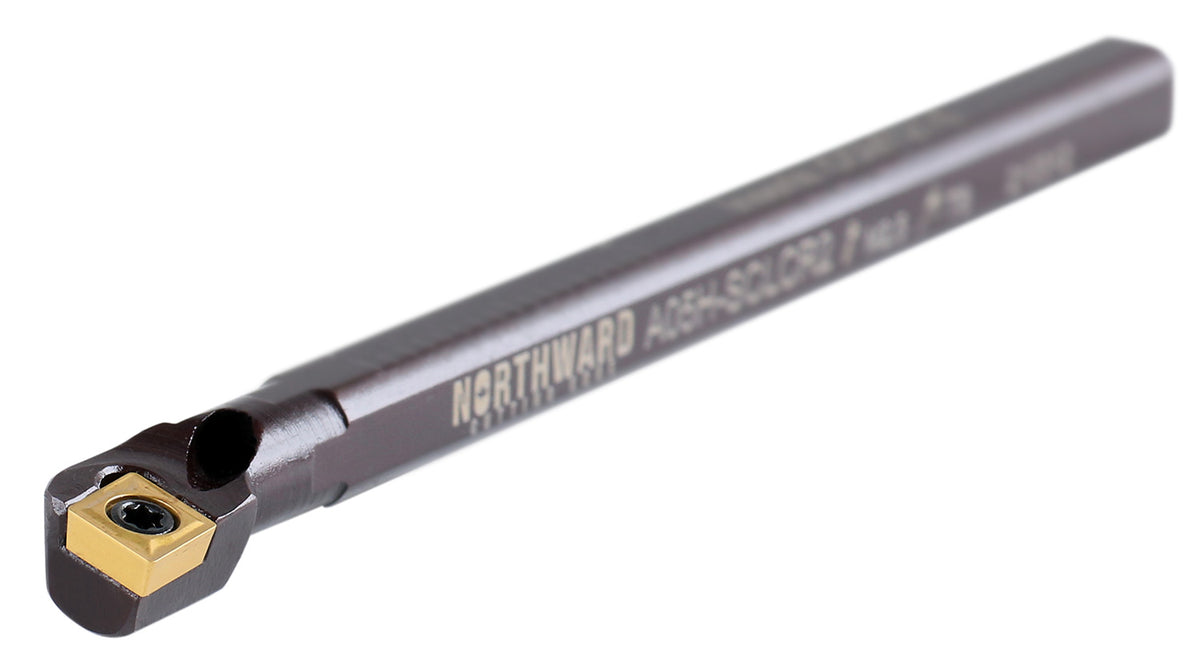

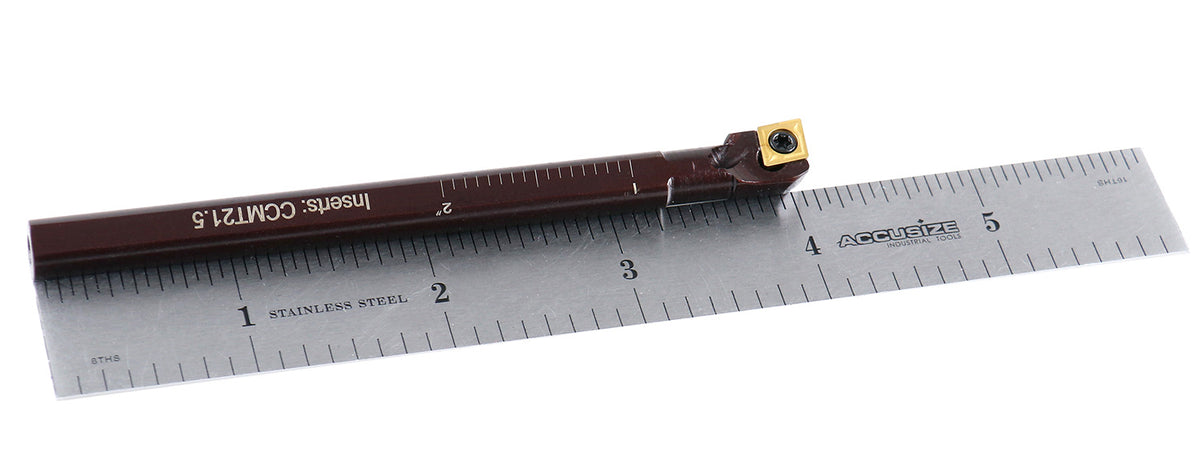

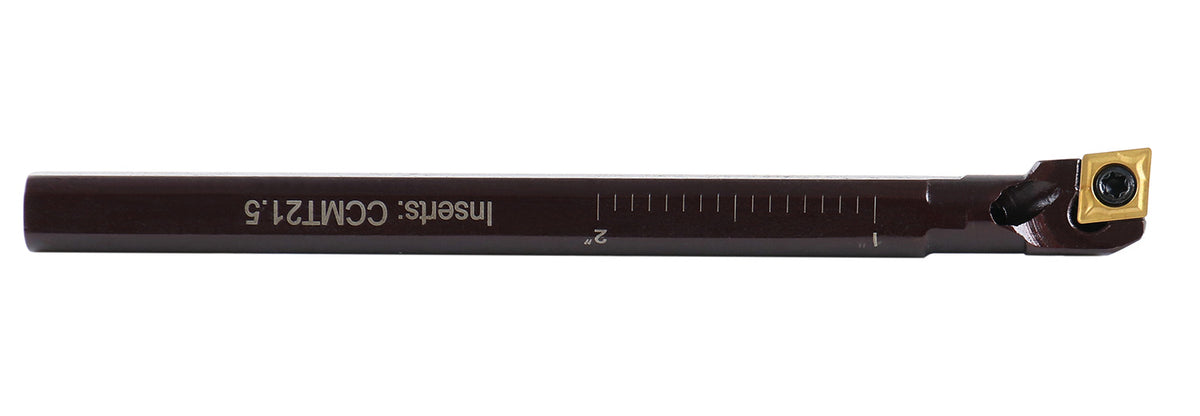

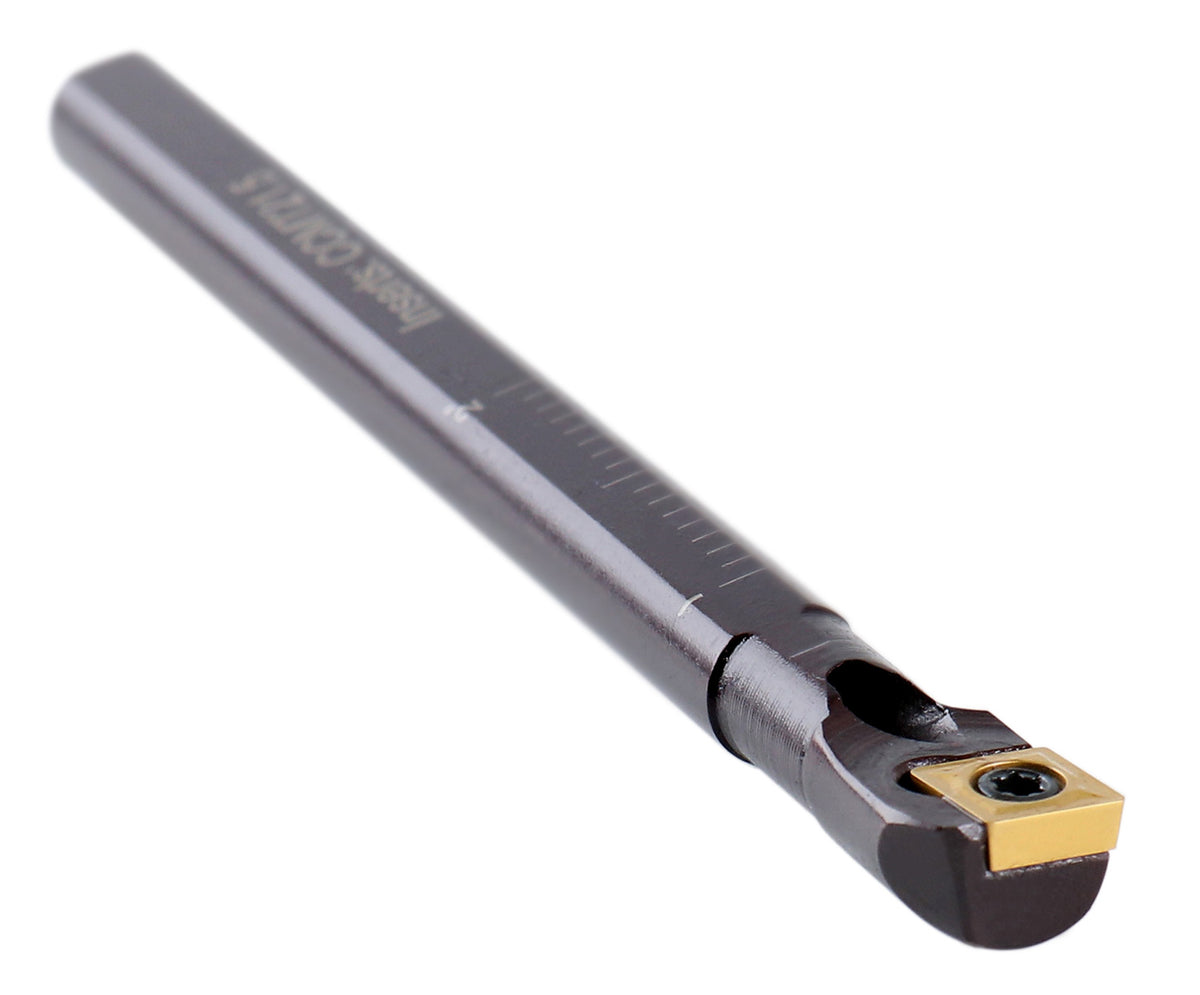

2800-0034 A05H SCLCR-2 5/16" 4.000" 0.276" 0.945" 15° 0.187" 0.315" CCMT 21.5

M2.5 x 5

(0046-2505)

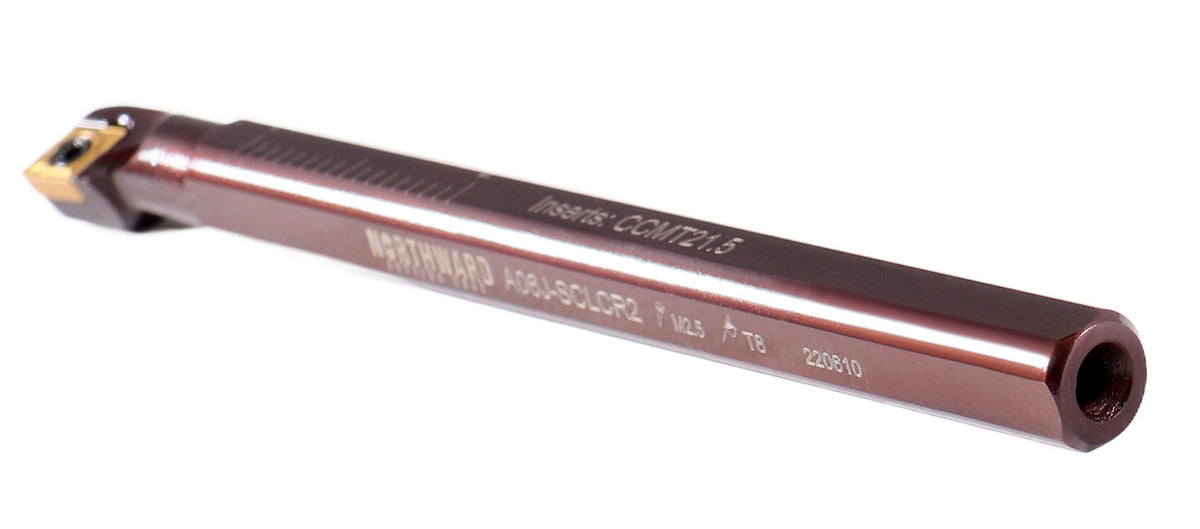

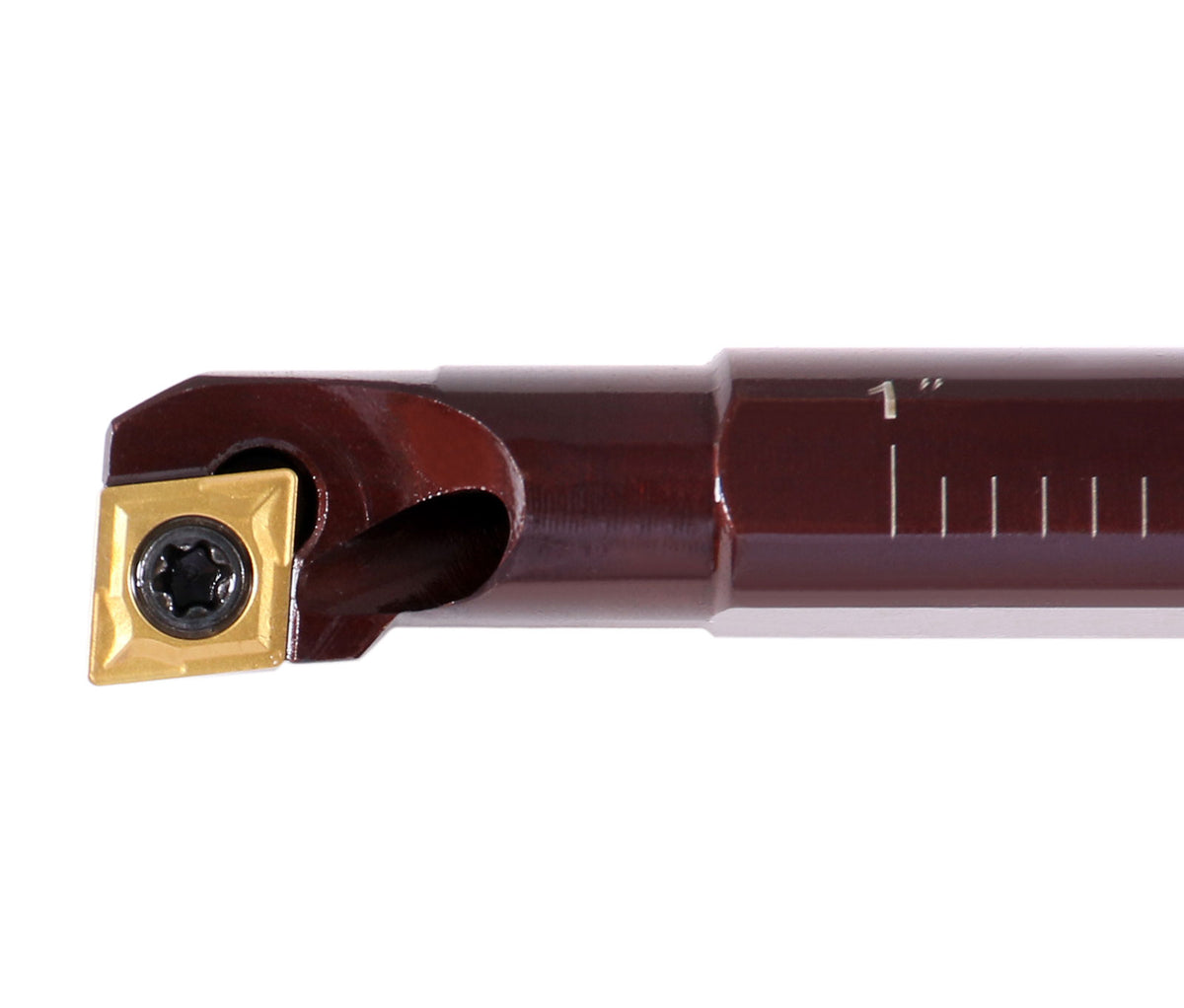

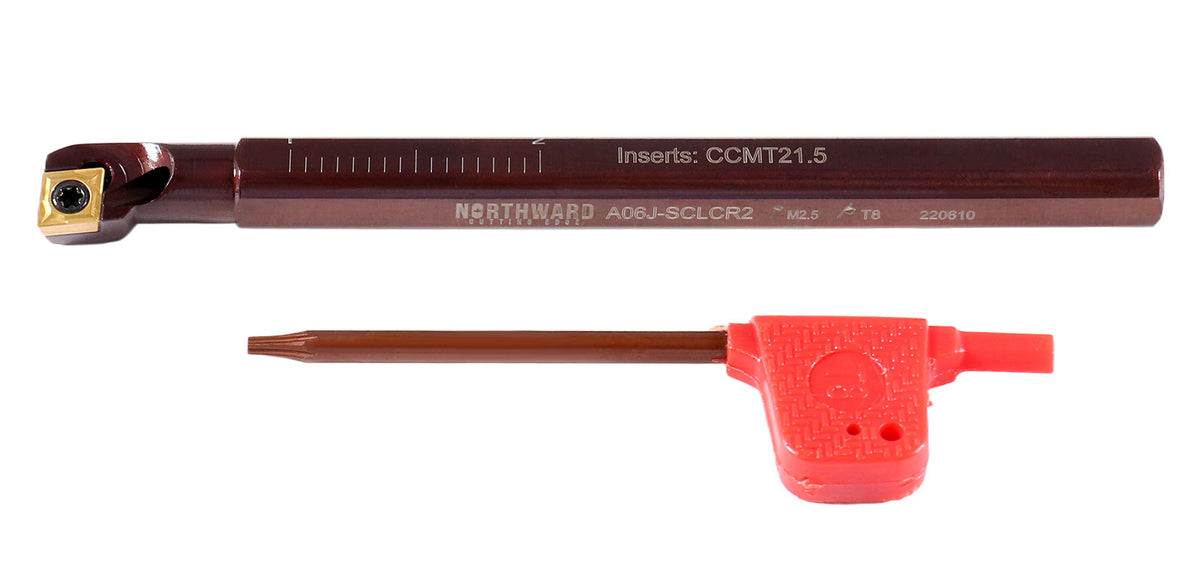

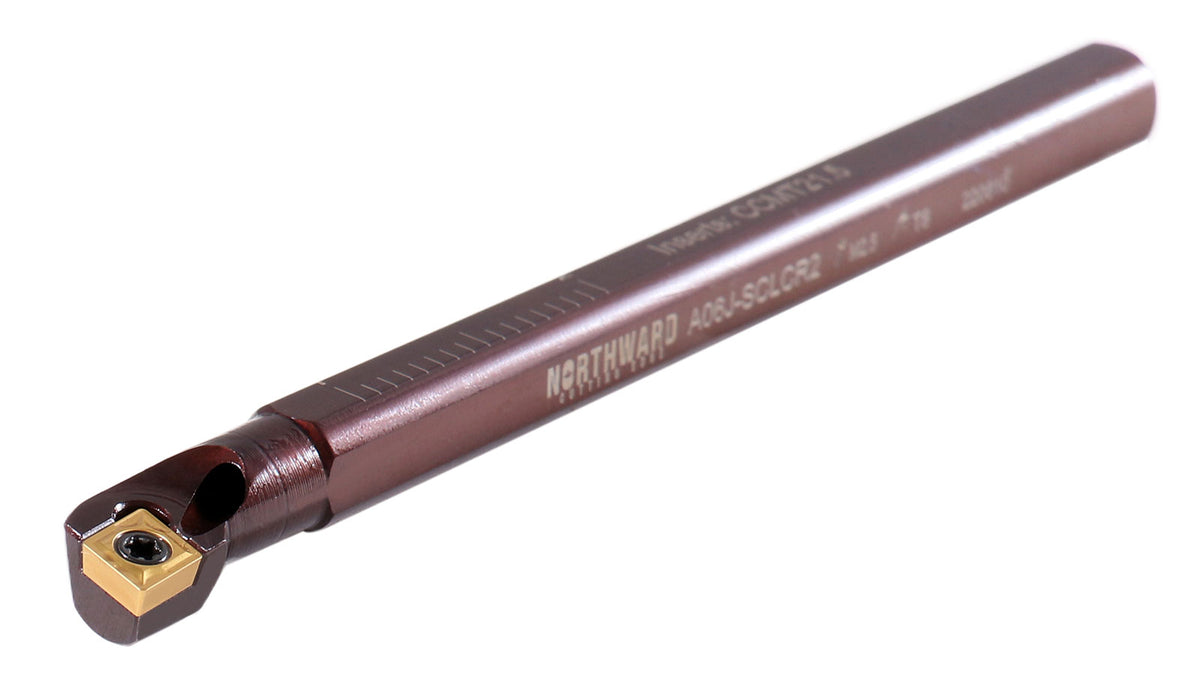

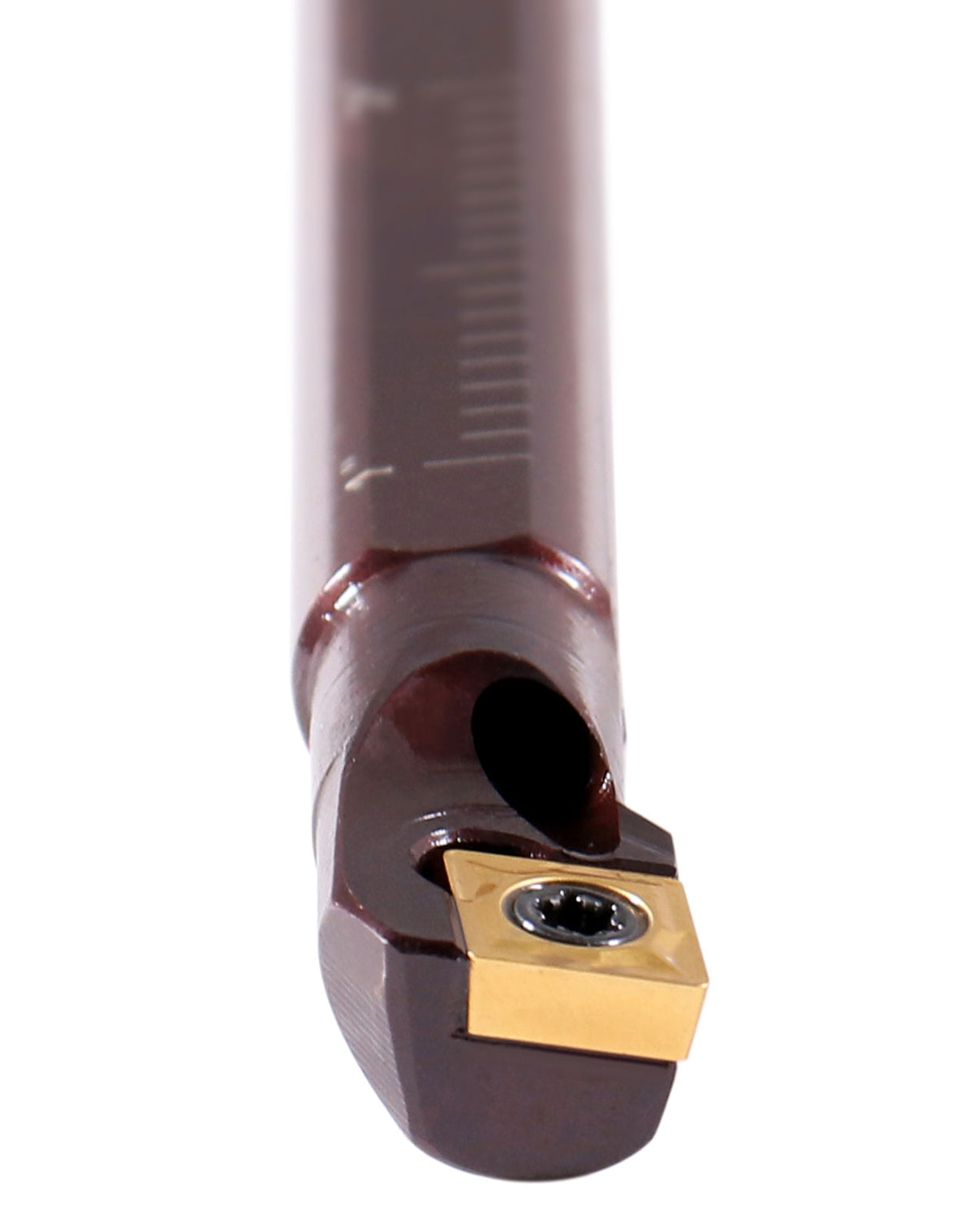

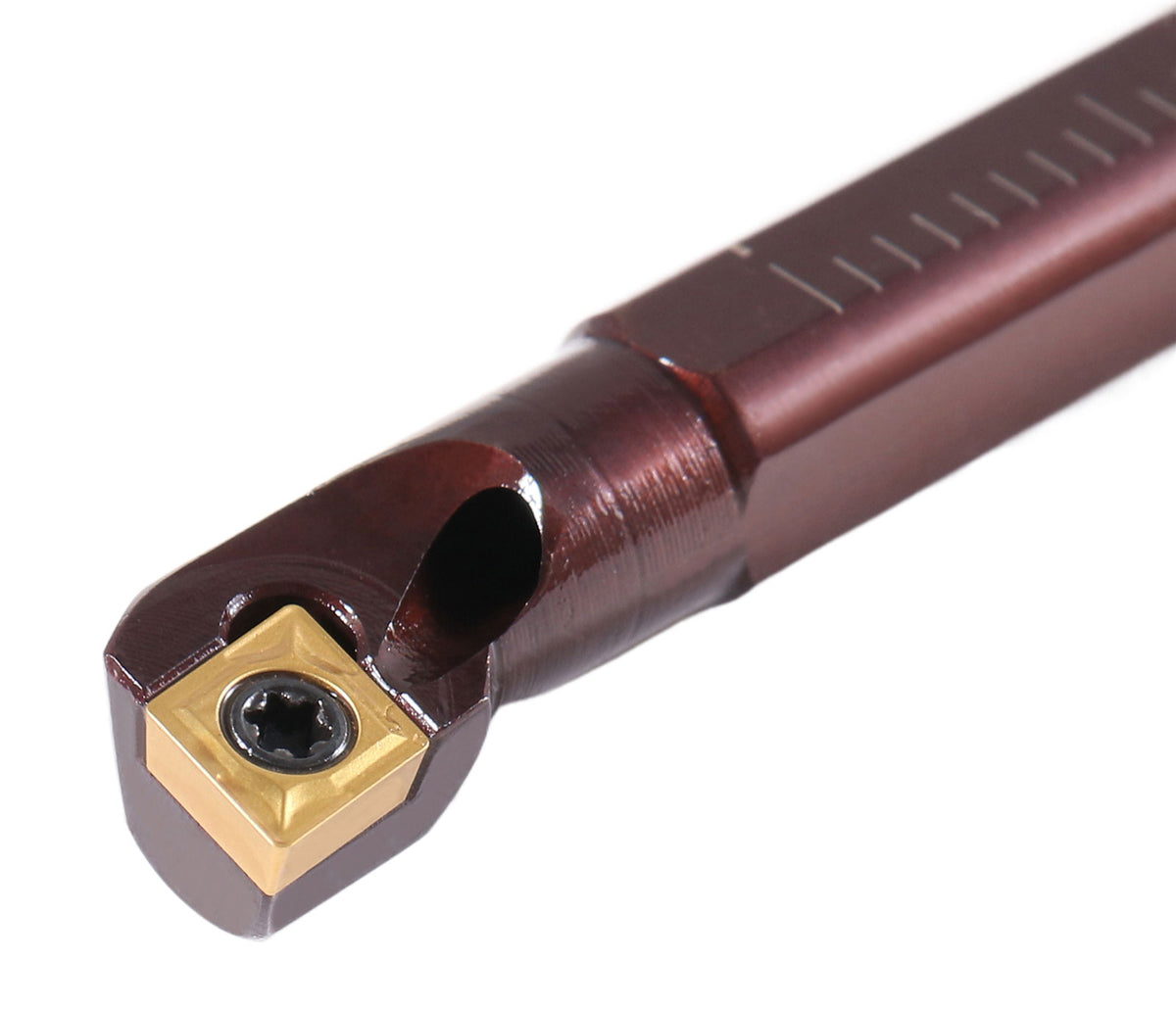

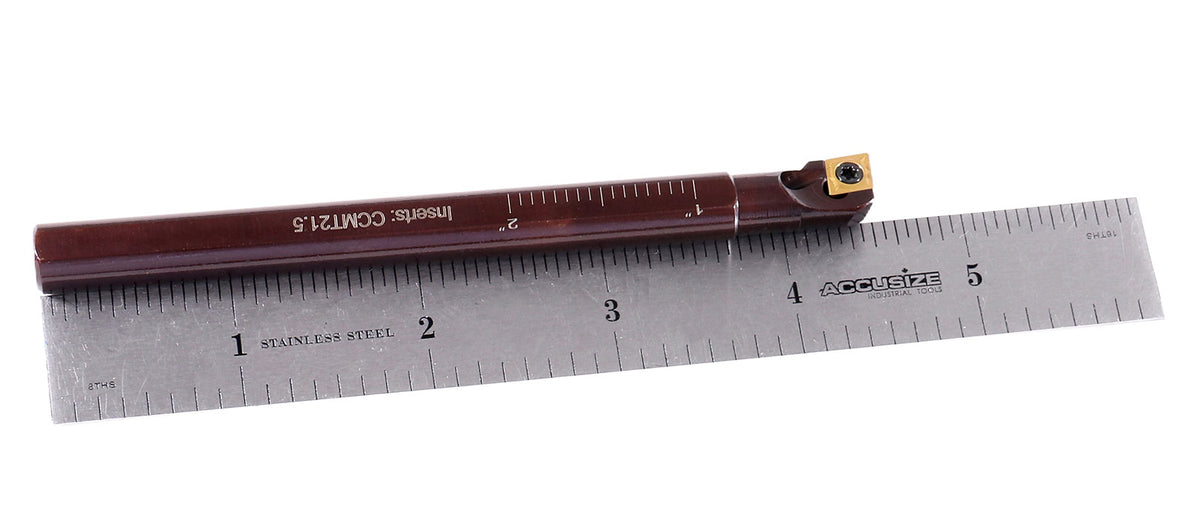

2800-0035 A06J SCLCR-2 3/8" 4.500" 0.336" 1.000" 13° 0.250" 0.480" CCMT 21.5

M2.5 x 5

(0046-2505)

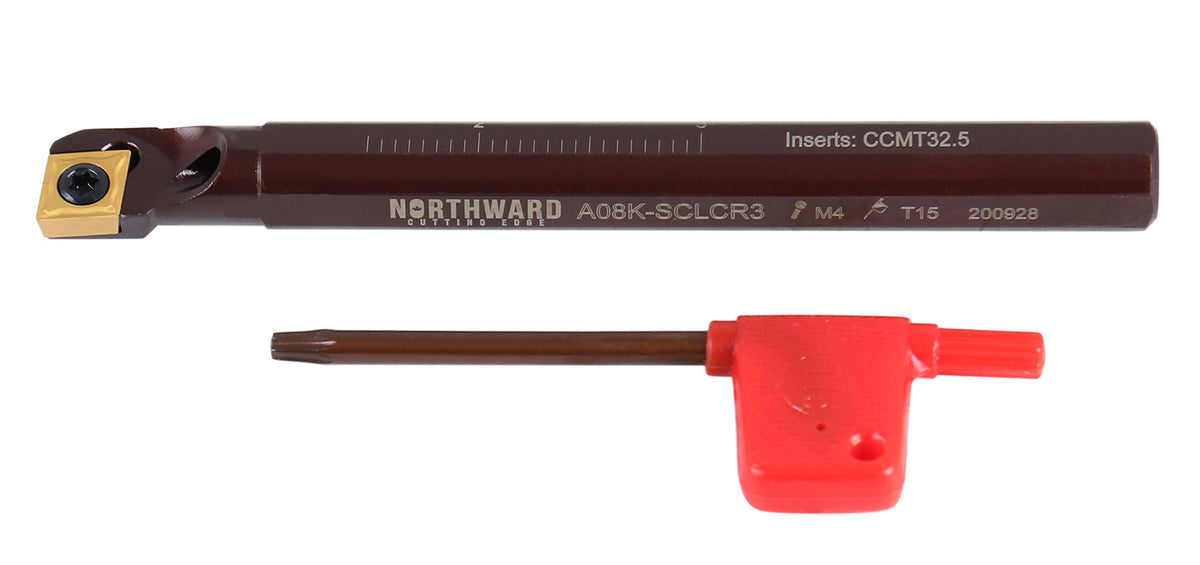

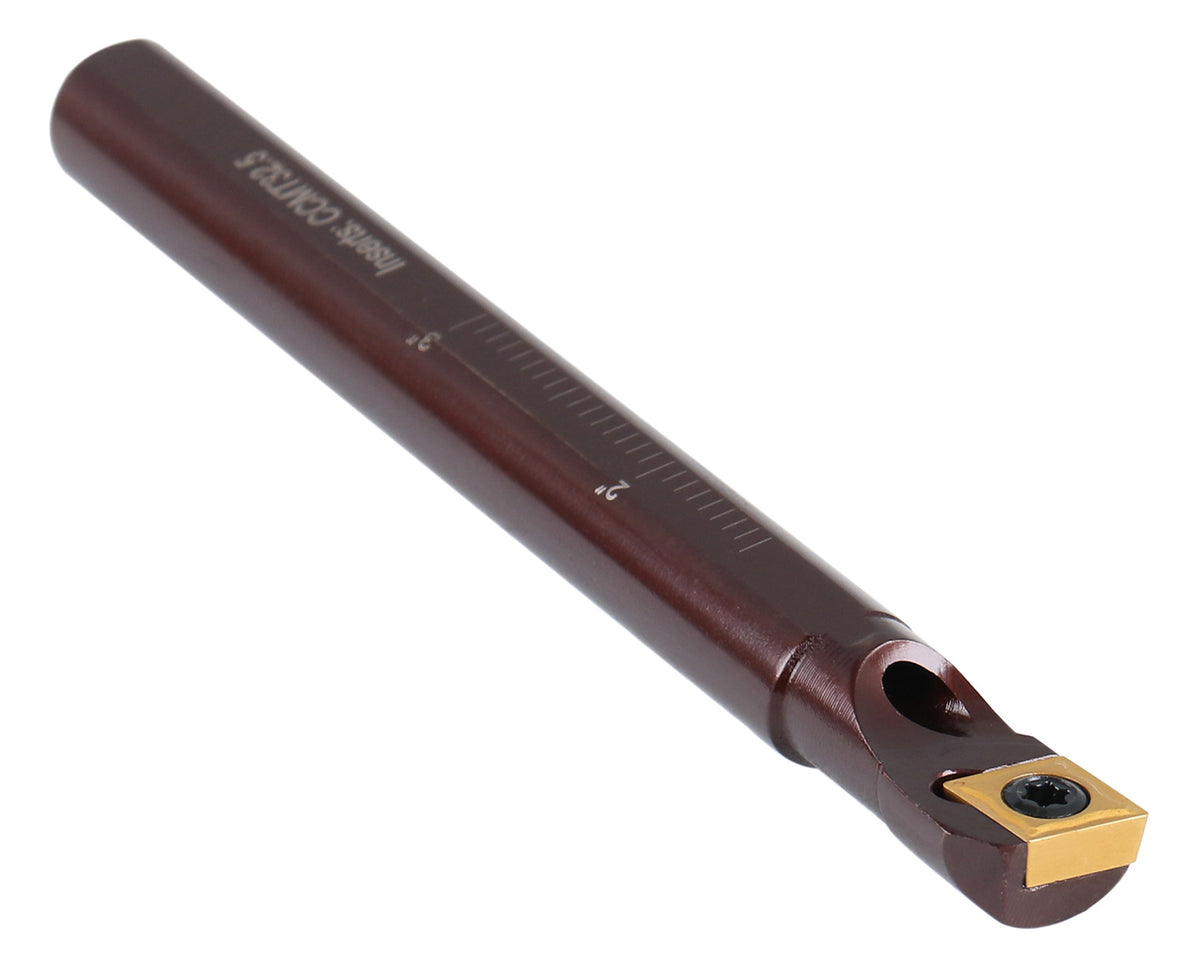

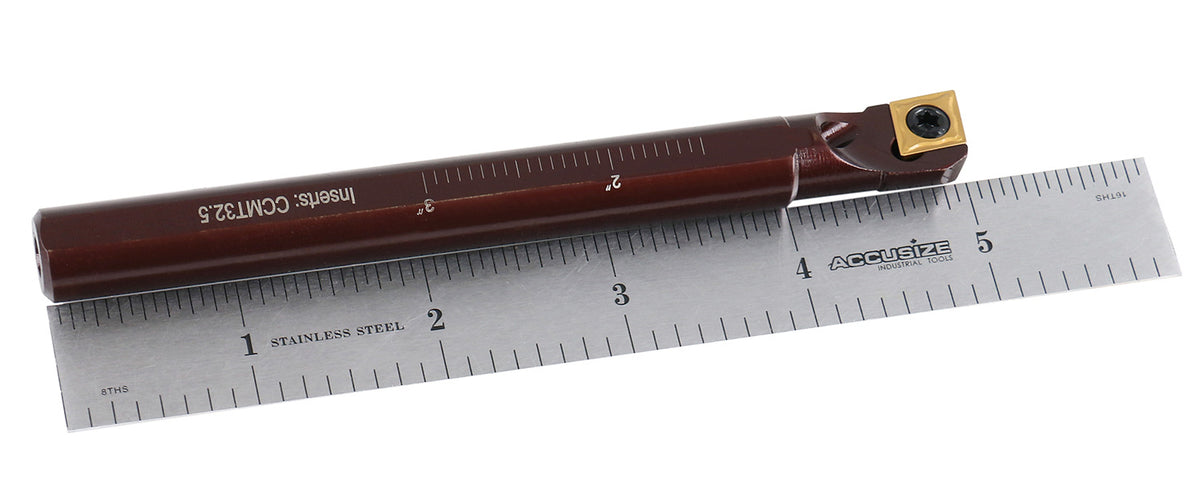

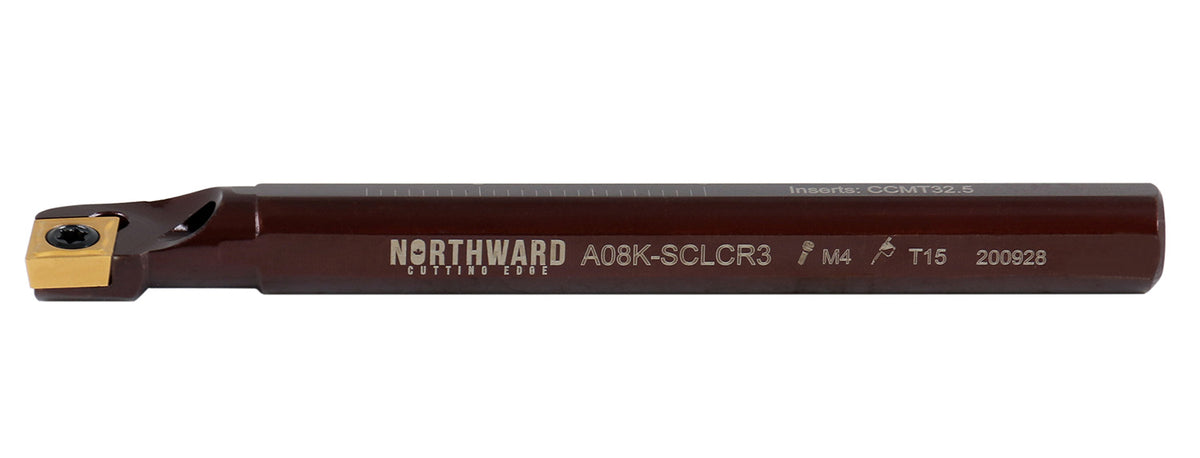

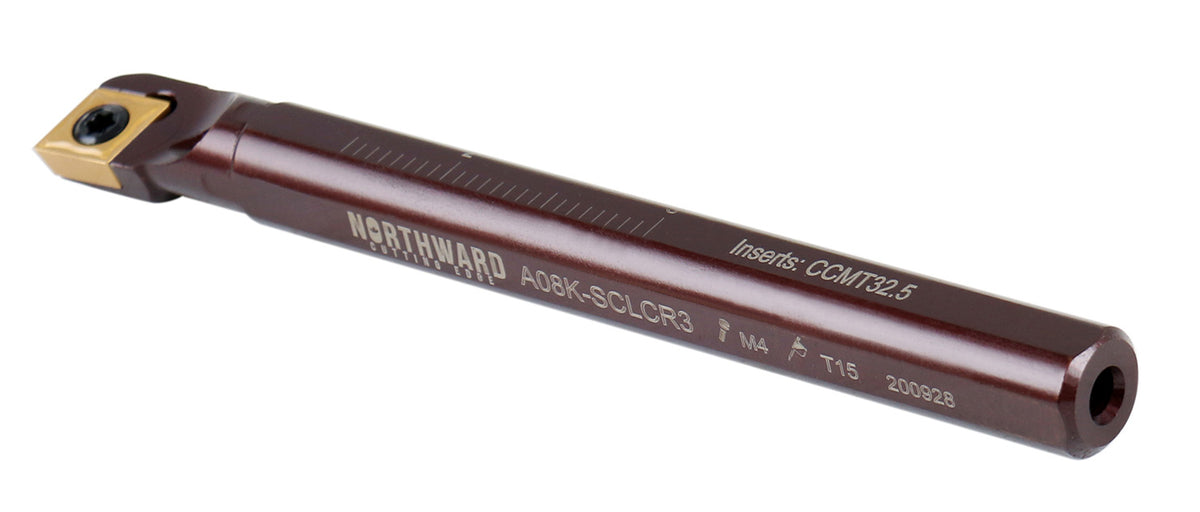

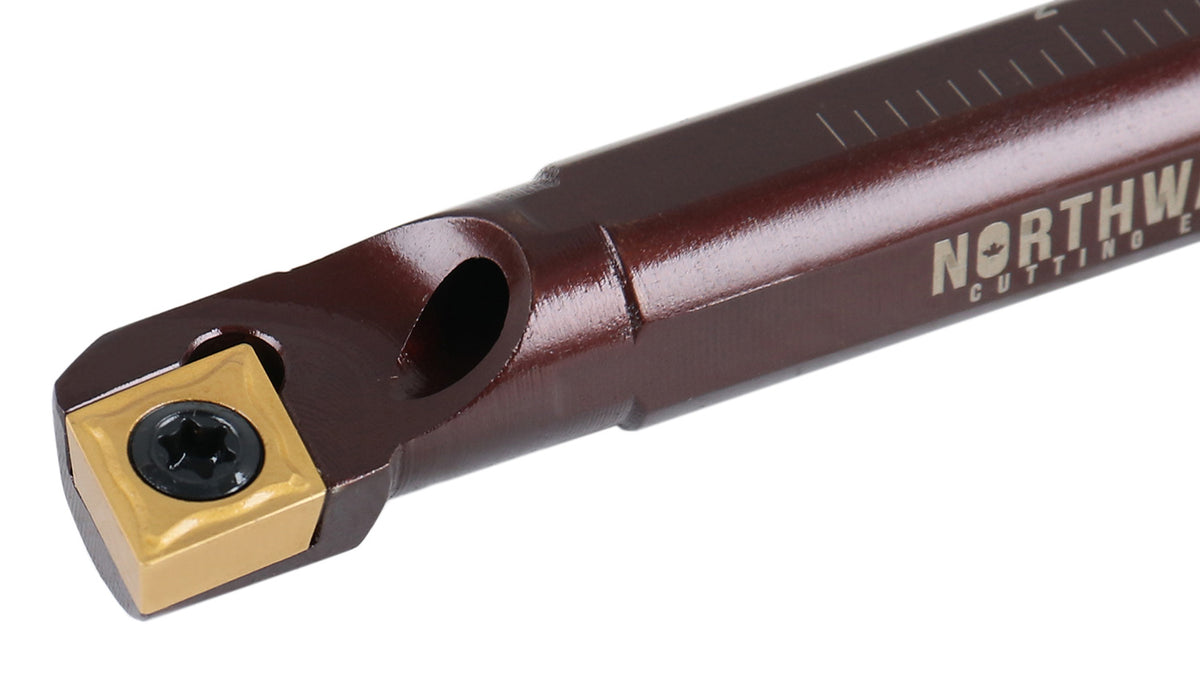

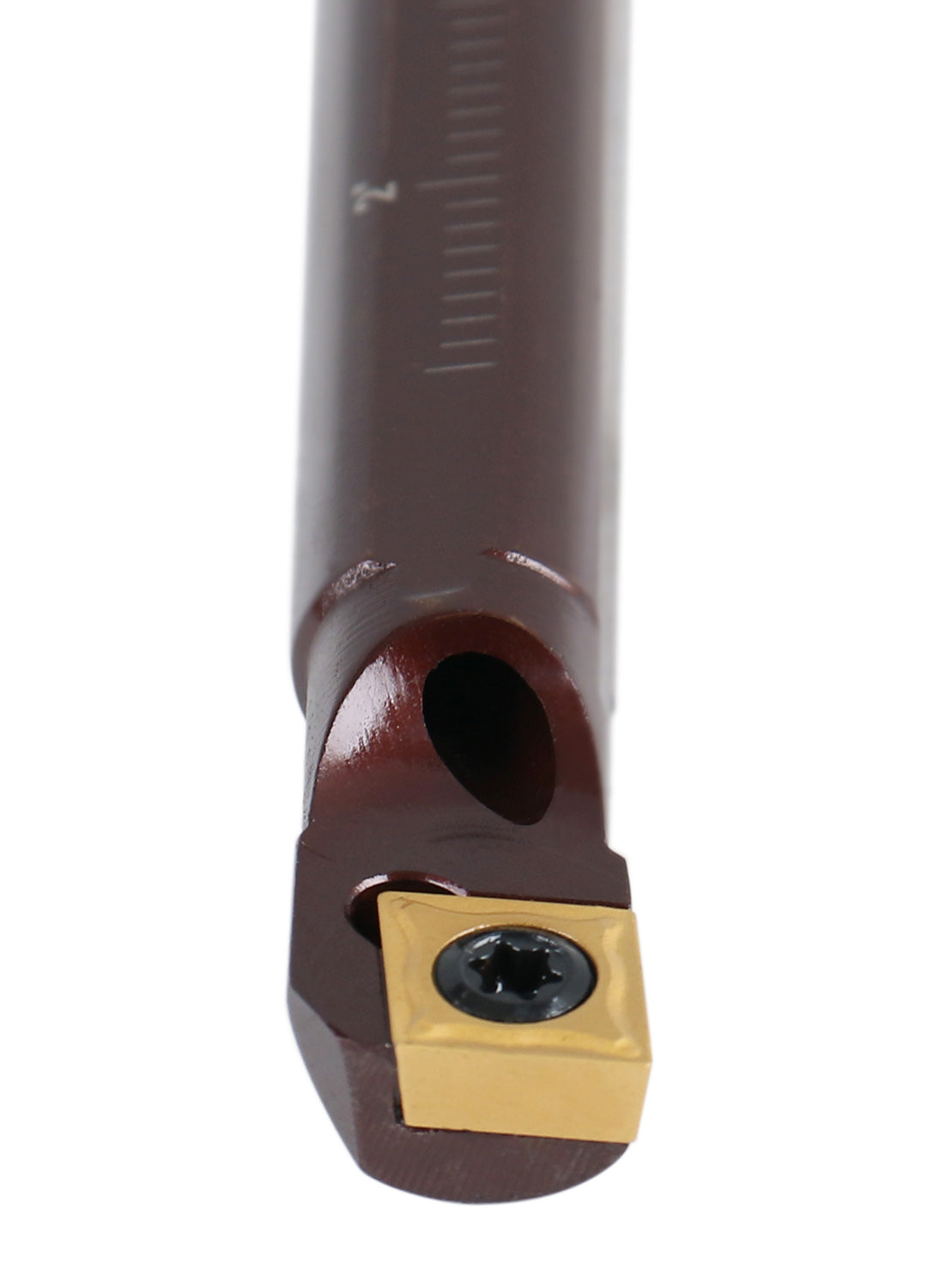

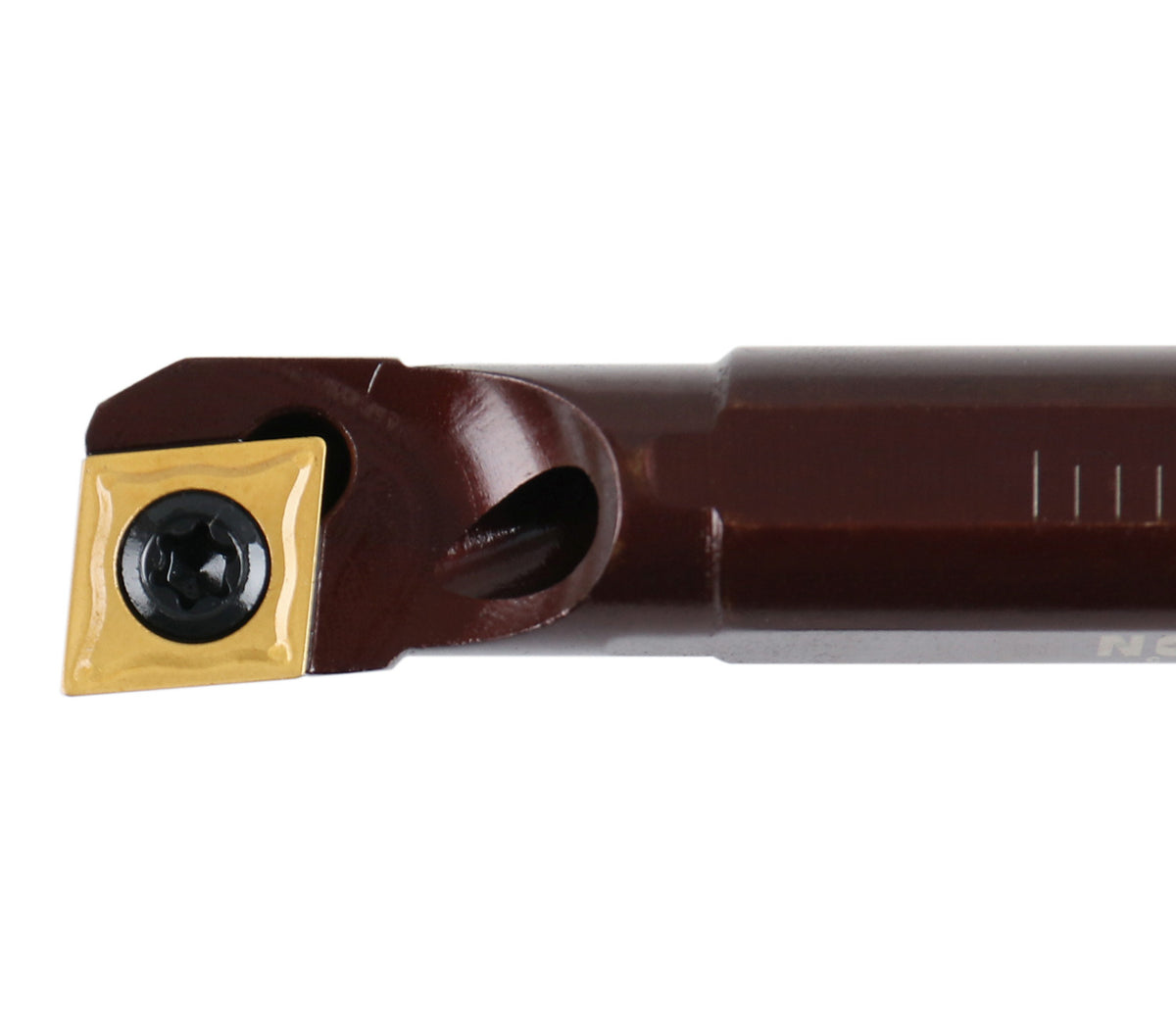

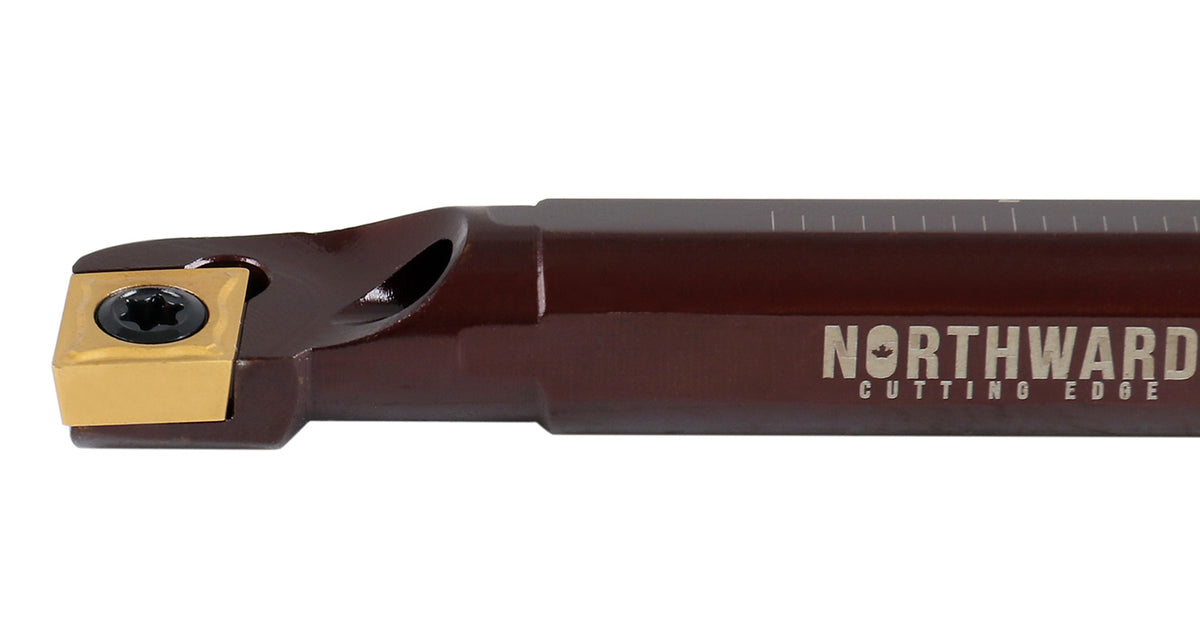

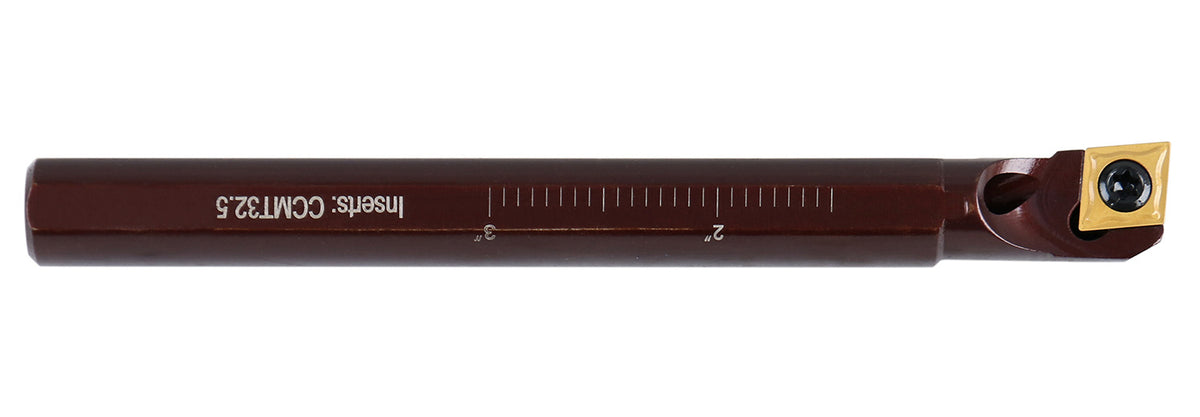

2800-0036 A08K SCLCR-3 1/2" 5.000" 0.461" 1.220" 10° 0.312" 0.600" CCMT 32.5

M4 x 8

(0046-4008)

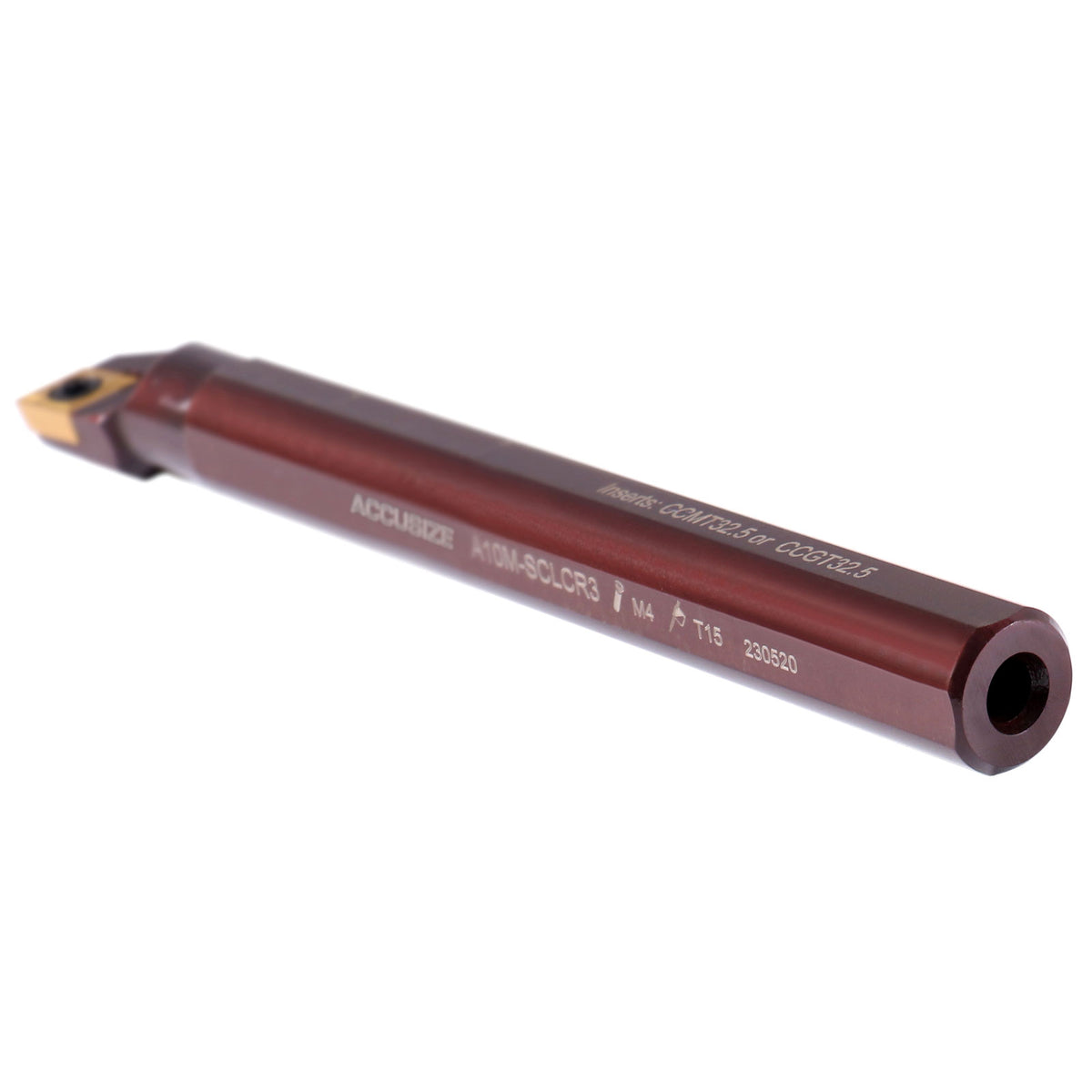

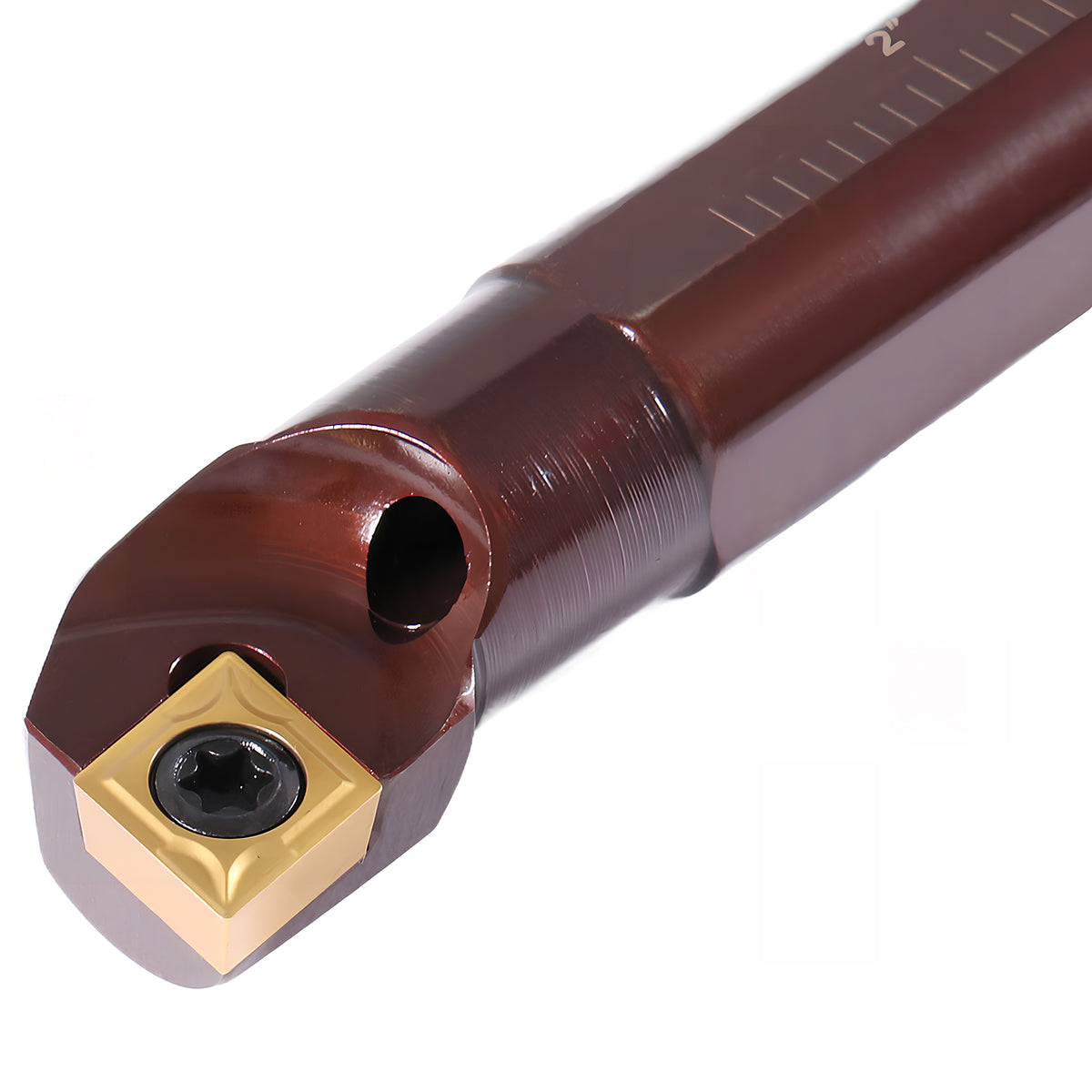

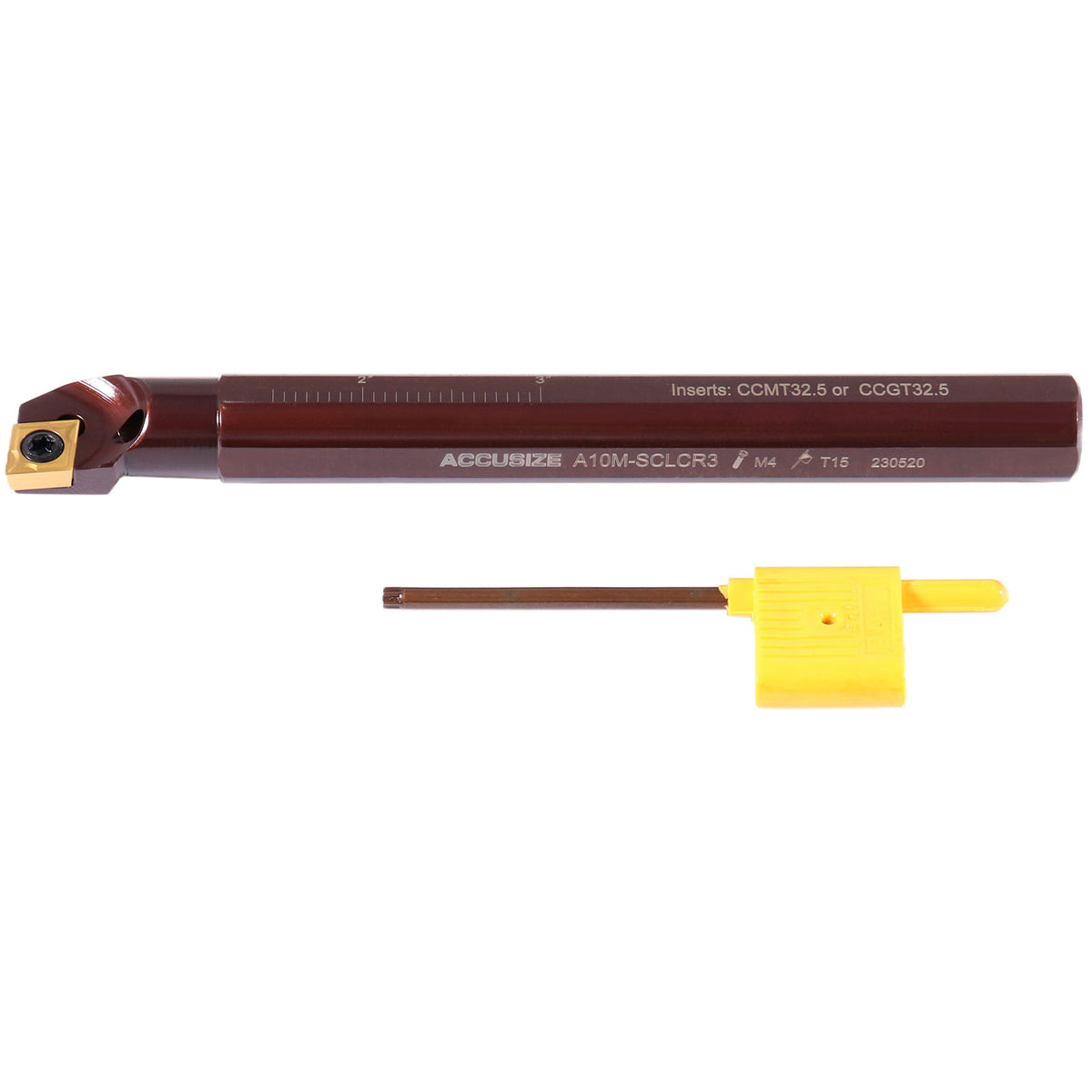

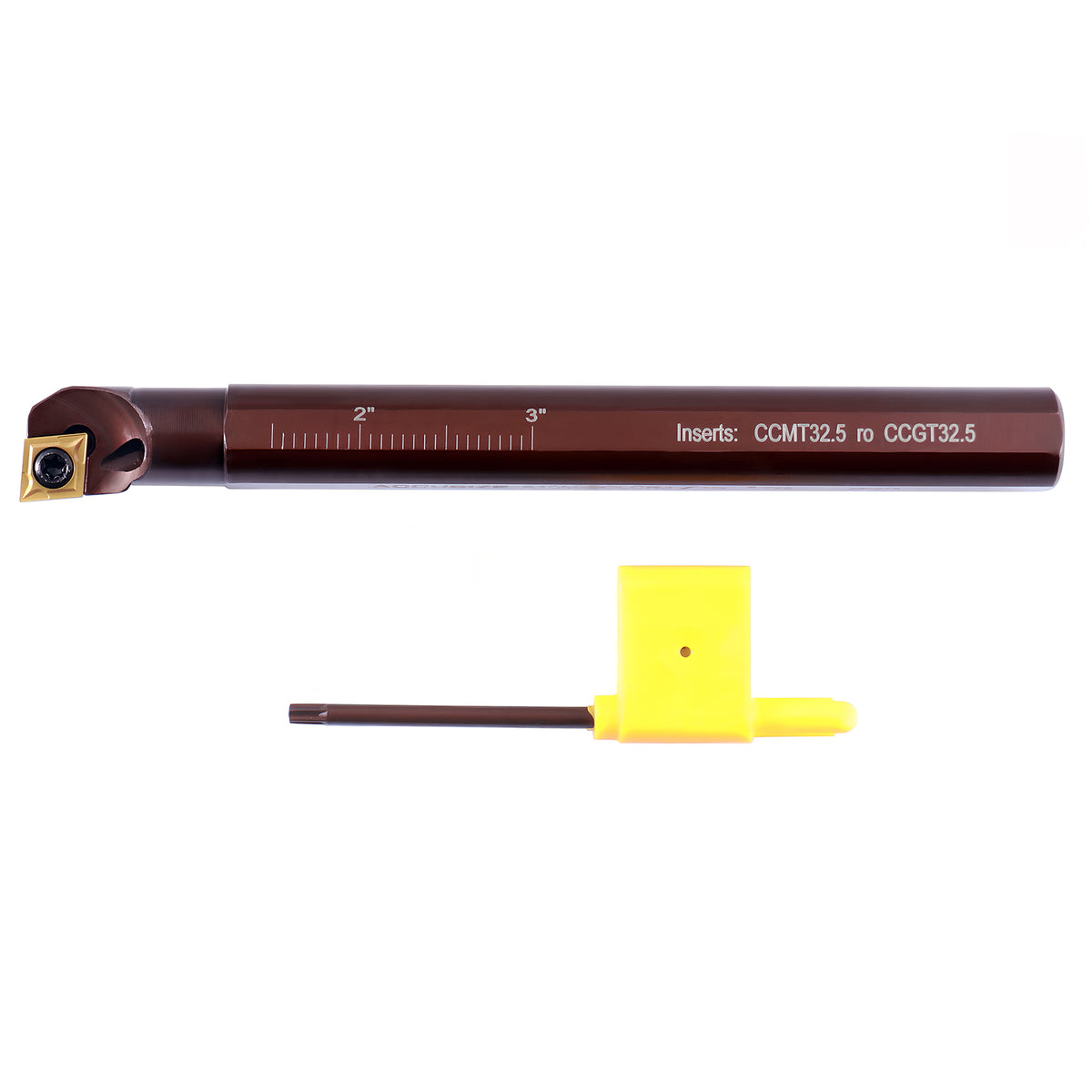

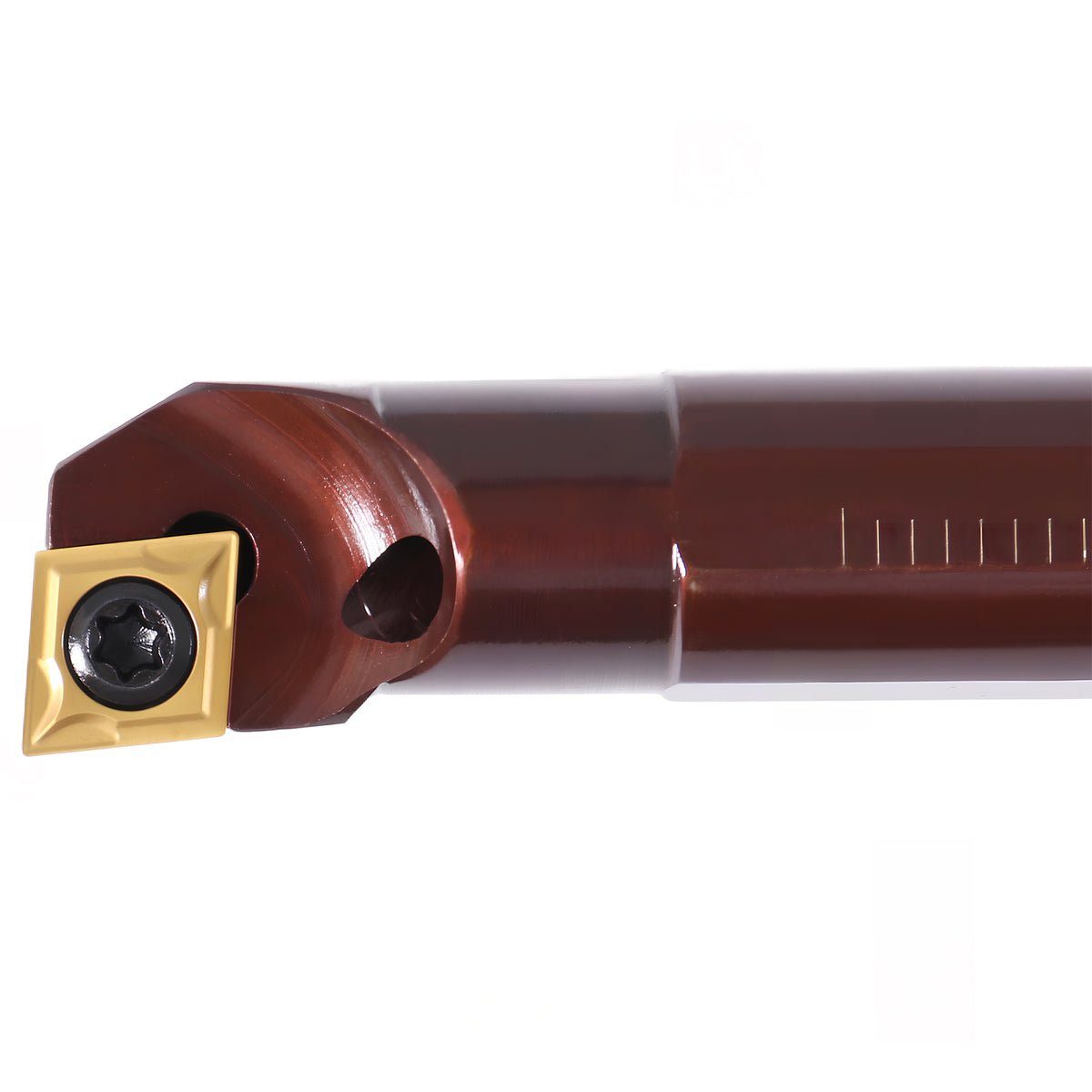

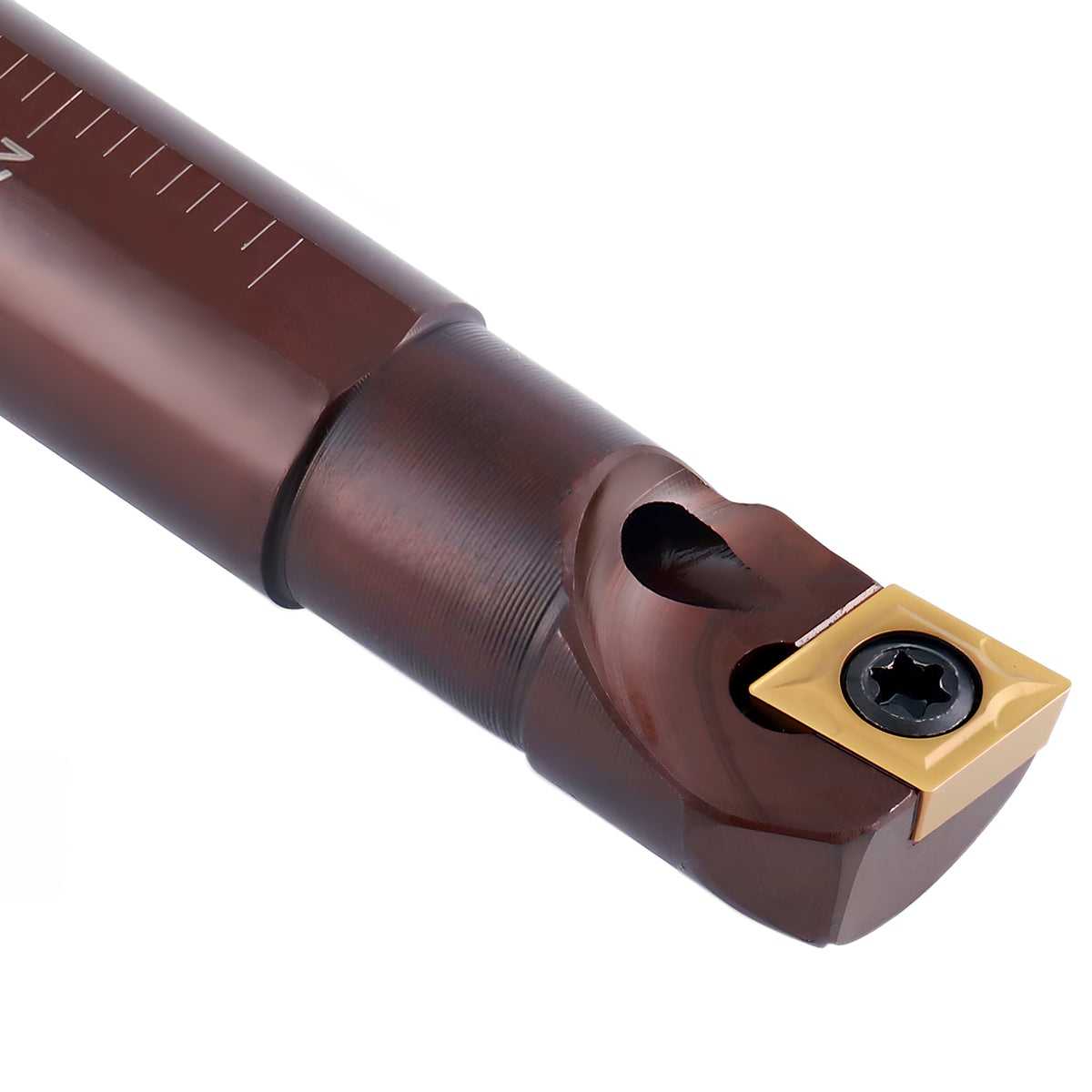

2800-0037 A10M SCLCR-3 5/8" 6.000" 0.586" 1.339" 0.406" 0.770" CCMT 32.5

M4 x 8

(0046-4008)

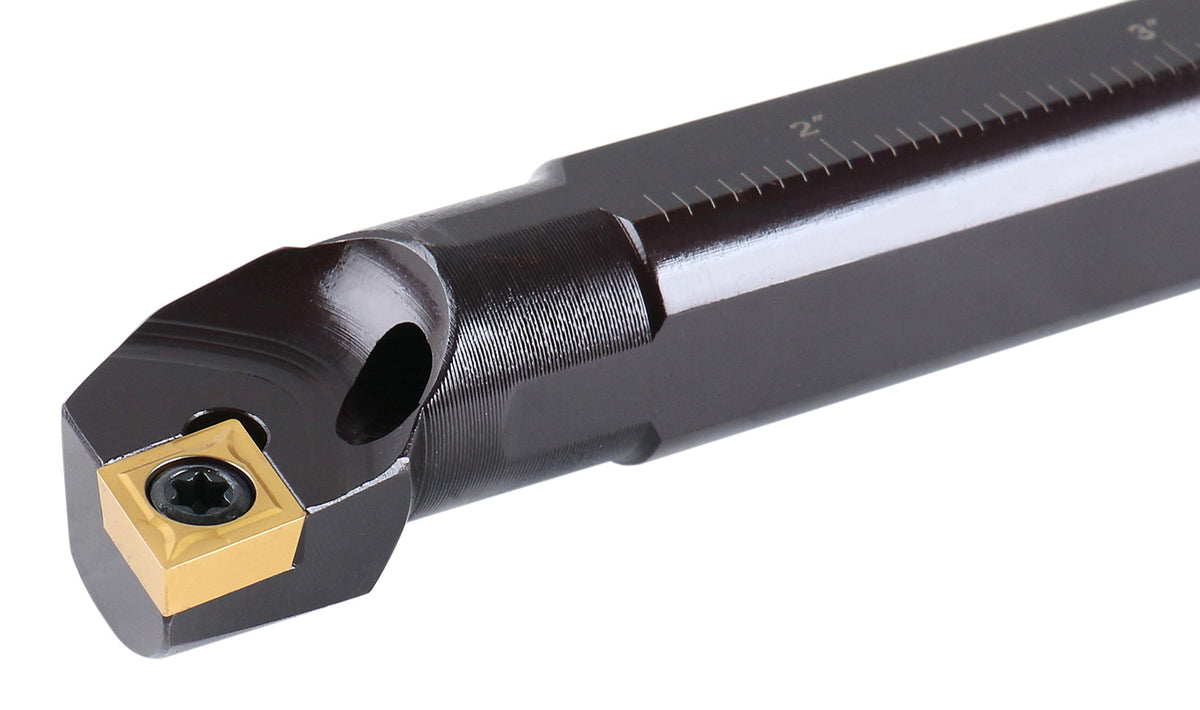

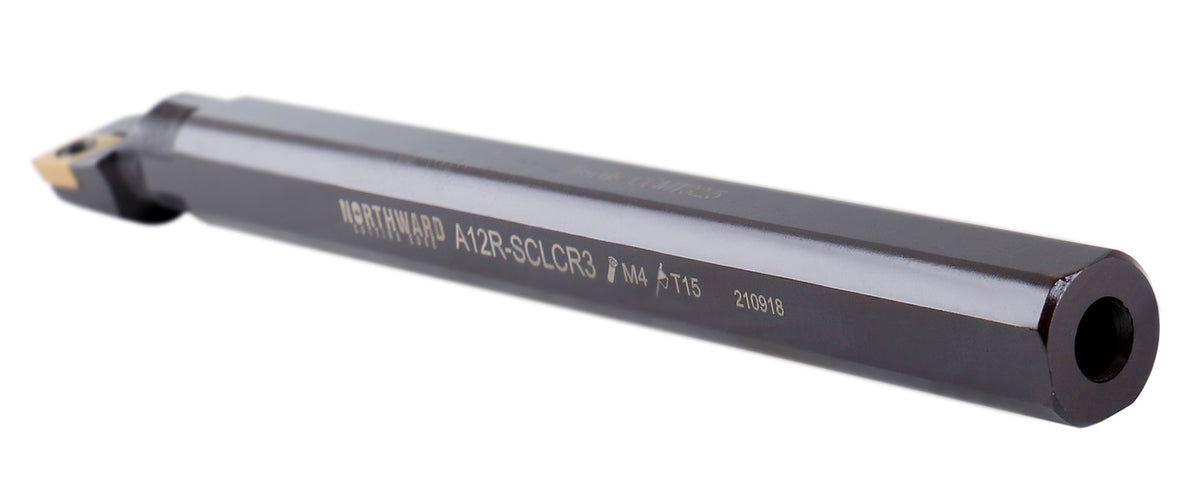

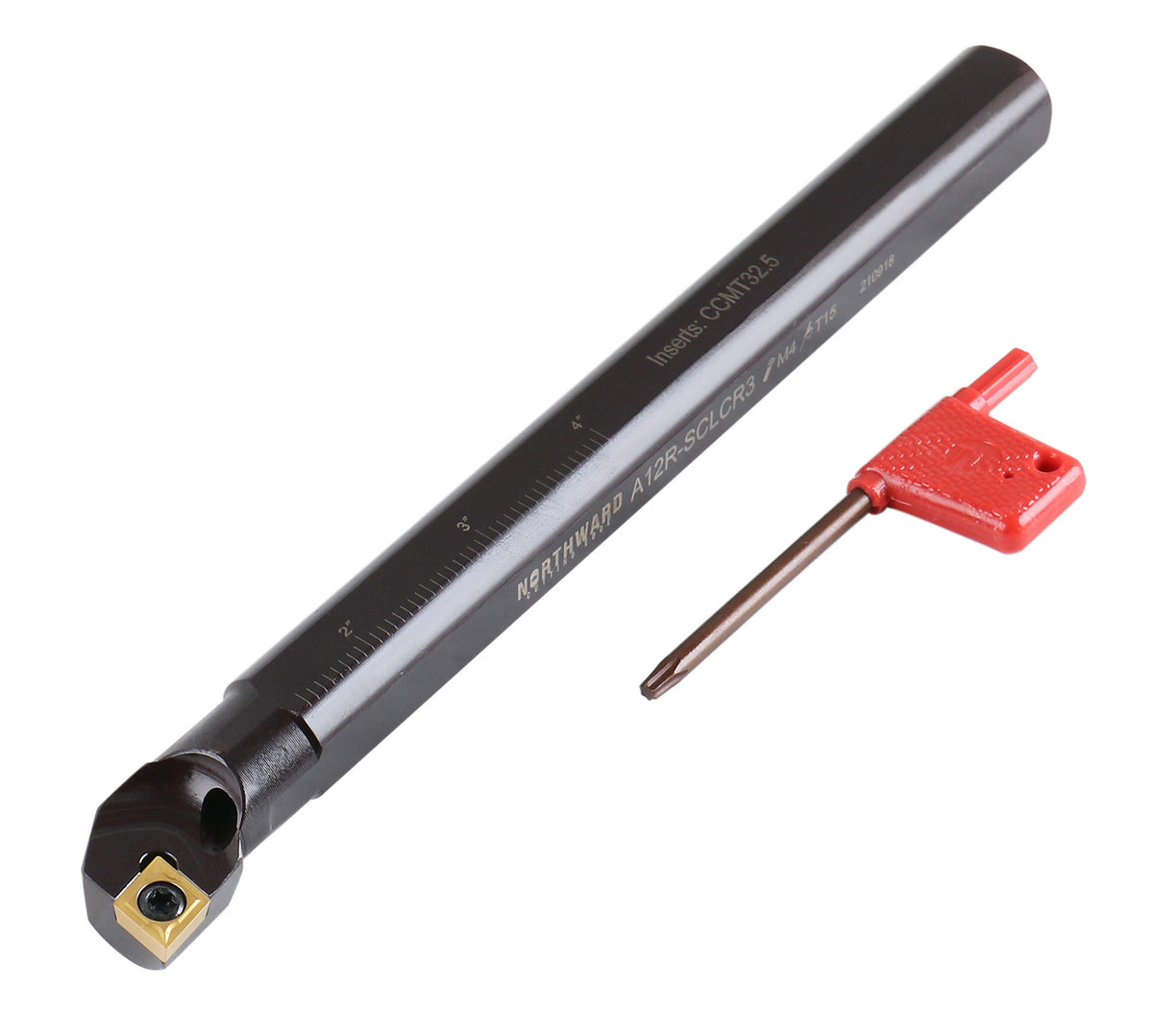

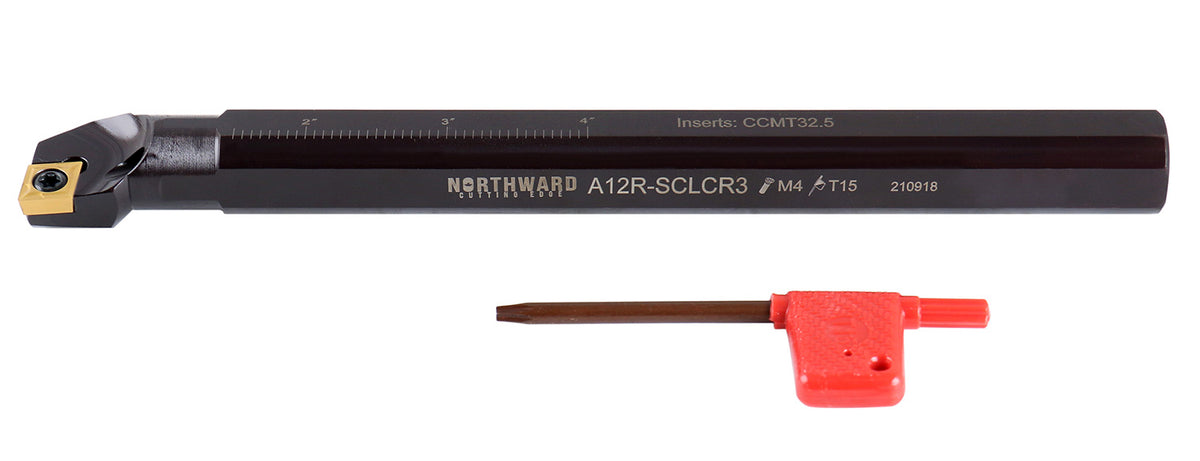

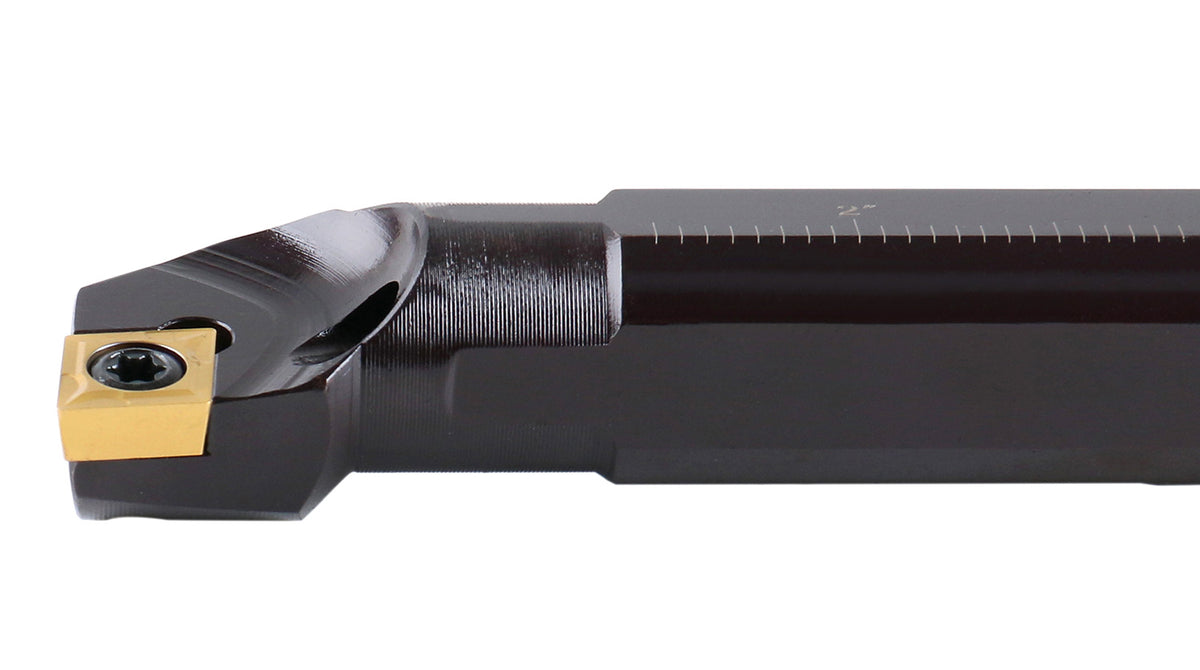

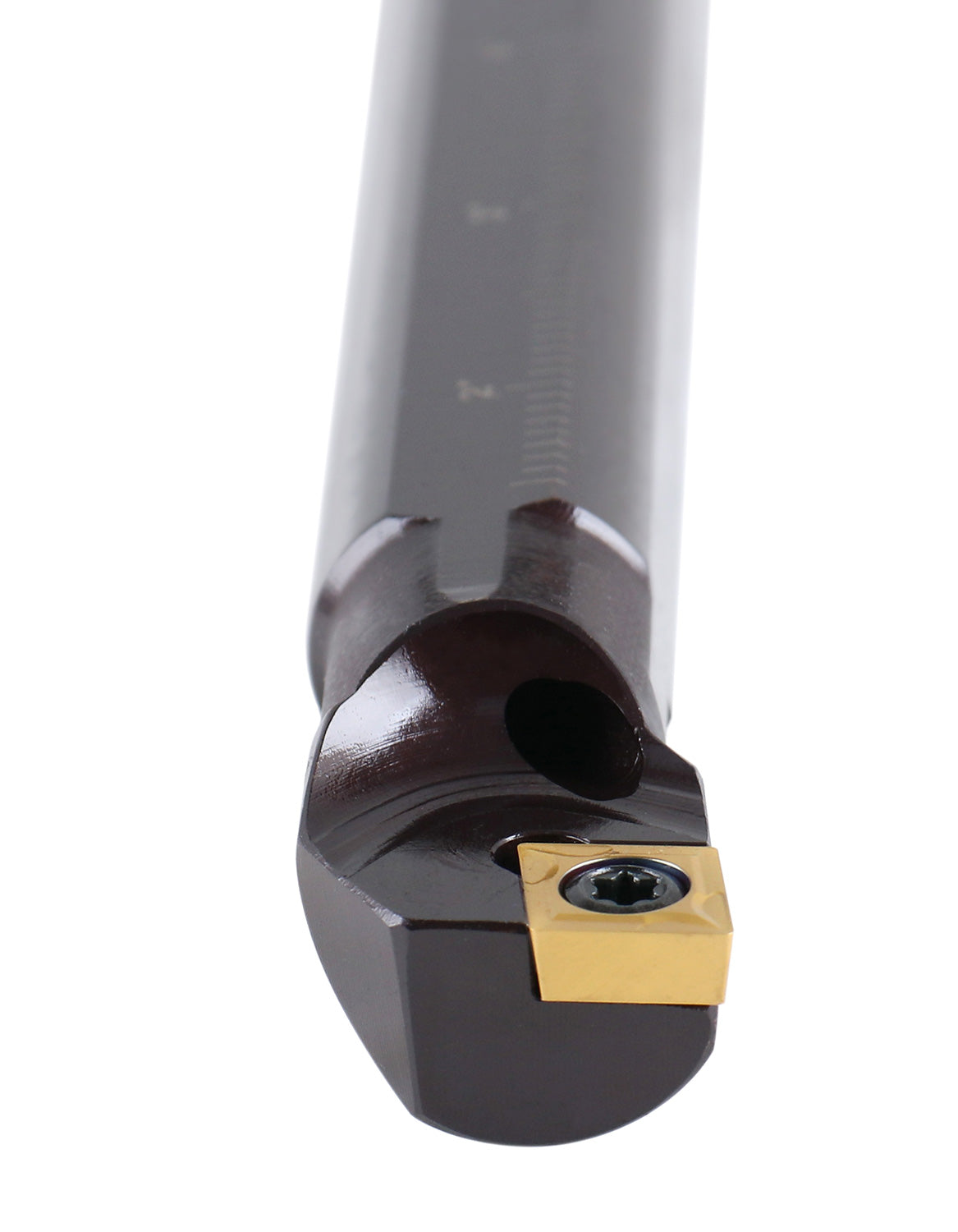

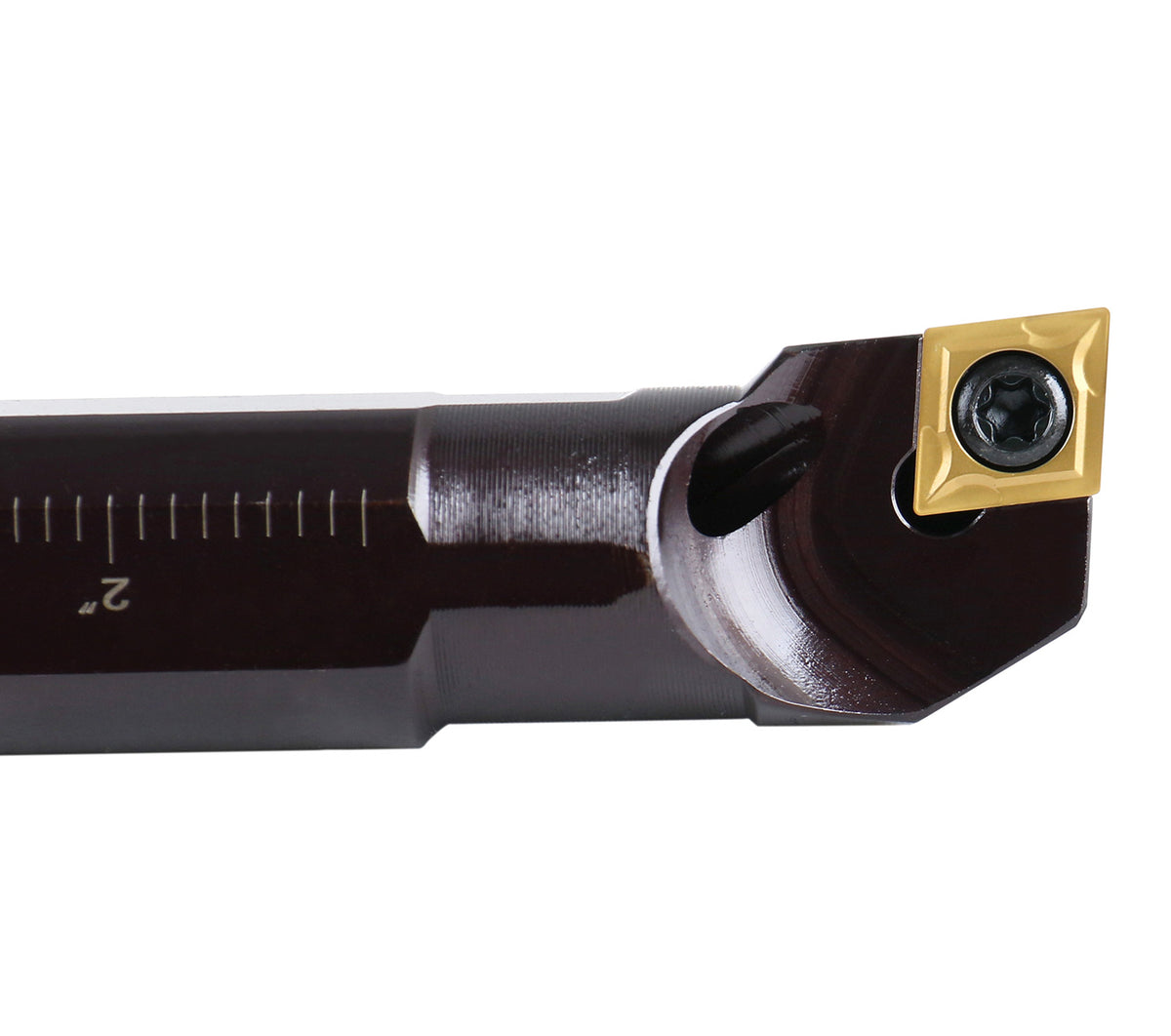

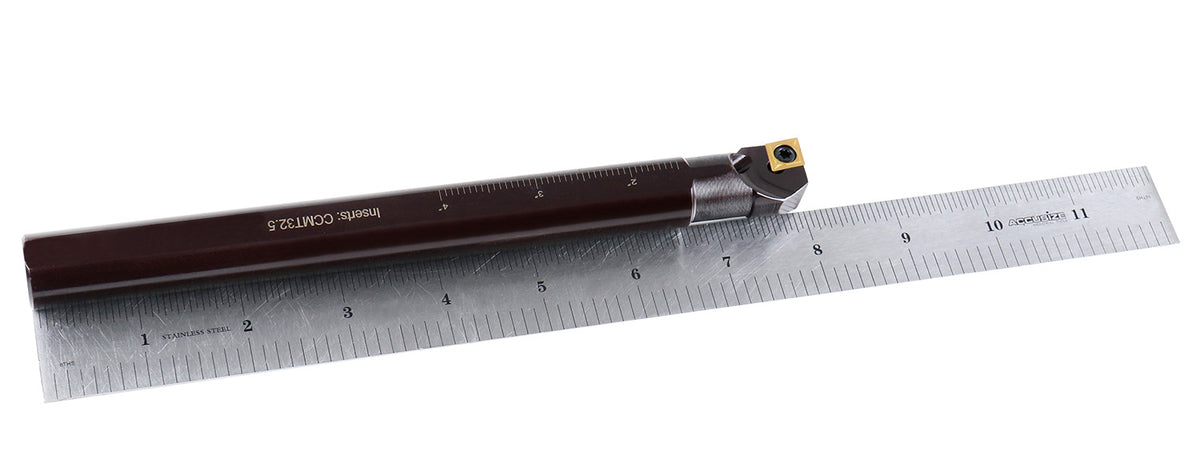

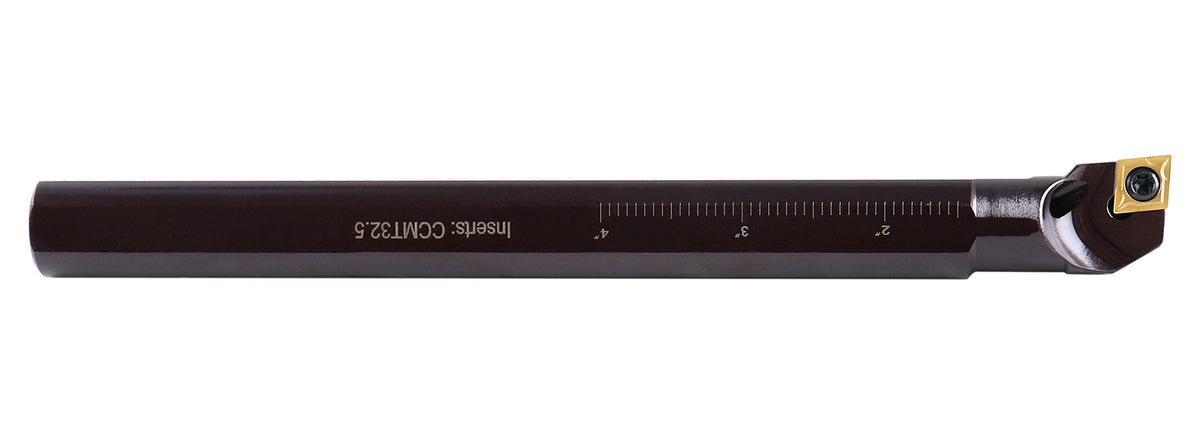

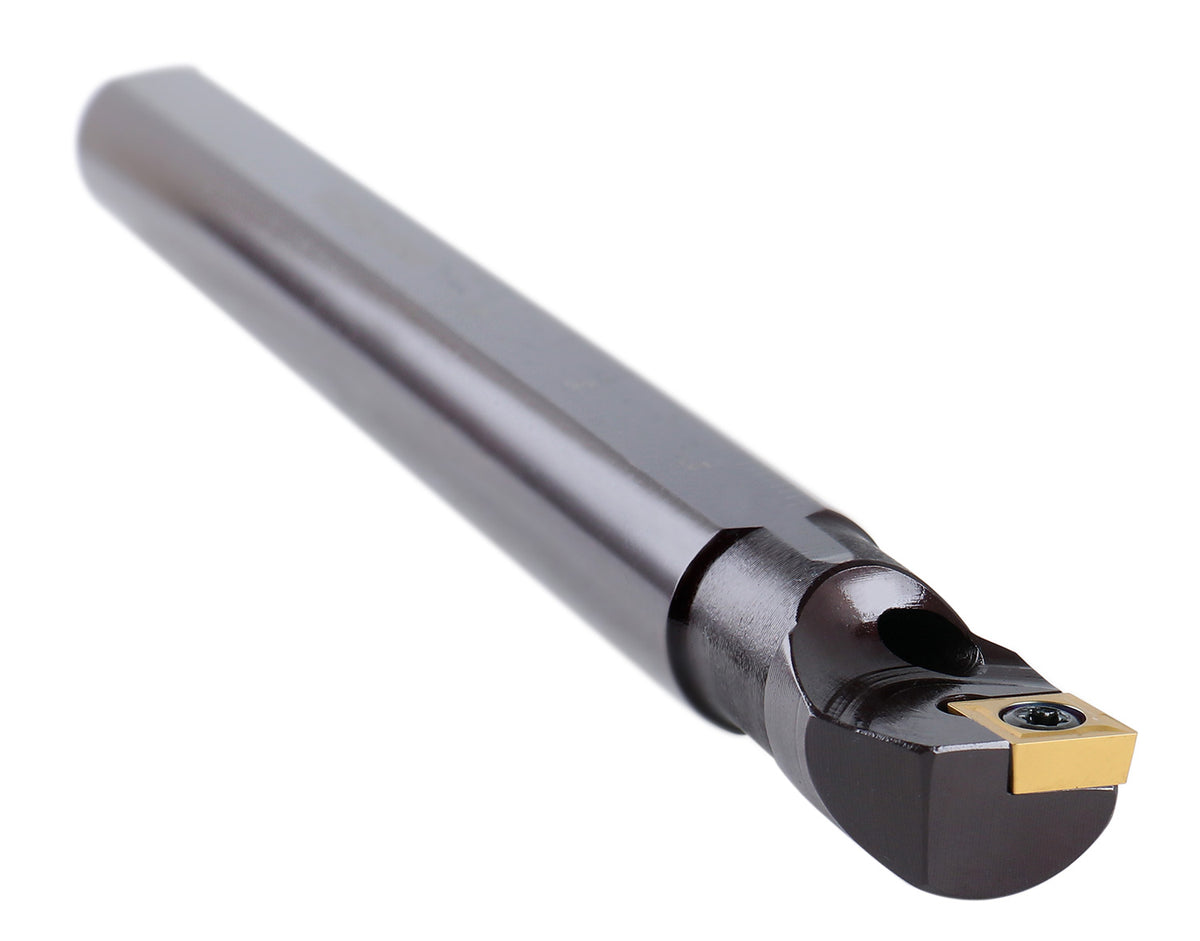

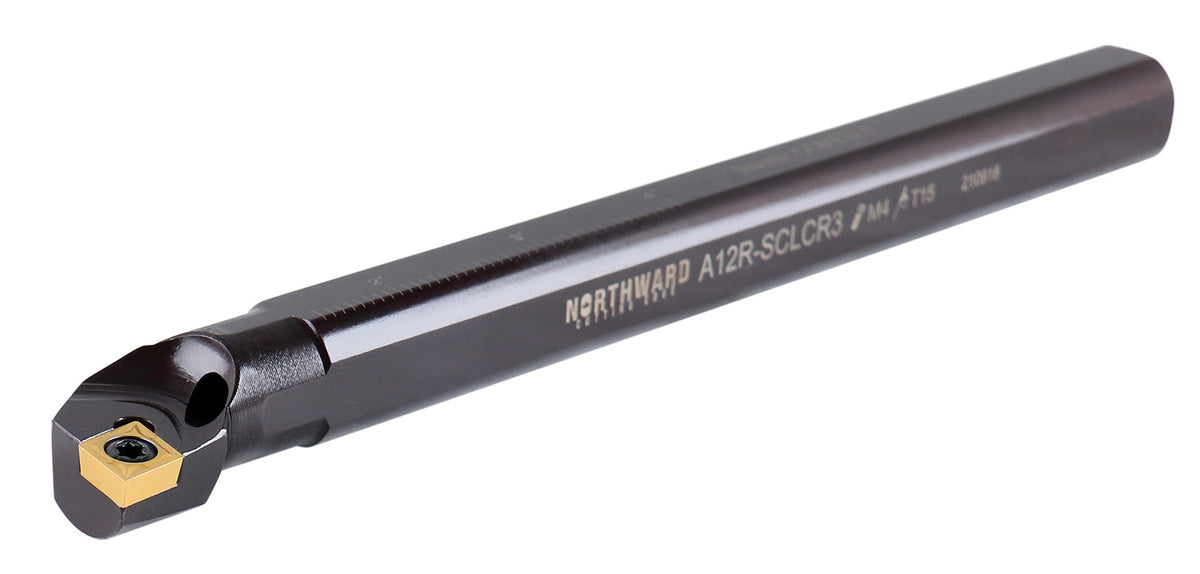

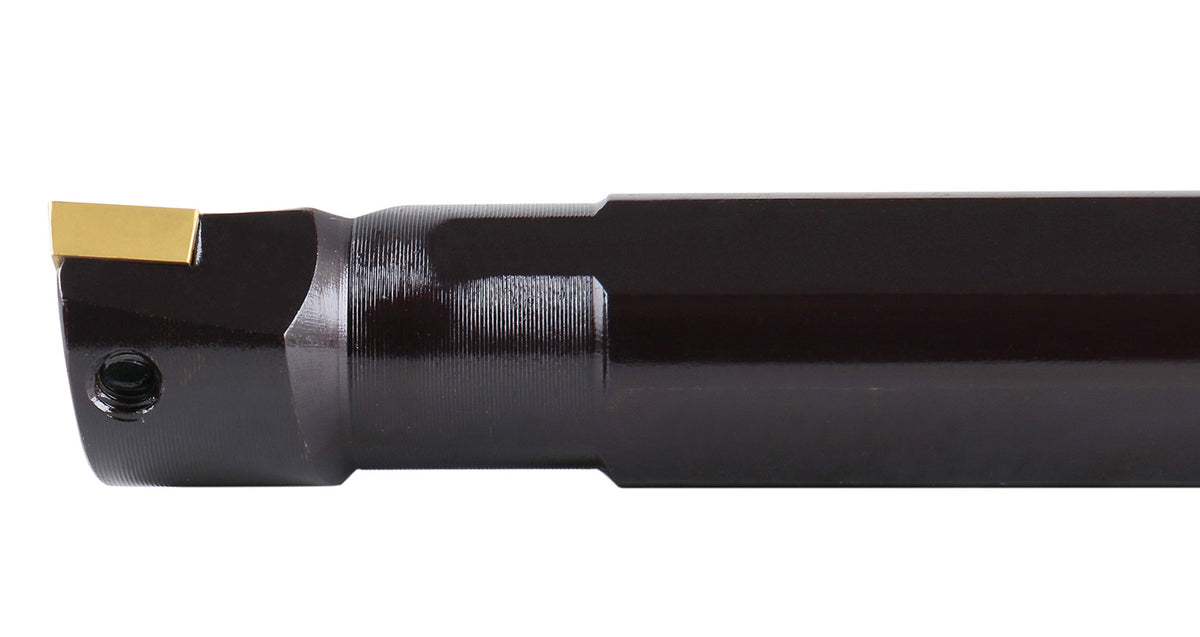

2800-0038 A12R SCLCR-3 3/4" 8.000" 0.712" 1.418" 0.500" 0.930" CCMT 32.5

M4 x 8

(0046-4008)

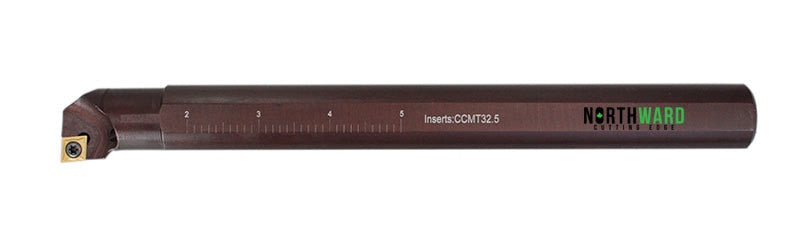

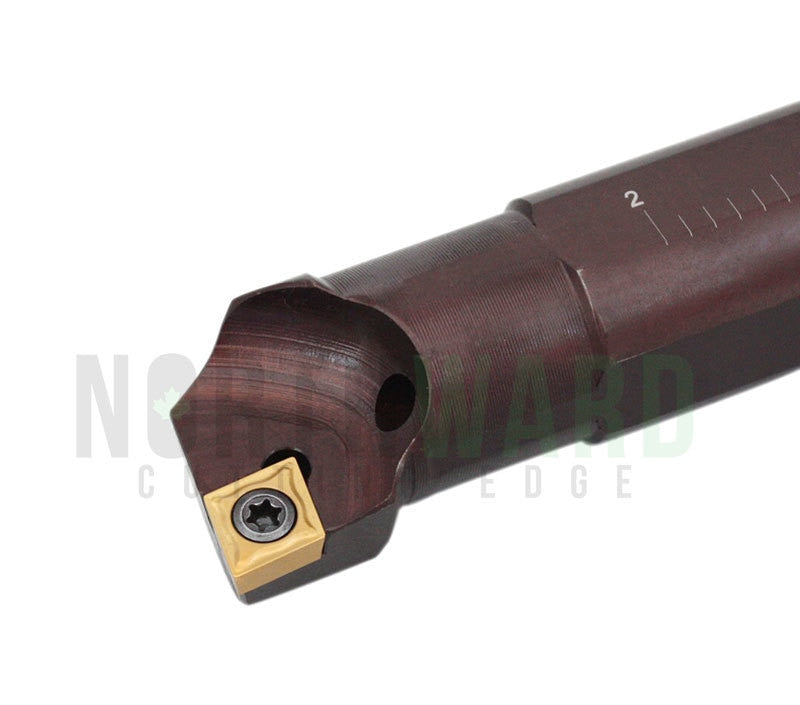

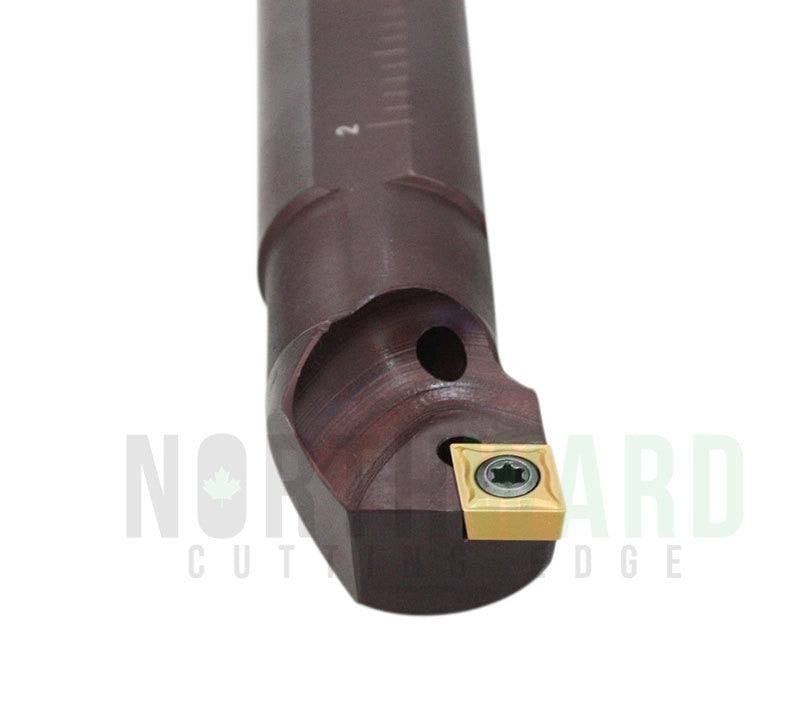

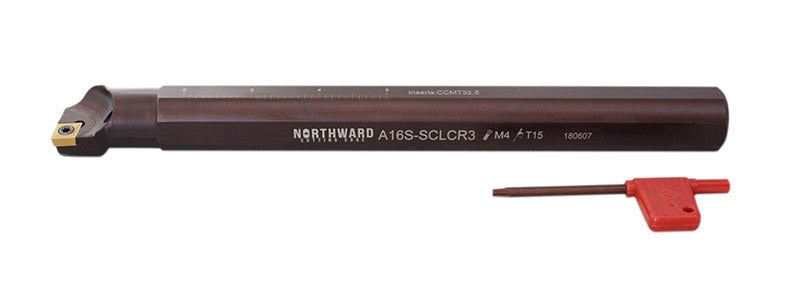

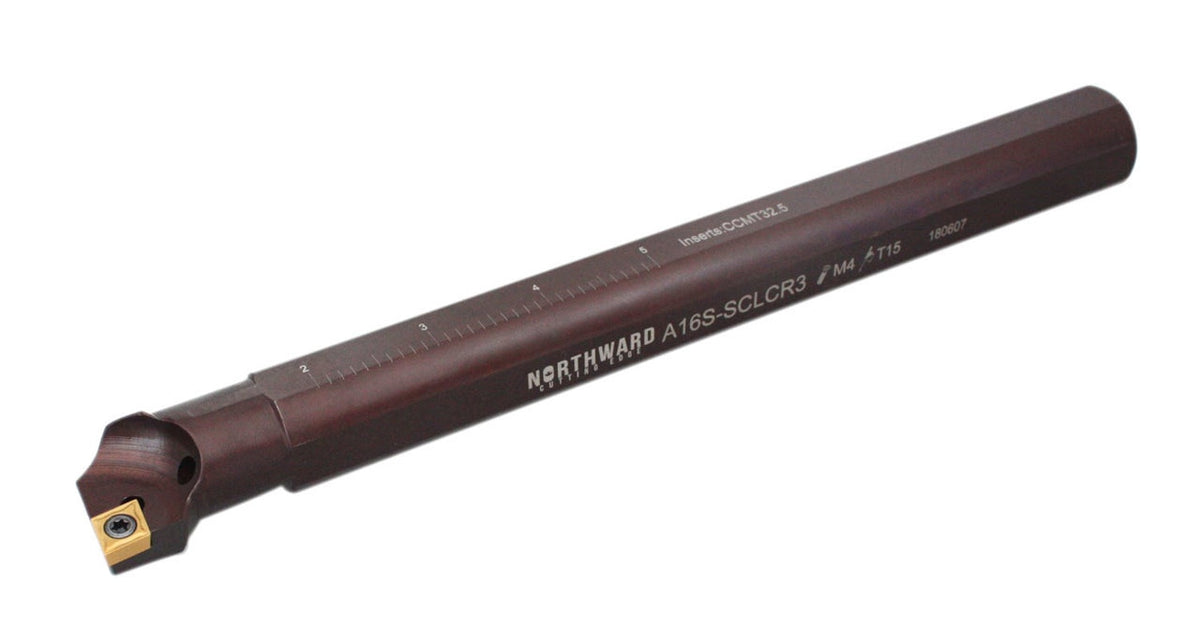

2800-0039 A16S SCLCR-3 1" 10.000" 0.961" 1.540" 0.651" 1.300" CCMT 32.5

M4 x 10

(0046-4010)
