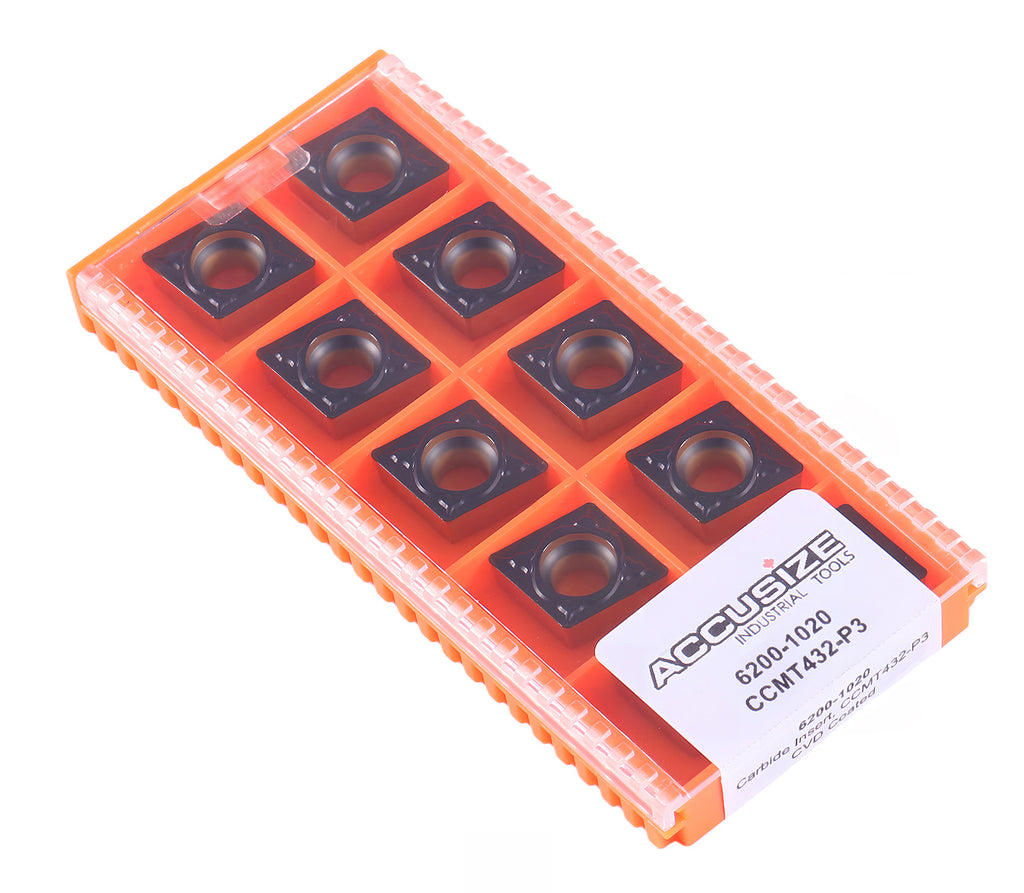

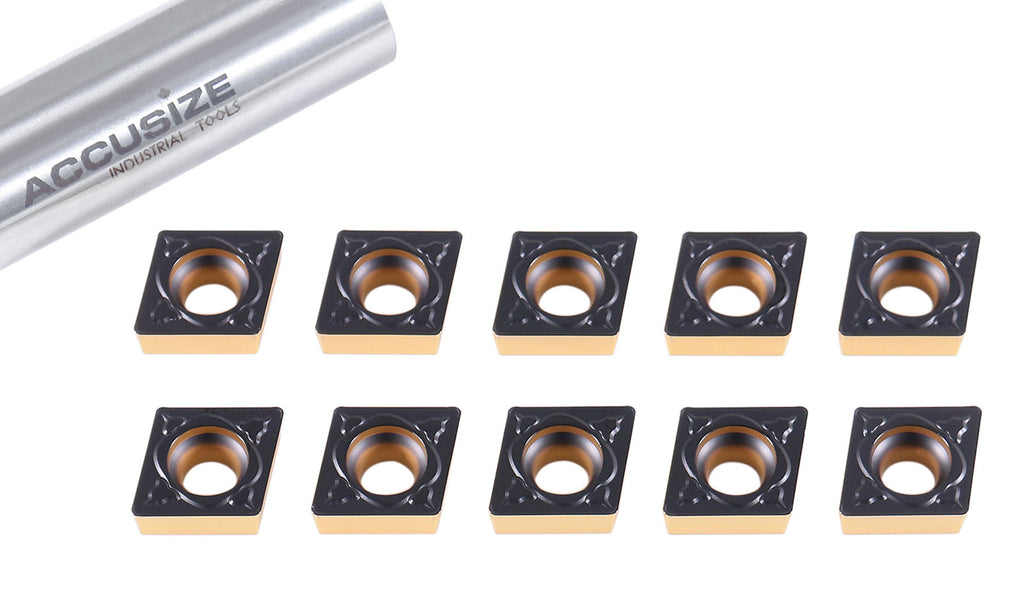

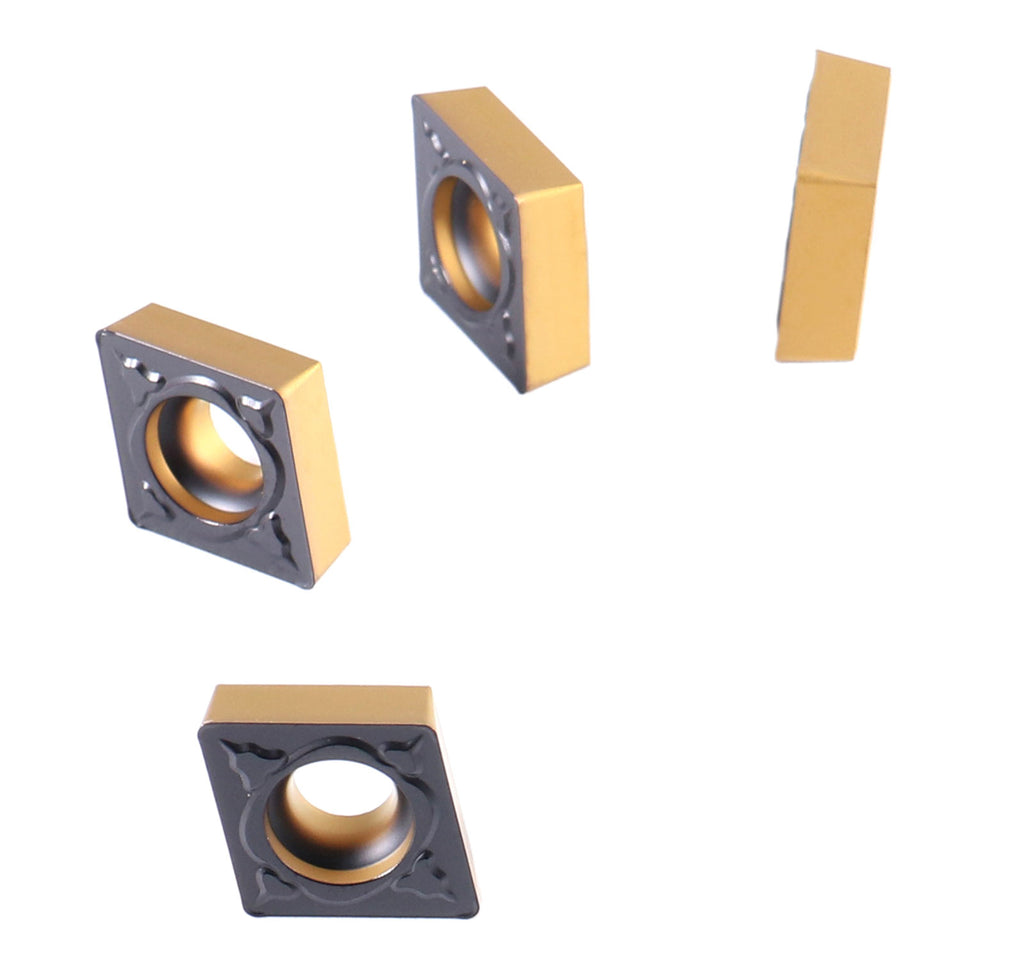

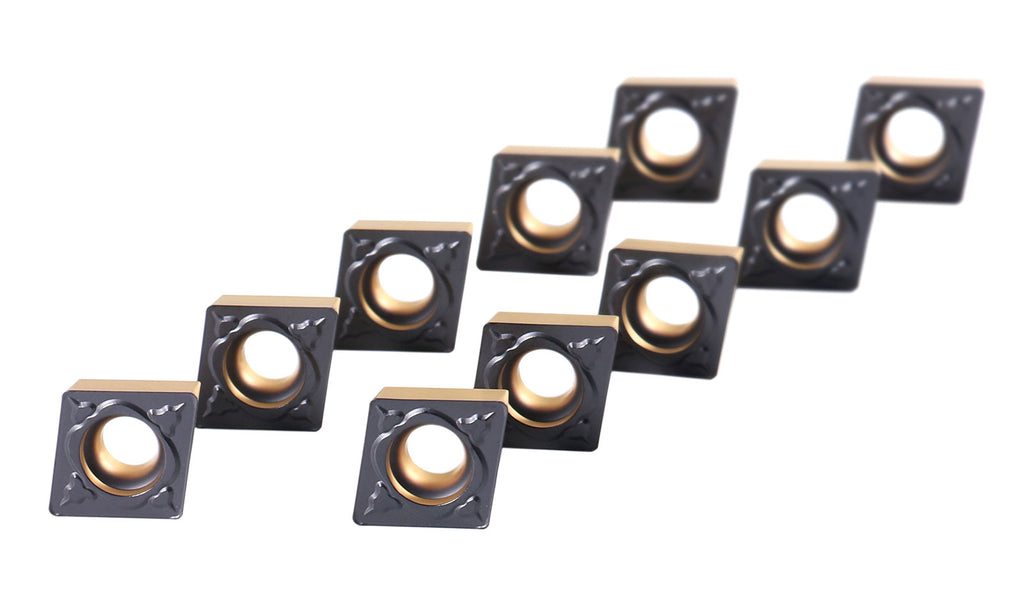

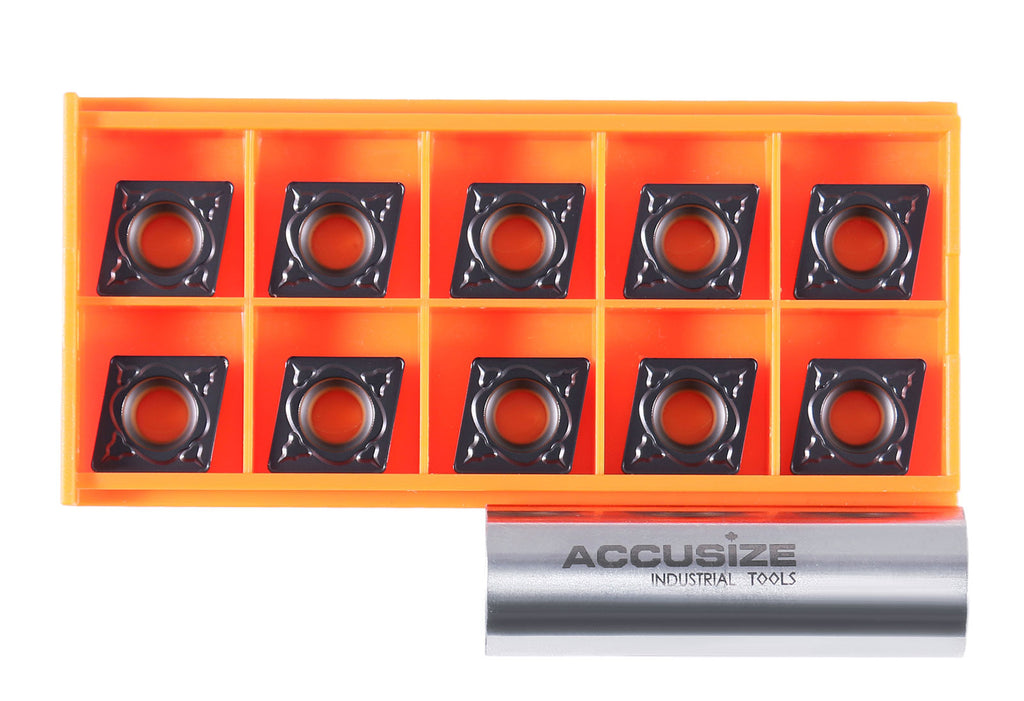

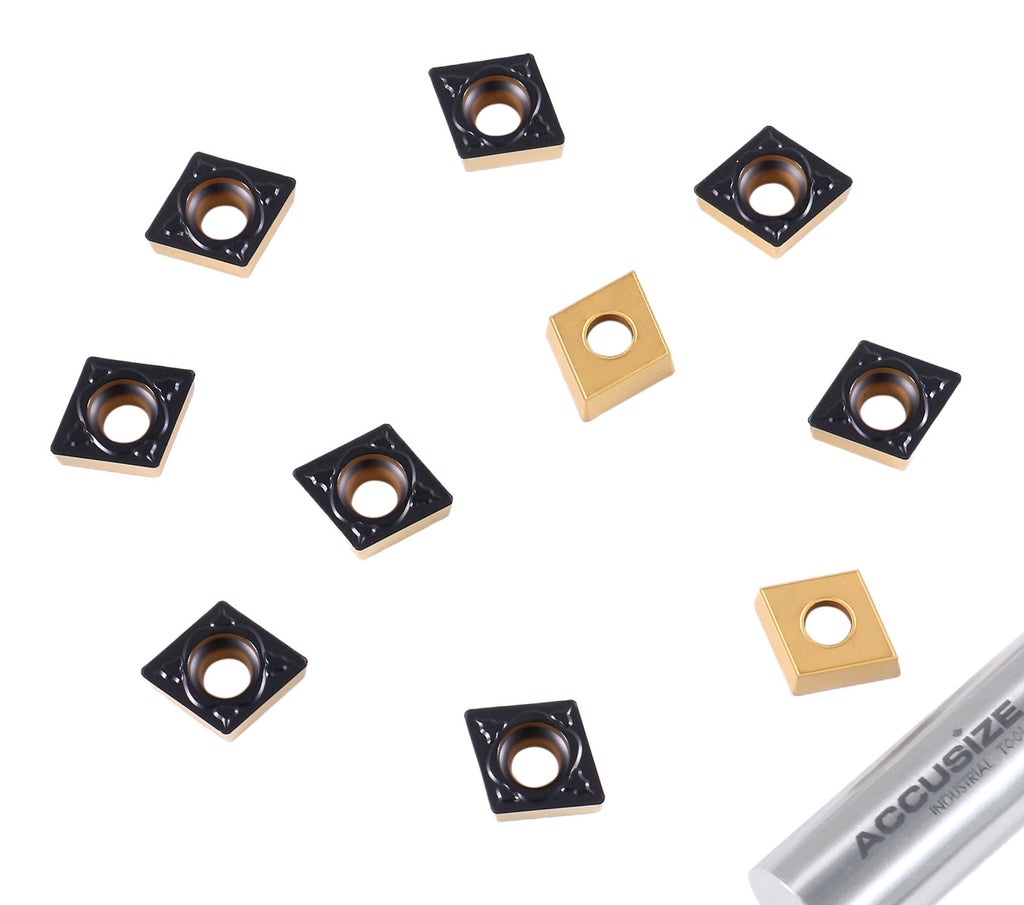

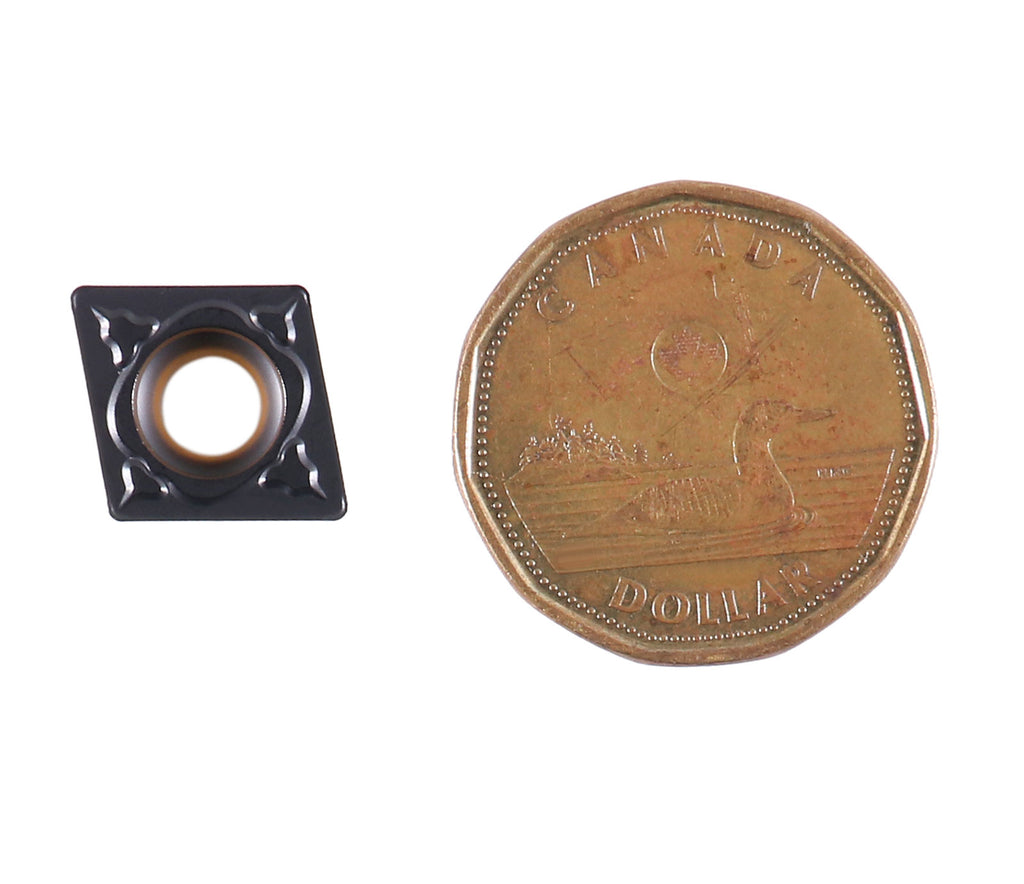

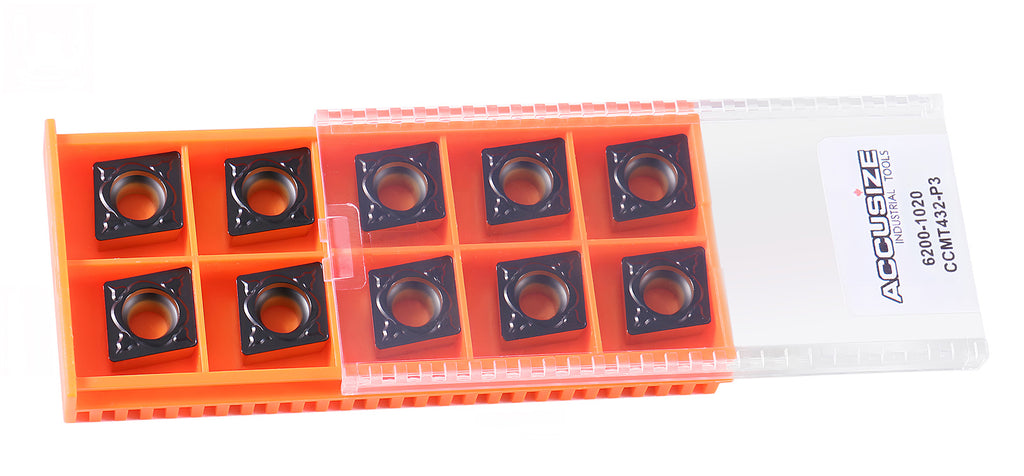

Carbide inserts, CVD + TiN Coating, CCMT, Black/Yellow, 10 ps/box

Accusize Industrial ToolsSKU: 2100-1008x10

Price:
$55.00

Shipping calculated at checkout

Currency:
CAD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

Carbide Inserts, CVD Coating, CCMT, Black/Yellow, 10 ps/box

  • Insert Style: CCMT
  • 7 degree
  • Insert Grade: BPS101
  • Chip Breaker: MD
  • Material: Carbide
  • Coating: CVD Al2O3 TICN
  • Machining Parts Material: Steel
  • Machining Process: Finish

Product features

  • BPS101 Black/Yellow Coating Grade
  • CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
  • Can bear high temperatures
  • For steel and steel castings finishing to roughing processing
  • Continue cutting to light interrupted cutting
  • Machining of gray and ductile iron at low to medium cutting speed
  • For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
  • Wet and dry processing
  • Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
  • Preferred choice chip breaker on General Purpose Finishing

Features of chipbreaker

  • For medium-duty turning with broad capability for steel, stainless steel, grey, and nodular cast-iron
  • Operations: turning, facing, and profiling
  • Advantages: all-round, reliable with problem-free machining
  • Limitations: depth of cut and feed, risk of overloading the cutting edge
  • Components typically: axles, shafts, hubs, gears, etc.
Item # Product # Coating ANSI # I.S.O. # I.C Thickness Hole Radius
6200-1008
2200-1008 CVD CCMT21.51-MD CCMT060204-MD 1/4" 3/32" 0.110" 1/64"
6100-1008
2100-1008 TiN CCMT21.51 CCMT060204 1/4" 3/32" 0.110" 1/64"
6200-1014
2200-1014 CVD CCMT32.51-MD CCMT09T304-MD 3/8" 5/32" 0.173" 1/64"
6200-1016
2200-1016 CVD CCMT32.52-MD CCMT09T308-MD 3/8" 5/32" 0.173" 1/32"
6200-1020
2200-1020 CVD CCMT432-MD CCMT120408-MD 1/2" 3/16" 0.216" 1/32"

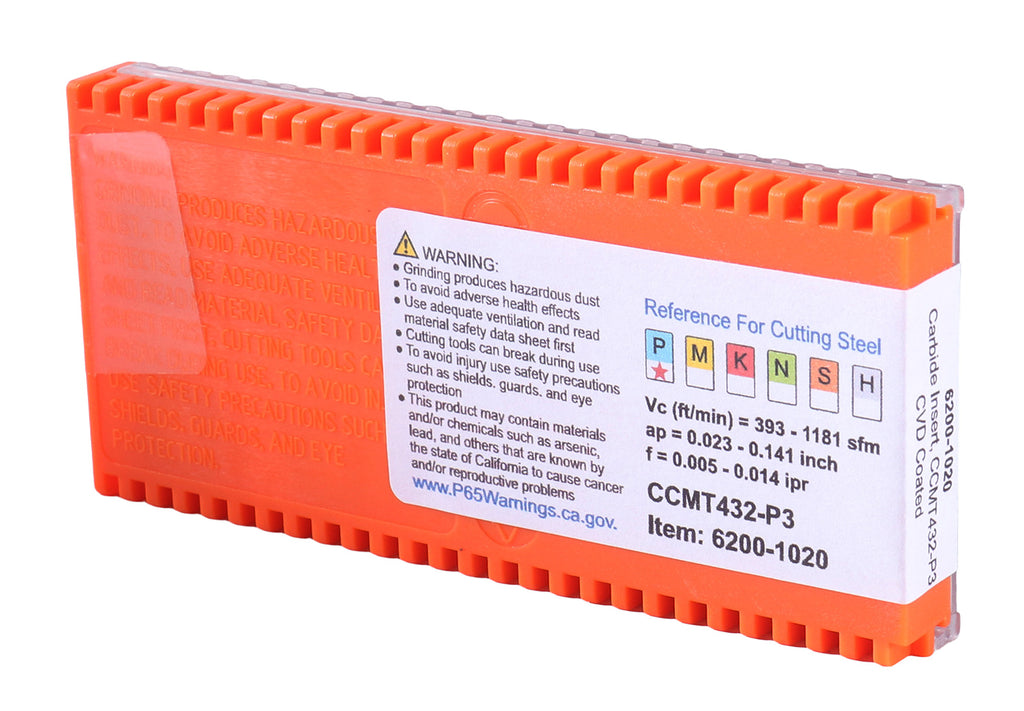

Recommended Cutting Parameter

Item # / Product #

Depth of Cut

ap

Feed Speed

fn=inch/r

Cutting Speed

Vc(ft/min)

6200-1008 / 2200-1008
6200-1014 / 2200-1014 0.014-0.098 inch .004-0.012 ipr 393-1181 sfm
6200-1016 / 2200-1016
6200-1020 / 2200-1020
