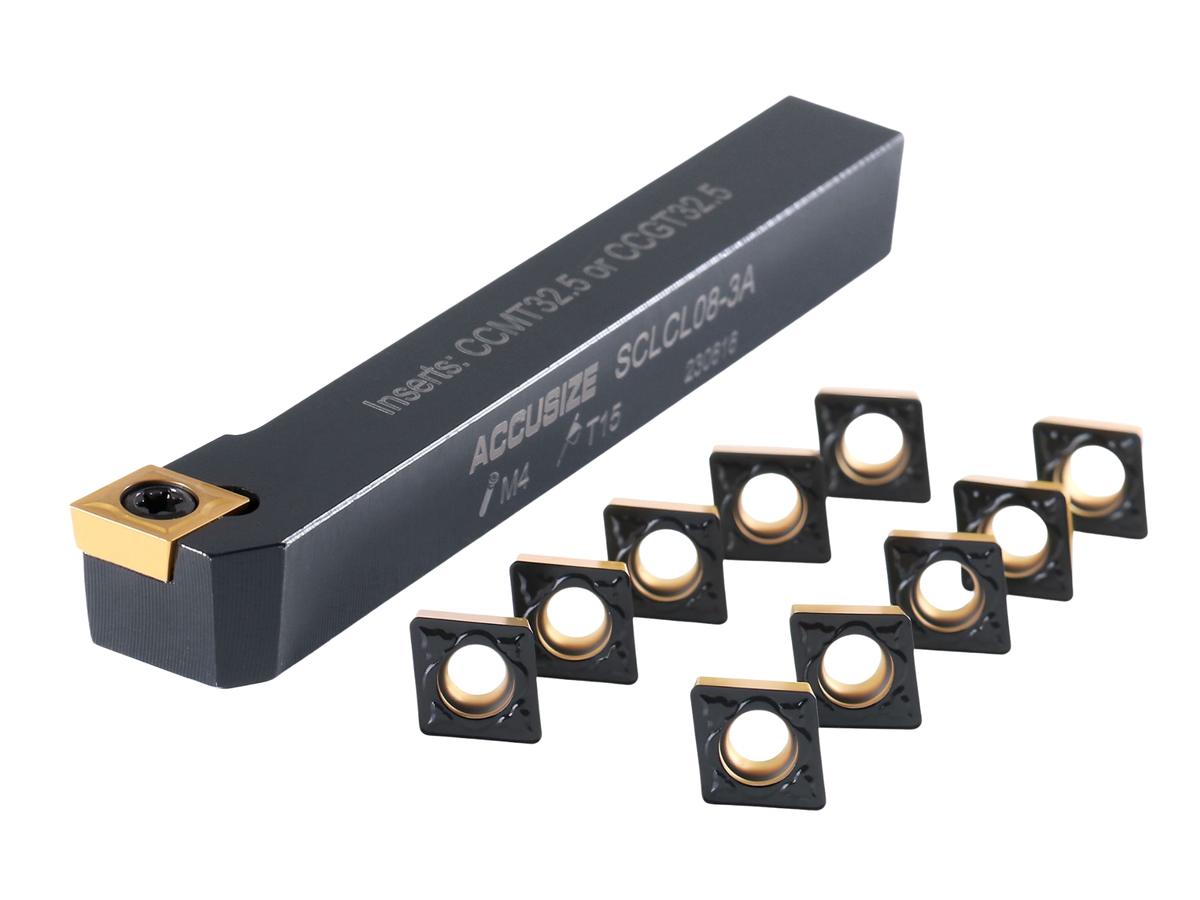

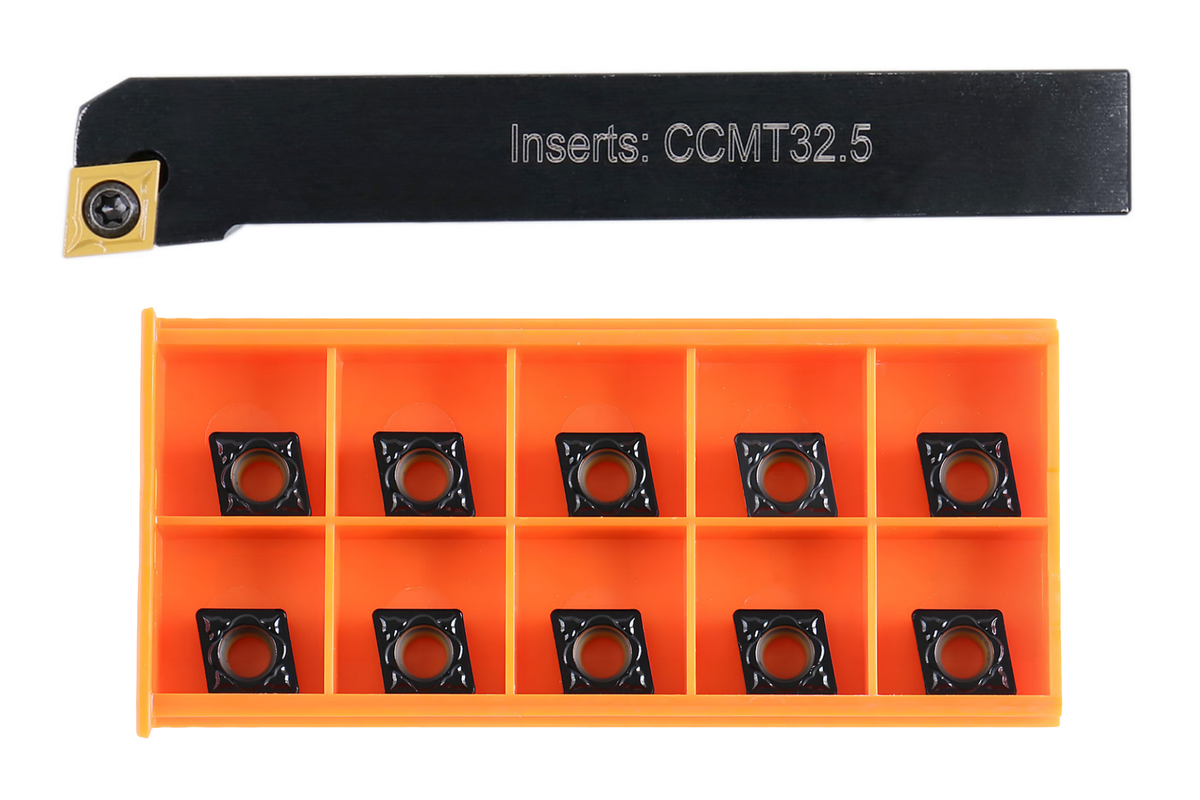

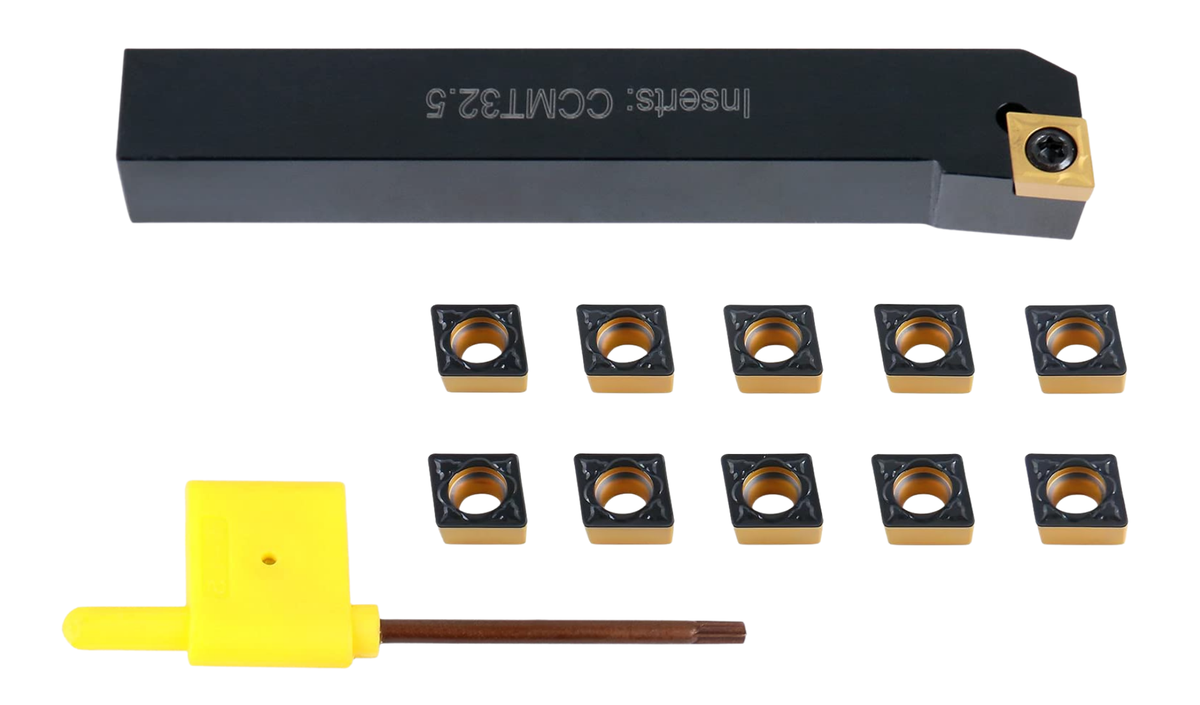

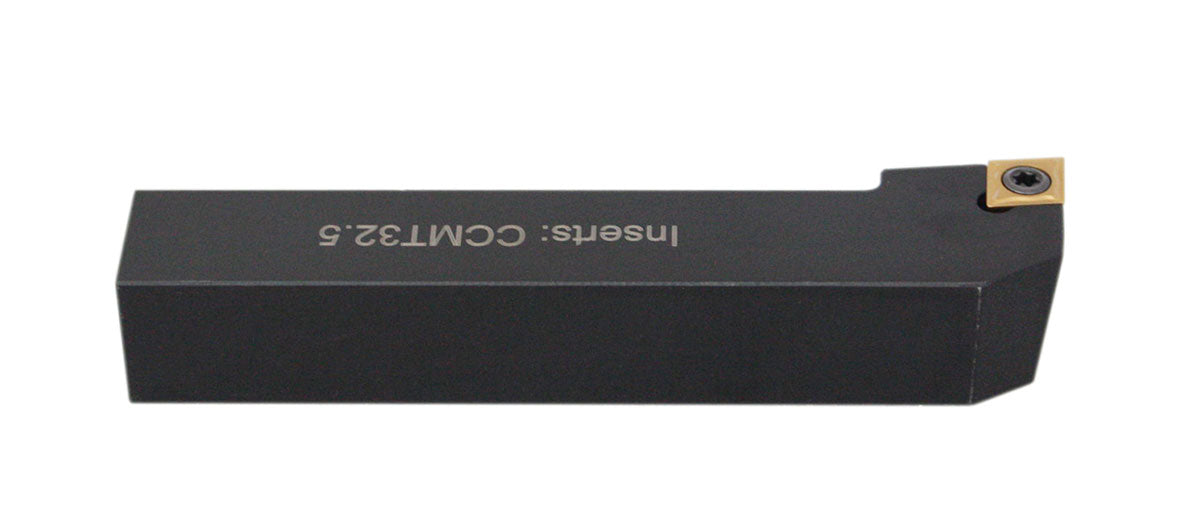

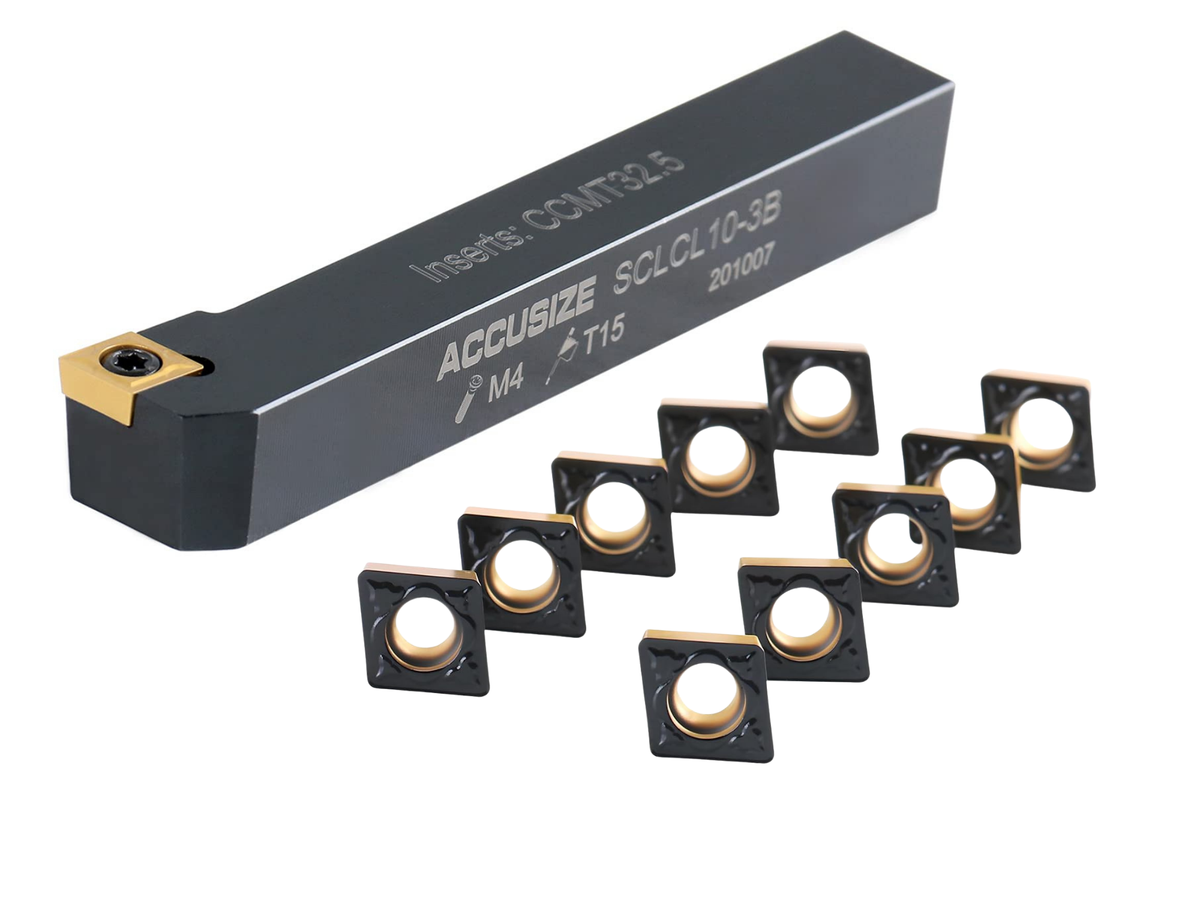

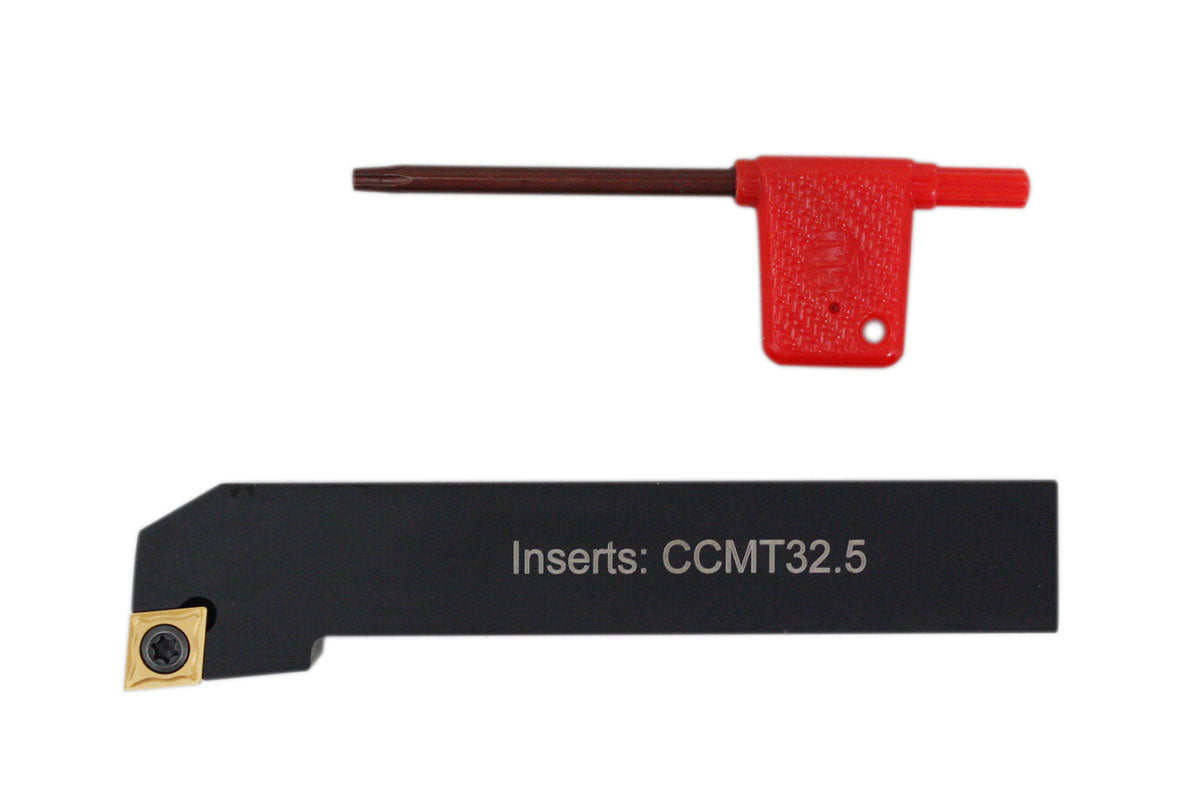

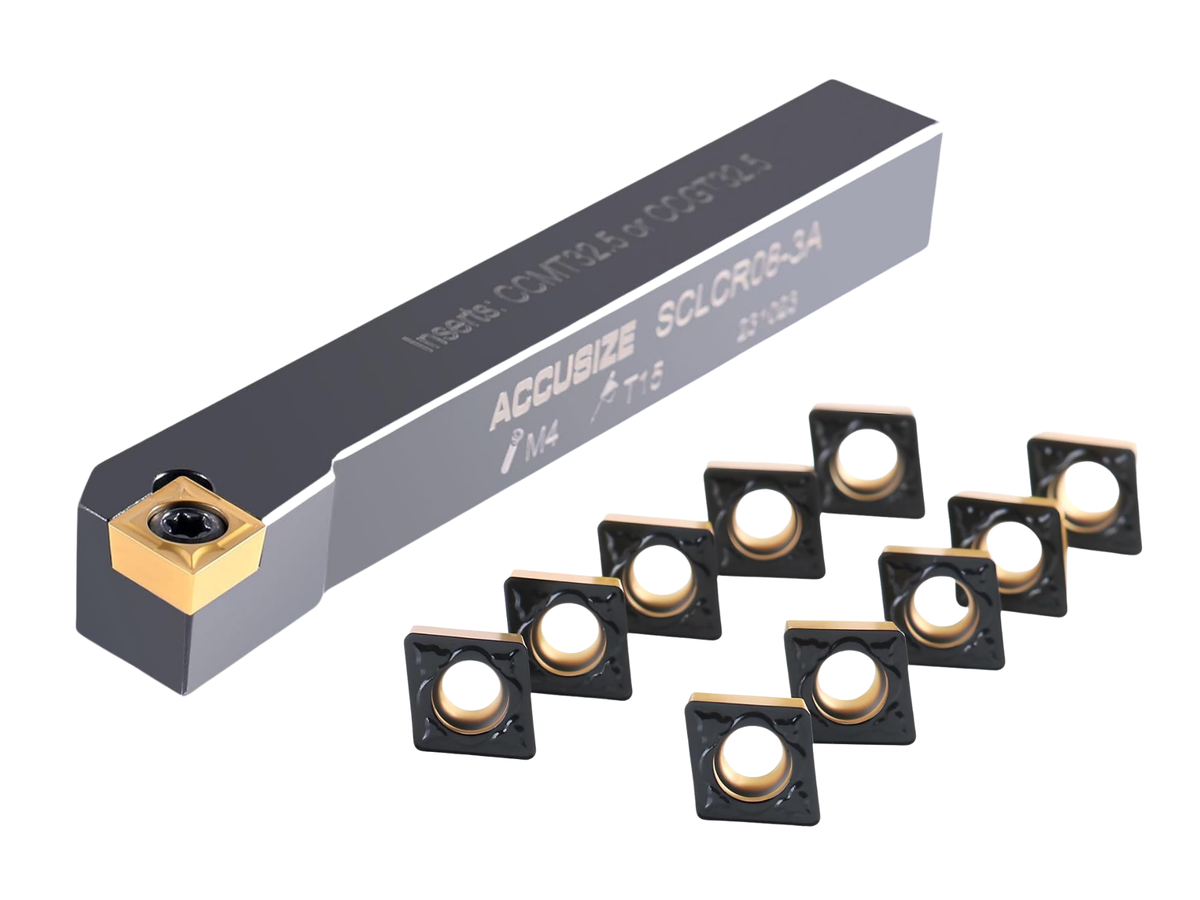

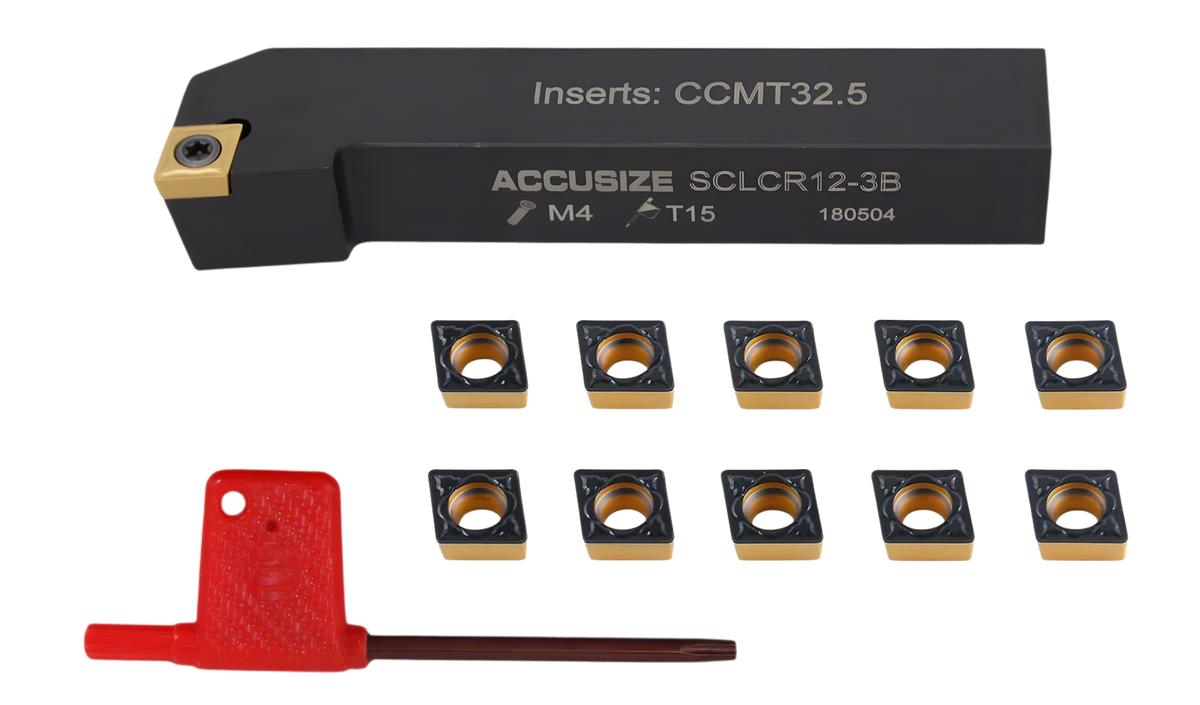

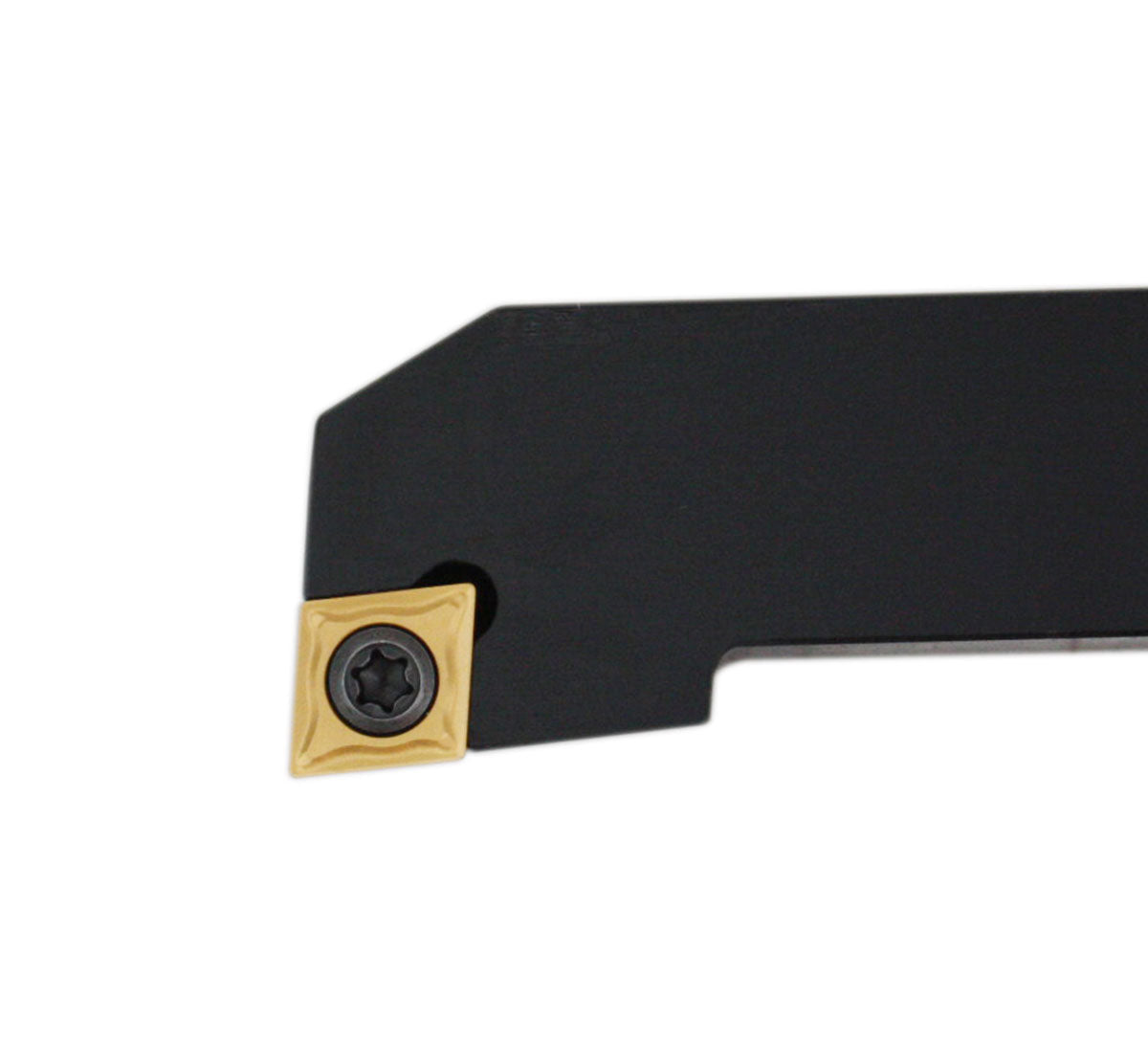

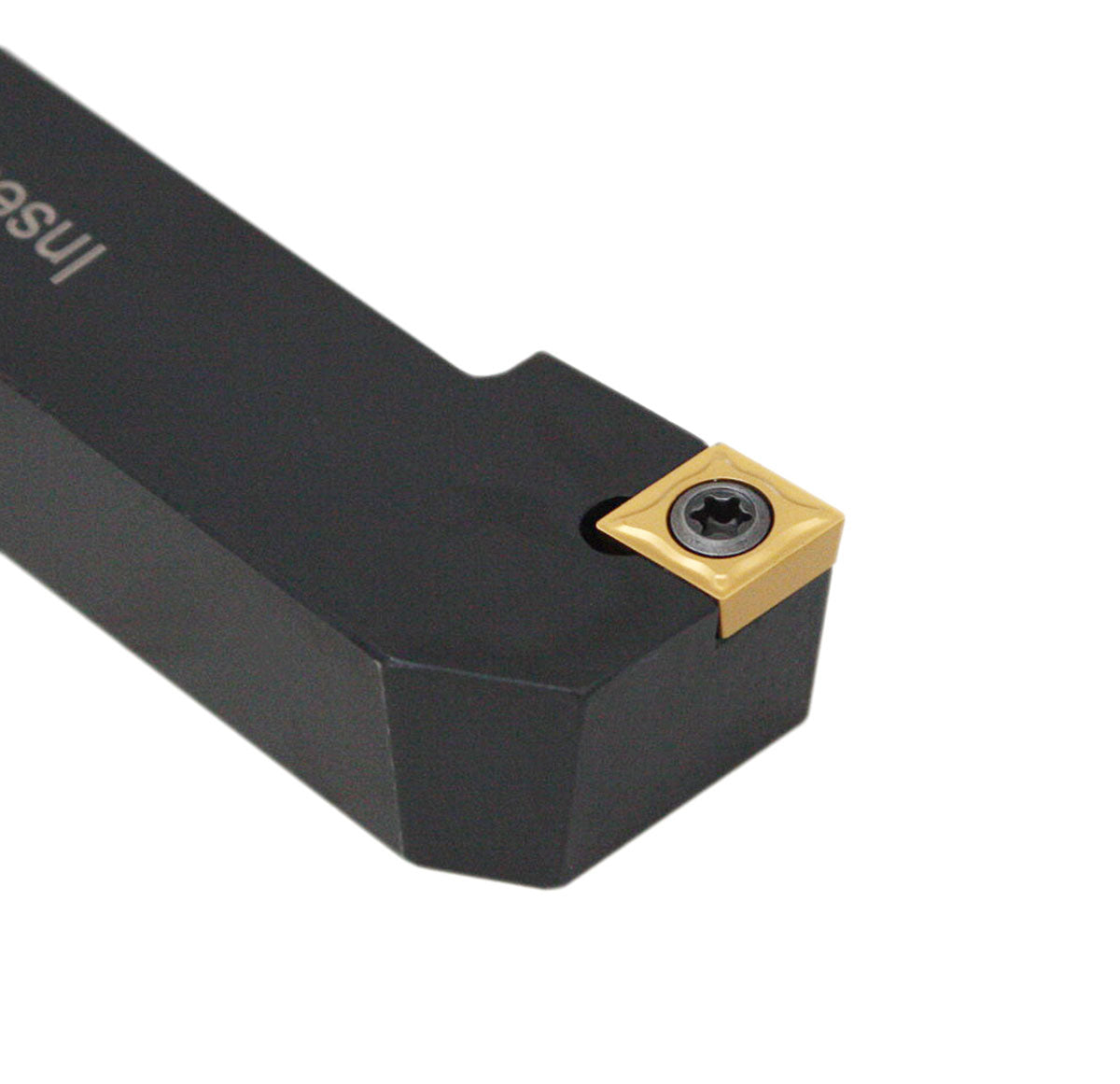

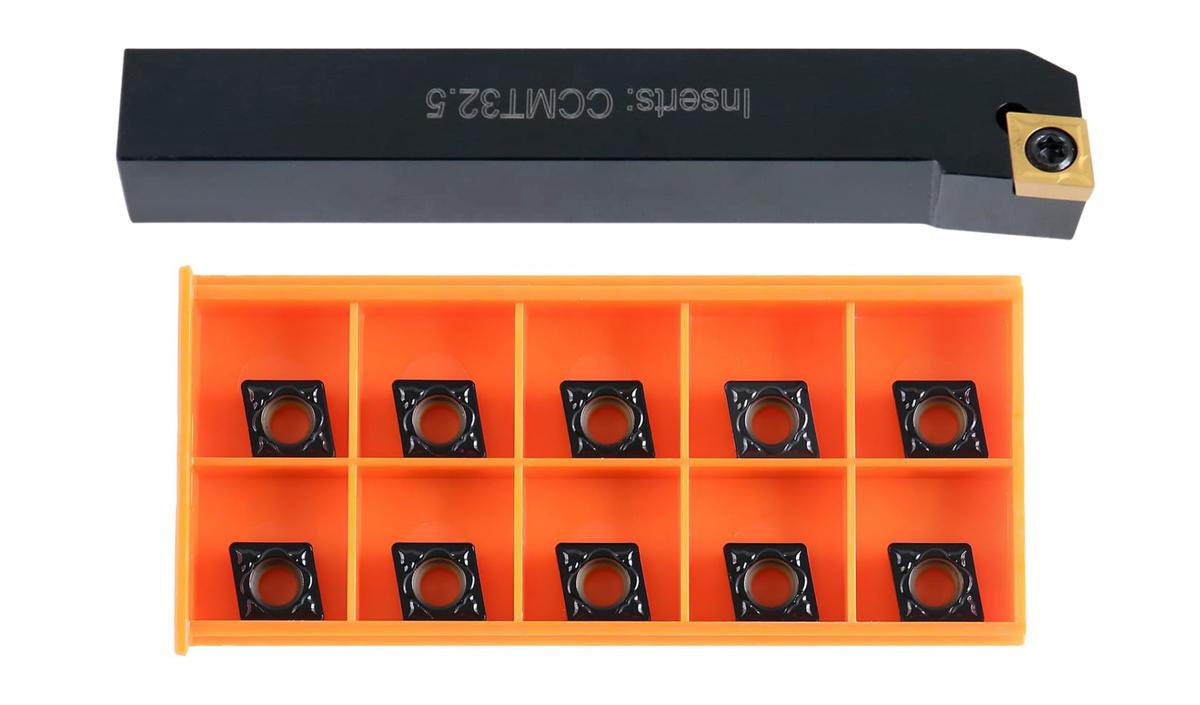

SCLC R/L Toolholders with Extra 10 CCMT Carbide CVD Coated Inserts

Accusize Industrial ToolsSKU: 2370-6006INS

Price:
$94.00

Shipping calculated at checkout

Currency:
CAD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

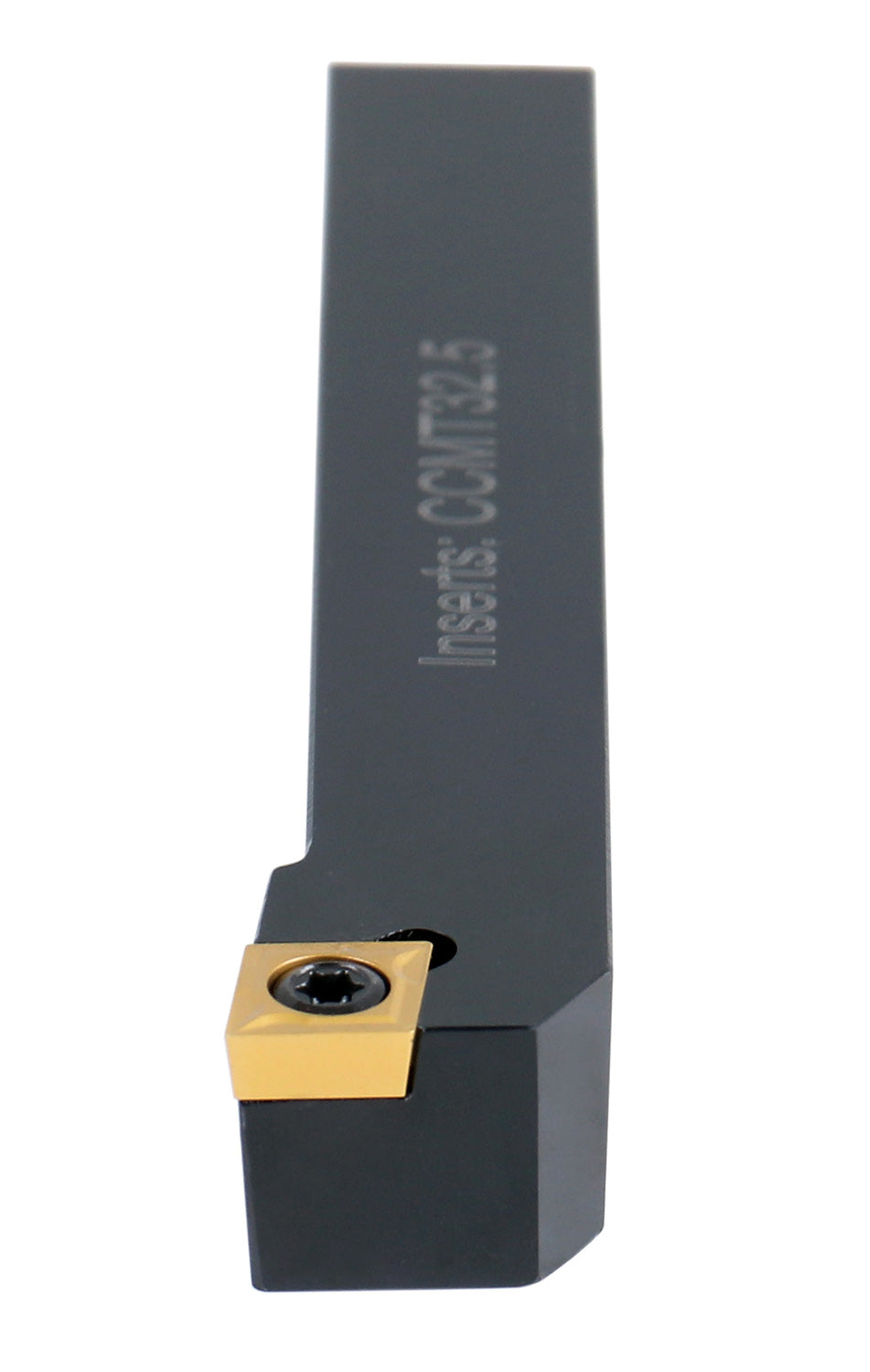

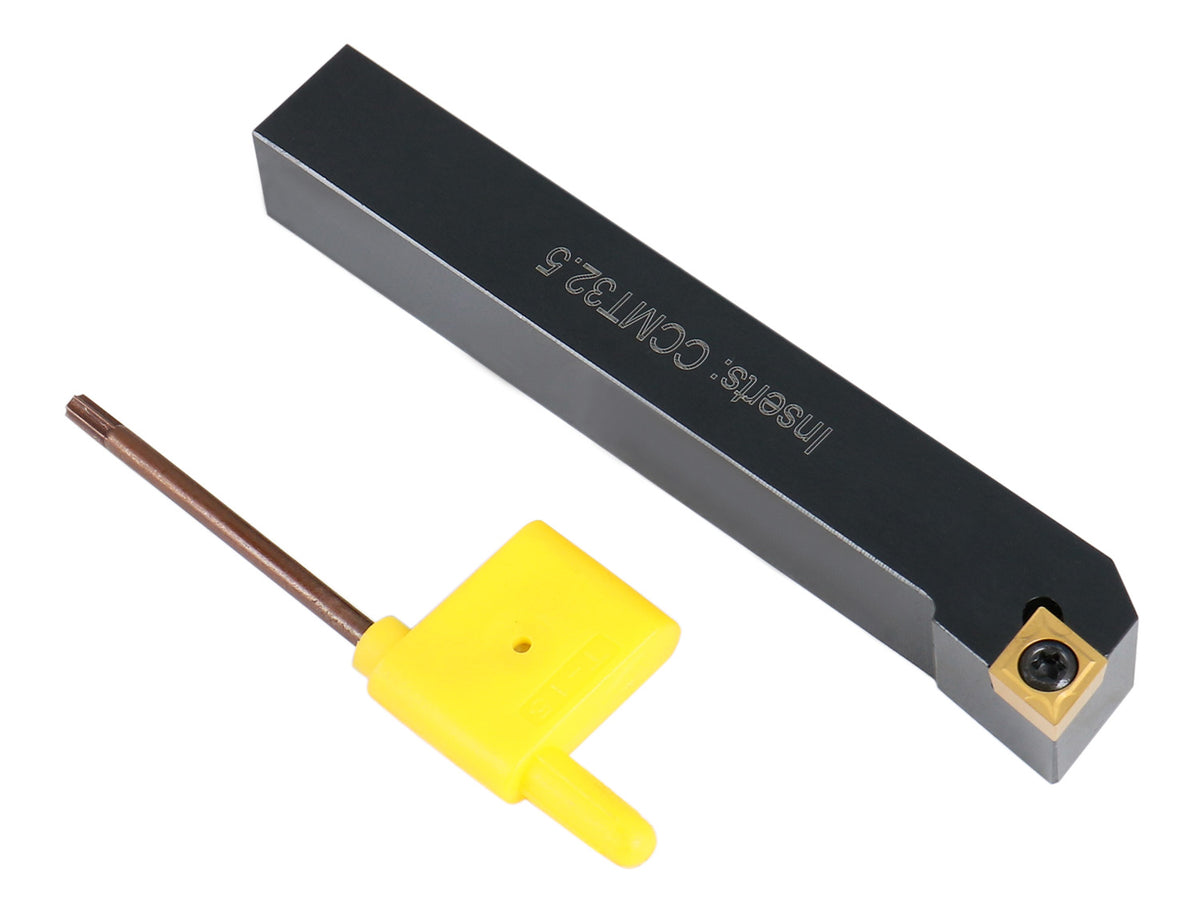

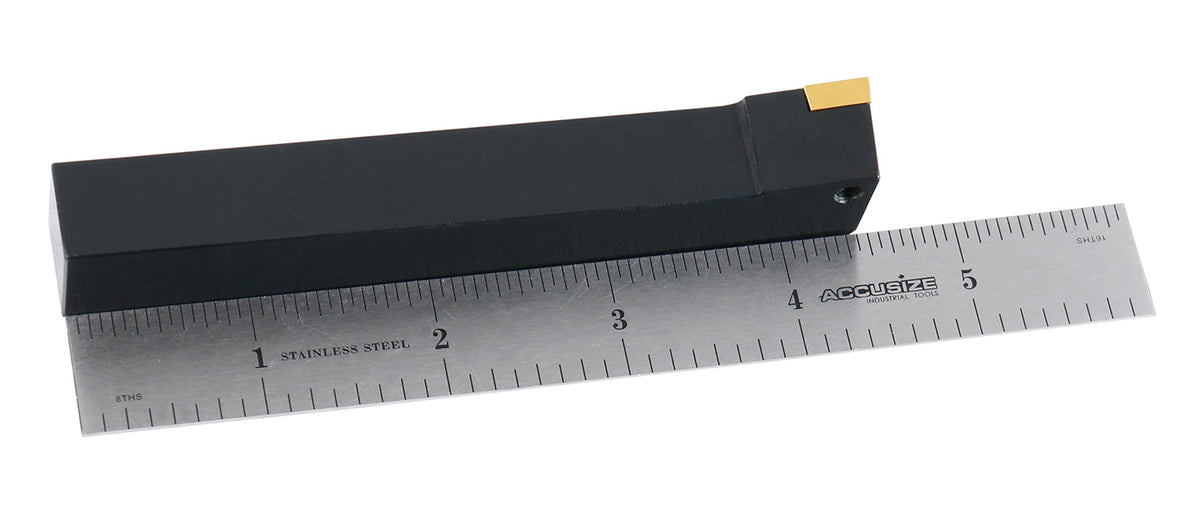

SCLC R/L Toolholders with 10 pc CCMT Carbide CVD Coated Inserts

  • Negative 5° end or side cutting edge angle for a positive 80° diamond CCMT CCGX inserts

 ** For purchasing additional inserts, you may find the corresponding Insert SKU below



Item SKU# Right /Left Hand

Toolholder

(SKU)

Shank Square (A & B) OAL (C) F

Included Inserts (SKU)

Compatible but not included Insert  (SKU)

Insert QTY

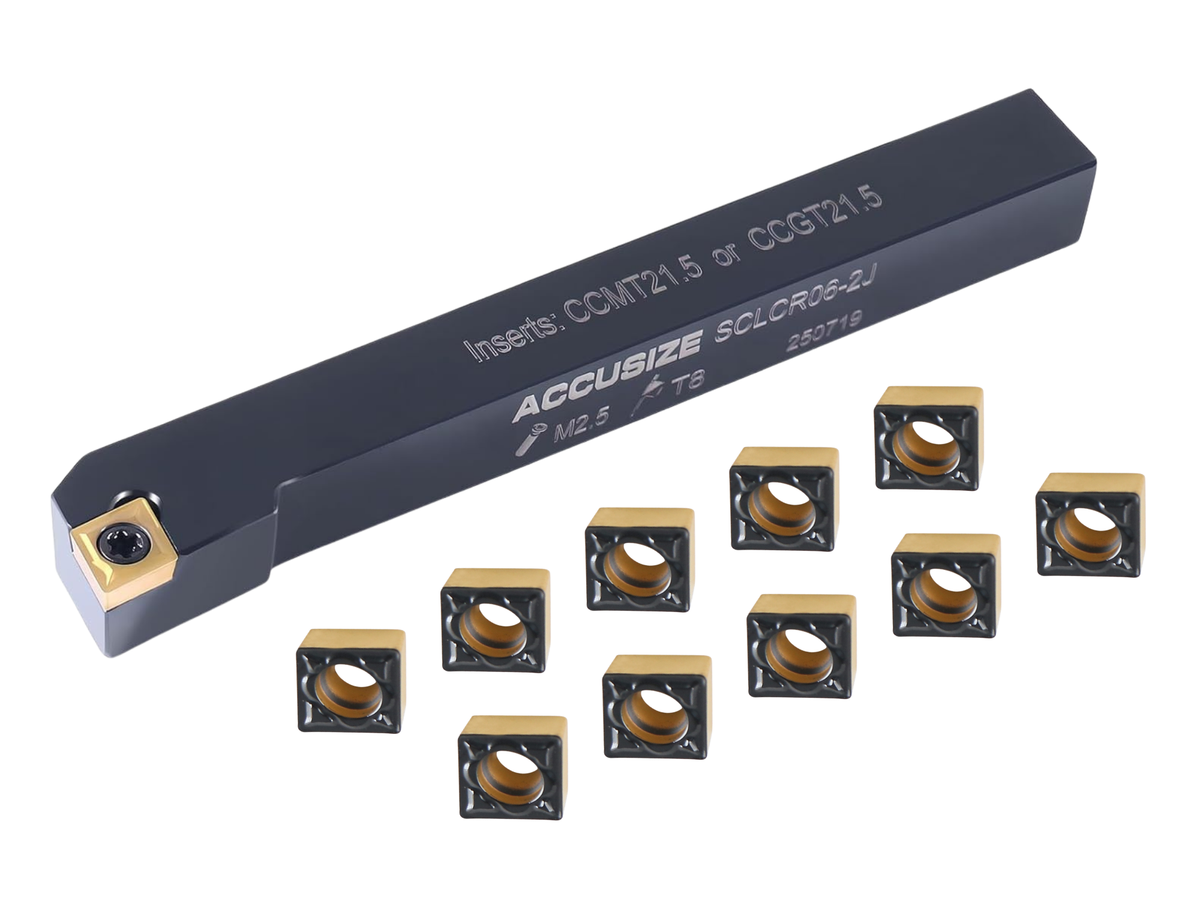

2370-5004INS Right

SCLC R-06-2J

(2370-5004)

3/8" 3-1/2" 1/2"

CCMT 21.5

(CVD Coated CCMT21.51-MD, 2200-1008)

CCMT 21.5

(TiN Coated CCMT21.51, 2100-1008)

10

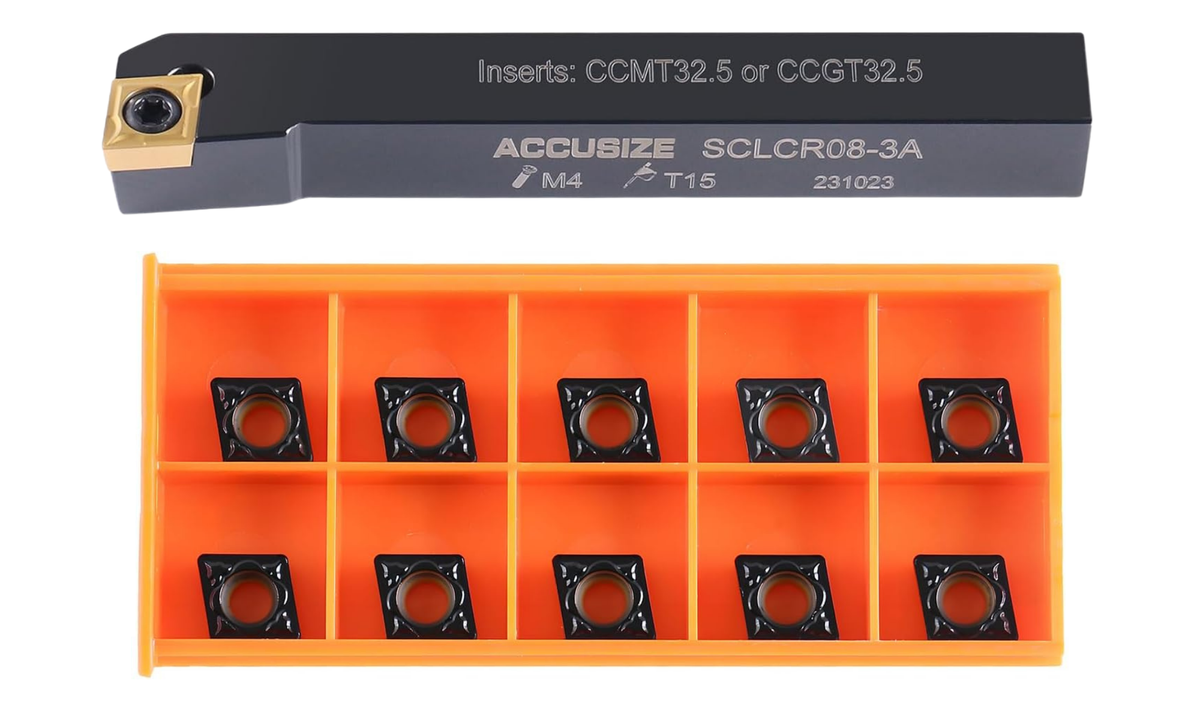

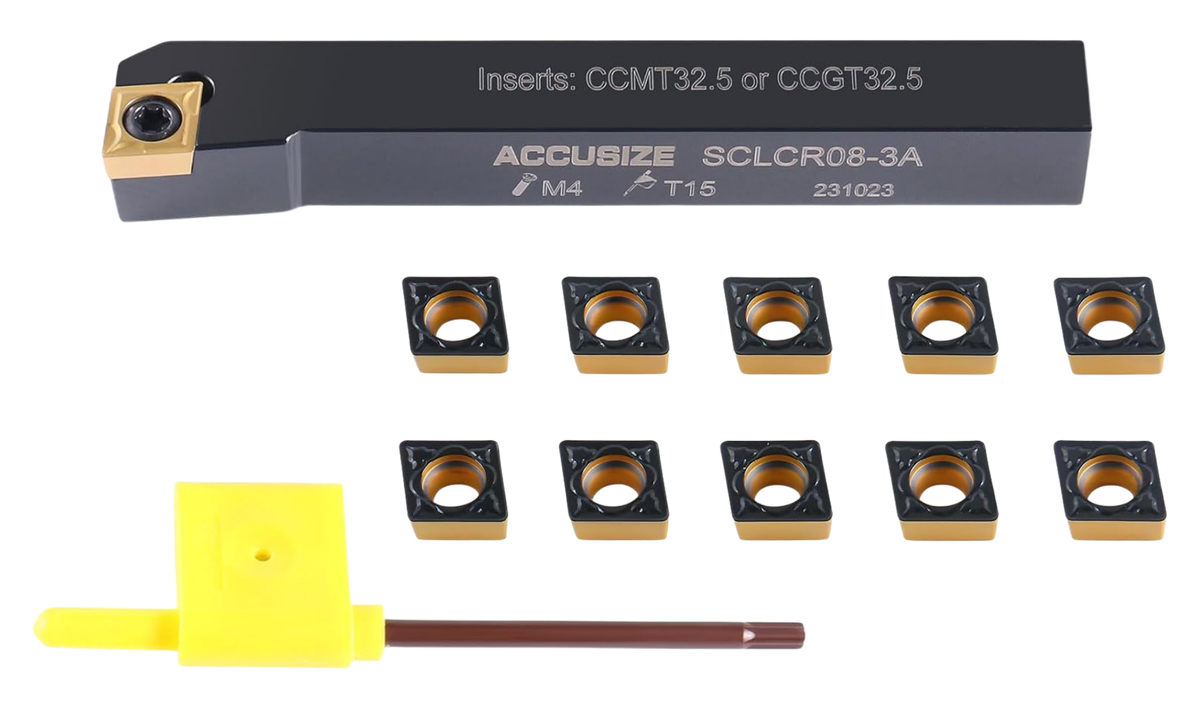

2370-5006INS Right

SCLC R-08-3A

(2370-5006)

1/2" 4" 5/8"

CCMT 32.5

(CVD Coated CCMT32.52-MD, 2200-1016)

CCMT 32.5

(CVD Coated CCMT32.51-MD, 2200-1014)

10

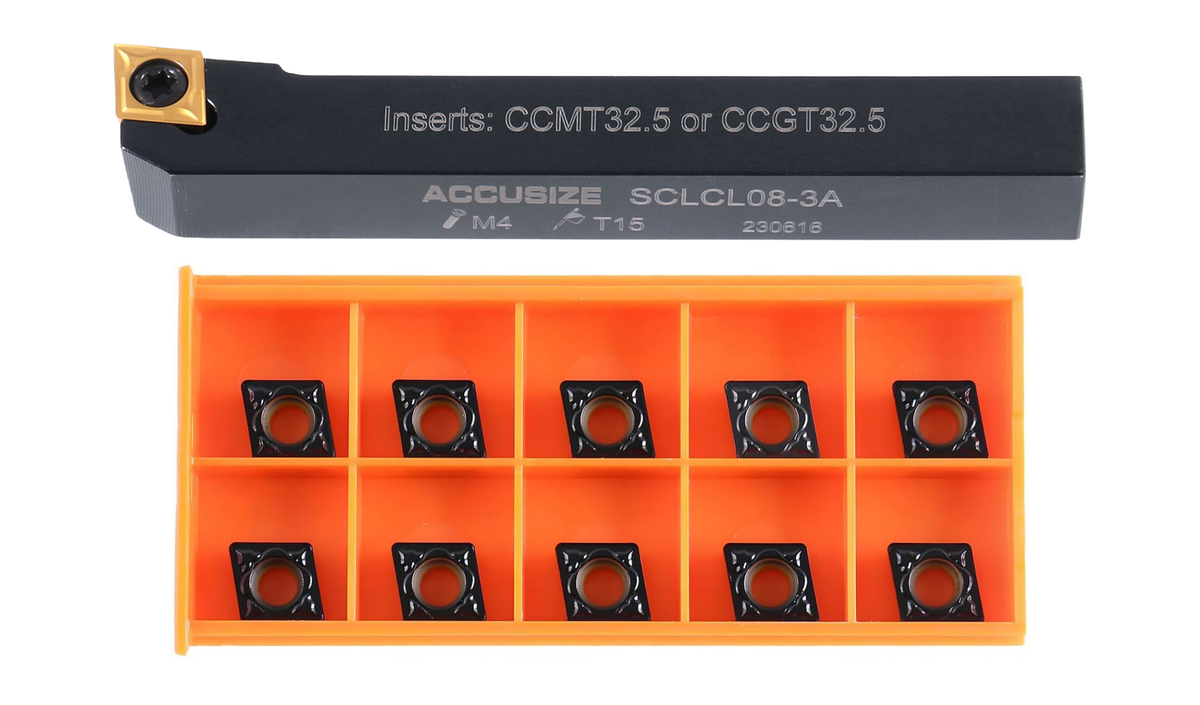

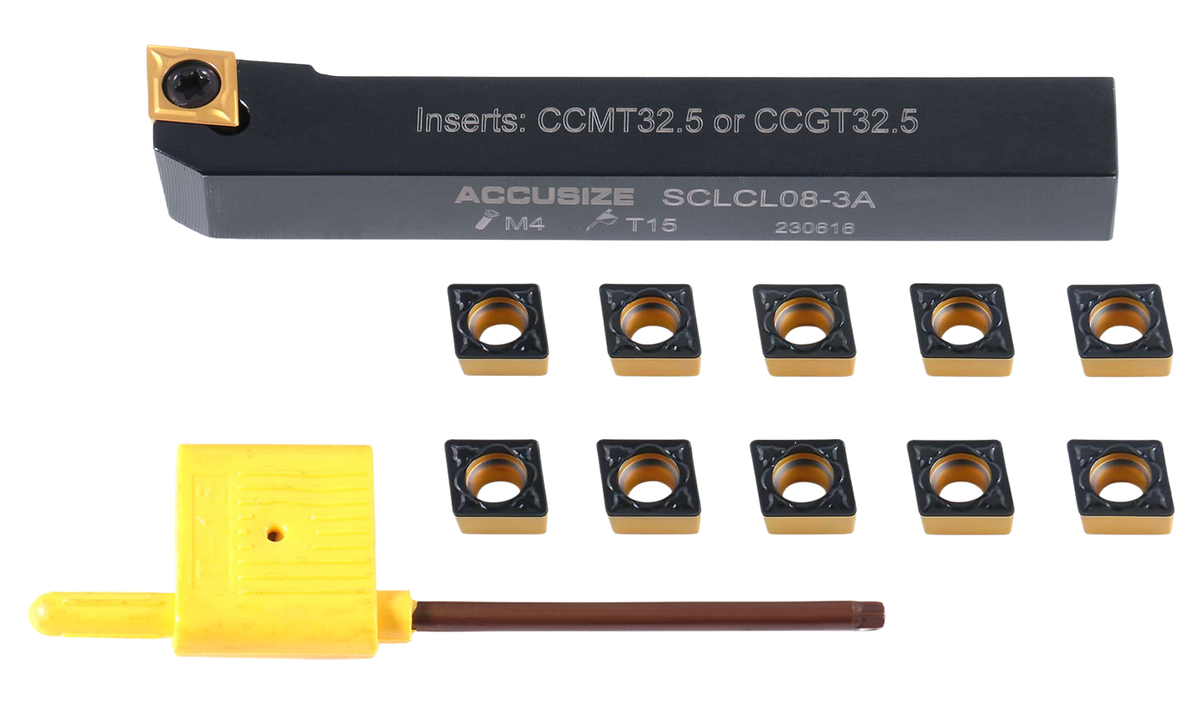

2370-6006INS Left

SCLC L-08-3A

(2370-6006)

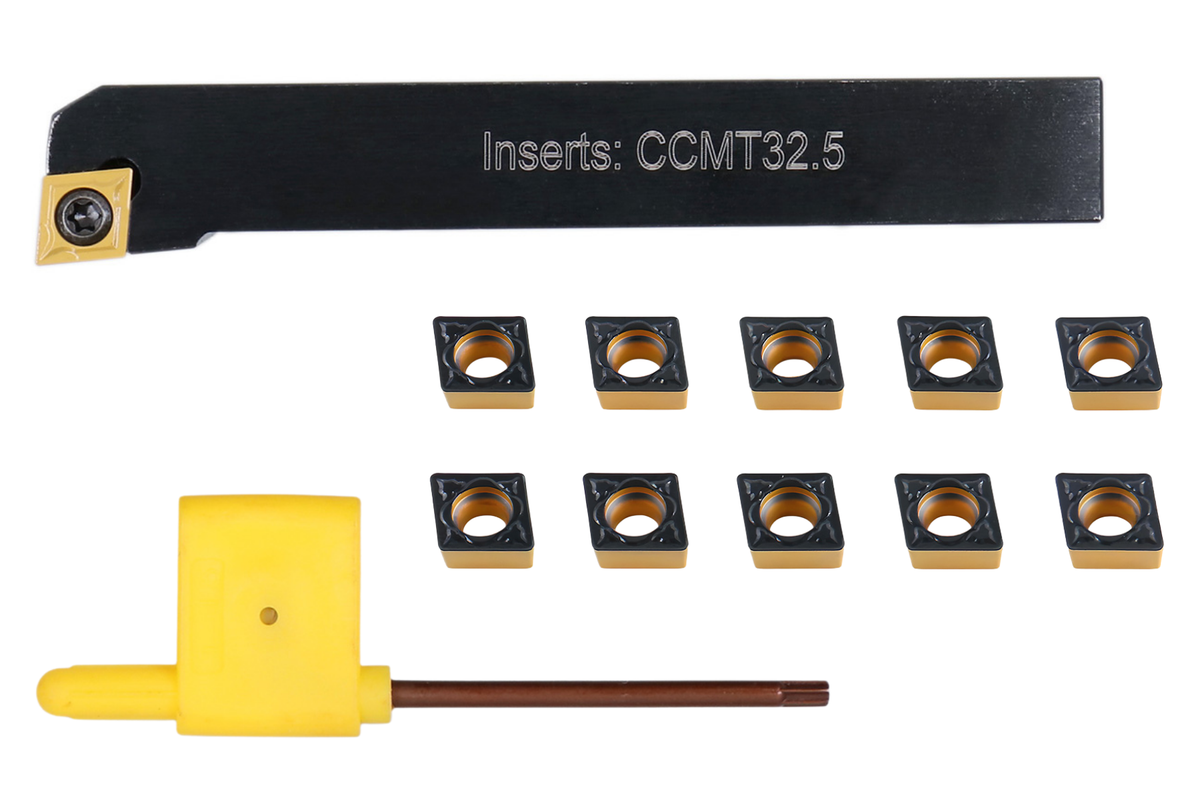

2370-5008INS Right

SCLC R-10-3B

(2370-5008)

5/8" 4-1/2" 3/4"

CCMT 32.5

(CVD Coated CCMT32.52-MD, 2200-1016)

CCMT 32.5

(CVD Coated CCMT32.51-MD, 2200-1014)

10

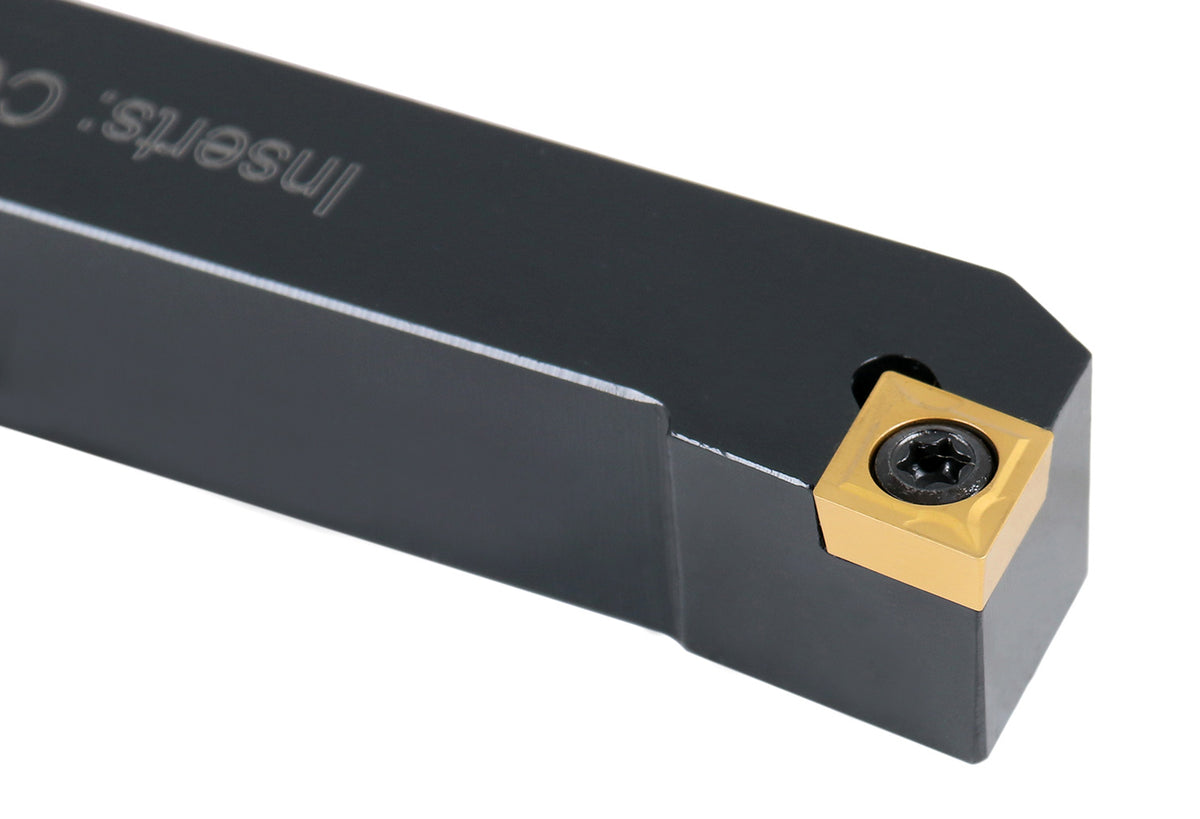

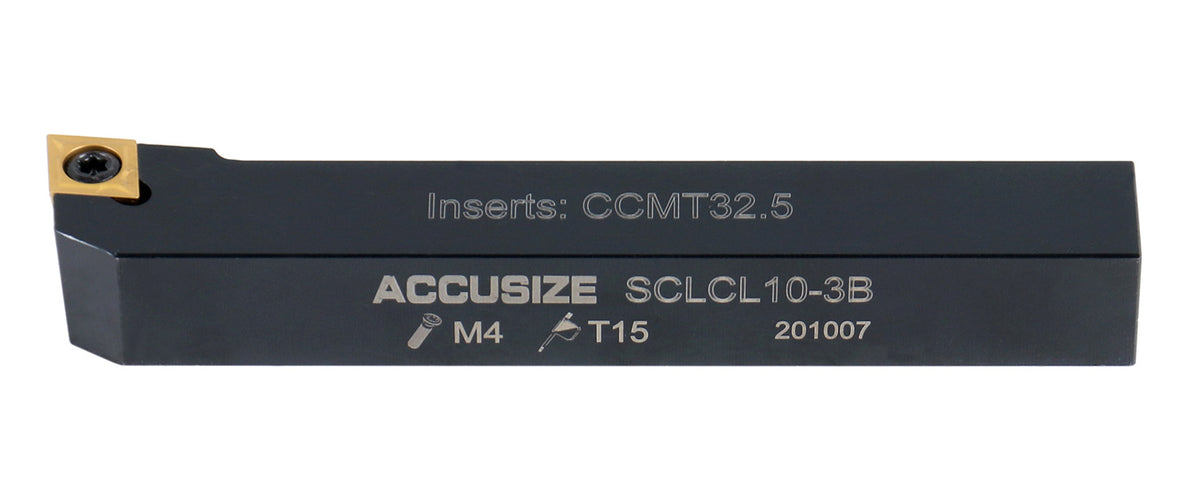

2370-6008INS Left

SCLC L-10-3B

(2370-6008)

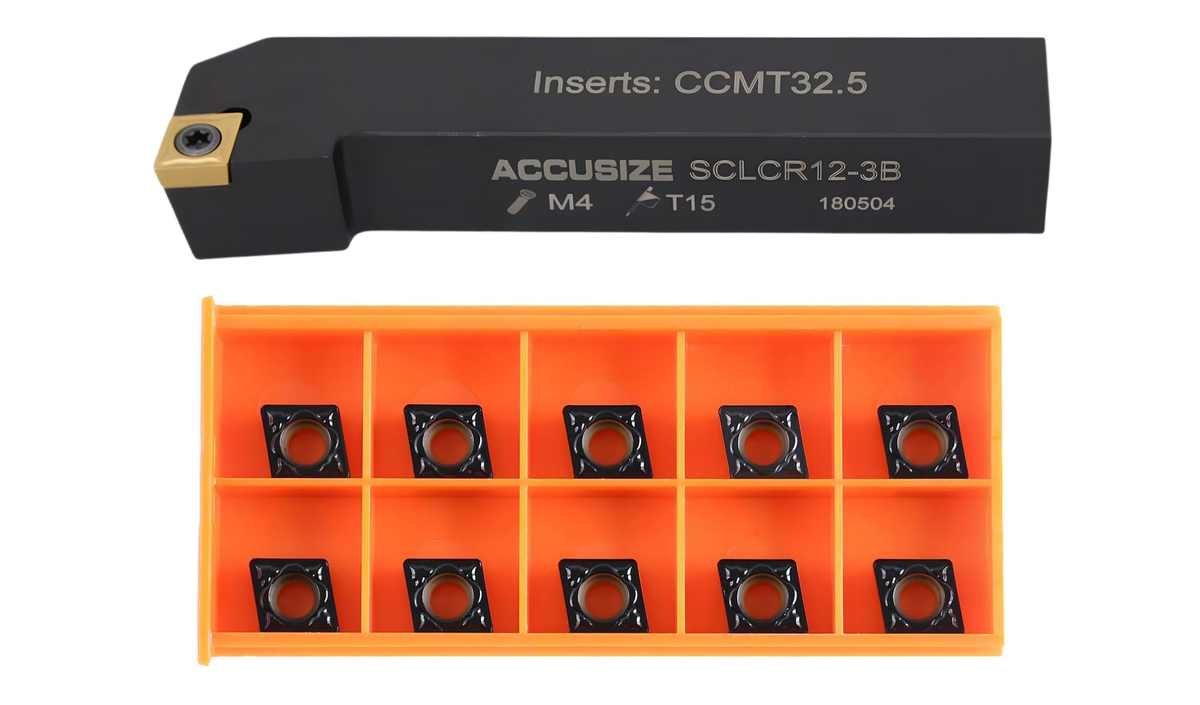

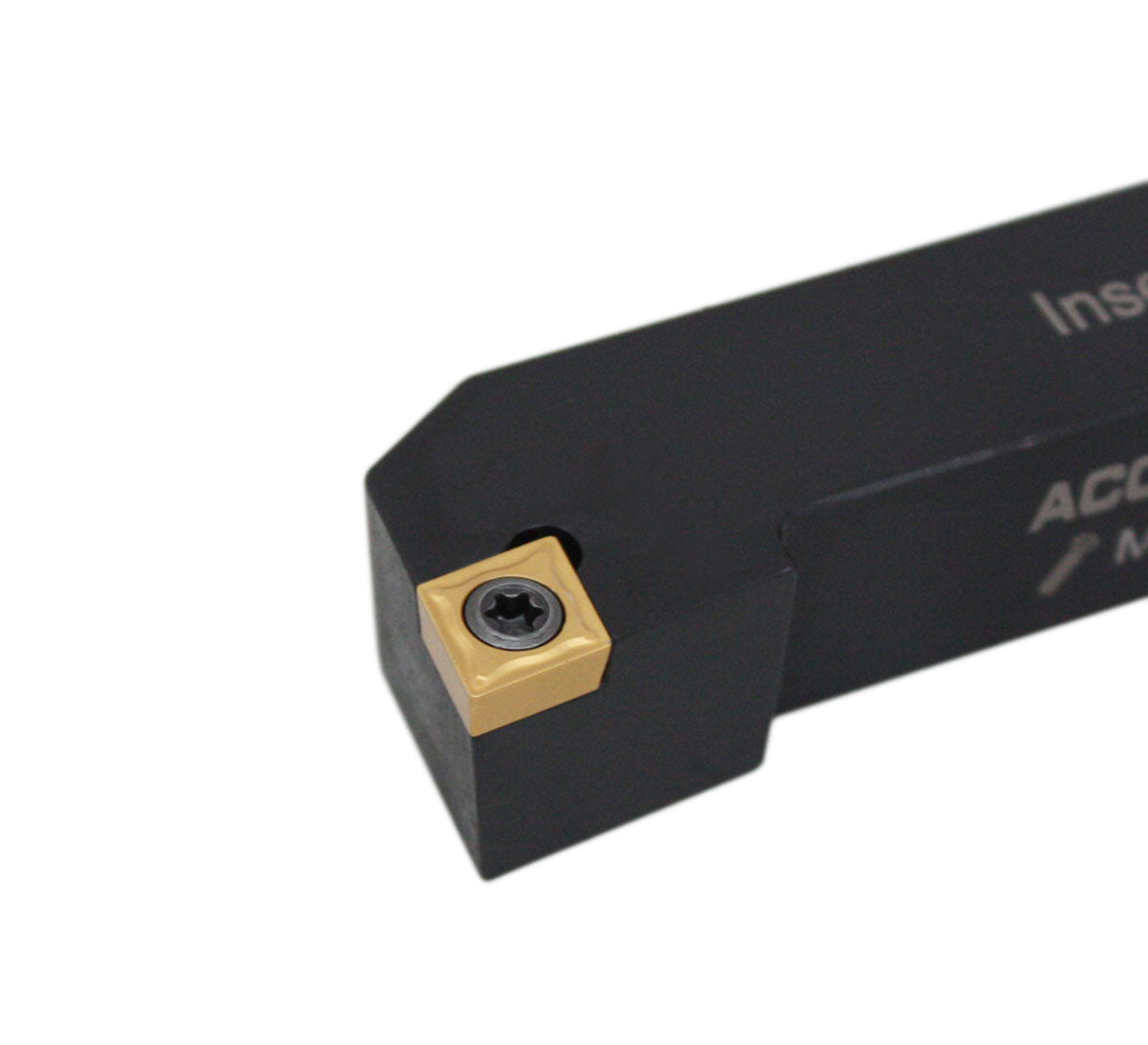

2370-5010INS Right

SCLC R-12-3B

(2370-5010)

3/4" 4-1/2" 1"

CCMT 32.5

(CVD Coated CCMT32.52-MD, 2200-1016)

CCMT 32.5

(CVD Coated CCMT32.51-MD, 2200-1014)

10































DIAGRAM OF SCLC TOOL HOLDER





Carbide Inserts, CVD Coating, CCMT, Black/Yellow, 10 ps/box

Carbide Inserts, CVD Coating, CCMT

  • Insert Style: CCMT
  • 7 degree
  • Insert Grade: BPS101
  • Chip Breaker: MD
  • Material: Carbide
  • Coating: CVD Al2O3 TICN
  • Machining Parts Material: Steel
  • Machining Process: Finish

Product features

  • BPS101 Black/Yellow Coating Grade
  • CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
  • Can bear high temperatures
  • For steel and steel castings finishing to roughing processing
  • Continue cutting to light interrupted cutting
  • Machining of gray and ductile iron at low to medium cutting speed
  • For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
  • Wet and dry processing
  • Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
  • Preferred choice chip breaker on General Purpose Finishing

Features of chip breaker

  • For medium-duty turning with broad capability for steel, stainless steel, grey and nodular cast-iron
  • Operations: turning, facing and profiling
  • Advantages: all-round, reliable with problem-free machining
  • Limitations: depth of cut and feed, risk of overloading the cutting edge
  • Components typically: axles, shafts, hubs, gears, etc.
