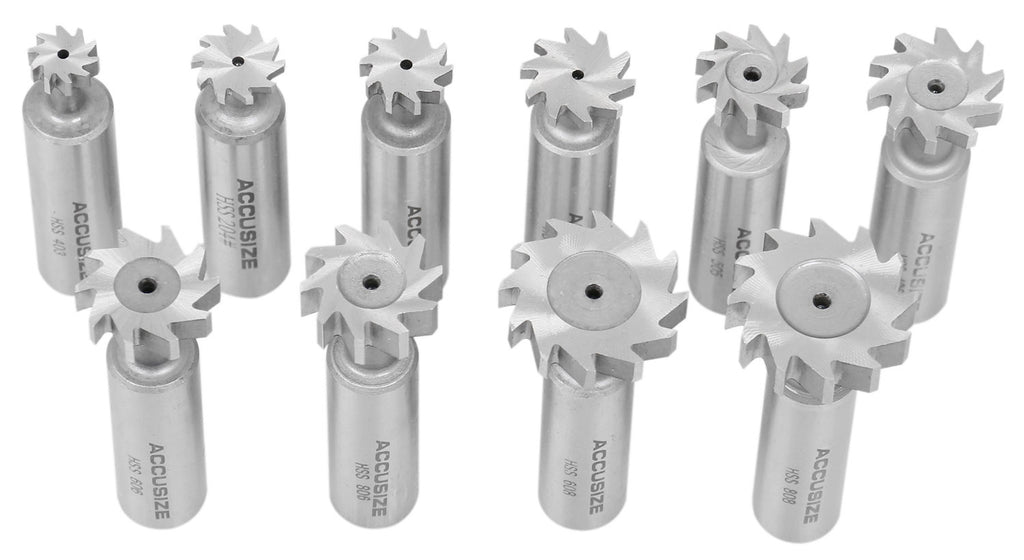

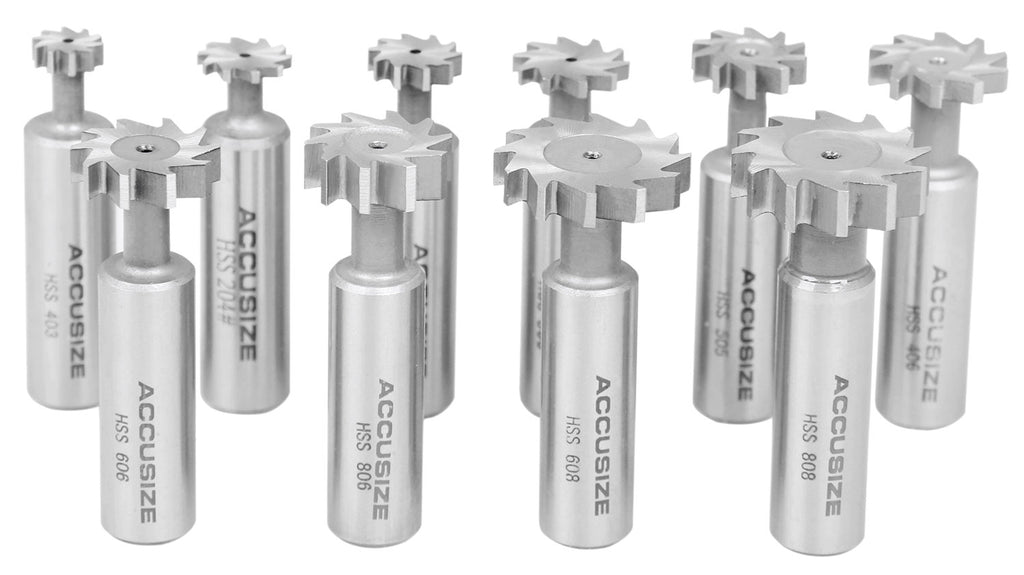

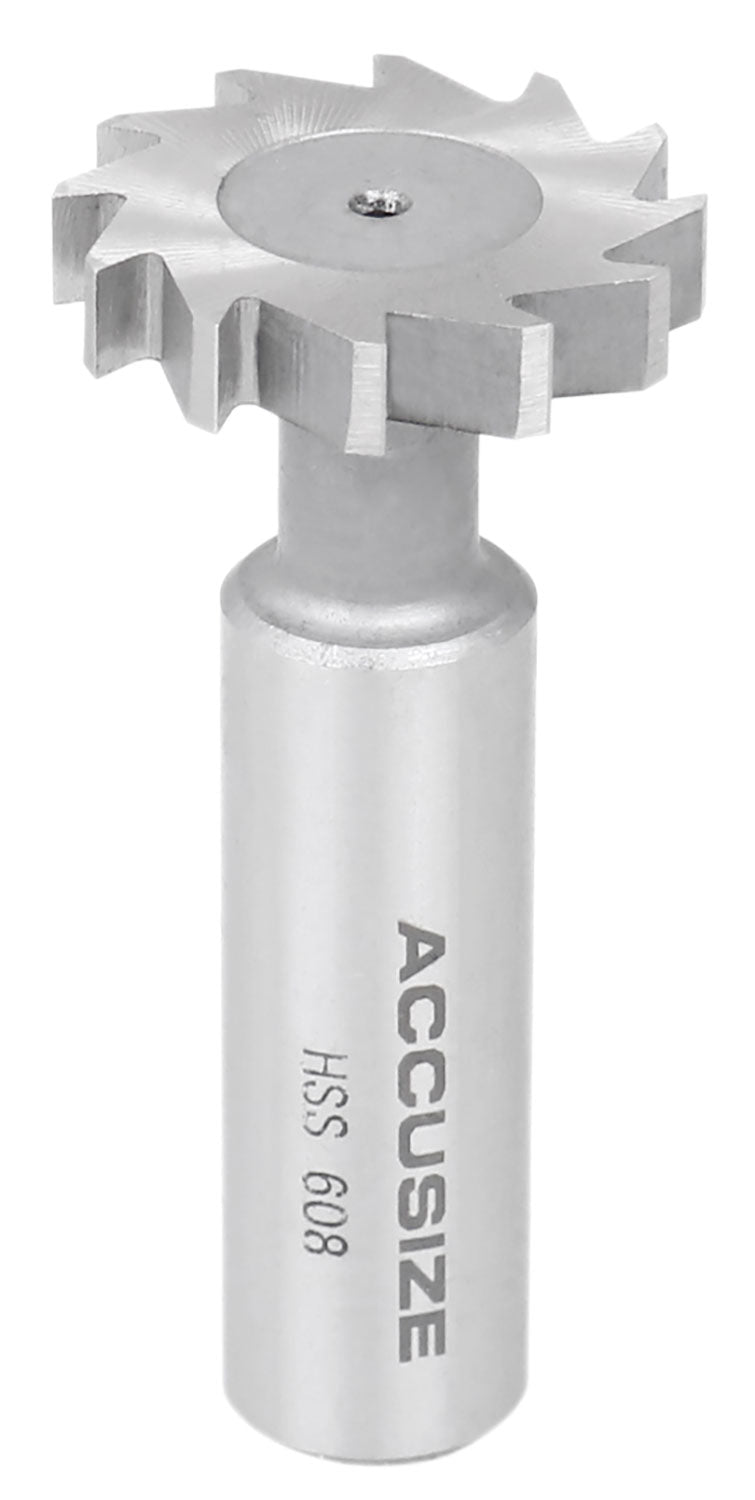

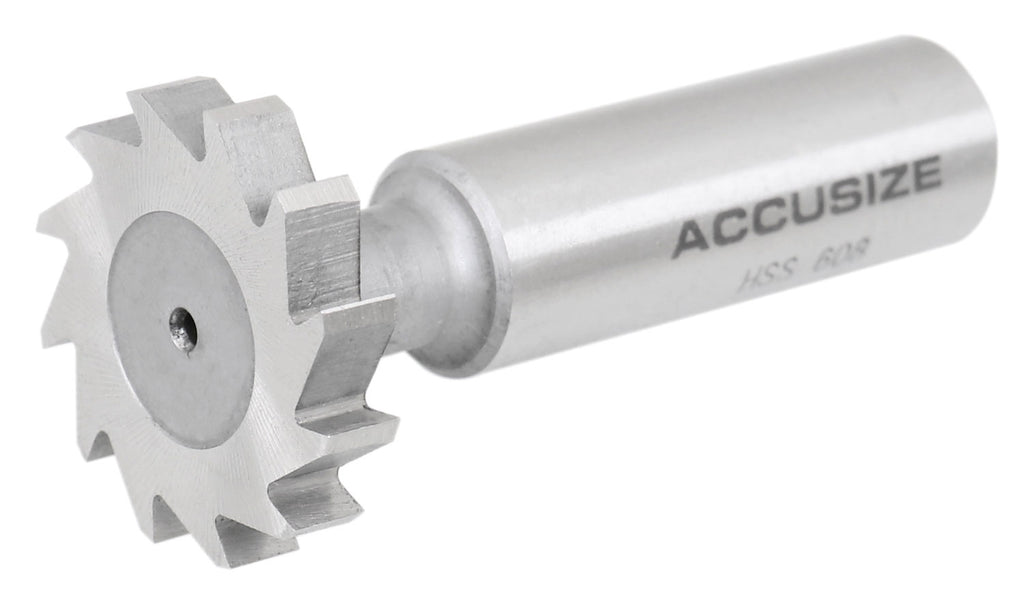

10 PS WOODRUFF KEYSEAT CUTTING END MILL SET #3800-1101
- For cutting standard and woodruff keyways in steel and other ferrous metals

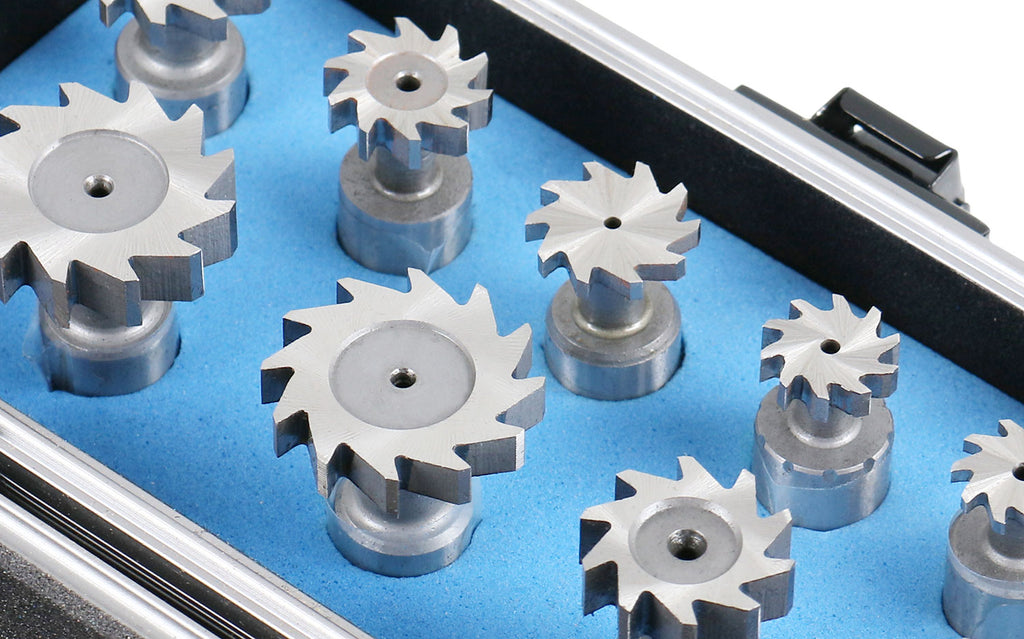

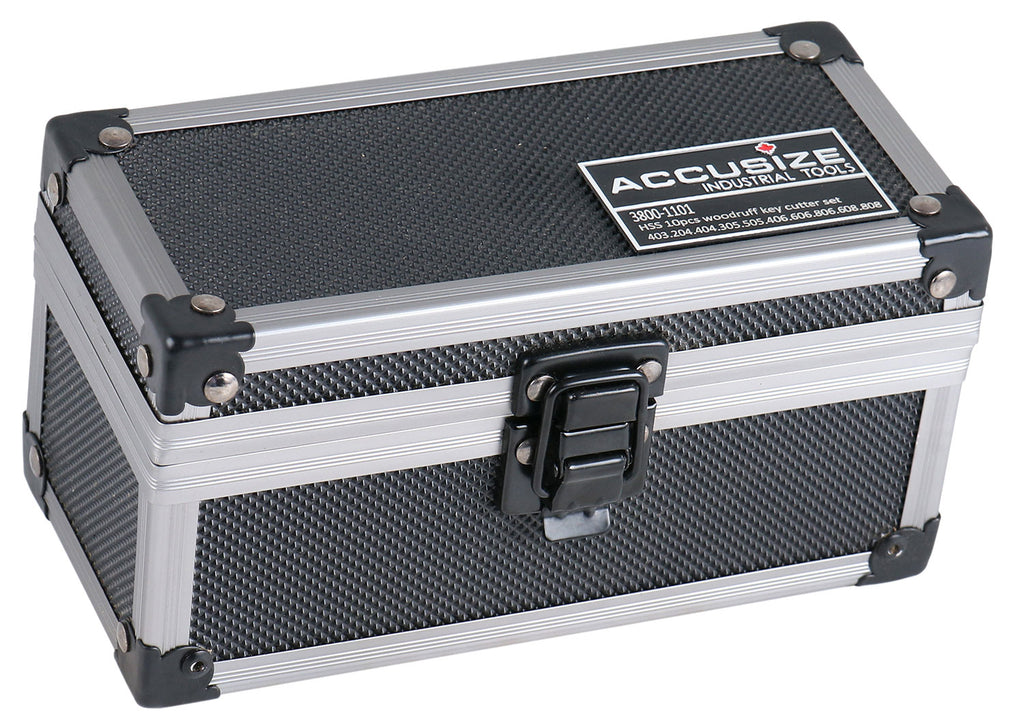

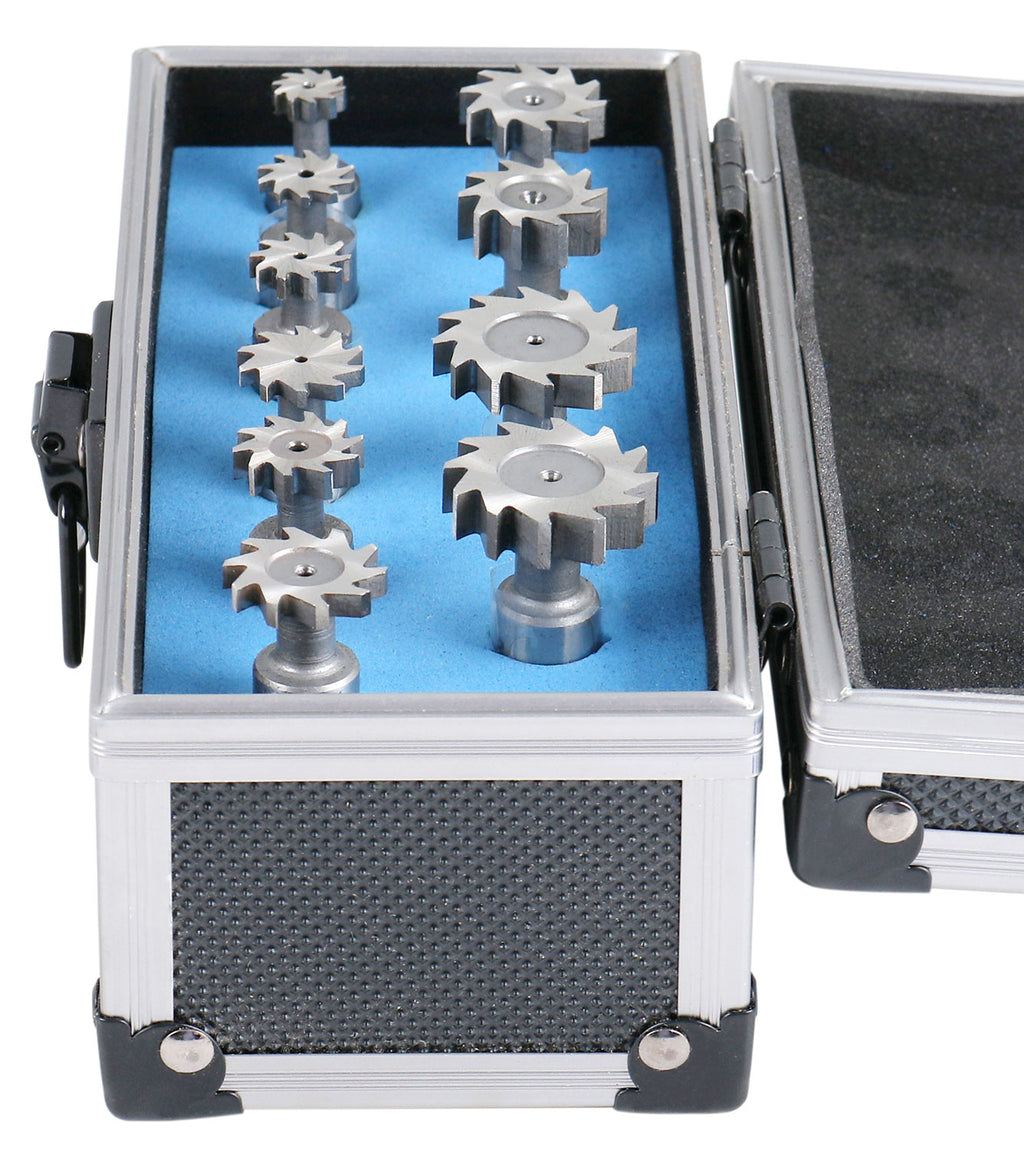

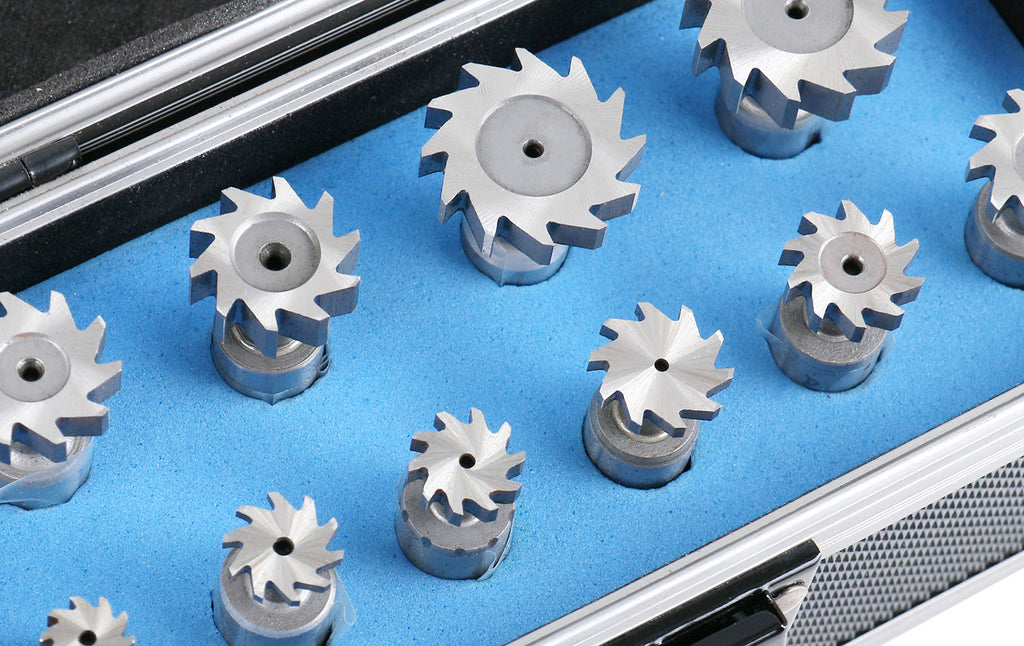

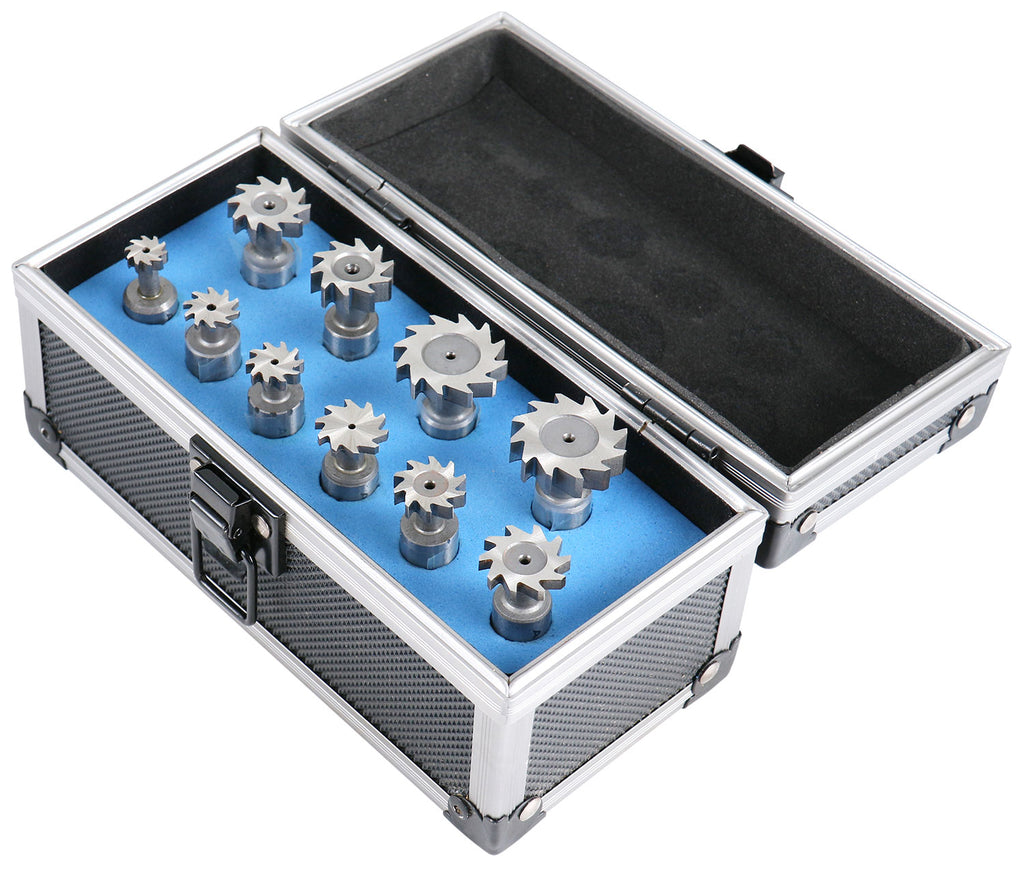

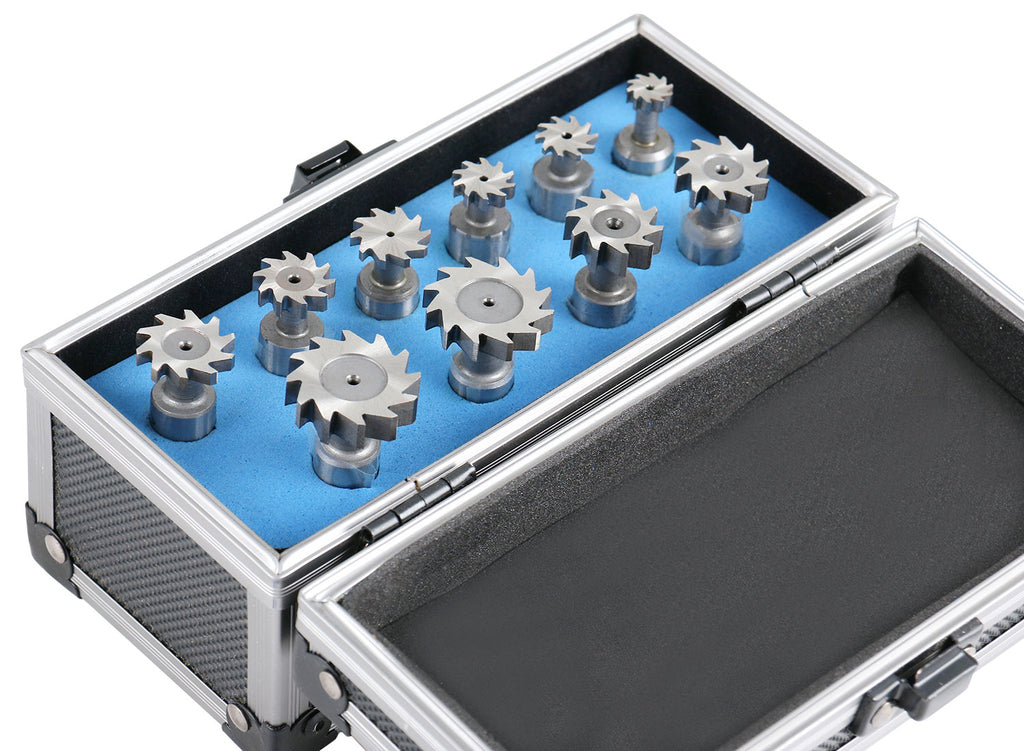

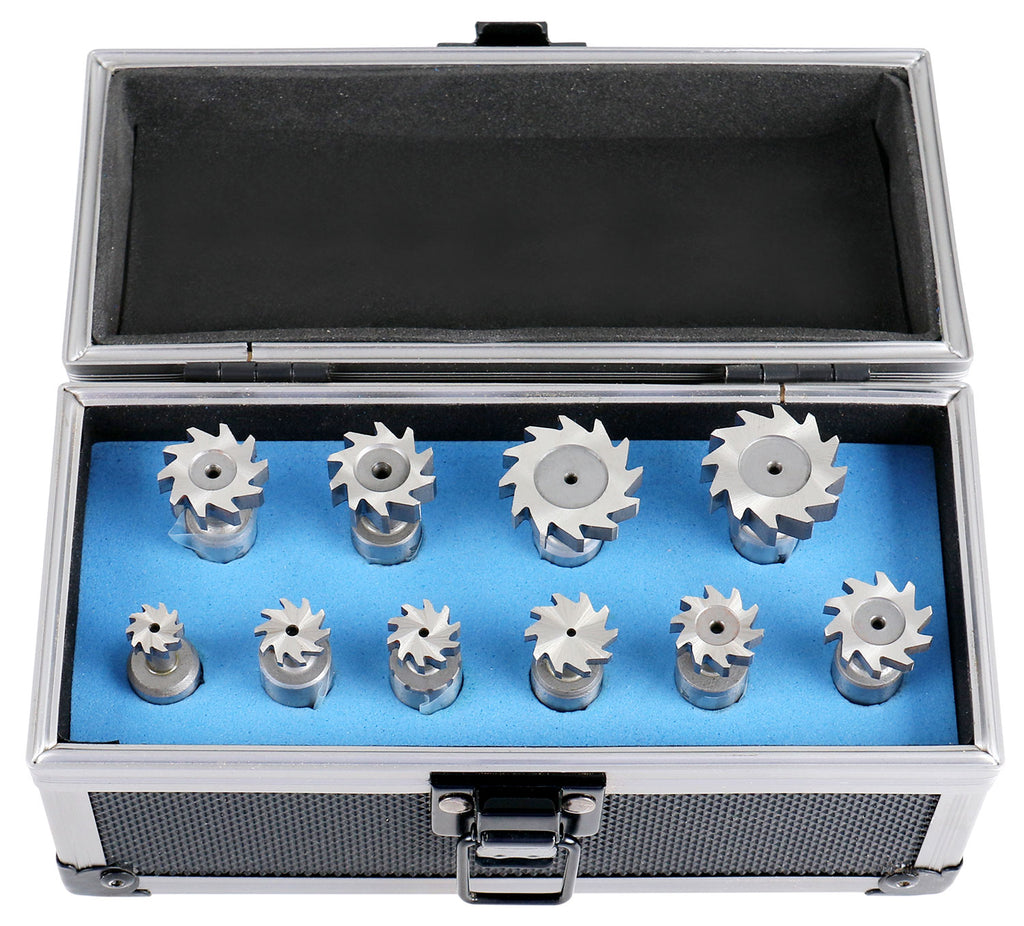

- In a fitted aluminum case.
- High speed steel.
- 1/2'' straight shanks.
- Straight tooth cutters

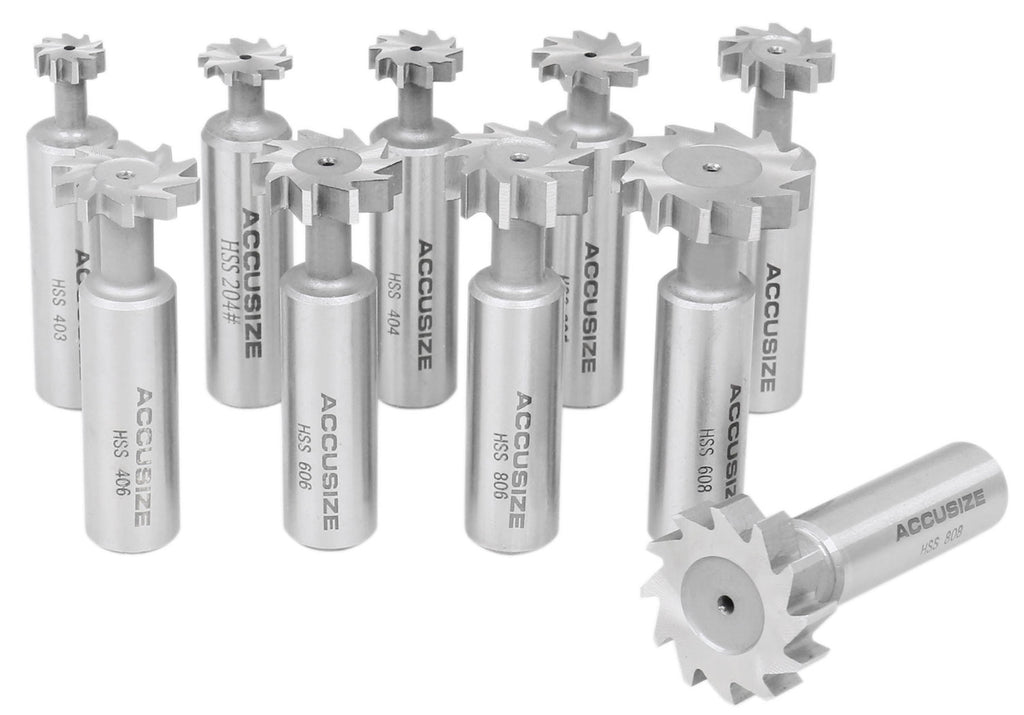

- Set includes the following plus hardwood stand:
AM STD SIZE
403 3/8'' x 1/8''204 1/2'' x 1/16''404 1/2'' x 1/8''305 5/8'' x 3/32''505 5/8'' x 5/32''605 3/4'' x 1/8''406 3/4'' x 3/16''606 3/4'' x 1/4''806 1'' x 3/16''608 1'' x 1/4''Cutting Parameters in MM
Specification Cutting Diameter * Tooth Width Spindle Speed(r/min) Feed(mm/rev) Cutting Speed(m/min) 403# 3/8*1/8 200-500 0.1-0.25 6-15 204# 1/2*1/16 150-400 0.1-0.25 6-15 404# 1/2*1/8 150-400 0.1-0.25 6-15 305# 5/8*3/32 120-300 0.1-0.25 6-15 505# 5/8*5/32 120-300 0.1-0.25 6-15 406# 3/4*1/8 100-250 0.1-0.25 6-15 606# 3/4*3/16 100-250 0.1-0.25 6-15 806# 3/4*1/4 100-250 0.1-0.25 6-15 608# 1*3/16 75-180 0.1-0.25 6-15 808# 1*1/4 75-180 0.1-0.25 6-15 Cutting Parameters in Inch
Specification Cutting Diameter * Tooth Width Spindle Speed(r/min) Feed(inch/rev) Cutting Speed(ft/min) 403# 3/8*1/8 200-500 0.0004" - 0.0098" 20 - 45ft 204# 1/2*1/16 150-400 0.0004" - 0.0098" 20 - 45ft 404# 1/2*1/8 150-400 0.0004" - 0.0098" 20 - 45ft 305# 5/8*3/32 120-300 0.0004" - 0.0098" 20 - 45ft 505# 5/8*5/32 120-300 0.0004" - 0.0098" 20 - 45ft 406# 3/4*1/8 100-250 0.0004" - 0.0098" 20 - 45ft 606# 3/4*3/16 100-250 0.0004" - 0.0098" 20 - 45ft 806# 3/4*1/4 100-250 0.0004" - 0.0098" 20 - 45ft 608# 1*3/16 75-180 0.0004" - 0.0098" 20 - 45ft 808# 1*1/4 75-180 0.0004" - 0.0098" 20 - 45ft -
