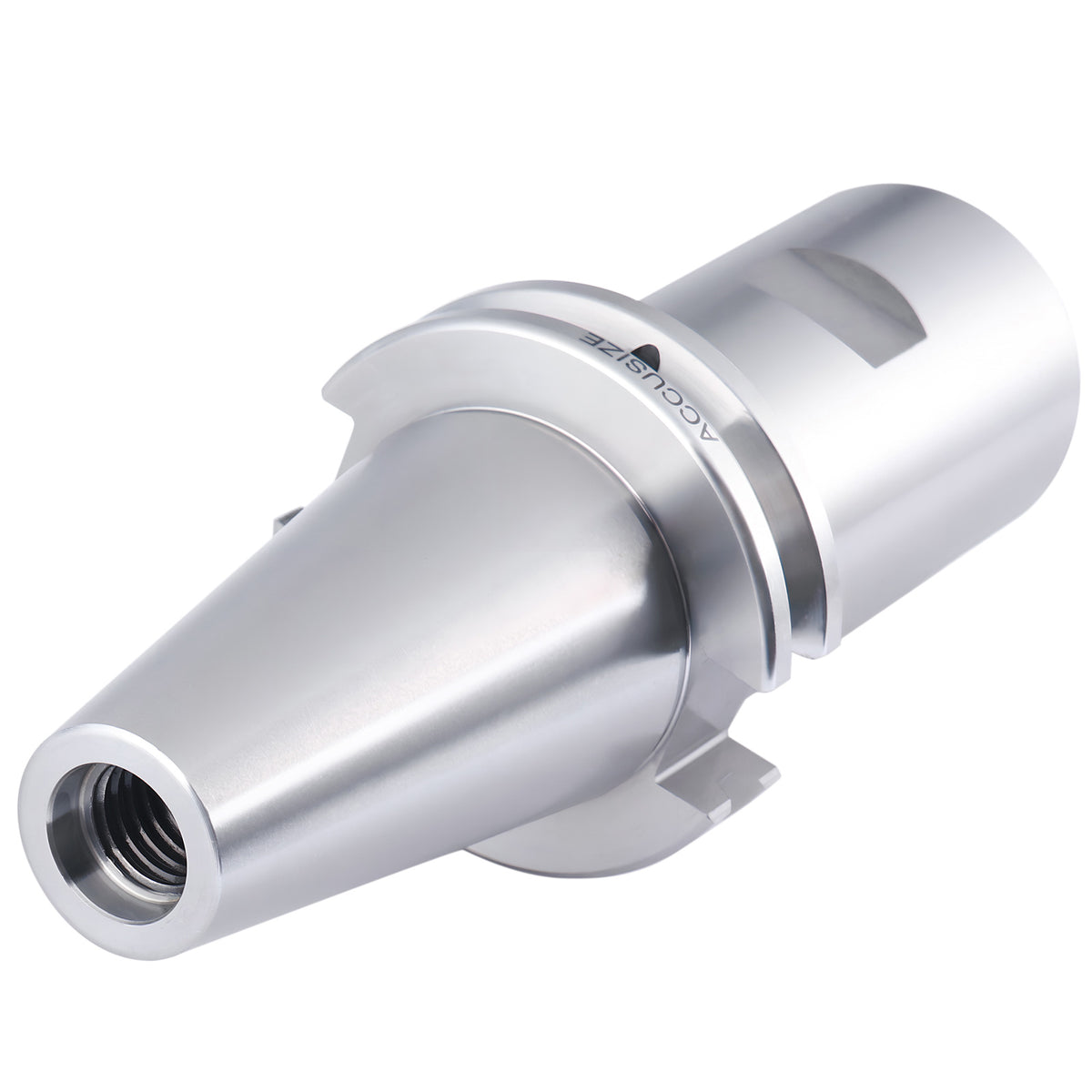

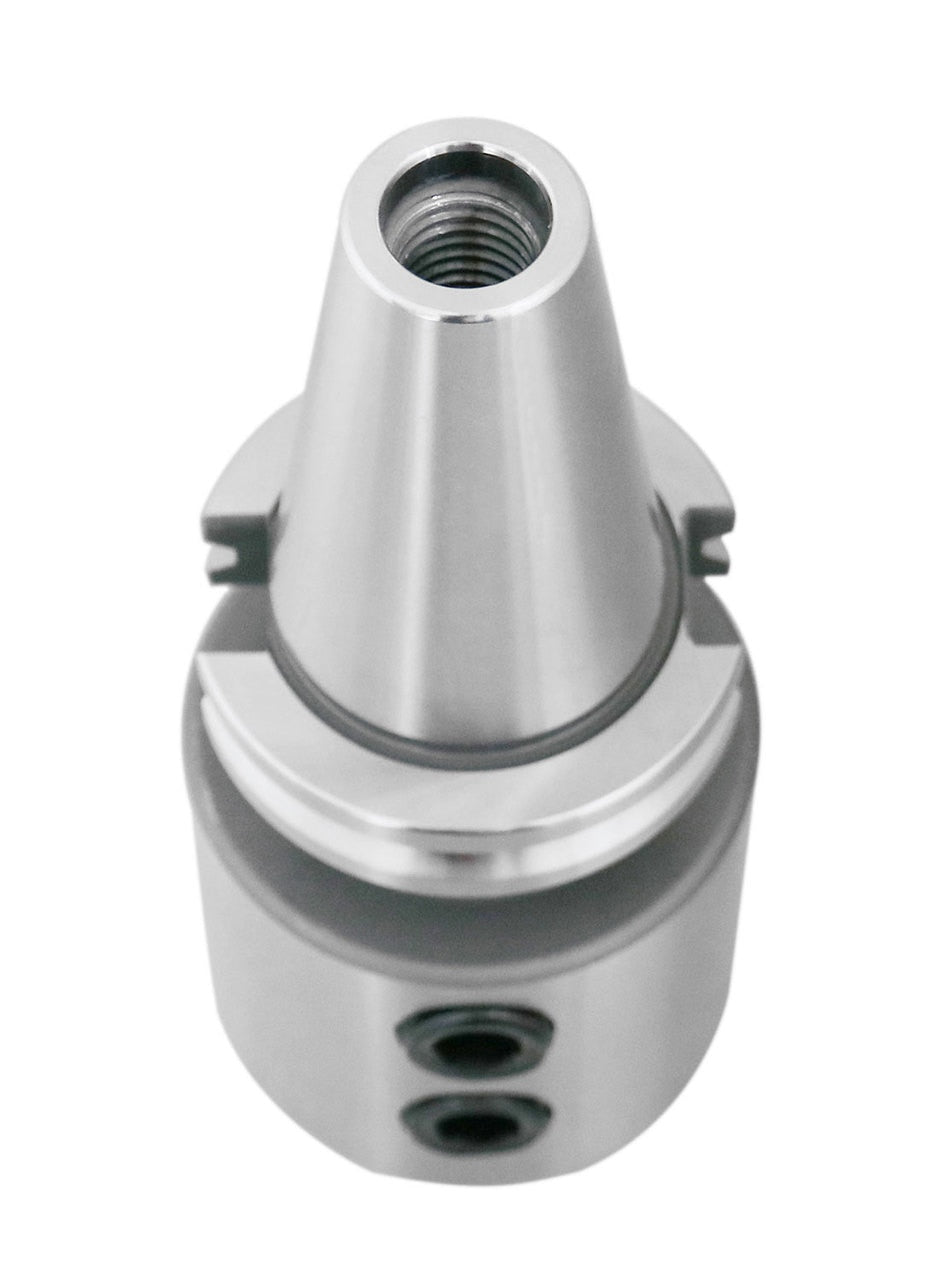

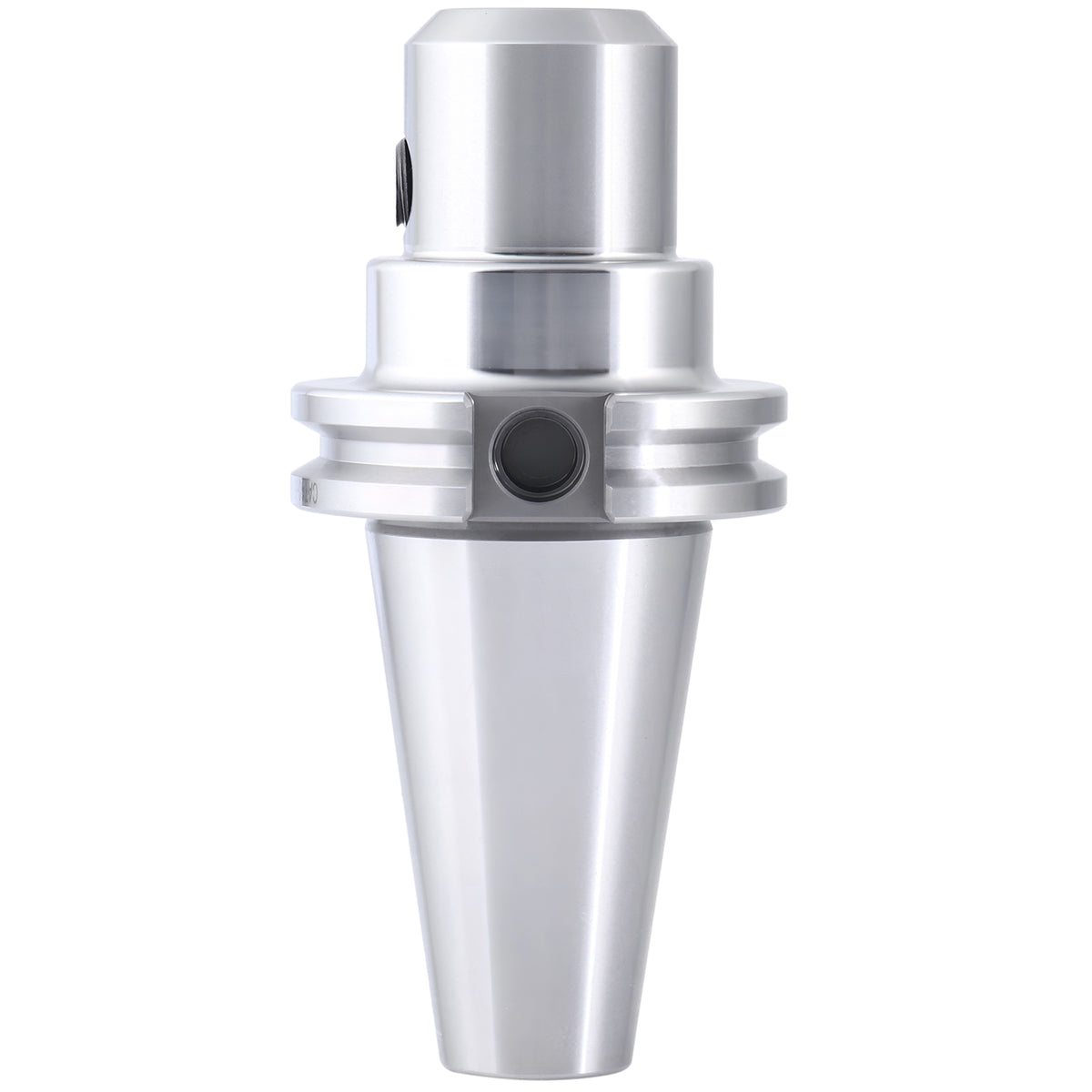

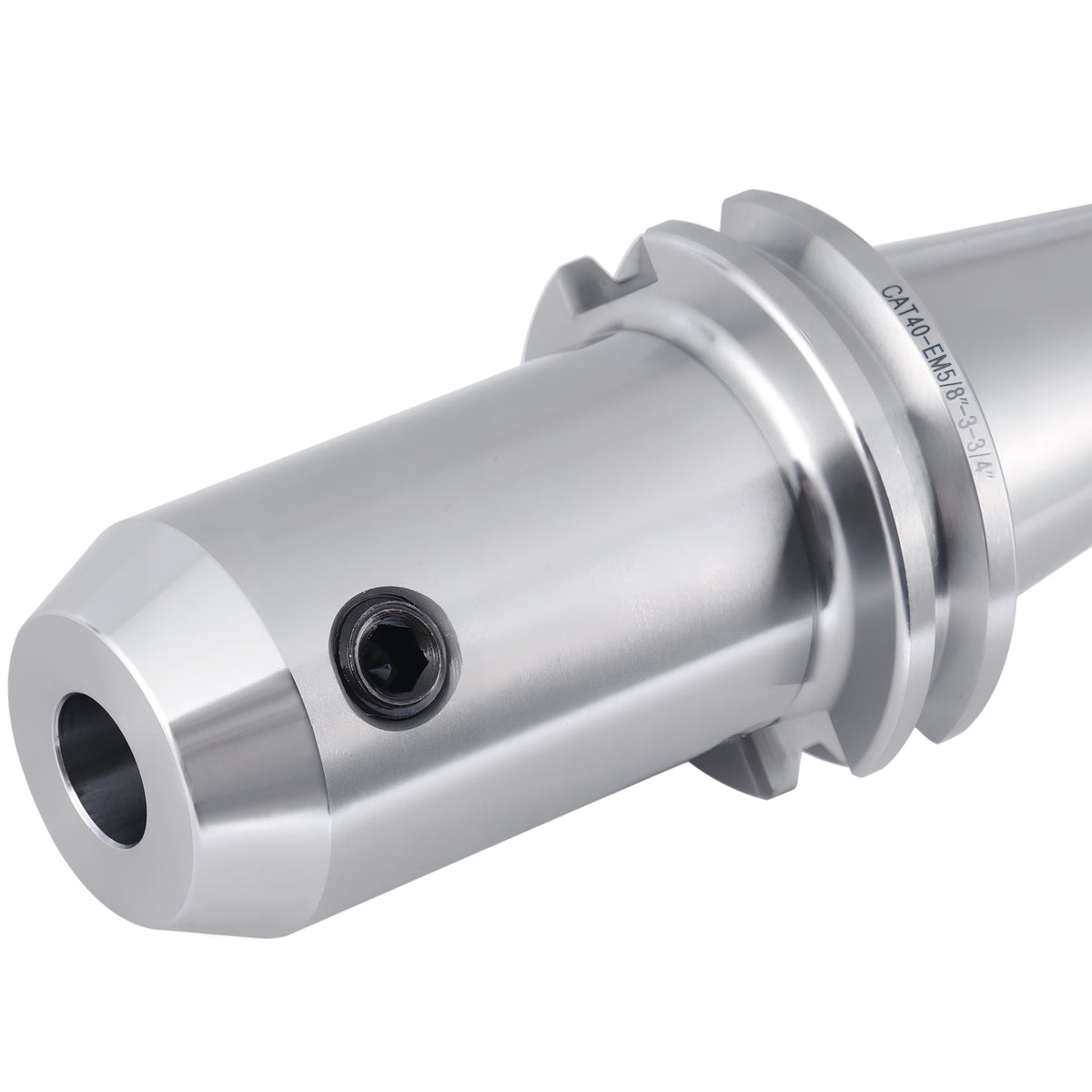

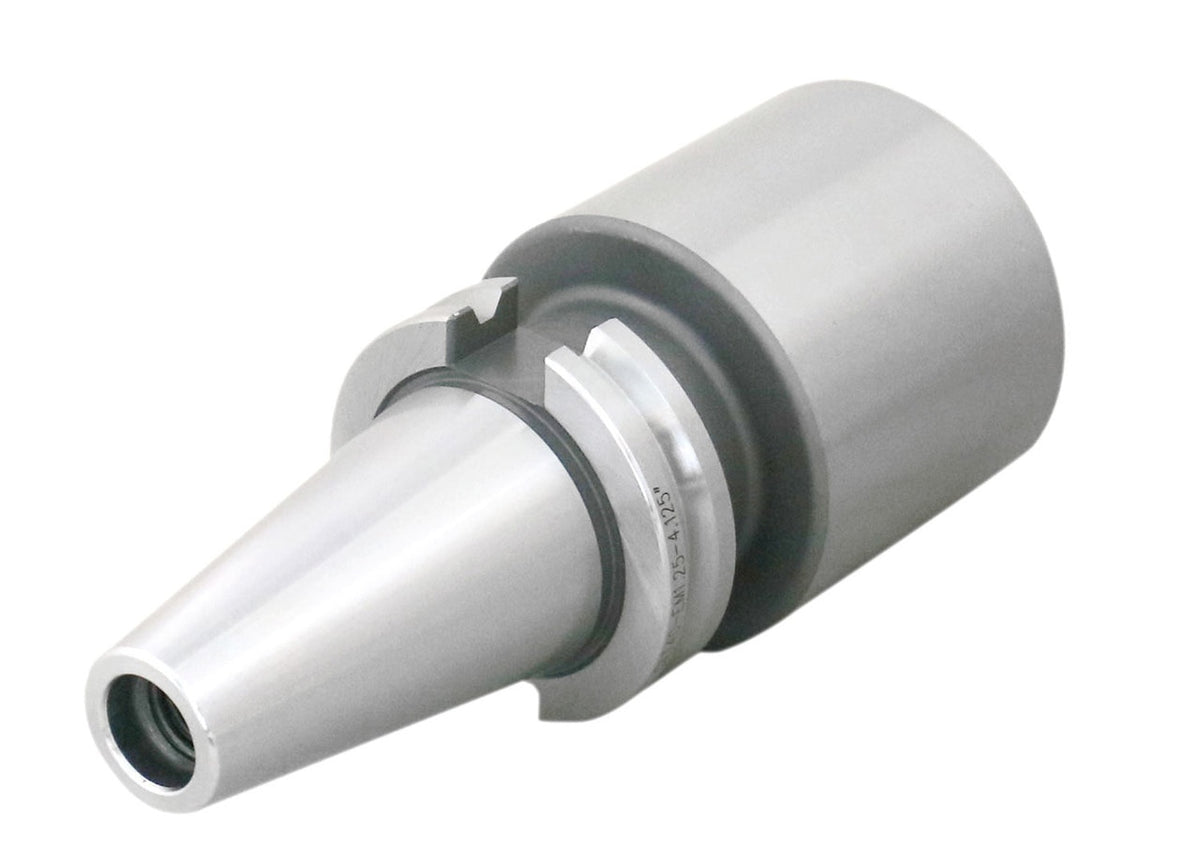

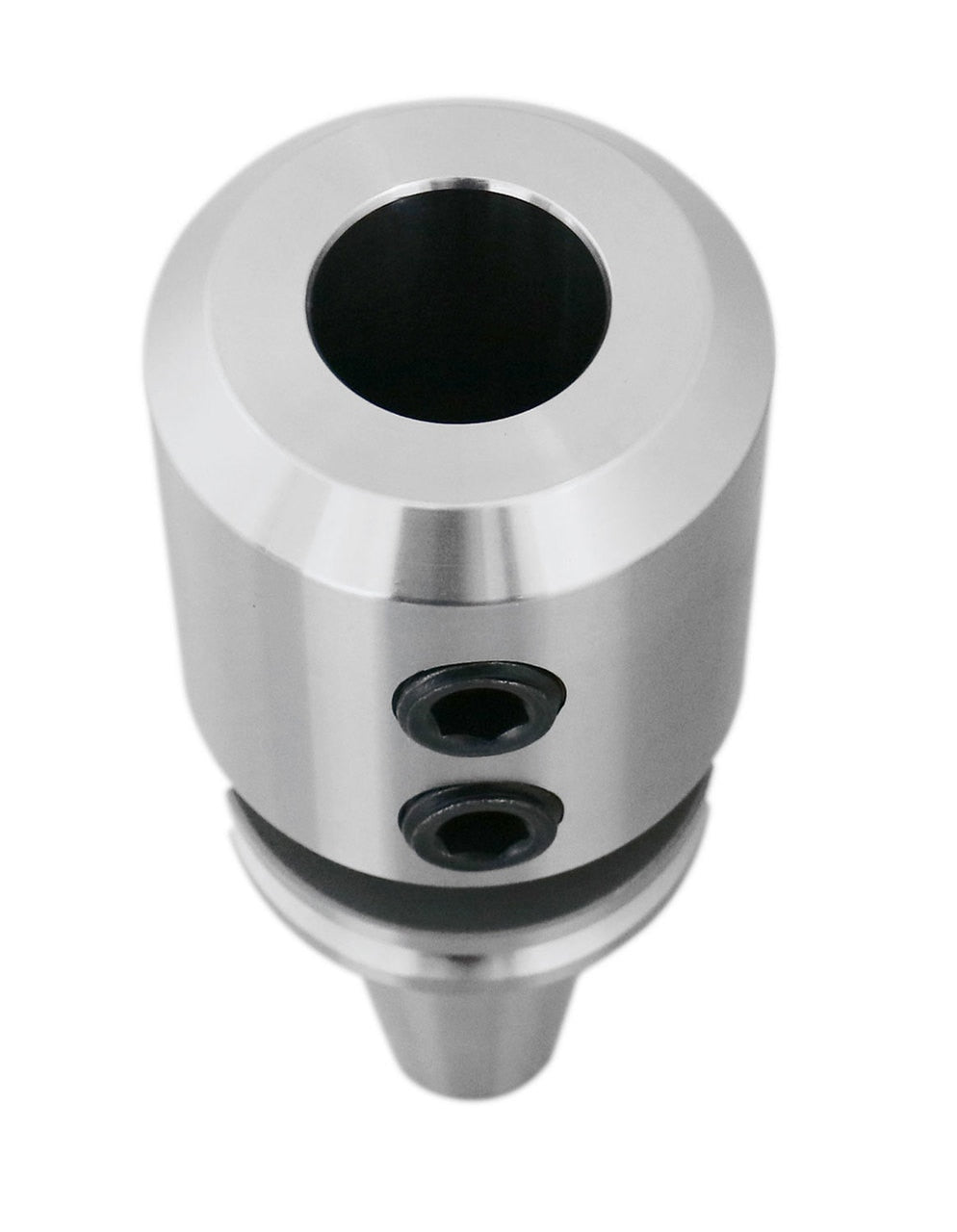

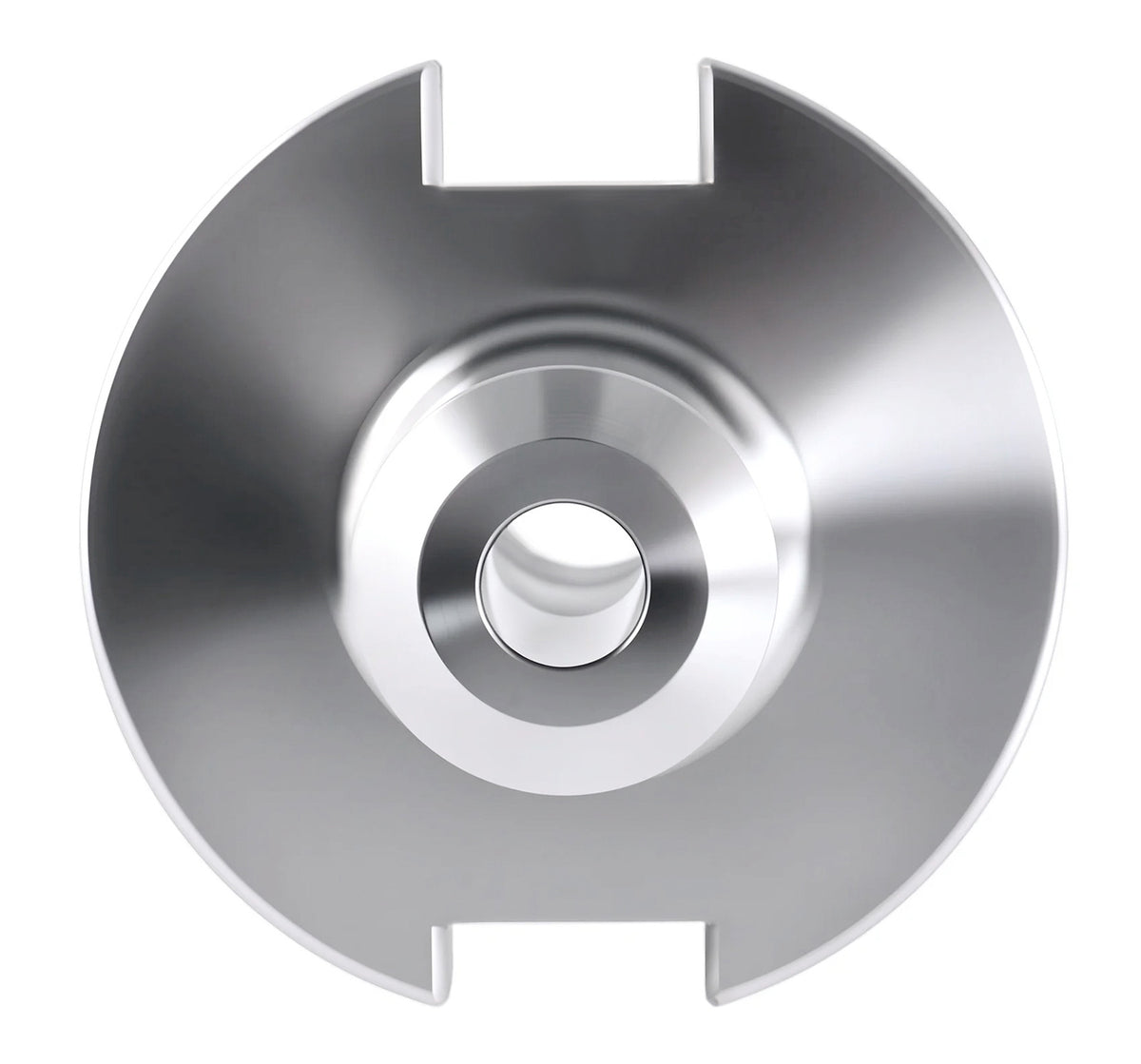

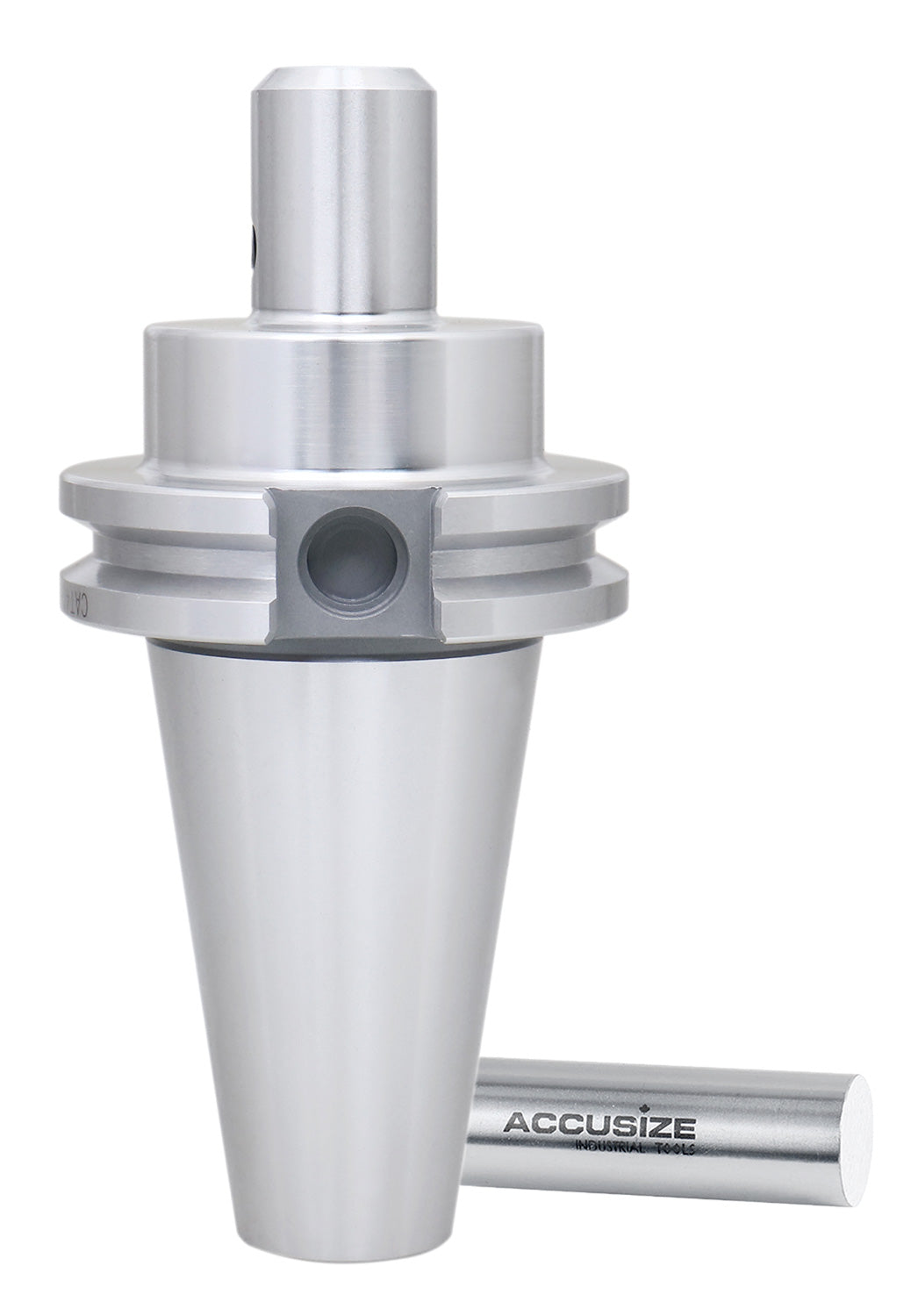

CAT40 C.N.C. End Mill Holders


Price:
$66.11

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

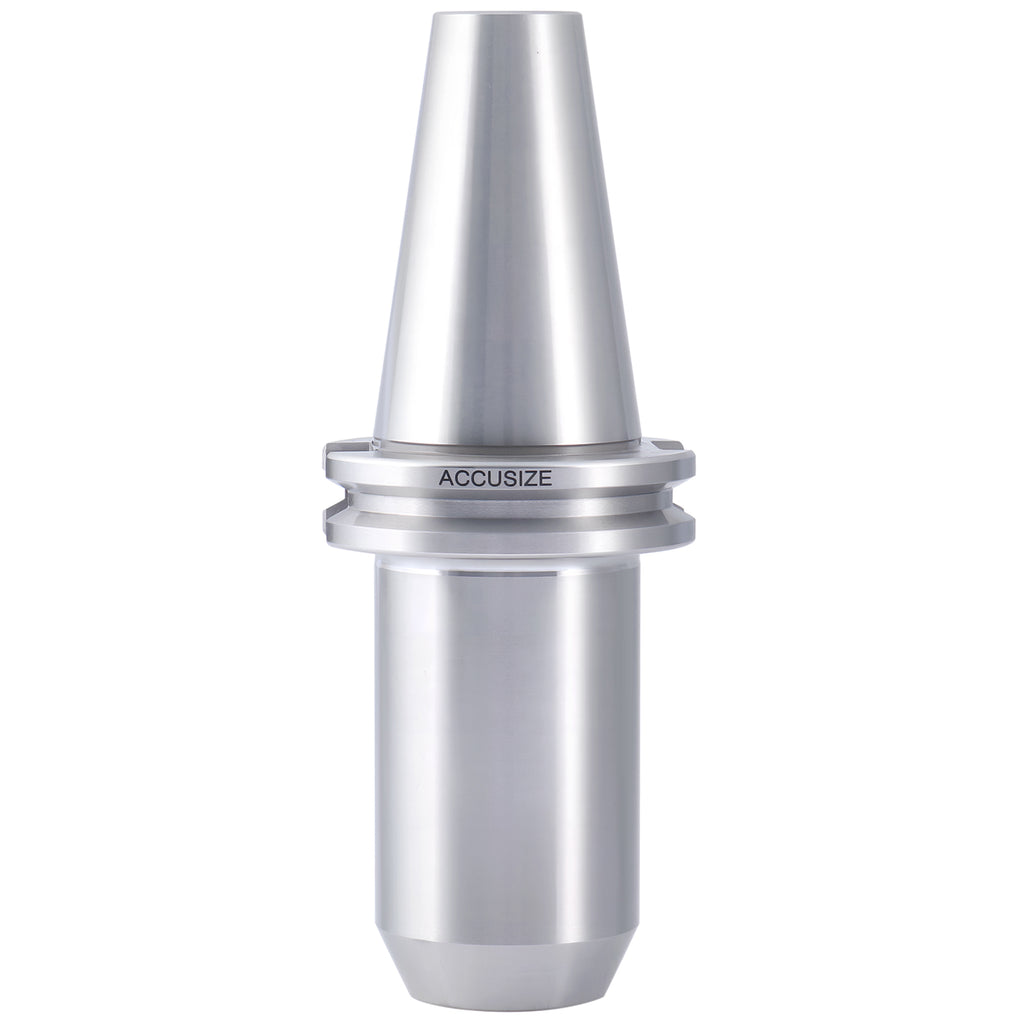

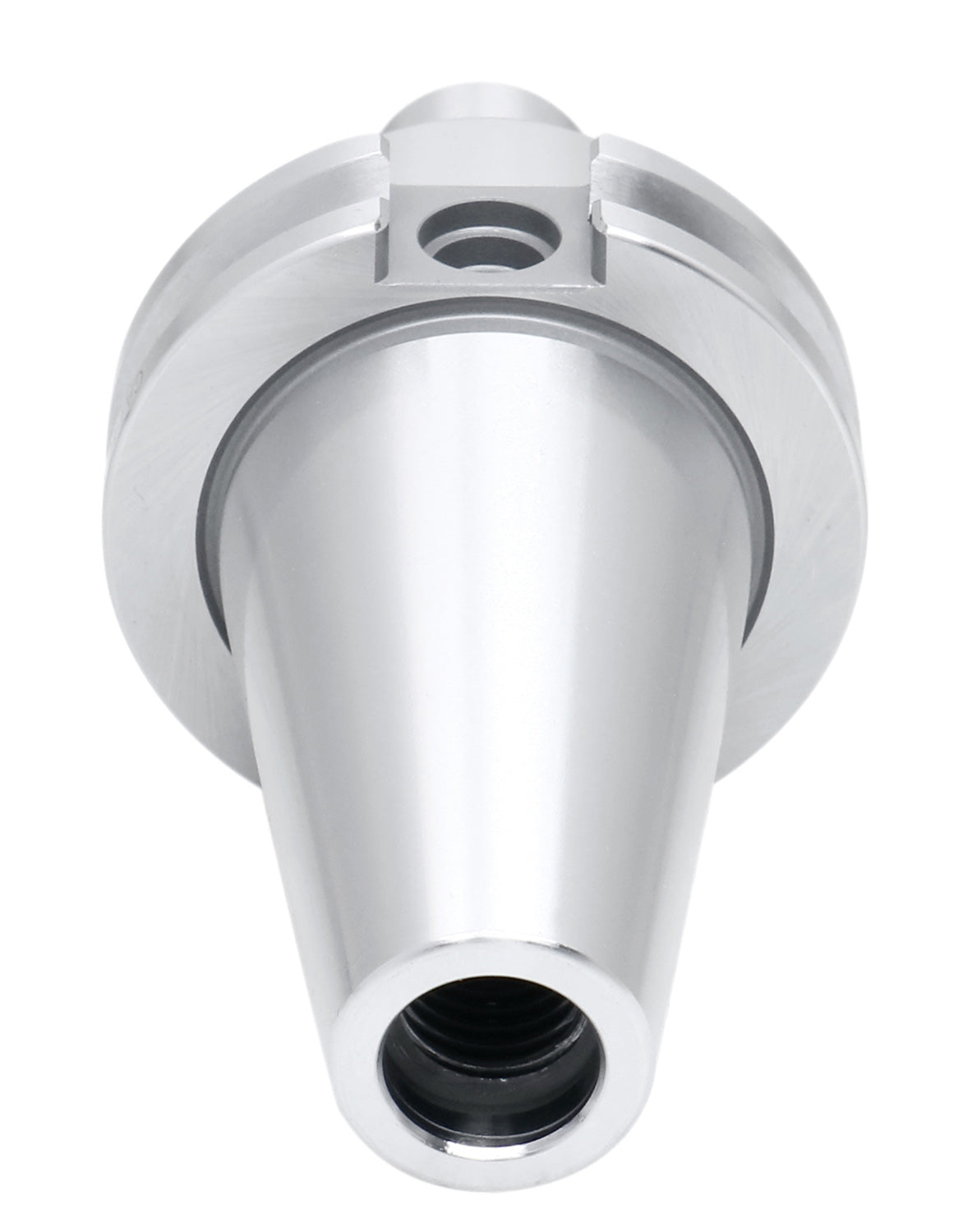

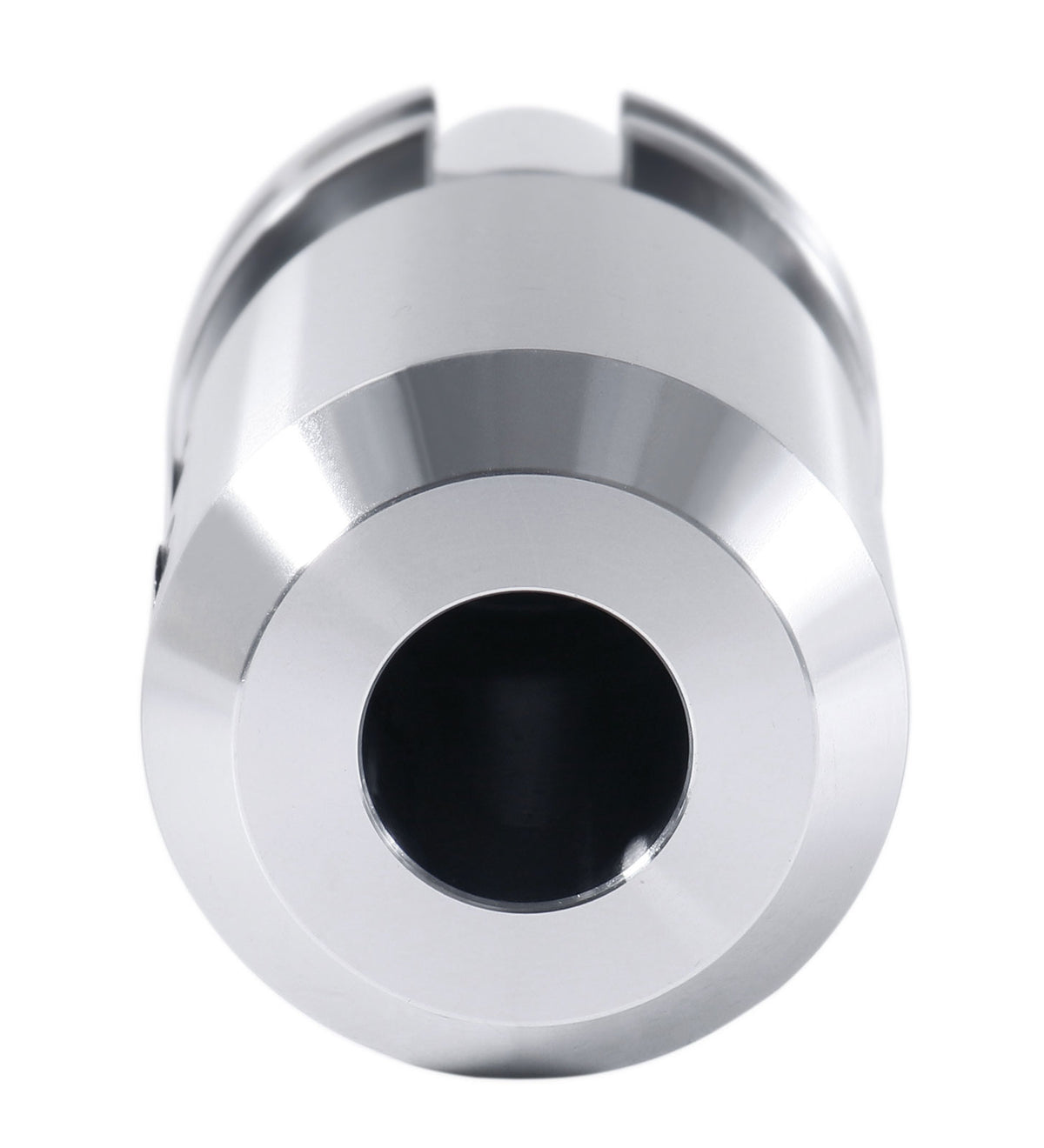

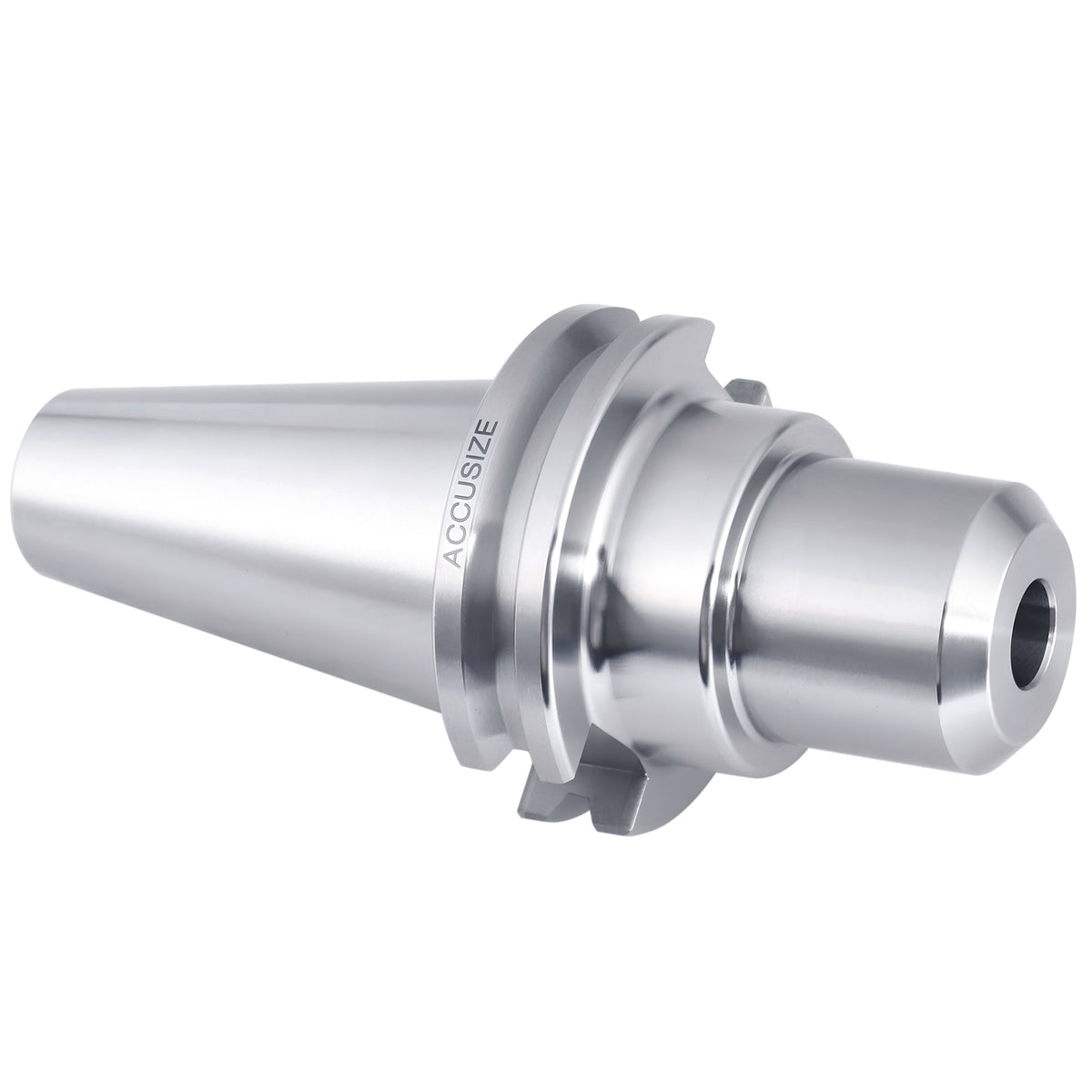

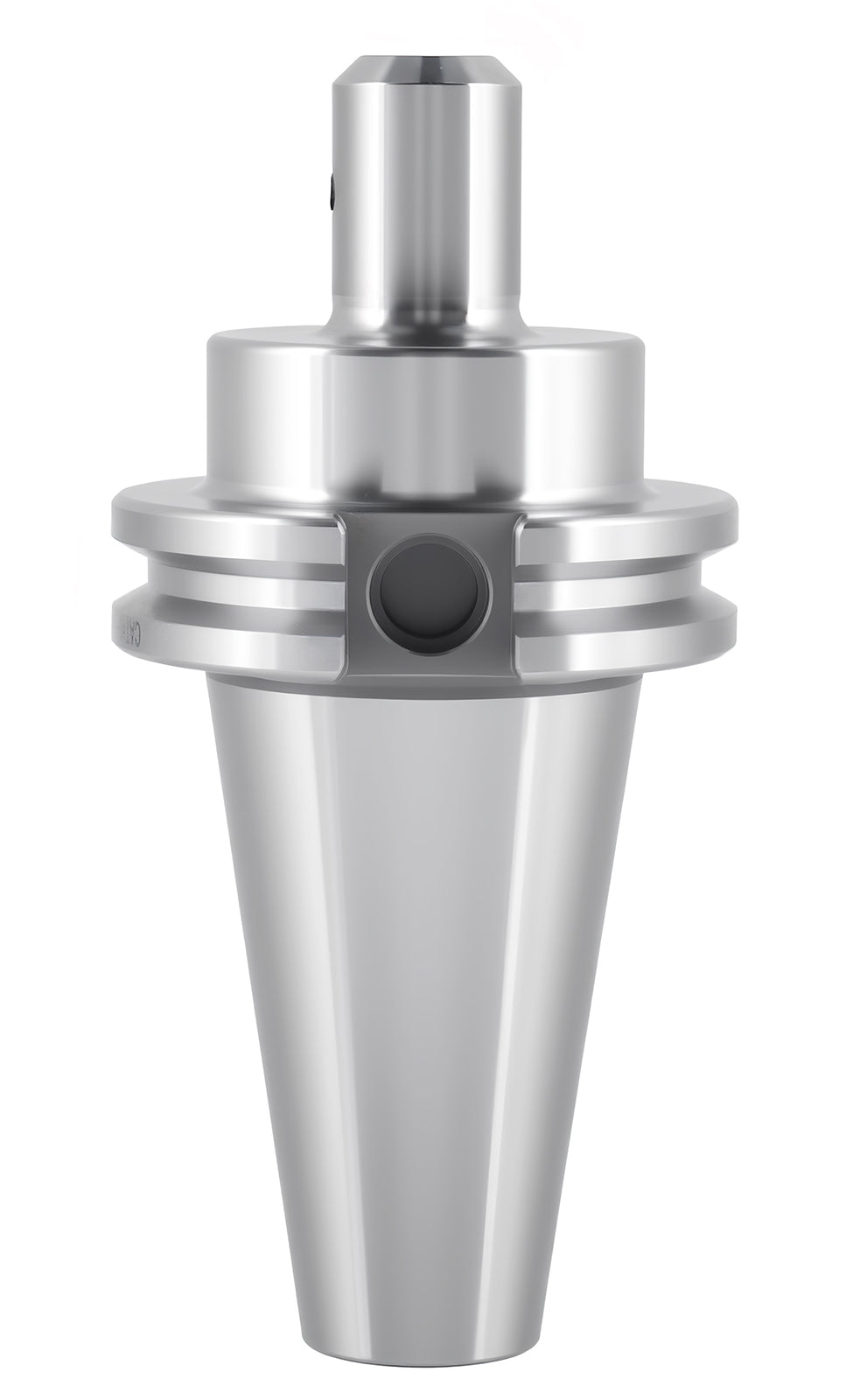

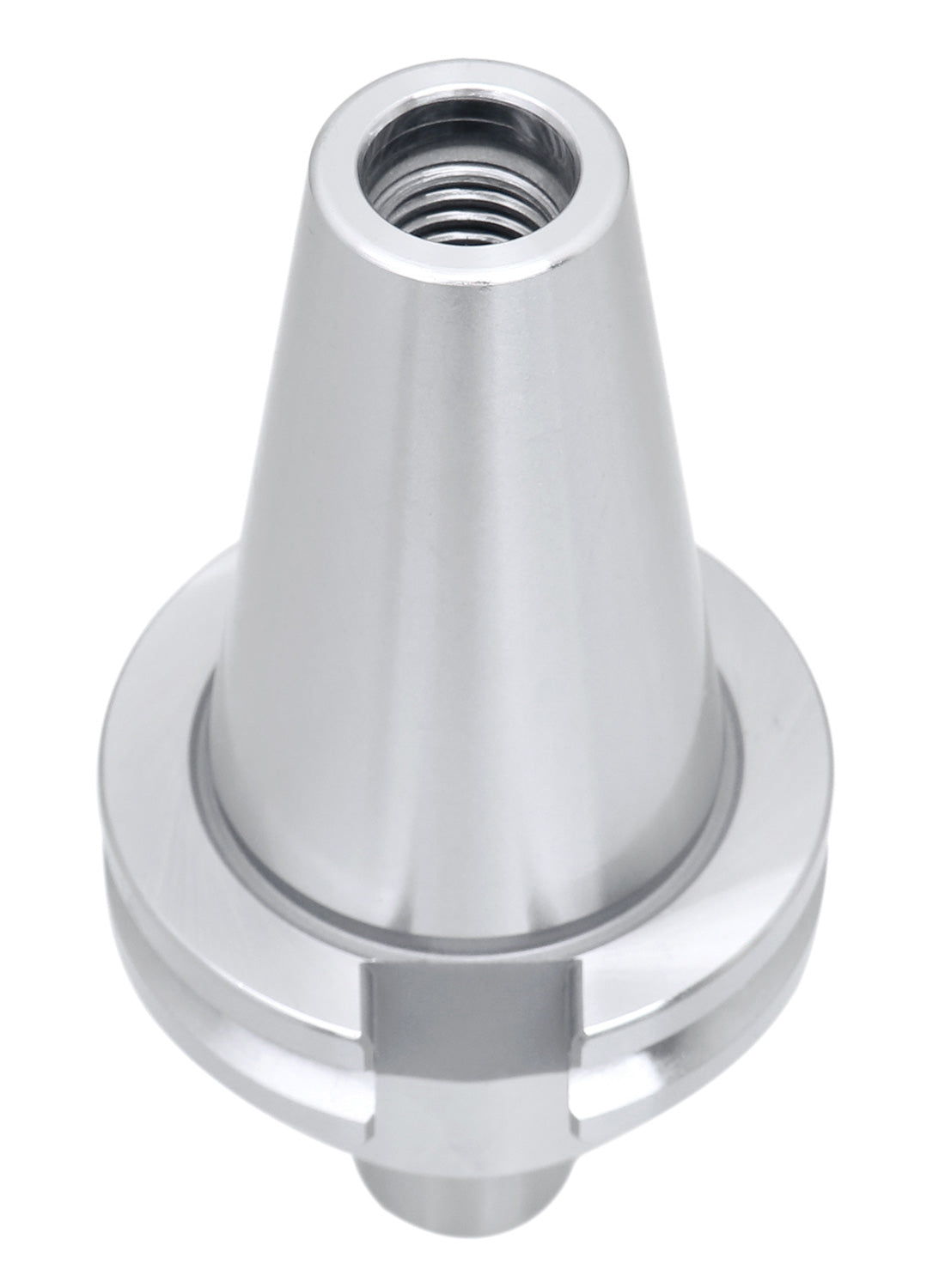

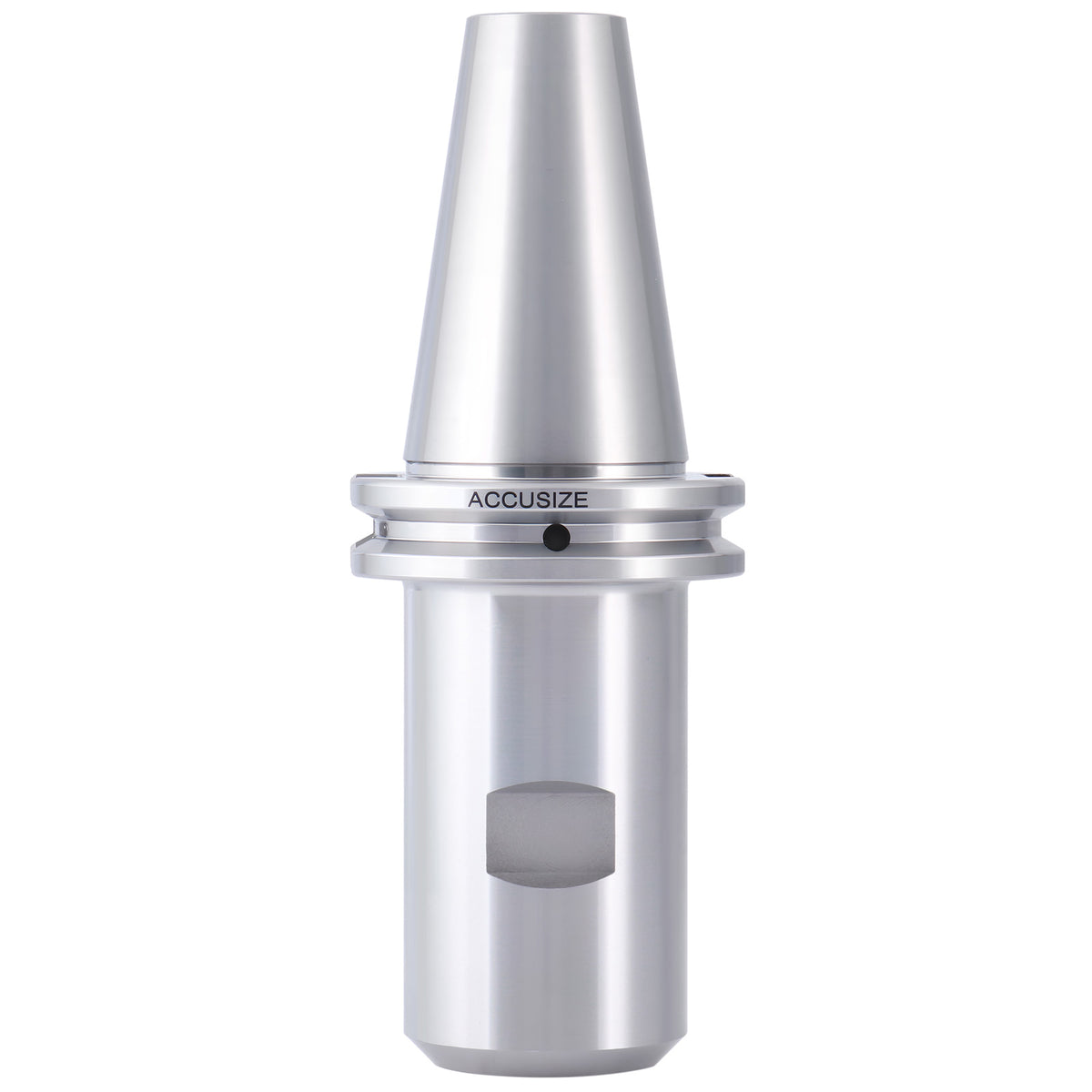

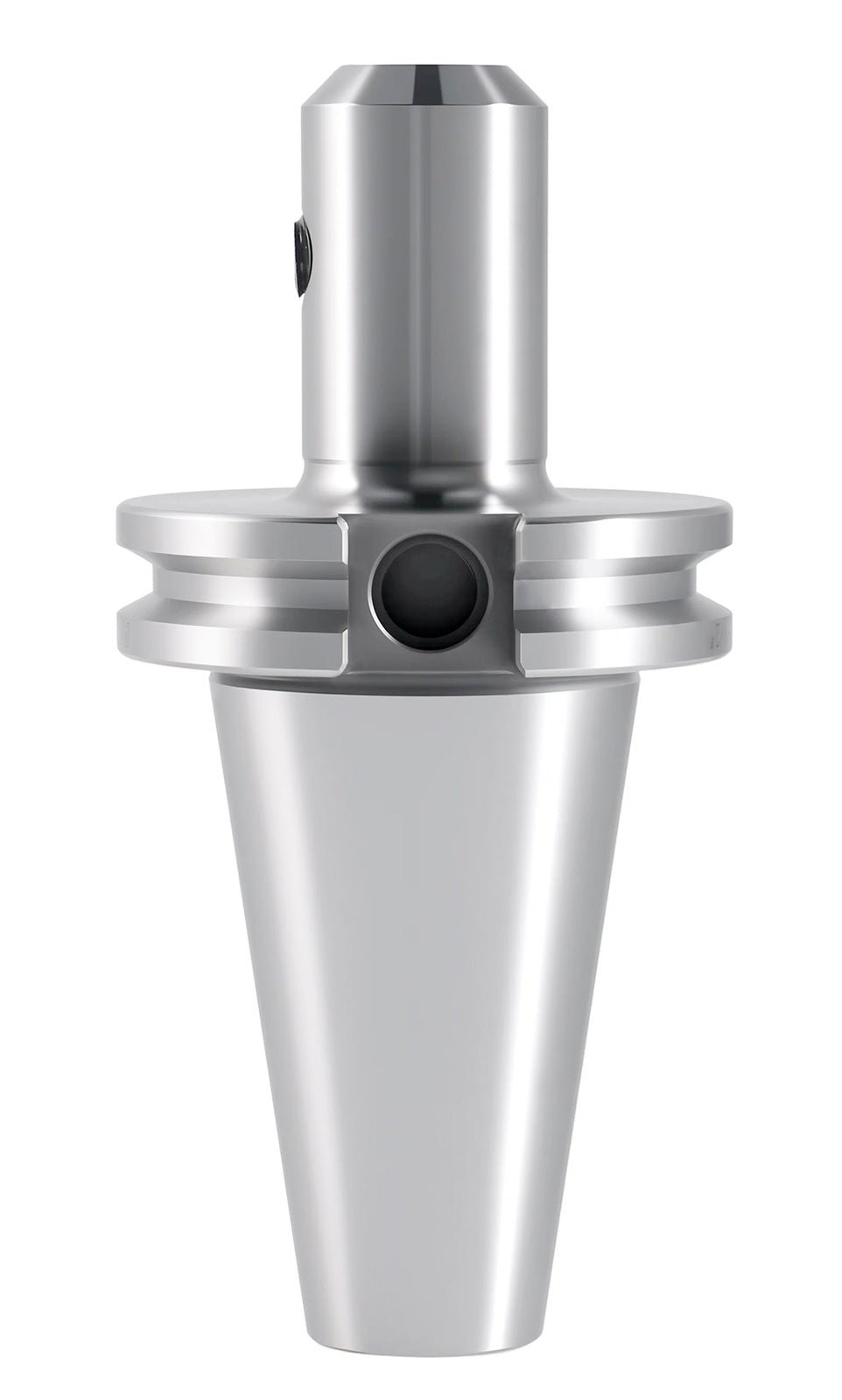

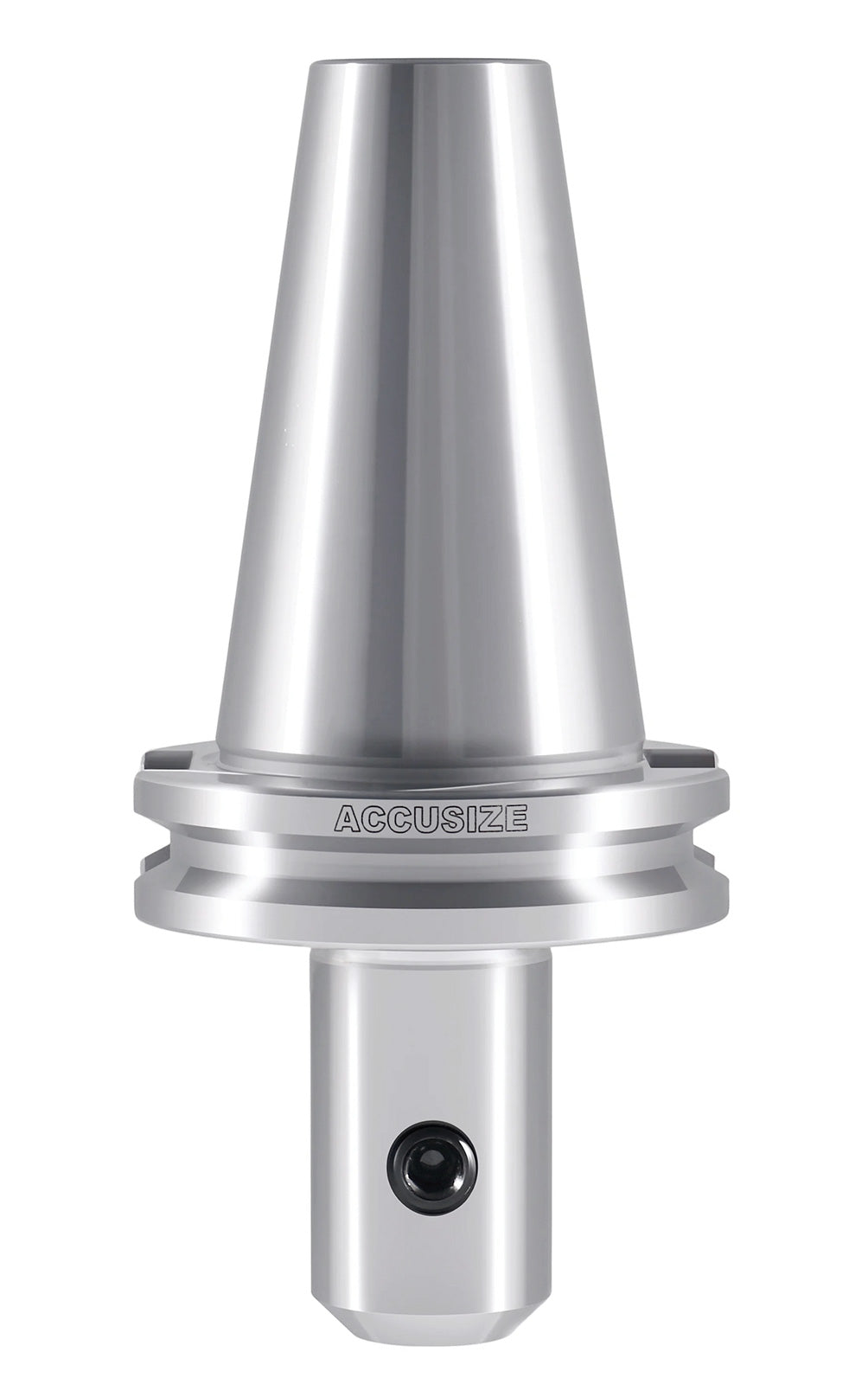

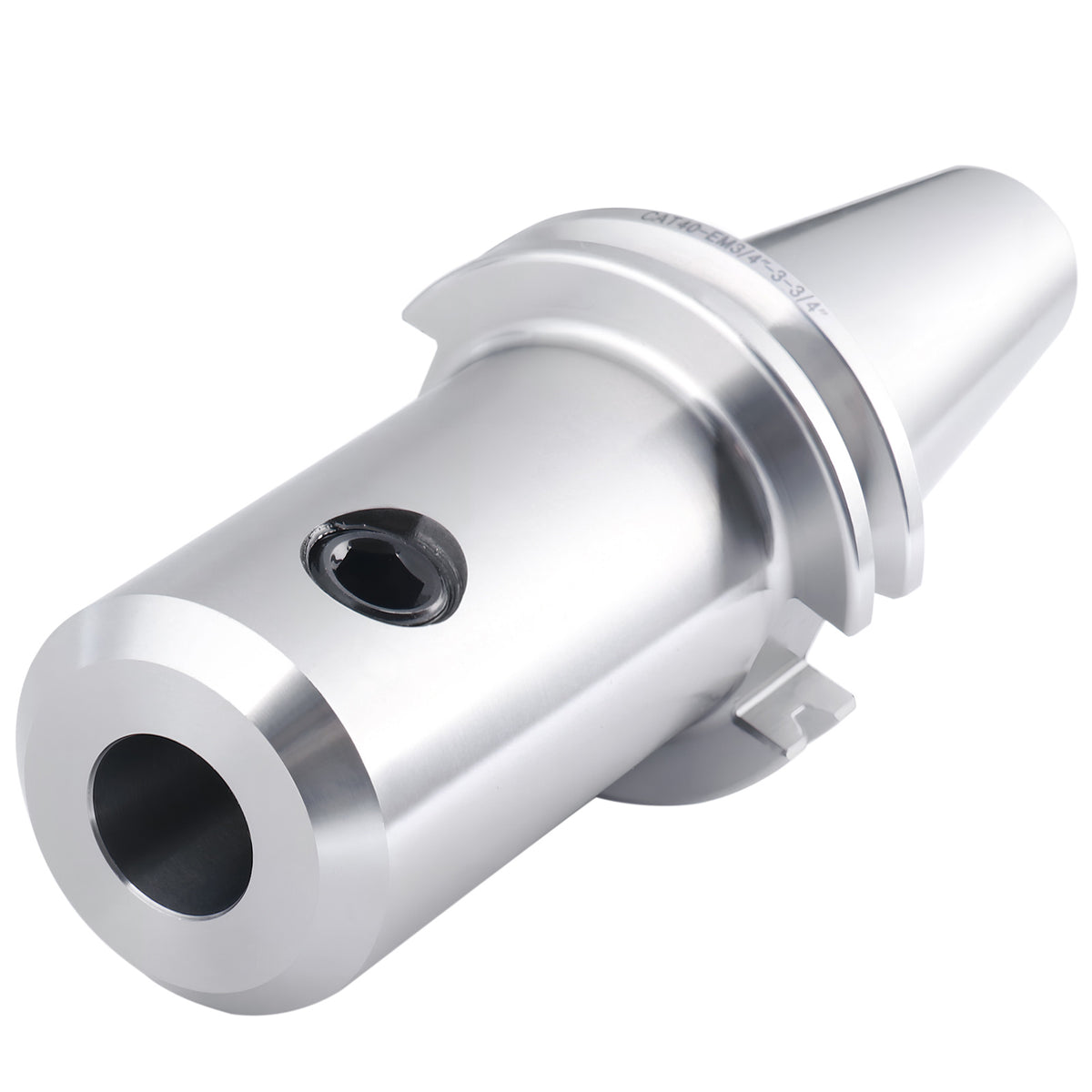

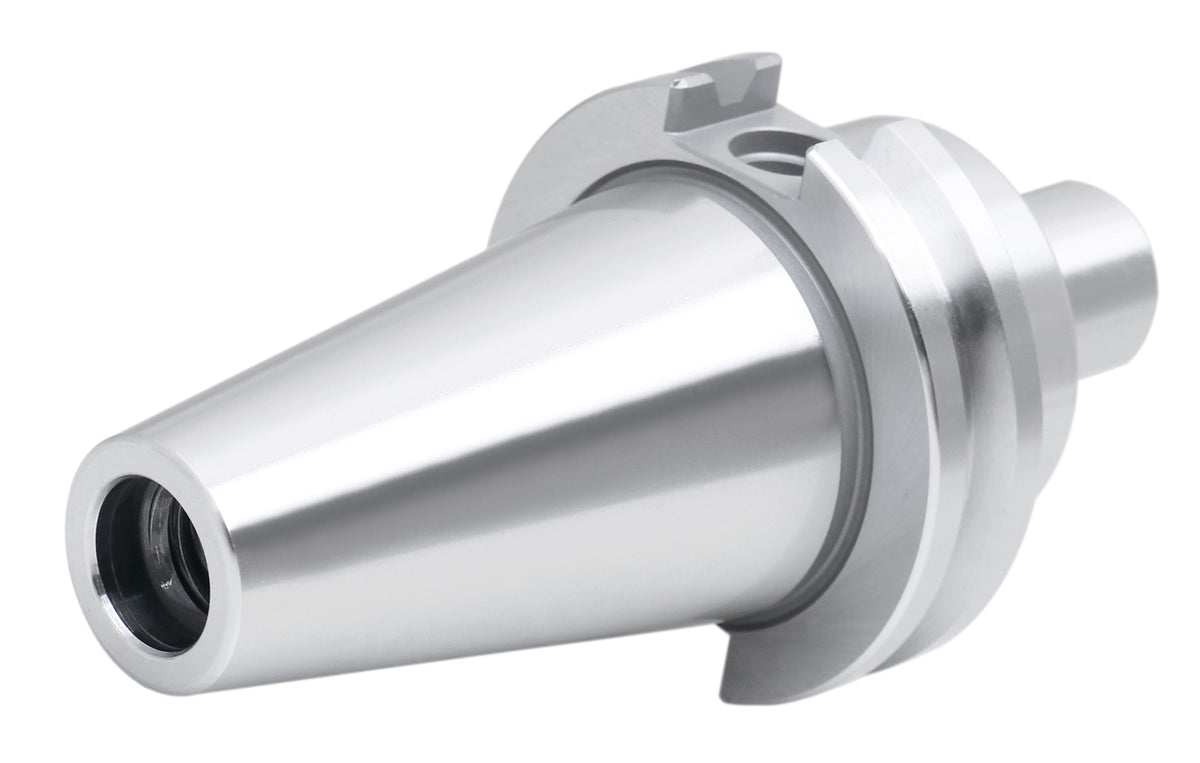

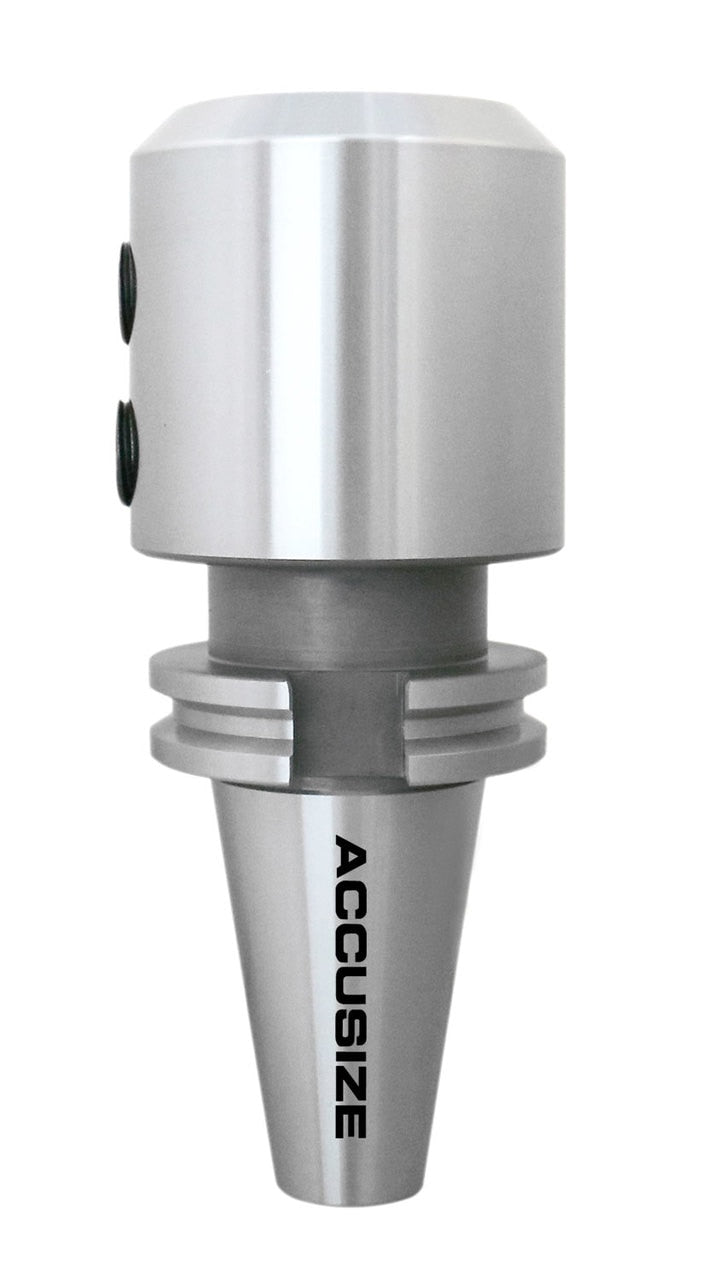

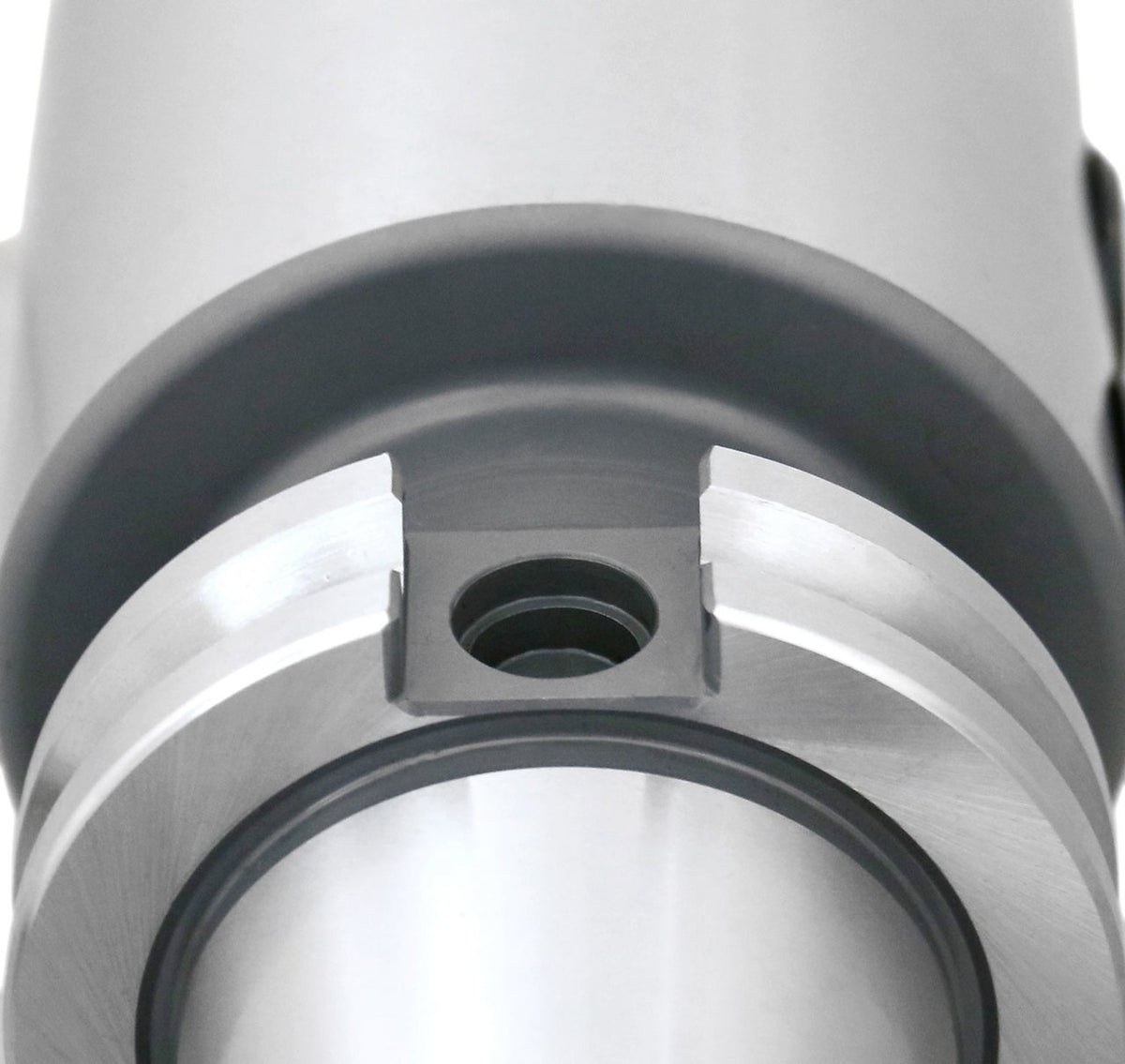

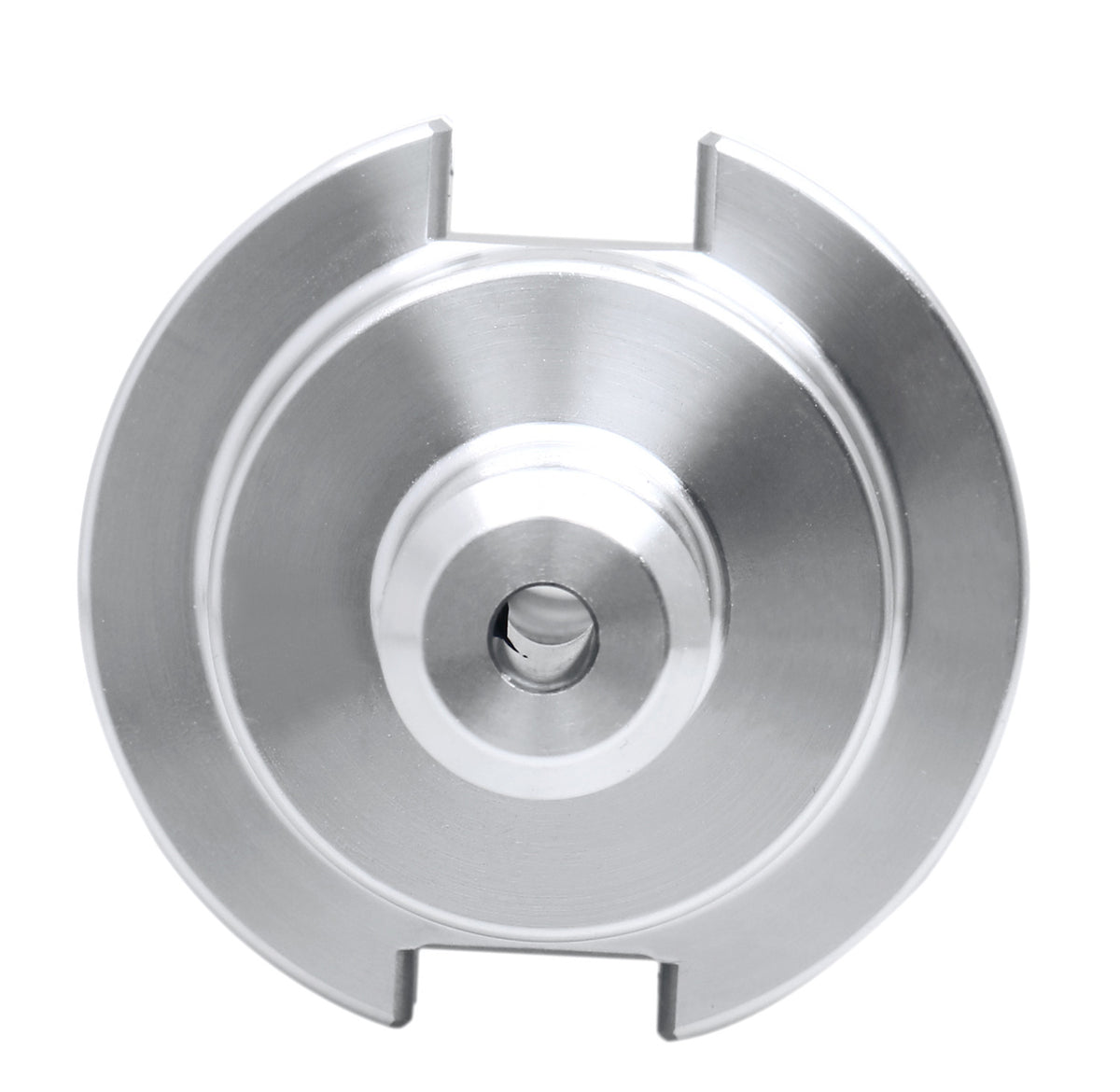

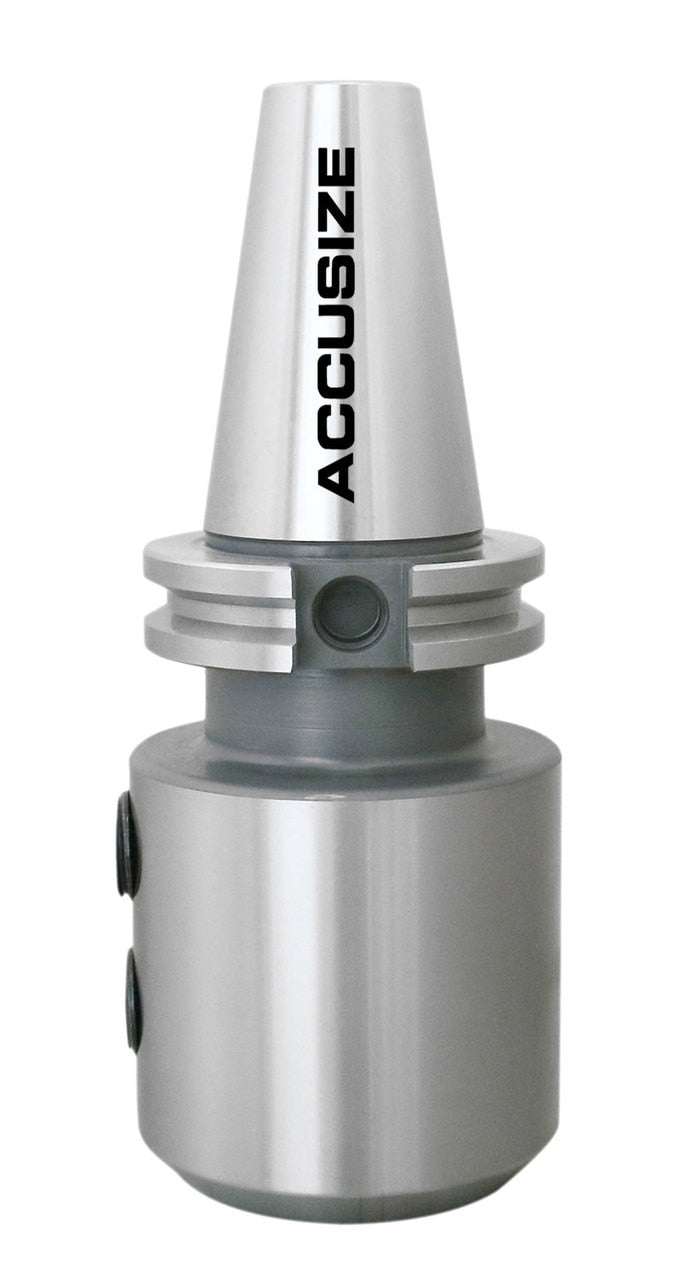

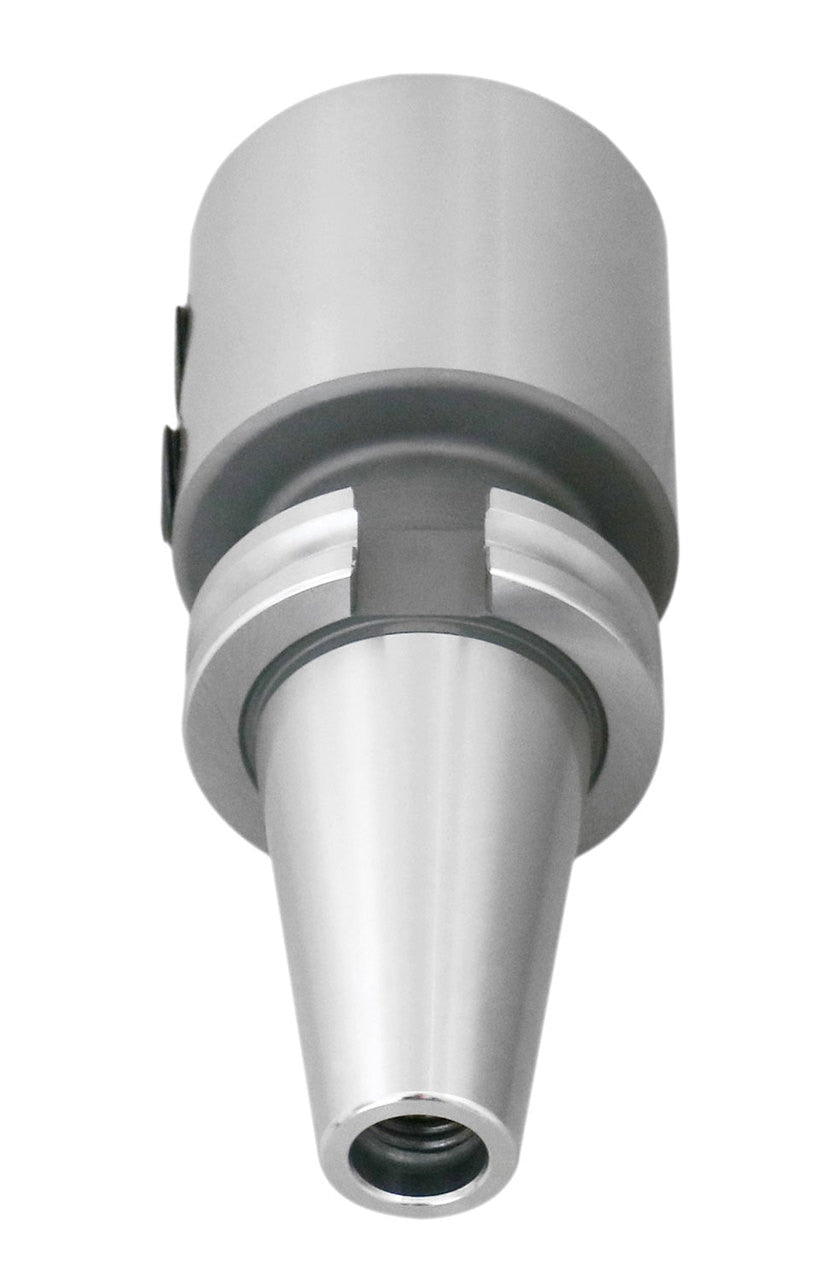

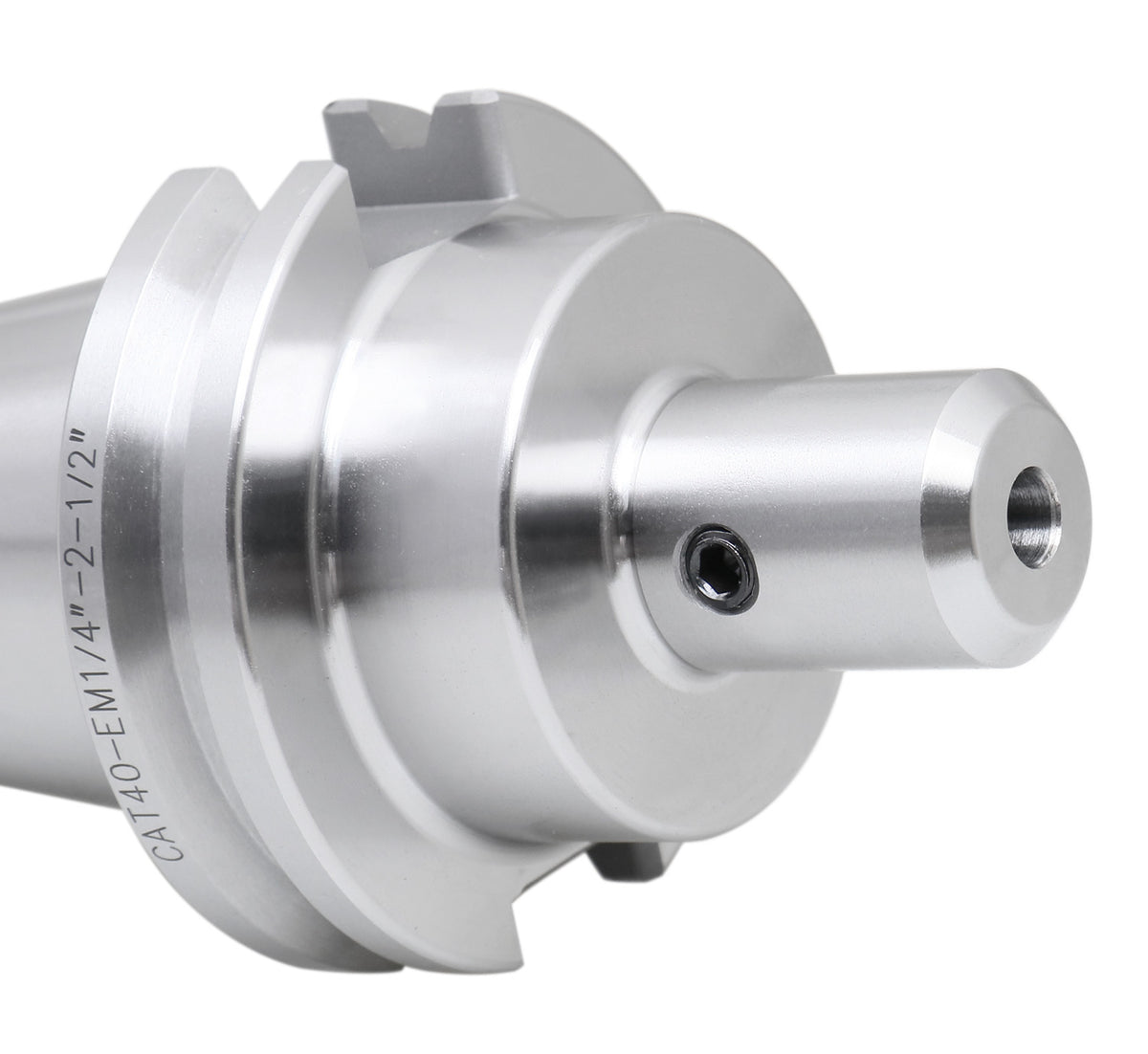

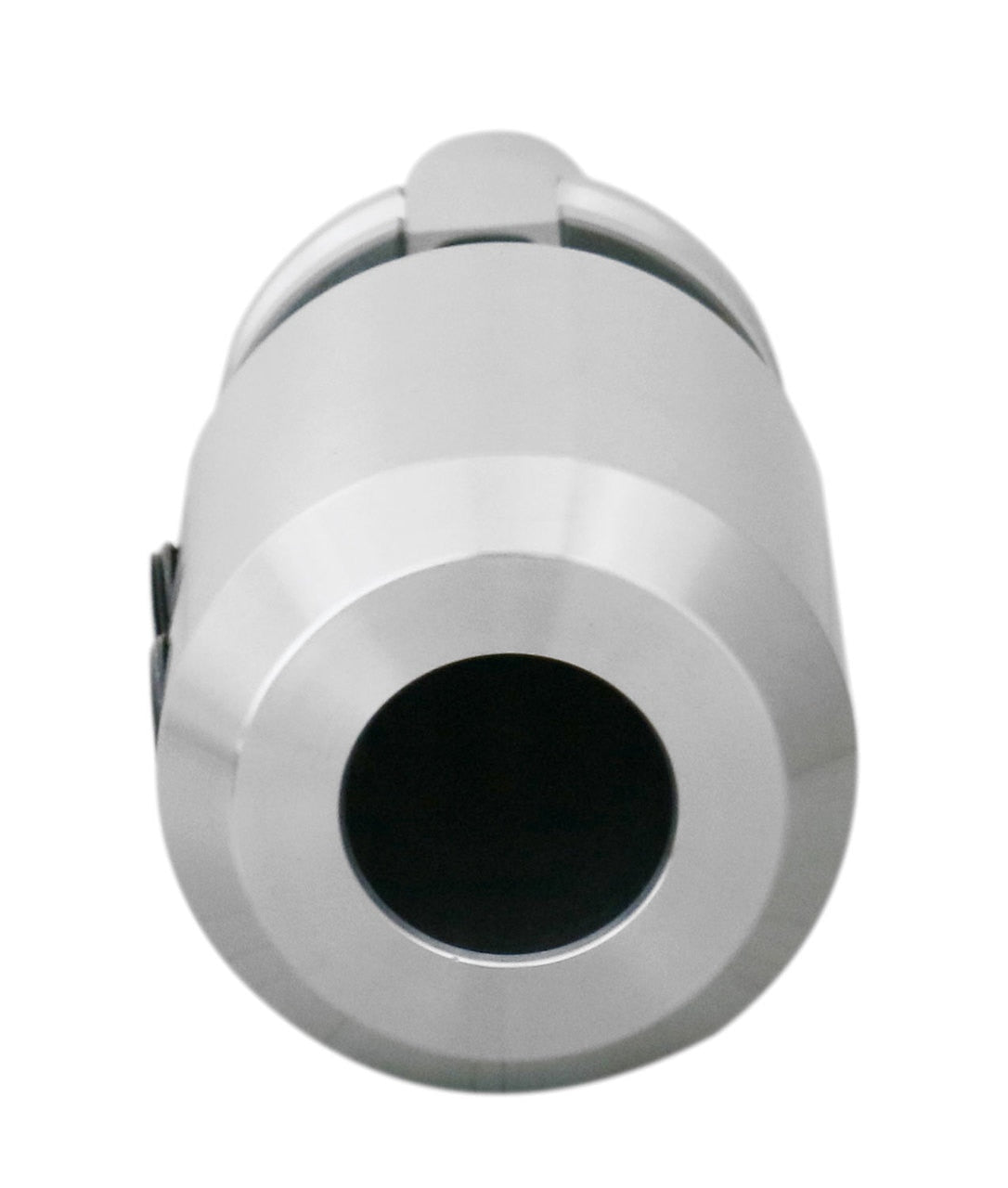

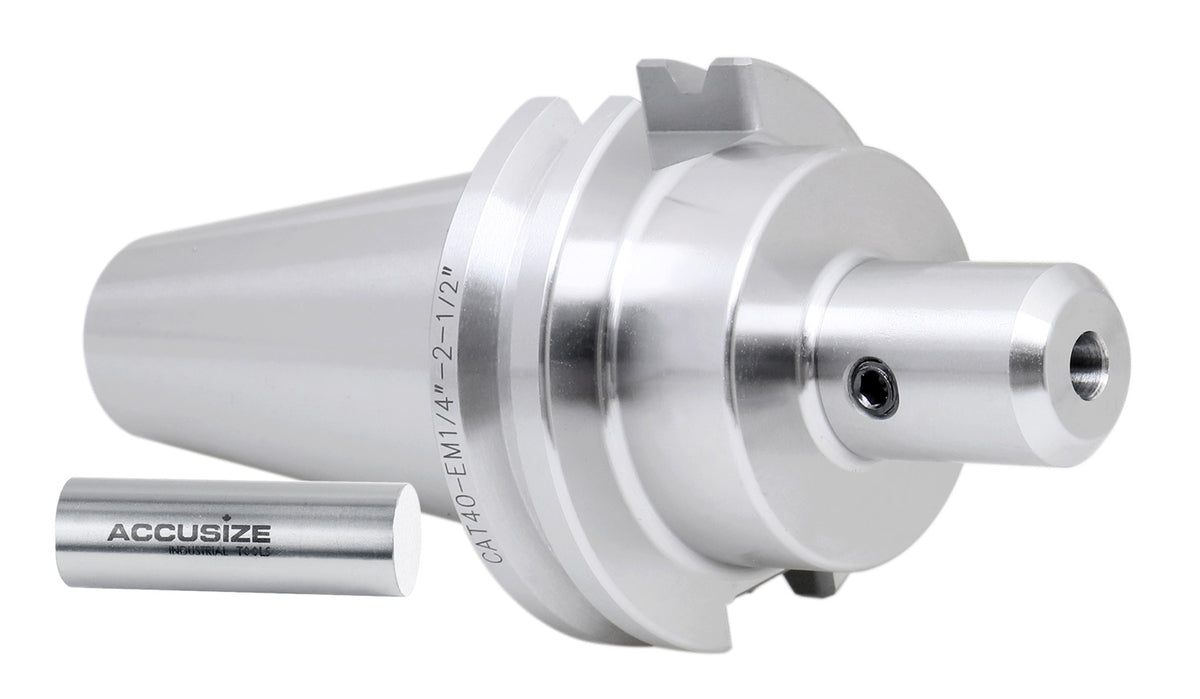

CAT40 C.N.C. End Mill Holders

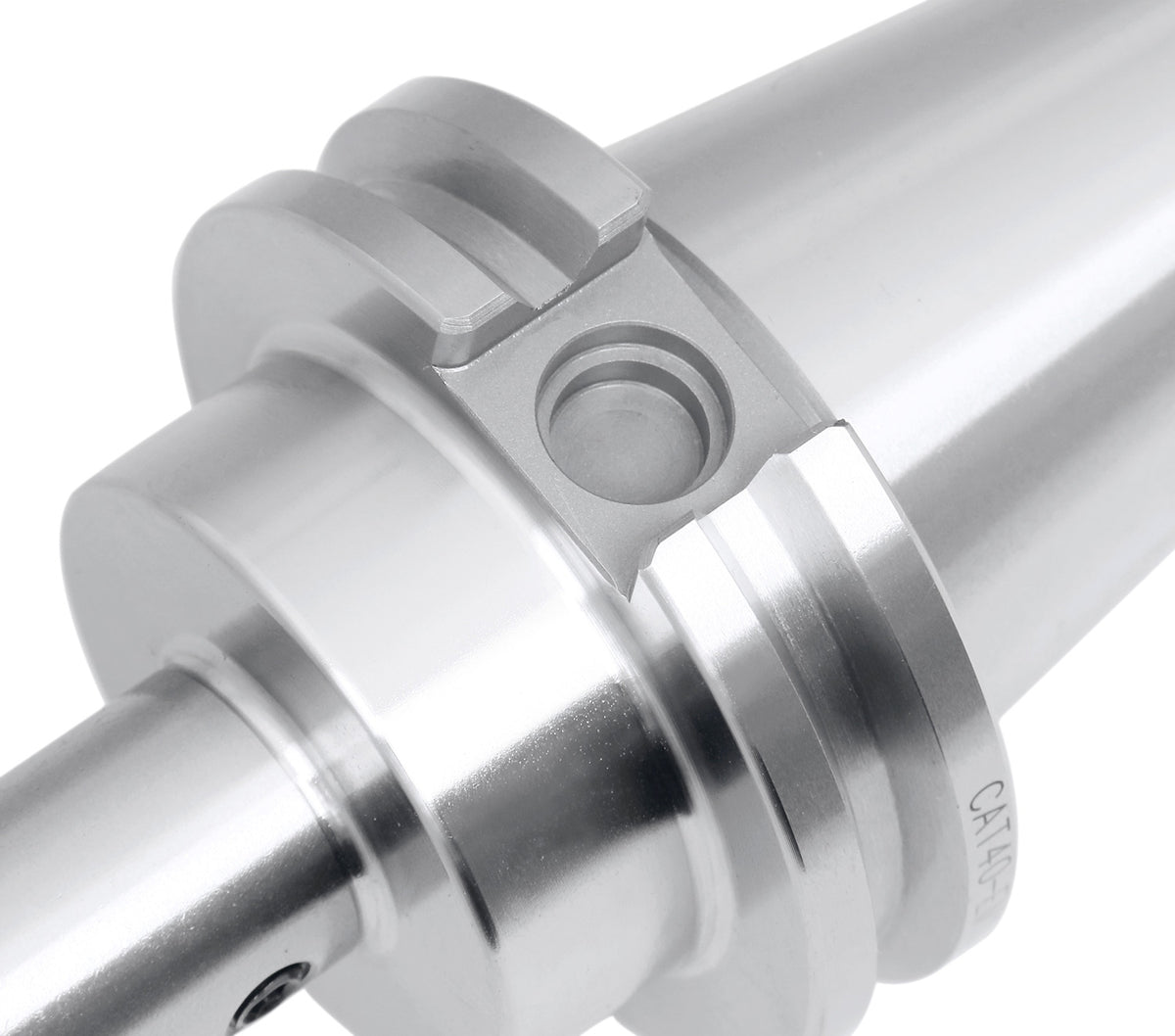

  • Caterpillar v-flange end mill Holders
  • Produced According to AT3 Specifications.
  • Made of alloy forged steel for long durable service life.
  • Hardened to RC 52-56 and ground to ensure maximum accuracy
  • End mill socket T.I.R.<0.0002".
  • Through spindle coolant capability.
  • Retention knobs are sold separately.
  • Drawbar Thread: CAT-40 5/8"-11.
Item d L1 L D D1 L2 L3

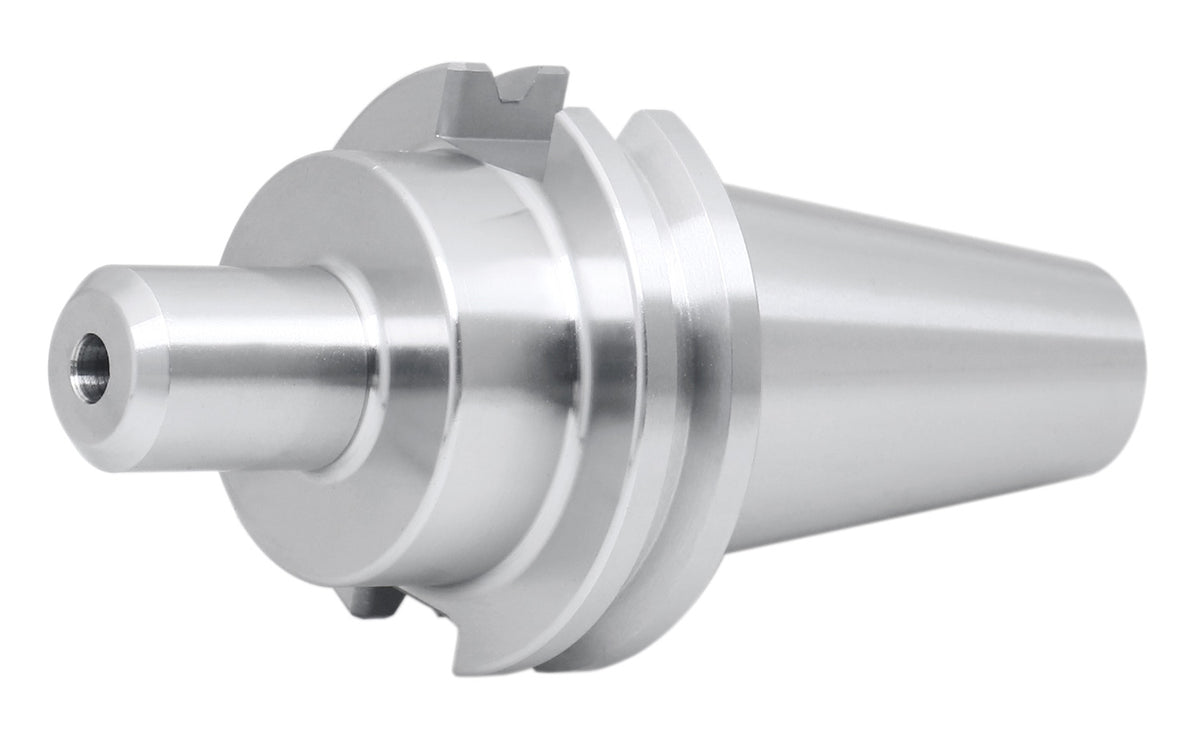

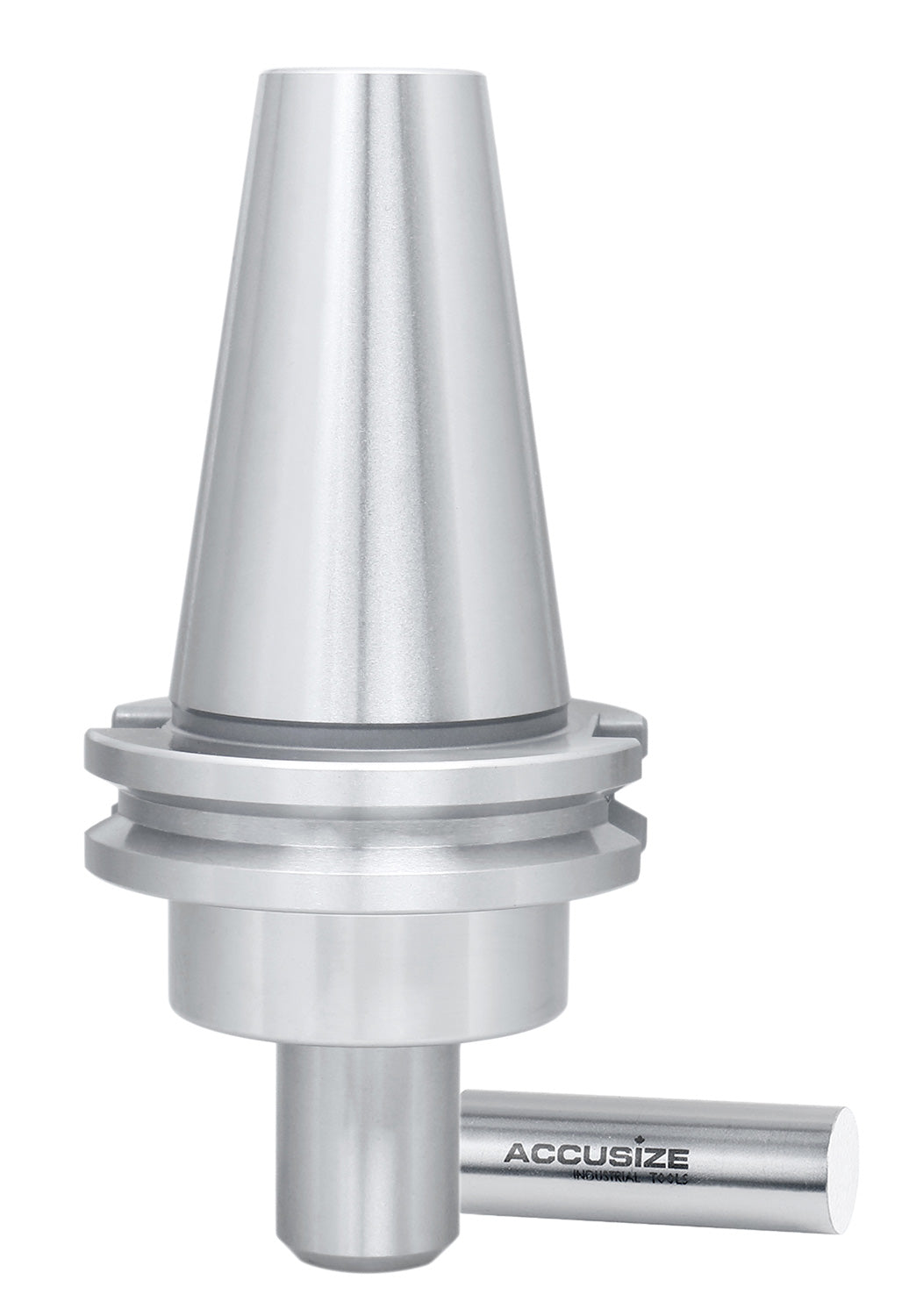

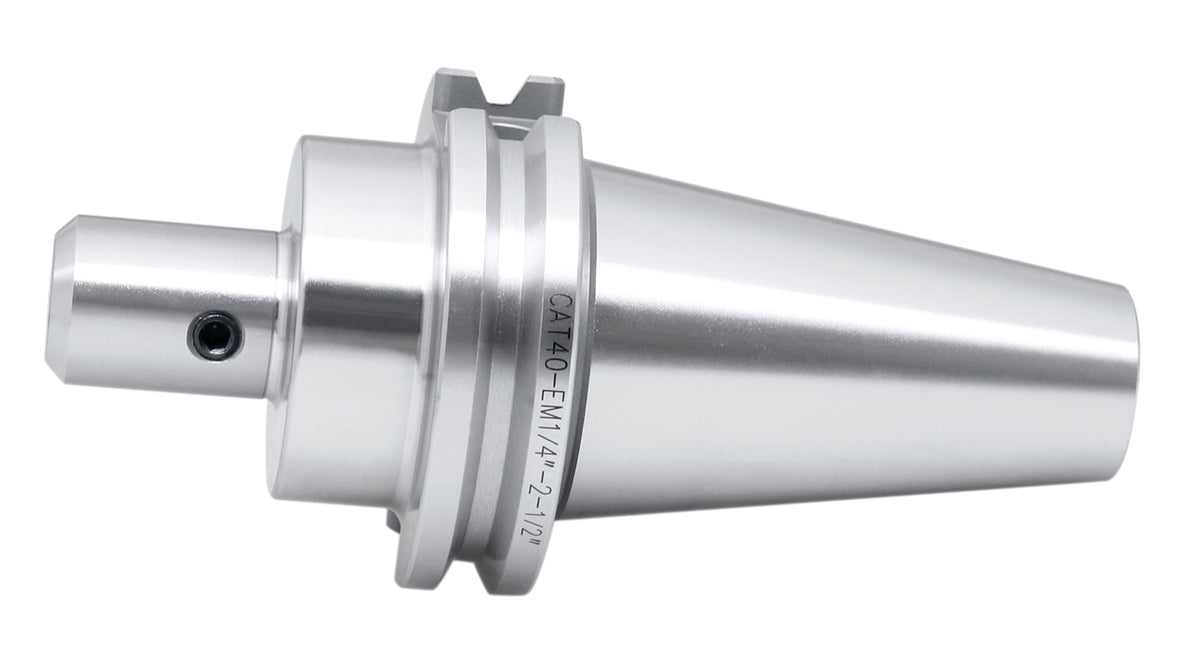

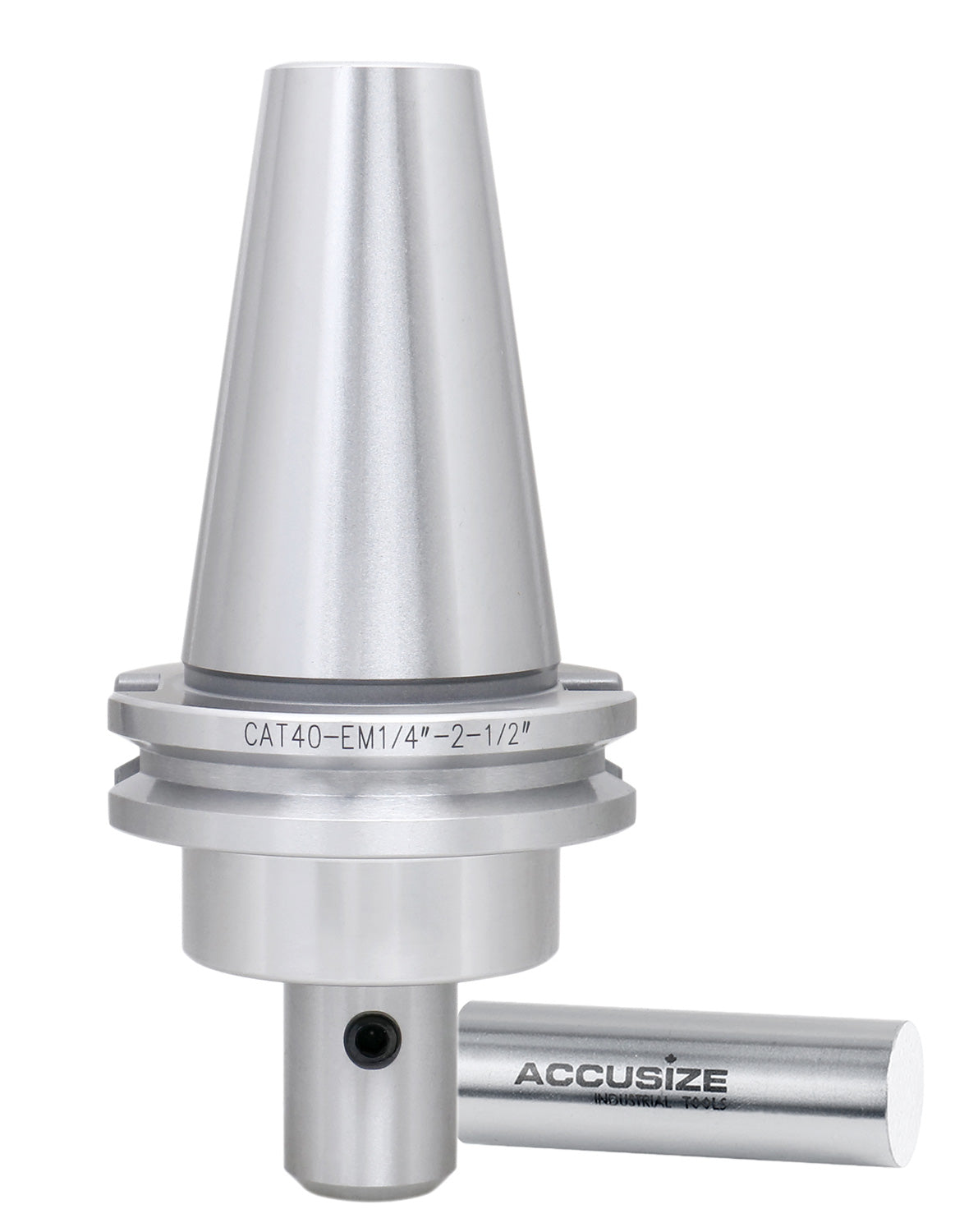

6780-7024 1/4" 2-1/2" 5-3/16" 13/16" 1-3/4" 25/32" -

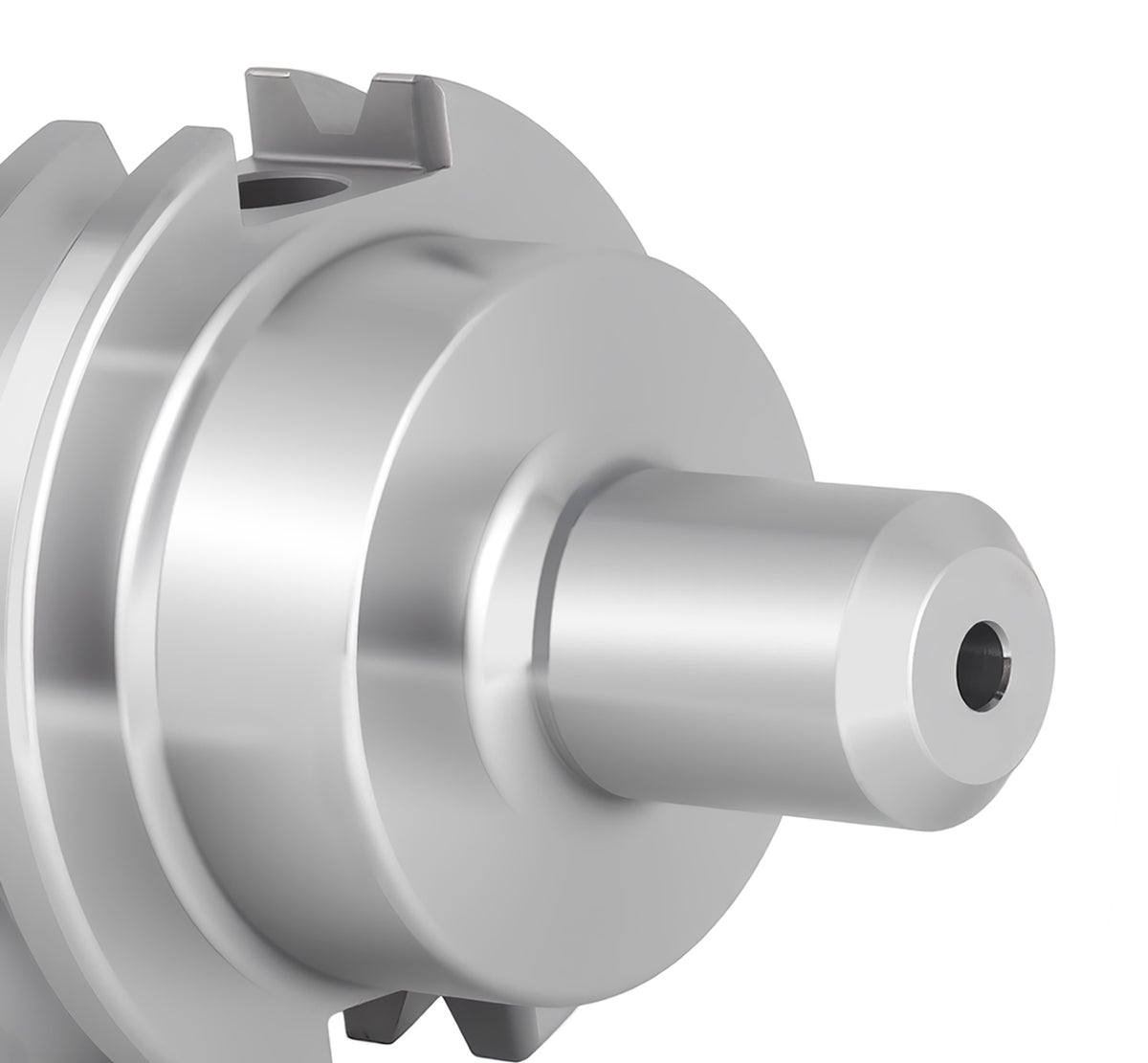

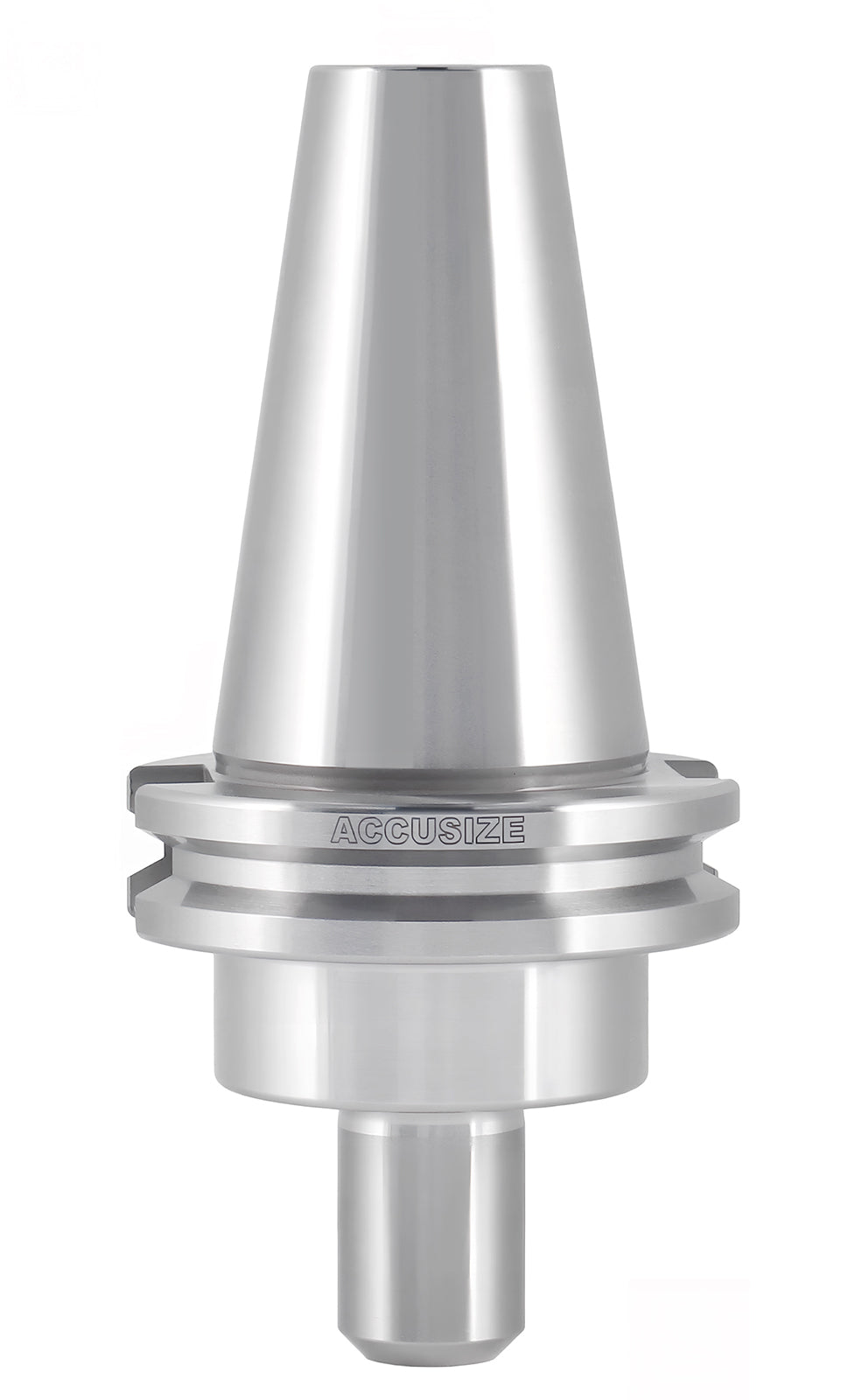

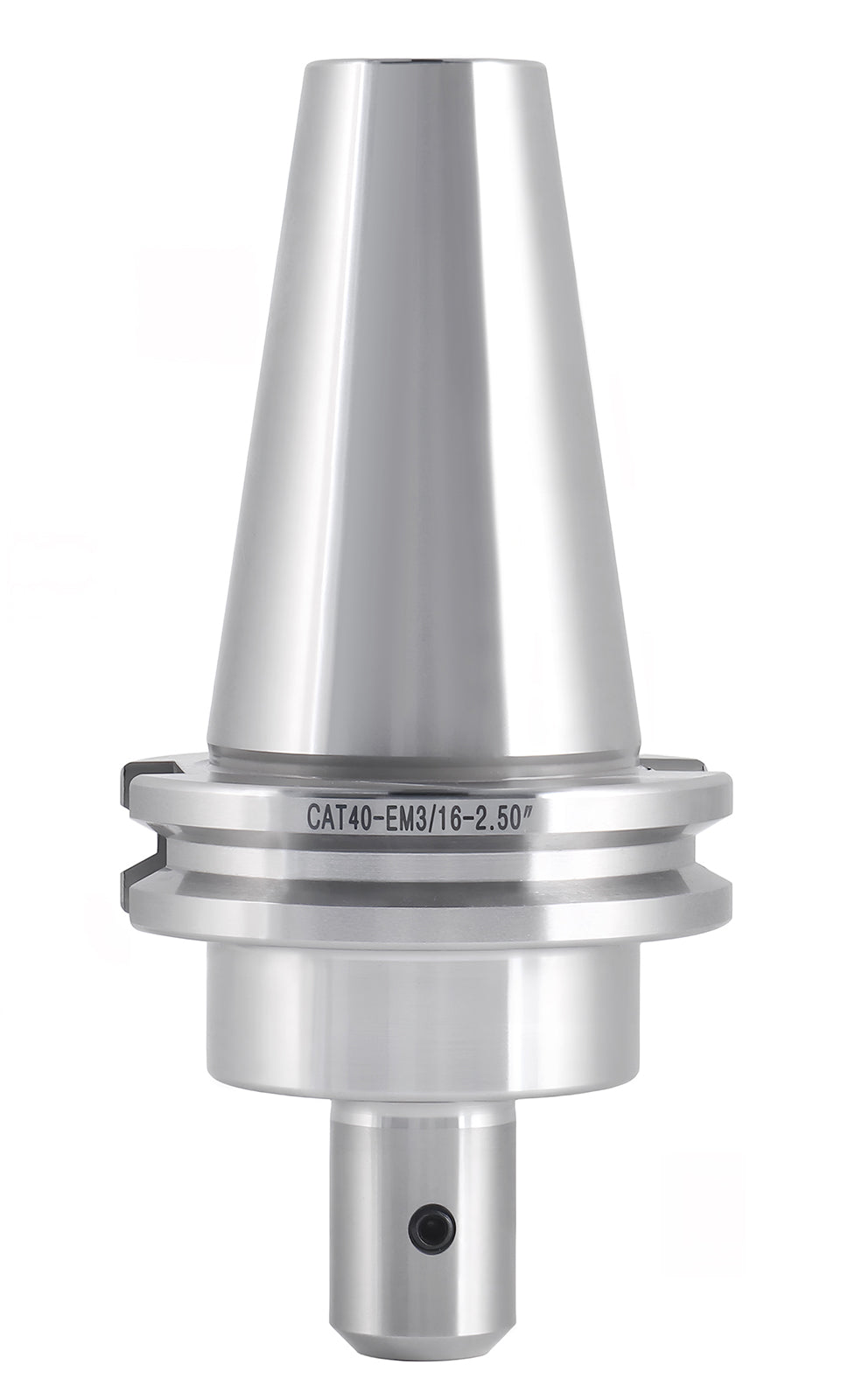

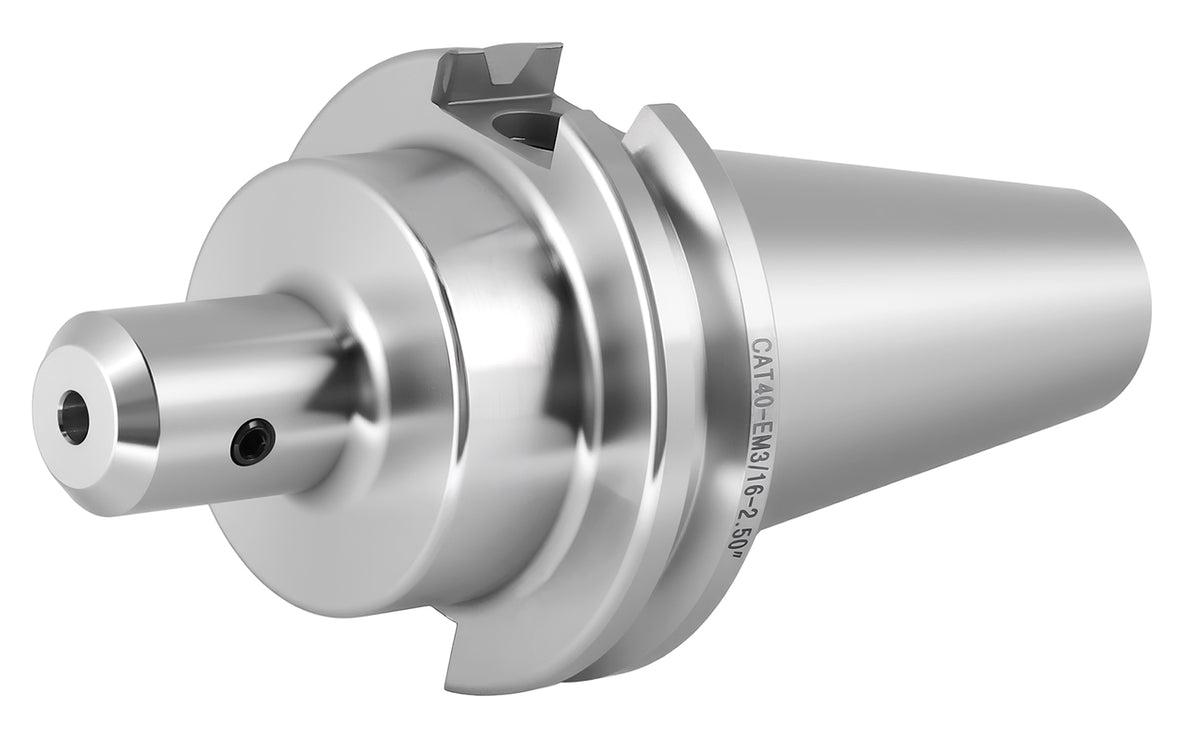

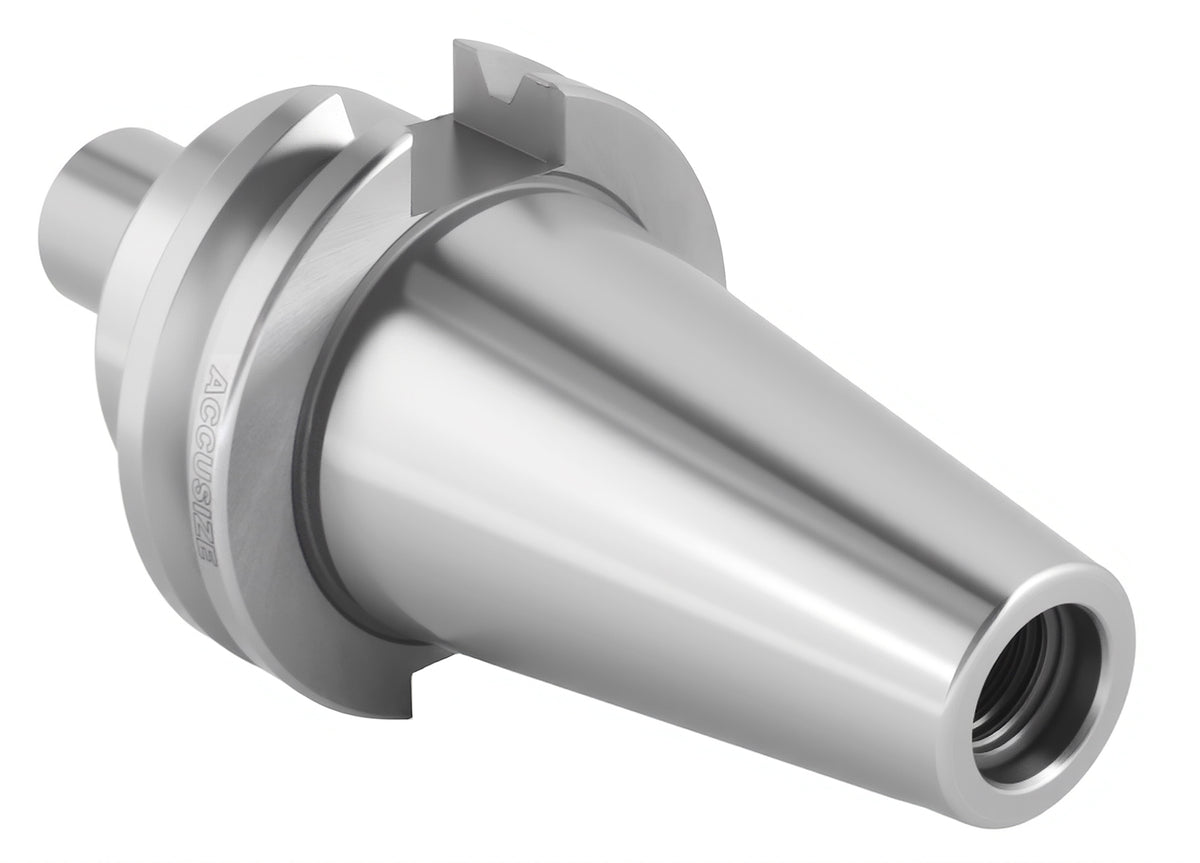

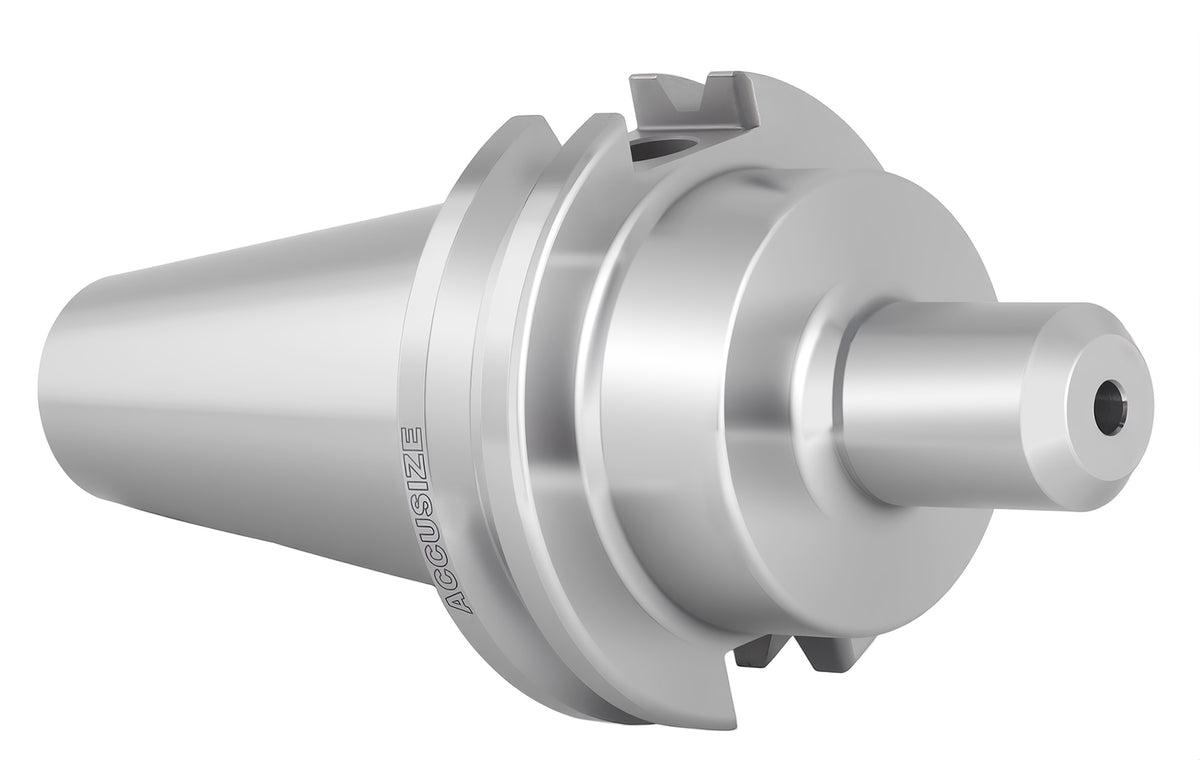

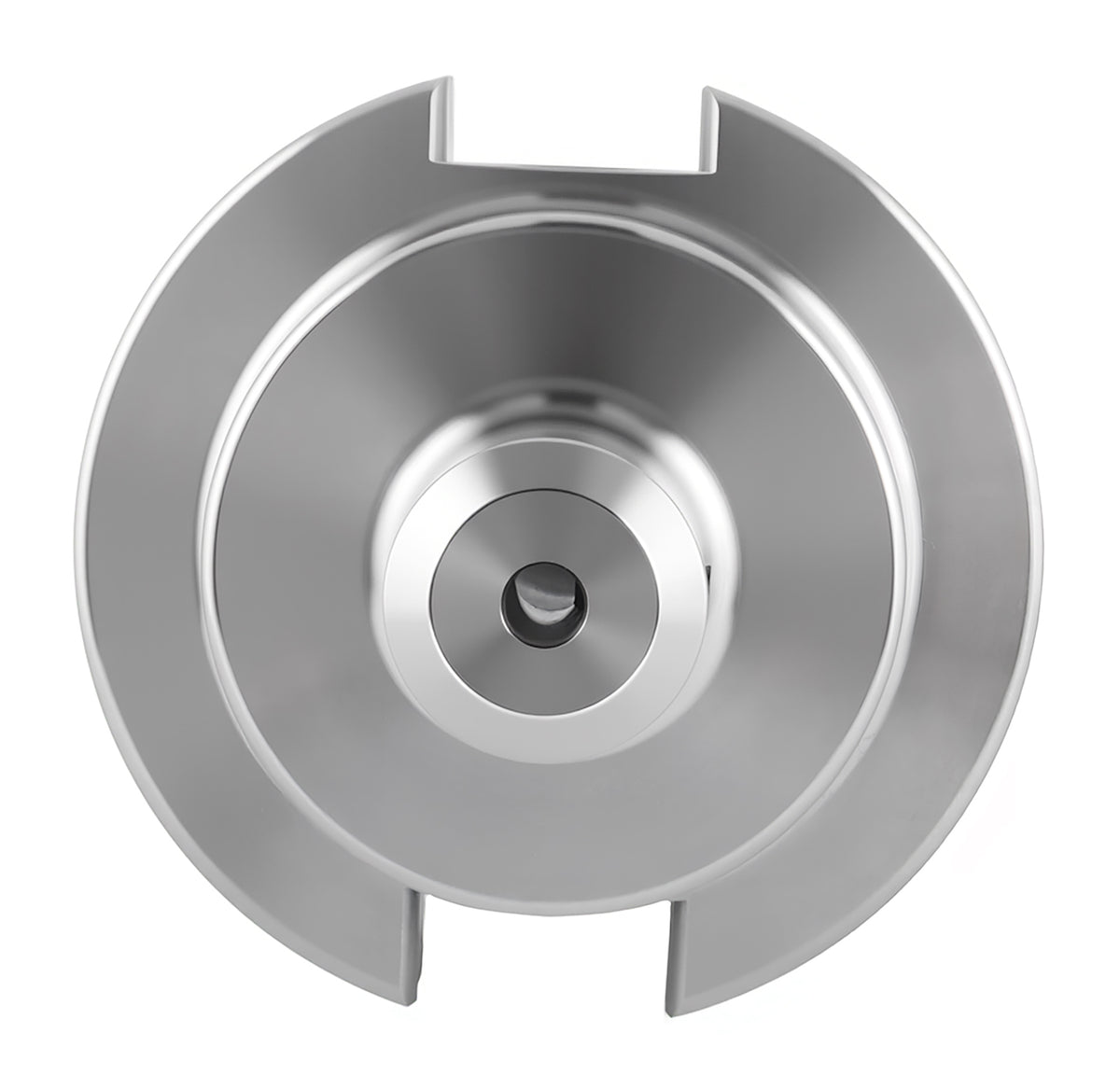

6780-7025 3/16" 2-1/2" 5-3/16" 3/4" 1-3/4" 9/16" -

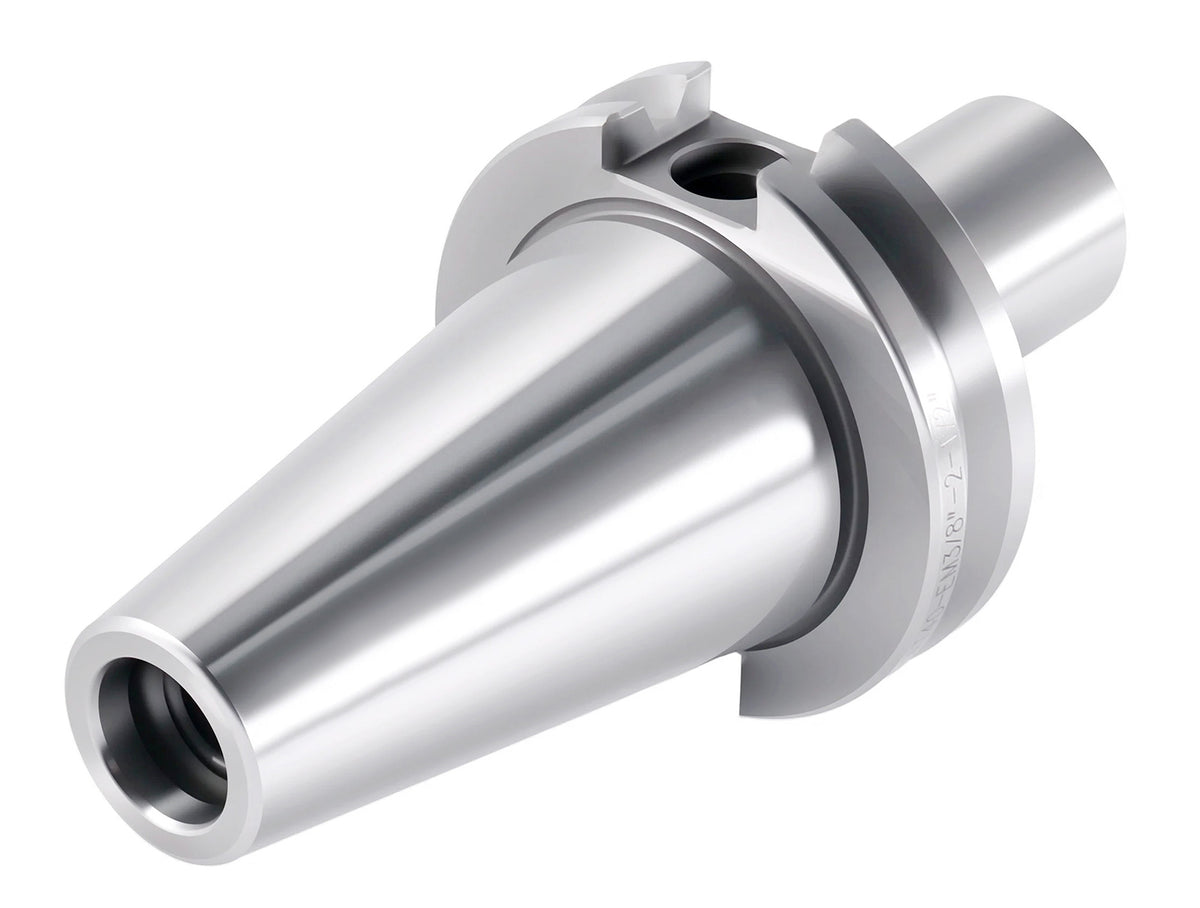

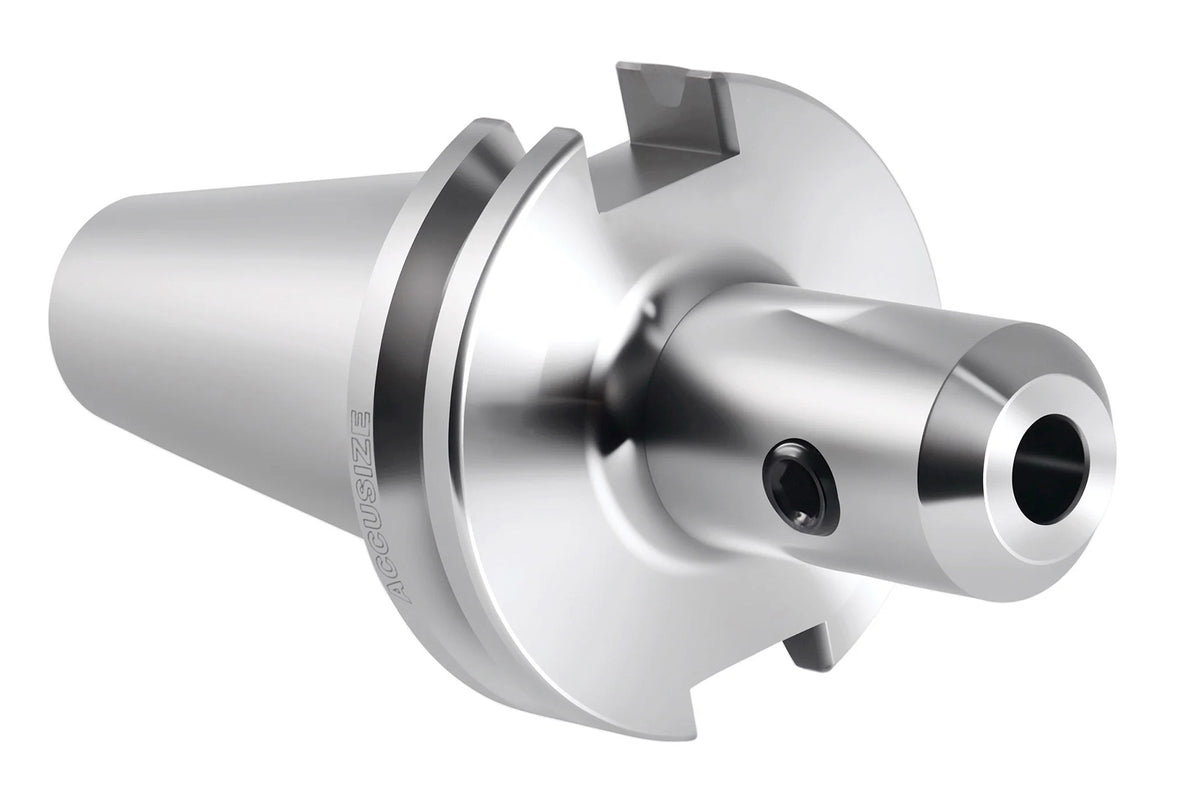

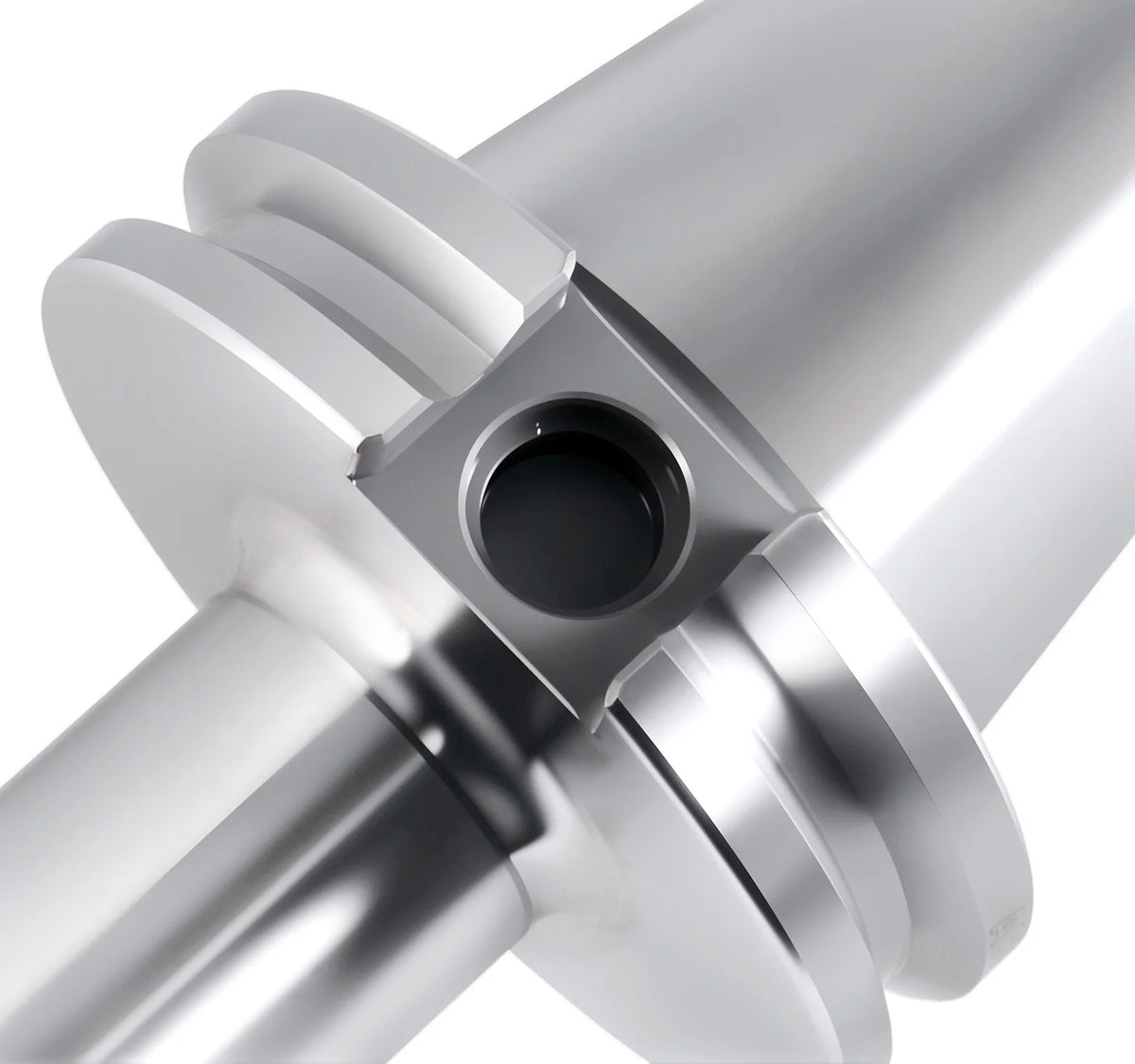

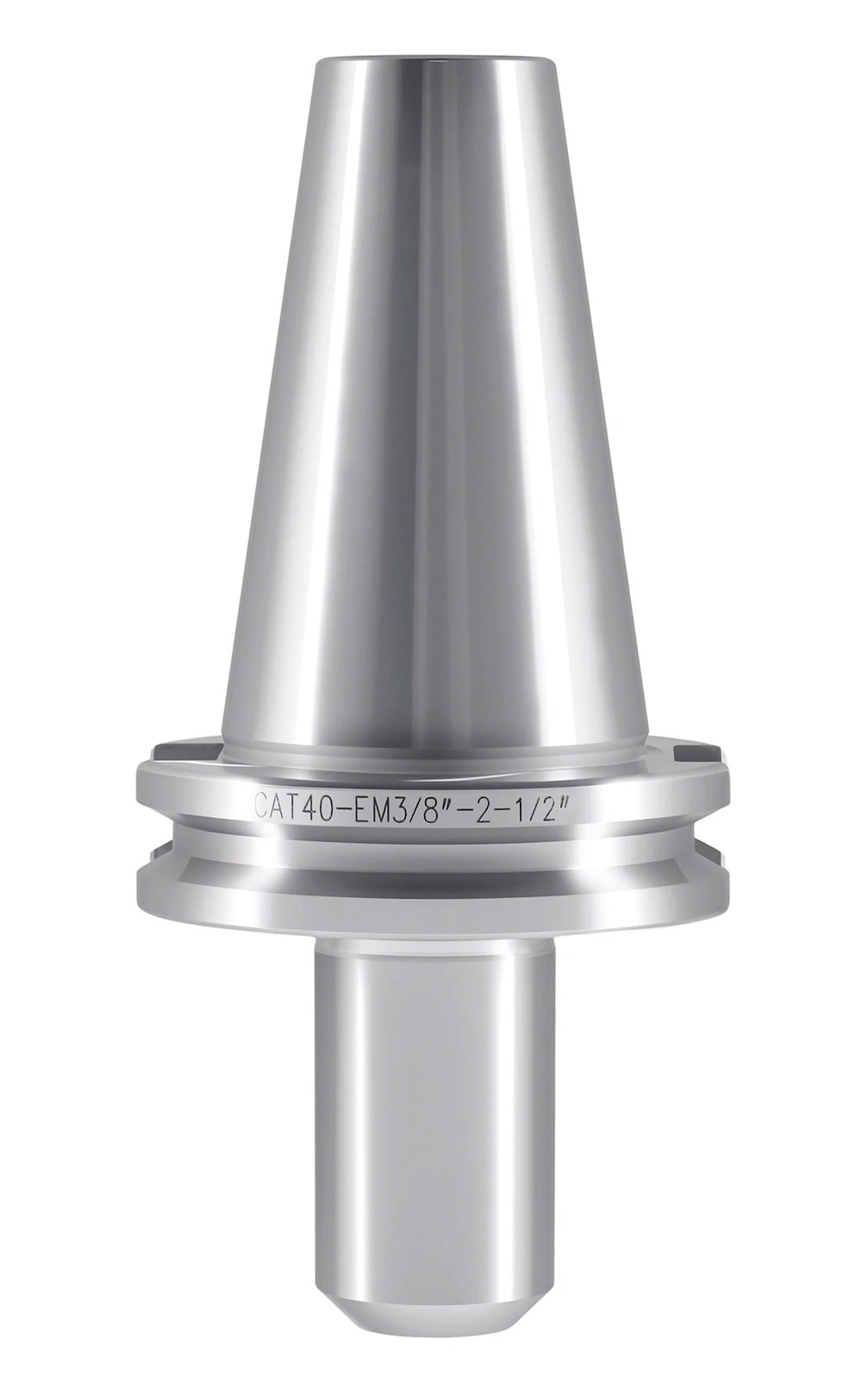

6780-7026 3/8" 2-1/2" 5-3/16" 1-1/4" 1-3/4" 25/32" -

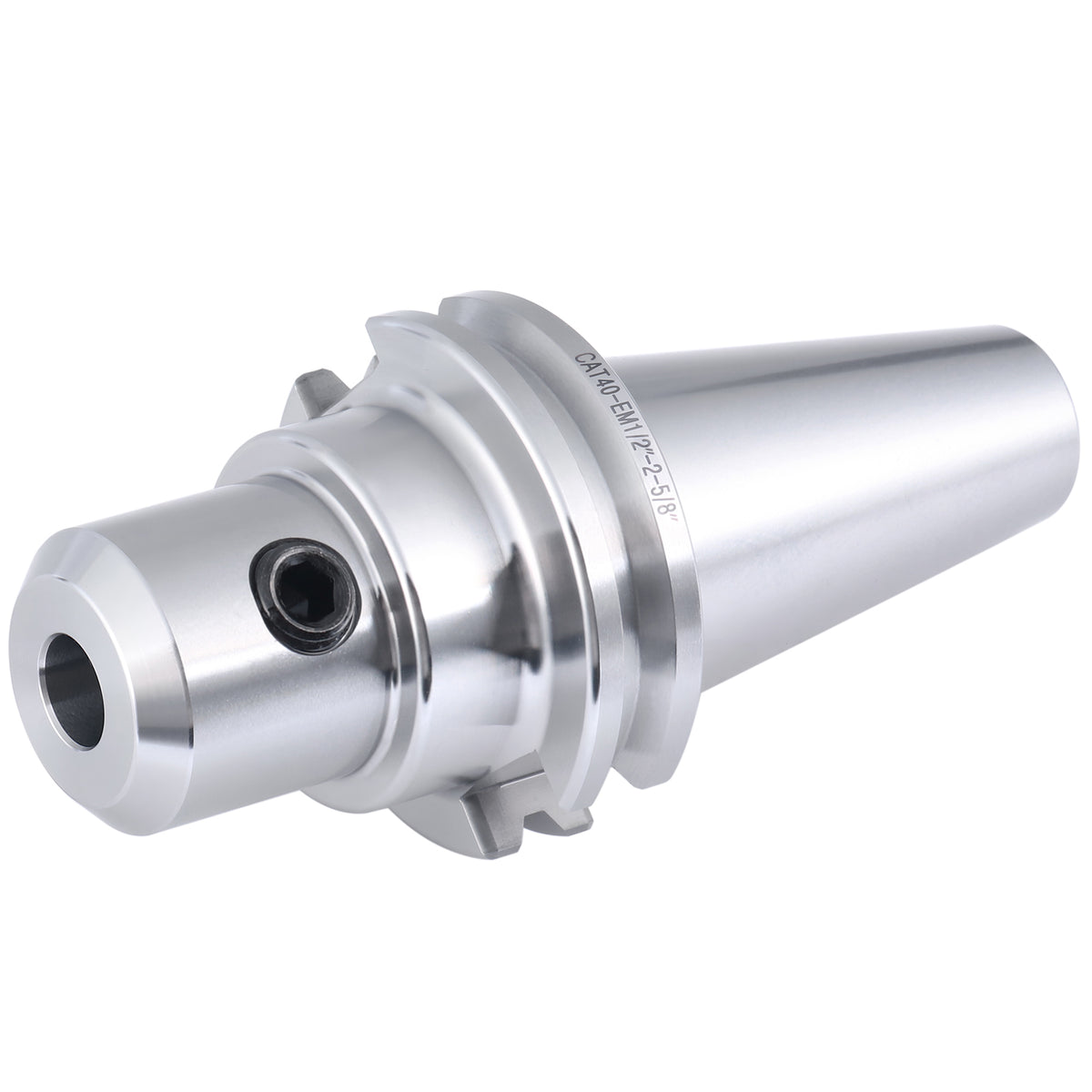

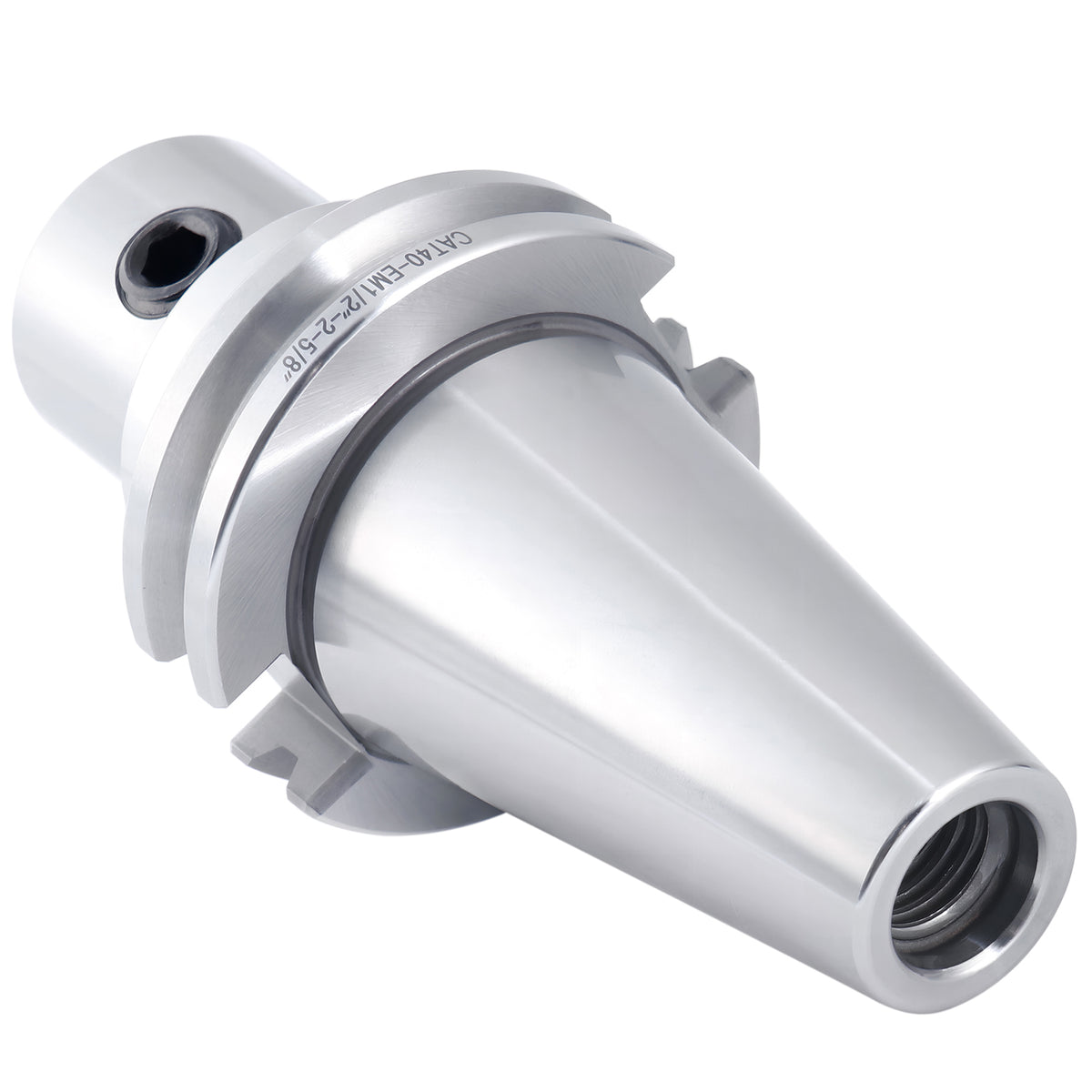

6780-7027 1/2" 2-5/8" 5-5/16" 1-3/4" 1-3/4" 7/8" -

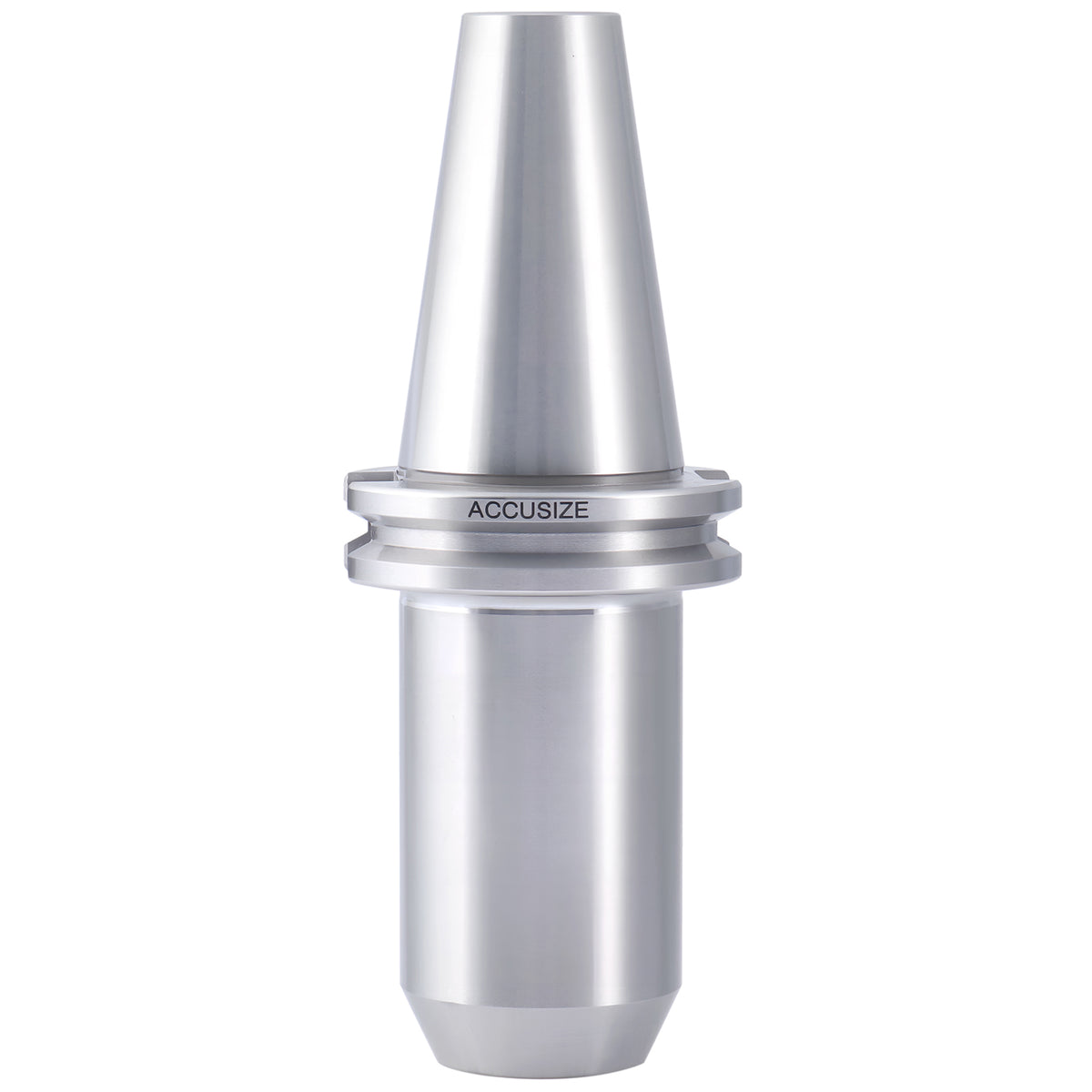

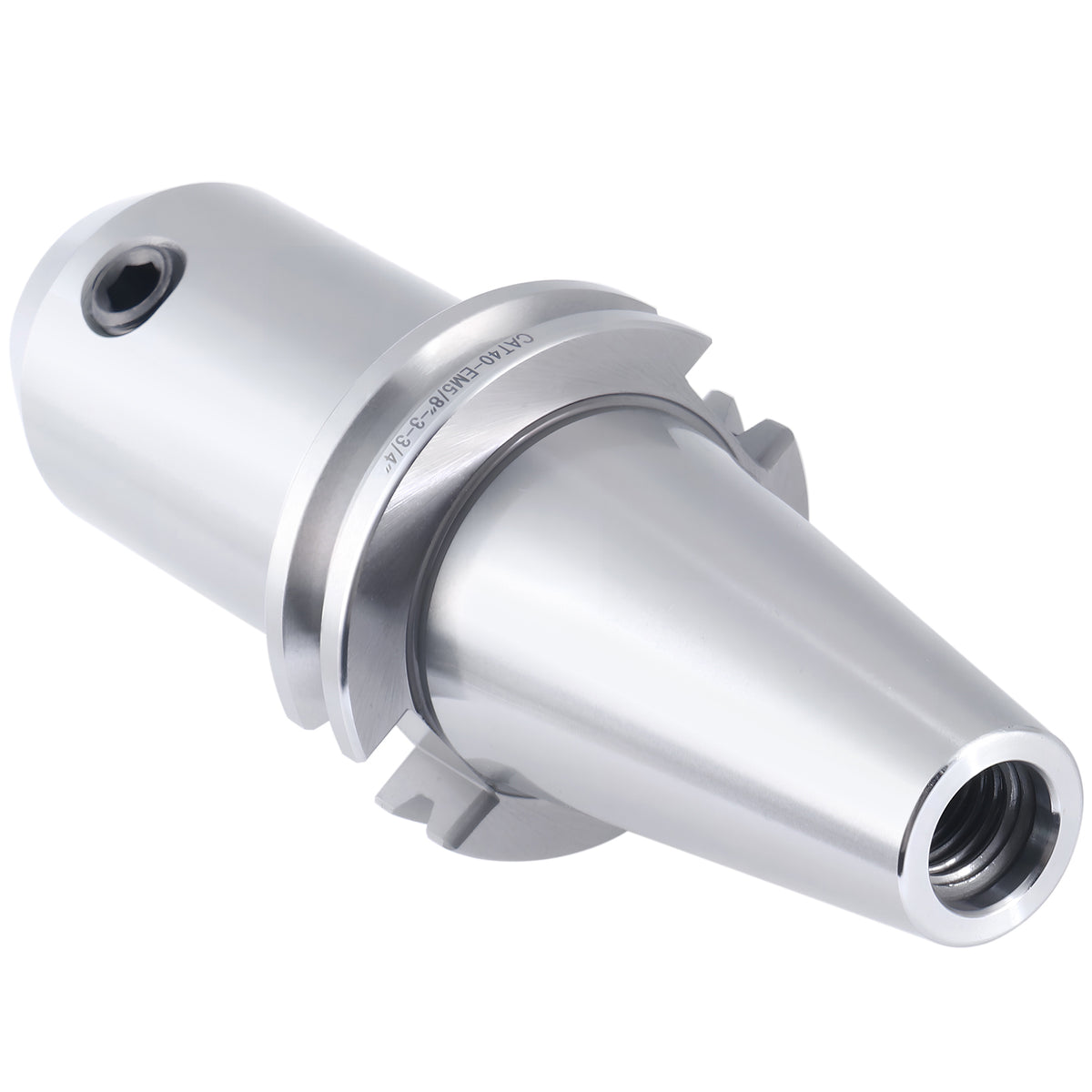

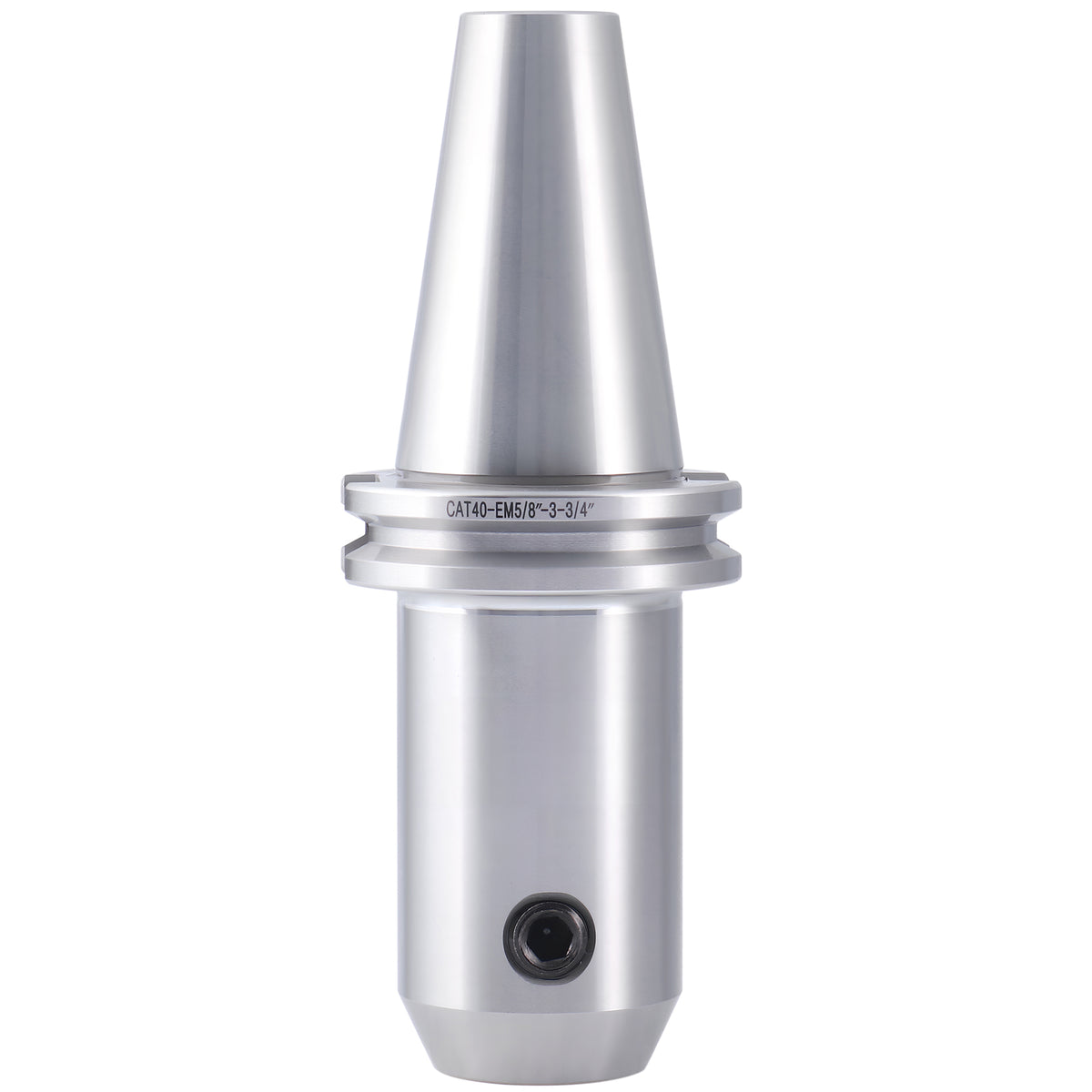

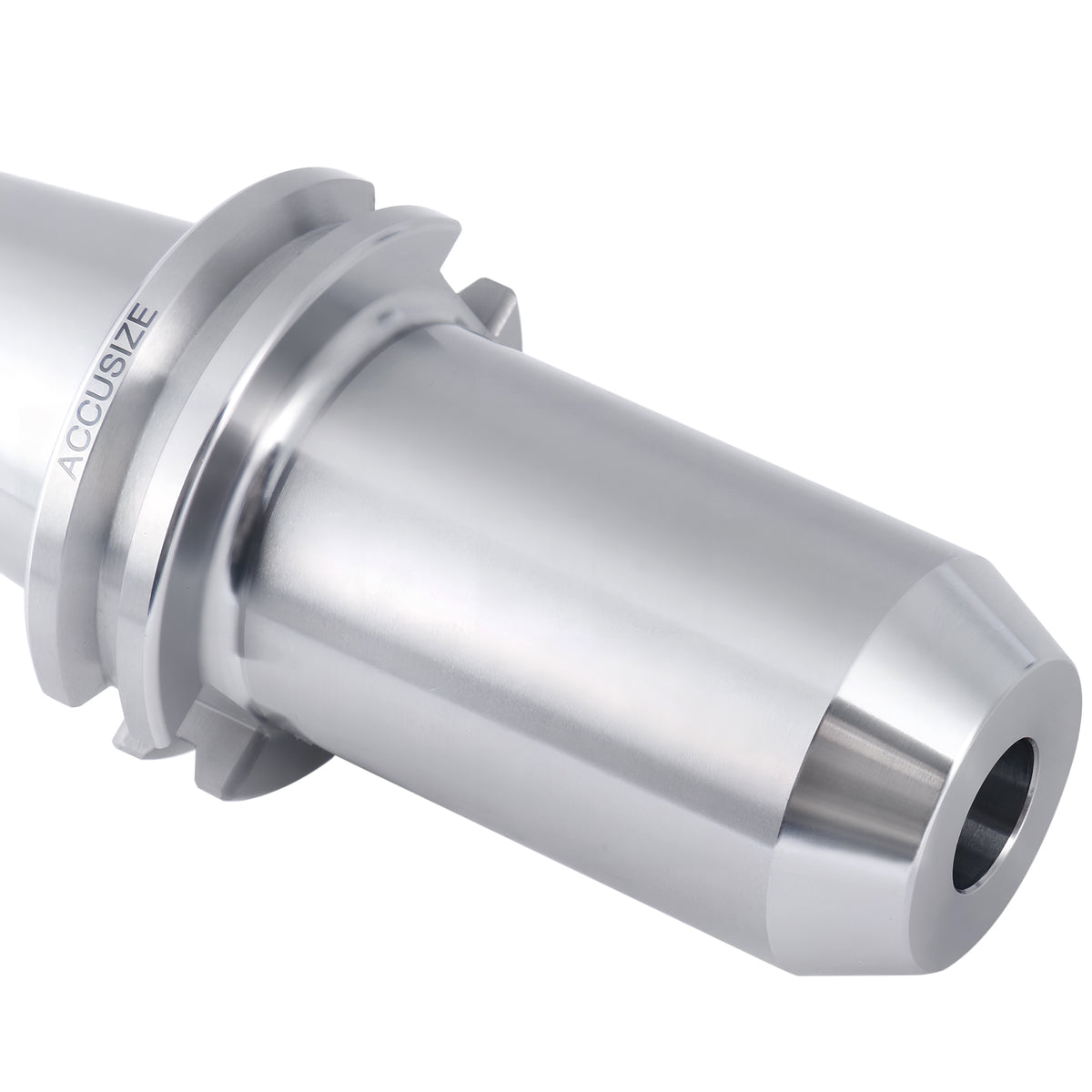

6780-7028 5/8" 3-3/4" 6-7/16" 1-3/4" 1-3/4" 15/16" -

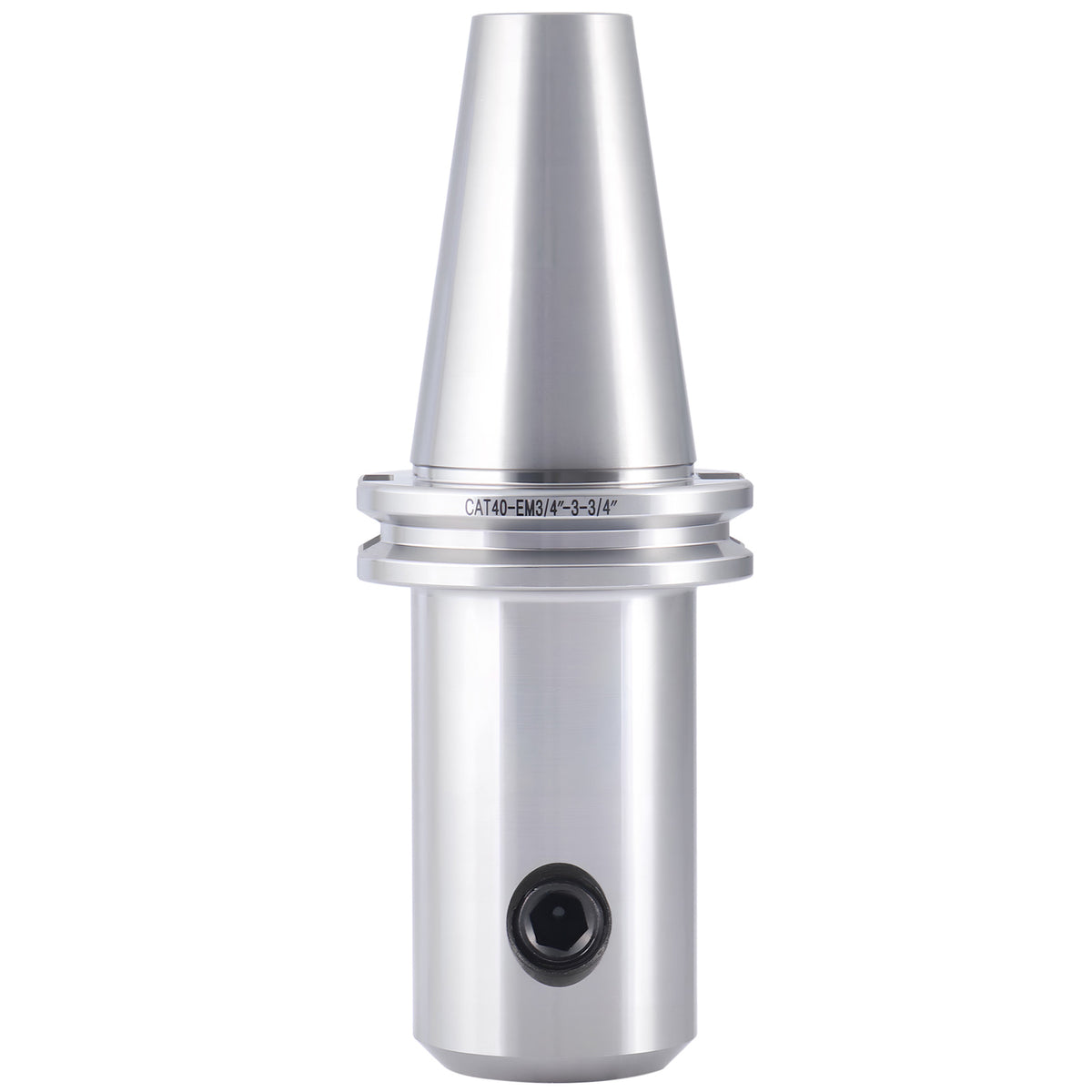

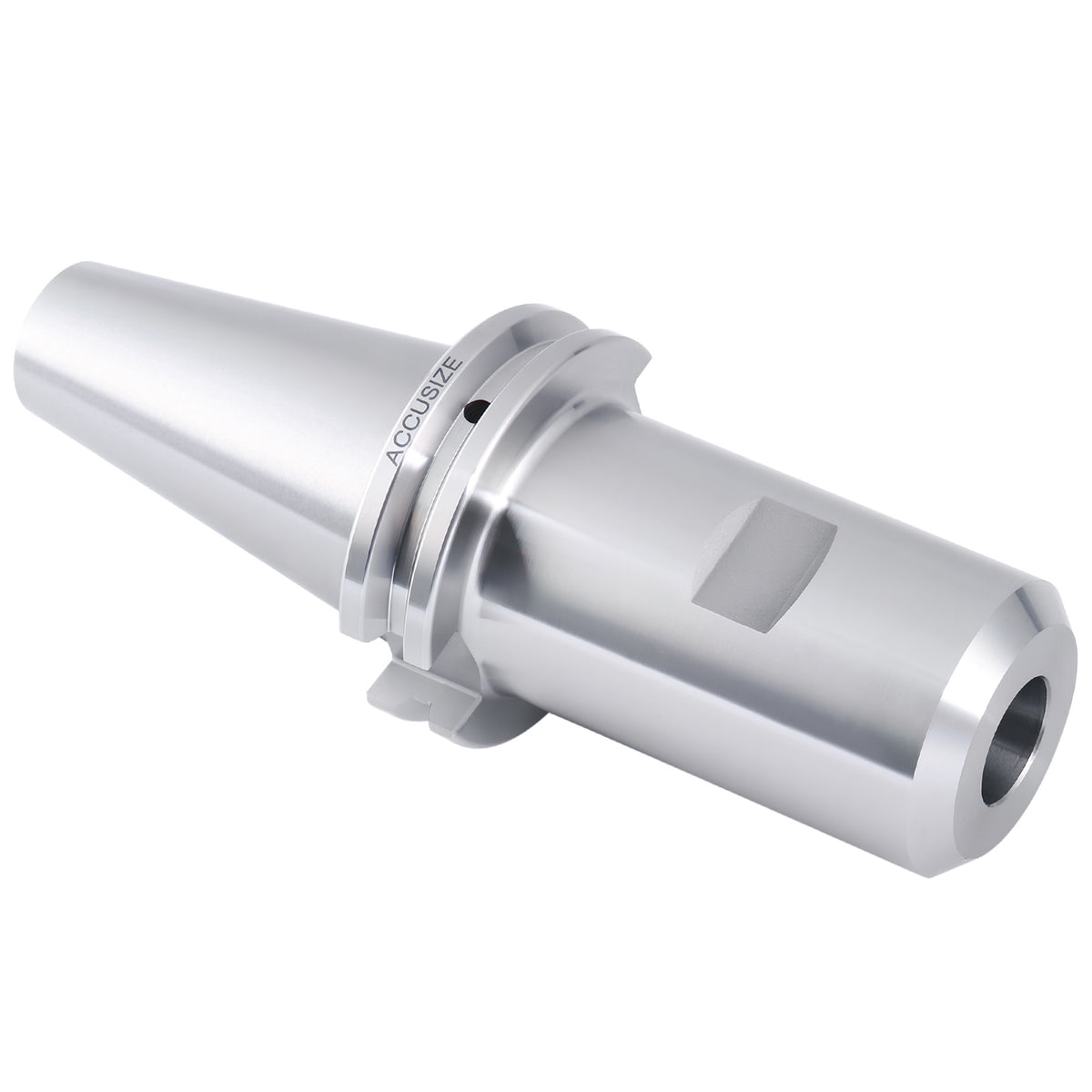

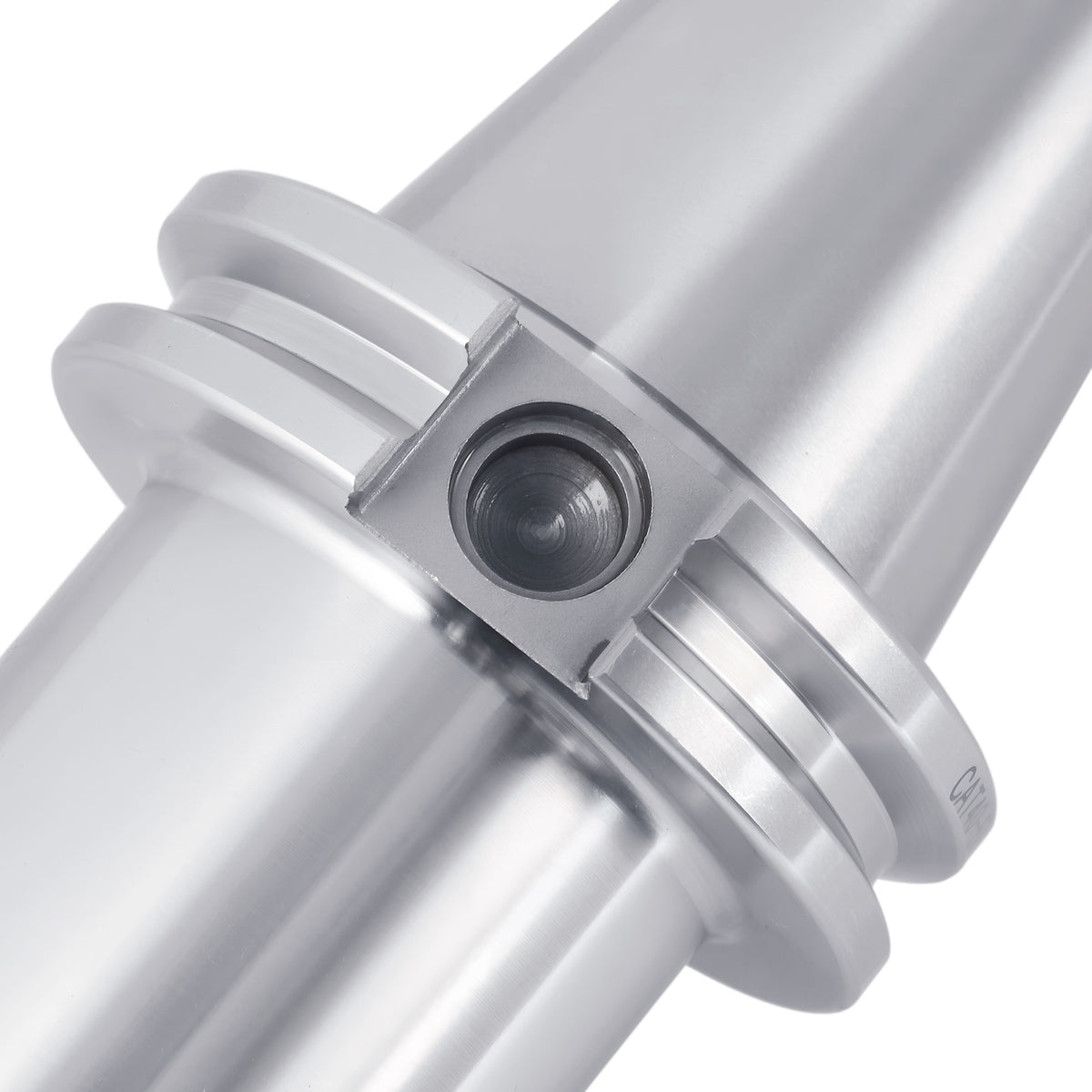

6780-7029 3/4" 3-3/4" 6-7/16" 1-3/4" 1-3/4" 1" -
6780-7030 7/8" 4" 6-11/16" 2-3/64" 1-3/4" 1-1/16" 7/8"

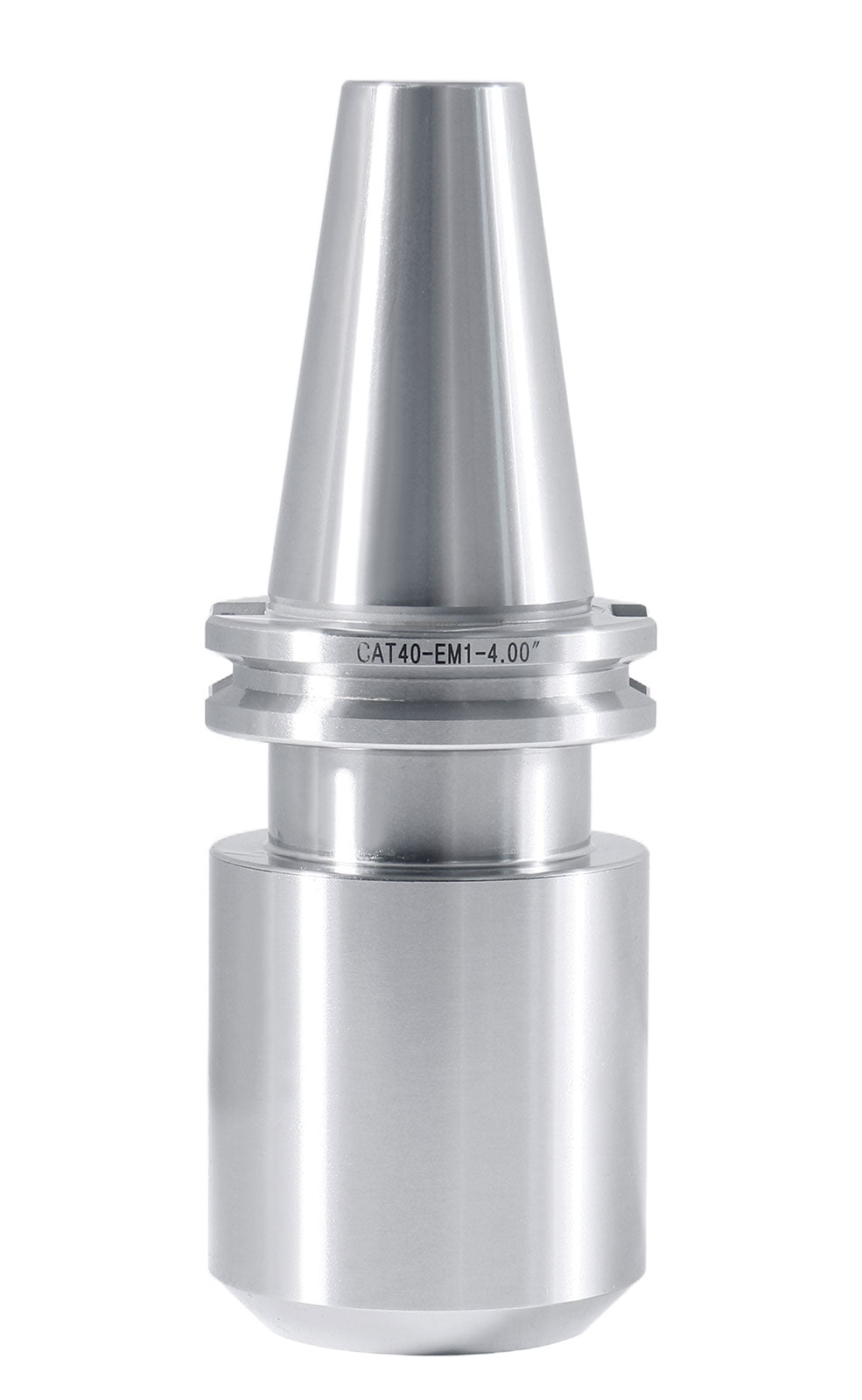

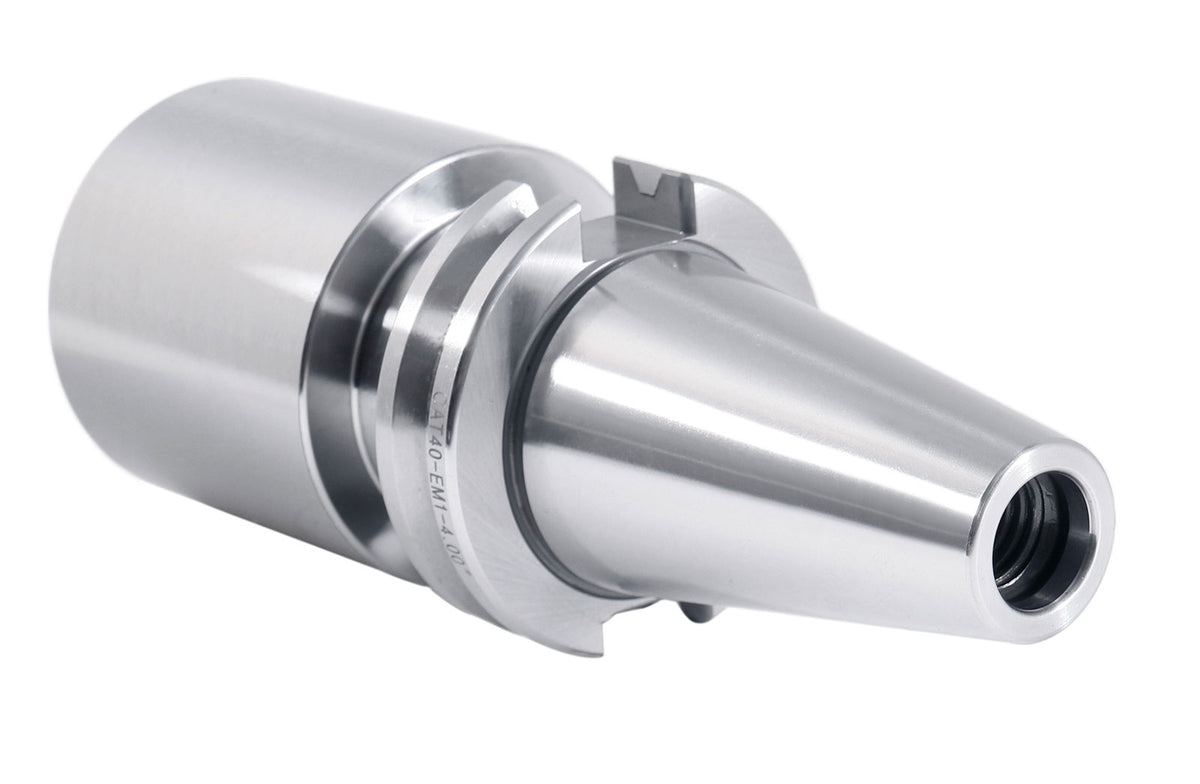

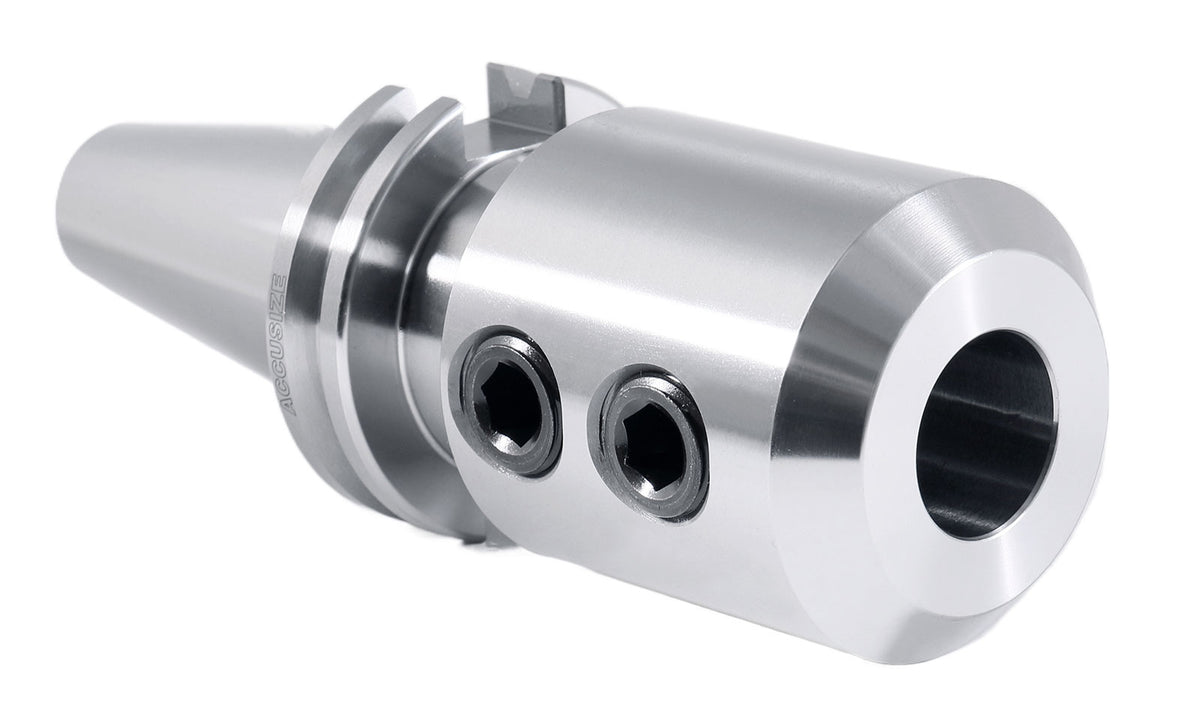

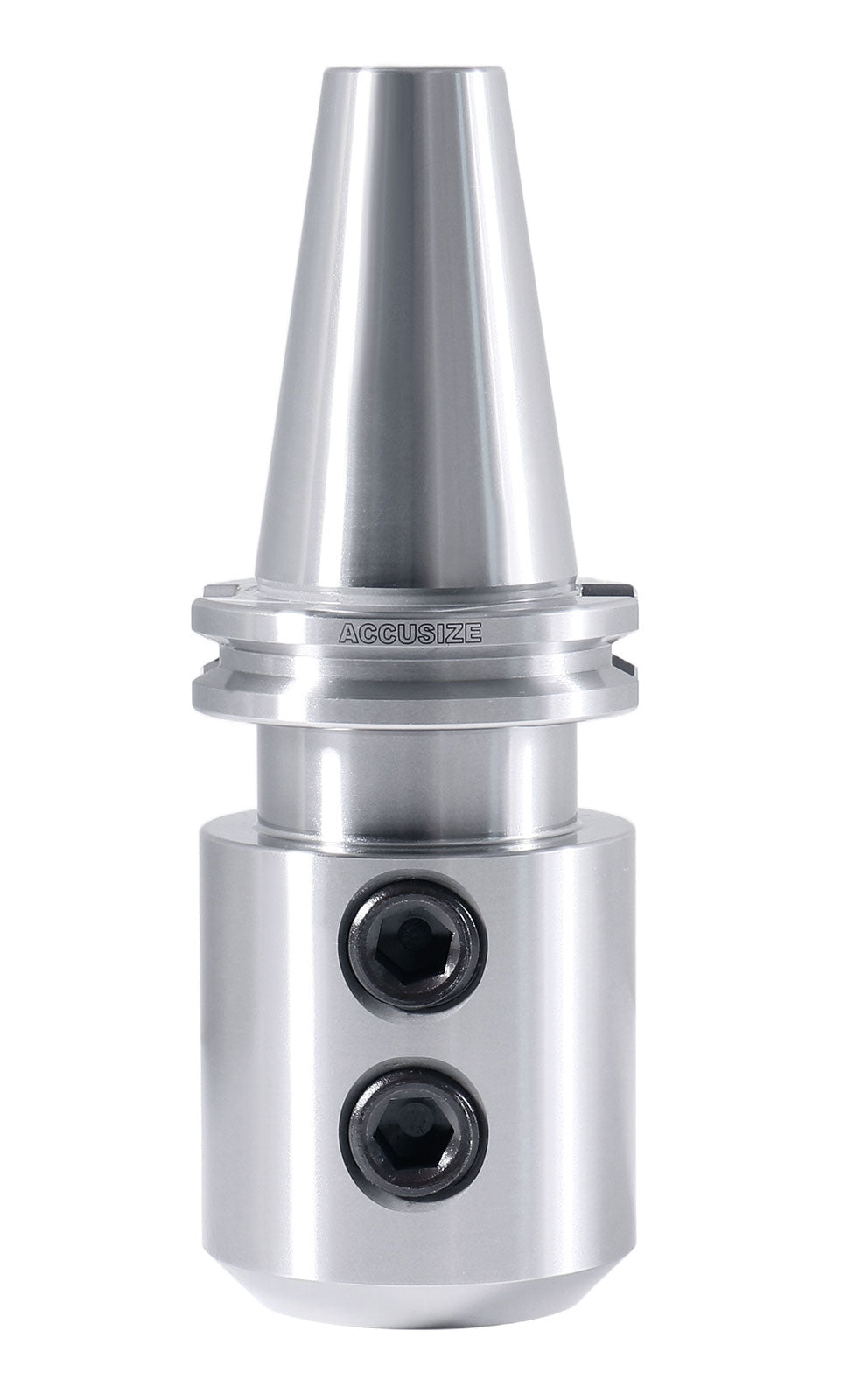

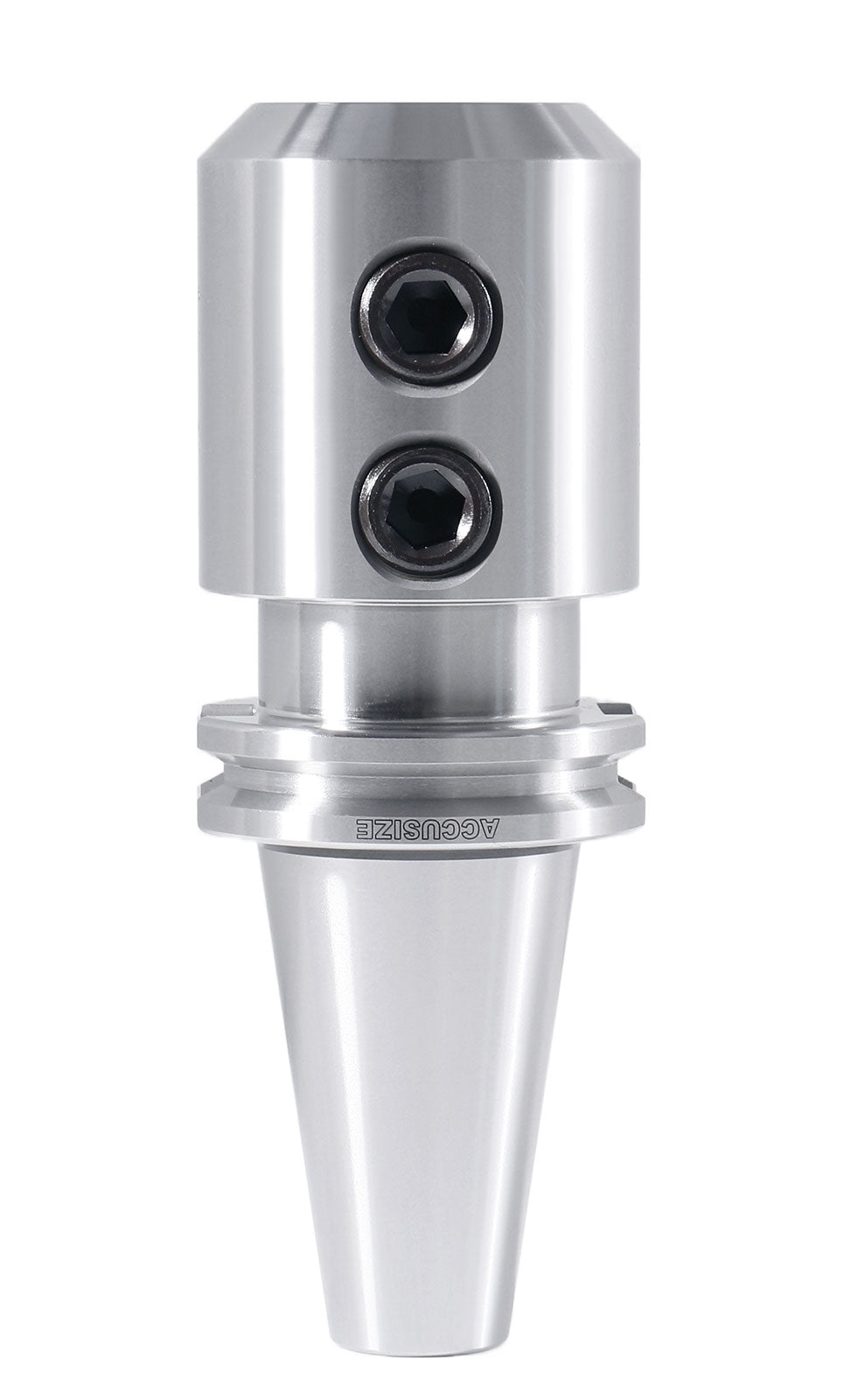

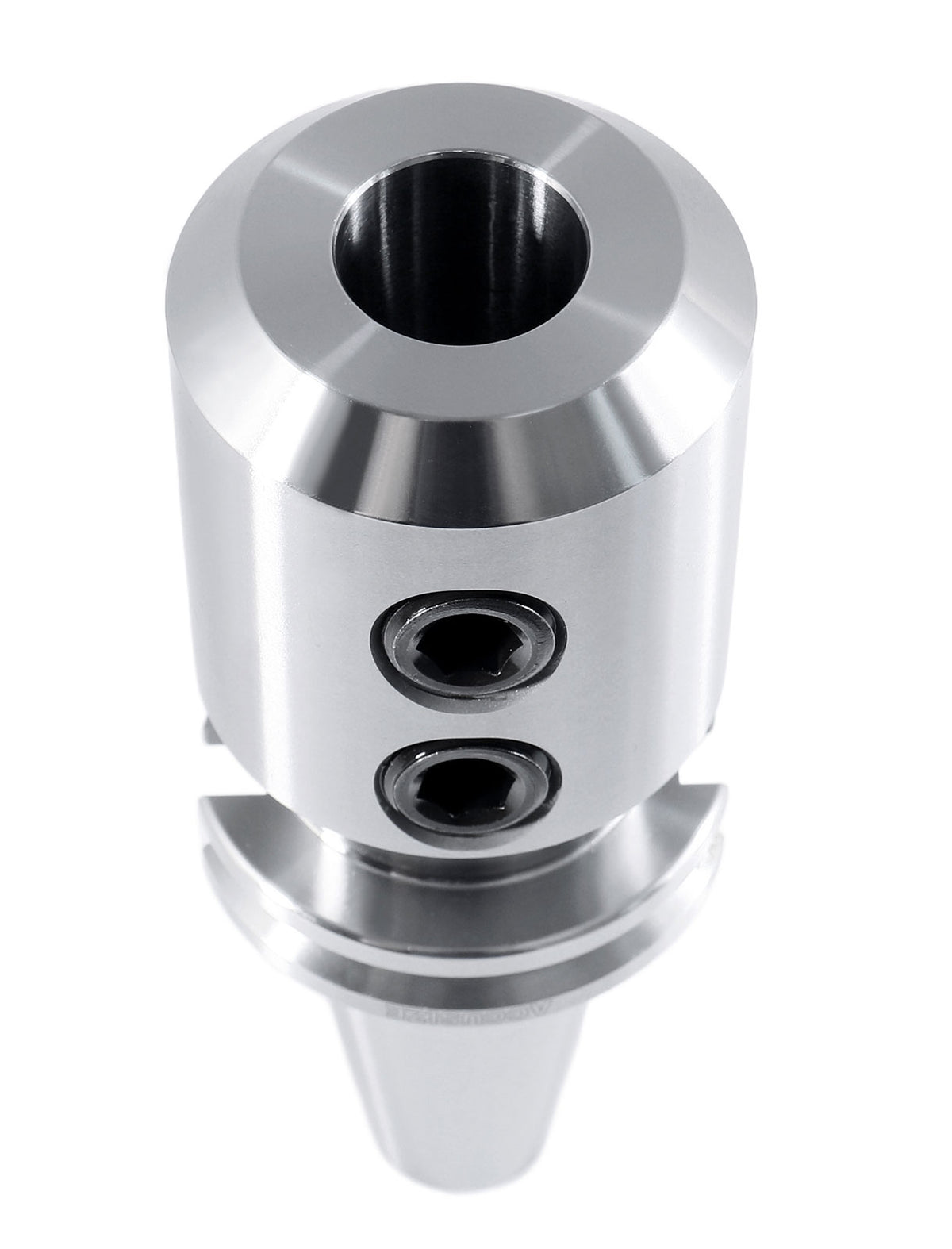

6780-7031 1" 4" 6-11/16" 2-31/64" 1-3/4" 1-1/8" 1"

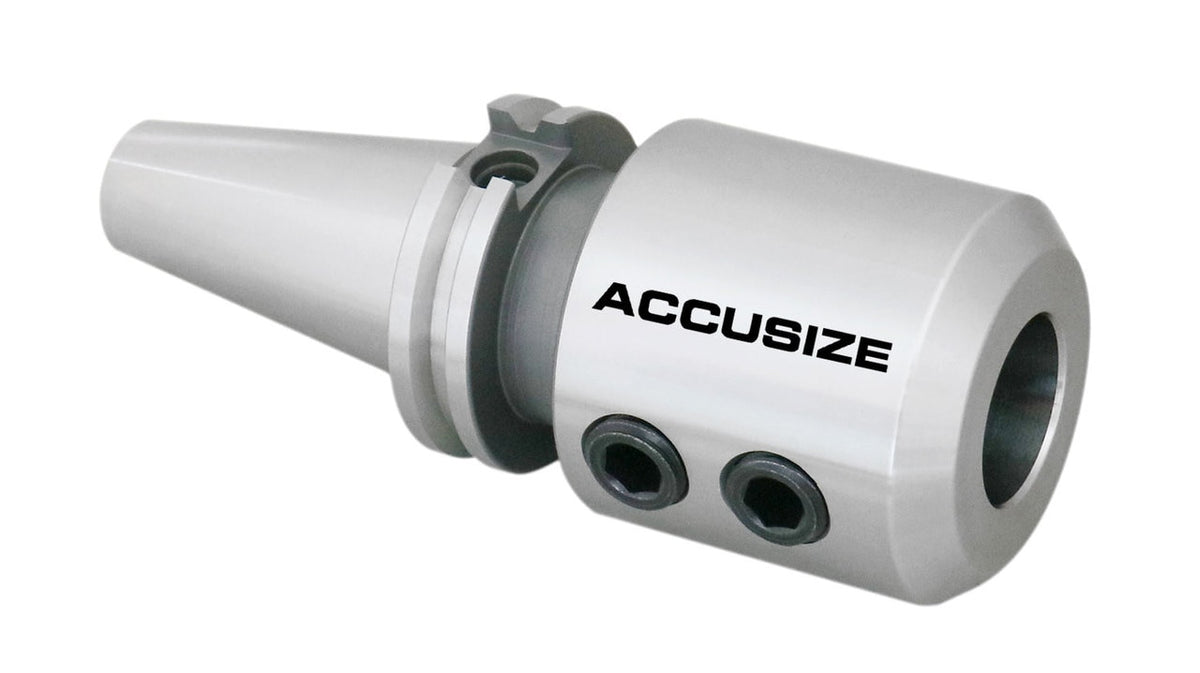

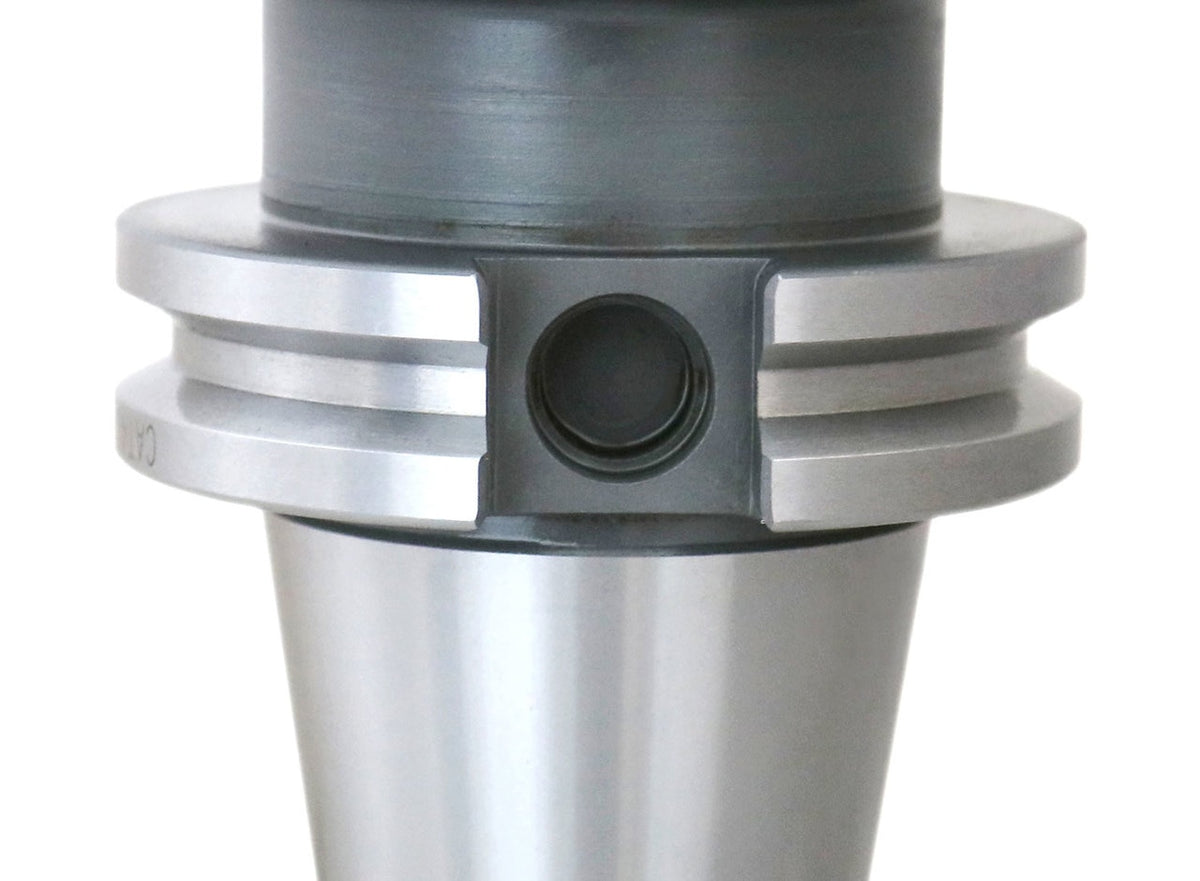

6780-7032 1-1/4" 4-1/8" 6-13/16" 2-3/4" 1-3/4" 1-1/8" 1"


DIAGRAM OF V-FLANGE CNC END MILL HOLDER
