Description

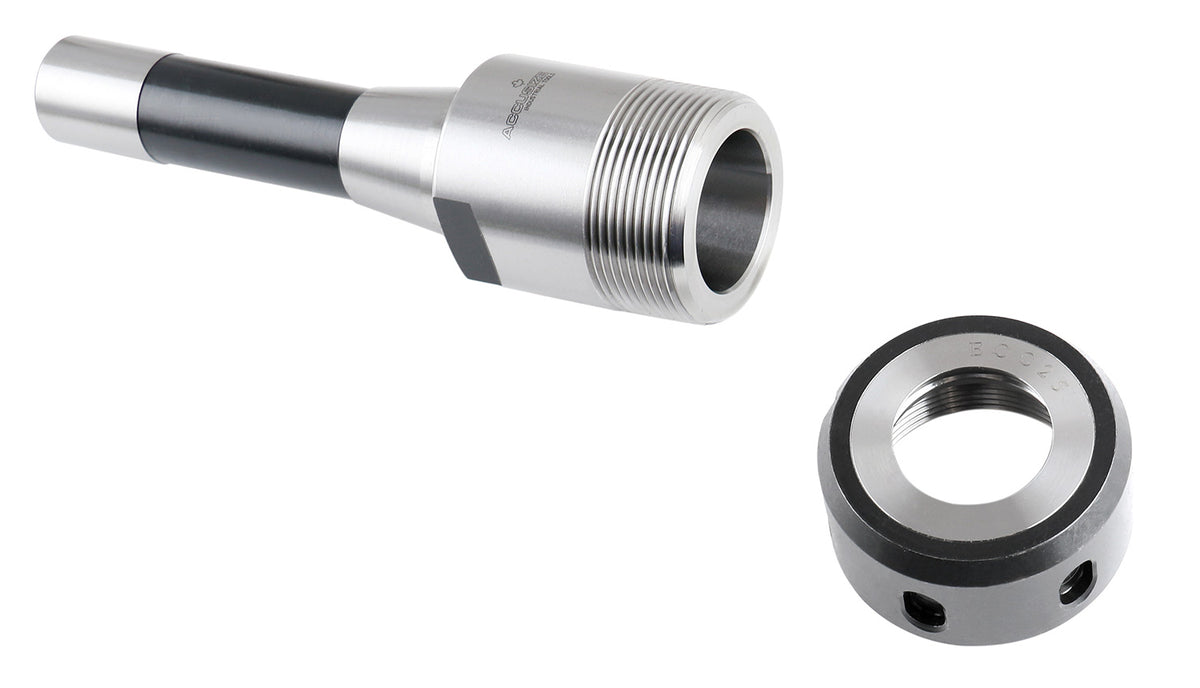

R8-OZ25 Collet Set 7 PCS/Sets , w/ 1 R8 Collet Chuck, and 1/4", 5/16", 3/8",1/2", 5/8", 3/4" & 1" OZ25 collets, 1 Spanner Wrench, 0223-0361
- OZ-25 Collet Set
- Fast single tool changing - no need to touch drawbar after inserting master holder.
- Spring collets are hardened and ground for maximum holding power and ultra-precision.
- Drawbar thread: R8 shanks 7/16" - 20; MT3 shank: 1/2" - 13;
- Collets must be snapped into the nut before inserted and tightened into the holder.
- Accuracy: 1/8" - 3/8": 0.00039" (0.010mm); 7/16" - 1": 0.00059" (0.015mm);

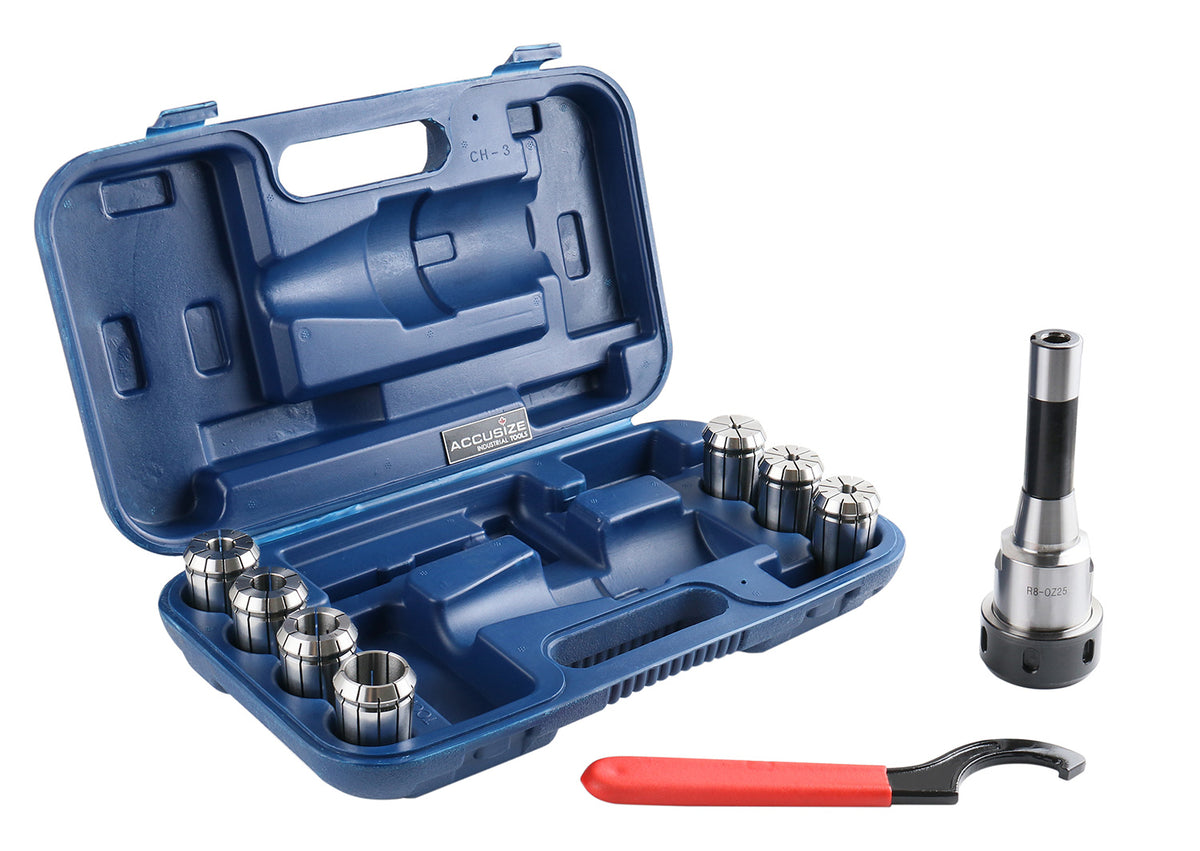

- Each complete kit includes 1 piece chuck holder with 1pc OZ clamping nut, nominal size OZ full grip collets, 1pc non-slip spanner wrench, & 1pc molded plastic case.

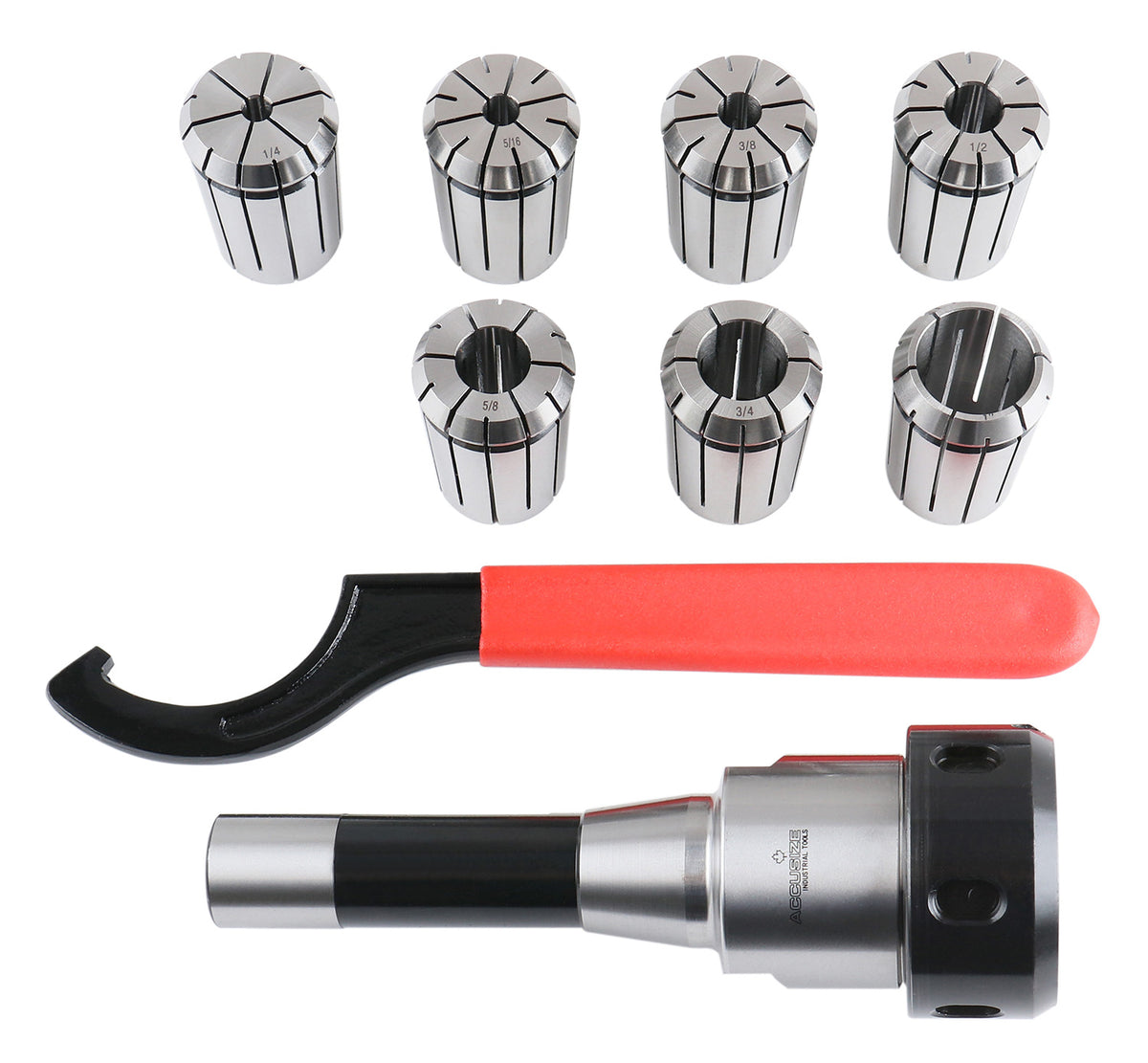

- 7Pc set includes the collets of the following sizes: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" and 1"; it also includes the wrench & R8 BridgePort chuck holder
OZ25 collet: (B type)
| Model No. | D | D1 | d2 | L | L1 | L2 | L3 |
| OZ25 | 1.295" | 1.261" | 3/32"-1" | 2.047" | 0.236" | 0.055" | 0.393" |
